Implementation of an Advanced Health-Monitoring System Capable of Real-Time Analysis and Alerting ^†

Abstract

The integration of technology into healthcare has moved from being a luxury to being a need at a time when there is an ever-increasing focus on individual health and wellbeing. The real-time monitoring of one’s health metrics and prompt alerts in the event of anomalies or irregularities hold enormous promise for proactive health management. This study’s objective and value are revealed in this setting. This project combines cutting-edge hardware and software technologies that have been specially designed to meet the fitness and health requirements of the modern person. The ESP8266 microcontroller, a flexible and potent platform, which functions as the system’s brain, easily integrates with a pulse sensor to deliver precise and uninterrupted heart rate monitoring. Real-time analysis of the recorded physiological data enables the early diagnosis of anomalies, abnormal heart rate patterns, or perhaps serious health events. The system uses a Buzzer to trigger a notice when such abnormalities are discovered, assuring prompt user attention. This cutting-edge health-monitoring system was designed with user security, privacy, and accessibility at its core, in addition to usefulness. A favorable user experience is guaranteed by the rigorous calibration of the alerting mechanisms, which deliver useful information without raising unnecessary concern. This initiative, which takes a user-centric approach, seeks to serve a wide range of users, from elders and people with chronic health conditions to athletes and fitness aficionados. This system’s implementation process has gone through a number of stages, including hardware integration, firmware development, algorithm design, and user interface refining. The equipment’s health-monitoring capabilities have undergone evaluation and calibration to guarantee their dependability and accuracy. Moreover, this project’s evolution has been significantly shaped by user input and continuous improvements. This essentially epitomizes the nexus of contemporary technology and healthcare, providing a practical answer for those who are concerned about their health and advancing the development of health-monitoring systems. It equips users with the tools required to play a proactive role in promoting the early identification of health issues, ensuring users’ wellbeing and offering peace of mind in a society that is becoming more and more health-conscious.

1. Introduction

The idea of a system that monitors health in real time is described in this article. It is intended to save crucial patient health data and facilitate communication with medical professionals through a variety of communication channels. At the moment, the majority of healthcare systems only use one means of communication, usually GSM or web-based access to information. In contrast, the suggested health-monitoring system uses three communication methods—BLE, Wi-Fi, and [1]—to improve healthcare delivery. Chronic diseases are becoming more prevalent, placing increasing strain on people and society and frequently necessitating regular hospital visits to check important health markers. Through the use of wearable sensors and Android smartphones, tablets, and wearable sensors, this system seeks to enable patients to easily monitor, evaluate, and record their vital signs. Another strategy promises to cut down on costs, human error, and time [2]. The suggested sensor-based wellness tracking technique includes RSA encryption and Huffman Compression Coding to assure data confidentiality. Additionally, it has embedded software and a prognostic-analysis-based alarm system that makes use of the Internet of Things (IoT) [3].

Another approach provides a safe Internet of Things-based health-monitoring system that unites patients and healthcare providers while prioritizing real-time connectivity for confidential health data records and maintaining security and privacy [4]. The creation of a smart plant-monitoring system combining IoT and automation technologies is the subject of another chapter [5], with a focus on the utilization of actual time data for intelligent decision-making. Additionally, a smart medicine-monitoring system based on the Internet of Things (IoT) and WSN has been described. It uses fuzzy logic to detect abnormal situations and allows real-time patient monitoring, the latter of which is especially helpful for old and young patients [6]. With the integration of IoT devices, this system excels at warning caregivers and hospitals when dangerous situations arise. It is tested using instantaneous patient data and can forecast trends.

2. Review of the Literature

An IoT-based health-monitoring system with temperature and pulse rate sensors was designed, and its deployment was explored [7]. With the help of this technology, clinicians can attain timely information on the health of their patients and respond quickly to anomalies [8]. Incorporating IoT and web-based monitoring lessens a system’s physical footprint while also reducing human error [9]. Additionally, an IoT-based smart healthcare system that can track patients’ fundamental health indicators and a room’s environmental variables in real-time has been proposed [10]. Another study investigated how cloud computing and online services, along with IoT, can simplify household appliance control and monitoring [11].

The significance of using GSM-based notifications to notify caregivers and hospital professionals in urgent medical circumstances has also been emphasized. Wearable sensors are used for monitoring, and these gadgets are made to be efficient and practical [12]. An innovative and safe IoT strategy was proposed, allowing for the prediction of serious health situations and the notification of necessary parties, such as family members, physicians, nurses, and on-call help. Data security and privacy are also given a lot of consideration by the system [13]. For monitoring and regulating intruders and dangerous events, the use of a wireless security system that uses GSM and ZigBee modems was additionally advised [14].

Authors have explained how telemedicine and remote healthcare are developing, particularly in the context of the IoT. A flexible health-monitoring system that accounts for heart rate, oxygen saturation, body temperature, photoplethysmography, ECG data, room temperature, and humidity was created and put into use [15]. The development of IoT for behavioral and physiological monitoring systems is the result of the growth of sensor technology. When different categorization techniques are compared, J48 performs the best for predicting health function status [16].

3. Proposed Strategy

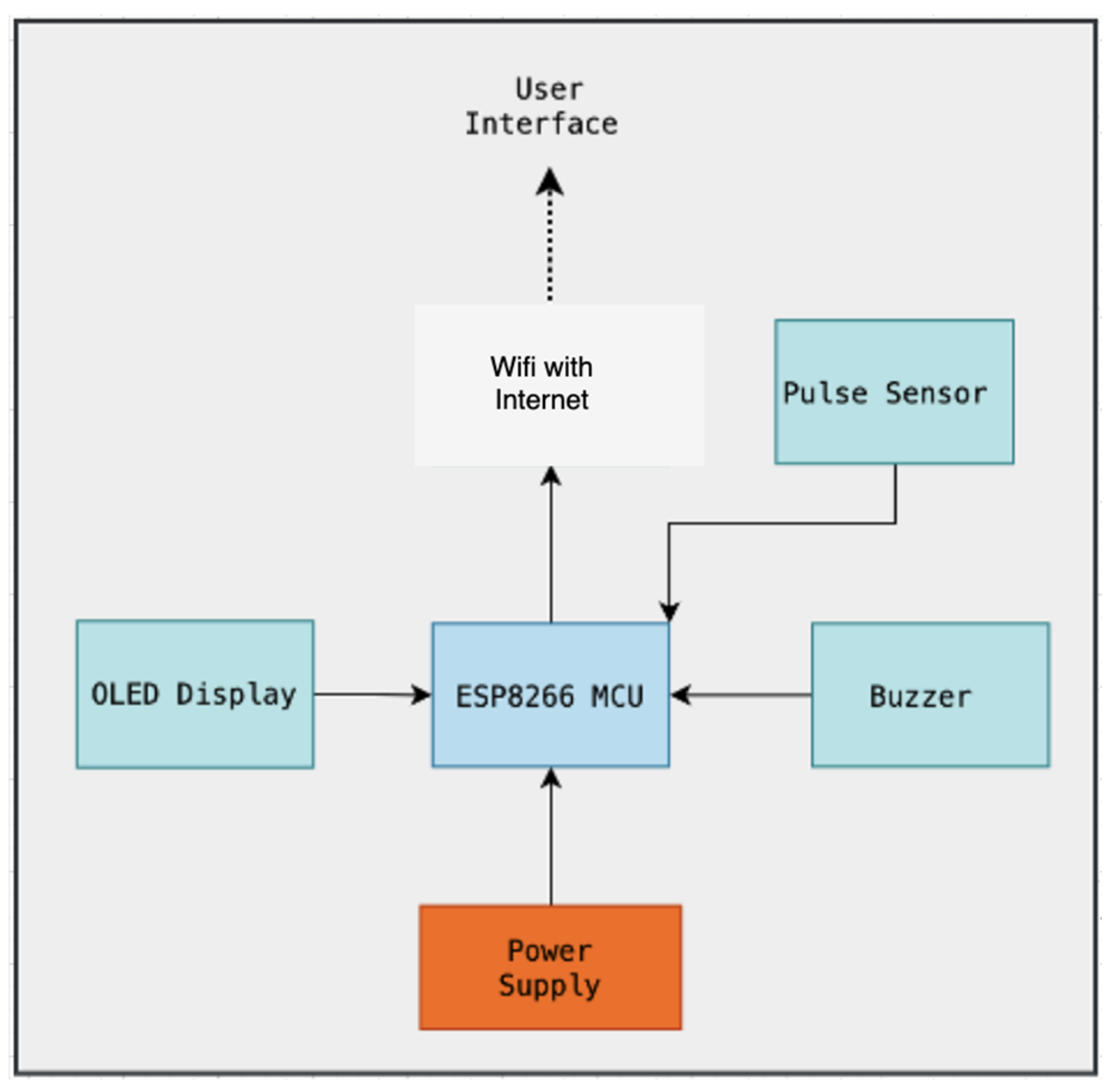

The pulse sensor module plays a crucial part in determining the user’s pulse rate, as seen in Figure 1. This module typically consists of a sensor component and any additional conditioning circuitry required to produce precise heart rate data. It serves as the system’s main source of physiological data. The ESP8266 microcontroller, which serves as the project’s central processing unit, is at its heart. The pulse sensor is connected to this microcontroller to provide real-time heart rate information. Its duties include data processing, in-the-moment heart rate pattern analysis, and decision making using preset criteria or algorithms.

The software or method that ESP8266 uses to analyze incoming heart rate data in real time is denoted by the adjacent block. The heart rate pattern is continuously monitored by this module, which also looks for any discrepancies or anomalies. Such abnormalities are detected, and an alert is sent, starting the alerting procedure. We used the OLED Display module, symbolized by the fourth block, to provide a user-friendly interface. This component displays the user’s current heart rate as well as any alarms or warnings. Users can interact with this system, modify settings, and access past data in addition to interacting with a real-time data display.

We utilized a basic buzzer block for audio alerting. This buzzer can be turned on by the real-time analysis module when it notices an irregularity in the heart rate data. This process produces an audible signal that attracts the user’s attention and encourages them to take urgent action. This block facilitates the critical dialogue that takes place between the user and the system. By employing buttons, touch controllers, or other interfaces, users can interact with the system through the OLED display. The user interaction block simplifies setting customization, data exploration, and alert acknowledgment, improving the user experience as a whole.

The power source, as depicted in Figure 1, supplies the required electrical energy to maintain the operation of the entire system. Depending on what is needed to maintain functionality, this power source may be batteries, a special power converter, or other power management devices. This system includes alerting and notification components, such as the visual alerts shown on the OLED Display and the auditory warnings produced by the Buzzer. The main method of notifying consumers about discovered anomalies or inconsistencies regarding their heart rate is the generation of these notifications.

4. Implementation of the System

4.1. Block Diagram for the System

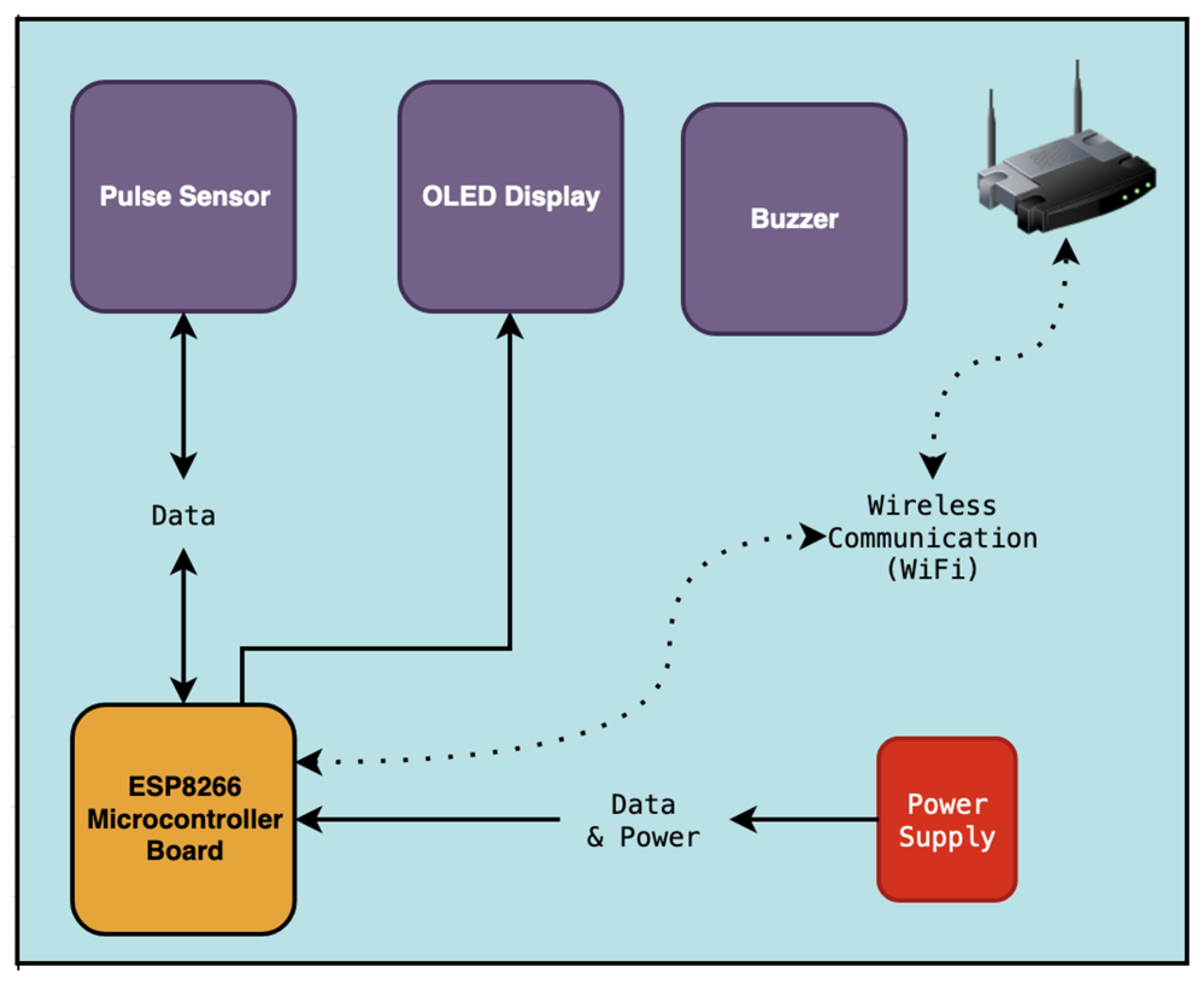

The pulse sensor module, the main component of this system responsible for precisely measuring the user’s heart rate, is the focal point of the proposed invention. To ensure accurate data acquisition, this module combines a physical pulse sensor with the required signal conditioning circuitry. The ESP8266 microcontroller, which serves as the brain of the device, connects to the pulse sensor to gather real-time heart rate information. This important element is critical to the system’s processing of data, analysis, and decision making. The algorithm or program that runs on ESP8266 and analyzes the heart rate data in real-time is shown in the block diagram. The purpose of the module is to continuously check the incoming data for any variations or irregularities in heart rate rhythm. An alert is sent whenever a discrepancy is discovered.

People using the system have access to a user-friendly interface thanks to the OLED display module. The user’s present heart rate and any pertinent alarms or warnings are shown on it, serving as the visual output. Additionally, it encourages user participation by letting users access historical data or adjust settings through its user-friendly interface. The audio alerting device is represented by the buzzer block. The buzzer can be turned on to create an audible alert that immediately tells the user when the real-time monitoring module spots an irregularity in the heart rate data. This block denotes the connections between the user and the system. The OLED display, as seen in Figure 2, allows users to alter settings, see historical data, and recognize notifications. Buttons, touch controls, and other interface elements can all be used to facilitate user input. The energy source that powers the entire system is represented by the power supply block. This part, which ensures continuous functioning, includes batteries, power adapters, and additional power management components. When a discrepancy or abnormality in the heart rate data is found, this module is in charge of informing the users. It includes both audio alarms produced by the buzzer and visual alerts produced on the OLED display, ensuring users are alerted as soon as any concerns arise.

4.2. Algorithm for the System

The algorithm starts working by collecting heart rate information constantly from the pulse sensor. The real-time analysis function is based on these data, which consist of heart rate values with timestamps derived from sensor readings. However, this system first performs crucial data preparation operations to clean the raw data, which may contain noise or abnormalities. To make sure that the data are appropriate for trustworthy analysis, the preprocessing activities conducted frequently involve noise filtering, signal smoothing, etc. The algorithm’s real-time analytical abilities are at the heart of its fundamental functionality. The respiration data are carefully examined during this stage to detect any unusual patterns or irregularities. For this, a variety of methods are used:

Threshold-Based Detection: This simple method compares each heart rate reading to upper and lower thresholds that have been set beforehand. Any measurement that deviates from these predetermined bounds is considered an abnormality.

Heart Rate Variability, also known as HRV, Analysis: This technique involves figuring out how much variation there is between successive heart rate readings. Alerts can be sent when there are abrupt or irregular changes in HRV since they may be signs of potential health problems.

Pattern Recognition: Using historical heart rate data, the system analyzes trends and patterns. Alerts can be sent when there are abrupt spikes or severe declines in these data, which can indicate abnormalities.

The algorithm generates notifications in many modalities when an anomaly or irregularity is discovered during real-time analysis:

Visual Alerts: The OLED display graphically displays information about the type and severity of an abnormality, giving consumers rapid feedback.

Audible Alerts: The algorithm simultaneously activates the buzzer to provide an audible alarm, ensuring that users receive pertinent and obvious cautions.

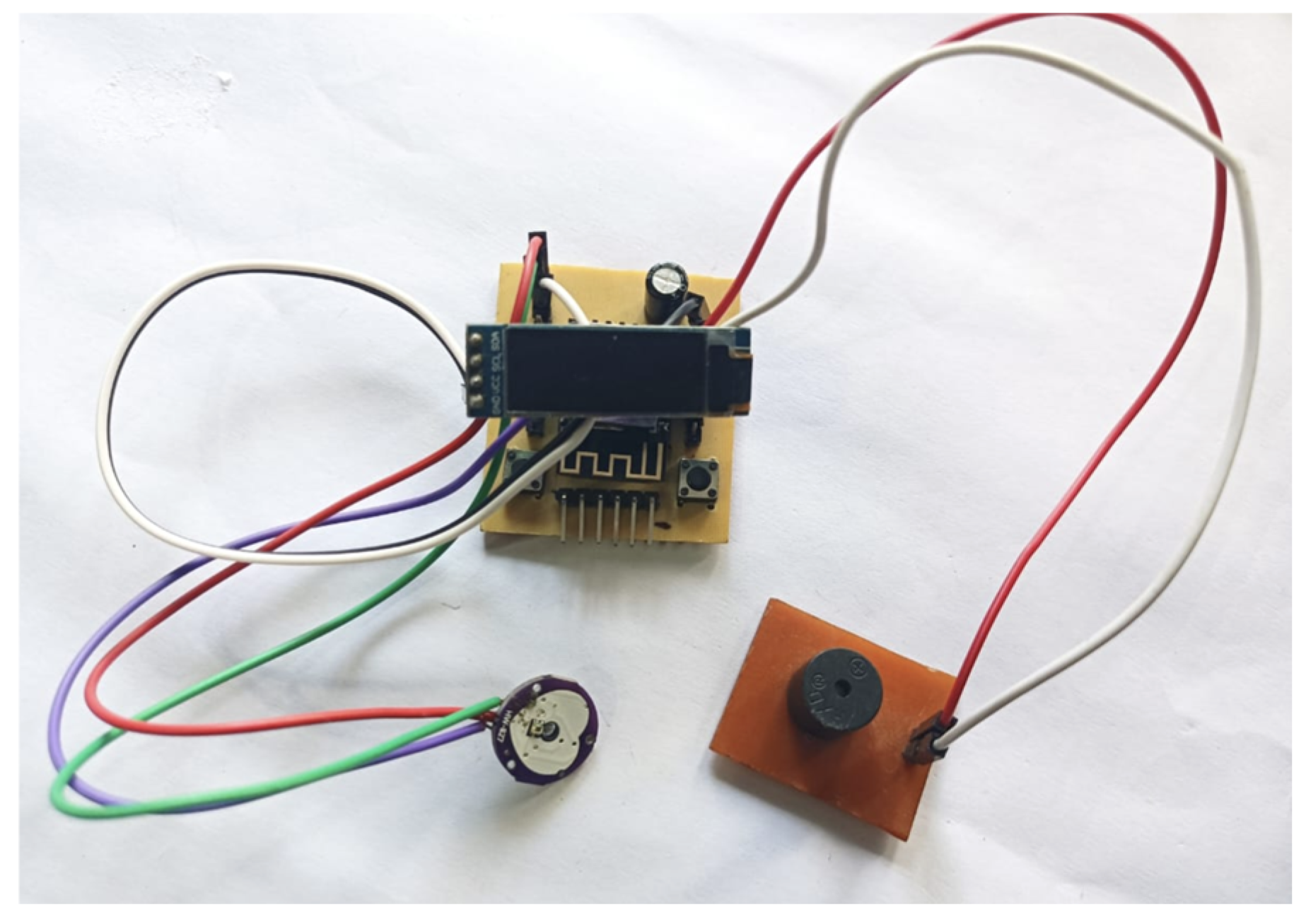

The system includes controls that limit the frequency and length of notifications in order to avoid over-alerting for slight variations in heart rate data. These functions may include establishing cooling intervals between resetting notifications for the same problem and enabling users to precisely adjust the alerting system’s sensitivity to suit their preferences. The innovation’s results are depicted in Figure 3. The algorithm’s operation depends heavily on user interaction. The OLED display or alternative interfaces can be used to display notifications for users to acknowledge. By temporarily turning off the audible alarm after acknowledging it, users can control how the system responds. The algorithm enables interaction between users through the OLED display and other surfaces to deliver a tailored experience. In order to meet their unique health needs and preferences, users can modify settings, analyze past data, and alter alarm thresholds. The program incorporates effective power management, which optimizes energy use to prolong the battery life of the gadget. During idleness, this can entail turning on sleep mode or low-power states.

5. Conclusions

In summary, this invention creates a framework for a revolutionary method of health monitoring. Because of its user-centered design and real-time functionality, people can take control of their health. There is a lot of room for improvement and extension as technology develops and user demands change, eventually leading to a society that is healthier and better informed. Real-time health monitoring and personal health management have significantly advanced thanks to this. In this project, we successfully used contemporary technology, such as the ESP8266 microcontroller, a pulse sensor, an OLED display, and a buzzer, to produce a complex yet approachable system. This technology enables people to actively control their wellbeing through continuous heart rate evaluation, real-time data processing, and appropriate alerting mechanisms. This cutting-edge technology offers customized solutions, whether serving athletes aiming for top performance, elders needing thorough health monitoring, or people managing chronic health concerns. Users may simply adjust settings, examine historical data, and react to alarms due to its user-centric design, which enables intuitive interactions via an OLED display. With customizable sensitivity levels and the algorithm’s capacity to discriminate between slight variations and big anomalies, the system is better equipped to respond to different user needs.

While this initiative creates a solid platform for improved health monitoring, a number of intriguing directions need to be explored and developed further:

• Improved Sensor Technology—Take into account incorporating more sophisticated sensor technological advances, such as multi-sensor arrays that can track a wide range of health metrics, such as oxygen saturation, blood pressure, or ECG data, in addition to heart rate.
• Artificial Intelligence (AI)—Investigate the combination of algorithms based on AI and machine learning to improve anomaly detection precision and offer prognostic information about a user’s health, potentially allowing for the early identification of problems like arrhythmia or sleep disturbances.
• Mobile App Integration—Create a mobile app that syncs with the health-monitoring system to give consumers access to a more thorough and usable health dashboard, remote monitoring capabilities, and the option to share data with medical specialists.
• Wearable Form Factors—To improve user comfort and enable continuous monitoring throughout the day, consider changing the system into a wearable device, such as a smartwatch or fitness band.
• Cloud Connectivity—Enable smooth data syncing with cloud-based platforms to support safe data storage, remote monitoring, and the potential for population health studies.
• Regulatory Compliance—Seek regulatory approval, such as FDA certification, if the project is intended for medical applications to make sure it complies with medical device requirements.
• User Education—Create thorough user education resources to ensure that people are aware of how to analyze health data, react to alarms, and make wise decisions regarding their health.
• Accessibility and Inclusivity—Continue to work on increasing this system’s usability so that it can accommodate a wider range of users, including those with impairments or certain medical requirements.
• Long-Term Health Trends—Include data analysis tools that let people and medical professionals keep track of long-term health trends and assess the efficacy of health initiatives.
