Proceeding Paper

Evaluation of the Safety of Immobilized Microorganisms Lysobacter sp. on Inorganic Media †

Institute of Pharmacy, Chemistry and Biology, Belgorod State University, 85 Pobedy Street, 308015 Belgorod, Russia
*
Author to whom correspondence should be addressed.
Presented at the 2nd International Electronic Conference on Processes: Process Engineering—Current State and Future Trends (ECP 2023), 17–31 May 2023; Available online: https://ecp2023.sciforum.net/.
Eng. Proc. 2023, 37(1), 71; https://doi.org/10.3390/ECP2023-14706
Published: 18 May 2023

Abstract

:
It is known that the immobilization of microorganisms on carriers of various natures increases their safety. The inorganic matrices used were sodium carboxymethyl cellulose, technical brand “KMC 85/500;” colloidal silicon dioxide in the form of a commercial preparation, “Polysorb;” and the sodium form of montmorillonite from the Podgorenskoye deposit in the Voronezh region. Bacterial cells were immobilized by adding Lysobacter sp. solid sterile carrier with constant mechanical stirring in a “carrier/biomass” ratio equal to 1: (2–4). During the experiment, it was found that the mineral montmorillonite is a promising material for the immobilization of bacterial cells in order to obtain biocompositions based on them, since a positive trend in the preservation of bacterial cells was revealed.

1. Introduction

Currently, a promising direction in biomedicine is the creation of biofilms and compositions based on microorganisms as antagonists of pathogenic microflora on carriers of various natures [1,2,3].
The aim of the study was to identify a rational inorganic carrier for the immobilization of Lysobacter sp.

2. Materials and Methods

As a model bacterial culture for immobilization, a Lysobacter culture isolated from the soil of the city of Belgorod using classical biotechnology methods with confirmation of generic affiliation by 16S rRNA sequencing (1484 nucleotides) was used, as a result of which a unique nucleotide sequence of the strain among those presented in GenBank was revealed: the maximum percentage of similarity observed with strain L-43 (MT229166.1) and Lysobacter enzymogenes M497-1 (AP014940.1) was 99.7% each.
As a growth substrate, a liquid nutrient medium containing 0.2 wt% casein and 0.1 wt% yeast extract was used; T = 30 °C; log phase—24 h. The metabolic products were chitosan, beta-1,4-glucanase, and protease.
To study the effect of immobilization of microorganisms and their enzymes, the following solid carriers were used:
  • Sodium carboxymethyl cellulose (NaCMC) technical brand “KMC 85/500” produced by LLC “Davos-Trading”. TU 2231-001-53535770-2010 (with change No. 1.2): degree of substitution for carboxymethyl groups 80–90; degree of polymerization 500–550; pH value (pH) of an aqueous solution with a mass fraction of CMC 1% in the range of 8–12; dynamic viscosity of a 2% CMC solution at a temperature of 25 °C mPa*s according to the Brookfield method, not less than 100.
  • Colloidal silicon dioxide in the form of a commercial preparation called “Polysorb,” produced by JSC “Polysorb.” Polysorb MP (medical oral) is an inorganic, non-selective, multifunctional enterosorbent based on highly dispersed silica with particle sizes up to 0.09 mm and the chemical formula SiO2. The sorption capacity of the drug for internal use is 300 m2/g.
  • Sodium form of montmorillonite (NaMMT) from the Podgorenskoye deposit, Voronezh region [4,5], obtained by introducing soda ash (4 wt%) into a native rock suspension (5 wt%), followed by sedimentation enrichment and drying (t = 95 ± 3 °C). The quantitative content of montmorillonite, determined according to GOST 28177-89—79.35 ± 0.14 wt.%. As a result of the modification, the crystal lattice parameters changed: for the native form of Ca-montmorillonite, a = 5.16 Å, b = 8.94 Å, c = 15.02 Å; for modified montmorillonite, a = 5.22 Å, b = 9.04 Å, c = 13.82 Å. Specific surface, 60 m2/g, specific pore volume, 0.083 cm3/g; average pore size, 55.5 Å.
The immobilization of bacterial cells was carried out by adding Lysobacter sp. in the logarithmic phase of growth to a solid sterile carrier with constant mechanical stirring in the ratio “carrier/biomass,” equal to 1:(2–4), at a temperature of 30 °C; the mixture was thoroughly mixed for at least 40 min, frozen at minus 40 °C, and then freeze-dried at minus 40–45 °C for 24 h to a level of 3–7% moisture content of the composition. The dry compositions obtained were then stored in sterile flacons at room temperature.
Survival after immobilization of microorganisms Lysobacter sp. on solid carriers was determined by the Pour Plate method, in which the samples were suspended in a Petri dish using molten agar cooled to about 40–45 °C (just above the solidification point to minimize heat-induced cell death). After the nutrient agar solidified, the plates were incubated for 24 h, and the number of colony-forming units (CFU) was determined by the serial dilution method.
The degree of preservation (α, %) was determined by the following formula:
α = 1 C F U r e f C F U n C F U r e f × 100 %
where CFUref is the number of colony-forming units in the biocomposition immediately after immobilization and CFUn is the number of colony-forming units in the biocomposition after storage on the n-th day.

3. Results

The results of assessing the viability of immobilized Lysobacter sp. are presented in Table 1, and Figure 1 shows the dynamics of the preservation of bacterial culture.
After three months (92 days) of storage of lyophilizates, the following results were obtained:
  • Lyophilization of the bacterial culture of Lysobacter sp. without immobilization on the matrix leads to a 37.5% decrease in safety;
  • Cell immobilization on sodium carboxymethyl cellulose allows safety to increase up to 65%, and on colloidal silicon dioxide (Polysorb), it increases up to 50%;
  • When immobilized on the mineral montmorillonite, not only is the preservation of microorganisms manifested, but there is also an 18% increase in the number of cells.

4. Conclusions

In summary, a positive trend in the preservation of bacterial cells during immobilization on solid carriers was revealed. It has been established that the most effective matrix for immobilizing Lysobacter sp. is the sodium form of montmorillonite. The obtained research results can be used to create biocompositions based on bacterial cultures for various purposes.

Author Contributions

Conceptualization, U.K., G.S.; methodology and visualization, A.V.; formal analysis, G.S.; investigation, M.P.; writing—review and editing, E.K. and A.R. All authors have read and agreed to the published version of the manuscript.

Funding

The work was carried out within the framework of the state task FZWG-2023-0007. Adaptive reactions of microorganisms: theoretical and applied aspects.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Andryushina, V.A.; Balabanova, T.V.; Beklemishev, A.B.; Varfolomeev, S.D.; Vodyakova, M.A.; Demakov, V.A.; Ditchenko, T.I.; Dzhavahiya, V.V.; Drozdova, M.G.; Efremenko, E.N.; et al. Immobilized Cells: Biocatalysts and Processes; Publishing Center RIOR: Moscow, Russia, 2018; 500p. [Google Scholar]
  2. Milivojevic, M.; Pajic-Lijakovic, I.; Bugarski, B.; Levic, S.; Nedovic, V. Alginic acid: Sources, modifications and main applications. In Alginic Acid Chemical Structure, Uses and Health Benefits; Nova Science Publishers: Hauppauge, NY, USA, 2015; pp. 45–88. [Google Scholar]
  3. Niyazbekova, Z.T.; Nagmetova, G.Z.; Kurmanbayev, A.A. An overview of bacterial cellulose applications. Eurasian J. Appl. Biotechnol. 2018, 13, 17–25. [Google Scholar] [CrossRef]
  4. Shaidorova, G.M.; Vezentsev, A.I.; Trufanov, D.A. Obtaining the sodium form of clays from the Podgorenskoe deposit of the Voronezh region. Bull. Technol. Univ. 2022, 25, 101–105. [Google Scholar] [CrossRef]
  5. Shaidorova, G.M.; Vezentsev, A.I.; Trufanov, D.A.; Sokolovsky, P.V. Sorption activity of sodium-modified bentonite-like clays of the Podgorensky deposit of the Voronezh region. Actual physical and chemical problems of adsorption and synthesis of nanoporous materials. In All-Russian Symposium with International Participation, Dedicated to the Memory of corr. RAS V.A. Avramenko. Collection of Proceedings of the Symposium; IFCHE RAN: Moscow, Russia, 2022; pp. 177–179. [Google Scholar]

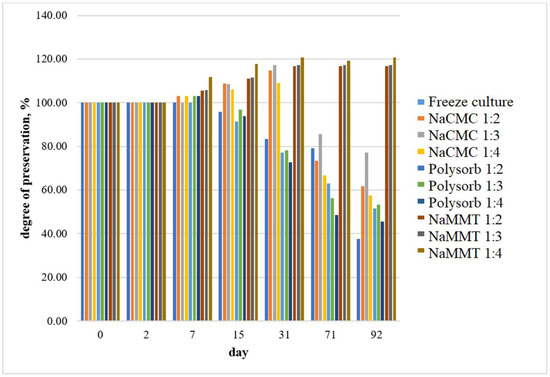

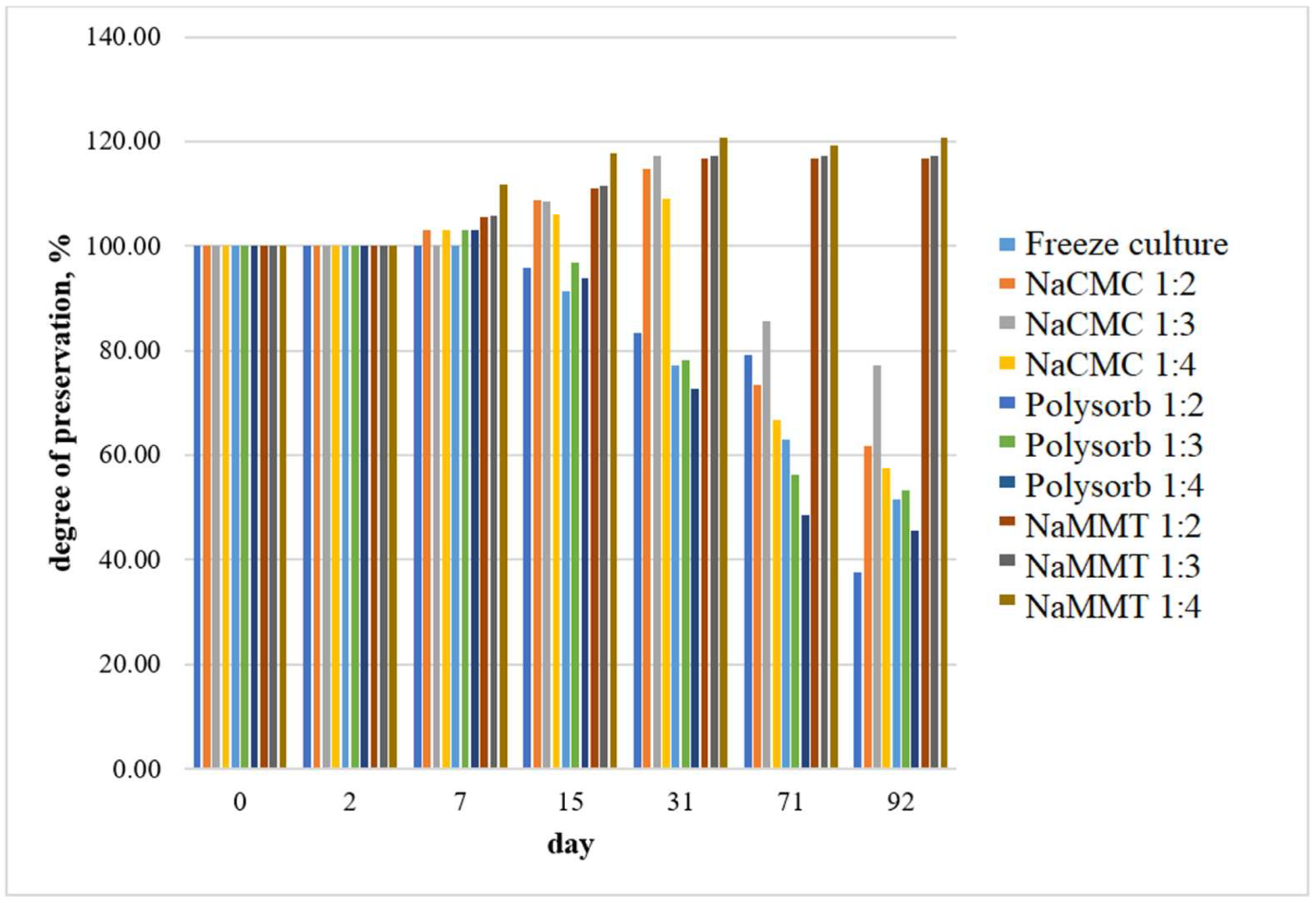

Figure 1. Dynamics of the preservation of the bacterial culture Lysobacter sp.
Figure 1. Dynamics of the preservation of the bacterial culture Lysobacter sp.
Engproc 37 00071 g001
Table 1. Viability of immobilized Lysobacter sp. cells.
Table 1. Viability of immobilized Lysobacter sp. cells.
Biomass/Carrier RatioCFU * (g/L) after Storage
Day 2Day 15Day 31Day 92
Freeze culture2.4 ± 0.04 × 1052.3 ± 0.06 × 1052.0 ± 0.04 × 1050.9 ± 0.05 × 105
NaCMC 1:23.4 ± 0.06 × 1053.7 ± 0.02 × 1053.9 ± 0.05 × 1052.1 ± 0.02 × 105
NaCMC 1:33.5 ± 0.04 × 1053.8 ± 0.03 × 1054.1 ± 0.07 × 1052.7 ± 0.07 × 105
NaCMC 1:43.3 ± 0.07 × 1053.5 ± 0.03 × 1053.6 ± 0.05 × 1051.9 ± 0.03 × 105
Polysorb 1:23.5 ± 0.02 × 1053.2 ± 0.02 × 1052.7 ± 0.01 × 1051.8 ± 0.02 × 105
Polysorb 1:33.2 ± 0.03 × 1053.1 ± 0.01 × 1052.5 ± 0.05 × 1051.7 ± 0.01 × 105
Polysorb 1:43.3 ± 0.03 × 1053.1 ± 0.05 × 1052.4 ± 0.07 × 1051.5 ± 0.04 × 105
NaMMT 1:23.6 ± 0.03 × 1053.8 ± 0.02 × 1054.0 ± 0.04 × 1054.2 ± 0.06 × 105
NaMMT 1:33.5 ± 0.05 × 1053.7 ± 0.06 × 1053.9 ± 0.07 × 1054.1 ± 0.03 × 105
NaMMT 1:43.4 ± 0.01 × 1053.8 ± 0.04 × 1054.0 ± 0.06 × 1054.1 ± 0.03 × 105
* Std. Deviation.
