Proceeding Paper

Fluorescent Based Tracers for Oil and Gas Downhole Applications: Between Conventional and Innovative Approaches †

1
Aramco Innovations, 119234 Moscow, Russia
2
Saudi Aramco Research Center at KAUST, Thuwal 23955, Saudi Arabia
*
Author to whom correspondence should be addressed.
Presented at the 1st International Electronic Conference on Processes: Processes System Innovation, 17–31 May 2022; Available online: https://sciforum.net/event/ECP2022.
Eng. Proc. 2022, 19(1), 12; https://doi.org/10.3390/ECP2022-12670
Published: 30 May 2022

Abstract

:
Tracers are specific materials widely used in the modern oil and gas industry for reservoir characterization via single-well or inter-well tracer tests. We engineered new tracers and extended tracer test applications for on-site real-time well-drilling monitoring. Robust and cost-efficient fluorophores embedded into carrier matrices were developed to label drill cuttings as they were made at the drill bit face to improve drill-cutting depth correlation. These novel tracers allow for automated detection at concentrations up to the ppt level. Thus, the innovated tracers open the horizon to detect in real-time the drilling depth to enhance well placement and hydrocarbon recovery.

1. Introduction

In the oil and gas industry, tracers are used as a monitoring and surveillance tool to obtain the information about the reservoir along with other methods, such as monitoring of production rate of reservoir fluids, 4D seismic, pressure tests, and others [1]. The tracer could be defined as an infinitesimal and identifiable part of a mass that is introduced or naturally present and can be used to keep track of this mass.
Current industrially used tracers are isotopes, dyes, chemical tracers, microelements, ions, and gases including noble gases. Tracers are commonly applied for three major types of oilfield tests–these are nonpartitioning and partitioning inter-well tracer tests and the single-well tracer test [2] (Figure 1).

2. Fluorescent Tracers

2.1. Fluorescent Dyes

Ease of sensing of fluorescent compounds is the major advantage of fluorescent dye-tracers that sometimes can be performed even visually [3]. The additional interest in fluorescent tracers is due to the quantitative detection of fluorescent compounds being up to 104 times lower than for nonfluorescent chemicals. Moreover, fluorescent tracers are relatively inexpensive, readily available at the commercial scale, relatively nontoxic at low concentrations, and able to be monitored and quantified via simple, portative, and cost-efficient analytical techniques that include spectrofluorimetry, UV–Vis spectroscopy, and digital color analysis. Most well-known fluorescent molecules commonly tested in oilfield applications include fluorescein/uranine [3,4,5,6], rhodamine [1,4,7], eosin [8], and polyaromatic sulfonic acids (Table 1).
Fluorescein is stable in regular downhole conditions and has low adsorption on formation rock [8,15]. This tracer has been successfully used in carbonate reservoirs with 82.1% recovery [16]. It should be noted that laboratory tests show that fluorescein could be applied in geothermal reservoirs with temperatures below 210 °C; however, this tracer quickly degrades above 260 °C and is unstable at 200 °C in the presence of oxygen [9].
Other xanthene dye tracers possess lower thermal stability. Thus, Rhodamine B is stable up to 195 °C in inert atmosphere and thermally degrades over 496 K [17]. Application of Rhodamine WT was reported to be limited only to low-temperature geothermal fields [15].
Moreover, some xanthene dyes can exhibit nonideal behavior due to adsorption on reservoir solids and demonstrate essential retention in breakthrough times. Such performance could be accepted only for qualitative tests, which is why these tracers’ application is currently limited to fractured wells with quick reverse fluid flow (up to five days) [1]. Most xanthene dyes do not possess sufficient thermal stability for application in geothermal reservoirs [15]. To overcome thermal degradation of tracers, a new class of fluorescent organic derivatives was proposed for high-temperature reservoirs that consists of polycyclic aromatic sulfonic acid salts.
Naphthalene sulfonic acid (NSA), naphthalene disulfonic acids (NdSA), and naphthalene tri-sulfonic acids (NtSA)) were suggested as novel conservative water tracers [5] for geothermal applications. Among them, unsubstituted NSAs were the most promising tracers based on their thermal stability (up to 300 °C) and good detectability. NSA, NdSA, and NtSA were successfully tested in lab and in field geothermal applications [8,14,18,19,20]. These compounds possess the highest thermally stability (up to 330 °C) and are resistant to adsorption to negatively charged rock in geothermal reservoirs due to the tracers’ strong electronegative charge. Of those tested, 2,7-NdSA and 2-NSA were the most stable polyaromatic sulfonic acids [1]. NSAs substituted with hydroxyl and amino groups were also successfully tested up to 250 °C; however, their thermal stability was lower than the one of nonsubstituted NSA. Biphenyl-, p-terphenyl-, and fluorenesulfonic acids demonstrated no overlap in fluorescent emission spectra with oil-based naphthalene contaminants and thus were easily detectable [14]. Among them, 4,4′-biphenyl-disulfonic acid possessed thermal stability similar to NSA and demonstrated very low adsorption to rock (tested at 195 °C over 60 days); although, other terphenyl and fluorene sulfonates were less thermally stable.

2.2. Fluorescent Quantum Dots

A new nontoxic tracing technology was recently developed possessing a unique spectral signature of tags, which could be detected at extremely a low detection limit and were suitable for subsurface high-pressure high-temperature (HP/HT) applications [21]. Carbon quantum dots are nontoxic, water-soluble, and resistant to photobleaching. The optical and fluorescence spectral properties of quantum dots are unique and visible to naked eyes under UV light at concentrations of 1 ppm. The detection of more dilute solutions can be performed with portable lab kits [22]. These tracers remain stable at downhole conditions at temperatures up to 300 °C; it does not absorb to or damage the reservoir formation and does not have a negative impact on the environment.
Kanj [23,24] described industrial applications of carbon-based nanoparticles (A-Dots) as oil field inter-well tracers. Designed for harsh HP/HT conditions, these tracers were examined to withstand temperatures over 100 °C, high salinity over 150,000 ppm in total dissolved solids, and 3200 psi pore pressure. A-Dots’ detection limit is below the single-digit ppm level with fluorescent emission at 460 nm.

3. Innovative Fluorescent Tracers for Near-Real-Time Drilling Depth Monitoring

Directional horizontal drilling complicates the removal of rock debris from the borehole with circulation of the drilling mud. It increases uncertainties in lithology surveying and disturbs geosteering works. Unlike tracers and the test methods summarized above that were applied for surveying existing wells, we proposed to develop novel testing technology with the objective of monitoring drilling progress and labelling drill cuttings as they are made at the drill bit face. It is important to mention that the first tags developed for drill cutting labelling [25] were designed for laboratory GC–MS detection. In our case, the injection of fluorescent tracers for drill cutting labelling as they are formed at the drill bit site combined with near-well-head charge-coupled device (CCD) camera detection and image recognition system would allow for cuttings‘ identification according to the depth and real-time on-site drilling depth monitoring.

3.1. Preparation and Stability Examination of Tracers for Drill Cutting Labelling

Aiming to obtain visibly detectable fluorescent tags, we performed impregnation of a few types of matrices with a number of advanced fluorophores to yield up to mm-sized fluorescent assemblies. These assemblies were made to be injected into the well with drilling mud to tag formation cuttings upon breakage of the matrix-carrier (or capsule) by a drill bit.
Various matrices were studied for the trial loading of/modification with fluorophores, including silica, ceramics, poly(vinyl alcohol), chitosan, and superabsorbent polymer (SAP) based on sodium salt of poly(methyl acrylate). Selected matrices (silica, ceramics, and polyacrylate SAP) were soaked with an aqueous solution of dyes (fluorescein, rhodamine B, and commercial pigments) followed by drying in a vacuum oven. Poly(vinyl alcohol) was modified with fluorescein isothiocyanate (FITC) according to published procedure [26]. Chitosan was cross-linked with glutaraldehyde in the presence of commercial fluorescent pigments and subsequently lyophilized to yield a dry fluorescent network.
Obtained materials were tested for stability to conditions mimicking downhole media. Thus, samples of fluorescent-loaded tags were incubated at 90 °C with aqueous brines containing formation salts NaCl, CaCl2, MgCl2, Na2SO4, and NaHCO3 for a period between one day and one week. Degradation via hydrolysis was noted for fluorescent-modified poly(vinyl alcohol) upon exposure to electrolyte solutions over a few hours. Cross-linked chitosan, bearing incorporated pigment, showed a slight decrease in fluorescent intensity upon treatment with electrolytes over one day. Moreover, the chitosan cross-linked matrices were destroyed at acidic media, limiting their possible use in downhole conditions. Fluorescein and fluorescent-pigment-loaded silica (Flu-SiO2) as well as xantene-dye-loaded superabsorbent polymer (Flu-SAP) exhibited no visible decomposition and demonstrated almost no leakage of dye at the described conditions. Consequently, these stable matrices (Flu-SiO2 and Flu-SAP) were further tested for resistance to organic solvents (THF, ether, and diesel). Among the materials tested for exposure to organic media, fluorescein- and rhodamine-loaded SAPs, fluorescein and pigment-loaded SiO2 exhibited no visible deterioration of the fluorescent properties.

3.2. FT-IR Spectroscopy Characterization of Tracers

SAP-based matrices loaded with xanthene dye were further characterized by ATR-FTIR spectroscopy. The appearance of the additional absorbance signal around 1750 cm−1 related to the stretching vibration of the carbonyl group of xanthene-dye-loaded SAP compared to blank SAP matrix confirms the entrapment of fluorophores inside the net of superabsorbent polymer. The quite low intensity of this absorbance signal is due to the loading of a small quantity of fluorophore into the SAP matrix that resulted in good enough to reach high-fluorescence intensity detectable by the naked eye and camera. An increase in the loading of dye into the polymer resulted in fluorescence quenching and a perceptible decay of emission up to its total loss. Thus, the engineering of fluorescent-loaded tags based on the polymer entrapment of emitting dyes resulted in an efficient fluorescence assembly with minimal loading of emitter.

3.3. Fluorescence Characterization of Tracers for Automated Detection

The most stable of the obtained fluorescence-loaded tags were characterized by spectrofluorimetry. Pre-concentration of the emitting molecules within the tags’ matrices allowed for enhanced fluorescent intensity of the prepared tracers and resulted in the possibility of their visual detection. The tags’ fluorescent emission was noticeably more intense compared to the background fluorescence. In some cases, the interaction of polymer-matrix carriers with a molecule of fluorophore resulted in a bathochromic shift of fluorescence emission wavelengths, as was noted for fluorescein-loaded SAPs. Prepared fluorescent loaded tags were aimed for further downhole drill-cutting labeling tests followed by near-well-head camera detection.

4. Conclusions

In this work, we innovated a new concept of downhole fluorescent drill-cutting tracing engineered for on-site near-real-time detection with a camera and image-recognition system. Fluorescence-loaded tags were made to be injected into the well with drilling mud to tag formation cuttings according to the depth upon breakage over formation by a drill bit. Fast and simple drill-cutting depth determination would improve accuracy in drilling depth correlation and advance the petrophysical characterization of a formation to allow for optimal well placement.

Author Contributions

Conceptualization, N.A. and V.S.; methodology, V.K.; formal analysis, V.K.; investigation, V.K. and V.S. resources, N.A., V.K. and V.S.; writing—original draft preparation, V.K. and V.S.; writing—review and editing, N.A.; supervision, V.S.; project administration, V.S.; funding acquisition, V.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Serres-Piole, C.; Preud’homme, H.; Moradi-Tehrani, N.; Allanic, C.; Jullia, H.; Lobinski, R. Water Tracers in Oilfield Applications: Guidelines. J. Pet. Sci. Eng. 2012, 98–99, 22–39. [Google Scholar] [CrossRef]
  2. Anisimov, L.A.; Kilyakov, V.N.; Vorontsova, I.V. The Use of Tracers for Reservoir Characterization. In Proceedings of the SPE Middle East Oil and Gas Show and Conference, Manama, Bahrain, 15 March 2009. [Google Scholar] [CrossRef]
  3. Aparecida de Melo, M.; de Holleben, C.R.; Almeida, A.R. Using Tracers to Characterize Petroleum Reservoirs: Application to Carmopolis Field, Brazil. In Proceedings of the SPE Latin American and Caribbean Petroleum Engineering Conference, Buenos Aires, Argentina, 25 March 2001. [Google Scholar]
  4. de Melo, M.A.; Holleben, C.R.; Silva, I.G.; de Barros Correia, A.; Silva, G.A.; Rosa, A.J.; Lins, A.G.; de Lima, J.C. Evaluation of Polymer-Injection Projects in Brazil. In Proceedings of the SPE Latin American and Caribbean Petroleum Engineering Conference, Rio de Janeiro, Brazil, 20 June 2005. [Google Scholar]
  5. Ohms, D.; McLeod, J.; Graff, C.J.; Frampton, H.; Morgan, J.C.; Cheung, S.; Chang, K.T.T. Incremental-Oil Success From Waterflood Sweep Improvement in Alaska. SPE Prod. Oper. 2010, 25, 247–254. [Google Scholar] [CrossRef]
  6. Król, A.; Gajec, M.; Kukulska-Zając, E. Uranine as a Tracer in the Oil and Gas Industry: Determination in Formation Waters with High-Performance Liquid Chromatography. Water 2021, 13, 3082. [Google Scholar] [CrossRef]
  7. Du, Y.; Guan, L. Interwell Tracer Tests: Lessons Learnted from Past Field Studies. In Proceedings of the SPE Asia Pacific Oil and Gas Conference and Exhibition, Jakarta, Indonesia, 5 April 2005. [Google Scholar]
  8. Axelsson, G.; Flovenz, O.G.; Hauksdottir, S.; Hjartarson, A.; Liu, J. Analysis of Tracer Test Data, and Injection-Induced Cooling, in the Laugaland Geothermal Field, N-Iceland. Geothermics 2001, 30, 697–725. [Google Scholar] [CrossRef]
  9. Adams, M.C.; Davis, J. Kinetics of Fluorescein Decay and Its Application as a Geothermal Tracer. Geothermics 1991, 20, 53–66. [Google Scholar] [CrossRef]
  10. Fluorochrome Data Tables|Olympus, LS. Available online: https://www.olympus-lifescience.com/en/microscope-resource/primer/techniques/fluorescence/fluorotable2/ (accessed on 8 April 2022).
  11. Gavrilenko, M.A.; Gavrilenko, N.A.; Amerkhanova, S.K.; Uali, A.S.; Bilyalov, A.A. Trace Determination of Rhodamine and Eosine in Oil-Water Reservoir Using Solid-Phase Extraction. Adv. Mater. Res. 2014, 880, 276–281. [Google Scholar] [CrossRef]
  12. Technical-Data-Sheet-Red (norlabdyes.com). Available online: https://norlabdyes.com/wp-content/uploads/2019/05/Technical-Data-Sheet-Red.pdf (accessed on 29 June 2022).
  13. Bilyalov, A.A.; Gavrilenko, M.A.; Gavrilenko, N.A. 2-NSA, 1,5-NDSA Application and Sodium Naphtionate as Fluorescent Indicators at Oil Field. Adv. Mater. Res. 2014, 1040, 259–262. [Google Scholar] [CrossRef]
  14. US8895484B2-Use of Biphenyl, Terphenyl, and Fluorene Sulphonic Acid Based Tracers for Monitoring Streams of Fluids-Google Patents. Available online: https://patents.google.com/patent/US8895484B2/en?oq=us+8.895%2c484 (accessed on 8 April 2022).
  15. Rose, P.E.; Benoit, W.R.; Kilbourn, P.M. The Application of the Polyaromatic Sulfonates as Tracers in Geothermal Reservoirs. Geothermics 2001, 30, 617–640. [Google Scholar] [CrossRef]
  16. Bazarevskaya, V.G.; Khisamov, R.S. Improvement of Geologic Exploration Efficiency in Mature Oil and Gas Provinces. In Proceedings of the SPE Middle East Oil and Gas Show and Conference, Manama, Bahrain, 15 March 2009. [Google Scholar]
  17. Qiu, S.; Chu, H.; Zou, Y.; Xiang, C.; Zhang, H.; Sun, L.; Xu, F. Thermochemical Studies of Rhodamine B and Rhodamine 6G by Modulated Differential Scanning Calorimetry and Thermogravimetric Analysis. J. Therm. Anal. Calorim. 2015, 123, 1611–1618. [Google Scholar] [CrossRef]
  18. Rose, P.; McCulloch, J.; Buck, C.; Mella, M.; Rambani, M. A Tracer Test Using Ethanol as a Two-Phase Tracer and 2-Naphthalene Sulfonate as a Liquid-Phase Tracer at the Coso Geothermal Field. Geotherm. Resour. Counc. Trans. 2006, 30, 919–921. [Google Scholar]
  19. Peter, E.R.; Mella, M.; Kasteler, C. A New Tracer for Use in Liquid-Dominated, High-Temperature Geothermal Reservoirs. Geotherm. Resour. Counc. Trans. 2003, 403–406. [Google Scholar]
  20. Sanjuan, B.; Pinault, J.-L.; Rose, P.; Gérard, A.; Brach, M.; Braibant, G.; Crouzet, C.; Foucher, J.-C.; Gautier, A.; Touzelet, S. Tracer Testing of the Geothermal Heat Exchanger at Soultz-Sous-Forêts (France) between 2000 and 2005. Geothermics 2006, 35, 622–653. [Google Scholar] [CrossRef]
  21. Tracer Solutions-Tag|Trace|Verify. Available online: https://www.dotz.tech/tracer-solutions/ (accessed on 8 April 2022).
  22. Revolutionising Oil & Gas Tracing and Tagging. Available online: https://energyindustryreview.com/oil-gas/revolutionising-oil-gas-tracing-and-tagging/ (accessed on 8 April 2022).
  23. Kanj, M.Y.; Rashid, M.H.; Giannelis, E.P. Industry First Field Trial of Reservoir Nanoagents. In Proceedings of the SPE Middle East Oil and Gas Show and Conference, Manama, Bahrain, 25 September 2011. [Google Scholar]
  24. Kanj, M.Y.; Kosynkin, D.V. Oil Industry First Field Trial of Inter-Well Reservoir Nanoagent Tracers. In Proceedings of the Micro- and Nanotechnology Sensors, Systems, and Applications VII, Baltimore, MD, USA, 22 May 2015. [Google Scholar] [CrossRef]
  25. Antoniv, M.; Sherry Zhu, S.; Chang, S.; Poitzsch, M.E.; Jabri, N.M.; Marsala, A.; O’Brien, J. Method for Detecting Nanoparticles on Cuttings Recovered from a Gas Reservoir. Energy Fuels 2021, 35, 7708–7716. [Google Scholar] [CrossRef]
  26. Kaneo, Y.; Hashihama, S.; Kakinoki, A.; Tanaka, T.; Nakano, T.; Ikeda, Y. Pharmacokinetics and Biodisposition of Poly(Vinyl Alcohol) in Rats and Mice. Drug Metab. Pharmacokinet. 2005, 20, 435–442. [Google Scholar] [CrossRef]

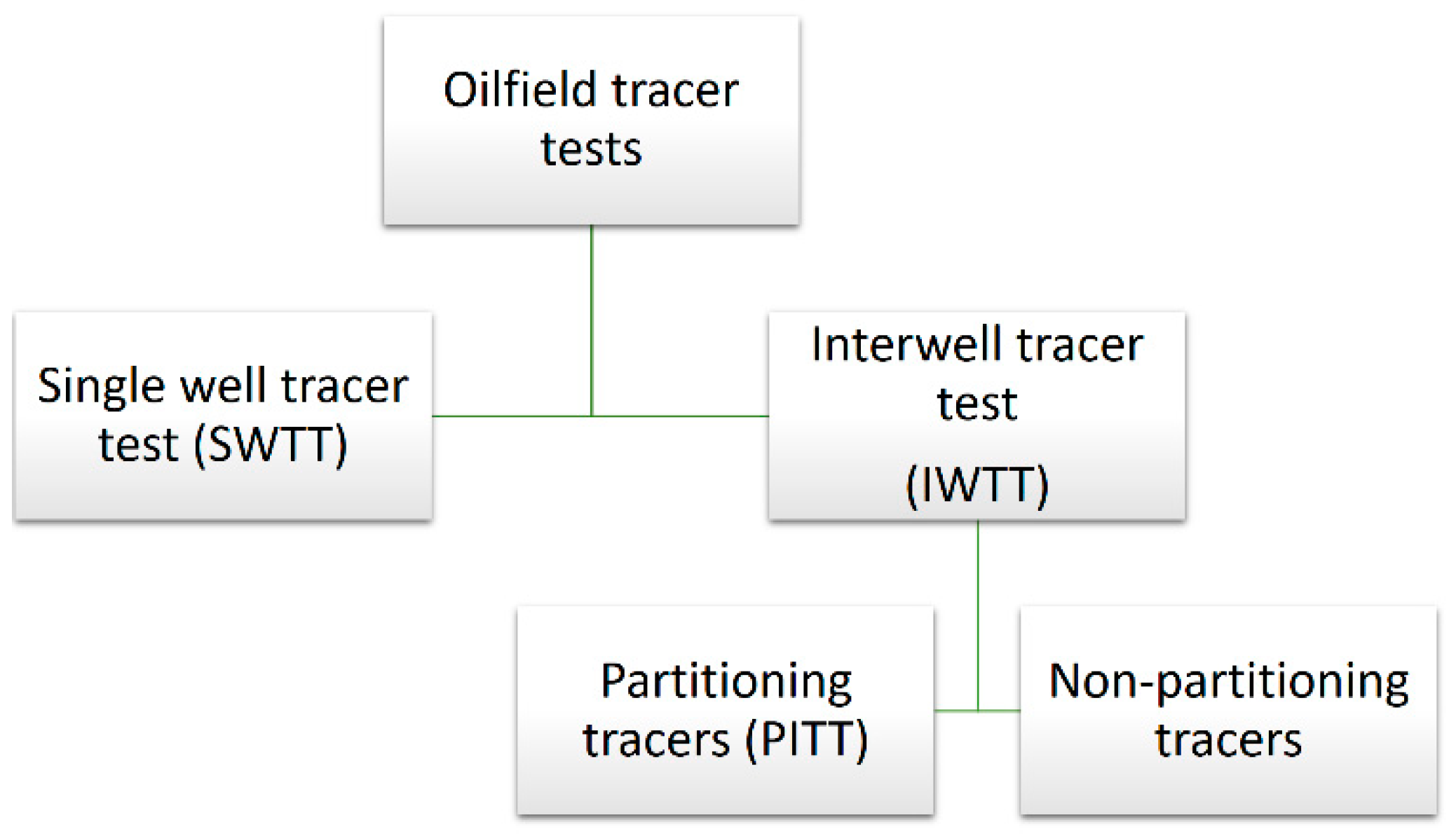

Figure 1. Types of oilfield tracer tests.
Figure 1. Types of oilfield tracer tests.
Engproc 19 00012 g001
Table 1. Fluorescent dyes in oilfield applications and their properties.
Table 1. Fluorescent dyes in oilfield applications and their properties.
Tracer,
(Emission Wavelength in Water, nm)
StructureMethod & Detection Limit, (μg/L)Sorptivity
Uranine, Fluorescein (520 nm) [9] Engproc 19 00012 i001HPLC/FLD (0.03 μg/L);
HPLC/LIF (40 fg/mL) [1];
colorimetry (mg/mL level) [6];
UV (0.1–10 mg/mL) [1]
Very low
Eosin Y
(545 nm) [10]
Engproc 19 00012 i002 Solid phase spectrophotometry (1.20 mg/L) [11];
digital color analysis (DCA) (1.32 mg/L) [11]
Low
Rhodamine B
(625 nm) [10]
Engproc 19 00012 i003Solid phase spectrophotometry (0.06 mg/L) [11];
DCA (0.6 mg/L) [11]
Strong
Rhodamine WT
555 nm [10]
Engproc 19 00012 i004visual/UV < 100 ppb [12]Low-Medium
Sodium Naphthionate (420 nm) [13] Engproc 19 00012 i005 HPLC/FLD (pg/mL level) [14]Low
Sodium naphthalene-2,7-disulfonate (2,7-NdSA)(339 nm) [15] Engproc 19 00012 i006HPLC/FLD-200 pg/mL [1,15]Low
4,4′-Biphenyl disulfonic acid sodium salt Engproc 19 00012 i007HPLC/FLD (10–100 pg/mL) [1]
HPLC/FLD (with preconcentration) < 10 μg/m3 (ppt)
Very Low
