Titanium Based Materials for High-Temperature Gas Sensor in Harsh Environment Application ^†

Abstract

Gas selective sensors that are capable of sensing at hot-gas environment are increasingly gaining importance for the monitoring of combustion and thermal processes releasing NO, NO₂ and H₂ containing hot gases at temperatures exceeding 600 °C. Despite some drawbacks, TiO₂ is capable of operating as a gas sensor above 500 °C. In this context, Ni-doped TiO₂, Co-doped TiO₂ and Rh-doped BaTiO₃ have been prepared by oxalate coprecipitation route and fully characterized. Co-doping of TiO₂ promotes p-type behavior exhibiting good sensing properties to NO₂ while Ni-doping displays the maintenance of n-type behavior and better H₂-sensing properties at 600 °C. Rh-doped BaTiO₃ shows excellent NO sensing properties at 900 °C.

1. Introduction

High temperature gas sensors are mainly designed to solve gas detection and monitoring problems with a high operating temperature environment, such as gas turbine, nuclear power plants and automobile internal combustion engine emission [1]. As far as target gases are concerned NOx (NO₂, NO) and H₂ are among the most important. NOx is a severely toxic gas with a pungent odor arising mostly from the related human activities involving high temperature such as combustion of coal and oil at electric power plants, combustion of chemical plant and also in emissions from automotive and aircraft engines. NOx-emission leads to harmful effects on the environment and health. There is an urgent need to develop sensor control systems for exhaust emission gases to directly monitor NOx at temperatures in the range of 400–900 °C [2]. As far as hydrogen is concerned, it is the best candidate to replace the hydrocarbon-based fuels used in many combustion engines such as those in automobiles and aircraft, which are responsible for much of today’s air pollution [3]. Hydrogen seems to be a green, renewable energy carrier that can help solve the problems of non-sustainable energy use (fossil fuels). However, the efficient application of hydrogen requires careful consideration of the relevant safety concern. In fact, its physico-chemical properties make hydrogen a highly explosive gas [3,4]. Moreover, as hydrogen is colorless, odorless and tasteless, the ability to detect a hydrogen leak by means of selective sensors is highly desired.

Chemiresistive gas sensors based on semiconductor metal oxides have been drawing more and more attention because of their advantages such as low cost, lightweight, fast response/recovery times and high compatibility with microelectronic processing. Graphene and its derivatives, as well as some organic semiconductor-based materials constitute also an interesting family of chemo-resistive gas sensor due to their large surface area, good electrical, thermal and mechanical properties [5,6].

Cost effective metal oxide-based gas sensors such as SnO₂, WO₃, ZnO, NiO or CuO operate mostly at temperatures below 400 °C [7,8,9,10]. There are only few reports in literature focusing on their gas sensing above 400 °C. TiO₂ is one of them to be capable of operating above 500 °C. The additional benefits of TiO₂ are non-toxicity, easy fabrication, and the good chemical stability [11]. However, TiO₂ is a high resistive n-type semiconductor with relatively poor conductivity for sensing oxidative gases such as NO₂. This disadvantage was previously reported to be overcome through addition of low valence dopant atoms which alter the electronic structure [12,13,14,15]. Another strategy is to use catalytically doped perovskite-based titanium compounds such as BaTiO₃. In this work, we report the synthesis of Co-doped TiO₂, Ni doped TiO₂ and Rh-doped BaTiO₃ by co-precipitation method and demonstrate gas sensing ability toward NO₂, NO and H₂ above 500 °C. Our results yield that Co-doping of TiO₂ promotes p-type behavior exhibiting good sensing properties to NO₂ while Ni-doping displays the maintenance of n-type behavior and better H₂-sensing properties at 600 °C. More interestingly, Rh-doped BaTiO₃ shows excellent NO sensing properties even at 900 °C.

2. Materials and Methods

2.1. Preparation of the Different Sensing Materials

Ni-doped TiO₂ nanoparticles were prepared using the co-precipitation synthesis route followed by calcination. The starting precursor solutions were first prepared by dissolving nickel acetate in acetic acid while pure ethanol was used separately to dissolve titanium iso-propoxide (TTIP). The adjustment between the previously prepared nickel and titanium solution has been performed so that the final obtained mix would contain 0.0, 0.5, 1.0 and 2.0 mol.% of nickel dopant in TiO₂ and were labeled as TN0, TN05, TN1 and TN2, respectively. The solutions were then mixed and stirred for 5 min. Oxalic acid was used as the precipitating agent. It was dissolved in absolute ethanol solution and poured progressively into the previously mixed solutions. In order to achieve a total precipitation, the resulting mixtures were stirred for 1 h at room temperature, followed by the filtration and drying of the obtained precipitate at 80 °C. A white powder was obtained for the undoped precursor and a yellowish colored powder for the Ni-doped precursor samples. The prepared precursor powders were then calcined in a muffle furnace under static air for 3 h at 700 °C to obtain the nano-particulate powders.

Co-doped TiO₂ nanoparticles were synthesized by employing the same processing route. The cobalt acetate and titanium iso-propoxide solutions were adjusted to obtain 0.5 and 1 mol.% of cobalt in TiO₂ and were labeled as 0.5Co-doped TiO₂ and 1Co-doped TiO₂, respectively. The so-obtained precipitate was filtered and dried in oven at 80 °C yielding a pink colored powder for the Co-doped samples.

The synthesis of Rh-doped BaTiO₃ (designated as BTR1-OX-900) was also prepared by coprecipitation by following the same procedure. The amount of the aqueous Rh-nitrate solution, barium acetate and titanium iso-propoxide were adjusted to yield perovskites with the following composition: BaTi_0.98Rh_0.02O₃. The as-prepared precursor powder was calcined in a ceramic combustion boat holder at 900 °C in a muffle furnace (5 °C min⁻¹) for one hour under static air. In order to activate this material, it was treated under 2% of hydrogen at 900 °C for two hours.

2.2. Materials Characterization

The XRD diffractograms of all the samples were obtained at room temperature with a D5000 Siemens Kristalloflex θ–2θ powder diffractometer which has a Bragg-Brentano geometry and equipped with Cu-Kα radiation (λ = 1.54178 Å) and a standard scintillation counter detector.

Bruker Senterra Raman spectrometer (from Bruker Optik GmbH, Ettlingen, Germany) was used to record all the Raman spectra at room temperature under 532 nm and 0.2 mW power laser excitation, which was focused on samples through a 50X objective (Olympus MPlan N 50X/0.75).

The particles’ morphology was determined by Scanning Electron Microscopic (SEM) analysis and was carried out in a Zeiss Ultra 55 microscope.

2.3. Sensor Preparation

The as prepared materials (Co-doped TiO₂, Ni-doped TiO₂ and Rh-doped BaTiO₂) powders were deposited as thick films (~20 µm) using a simple drop-coating method on alumina substrates that were previously fitted with interdigitated electrodes. The sensor response for n-type semiconductors is defined by (R_gas/R_air − 1) × 100 and (R_air/R_gas − 1) × 100 for oxidizing and reducing gases, respectively, while for p-type semiconductor, (R_gas/R_air − 1) × 100 and (R_air/R_gas − 1) × 100 for reducing and oxidizing gases respectively. R is the electrical resistance of the sensor material in air (Rair) or in gas (Rgas)

3. Results and Discussion

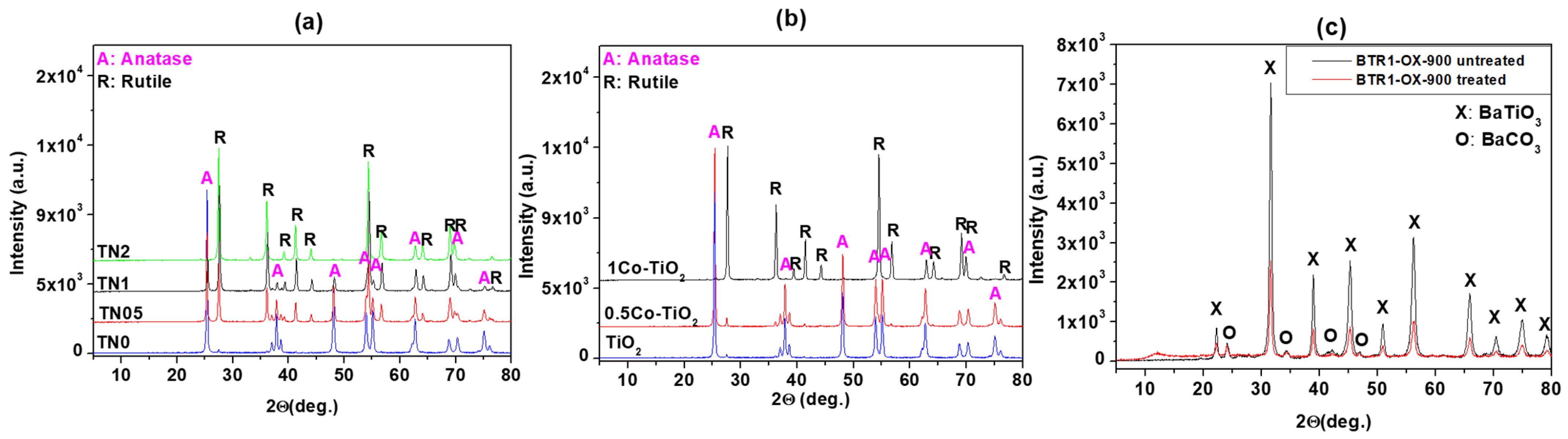

The phase identification derived from powder XRD analysis is presented on Figure 1. As can be observed in Figure 1a for Ni-doped TiO₂, the results indicate that anatase is present in those from undoped to 1% Ni-doped TiO₂, while rutile is the only phase present in the 2% Ni-doped TiO₂ powders. The amount of anatase (JCPDS 21-1272) decreases as the amount of nickel increases while the amount of rutile (JCPDS 21-1276) follows the opposite trend. A trace amount of ilmenite, NiTiO₃ is observed at 32.5° in the TN1 and TN2 samples (JCPDS 33-0960). These results indicate that Ni promotes the transition of anatase to rutile. As far as Co-doped TiO₂ is concerned, the results depicted on Figure 1b reveal that, the undoped and the 0.5Co-doped TiO₂ samples showed pure TiO₂ consisted of its two polymorphs; anatase (majority) and rutile phases (minority). No other phase containing Co was observed. The 1Co-doped TiO₂ sample showed only single phase TiO₂ but this time the rutile polymorph was the major phase as anatase phase was in trace amount. The X-ray results indicate that the cobalt dopant promotes also the anatase-to-rutile phase conversion of TiO₂ but not progressively as nickel. The results of XRD analysis performed on the Rh-doped BaTiO₃ (before and after the activation) are presented in Figure 1c. As shown, the major phase is BaTiO₃ (according to JCPDS 075-0462) and a trace amount of BaCO₃ phase is observed. No evidence of an Rh phase was encountered indicating the substitution of Ti by Rh.

Figure 2 shows the morphology of the synthesized powders investigated by SEM. Concerning Ni-doped TiO₂ (Figure 2a), as far as the undoped powder sample is concerned, the microstructural investigation reveals spherical nanoparticles with sizes around 70 nm, which tend to agglomerate. While the TN05 sample shows more agglomerated spherical particles, the TN1 and TN2 samples show less agglomeration with the appearance of small pores and particle size reduction for the TN2 samples. Figure 2b shows the morphology of the Co-doped TiO₂ synthetized powders. The SEM investigation revealed the formation of spherical nanoparticles with sizes around 70 nm. As the sample 0.5Co-doped TiO₂ shows more agglomerated spherical particles, the sample 1Co-doped TiO₂ presented larger and well-faceted rhombohedral crystallites with less agglomeration. As SEM pictures display in Figure 2b the Rh-doped BaTiO₃ has the well-defined and homogeneously distributed spherical nanoparticles (~50 nm).

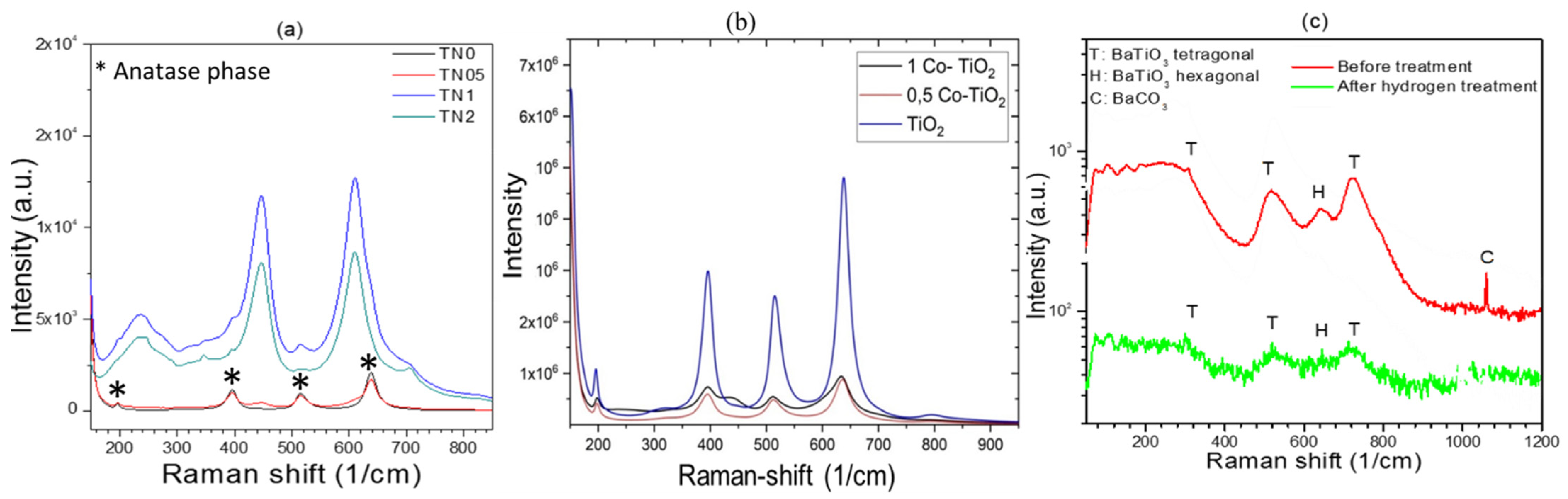

The Raman spectra of the samples were obtained between the wavenumbers of 175–800 cm⁻¹ and the results are presented in Figure 3. The results of Ni-doped TiO₂ Raman analysis (Figure 3a) show that the main signals came from TiO₂. The samples TN0 and TN05 show very strong Raman signals, with peaks at 196(E_g), 396(B1_g), 517(A1_g) and 638(B1g) cm⁻¹ from the typical anatase TiO₂ phase [16]. A weak peak at 447 cm⁻¹ (E_g) attributed to rutile is observed in TN05. Samples TN1 and TN2, which contain larger amounts of Ni, present the Raman signals corresponding to both the anatase and rutile (447(E_g), 612(A1_g) cm⁻¹) phase [17]. In addition to the anatase and rutile phases, another set of Raman vibrations emerges in the TN1 and TN2 samples. The peaks at 244, 345 and 706 cm⁻¹ are assigned to a trace amount of ilmenite, NiTiO₃. In the Figure 3b showing the results of Co-doped TiO₂, the Raman lines observed at 197, 390, 511, 637 cm⁻¹ can be assigned to E_g, B1_g, A1_g, or B1_g and E_g modes of anatase phase respectively. The spectra show that the peak intensities decrease drastically after doping, due certainly to the decrease of the amount of anatase and the formation of rutile as indicated by XRD. Moreover, the Raman spectra of 1Co-doped TiO₂ yielded a smaller shift towards lower wavelengths while new peaks (436 cm⁻¹) appeared indicating the presence of rutile polymorph, as mentioned in literature [17]. Raman spectra of Rh-doped BaTiO₃ are displayed in Figure 3c. It shows the peaks at 270, 308, 525 and 725 cm⁻¹ which are assigned respectively to the A1(TO2), E(TO2), A1(TO3), and A1(LO3) of barium titanate modes of the room temperature P4mm phase.

Based on our previous results on undoped, Al and Cr-doped TiO₂, 600 °C was chosen as the optimum sensing temperature for Ni and Co doped TiO₂ in this work [12,13].

The responses of the undoped TiO₂ and all Ni-doped TiO₂ towards 10,000 ppm H₂ in dry synthetic air at 600 °C are shown in Figure 4a. The sensor responses are 42, 72, 70 and 62% for TN0, TN05, TN1 and TN2, respectively. It can be observed that the sensor response increases greatly as Ni-content increases up to 0.5 mol.% and then decreases slowly with further increase in the Ni-content to 2.0 mol.%. This implies that the sensor reaches its maximum response of 72% with 0.5 mol.% of Ni dopant. It can be assumed that this enhancement of gas sensor response may be due to the formation of a n-n junction between the anatase (E_g = 3.2 eV) and rutile (E_g = 3.0 eV) phases. As revealed by XRD results, the TN05 sample contains almost the same amount of anatase and rutile phases (which is not the case with the other samples in this work), and thus, the highest amount of n-n junctions are expected to be present in this sample. This kind of junction effect has also been reported for other n-n junction systems such as ZnO-SnO₂ [18] and SnO₂-WO₃ [19]. The achievement of a great selectivity towards the target gas is a key parameter and a very important characteristic. Therefore, the responses of the TN05 gas sensor towards a variety of interference gases including NO₂, CO, and NO at 600 °C in dry synthetic air were explored to evaluate its selectivity. As observed in Figure 4b, the response of this sensor towards 600 ppm of H₂ (35%) is at least a factor of two higher than that towards 300 ppm of CO (12%), 300 ppm of NO₂ (11%) and 300 ppm of NO (7%). The sensor’s H₂-response was a factor of two greater compared to that for 300 ppm of all the tested interfering gases, yielding the highest value and indicating a relatively high selectivity potential of the sensor towards H_2.

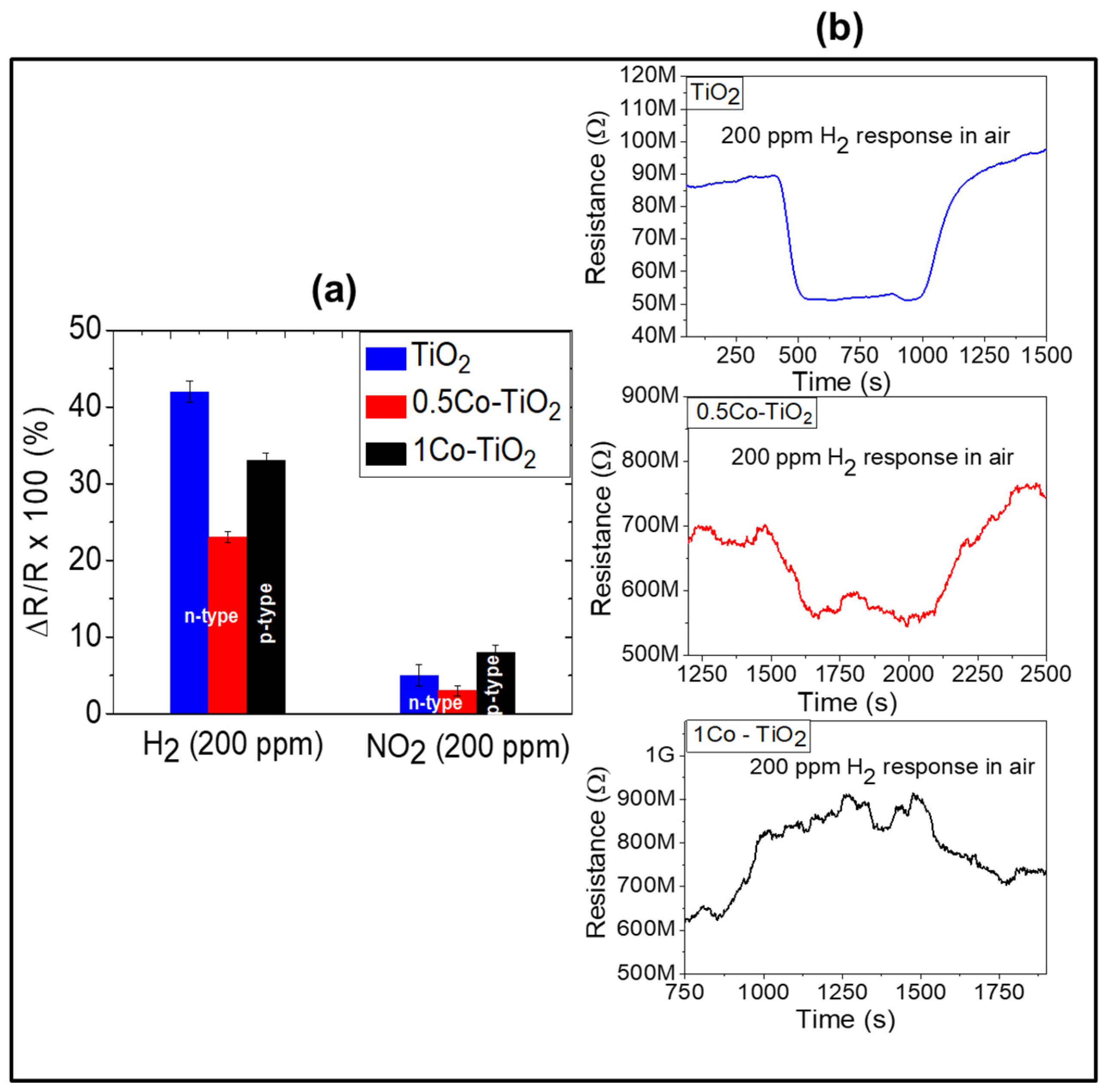

As Figure 5a shows, the sensors yield higher response towards H₂ than NO₂. The H₂ sensor responses are 42, 23 and 33% for undoped, 0.5Co-doped TiO₂ and 1Co-doped TiO₂, respectively. The undoped sample shows the highest response toward H₂. The presence of Co-dopant seems to decrease the H₂-sensing performance of TiO₂ even though doping creates more oxygen vacancies in TiO₂. This behavior can be attributed to the increase of rutile polymorph content on doping with cobalt, as previously reported, rutile is the less active (in term of functional properties) polymorph of TiO₂ [20]. On the other hand, the 1Co-doped TiO₂ which contains predominantly rutile polymorph showed a higher response toward H₂ than 0.5Co-doped TiO₂. This discrepancy can be explained by alteration of the conductivity from n-type to p-type. In fact, the dynamic response of the sensors toward H₂ given in Figure 5b reveals that undoped and 0.5Co-doped TiO₂ exhibit n-type semi-conductivity (i.e., their electrical resistance decreases upon interaction with hydrogen) while the 1Co-doped TiO₂ yields p-type conductivity (its electrical resistance increases when reducing gas is introduced). The sensor responses measured toward the oxidizing gas NO₂ were 5, 3 and 8% for undoped, 0.5Co-doped TiO₂ and 1Co-doped TiO₂ respectively. In the case of NO₂ sensing, the 1Co-doped TiO₂ showed the highest response. This may be mainly due to the electronic alteration of TiO₂ from n to p-type semiconductor. Previous literature points out that this alteration can be utilized for the detection of oxidizing gas. Our current results confirm that the dominant factor for the gas sensing property of the Co-doped TiO₂ depend on the existing polymorphs as well as the nature of target gas (oxidizing or reducing). In the case of reducing gases, the type of polymorphs has more influence on the gas sensitivity than the type of electronic structure, while an opposite trend can be observed for oxidizing gases.

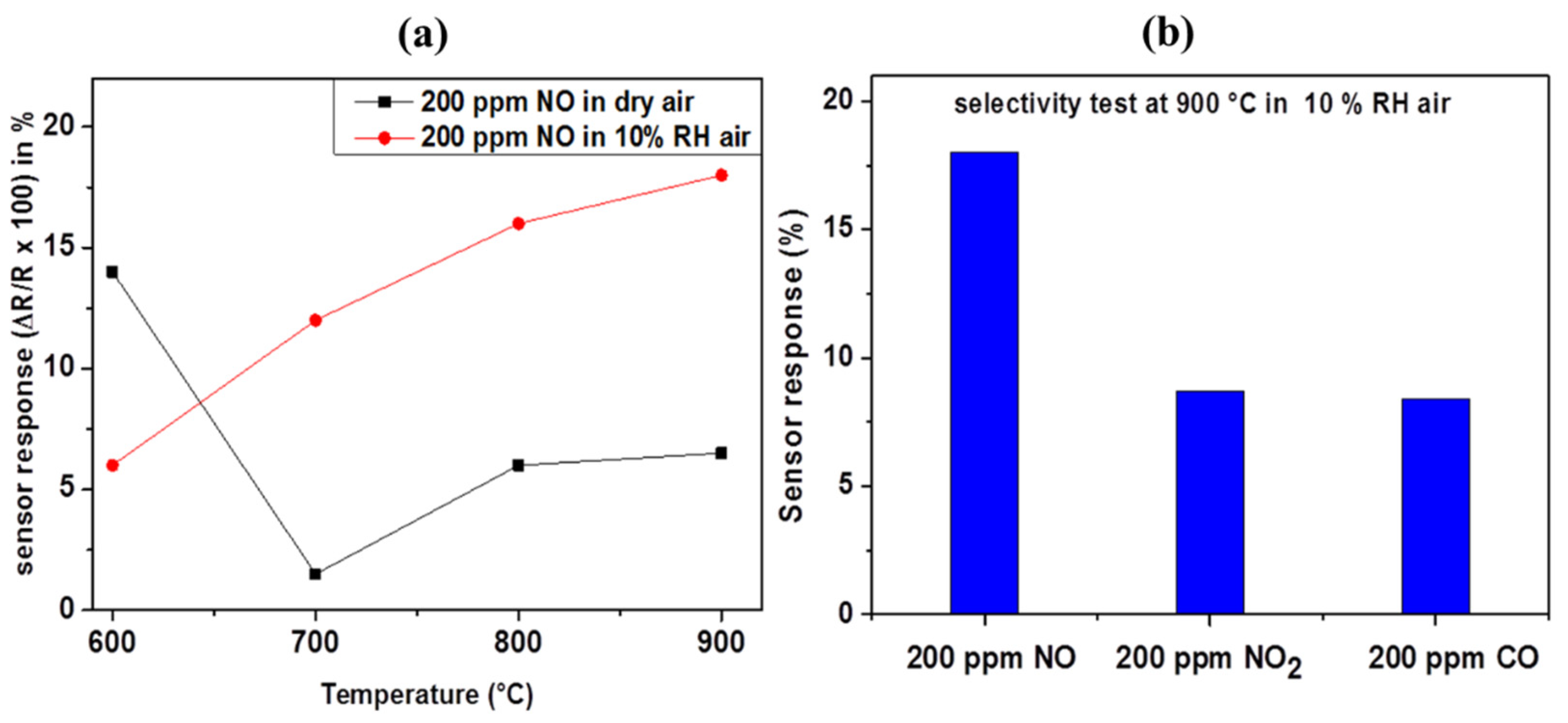

Figure 6a shows the sensor responses of the hydrogen treated Rh-doped BaTiO₃ towards 200 ppm of nitrogen oxide (NO) at a different operating temperature under dry and humid (10% of RH) synthetic air and the dynamic response at 700 and 900 °C, respectively. The sensor responses are 14, 2, 6, 7% in dry air, 6, 12, 16 and 18% in humid air at 600, 700, 800, and 900 °C, respectively. In dry air, the sensor response decreases from 14 to 7% in general with the increasing temperature, while in humid air, the sensor response increases from 6 to 18% as the temperature increases. The maximum sensor response is therefore obtained at 900 °C under humidity. This enhancement of sensing properties in the presence of humidity can be explained by the affinity between adsorbed hydroxyl group (generated after thermal decomposition of water) and the NO. In fact, at high temperatures, H₂O in water vapor decomposes, and hydroxyl is adsorbed on the sensing layer. As the temperature increases, more decomposition will occur, and more hydroxyl groups will be adsorbed on the surface, enhancing the NO sensor response. To the best of our knowledge, this is the first time that NO detection is reported at such a high temperature in the humid. Therefore, we have investigated intensely further gas sensing characteristics of this material under these extreme conditions (e.g., at 900 °C under humid air). Two other main products for fuel combustion are NO₂ and CO. Their presence in the exhaust gas stream at a high temperature can cause important hinderance for the NO gas sensing application. Our sensor’s selectivity toward NO against CO and NO₂ at 900 °C under humid air was investigated. Figure 6b shows the different responses of the sensor to 200 ppm of NO, NO₂ and CO. The results indicate that at 900 °C, the response to 200 ppm of NO (18%) is higher than that of 200 ppm of NO₂ (8.7%) and 200 ppm of CO (8.4%). This implies that this sensor is at least twice as much sensitive to NO than NO₂ and CO. This good selectivity is ascribed to the catalytic effect of Rhodium-NPs on the oxidation of NO, which will promote and enhance the adsorption and the oxidation of NO preferentially. It is reported in the literature that Rhodium which is currently and often used in TWC, is a suitable catalyst for NO oxidation [21].

4. Conclusions

This paper reports the successful synthesis of Ni-doped TiO₂, Co-doped TiO₂ and Rh-doped BaTiO₃ nanoparticles by a facile co-precipitation route through the use of oxalic acid. Their NO₂, NO and hydrogen sensing properties at high temperatures (≤600 °C) were investigated. According to structural characterization the substitution of Ti⁴⁺ by dopant (Ni²⁺, Co³⁺ and Rh³⁺) was effective and creates more oxygen vacancies which promotes the anatase-to-rutile transformation in the case of Ni and Co doped TiO₂. Enhanced sensing properties with respect to H₂ were observed for 0.5% Ni-doped TiO₂ in comparison to undoped and 1 and 2% Ni-doped TiO_2. The sample 1Co-doped TiO₂ which reveals p-type conductive behavior yields an enhanced NO₂ response at 600 °C under air as carrier gas. With Rh-doped BaTiO₃, it was possible to detect NO at 900 °C under humid air with a good response (18% for 200 NO ppm) and good selectivity (twice as much sensitive to NO than CO and NO₂). Titanium based materials appear as a promising high temperature gas sensor in harsh environment.
