Proceeding Paper

New 1Z,5Z-Diene Compounds: Stereoselective Synthesis of Tetraenoic Macrodiolides †

by
Ilgiz Islamov
* and
Ilgam Gaisin
Institute of Petrochemistry and Catalysis, Ufa Federal Research Center, Russian Academy of Sciences, 141 Prospekt Oktyabrya, Ufa 450075, Russia
*
Author to whom correspondence should be addressed.
†
Presented at the 28th International Electronic Conference on Synthetic Organic Chemistry (ECSOC-28), 15–30 November 2024; Available online: https://sciforum.net/event/ecsoc-28.
Chem. Proc. 2024, 16(1), 33; https://doi.org/10.3390/ecsoc-28-20110
Published: 13 December 2024
(This article belongs to the Proceedings of The 28th International Electronic Conference on Synthetic Organic Chemistry)
Browse Figure
Versions Notes

Abstract

Macrocyclic compounds, including macrolactones and macrodiolides, play a significant role in the development of supramolecular chemistry, materials science, the perfume industry, and pharmaceuticals. In previous studies conducted by our group over several years, previously undescribed macrocyclic compounds containing pharmacophoric 1Z,5Z-diene fragments in their structure were synthesized for the first time, which showed high potential in studies on cytotoxicity, apoptosis-inducing activity, effects on the cell cycle, and mitochondria in tumor cell lines (Jurkat, K562, U937). As part of the continuing research on the development of methods for synthesizing new unsaturated macrodiolides and studying their antitumor properties, this work presents, for the first time, the stereoselective synthesis of macrocyclic compounds based on 1,14-tetradeca-5Z,9Z-dienoic acid and α,ω-alka-nZ, (n + 4)Z-dienediols (1,12-dodeca-4Z,8Z-dienediol, 1,14-tetradeca-5Z,9Z-dienediol, 1,16-octadeca-6Z,10Z-dienediol) in good yields. The method for the synthesis of new macrodiolides is based on the previously well-proven reaction of direct intermolecular cyclocondensation of dienedioic acid with diene diols in the presence of 5 mol.% hafnium(IV) triflate. As a result of the experiments, it was shown that the reaction between 1,14-tetradeca-5Z,9Z-dienedioic acid and 1,16-octadeca-6Z,10Z-dienediol in toluene proceeded within 18 h with the highest yield of 76%, with the formation of previously undescribed tetraenoic macrodiolides containing two 1Z,5Z-diene fragments in their structure.

1. Introduction

Due to their availability and diversity, natural organic biologically active compounds are often used in clinical medicine as alternative low-toxicity agents in comparison with classical synthetic drugs. Some of the most prominent representatives of the indicated compounds are polyene macrolides, on the basis of which a large number of antibacterial and antifungal drugs currently used in human therapy (spiramycin, amphotericin, nystatin, etc.) have been obtained [1,2,3,4,5]. A special place among this diversity of natural compounds is occupied by unsaturated macrocyclic compounds with various pharmacophoric functional groups, combined into one hybrid macrocyclic platform. The introduction of pharmacophoric fragments into the structure of the macrocyclic platform can contribute to a decrease in toxicity, an increase in affinity for the cell membrane, as well as self-association and aggregation processes, while maintaining the properties of the pharmacophores themselves [6,7].
Despite the widespread use and active application of unsaturated macrocycles in medicine, polyenes have disadvantages such as poor solubility in water, high hematotoxicity, and a number of other side effects that drive researchers to intensively search for new, less toxic, and more effective drugs [8,9].
In our opinion, some of the new representatives of low-toxicity biologically active unsaturated macrolactones may be macrocyclic compounds containing bis-methylene-separated double bonds in the structure. It was previously shown that the compounds we synthesized, including macrodiolides with a 1Z,5Z-diene fragment in the structure, exhibited pronounced antitumor properties, while having low toxicity to healthy cells [10,11,12,13,14,15,16,17,18,19].

2. Results and Discussion

In the present work, the synthesis of new unsaturated macromolecules with several 1Z,5Z-diene fragments in the structure for subsequent study of their biological properties is realized. Taking into account the previous studies, a scheme for the preparation of new tetraene macrodiolides from 1,14-tetradeca-5Z,9Z-dienoic acid 4 and α,ω-alka-nZ, (n + 4)Z-dienediols 5a–d was developed, the synthesis of which is based on the use of the reaction of catalytic homo-cyclomagnesiation of 1,2-dienes (Dzhemilev reaction) [10,20]. The target macrodiolides were synthesized using Hf-catalyzed intermolecular cyclocondensation of dienic acid 4 with diols 5a–d in yields of 67–76% (Scheme 1) [10].

3. Materials and Methods

Chemistry

NMR spectra were recorded in CDCl3 on Bruker Ascend-500 (Bruker AXS GmbH, Karlsruhe, Germany) ((500 MHz (1H), 126 MHz (13C)) instruments. The mass spectra were obtained on an UltraFlex III TOF/TOF (Bruker Daltonik GmbH, Bremen, Germany) operating in linear (TOF) and reflection (TOF/TOF) positive and negative ion modes. Macrocyclic compounds were synthesized similarly according to the procedure described in the literature [10].
(5Z,9Z,19Z,23Z)-1,14-dioxacyclooctacosa-5,9,19,23-tetraene-15,28-dione (6a). Yellow oil; yield 67%. 1H NMR (500 MHz, CDCl3): δ = 5.45–5.34 (m, 8H), 4.09 (t, J = 6.2 Hz, 4H), 2.33 (t, J = 7.3 Hz, 4H), 2.23–1.82 (m, 16H), 1.82–1.63 (m, 8H). 13C NMR (126 MHz, CDCl3): δ = 173.7, 130.3, 130.2, 129.0, 128.8, 63.6, 33.6, 28.6, 27.4, 27.3, 26.5, 24.8, 23.6. ESI-MS: calcd. for С26H40O4 + H+ [M + H]+ 4,172,999; found 417.2985.
(6Z,10Z,21Z,25Z)-1,16-dioxacyclotriaconta-6,10,21,25-tetraene-2,15-dione (6b). Yellow oil; yield 74%. 1H NMR (500 MHz, CDCl3): δ = 5.45–5.33 (m, 8H), 4.09 (t, J = 6.6 Hz, 4H), 2.32 (t, J = 7.4 Hz, 4H), 2.12–1.94 (m, 16H), 1.74–1.57 (m, 8H), 1.47–1.38 (m, 4H). 13C NMR (126 MHz, CDCl3): δ = 173.7, 130.2, 129.7, 129.6, 129.0, 64.2, 33.6, 28.2, 27.4, 27.3, 26.7, 26.5, 26.1, 24.8. ESI-MS: calcd. for С28H44O4 + H+ [M + H]+ 4,453,312; found 4,453,321.
(6Z,10Z,22Z,26Z)-1,16-dioxacyclodotriaconta-6,10,22,26-tetraene-2,15-dione (6c). Yellow oil; yield 76%. 1H NMR (500 MHz, CDCl3): δ = 5.44–5.34 (m, 8H), 4.08 (t, J = 6.4 Hz, 4H), 2.32 (t, J = 7.4 Hz, 4H), 2.12–1.95 (m, 16H), 1.73–1.62 (m, 8H), 1.40–1.32 (m, 8H). 13C NMR (126 MHz, CDCl3): δ = 173.7, 130.2, 129.9, 129.5, 129.0, 64.3, 33.6, 29.2, 28.5, 27.5, 27.4, 26.9, 26.5, 25.6, 24.9. ESI-MS: calcd. for С30H48O4 + H+ [M + H]+ 473.3625; found 473.3652.
(6Z,10Z,23Z,27Z)-1,16-dioxacyclotetratriaconta-6,10,23,27-tetraene-2,15-dione (6d). Yellow oil; yield 74%. 1H NMR (500 MHz, CDCl3): δ =5.38 (m, 8H), 4.08 (t, J = 6.5 Hz, 4H), 2.32 (t, J = 7.4 Hz, 4H), 2.12–1.92 (m, 16H), 1.74–1.62 (m, 8H), 1.41–1.29 (m, 12H). 13C NMR (126 MHz, CDCl3): δ = 173.7, 130.2, 130.1, 129.3, 129.0, 64.4, 33.7, 29.5, 28.7, 28.6, 27.5, 27.3, 26.9, 26.5, 25.8, 24.9. ESI-MS: calcd. for С32H52O4 + H+ [M + H]+ 501.3938; found 501.3953.

4. Conclusions

Thus, within the framework of the presented work, a scheme for the catalytic stereoselective synthesis of previously undescribed tetraene macrodiolides with yields of 67–76% was developed.

Author Contributions

Conceptualization, I.I.; methodology, validation, and execution of chemical experiments, I.G. and I.I.; manuscript preparation, I.I. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Russian Science Foundation, project № 22–73–10164.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data available on request.

Acknowledgments

The structural studies of the synthesized compounds were performed with the use of Collective Usage Centre “Agidel” at the Institute of Petrochemistry and Catalysis of RAS.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Caffrey, P.; Hogan, M.; Song, Y. New Glycosylated Polyene Macrolides: Refining the Ore from Genome Mining. Antibiotics 2022, 11, 334. [Google Scholar] [CrossRef]
  2. Lenz, K.D.; Klosterman, K.E.; Mukundan, H.; Kubicek-Sutherland, J.Z. Macrolides: From Toxins to Therapeutics. Toxins 2021, 13, 347. [Google Scholar] [CrossRef] [PubMed]
  3. Carolus, H.; Pierson, S.; Lagrou, K.; Van Dijck, P. Amphotericin B and Other Polyenes—Discovery, Clinical Use, Mode of Action and Drug Resistance. J. Fungi 2020, 6, 321. [Google Scholar] [CrossRef] [PubMed]
  4. Zhao, W.; Jiang, H.; Liu, X.-W.; Zhou, J.; Wu, B. Polyene Macrolactams from Marine and Terrestrial Sources: Structure, Production Strategies, Biosynthesis and Bioactivities. Mar. Drugs 2022, 20, 360. [Google Scholar] [CrossRef] [PubMed]
  5. Qiao, L.; Dong, Y.; Zhou, H.; Cui, H. Effect of Post–Polyketide Synthase Modification Groups on Property and Activity of Polyene Macrolides. Antibiotics 2023, 12, 119. [Google Scholar] [CrossRef]
  6. Shurpik, D.N.; Akhmedov, A.A.; Cragg, P.J.; Plemenkov, V.V.; Stoikov, I.I. Progress in the Chemistry of Macrocyclic Meroterpenoids. Plants 2020, 9, 1582. [Google Scholar] [CrossRef] [PubMed]
  7. Caprioglio, D.; Salamone, S.; Pollastro, F.; Minassi, A. Biomimetic Approaches to the Synthesis of Natural Disesquiterpenoids: An Update. Plants 2021, 10, 677. [Google Scholar] [CrossRef] [PubMed]
  8. Olsufyeva, E.N.; Yankovskaya, V.S. Main trends in the design of semi-synthetic antibiotics of a new generation. Russ. Chem. Rev. 2020, 89, 339–378. [Google Scholar]
  9. Haro-Reyes, T.; Díaz-Peralta, L.; Galván-Hernández, A.; Rodríguez-López, A.; Rodríguez-Fragoso, L.; Ortega-Blake, I. Polyene Antibiotics Physical Chemistry and Their Effect on Lipid Membranes; Impacting Biological Processes and Medical Applications. Membranes 2022, 12, 681. [Google Scholar] [CrossRef] [PubMed]
  10. Dzhemileva, L.U.; D’yakonov, V.A.; Islamov, I.I.; Yunusbaeva, M.M.; Dzhemilev, U.M. New 1Z,5Z-diene macrodiolides: Catalytic synthesis, anticancer activity, induction of mitochondrial apoptosis, and effect on the cell cycle. Bioorg. Chem. 2020, 99, 103832. [Google Scholar] [CrossRef]
  11. D’yakonov, V.A.; Islamov, I.I.; Dzhemileva, L.U.; Makarova, E.K.; Dzhemilev, U.M. Direct synthesis of polyaromatic cyclophanes containing bis-methylene-interrupted Z-double bonds and study of their antitumor activity in vitro. Int. J. Mol. Sci. 2021, 22, 8787. [Google Scholar] [CrossRef] [PubMed]
  12. Islamov, I.I.; Dzhemileva, L.U.; Gaisin, I.V.; Dzhemilev, U.M.; D′ yakonov, V.A. New Polyether Macrocycles as Promising Antitumor Agents—Targeted Synthesis and Induction of Mitochondrial Apoptosis. ACS Omega 2024, 9, 19923–19931. [Google Scholar] [CrossRef] [PubMed]
  13. D’yakonov, V.A.; Makarov, A.A.; Dzhemileva, L.U.; Makarova, E.K.; Khusnutdinova, E.K.; Dzhemilev, U.M. The facile synthesis of the 5Z,9Z-dienoic acids and their topoisomerase I inhibitory activity. Chem. Commun. 2013, 49, 8401–8403. [Google Scholar] [CrossRef] [PubMed]
  14. D’yakonov, V.A.; Dzhemileva, L.U.; Makarov, A.A.; Mulyukova, A.R.; Baev, D.S.; Khusnutdinova, E.K.; Tolstikova, T.G.; Dzhemilev, U.M. nZ,(n + 4)Z-Dienoic fatty acids: A new method for the synthesis and inhibitory action on topoisomerase I and IIα. Med. Chem. Res. 2016, 25, 30. [Google Scholar] [CrossRef]
  15. D’yakonov, V.A.; Dzhemileva, L.U.; Dzhemilev, U.M. Natural compounds with bis-methylene-interrupted Z-double bonds: Plant sources, strategies of total synthesis, biological activity, and perspectives. Phytochem. Rev. 2021, 20, 325–342. [Google Scholar]
  16. D’yakonov, V.A.; Makarov, A.A.; Dzhemileva, L.U.; Ramazanov, I.R.; Makarova, E.K.; Dzhemilev, U.M. Natural Trienoic Acids as Anticancer Agents: First Stereoselective Synthesis, Cell Cycle Analysis, Induction of Apoptosis, Cell Signaling and Mitochondrial Targeting Studies. Cancers 2021, 13, 1808. [Google Scholar] [CrossRef]
  17. Islamov, I.I.; Yusupova, A.V.; D’yakonov, V.A.; Dzhemilev, U.M. Synthesis of polyether macrodiolides based on acetylenic derivatives of (5Z, 9Z)-tetradeca-5, 9-diene-1, 14-dioic acid. Russ. Chem. Bull. 2023, 72, 2473–2483. [Google Scholar] [CrossRef]
  18. Islamov, I.I.; Makarov, A.A.; Makarova, E.K.; Yusupova, A.V.; D’yakonov, V.A.; Dzhemilev, U.M. Synthesis of macrocyclic and linear compounds with 1 Z, 5 Z-diene and alkynylcarbinol fragments based on (5 Z, 9 Z)-tetradeca-5, 9-diene-1, 14-diol. Russ. Chem. Bull. 2023, 72, 925–931. [Google Scholar] [CrossRef]
  19. Islamov, I.I.; Gaisin, I.V.; Dzhemilev, U.M.; D’yakonov, V.A. Synthesis of macrocyclic mono-and diolides based on new ω-hydroxyalkadienoic acids with (Z, Z)-1, 5-diene moiety. Russ. Chem. Bull. 2024, 73, 1623–1630. [Google Scholar]
  20. D’yakonov, V.A.; Makarov, A.A.; Makarova, E.K.; Dzhemilev, U.M. Novel organomagnesium reagents in synthesis. Catalytic cyclomagnesiation of allenes in the synthesis of N-, O-, and Si-substituted 1Z, 5Z-dienes. Tetrahedron 2013, 69, 8516–8526. [Google Scholar] [CrossRef]
Chemproc 16 00033 sch001

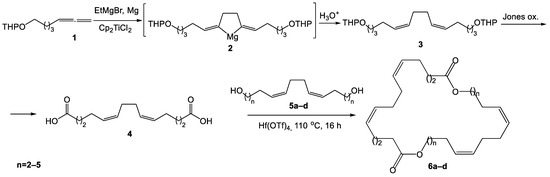

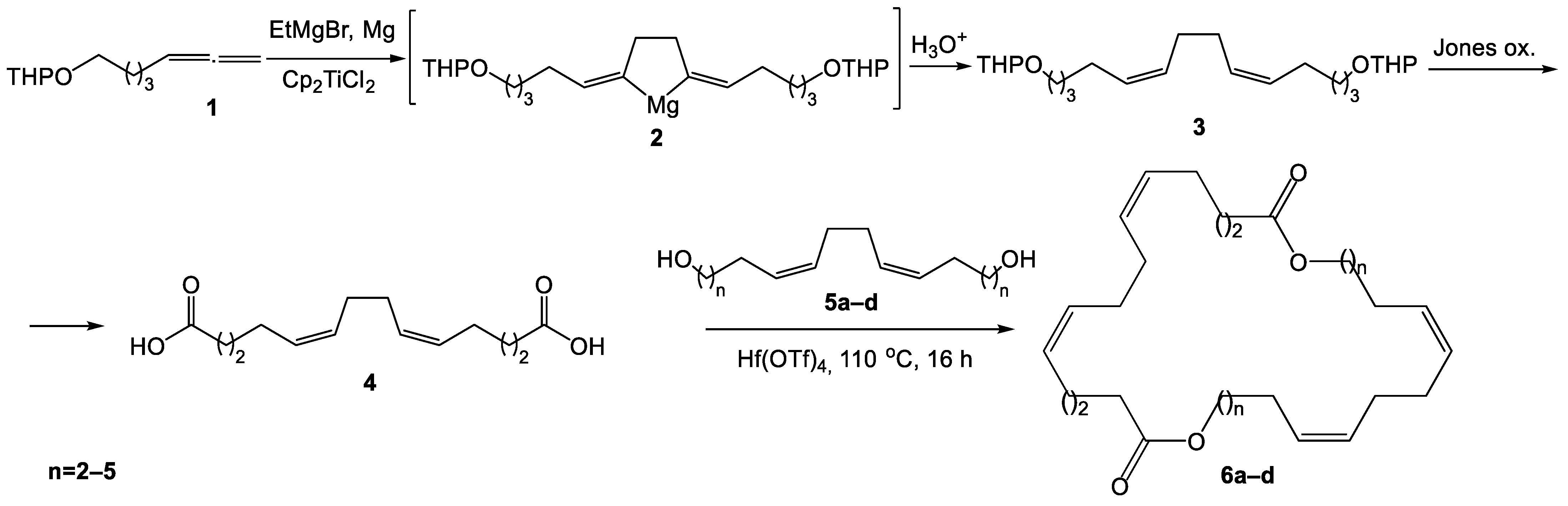

Scheme 1. Synthesis of tetraenoic macrodiolides.
Scheme 1. Synthesis of tetraenoic macrodiolides.
Chemproc 16 00033 sch001
