Proceeding Paper

Synthesis of a Bio-Based Methacrylic Polymer Using Camphor Terpene as a Renewable Resource †

Laboratoire de Catalyse et Synthèse en Chimie Organique BP 119, Université de Tlemcen, Tlemcen 13000, Algeria
Centre de Recherche Scientifique et Technique en Analyses Physico-Chimiques (CRAPC), Bp 384 Bousmail Tipaza, Tipaza 42000, Algeria
Laboratoire d’Architecture, d’Analyses et Réactivités des Substances Naturelles (LAARSN), Université de Bangui, Avenue des Martyres, Bangui BP 1450, Central African Republic
Faculté des Sciences et de la Technologie, Université Belhadj Bouchaib, BP 284, Ain Temouchent 46000, Algeria
Author to whom correspondence should be addressed.
Presented at the 27th International Electronic Conference on Synthetic Organic Chemistry (ECSOC-27), 15–30 November 2023; Available online:
Chem. Proc. 2023, 14(1), 89;
Published: 23 November 2023


Sustainable polymers derived from biomass have the potential to reduce environmental impacts while offering significant performance and cost advantages over petrochemical-derived macromolecules. We present here a facile and efficient approach to the synthesis of a biomethacrylic monomer, isobornyl/bornyl methacrylate (IBOMA/BOMA), using the naturally available camphor terpene in the essential oil of the Algerian plant Artemisia arborescens (Absinthe) as a key intermediate. The essential oil of the aerial part of the Artemisia arborescens plant naturally distributed in northwest Algeria was isolated by hydrodistillation and analyzed using gas chromatography–mass spectrometry (GC/MS) techniques. Nine components were identified, representing 90.7% of the total content. The main constituent of Artemisia arborescens essential oil is camphor (71.8%). Camphor was purified and modified to produce an 80% renewable-carbon-based methacrylic monomer. This terpene-derived methacrylic monomer was free radically polymerized to create a biosourced methacrylic polymer. Nuclear magnetic resonance (NMR) was used to characterize the structure of camphor terpene, isobornyl/bornyl methacrylate, and poly (isobornyl/bornyl methacrylate) (PIBOMA)/(PBOMA).

1. Introduction

In the contemporary landscape, a substantial portion of essential materials is currently derived from fossil fuels, yet the consensus among various researchers suggests a bleak prognosis: the depletion of all fossil resources within the next century. Consequently, an urgent call to action revolves around the transformation of chemical synthesis by adopting renewable resources, an ambitious quest vital for advancing sustainable development and, more specifically, the production of monomers [1,2,3,4,5,6,7,8,9].
The realm of renewable polymers has witnessed a transformative influence from the advent of natural molecular biomass. This biomass, akin to its petroleum-derived monomer counterparts, exhibits the versatility to serve as a direct source, whether in the form of terpenes or carbohydrates, or to undergo derivatization, ultimately evolving into a monomer suitable for uncontrolled or controlled polymerization processes [8]. Biomass-derived monomers can be broadly categorized into four principal classes, contingent upon the origin of their natural resources: oxygen-rich monomers, including carboxylic acids (lactic, succinic, itaconic, and levulinic acids) and furans; hydrocarbon-rich monomers, encompassing vegetable oils, terpenes, terpenoids, fatty acids, and bietic acids; bio-olefins, representing yet another group of hydrocarbon monomers; and carbon dioxide, a non-hydrocarbon monomer. The development of novel bio-based methacrylic monomers and polymers from terpenes has garnered significant attention in recent years [10]. Terpenes, a family of naturally occurring, hydrocarbon-rich molecules prevalent in essential oils [11,12], exhibit a diverse array of structures. Terpenes featuring an isoprene moiety can be facilely polymerized through radical polymerization reactions [8,13]. Additionally, cyclic terpenes boasting alcohol or ketone functionalities can be strategically tailored for the pursuit of bio-sourced polymers [14,15].
This study is a focal point for the synthesis of a bio-based methacrylic monomer, with the terpene camphor serving as a pivotal intermediate. The process involves the extraction of camphor from the Artemisia arborescens plant, followed by purification and modification to generate the bio-sourced methacrylic monomer. Subsequently, this monomer is subjected to free radical polymerization, culminating in the creation of a bio-sourced thermoplastic methacrylic polymer, as exemplified in Scheme 1.

2. Experimental

2.1. Artemisia Arborescens Oil Extraction

The aerial part of the A. arborescens plant was collected in Tlemcen, western Algeria. The station’s relative GPS coordinates are 1°44′52″ W longitude and 35°00′48″ N latitude and it is 355 m above sea level. The essential oil of the aerial part of Artemisia arborescens was obtained by hydro distillation for 3h employing Clevenger-type apparatus.

2.2. Reduction of Camphor

Camphor was reduced to isoborneol/borneol in the presence of NaBH4 in MeOH (Figure 1). Camphor (0.01 mol) and methanol (3 mol) were introduced into a flask and stirred until a homogeneous solution was obtained. Next, 0.2 g of sodium tetrahydridoborate (NaBH4) was added. The mixture was heated to 60 °C for 1 h. The mixture was then removed and cooled. Finally, 20 mL of ice-cold water was added to the mixture, and the mixture was filtered.

2.3. Esterification of Isoborneol

Into a 50 mL flask, 25 mL of dichloromethane was introduced. An amount of 1.5 g of isoborneol/borneol was added, followed by 0.7 mL of triethylamine. The mixture was stirred in an ice bath. Next, 0.9 mL of methacryloyl chloride was added dropwise. After complete addition, the mixture was brought to room temperature and stirred for 24 h. The product was washed with water (3 × 70 mL) and dried over anhydrous MgSO4. Product purification was carried out in a silica gel chromatography column using a mixture of heptane and ether (90/10). For 1g of product, 30 g of silica gel was used (Figure 1).

2.4. Polymerization of Isobornyl Methacrylate

We decided to work with the mixture (isobornyl/bornyl methacrylate) without separating it. In a 25 mL flask, 0.01 mol of monomer (isobornyl/bornyl methacrylate) was introduced, then 9 × 10−4 g of AIBN was added. The mixture was bubbled with nitrogen for 15 min, then stirred at 80 °C for 6 h. The resulting polymer was purified by precipitation in methanol, filtered, and dried in an oven at 60 °C (Figure 1).

3. Results and Discussion

GC/MS analysis of A. arborescens essential oil shows that the oil is dominated by camphor (71.8%) (Table 1).
The structure of each synthesized compound was analyzed via NMR, and the polymer was analyzed via NMR and Raman spectroscopy. The band at 625 cm−1 was attributed to C-C-C in planar bending (ring), 875 cm−1 to CH2 rocking, 1470cm−1 to CH deformation, and 1720 cm−1 and 2950 cm−1 to C=O and CH2 stretching, respectively [16] (Figure 2).

4. Conclusions

In conclusion, this work elucidates the synthesis of poly(isobornyl/bornyl methacrylate) by leveraging the terpene camphor, naturally occurring in the essential oil extracted from Artemisia arborescens, as a fundamental intermediate. The essential oil analysis conducted via gas chromatography/mass spectrometry (GC/MS) demonstrated a significantly high concentration of camphor terpene in the Artemisia arborescens plant extract. This finding underscores the potential of utilizing this natural resource as a crucial building block for synthesizing advanced materials.
The chemical modification of the camphor terpene offers a promising pathway for the development of a biopolymer characterized by an impressive 80 percent bio-based carbon content. This innovative approach capitalizes on the renewable nature of terpenes, paving the way for the sustainable production of high-performance materials.
Throughout this study, each step involved in the separation of camphor and subsequent modifications leading to the formation of the biopolymer was meticulously executed, resulting in successful outcomes. This accomplishment signifies a significant advancement in the realm of biopolymer synthesis, showcasing the feasibility and efficacy of utilizing natural terpenes as precursors for eco-friendly material production.
The utilization of natural compounds, such as camphor terpene from Artemisia arborescens, not only presents an opportunity for reducing reliance on non-renewable resources but also contributes to the development of environmentally friendly materials. The successful completion of this synthesis process highlights the potential of bio-based polymers derived from natural sources, emphasizing the importance of sustainable methodologies in material science and engineering.

Author Contributions

Methodology, N.C.; validation, F.D.; writing—original draft preparation: N.C.; writing—review and editing, F.D.; supervision, I.C. and H.P. All authors have read and agreed to the published version of the manuscript.


The study was supported by the DGRSDT/MESRS in Algeria.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.


The authors are very thankful to the DGRSDT/MESRS and the Center for Scientific and Technical Research in Physico-Chemical Analysis (CRAPC), Tipaza, Algeria and University of Tlemcen, Algeria.

Conflicts of Interest

The authors declare no conflicts of interest.


  1. Liu, R.; Zheng, J.; Guo, R.; Luo, J.; Yuan, Y.; Liu, X. Synthesis of new biobased antibacterial methacrylates derived from tannic acid and their application in UV-cured coatings. Ind. Eng. Chem. Res. 2014, 53, 10835–10840. [Google Scholar] [CrossRef]
  2. Le Nôtre, J.; Witte-van Dijk, S.C.; van Haveren, J.; Scott, E.L.; Sanders, J.P. Synthesis of bio-based methacrylic acid by decarboxylation of itaconic acid and citric acid catalyzed by solid transition-metal catalysts. ChemSusChem 2014, 7, 2712–2720. [Google Scholar] [CrossRef] [PubMed]
  3. Valencia, L.; Kumar, S.; Jalvo, B.; Mautner, A.; Salazar-Alvarez, G.; Mathew, A.P. Fully bio-based zwitterionic membranes with superior antifouling and antibacterial properties prepared via surface-initiated free-radical polymerization of poly (cysteine methacrylate). J. Mater. Chem. A 2018, 6, 16361–16370. [Google Scholar] [CrossRef]
  4. Siracusa, V.; Blanco, I. Bio-polyethylene (Bio-PE), Bio-polypropylene (Bio-PP) and Bio-poly (ethylene terephthalate)(Bio-PET): Recent developments in bio-based polymers analogous to petroleum-derived ones for packaging and engineering applications. Polymers 2020, 12, 1641. [Google Scholar] [CrossRef] [PubMed]
  5. Goyal, S.; Lin, F.-Y.; Forrester, M.; Henrichsen, W.; Murphy, G.; Wang, T.; Cochran, E.W. Glycerol ketals as building blocks for a new class of biobased (meth) acrylate polymers. ACS Sustain. Chem. Eng. 2021, 9, 10620–10629. [Google Scholar] [CrossRef]
  6. Belarbi, N.; Dergal, F.; Chikhi, I.; Merah, S.; Lerari, D.; Bachari, K. Study of anti-corrosion activity of Algerian L. stoechas oil on C38 carbon steel in 1 M HCl medium. Int. J. Ind. Chem. 2018, 9, 115–125. [Google Scholar] [CrossRef]
  7. Belarbi, N.; Dergal, F.; El-Haci, I.A.; Attar, T.; Lerari, D.; Dahmani, B.; Ramdane-Terbouche, C.A.; Bachari, K. Gravimetric, Electrochemical, and Surface Morphological Studies of Ammodaucus Lecotrichus Essential Oil as Corrosion Inhibitor for Copper Surface in Hydrochloric Acid Medium. Anal. Bioanal. Electrochem. 2021, 13, 340–357. [Google Scholar]
  8. Zheng, J.; Suh, S. Strategies to reduce the global carbon footprint of plastics. Nat. Clim. Chang. 2019, 9, 374–378. [Google Scholar] [CrossRef]
  9. Chiali, A.; Dergal, F.; Bellaoui, M.; Bouda, L.N.; Atmani, D.; Sar, N.E.C.; Braham, N.C. Synthesized carbon structure from local fruit using rapid thermal annealing process. Boletín Del Grupo Español Del Carbón 2022, 64, 12–17. [Google Scholar]
  10. Stamm, A.; Tengdelius, M.; Schmidt, B.; Engström, J.; Syrén, P.O.; Fogelström, L.; Malmström, E. Chemo-enzymatic pathways toward pinene-based renewable materials. Green Chem. 2019, 21, 2720–2731. [Google Scholar] [CrossRef]
  11. Firdaus, M.; Montero de Espinosa, L.; Meier, M.A. Terpene-based renewable monomers and polymers via thiol–ene additions. Macromolecules 2011, 44, 7253–7262. [Google Scholar] [CrossRef]
  12. Wilbon, P.A.; Chu, F.; Tang, C. Progress in renewable polymers from natural terpenes, terpenoids, and rosin. Macromol. Rapid Commun. 2013, 34, 8–37. [Google Scholar] [CrossRef] [PubMed]
  13. Yao, K.; Tang, C. Controlled polymerization of next-generation renewable monomers and beyond. Macromolecules 2013, 46, 1689–1712. [Google Scholar] [CrossRef]
  14. Winnacker, M.; Rieger, B. Recent progress in sustainable polymers obtained from cyclic terpenes: Synthesis, properties, and application potential. ChemSusChem 2015, 8, 2455–2471. [Google Scholar] [CrossRef] [PubMed]
  15. SSainz, M.F.; Souto, J.A.; Regentova, D.; Johansson, M.K.G.; Timhagen, S.T.; Irvine, D.J.; Buijsen, P.; Koning, C.E.; Stockman, R.A.; Howdle, S.M. A facile and green route to terpene derived acrylate and methacrylate monomers and simple free radical polymerisation to yield new renewable polymers and coatings. Polym. Chem. 2016, 7, 2882–2887. [Google Scholar] [CrossRef]
  16. Chabane, N.; Dergal, F.; Pata, H.; Chikhi, I.; Cherigui, S.; Lerari, D.; Choukchou-Braham, N. From absinthe extraction of hydrocarbon-rich cyclic terpene to methacrylic thermoplastic polymer. In Proceedings of the International Conference on Polymer Materials, USTHB, Algiers, Algeria, 3–4 July 2022. [Google Scholar]

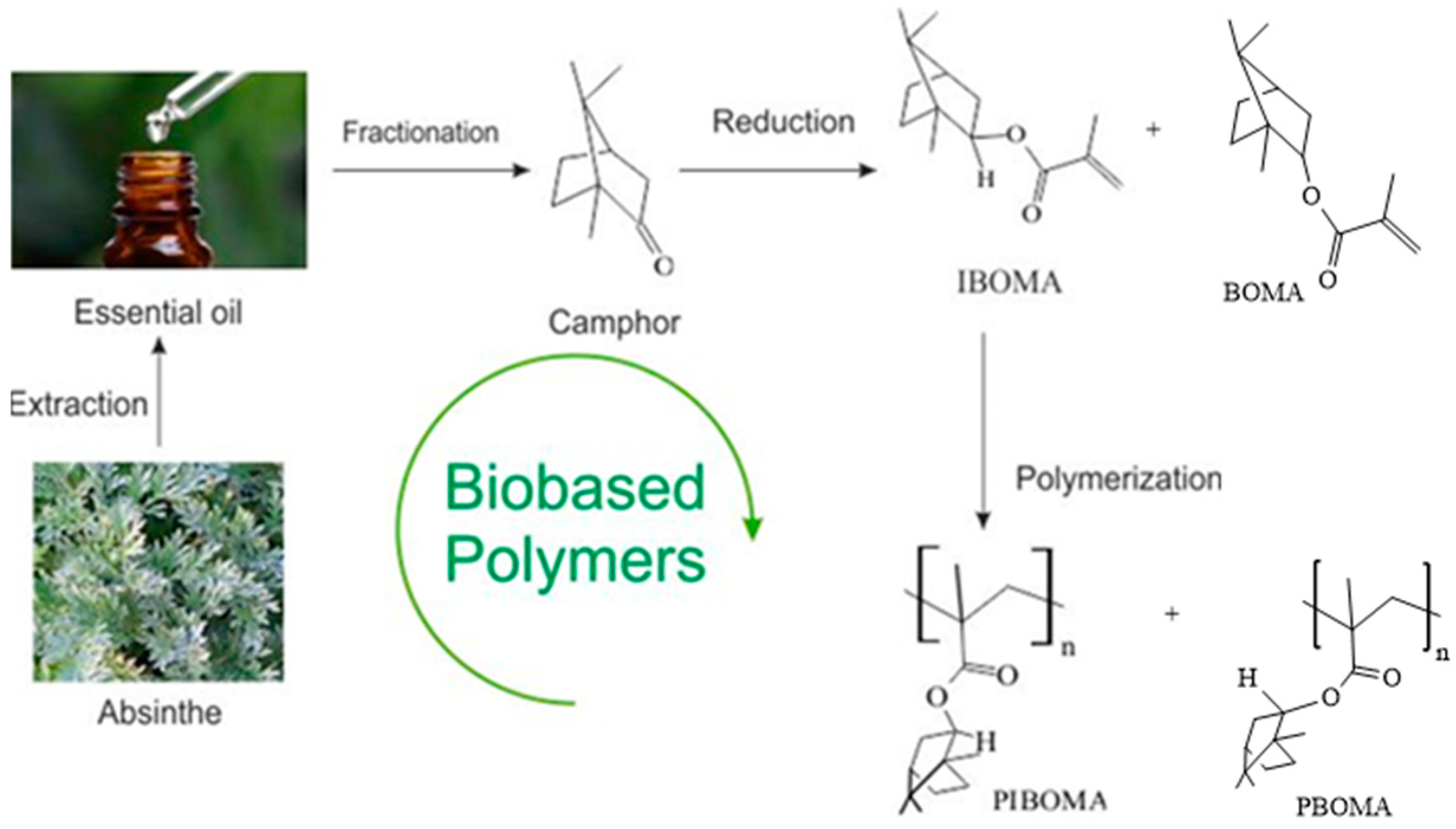

Scheme 1. Diagram summarizing the stages of our work.
Scheme 1. Diagram summarizing the stages of our work.
Chemproc 14 00089 sch001

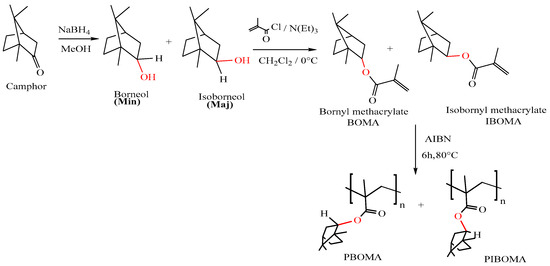

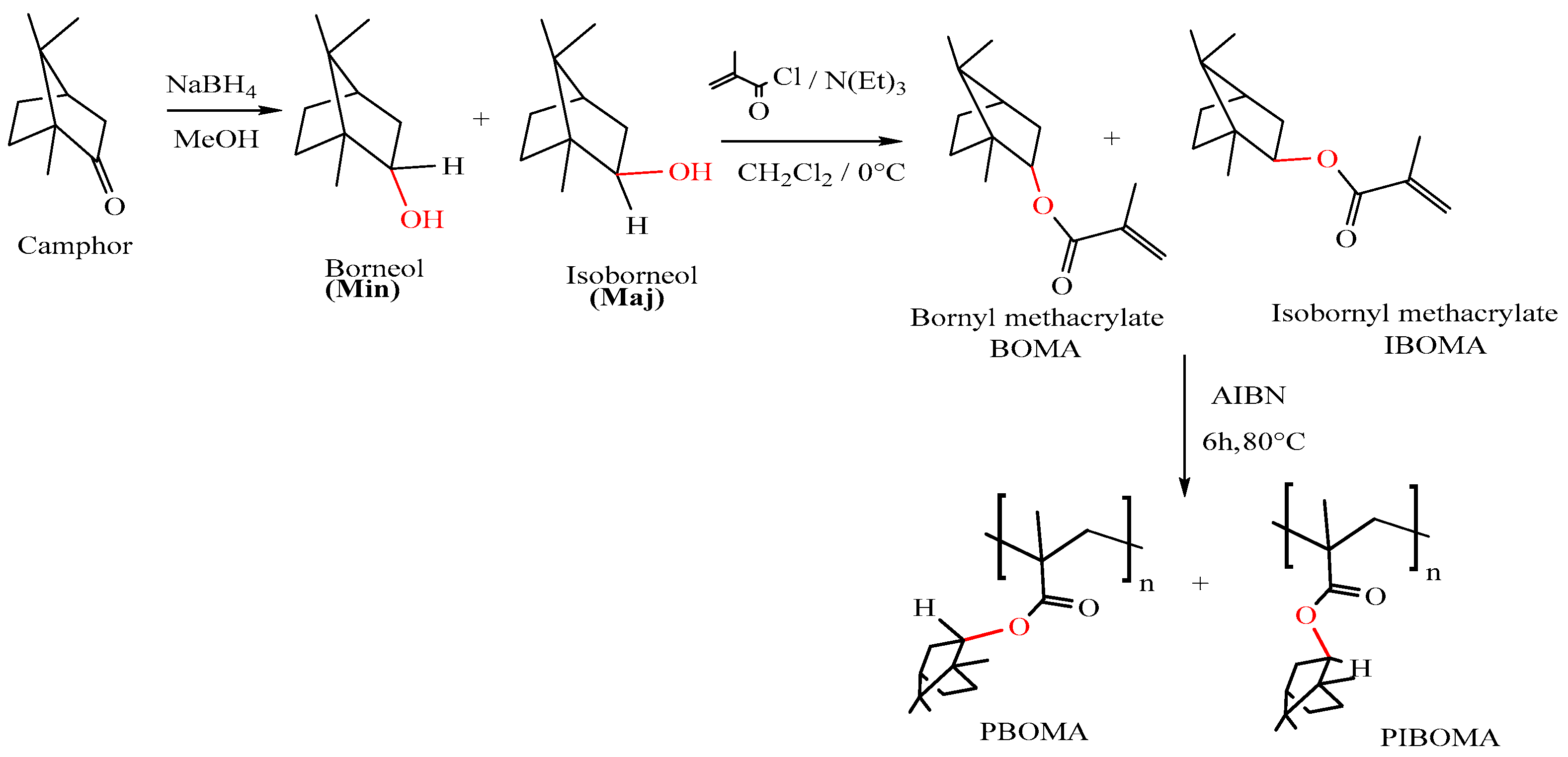

Figure 1. Reduction of camphor, esterification of isoborneol/borneol, and polymerization of isobornyl/bornyl methacrylate.
Figure 1. Reduction of camphor, esterification of isoborneol/borneol, and polymerization of isobornyl/bornyl methacrylate.
Chemproc 14 00089 g001

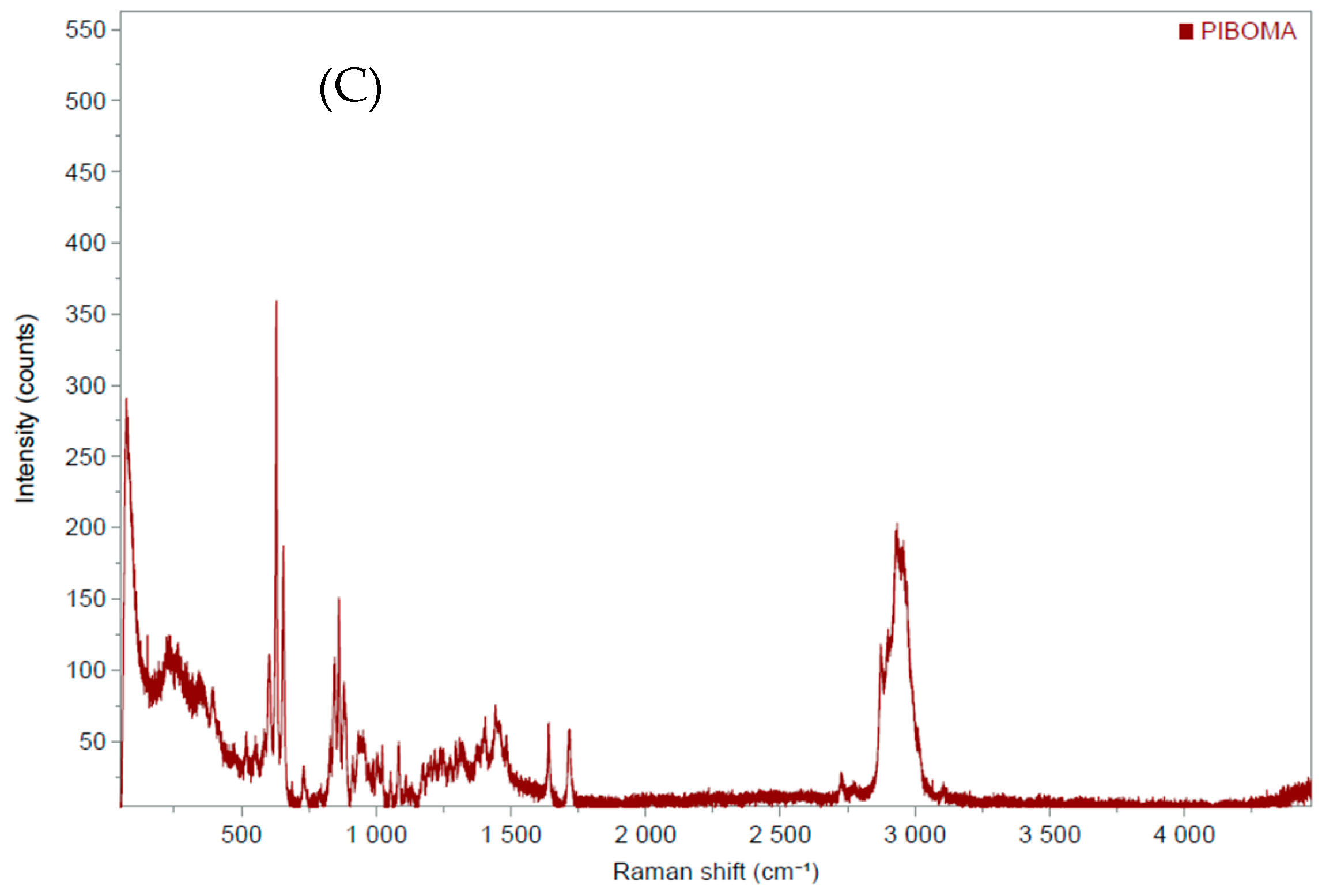

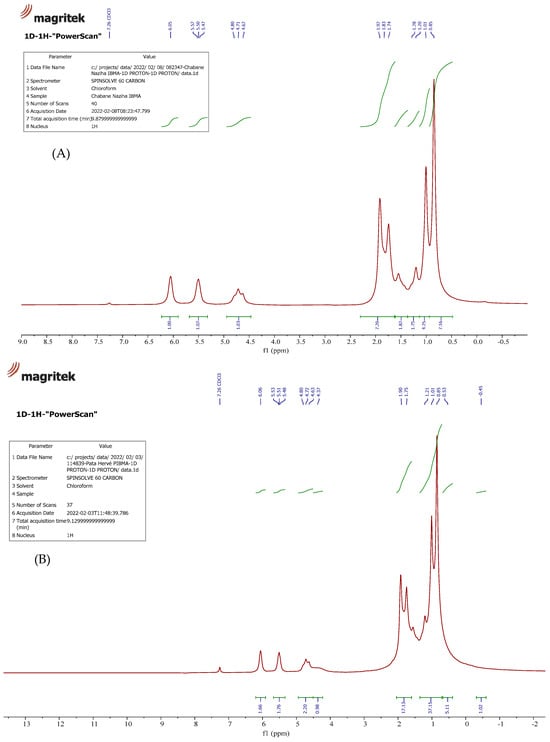

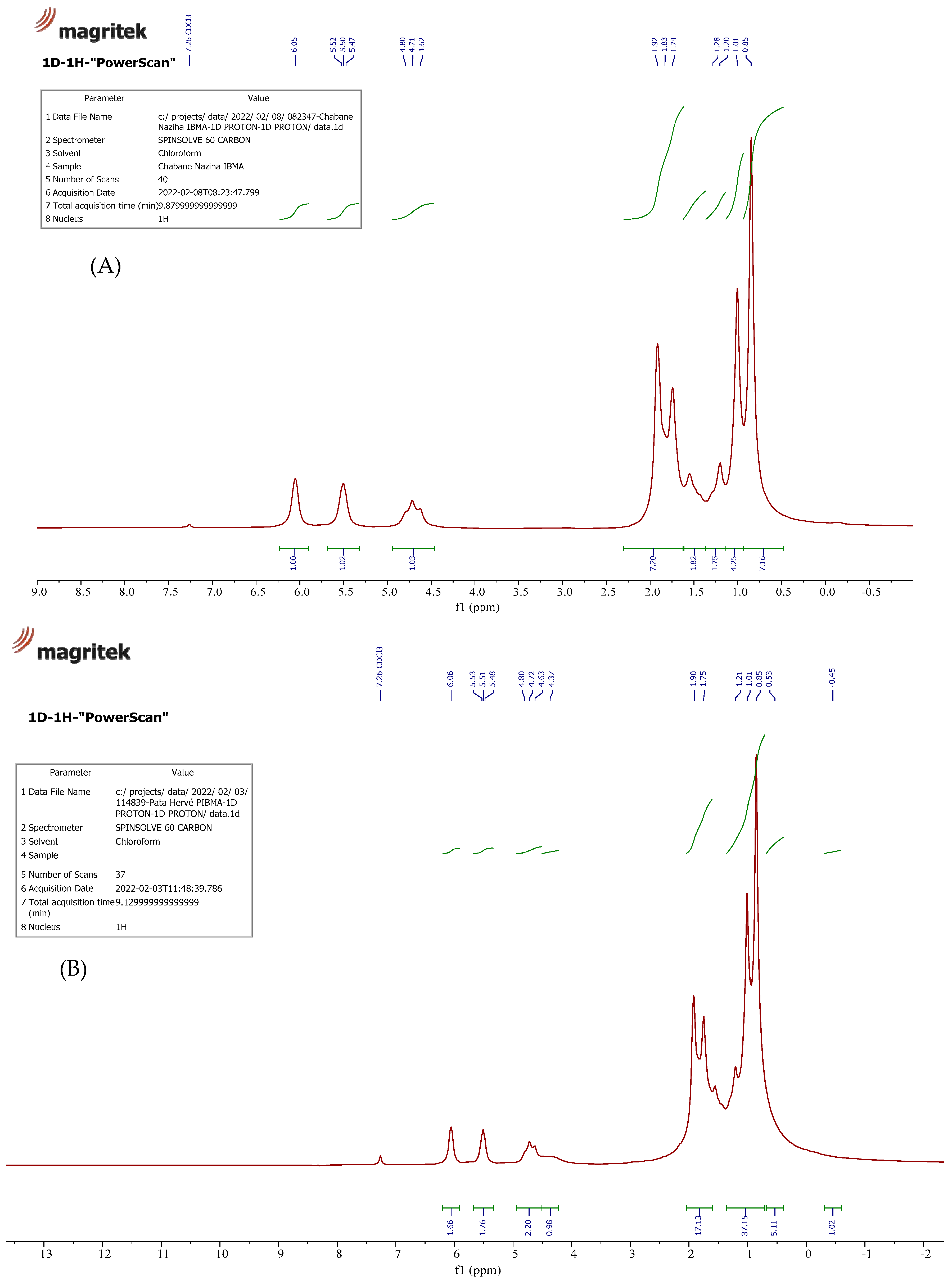

Figure 2. NMR spectra of isobornyl/bornyl methacrylate IBOMA/BOMA: (A) poly (isobornyl/bornyl methacrylate) PIBOMA/PBOMA. (B,C) Raman spectra of poly (isobornyl/bornyl methacrylate) PIBOMA/PBOMA [16].
Figure 2. NMR spectra of isobornyl/bornyl methacrylate IBOMA/BOMA: (A) poly (isobornyl/bornyl methacrylate) PIBOMA/PBOMA. (B,C) Raman spectra of poly (isobornyl/bornyl methacrylate) PIBOMA/PBOMA [16].
Chemproc 14 00089 g002aChemproc 14 00089 g002b
Table 1. Chemical composition of essential oil of A. arborescens determined by GC/MS analysis.
Table 1. Chemical composition of essential oil of A. arborescens determined by GC/MS analysis.
No.Compounds aRIa bRIa c%
a The order of elution is given in the non-polar column (HP-5MS). b Retention indices (RIa) in the non-polar column are reported from the literature. c Retention indices with respect to C8–C29 n-alkanes calculated onnon-polar (HP-5MS) capillary column. RI: retention index. MS: mass spectrometry in electronic impact mode.
