Experimental Evaluation of the Issuer Coefficients of a Locality in Ecuador ^†

Abstract

The objective of this research is to evaluate the variation of the discharge coefficients of the emitters provided by the commercial companies. This includes coefficients obtained in an experimental bench test. The testing assembly was composed of the supply unit, the filter, the adduction line, the distribution lines, the selected emitters, the analogue volume meters, and digital sensors to obtain the pressure and flow rate. There were two sectors in the plot: the first was a low-pressure sector operated by gravity and the second was high-pressure, supplied by a pump. Nine types of emitters (drippers, micro-sprinklers, sprinklers) were used, including some self-compensating ones. Using an electronic data acquisition system, the pressure and flow rate were obtained and used to generate the characteristic curves of emitters. This made it possible for the characteristic curves to be determined by using the discharge equations of the emitters selected for this study. Subsequently, the network was modelled using the discharge coefficient and exponent obtained for each emitter. The results show which of the tested emitters meet the technical specifications of the local suppliers.

1. Introduction

With 767 million people still living in extreme poverty [1], investments in agriculture prove very effective in reducing economic hardship. This is one reason why there exists an urgent need to promote innovative technologies for the optimal management of irrigation systems and water resources. It is possible for an irrigation system to be dynamically adjusted to the water demand of each crop [2], by implementing a network of pipes terminated by emitters that deliver water to the soil as droplets or spray [3]. Irrigation sprinklers are the most basic component of such a system and vary from one-piece sprinklers to highly complex designs such as a transmitter with multiple assemblies working together as a single unit [4]. It is important to understand the features of each emission source to best design a solution to meet the water demand of a crop [5].

The main emitters selected for field work in this research are sprinklers, micro-sprinklers, and drippers. High-pressure sprinklers are designed to cover large irrigation diameters from 20 m to 40 m and typically require operation at more 20 m water columns (mwc). A micro-sprinkler allows water to be discharged to the ground in a circular pattern, and the irrigation diameter is smaller: from 3 m to 15 m. These work from 10 mwc to 35 mwc. Compared to sprinklers and micro-sprinklers, drippers are designed to use water most efficiently from 4 mwc to 25 mwc and maintain optimal plant humidity [6].

The discharge coefficient Ke is determined as a function of the flow rate and working pressure of the emitter. Ke is fundamental for the proper modelling and control of irrigation systems because it includes both the hydraulic performance of the emitter and its discharge under different pressure conditions [7], which ultimately reflects the amount of water delivered to the plant. To obtain the homogeneous and high yield of agricultural products, the available water resources must be used effectively [8].

2. Methods

To explain the methodology, the Mini Wobbler micro-sprinkler (1/2″) was used, and the following sequence was applied.

2.1. Recognition and Topographical Mapping

This mainly included field work, identifying, and analyzing the characteristics of the study area. A topographical mapping of the study area was conducted to obtain the topographical features of the sector and to establish the final topological structure of the irrigation system pipe network.

2.2. Network Design

For the study network design, the hydraulic gradient method was used. The design and analysis considered the nominal flow demand of the emitter with the highest hydraulic requirements, and the continuous and local losses in the network. As a result, two networks were created. One was low-pressure gravity fed and the other used a high-pressure pumping system.

2.3. Installation of Irrigation System with the Emitters to Be Evaluated and Calibration of Electronic Equipment

This consisted of the installation of the materials and equipment of the study network, followed by the calibration of the sensors used to measure the pressure and flow rate of the emitters deployed.

2.4. Obtaining Experimental Data

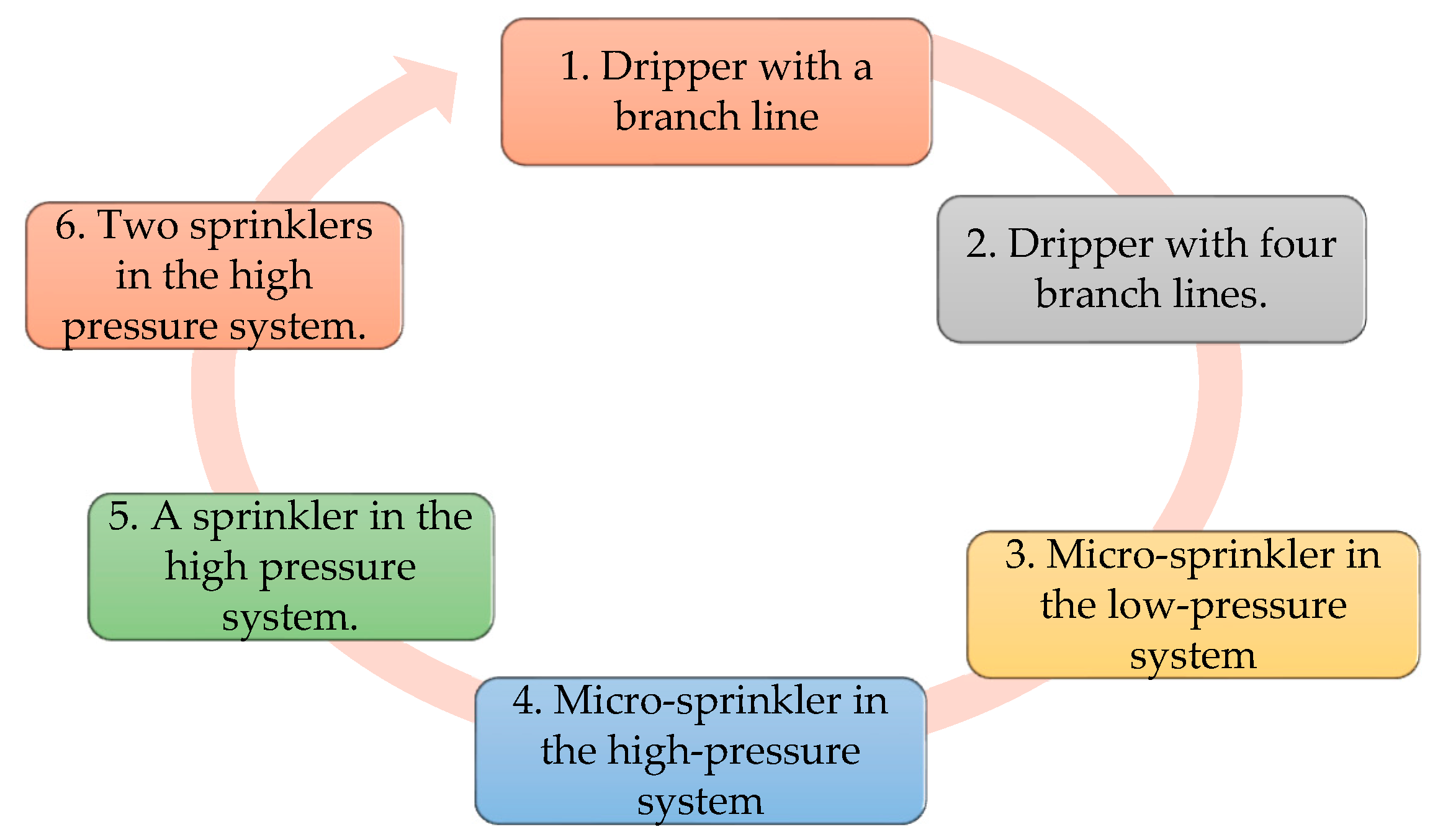

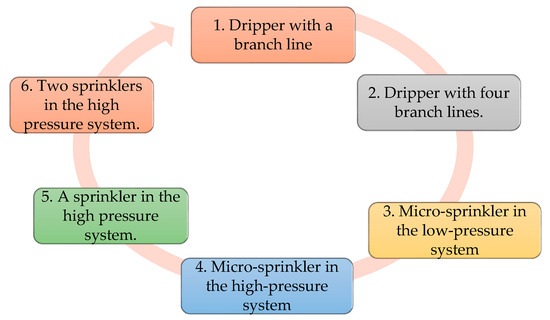

The pressure and flow data were measured electronically, and the logged values were constantly double-checked with analogue measurements. The data collection time for each emitter was 30 min, in the following order (Figure 1):

2.5. Calculation and Analysis of Ke Discharge Coefficients of Selected Emitters

To calculate the emitter Ke flow coefficient, the flow equation proposed by [9] in Equation (1) was used:

$$CU=100\times \frac{q_{25\%h}}{q_{medd}}$$

(1)

where CU is the coefficient of uniformity (application); $q_{25\%h}$ indicates the average flow rate of the 25% of the emitters with the lowest flow rate (L/h); and $q_{medd}$ is the average design flow rate (L/s).

Replacing in the discharge equation of this emitter Equation (2):

$$Q=Ke\times P^x$$

(2)

where $Q$ is the discharge flow rate of the emitter in (L/h); $Ke$ is the discharge coefficient of the emitter (dimensionless); $P$ is the hydraulic inlet pressure of the water at the emitter, in mwc or KPa; and finally, x is the emitter coefficient depending on the flow regime (dimensionless).

Replacing values in Equations (1) and (2), the value of Ke Equation (3) is obtained:

$$Ke=134.0370 \left(\frac{L}{h\times mwc}\right)$$

(3)

For the MegaNet nozzle (orange 650 L/h), the following specification was available, as seen in

Table 1. Data.

DATA
Pressure (mwc):	29.832
Flow (L/s):	0.2034

.

2.6. Modelling of the Ke Coefficient of Sprinklers and Micro-Sprinklers in the Study Network Using the Free Software EPANET 2.0 v.E

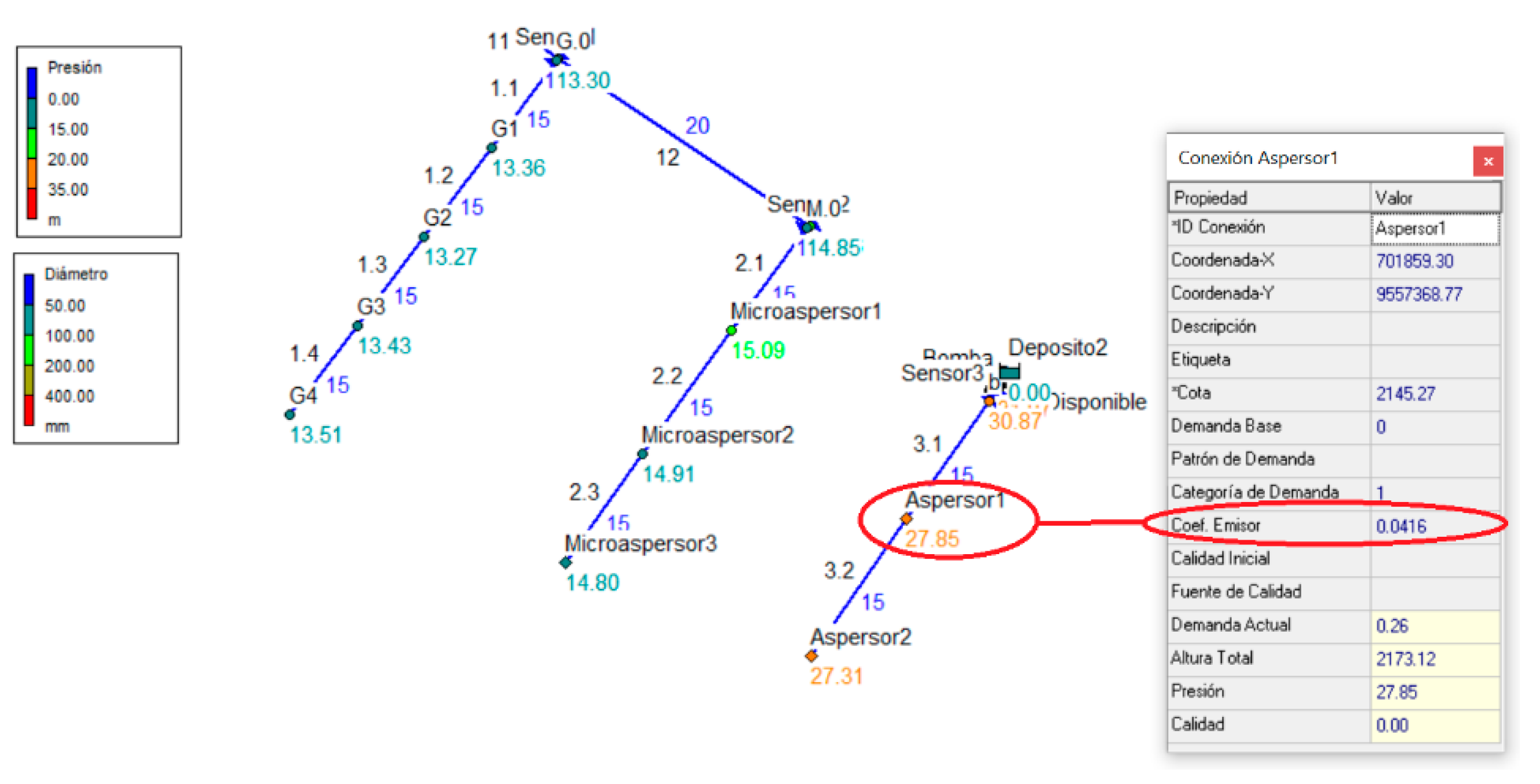

The Ke coefficients obtained from the emitter discharge equation were used, and the Epanet 2.0 software, Rossman, Cincinnati, United States, tool was used to model the research network with the implementation of sprinklers, micro-sprinklers, and drippers to analyze their hydraulic performance (Figure 2) [10].

2.7. Obtaining the Real Flow Rate Discharged by the Emitters in the Laboratory and Comparing It with That Obtained by Sensors

The realized flow rate was verified using the electronic data acquisition system, and the actual flow rate discharged by each emitter was quantified in the laboratory. For this purpose, the volume of water delivered by the emitter was collected over a period of 10 min.

3. Results and Discussion

3.1. Results

Table 2. Ke discharge coefficients of Mini Wobbler micro-sprinkler (1/2″).

Micro-Sprinkler: MINI WOBBLER (1/2″ VERTICAL)
Factory Pressure (bar)	1	1.5	2	2.5	3
Factory pressure (mwc)	10.197	15.296	20.395	25.494	30.592
Theoretical factory flow rate (L/s)	0.060	0.070	0.080	0.090	0.100
$\mathrm{Theoretical}\mathrm{Ke}\mathrm{coefficient}(\mathrm{L}/\mathrm{h}\times$mwc)	67.641	64.433	63.772	64.170	65.087
Discharge exponent (x)	0.500
Field pressure (mwc)	13.703	13.974	14.420	34.564	35.390
Field flow rate (L/s)	0.0637	0.0649	0.0674	0.1045	0.1085
$\mathrm{Ke}\mathrm{field}\mathrm{coefficient}(\mathrm{L}/\mathrm{h}\times$mwc)	61.982	62.536	63.866	63.970	65.673
$\mathrm{Ke}\mathrm{factory}\mathrm{coefficient}(\mathrm{L}/\mathrm{h}\times$mwc)	65.435	65.265	64.984	61.936	61.829
Percentage of variation (%)	5.57	4.36	1.75	3.18	5.85

shows the factory and field data of the Mini Wobbler micro-sprinkler and the discharge coefficients obtained. The coefficients show greater variation if the working pressure is very low or very high. It is therefore recommended to work at pressures between 1.5 bar and 2.5 bar. With the pressure and flow data obtained in the field, the characteristic equation for this emitter is obtained (Equation (4)):

$$Q=0.0154\times P^{0.546}$$

(4)

Equation (4) represents the flow rate obtained under different pressures; the exponent discharge is close to 0.5 so it operates in a turbulent regime.

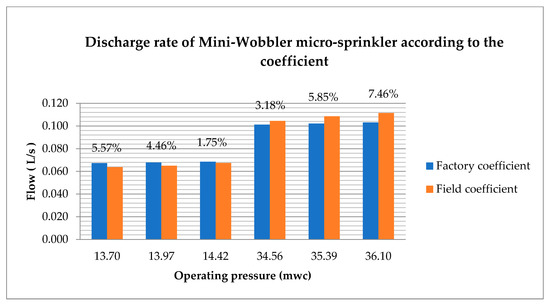

$\mathrm{Theoretical}\mathrm{Ke}\mathrm{coefficient}(\mathrm{L}/\mathrm{h}\times$$\mathrm{Ke}\mathrm{field}\mathrm{coefficient}(\mathrm{L}/\mathrm{h}\times$$\mathrm{Ke}\mathrm{factory}\mathrm{coefficient}(\mathrm{L}/\mathrm{h}\times$Figure 3 shows the difference between the discharge flow rate values obtained in the field and the flow rate values provided by the manufacturer operating at various working pressures, resulting in a minimum variation of 1.75% and a maximum variation of 7.46%.

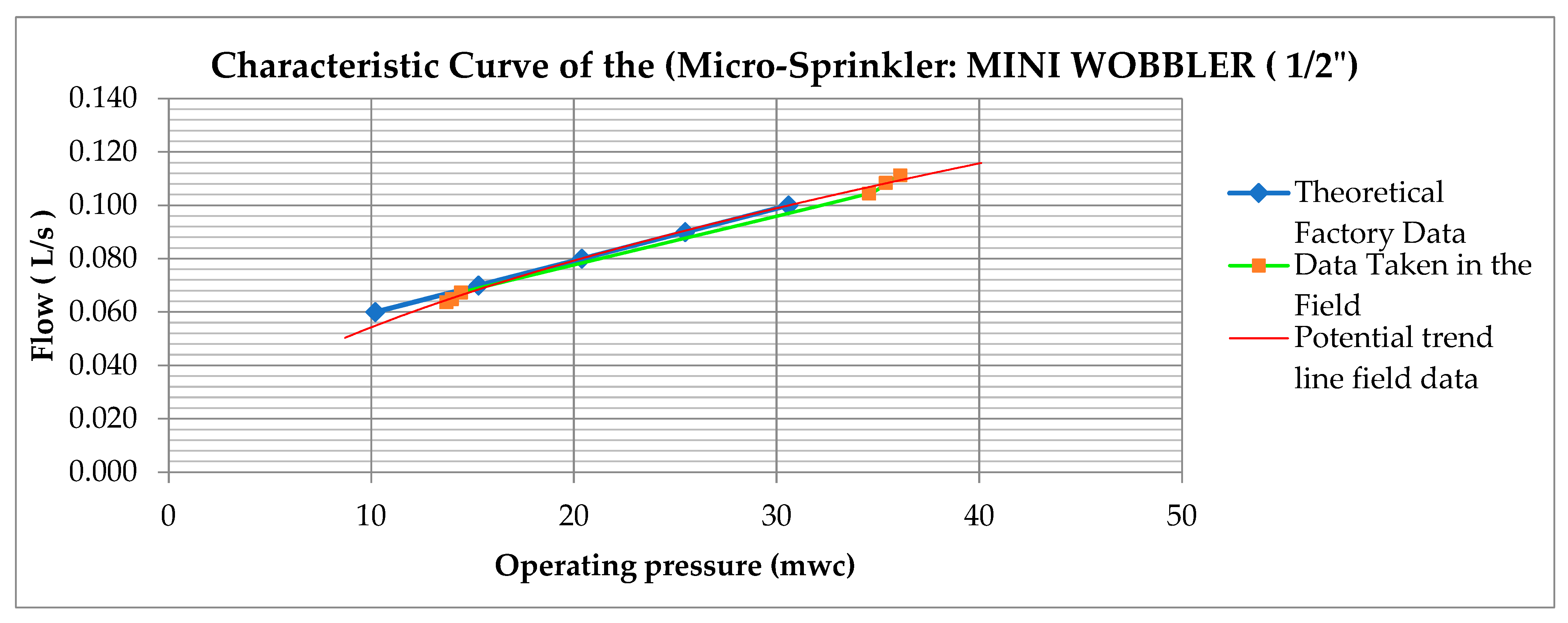

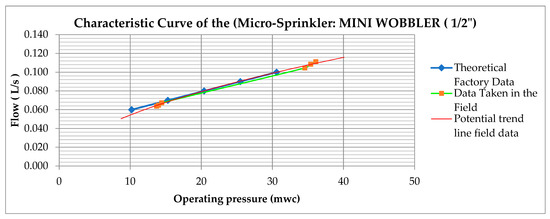

The characteristic curve and trend line of the field-measured flow and pressure of the ½″ Mini Wobbler micro-sprinkler (Figure 4) showed a significant variation, especially when the working pressure of the emitter was either very low or very high.

3.2. Discussion

3.2.1. Variation of Discharge Coefficients of Used Emitters

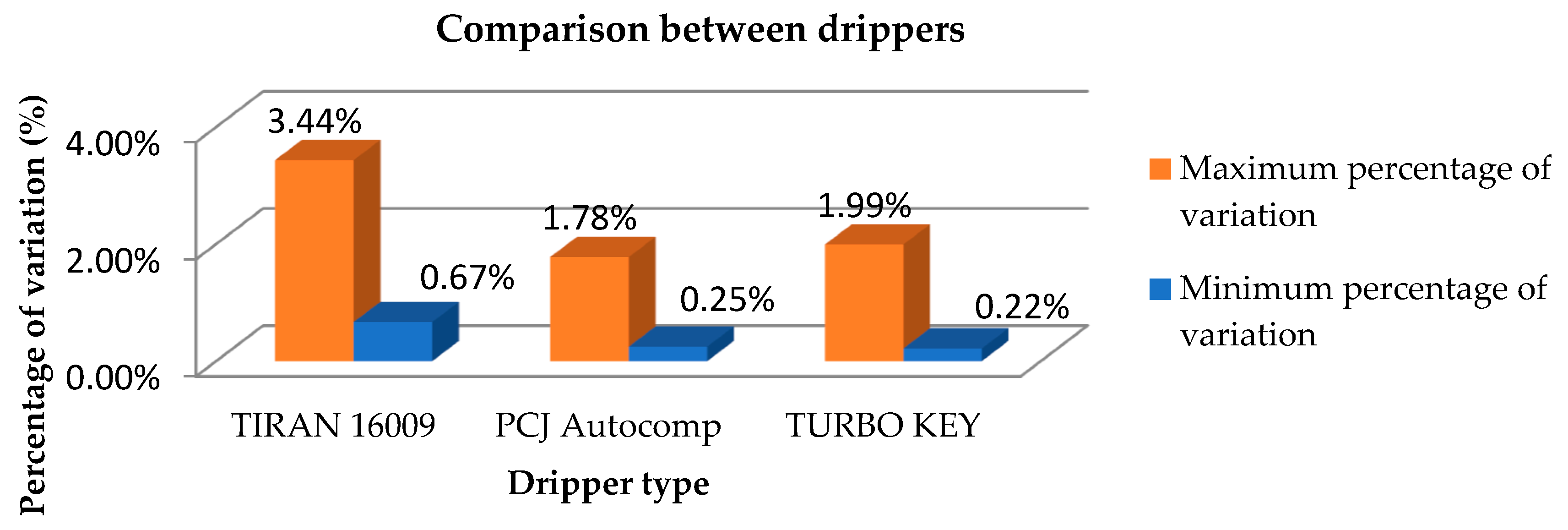

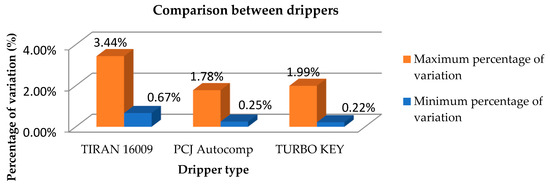

Figure 5 shows the types of drippers that were analyzed, and the maximum and minimum percentage of variation between the Ke discharge coefficients which were obtained with the factory data and those resulting in the field. It was verified that the self-compensating PCJ dripper presents less variation in the data provided by the manufacturer.

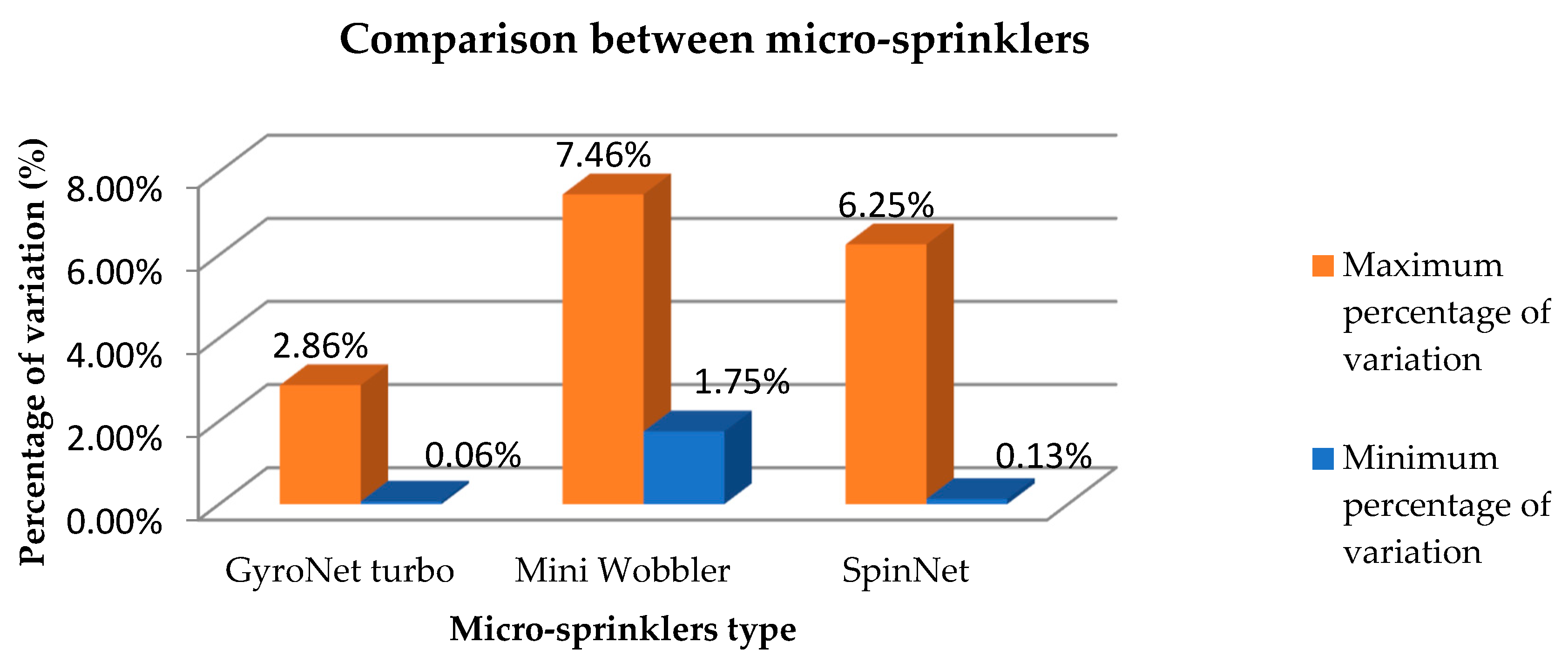

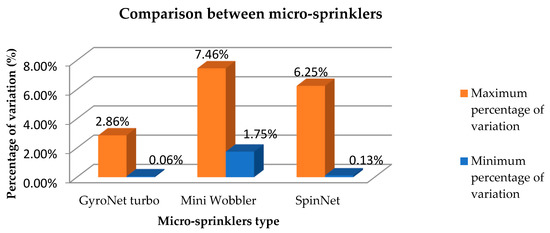

Figure 6 shows the maximum and minimum percentage variation of Ke values considering the factory and field data for all types of micro-sprinklers that were examined. It was observed that the GyroNet turbo micro-sprinkler is the most efficient and presents the lowest percentage of variation.

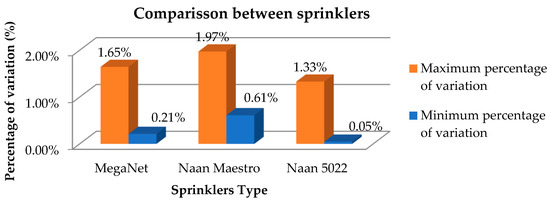

Figure 7 shows the maximum and minimum percentage variation that each type of sprinkler presented with respect to their discharge coefficients, and a comparison was made between them. As a result, it was found that the Naan 5022 sprinkler has less variation between the data obtained in the field and the data provided by the manufacturer.

3.2.2. Modelling Results in Epanet 2.0 Discharge Coefficients

Table 3. Comparison of field measured and modelled discharge flow rates in Epanet 2.0 micro-sprinklers.

FLOW COMPARISON (FIELD VERSUS EPANET 2.0)
Micro-Sprinkler Type	Operating Pressure (mwc)	Field Flow Rate (L/s)	Epanet Flow (L/s)	Variation
GyroNet turbo	15.01	0.048	0.05	4.44%
	36.03	0.073	0.07	4.29%
Mini Wobbler	13.97	0.065	0.06	7.60%
	35.39	0.109	0.11	1.36%
SpinNet	16.51	0.016	0.02	6.94%
	36.75	0.022	0.02	9.65%

shows the results of the flow variation of the emitters tested in the field, and the flows modelled in the Epanet 2.0 software. The variation is minimal, so it is affirmed that the modelling carried out with the discharge coefficients calculated correctly represents the hydraulic performance of the emitters in the field.

Table 4. Comparison of field measured and modelled discharge flow rates in Epanet 2.0 sprinklers.

FLOW COMPARISON (FIELD VERSUS EPANET 2.0)
Sprinkler Type	Operating Pressure (mwc)	Field Flow Rate (L/s)	Epanet Flow (L/s)	Variation
MegaNet	29.83	0.20	0.2	1.65%
	33.35	0.21	0.21	0.96%
Naan Maestro	28.63	0.22	0.21	2.96%
	33.20	0.23	0.23	0.23%
Naan 5022	26.15	0.250	0.25	0.10%
	31.77	0.277	0.28	1.21%

shows the comparison between the flow rates measured in the field and those resulting from the modelling in the Epanet 2.0 software. These data show a minimal variation between them, which allows us to confirm that the Ke discharge coefficients calculated are suitable for obtaining accurate results when modelling the hydraulic characteristics of an irrigation network.

4. Conclusions

Nine types of emitters were evaluated (three sprinklers, three micro-sprinklers, and three drippers). The pressure heads with the lowest percentage variation between the technical specifications of the catalogue and the data obtained in the field were determined, including Naan 5022 head, where the maximum percentage variation was 1.33%; GyroNet micro head, where the maximum variation value corresponded to 2.86%; and the self-compensating dripper PCJ, which obtained a maximum variation of 1.78%. Moreover, it was possible to obtain their corresponding discharge equations.

Using the flow and pressure data of each emitter, characteristic curves were generated. It was evident that the flow coefficients were close to 0.5, which indicates that these nozzles worked in a turbulent state for the sprinklers and micro-sprinklers and some drippers tested. The PCJ dripper is a self-compensating type, and its characteristic curve was different. Its discharge rate value was close to zero, and its characteristic curve corresponded to a straight line within the range of the working pressure.

The data obtained in situ using the electronic data acquisition system were evaluated in the laboratory using the actual emitter emission rate. The analysis showed that the variation of the discharge coefficients between field and catalogue data for all emitters was less than 2%, which ensured that the field data used in this research were reliable and representative.
