Abstract
The purpose of the study was to investigate the antifungal activity of essential oils derived from the Zingiberaceae family, such as Zingiber officinale Roscoe, Alpinia officinarum. Hance, and Curcuma longa Linn., against Phytophthora parasitica Dastur, (the pathogen that causes root and stem rot diseases). In vitro antifungal activity was measured using poisoned food technologies at a final concentration of 1000 mg/L in a completely randomized design with triplications. The essential oil of A. officinarum demonstrated the highest antifungal activity against P. parasitica, according to findings (p < 0.05). Gas chromatography-mass spectrometry was also used to analyze the oil. Twenty constituents representing 99.1% of the total content were identified. Eucalyptol was the most abundant component in A. officinarum rhizome oil (52%). The oil’s half-inhibitory concentration (IC50) of 432.89 mg/L had higher antifungal activity than eucalyptol (>1000 mg/L). The results suggested that A. officinarum oil should be expanded further for a new generation of fungicides as an environmentally acceptable agent and to reduce the use of chemicals in crop protection.
1. Introduction
Phytophthora parasitica is a phytopathogenic fungus and a widespread oomycete that infects a wide range of crop plants. The fungus can attack and damage the root tissues [1]. The fungus has been successfully controlled by chemical fungicides. Synthetic agrochemicals have direct effects on non-target organisms and the surrounding environment [2].
Essential oils are complex aromatic chemical agents extracted from traditional medicinal plants distributed in many tropical countries. However, the oils are also secondary metabolites with little understanding of their modes of action [3]. Many researchers are still searching for a new generation of fungicides derived from plants. The Zingiberaceae family consists of about 47 genera and 500 plant species distributed throughout the tropical and subtropical regions. Many members of the family have been studied for antifungal activity against dermatophytes, filamentous fungi, and yeast-like fungi [4]. The main groups of compositions, including terpenes and terpenoids, coumarins, and phenylpropanoids, have been reported [5].
In this work, the aim was to investigate the in vitro antifungal activity of essential oils derived from the Zingiberaceae family, including Zingiber officinale, Alpinia officinarum, and Curcuma longa, against P. parasitica mycelia growth. The effective oil was also to determine the chemical compositions of effective oils.
2. Methods
2.1. Plant Materials
Fresh rhizomes of Z. officinale, A. officinarum, and C. longa were purchased from the Or Tor Kor Market, Bangkok, Thailand. The plants tested were identified and confirmed by the herbarium of the Kasin Suyathabandhu Herbarium (HCU-Herbarium) at the Department of Botany, Faculty of Science, Chulalongkorn University.
2.2. Hydro-Distillation
Five kilograms of the fresh rhizomes of these plants were washed, cut into small pieces (5 × 5 cm2), and dried. Each plant was then subjected to hydrodistillation in a Clevenger-type apparatus for 4 h. The oils were separated and dried over anhydrous sodium sulfate and obtained. Each oil was placed in a paper-wrapped container to protect it from oxidation (kept at 4 °C) [6].
2.3. Compound
Eucalyptol (95%) was purchased from Sigma-Aldrich (St. Louis, MO, USA).
2.4. Fungal Strain
P. parasitica was supplied by the Center of Excellence in Chemistry of Natural Products, Faculty of Science, Chulalongkorn University. The fungus was maintained on carrot agar (CA) at 30 °C in the dark.
2.5. Antifungal Activity Assay
The oils were filtered after being dissolved in 20 percent DMSO at 105 mg/L. The melted CA was combined with 0.1 mL of different oils with a final concentration of 1000 mg/L and placed into Petri plates. The control treatment consisted of a CA mix containing only 20% DMSO. This research employed the poisoned food approach [7].
By testing multiple concentrations of the effective oil and the main component, the half-maximal inhibitory concentration (IC50) was calculated. The percentage of mycelia growth inhibition of each concentration was plotted against the concentration using a linear equation method, yielding a 50% suppression of mycelia growth.
2.6. Gas Chromatography-Mass Spectroscopy Detection Analysis
Agilent 6890 NGC and Agilent 5973 MS were used for the GC-MS study. An HP-5MS fused-silica capillary column with dimensions of 30 m × 0.250 mm id and a film thickness of 0.25 m was utilized to examine the samples. With a consent flow of 1 mL/min, an injector temperature of 270 °C, and a spitless ratio of 1:100, helium was employed as the carrier gas. The column oven’s temperature was supposed to rise from 60 to 280 °C in 1 min and then remain isothermal for 25 min. The ion source was 250 °C, the transfer line was 280 °C, and the ionization energy was 70 electron volts. Electron-impact mass spectra were collected from 20 to 550 amu.
The chemical components of the oil were evaluated by comparing their retention times and mass spectra to the Wiley 7N electronic libraries, as performed by the Central Instrument Facility, Faculty of Science, Mahidol University, Bangkok, Thailand.
2.7. Statistical Analysis
The SPSS software for Windows version 20.0 was used to analyze the data. The Duncan’s Multiple Range Test (DMRT) was used to compare the results, and significance was determined at the p ≤ 0.05 level. The experiment used a general linear model with duplication within a completely randomized design.
3. Results and Discussion
3.1. Percentage Yields
The percentage yields of the hydro-distillated oils are shown in Table 1. The rhizome oil from C. longa obtained the highest yield.
Table 1.
Percentage yields of the oils.
3.2. Antifungal Susceptibility
The antifungal activity of the rhizome oils against P. parasitica are shown in Table 2. The oil from A. officinarum displayed completely antifungal activity on the tested fungus. Thus, the oil was chosen for checking the chemical compositions.
Table 2.
Antifungal activity of essential oils against P. parasitica at 1000 mg/L.
3.3. Chemical Compositions of the A. officinarum Oil
The GC/MS analysis revealed 21 principal compositions, accounting for 99.1% of the oil. Among 21 compounds, eucalyptol (52%) was the major component, followed by α-fenchyl acetate (9%), β-pinene (6%), α-terpineol (6%), β-caryophyllene (4%), and Terpinen-4-ol (3%).
3.4. The Half Maximal Inhibitory Concentration (IC50)
The oil from A. officinarum oil was used for the IC50 study, comparing the main compound with eucalyptol in different concentrations. The results are displayed in Figure 1.

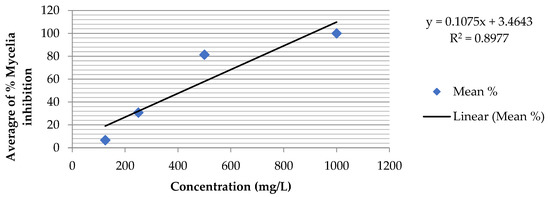

Figure 1.
IC50 value of the A. officinarum oil against P. parasitica.
The oil’s IC50 was calculated as 432.89 mg/L using the linear equation formula: y = 0.1075x + 3.4643. Thus, 898.01 mg/L could be used to achieve complete inhibition of P. parasitica mycelia. The IC50 value for eucalyptus could not be calculated because the only compound in various concentrations supported the mycelia growth of the fungus tested. The findings suggested that the oil’s synergistic compounds could boost antifungal activity against the fungus.
4. Conclusions
The essential oils of rhizomes of Z. officinale, A. officinarum, and C. longa showed antifungal activity against P. parasitica. The A. officinarum oil displayed the most antifungal activity. The major composition of the effective oil was eucalyptol. The synergistic agent as the oil presented more mycelia growth inhibition than the eucalyptol. The A. officinarum oil could be feasible to use as a natural agrochemical for the prevention of the growth of P. parasitica.
Supplementary Materials
The following are available online at https://www.mdpi.com/article/10.3390/IOCAG2022-12324/s1, Poster: Antifungal properties of essential oils derived from three plants of Zingiberaceae family against Phytophthora parasitica Dastur.
Author Contributions
Conceptualization, P.C.; methodology, S.T. and P.C.; software, S.T. and P.C.; validation, P.C.; formal analysis, S.T. and P.C.; investigation, S.T. and P.C. resources, S.T. and P.C.; data curation, S.T. and P.C.; writing—original draft preparation, S.T. and P.C.; writing—review and editing, P.C.; visualization, S.T. and P.C.; supervision, P.C.; project administration, P.C.; funding acquisition, S.T. and P.C. All authors have read and agreed to the published version of the manuscript.
Funding
This research received no external funding.
Institutional Review Board Statement
Not applicable.
Informed Consent Statement
Not applicable.
Acknowledgments
The authors would like to thank Warinthorn Chavasiri and Santi Tip-Pyang at Chulalongkorn University’s Centre of Excellence in Natural Products Chemistry, Department of Chemistry, and Sujidkanlaya Maruekarajtinplaeng at Phranakhon Si Ayutthaya Rajabhat University’s Faculty of Science and Technology.
Conflicts of Interest
The authors declare no conflict of interest.
References
- Hao, K.; Lin, B.; Nian, F.; Gao, X.; Wei, Z.; Luo, G.; Lu, Y.; Lan, M.; Yang, J.; Wu, G. RNA-seq analysis of the response of plant-pathogenic oomycete Phytophtora parasitica to the fungicide dimethomorph. Rev. Argent. Microbiol. 2019, 51, 268–277. [Google Scholar] [PubMed]
- Kaur, R.; Kalia, A.; Lore, J.S.; Sandhu, J.S. Antifungal effect of Trichoderma spp. β-1,3-glucanase on Phytophthora parasitica: Hyphal morphological distortions. J. Phytopathol. 2020, 168, 700–706. [Google Scholar] [CrossRef]
- Schroder, T.; Gaskin, S.; Ross, K.; Whiley, H. Antifungal activity of essential oils against isolated from air. Int. J. Occup. Environ. Health 2017, 23, 181–186. [Google Scholar] [CrossRef] [PubMed]
- Jantan, I.B.; Yassin, M.S.M.; Chin, C.B.; Chen, L.L.; Sim, N.L. Antifungal activity of the essential oils of nine Zingiberaceae species. Pharm. Biol. 2003, 5, 392–397. [Google Scholar] [CrossRef]
- Nazzaro, F.; Fratianni, F.; Coppola, R.; de Feo, V. Essential oils and antifungal activity. Pharamaceuticals 2017, 10, 86. [Google Scholar] [CrossRef] [Green Version]
- Dziri, S.; Casabianca, H.; Hanchi, B.; Hosni, K. Composition of garlic essential oil (Allium sarivum L.) as influenced by drying method. J. Essent. Oil Res. 2013, 26, 91–96. [Google Scholar] [CrossRef]
- Chanprapai, P.; Chavasiri, W. Antimicrobial activity from Piper sarmentosum Roxb. against rice pathogenic bacteria and fungi. J. Integr. Agric. 2017, 16, 2513–2524. [Google Scholar] [CrossRef] [Green Version]
