Article

Hydrogen Formation from Water with Various Reducing Metals Catalyzed by In Situ-Generated Nickel Nanoparticles

Casali Center of Applied Chemistry, Institute of Chemistry, The Hebrew University of Jerusalem, Jerusalem 9190401, Israel
*
Author to whom correspondence should be addressed.
Hydrogen 2024, 5(2), 230-240; https://doi.org/10.3390/hydrogen5020014
Submission received: 11 March 2024 / Revised: 26 April 2024 / Accepted: 28 April 2024 / Published: 3 May 2024

Abstract

:
Water is a potential green source for the generation of clean elemental hydrogen without contaminants. One of the most convenient methods for hydrogen generation is based on the oxidation of different metals by water. The inspection of the catalytic activity toward hydrogen formation from water performed in this study was carried out using four different metals, namely, zinc, magnesium, iron, and manganese. The process is catalyzed by in situ-generated nickel nanoparticles. The zinc–water system was found to be the most effective and exhibited 94% conversion in 4 h. The solid phase in the latter system was characterized by PXRD and SEM techniques. Several blank tests provided a fundamental understanding of the role of each constituent within the system, and a molecular mechanism for the catalytic cycle was proposed.

Graphical Abstract

1. Introduction

The combustion of fossil fuels releases a multitude of pollutants, including greenhouse gases, into the atmosphere, which is the primary driver of global air pollution and climate change [1,2]. This environmental impact has spurred a global interest in alternative energy sources that can mitigate these effects. Hydrogen gas has gained significant attention as an alternative energy carrier, due to its high energy conversion efficiency and the clean nature of its combustion products [3]. However, the direct utilization of hydrogen faces significant challenges, including cost considerations, safety concerns, and transportation issues, primarily because of its low density and high risk of explosion [4,5]. To address these issues, the in situ generation of hydrogen has attracted more attention in recent years. Hydrogen can be generated using three methods: biological [6,7], electrochemical [8,9], and chemical [10,11]. The chemical method is more promising when compared to the biological and electrochemical methods, which are inefficient and costly, respectively.
The chemical approach offers advantages such as safety in handling and ease of transport. It involves utilizing various hydrogen carriers capable of efficiently releasing hydrogen under controlled conditions. Examples of substances that have been advocated for as hydrogen donors are formate salts [12,13,14], formic acid [15,16], metal hydrides [17,18], saturated hydrocarbons [19,20], hypophosphites [21,22], and water [23,24]. Among the various hydrogen carriers, water emerges as the most promising candidate for a hydrogen source. This distinction arises from its significant hydrogen content and its safe and eco-friendly nature. [25]. Two approaches exist for generating hydrogen from water. The first is water splitting, with one type involving a photocatalyst. While environmentally friendly, this approach suffers from high energy consumption and low efficiency, limiting its commercial feasibility [11]. Another advanced method utilizes solar-driven thermochemical redox cycles, harnessing concentrated solar radiation from sources like solar towers and parabolic dishes, achieving high solar-to-fuel energy conversion efficiency [26,27]. The second method involves reacting water with a reducing agent, typically a metal, in which hydrogen and an oxidized material (metal) are formed (Equation (1)). Typical metals used in this reaction are alkali metals, aluminum [23,28], zinc [29] and magnesium [30].
m e t a l + H 2 O o x i d i z e d   m e t a l + H 2
In this process, water molecules penetrate the metal cores, initiating an oxidation reaction that yields oxidized metal and pure hydrogen gas. Nevertheless, the process is not straightforward, as it involves encountering several challenges. For instance, in the case of aluminum, using an alkaline environment or milling the metal with salt have been reported as methods to address the thin oxide layer on the aluminum surface [23,31,32]. Additional challenges for other metals include the requirement to accelerate the process and to activate the metal. This is resolved by doping with additional metals, which serve as catalysts for the reaction [33]. The current trend in the transition metal catalysis process is the growing use of metals that are of lower price than platinum, palladium, and rhodium, although the noble metals are still widely used. It has been reported that nickel, separately or blended with a promoter, was found to be superior to these metals [34]. The preparation and activation of unsupported nickel catalysts have been studied by several researchers [34,35].
Herein, our research focuses on the evolution of hydrogen from the reaction between water and different metals in a neutral environment, catalyzed by in situ-generated nanoparticles of nickel. One of the key advantages of our approach is the production of a catalyst in situ, eliminating the need for prior catalyst preparation and recycling. Furthermore, unlike heterogeneous catalysts, which can suffer from decreased catalytic activity over time, our method ensures no actual damage to the catalytic activity. Additionally, we use a catalytic amount of nickel, a cost-effective alternative to expensive noble metals. Our evaluation of the metal with the highest rate of hydrogen generation among zinc, iron, magnesium, and manganese is part of our study’s comprehensive comparative analysis of different metals. This unique contribution is not found in the existing literature. Additionally, we conducted targeted experiments and employed several characterization methods to clarify the role of each component in the system. This approach led to the deduction of an overall mechanism for the process. Overall, our findings contribute significantly to the development of sustainable and efficient hydrogen production methods, which are crucial for transitioning to a cleaner and greener energy landscape.

2. Materials and Methods

In a typical hydrogen generation experiment, 0.15 mol of powdered metal (9.8 g Zn, 3.6 g Mg, 8.4 g Fe, and 8.2 g Mn), 0.05 g NiCl2, and 20 mL deionized water were placed in a round-bottomed flask that was connected to a reflux system in which ice water flowed, and the latter was connected to a flow-meter system that monitored the volume of hydrogen emitted (Figure 1). The reaction mixture was stirred at a rate of 1000 rpm, at 60 °C, for 24 h. The metals tested were zinc, magnesium, iron, and manganese. When the reaction was completed, the reaction mixture was centrifuged, and the solid phase was dried for 3 h at 70 °C and characterized by PXRD (X-Ray Powder Diffractometer D8 Advance, Bruker AXS, Karlsruhe, Germany) and SEM (Analytical High Resolution Scanning Electron Microscope Apreo 2S, Thermo Fisher Scientific, Waltham, MA, USA).
To assess the catalytic activity of the various systems tested, we compared their respective conversion percentages. Percentage conversion quantifies the extent to which reactants transform into products during the reaction, providing insights into catalytic efficiency. This calculation follows the formula presented in Equation (2), where n ( r ) 0 is the initial reactant mole introduced into the system and n ( r ) e n d is the mole of the reactant remaining at the end of the process.
%   C o n v e r s i o n = n ( r ) 0 n ( r ) e n d n ( r ) 0 × 100 %

3. Results and Discussion

3.1. Hydrogen Generation

Water is an excellent source of hydrogen as it is a green liquid, environmentally friendly, and abundant. The most common method currently used to produce hydrogen from water is by a water-splitting reaction (electrolysis), which uses a photocatalyst. Besides the high energy consumption of this method, very low amounts of hydrogen are obtained. For this reason, we examined the alternative way to produce hydrogen from water, that is, by reacting water with a reducing metal (Equation (1)). In this study, we followed the generation of hydrogen using different reducing metals (i.e., Zn, Mg, Fe, and Mn), and by adding nickel chloride, which turns into nickel nanoparticles that are formed in situ in the system and functions as a catalyst for the hydrogen production process. Both the metals that reduce the water and the nickel catalyst are non-noble metals. While non-noble metals may have lower resistance to oxidation and corrosion, they offer cost advantages and find widespread applications in various industries, particularly as catalysts in chemical reactions and hydrogen generation processes. The hydrogen release activity of all metal–water systems was performed under the same conditions. Figure 2 demonstrates the reaction profiles for all four systems, as determined by measuring the volume of hydrogen produced using a flow-meter system, as well as the conversions. It is apparent that the zinc–water system demonstrates remarkable activity. It reaches 94% conversion in about 4 h, while the magnesium–water system reaches 32% conversion, but the value does not stabilize even after 24 h, which means that a longer reaction time could enable the system to reach a higher % conversion. It can also be seen that the iron–water and manganese–water systems are inefficient, they reached only 8% and 14% conversion, respectively, when the reaction utterly stopped after 4 h.
In this system, the addition of nickel chloride to the system results in the in situ formation of catalytic nickel nanoparticles, which are formed by the reduction of the nickel ions by the metal. In order to examine the catalytic efficiency of the nickel nanoparticles that are formed, we performed blank experiments with and without nickel chloride. Table 1 shows the results obtained. It can be seen that the nickel particles act as a catalyst for all four systems. That is, for the zinc–water, iron–water, and manganese–water systems, no hydrogen is formed at all without the addition of nickel chloride, and for the magnesium–water system there is a 26% improvement in conversion when nickel chloride is added. For the zinc–water system, it is seen that the addition of nickel chloride causes the reaction to occur under moderate conditions and reach almost complete conversion.
The intrinsic catalytic activity is attributed to the diversity of metals, and, practically, this activity depends on the mass of the metal. Consequently, we investigated how variations in metal and catalyst amounts impact the conversion percentage of our most successful system, which comprises zinc, water, and nickel chloride. The results in Table 2 demonstrate the essential roles of nickel chloride and zinc in the hydrogen production reaction (entries 1 and 6). Notably, the presence of nickel significantly influences the conversion rate, with an optimal amount observed at 0.05 g, as indicated by the negligible difference between 0.05 g and 0.1 g in terms of conversion (entries 1–5). Moreover, increasing the quantity of zinc leads to a notable increase in the conversion percentage, reaching up to 94% at 9.8 g (entries 4, 6–9). However, a further increase in the zinc content to 13.1 g results in a decrease in conversion, likely due to a reduced nickel chloride to zinc ratio. This decrease in conversion could be attributed to a decrease in available chloride ions for surface cleaning of zinc, highlighting the catalytic nature of nickel chloride in the reaction.

3.2. Mechanistic Study

In order to determine the role of each component in the system and to appraise the molecular mechanism of the catalytic reaction, several characteristic tests of the solid phase were executed before and after the reaction for the best catalytic system. Figure 3 presents the XRD patterns of fresh zinc before the reaction and the solid phase after 24 h of the reaction. For fresh Zn, there are six peaks, at ~36.3°, ~39.02°, ~43.24°, ~54.34°, ~70.12°, and ~70.68°, which indexed with hexagonal closed pack (HCP) structure of the Zn particles. These peaks correspond to the facets (002), (100), (101), (102), (103), and (110), respectively, proving that the Zn particles are composed of pure crystalline Zn. There is a minimal percentage of zinc oxide, which is 5.2%, and, because of this, no characteristic peaks were observed. For the solid mixture collected after 24 h of reaction, it can be seen that the mixture contains 86.1% zinc hydroxide, which has four main characteristic peaks located at ~20.20°, ~20.94°, ~27.22°, and ~27.8°. These peaks correspond to the (110), (101), (111), and (201), respectively, of the crystal planes of ϵ-Zn(OH)2 (Wulfingite, ICSD #50447). In addition, it can be seen that the percentage of zinc oxide has not changed, so it can be concluded that it is not created or consumed in this system.
Figure 4 shows SEM imaging of the solid phase of the reaction at three different points, i.e., fresh zinc before the reaction, after 12 h, and after 24 h. The zinc particles before the reaction have a spherical morphology with a size distribution of hundreds of nanometers to ten microns Figure 4A-1,A-2. In the solid phase after 12 h of reaction, a change is clearly observed in the surface morphology of the particles. In Figure 4B-1 one can see that there are exposed zinc particles that did not react, and some are almost completely covered with a crystalline layer that characterizes zinc hydroxide. In the higher-resolution image, the crystalline morphology of zinc hydroxide can be seen in a more focused manner Figure 4B-2. After 24 h, the solid phase has a “broken” crystal morphology that belongs to zinc hydroxide Figure 4C-1,C-2. There is probably a small amount of zinc particles that have not reacted and were buried under the hydroxide surface.
It can be seen that the reaction manages to occur almost completely, even though zinc hydroxide is formed which blocks the surface of the zinc particles. It is assumed that the chloride ions are responsible for scrubbing the surface of the zinc particles. To verify this assumption, the activity of three systems was compared: zinc + water alone, zinc + water + nickel chloride, and zinc + water + Raney-nickel. The system with zinc and water alone showed no reaction, while the addition of nickel chloride led to a significant 94% conversion. In contrast, using Raney-nickel, a commercial nickel catalyst devoid of chloride ions, resulted in only 31% conversion. This is substantial proof that chloride ions are indeed responsible for cleaning the hydroxide layer formed during the reaction. In order to remove the “blocked” surface after zinc hydroxide is formed a small amount of chloride is sufficient, because there is no need for complete hydroxide removal. It is enough to create tunnels in which new water molecules can seep and be adsorbed to the zinc surface. Figure 5 presents the course of action for cleaning the exterior of the zinc.
Figure 5 reveals that in the first step water is adsorbed on the surface of the zinc and a hydroxide layer is formed. The chloride ions present in the solution bring about an ion-exchange reaction with the hydroxide ions. A putative Zn(OH)Cl(aq) species is formed. This is a soluble intermediate, so this layer breaks down from the surface of the zinc. Chloride is released into the solution and can return for another round of cleaning. In the solution, the zinc ions encounter the hydroxide ions and precipitate to the bottom or/and to the surface of the zinc. This mechanism is consistent with the SEM image obtained for sample B, where one can see exposed zinc residues and areas filled with zinc hydroxide which covers the surface of the zinc particles.
For the hydrogen generation process, the stage of catalysis in the in situ formation is a reduction of nickel ions by elementary zinc (Equation (3)):
Z n ( s ) + N i ( a q ) 2 +     Z n ( a q ) 2 + + N i ( s )
In this process, atom-sized particles of nickel are formed. We visualize that some of these are nanoparticles in solution, but, as time passes, they undergo aggregation because of the absence of any stabilizing material. This postulation also explains the plateau obtained in the hydrogen emission graph (Figure 2). It can be concluded that zinc has two functions: reducing the nickel ions to create metal nanoparticles of nickel, and producing hydrogen when it is combined with water. In fact, after the first stage, in which water molecules are adsorbed to the surface of the zinc while zinc reduces the nickel ions, metal nickel nanoparticles encounter the water molecules on the surface of the zinc and form nickel hydride (Figure 6).
There is chemisorption of hydrogen on the surface of the nickel. This nickel hydride exists in chemical equilibrium with metallic nickel and elementary hydrogen, where there is a transition state in which molecular hydrogen is physically adsorbed to the nickel (Equation (4)). The Ni-H species, being a transitional species, undergoes rapid decomposition into nickel and hydrogen The metallic nickel is reconstructed and can continue to release more elementary hydrogen.
2 N i H s     2 N i · · · H 2     2 N i s + H 2 g
We further validated the essential role of nickel in this system by conducting experiments using other chloride-containing salts with metals capable of forming hydrides, specifically NaCl and MgCl2 (Table 3). Table 3 illustrates that, despite the presence of chloride ions in sodium and magnesium chloride salts, the reaction did not proceed. Therefore, it can be inferred that nickel is indispensable in this process, and the synergistic combination of nickel and chloride is crucial for hydrogen release.
Based on the experimental observations and characterizations, a putative catalytic cycle is herewith proposed (Figure 7). In the first step, water molecules adsorb to the surface of the zinc. At the same time, the reduction of nickel ions to metallic nickel by zinc is taking place. In the following stage, the nickel nanoparticles arrive at the surface of the zinc, where there are water molecules, and pick one hydrogen atom from each water molecule. Nickel hydride is formed. This is actually an aggregation of nickel particles, and, on some sites, there are chemisorbed hydrogen atoms on the surface of the nickel. Then, elemental hydrogen is released from the nickel hydride intermediate. Meanwhile, in order for the hydrogen generation to continue, it is important to clean parts of the zinc hydroxide layer that is formed on the zinc surface, so that additional water molecules can continue to be adsorbed. The chloride ions present in the solution perform an ion-exchange reaction with the hydroxide ions. A water-soluble species of Zn(OH)Cl(aq) is formed, which disintegrates from the surface of the zinc. The zinc ions meet the hydroxide ions in the solution and sediment, in part, at the bottom of the solution, and, partly, on the surface of the zinc. Chloride ions are restored and perform the cleaning process repeatedly.

4. Conclusions

In conclusion, in this study, we advocate for the use of water as a source of hydrogen gas. Hydrogen generation was tested while examining the activity of four different metals as reducing agents, namely, zinc, magnesium, iron, and manganese. This process is catalyzed by in situ-generated nickel nanoparticles. The zinc–water system was found to be the most efficient for hydrogen production, which reached 94% conversion within 4 h. Based on this system, the role of each component was investigated and the catalytic mechanism for this reaction was proposed. It was found that the nickel ions were reduced in situ in the system by the metal to metallic nickel nanoparticles, which were used as a catalyst for the production of hydrogen. In this reaction, water is adsorbed to the zinc surface, nickel picks up hydrogen and releases it as elemental hydrogen, and zinc hydroxide is formed. In addition, the chloride ions play a critical role in cleaning the zinc surface in order to allow the reaction to proceed to completion. Consequently, we believe that these findings will encourage further research that will use water as a green hydrogen source combined with cheap metals under mild conditions.

Author Contributions

Conceptualization, R.S.; methodology, R.S.; validation, R.S. and Y.S.; formal analysis, R.S.; investigation, R.S.; data curation, R.S.; writing—original draft preparation, R.S.; writing—review and editing, Y.S.; visualization, R.S.; supervision, Y.S.; project administration, Y.S.; funding acquisition, not applicable. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

The data presented in this study are openly available in article.

Acknowledgments

We thank the Casali Foundation for financial support.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Balat, M. Potential Importance of Hydrogen as a Future Solution to Environmental and Transportation Problems. Int. J. Hydrogen Energy 2008, 33, 4013–4029. [Google Scholar] [CrossRef]
  2. Claxton, L.D. The History, Genotoxicity, and Carcinogenicity of Carbon-Based Fuels and Their Emissions. Part 3: Diesel and Gasoline. Mutat. Res./Rev. Mutat. Res. 2015, 763, 30–85. [Google Scholar] [CrossRef] [PubMed]
  3. Deng, Z.-Y.; Ferreira, J.M.F.; Sakka, Y. Hydrogen-generation Materials for Portable Applications. J. Am. Ceram. Soc. 2008, 91, 3825–3834. [Google Scholar] [CrossRef]
  4. Armaroli, N.; Balzani, V. The Hydrogen Issue. ChemSusChem 2011, 4, 21–36. [Google Scholar] [CrossRef] [PubMed]
  5. San Marchi, C.; Hecht, E.S.; Ekoto, I.W.; Groth, K.M.; LaFleur, C.; Somerday, B.P.; Mukundan, R.; Rockward, T.; Keller, J.; James, C.W. Overview of the DOE Hydrogen Safety, Codes and Standards Program, Part 3: Advances in Research and Development to Enhance the Scientific Basis for Hydrogen Regulations, Codes and Standards. Int. J. Hydrogen Energy 2017, 42, 7263–7274. [Google Scholar] [CrossRef]
  6. Park, W.; Hyun, S.H.; Oh, S.E.; Logan, B.E.; Kim, I.S. Removal of Headspace CO2 Increases Biological Hydrogen Production. Environ. Sci. Technol. 2005, 39, 4416–4420. [Google Scholar] [CrossRef] [PubMed]
  7. Kapdan, I.K.; Kargi, F.; Oztekin, R.; Argun, H. Bio-Hydrogen Production from Acid Hydrolyzed Wheat Starch by Photo-Fermentation Using Different Rhodobacter sp. Int. J. Hydrogen Energy 2009, 34, 2201–2207. [Google Scholar] [CrossRef]
  8. Turner, J.; Sverdrup, G.; Mann, M.K.; Maness, P.C.; Kroposki, B.; Ghirardi, M.; Evans, R.J.; Blake, D. Renewable Hydrogen Production. Int. J. Energy Res. 2008, 32, 379–407. [Google Scholar] [CrossRef]
  9. Cao, E.; Chen, Z.; Wu, H.; Yu, P.; Wang, Y.; Xiao, F.; Chen, S.; Du, S.; Xie, Y.; Wu, Y.; et al. Boron-Induced Electronic-Structure Reformation of CoP Nanoparticles Drives Enhanced PH-Universal Hydrogen Evolution. Angew. Chem. Int. Ed. 2020, 59, 4154–4160. [Google Scholar] [CrossRef]
  10. Canavesio, C.; Nassini, H.E.; Bohé, A.E. Evaluation of an Iron-Chlorine Thermochemical Cycle for Hydrogen Production. Int. J. Hydrogen Energy 2015, 40, 8620–8632. [Google Scholar] [CrossRef]
  11. Bahari, N.A.; Wan Isahak, W.N.R.; Masdar, M.S.; Yaakob, Z. Clean Hydrogen Generation and Storage Strategies via CO2 Utilization into Chemicals and Fuels: A Review. Int. J. Energy Res. 2019, 43, 5128–5150. [Google Scholar] [CrossRef]
  12. Zaidman, B.; Wiener, H.; Sasson, Y. Formate Salts as Chemical Carriers in Hydrogen Storage and Transportation. Int. J. Hydrogen Energy 1986, 11, 341–347. [Google Scholar] [CrossRef]
  13. Horváth, H.; Papp, G.; Kovács, H.; Kathó, Á.; Joó, F. Iridium(I)–NHC-Phosphine Complex-Catalyzed Hydrogen Generation and Storage in Aqueous Formate/Bicarbonate Solutions Using a Flow Reactor—Effective Response to Changes in Hydrogen Demand. Int. J. Hydrogen Energy 2019, 44, 28527–28532. [Google Scholar] [CrossRef]
  14. Shirman, R.; Bahuguna, A.; Sasson, Y. Effect of Precursor on the Hydrogen Evolution Activity and Recyclability of Pd-Supported Graphitic Carbon Nitride. Int. J. Hydrogen Energy 2021, 46, 36210–36220. [Google Scholar] [CrossRef]
  15. Wang, Z.-L.; Yan, J.-M.; Ping, Y.; Wang, H.-L.; Zheng, W.-T.; Jiang, Q. An Efficient CoAuPd/C Catalyst for Hydrogen Generation from Formic Acid at Room Temperature. Angew. Chem. 2013, 125, 4502–4505. [Google Scholar] [CrossRef]
  16. Wang, X.; Meng, Q.; Gao, L.; Jin, Z.; Ge, J.; Liu, C.; Xing, W. Recent Progress in Hydrogen Production from Formic Acid Decomposition. Int. J. Hydrogen Energy 2018, 43, 7055–7071. [Google Scholar] [CrossRef]
  17. Sakintuna, B.; Lamari-Darkrim, F.; Hirscher, M. Metal Hydride Materials for Solid Hydrogen Storage: A Review. Int. J. Hydrogen Energy 2007, 32, 1121–1140. [Google Scholar] [CrossRef]
  18. Tarasov, B.P.; Fursikov, P.V.; Volodin, A.A.; Bocharnikov, M.S.; Shimkus, Y.Y.; Kashin, A.M.; Yartys, V.A.; Chidziva, S.; Pasupathi, S.; Lototskyy, M.V. Metal Hydride Hydrogen Storage and Compression Systems for Energy Storage Technologies. Int. J. Hydrogen Energy 2021, 46, 13647–13657. [Google Scholar] [CrossRef]
  19. Feng, Z.; Chen, X.; Bai, X. Catalytic Dehydrogenation of Liquid Organic Hydrogen Carrier Dodecahydro-N-Ethylcarbazole over Palladium Catalysts Supported on Different Supports. Environ. Sci. Pollut. Res. 2020, 27, 36172–36185. [Google Scholar] [CrossRef]
  20. Luo, N.; Cao, F.; Zhao, X.; Xiao, T.; Fang, D. Thermodynamic Analysis of Aqueous-Reforming of Polylols for Hydrogen Generation. Fuel 2007, 86, 1727–1736. [Google Scholar] [CrossRef]
  21. Shirman, R.; Sasson, Y. Hydrogen Generation from Sodium Hypophosphite Catalyzed by Metallic Nanoparticles Supported on Graphitic Carbon Nitride. Int. J. Hydrogen Energy 2023, 48, 27611–27618. [Google Scholar] [CrossRef]
  22. Nikoleishvili, P.; Gorelishvili, G.; Kveselava, V.; Kurtanidze, R.; Gogoli, D.; Sharabidze, D. Hydrogen Generation from the Hydrolysis of Sodium Hypophosphite Using CoB2O4 Catalyst. ECS Meet. Abstr. 2016, MA2016-01, 1555. [Google Scholar] [CrossRef]
  23. Mahmoodi, K.; Alinejad, B. Enhancement of Hydrogen Generation Rate in Reaction of Aluminum with Water. Int. J. Hydrogen Energy 2010, 35, 5227–5232. [Google Scholar] [CrossRef]
  24. Xie, G.; Zhang, K.; Guo, B.; Liu, Q.; Fang, L.; Gong, J.R. Graphene-Based Materials for Hydrogen Generation from Light-Driven Water Splitting. Adv. Mater. 2013, 25, 3820–3839. [Google Scholar] [CrossRef] [PubMed]
  25. Tzimas, E.; Filiou, C.; Peteves, S.D.; Veyret, J.B. Hydrogen Storage: State-of-the-Art and Future Perspective; EU Commission: Petten, The Netherlands, 2003; pp. 1511–1519. [Google Scholar]
  26. Abanades, S.; Charvin, P.; Flamant, G.; Neveu, P. Screening of Water-Splitting Thermochemical Cycles Potentially Attractive for Hydrogen Production by Concentrated Solar Energy. Energy 2006, 31, 2805–2822. [Google Scholar] [CrossRef]
  27. Abanades, S. Metal Oxides Applied to Thermochemical Water-Splitting for Hydrogen Production Using Concentrated Solar Energy. ChemEngineering 2019, 3, 63. [Google Scholar] [CrossRef]
  28. Gai, W.Z.; Liu, W.H.; Deng, Z.Y.; Zhou, J.G. Reaction of Al Powder with Water for Hydrogen Generation under Ambient Condition. Int. J. Hydrogen Energy 2012, 37, 13132–13140. [Google Scholar] [CrossRef]
  29. Mukhopadhyay, S.; Rothenberg, G.; Wiener, H.; Sasson, Y. Solid–Solid Palladium-Catalysed Water Reduction with Zinc: Mechanisms of Hydrogen Generation and Direct Hydrogen Transfer Reactions. New J. Chem. 2000, 24, 305–308. [Google Scholar] [CrossRef]
  30. Bartali, R.; Speranza, G.; Aguey-Zinsou, K.F.; Testi, M.; Micheli, V.; Canteri, R.; Fedrizzi, M.; Gottardi, G.; Coser, G.; Crema, L.; et al. Efficient Hydrogen Generation from Water Using Nanocomposite Flakes Based on Graphene and Magnesium. Sustain. Energy Fuels 2018, 2, 2516–2525. [Google Scholar] [CrossRef]
  31. Parmuzina, A.V.; Kravchenko, O.V. Activation of Aluminium Metal to Evolve Hydrogen from Water. Int. J. Hydrogen Energy 2008, 33, 3073–3076. [Google Scholar] [CrossRef]
  32. Rosen, M.A. Advances in Hydrogen Production by Thermochemical Water Decomposition: A Review. Energy 2010, 35, 1068–1076. [Google Scholar] [CrossRef]
  33. Chen, K.F.; Li, S.; Zhang, W.X. Renewable Hydrogen Generation by Bimetallic Zero Valent Iron Nanoparticles. Chem. Eng. J. 2011, 170, 562–567. [Google Scholar] [CrossRef]
  34. Tasker, S.Z.; Standley, E.A.; Jamison, T.F. Recent Advances in Nickel Catalysis. Nature 2014, 509, 299–309. [Google Scholar] [CrossRef] [PubMed]
  35. Nishimura, S. Handbook of Heterogeneous Catalytic Hydrogenation for Organic Synthesis; John Wiley & Sons: Hoboken, NJ, USA, 2001. [Google Scholar]

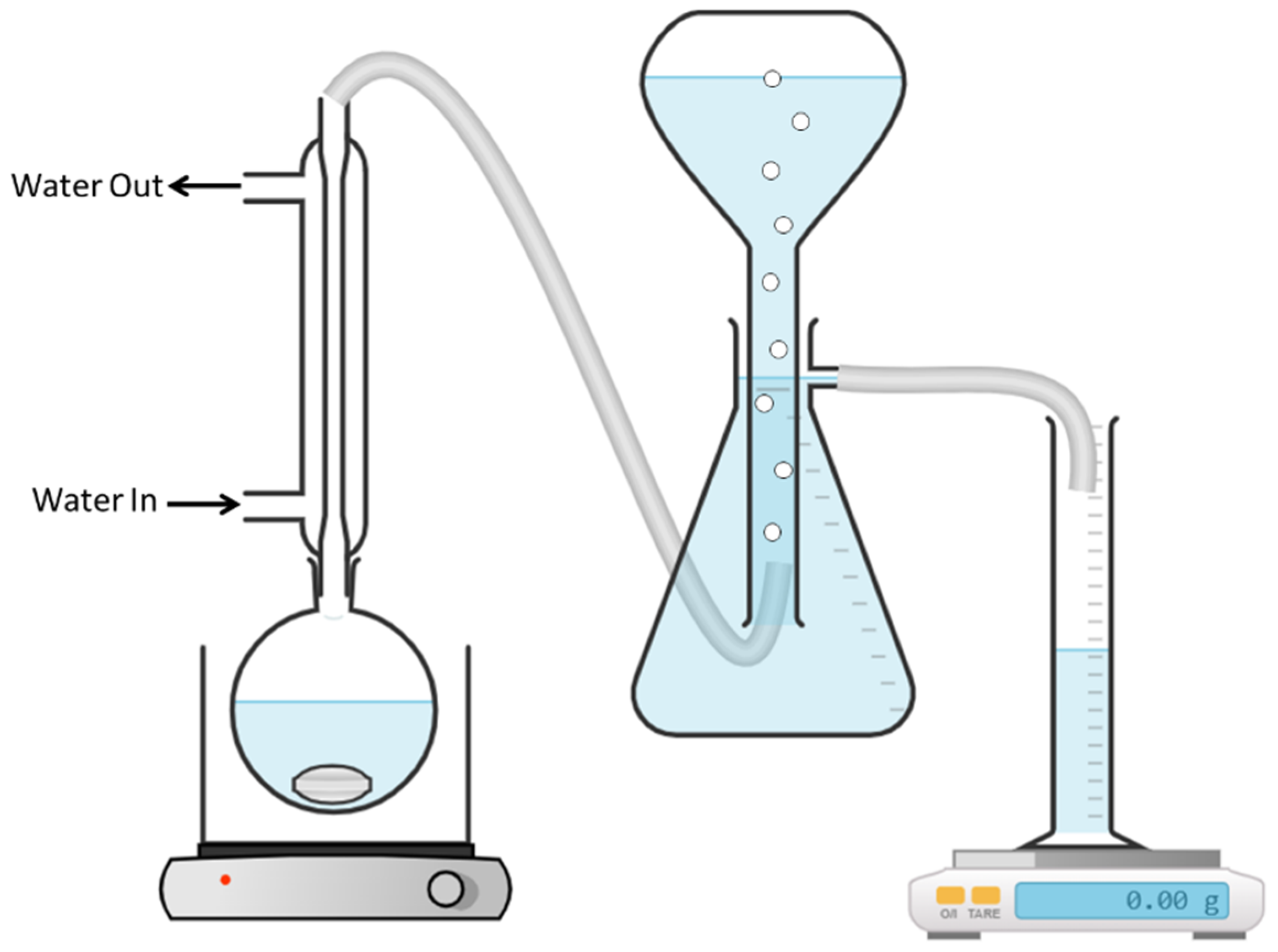

Figure 1. The flow-meter setup for monitoring the volume of hydrogen release.
Figure 1. The flow-meter setup for monitoring the volume of hydrogen release.
Hydrogen 05 00014 g001

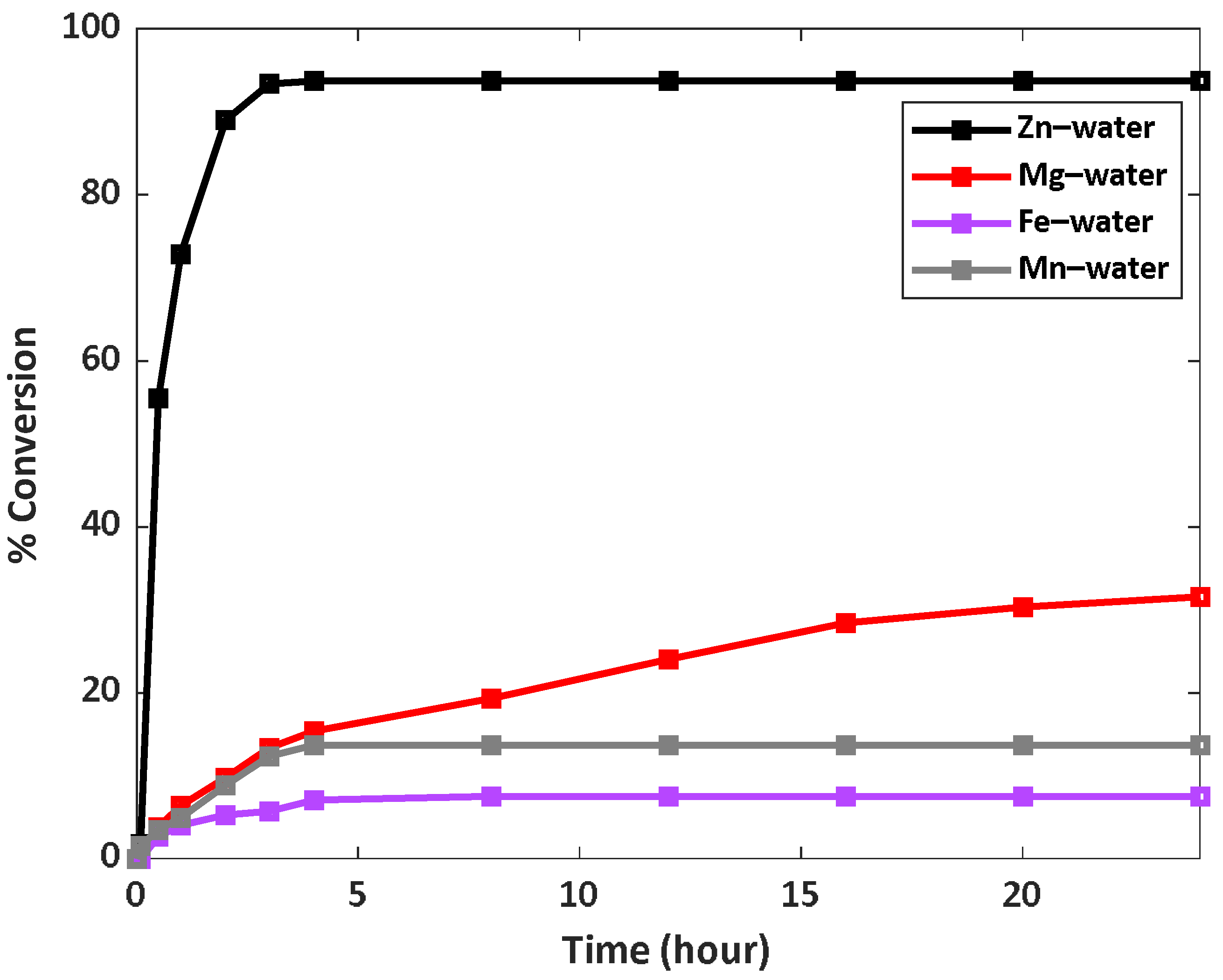

Figure 2. Kinetic profiles of the hydrogen generation from different metal–water systems at 60 °C.
Figure 2. Kinetic profiles of the hydrogen generation from different metal–water systems at 60 °C.
Hydrogen 05 00014 g002

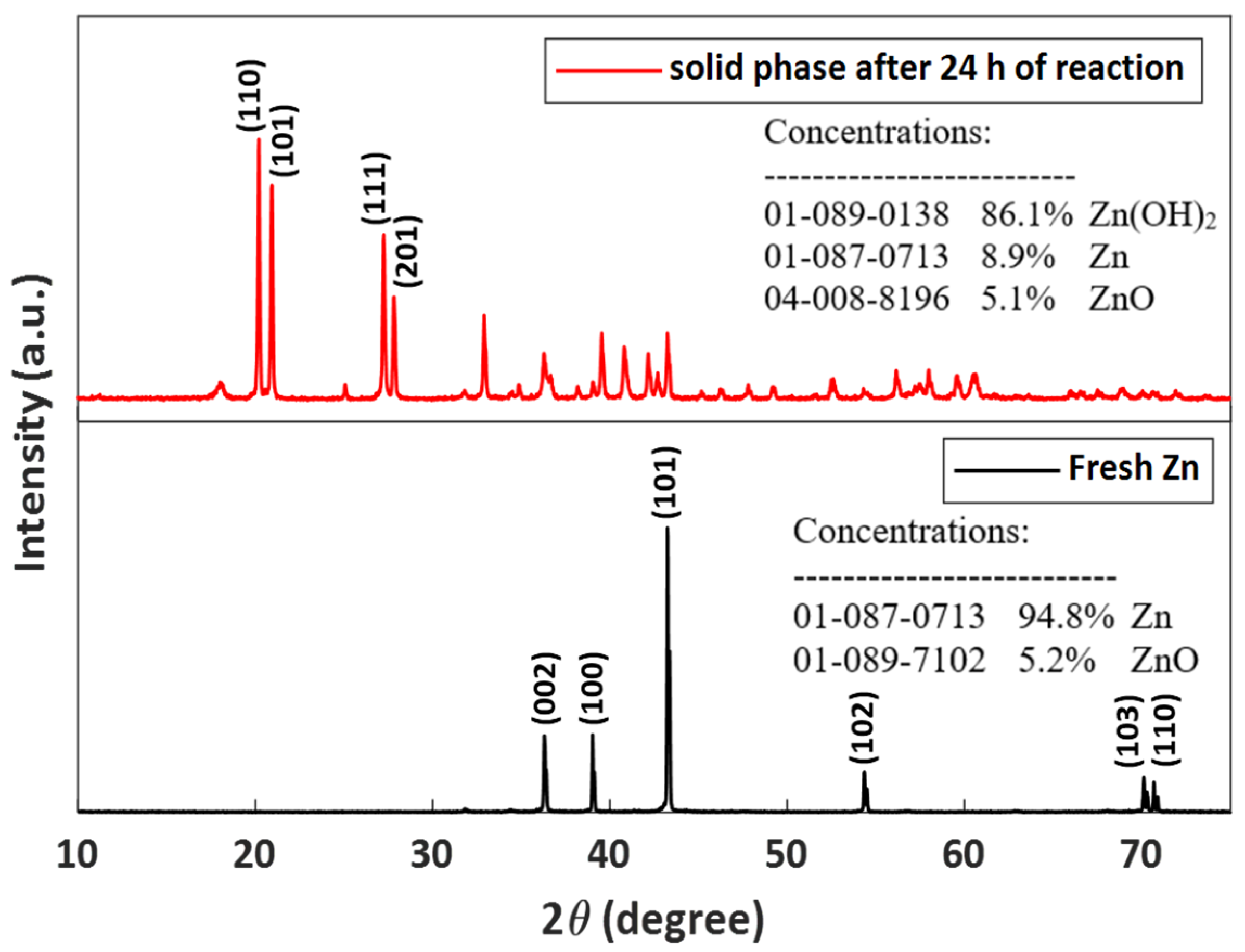

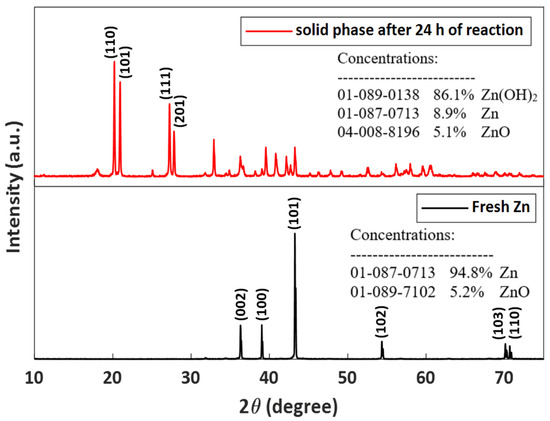

Figure 3. PXRD patterns of fresh zinc before reaction (black) and of the reaction mixture after 24 h of reaction (red).
Figure 3. PXRD patterns of fresh zinc before reaction (black) and of the reaction mixture after 24 h of reaction (red).
Hydrogen 05 00014 g003
Figure 4. SEM images of (A-1,A-2) fresh zinc before reaction, (B-1,B-2) reaction mixture after 12 h of reaction, and (C-1,C-2) reaction mixture after 24 h of reaction.
Figure 4. SEM images of (A-1,A-2) fresh zinc before reaction, (B-1,B-2) reaction mixture after 12 h of reaction, and (C-1,C-2) reaction mixture after 24 h of reaction.
Hydrogen 05 00014 g004

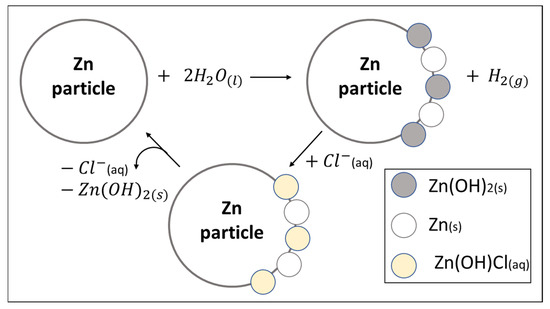

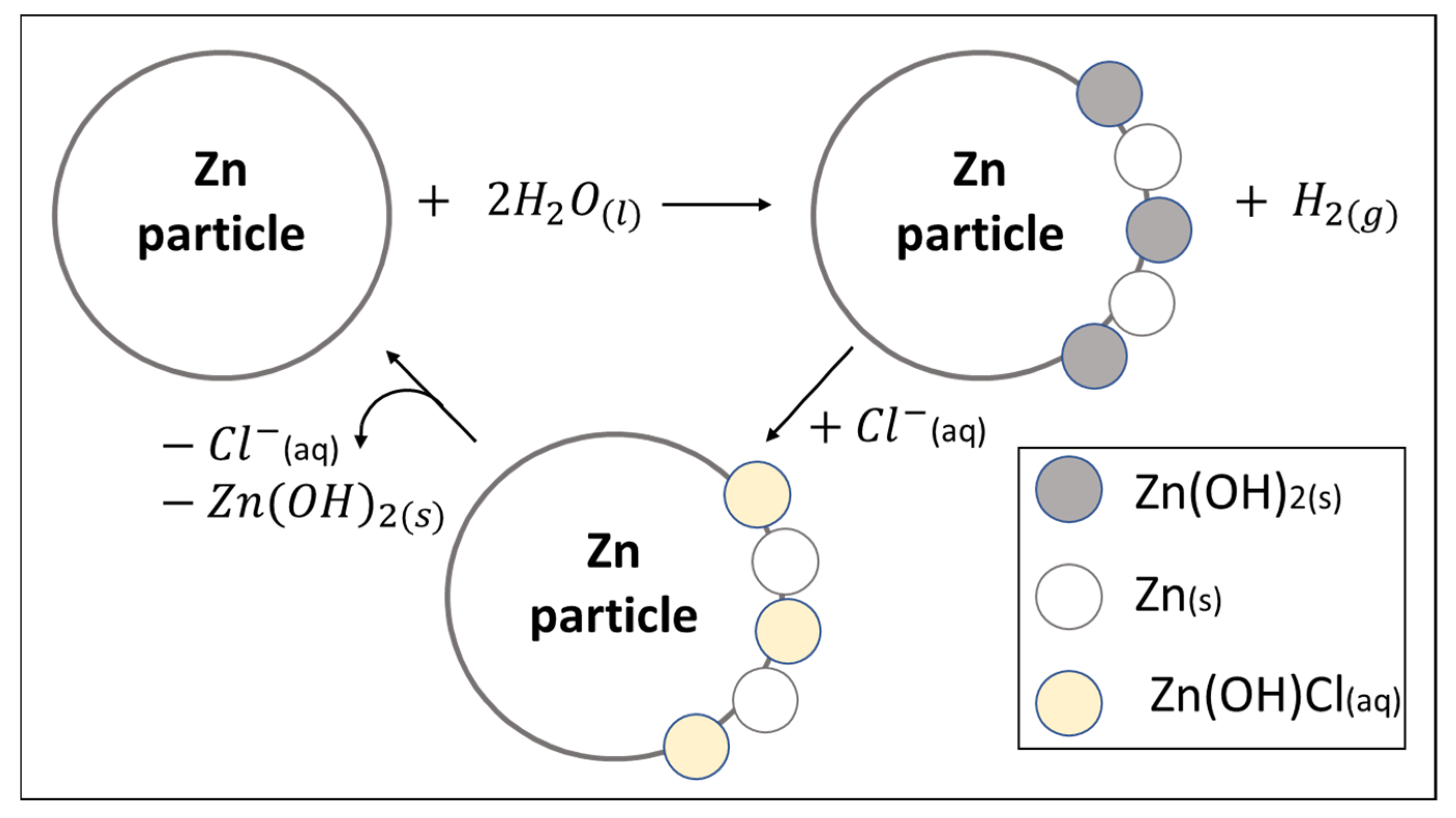

Figure 5. Cleaning process of zinc surface by chloride anion.
Figure 5. Cleaning process of zinc surface by chloride anion.
Hydrogen 05 00014 g005

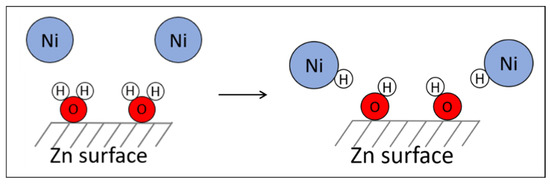

Figure 6. Generation reaction of nickel hydride.
Figure 6. Generation reaction of nickel hydride.
Hydrogen 05 00014 g006

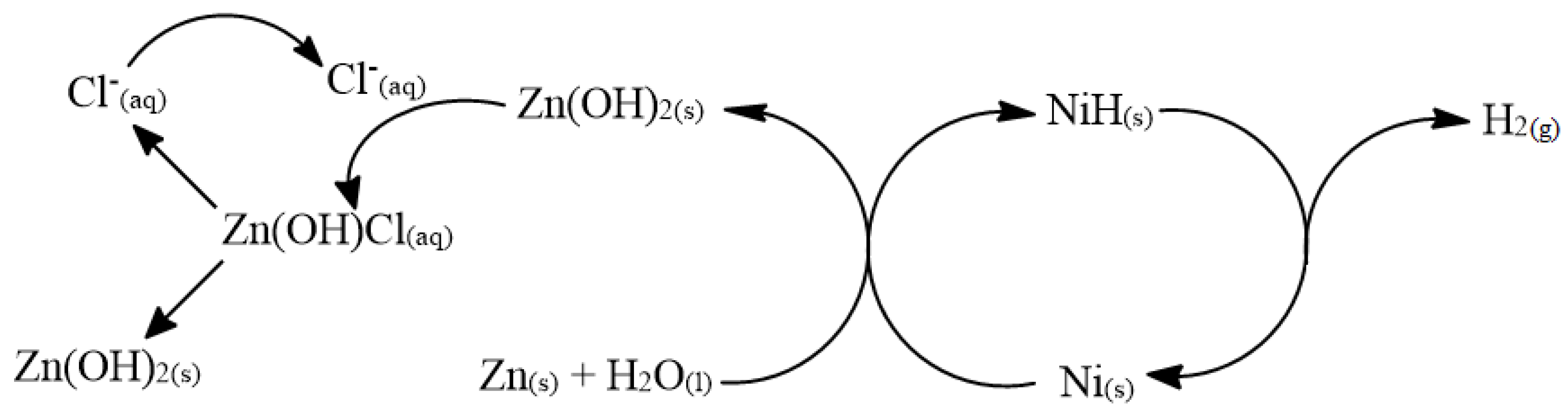

Figure 7. Catalytic mechanism of hydrogen generation from zinc–water system that is catalyzed by nickel nanoparticles formed in situ.
Figure 7. Catalytic mechanism of hydrogen generation from zinc–water system that is catalyzed by nickel nanoparticles formed in situ.
Hydrogen 05 00014 g007
Table 1. Hydrogen generation conversion with or without the addition of NiCl2 to different metal–water systems at 60 °C.
Table 1. Hydrogen generation conversion with or without the addition of NiCl2 to different metal–water systems at 60 °C.
Metal% Conversion with NiCl2% Conversion without NiCl2
Zn940
Mg326
Fe80
Mn140
Table 2. % Conversion of hydrogen production obtained at 60 °C for 24 h using varying masses of zinc and nickel.
Table 2. % Conversion of hydrogen production obtained at 60 °C for 24 h using varying masses of zinc and nickel.
Entry m Z n (g) m N i (g)% Conversion
19.800
29.80.00554
39.80.0190
49.80.0594
59.80.195
600.050
70.30.0520
80.70.0551
93.20.0591
1013.10.0590
Table 3. Hydrogen generation conversion using different chloride-containing salts reacting with zinc and water at 60 °C for 24 h.
Table 3. Hydrogen generation conversion using different chloride-containing salts reacting with zinc and water at 60 °C for 24 h.
Salt% Conversion
NaCl3
MgCl20.8
NiCl294
