Thermoacoustic Instability Considerations for High Hydrogen Combustion in Lean Premixed Gas Turbine Combustors: A Review

Abstract

Hydrogen is receiving increasing attention as a versatile energy vector to help accelerate the transition to a decarbonised energy future. Gas turbines will continue to play a critical role in providing grid stability and resilience in future low-carbon power systems; however, it is recognised that this role is contingent upon achieving increased thermal efficiencies and the ability to operate on carbon-neutral fuels such as hydrogen. An important consideration in the development of gas turbine combustors capable of operating with pure hydrogen or hydrogen-enriched natural gas are the significant changes in thermoacoustic instability characteristics associated with burning these fuels. This article provides a review of the effects of burning hydrogen on combustion dynamics with focus on swirl-stabilised lean-premixed combustors. Experimental and numerical evidence suggests hydrogen can have either a stabilising or destabilising impact on the dynamic state of a combustor through its influence particularly on flame structure and flame position. Other operational considerations such as the effect of elevated pressure and piloting on combustion dynamics as well as recent developments in micromix burner technology for 100% hydrogen combustion have also been discussed. The insights provided in this review will aid the development of instability mitigation strategies for high hydrogen combustion.

1. Introduction

1.1. Hydrogen as a Clean Energy Vector

It is widely recognised that significant decarbonisation of large parts of the world’s energy systems will be required to achieve inclusive energy access while limiting global temperature rise this century to well below 2 °C above pre-industrial levels as set out in the UN Paris agreement of 2016 [1,2]. In recent years, hydrogen has received renewed interest as a clean and sustainable energy carrier to help deliver significant emissions reduction and is regarded as a powerful accelerator to achieve a low carbon future [3,4]. Hydrogen promotes sector coupling in global energy systems [5,6] and enables deep emissions reduction in sectors that are difficult to decarbonise through electrification [4,7,8]. Hydrogen facilitates the integration of increasing share of variable renewable energy technologies (RET) in the energy mix while enhancing the level of flexibility in the power system [3]. It has been recognised as the most promising solution for large-scale and long-term carbon-free seasonal energy storage [9,10] and is expected to play a leading role in balancing the intermittent outputs of solar and wind energy [11]. Zero or low carbon hydrogen can be produced via water electrolysis using electricity from RET or other low carbon technologies and stored in what is known as power-to-gas [12]. The stored hydrogen can then be reconverted to electricity when required by burning in a gas turbine, for example, or used in a fuel cell system. Hydrogen therefore has an important role to play in reducing dependency on fossil fuels in the power sector and ensuring energy security.

1.2. Towards 100% Hydrogen Combustion in Gas Turbines

Gas turbines play a vital role in the power generation mix of today because of their high efficiencies, operational and fuel flexibility, high power density, low emissions characteristics and favourable economics [13]. Operating in combined-cycle configuration, they are the cleanest form of fossil fuel power generation [14]. Given the intermittency of RET, gas turbines are relied upon by grid operators to provide dispatchable power to balance instantaneous supply and demand [14]. Increasing shares of installed solar and wind power generation capacity [1,15] means advanced gas turbines will be relied upon even more to meet the system flexibility and energy security needs of future power systems. However, the role of gas turbines in a low-carbon future is contingent upon higher plant efficiencies and carbon-neutrality facilitated through technological innovations in combined heat and power, large-scale carbon capture and storage as well as operation with carbon-neutral fuels like hydrogen [16,17,18].

Burning pure hydrogen or hydrogen-enriched natural gas leads to significant differences in combustion characteristics in comparison to pure natural gas. Gas turbines equipped with diffusion flame combustors can burn up to 100% hydrogen, albeit requiring expensive nitrogen oxides (NO_x) emission abatement strategies which result in additional power plant complexities and efficiency penalties [19]. Those fitted with lean premixed (LPM) combustors, the current state-of-the-art for low NO_x operation [16,20,21], are generally limited to about 30% hydrogen by volume [14]. LPM combustors operate close to the lean blowout (LBO) with a high degree of fuel–air premixing which makes them susceptible to thermoacoustic instabilities [22,23]. Also known as combustion instabilities or dynamic instabilities, these refer to damaging pressure oscillations which arise from coupled interaction between unsteady combustion processes and acoustic waves propagating in the combustor [23,24] and have generally hindered the development of LPM combustors [24,25]. Research efforts are ongoing to develop gas turbine combustion technologies which can operate with any blend of natural gas and hydrogen, including pure hydrogen, while still achieving low NO_x emissions commensurate with natural gas-fired engines [14,18]. However, operating LPM combustors with very high hydrogen concentrations or pure hydrogen is fraught with many technical challenges, one of which is the significant changes to the thermoacoustic instability characteristics of the combustor.

1.3. Purpose and Scope of Review

Motivated by the need to address the technical challenges of burning high hydrogen concentrations in LPM combustors, many researchers have carried out detailed experimental and numerical studies, at laboratory-scale and practical gas turbine operating conditions, to understand the effect of hydrogen on the combustion characteristics of LPM combustors including combustion instabilities. The purpose of this article is to provide a review of the challenges of burning pure hydrogen and hydrogen-enriched natural gas in the context of thermoacoustic instabilities in LPM combustors based on literature available in the public domain. The primary focus is on swirl-stabilised systems which form the dominant flame stabilisation mechanism employed in low emissions stationary gas turbine combustors [20]. Both forced and self-excitation studies in fully premixed and partially-premixed systems are reviewed. Self-excited instabilities arise ‘naturally’ from the coupling of heat release oscillations with one of the acoustic eigenmodes of the combustor. For forced excitation studies, oscillations are generated by using a siren or loudspeaker to simulate the complex acoustic environment during unstable combustion in order to understand the response of a flame to oscillatory disturbances.

The rest of this article is structured as follows. A summary of the main challenges of burning hydrogen in LPM combustors is presented in Section 2. To set the context for subsequent chapters, a general overview of thermoacoustic instabilities is provided in Section 3. Section 4 discusses the effect of hydrogen enrichment on combustion dynamics. In Section 5, additional operational and geometric considerations pertaining to thermoacoustic instabilities of hydrogen flames are reviewed. Finally, the findings are summarised in Section 6 where the main insights are discussed and research gaps identified in order to provide direction for future combustion instability research in efforts to achieve 100% hydrogen combustion in gas turbines.

2. Challenges of Burning Hydrogen in Lean Premixed Combustion Systems

Hydrogen has different thermophysical and chemical properties in comparison to natural gas, which leads to contrasting combustion characteristics especially in the context of LPM combustion.

Table 1. Thermophysical and chemical properties of hydrogen [26,28].

Property	Hydrogen	Methane
Specific gravity at NTP ${}^1$	0.07	0.55
Lower calorific value by mass (MJ/kg)	119.93	50.02
Lower calorific value by volume at NTP (MJ/m${}^3$)	10.05	33.36
Flammability limits in air (by volume)	4 to 75	5.3 to 15
Minimum ignition energy in air (mJ)	0.02	0.29
Autoignition temperature (K)	858	813
Maximum adiabatic flame Temperature in air at NTP ${}^{1,2}$ (K)	2376	2223
Maximum laminar flame speed in air at NTP ${}^{1,2}$ (cm/s)	306	37.6
Thermal diffusivity at NTP ${}^{1,2}$ (mm${}^2$/s)	153.26	23.69
Momentum diffusivity at NTP ${}^{1,2}$ (mm${}^2$/s)	105.77	16.81
Mass diffusivity in air at NTP ${}^{1,2}$ (mm${}^2$/s)	78.79	23.98

${}^1$ NTP = Normal Temperature and Pressure, i.e., 20 °C and 101.325 kPa. ${}^2$ Computed for this article using Cantera [29] with GRI-Mech 3.0 thermal and transport properties [30].

compares common combustion properties of hydrogen to gaseous methane. Key among these properties are its relatively higher adiabatic flame temperature, flame speed and diffusivity which pose several technical challenges to LPM combustor operation [19,26,27]. In this section, some of the main challenges of burning hydrogen in LPM combustors are briefly summarised. These relate to increased propensity for flashback and autoignition as well higher NO_x emissions and different thermoacoustic instability characteristics arising from its higher reactivity and burning rates.

Flashback is the undesirable, upstream propagation of the flame front from the combustion zone into the premixing sections of the combustor as a result of an imbalance between the local turbulent flame speed and flow velocity of the reactants, wherein the former exceeds the latter [31]. Flashback can subsequently lead to localised flame holding in the premixing passages, resulting in overheating and hardware damage. The higher turbulent flame speed of hydrogen relative to natural gas increases the propensity for flashback in LPM combustors [32]. Well-researched flashback mechanisms include [33]: (i) flame propagation due to combustion instabilities, (ii) flame propagation in the core flow, (iii) flame propagation within boundary layers and (iv) combustion-induced vortex breakdown.

The typical inlet pressures and temperatures for modern gas turbines are sufficiently high for autoignition to occur [13]. Autoignition refers to spontaneous ignition of the combustible fuel–air mixture in the premixing section in the absence of an ignition source. While the autoignition temperature of hydrogen is only marginally higher than that of methane [26], hydrogen has a significantly shorter ignition delay time [19,34] hence a concern for burning hydrogen-enriched fuels in LPM combustors. The spontaneous ignition delay is the time interval available for a reactive mixture to react in the absence of an ignition source [20]. If the ignition delay time is shorter than the fuel–air mixing residence time, then autoignition can occur leading to local flame holding or flashback.

Even though burning hydrogen produces no carbon emission at the point of use, NO_x emissions are a concern for hydrogen combustion due to its higher adiabatic flame temperature relative to natural gas. At typical LPM burner stoichiometry, the adiabatic flame temperature for pure hydrogen is over 150 K higher in comparison to methane [27]. For a fixed gas turbine configuration, this will result in higher NO_x emissions if the operating conditions are not adapted, for example, by shifting to leaner equivalence ratio ($\varphi$) [19].

Changes in fuel composition can have a significant impact on the thermoacoustic instability characteristics of LPM combustors [25]. The effect of hydrogen-enrichment on combustion instabilities is the focus of this paper and is discussed in detail in Section 3 and Section 4.

3. Overview of Thermoacoustic Instabilities

Constituting one of the most challenging fields of combustion research, thermoacoustic instabilities refer to undesirable, large amplitude oscillations of one or more natural acoustic modes of a combustor arising from resonant interaction between oscillatory flow and unsteady heat release processes [23,25,35]. The pressure oscillations can reach amplitudes of the order of a large percentage of the mean combustor static pressure [36]. Left uncontrolled, these instabilities can lead to many undesirable consequences such as component vibrations, increased heat transfer rates, flame blow-off and flashback [25,33,37]. Over time, the oscillations can result in substantial system deterioration while constraining the operating envelope of the engine [38] and in worst-case scenarios, lead to structural damage [39,40].

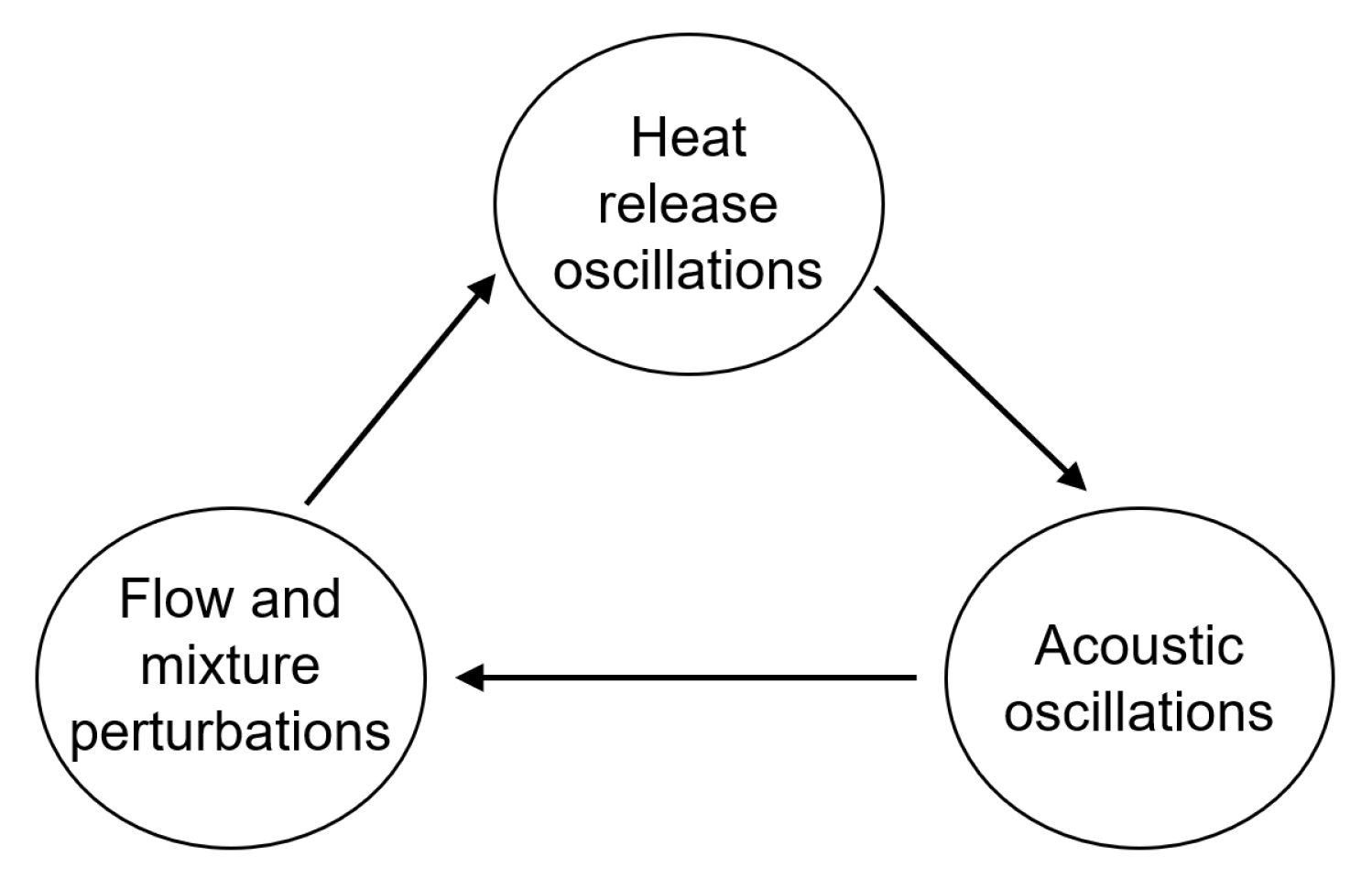

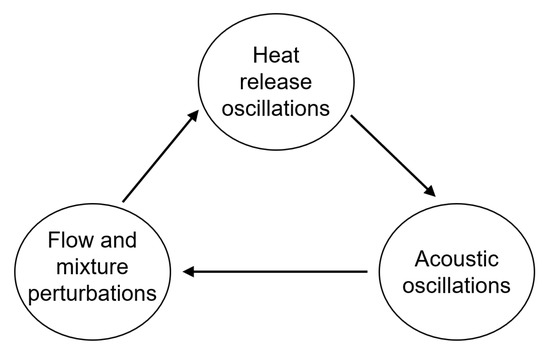

The feedback process for self-sustaining combustion instabilities is illustrated in Figure 1 [41]. Perturbations of the flow/mixture are generated through a driving process. These flow/mixture perturbations produce heat release oscillations which induce fluctuations in acoustic pressure and velocity. The acoustic oscillations in turn generate further flow/mixture perturbations, thus closing the feedback loop. For confined flames, the acoustic oscillations appear as discrete tones at one of the natural acoustic modes of the combustor [35,42]. Because combustors are highly resonant systems and unsteady combustion is an efficient source of acoustic energy, acoustic waves generated by fluctuating heat release are reflected from the walls of the combustor to produce flow unsteadiness near the flame [22,38].

The existence of a time lag is perhaps the biggest reason for thermoacoustic instabilities in premixed combustion systems [43,44]. This is essentially the time it takes for a fuel particle to be convected to the reaction zone, ignited and its energy released. Systems incorporating such time delays are inherently unstable because if this time delay coincides with the convection time of a disturbance from the point of formation to the region of heat release, instabilities may occur [43]. Furthermore, LPM combustors employ little to no film cooling or dilution air along the liner walls [20,21,45]. This results in substantial reduction in acoustic damping in contrast to diffusion-flame combustors where secondary and dilution air provide excellent sound attenuation [20,22].

The first condition necessary for the occurrence of self-sustained combustion-driven oscillations, identified by Lord Rayleigh [46], is that the heat release fluctuations ($q^{\prime }$) and pressure oscillations ($p^{\prime }$) must be in phase ($\theta <$ 90°). The second condition is that the rate at which energy is transferred from the unsteady heat release process to the unstable acoustic mode must exceed the rate of acoustic energy dissipation [47,48]. This relationship is mathematically formulated through the modified Rayleigh criterion shown in Equation (1) [41], where $p^{\prime }(x,t)$, $q^{\prime }(x,t)$, $L_i$, t, x, V and T are, respectively, the acoustic pressure oscillations, periodic heat release oscillations, i^th acoustic energy loss process, time, position within the combustor, combustor volume and period of oscillation. All practical combustors incorporate some form of acoustic damping such that the value of the integral in Equation (1) must exceed the damping integrated over the system volume for instability to occur [49]. Following the onset of combustion instability, the amplitude of the pressure oscillations initially grows with time at an exponential rate in the linear regime before saturating into a finite amplitude limit cycle oscillation which arises from nonlinear effects [50]. Limit cycle is the point in the oscillation cycle where the energy addition and dissipation mechanisms become amplitude dependent and the oscillation amplitude reaches its maximum value [41].

$${\int }_V{\int }_T{p}^{\prime }(x,t)q^{\prime }(x,t)dtdV\ge {\int }_V{\int }_T\sum _i{L}_i(x,t)dtdV$$

(1)

Combustion instability driving mechanisms refer to those physical processes which generate flow perturbations leading to unsteadiness in the flame front and oscillatory heat release [23]. Decades of experimental, theoretical and numerical research have been devoted to the study of these driving mechanisms [51,52,53,54,55]. The mechanisms which lead to dynamic instabilities can be understood by examining Equation (2) [25], which relates the volumetric heat release rate $\dot{Q}$ to the heat of reaction per unit mass q, the density of the unburnt reactants $\rho$, the laminar burning velocity $S_L$ and the flame surface area per unit volume A. It follows that fluctuations in flame speed, heat of reaction and flame surface area can lead to unsteady heat release. For LPM combustion systems, the dominant driving mechanisms are: (i) velocity fluctuations and (ii) equivalence ratio oscillations [32,56]. Coupled interaction between two or more mechanisms can also occur [54,57].

$$\dot{Q}=q\rho S_{L}A$$

(2)

Suppression of combustion instabilities can be achieved by increasing the damping in the combustion system or by shifting the phase between the pressure and heat release oscillations to a value greater than 90° to break the feedback loop. Two control strategies have been employed for controlling combustion instabilities: passive and active [24,25,56]. Passive control methods involve fixed combustor hardware changes. Such methods primarily involve the use acoustic dampers such as Helmholtz resonators, quarter-wave tubes and perforated liners designed to damp specific frequencies excited within the combustor, fuel injector modifications to alter the convective time lag thus affecting the timescale associated with the unsteady combustion process and the use of diffusion/partially-premixed pilot flames to locally increase the degree of unmixedness and improve flame anchoring [58]. In active combustion instability control, certain combustion parameters are externally excited in order suppress the growth of combustion oscillations by interrupting the coupling between unsteady heat release and acoustic waves [59]. It involves measurement of a dynamic signal related to the combustion oscillations such as dynamic pressure fluctuations or chemiluminescence emissions and an actuator which dynamically modifies an input to the combustion system in response to a signal from a control algorithm [38]. In practical systems, this is mainly achieved by modulating the fuel flow to the combustor [24,25].

4. Influence of Hydrogen Enrichment on Combustion Dynamics

Following a detailed introduction to thermoacoustic instabilities in the previous section, this section discusses the effect of hydrogen addition on dynamic instability characteristics of LPM combustors in the context of its impact on dynamic stability maps, flame structure and combustion dynamics-induced flashback.

4.1. Effect on Stability Maps and Dynamic State Transitions

Observations by several researchers have shown that enriching natural gas with hydrogen leads to a shift in the dynamic stability characteristics of a given combustor.

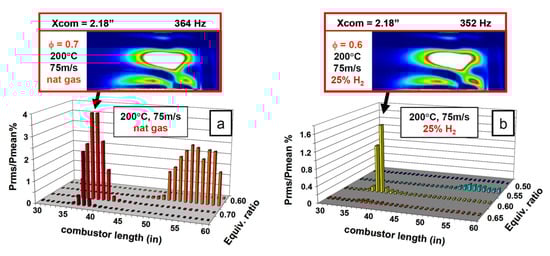

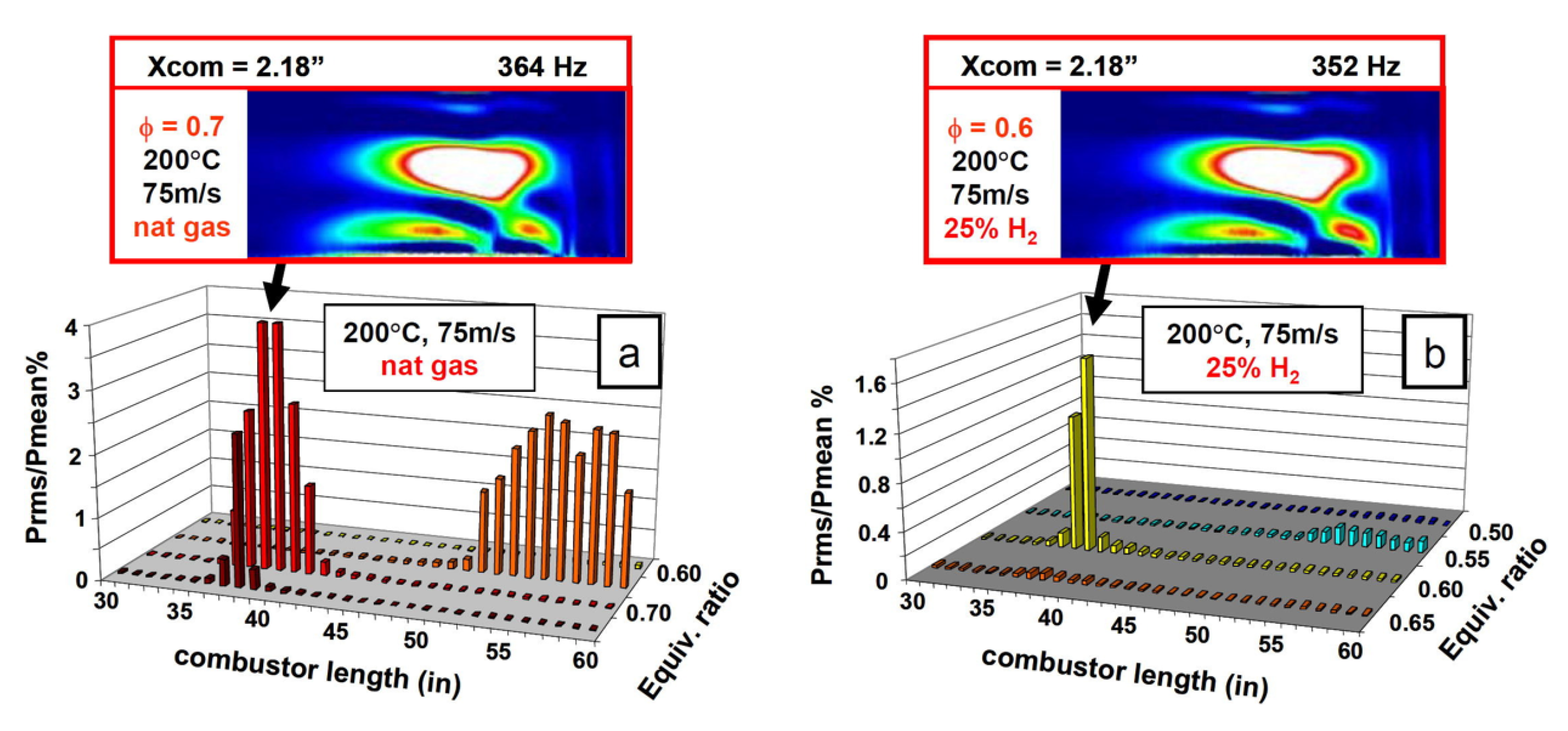

Experimental work by Janus et al. [60] investigated the effect of enriching natural gas with 25% hydrogen by volume on self-excited combustion instabilities in a fully premixed combustor operating at fixed inlet temperature. Stability maps revealed a shift in the dynamically unstable region toward lower air flow rates and equivalence ratios, with lower dynamic pressure amplitude, as a result of hydrogen addition. This was attributed to the faster reaction rates and shorter convective time scales of the methane-hydrogen mixture, which affected the phase relationship between fluctuating pressure and unsteady heat release.

In the work of Figura et al. [61], the researchers characterised self-excited combustion instabilities in a fully premixed, variable length LPM combustor operating with up to 25% hydrogen by volume blended into natural gas. Keeping the inlet temperature and Reynolds number constant for fixed combustor lengths, they found that hydrogen addition shifted the instabilities to lower equivalence ratios with reduced dynamic pressure amplitudes. This is illustrated in the stability maps plotted in Figure 2. For natural gas, the strongest instabilities were observed at $\varphi$ = 0.7 while the instabilities occurred at $\varphi$ = 0.6 for the 25% hydrogen blend with a lower amplitude. The second unstable region at $\varphi$ = 0.65 for natural gas was also shifted with the addition of 25% hydrogen to $\varphi$ = 0.55 with a much diminished amplitude.

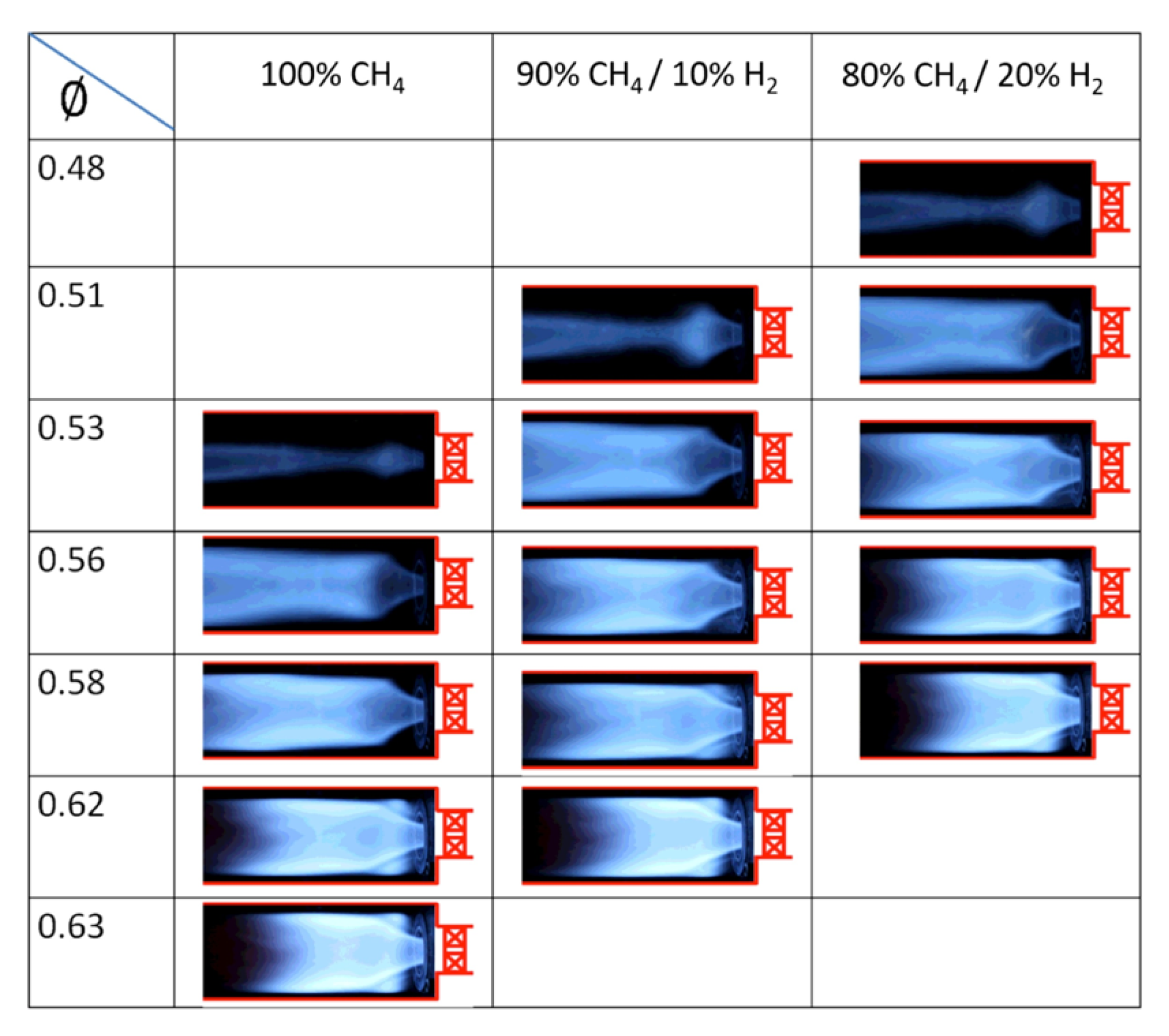

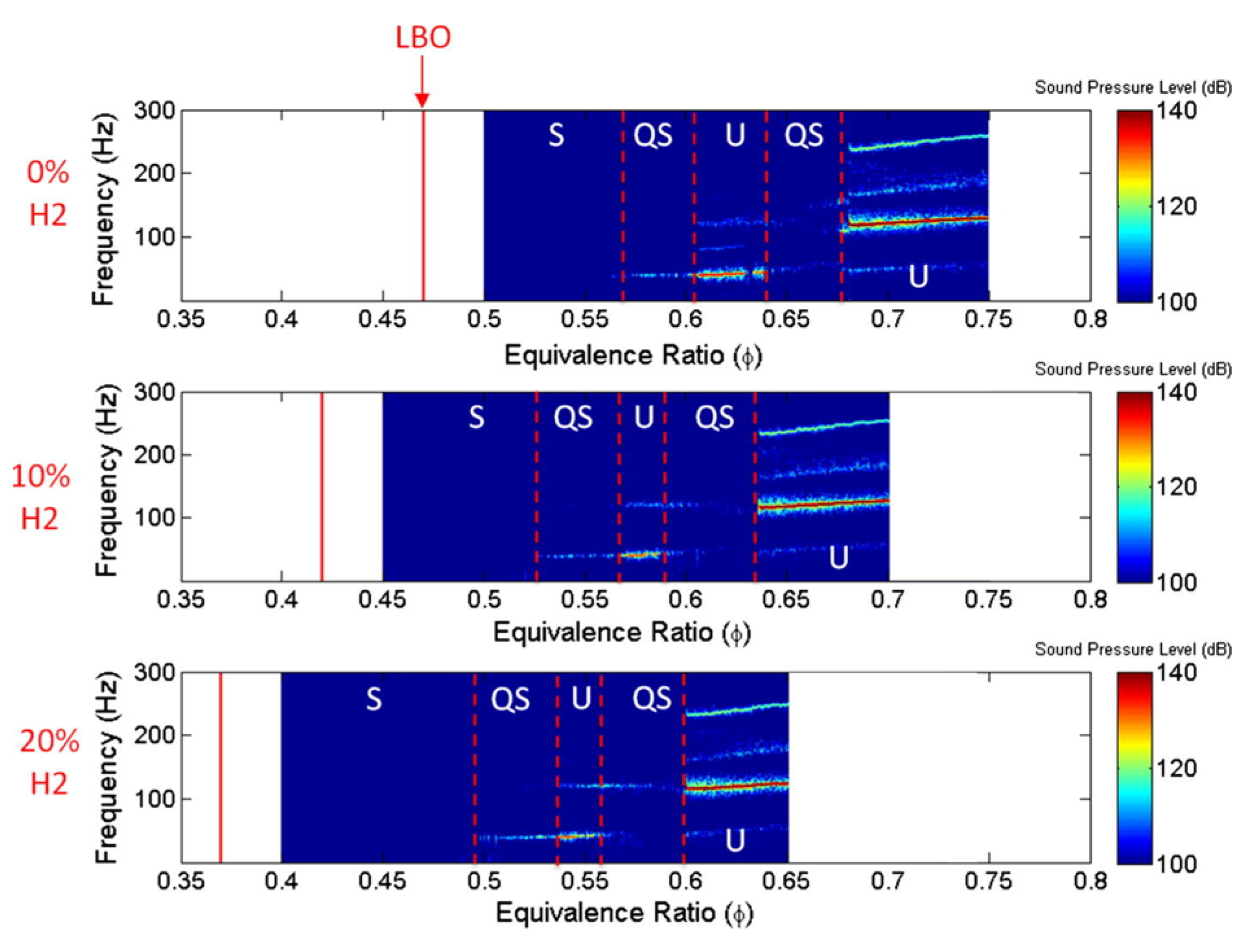

Taamallah et al. [27,62] investigated methane flames enriched with 0%, 10% and 20% volumetric concentrations of hydrogen at atmospheric pressure by varying $\varphi$ while keeping Reynolds number constant. Their findings showed that, in addition to extending the LBO limit, hydrogen-enriched flames experienced dynamic mode transitions at lower equivalence ratios compared to pure methane flames as shown in Figure 3. The strongest instabilities occurred at 0.67 $<\varphi <$ 0.75 for 100% methane. For 10% and 20% hydrogen, the instabilities were strongest at 0.64 $<\varphi <$ 0.7 and 0.6 $<\varphi <$ 0.65 respectively. Similar dynamic pressure amplitudes were observed for the three fuels. This shift in the dynamically unstable region of a combustor toward lower equivalence ratios as a result of hydrogen enrichment has also been reported by other researchers [63,64,65]. Extension of the LBO due to the higher strain resistance of hydrogen is also consistent with findings from other studies [62,63,66,67].

Transitions in dynamic stability regimes with increasing H₂ content was also observed by Karlis et al. [68], who experimentally investigated self-excited combustion instabilities for blends of CH₄ and H₂ between 0% and 40% by volume at fixed equivalence ratio and Reynolds number. They found that the combustor was stable for H₂ concentration up to 20%. Increasing H₂ content between 30% and 37.5% led to intermittent bursts of dynamic pressure and heat release before transitioning to high amplitude limit cycle oscillations with 40% H₂. The authors established thresholds for extinction strain rates within which the stable, intermittent and limit cycle regimes existed. Similarly, Zhang and Ratner [65] found that increasing hydrogen concentration in methane-hydrogen fuel blends altered the dynamic stability characteristics of their premixed combustor from stable to unstable, transitioning through an intermediate ‘conditionally unstable’ region. The study investigated methane-hydrogen fuel blends up to 40% by volume of hydrogen for a range of equivalence ratio and Reynolds number. They also observed that the instabilities were excited at lower hydrogen concentrations as equivalence ratio was increased.

Mode switching between acoustic resonant frequencies as a result of hydrogen enrichment has been reported by some authors. Lee et al. [69] studied self-excited thermoacoustic instabilities for various CH₄/H₂ flames in a partially-premixed scaled-down industrial GE7EA gas turbine combustor operated at fuel heat inputs of 40 kW and 50 kW. Volumetric H₂ concentration in the fuel mixture was varied between 0% and 100%. At the 40 kW condition, high frequency combustion instabilities were excited with H₂ content between 30% and 80%. Increasing the thermal input to 50 kW amplified the intensity of the combustion oscillations while extending the range of H₂ content required for triggering instabilities to approximately 5–100%. Different high frequency acoustic modes were excited depending upon the hydrogen content in the fuel. Below ~20% H₂, a 750 Hz frequency corresponding to the 3rd longitudinal mode was preferentially excited for both heat input conditions while between ~20% and ~80% H₂, a 1000 Hz frequency which corresponded to the 4th longitudinal mode was excited. The 6th longitudinal mode instability at a frequency of around 1500 Hz was excited above ~80% hydrogen for the 50 kW thermal input case only. Similar observations were reported by Park and Lee [70] and Kim et al. [71] in later investigations using the same burner. The excitation of higher frequency instabilities due to hydrogen enrichment has also been reported in other studies [64,72,73].

Wicksall and Agrawal [74] experimentally studied combustion instabilities at atmospheric pressure for methane-hydrogen fuel blends up to 40% hydrogen by volume over a range of adiabatic flame temperatures in a fully premixed combustor. At high flame temperatures, sound level measurements and peak sound intensity levels were considerably higher for the 40% H₂ blend compared to lower H₂ concentrations. The authors indicated that the combustor was rendered thermoacoustically unstable with 40% H₂ in the fuel mixture. Power spectral density plots at a fixed adiabatic flame temperature revealed a transition in the frequency spectrum from a multi-modal distribution to a single, narrow peak with very high amplitude as H₂ concentration was increased. With 100% methane, two peaks at 450 Hz and 600 Hz were observed in which the latter concentrated most of the acoustic power. As H₂ content was increased in the fuel, a gradual shift in the total sound power from 600 Hz to 450 Hz was noticeable. When the H₂ content reached 40%, the 600 Hz frequency was totally diminished in favour of the high amplitude 450 Hz peak whose intensity was an order of magnitude higher compared to lower H₂ concentrations.

The above studies highlight that hydrogen enrichment not only extends the LBO limit, it also leads to a shift in the dynamic instability regions toward lower equivalence ratios. This feature is intrinsically linked to the higher turbulent flame speed of hydrogen and the resulting upstream shift in flame position which alters the thermoacoustic characteristics of the combustor. The implication is that a combustor that is thermoacoustically stable could be rendered unstable and vice versa depending upon the equivalence ratio. Increasing hydrogen content can also lead to transitions from stable to unstable combustion through an intermittent regime characterised by random bursts of high amplitude limit cycle oscillations and stable aperiodic states. Mode switching between natural frequencies of the combustor, including the excitation of higher frequency instabilities, can also be triggered as a result of hydrogen enrichment.

4.2. Effect on Flame Structure and Flame Position

Studies by several authors have revealed correlations between changes in flame structure/flame position and the occurrence of thermoacoustic instabilities resulting from hydrogen addition.

The work of Figura et al. [61], earlier discussed in Section 4.1, is one of the first studies to highlight the effect of hydrogen addition on the relationship between flame structure and self-excited combustion instabilities. The two-dimensional chemiluminescence images in Figure 2 reveal a similar flame shape and location of the flame “centre of heat release” for both natural gas and 25% H₂ fuel mixture, even though combustion instabilities were observed at different equivalence ratios. The flame “centre of heat release” can be interpreted as the average flame location and is a complex function of flame length, flame shape, flow velocity and frequency [32]. By having the same location of the flame “centre of heat release”, the two fuel mixtures exhibited similar convective time delays and therefore similar dynamic stability characteristics. These results led the authors to the important conclusion that flames with the same “centre of heat release” under stable conditions exhibit similar flame structures and dynamic response.

Studies by Taamallah et al. [62] and Shanbhogue et al. [75] also established a strong link between flame shapes and the onset of thermoacoustic instabilities for methane-hydrogen fuel mixtures. The authors identified distinct changes in the flame shape at the same $\varphi$ where transitions in dynamic modes were observed (see Section 4.1). Testing with pure methane, 10% H₂ and 20% H₂ by volume revealed a similar sequence of flame structures from stable conditions to limit cycle oscillations as $\varphi$ was increased, with very similar thermoacoustic modes and spectral characteristics. This is illustrated in Figure 4 which shows that the flame shape transitions were similar irrespective of fuel composition; the only difference being that the transitions occurred at lower equivalence ratios with increasing hydrogen content. The appearance of a flame in the outer recirculation zone (ORZ) was identified as a precursor to unstable combustion in the three cases. Shanbhogue et al. [75] demonstrated that the higher extinction strain rates of the high hydrogen mixtures was the enabling mechanism which allowed the flame to penetrate into the ORZ and stabilise at lower equivalence ratios compared to pure methane, hence the reason for the flame shape transitions at lower equivalence ratios.

Many researchers have observed that the addition of hydrogen to natural gas leads to a transition in flame shape from a V-shape to an M-shape, although with different effects on dynamic instabilities [63,72,75,76,77]. Referring back to Figure 4 from the work of Shanbhogue et al. [75], it can be observed that the 100% CH₄ flame at $\varphi$ = 0.58 exhibited a V-shape and was reported as being thermoacoustically stable. At the same equivalence ratio, an M-shaped flame is observed (Figure 4) as the hydrogen concentration was increased to 10% and 20%. The authors noted that these flames were fully anchored in the ORZ and were thermoacoustically unstable. The transition from a V-shaped to M-Shaped flame at lower equivalence ratios for the hydrogen flames was found to be a consequence of the higher extinction strain rates, which arise from the higher diffusivity of hydrogen compared to methane.

On the contrary, the work of Lantz et al. [72] revealed that transition to an M-shaped flame due to hydrogen enrichment in their combustor coincided with a suppression of self-excited combustion instabilities. The authors investigated natural gas flames enriched with up to 80% hydrogen by volume at atmospheric pressure using a third generation dry low emissions (DLE) burner employed by Siemens Energy in their SGT-700 and SGT-800 industrial gas turbines. Adiabatic flame temperature was fixed as the volumetric concentration of hydrogen was varied in the fuel mixture. Changes in the shape and size of the flame were observed as the hydrogen concentration in the fuel was increased. Chemiluminescence and OH planar laser-induced fluorescence (PLIF) images revealed that above 60% hydrogen, the flames not only propagated upstream to stabilise in the premixing section, the flame shape changed from V-shape to M-shape. The 80% H₂ flame in particular was found to be anchored on the burner tip in the ORZ. Dynamic pressure measurements revealed that the amplitude of the dominant axial mode was nearly completely suppressed with 60% hydrogen. With 80% hydrogen, the axial mode reappeared but with a much reduced amplitude compared to 100% methane. However, a higher frequency mode was also excited with 80% hydrogen which the authors suggested was a transverse mode instability. The lower pressure amplitudes observed for the hydrogen-rich flame coincided with a reduction in the observed flame front fluctuations compared to the pure natural gas flame. Subash et al. [76] extended the work of Lantz et al. [72] by comparing the dynamics of pure natural gas and pure hydrogen flames using an optimised version of the same DLE burner. The pure hydrogen flame was shorter, more compact and stabilised closer to the burner exit compared to the pure methane flame. The flame shape was also M-shaped, penetrating into the ORZ, as opposed to the V-shaped methane flame. Consistent with previous findings [72,78], they found that firing pure hydrogen damped the dominant axial mode relative to the pure methane flame. A higher frequency mode, albeit with a relatively smaller amplitude, could also be observed in the FFT spectrum. Using probability density maps of OH gradients as an indicator of flame front fluctuations, the authors observed that the pure hydrogen flame exhibited significantly lower flame front fluctuations in the inner shear layer compared to the pure natural gas flame.

Experimental work at atmospheric pressure conditions by Kim et al. [77] provided great insight into the forced flame response and structure of hydrogen-enriched natural gas. The study investigated blends of natural gas with H₂ up to 60% by volume. Observations of stable flame shapes, obtained using CH* chemiluminescence imaging at fixed inlet temperature and velocity, revealed a transition from a V-shaped flame to an M-shaped flame with increasing H₂ concentration. The same flame shape transition was also found to occur at a higher equivalence ratio for the pure methane flame due to higher burning velocity. This is a clear indication that the higher burning velocity of hydrogen was responsible for the occurrence of the flame structure transition at a lower equivalence ratio. A decrease in the gain and phase of the flame transfer function (FTF) was found for the hydrogen blends relative to the pure natural gas flames at low forcing amplitudes. Figure 5 plots the gain and phase of the FTF for pure methane and a blend of 85% methane with 15% hydrogen to illustrate the effect of hydrogen addition. The researchers identified this as a characteristic feature of the shorter, compact M-shaped flames that allows them to damp flow perturbations in the combustor, with the implication that hydrogen-enriched natural gas flames could be more dynamically stable than pure natural gas flames. They also noted, however, that the M-shaped hydrogen flames could still couple with higher frequency modes of the combustor.

In contrast to the aforementioned studies, experimental work by Ge et al. [80] found that hydrogen-enrichment resulted in a transition from an unstable M-shaped flame to a stable V-shaped flame. The researchers investigated the combustion performance of hydrogen-enriched natural gas at atmospheric pressure conditions using a radially staged, partially-premixed DLE burner with both main and pilot fuel streams operational. Hydrogen concentrations up to 26% by volume were tested at fixed thermal output while keeping the pilot to main fuel ratio fixed at 11% and 89% respectively. Flame imaging revealed a more compact flame as hydrogen concentration was increased above 11%. With increasing H₂ content, the flame in the ORZ was found to gradually diminish before disappearing as the combustor became more stable. A 75% drop in the dynamic pressure amplitude was observed with H₂ content greater than 5%. These observations coincided with a marked decrease in the value of the Rayleigh Index (RI) in the ORZ suggesting that the presence of a flame in the ORZ may have been the reason for instability in the natural gas flame. The addition of hydrogen suppressed the instability through the action of altering the flame structure and changing the flame shape from an unstable M-shaped flame anchored in the ORZ to a stable V-shaped flame. The contradictory flame shape transition in this study may be due to the high pilot fuel percentage used in the experiments.

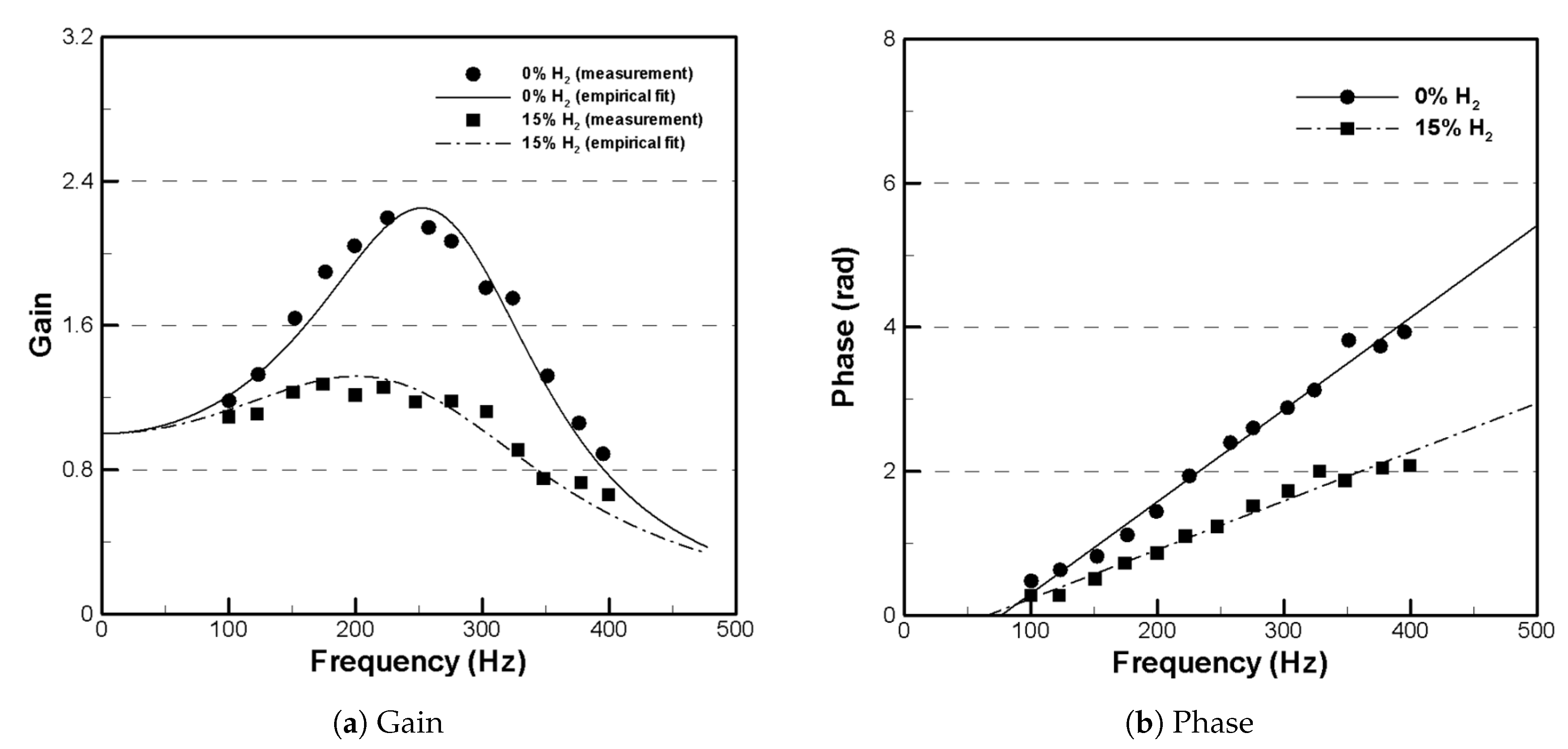

Forced response studies for hydrogen-enriched flames were also carried out by Wang et al. [81]. The effect of increasing hydrogen content in methane, up to 40% by volume, on combustion instability was investigated at a low forcing amplitude over a range of acoustic forcing frequencies. In the frequency range of 170–240 Hz, the gain of the FTF was found to decrease with hydrogen addition. An increase in the phase lag between heat release and velocity fluctuations was observed, indicating a damping effect. Flow field visualisation, using particle image velocimetry (PIV) and heat release rate imaging using CH* chemiluminescence, at a forcing frequency of 180 Hz revealed that flame-vortex interaction was diminished as hydrogen content was increased. As shown in Figure 6a, large-scale vortices shed from the burner outlet reduced in size as hydrogen content increased, thus reducing their ability to roll up the flame and enhance the heat release rates leading to weakened combustion instability. Within the frequency range of 110–160 Hz, however, the authors reported an increase in the gain and decrease in the phase of the FTF with increasing hydrogen content, indicating a higher heat release response to velocity oscillations which enhanced combustion instability. Flow field visualisation, shown in Figure 6b, revealed greater interaction between large-scale coherent structures shed from the burner outlet and the flame, leading to greater flame roll-up and heat release rate oscillations. The vortex structures became bigger in size with increasing hydrogen in the fuel mixture. This study shows that hydrogen addition can have a significant influence on flame-vortex interaction which can alter the dynamic state of a combustor.

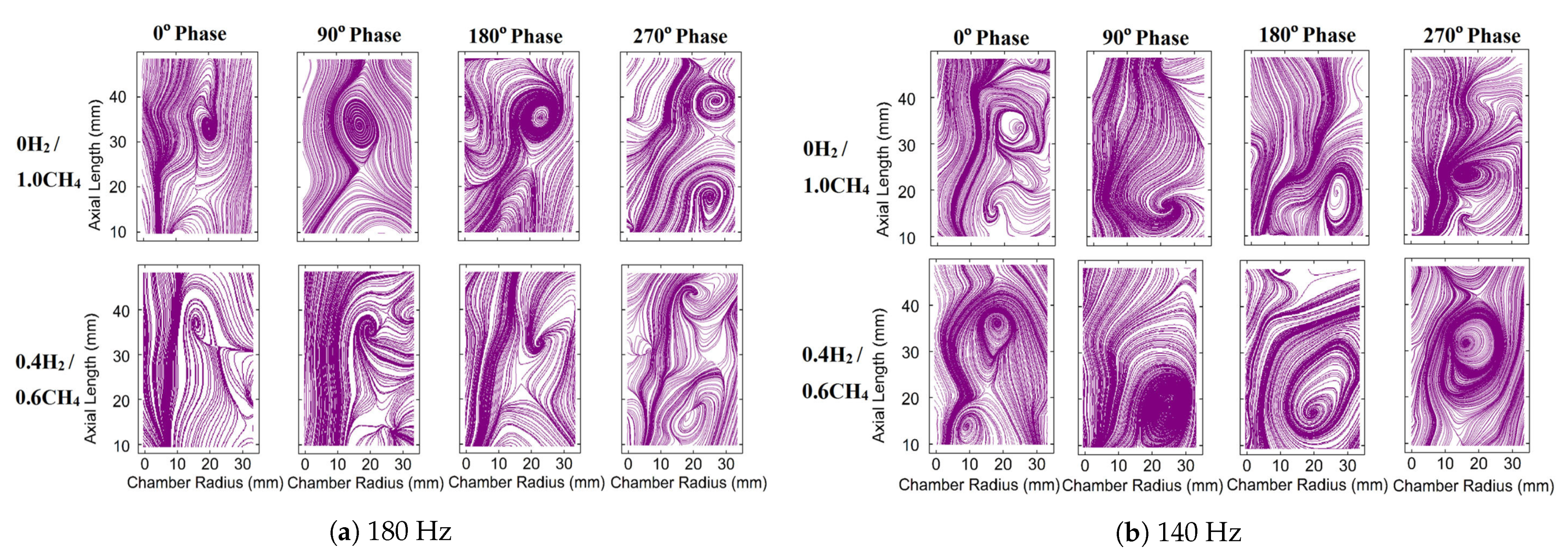

The work of Zhang and Ratner [65] investigated methane-hydrogen fuel blends up to 40% by volume for a range of equivalence ratio and Reynolds number with the primary aim of understanding the flame front characteristics during self-excited combustion instabilities. Stable flame images, analysed using OH PLIF, revealed that hydrogen addition induced more flame front wrinkling. For the unstable flames, hydrogen addition was observed to enhance flame-vortex interaction leading to stronger coupling between heat release oscillations and unsteady pressure fluctuations. The local flame surface area was shown to increase with increasing hydrogen content in the fuel mixture. This is a very important finding because variation in flame surface area can have a profound impact on heat release rate and thus impact thermoacoustic instabilities [25,43].

Lee et al. [69] also observed that combustion instabilities, driven by flame-vortex interaction, were excited due to hydrogen enrichment. They investigated the effect of varying the H₂ concentration between 0% and 100% by volume where they found that increasing the hydrogen content above 5% triggered high combustion instabilities. Time-averaged OH* chemiluminescence images showed that the flame became narrower and more compact as H₂ content was progressively increased in the fuel mixture. Using proper orthogonal decomposition (POD) analysis, the flame oscillations were found to be generated by distinct coherent structures and large-scale flame roll-up. Two-dimensional RI maps, which provide a visual representation of regions of thermoacoustic instability driving and damping, showed that the highest positive RI region (strongest instability driving) was shifted closer to the nozzle as hydrogen content was increased. Their findings showed that hydrogen addition in the fuel affected the locations and intensity of combustion instability driving and damping.

The effect of hydrogen enrichment on combustion instabilities has also been studied in low swirl injector (LSI) flames. The LSI burner does not exhibit vortex breakdown with a central recirculation zone (CRZ) for flame stabilisation like conventional swirl-stabilised burners; rather the key aerodynamic feature for flame stabilisation is a non-swirling centre flow which inhibits vortex breakdown and promotes the formation of a central divergent zone, thereby creating a lifted flame [82]. Therkelsen et al. [64] experimentally compared the dynamic instability behaviours of self-excited LSI flames burning 100% CH₄ and a volumetric blend of 10% CH₄ with 90% H₂ at atmospheric pressure. Flame imaging revealed a lifted, deep-bowl shape for the CH₄ flame while the 90% H₂ flame was anchored to the burner rim with a characteristic M-shape. For the CH₄ flame, coherent flame motions were observed below the trailing edge of the flame in the outer shear layer (OSL) only whereas for the H₂ flame, large scale vortices were observed throughout the flame front including in the central divergent zone. Flame oscillation frequencies for both flames, derived from POD analysis, were found to be consistent with the dominant peaks in the acoustic pressure spectra, clearly indicating thermoacoustic coupling. Davis et al. [83] extended the work of Therkelsen et al. [64] to better understand the unsteady flow structures and instability driving mechanisms. Using PIV, the flow fields for both 100% CH₄ and 90% H₂ flames were found to be dominated by vortex shedding from the burner rim where the former burned intermittently while the latter burned consistently. Different instability driving mechanisms were identified for the two flames. Vortex roll-up in the OSL was reported as the main driving mechanism in the CH₄ flame, whereas merging of the reacting rolled-up vortices in the OSL with the central part of the flame was the key mechanism for the high H₂ flame. Hydrogen addition therefore altered the combustion instability driving mechanism in the combustor.

The above studies have shown that the higher reactivity of hydrogen-enriched fuels can have a significant influence on flame structure and flame position as well as flame-vortex interaction which can alter the thermoacoustic state of a combustor. Hydrogen addition can also change the instability driving mechanism of a combustor.

4.3. Effect on Flashback

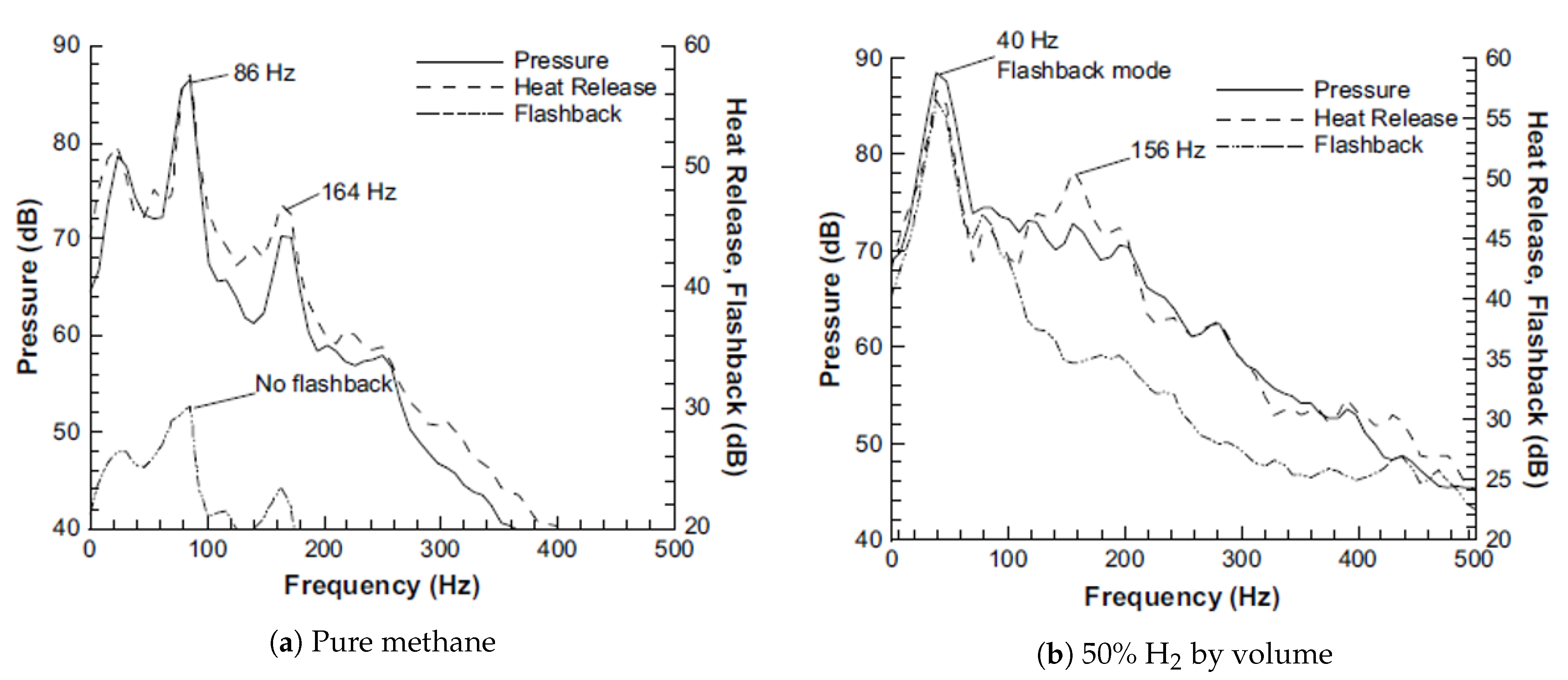

Strong correlations between periodic flashback events and thermoacoustic instabilities in methane-hydrogen fuel mixtures have been reported in literature. Tuncer et al. [84] experimentally investigated methane-hydrogen fuel blends with up to 50% H₂ by volume in a fully premixed burner at atmospheric pressure conditions. Hydrogen addition was found to increase the measured root mean square (RMS) pressure amplitudes and cause an abrupt shift in the dominant frequency to a lower frequency. This transition occurred around 20% to 25% H₂ and was found to coincide with the conditions at which flashback was initiated. The spectra for pressure, heat release and flashback are plotted in Figure 7 which shows no flashback for the pure methane case and a 40 Hz flashback signal for the 50% H₂ flame. The periodic flashback signal was found to be in phase with the pressure and heat release oscillations at the higher H₂ concentrations and occurred at the pressure oscillation frequency. The understanding is that the flame oscillated back and forth inside the premixer and produced heat release oscillations at the flashback frequency, which then coupled to one of the acoustic modes of the combustor.

García-Armingol and Ballester [85] also observed coupling between flashback and combustor acoustics with a volumetric blend of 50% CH₄:50% H₂. Though no mode shift was identified as in the work of Tuncer et al. [84] reviewed above, the RMS pressure fluctuations for the 50% H₂ blend was two orders of magnitude higher compared to 100% methane. Periodic flashback events during an instability cycle, as captured by phase-resolved OH* chemiluminescence images, corroborated the coupling between combustion instabilities and oscillating flashback events.

These studies not only highlight the increased propensity for flashback induced by thermoacoustic instabilities as a result of hydrogen addition to natural gas, they also reveal the potential for coupling of periodic flashback events with combustion instabilities.

5. Additional Combustion Instability Considerations for High Hydrogen Fuels

In this section, other operational and geometric considerations pertaining to combustion instabilities for pure hydrogen and hydrogen-enriched natural gas are discussed. Specifically, combustion instability studies of hydrogen flames at elevated pressure conditions including practical gas turbine operating conditions are reviewed. The effect of piloting on the dynamics of hydrogen flames and the few available studies relating to thermoacoustic instabilities in micromix burners are also discussed.

5.1. Elevated Pressure

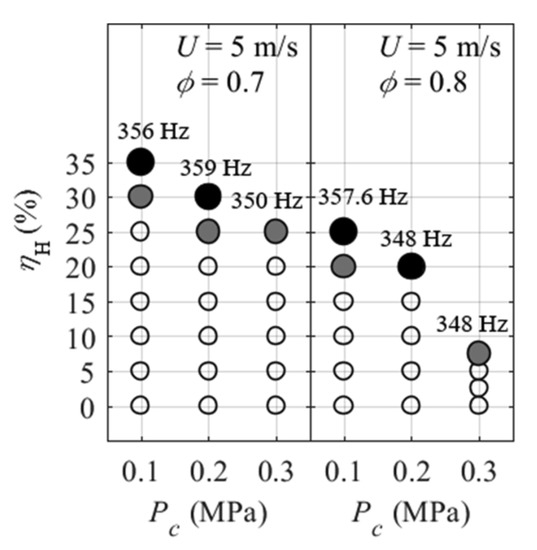

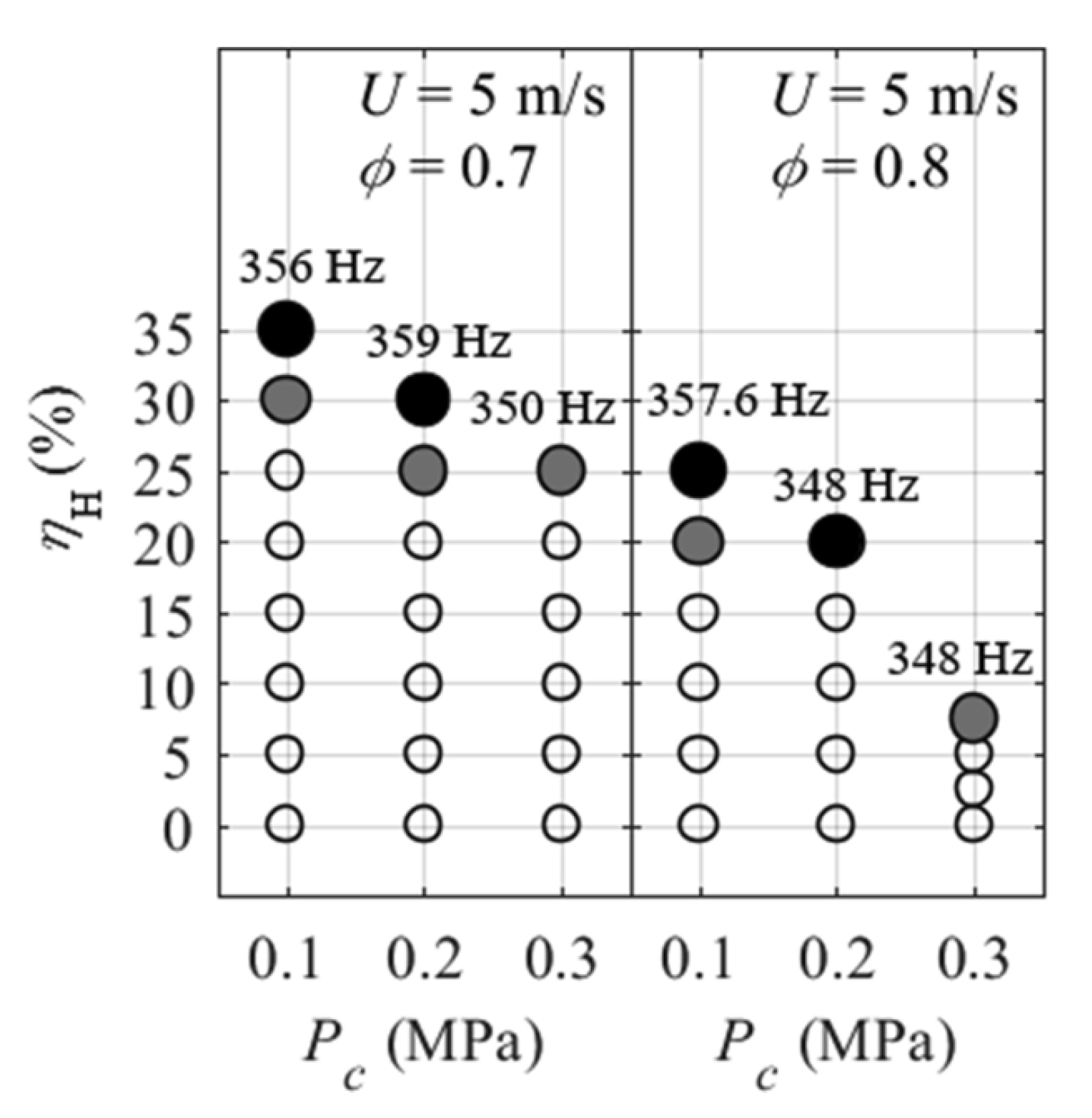

Combustion instabilities for hydrogen-enriched flames have been investigated at elevated pressure conditions. Zhang and Ratner [65] carried out combustion instability studies for methane-hydrogen flames at atmospheric pressure, 2 bar and 3 bar conditions for blends of up to 40% hydrogen by volume over a range of equivalence ratio and Reynolds number. At the same operating pressure, OH PLIF images revealed more flame front wrinkling with increasing hydrogen content in the fuel mixture. For the same hydrogen concentration, increasing the operating pressure was found to also enhance flame front wrinkling. Figure 8 shows the effect of pressure on the dynamic stability of the hydrogen-enriched fuel mixtures for equivalence ratios of 0.7 and 0.8 at a fixed bulk inlet velocity of 5 m/s. At both equivalence ratios, increasing the combustor pressure was found to lower the concentration of hydrogen required to trigger the combustion instabilities. This effect was more pronounced as equivalence ratio was increased from 0.7 to 0.8 due to the increase in turbulent burning velocity. Investigation by Emadi et al. [67] also found that elevated combustor pressure induced more flame front wrinkling for methane-hydrogen fuel blends compared to pure methane.

Runyon et al. [86] compared the effect of elevated pressure on self-excited thermoacoustic instabilities for fully premixed pure methane and hydrogen-enriched flames. The methane/hydrogen fuel mixture was made up of 85% CH₄ and 15% H₂ by volume. Both flames were operated at an equivalence ratio of 0.55 and pressures ranging from 1.1 bar to 3.3 bar. In order to maintain similar flow fields, a constant non-dimensional mass flow was maintained with increasing pressure such that only the effects of turbulence (increased pressure) and thermochemistry (hydrogen addition) can be attributed to any observed changes in flame structure. Results showed that both flames were acoustically coupled at the resonant frequency of the combustor. Elevating the pressure resulted in an increase in dynamic pressure amplitudes for both flames; however lower amplitudes were measured for the hydrogen-enriched flame relative to pure methane. Chemiluminescence imaging revealed higher heat release rates with increasing combustor pressure for both fuels, which explains the higher pressure fluctuations. With increasing combustor pressure, the pure methane flame became increasingly stretched with a thickening of the mean flame brush but with no appreciable change in flame position. In contrast, the hydrogen-enriched flame was more resistant to aerodynamic stretch and was stabilised further upstream closer to the burner outlet with a reduction in the thickness of the mean reaction zone. Increasing the combustor pressure was observed to shift the flame even further upstream.

Some gas turbine manufacturers have reported studies of combustion instabilities for hydrogen and hydrogen-rich flames in practical gas turbine combustors operating at pressurised engine conditions. Lam and Parsania [87] investigated the combustion performance of the Siemens Energy SGT-400 industrial gas turbine combustor burning blends of natural gas and up to 20% hydrogen by volume at full engine pressure and temperature. A sharper rise in the amplitude of combustion oscillations with increasing inlet pressure and combustor exit temperature was found for the hydrogen enriched fuels. At the same full load firing temperature, the RMS pressure fluctuations were reported to be three times higher compared to 100% natural gas operation. Prior high speed imaging at atmospheric pressure using the same combustor [88] showed a more compact H₂ flame compared to the methane flame with more intense burning and unsteady heat release characteristics. This indicates that hydrogen addition not only rendered the combustor unstable, the effect was exacerbated with increasing pressure. Mitsubishi Heavy Industries Ltd. [89] tested blends of natural gas with up to 30% H₂ by volume in a single combustor rig at simulated J-class gas turbine firing conditions with only a small decrease in the amplitude of the resonant frequency. Ansaldo Energia [90] demonstrated the capability of operating their GT36 constant pressure sequential combustor with volumetric blends of natural gas and hydrogen ranging from 0% to 100% hydrogen. While still within their design limits, the amplitude of the dominant longitudinal mode instability was shown to increase by a factor of four with hydrogen content above 30%. The amplitude of the higher frequency transverse thermoacoustic mode was observed to slightly decrease above 30% hydrogen.

Using Large Eddy Simulation (LES), Moëll et al. [73] simulated the effect of hydrogen enrichment on combustion instabilities in the third generation DLE burner used by Siemens Energy in the SGT-800 industrial gas turbine. The computational model was based on an experimental test rig which has been used for various studies [72,76,88]. The study [73] compared the flame dynamics of 100% CH₄ with a blend of 70% CH₄ and 30% H₂ by volume at the same adiabatic flame temperature. The FFT spectrum showed that the two fuels excited the same dominant longitudinal acoustic modes. The hydrogen-enriched fuel resulted in a one-third decrease in the amplitude of the lower frequency mode, which was found to be excited due to strong interaction between the premixed pilot flame and the pressure field in the combustion chamber. However, the amplitude of the higher frequency mode was doubled as a result of hydrogen addition. The authors [73] have not reported the mechanism responsible for the excitation of the higher frequency resonant mode.

The above studies indicate that combustion instabilities in hydrogen-enriched flames can be further amplified due to an increase in combustor operating pressure. Importantly, research suggests that the concentration of hydrogen required to trigger the dynamic instabilities is lowered as pressure is elevated. It is also clear, however, that whether a combustor is stabilised or destabilised as a result of hydrogen enrichment at elevated pressure is very much dependent upon the specific combustor design and operational parameters.

5.2. Pilot/Secondary Fuel Injection

The use of pilot fuel injection as a passive control strategy for suppressing combustion instabilities has been introduced in Section 3. The effect of pilot fuel on the dynamic stability characteristics of hydrogen-enriched natural gas flames has been reported in literature.

Lam and Parsania [87] compared the effect of pilot fuel on combustion instabilities as a function of volumetric hydrogen concentration in the Siemens Energy SGT-400 DLE combustor operating at engine full load conditions. Above 14% hydrogen content, the authors found that increasing the pilot split, defined as the ratio of pilot fuel to total fuel, increased the amplitude of the resonant acoustic mode. Below 14% hydrogen, no effect of increasing pilot split was observed.

Subash et al. [76] investigated the effect of pilot fuel injection on the flame structure of various natural gas/hydrogen fuel mixtures up 80% hydrogen by volume in an industrial DLE burner. This was achieved by injecting 3% of the total fuel mixture through pilot fuel injection holes distributed around the circumference of the burner outlet to form mini-diffusion flames. In the absence of pilot fuel, the flames were stabilised in the ORZ as M-shaped flames but were not anchored to the burner tip. Addition of the pilot fuel was found to increase the OH signal in both the CRZ and ORZ and the flame was observed to anchor on the burner tip. Pilot addition therefore enhanced the flame’s resistance to extinction allowing it to anchor on the burner tip. Although no report of the effect on dynamic pressure was provided, the change in flame stabilisation and increased heat release rate is expected to have an impact the flame’s dynamic response.

The work of Oztarlik et al. [91] is particularly instructive in improving our understanding of suppressing combustion instabilities in swirl-stabilised flames using minute quantities of pure hydrogen as a pilot diffusion flame. Comparisons with piloting using pure methane and fully premixing the same quantity of hydrogen in the main fuel stream showed that piloting with pure hydrogen had significant advantages in suppressing combustion instabilities. Using 3.3% H₂ by volume as pilot fuel, which corresponded to 1% thermal power, the number of unstable points in the dynamic stability map was reduced by a third. The number of unstable points was further reduced with 6.6% H₂. Flame visualisation of stable flames showed that the hydrogen piloted flames reduced the flame height with a redistribution of the heat release toward the root of the flame, which the authors implied to be the reason for the different flame response. The gain and phase of the FTF were significantly affected by piloting using pure hydrogen, whereas other injection strategies had a negligible impact on the flame response.

The above studies demonstrate that the injection of pilot fuel, either as pure hydrogen or as a blend with natural gas, can impact the dynamic instability characteristics of hydrogen-enriched flames.

5.3. Micromix Combustion

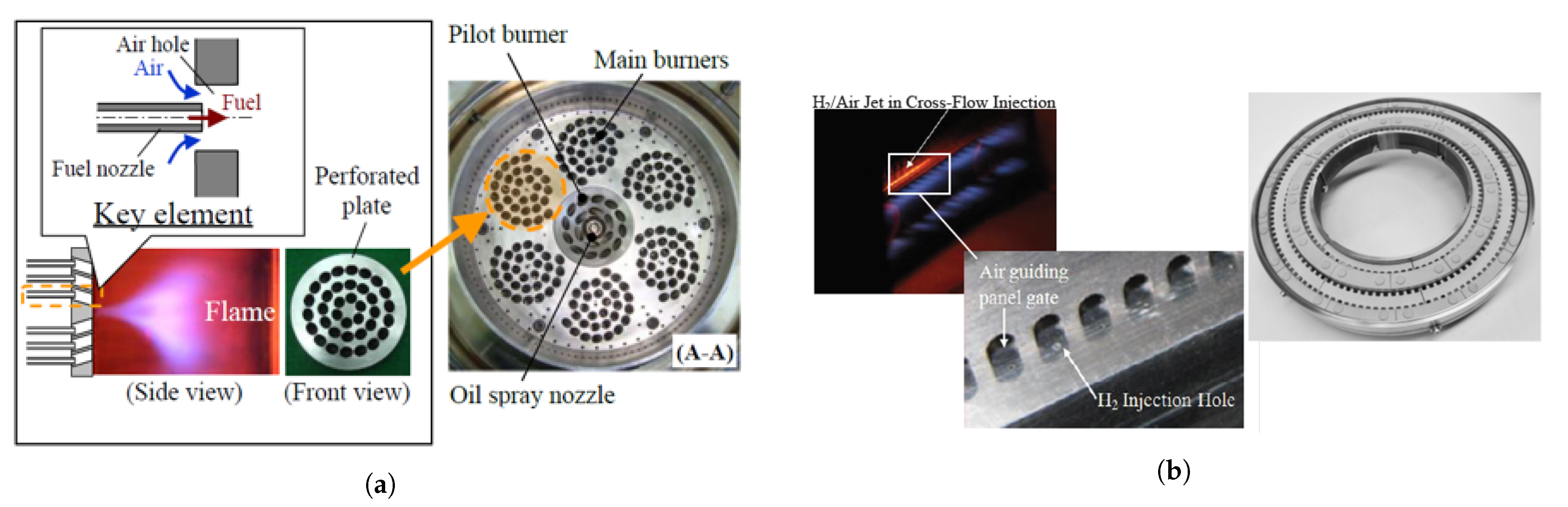

In efforts to achieve 100% hydrogen combustion, many gas turbine manufacturers are focusing their combustor developments on micromix combustion to eliminate the risk of flashback while achieving low NO_x emissions [17,92,93,94]. In contrast to conventional swirl-stabilised LPM combustors, micromix combustors consist of a large number of small-scale, closely spaced injectors which result in an array of distributed, compact flames with small recirculation zones. The primary objective is to reduce the distance within which fuel and air are mixed [95]. While some micromix concepts feature short premixing sections to promote rapid premixing time scales [92,93,96], other designs feature small-scale jet-in-crossflow arrangements to ensure fast and intense mixing of non-premixed fuel and air while achieving good aerodynamic flame stabilisation [97]. Both concepts, examples of which are shown in Figure 9, result in miniaturised flames with very short residence time of reactants in the flame. The improved NO_x emissions performance and increased flashback resistance of such novel burners have been demonstrated [92,93,94,95]. Consequently, researchers are studying the dynamic instability characteristics of these combustor architectures in the context of pure hydrogen and hydrogen-enriched natural gas flames.

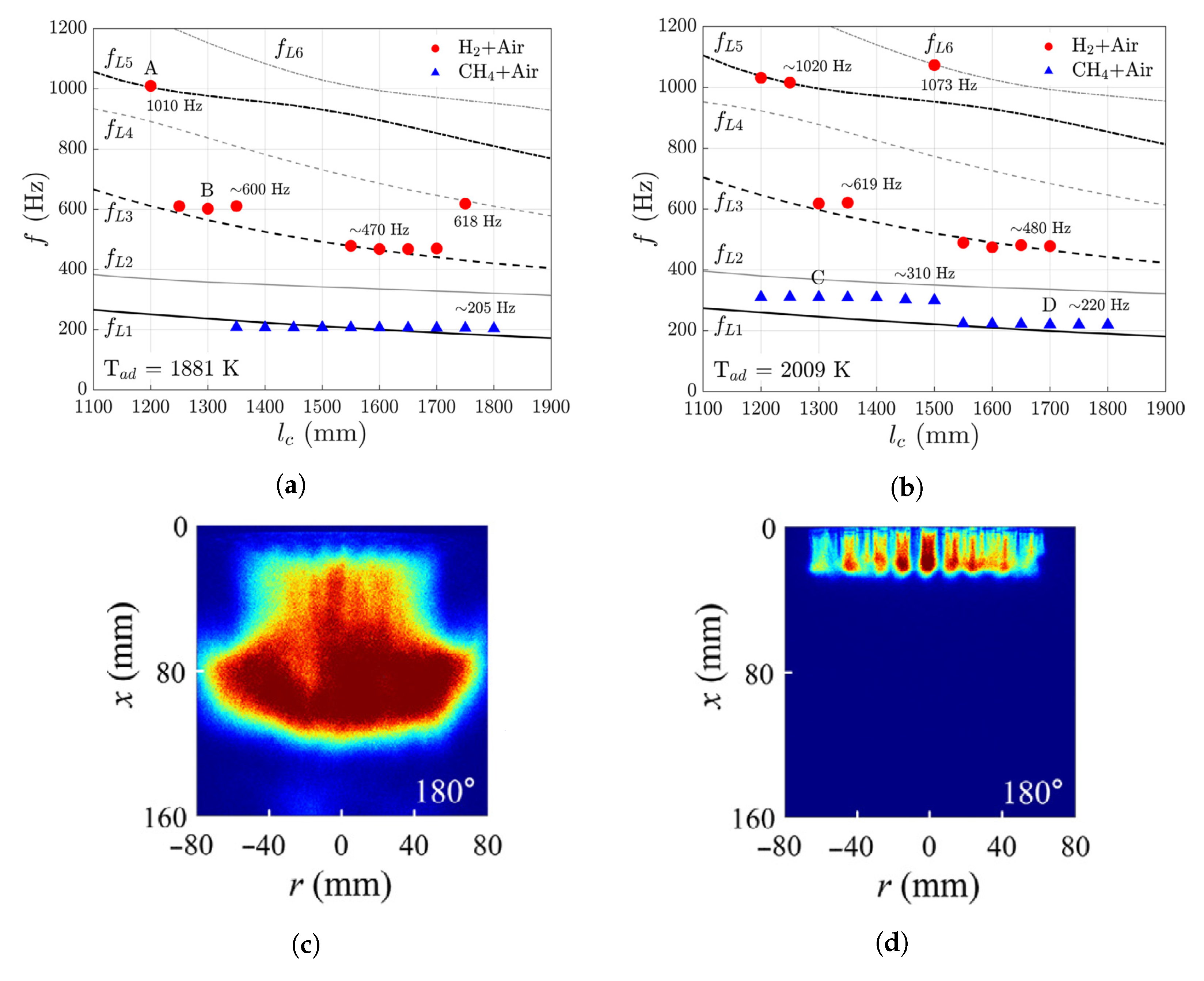

Lee and Kim [96] investigated self-excited combustion instabilities in a micromix combustor, comprising an array of 60 fully premixed nozzles, to understand the key differences in flame dynamics between lean premixed hydrogen flames and methane flames. 100% CH₄ and 100% H₂ flames were studied at fixed inlet temperature and Reynolds number over a range of adiabatic flame temperatures and combustor lengths. Flame images taken under thermoacoustically stable conditions revealed that the CH₄ flames were characterised by interactions between neighbouring flames, with very wrinkled flame surfaces and irregular detachment from the nozzle exit. The hydrogen flames, on the other hand, formed very compact reaction zones stabilised at each nozzle exit, devoid of interaction with adjacent flames. Analysis of thermoacoustically unstable flames revealed that the hydrogen flames preferentially excited several higher order resonant modes as the combustor length was varied. The methane flames, however, only excited the first longitudinal acoustic mode of the combustor and with lower amplitudes compared to the hydrogen flames. Figure 10a,b show the differences in dominant acoustic modes excited by the two flames as a function of combustor length for two adiabatic flame temperature conditions. Flame imaging revealed that the two flames exhibited radically different oscillatory motions during limit cycle oscillations as shown in the peak heat release plots in Figure 10c,d. The methane flames merged together to form a large-scale global oscillation whereas the compact hydrogen flames oscillated in isolation in the vicinity of the burner exit without any flame-to-flame interaction. From instantaneous OH PLIF images, the authors identified flame annihilation [99] as the main instability driving mechanism for the compact hydrogen flames.

McClure et al. [100] numerically investigated the forced response of hydrogen micro-diffusion flames using a single injector element in a jet-in-crossflow arrangement. FTF results, computed using steady-state Reynolds-Averaged Navier-Stokes simulation, showed that the gain of the FTF did not decrease substantially until very high frequencies (>2000 Hz). This is unlike typical FTF observations in conventional LPM combustors burning natural gas [99,101,102,103]. This suggests that the hydrogen flame is able to amplify thermoacoustic oscillations over a wider range of frequencies. It also indicates that the hydrogen micromix combustor may be more susceptible to higher frequency combustion instabilities.

From these studies, it can be inferred that firing micromix combustors with hydrogen has the potential to excite higher frequency combustion instabilities which may lead to accelerated hardware damage without any mitigation strategies.

6. Summary and Concluding Remarks

It is clear from this review article that the combustion of pure hydrogen and hydrogen-enriched natural gas can have a profound impact on the thermoacoustic instability characteristics of LPM gas turbine combustors. The higher reactivity of hydrogen compared to natural gas leads to differences in flame stabilisation, topology and dynamics. Whether a combustor is rendered thermoacoustically stable or unstable as a result of hydrogen addition is very much dependent upon the specific design of the combustor and its operational parameters. However, recognition of the effects of hydrogen on thermoacoustics and factoring these implications in the design and operation of LPM combustors is of paramount importance. From the preceding sections, the following insights can be drawn.

• Due to higher turbulent flame speeds, pure hydrogen and hydrogen-enriched natural gas result in compact flames which are shifted upstream closer to the burner outlet in comparison to pure natural gas flames. As the flame position is shifted upstream, so does the flame “centre of heat release”. The shorter convective timescale alters the phase relationship between unsteady heat release and pressure fluctuations, thus affecting the dynamic instability characteristics of the combustor. Flame position therefore plays a crucial role in determining the dynamic state of hydrogen and hydrogen-enriched natural gas flames.
• Hydrogen enrichment has been reported to shift regions of thermoacoustic instabilities to lower equivalence ratios/flame temperatures. This implies that a gas turbine combustor that is dynamically stable at a given equivalence ratio/flame temperature may be rendered dynamically unstable and vice versa as a result of hydrogen addition. This may also have implications on attempts to achieve lower NO_x emissions by exploiting the benefit of sustaining combustion at lower equivalence ratios with hydrogen addition.
• Mode switching between acoustic resonant frequencies can occur in LPM combustors as a result of burning hydrogen or hydrogen-enriched natural gas. This can have an impact on extant combustion instability control strategies developed for natural gas operation. The excitation of higher frequency instabilities has also been reported, which can lead to accelerated structural damage if left uncontrolled.
• It has been observed that hydrogen addition can lead to regions of intermittent dynamics in the transition between dynamically stable and unstable combustion. Intermittency is an active area of combustion instability research where the phenomenon is exploited as a precursor to impending combustion instability. Extending these studies to hydrogen combustion would help in the development of predictive algorithms that could detect and actively control combustion instabilities.
• Several researchers have reported a change in flame shape from a V-shaped to an M-shaped flame as a result of hydrogen enrichment, with different consequences on combustion instabilities. There is a consensus that this flame shape transition is due to the higher extinction strain rates of the fuel mixtures containing hydrogen, arising from its higher diffusivity, which enables the flames to propagate through the velocity gradients of the outer shear layer and into the ORZ. Hydrogen has also been shown to alter the flame-vortex interaction dynamics as well as instability driving mechanism in LPM combustors. These can influence the thermoacoustic state of a combustor.
• Depending upon the forcing frequency, hydrogen can have a significant impact on the forced response characteristics of a combustor. However, there is a gap in the understanding of the nonlinear response of hydrogen flames in swirl-stabilised LPM combustors. More research is required in this field in order to develop models that can accurately predict the limit cycle behaviour of combustors burning hydrogen and hydrogen-enriched natural gas fuels.
• Hydrogen-enrichment has the potential to increase the propensity for combustion dynamics-induced flashback. It can also promote the coupling between periodic flashback events and thermoacoustic instabilities.
• Elevated combustor operating pressure can amplify combustion instabilities in hydrogen-enriched flames while lowering the hydrogen content in the fuel mixture required to excite the dynamics. The latter observation is the more relevant finding for this discourse. Firstly, it indicates that atmospheric test results of hydrogen concentrations at which combustion instabilities occur cannot be directly applied or extrapolated to pressurised conditions. Secondly, as gas turbines become more efficient due to higher pressure ratios, the concentration of hydrogen required to trigger combustion instabilities is likely to be lower. Increasing combustor operating pressure has also been reported to induce more flame front wrinkling in hydrogen-enriched natural gas flames compared to pure natural gas flames which has an impact on thermoacoustic instabilities. Currently, detailed elevated pressure studies of combustion instabilities in practical combustor geometries are, generally, very limited. Hydrogen flames at practical gas turbine operating conditions should be included in future research efforts to close this gap.
• Pure hydrogen injection in minute quantities, as a pilot diffusion flame, has been shown to have potential for suppressing combustion instabilities. More work is required in this area in the context of swirl-stabilised flames to better understand the flame dynamics, impact on dynamic stability maps over a wide range of operating conditions and the best injection strategies for achieving an optimal compromise between combustion instabilities and NO_x emissions.
• Micromix combustion technology is evolving as a novel burner concept to enable 100% hydrogen combustion in gas turbines. The few published studies on combustion instabilities have highlighted the tendency to excite higher frequency dynamics in these combustors. More research effort is required to understand the combustion instability characteristics of these burners. The closely-spaced, small-scale flames increases the potential for flame-to-flame interaction with significant implications on the flame response to flow perturbations and the instability driving mechanisms. Transverse-mode instabilities can also exist in such burner configurations which will lead to added complexities.
• Numerical simulations are increasingly being utilised to complement experimental approaches in the development and optimisation of low emissions gas turbine combustors. LES has evolved as a very powerful computational tool for accurately simulating the highly turbulent reacting flows found in practical combustion systems including the effects of flame-acoustic interactions. However, numerical combustion instability studies for pure hydrogen and hydrogen-enriched natural gas flames in swirl-stabilised LPM combustors are very limited. LES has the potential to provide deep insights into phenomena which are prohibitively expensive to investigate with experiments. A research area of immediate interest is the simulation of combustion instabilities for hydrogen-enriched flames at the elevated pressures and temperatures obtainable in real-world gas turbines.
