Review

A Review of the Metallogenic Mechanisms of Sandstone-Type Uranium Deposits in Hydrocarbon-Bearing Basins in China

by
Guihe Li
1,2,
Jia Yao
2,*,
Yiming Song
3,
Jieyun Tang
3,
Hongdou Han
3 and
Xiangdong Cui
3
1
School of Engineering and Applied Science, University of Pennsylvania, Philadelphia, PA 19104, USA
2
College of Engineering and Physical Sciences, University of Wyoming, Laramie, WY 82071, USA
3
Research Institute of Exploration and Development, Liaohe Oilfield Company, CNPC, Panjin 124010, China
*
Author to whom correspondence should be addressed.
Eng 2023, 4(2), 1723-1741; https://doi.org/10.3390/eng4020098
Submission received: 28 April 2023 / Revised: 13 June 2023 / Accepted: 15 June 2023 / Published: 19 June 2023
(This article belongs to the Special Issue GeoEnergy Science and Engineering)
Browse Figures
Versions Notes

Abstract

:
As a valuable mineral resource, uranium is extensively utilized in nuclear power generation, radiation therapy, isotope labeling, and tracing. In order to achieve energy structure diversification, reduce dependence on traditional fossil fuels, and promote the sustainable development of energy production and consumption, research on the metallogenic mechanisms and related development technologies of uranium resources has been one of the focuses of China’s energy development. Sandstone-type uranium deposits make up approximately 43% of all deposits in China, making them the most prevalent form of uranium deposit there. Sandstone-type uranium deposits and hydrocarbon resources frequently coexist in the same basin in China. Therefore, this study summarizes the spatial and chronological distribution, as well as the geological characteristics, of typical sandstone-type uranium deposits in China’s hydrocarbon-bearing basins. From the perspectives of fluid action, geological structure, and sedimentary environment, the metallogenic mechanisms of sandstone-type uranium deposits in hydrocarbon-bearing basins are explored. According to the research, the rapid reduction effect of oil and gas in the same basin is a major factor in the generation of relatively large uranium deposits. Additionally, ions such as CO32− and HCO3− in hydrothermal fluids of hydrocarbon-bearing basins, which typically originate from dispersed oil and gas, are more conducive to uranium enrichment and sedimentation. This study provides guidance for efficient sandstone-type uranium deposit exploration and production in hydrocarbon-bearing basins and helps to achieve significant improvements in uranium resource exploitation efficiency.

Graphical Abstract

1. Introduction

Uranium is a rare mineral resource that is extensively distributed throughout the Earth’s crust [1,2], but it typically exists at low concentrations, with an average abundance of about 2.7 ppm (parts per million) [3]. In addition, only a relatively small number of economically viable uranium deposits exist, and they are unevenly distributed [4,5]. Currently, global uranium production is about 54,224 tons [6] and is primarily from countries such as Kazakhstan (43%), Canada (15%), Namibia (11%), and Australia (8%) [7]. Uranium is an important unconventional energy resource primarily used for nuclear power generation [8,9,10]. Through uranium fission reactions in a nuclear reactor, enormous energy can be generated for electricity production. Nuclear power generation has the advantages of high efficiency and cleanliness [11,12], so it is particularly suitable for areas with high electricity demand, helping to reduce dependence on traditional fossil fuels, and thus reducing carbon emissions [13,14]. In addition, uranium also has other nuclear technology applications, such as radiation therapy [15,16] and isotope labeling and tracing [17,18]. The Organization for Economic Co-operation and Development (OECD) has provided information that the growing demand for clean energy transition in the future is anticipated to affect nuclear energy capacity, with the East Asia region expected to experience the largest increase in uranium demand [19,20]. To promote the growth of nuclear energy capacity and drive the increase in demand for uranium, it is crucial to acknowledge the benefits of nuclear energy in providing a secure, reliable, and predictable energy supply. Additionally, offering incentives to promote the diversification of low-carbon technologies can help to achieve these goals.
For countries with large populations and rapid economic development, such as China, ensuring energy security is crucial for sustainable development. In order to lower greenhouse gas emissions and combat climate change, the Chinese government has implemented a series of policies [21] to support the development of uranium resources, fully exploiting and utilizing domestic uranium resources to achieve energy diversification, reduce reliance on traditional fossil fuels, and promote sustainable energy production and consumption [22]. China previously aimed to adhere to a strategy referred to as the ‘three-third rule’ for its uranium supply, which involved one-third coming from domestic mining, one-third from direct international trades, and one-third from Chinese companies mining abroad. However, China’s current approach has shifted towards a portfolio approach, where uranium is sourced from various locations based on feasibility and economic viability. The objective is to maximize uranium supply security by utilizing different sources, including those outlined in the ‘three-third rule’ [23]. Therefore, in recent years, China’s uranium mining has also increased, with annual production reaching 1885 tons in 2018, contributing to roughly 4% of global uranium production and ranking among the top ten producers worldwide [24].
Sandstone-type uranium deposits, which are distinguished by their economical in-situ leaching, vast scale, and minimal environmental impact during mining, have become a key area of focus in China’s ongoing exploration of uranium resources [25]. Consequently, research into the genesis, exploration, and mining of these deposits has gained significant traction in recent years. The presence of sandstone-type uranium deposits alongside oil and gas resources frequently occurs in China’s basins [26,27,28,29], indicating a close relationship and coexistence between these resources. This can be attributed to the fact that sandstone, particularly high-porosity and permeability sandstone, functions as a storage space for oil and gas, as well as channels and storage sites for the transportation and enrichment of fluids carrying uranium [30,31,32]. In addition, the geological structures and sedimentary environments required by hydrocarbon generation and uranium mineralization share certain similarities [33]. The coexistence of hydrocarbon resources and sandstone-type uranium deposits within the same basin offers China a significant advantage in the efficient and economical exploitation of its energy resources. Developed oil and gas basins have relatively complete infrastructure and geological history data that can be directly utilized for uranium exploration and evaluation, leading to comprehensive resource utilization and a substantial improvement in economic efficiency.
However, it should be noted that the metallogenic mechanisms of sandstone-type uranium deposits within hydrocarbon-bearing basins may prove complex because of the presence of varying fluid compositions, geological structures, and sedimentary environments. These factors can have an impact on the enrichment and distribution of uranium. Given the unique features of basins containing both hydrocarbons and sandstone-type uranium deposits, it is imperative to conduct a comprehensive analysis of uranium mineralization in such basins. Therefore, this study presents a comprehensive overview of the geological properties, geographic distribution, and chronological variation of typical sandstone-type uranium deposits found in China’s hydrocarbon-bearing basins. By integrating analyses of fluid action, geological structure, sedimentary environment, and other relevant factors, this study elucidates the metallogenic mechanisms underlying sandstone-type uranium deposits within China’s hydrocarbon-bearing basins. Findings from this study can enable more precise assessments of uranium reserves, as well as shed light on the distribution patterns and factors underlying the formation of uranium deposits. The insights gained can inform the exploration and development strategies for sandstone-type uranium deposits, optimizing mining methods and beneficiation processes, and leading to improved efficiency and recovery rates.

2. Characteristics of Sandstone-Type Uranium Deposits in Hydrocarbon-Bearing Basins in China

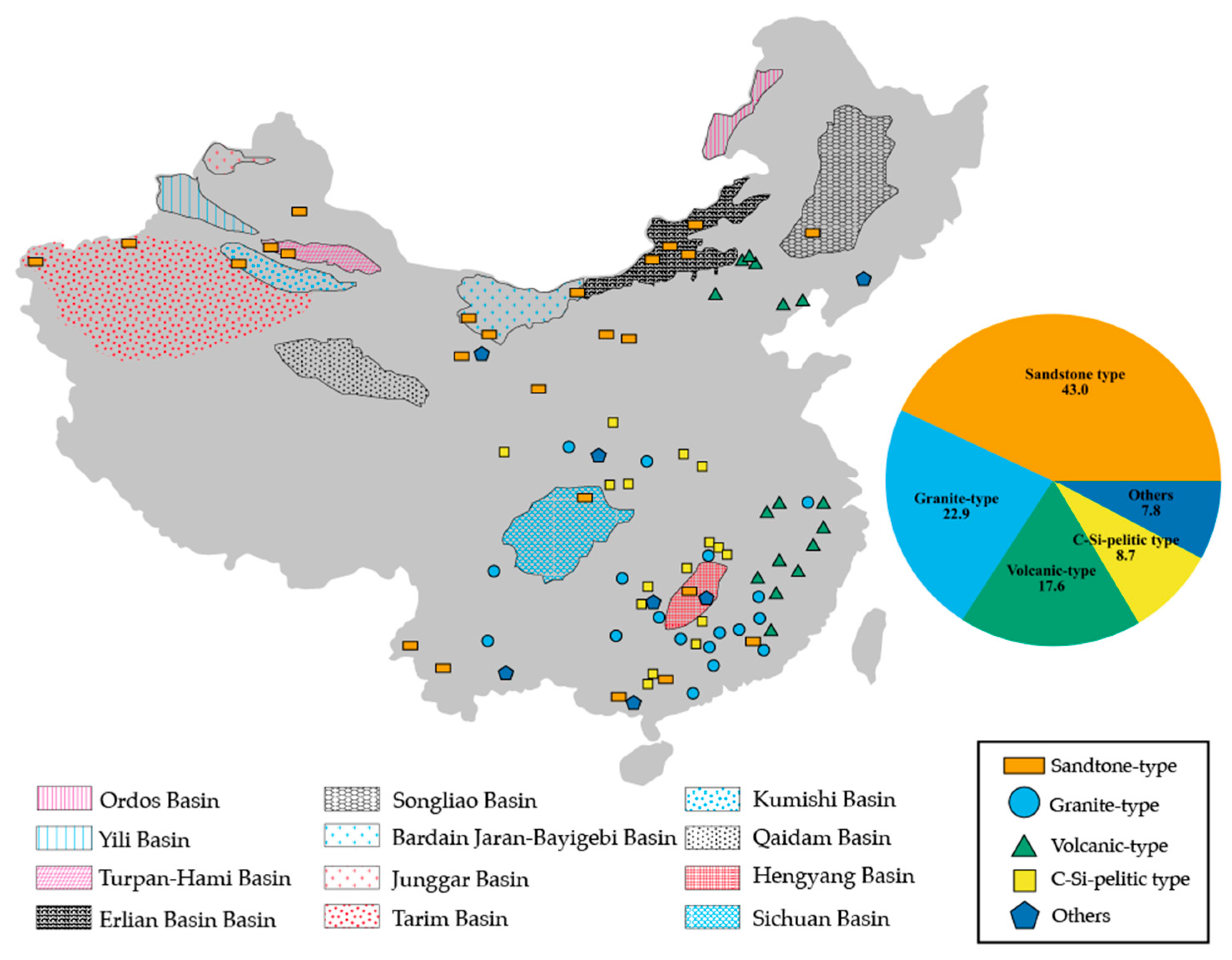

Figure 1 illustrates the typical forms and distribution percentages of China’s uranium resources, along with their respective locations. The four primary categories of uranium deposits [34] in China are depicted in the figure as follows: sandstone-type, accounting for 43.0% and widely distributed; granite-type, accounting for 22.9% and concentrated in southern China; volcanic-type, accounting for 17.6% and concentrated in eastern China; and C-Si-pelitic type, accounting for 8.7% and concentrated in central and southern China. These four primary categories together contribute to approximately 92.2% of the total confirmed uranium resources in the country [35]. Other types, including alkaline rock type, coal rock type, shale type, and phosphorite type, represent about 7.8% of the total [35]. The geological history of China reveals uranium mineralization events spanning the Paleoarchean, Early Paleozoic, Late Paleozoic, Triassic, Jurassic, Cretaceous, and Cenozoic eras, as depicted in Figure 2. The Cretaceous and Cenozoic eras were the main period of uranium mineralization [36]. The distribution of these mineralization ages was primarily influenced by China’s tectonic environment [37,38], geological structural evolution [38], and the geochemical properties of uranium elements [39]. The formation of various mountain structures, fault zones, volcanic belts, and sedimentary basins in China, under the influence of tectonic movements, magmatic activity, and sedimentation, has provided suitable environments and conditions for uranium mineralization.
Sandstone-type deposits, which make up the majority of China’s confirmed uranium reserves, exhibit certain characteristics in terms of their overall spatial and temporal distribution. Firstly, they are characterized as “small but numerous”. Although individual deposits are small, they are numerous, and have various mineralization geological ages, mineralization periods, and distribution areas [35]. Secondly, they are considered “lean but usable”. Despite China’s uranium resources being mainly of medium to low grades, the ore types are generally good, and the hydrometallurgical processing performance is favorable, making them technically and economically viable [35]. Lastly, they are “widely scattered but relatively concentrated”. Although individual deposits have small scales, they are primarily concentrated in several mining areas and mineralized concentration areas [35].

2.1. Spatial Distribution Characteristics of Sandstone-Type Uranium Deposits in Hydrocarbon-Bearing Basins

Sandstone-type uranium deposits within hydrocarbon-bearing basins are primarily concentrated in China’s large- and medium-sized basins, particularly in the northern region. Among them, six basins, including the Ordos Basin, Yili Basin, Turpan-Hami Basin, Erlian Basin, Songliao Basin, and Badain Jaran-Bayingebi Basin, are projected to hold 75% of China’s entire sandstone-type uranium deposit resources [35]. All these basins are characterized by oil and gas production, with sandstone-type reservoirs being predominant, as well as some shale, mudstone, carbonate hydrocarbon reservoirs, and coalbed methane reservoirs. Table 1 presents the location distribution of the major hydrocarbon-bearing basins in China that are abundant in sandstone-type uranium deposits, along with the burial depth of the hydrocarbon reservoirs and sandstone-type uranium deposits.

2.2. Temporal Distribution Characteristics of Sandstone-Type Uranium Deposits in Hydrocarbon-Bearing Basins

In China’s hydrocarbon-bearing basins, uranium mineralization in sandstone-type deposits spans an extensive temporal range, from the early Mesozoic to the late Cenozoic periods [65]. Figure 2 indicates that the peak periods of uranium mineralization were during the Cretaceous and Cenozoic periods. Table 2 provides information on the formation periods of major hydrocarbon-bearing basins in China, as well as their internal hydrocarbon-bearing reservoirs and sandstone-type uranium deposits. According to Table 2, uranium mineralization primarily occurred in the western basins during the Neogene period, while in the central and eastern basins, it mainly occurred during the Cretaceous period [35].

2.3. Geological Characteristics of Sandstone-Type Uranium Deposits in Hydrocarbon-Bearing Basins

Table 3 summarizes the geological structural characteristics, as well as the sedimentary conditions, of hydrocarbon-bearing basins in China that are rich in sandstone-type uranium resources. Most of these basins have a high prevalence of fault structures, which is a significant factor in their formation and evolution. Some of these basins were formed through marine sedimentation, while others were formed through continental sedimentation that mainly involved lacustrine and fluvial sedimentation. Consequently, the hydrodynamic environment was extremely important during the development process of these basins.

3. Metallogenic Mechanisms of Sandstone-Type Uranium Deposits in Hydrocarbon-Bearing Basins in China

Sandstone-type uranium deposits are commonly a result of a specific stage in crustal evolution. The main sources of uranium minerals that are present in China’s sandstone-type uranium deposits are sedimentary layers within the basin and nearby geological structures that contain significant concentrations of uranium minerals. The redox behavior of uranium (U6+→U4+) is a fundamental principle followed by uranium mineralization. Uranium minerals are transported and enriched in the form of U6+ and ultimately deposited in the sandstone deposits in the form of U4+ compounds. Current research among Chinese scholars suggests a consensus regarding the infiltration of fluids in the vicinity of the basin’s periphery, which leads to the formation of roll or plate uranium orebodies [109]. Some researchers have proposed that reducing fluids in deep basins are as important during the formation process of these deposits in light of recent advancements in prospecting and research [25]. Moreover, it is suggested that the basin’s tectonic movement can cause uranium-bearing fluid to vertically migrate, facilitating uranium deposits to form. Figure 3 illustrates the metallogenic mechanisms involved in the formation process of sandstone-type uranium deposits within basins containing hydrocarbon resources. This study analyzes the mineralization process of sandstone-type uranium within hydrocarbon-bearing basins from the perspective of fluid action to better understand the metallogenic mechanisms involved in sandstone-type uranium deposit formation in such basins. The potential rational theory is clarified in that hydrocarbon-bearing basins are conducive to sandstone-type uranium mineralization by combining their structural characteristics and sedimentary environment.

3.1. Fluid Action

The crucial role of fluids in uranium mineralization has been widely recognized in current research. Sandstone-type uranium deposits are formed with the significant involvement of surface water and groundwater. It has been discovered that uranium ore, oil, and gas, as well as low-temperature hydrothermal minerals, can be found in hydrocarbon-bearing basins with extensive sandstone-type uranium resources. This suggests the involvement of low-temperature hydrothermal fluids during uranium mineralization [111,112]. Therefore, this study offers a metallogenic analysis of sandstone-type uranium deposits within hydrocarbon-bearing basins, examining the effects of three fluid types: surface water and groundwater, oil and gas, and hydrothermal fluids.

3.1.1. Action of Surface Water and Groundwater

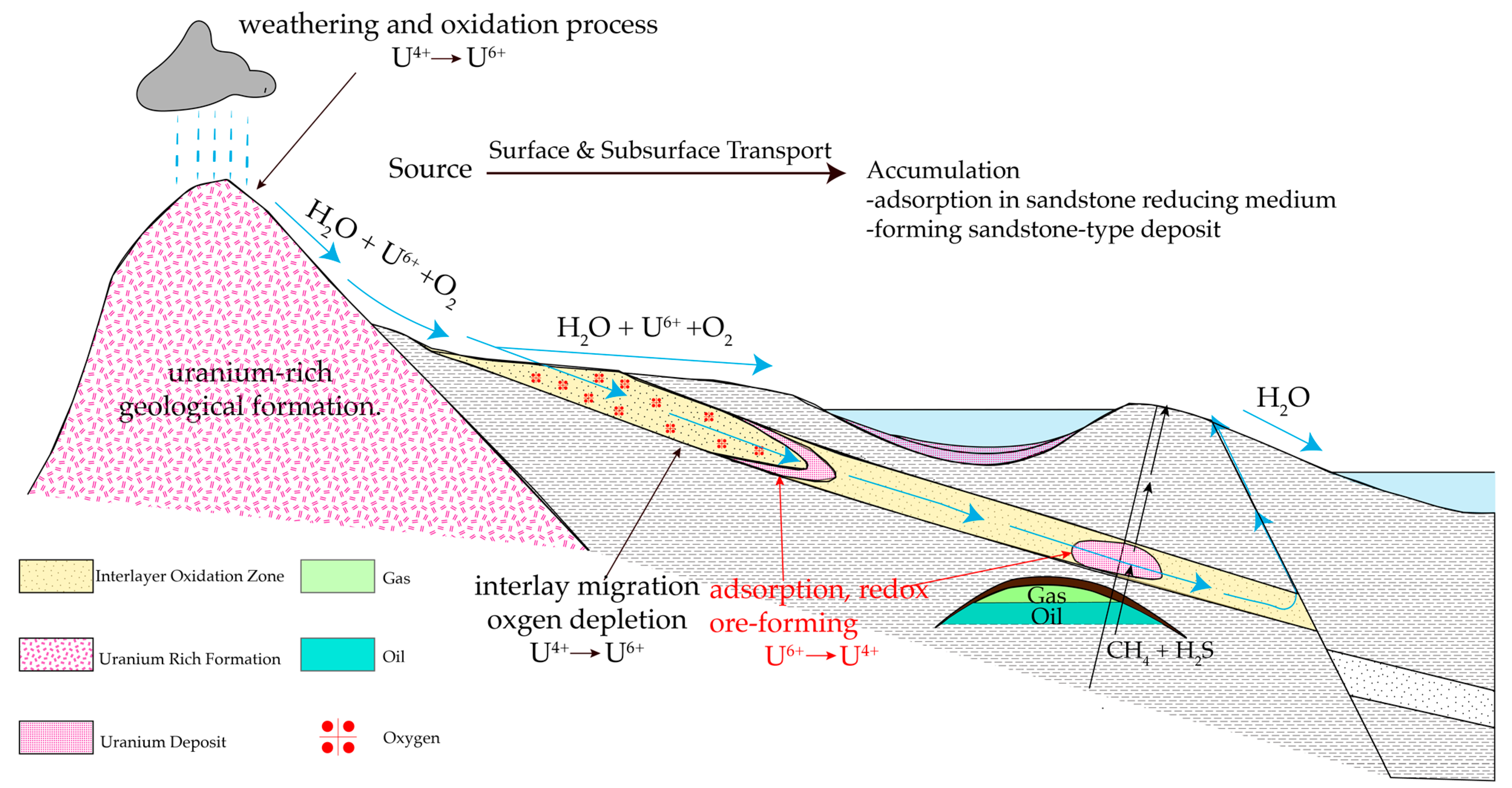

In uranium-rich hydrocarbon-bearing basins, sandstone-type uranium mineralization primarily occurs through the action of surface water and groundwater, which play a crucial role in providing the hydrodynamic force necessary for uranium mineralization. Under oxidizing conditions, surface water dissolves uranium minerals that are present within the rocks of the surrounding orogenic zone, while groundwater dissolves a significant quantity of uranium-bearing rock debris that is brought into the basin by weathering and denudation. These uranium minerals dissolved by surface water and groundwater can migrate with water flow to the tectonic slope zone, which is favorable for mineralization and enrichment. Under the influence of the siphon effect [113,114] and pulsation cycle mechanism [25], uranium-bearing fluids can promote uranium deposition in sandstone through the form of minerals or adsorptive precipitation. This occurs due to a slowing down of water flow, a decrease in oxygen content in water, and the occurrence of reduction reactions.

3.1.2. Action of Oil and Gas

Uranium deposits and hydrocarbon fields within the same basin are closely intertwined. The spatial location of uranium deposits and the origin of hydrocarbon fields are strongly related. In these hydrocarbon-bearing basins, when sandstones are rich in organic materials, such as fossil plant remains, these organic materials can undergo pyrolysis reactions under the influence of pressure and temperature over an extended length of time, leading to the formation of hydrocarbons. Additionally, these organic materials can also react with uranium-bearing oxidized groundwater as a reducing agent to form uranium deposits. This is because fossil plant remains are abundant in organic matter, including soluble organic matter, fixed organic matter, and structural organic matter, with the majority of it being humus. The organic matter can react with uranium-bearing oxidized groundwater either directly through reduction with bacterial as a catalyst [115], or indirectly through the production of biogenic hydrogen sulfide [116], a reducing agent that causes uranium to precipitate for the deposit formation. Therefore, sandstones that are rich in organic materials within hydrocarbon-bearing basins often become important sites for hydrocarbon generation and uranium deposit mineralization.
However, regarding production stratigraphy and mineralization location, sandstone-type uranium deposits are substantially distinct from hydrocarbon resources. Studies have shown that oil and gas reservoirs are typically located at lower or deeper sections of the sandstone-type uranium-bearing layer within the same basin [117]. In contrast, sandstone-type uranium is primarily mineralized at the top of hydrocarbon reservoirs, especially around the edges of hydrocarbon cap rocks [115]. This up-and-down superposition location association between sandstone-type uranium deposits and hydrocarbon is a key factor in the modification effect of hydrocarbons on uranium deposits.
The spatial distribution of uranium deposits above hydrocarbon reservoirs is determined by their source rock locations and formation processes. As shown in Figure 3, hydrocarbons are mainly derived from organic-rich source rocks, usually located underground or within sedimentary basins, while uranium is derived from uranium-rich minerals in surrounding rocks or debris. Hydrocarbon formation results from the accumulation and maturation of organic matter, while sandstone-type uranium deposition involves the uranium dissolution by surface water or groundwater under oxidizing conditions, the movement of uranium-bearing fluid, and the uranium precipitation under reducing conditions. In basins containing both hydrocarbon resources and sandstone-type uranium deposits, hydrocarbons are usually transported through fractures or unconformities to the overlying or shallow sandstone-type uranium-bearing layers and laterally migrate along the intra-stratigraphic sand body toward the decompression zone [117]. When hydrocarbons encounter oxygenated uranium-bearing fluids or uranium ore bodies, post-generation modification occurs [117] for uranium deposition. Therefore, sandstone-type uranium deposits are usually located above hydrocarbon reservoirs. Chemical analysis of rock samples from drill holes [118] and fluid inclusion tests [119,120] have revealed the presence of hydrocarbon gases, including hydrogen sulfide, carbon dioxide, and methane. These results suggest that hydrocarbon gases, with the function of rapid and local reduction, which leak from oil and gas reservoirs can be utilized as an essential favorable factor to promote larger deposits to form [115]. In addition, sandstone-type uranium deposits are more prone to form within areas with poor sealing at the margins of hydrocarbon reservoirs, as these conditions are more conducive to hydrocarbon infiltration.
Hydrocarbons possess various forms of reducing effects on uranium mineralization depending on their different formation timeframes [117]. Figure 4 presents the initial formation periods of these hydrocarbon-bearing basins, together with those of hydrocarbon reservoirs and uranium deposits contained therein. Within a given basin, the hydrocarbon generation and the sandstone-type uranium deposition may vary, with the possibility of occurring before, concurrently with, and after the latter. When oil and gas are generated earlier than uranium mineralization, they infiltrate the sandstone-type uranium-bearing layer to create a large-scale reducing environment. This increases the reducing capacity within the mineralized layer, favoring the precipitation and enrichment of uranium. When oil and gas are generated almost simultaneously with uranium mineralization, their infiltration not only increases the reducing capacity but also obstructs the upward migration of oxygenated and uranium-bearing fluids. This leads to the development of a uranium mineralization equilibrium interface, which is a favorable condition for enriched uranium deposits with large scales to form. When oil and gas are generated later than uranium mineralization, their infiltration and reducing modification occur outside the already-formed uranium deposit. This reduces the possible oxidation zone surrounding the deposit and protects the formed uranium mineral body. Additionally, carbonate minerals can form both inside and outside the mining area when hydrocarbons reduce uranium-bearing fluids. Therefore, the presence of carbonate minerals can serve as a valuable indicator or clue for exploring sandstone-type uranium resources.

3.1.3. Action of Hydrothermal Fluids

Hydrothermal fluids form when groundwater at great depths undergoes dissolution of minerals and ions under high temperature and pressure conditions [121]. These fluids are primarily composed of water, dissolved minerals, and ions, which commonly include sodium, potassium, and iron ions.
Hydrothermal fluids found in hydrocarbon-bearing basins not only contain common ions but also CO32− and HCO3− ions, which are typically sourced from dispersed oil and gas. In a slightly acidic environment, these ions in the hydrothermal fluids can more effectively dissolve U6+. Soluble compounds such as uranyl carbonate complex ions ([UO2(CO3)3]4−) [122,123] easily form and dissolve in oxygen-containing groundwater, which contributes to the enrichment of uranium ores. These complex anions then react with reducers, such as organic carbon from dispersed oil and gas. As a result, U4+ can precipitate under reducing circumstances, which, in turn, further promotes uranium mineralization. Hence, these distinctive compositions of hydrothermal fluids within hydrocarbon-bearing basins play a pivotal role in the enrichment of uranium during its transportation, thus facilitating the development of larger-scale uranium deposits.

3.2. Geological Structure Effect

Tectonic events in geology refer to the deformation and movement of the Earth’s plates, which can cause crustal movements and the formation and evolution of basins. These processes can result in phenomena such as basin uplift, subsidence, and deformation, which significantly affect hydrocarbon generation, transportation, and accumulation, as well as uranium deposition. Table 3 indicates that fault structures are predominant throughout the majority of China’s hydrocarbon-bearing basins characterized by abundant sandstone-type uranium resources. This demonstrates that fault movements have a pivotal involvement during the formation process of uranium deposits. Secondary structural units commonly found within these basins are primarily composed of depressions and uplifts.
Faults, as the primary geological structural units, are of vital importance during the developmental and evolutionary processes of hydrocarbon-bearing basins, facilitating both vertical and horizontal migration and the movement of materials. They are able to control the distribution status of sand bodies within these basins and serve as a fundamental area during sandstone-type uranium accumulation [26]. Along with the primary structures, secondary structural units such as depressions and uplifts have the capability to further enhance the abundance of sandstone-type uranium deposits. This is because these units dominate the structural slope zones within the basins, which are the most favorable areas for the accumulation of sand, thereby contributing to the subsequent uranium accumulation for enrichment [124]. Geological processes such as folding and dissolution create favorable storage spaces within the sand bodies, characterized by pores, fractures, and solution cavities, which make it easier for uranium minerals to accumulate. Moreover, basin subsidence causes a significant inflow of groundwater, which promotes the dissolution of uranium in uranium-bearing rocks by groundwater, leading to uranium element enrichment. On the other hand, basin uplift creates a reducing environment for uranium-bearing groundwater, resulting in the conversion of U6+ to U4+ and precipitation in the form of a compound. Overall, tectonic events and the formation of secondary structures lead to regional differences in movement within the basins, resulting in the large-scale migration and seepage of groundwater and hydrocarbon-related fluids. These processes enhance the effects of groundwater migration and hydrocarbon reduction on uranium mineralization, further promoting the enrichment and mineralization of uranium minerals.
In China, the formation of certain uranium-rich hydrocarbon-bearing basins, such as Tarim Basin, Ordos Basin, and Sichuan Basin, is also influenced by magmatic activities [125]. The uranium-rich geological bodies within the magmatic zones surrounding these basins also significantly contribute to uranium mineralization at vast scales. These geological bodies are primarily composed of uranium-rich granites [126], which provide substantial material for uranium deposition in the uranium-bearing rock series of basins. When these granites intrude into sandstone or other uranium-bearing rocks, the uranium element in the granite is released through chemical reactions [127,128], and then reacts with the surrounding sandstone or other rocks to form uranium minerals. These minerals are further transported and enriched, ultimately forming uranium deposits. Therefore, these uranium-rich granites are crucial uranium sources and are essential catalysts during sandstone-type uranium deposition [129].

3.3. Sedimentary Environment Effect

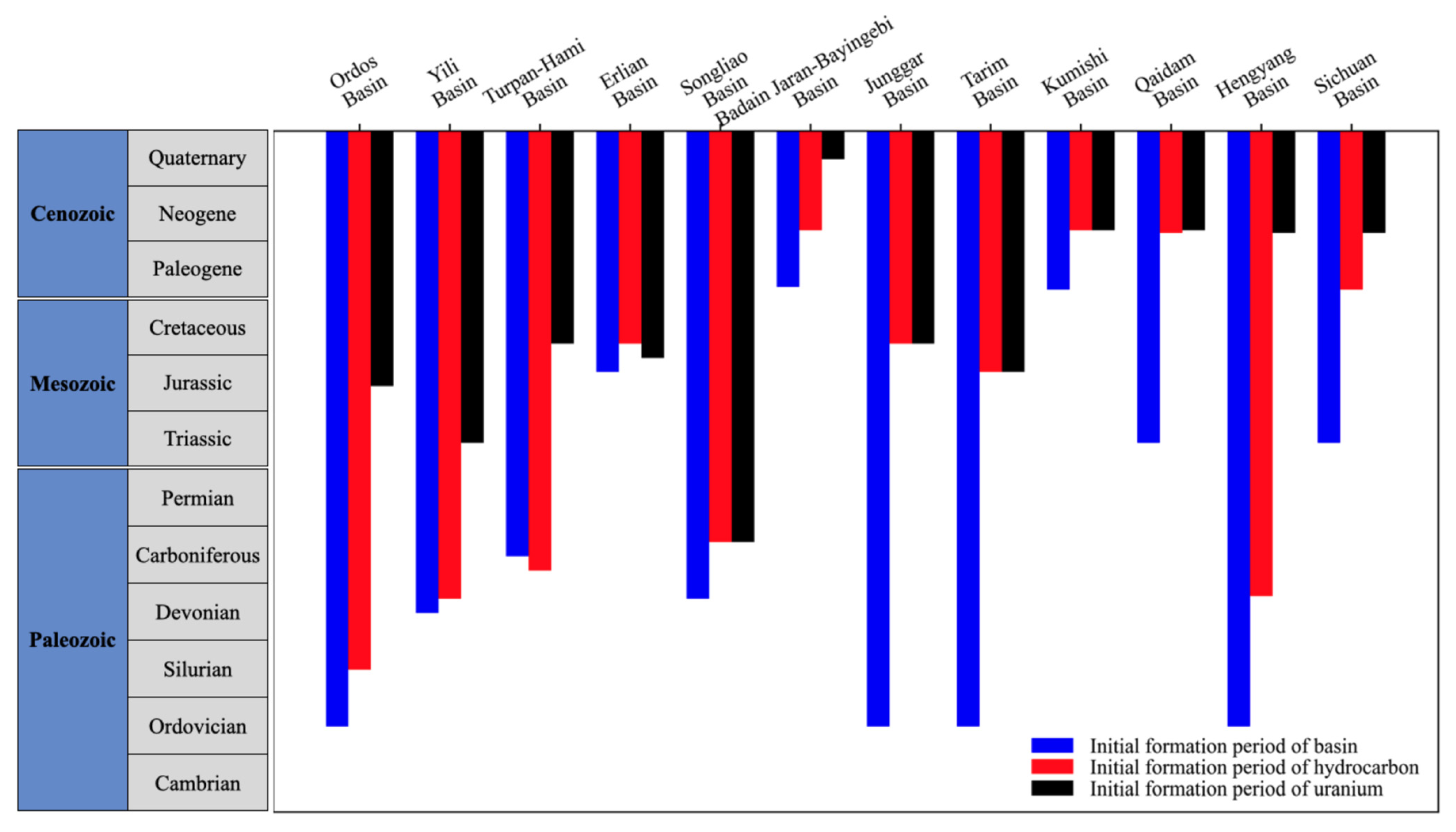

Figure 4 illustrates that the formation of these hydrocarbon-bearing basins (or their host rocks) generally occurred earlier than their internal uranium mineralization. For non-hydrocarbon-bearing basins, there is no established correlation between basin formation and uranium mineralization. This is due to the fact that the formation time of a basin is determined by its geological background and structure. Typically, crustal movements and tectonic activities such as fault movements, uplift, and subsidence can induce basin formation. However, hydrocarbon-bearing basins usually have abundant sediment sources and suitable sedimentary environments, in addition to experiencing crustal movements and tectonic activities, which provide sufficient reserve space for the generation and enrichment of hydrocarbons. This abundance of sediment sources and suitable sedimentary environments also create favorable circumstances for uranium deposition. Thus, these factors contribute to the suitability of China’s major hydrocarbon-bearing basins for sandstone-type uranium deposition.
Table 1 illustrates that the dominant sedimentary rock types in China’s hydrocarbon-bearing basins are sandstone and mudstone. Sandstone serves as the primary medium for the transportation of uranium mineralizing fluids, including uranium-bearing fluids, oil and gas, and hydrothermal fluids. Additionally, it facilitates the accumulation and storage of uranium minerals. The quality of sandstone is governed by its internal heterogeneity and properties, as well as material composition. Sandstones with higher porosity and permeability are better suited for the transport and enrichment of uranium mineralizing fluids. Moreover, the presence of quartz within sandstones promotes a stronger adsorption capacity, thus making quartz-rich sandstones more conducive to the process of uranium mineralization. Mudstone is also a significant accompanying rock [130], and its clay minerals promote uranium deposition through adsorption. Additionally, some hydrocarbon-bearing basins contain carbonate rock, shale, and coal sedimentary rock types. The components of calcite and dolomite in carbonate rocks also employ adsorption [131] to facilitate uranium mineralization, whereas shale and coal seams primarily rely on the reduction effect of their associated organic matter and sulfides to promote uranium enrichment and mineralization.
Furthermore, sandstone-type uranium deposition within hydrocarbon-bearing basins involves hydrodynamics during marine or continental sedimentation. These basins are predominantly situated in system domains with facies characterized by river-dominated deltas and lake margins that are near the source material erosion. The near-source material erosion system [95,132] domains contain plentiful rock debris, organic matter, and other sedimentary materials, which facilitate the formation of thick sedimentary layers and provide ample raw materials, space, and favorable conditions for reduction and adsorption that promote the enrichment and generation of hydrocarbons and uranium. Furthermore, during the sedimentation process, hydrodynamic activities also facilitate the transportation and enrichment of hydrocarbons and uranium to a certain extent.

3.4. Effects of Other Factors

In addition to the primary factors discussed above that influence sandstone-type uranium deposition within hydrocarbon-bearing basins, there are other unique factors that can affect their formation, including paleo-environmental conditions, extreme climates, and biological activity. During the Early to Middle Proterozoic period, the sudden rise in atmospheric oxygen content [133] caused a large amount of previously accumulated uranium in a reduced state to oxidize, dissolve, and migrate, resulting in enrichment and mineralization. In extremely arid climates, strong evaporation can cause uranium to precipitate from sediment pore waters in ancient river valleys, forming uranium deposits [3]. Alternatively, fine sandstones can efficiently adsorb U6+ from lake aqueous media to form uranium deposits in environments with strong oxidizing conditions [3]. Low-level animals and plants that are rich in organic matter and propagate in shallow coastal seas can also become uranium deposit hosts and carriers, leading to uranium enrichment [134]. Therefore, these specific mineralization factors must also be considered when analyzing the potential for sandstone-type uranium deposition within hydrocarbon-bearing basins.

4. Conclusions

This study presents a comprehensive analysis and summary of the metallogenic mechanisms and influencing factors associated with sandstone-type uranium deposits within China’s hydrocarbon-bearing basins based on their distinct features.
Sandstone-type uranium deposits, which make up the largest proportion of confirmed uranium reserves in China, are mainly distributed in the hydrocarbon-bearing basins in the northern part of the country. The metallogenic mechanisms underlying sandstone-type uranium deposits within these hydrocarbon-bearing basins are mainly influenced by fluid activity, geological structure, and sedimentary environment.
Fluids are of significance during sandstone-type uranium deposition within hydrocarbon-bearing basins. Along with the fundamental mechanism of uranium mineralization through oxidation and reduction by surface water and groundwater, hydrocarbon-bearing basins provide favorable conditions for uranium reduction sedimentation through the availability of organic matter, hydrocarbon gases, and hydrogen sulfide gases. Furthermore, the hydrothermal fluids in these basins can facilitate uranium enrichment and mineralization due to their ability to dissolve CO32− and HCO3− ions, which are commonly sourced from dispersed oil and gas.
These hydrocarbon-bearing basins commonly have faults as the primary geological structures, and depressions and uplifts as the dominant secondary structures. These geological features provide excellent environments for uranium to accumulate for enrichment. Because of their high porosity and permeability, the sandstones in these basins can facilitate the enrichment and migration of uranium-bearing fluids. The mudstones in these basins promote the sedimentation of uranium ions in fluids through the adsorption capacity of their clay minerals. The formation of these basins involves marine or continental sedimentary processes with the involvement of hydrodynamics, providing sufficient materials, spaces, and favorable reduction and adsorption conditions to enable the enrichment and generation of hydrocarbons and uranium minerals.
The outcomes hold substantial significance in accurately evaluating potential uranium resources, as well as in identifying the distribution patterns and controlling factors of uranium mineral resources. These findings can be employed to guide the exploration and development of sandstone-type uranium resources, thereby enhancing the efficiency of uranium resource utilization.
