Review

A Review of Hybrid Renewable Energy Systems: Architectures, Battery Systems, and Optimization Techniques

by
Juan Carlos León Gómez
,
Susana Estefany De León Aldaco
* and
Jesus Aguayo Alquicira
*
Tecnológico Nacional de México, Campus Centro Nacional de Investigación y Desarrollo Tecnológico (Cenidet), Cuernavaca 62490, Mexico
*
Authors to whom correspondence should be addressed.
Eng 2023, 4(2), 1446-1467; https://doi.org/10.3390/eng4020084
Submission received: 20 April 2023 / Revised: 12 May 2023 / Accepted: 19 May 2023 / Published: 24 May 2023
(This article belongs to the Section Electrical and Electronic Engineering)
Browse Figures
Versions Notes

Abstract

:
This paper aims to perform a literature review and statistical analysis based on data extracted from 38 articles published between 2018 and 2023 that address hybrid renewable energy systems. The main objective of this review has been to create a bibliographic database that organizes the content of the articles in different categories, such as system architecture, energy storage systems, auxiliary generation components used, and software employed, in addition to showing the algorithms and economic and reliability criteria for the optimization of these systems. In total, 38 articles have been analyzed, compared, and classified to provide an overview of the current status of simulation and optimization projects for hybrid renewable energy systems, highlighting clearly and appropriately the relevant trends and conclusions. A list of review articles has also been provided, which cover the aspects required for understanding HRESs.

1. Introduction

Renewable energies are those sources of energy that can be obtained naturally without depleting the planet’s resources. These sources include solar, wind, hydro, geothermal, biomass, and biofuels. Unlike non-renewable energies, such as oil, gas, and coal, which are finite and emit large amounts of greenhouse gases, renewable energies are cleaner and more sustainable. Additionally, the technologies to capture and utilize these energies have improved in recent years, making their use increasingly viable and economical. Renewable energies are a key solution to combating climate change and reducing dependence on fossil fuels [1]. By investing in these energy sources, jobs can be created and sustainable economic development can be promoted. In summary, renewable energies are a key alternative to ensure a cleaner and safer future for future generations.
Hybrid renewable energy systems are those that combine two or more renewable energy sources to generate electricity. These systems are especially useful in places where there is no access to the conventional electrical grid, or where the connection is limited or unstable [2]. An example of a hybrid system combines solar and wind energies. During the day, when the sun shines, solar panels generate electricity that is stored in batteries for later use. At night, when there is no sun, wind energy conversion systems (WECS) harness the wind to generate additional electricity and charge the batteries [3]. Another example of a hybrid system combines solar and hydro energies. During the day, solar panels generate electricity that is used to pump water from a river or lake to a dam. At night, when there is no sun, the water stored in the dam is released through a hydro turbine to generate additional electricity [4].
Hybrid renewable energy systems can be more efficient and reliable than systems that use a single energy source [5]. Additionally, they allow for a better use of available resources and reduce the cost of generated energy. For these reasons, hybrid systems are becoming increasingly popular worldwide, especially in rural or remote areas [6].
The studies conducted on HRESs mostly address the methods to use the different structures for power distribution. To date, there are three variants, which are used depending on the application chosen by the system designer. These configurations are DC microgrid, AC microgrid, and AC/DC microgrid. A DC microgrid is a power system that uses direct current for power distribution instead of alternating current. It is composed of various renewable energy sources, energy storage systems, and DC loads. The use of DC for power distribution has several advantages, such as the elimination of AC–DC–AC conversions required in AC microgrids, which improves efficiency and reduces energy losses. In addition, eliminating the need for a distributed generator (DG) synchronization also simplifies system designs and reduces costs. DC microgrids can also integrate energy storage systems to improve efficiency and energy independence [7].
In an AC microgrid, an AC-to-DC converter is used to power the DC loads. Other renewable energy sources can also be incorporated through the appropriate interface of power converters. Each power source is connected to the AC bus through a separate power converter, allowing them to continue to operate even if one of them is disconnected, improving system reliability. However, synchronization is a major obstacle in this configuration [3].
The AC/DC microgrid combines the advantages of AC and DC microgrids to facilitate the integration of AC and DC loads with their corresponding sources. It can be used in two modes, off-grid or grid-connected, and is suitable for use in smart grids alongside the current grid. In addition, voltage transformation, economic viability, and harmonic control are other advantages of this configuration. Although it has some major benefits, in terms of overall performance, the hybrid AC/DC microgrid is a good option to address operational problems and challenges as it outperforms other types of microgrids [7].
Battery energy storage systems (BESSs) are a crucial part of the system for good optimization, as they allow electrical energy to be stored for later use when needed. This makes them especially useful for the integration of renewable energy sources, such as solar and wind power, into the power grid. In this way, the BESSs can balance the variability of renewable energy generation and provide power when demand is high or when power generation is low [8]. Battery energy storage systems (BESSs) have several advantages over other forms of energy storage. First, they are highly efficient and can store large amounts of energy. Second, they are flexible and can be used in a variety of applications, including backup power systems and energy management systems. Third, they are capable of providing grid services, such as frequency control and voltage control, making them valuable for grid stability. In addition, BESSs have a longer lifetime than other forms of energy storage and are less prone to failure. Overall, BESSs are an important part of the transition to a more sustainable and secure energy system [5].
Optimization techniques are fundamental to achieve an efficient and reliable energy management and storage system. These techniques consist of designing appropriate strategies to balance power generation and load demand, even when uncertain renewable sources are used. This is achieved through the use of control algorithms that can predict the availability of renewable energy and adjust the load accordingly. In addition, these techniques can also help optimize the use of energy storage systems, such as BESSs, to ensure that energy is stored and released effectively and efficiently. Overall, choosing the right optimization technique is crucial to maximize energy efficiency and system stability [9]. The modeling and optimization approaches used for HRESs can be classified into intelligent methods, iterative methods, and computational methods [5].
To achieve an optimal HRESs design, economic and technical criteria are considered. The economic criteria seek to minimize the costs associated with HRESs implementation, including energy cost and net present cost, while the technical criteria focus on the reliability, efficiency, and environmental benefits of HRESs. Overall, the goal is to find a compromise solution between the costs and benefits of HRESs [3].
This article was created to facilitate the understanding of the topic for beginners and provide classified and broken-down information. The difference between this summary compared to others found in the literature is that it refers to each characteristic of the systems used in each case study. This allows for a more detailed search and facilitates the location of articles according to the desired characteristics for the design of a hybrid renewable energy system (HRESs).

2. Methodology

The objective of this article is to understand the composition of HRESs systems, identify each part of the system, and explore all existing possibilities to design them most cost-effectively. The article provides a summary of how they are composed, the elements that can be used in their composition, and the techniques used to optimize and size these systems. To carry out this task, a search was conducted for articles published between 2018 and 2023 in various databases and search engines, such as IEEExplore, ScienceDirect, and others. A total of 38 articles related to optimization and sizing through various techniques and 33 review articles related to these hybrid systems were analyzed and classified. The article selection process is shown in Figure 1, where the steps followed for the selection of the 62 articles are explained. In the initial steps, the keywords “Hybrid Renewable Energy Systems,” “HRESs Optimization,” and “HRESs Sizing” were selected.

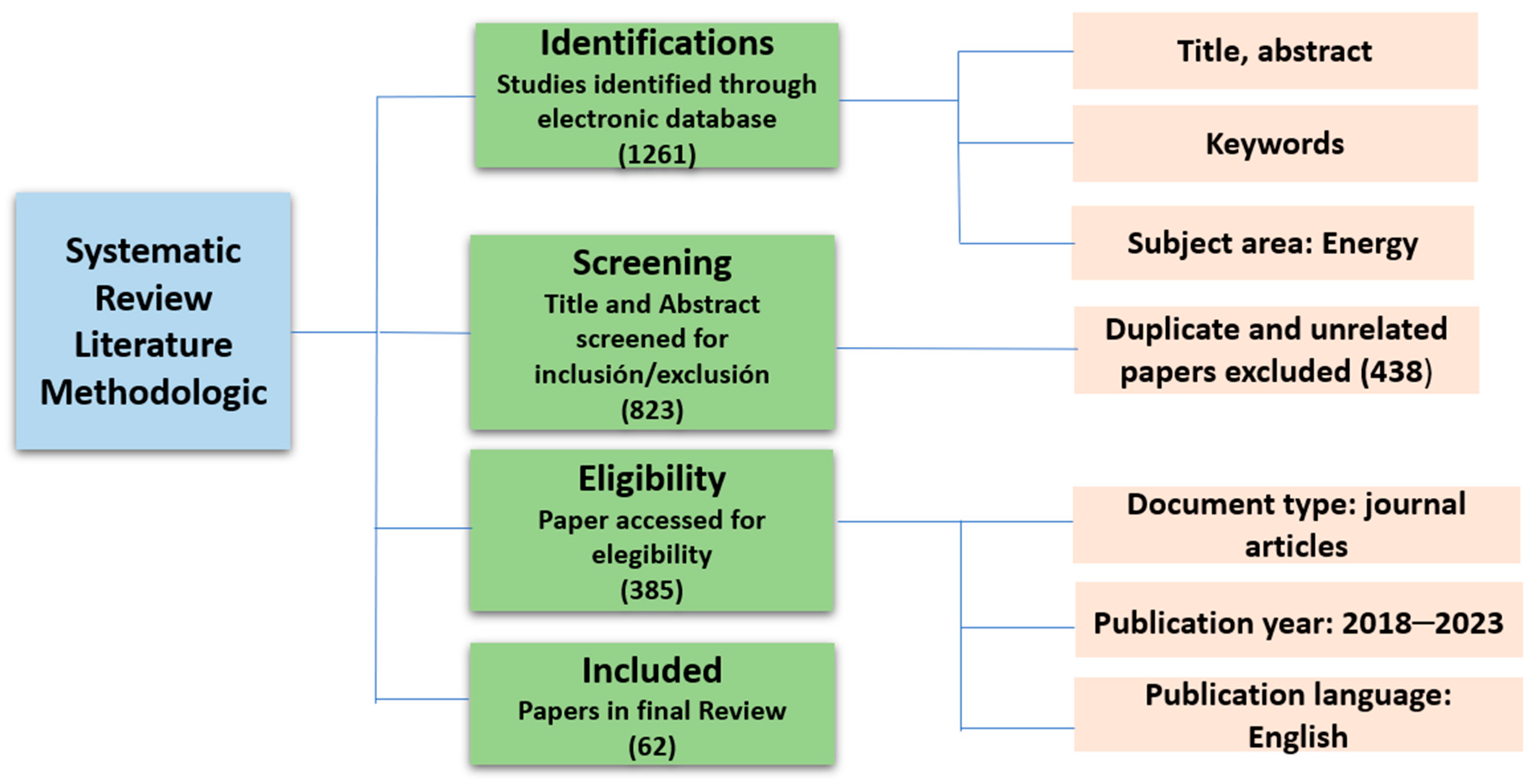

Figure 1 shows the methodology used for the systematic review of the literature. In its structure, four stages were used (identifications, screening, eligibility, and included) each with its own selection or search criteria. As can be seen in the figure, the search was initially started by titles and keywords (“Hybrid Renewable Energy Systems,” “HRESs Optimization,” and “HRESs Sizing”). The result was 1261 articles related to renewable energy systems. Then, in the screening, 438 papers were detected that were repeated or had no relation. For eligibility, the criteria of the type of document, the years of publication, and the English language were established, where 323 were discarded, and finally included, and a final result of 62 articles was obtained.
Table 1 and Table 2 show some of the publications found, displaying the years, references, locations, and applications used in the case studies. The abstracts describe the nature and objectives of each article and present the conclusions reached. Figure 2 and Figure 3 show the distribution by country and the proportion of applications used in the reviewed articles.

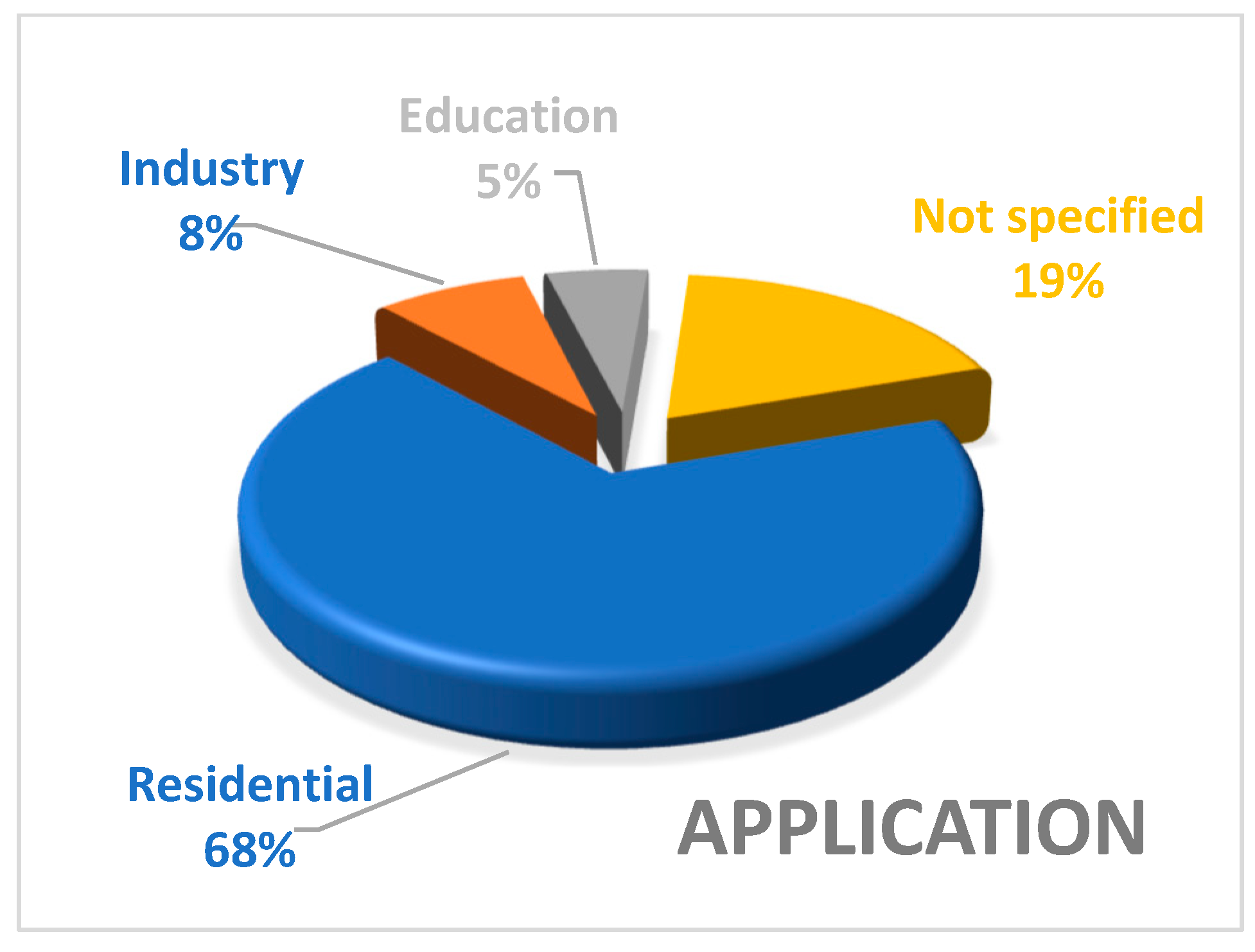

As can be seen in Figure 2, the trends in the uses and applications given to these systems are shown. Due to the great problem of delivering electricity to remote and difficult-to-access places, these systems are ideal for this type of use. The figure shows a better perception of how residential use is the highest type of energy use, according to 68% of the articles found, followed by industrial and educational applications.

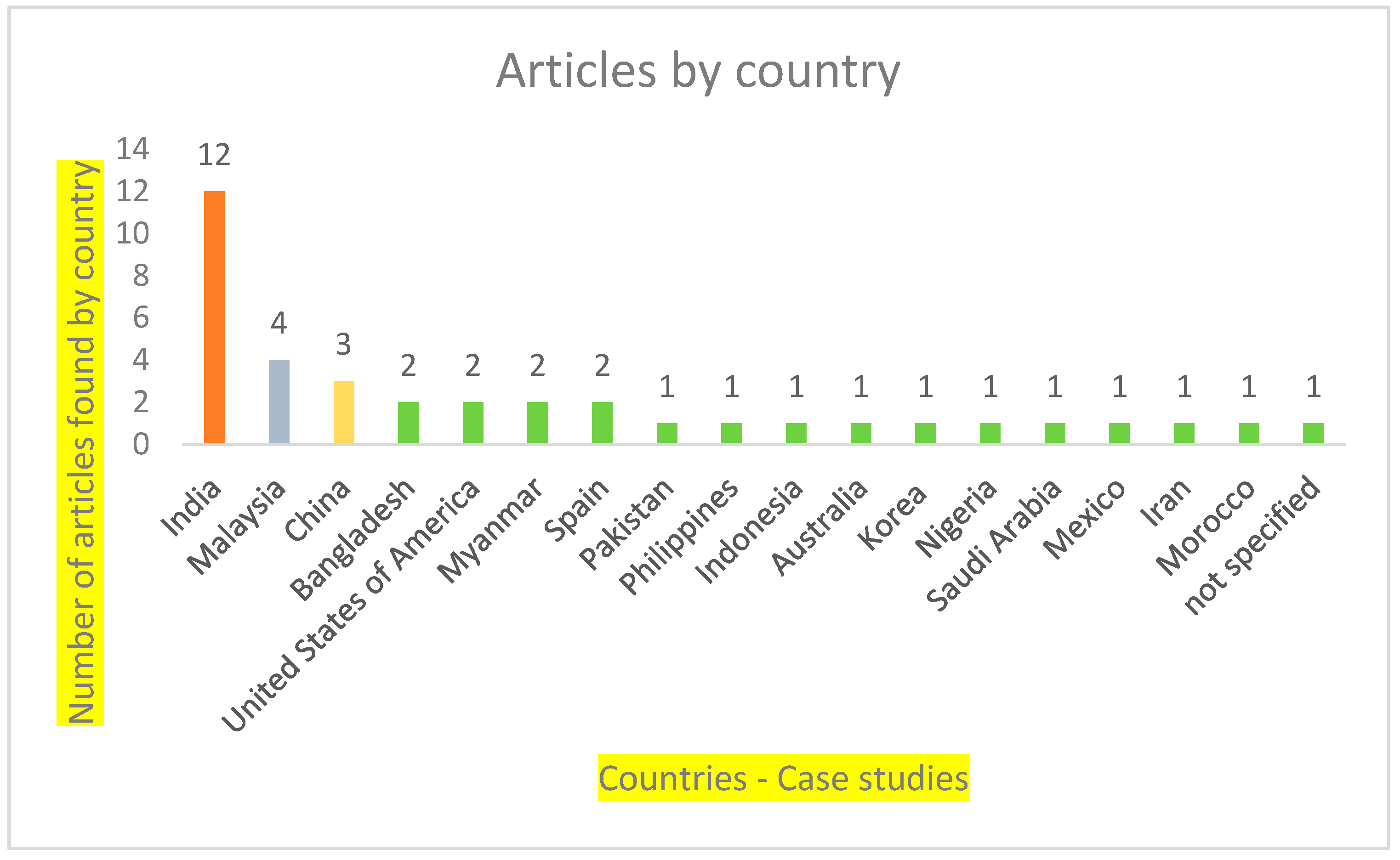

Figure 3 shows the countries with the largest number of articles found in the review. However, this information is not necessarily representative on a larger scale. India was found to be the country with the largest number of articles on this topic. India is one of the most populated countries in the world and one of the largest consumers of energy. In addition, it has excellent climatic conditions for the use of renewable energy, with about 630,000 villages, some of which are poorly served by electricity, while others have no access to electricity [10].
Table
Table 1. Cases of studies found in the literature.
Table 1. Cases of studies found in the literature.
RefTitleYearEnergy SourcesApplicationSystem Sizing
[11]Use of a Hybrid Wind–Solar–Diesel–Battery Energy System to Power Buildings in Remote Areas: A Case Study.2021PV-WECS-BESS-DGRural residential area32 kW for 20 households
[12]Performance Analysis of Solar–Wind–Diesel–Battery Hybrid Energy System for KLIA Sepang Station of Malaysia.2015PV-WECS-BESS-DGNot specified56 kW installed for more than 50 homes and 6 stores
[13]A Comparative Study of the Optimal Sizing and Management of Off-Grid Solar/Wind/Diesel and Battery Energy Systems for Remote Areas.2021PV-WECS-BESS-DGRural residential area44.1 kW installed for 10 homes
[14]Solar/Wind/Diesel Hybrid Energy System with Battery Storage for Rural Electrification.2014PV-WECS-BESS-DGRural residential area40 kW installed for 150 households
[6]Designing and Sensitivity Analysis of an Off-Grid Hybrid Wind–Solar Power Plant with Diesel Generator and Battery Backup for the Rural Area in Iran.2022PV-WECS-BESS-DGRural residential area13 kW installed, number of households not specified
[15]Research on Capacity Optimization of PV–Wind Diesel–Battery Hybrid Generation System.2018PV-WECS-BESS-DGNot specified38 kW installed, number of households not specified
[16]Optimal Sizing and Performance Investigation of a Solar–Wind–Battery–DG-Based Hybrid Microgrid System Applicable to the Remote School of Bangladesh.2020PV-WECS-BESS-DGStudent buildings4.6 kW installed for a rural school
[17]Simulation and Optimization of Solar Photovoltaic–Wind–Diesel Generator Stand-alone Hybrid System in Remote Village of Rajasthan, India.2020A comparison is made between different energy sourcesRural residential areaBetween 50 and 60 kW installed, for 41 homes
[18]Design and Simulation of an Optimal Mini-Grid Solar–Diesel Hybrid Power Generation System in a Remote Bangladesh.2018PV-WECS-BESS-DGRural residential area2574 kW installed, number of homes not specified
[19]Techno-Economic Environmental Assessment of Hybrid Renewable Energy System in India.2021PV-WECS-BESS-DGStudent buildings4 MW installed for 3 student buildings
[20]Techno-Economic Evaluation of Off-grid Hybrid Photovoltaic–Diesel–Battery Power Systems for Rural Electrification in Saudi Arabia—A Way Forward for Sustainable Development.2021PV-BESS-AGRural residential area7 MW installed, number of homes not specified
[21]Optimal Configuration of Wind/Solar/Diesel/Battery Hybrid Energy System for Electrification of Rural Area.2015PV-WECS-BESS-DGRural residential areaFrom 250 to 280 kW installed, number of homes not specified
[22]Cost-Effective Sizing of an AC Mini-Grid Hybrid Power System for a Remote Area in South Australia.2018PV-WECS-BESS-DGRural residential areaFrom 0.6 MW–1.15 MW installed, depending on the case study
[1]Developed Approach Based on Equilibrium Optimizer for Optimal Design of Hybrid PV/Wind/Diesel/Battery Microgrid in Dakhla, Morocco.2021PV-WECS-BESS-DGIndustry86.77 kW installed
[23]Assessment of Hybrid Renewable Energy Systems to Supplied Energy to Autonomous Desalination Systems in Two Islands of the Canary Archipelago.2019PV-WECS-BESS-DGIndustry50 kW installed in a desalination plant
[24]A Flexible Metamodel Architecture for Optimal Design of Hybrid Renewable Energy Systems (HRESs) E-Case Study of a Stand-Alone HRESs for a Factory in Tropical Island.2019PV-WECS-BESS-DGIndustry467 kW installed in a manufacturing plant
[25]Challenges of Reaching High Renewable Fractions in Hybrid Renewable Energy Systems.2023PV-WECS-BESS-DGNot specified17 kW installed in some regions of the USA
[26]Comparison of Different Hybrid Renewable Energy Systems with Optimized PV Configuration to Realize the Effects of Multiple Scheme.2019PV-BESSNot specified1.3 MW installed
PV-BESS-DG1.25 MW installed
[27]The Impact of Energy Dispatch Strategy on Design Optimization of Hybrid Renewable Energy Systems.2019PV-WECS-BESS-DGRural residential area7 MW installed, number of homes not specified
[28]Modelling and Optimization of an Off-Grid Hybrid Renewable Energy System for Electrification in a Rural Area.2020PV-WECS-BESS-BG-BM-PEMFCRural residential area317 kW installed
PV-WECS-BG-BM- PEMFC317 kW installed
PV-WECS-BG-BM-BESS260 kW installed
PV-WECS-BG-BM260 kW installed
[29]Optimal Sizing of Smart Hybrid Renewable Energy System Using Different Optimization Algorithms.2022--Rural residential area23 kW installed for 140 households
[30]Designing of an Optimal Standalone Hybrid Renewable Energy Micro-Grid Model through Different Algorithms.2023PV-WECS-BESSRural residential area11 kW installed
[31]Sizing and Economic Analysis of Standalone Hybrid Photovoltaic–Wind System for Rural Electrification: A Case Study Lundu, Sarawak.2022PV-WECS-BESSRural residential area150 kW installed
[32]HOMER-Based Optimal Sizing of a PV/Diesel/Battery Hybrid System for a Laboratory Facility.2021PV-WECS-BESS-DGRural residential area53.8 kW installed
[33]Techno-Economic Scrutiny of HRESs through GA and PSO Techniques.2018PV-WECS-BESS-DG-BMRural residential area150 kW installed
[34]Modelado y Simulación de un Sistema Conjunto de Energía Solar y Eólica para Analizar su Dependencia de la Red Eléctrica.2012PV-WECS-BESS-DGRural residential area9.6 kW installed
[35]Optimal Management Energy System and Control Strategies for Isolated Hybrid Solar–Wind–Battery–Diesel Power System.2021PV-WECS-BESS-DGNot specified40 kW installed
[36]Optimal Structure Design of a PV/FC HRES Using Amended Water Strider Algorithm.2021PV-PEMFCRural residential area24.35 kW installed
PV—photovoltaic, WECS—wind turbine, BESS—battery energy storage systems, DG—diesel generator, BM—biomass, BG—biogas, PEMFC—fuel cell.
Table 1 presents the review articles, together with the renewable energy sources used by the authors. The most used types of renewable energies can be observed, as well as the applications for which they were designed and the capacity of the systems used. In the scope of this review, it is observed that the most used energy sources were the combination of photovoltaic, wind turbines, battery systems, and diesel generators. As can be seen, these systems can reach large generating capacities, although most of them, being for residential use, are in the 100 kW range.
Table
Table 2. Summaries found in the literature.
Table 2. Summaries found in the literature.
Ref.Article TitleYearAbstractConclusions
[37]A literature review and statistical analysis of photovoltaic–wind hybrid renewable system research by considering the most relevant 550 articles: an upgradable matrix literature database.2021A statistical analysis was carried out to identify the most relevant criteria in the optimization of hybrid systems, as well as the tools used for their development.The countries with the greatest implementation of hybrid systems, the optimum climate for their performance, the most used auxiliary sources, the most frequent software, as well as the energy and economic criteria that influence their use were identified.
[7]Optimal operation of hybrid AC/DC microgrids under uncertainty of renewable energy resources: a comprehensive review.2019An updated review on the optimal multi-objective design of hybrid energy systems was offered, providing relevant and updated information on this topic.The objective functions, optimization algorithms, and design constraints used in previous research on the subject were reviewed.
[38]Hybrid renewable energy sources (HRESs): a review.2017This article synthesized the use of hybrid renewable energy sources (HRESs) and the related studies on optimization techniques.The use of different algorithms in optimization problems can lead to more efficient results.
[39]Sizing, optimization, control, and energy management of hybrid renewable energy systems—a review.2021This review focused on the four fundamental categories of the hybrid renewable energy system: sizing, optimization, control, and energy management.A hybrid renewable energy system (HRES) can be self-sufficient to power a specific load, and optimization was carried out by using artificial methods and commercial programs. In these systems, the most commonly used control method was MPPT.
[3]Recent advances of wind–solar hybrid renewable energy systems for power generation: a review.2021A comprehensive review of wind–solar hybrid renewable energy systems was conducted, focusing on power architectures, mathematical models, power electronic converter topologies, and algorithms used for design optimization.This study analyzed the system modeling, the different power converter configurations, and the algorithms used for optimal system design.
[40]Hybrid renewable energy systems’ optimization. A review and extended comparison of the most-used software tools.2021Several modeling techniques and computer simulation tools were developed.This study provided insights into the renewable energy sources that are considered as primary by each software and the relevant dispatch strategy adopted.
[2]A review on unit sizing, optimization and energy management of HRESs.2018This study focused on modeling hybrid energy resources, standby power systems, power conditioning units, and energy flow management techniques in detail.Different design techniques for hybrid renewable energy systems were reviewed and classified according to the availability of meteorological data. In addition, advances in hybrid energy resource modeling research were discussed.
[41]Hybrid renewable energy system for real-time power management techniques—a review.2020In the context of the hybrid power system, management techniques were used to ensure system reliability and stability.This analysis provided an extensive compilation of the literature on hybrid renewable energy systems (HRESs), including various optimization techniques.
[42]Hybrid energy storage review for renewable energy system technologies and applications.2021In this study, a comprehensive review was conducted on the different types of energy storage technologies (ESS), their structures, classifications, and advantages and disadvantages in microgrid applications.This paper reviewed various energy storage system (ESS) strategies and how to use them to improve grid stability and continuity.
[10]Techno-economic feasibility analysis of off-grid electrification for remote areas: a review.2020This paper provided a detailed analysis of the fundamental reasons and advantages driving the adoption of hybrid renewable energy sources (HRESs).The study reviewed various aspects of hybrid renewable energy systems, including optimization, control, energy storage, reliability, economic and environmental assessment, demand-side management, uncertainty assessment, and others. Different types of consumers and system configurations were also considered.
[43]Review on the state-of-the-art multi-objective optimization of hybrid standalone/grid-connected energy systems.2020The study reviewed the optimal state-of-the-art design of stand-alone or grid-connected hybrid energy systems.Multi-objective optimization in hybrid energy systems was reviewed, including the objective functions used, optimization algorithms, and design constraints. The methods used to solve multi-objective optimization problems were also reviewed.
[5]Review of HRESs based on storage options, system architecture, and optimization criteria and methodologies.2017The tools and limitations for optimizing HRES systems were reviewed and the types of storage and backup systems available were analyzed.The literature review highlighted that reducing system costs is important in terms of economic constraints, while loss of power supply probability (LPSP) is a major challenge in terms of reliability constraints in HRES design.
[4]A current and future state-of-the-art development of hybrid energy systems using wind and PV–solar: a review.2008The paper reviewed the design, operation, and control requirements of standalone wind–solar PV hybrid power systems with conventional backup.The review showed that these renewable systems are not yet cost-competitive with conventional fossil fuel-based systems.
[44]A review of hybrid renewable energy systems in mini-grids for off-grid electrification in developing countries.2021It analyzed the levelized cost of energy (LCOE) of different mini-grids and addressed the obstacles that may hinder their implementation.It was noted that, although renewables are currently not cost-competitive with conventional fossil fuel-based systems, the costs of mini-grids will continue to decline and renewables will become more competitive on a commercial scale.
[9]Review of optimization techniques for hybrid wind PV–ESS system.2020In this study, the minimization of power losses and energy fluctuations through the use of energy storage systems (ESSs) and optimization techniques was analyzed.It was found that, with the installation of ESSs, power flow through the lines was reduced and grid congestion was alleviated. Deterministic planning was also used to achieve these objectives.
[45]A comprehensive review of the integration of battery energy storage systems into distribution networks.2020It aimed to provide an overview of the integration of energy storage systems (BESSs) into distribution networks. The study highlighted points of interest, challenges, and limitations in the research of each of these aspects.The article showed that energy storage systems have the potential to strengthen and improve the power grid in several ways.
[46]A comprehensive state-of-the-art survey on hybrid renewable energy system operations and planning.2020This study focused on the specific motivations and benefits of adopting renewable energy systems.It showed that most of the available studies on high-efficiency solar thermal energy focus only on its technical economic and environmental feasibility. In addition, economic and technical aspects were the most prominent criteria used for the selection and ranking of optimal HRESs.
[47]A review on recent sizing methodologies of hybrid renewable energy systems.2019This article mainly reviewed the recent classification, evaluation indicators, and sizing methodologies of hybrid renewable energy systems.The results showed that more than 80% of these systems were autonomous, and that large-scale grid-connected hybrid systems can be developed in combination with existing hydropower plants and pumped hydro-storage systems to ensure better power quality and meet electricity supply needs.
[8]A survey of battery energy storge system (BESS), applications and environmental impacts in power systems. 2017This article discussed the structure of energy storage systems (BESSs), their large-scale applications in the power grid and the benefits of their implementation in power systems.It emphasized that BESSs allow for increasing the integration of renewable energy sources into the power system, but this requires optimizing the capacity and location of the BESSs according to the specific application.
[48]Study of the different structures of hybrid systems in renewable energies: a review.2019The structure and operation of ESSs and their integration into the power grid were described. The advantages of their use, such as demand management, power quality improvement, and CO2 emissions reduction, were also discussed.The paper focused on the optimization of BESSs for use in generation distribution and smart grid applications, and highlighted the need to consider economic, technical, and environmental factors in their design and operation.
ESS—energy storage systems.
The objective of Table 2 is to present a list of reviews that fully cover all aspects to be considered for the design of these systems. Summaries can be found on battery systems, the different optimization algorithms, and connection configurations. In addition, the topics addressed and the results obtained are summarized.

3. Renewable Energy Hybrid Systems

Hybrid renewable energy systems are composed of several elements, which form a system capable of being autonomous. To achieve greater reliability and profitability, it is necessary to know the functions of each of its elements, as well as to know the different configurations necessary to make them more efficient. For this reason, the following is a review of each element of the system.

3.1. Composition of HRESs

The composition of the HRESs indicates the way in which the elements of the system will be distributed with the objective of reducing the conversion stages to reduce losses and the complexity of the control system. This is achieved without compromising the reliability and cost-effectiveness of the system.

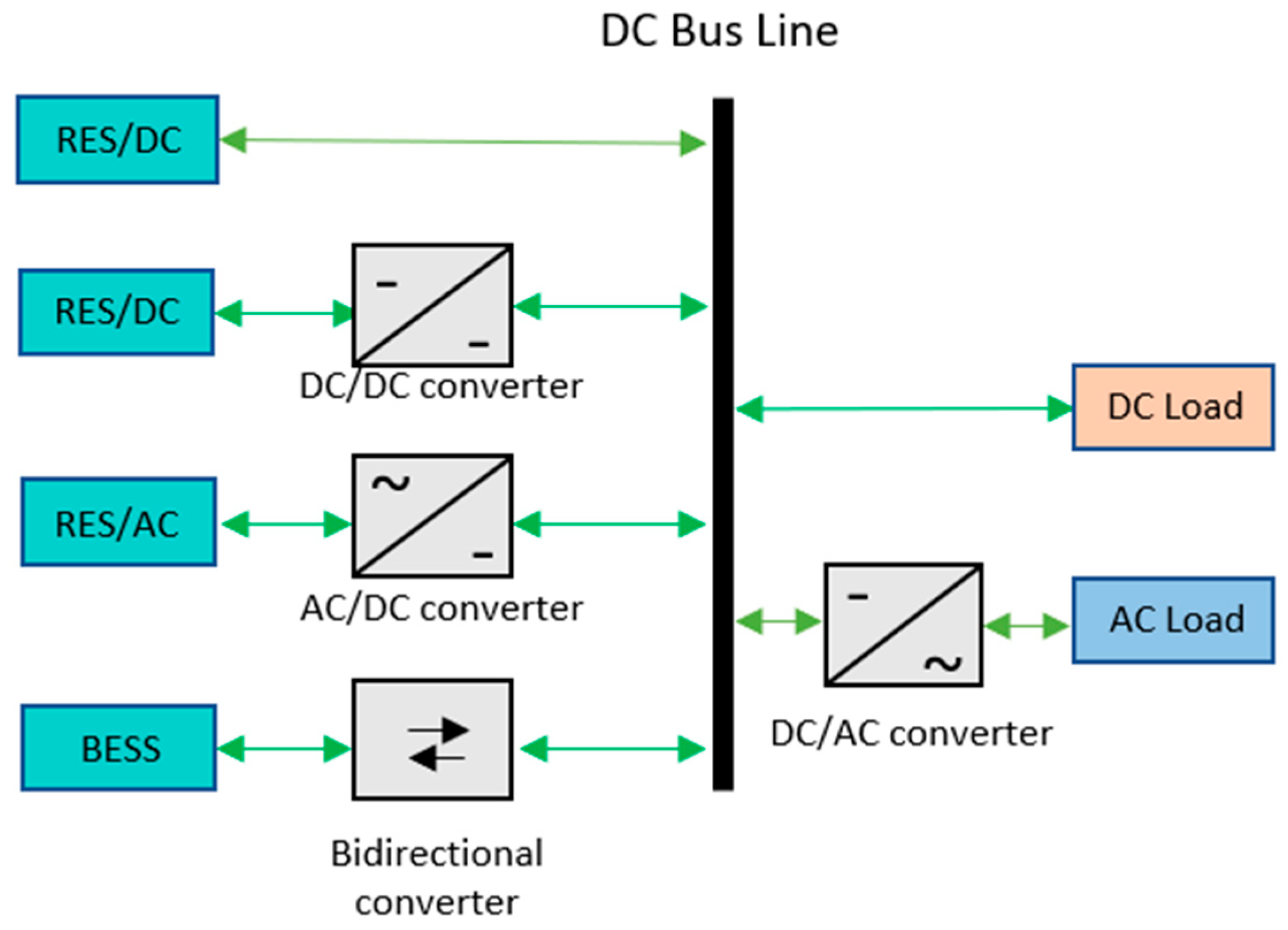

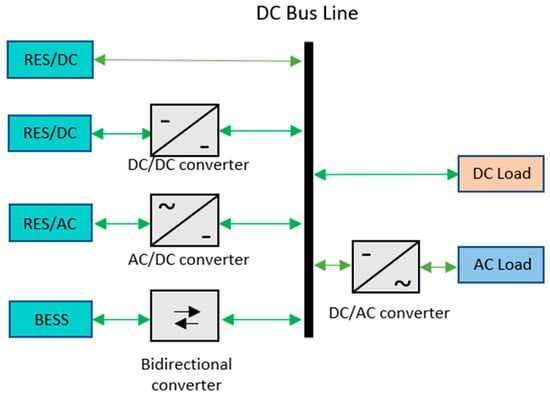

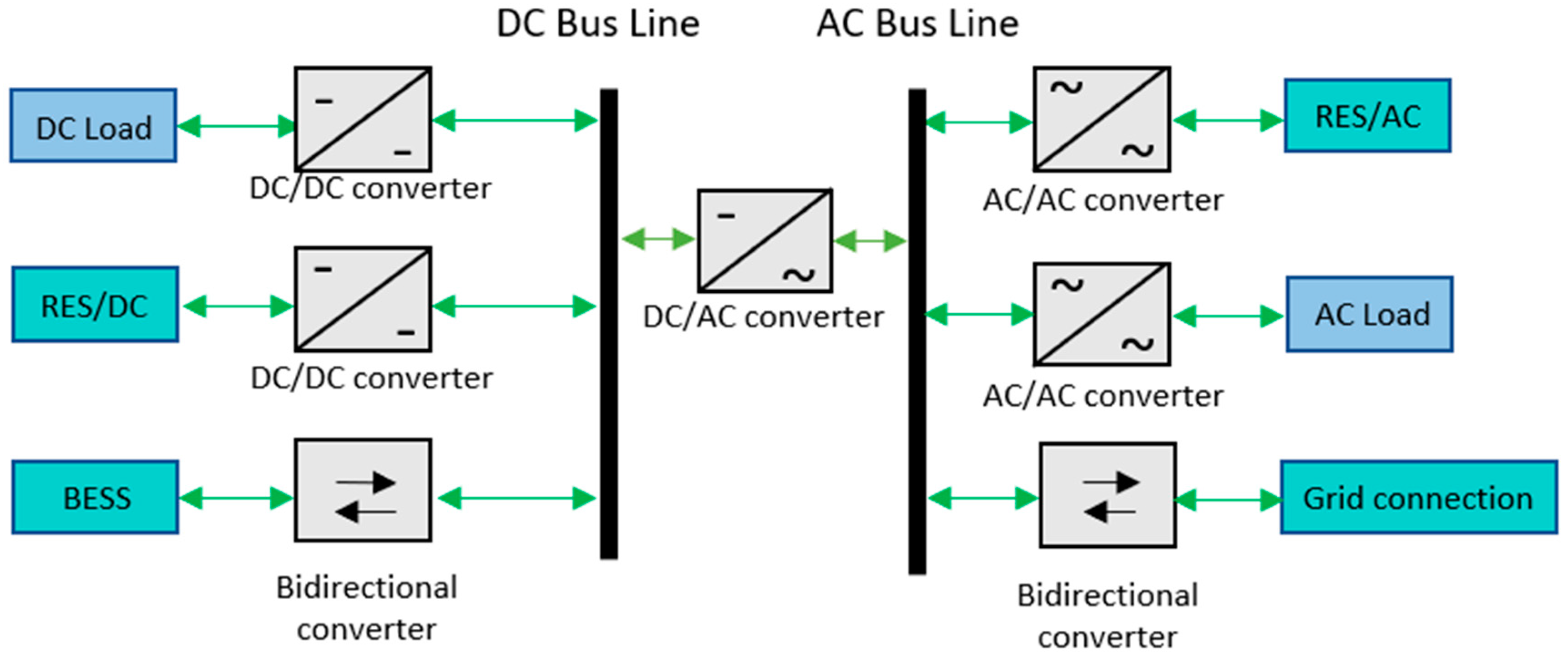

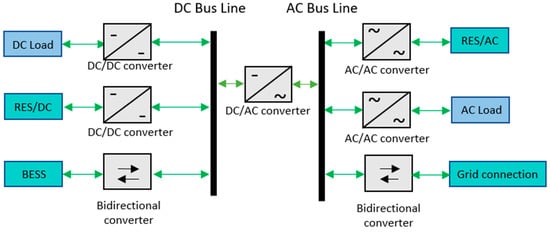

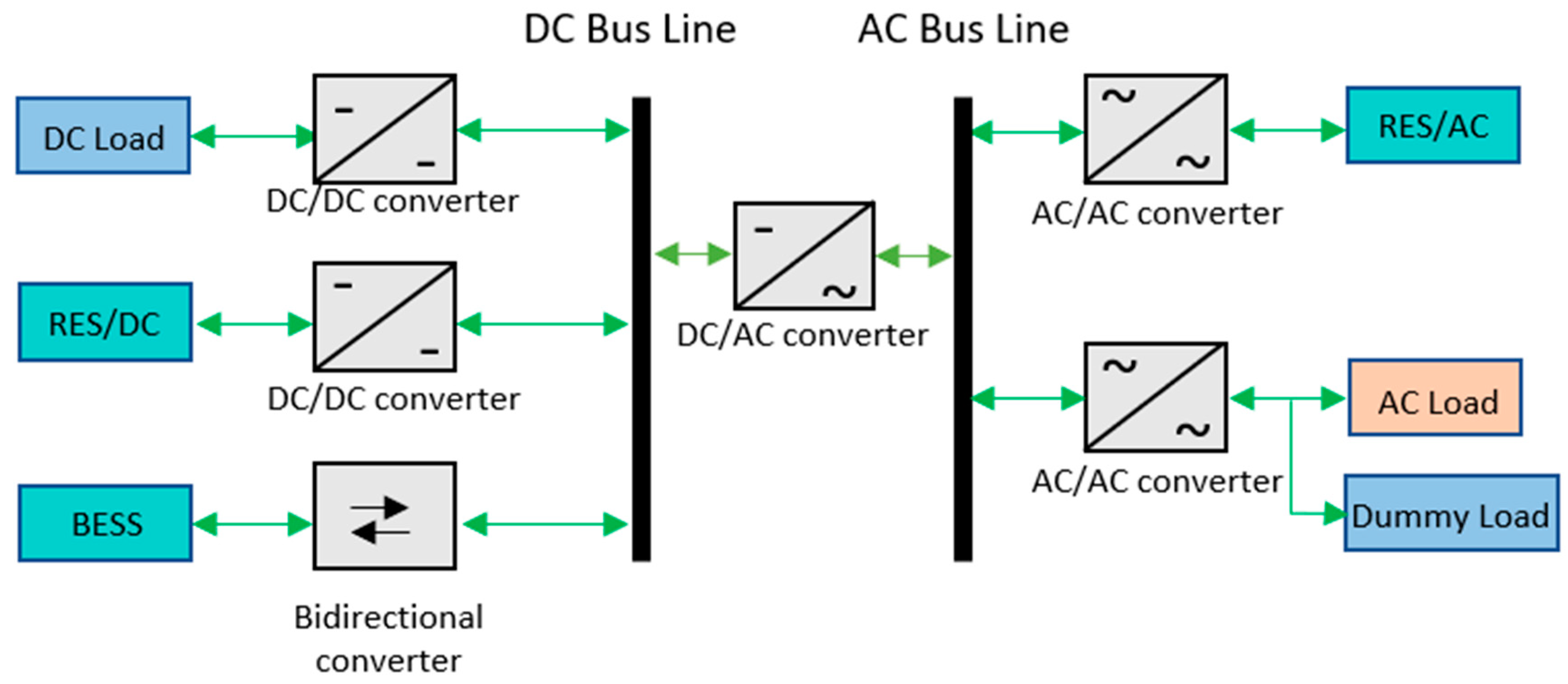

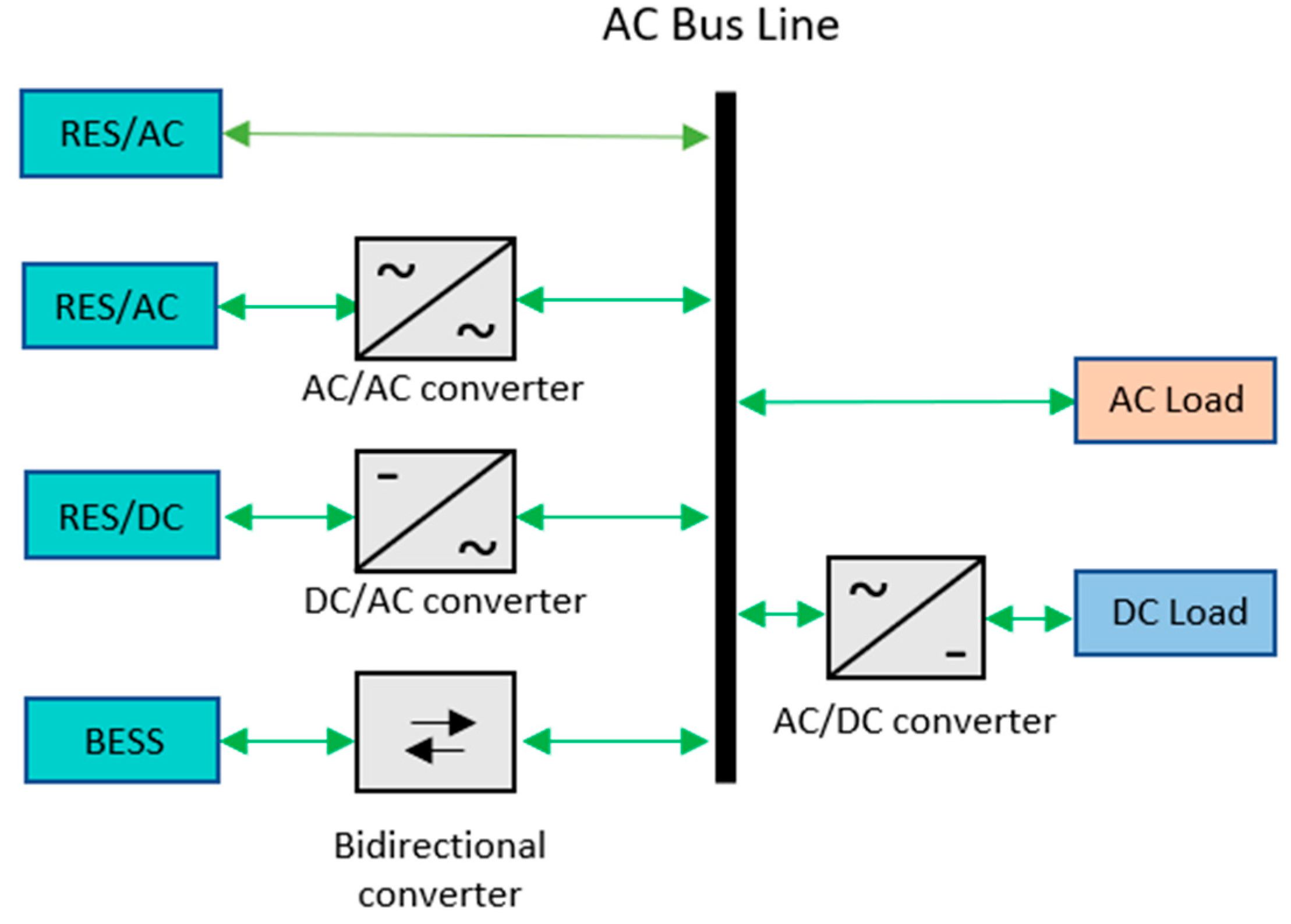

Figure 4, Figure 5, Figure 6 and Figure 7 illustrate the configurations used for these systems.
Table 3 shows the minimum and maximum number of converters that can be used for each topology, their advantages and disadvantages, and the articles that used each of them.
The review indicates that the most commonly used installation mode is an off-grid system, suggesting that most are designed to be installed in locations without access to an electrical grid.
  • Thirty-six studies (94.73%) presented a system isolated from the network.
  • Two studies (5.27%) presented systems connected to the network.
  • Thirty-one studies (81.58%) presented an isolated two-bus system (AC–DC).
  • Four studies (10.52%) presented an isolated single DC bus system.
  • Three studies (7.89%) did not specify which systems they used.

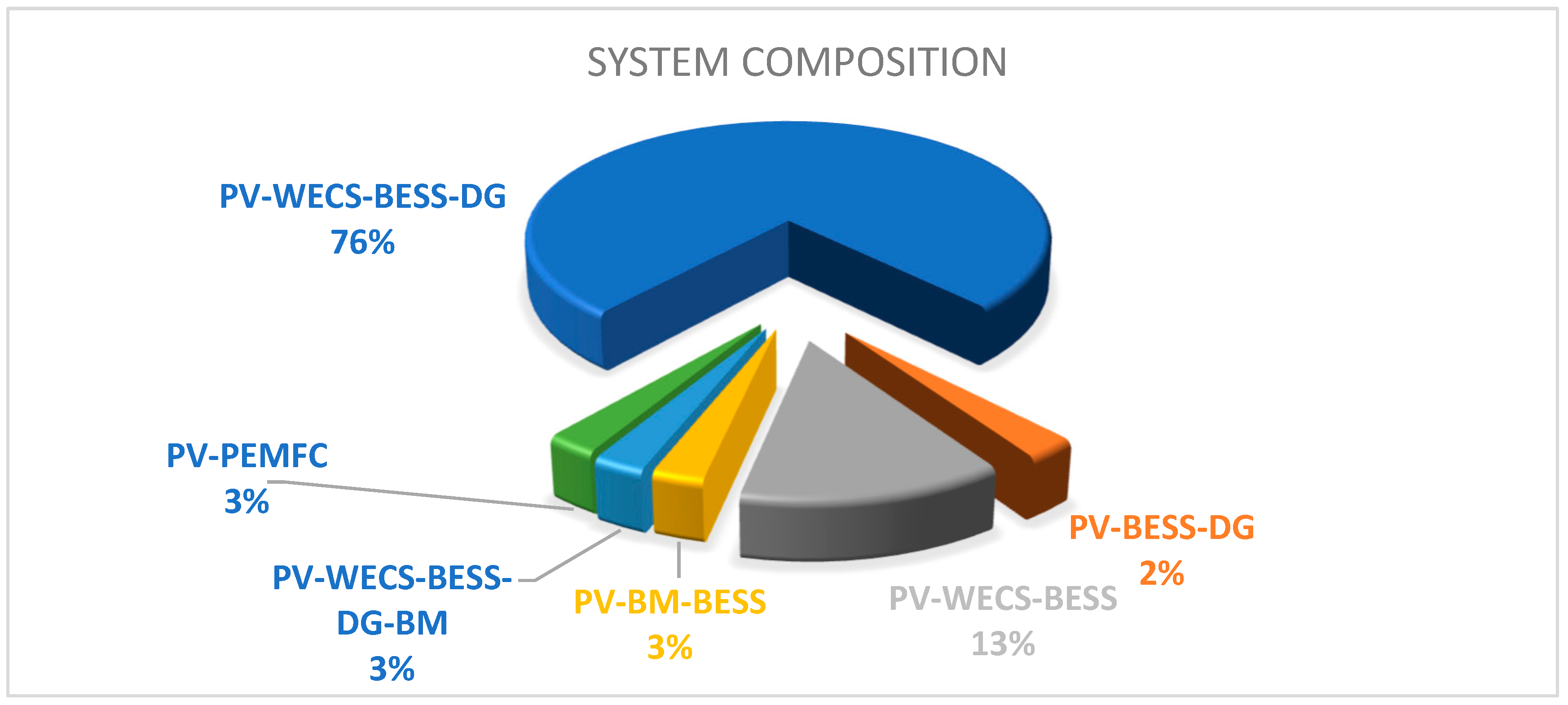

Figure 8 shows the energy sources most commonly used in HRES systems in the search conducted.

3.1.1. Elements of Generation Used in Systems

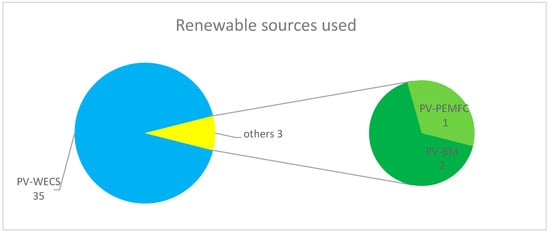

Of the 38 articles reviewed, the distribution of the elements of each system was broken down, where it can be seen in Figure 9 that the most used generation sources are photovoltaic and WECS.
  • A total of 100% of the studies reviewed used photovoltaic systems as one of the renewable energy sources.
  • A total of 92.1% of the studies reviewed employed WECS and PV.
  • A total of 5.26% of the studies reviewed used a biomass and PV generation source.
  • A total of 2.63% of the studies reviewed utilized fuel cells and PV.

3.1.2. Energy Storage Sources of an HRES

The HRES system can include a BESS (battery energy storage system) to improve reliability. The BESS stores electrical energy generated by renewable sources, such as solar panels or wind turbines, and uses it at times of high energy demand or when renewable energy generation is reduced due to weather factors. In summary, the BESS is a key part of the HRES system to ensure a reliable and sustainable energy supply. Table 4 shows the most used BESSs in the current literature, their advantages, and disadvantages, and shows the identification of each technology used in the articles reviewed to facilitate the location of articles according to the desired technology.
In a detailed review of the selected literature, several analyses of the information on BESSs were performed. Out of a total of 38 studies:
  • Thirty-seven articles (97.36%) presented a BESS as an auxiliary system;
  • Seventeen articles (44.73%) specified which type of BESS was used in the system.

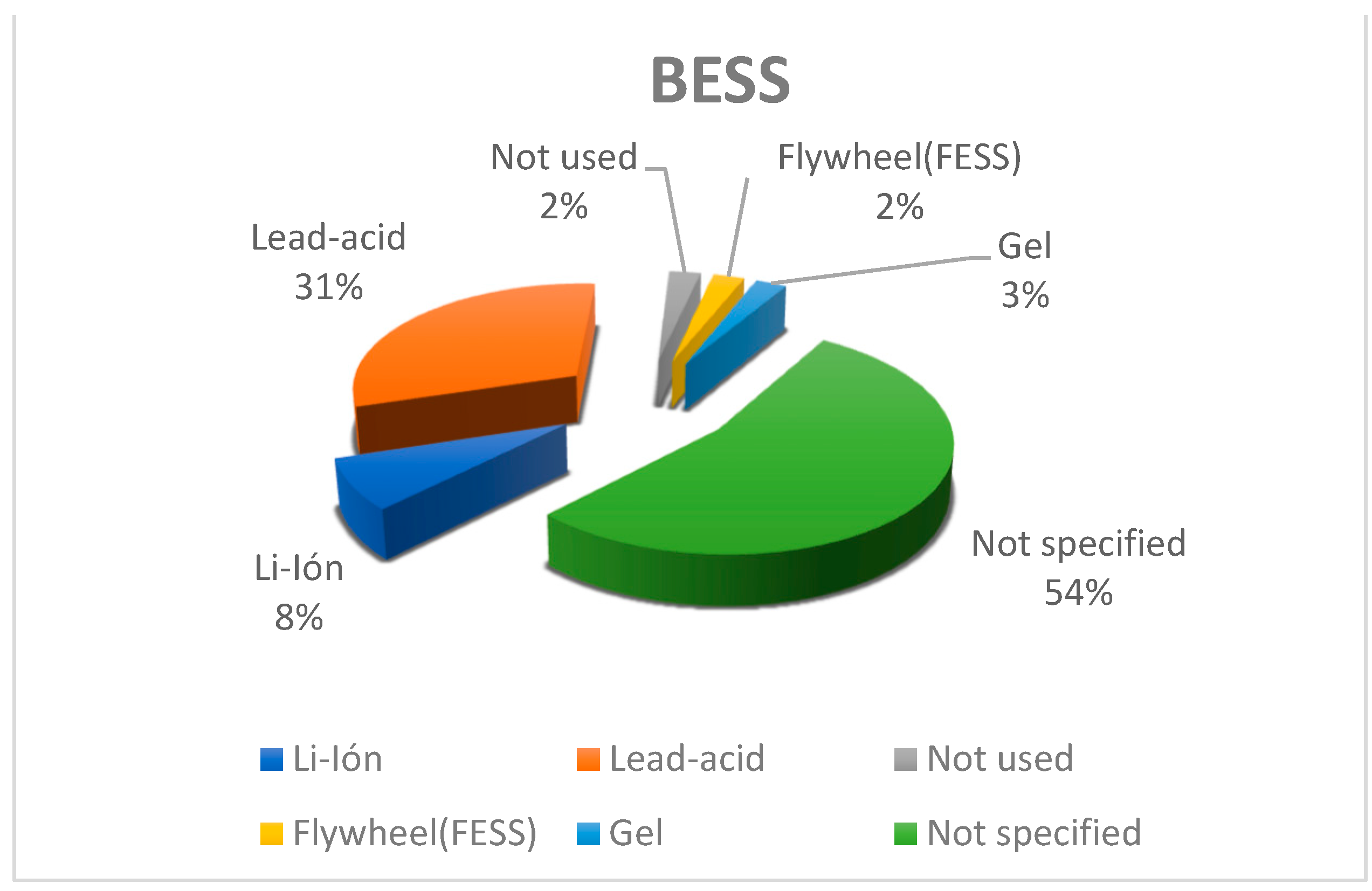

Figure 10 shows the types of batteries used in the articles and their percentage of use in the review performed

3.1.3. Auxiliary Generation Systems

These auxiliary sources are typically used when the main source cannot generate enough power to meet demand at times of high demand or when the main source is inactive or unreliable. Common examples of auxiliary generation sources are diesel or natural gas generators. With regard to these elements, it was found that:
  • Thirty studies (78.94%) used diesel generators;
  • One study (2.63%) used a biomass generation source;
  • Seven studies (18.42%) used no auxiliary generation sources.

3.2. HRES Sizing and Optimization

HRES optimization criteria can be divided into two categories: economic and reliability, and the selection of each depends on the research objectives and the desired tolerance level [5]. Economic criteria refer to the cost or size of the system, while reliability criteria focus on ensuring the continuity of load power supply. Table 5 and Table 6 list the economic and reliability optimization criteria found in the literature, respectively, and identify the limitations that each may present. In addition, the criteria that are used in each of the articles analyzed in the review are identified and shown for a better identification according to the reader’s search interests [40].

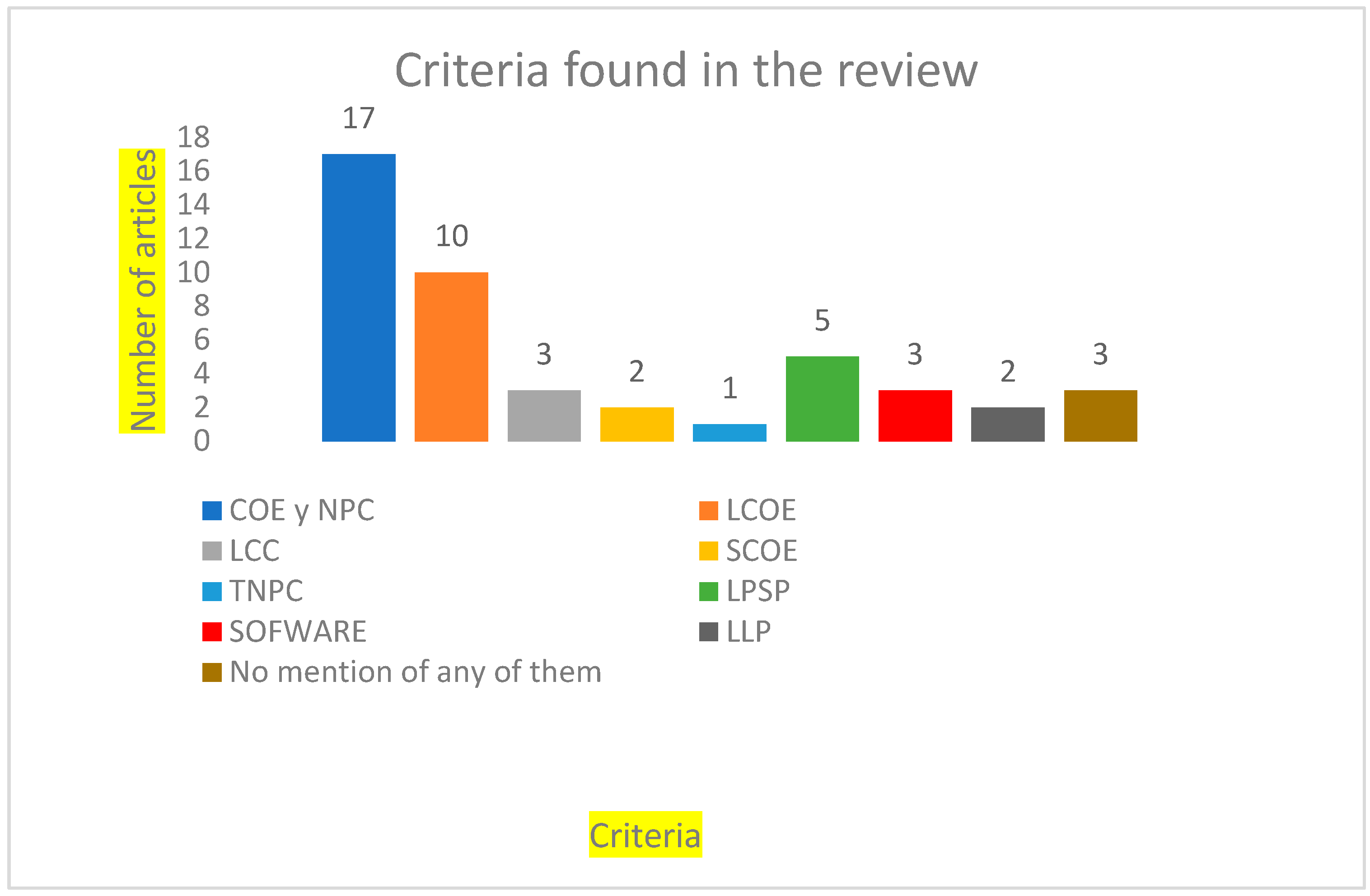

From the review of all the articles, the number of articles that used the aforementioned criteria was obtained, with COE and NPC emerging as the most used economic criteria and LPSP as the most used reliability criterion. Figure 11 shows the criteria found from the review and the number of times they were used.
  • A total of 44.73% of the studies used the COE and NPC criteria.
  • A total of 26.31% of the studies used the LCOE criterion.
  • A total of 7.89% of the studies used the LCC criterion.
  • A total of 5.26% of the studies used SCOE criterion.
  • A total of 2.63% of the studies used TNPC criterion.
  • A total of 7.89% of the studies did not use an economic criterion.
  • A total of 13.15% of the studies used LPSP criterion.
  • A total of 7.89% of the studies used some software.
  • A total of 5.26% of the studies used LLP.

3.3. Optimization Algorithms

Three main categories of techniques for optimizing hybrid renewable energy systems (HRESs) can be identified: artificial intelligence methods, iterative methods, and software tools. Artificial intelligence methods include various techniques such as genetic algorithm (GA), particle swarm optimizer (PSO), Tabu search (TS), simulated annealing (SA), harmonic search (HS), and others. On the other hand, iterative methods may include electric bee colony system (ESCA), power PA algorithm (POPA), and generic algorithms (GA), among others. In addition, there are software tools such as the transient energy systems simulator (TRNSYS), the hybrid optimization model for electric renewable energy (HOMER), and Hybrid2, each with its underlying optimization technique [9]. Table 7 presents the applications of the optimization techniques in the literature reviewed.

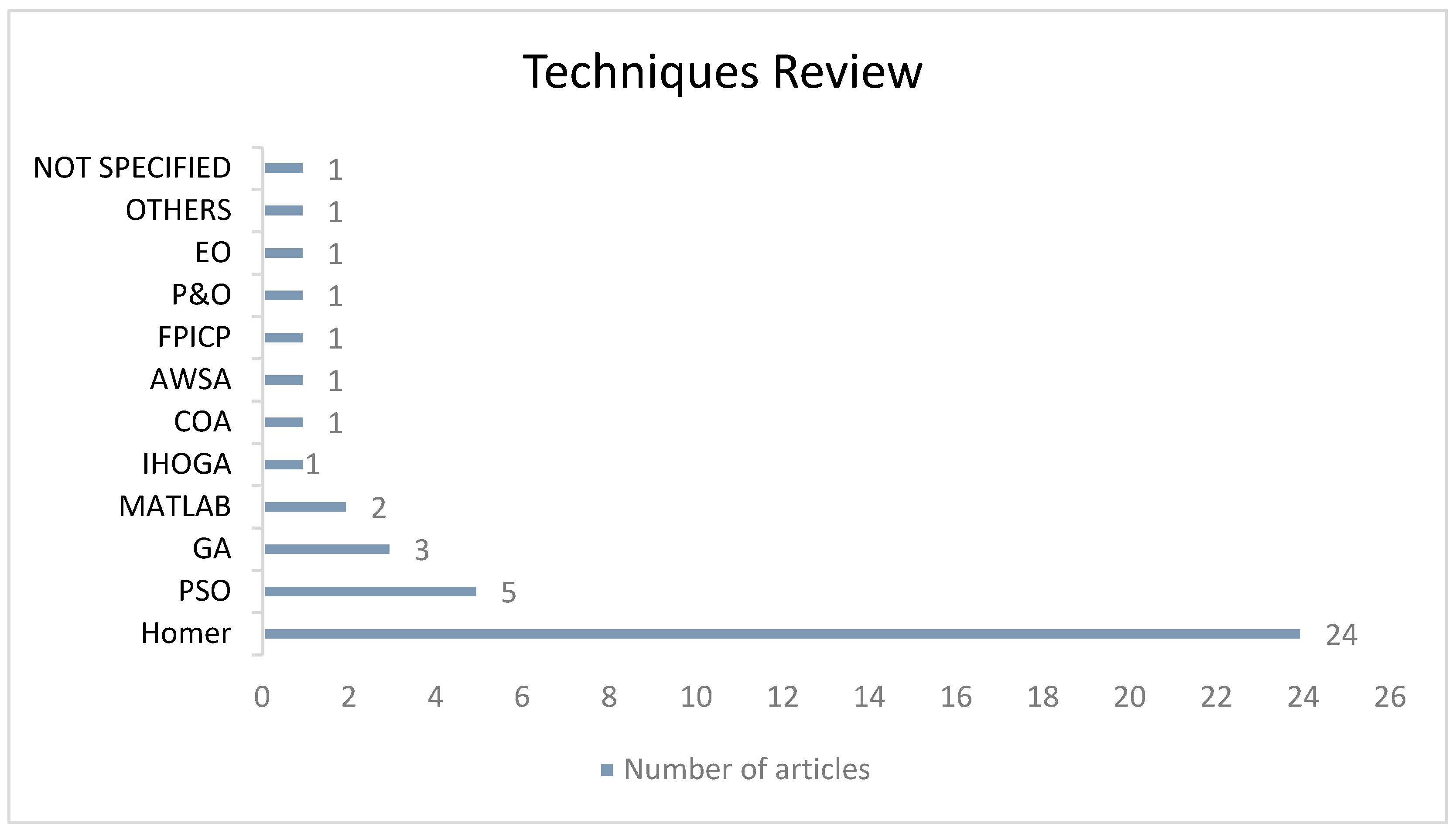

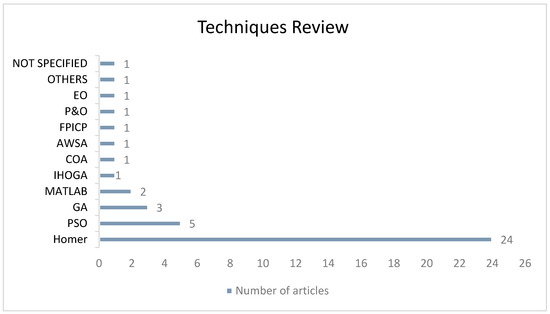

From the review carried out, we found the algorithms and software that have been used the most, where HOMER and PSO were the most used for system optimization. Figure 12 shows the number of optimization techniques found in the review and the number of articles in which they were used.
  • A total of 63.15% of the studies used HOMER software;
  • A total of 13.15% of studies used PSO;
  • A total of 7.89% of studies used GA;
  • A total of 5.26% of the studies used MATLAB;
  • A total of 2.63% did not specify which software was used;
  • A total of 21.5% used other algorithms.

4. Future Trends for the Design and Operation of the Hybrid Energy System

With improvements in the research and development of solar and wind technologies, the cost of renewable energy sources is expected to decrease in contrast to the annual increase in the cost of conventional energy resources. Therefore, this hybrid system will be more economical in the future and it is also likely that the environmental benefits will encourage its use and acceptance. In addition, the inclusion of artificial intelligence in energy management is expected to further improve the performance of the hybrid system in the near future. Optimal resource allocation according to load demand and renewable resource forecasting can significantly reduce system operating costs. The application of advanced control techniques using a centralized controller also promises to improve the performance of modular hybrid power systems. Finally, the implementation of modern control techniques to monitor the operation of modular hybrid energy systems can further optimize the use of renewable resources and improve energy management.

5. Conclusions

Hybrid systems are considered a viable alternative for supplying power to a grid. To optimize the system, design strategies must seek an appropriate combination of critical parameters such as cost and system efficiency.
Hybrid renewable energy systems could benefit greatly from BESS technologies. Many experts are working on improving the coordination and development of BESS energy storage systems for use in microgrids to manage the energy balance between supply and demand by storing energy during off-peak hours at a lower cost. Although its potential is recognized, developing an efficient BESS suitable for microgrid applications remains a major challenge.
In the field of optimization, the literature review reveals that researchers have focused on three methods: classical, artificial, and hybrid. Classical methods are characterized by their speed and efficiency in techno-economic analysis but have the limitation of having a restricted optimization space. On the other hand, artificial methods are the most widely used in optimization due to their higher efficiency, accuracy, and fast convergence. However, one of the drawbacks of this method is the need to use complex processing programs.
The management methods applied in hybrid systems are selected according to the objectives of each study. Most researchers focus on techno-economic objectives, as they allow analyzing both technical (such as duration, demand fulfillment, and performance) and economic (such as minimizing system costs, increasing savings, and reducing the cost of energy) aspects of hybrid renewable energy systems to achieve an optimal configuration. To achieve these objectives, various algorithms, such as fuzzy logic, particle swarm optimization, neural networks, and commercial software such as HOMER, are employed to monitor the components of the hybrid renewable energy system. These approaches allow the performance and economic viability of hybrid systems to be effectively evaluated and optimized.
The statistical analysis carried out in this study has made it possible to identify the most relevant current research topics in the field of hybrid systems, highlighting the most focused topics:
  • The most common use is in residential areas because the countries that most research these systems have many locations with poor or no electricity services. The most used architecture is the isolated hybrid network.
  • The most commonly used generation source configuration was PV-WECS-BESS-DG, as they have shown the best reliability and cost–benefit.
  • The battery is a commonly utilized supplementary element, utilized for both autonomous and networked systems. The most used storage sources were lead acid and Li-ion batteries.
  • The most used auxiliary generation source was diesel generators.
  • The energy analysis commonly employed the LPSP indicator, while the economic analysis mainly utilized the NPC and COE indicators.
  • The most used optimization algorithms were PSO and GA.
  • The most used software for optimization is HOMER.
The analysis carried out in this article allows us to identify the latest trends in HRESs and to provide the reader with a source of information that can be accessed already broken down according to their particular interest.

Author Contributions

Conceptualization, S.E.D.L.A. and J.A.A.; data curation, J.A.A.; formal analysis, J.A.A.; funding acquisition, J.A.A. and S.E.D.L.A.; investigation, J.C.L.G.; methodology, J.C.L.G.; project administration, S.E.D.L.A.; resources, J.A.A. and S.E.D.L.A.; supervision, S.E.D.L.A.; validation, J.C.L.G.; visualization, S.E.D.L.A. and J.C.L.G.; writing—original draft, J.C.L.G. and S.E.D.L.A.; writing—review and editing, J.A.A. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kharrich, M.; Kamel, S.; Abdeen, M.; Mohammed, O.H.; Akherraz, M.; Khurshaid, T.; Rhee, S.-B. Developed Approach Based on Equilibrium Optimizer for Optimal Design of Hybrid PV/Wind/Diesel/Battery Microgrid in Dakhla, Morocco. IEEE Access 2021, 9, 13655–13670. [Google Scholar] [CrossRef]
  2. Dipti, D. A Review on Unit Sizing, Optimization and Energy Management of HRES. Int. J. Trend Sci. Res. Dev. 2018, 2, 419–426. [Google Scholar] [CrossRef]
  3. Roy, P.; He, J.; Zhao, T.; Singh, Y.V. Recent Advances of Wind-Solar Hybrid Renewable Energy Systems for Power Generation: A Review. IEEE Open J. Ind. Electron. Soc. 2022, 3, 81–104. [Google Scholar] [CrossRef]
  4. Nema, P.; Nema, R.K.; Rangnekar, S. A Current and Future State of Art Development of Hybrid Energy System Using Wind and PV-Solar: A Review. Renew. Sustain. Energy Rev. 2008, 13, 2096–2103. [Google Scholar] [CrossRef]
  5. Singh, R.; Bansal, R.C. Review of HRESs based on storage options, system architecture and optimisation criteria and methodologies. IET Renew. Power Gener. 2018, 12, 747–760. [Google Scholar] [CrossRef]
  6. Ganjei, N.; Zishan, F.; Alayi, R.; Samadi, H.; Jahangiri, M.; Kumar, R.; Mohammadian, A. Designing and Sensitivity Analysis of an Off-Grid Hybrid Wind-Solar Power Plant with Diesel Generator and Battery Backup for the Rural Area in Iran. J. Eng. 2022, 2022, 4966761. [Google Scholar] [CrossRef]
  7. Pourbehzadi, M.; Niknam, T.; Aghaei, J.; Mokryani, G.; Shafie-Khah, M.; Catalão, J.P. Optimal operation of hybrid AC/DC microgrids under uncertainty of renewable energy resources: A comprehensive review. Int. J. Electr. Power Energy Syst. 2019, 109, 139–159. [Google Scholar] [CrossRef]
  8. Hidalgo-Leon, R.; Siguenza, D.; Sanchez, C.; Leon, J.; Jacome-Ruiz, P.; Wu, J.; Ortiz, D. A survey of battery energy storage system (BESS), applications and environmental impacts in power systems. In Proceedings of the 2017 IEEE Second Ecuador Technical Chapters Meeting (ETCM), Salinas, Ecuador, 16–20 October 2017; pp. 1–6. [Google Scholar] [CrossRef]
  9. Vishakha, V.; Vardwaj, V.; Jadoun, V.K.; Jayalaksmi, N.; Agarwal, A. Review of Optimization Techniques for Hybrid Wind PV-ESS System. In Proceedings of the 2020 International Conference on Power Electronics & IoT Applications in Renewable Energy and its Control (PARC), Mathura, India, 28–29 February 2020; pp. 202–207. [Google Scholar] [CrossRef]
  10. Sinha, A.; Ranjan, R.; Gupta, A.K.; Jain, V.K. Techno-Economic Feasibility Analysis of Off-Grid Electrification for Remote Areas: A Review. In Proceedings of the 2020 9th International Conference System Modeling and Advancement in Research Trends (SMART), Mathura, India, 4–5 December 2020; pp. 463–467. [Google Scholar] [CrossRef]
  11. Almutairi, K.; Hosseini Dehshiri, S.S.; Hosseini Dehshiri, S.J.; Mostafaeipour, A.; Issakhov, A.; Techato, K. Use of a Hybrid Wind—Solar—Diesel—Battery Energy System to Power Buildings in Remote Areas: A Case Study. Sustainability 2021, 13, 8764. [Google Scholar] [CrossRef]
  12. Shezan, S.K.A.; Saidur, R.; Hossain, A.; Chong, W.T.; Kibria, M.A. Performance Analysis of Solar-Wind-Diesel-Battery Hybrid Energy System for KLIA Sepang Station of Malaysia. IOP Conf. Ser. Mater. Sci. Eng. 2015, 88, 012074. [Google Scholar] [CrossRef]
  13. Thirunavukkarasu, M.; Sawle, Y. A Comparative Study of the Optimal Sizing and Management of Off-Grid Solar/Wind/Diesel and Battery Energy Systems for Remote Areas. Front. Energy Res. 2021, 9, 752043. [Google Scholar] [CrossRef]
  14. Linn, S.; Ya, A.Z. Solar/Wind/Diesel Hybrid Energy System with Battery Storage for Rural Electrification. Int. J. Sci. Eng. Tech. Res. 2014, 3, 2172–2176. [Google Scholar]
  15. Zhu, C.; Liu, F.; Hu, S.; Liu, S. Research on capacity optimization of PV-wind-diesel-battery hybrid generation system. In Proceedings of the 2018 International Power Electronics Conference (IPEC-Niigata 2018 -ECCE Asia), Niigata, Japan, 20–24 May 2018. [Google Scholar] [CrossRef]
  16. Ishraque, F.; Shezan, S.A.; Nur, J.; Islam, S. Optimal sizing and performance investigation of a solar-wind-battery-DG based hybrid Microgrid system applicable to the remote school of Bangladesh. Eng. Rep. 2020, 3, e12281. [Google Scholar] [CrossRef]
  17. Ranjan, R.; Doda, D.K.; Lalwani, M.; Bundele, M. Simulation and Optimization of Solar Photovoltaic–Wind–Diesel Generator Stand-alone Hybrid System in Remote Village of Rajasthan, India. In International Conference on Artificial Intelligence: Advances and Applications 2019: Proceedings of ICAIAA 2019; Springer: Singapore, 2020; pp. 279–286. [Google Scholar] [CrossRef]
  18. Yusuf, S.S.; Mustafi, N.N. Design and Simulation of an Optimal Mini-Grid Solar-Diesel Hybrid Power Generation System in a Remote Bangladesh. Int. J. Smart Grids 2018, 2, 27–33. [Google Scholar] [CrossRef]
  19. Venkatachalam, K.M.; Saravanan, V. Techno economic environmental assessment of hybrid renewable energy system in India. Int. J. Adv. Appl. Sci. 2021, 10, 343–362. [Google Scholar] [CrossRef]
  20. Shaahid, S.; El-Amin, I. Techno-economic evaluation of off-grid hybrid photovoltaic–diesel–battery power systems for rural electrification in Saudi Arabia—A way forward for sustainable development. Renew. Sustain. Energy Rev. 2009, 13, 625–633. [Google Scholar] [CrossRef]
  21. Iosr, S.J.; Payal, R.; Saroj, M.A.; Arvind, M. Optimal Configuration of Wind/Solar/Diesel/Battery Hybrid Energy System for Electrification of Rural Area. IOSR J. Electr. Electron. Eng. (IOSR-JEEE) 2015, 10, 23–31. [Google Scholar] [CrossRef]
  22. Combe, M.; Mahmoudi, A.; Haque, M.H.; Khezri, R. Cost-effective sizing of an AC mini-grid hybrid power system for a remote area in South Australia. IET Gener. Transm. Distrib. 2018, 13, 277–287. [Google Scholar] [CrossRef]
  23. Padrón, I.; Avila, D.; Marichal, G.N.; Rodríguez, J.A. Assessment of Hybrid Renewable Energy Systems to supplied energy to Autonomous Desalination Systems in two islands of the Canary Archipelago. Renew. Sustain. Energy Rev. 2018, 101, 221–230. [Google Scholar] [CrossRef]
  24. Roth, A.; Boix, M.; Gerbaud, V.; Montastruc, L.; Etur, P. A flexible metamodel architecture for optimal design of Hybrid Renewable Energy Systems (HRES)–Case study of a stand-alone HRES for a factory in tropical island. J. Clean. Prod. 2019, 223, 214–225. [Google Scholar] [CrossRef]
  25. Khosravani, A.; Safaei, E.; Reynolds, M.; Kelly, K.E.; Powell, K.M. Challenges of reaching high renewable fractions in hybrid renewable energy systems. Energy Rep. 2023, 9, 1000–1017. [Google Scholar] [CrossRef]
  26. Bappy, F.I.; Islam, J.; Podder, A.K.; Dipta, D.R.; Faruque, H.M.R.; Hossain, E. Comparison of Different Hybrid Renewable Energy Systems With Optimized PV Configuration to Realize the Effects of Multiple Schemes. In Proceedings of the 2019 1st International Conference on Advances in Science, Engineering and Robotics Technology (ICASERT), Dhaka, Bangladesh, 3–5 May 2019; pp. 1–6. [Google Scholar] [CrossRef]
  27. Lee, K.; Kum, D. The Impact of Energy Dispatch Strategy on Design Optimization of Hybrid Renewable Energy Systems. In Proceedings of the 2019 IEEE Milan PowerTech, Milan, Italy, 23–27 June 2019; pp. 1–6. [Google Scholar] [CrossRef]
  28. Suresh, V.; Muralidhar, M.; Kiranmayi, R. Modelling and optimization of an off-grid hybrid renewable energy system for electrification in a rural areas. Energy Rep. 2020, 6, 594–604. [Google Scholar] [CrossRef]
  29. Mahmoud, F.S.; Diab, A.A.Z.; Ali, Z.M.; El-Sayed, A.-H.M.; Alquthami, T.; Ahmed, M.; Ramadan, H.A. Optimal sizing of smart hybrid renewable energy system using different optimization algorithms. Energy Rep. 2022, 8, 4935–4956. [Google Scholar] [CrossRef]
  30. Muleta, N.; Badar, A.Q. Designing of an optimal standalone hybrid renewable energy micro-grid model through different algorithms. J. Eng. Res. 2023, 11, 1737. [Google Scholar] [CrossRef]
  31. Afrouzi, H.N.; Hassan, A.; Wimalaratna, Y.P.; Ahmed, J.; Mehranzamir, K.; Liew, S.C.; Malek, Z.A. Sizing and economic analysis of stand-alone hybrid photovoltaic-wind system for rural electrification: A case study Lundu, Sarawak. Clean. Eng. Technol. 2021, 4, 100191. [Google Scholar] [CrossRef]
  32. Suman, G.K.; Yadav, S.; Roy, O.P. HOMER Based Optimal Sizing of a PV/Diesel/Battery Hybrid System for a Laboratory Facility. In Proceedings of the 2020 3rd International Conference on Energy, Power and Environment: Towards Clean Energy Technologies, Meghalaya, India, 5–7 March 2021; pp. 1–5. [Google Scholar] [CrossRef]
  33. Gupta, S.; Bohre, A.K.; Sawle, Y. Techno-economic scrutiny of HRES through GA and PSO technique. Int. J. Renew. Energy Technol. 2018, 9, 84. [Google Scholar] [CrossRef]
  34. Mikati, M. Modelado y Simulación de un Sistema Conjunto de Energía Solar y Eólica para Analizar su Dependencia de la Red Eléctrica. Rev. Iberoam. Autom. Inf. Ind. 2012, 9, 267–281. [Google Scholar] [CrossRef]
  35. Tahiri, F.E.; Chikh, K.; Khafallah, M. Optimal Management Energy System and Control Strategies for Isolated Hybrid Solar-Wind-Battery-Diesel Power System. Emerg. Sci. J. 2021, 5, 111–124. [Google Scholar] [CrossRef]
  36. Xu, Y.-P.; Ouyang, P.; Xing, S.-M.; Qi, L.-Y.; Khayatnezhad, M.; Jafari, H. Optimal structure design of a PV/FC HRES using amended Water Strider Algorithm. Energy Rep. 2021, 7, 2057–2067. [Google Scholar] [CrossRef]
  37. Mazzeo, D.; Matera, N.; De Luca, P.; Baglivo, C.; Congedo, P.M.; Oliveti, G. A literature review and statistical analysis of photovoltaic-wind hybrid renewable system research by considering the most relevant 550 articles: An upgradable matrix literature database. J. Clean. Prod. 2021, 295, 126070. [Google Scholar] [CrossRef]
  38. Pranav, M.S.; Karunanithi, K.; Akhil, M.; Vanan, S.S.; Afsal, V.M.; Krishnan, A. Hybrid renewable energy sources (HRES)—A review. In Proceedings of the 2017 International Conference on Intelligent Computing, Instrumentation and Control Technologies (ICICICT), Kerala, India, 6–7 July 2017. [Google Scholar] [CrossRef]
  39. Ammari, C.; Belatrache, D.; Touhami, B.; Makhloufi, S. Sizing, optimization, control and energy management of hybrid renewable energy system—A review. Energy Built Environ. 2021, 3, 399–411. [Google Scholar] [CrossRef]
  40. Kavadias, K.A.; Triantafyllou, P. Hybrid Renewable Energy Systems’ Optimisation. A Review and Extended Comparison of the Most-Used Software Tools. Energies 2021, 14, 8268. [Google Scholar] [CrossRef]
  41. Mohapatra, A.; Mohapatra, S.; Bora, S.N. Hybrid Renewable Energy System for Real-Time Power Management Techniques—A Review. In Proceedings of the 2020 IEEE International Symposium on Sustainable Energy, Signal Processing and Cyber Security (iSSSC), Gunupur, India, 17 December 2020; pp. 1–6. [Google Scholar] [CrossRef]
  42. Alkafaji, A.S.; Al-Samawi, A.A.; Trabelsi, H. Hybrid Energy Storage Review for Renewable Energy System Technologies and Applications. In Proceedings of the 2021 18th International Multi-Conference on Systems, Signals & Devices (SSD), Monastir, Tunisia, 22–25 March 2021; pp. 1059–1067. [Google Scholar] [CrossRef]
  43. Khezri, R.; Mahmoudi, A. Review on the state-of-the-art multi-objective optimisation of hybrid standalone/grid-connected energy systems. IET Gener. Transm. Distrib. 2020, 14, 4285–4300. [Google Scholar] [CrossRef]
  44. Zebra, E.I.C.; van der Windt, H.J.; Nhumaio, G.; Faaij, A.P. A review of hybrid renewable energy systems in mini-grids for off-grid electrification in developing countries. Renew. Sustain. Energy Rev. 2021, 144, 111036. [Google Scholar] [CrossRef]
  45. Stecca, M.; Elizondo, L.R.; Soeiro, T.B.; Bauer, P.; Palensky, P. A Comprehensive Review of the Integration of Battery Energy Storage Systems into Distribution Networks. IEEE Open J. Ind. Electron. Soc. 2020, 1, 46–65. [Google Scholar] [CrossRef]
  46. Babatunde, O.M.; Munda, J.L.; Hamam, Y. A Comprehensive State-of-the-Art Survey on Hybrid Renewable Energy System Operations and Planning. IEEE Access 2020, 8, 75313–75346. [Google Scholar] [CrossRef]
  47. Lian, J.; Zhang, Y.; Ma, C.; Yang, Y.; Chaima, E. A review on recent sizing methodologies of hybrid renewable energy systems. Energy Convers. Manag. 2019, 199, 112027. [Google Scholar] [CrossRef]
  48. Kartite, J.; Cherkaoui, M. Study of the different structures of hybrid systems in renewable energies: A review. Energy Procedia 2019, 157, 323–330. [Google Scholar] [CrossRef]
  49. Abba, S.; Najashi, B.G.; Rotimi, A.; Musa, B.; Yimen, N.; Kawu, S.; Lawan, S.; Dagbasi, M. Emerging Harris Hawks Optimization based load demand forecasting and optimal sizing of stand-alone hybrid renewable energy systems—A case study of Kano and Abuja, Nigeria. Results Eng. 2021, 12, 100260. [Google Scholar] [CrossRef]
  50. Singh, R.; Bansal, R.C. Optimization of an Autonomous Hybrid Renewable Energy System Using Reformed Electric System Cascade Analysis. IEEE Trans. Ind. Inform. 2018, 15, 399–409. [Google Scholar] [CrossRef]
  51. See, A.M.K.; Mehranzamir, K.; Rezania, S.; Rahimi, N.; Afrouzi, H.N.; Hassan, A. Techno-economic analysis of an off-grid hybrid system for a remote island in Malaysia: Malawali island, Sabah. Renew. Sustain. Energy Transit. 2022, 2, 100040. [Google Scholar] [CrossRef]
  52. Sari, A.; Majdi, A.; Opulencia, M.J.C.; Timoshin, A.; Huy, D.T.N.; Trung, N.D.; Alsaikhan, F.; Hammid, A.T.; Akhmedov, A. New optimized configuration for a hybrid PV/diesel/battery system based on coyote optimization algorithm: A case study for Hotan county. Energy Rep. 2022, 8, 15480–15492. [Google Scholar] [CrossRef]
  53. Manurung, D.; Dalimi, R. Optimization Electricity Supply for Thousand Island Jakarta Province by Using Hybrid Photovoltaic-Wind Turbine-Diesel Generator-Crude Palm Oil (CPO) Power Plant-Battery System. J. Phys. Conf. Ser. 2020, 1500, 012035. [Google Scholar] [CrossRef]
  54. Kwangkaew, A.; Racharak, T.; Charoenlarpnopparut, C. Toward Forecast Techniques in Optimal Sizing of Energy Storage System with Volatile Energy Sources for Hybrid Renewable Energy System. In Proceedings of the 2020 International Conference on Smart Grids and Energy Systems (SGES), Perth, Australia, 23–26 November 2020; pp. 390–395. [Google Scholar] [CrossRef]
  55. Gonzalez, F.J.G.; Salazar, I.V.; Gomez, A.P.-N. Comparison of Optimization Methods for Hybrid Renewable Energy Systems. In Proceedings of the 2019 IEEE International Conference on Engineering Veracruz (ICEV), Veracruz, Mexico, 14–17 October 2019; Volume I, pp. 1–6. [Google Scholar] [CrossRef]
  56. Krishan, O. Sathans Design and Techno-Economic Analysis of a HRES in a Rural Village. Procedia Comput. Sci. 2018, 125, 321–328. [Google Scholar] [CrossRef]
  57. Saiprasad, N.; Kalam, A.; Zayegh, A. Comparative Study of Optimization of HRES using HOMER and iHOGA Software. 2018. Available online: https://www.semanticscholar.org/paper/841cc5d0a8de98ab80f1709b2e28de8d5dea767a (accessed on 16 February 2023).
  58. Sravan Kumar, B.; Ramesh, L. Review and Key Challenges in Battery to Battery Power Management System. In Proceedings of the 2019 5th International Conference on Computing, Communication, Control And Automation (ICCUBEA), Pune, India, 19–21 September 2019; pp. 1–5. [Google Scholar] [CrossRef]
  59. Vendoti, S.; Muralidhar, M.; Kiranmayi, R. HOMER Based Optimization of Solar-Wind-Diesel Hybrid System for Electrification in a Rural Village. In Proceedings of the 2018 International Conference on Computer Communication and Informatics (ICCCI), Coimbatore, India, 4–6 January 2018; pp. 1–6. [Google Scholar]
  60. Lin, C.E.; Phan, B.C.; Lai, Y.-C. Optimal Design of Hybrid Renewable Energy System Using HOMER: A Case Study in the Philippines. In Proceedings of the 2019 SoutheastCon, Huntsville, AL, USA, 11–14 April 2019; pp. 1–6. [Google Scholar] [CrossRef]
  61. Akram, U.; Khalid, M.; Shafiq, S. Optimal Sizing of a Wind/Solar/Battery Hybrid Grid-Connected Microgrid System. IET Renew. Power Gener. 2018, 12, 72–80. [Google Scholar] [CrossRef]
  62. Sharma, K.K.; Gupta, A.; Kumar, R.; Chohan, J.S.; Sharma, S.; Singh, J.; Khalilpoor, N.; Issakhov, A.; Chattopadhyaya, S.; Dwivedi, S.P. Economic evaluation of a hybrid renewable energy system (HRES) using hybrid optimization model for electric renewable (HOMER) software—A case study of rural India. Int. J. Low-Carbon Technol. 2021, 16, 814–821. [Google Scholar] [CrossRef]
Eng 04 00084 g001 550
Figure 1. Eligibility criteria.
Figure 1. Eligibility criteria.
Eng 04 00084 g001
Eng 04 00084 g002 550
Figure 2. Applications in which HRESs are most frequently used.
Figure 2. Applications in which HRESs are most frequently used.
Eng 04 00084 g002
Eng 04 00084 g003 550
Figure 3. Origin of the articles found.
Figure 3. Origin of the articles found.
Eng 04 00084 g003
Eng 04 00084 g004 550
Figure 4. DC bus line configuration.
Figure 4. DC bus line configuration.
Eng 04 00084 g004
Eng 04 00084 g005 550
Figure 5. AC bus line configuration.
Figure 5. AC bus line configuration.
Eng 04 00084 g005
Eng 04 00084 g006 550
Figure 6. Isolated hybrid network.
Figure 6. Isolated hybrid network.
Eng 04 00084 g006
Eng 04 00084 g007 550
Figure 7. Connected hybrid network.
Figure 7. Connected hybrid network.
Eng 04 00084 g007
Eng 04 00084 g008 550
Figure 8. Shows the distributions found in the review, highlighting the configurations that are most studied.
Figure 8. Shows the distributions found in the review, highlighting the configurations that are most studied.
Eng 04 00084 g008
Eng 04 00084 g009 550
Figure 9. Number of articles according to the renewable sources used.
Figure 9. Number of articles according to the renewable sources used.
Eng 04 00084 g009
Eng 04 00084 g010 550
Figure 10. Types of BESSs found in the review.
Figure 10. Types of BESSs found in the review.
Eng 04 00084 g010
Eng 04 00084 g011 550
Figure 11. Number of articles using these criteria in the review.
Figure 11. Number of articles using these criteria in the review.
Eng 04 00084 g011
Eng 04 00084 g012 550
Figure 12. Frequency of use of optimization techniques in the review.
Figure 12. Frequency of use of optimization techniques in the review.
Eng 04 00084 g012
Table
Table 3. Summary of systems composition [3,5,7].
Table 3. Summary of systems composition [3,5,7].
Configuration TypeArticles RelatedConvertersAdvantagesDisadvantages
MinMax
Isolated DC Line[15,27,31,49]24It is simple and not very complexIf the bus were to fail, the system would collapse
Isolated AC LineNot found24This type of application is more appropriate for small-scale AC loads in real-life situationsThe frequency of the AC bus needs to be synchronized with all AC components
Isolated Hybrid Network[1,6,11,12,13,14,15,16,18,19,20,21,22,23,24,25,27,28,30,31,33,34,36,49,50,51,52,53,54,55]26Provides greater efficiency and reliability to the systemThe complexity increases in the control and management of the system
Connected Hybrid Network[56,57]37This configuration is more appropriate in semi-urban areas with network accessibilityWhen it comes to connecting to the grid, power quality management is a major concern
Table
Table 4. BESS types and advantages/disadvantages [5,42,45,58].
Table 4. BESS types and advantages/disadvantages [5,42,45,58].
BESSAdvantagesDisadvantagesArticles Related to BESS
Energy storage in compressed air (CAES)Lower cost, low self-discharge, high service life.High initial cost, large scale, there are geographical restrictions that limit the installation of the system.Not found
Battery Ni–Cd Low maintenance requirement, high energy density and high reliability.This product has high costs and suffers from a phenomenon known as “battery memory”.Not found
Battery lead–acidThis product has a medium energy density, low initial investment, and is widely available. In addition, it does not require a cell management system.The characteristics of this product” include a low life cycle, low efficiency, ventilation requirements, and the need for proper disposal of used batteries.[7,14,16,17,18,19,20,23,34,57,59,60]
Battery Li-ion This product stands out for its high efficiency, high energy density, long life cycle, and relatively compact size. In addition, it is in an area where rapid technological advances are taking place.The disadvantages of this product are its high initial capital costs due to the special packaging required and the potential risk of battery body rupture.[25,32,53]
Hydrogen-based (HESS)This product is almost contamination-free and has a wide power range.This product includes low efficiency, low response time, high cost, and installation restrictions due to the hydrogen storage tank.Not found
Supercapacitor (SESS)It has high efficiency, long life cycle, and high power capacity.It has a low energy density and a relatively high cost.Not found
Flywheel (FESS)It features high power capacity, long life cycle, and fast charging capability.Disadvantages of this product include its high cost due to the need for a separate vacuum chamber, safety issues, high self-discharge, and high cost.[22]
Gel batteries This product is a good choice for applications that have high cyclic requirements due to its excellent recharge behavior, which gives it a long service life.One of the disadvantages of gel batteries is that they have a lower current capacity compared to other battery technologies. They can be more expensive than some other battery technologies.[13]
Table
Table 5. Economic optimization criteria and constraints for HRESs [3,5].
Table 5. Economic optimization criteria and constraints for HRESs [3,5].
CriteriaTypeLimitationsArticles Related to the Criteria
Annual system cost (ACS)EconomicThe cost estimate does not consider the possible variation of the interest rate and inflation.Not found
Net current cost (NPC)EconomicIt is not possible to take into account fluctuations in fuel prices (in case conventional energy sources are included) and uncertainties in the durability of system components such as batteries.[1,6,11,13,14,16,17,18,19,20,21,22,23,24,32,34,50,51,52,53,55,56,57,60,61,62]
Cost of energy (COE) EconomicThe cost of recovering system components at the end of their useful life is not included.[12,13,14,16,17,19,20,21,23,28,30,32,33,34,50,51,52,53,55,56,60,62]
Levelized cost of energy (LCOE)EconomicThe cost estimation tool does not take into account external factors, such as volatility in fossil fuel prices and inflation.[1,11,22,24,25,36,53,57]
Total net current cost (TNPC)EconomicChanges in the cost of energy are not taken into account.Not found
Life cycle cost (LCC)EconomicCost estimation is complicated by the difficulty of accurately predicting acquisition, operation, and long-term maintenance costs, which can affect the accuracy of the life cycle cost (LCC) analysis.[13,15,31]
Cost of loss of battery life (LLCB)EconomicReduced battery performance as the battery ages is not included in the evaluation.Not found
Table
Table 6. Optimization criteria (reliability) and limitations for HRESs [3,5].
Table 6. Optimization criteria (reliability) and limitations for HRESs [3,5].
CriteriaTypeLimitationsArticles Related to the Criteria
Probability of loss of power supply (LPSP)ReliabilityIt is defined for a specific load profile and does not take into account variations in that load profile.[1,21,30,33,36,48]
Expected energy not supplied (EENS)ReliabilityThe potential impact of variation in load demand is not taken into account.Not found
Level of autonomy (LA)ReliabilityNormalized-to-total annual energy demand.Not found
La probabilidad de pérdida de carga (LLP)ReliabilityA limitation in the assessment of power supply reliability is that long-duration load loss (LLP) only measures the probability of power supply interruption and does not provide a complete assessment of the reliability of the power system as a whole.[52]
Deficiency in probability of power supply (DPSP)reliabilityFor EPG < EL, it is the same as LPSP.Not found
Table
Table 7. Applications of optimization techniques in the reviewed literature [3,5,40,41].
Table 7. Applications of optimization techniques in the reviewed literature [3,5,40,41].
Optimization TechniquesAdvantagesDisadvantagesArticles Related to the Optimization Techniques
PSOThe technique does not use derivatives and is less sensitive to the nature of the objective function, as well as less dependent on the set of initial points, presents high efficiency.The technique lacks a solid mathematical basis and is a variant of stochastic optimization techniques that require more computational time.[15,22,30,33,49]
TSThe technique is highly compatible with other methods and, in addition, spends more time in the region where the solution is optimal. This is achieved by using deterministic motions that reduce the variability caused by the initial solution.This technique requires a larger number of iterations, which may result in a slower convergence rate.Not found
Coyote optimization algorithm (COA)The technique has fast convergence and has proven to be effective on a variety of optimization problems, including those that are nonlinear and multimodal.The COA may have difficulty finding accurate solutions and may stall at local optima, especially in problems that have multiple local optima. This is because the algorithm may become stuck on a suboptimal solution instead of finding the globally optimal solution.[52]
SAThe method is capable of dealing with nonlinear models and is statistically guaranteed to find an optimal solution. Moreover, it is easy to code for complex systems.Many initial constraints are required and the initial assumption can have a strong impact on the final solution.Not found
HSThe method is easy to apply and requires less parameter tuning, leading to faster convergence compared to other optimization methods.The complexity of optimization problems can result in premature convergence of the optimization algorithm used.Not found
EOIt includes high exploration and exploitation search mechanisms to randomly change solutions.-[1]
GAThe genetic algorithm (GA) can solve problems with multiple solutions and can be easily applied to existing simulations and models.If the initial population generated is not sufficient, the GA may stagnate at local minima.[17,27,33]
POPAThe graphical interface makes it easier to understand and apply constraint problems.The optimization method or technique can be used in a system consisting of a single power generating unit.Not found
ESCAThis optimization method is inspired by the POPA algorithm and can handle systems with multiple generators.The application of the technique becomes complex due to the optimization of multiple constraints.Not found
AWSAIt is feasible to make changes to the AWSA to easily adjust it to various types of optimization problems.The performance of AWSA can be significantly affected by the quality of the initial solution; in case the initial solution is poor, the algorithm may encounter difficulties in reaching the optimal solution.[36]
HOMERVisual representation of data can facilitate the understanding of the best combination of cost-effective systems, making it simple to implement a complex system.Reliability analysis cannot be performed.[6,11,12,13,14,16,17,18,19,20,21,23,25,28,32,34,53,55,56,57,59,60,62]
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

León Gómez, J.C.; De León Aldaco, S.E.; Aguayo Alquicira, J. A Review of Hybrid Renewable Energy Systems: Architectures, Battery Systems, and Optimization Techniques. Eng 2023, 4, 1446-1467. https://doi.org/10.3390/eng4020084

AMA Style

León Gómez JC, De León Aldaco SE, Aguayo Alquicira J. A Review of Hybrid Renewable Energy Systems: Architectures, Battery Systems, and Optimization Techniques. Eng. 2023; 4(2):1446-1467. https://doi.org/10.3390/eng4020084

Chicago/Turabian Style

León Gómez, Juan Carlos, Susana Estefany De León Aldaco, and Jesus Aguayo Alquicira. 2023. "A Review of Hybrid Renewable Energy Systems: Architectures, Battery Systems, and Optimization Techniques" Eng 4, no. 2: 1446-1467. https://doi.org/10.3390/eng4020084

APA Style

León Gómez, J. C., De León Aldaco, S. E., & Aguayo Alquicira, J. (2023). A Review of Hybrid Renewable Energy Systems: Architectures, Battery Systems, and Optimization Techniques. Eng, 4(2), 1446-1467. https://doi.org/10.3390/eng4020084

Article Metrics

Back to TopTop
