# Cross-Laminated Timber: A Survey on Design Methods and Concepts in Practice

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. State of the Art

#### 2.1. Particularities of Cross Laminated Plates

#### 2.2. Current Cross Laminated Timber Regulation in Standards

## 3. Description of the Questionnaire

## 4. General Experience on Cross Laminated Timber Construction

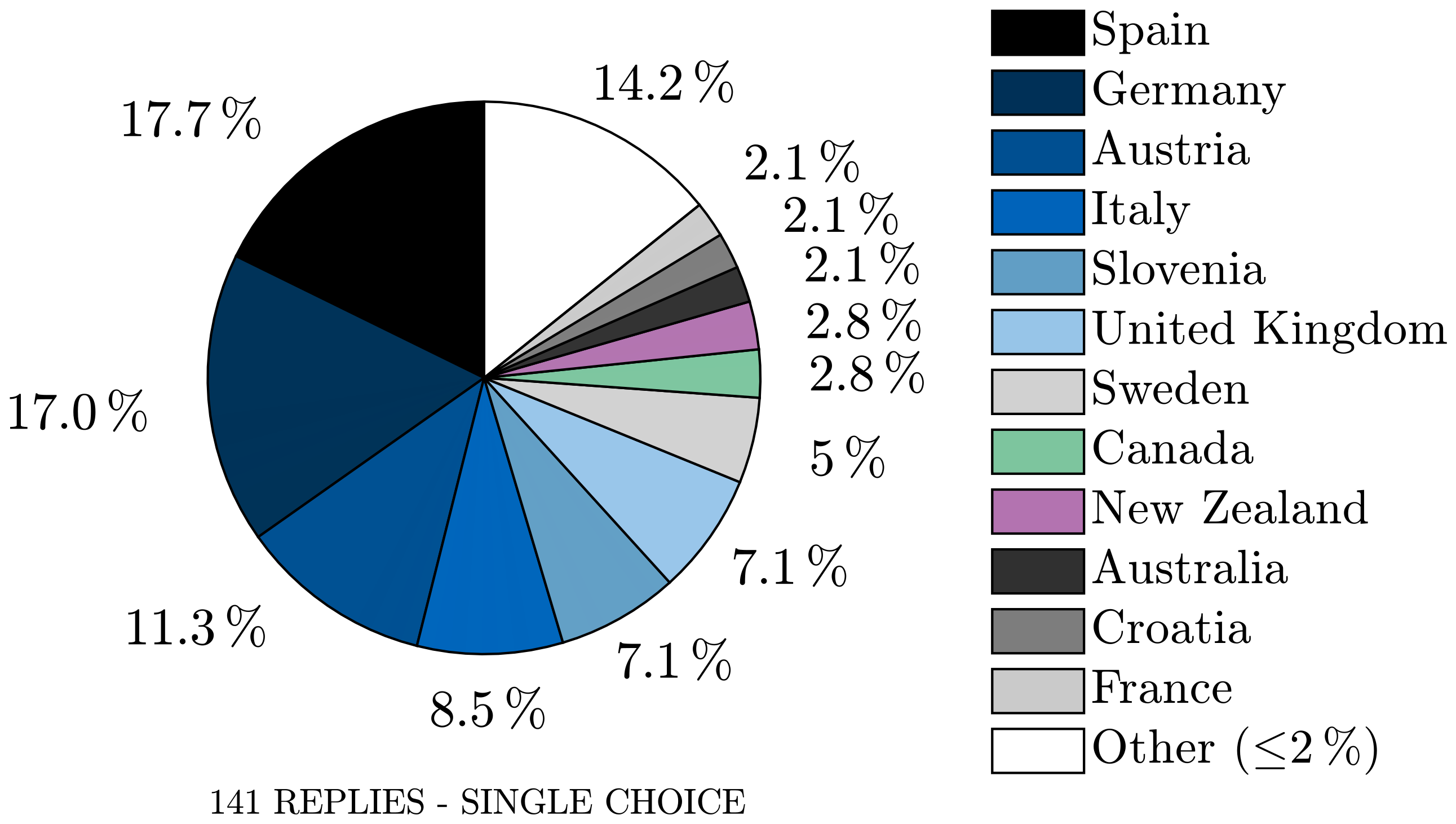

#### 4.1. Background and Experience

#### 4.2. Cross Laminated Timber Knowledge

## 5. Design Methods for Cross Laminated Timber in Practise

#### 5.1. General

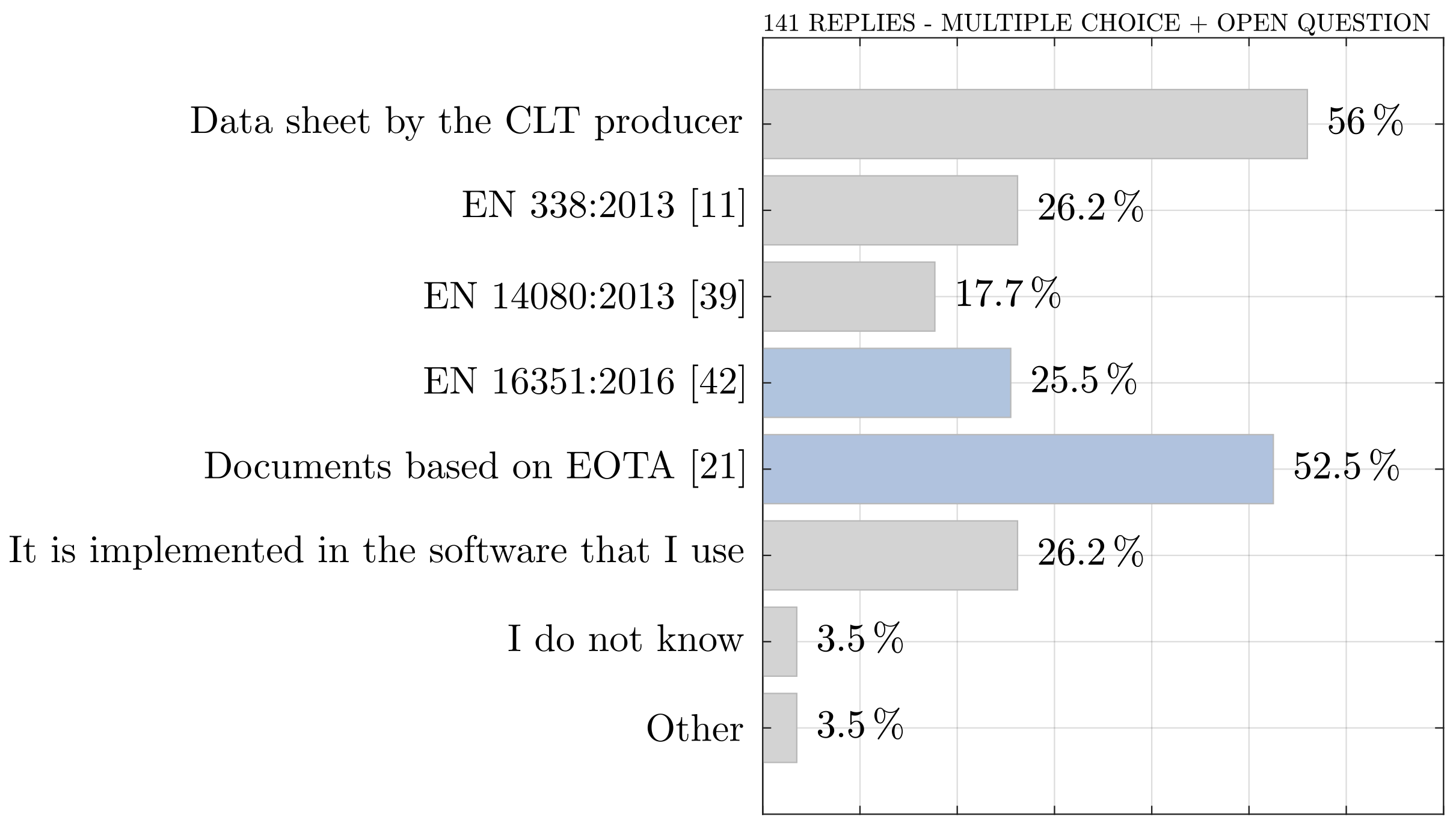

#### 5.2. Reference Literature

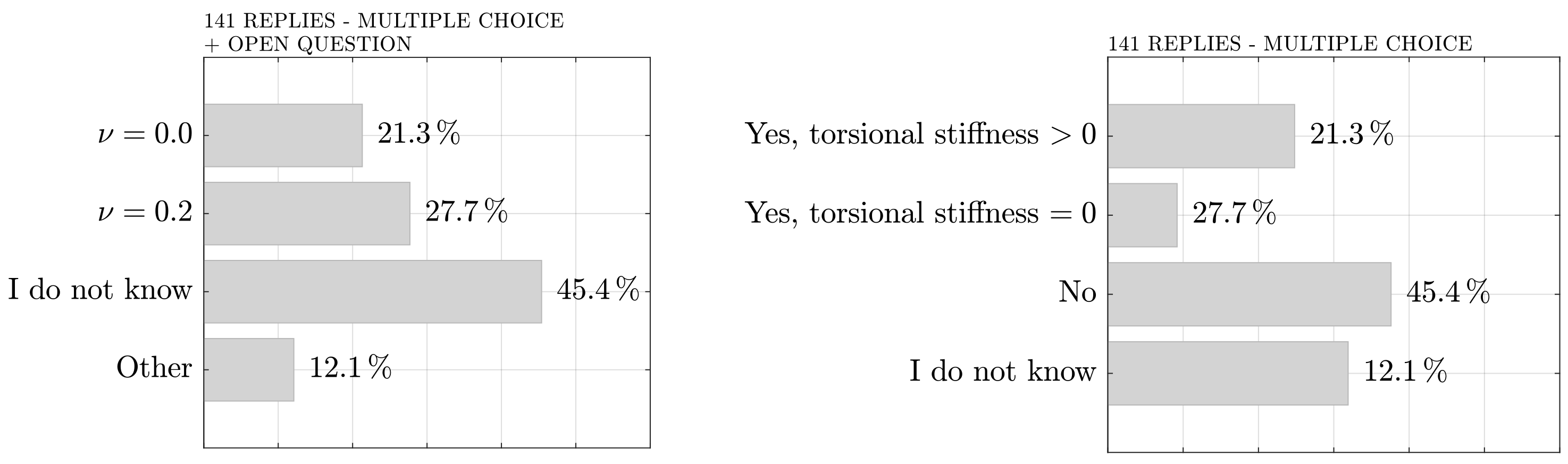

#### 5.3. Used Background Theories

#### 5.4. Used Tools and Design Verification

#### 5.5. Joints and Connections

## 6. Design Methods in Special Cases

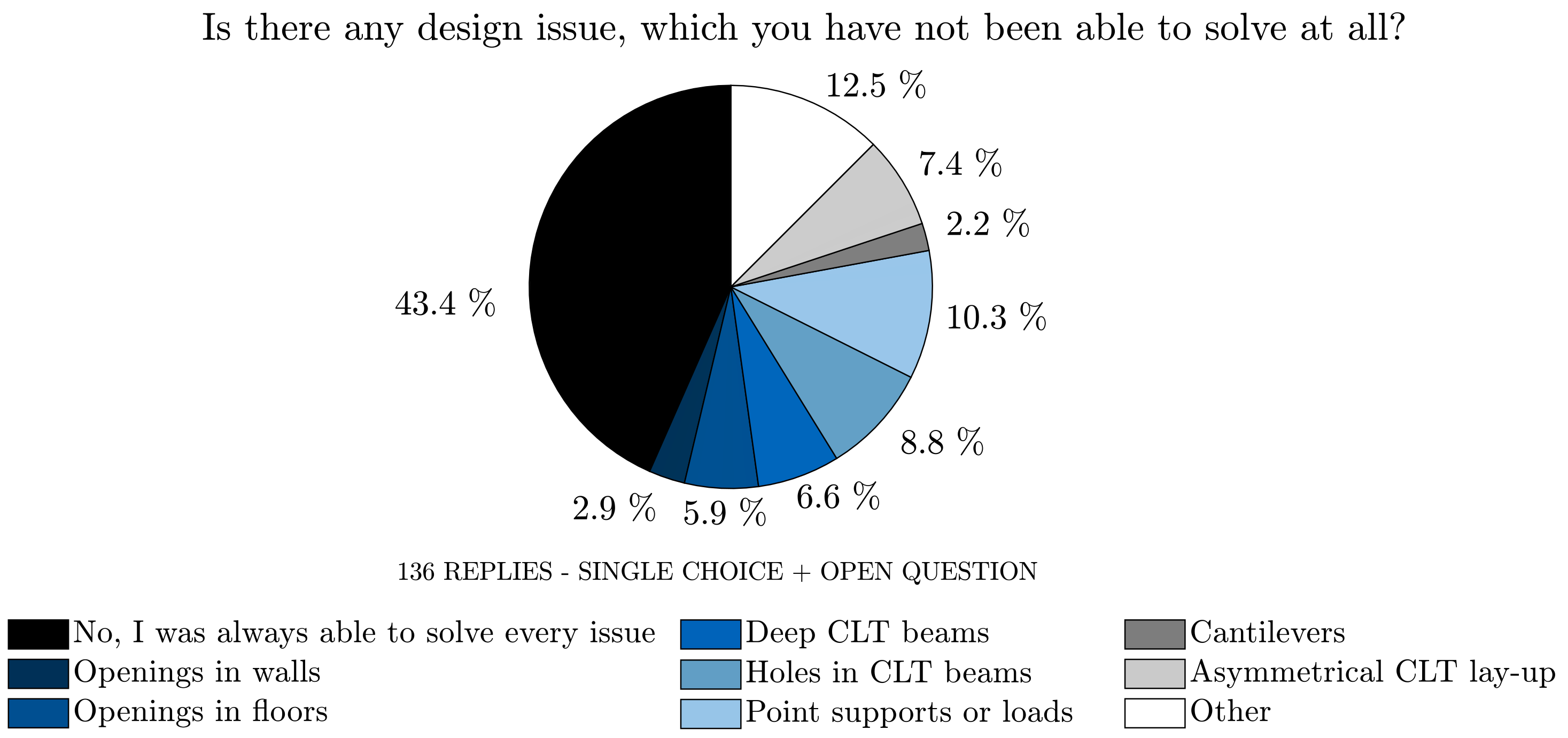

#### 6.1. Complex Design Situations: Challenges, Problems and Improvements

#### 6.2. Seismic Design

## 7. Final Considerations

## Author Contributions

## Funding

## Data Availability Statement

## Conflicts of Interest

## References

- Gillet, W. (Ed.) Decarbonisation of Buildings: For Climate, Health and Jobs; European Academies—Science Advisory Council (EASAC): Halle, Germany, 2021. [Google Scholar]
- Pachauri, R.; Meyer, L. (Eds.) Climate Change 2014: Synthesis Report. Contribution of Working Groups I, II and III to the Fifth Assessment Report of the Intergovernmental Panel on Climate Change; Intergovernmental Panel on Climate Change (IPCC): Geneva, Switzerland, 2014. [Google Scholar]
- Chadwick, D.O.; Nassar, N.T.; Lippke, B.R.; McCarter, J. Carbon, Fossil Fuel, and Biodiversity Mitigation With Wood and Forests. J. Sustain. For.
**2014**, 33, 248–275. [Google Scholar] [CrossRef] - Grebner, D.L.; Bettinger, P.; Siry, J.P.; Boston, K. Forest policies and external pressures. In Introduction to Forestry and Natural Resources, 2nd ed.; Grebner, D.L., Bettinger, P., Siry, J.P., Boston, K., Eds.; Academic Press: San Diego, CA, USA, 2022; Chapter 15; pp. 365–386. [Google Scholar] [CrossRef]
- Sandoli, A.; D’Ambra, C.; Ceraldi, C.; Calderoni, B.; Prota, A. Sustainable Cross-Laminated Timber Structures in a Seismic Area: Overview and Future Trends. Appl. Sci.
**2021**, 11, 2078. [Google Scholar] [CrossRef] - EN 1995-2:2004-11; Eurocode 5: Design of Timber Structures—Part 2: Bridges. CEN-CENELEC: Brussels, Belgium, 2004.
- Tagungsband/5. Grazer Holzbau-Fachtagung: Brettsperrholz—Ein Blick auf Forschung und Entwicklung; Schickhofer, G.; Moosbrugger, T.; Guggenberger, W. (Eds.) Institut für Holzbau und Holztechnologie: Graz, Austria, 2006. [Google Scholar]
- InnoCrossLam Homepage. Available online: http://innocrosslam.zag.si/ (accessed on 16 June 2022).
- Schickhofer, G.; Brandner, R.; Bauer, H. Introduction to CLT, Product Properties, Strength Classes. In Proceedings of the Joint Conference of COST Actions FP1402 and FP1404 KTH, Stockholm, Sweeden, 10 March 2016. [Google Scholar]
- EN 16351:2021; Timber Structures—Cross Laminated Timber—Requirements. CEN-CENELEC: Brussels, Belgium, 2021.
- EN 338:2013; Structural Timber—Strength Classes. CEN-CENELEC: Brussels, Belgium, 2013.
- Timoshenko, S.P.; Goodier, J.N. (Eds.) Theory of Elasticity; MCGraw-Hill: New York, NY, USA, 1951. [Google Scholar]
- Mestek, P.; Kreuzinger, H.; Winter, S. Teilprojekt 15—Flächen aus Brettstapeln, Brettsperrholz und Verbundkonstruktionen; Technical Report; Technische Universität München: Münich, Germany, 2008. [Google Scholar]
- Danielsson, H.; Serrano, E.; Gustafsson, P.J. Strength and fracture analysis of shear mode III in cross laminated timber. In Proceedings of the ECCOMAS Thematic Conference on Computational Methods in Wood Mechanics—From Material Properties to Timber Structures (CompWood), Växjö, Sweden, 17–19 June 2019. [Google Scholar]
- Brandner, R.; Dietsch, P.; Dröscher, J.; Schulte-Wrede, M.; Kreuzinger, H.; Sieder, M. Cross laminated timber (CLT) diaphragms under shear: Test configuration, properties and design. Constr. Build. Mater.
**2017**, 147, 312–327. [Google Scholar] [CrossRef] - Kreuzinger, H. Platten, Scheiben und Schalen—Ein Berechnungsmodell für gängige Statikprogramm. Bau. Holz
**1999**, 101, 34–39. [Google Scholar] - Scholz, A. Ein Beitrag zur Berechnung von Flächentragwerken aus Holz; Technical Report; Technische Universität München: Münich, Germany, 2003. [Google Scholar]
- EN 1995-1-1:2016; Eurocode 5: Design of Timber Structures—Part 1-1: General—Common Rules and Rules for Buildings. CEN-CENELEC: Brussels, Belgium, 2016.
- Bogensperger, T.; Silly, G.; Schickhofer, G. Comparison of Methods of Approximate Verification Procedures for Cross Laminated Timber; Technical Report; Technische Universität Graz: Graz, Austria, 2012. [Google Scholar]
- Buka-Vaivade, K.; Serdjuks, D.; Goremikins, V.; Vilguts, A.; Pakrastins, L. Experimental verification of design procedure for elements from cross-laminated timber. Mod. Build. Mater.
**2017**, 172, 1212–1219. [Google Scholar] [CrossRef] - EAD 130005-00-0304; Solid Wood Slab Element to be Used as a Structural Element in Buildings. EOTA: Brussels, Belgium, 2015.
- Brandner, R.; Flatscher, G.; Ringhofer, A.; Schickhofer, G.; Thiel, A. Cross laminated timber CLT: Overview and development. Eur. J. Wood Wood Prod.
**2016**, 74, 331–351. [Google Scholar] [CrossRef] - Wallner-Novak, M.; Koppelhuber, J.; Pock, K. Brettsperrholz Bemessung—Grundlagen für Statik und Konstruktion nach Eurocode; proHolz: Vienna, Austria, 2013. [Google Scholar]
- Wallner-Novak, M.; Augustin, M.; Koppelhuber, J.; Pock, K. Brettsperrholz Bemessung Band II—Anwendungsfälle; proHolz: Vienna, Austria, 2018. [Google Scholar]
- Börgström, E.; Fröbel, J. (Eds.) CLT Structures—Facts and Planning; Swedish Wood: Stockholm, Sweden, 2019. [Google Scholar]
- Karacabeyli, E.; Douglas, B. (Eds.) Canadian CLT Handbook; FPInnovations: Edmonton, QB, Canada, 2013. [Google Scholar]
- CEN-CENELEC. The New Approach. 2019. Available online: https://boss.cen.eu/reference-material/guidancedoc/pages/newapproach/ (accessed on 16 June 2022).
- Kleinhenz, M.; Dietsch, P.; Winter, S. Eurocode 5—A Halftime Summary of the Revision Process. In Proceedings of the World Conference on Timber Engineering, Vienna, Austria, 22–25 August 2016. [Google Scholar]
- Schenk, M.; Winter, S. Second Generation of Eurocode 5—Publication Schedule and Interface between Design and Product Standards. In Proceedings of the World Conference on Timber Engineering, Santiago, Chile, 9–12 August 2021. [Google Scholar]
- Fink, G.; Kohler, J.; Brandner, R. Application of European design principles to cross laminated timber. Eng. Struct.
**2018**, 171, 934–943. [Google Scholar] [CrossRef] - Brandner, R.; Tomasi, R.; Moosbrugger, T.; Serano, E.; Dietsch, P. (Eds.) Properties, Testing and Design of Cross Laminated Timber; COST (European Cooperation in Science and Technology) Action FP1402/WG 2; COST: Brussels, Belgium, 2018. [Google Scholar]
- Espinoza, O.; Rodriguez-Trujillo, V.; Mallo, M.F.L.; Buehlmann, U. Cross-Laminated Timber: Status and Research Needs in Europe. Bioresources
**2016**, 11, 281–295. [Google Scholar] [CrossRef] - Baur, N.; Blasius, J. (Eds.) Handbuch Methoden der empirischen Sozialforschung; Springer: Berlin/Heidelberg, Germany, 2019. [Google Scholar]
- Vehovar, V.; Manfreda, K. Overview: Online surveys. In The Sage Handbook of Online Research Methods; SAGE: Thousand Oaks, CA, USA, 2008; pp. 177–194. [Google Scholar]
- CSA O86:19; Engineering Design in Wood. Canadian Standards Association: Mississauga, ON, Canada, 2019.
- Cross-Laminated Timber: Design and Performance—Revised Reprint; BM TRADA: High Wycombe, UK, 2019.
- Herzog, T.; Natterer, J.; Schweitzer, R.; Volz, M.; Winter, W. Holzbau Atlas; DETAIL: Berlin, Germany, 2003. [Google Scholar]
- Bogensperger, T.; Moosbrugger, T.; Schickhofer, G. (Eds.) BSPhandbuch, Holz—Massivbauweise in Brettsperrholz; Verlag der Technischen Universität Graz: Graz, Austria, 2010. [Google Scholar]
- EN 14080:2013; imber Structures—Glued Laminated Timber and Glued Solid Timber—Requirements. CEN-CENELEC: Brussels, Belgium, 2013.
- ETA 14-0349; CLT—Cross Laminated Timber; Solid wood slab elements to be used as a structural element in buildings. OIB Austrian Institute of Construction Engineering: Vienna, Austria, 2020.
- ETA 12-0347; X-LAM Dolomiti—CLT Solid wood slab element to be used as a structural element in buildings. OIB Austrian Institute of Construction Engineering: Vienna, Austria, 2017.
- EN 16351:2016; Timber structures—Cross laminated timber—Requirements. CEN-CENELEC: Brussels, Belgium, 2016.
- EN 1998-1:2004; Eurocode 8: Design of structures for earthquake resistance. Part 1: General rules, seismic actions and rules for buildings. CEN-CENELEC: Brussels, Belgium, 2004.
- NTC 2018—Nuove Norme Sismiche per il Calcolo Strutturale. 2018. Available online: https://www.studiopetrillo.com/ntc2018.html (accessed on 16 June 2022).
- CEN/TC 250/SC 8; Eurocode 8: Earthquake Resistance Design of Structures Working Draft 18.02.2021. CEN-CENELEC: Brussels, Belgium, 2021.

**Figure 1.**Example of a cross laminated timber panel [6].

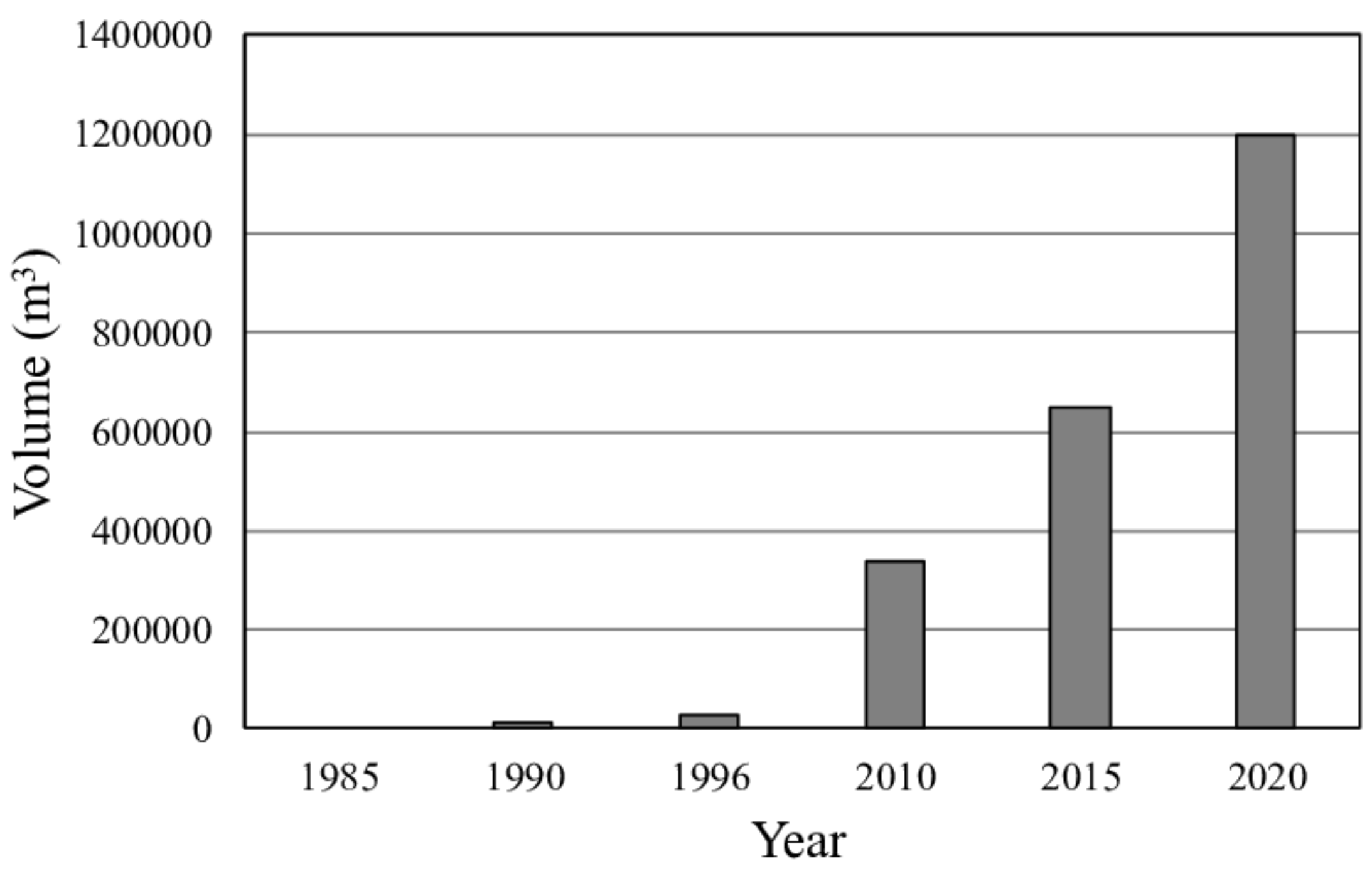

**Figure 2.**Increase in the volume of cross laminated timber production according to Sandoli et al. [5].

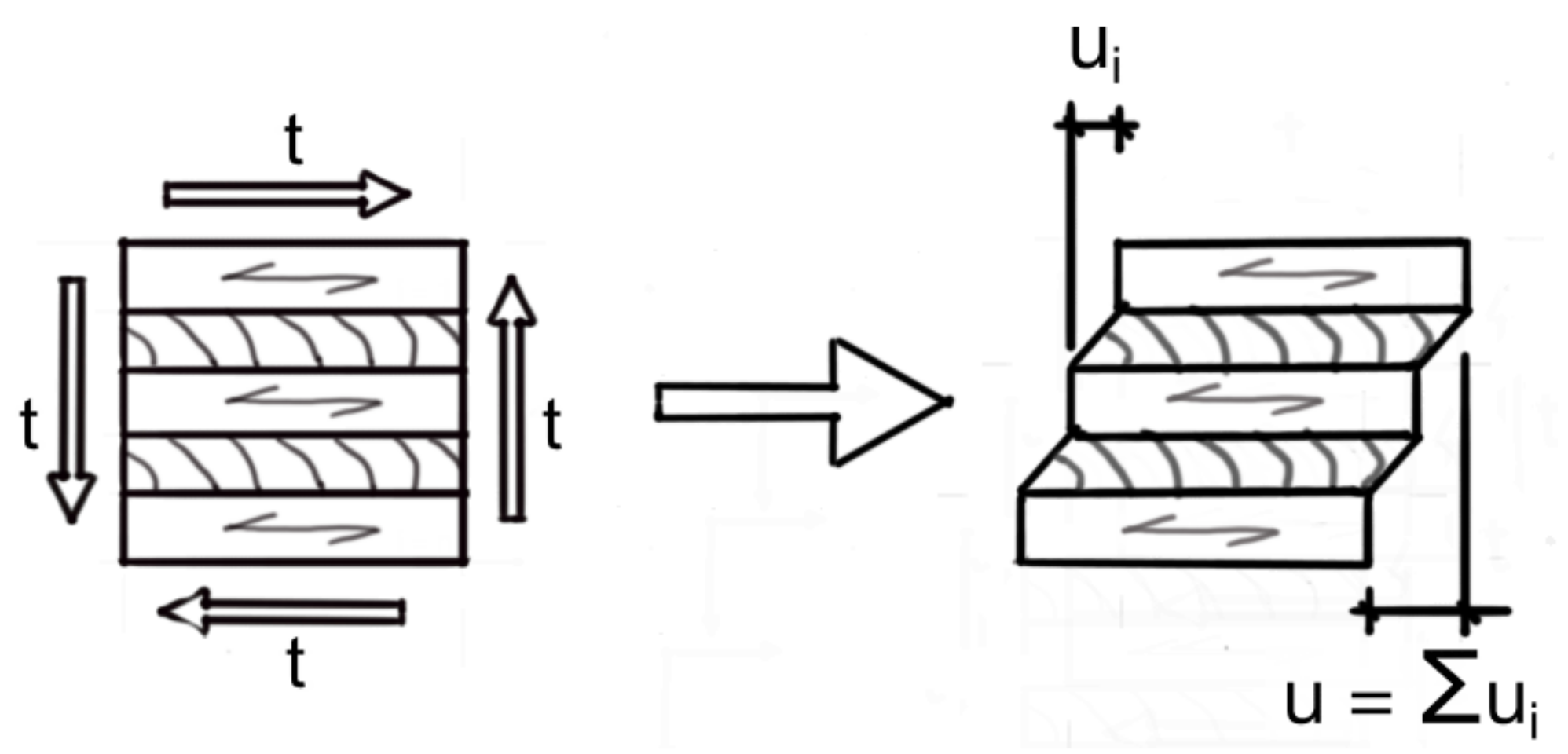

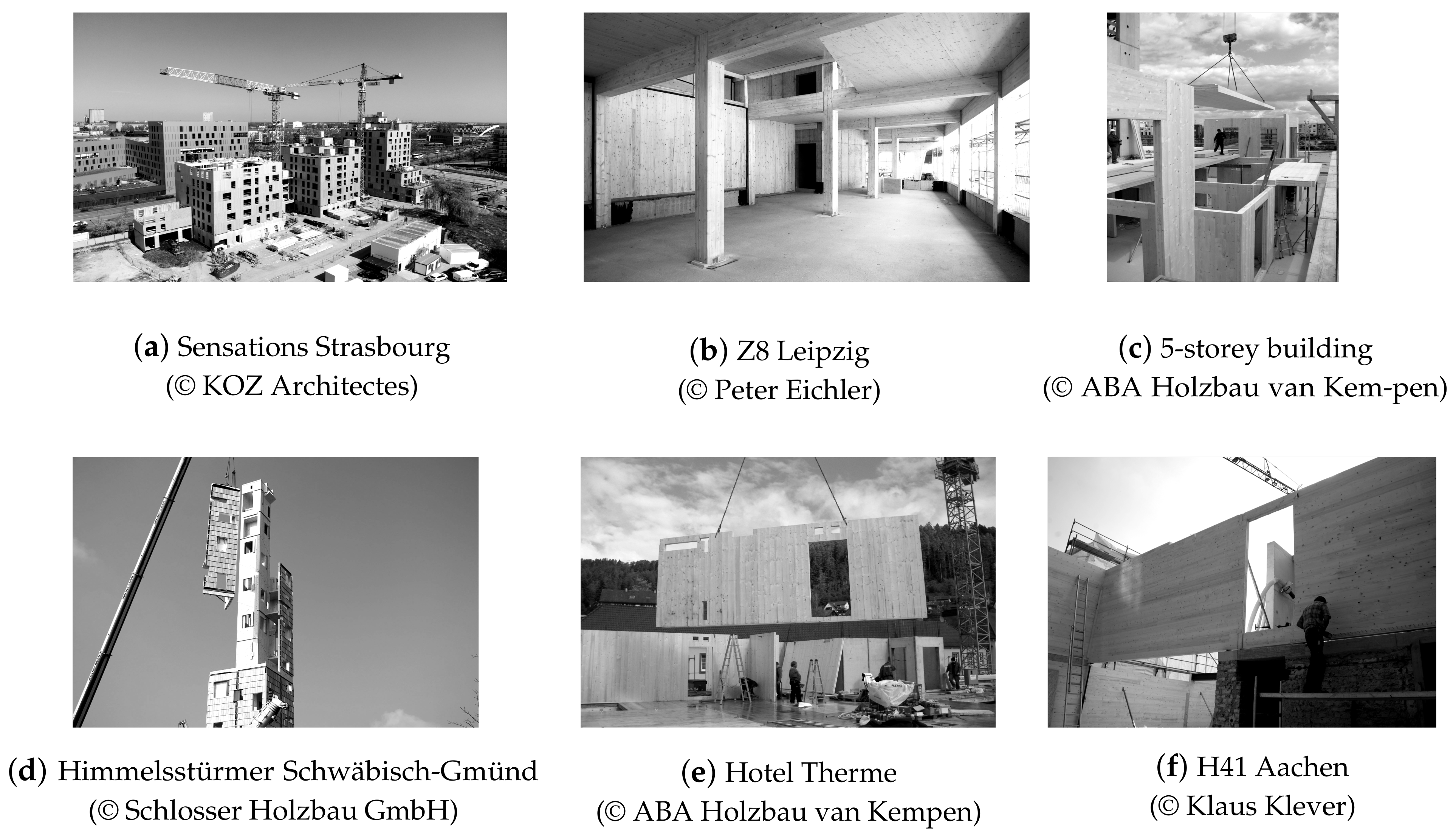

**Figure 4.**Shear deformations between layers of a cross laminated timber plate cross-section according to Mestek et al. [13], where t are the applied shear forces, ${u}_{i}$ the resulting deformation of a transverse layer, and u the total deformation of the plate. Redrawn and adapted by the authors.

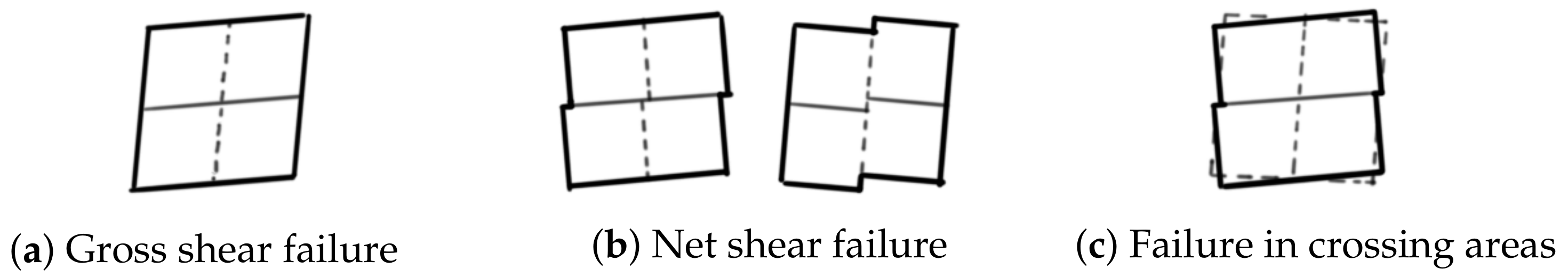

**Figure 5.**Failure modes of shear walls according to Danielsson et al. [14]. Redrawn and adapted by the authors.

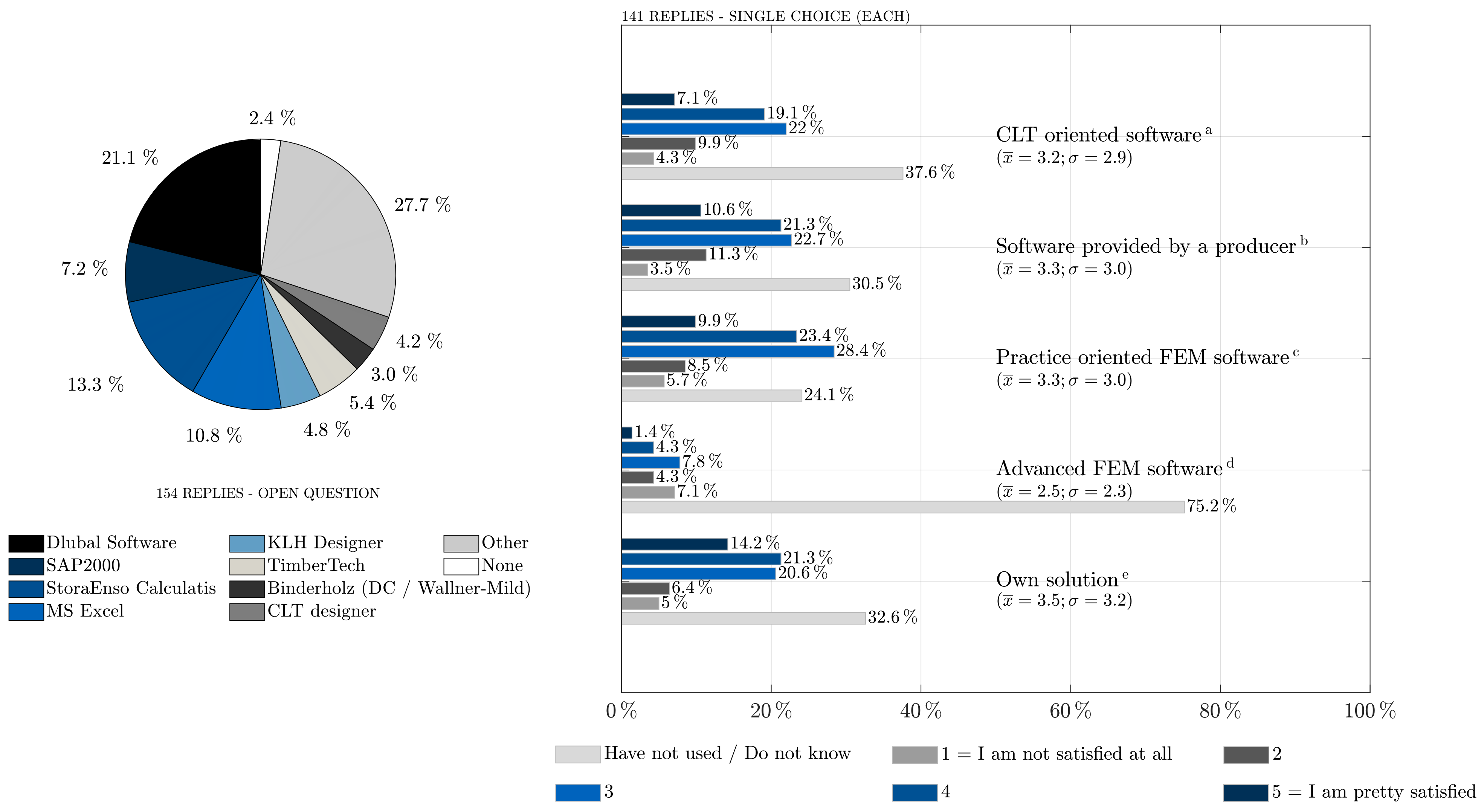

**Figure 10.**Software used for cross laminated timber (CLT) design (

**left**), and satisfaction with available software solutions (

**right**). Legend: ${}^{\mathrm{a}}$ CLTdesigner, TimberTech, etc.; ${}^{\mathrm{b}}$ Binderholz (DC/Wallner-Mild), KLH Designer, StoraEnso Calculatis, etc.; ${}^{\mathrm{c}}$ Dlubal, SAP 2000, SOFiSTiK, etc; ${}^{\mathrm{d}}$ Abaqus, Ansys, etc.; ${}^{\mathrm{e}}$ MatLab, MS Excel, etc.

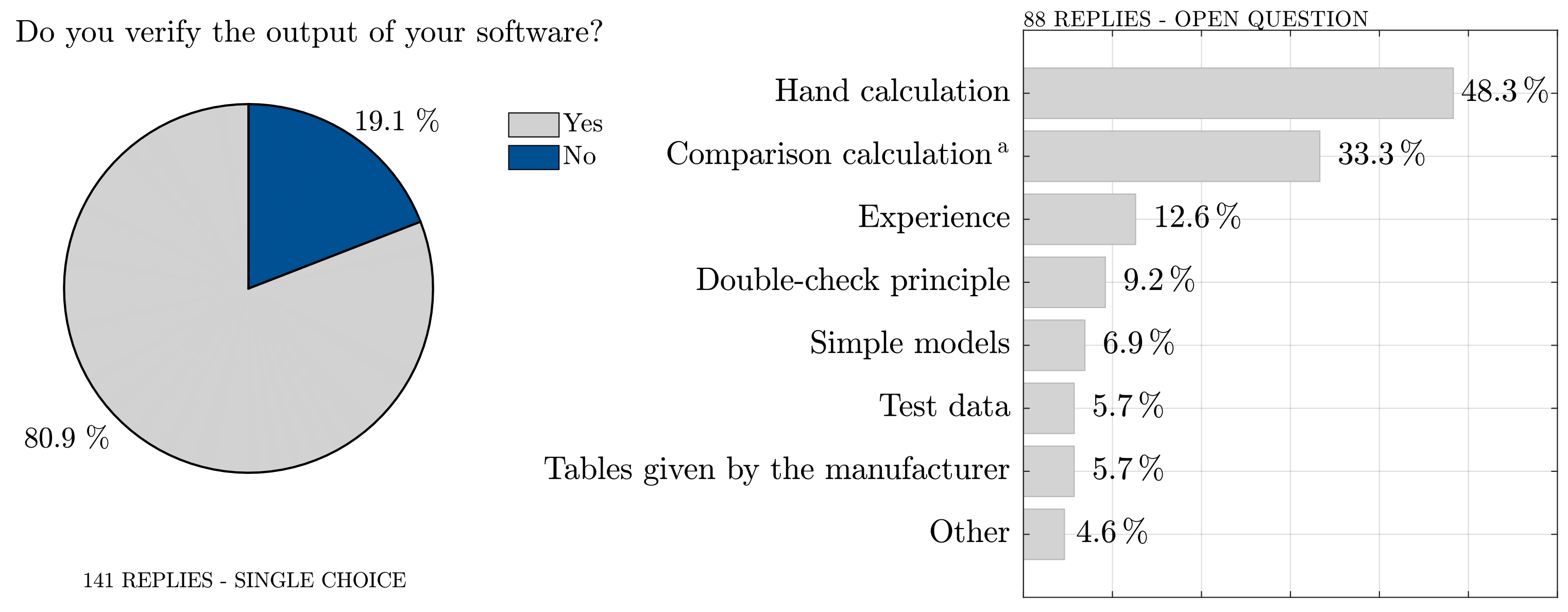

**Figure 11.**Verification methods. Legend: ${}^{\mathrm{a}}$ This includes the application of alternative finite element software and own software solutions i.e., Matlab, MS Excel, etc.

**Figure 13.**Challenging design situations for cross laminated timber (CLT): (

**a**) openings in walls, (

**b**) openings in floors, (

**c**) deep CLT beams (with openings), (

**d**) CLT beams (with openings), (

**e**) point supports and concentrated loads, (

**f**) cantilevers, (

**g**) asymmetrical lay-ups.

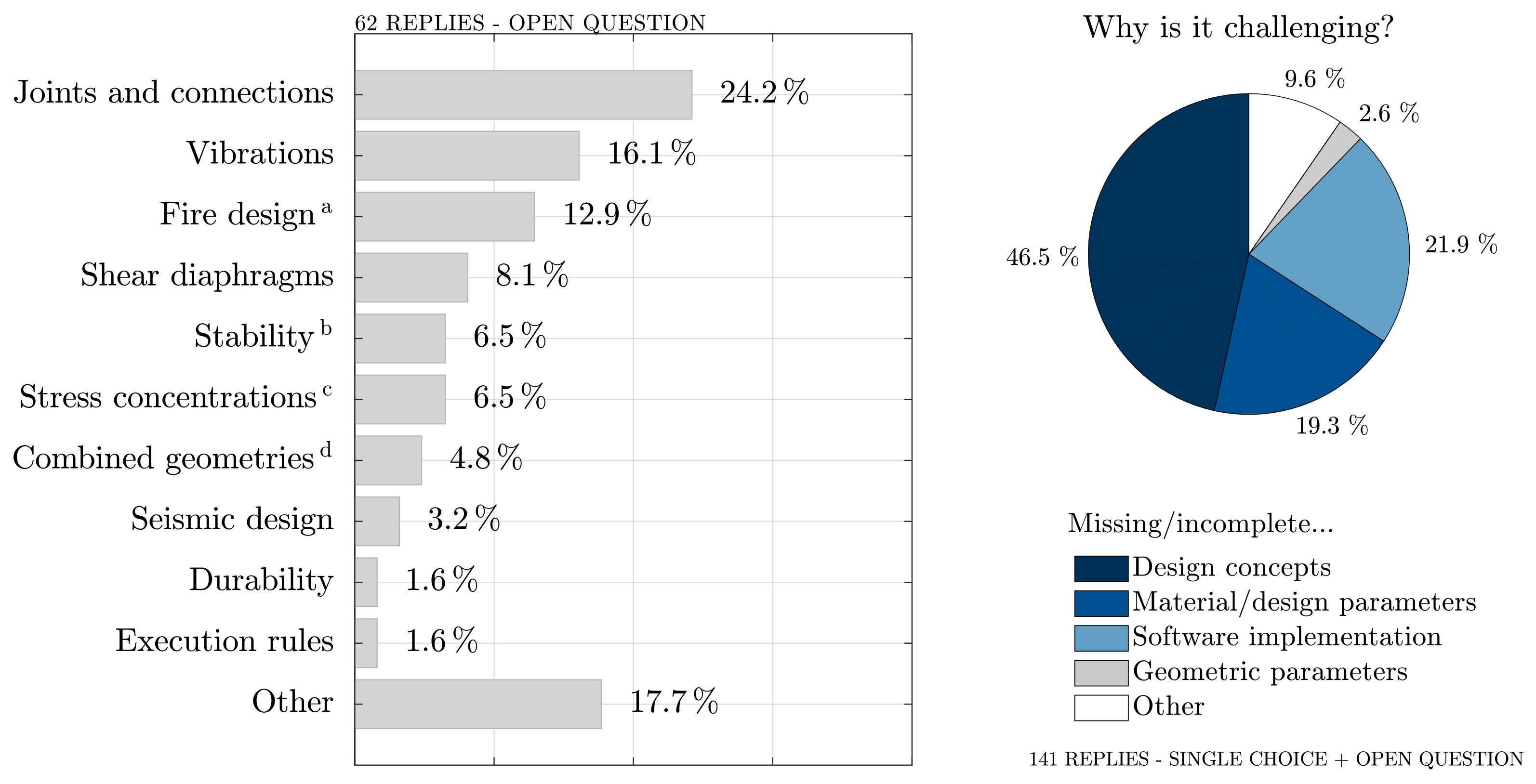

**Figure 14.**Other challenging situations. Given reasons: ${}^{\mathrm{a}}$ resistance and compartmentalization; ${}^{\mathrm{b}}$ member and global system; ${}^{\mathrm{c}}$ e.g., at connections, openings, etc.; ${}^{\mathrm{d}}$ e.g., ribbed plates, etc.

**Figure 16.**Reasons why CLT or hybrid (CLT-concrete) structures are not commonly used for high-rise buildings in seismically active regions.

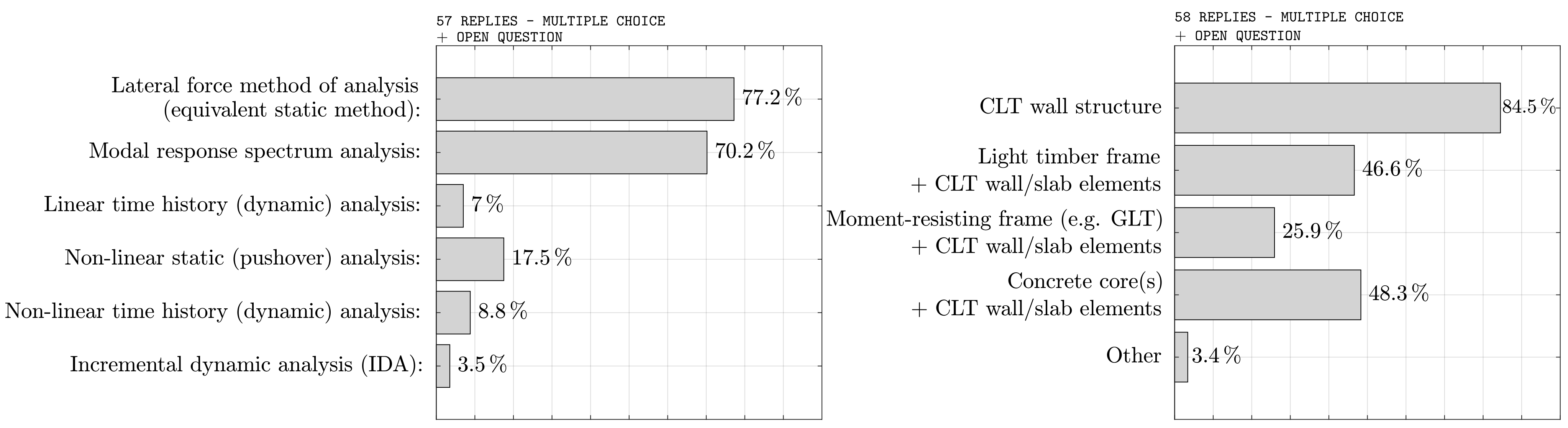

**Figure 17.**Seismic design with cross laminated timber (CLT). Type of analysis used for seismic design (

**left**) and structural systems used in combination with CLT (

**right**).

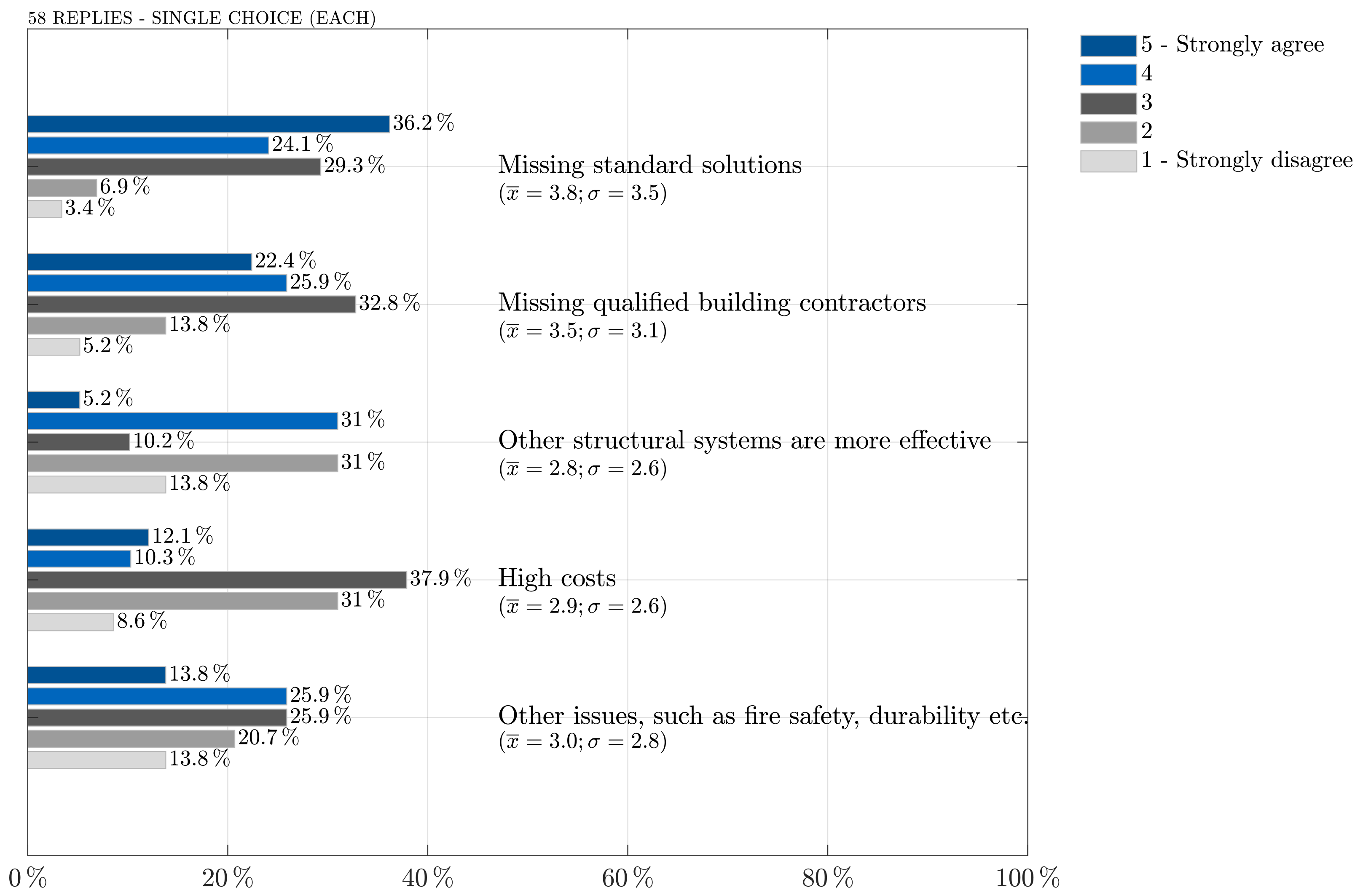

**Figure 19.**Reasons why CLT or hybrid (CLT-concrete) structures are not commonly used for high-rise buildings in seismically active regions.
