Materials and Methods for All-Cellulose 3D Printing in Sustainable Additive Manufacturing

Abstract

Additive manufacturing, commonly referred to as 3D printing, is an exciting and versatile manufacturing technology that has gained traction and interest in both academic and industrial settings. Polymeric materials are essential components in a majority of the feedstocks used across the various 3D printing technologies. As the environmental ramifications of sole or primary reliance on petrochemicals as a resource for industrial polymers continue to manifest themselves on a global scale, a transition to more sustainable bioderived alternatives could offer solutions. In particular, cellulose is promising due to its global abundance, biodegradability, excellent thermal and mechanical properties, and ability to be chemically modified to suit various applications. Traditionally, native cellulose was incorporated in additive manufacturing applications only as a substrate, filler, or reinforcement for other materials because it does not melt or easily dissolve. Now, the exploration of all-cellulose 3D printed materials is invigorated by new liquid processing strategies involving liquid-like slurries, nanocolloids, and advances in direct cellulose solvents that highlight the versatility and desirable properties of this abundant biorenewable photosynthetic feedstock. This review discusses the progress of all-cellulose 3D printing approaches and the associated challenges, with the purpose of promoting future research and development of this important technology for a more sustainable industrial future.

1. Introduction

Cellulose is the most abundant biopolymer on the planet with >900 Gt present in existing global standing crops, and cellulose is renewed in the biosphere at a rate of ~85 Gt per year [1]. In nature, it serves to give structure to plant cell walls, allowing plants to resist external loads like wind and rain, while also supporting their own weight [2]. Its inherent mechanical strength as well as biocompatibility, thermal stability, electrical insulation, chemical functionality, and non-allergenic properties make it an especially interesting candidate material for 3D printing [3]. Numerous hydrophilic hydroxyl functional groups along the cellulose backbone make it readily derivatized, surface-grafted, and functionalized to respond to a wide range of environments and stimuli (electric, magnetic, moisture, light, pH, heat, etc.) [4,5]. However, because cellulose does not melt and it has historically been difficult to dissolve due to its crystallinity and prevalent hydrogen bonding networks, there have been challenges associated with developing cellulose-based feedstocks with sufficient liquid-like character to be suitable for processing by additive manufacturing [6,7]. As such, up to this point, native cellulose has primarily been used as a filler/reinforcement or matrix component in 3D printing applications. This is now changing with the development and adaptation of tailored solvent systems, derivatization, and nanocolloids/dispersions that convert cellulosics into processable liquid forms. Cellulose’s intrinsic properties of strength, stiffness, hydrophilicity, and shear thinning behavior in solution/suspension make it highly attractive for additive manufacturing applications as a mechanical reinforcement, functionalizing agent, rheology modifier, and primary feedstock component (Figure 1). A particularly compelling aspect of fabrication with cellulose is that the re-establishment of cellulose hydrogen bonding networks after solvent removal supports the formation of coherent solids after deposition.

All-cellulosic 3D printing materials will be the focus of this review due to the potential garnered by their biobased raw material abundance, excellent thermal and mechanical properties, chemical versatility, and biodegradability. While prior reviews have detailed the incorporation of cellulosic materials in 3D printing—organized by cellulose type [8,9], 3D printing technology [5,10], or application [2,4]—this review is dedicated entirely to research focused on an all-cellulose approach to 3D printing. The discussion provides an overview of the different approaches to developing and utilizing all-cellulosic 3D printing materials, including the types of cellulosic material used, feedstock formulations, processing and finishing techniques, end uses, and future perspectives. The goal of synthesizing this information is to inspire the future development of these technologies.

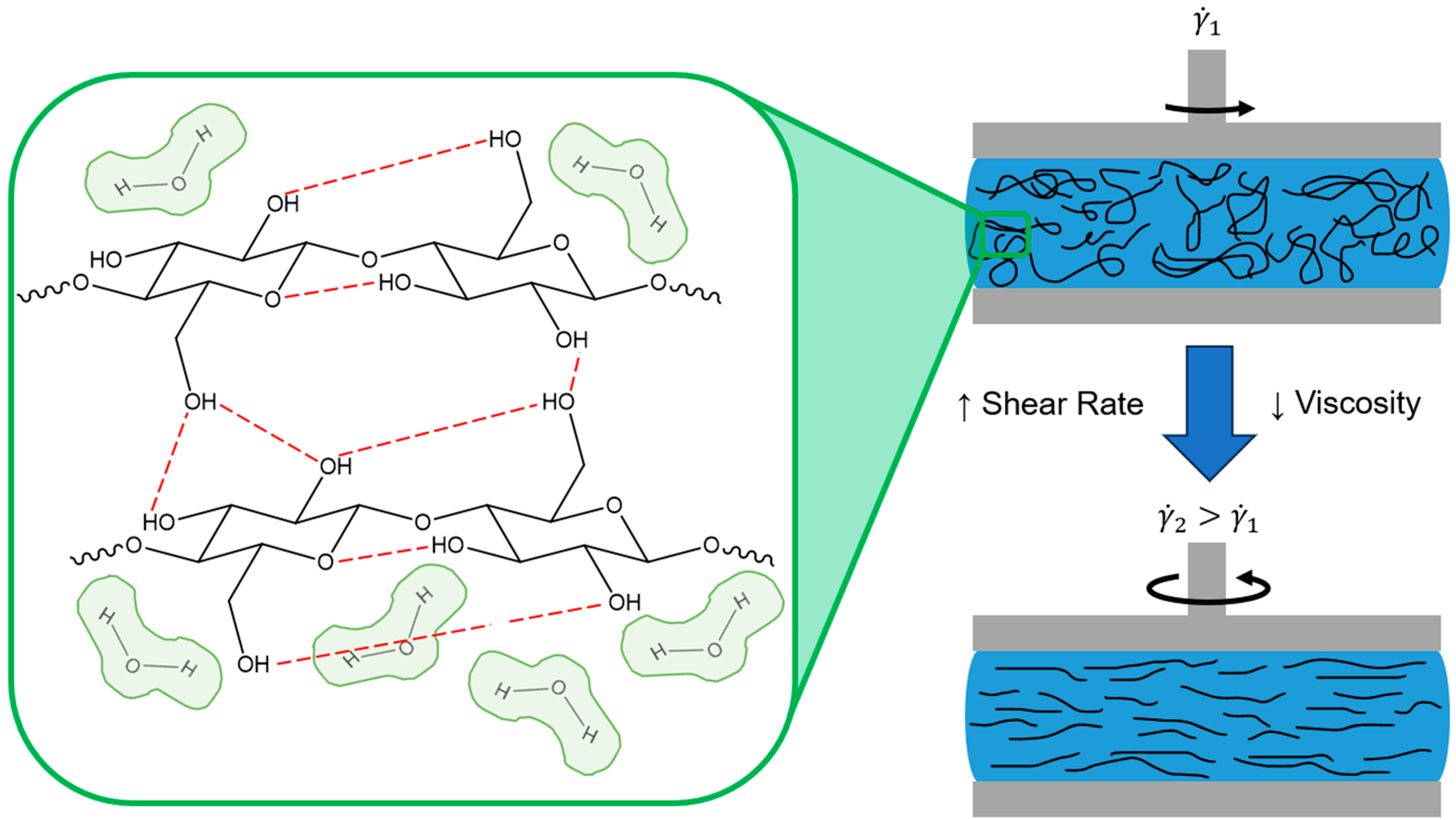

Figure 1. Schematic of the cellulose hydrogen bonding network (left) [11] that contributes to the excellent mechanical properties of cellulose solids, and the shear thinning viscosity properties (right) of cellulose solutions and dispersions that can be leveraged for additive manufacturing [2].

Figure 1. Schematic of the cellulose hydrogen bonding network (left) [11] that contributes to the excellent mechanical properties of cellulose solids, and the shear thinning viscosity properties (right) of cellulose solutions and dispersions that can be leveraged for additive manufacturing [2].

2. Cellulosic Materials for 3D Printing

Cellulose and its derivatives come in many forms, from many different sources. At a high level, cellulosic materials can be divided into two groups: derivatized and non-derivatized. Derivatized cellulose materials are those that are chemically modified via the highly reactive hydroxyl groups in natural cellulose to achieve desired properties. Industrially, the starting material for derivatized, or functionalized, cellulose is most often dissolving pulp from wood or cotton linters [12]. All other forms of cellulose that retain the chemical identity of naturally occurring cellulose are considered to be non-derivatized, even though they may be modified with respect to properties such as crystallinity and degree of polymerization [2]. In Figure 2, all-cellulose 3D printing feedstocks were classified according to whether they formed homogenous solutions or suspensions/dispersions, highlighting the types of cellulose commonly used for each.

2.1. Cellulose Sources

Regardless of whether the cellulose is eventually derivatized, it must first be extracted from biological material. There have been recent efforts towards the in vitro synthesis of cellulose without the need for isolation from native matter, as described in a recent review by Lehrhofer et al. [13], but they have yet to be successful to a degree that would be competitive with well-understood industrial extraction processes and are thus outside of the scope of this review. The vast majority of industrial cellulose is isolated from plant matter, but there is also a growing sector that harvests cellulose from microorganisms (i.e., bacterial cellulose) [14,15]. In plant fibers, cellulose is accompanied by two other primary components, lignin and hemicellulose, and is separated from those components during extraction [16]. The fraction and quality of cellulose in a plant fiber is dependent on a number of conditions including the type of plant and growth conditions such as location and climate [17]. Cotton, for example, does not contain any lignin, and mature fibers are typically composed of >90% cellulose with small amounts of proteins, pectin, and wax [18,19]. Cotton cellulose is also characterized by a higher degree of polymerization (DP) and crystallinity than wood cellulose [20], and the cotton fiber itself has a long thin flexible shape that makes it especially suited for twisting into yarns. These properties play an important role in determining typical cellulosic product uses and the macroscopic properties of those products (i.e., cotton textiles vs. wood-based paper goods and viscose/rayon). Thus, the choice of cellulose source is consequential in developing an additive manufacturing ink with targeted properties.

The most common industrially relevant methods of cellulose extraction from biomass are pretreatments to remove waxy components, either acid or base hydrolysis of amorphous regions to extract lower DP/higher crystallinity cellulose, and a bleaching step to remove natural colors, all of which are typically accompanied by mechanical agitation [14,21,22]. Common agents for each of these steps include ethanol, toluene, or petroleum for the pretreatment; hydrochloric or sulfuric acids for acid hydrolysis; sodium or potassium hydroxide and organic solvents for base hydrolysis; and sodium chlorite with hydrogen peroxide for the bleaching step [16,17,21,22,23,24]. Woody biomass also requires a delignification step to isolate cellulose from lignin, which can be carried out through a number of different chemical and/or biological methods according to the target end uses of the lignin and cellulose [25]. Interest in the development of more mild, environmentally friendly processing techniques has resulted in the use of enzymatic methods to mimic the natural processes of breaking down biomass such as wood pulp into useful cellulosics such as cellulose nanofibers, as reported in the work by Henriksson et al. [26]. Enzyme-mediated processes have also been explored for the extraction of microcrystalline cellulose fragments from cotton-containing apparel materials to promote more circular methods of sourcing cellulose for industrial applications [27,28]. The specifics of a required extraction treatment (i.e., agents, concentration, time) are governed by the desired properties of the cellulose and, in the context of additive manufacturing applications, vary based upon the target printing methods and applications.

2.2. Derivatized Cellulose

Derivatized cellulosic materials are of particular relevance in the development of solution-based 3D printing materials. As mentioned previously, natural cellulose is difficult to dissolve at even intermediate degrees of polymerization; therefore, derivatization presents useful pathways towards overcoming this challenge and synthesizing materials that can be processed more similarly to traditional additive manufacturing materials [2,9,29]. Cellulose acetate (CA) is one such material, and is generally made via the acetylation of the hydroxyl groups by a reaction with acetic anhydride, acetic acid, and sulfuric acid [30]. CA has a number of advantages as a 3D printing material, including the low cost and abundance of its starting raw material (i.e., dissolving pulp), biodegradability under certain controlled conditions [31], stability in water, biocompatibility [32], and thermomechanical stability [33]. CA’s primary advantage over non-derivatized cellulose is that it does not require the use of harsh or uncommon solvents in order to generate a 3D printing feedstock [34]. Pattinson and Hart successfully prepared a flowable (but sufficiently viscous) printing feedstock by dissolving CA (25–35 wt%) in acetone [35]. The use of acetone resulted in a facile process in which acetone would evaporate upon dispensing from the nozzle, allowing for the layer-by-layer printing of a solid CA design. Tenhunen et al. employed two acetylated cellulose derivatives, CA and acetoxypropyl cellulose (APC), dissolved in acetic acid (30 wt%) and acetone (80 wt%), respectively [36]. The resulting paste-like printing materials were notably of viscosities compatible with a commercial extrusion printer, highlighting the promise of derivatized cellulosic materials for direct printing applications. Overall, CA and similar acetylated cellulose derivatives have been demonstrated in various studies to be readily dissolved in common solvents yielding highly processable, biobased additive manufacturing feedstocks [34,35,36,37]. Other cellulose derivatives that were studied for their application as 3D printing materials include hydroxyethyl cellulose (HEC), carboxymethyl cellulose (CMC), and hydroxypropyl cellulose (HPC) [38,39,40]. Key factors in the use of derivatized cellulose that are uniquely optimized/accounted for in each study include solvent selection, cellulosic concentration, shear thinning behavior, gelation time, and shrinkage upon solvent evaporation.

2.3. Non-Derivatized Cellulose

By contrast, non-derivatized cellulose materials such as cellulose microfibers (CMF), nanofibers (CNF), microcrystalline cellulose (MCC), cellulose nanocrystals (CNC), and bacterial cellulose (BC) are less easily solubilized. In order to achieve this, the cellulose must be treated with solvents such as ionic liquids or N-methyl morpholine N-oxide (NMMO), the solvent used in the production of lyocell [41]. In an exemplary study, Markstedt et al. made solutions of dissolving pulp and bacterial nanocellulose in the ionic liquid 1-ethyl-3-methylimidazolium acetate (EmimAc) with cellulosic concentrations ranging from 1 to 4 wt% [42]. A similar methodology was reported in a study by Gunasekera et al., in which two different ionic liquids, EmimAc and BmimAc (1-butyl-3-methylimidazolium acetate), were mixed with the cosolvents 1-butanol and DMSO in order to perform material jetting with a feedstock containing microgranular cellulose of up to 4.8 wt% [43]. Ionic liquids have a number of desirable qualities, including low temperature processing (generally 50–80 °C with some reports of room temperature processing), efficient solvent recovery, and low volatility compared to conventional solvents [44]. However, the use of non-derivatized cellulose, even with advanced solvents, still typically yields feedstocks with lower cellulose concentrations compared to those achieved with their derivatized counterparts. As a result of the greater difficulty in reaching sufficient solubilization, non-derivatized cellulosics have more frequently been incorporated in aqueous suspensions or dispersions when studied for their use as 3D printing materials. Derivatized cellulose can be homogeneously dissolved in common solvents, but non-derivatized cellulose requires more advanced solvent systems to achieve suitable rheological characteristics for printability. Non-derivatized, aqueous cellulose suspensions are achievable at moderate concentrations.

3. Printing Methods

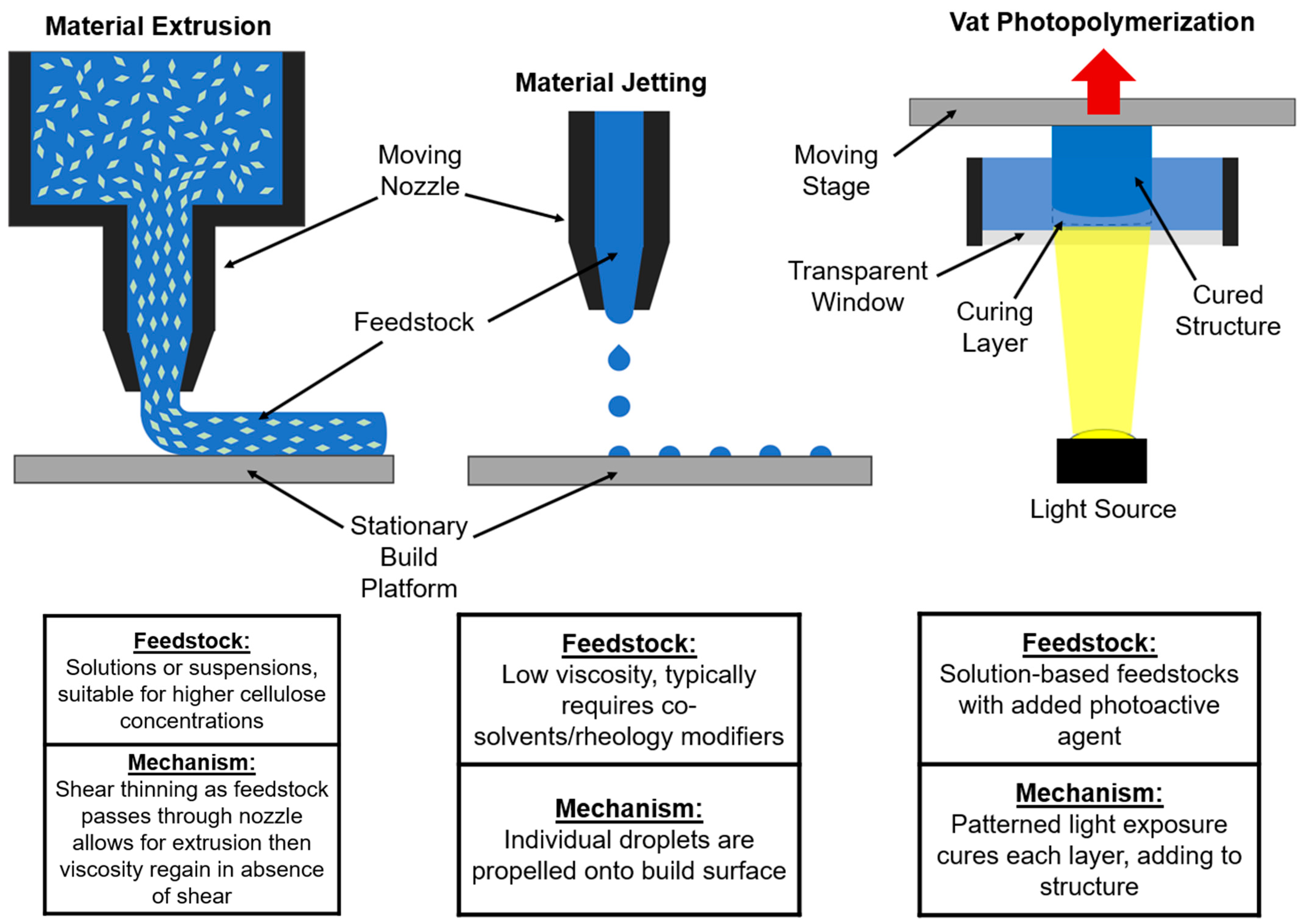

Additive manufacturing (AM) describes a set of manufacturing techniques in which objects are built from the bottom up, layer-by-layer, instead of traditional “subtractive” manufacturing in which objects are created by the removal of excess material from a bulk starting material [45]. Although historically differentiated from more broad definitions of additive manufacturing as a method of rapid prototyping, three-dimensional (3D) printing is now also an established AM method for making end-use products, and the terms are generally used interchangeably. The seven main types of 3D printing are material extrusion, powder bed fusion, directed energy deposition, vat photopolymerization, sheet lamination, material jetting, and binder jetting. More specific technical classifications within these categories are distinguished by factors such as the printing material, energy source, printing speed and resolution, printed object properties, and primary applications [46]. Indeed, 3D printing offers a range of advantages including on-demand, easily modifiable design; reduced raw material storage, consumption, and waste; and ease of design and manufacturing distribution (i.e., with digital designs) to allow for localized production [47]. All of these factors together mean that 3D printing is not bound by traditional economies of scale and, as such, is particularly attractive for prototyping, made-to-order, and customized production [8].

Additive manufacturing is a rapidly growing industry. In particular, material extrusion (MEX) fabricators are now prevalent, especially with the commercialization of more affordable models. Extrusion mechanisms can be broadly classified as either thermal or nonthermal MEX. In thermal MEX, a thermoplastic polymer is melted and directly extruded layer-by-layer, where it cools to solidify and form a 3D structure [48]. However, cellulose and its derivatives are generally not thermoplastic. Cellulose acetate is an exception, but its melting temperature (>250 °C) is significantly higher than those used in typical additive manufacturing processes and its high viscosity makes it unsuitable for extrusion without the incorporation of a plasticizing agent [49,50]. As a result, alternative, nonthermal material deposition and processing techniques are employed for all-cellulose 3D printing applications. With cellulose-based feedstocks, 3D printing proceeds via the creation of solutions, suspensions, and pastes with carefully controlled rheological properties to enable material extrusion. The shear thinning (specifically, thixotropic) behavior of these cellulose-based materials, and bioinks in general, as they are extruded and subsequently solidified, is of particular importance [51,52,53]. As material is extruded from a nozzle during 3D printing, it experiences a shear stress determined by nozzle size, printing pressure, and the viscosity of the printing feedstock [54]. The thixotropic behavior causes the viscosity of the feedstock to decrease during extrusion due to the applied shear stress, and then, in the absence of that stress, to regain its high zero shear viscosity and solidify or gelate [55]. This allows for cellulose materials to be used in nonthermal AM techniques. For clarity and consistency, herein we use the ISO/ASTM 52900 [56] terminology to describe different printing methods, while noting that terminology employed in the literature varies. Material extrusion, material jetting, and vat photopolymerization (Figure 3) have all been demonstrated using all-cellulose feedstocks, with material extrusion being the most common.

3.1. Material Extrusion

In nonthermal MEX, a feedstock with suitable rheological properties (which are achieved via feedstock formulation as opposed to heating) is deposited layer-by-layer through a nozzle to fabricate a desired structure. Unlike the often single-step processes associated with thermal MEX, nonthermal MEX of all-cellulose feedstocks is typically a multi-step process requiring an additional solidification step such as solvent evaporation, a coagulation treatment, or curing (Section 4) [57]. In MEX processes, a filament extruder is replaced with a nozzle and fluid dispenser such as a syringe. This is a particularly advantageous process for all-cellulose feedstocks because it does not require melting; cellulosic materials exhibit shear thinning behavior, which improves printability during extrusion; and, the rheological properties of the feedstocks can be finely controlled by varying cellulose loadings and feedstock recipes [58,59]. Cellulose loading plays a critical role in feedstock printability because there is much greater shear thinning behavior for cellulose solutions with higher cellulose molecular weights (MW) and concentrations, whereas, in sufficiently dilute regimes, solution flow behavior is approximately Newtonian [60,61,62]. If the cellulose concentration is too low and exhibits nearly Newtonian behavior, the feedstock is not suitable for MEX because it will spread across the build surface upon extrusion instead of retaining the print shape. These more liquid-like feedstocks are better suited for non-extrusion-based techniques. MEX is compatible with both solution-based and suspended or dispersed cellulose feedstocks with appropriate rheological properties.

There have been multiple successful demonstrations of MEX using cellulose derivatives dissolved in common organic solvents such as acetone [35,36], acetic acid [36], and ethyl acetate [37]. These solvents are convenient for MEX due to their high vapor pressures, meaning that the solvent readily evaporates, leaving behind the solidified print without the need for additional post-processing. Tenhunen et al. note that the careful optimization of solvent choice and cellulose concentration is critical in improving print shape fidelity, inter-layer/print–substrate adhesion, and to prevent clogging of the printer nozzle [36]. In the process demonstrated by Pattinson and Hart, it was necessary to wait for complete solvent evaporation between layers, which significantly slowed down the printing process for formulations with higher (up to 35 wt%) CA concentrations [35]. The MEX printing of non-derivatized cellulose solutions in ionic liquids [42,43], NMMO [63], and highly alkaline NaOH/urea systems [64] proceeds in largely the same manner, with carefully controlled material extrusion, although the cellulose concentration is typically below 5 wt%. Another key consideration in using harsher solvents is that the substrate must be able to withstand exposure without degrading [43]. Because these solvents are not as volatile as the organic solvents suitable for cellulose derivatives, the prints also require post-processing steps (Section 4) to aid in solidification.

MEX is also compatible with aqueous cellulose suspensions and dispersions [65,66,67,68,69,70,71]. However, with non-solution feedstocks, more care must be taken to achieve a homogeneous distribution of cellulose in the print. One method to mitigate this issue, proposed by Li et al., is to incorporate small amounts of TEMPO (1% on weight of CNF) in the feedstock to formulate more uniform dispersions [68]. TEMPO radicals catalyze the oxidation of primary hydroxyl groups to carboxylates, thereby increasing inter-fiber negative repulsive charges and aiding dispersion [72]. During MEX, particles, such as CNC in the case of Siqueira et al., tend to align according to the print direction enabling enhanced control of final print properties such as tailored mechanical property directionality [66]. MEX is also advantageous in that all of the studies cited in this section made use of commercially available printing equipment with no or slight modifications meaning that, once a feedstock is prepared, it can be readily incorporated into existing printing infrastructure.

3.2. Material Jetting and Vat Photopolymerization

While MEX is used in the majority of cellulose-based 3D printing, the versatility of cellulosic materials means that other techniques such as material jetting and vat photopolymerization have also been explored. In material jetting (MJT) processes, individual droplets are dispersed from the nozzle according to a predetermined pattern via non-contact deposition [73,74]. Thus, MJT requires the use of feedstocks with lower viscosities (more Newtonian behavior) than the extruded pastes used in MEX [75]. Gunasekera et al. described using a commercial ink-jet printer to deposit up to 5 wt% cellulose dissolved in ionic liquids, but noted that co-solvents (DMSO and 1-butanol) were required in order to meet the viscosity requirements of the printer [43]. They also emphasized the importance of rigorous viscosity measurements prior to printing, as well as the careful optimization of parameters such as print head temperature, voltage, frequency, and waveform in order to achieve stable drop formation. Single-layer MJT, like the array of drops demonstrated in their work, also facilitates post-processing and solvent removal, making it an excellent option for developing patterns with dissolved cellulose feedstocks. By contrast, vat photopolymerization (VPP) is not an extrusion-based technique and is thus far less limited by ink viscosity. In VPP, a series of mirrors and lenses are used to project a light source onto a layer of photopolymerizable material in a predetermined pattern. Each layer is cured according to the “slice” of the 3D design that it corresponds to and the excess, uncured material is removed at the end, leaving behind the final print [76,77]. VPP allows for extreme precision (15–100 µm depending on projector and build plate) and relatively quick printing (curing an entire layer at once), while also eliminating the need for supports when printing complex geometries [78,79]. Cafiso et al. took advantage of this technique to fabricate hydrogel composites comprising acrylated-carboxymethyl cellulose (a water-soluble cellulose ether) reinforced with biowaste-derived CNC [39]. They used a slice thickness of 50 µm with a curing time of 12–15 s/layer depending on the hydrogel composition. While thin layers allow for thorough curing and fine geometric control, this could prove to be a limitation for scaling up this technology as larger parts may require extensive print times compared to the print speeds of extrusion-based techniques (

Table 1. Exemplary printing metrics for different printing and processing methods.

Print Speed	Solidification Time	Print Feature Resolution
20 mm/s (MEX) [66] 12–15 s/layer (VPP) [39]	60 s (Solvent Evaporation) [35,36] 12 h (Freeze-Drying) [63] 30 min–2 h (Wet Densification) [43] 3 min (UV-Curing) [39]	~200 µm (MEX) [66,67] 21 µm (MJT) [43] 27 µm VPP [39]

). While it is a departure from all-cellulose formulations, the addition of methacrylated fillers has been demonstrated as an effective method of reinforcing the hydrogels by inducing co-polymerization, creating a denser crosslink network and resulting in greater shape fidelity and shorter printing times [39,80].

4. Post-Processing

As mentioned previously, one of the key steps in additive manufacturing with non-thermoplastic feedstocks is post-processing. Post-processing, for the purposes of this discussion, describes any treatments or processing steps carried out after material extrusion or printing in order to yield the final structure. In many cases, this step is performed after the deposition of each layer to ensure structural integrity and shape fidelity, making long print times a particular challenge for all-cellulose feedstocks. While printing techniques (especially MEX) are versatile and applicable for a range of different cellulose feedstocks and applications, the choice of post-processing technique is much more dependent on the type of feedstock properties and target application. This may include solvent evaporation or air-drying, freeze-drying, coagulation, UV-curing, or a combination of these (Figure 4).

4.1. Solvent Evaporation

The most straightforward method, and the one most analogous to traditional thermal MEX printing, is room temperature air-drying or solvent evaporation. This method has been predominantly demonstrated for feedstocks containing cellulose derivatives that can be solubilized in common organic solvents or nanocrystalline cellulose suspended in water so as to facilitate evaporation and drying. However, solution-/suspension-based printing is distinct from a melt–solidification process due to the effect of solvent incorporation on the final print shape fidelity and density. Post-print shrinkage resulting from densification as the solvent evaporates is a crucial consideration in the application of these formulations. In comparing the use of acetone and acetic acid as solvents for CA and APC, Tenhunen et al. found that slower evaporation using acetic acid was advantageous for CA-based feedstocks as it enhanced printability and exhibited less shrinkage [36]. However, shrinkage can be quantified under controlled drying conditions (i.e., temperature, relative humidity) and subsequently accounted for in the initial digital design and printing parameters to yield a part with the desired dimensions [70]. Pattinson et al. were able to achieve high-density (void ratio of 13%), mechanically robust CA prints by allowing for complete drying after each layer to regulate shrinkage and promote inter-layer adhesion [35]. Notably, this required up to 60 s between layers for higher CA concentrations (35 wt%), limiting print efficiency. As expected, greater cellulose concentrations result in greater shape fidelity (less shrinkage) as the volume of evaporating liquid is reduced [36,70]. Thus, non-derivatized cellulose feedstocks (which typically have cellulose content <10 wt%) are particularly susceptible to shrinkage during drying compared to highly concentrated derivatized cellulose feedstocks.

4.2. Freeze-Drying

In order to avoid the significant shrinkage due to densification associated with air-drying, researchers have employed freeze-drying. During freeze-drying, the water content of the printed parts is frozen and then pressure is decreased to allow for sublimation, leaving behind voids or pores [81]. The deformable and shape recoverable parts fabricated by Li et al. exhibited a porosity as high as 98%, with a volumetric density of 26 mg/cm³ [68]. Porosity is particularly advantageous for applications such as tissue scaffolding and drug delivery, but represents a challenge with respect to mechanical strength [63,65,67]. Hakansson et al. compared the mechanical properties of identical cellulose nanofibril hydrogels that had been prepared via air-drying vs. freeze-drying and found that the highly porous freeze-dried samples had a mean ultimate tensile strength that was less than 5% of that of their air-dried counterparts [82]. Freeze-drying is most compatible with aqueous suspension cellulose feedstocks, as their solubilized counterparts require a solvent exchange step to replace the solvent with water before freeze-drying, as exemplified by Li et al.’s NMMO-solubilized formulation [63].

4.3. Coagulation/Wet Densification

This processing method relies upon the replacement of a solvent or liquid in which cellulose is dissolved or suspended with a substance that interacts less strongly with cellulose, promoting densification via an increase in intermolecular cellulose interactions. A good solvent can be thought of as one for which the cohesive energy density (CED), the increase in volumetric internal energy upon removal of intermolecular forces, is similar to that of the particles in solution. Namely, particle–particle interactions are energetically similar to solvent–particle interactions, resulting in a more homogenous solution. A mismatch in CED would result in liquid-rich phases and particle-rich phases (precipitation) [71]. The most common manifestation of this technique is applied for cellulose solutions in ionic liquids. In this solute displacement process, a nonsolvent (water) interrupts cellulose interaction with the ionic liquid by forming a hydrodynamic shell around the solvent ions. This allows for the reformation of cellulose hydrogen bonds resulting in coagulation [83]. For very small printed objects, like those deposited via MJT (~100 µm diameter), this can be accomplished by submersion in water, as demonstrated by Gunasekera et al. [43]. However, even in this case, they utilized submersion times of up to two hours to ensure full solvent removal. Markstedt et al. found that spraying water with an atomizing nozzle between MEX layer depositions to circumvent lengthy submersion times proved ineffective as it resulted in poor inter-layer adhesion [42]. As an alternative, they attempted to print inside of an agar mold, which would allow water to continuously diffuse into the printed part from the bottom. This method only worked for parts smaller than a critical size (8 mm in height), after which the diffusion was too slow to allow for the proper gelation of subsequent layers. As such, the primary shortcoming of this solidification method is the extensive time required to achieve full solvent replacement for larger prints. In a slightly different approach, Hausmann et al. gradually replaced the water (highly polar and interactive with hydrophilic cellulose) of their aqueous feedstocks with organic solvents such as acetone, acetonitrile, and ethanol [71]. In doing so, the less polar/cellulose-interactive replacement solvents were less disruptive of inter-cellulose hydrogen bonding, yielding a densified final product. Similar to the case of solvent evaporation or air-drying, coagulation/cellulose regeneration techniques often result in significant shrinkage and loss of shape fidelity. Nevertheless, these examples highlight important fundamental principles and practical considerations that will help advance cellulose-based 3D printing technology development.

4.4. UV-Curing

UV-curing involves using UV light to promote polymerization, resulting in the crosslinking and solidification of the print structure. It is typically much faster than other post-processing methods and, if used as the printing method (i.e., VPP) instead of just post-processing, enables high-resolution printing [84]. In the examples discussed herein, the cellulose content of the formulations is derivatized cellulose (usually acrylated) to facilitate photopolymerization. Incorporating other photoactive/crosslinking additives may limit the sustainability and biocompatibility of the final prints, as common acrylic and epoxide resins are derived from fossil fuels and, depending on their composition, may be unsuitable for medical applications [82]. Cafiso et al. demonstrated the highly efficient use of UV-curing for DLP printing and post-curing with 12–15 s cures between layers and a 3 min post-cure while achieving a 27 µm print resolution (height ~1–2 cm) [39]. Achieving that resolution with a DIW printing method would take significantly longer for a part of even moderate size (i.e., printing with a 27 µm nozzle) and the resolution would likely not be retained due to the imperfect shape fidelity associated with other processing methods. Also, Chan et al. noted that continuous UV exposure during printing, and the associated quick crosslinking and gelation (layer cure time < 30 s), preserves the as-printed microstructure, enabling further structural control of the final print [40]. While there are a number of different tunable parameters, such as UV light intensity and energy, the curing environment may also play a role in the polymerization process. For example, Siqueira et al. performed UV-curing in a nitrogen atmosphere to avoid oxygen inhibition of the photo-induced polymerization reaction [66]. UV-curing requires careful feedstock preparation and, typically, a derivatization of the cellulose content, but allows for highly detailed, efficient printing.

5. Print Properties and Applications

Table 2. Aqueous cellulose suspension recipes and 3D printing applications.

Cellulose Content	Printing Method	Solidification Mechanism	Product/Proposed Use	Reference
CNC (15 wt%)	MEX	Freeze-Drying	Biocompatible porous structures	Jia et al. [65]
CNC (0.5–40 wt%)	MEX	Evaporation	Solid structures	Siqueira et al. [66]
CNC (11.8–30 wt%)	MEX	Freeze-Drying	Complex porous structures	Li et al. [67]
CNF (2.8 wt%)	MEX	Freeze-Drying/Oven	Highly deformable, shape recoverable, and functionalized solid objects	Li et al. [68]
CNC (1–5 wt%)	MJT	Evaporation	Oil/water separating membrane	Li et al. [69]
Enzymatically fibrillated CNC (15.5–25 wt%)	MEX	Evaporation	Objects with high mechanical properties	Klar et al. [70]
CNC/CNF (20 wt%/1 wt%)	MEX	Wet Densification	Objects with high mechanical properties	Hausmann et al. [71]

and

Table 3. Solubilized cellulose recipes and 3D printing applications.

Cellulose Content	Solvent 1	Printing Method	Solidification Mechanism	Product/Proposed Use	Reference
CA (25–35 wt%)	Acetone	MEX	Evaporation	Objects with high mechanical properties	Pattinson and Hart [35]
CA (30 wt%)	Acetic Acid	MEX	Evaporation	Rigid structures, refractive printing material (reflective beads)	Tenhunen et al. [36]
APC (80 wt%)	Acetone	MEX	Evaporation	Flexible structures, thermo-responsive designs	Tenhunen et al. [36]
CA (22 wt%)	Ethyl Acetate	MEX	Evaporation	Anti-fouling cellulose mesh for oil/water separation	Koh et al. [37]
HEC (10 wt%)	Water	Adapted MEX	Evaporation	Materials with stiffness gradients	Giachini et al. [38]
Acrylated-CMC (2 wt%)	Water, BAPO-OH (photoinitiator), Green Dye	VPP	UV-Curing	Hydrogels	Cafiso et al. [39]
Methacrylate- functionalized HPC (64–68 wt%)	Water	MEX	UV-Curing	Objects with structural colors	Chan et al. [40]
BC, Avicel, and Dissolving pulp (each 1–4 wt%)	EmimAc (≥90%)	MEX	Coagulation	Porous gel structures	Markstedt et al. [42]
MCC (1–4.8 wt%)	EmimAc (>95%), BmimAc (>95%); rheology modifiers: 1-butanol, DMSO	MJT	Coagulation	Droplets	Gunasekera et al. [43]
Dissolving Pulp (5 wt%)	NMMO (50 wt%)	MEX	Freeze-Drying	Objects with high mechanical properties	Li et al. [63]
Whatman TM #1 filter paper (1–6 wt%)	NaOH/Urea (7.0 wt%/12.0 wt%)	MEX	Coagulation/Freeze- Drying	Lightweight, strong, flexible honeycomb structure objects	Jiang et al. [64]

¹ Pure solvent, if not otherwise indicated.

summarize the feedstock formulations, processing methods, and target applications of selected demonstrations of all-cellulose 3D printing using suspension-based and solution-based feedstocks, respectively. Cellulose, as an additive manufacturing feedstock, is both highly processable and versatile, enabling the development of 3D printed objects with a wide range of properties and potential uses, with some examples highlighted in Figure 5. Notably, in contrast with traditional thermoplastic polymer feedstocks, print/processing methods and functionalization allow for the tunable control of print properties.

5.1. Robust and Tunable Mechanical Properties

Cellulose has excellent mechanical robustness at the macroscale as well as the nanoscale, with the Young’s moduli of various nanocrystalline cellulose morphologies (65–220 GPa) approaching those of Kevlar and carbon fiber [68]. For comparison, the reported tensile strength of cellulose nanopapers and cellulosic textile fibers (like cotton and rayon) range from 23 to 515 MPa [85] and from 300 to 700 MPa [86], respectively. Jiang et al. successfully fabricated a lightweight (90 mg/cm³) honeycomb structure that was able to withstand repeated elastic deformation in the wet state and showed enhanced rigidity in the dry state (compressive modulus of 16.6 MPa, σ_y = 597 kPa) such that it was able to support a 6.8 kg weight (over 15,800 times its own weight) without collapse or densification [64]. Li et al. achieved scaffolds with controlled porosity that also demonstrated mechanical robustness (tensile modulus: 160.6 MPa, compressive modulus: 12.9 MPa, breaking stress: 2.2 MPa, breaking strain: 1.63%) [63]. By taking advantage of the high cellulose content enabled by derivatization, CA parts were shown to have a tensile strength as high as 45 MPa [35].

By leveraging the shear thinning mechanism that allows for cellulose feedstock extrusion and post-processing techniques like freeze-drying, it is possible to control the microstructure and mechanical properties of printed parts to a much greater extent than with conventional thermoplastic feedstocks. With careful treatment (i.e., evaporation or freeze-drying), it is possible to preserve the shear-induced alignment of the cellulose particles in the as-printed feedstock, resulting in controlled anisotropy and directionally tuned mechanical properties [66]. Giachini et al. went so far as to gradually alter the feedstock composition (i.e., cellulose content and additives affecting gelation rate) and/or deposition rate as it passed through the dispenser during printing to guide final object deformation patterns via fabricated stiffness gradients [38]. This technique relies on the ability to tune feedstock formulation and would not be as compatible with thermal MEX. A number of researchers have also utilized freeze-drying in order to tailor material porosity towards scaffold and mesh filter applications [63,67,68]. Incorporating water into the print structures has also been shown to promote elastic deformability and shape-recovery properties by interfering with internal cellulose hydrogen bonding (compressive strain as high as 84.6% before densification) [64,68]. This process can also be reversed to regain strength and rigidity upon drying. By combining cellulose’s inherent mechanical properties with careful feedstock development and processing, all-cellulose 3D printing technology can yield finely controlled, mechanically robust products.

5.2. Objects with Tailored Functionality

Because of the highly reactive hydroxyl groups in the cellulose chemical structure, it can be chemically functionalized to achieve application-specific properties. Even without altering the chemical functionality of the cellulose component in a feedstock, it is possible to incorporate specific agents in the solution or suspension to achieve desired results. For example, Pattinson et al. added the antimicrobial species toluidine blue and rose bengal to a CA-based feedstock and found a statistically significant reduction in bacteria count on the print surface compared to untreated samples [35]. In another creative application, Chan et al. developed printed objects with manipulatable iridescent color arising from the thermotropic behavior of cholesteric HPC-based feedstocks [40]. Cafiso et al. sought to develop cellulosic hydrogels with improved mechanical properties, which necessitates an optimization of the degree of crosslinking—namely, increased crosslinking will promote improved mechanical rigidity, but will also limit water uptake, both parameters for hydrogels [39]. It is also often desirable for the swelling behavior of these hydrogels to be pH-sensitive for the development of biosensors and delayed drug release. By utilizing derivatized cellulose, the changing charges of pendant groups at different pH levels and the associated intermolecular electrostatic repulsion were leveraged to fabricate hydrogels whose swelling behavior varied with pH [39]. Jia et al. harnessed cellulose thermal stability to manufacture parts with thermal decomposition onsets of around 300 °C for use in flexible electronics applications [65]. By taking advantage of cellulose’s natural properties, or those achieved through derivatization, researchers have demonstrated the additive manufacturing of cellulosic objects with various tailored functionalities towards targeted applications.

6. Conclusions and Future Perspectives

Technologies in 3D printing are rapidly establishing footholds and increasing in presence across industries. These technologies have been particularly revolutionary in the medical field by improving customization capabilities for producing patient-specific items like medical tools and prosthetics [87]. Beyond healthcare, 3D printing has enhanced manufacturing in such diverse industries as aerospace, electronics, construction, packaging, textiles, and many more [4]. As these technologies are further integrated into industrial manufacturing supply chains, the market has grown and matured alongside an increased demand for technological development. In 2019 alone, over USD 1 billion was raised by start-ups and the expected total market value for 3D printing technologies is expected to reach approximately USD 44.5 billion by 2026 [47].

While, theoretically, additive manufacturing should have near-complete material efficiency, in practice this is often not the case, and reported life-cycle analyses highlight the complicated nature of comparing additive and conventional manufacturing [88,89,90]. Thus, as additive manufacturing plays an increasingly important role in the industrial manufacturing landscape, the printing materials it uses face increased scrutiny with respect to environmental impact and long-term sustainability [8]. As efforts to reduce petroleum use and minimize negative environmental impacts continue, bioderived materials represent an essential resource for more sustainable additive manufacturing feedstocks. The impact of 3D printing with biopolymers is well-studied and readily apparent in the medical field [91,92], and biopolymers also have great promise for their potential to enhance recyclability in industries such as automotive manufacturing [93] and textiles [94]. However, poly(lactic acid) (PLA) is the only currently commercially available bioderived filament. While it is well-suited for thermal MEX techniques due to its low glass transition and melt temperatures, and has promising biodegradability behavior under controlled conditions [2,86], it also exhibits low heat stability and high brittleness [5]. These properties limit its utility in many applications and, as a result, PLA is often matrixed into a composite with other materials to achieve improved thermal stability and mechanical properties [3]. To address these lingering deficiencies, other biobased materials, including alginate, silk fibroin, and cellulose, have been the subject of recent research as alternative feedstocks for 3D printing [5].

Cellulose is globally abundant and extremely processable for a wide range of applications, making it a critical feedstock for exploration. It is naturally produced by photosynthesis, thus consuming CO₂ from the atmosphere as part of a sustainable carbon cycle, which is urgently needed to support long-term greenhouse gas reductions and combat climate change [95]. Its thermomechanical properties are also especially attractive compared to other biobased alternatives. In fact, cellulose is regularly incorporated in these materials as a strengthening agent [96,97]. Furthermore, pure cellulose is the gold standard as a positive control for biodegradability testing [86]. The recent advancements in all-cellulose 3D printing feedstocks, printing methodologies, and post-printing solidification mechanisms to create printed objects with a wide array of tunable properties, as highlighted in this review, clearly demonstrate the potential of this technology and serve as benchmarks for further development. All-cellulose additive manufactured parts have been made at lab scale (up to ~3 cm in height) using an average printing speed of 10 mm/s, with a print resolution of up to 20–200 µm [39,43,66,67] depending on the print method, and have demonstrated physical properties ranging from strength (up to 45 MPa) and stiffness [35] or compressibility and shape recovery [68], to functionalities such as structural color [40], anti-microbial properties [35], and electrical insulation (<10⁻⁷ S/cm) [65].

By combining the inherent design and prototyping versatility of additive manufacturing, the chemical versatility and abundance of cellulosic materials, and the versatility of multi-step processing techniques, it will be possible to fabricate advanced, highly tailored engineering materials that can also be part of a low-environmental-impact circular economy. Future developments could include new crosslinking and photopolymerization technologies particularly suited to cellulose chemistry, solvent systems that balance the need for flow and rapid solidification, new colloidal and micro/nano cellulose formulations, mitigating the impact of light refraction due to particles in photopolymerizable suspensions, further exploration of cellulose’s functional potential across diverse applications, and increases in the size and robustness of printed objects either made of all-cellulose or in combination with other biobased feedstocks. It is evident that the choice of each step in the manufacturing process is critical for the final print properties, and this control and versatility will broaden the impact of cellulose as a biobased additive manufacturing feedstock towards increased industrial sustainability and advanced biocompatible devices.
