Pt-Promoted Tungsten Carbide Nanostructures on Mesoporous Pinewood-Derived Activated Carbon for Catalytic Oxidation of Formaldehyde at Low Temperatures

Abstract

Tungsten carbide (WC) nanostructures were prepared by carbothermal reduction (CR) of tungsten-impregnated pinewood-derived activated carbon (AC) at 1000 °C under an inert atmosphere. Brunauer-Emmet-Teller (BET) surface area, pore structures of the AC, and catalyst samples were evaluated by N₂ adsorption-desorption experiments. The structures of the catalysts were characterized using X-ray powder diffraction (XRD). The morphologies and particle structures of the synthesized WC nanoparticles were investigated by field emission scanning electron microscopy (FESEM) and high-resolution transmission electron microscopy (HRTEM). The WC/AC material was used as support of the platinum catalysts for catalytic oxidation of formaldehyde (HCHO) from interior sources. Pt-WC/AC catalysts with different platinum loadings were assessed for the catalytic oxidation of HCHO at low temperature. The catalytic performance was found to be significantly influenced by reaction temperature, initial formaldehyde concentration, relative humidity, and space velocity. The testing results demonstrated that HCHO can be totally oxidized by the 1 wt% Pt-WC/AC catalyst in the gas hourly space velocity (GHSV) = 50,000 h⁻¹ at 30 °C with a relative humidity (RH) of 40%.

1. Introduction

Formaldehyde (HCHO) is a colorless, flammable, strong-smelling organic compound [1,2] and is an important chemical feedstock as a precursor to many widely used materials and chemical compounds in manufactural industry [1,2]. Large quantities of formaldehyde (over millions of tons) are used each year in the production of household supplies, such as shampoo, lipstick, toothpaste, vaccines, disinfectants, paper product coatings, permanent-press clothing, and liquid coatings [1]. Formaldehyde is mainly used in the production of industrial resins [3], which are widely used in various materials for furniture manufacturing and the construction industry, including insulation materials, glues and adhesives, particleboards, plywoods, and fiberboards [4]. Due to its high volatility, significant amounts of formaldehyde are released into the air from furniture and building materials, with the pressed-wood products (particleboards, plywoods, and fiberboards) being the main sources of indoor air pollution [2,5]. HCHO is highly toxic to human beings and animals [1]. Long-term contact to formaldehyde, even at low levels of a few ppm, may cause people to suffer a variety of health problems such as stinging, coughing, hyperventilating, a sore throat, shortness of breath, headache, qualmishness, nasal tumors, eye and skin irritation, nasopharyngeal cancer, and even death [1,4,6]. Therefore, formaldehyde is one of the most toxic interior air contaminants [1].

Various techniques have been developed to remove HCHO from indoor air, including physical adsorption by porous adsorbent materials [7], chemical absorption [8], photocatalytic oxidation with ultraviolet (UV) irradiation [9], plasma degradation [10], and catalytic combustion [11]. However, these methods are restricted by limited adsorption capacity, require light sources or expensive plasma equipment with high energy consumption, etc. [12]. Researchers have recently paid more attention to complete catalytic oxidation to remove indoor HCHO pollution, thanks to its low reaction temperature and low energy consumption [13]. In this process, HCHO in the polluted air is catalytically oxidized to CO₂ and H₂O with the assistance of catalysts at room temperature. At ambient temperature, high activity catalysts are needed to completely convert the low concentration formaldehyde in indoor air.

Catalysts used in complete oxidation of HCHO at low temperature are classified into two groups: supported platinum-group metals (such as platinum, palladium, gold and silver) [14], and transitional metal oxides (such as CuO, MnO₂, and TiO₂, etc.) [14]. Supported Pt, Pd and Au catalysts exhibit superior catalytic performance for complete oxidation of HCHO at low temperature, compared to supported Ag catalysts and transitional metal oxide catalysts. Pt-based catalysts show the best catalytic performance for removal of HCHO at room temperature [13,15]. They demonstrate excellent catalytic activity and stability for HCHO removal from indoor air; however, their practical applications are limited due to the cost of noble metals [13,16]. Thus, it is necessary to develop catalysts that can efficiently oxidize HCHO in indoor air through a cost-effective approach. There are two strategies to prepare affordable HCHO oxidation catalysts: prepare noble metal-based catalysts with reduced Pt metal loading and develop non-noble metal catalysts. Researchers have made great efforts to explore transitional metal oxides as catalysts for the complete oxidation of HCHO. TiO₂, Fe₂O₃, ZrO₂, CoO, CeO₂, V₂O₅, MnO₂, hydroxyapatite, and H-TiO₂/H-C-TiO₂ are reported by different groups [13,14]; however, due to their limited catalytic activity and stability, development of affordable and high performance transitional metal oxide catalysts for HCHO removal at low temperature is still a challenge [13].

In the past decade, transition metal carbides, especially tungsten and molybdenum carbide, have been examined as catalysts for varieties of reactions [17]. These transitional metal carbides have demonstrated excellent activity, stability, and selectivity, comparable to the noble metal-based catalysts [18]. Tungsten carbide (WC) shows Pt-like catalytic activity in reactions, such as hydrocarbon reforming to syngas, water gas shift reaction, hydrogenation, desulfurization, CO₂ reduction, hydrocarbon isomerization, and electric oxidation of methanol [19]. Transitional metal carbides can either be directly used as catalysts or serve as supporters/promoters to the Pt-group catalysts [17]. Pt/WC catalysts were reported to double the activity for electrochemical oxidation of hydrogen, compared to a commercial Pt/C catalyst at room temperature [20].

The catalytic performance for complete oxidation of HCHO is mainly influenced by catalyst structure and composition as well as operational process variables [21]. These catalyst factors include their preparation method, active metals and metal loading of the catalyst, and the catalyst support. In this study, carbon tungsten nanostructures were prepared by carbothermal reduction (CR) of tungsten-impregnated wood-char. WC/wood-char material was used as support of the platinum catalysts for complete oxidation of formaldehyde from interior sources. The physicochemical properties of the synthesized tungsten carbide nanoparticles were characterized by physical N₂ adsorption, field emission scanning electron microscopy (FESEM), high-resolution transmission electron microscopy (HRTEM), and X-ray powder diffraction (XRD). The catalytic performance for complete oxidation of HCHO was examined under different process temperatures, formaldehyde concentrations, relative humidity, and velocity of the feeding gases.

2. Experimental

2.1. Wood-Derived Activated Carbon (AC) Preparation and Pretreatment

The AC materials used in this work were prepared from loblolly pine wood chips by CO₂ gasification process. For each CO₂ gasification run, 100 g of pine wood chips (1–2 mm) were loaded into a tubular reactor (2-inch O.D. 316 stainless steel). Argon (100 mL/min) and CO₂ (400 mL/min) were first introduced into the reactor for 30 min. The reactor was then heated at a rate of 20 °C/min to 800 °C and gasified at 800 °C for 0.5 h. The solid char yield was around 18–20%. The prepared wood char was sieved into the particle size range of 0.10–0.20 mm. To remove soluble inorganic ions and organic residue, the wood-char was heated in a 0.01 M HNO₃ solution at 80 °C for 2 h [22], then filtered and washed with hot deionized (DI) water three times. The washed pine wood char was then dried at 105 °C for 12 h. The treated wood char was denoted as AC and used as the catalyst support.

2.2. Preparation of AC Supported Tungsten Carbide

WC/AC was synthesized through a carbothermal reduction process [22]. WC/AC precursor is prepared using an incipient wetness impregnation method. A total of 32.4 g of ammonium metatungstate hydrate ((NH₄)₆H₂W₁₂O₄₀·xH₂O (Sigma-Aldrich, St. Louis, MO, USA) is dissolved in 50 mL DI water, and the solution is heated up to 80 °C and stirred for 30 min. The ammonium metatungstate solution is added slowly to the AC. The final mixture is stirred for 1 h, the mixture was kept in a hood at room temperature for 24 h, then dried in an oven at 110 °C for 24 h. The dried W-AC precursors were loaded into a 2-inch tubular reactor. The reactor was first purged with an argon (99.99%) flow (100 mL/min) for 0.5 h. The reactor was then heated to 1000 °C at a ramp rate of 3 °C/min under argon atmosphere and kept at 1000 °C for 2 h. The yield of the solid product was ~60.5%, and the carbonized material was denoted as WC/AC.

2.3. Preparation of Pt-WC/AC Catalysts

The WC/AC supported Pt (0.1–2.0 wt%) catalysts were prepared by the borohydride reduction method [23]. H₂PtCl₆ was first dissolved in an appropriate amount of DI water. WC/AC was then dispersed in H₂PtCl₆ solution with continuing stirring. The mixture of Pt salt and the WC/AC were reduced by using the required amount of sodium borohydride solution. The prepared Pt-WC/AC sample was washed with DI water then dried at 80 °C in an oven for 24 h. The bulk density of the prepared catalyst is ~0.83 g/mL.

2.4. Analysis and Characterization of Samples

The elemental compositions (C, H, and N) of the wood-char and catalyst samples were evaluated using an elemental analyzer (Perkin Elmer PE2400 series II, PerkinElmer, Billerica, MA, USA). Each run was repeated at least three times. Metal elemental analysis was conducted on an ICP Optical Emission Spectrometry system (Agilent 5800 ICP-OES Spectrometer, Santa Clara, CA, USA). The Pt/AC and Pt-WC/AC samples were first combusted in air, and the ash was collected and dissolved with an acid solution. The metal dissolved solution was then used for ICP-OES analysis.

Brunauer-Emmet-Teller (BET) surface area and pore structures of the wood char, WC/AC, Pt/AC and Pt-WC/AC samples were evaluated by N₂ physisorption experiments (Tristar II, Micromeritics, Norcross, GA, USA). Approximately 100 mg of solid samples were used for each analysis. These samples were first degassed at 300 °C for 12 h. The BET surface area of the samples was obtained from N₂ adsorption isotherms, and pore size distribution was obtained by the Dollimore-Heal (DH) theory. The total pore volume was estimated to be the liquid volume of nitrogen at a relative pressure of about 0.99. The average pore diameter was estimated from the surface area and total pore volume.

The FTIR spectra of raw wood char and nitric acid rinsed wood char samples were recorded with an ATR-FTIR spectrometer (Thermo Scientific, Nicolet iZ10, Thermo Fisher, Waltham, MA, USA) at a resolution of 4 cm⁻¹ for 64 scans in 500 to 4000 cm⁻¹ range.

Pt dispersion measurements were performed at room temperature by CO pulse chemisorption experiments using a micromeritics AutoChem II 2920 Chemisorption Analyzer (Micromeritics, Norcross, GA, USA) equipped with an on-line residue gas analyzer (RGA). Prior to measurements, 100 mg of the sample was reduced in a flow of hydrogen-argon mixture (4.7% H₂, 50 mL/min) at 300 °C for 2 h and purged with high purity argon (50 mL/min) for 1 h at the same temperature. CO chemisorption was performed by pulsing CO (using 5.1% CO in argon) at 30 °C. Saturation of CO chemisorption was reached when three consecutive CO peaks showed the same intensity. The dispersion of Pt was calculated from CO chemisorption (assuming Pt/CO = 1/1) using the equation of D_Pt = N_ads/N_t, where N_ads is the total number of CO molecules that were irreversibly chemisorbed over Pt catalyst, and Nt is the total number of Pt atoms in the test catalyst.

X-ray powder diffraction (XRD) data of the WC/AC, Pt/AC and Pt-WC/AC samples were collected using a Rigaku Ultima III X-ray Diffraction System [22]. The average size of tungsten carbide particles was calculated using the Scherrer equation [22].

The morphologies of the WC/AC, and Pt-WC/AC samples were investigated using a field emission scanning electron microscope (FESEM, JEOL JSM-6500F). The particle size and structures of tungsten carbide in WC/AC and Pt-WC/AC was studied using high resolution transmission electron microscopy (HRTEM, JEOL, JEM-2100).

2.5. Evaluation of Catalytic Performance

The complete oxidation of HCHO over different catalysts was investigated over a tubular (o.d. = 0.25 in., stainless steel) fixed bed reactor mounted in a split tubular furnace under atmospheric pressure. 0.2 g (~0.24 mL) of catalyst sample was loaded into the reactor for each run. The catalysts were first loaded into the reactor and a thermocouple was inserted in the middle of the catalyst bed. Before catalytic conversion, the fresh catalyst was reduced in a 5% H₂ in argon flow at 350 °C for 2 h under atmospheric pressure, followed by reduction in temperature to room temperature. The catalytic performance of each catalyst was evaluated at temperatures ranging from room temperature to 50 °C. HCHO in gas phase was generated by passing an Ar-O₂ (20% O₂) flow through an HCHO solution in an incubator. The total flow rate was fixed at 200 mL/min. The influence of moisture on the catalytic performance of 1.0 wt% Pt-WC/AC catalyst for complete oxidation of HCHO was investigated at 3 °C, with RH levels of 0%, 20%, 40%, and 60%; HCHO initial concentration of 200 ppm; and GHSV of 50,000 h⁻¹. To study the effect of GHSVs on catalyst performance at room temperature, different amounts (0.2 g, 0.1 g and 0.05 g) of catalysts were used to control GHSV of 50,000 h⁻¹, 100,000 h⁻¹, and 200,000 h⁻¹, with an initial HCHO concentration of 100 ppm using feed gas with 50% RH.

Products and reactants analysis was conducted using an on-line gas chromatograph equipped with a thermal conductivity detector (TCD) and a flame ionization detector (FID) (Shimadzu GC-2014-C). A Polyarc reactor (a Ni catalyst convertor) was installed to methanate carbon dioxide before the FID detector. CO₂ was the only product detected in the outlet flow; no CO or other products were observed. HCHO was completely oxidized to carbon dioxide and water (HCHO + O₂ → CO₂ + H₂O). The HCHO conversion rate is calculated as follows: [HCHO]_converted = [HCHO]_inlet − [HCHO]_outlet = [CO₂]_produced = [CO₂]_outlet − [CO₂]_inlet, where [CO₂]_inlet = 0. Therefore, the HCHO conversion rate can be calculated as [CO₂]_outlet/[HCHO]_inlet. A calibrated curve was made by measuring gas samples with different CO₂ concentrations. The converted HCHO was obtained through the calibrated CO₂ curve. HCHO conversion rate was calculated by the equation:

$$\mathrm{H}\mathrm{C}\mathrm{H}\mathrm{O} \mathrm{c}\mathrm{o}\mathrm{n}\mathrm{v}\mathrm{e}\mathrm{r}\mathrm{s}\mathrm{i}\mathrm{o}\mathrm{n} (\%)=\frac{{\left[\mathrm{H}\mathrm{C}\mathrm{H}\mathrm{O}\right]}_{\mathrm{i}\mathrm{n}\mathrm{l}\mathrm{e}\mathrm{t}}-{\left[\mathrm{H}\mathrm{C}\mathrm{H}\mathrm{O}\right]}_{\mathrm{o}\mathrm{u}\mathrm{t}\mathrm{l}\mathrm{e}\mathrm{t}}}{{\left[\mathrm{H}\mathrm{C}\mathrm{H}\mathrm{O}\right]}_{\mathrm{i}\mathrm{n}\mathrm{l}\mathrm{e}\mathrm{t}}}\times 100\%=\frac{{\left[{\mathrm{C}\mathrm{O}}_2\right]}_{\mathrm{o}\mathrm{u}\mathrm{t}\mathrm{l}\mathrm{e}\mathrm{t}}}{{\left[\mathrm{H}\mathrm{C}\mathrm{H}\mathrm{O}\right]}_{\mathrm{i}\mathrm{n}\mathrm{l}\mathrm{e}\mathrm{t}}}\times 100\%$$

where [HCHO]_inlet and [CO₂]_outlet is the HCHO concentration in the inlet gas flow and the CO₂ concentration in the outlet gas flow, respectively.

In addition to the HCHO conversion rate, the turnover frequency (TOF) (i.e., number of molecules reacted per Pt surface atom) at room temperature was also used to evaluate the catalytic activities. The turnover frequency (TOF) was calculated as follows: TOF = the amount of products (mol)/(the amount of catalyst active sites × time (min)). HCHO conversion rates in the first 30 min were for the calculation of TOF.

3. Results and Discussion

3.1. Catalyst Analysis and Characterization

FTIR and TPD Analysis of AC Samples

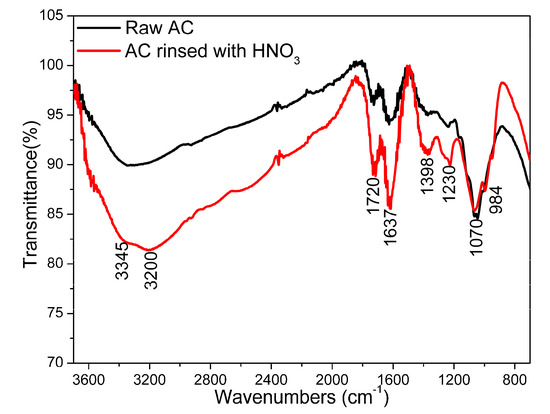

FTIR was used to identify the functional groups in wood-derived AC samples (Figure 1). The FTIR band at 3345 cm⁻¹ on the raw and HNO₃ solution rinsed activated carbon are attributed to the -OH stretch vibrations. Other FTIR bands are identified as follows: C=O stretching vibrations (1720 cm⁻¹), C=O stretching (1637 cm⁻¹), C=O and C-O of carboxylic groups (1395 cm⁻¹), O-C-O vibrations (1230 cm⁻¹), C-O vibrations (1070 cm⁻¹), and -OH bending (984 cm⁻¹). The intensities of the FTIR bands are significantly enhanced, indicating that the numbers of oxygen groups are increased after rinsing by the nitric acid solution. There is a new strong FTIR band at 3200 cm⁻¹ for the acid-rinsed sample, which can be assigned to O-H stretching of hydroxyl groups in carboxylic acid groups. This means nitric acid rinsing promotes the formation of oxygen-containing functional groups on the surface of ACs.

FTIR results showed oxygen containing functional groups in wood-derived AC samples. These oxygen containing groups will decompose to CO₂, H₂O, and CO at elevated temperature. Temperature programmed desorption (TPD) analyses (Figure 2) were performed on raw AC and acid rinsed sample. The TPD results showed H₂O and CO were the main desorption products of the raw AC (Figure 2a), while the oxygen groups were decomposed to CO₂, H₂O, and CO, and more gaseous products were generated from the rinsed sample during TPD process (Figure 2b).

3.2. Elemental Analysis

Table 1. Summary of weight percentages (wt%) of C, H, N, O, W and Pt in raw wood-char, acid treated wood-char, 1000 °C carbonized wood-char, WC/AC, 1 wt% Pt-WC/AC, and 1 wt% Pt/AC.

Sample	Raw Wood-Char	Acid Treated Wood-Char	Wood Char- 1000 °C	WC/AC	1 wt% Pt-WC/AC	1 wt% Pt/AC
C (wt%)a	88.9 ± 0.7	85.3 ± 0.8	92.5 ± 0.5	68.3 ± 0.4	67.6 ± 0.3	91.2 ± 0.5
H (wt%)a	1.8 ± 0.2	2.0 ± 0.3	0.5 ± 0.1	0.3 ± 0.1	0.4 ± 0.05	0.4 ± 0.08
O (wt%)c	9.2 ± 0.5	12.5 ± 0.6	7.0 ± 0.5	0.9 ± 0.3	0.9 ± 0.3	7.4 ± 0.4
N (wt%)a	0.1 ± 0.05	0.1 ± 0.03	–	–	–	–
W (wt%)b	–	–	–	30.5 ± 0.3	30.1 ± 0.7	–
Pt (wt%)b	–	–	–	–	0.99 ± 0.05	1.02 ± 0.03

^a. Measured with an elemental analyzer; ^b. Measured with ICP-OES; ^c. Calculated by difference.

summarizes the C-H-N-O, W, and Pt elemental analysis of raw AC, acid treated AC, AC-1000 °C, WC/AC, Pt/AC, and Pt-WC/AC.

Surface Area and Porosity of the AC Supported Catalysts

To explore changes in surface area and porosity properties caused by the activation process and loaded metal particles, the surface area and pore structures of the samples were measured by N₂ physisorption method and the results were listed in

Table 2. Surface area, pore volume and average pore diameter of raw wood-char, acid treated wood-char, wood-char-1000 °C, WC/AC, Pt/AC, and Pt-WC/AC samples.

Sample	BET Surface Area (m2/g)	Pore Volume (cm3/g)	Average Pore Diameter (nm)
Raw AC	602	0.53	4.89
Acid Treated AC	655	0.62	5.37
AC Thermal Treated at 1000°C	703	0.73	7.39
WC/AC	351	0.27	8.05
0.1 wt% Pt-WC/AC	307	0.25	8.11
0.2 wt% Pt-WC/AC	298	0.25	8.1
0.5 wt% Pt-WC/AC	285	0.23	8.15
1.0 wt% Pt-WC/AC	273	0.22	8.25
2.0 wt% Pt-WC/AC	270	0.20	8.28
1.0 wt% Pt/AC	638	0.66	7.5

. The BET surface areas for raw AC, acid treated AC, AC-1000 °C, WC/AC, and 1 wt% Pt/AC were found to be 602 m²/g, 655 m²/g, 703 m²/g, 351 m²/g, and 638 m²/g, while the BET surface areas for WC/AC with Pt loadings ranging from 0.1 to 2.0 wt% were 307 m²/g, 298 m²/g, 285 m²/g, 273 m²/g, and 270 m²/g, respectively. Figure S1 depicts nitrogen adsorption/desorption isotherm and DH pore size distributions of the tested samples. The results in Figure S1 indicate the pore size in the samples is mainly distributed between 4–8 nm, meaning surface area and pore volumes are mainly contributed by mesoporous structures in current work. The surface area of the WC/AC sample is smaller than that of wood-char due to etching of pore structures in the wood char by tungsten oxides during the carbothermal reduction process. This etching results in enlarged and collapsed pores and decreased pore surface area, which, in turn, decreases pore surface area and pore volume of WC/AC. For the Pt-WC/AC samples, the surface area decreased with the increase of Pt loading. The decreasing of surface area should be attributed to the blocking of the pore openings by Pt nanoparticles during Pt reduction and nanoparticle deposition process. Metal deposition onto porous supports usually causes a drop in the surface area, because the deposited metal nanoparticles physically block both the outer surface and the openings of pore structures [24].

3.3. X-ray Diffraction (XRD)

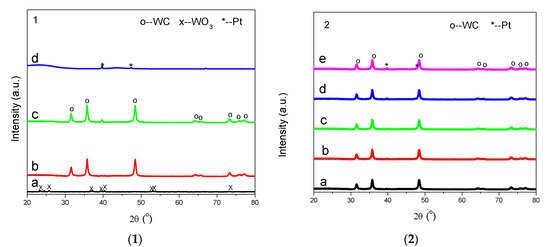

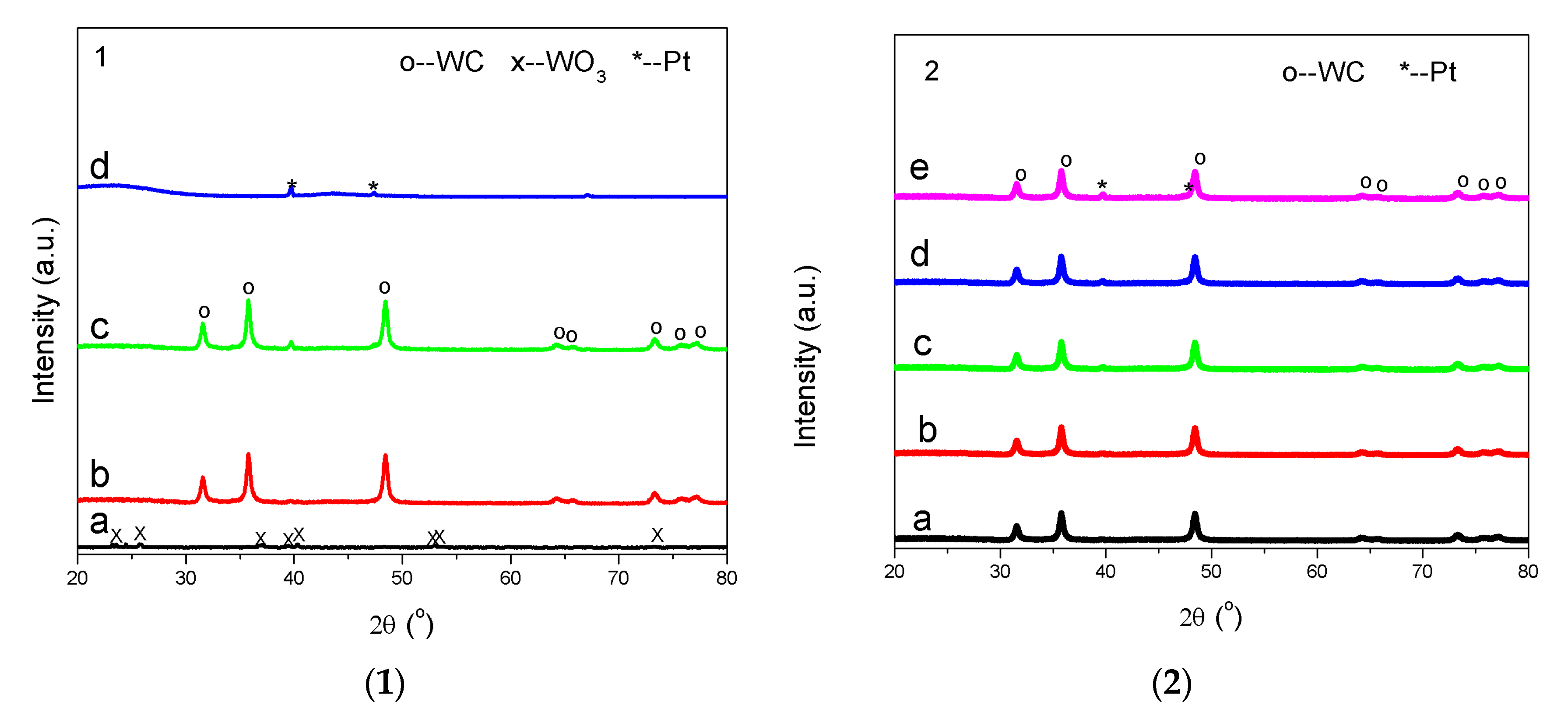

Figure 3 plots the XRD patterns of the calcined W/AC at 300 °C, WC/AC, 1 wt% Pt-WC/AC, and 5 wt% Pt/AC samples. WO₃ (JCPDS no. 72-0677) was formed in the calcined W/AC at 300 °C (Figure 3-1a). Figure 3(1)b shows the XRD pattern of the prepared WC/AC sample with diffraction peaks at 2θ of 31.49, 35.62, 48.28, 64.21, 73.09, and 77.12 and d values of 2.8435, 2.5165, 1.8815, 1.4529, 1.2930, and 1.2355. These diffraction peaks are assigned to tungsten carbide (WC), and correspond to the lattice planes of (0 0 1), (1 0 0), (1 0 1), (1 1 0), (1 1 1), and (1 0 2). Figure 3(1)c demonstrates the XRD pattern of 1 wt% Pt-WC/AC where only the diffraction peaks of WC were discovered. No obvious Pt diffraction peaks were observed, because the Pt content was too low to detect. X-ray diffraction patterns of 5 wt% Pt/AC are shown in Figure 3(1)d, where two weak diffraction peaks at 39.81 and 46.21 are exhibited, corresponding to the (111) and (200) planes of Pt. The Pt nanoparticle size is calculated as 7.9 nm.

Figure 3(2) illustrates the XRD patterns of the Pt-WC/AC samples. Similar to Figure 3(1)c (1.0 wt% Pt-WC/AC), where only WC diffraction peaks were observed, no Pt diffraction peaks were measured for the 0.1, 0.2, 0.5 and 2.0 wt% Pt-WC/AC samples. Pt peaks did not appear because of the small amount of Pt present. Both the Pt and WC diffraction peaks were detected in the 5% Pt-WC/AC sample (Figure 3(2)e).

3.4. Field Emission Scanning Electron Microscope (FESEM)

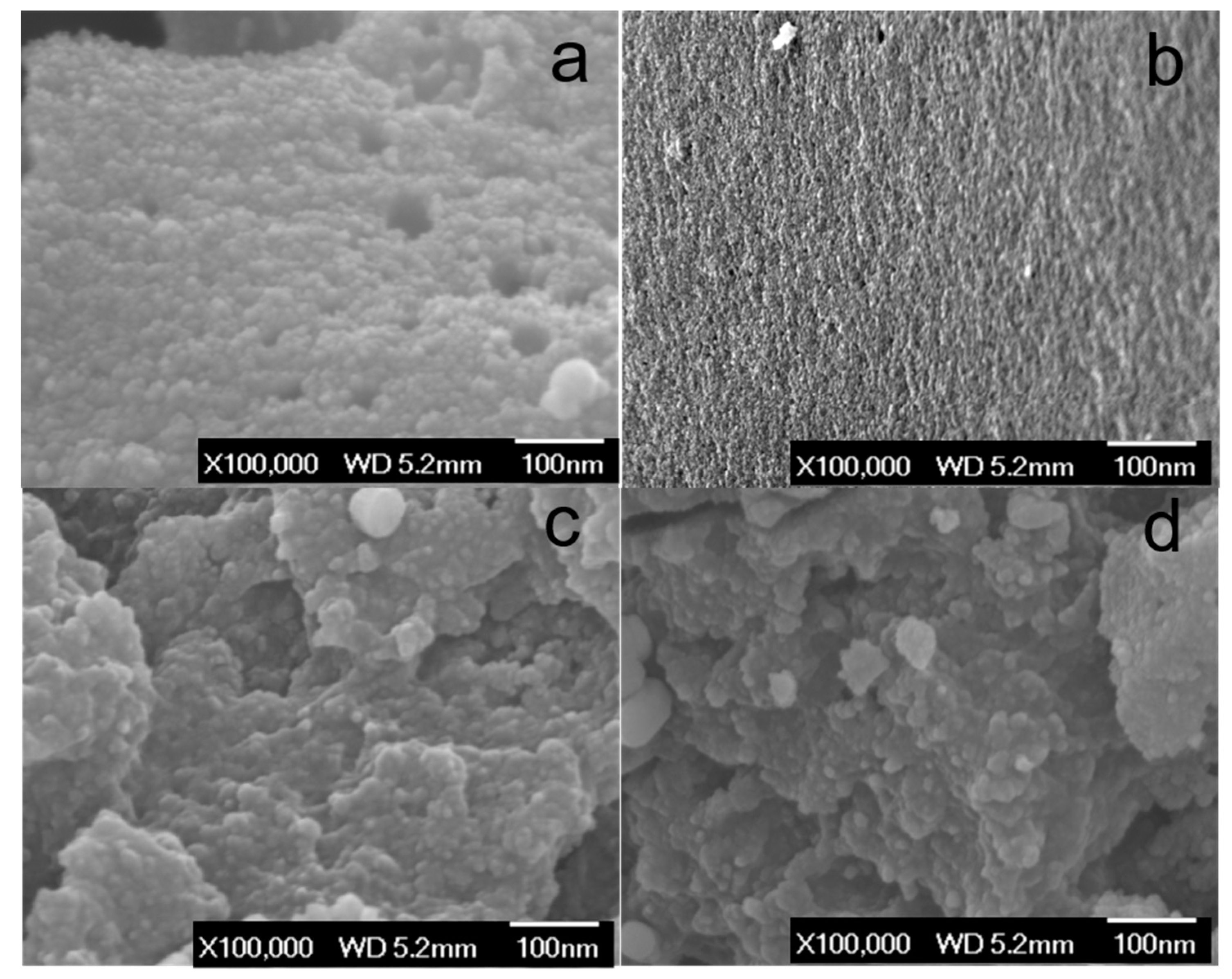

Figure 4 shows the morphology of AC (a), AC-1000 °C (b), WC/AC (c), and 1 wt% Pt-WC/AC (d). SEM image (Figure 4a) show the morphology of the solid char of pine wood chips gasified at 800 °C under CO₂ atmosphere; its porous surface is contributed by the etching process by CO₂ at high temperature. The AC-1000 °C became highly porous, with more pores and channels formed in the char after being carbonized at 1000 °C (Figure 4b). Original AC structure seemed to disappear in the WC/AC sample (Figure 4c), because the AC structure was demolished by the carbothermal reduction reaction between AC and tungsten oxides at high temperature [22]. The wall surface of the AC was embedded with nanoparticles ranging between 3 and 10 nm in diameter (Figure 4c), which, according to XRD results, means that these nanoparticles should be tungsten carbide structures. There is no significant change on surface morphology after loading 1.0%Pt to the WC/AC sample (Figure 4d).

3.5. High Resolution Transmission Electron Microscopy (HRTEM)

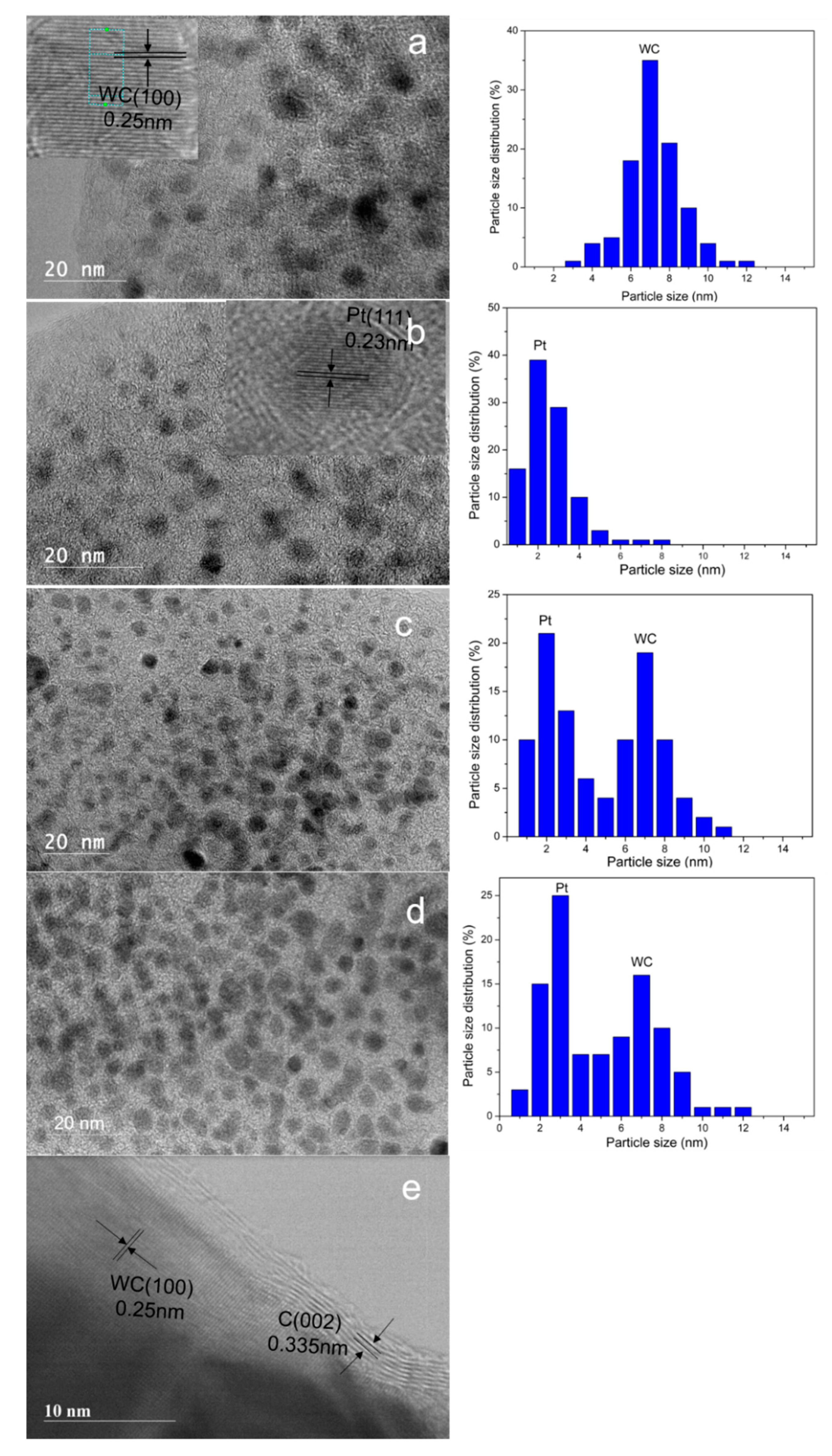

Figure 5a illustrates the classic HRTEM image of the WC/AC sample. The image indicates the tungsten carbides prepared by the CR method are nanoparticles averaging 8 nm in diameter. Figure 5a shows HRTEM micrographs of hexagonal WC, with the d-spacing values of 0.25 nm corresponding to the (100) lattice plane. Figure 5b is the HRTEM image of 1% Pt/AC, showing that the Pt particles deposited on AC are formed as uniform nanoparticles with particle size of about 3 nm. The lattice planes of Pt (111) can be clearly observed. Figure 5c,d show HRTEM images of 1 wt% Pt-WC/AC and 2 wt% Pt-WC/AC samples, respectively. WC nanostructures have particle size of about 7–8 nm. Smaller particles surrounding WC grains can be assigned as Pt particles. These Pt nanoparticles in Pt-WC/AC catalyst have an average size range of 2–3 nm. Figure 5e shows WC particles encapsulated with 3–5 layers of graphene. The outer graphene layers should be formed during the CR process, which can prevent the sintering or agglomeration of WC particles and promote the dispersion of WC in the AC matrix. Comparing Figure 5b,c, the existence of WC nanoparticles seems to promote the dispersion of Pt nanoparticles on AC.

Particle size distributions were obtained by counting 200 particles selected from random regions of HRTEM vision. The distributions of Pt and WC particle sizes for WC/AC, 1% Pt/AC, 1% Pt-WC/AC, and 2% Pt-WC/AC catalysts are also depicted in Figure 5. The mean size of WC particles in WC/AC is ~7.2 nm and the mean size of Pt particles in 1% Pt/AC is 2.6 nm. The mean sizes of Pt and WC particles in 1% Pt-WC/AC is 2.2 nm, and 7.2 nm, respectively, while the mean sizes of Pt and WC particles in 2% Pt-WC/AC catalyst are 3.2 nm and 7.1 nm, respectively. Pt nanoparticles on 2% Pt-WC/AC sample seem to agglomerate a little bit compared to 1% Pt-WC/AC sample (Figure 5d).

3.6. CO Chemisorption

The amounts of CO uptake by the catalyst samples were 11.2, 19.1, and 31.6 µmol/g for the 0.5%, 1.0%, and 2.0% Pt-WC/AC samples. As a result, the dispersion of Pt was calculated as 43.8%, 37.3%, and 30.8% for the 0.5%, 1.0%, and 2.0% Pt-WC/AC samples, respectively. The dispersion of Pt in 1% Pt/AC was also measured, and the calculated Pt dispersion was 35.3% from the amount of CO uptake (18.1 µmol/g). CO chemisorption results agree with HRTEM that the presence of WC nanostructures might enhance the dispersion of Pt on AC surface.

3.7. Test of Complete Oxidation of HCHO

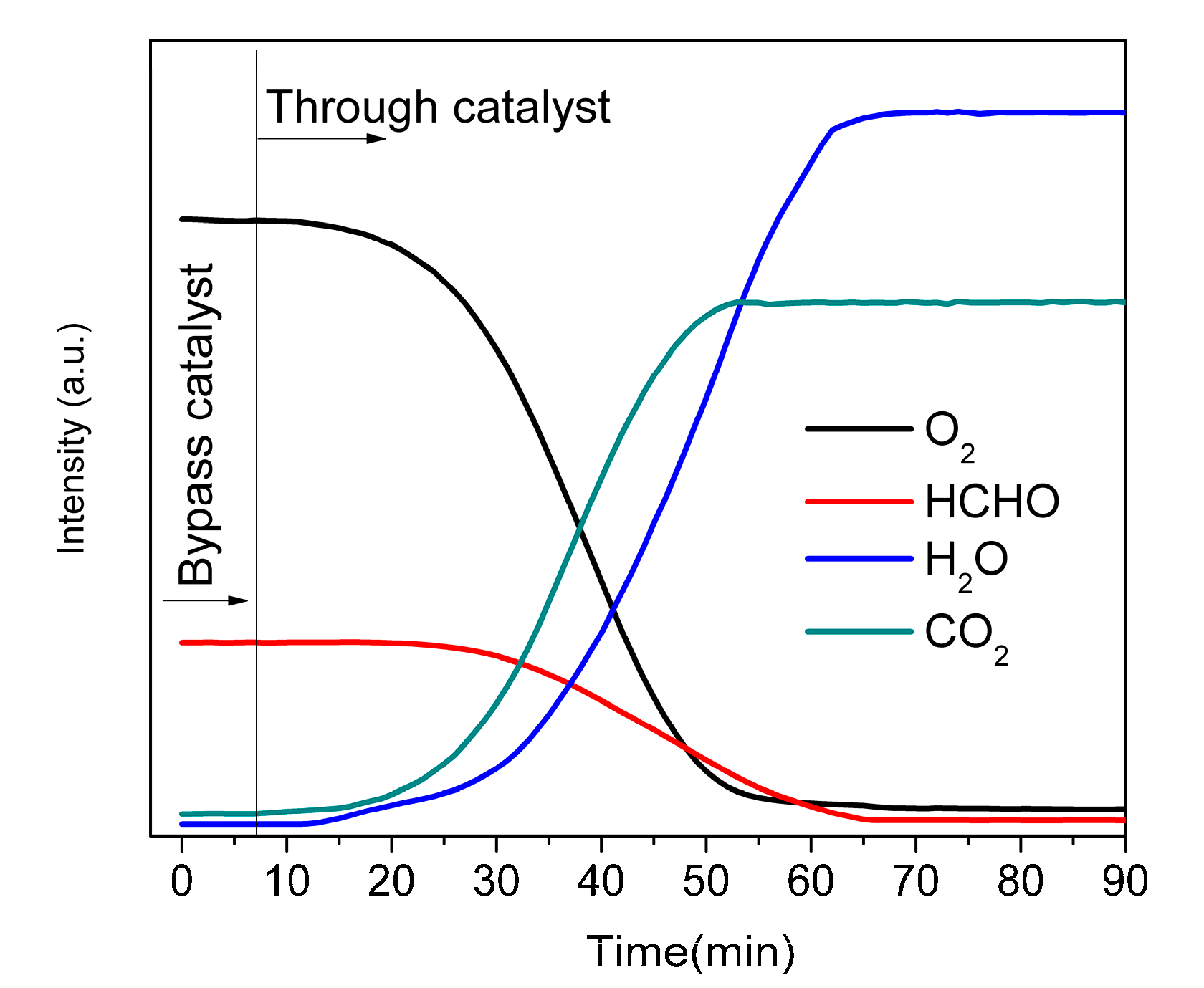

Figure 6 shows the effluent gases (inlet gas composition: 400 ppm HCHO, 20% O₂, and Ar) analyzed by an on-line residual gas analyzer (RGA), after switching the reaction gases from the bypass flow to the catalyst bed. The reaction was carried out at room temperature with GHSV = 50,000 h⁻¹. After switching the reaction gases from the bypass flow to the reactor loaded with the catalyst sample (1.0 wt% Pt-WC/AC), the concentration of HCHO (m/z = 30) decreased steadily to a low level, while intensities of the reaction products, CO₂ and H₂O, increased gradually and reached a steady level after one hour. No CO and formate was detected in in the vent gas by RGA, which implies that HCHO was completely oxidized to CO₂ and H₂O.

As reported in the previous works [25,26,27,28,29,30,31], the activity and stability of catalysts for HCHO oxidation is significantly influenced by experimental conditions, including reaction temperature, initial formaldehyde concentration, relative humidity (RH), and GHSV.

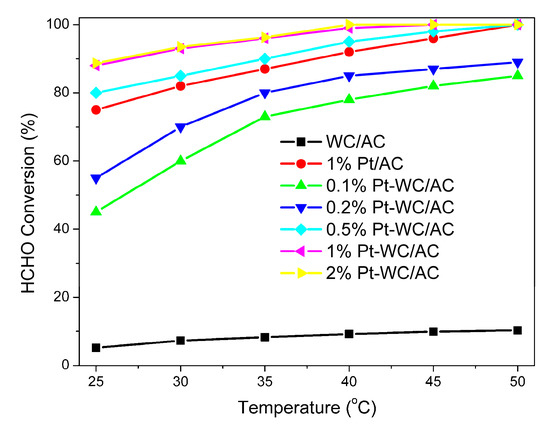

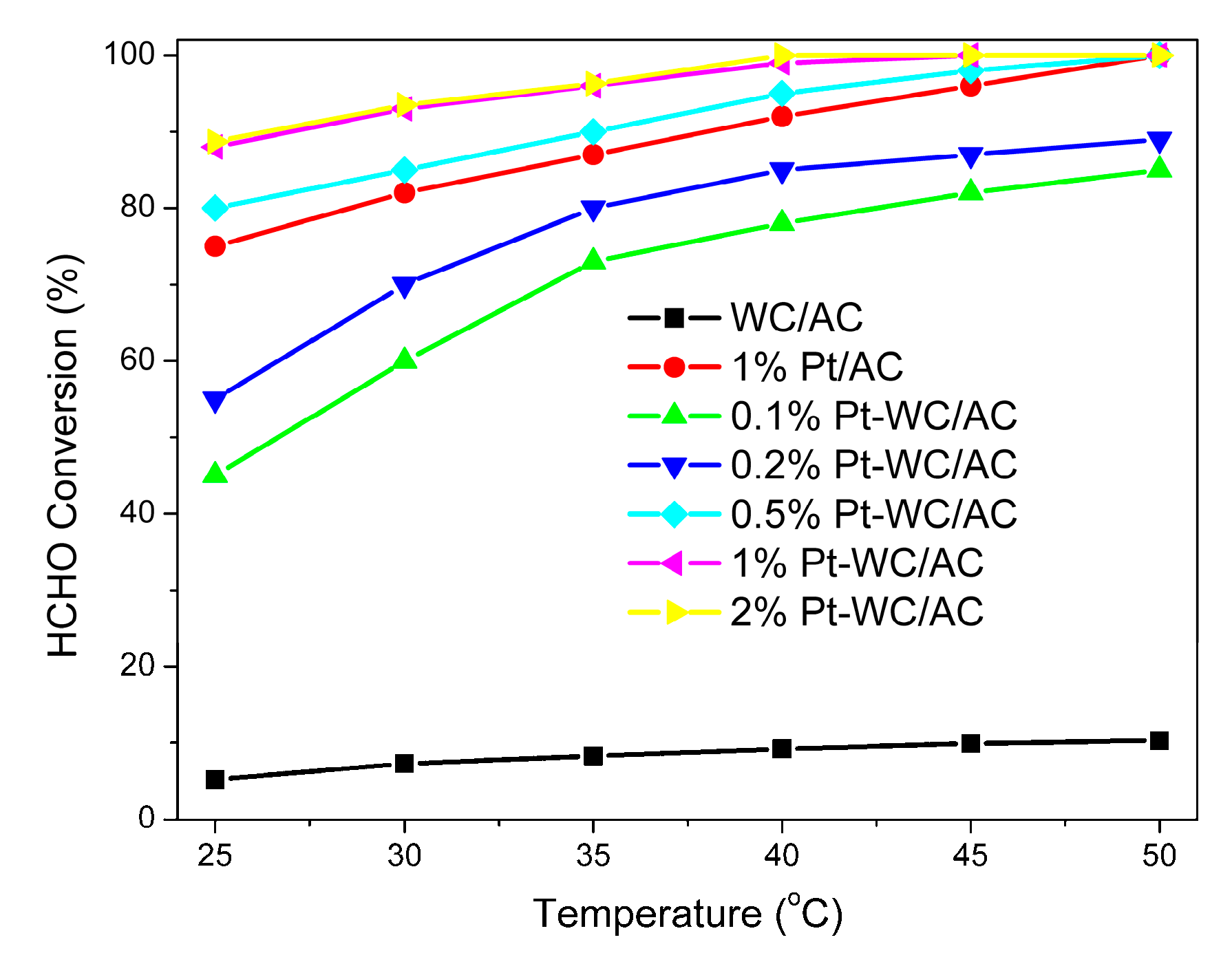

The effects of reaction temperature on catalyst activity of WC/AC, Pt/AC, and Pt-WC/AC in catalytic oxidation of HCHO occur between 25 and 50 °C. Figure 7 presents the HCHO conversion rates changing with reaction temperature over the WC/AC, Pt/AC, and Pt-WC/AC catalysts at a GHSV of 50,000 h⁻¹, with the initial HCHO concentration of 100 ppm. As expected, the lower reaction temperature resulted in lower formaldehyde conversions. Low HCHO conversion at low temperature was noted for all the catalysts used in the process and the HCHO conversion rates were significantly different over various catalysts; the HCHO conversion rates decreased in the order of 1% Pt-WC/AC > 1% Pt/AC > WC/AC. The 1% Pt-WC/AC catalyst showed the highest activity at each testing temperature and reached 100% conversion rate at 45 °C. The WC/AC sample exhibited much lower activity, and the removal of HCHO at low levels over pure WC/AC was mainly attributed to the adsorption by AC support [25]. With the addition of Pt to WC/AC, the catalytic performance was dramatically increased, due to excellent Pt activation ability toward oxygen.

3.7.1. Effect of Pt Loading

The active metal loading plays a key role in the catalytic performance of supported catalysts [13]. The WC/AC samples with different Pt loading were prepared and tested for complete oxidation of HCHO, and their activities are shown in Figure 7. The HCHO conversion rate over Pt-WC/AC catalysts was found to increase with increasing Pt loading in the range of 0.1–1.0 wt%. The activity of metal catalyst usually increases with increased loading in the low content level, since the active sites in the catalyst increase with increased metal loading [31]; however, an additional increase in the metal loading may not further increase the HCHO conversion rate. When the metal loading surpasses a specific value, further increasing of the metal content does not increase the number of active sites due to agglomeration and sintering of metal particles, resulting in reduced catalyst stability. Peng et al. [26] found that the optimized Pt loading in Pt/TiO₂ was 0.6 wt% for complete oxidation of HCHO at room temperature, while Nie et al. [27] reported the ideal Pt loading was 1.0 wt% and 0.013 wt% in Pt/TiO₂ and Pt/honeycomb ceramics, respectively. In the current work, the catalytic performance does not noticeably change when the Pt loading reaches 2.0 wt%; therefore, the optimal Pt loading is 1.0 wt% among the prepared catalysts. The calculated turnover frequencies (TOFs) for catalytic oxidation of HCHO at room temperature were 0.34, 0.23, and 0.13 min⁻¹ for 0.5% Pt-WC/AC, 1% Pt-WC/AC, and 2.0% Pt-WC/AC, respectively. The TOF for 1%Pt/AC was calculated as 0.18 min⁻¹. The HCHO removal rates and TOF results obtained for Pt-WC/AC catalysts indicate that the WC nanostructure promotes the catalytic removal of HCHO and the optimized Pt loading is around 1 wt% for the Pt-WC/AC catalysts.

3.7.2. Effect of Relative Humidity on Catalytic Oxidation of HCHO

Indoor air contains significant levels of moisture, and H₂O molecules are frequently competing with reactants to adsorb on the active centers of catalysts in some gas-solid reaction cases [28,29]. It is useful to examine the impact of moisture on catalytic performance of a catalyst for complete oxidation of HCHO at low temperature. Previous studies have proven that the existence of certain levels of moisture can boost the complete oxidation of HCHO at low temperature [30,31]. Wang et al. [30] investigated the influence of moisture on the catalytic performance of Mn_0.75Co_2.25O₄ catalyst for HCHO and CO oxidation and observed increased activity for HCHO oxidation with an increase of RH, whereas CO oxidation activity was greatly decreased. Chen et al. [31] found the conversion rate was increased with the existence of moisture for complete oxidation of HCHO over Au/CeO₂ at room temperature. An et al. [32] reported that moisture had a positive effect on the formaldehyde conversion from ~85% to 100% over Pt/Fe₂O₃-300 catalyst at room temperature. Kwon et al. [33] investigated the effect of relative humidity on catalytic oxidation of HCHO over Pt/TiO₂ catalysts, and it was observed that moisture could enhance the complete oxidation of formaldehyde at room temperature. Zhao et al. [34] reported the enhanced effect of moisture on the ozone catalytic oxidation (OZCO) of formaldehyde over MnO_x catalysts.

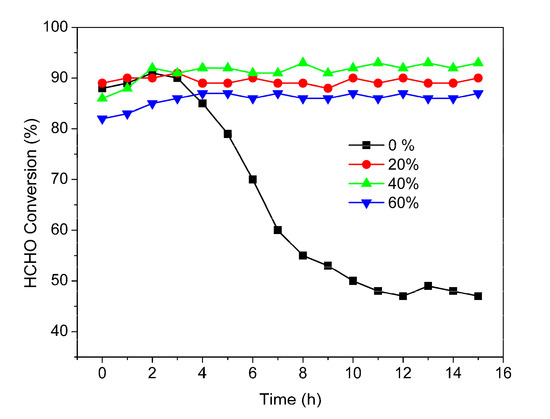

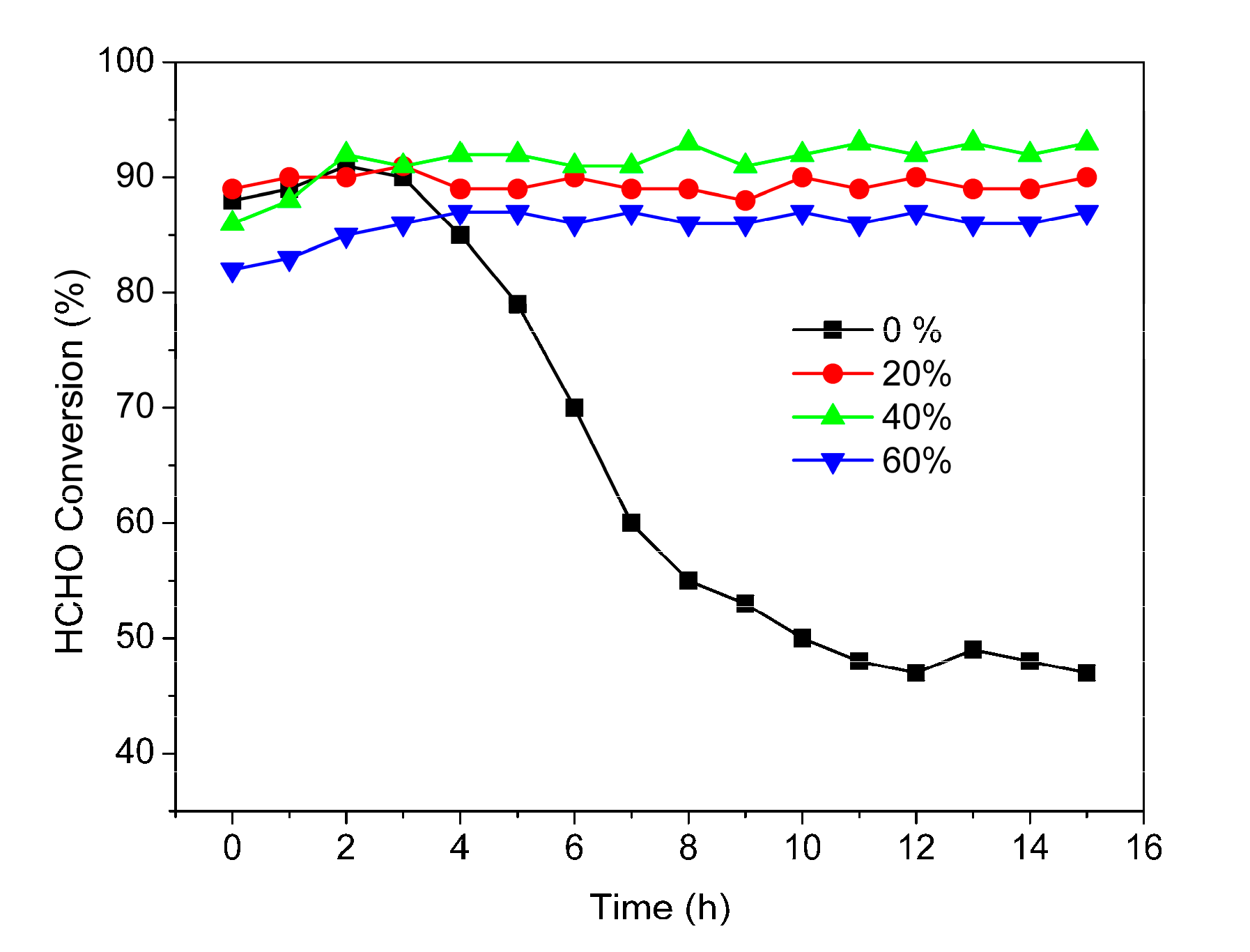

The influence of moisture on the catalytic performance of 1.0 wt% Pt-WC/AC catalyst for the complete oxidation of HCHO was investigated at 30 °C, with RH levels of 0%, 20%, 40%, and 60%, and the results are plotted in Figure 8. The 1% Pt-WC/AC exhibits different activity and stability depending on RH level. In the dry stream, HCHO conversion increased slowly in the first 2 h running, then decreased gradually with time on stream (TOS); the HCHO conversion rate decreased to below 50% after 10 h running. For the humidified stream, the HCHO removal efficiency decreases in the order of 40% > 20% > 60%. The HCHO conversion rate was significantly improved by moisture up to 50% RH. Over 91% The HCHO conversion rate was achieved at 40% RH, while only 46.7% HCHO was converted at 0% humidity after 10 h TOS.

Three reaction models have been studied for complete oxidation of formaldehyde through the gas-solid reaction process [35,36,37]: (i) the Langmuir-Hinshelwood (L-H) mechanism: this reaction process assumes a surface reaction between the adsorbed HCHO molecules and the adsorbed oxygen on active sites of metal catalysts [38,39]; (ii) the Eley-Rideal (E-R) reaction model: this model proposes a reaction between adsorbed oxygen molecules and HCHO molecules from the gas phase [40]; and (iii) the Mars-Van Krevelen (MVK) reaction model: this process proposes an oxidative-reductive reaction of a HCHO molecule and oxygen on different reactive sites [35,38,41]. The MVK model has been extensively used to study complete oxidation of organic compounds over noble metal catalysts [42] and the mechanism has been proposed for formaldehyde oxidation over Pt/TiO₂ catalyst by Zhang et al. [43] using the in situ DRIFTS experiment method. HCHO in air is first adsorbed onto the Pt active sites and reacts with surface OH to form an intermediate dioxymethylene (DOM) [44]. O₂ molecules then dissociative adsorb onto the Pt active sites and split into atomic oxygen species. Consequently, the intermediate DOM is converted to formate species, which are further oxidized to CO and H₂O·H₂O is desorbed from active sites and the adsorbed CO is oxidized by nearby adsorbed atomic oxygen to CO₂, which is quickly desorbed from the catalyst surface and diffuses into the gaseous phase. Several previous works reported that hydroxyl groups serve an important role in maintaining the excellent performance of the catalysts for HCHO oxidation. Surface hydroxyls or oxygen atoms could promote the conversion of HCHO into formate. Adsorbed formate is consequently oxidized to CO₂ and H₂O by the adsorbed surface –OH. The hydroxyl groups adsorbed on the active sites could be created from moisture or recovered by oxygen molecules. Therefore, the moisture in reactant effluent can be adsorbed onto surface active sites and create surface hydroxyl groups, which promote the oxidation of HCHO. It is also noticed that the 1% Pt-WC/AC catalyst demonstrates better activity than the 1% Pt/AC catalyst (Figure 7), which might be due to the interaction between WC and moisture. Tungsten carbide can activate water and form surface hydroxyl groups easily at low temperature, as proven by Zellner and Chen [45] on a single crystal WC surface.

Three reaction models have been studied for complete oxidation of formaldehyde through the gas-solid reaction process [35,36,37]: (i) the Langmuir-Hinshelwood (L-H) mechanism: this reaction process assumes a surface reaction between the adsorbed HCHO molecules and the adsorbed oxygen on active sites of metal catalysts [38,39]; (ii) the Eley-Rideal (E-R) reaction model: this model proposes a reaction between adsorbed oxygen molecules and HCHO molecules from the gas phase [40]; and (iii) the Mars-Van Krevelen (MVK) reaction model: this process proposes an oxidative-reductive reaction of a HCHO molecule and oxygen on different reactive sites [35,38,41]. The MVK model has been extensively used to study complete oxidation of organic compounds over noble metal catalysts [42] and the mechanism has been proposed for formaldehyde oxidation over Pt/TiO₂ catalyst by Zhang et al. [43] using the in situ DRIFTS experiment method. HCHO in air is first adsorbed onto the Pt active sites and reacts with surface OH to form an intermediate dioxymethylene (DOM) [44]. O₂ molecules then dissociative adsorb onto the Pt active sites and split into atomic oxygen species. Consequently, the intermediate DOM is converted to formate species, which are further oxidized to CO and H₂O·H₂O is desorbed from active sites and the adsorbed CO is oxidized by nearby adsorbed atomic oxygen to CO₂, which is quickly desorbed from the catalyst surface and diffuses into the gaseous phase. Several previous works reported that hydroxyl groups serve an important role in maintaining the excellent performance of the catalysts for HCHO oxidation. Surface hydroxyls or oxygen atoms could promote the conversion of HCHO into formate. Adsorbed formate is consequently oxidized to CO₂ and H₂O by the adsorbed surface –OH. The hydroxyl groups adsorbed on the active sites could be created from moisture or recovered by oxygen molecules. Therefore, the moisture in reactant effluent can be adsorbed onto surface active sites and create surface hydroxyl groups, which promote the oxidation of HCHO. It is also noticed that the 1% Pt-WC/AC catalyst demonstrates better activity than the 1% Pt/AC catalyst (Figure 7), which might be due to the interaction between WC and moisture. Tungsten carbide can activate water and form surface hydroxyl groups easily at low temperature, as proven by Zellner and Chen [45] on a single crystal WC surface.

3.7.3. Effect of Gas Hourly Space Velocity (GHSV) on HCHO Conversion Rate

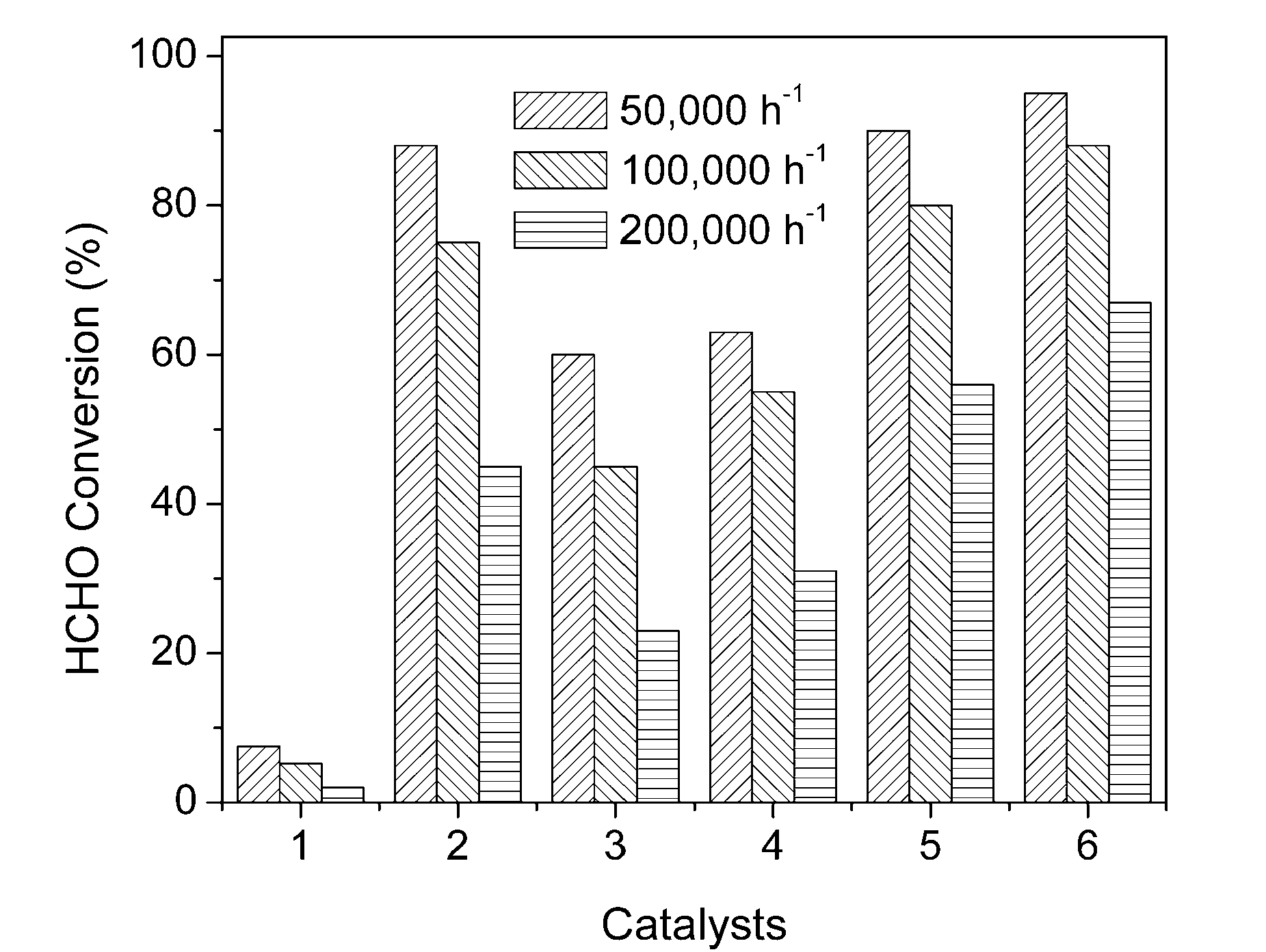

In a gas-solid reaction system, the GHSV affects the catalyst performance in several ways. If the external mass transfer is the rate-determining step of a reaction process, then the conversion rate will increase with increased velocity; however, in most catalytic processes, increasing velocity means a short contact time, which will result in a lower conversion rate. Figure 9 plots HCHO conversion rates over the six catalysts (WC/AC, Pt/AC, and Pt-WC/AC with different platinum loading catalysts) at GHSVs of 50,000 h⁻¹, 100,000 h⁻¹, and 200,000 h⁻¹, by controlling the initial HCHO concentration to be 100 ppm and feed gas with 50% RH. The HCHO conversion rate at room temperature decreases with increasing GHSV for all six catalyst samples. For example, the HCHO conversion decreased from 95.5% to 88.1% and 67.3%, respectively, as the GHSV increased from 50,000 to 100,000 and 200,000 h⁻¹ for 1wt% Pt-WC/AC. The residence time of HCHO molecules decreases with increasing GHSV, so a shorter contact time between HCHO molecules and the active sites of the catalyst occurs and produces a low HCHO conversion rate. Zhang et al. [43] examined the effects of GHSV on the catalytic performance of 1% Pt/TiO₂ for oxidation of HCHO at 20 °C and found that HCHO was completely converted at a GHSV of 50,000 h⁻¹. Li et al. [46] discovered the 2.0%Na-Pd/TiO₂ catalyst had high resistance to effect of space velocity, it maintained high HCHO conversion rate over a wide GHSV range of 80,000–190,000 h⁻¹.

3.7.4. Effect of Initial HCHO Concentration

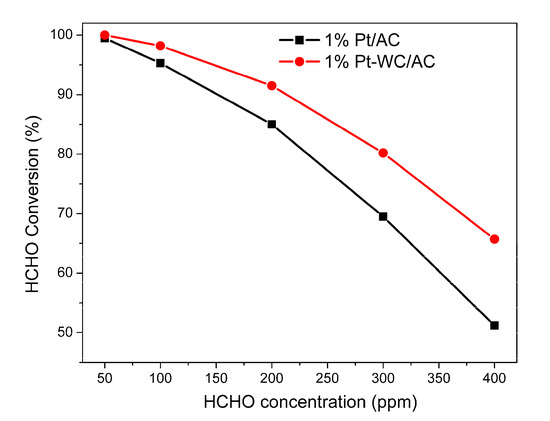

The effect of initial concentration on HCHO conversion rate was investigated over the 1% Pt/AC and 1% Pt-WC/AC catalysts. Figure 10 shows the HCHO conversions with HCHO concentrations between 50 ppm and 400 ppm at 30 °C. It was observed that the removal efficiency is higher at a lower concentration level. 100% of conversion rate was achieved when the initial concentration of HCHO was 50 ppm, and the HCHO conversion rate decreased with the increase of the initial HCHO concentration. When HCHO concentration was 400 ppm, HCHO conversions were 51.2% and 65.7% for 1% Pt/AC and 1% Pt-WC/AC catalysts, respectively. As reported in previous works, most of the studies were conducted under formaldehyde concentrations in the range of 100–1000 ppm [14]. Peng et al. [26] examined the effect of formaldehyde concentration at three levels: 100, 240, and 400 ppm, and the conversions were 41.5%, 33.1%, and 22.7%, respectively, over Pt/TiO₂ at room temperature. The results of current work agree with these previous reports [14,26].

3.8. Stability of 1% Pt/AC and 1% Pt-WC/AC Catalysts

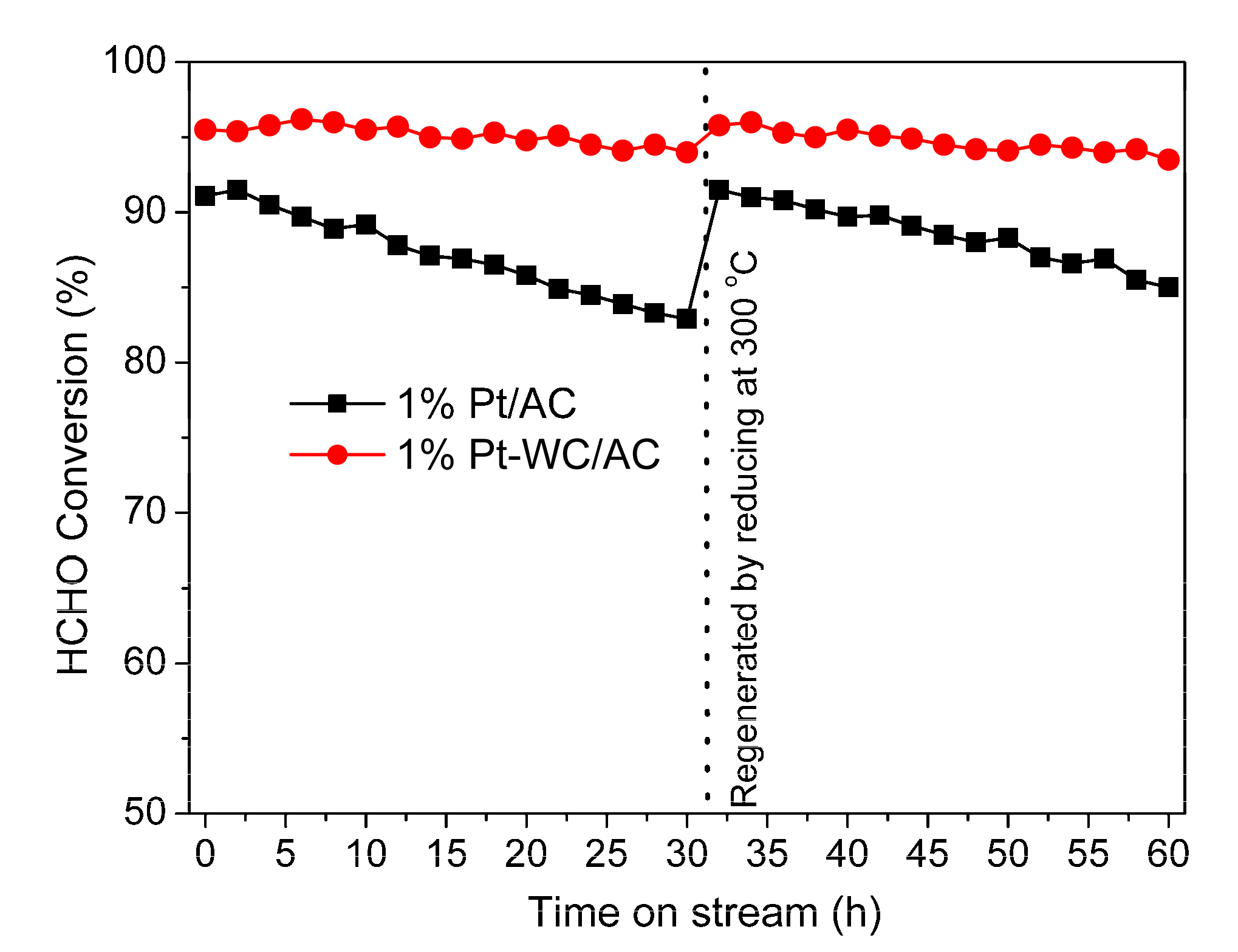

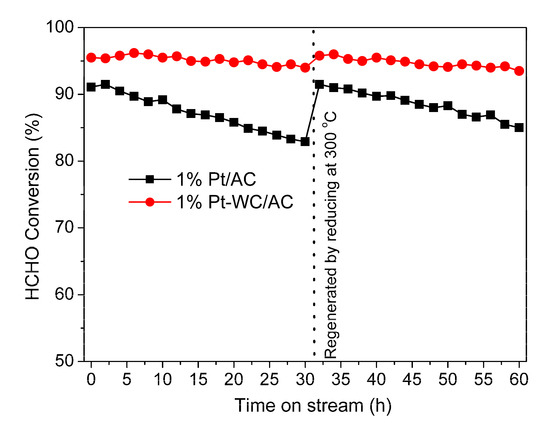

The stability of 1% Pt/AC and 1% Pt-WC/AC catalysts were tested at 30 °C, GHSV of 50,000 h⁻¹ and RH of feed gas of 40%. As shown in Figure 11, with the increase of time, the HCHO conversion rate over 1% Pt/AC catalyst decreased gradually from the initial value of 91.5% to 82.9% after 30 h running. The 1% Pt-WC/AC catalyst was found to be relatively stable for a period of over 30 h, with a decrease in the conversion rate from 95.5% to 94.0%.

Both catalysts could be regenerated by reducing at 300 °C using 4% H₂ in argon. The conversion rates of both catalysts recovered to initial values, indicating the deactivation of the catalysts is reversible. The loss of activity may be due to adsorption of the HCHO oxidation intermediate CO over Pt active sites at low temperature [47] or the formation of PtO species, which could lead to a lower reaction rate of HCHO oxidation and cause catalyst deactivation [48]. Therefore, the deactivated catalyst could be regenerated through a simple reduction process, where Pt-CO or PtO species are decomposed or reduced to Pt metal species at elevated temperature.

The activity and stability of Pt-based catalysts for HCHO oxidation are compared in

Table 3. The activity and stability of Pt-based catalysts for HCHO oxidation.

Catalyst	Pt Particle Size (nm)	Reaction Conditions	HCHO Conversion (%)	Time-on-Stream (h)	Works
1% Pt-WC/AC	2–3	0.2 g catalyst, 30 °C, HCHO 100 ppm, O2 20 vol%, argon balance, total flow rate 200 mL/min and GHSV = 50,000 h−1	93–96	60	Current work
1% Pt/AC	5	6000 ppm HCHO in air, 40–80 °C, GHSV = 8727 h−1.	40–100	2	49
0.08% Pt/TiO2	<1	160 ppm HCHO, 20 vol% O2 with different relative humidity (RH), 30 °C, weight hourly space velocity (WHSV) = 30,000 mL h−1 gcat−1	100	20	50
0.2% Pt/SiO2	<1	0.05 g catalyst, 11.4 ppm HCHO/N2 flowing at 45 mL/min and pure O2 flowing at 5 mL/min, 25–100 °C.	Turnover frequency: 1–2	60	51
Pt/LDO(N)	2.6	100 ppm HCHO, 20% O2, balanced by N2, 75 °C, space velocity (SV) = 6000 mL g−1 min−1	95–100	60	52
1% Pt/CeO2 (Al2O3, ZrO2, TiO2)	2–3	25°C, HCHO/H2O/O2/N2 = 100 ppm/500 ppm/20 vol.%/balance N2 with a total flow rate of 300 mL∙min−1.	20–60	–	53

. Pt-based catalysts have demonstrated excellent performance to the catalytic oxidation of HCHO at room temperature, previous studies show the HCHO oxidation activity and stability of Pt catalysts are reliant on their chemical and structural properties, including the Pt loading, particle size of Pt, dispersion and oxidation state of Pt, and the chemical and textural properties of the support materials [49,50,51,52,53]. Pt loading is an important factor that affects both the performance and the cost of the Pt-based catalyst. Pt loadings are between 0.1–2 wt% in most of the cases, though it could be as low as 0.08 wt% to efficiently convert HCHO at room temperature [50]. The particle size and dispersion of Pt are the key factors to affect catalytic active sites and activities of Pt-based catalysts for catalytic oxidation of HCHO [49,50]. Pt particle size can be controlled by using appropriate preparation method and support materials. Pt particle sizes are usually around 2–3 nm for Pt-based catalysts reported in the literature [52,53] and current work; for catalysts with low Pt loadings, Pt particle sizes could be manipulated to less than 1 nm [50,51]. Pt oxidation states were observed to be related to the initial activity and long term performance of Pt-based catalysts in the oxidation of HCHO at low temperature [51,52,53], it was confirmed that metallic (Pt⁰) was more active for the oxidation of HCHO while the existence of Pt oxide (PtO) would retard the oxidation of HCHO at room temperature [51,53]. Support materials which are rich with hydroxyl groups on surface or are highly affinity to water can promote Pt activity for oxidation of HCHO at room temperature [53].

3.9. Possible Promotion Effects of WC to Pt Catalyst

Two pathways have been proposed for the HCHO oxidation reaction. The first pathway follows three steps over Pt active sites: HCHO → H₂CO₂ → HCO₂ → CO₂ [54]. The mechanism involves the formate species being directly oxidized by O₂ to CO₂. The second pathway is HCHO → CO → CO₂ [51]. In this proposed mechanism, HCHO first decomposes directly to CO over Pt sites, followed by CO oxidation by oxygen; CO is the essential intermediate of HCHO oxidation.

OH species play a significant role for HCHO oxidation over Pt-based catalysts. In the first pathway, OH groups on the catalysts favor HCHO adsorption by promoting the formation of the dioxymethylene (HCOOH) intermediate [55]. The existence of the dioxymethylene intermediate can significantly facilitate the oxidation of HCHO, because of its high efficiency at decomposing into CO₂ and H₂O. In the second mechanism, the intermediate of the HCHO oxidation reaction is CO, which may strongly adsorb over Pt atoms at low temperature [54]. Therefore, Pt active sites are partially occupied by adsorbed CO, making the catalyst partially deactivated. Surface hydroxyl groups are more active to oxidize adsorbed CO over Pt atoms than surface oxygen species [56]. Therefore, increasing nearby hydroxyl density around the Pt active sites will greatly enhance HCHO oxidation activity and improve the stability of the catalyst. It has been proven that smaller Pt particles accelerate activation of O₂ and form more OH species which can oxidize formates to CO₂ through a lower reaction barrier [50]. The experimental density-functional theory (DFT) calculation results prove that Pt nanoparticles indeed preferentially bond with WC to form contacting Pt-WC nanostructures in Pt-WC/AC catalysts [57]. HRTEM and CO chemisorption results prove the presence of WC nanostructures increases the Pt dispersion, thereby increasing the catalytic performance to HCHO oxidation. WC could yield more negative electronic surface properties; that is, the electron donating effect generated by WC nanostructures promotes the ability to oxidize the adsorbed CO-like species on catalysts [58]. It was reported that WC could react with moisture to produce WC-OH species and promote the oxidation of CO over Pt atoms at low temperature [59], resulting in the improved stability of Pt-WC/AC for HCHO oxidation.

4. Conclusions

Nanostructured tungsten carbide embedded in AC was produced by carbothermal reduction of tungsten-impregnated wood-char at 1000 °C under argon atmosphere. Pt-WC/AC catalysts were then prepared utilizing WC/AC as support. The activity and the stability of Pt-WC/AC catalysts were investigated for the complete oxidation of formaldehyde at low temperature (25–50 °C). The HCHO conversion rates were significantly affected by the catalysts; catalytic activities decreased in the order of 1% Pt-WC/AC > 1% Pt/AC > WC/AC. Catalytic activities of Pt-WC/AC were observed to increase with increase of Pt content from 0.1 to 1.0 wt%. The catalytic performance does not change apparently when the Pt loading increases to 2.0 wt%. The optimal Pt loading is 1.0 wt% among the studied catalysts.

The effects of reaction conditions on catalyst activity of Pt-WC/AC were examined. HCHO conversion rate increases with increasing reaction temperature. The influence of moisture on the activity and stability of 1.0 wt% Pt-WC/AC catalyst for HCHO oxidation was investigated over different relative humidity (RH) levels of 0%, 20%, 40%, and 60%. Over these levels, the catalyst HCHO removal efficiency decreases in the order: 40% > 20% > 60% > 0%. The effects of gas hourly space velocity (GHSV) on 1% Pt-WC/AC catalyst for complete oxidation of HCHO was examined at low temperature. HCHO was found to be completely oxidized to CO₂ and H₂O at a GHSV of 50,000 h⁻¹. Effect of initial concentration of HCHO was compared over the 1% Pt/AC and 1% Pt-WC/AC catalysts. It was observed that the removal efficiency is higher at a lower HCHO concentration level. The results clearly indicate that Pt-WC/AC can efficiently catalyze the removal of HCHO with the assistance of O₂ at low temperatures.
