Smart Structures Innovations Using Robust Control Methods

Abstract

This study’s goal is to utilize robust control theory to effectively mitigate structural oscillations in smart structures. While modeling the structures, two-dimensional finite elements are used to account for system uncertainty. Advanced control methods are used to completely reduce vibration. Complete vibration suppression is achieved using advanced control techniques. In comparison to traditional control approaches, Hinfinity techniques offer the benefit of being easily adaptable to issues with multivariate systems. It is challenging to simultaneously optimize robust performance and robust stabilization. One technique that approaches the goal of achieving robust performance in mitigating structural oscillations in smart structures is H-infinity control. H-infinity control empowers control designers by enabling them to utilize traditional loop-shaping techniques on the multi-variable frequency response. This approach enhances the robustness of the control system, allowing it to better handle uncertainties and disturbances while achieving desired performance objectives. By leveraging H-infinity control, control designers can effectively shape the system’s frequency response to enhance stability, tracking performance, disturbance rejection, and overall robustness.

1. Introduction

Smart structures have garnered significant attention in recent years due to their immense potential and wide-ranging applications. A smart structure is defined as one that intelligently perceives mechanical disturbances and automatically reacts to them by reducing oscillations [1,2,3]. The field of smart structures has seen a big increase in recent years [3,4,5,6]. In this work, an intelligent structure that has integrated actuators and sensors that are capable of damping the oscillations is presented [7,8,9,10]. Dynamic loads such as wind forces are applied and finite element analysis is performed [1,6,11,12]. Advanced testing techniques such as robust control theory are used. It is then applied to engineering applications that are made with smart materials such as piezoelectric material. In these constructions, both sensors and actuators are integrated; the actuators achieve the suppression of the oscillation [9,10,11]. Many researchers have mainly dealt with the modeling of these constructions but also with the application of advanced control techniques [2,12,13,14,15,16]. Modeling and control techniques are often used for the analysis of optimization of the materials response [17,18,19,20,21]. In addition, many researchers have engaged in research on composite concrete structures in the frequency domain and have presented very good results in solving optimization problems [22,23] in this field; they are many practical applications from important researchers [24,25].

Our paper provides the innovation in the piezoelectric intelligent structures with robust control theory. We achieve complete vibration suppression even for uncertainty modeling of the smart structure. This work has provided many innovations in the suppression of oscillations with the application of smart materials:

• With the help of advanced control techniques such as the Hinfinity Control, the reduction of oscillations is achieved even for changes in the mass and stiffness of the original model that is presented for modeling uncertainties.
• By demonstrating the use of Hinfinity control in both the state space and frequency domain, the study explores the benefits of robust control in intelligent structures. It takes into consideration a dynamic model for intelligent constructions subject to excitations induced by the wind.
• The Hinfinity robust controller solves the dynamical system uncertainties and the partial data measurements to make the design possible. The effectiveness of the suggested strategies to reduce vibrations in piezoelectric smart structures is demonstrated by numerical simulations. The strategy guarantees a thorough and unified process for creating and verifying reliable control systems.
• The Hinfinity robust controller aids in the creation of intelligent structures by taking into account dynamical system uncertainties and partial data.
• Notably, advances in intelligent structures with advanced control methods have been well demonstrated.

2. Materials and Methods

The system’s dynamical description is provided by,

$$\mathrm{M}\ddot{q}(t)+\mathrm{D}\dot{q}(t)+\mathrm{K} \mathrm{q}\left(\mathrm{t}\right)={\mathrm{f}}_{\mathrm{m}}\left(\mathrm{t}\right)+{\mathrm{f}}_{\mathrm{e}}\left(\mathrm{t}\right)$$

(1)

The independent variable q(t) represents the collective behavior of the system, including transversal deflections w_i and rotations ψ_i. It is influenced by several factors, including the external loading vector f_m, which represents the applied external forces, the generalized control force vector f_e, which arises from electromechanical coupling effects, the generalized stiffness matrix K, which characterizes the structural stiffness, the generalized mass matrix M, which describes the mass distribution, and the viscous damping matrix D, which accounts for energy dissipation due to damping effects. These factors collectively contribute to the dynamic response and behavior of the system, i.e.,

$$q(t)=\left[\begin{array}{c}{w}_1\\ {\psi }_1\\ \cdots \\ w_n\\ {\psi }_n\end{array}\right]$$

(2)

The parameter n in the analysis refers to the number of nodes present in the finite elements under consideration. Both the w and f_m vectors point upward [10,15,16].

To convert to a state-space control representation, we can perform the transformation (as typically carried out) by defining the following:

$$\mathrm{x}(\mathrm{t})=\left[\begin{array}{c}q\left(t\right)\\ \dot{q}\left(t\right)\end{array}\right]$$

(3)

Additionally, we can specify the generalized con d as, and the voltages u applied to the actuators. This allows us to represent f_e(t) as Bu(t), where the control force vector f_e(t) is a function of the piezoelectric force per unit displacement; denote B captures the relationship between the piezoelectric force and the applied voltages. Additionally, we define the disturbance vector as d(t) = f_m(t). Nonetheless,

$$\begin{array}{c}\dot{x}(t)=\left[\begin{array}{cc}{0}_{2\mathrm{n}\times 2\mathrm{n}}& I_{2\mathrm{n}\times 2\mathrm{n}}\\ -{\mathrm{M}}^{-1}K& -{\mathrm{M}}^{-1}D\end{array}\right]x(t)+\left[\begin{array}{c}{0}_{2\mathrm{n}\times \mathrm{n}}\\ M^{-1}{f}_e^{\mathrm{*}}\end{array}\right]u(t)+\left[\begin{array}{c}{0}_{2\mathrm{n}\times 2\mathrm{n}}\\ M^{-1}\end{array}\right]d(t)\hfill \\ =\mathsf{A}\mathrm{x}\left(t\right)+\mathsf{{\rm B}}\mathrm{u}\left(t\right)+\mathrm{Gd}\left(t\right)\hfill \\ =\mathrm{Ax}\left(t\right)+\left[\mathrm{B} \mathrm{G}\right]\hfill \\ =\mathrm{Ax}\left(t\right)+\stackrel{\mathrm{~}}{\mathrm{B}}\tilde{u}\left(t\right)\hfill \end{array}$$

(4)

By considering the output equation, which involves only measuring the displacements, denoted as [10], we can enhance the representation further.

y(t) = [x₁(t), x₃(t) … x_n−1(t)]^T = Cx(t)

(5)

In this particular formulation, the control input vector u is represented by an n × 1 matrix, where n is the number of nodes in the system. However, the control input vector can be smaller than n. On the other hand, the disturbance vector d has a size of 2n × 1. The measurement units used in this formulation are meters (m) for displacement, radians (rad) for rotations, seconds (s) for time, and Newtons (N) for force. These units are utilized to quantify the physical quantities and dimensions involved in the system’s analysis and control.

The primary objective of the control task is to maintain the beam in a state of equilibrium. This means ensuring that the displacements and rotations of the beam are kept at zero, indicating a stable and balanced state [26,27]. The control inputs are utilized to counteract the effects of external disturbances, noise, and potential inaccuracies in the model, thereby actively adjusting the system to maintain the desired equilibrium state. By effectively compensating for these disturbances and model uncertainties, the control system aims to achieve and sustain the desired zero displacements and rotations, ensuring stability and optimal performance of the beam [27,28].

3. Robustness Analysis

The following three stages will be performed in a robustness analysis:

• The range of uncertainty that a mathematical model expresses.
• Robust stability (RS): For each plant included in the uncertainty set, verify the system’s stability.
• Robust performance (RP) refers to the degree of stability exhibited by a system. In the context of investigating robust performance, the goal is to determine whether any of the plants included in the uncertainty set meet the specified performance criteria. This involves analyzing the system’s behavior under various uncertain scenarios and assessing if the performance requirements are satisfied for each plant within the uncertainty set [24,25,26].

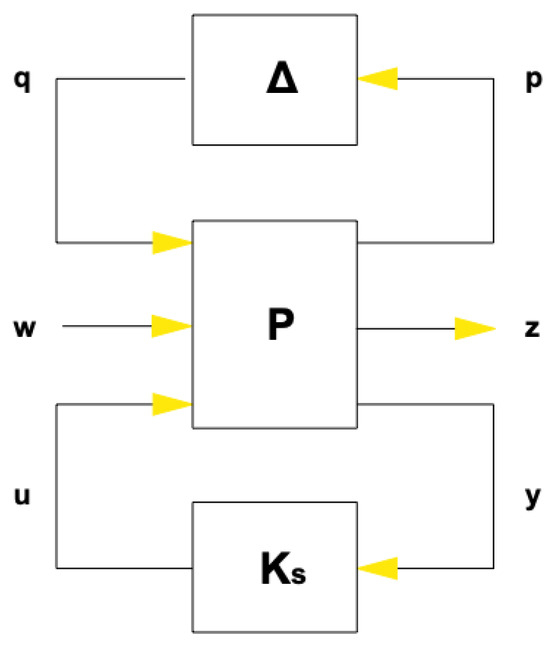

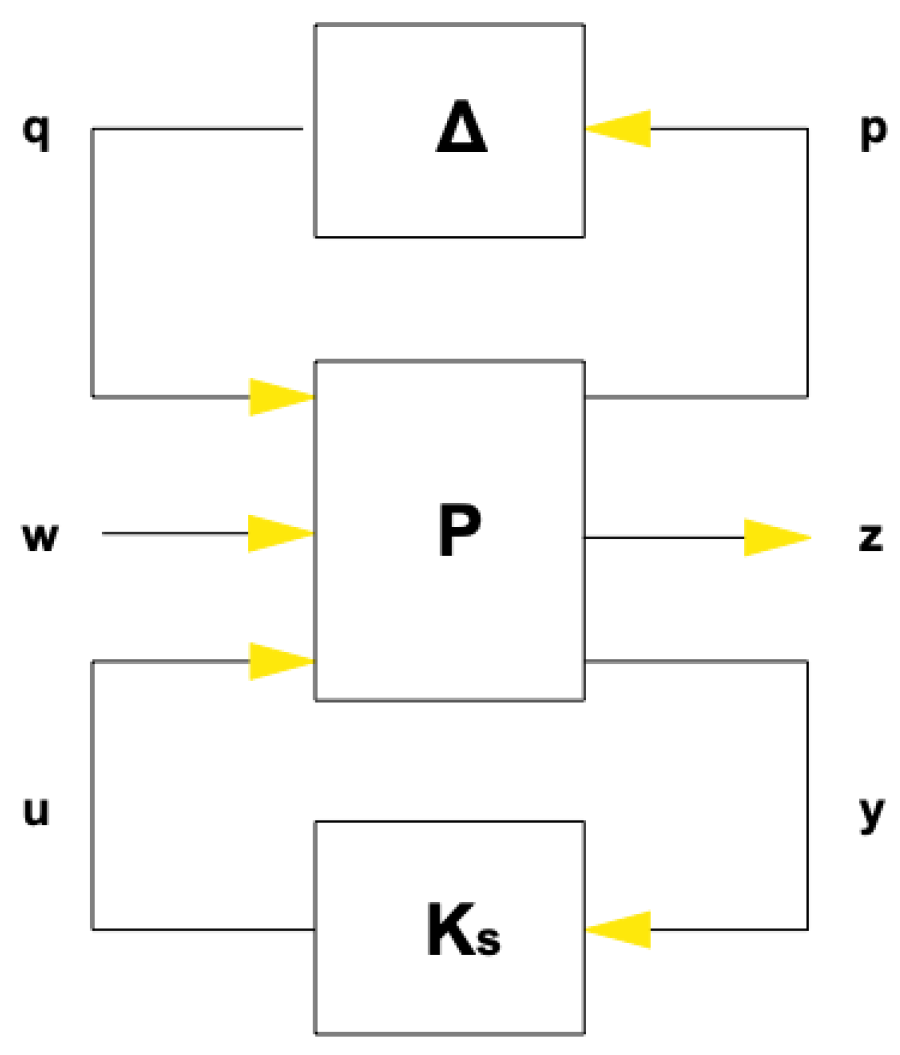

The robustness investigation will be performed using the connections shown in Figure 1.

Here, K is the estimated H_infinity controller, and P is the nominal plant with the uncertainty modeling included. Uncertainty included in Δ satisfies ║Δ║∞ ≤ 1 [26,27].

Since Ks is the known controller, Figure 1 can be simplified to Figure 2.

This arrangement makes it clear that,

• The system (M, Δ) is considered to be robustly stable if it satisfies two conditions:
  • The nominal system M is stable, meaning that it does not exhibit any instability or unbounded responses in the absence of uncertainties.
  • The system remains stable under all possible variations or uncertainties represented by the structured uncertainty set Δ. In other words, the system maintains stability even when the uncertain parameters or inputs vary within the prescribed uncertainty bounds [27,28].

By satisfying these two conditions, the system (M, Δ) is deemed to be robustly stable, demonstrating stability and resilience in the face of uncertainties:

$$\underset{\omega \in \mathbb{R}}{\sup }{\mu }_{\mathsf{\Delta }}\left(M_{11}\left(\mathrm{j}\mathsf{\omega }\right)\right)<1$$

(6)

where,

$$\frac{1}{{\mu }_B\left(M\right)}=\left\{\begin{array}{c}\\ \underset{\mathsf{\Delta }\in B_{\mathsf{\Delta }},det(I-M\mathsf{\Delta })=0}{inf}\stackrel{-}{\sigma }(\Delta )\\ \end{array}\right.$$

(7)

The structured singular value of M, denoted as μ(M), is a measure of robust stability. It quantifies the largest multiplicative uncertainty that a given system M can tolerate within the structured uncertainty set BΔ while remaining stable. Hence, the robust stability of the system (M, Δ) is achieved when the structured singular value of M, μ(M), exceeds one.

• The system (M, Δ) is said to exhibit robust performance if it satisfies the specified performance criteria despite the presence of uncertainties represented by the structured uncertainty set Δ. Robust performance implies that the system can maintain desired performance levels, such as stability, tracking accuracy, disturbance rejection, or other performance metrics, even in the presence of uncertainties. Achieving robust performance involves designing control strategies or mechanisms that can effectively handle and mitigate the effects of uncertainties within the specified performance bounds,

$$\underset{\omega \in \mathbb{R}}{sup}{\mu }_{\Delta \alpha }\left(M\left(j\omega \right)\right)<1$$

(8)

where,

$${\Delta }_{\alpha }=\left[\begin{array}{cc}{\Delta }_p& 0\\ 0& \Delta \end{array}\right]$$

(9)

The uncertainty set Δ_p has a similar structure to Δ but with dimensions corresponding to (w, z) [9,27,28]. To proceed, let us consider uncertainties in the form of variations or perturbations in the M (mass), D (damping), and K (stiffness) matrices,

M = M₀(I + m_pδ_M)

(10)

D = D₀(I + d_pδ_D)

(11)

K = K₀(I + k_pδ_K)

(12)

with,

$$║\mathsf{\Delta }{║}_{\infty }\stackrel{\scriptscriptstyle\mathrm{def}}{=}{‖\left[\begin{array}{ccc}{\delta }_M& & \\ & {\delta }_D& \\ & & {\delta }_K\end{array}\right]‖}_{\infty }<1$$

(13)

By allowing a percentage deviation from the nominal values, we accommodate variations in the M (mass), D (damping), and K (stiffness) matrices. With these definitions, Equation (1) can be expressed as follows:

$$\begin{array}{c}{\mathrm{M}}_0(\mathrm{I}+{\mathrm{m}}_{\mathrm{p}}{\mathsf{\delta }}_{\mathrm{M}})\ddot{q}\left(t\right) +{\mathrm{D}}_0(\mathrm{I}+{\mathrm{d}}_{\mathrm{p}}{\mathsf{\delta }}_{\mathrm{D}})\dot{q}\left(t\right) +{\mathrm{K}}_0(\mathrm{I}+{\mathrm{k}}_{\mathrm{p}}{\mathsf{\delta }}_{\mathrm{K}})\mathrm{q}\left(\mathrm{t}\right) ={\mathrm{f}}_{\mathrm{m}}\left(\mathrm{t}\right)+{\mathrm{f}}_{\mathrm{e}}\left(\mathrm{t}\right)\hfill \\ \Rightarrow {\mathrm{M}}_0\ddot{q}\left(t\right) +{\mathrm{D}}_0\dot{q}\left(t\right) +{\mathrm{K}}_0\mathrm{q}\left(\mathrm{t}\right)=-[{\mathrm{M}}_0{\mathrm{m}}_{\mathrm{p}}{\mathsf{\delta }}_{\mathrm{M}}\ddot{q}\left(t\right) +{\mathrm{D}}_0{\mathrm{d}}_{\mathrm{p}}{\mathsf{\delta }}_{\mathrm{D}}\dot{q}\left(t\right) +{\mathrm{K}}_0{\mathrm{k}}_{\mathrm{p}}{\mathsf{\delta }}_{\mathrm{K}}\mathrm{q}\left(t\right)] +{\mathrm{f}}_{\mathrm{m}}\left(\mathrm{t}\right)+{\mathrm{f}}_{\mathrm{e}}\left(\mathrm{t}\right)\hfill \\ \Rightarrow {\mathrm{M}}_0\ddot{q}\left(t\right) +{\mathrm{D}}_0\dot{q}\left(t\right) +{\mathrm{K}}_0\mathrm{q}\left(\mathrm{t}\right)=\tilde{D}{q}_u\left(t\right) +{\mathrm{f}}_{\mathrm{m}}\left(\mathrm{t}\right)+{\mathrm{f}}_{\mathrm{e}}\left(\mathrm{t}\right)\hfill \end{array}$$

(14)

where,

$$q_u(t)\stackrel{\scriptscriptstyle\mathrm{def}}{=}\left[\begin{array}{c}\ddot{q}\left(t\right)\\ \dot{q}\left(t\right)\\ q\left(t\right)\end{array}\right],\stackrel{\mathrm{~}}{\mathrm{D}}=- \left[\begin{array}{ccc}{M}_0{m}_p& D_0{d}_p& K_0{k}_p\end{array}\right]\begin{array}{c}\end{array}\left[\begin{array}{ccc}{I}_{2\mathrm{n}\times 2\mathrm{n}}{\delta }_M& & \\ & I_{2\mathrm{n}\times 2\mathrm{n}}{\delta }_D& \\ & & I_{2\mathrm{n}\times 2\mathrm{n}}{\delta }_K\end{array}\right]$$

(15)

Writing (5) in state space form, gives,

$$\begin{gathered} \dot{x}(t)=\left[\begin{array}{cc}{0}_{2\mathrm{n}\times 2\mathrm{n}}& I_{2\mathrm{n}\times 2\mathrm{n}}\\ -{\mathrm{M}}^{-1}K& -{\mathrm{M}}^{-1}D\end{array}\right]x(t)+\left[\begin{array}{c}{0}_{2\mathrm{n}\times \mathrm{n}}\\ M^{-1}{f}_e^{\mathrm{*}}\end{array}\right]u(t)+\left[\begin{array}{c}{0}_{2\mathrm{n}\times 2\mathrm{n}}\\ M^{-1}\end{array}\right]d(t)+\left[\begin{array}{c}{0}_{2\mathrm{n}\times 6\mathrm{n}}\\ M^{-1}\tilde{D}\end{array}\right]q_u(t) \\ =\mathsf{A}\mathrm{x}\left(t\right)+\mathsf{{\rm B}}\mathrm{u}\left(t\right)+\mathrm{Gd}\left(t\right)+{\mathrm{G}}_u{q}_u(t) \end{gathered}$$

(16)

In this approach, we account for the uncertainty in the original matrices by treating it as an additional factor of uncertainty. To represent our system in the frequency domain as depicted in Figure 2, we consider the configuration shown in Figure 3.

The matrices E₁ and E₂ are exploited to derive,

$$q_u(t)\stackrel{\scriptscriptstyle\mathrm{def}}{=}\left[\begin{array}{c}\ddot{q}\left(t\right)\\ \dot{q}\left(t\right)\\ q\left(t\right)\end{array}\right]$$

(17)

Since,

$$\mathsf{\gamma }=\left[\begin{array}{c}\ddot{q}\left(t\right)\\ \dot{q}\left(t\right)\end{array}\right] \mathrm{and} \mathsf{\beta }=\int \left[\begin{array}{c}\ddot{q}\left(t\right)\\ \dot{q}\left(t\right)\end{array}\right]=\left[\begin{array}{c}\dot{q}\left(t\right)\\ q\left(t\right)\end{array}\right]$$

(18)

Possible selections for E1 and E2 depend on the specific situation and criteria of the system,

$$E_1=\left[\begin{array}{cc}I& 0\\ 0& I\\ 0& 0\end{array}\right],\begin{array}{c}\end{array}{E}_2=\left[\begin{array}{cc}0& 0\\ 0& 0\\ 0& I\end{array}\right]$$

(19)

The idea is to find an M such that,

$$\left[\begin{array}{c}{q}_u\\ e\\ u\end{array}\right]=\mathrm{M}\left[\begin{array}{c}{p}_u\\ d\\ n\end{array}\right],\begin{array}{c}\end{array}\begin{array}{c}\mathrm{M}=\left[\begin{array}{ccc}{M}_{11}& M_{12}& M_{13}\\ M_{21}& M_{22}& M_{23}\\ M_{31}& M_{32}& M_{33}\end{array}\right]\end{array}=\left[\begin{array}{ccc}{M}_{p_u{q}_u}& M_{\mathrm{d}{\mathrm{q}}_u}& M_{\mathrm{n}{\mathrm{q}}_u}\\ M_{p_{u}e}& M_{\mathrm{de}}& M_{\mathrm{ne}}\\ M_{p_{u}u}& M_{\mathrm{du}}& M_{\mathrm{nu}}\end{array}\right]$$

(20)

Alternatively, in the notation depicted in Figure 3,

$$\left[\begin{array}{c}{q}_u\\ w\end{array}\right]=\mathrm{M}\left[\begin{array}{c}{p}_u\\ z\end{array}\right]$$

(21)

Now M_de, M_du, M_ne, and M_nu, are known:

$$\left[\begin{array}{cc}{M}_{de}& M_{ne}\\ M_{du}& M_{nu}\end{array}\right]=\left[\begin{array}{cc}J(I-HBKC{)}^{-1}HG& J(I-HBKC{)}^{-1}HBK\\ (I-KCHB{)}^{-1}KCHG& (I-KCHB{)}^{-1}K\end{array}\right]$$

(22)

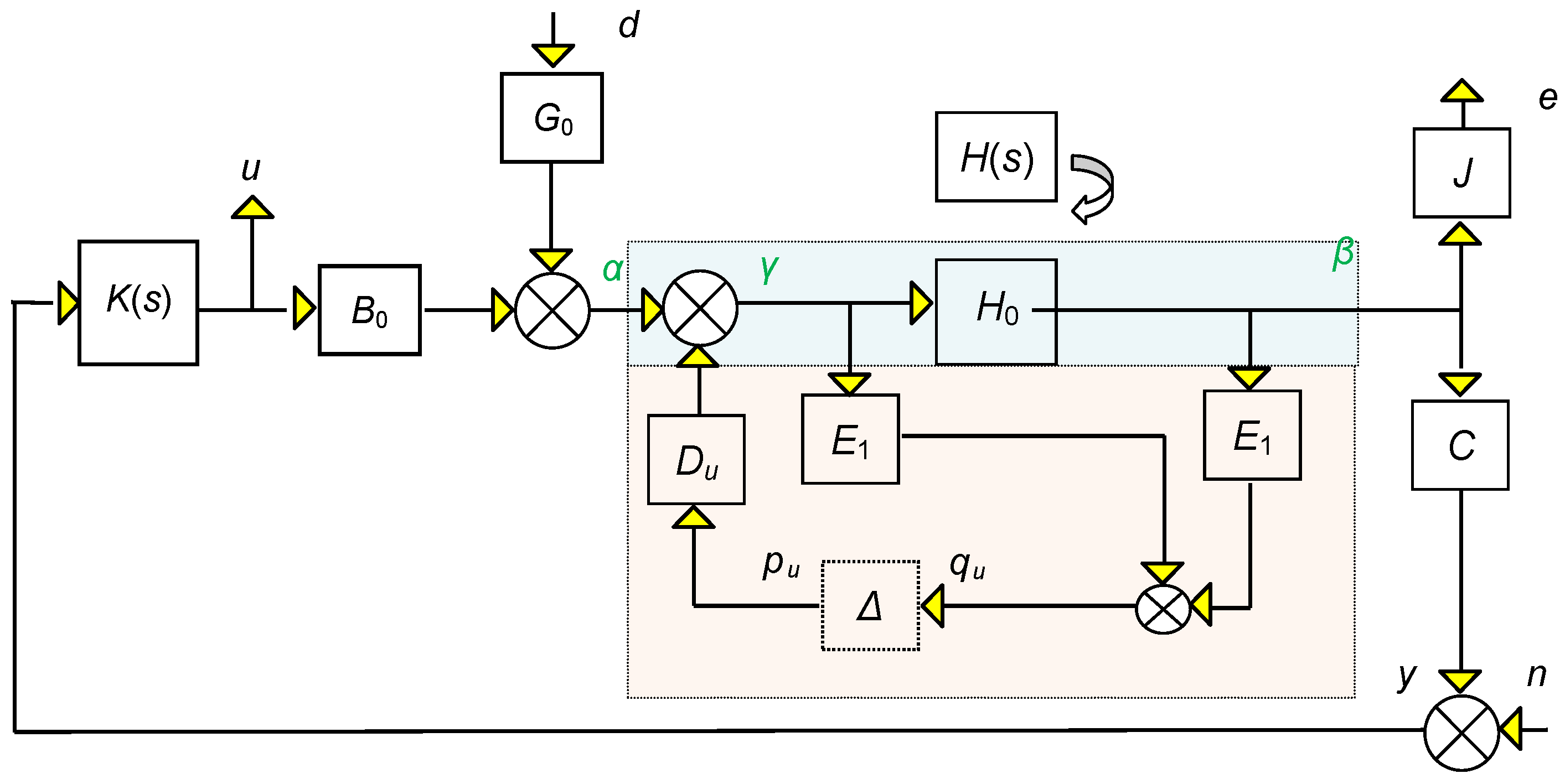

To proceed with the methodology known as “pulling out the Δ’s”, we will break the loop at points p_u and q_u, utilizing the auxiliary signals α, β, and γ. This approach will allow us to derive the transfer function. $M_{\mathrm{d}{\mathrm{q}}_u}$ (from d to qu):

q_u = E₂β + Ε₁γ = (E₂H + Ε₁)γ

(23)

γ = Gd + Bu = Gd + BKCHγ ⇒ γ = (Ι-BKCH)⁻¹ Gd

(24)

Hence,

$$M_{p_u{q}_u}=({\mathrm{E}}_2\mathrm{H}+{\mathrm{E}}_1){\left(\mathrm{{\rm I}-BKCH}\right)}^{-1}\mathrm{G}$$

(25)

Now, $M_{p_u{q}_u}$,$M_{p_{u}e}$,$M_{p_{u}u}$, are similar to M_de, M_de, and M_du with G switched by Du, i.e.,

$$M_{p_u{q}_u}=({\mathrm{E}}_2\mathrm{H}+{\mathrm{E}}_1){\left(\mathrm{{\rm I}-BKCH}\right)}^{-1}{\mathrm{D}}_{\mathrm{u}}$$

(26)

$$M_{p_{u}e}=J(I-HBKC{)}^{-1} H{D}_u$$

(27)

$$M_{p_{u}u}=(I-KCHB{)}^{-1}KCH{D}_u$$

(28)

Finally, to find $M_{\mathrm{n}{\mathrm{q}}_u}$,

q_u = E₂β + Ε₁γ = (E₂H + Ε₁)γ

(29)

γ = Bu = BK(n + y) = BKn + BKCHγ ⇒ γ = (Ι-BKCH)⁻¹ ΒΚn

(30)

Hence,

$$M_{\mathrm{n}{\mathrm{q}}_u}=({\mathrm{E}}_2\mathrm{H}+{\mathrm{E}}_1){\left(\mathrm{{\rm I}-BKCH}\right)}^{-1}\mathrm{B}\mathrm{K}$$

(31)

Collecting all the above yields M:

$$M=\left[\begin{array}{ccc}(E_{2}H+E_1)(I-BKCH{)}^{-1}{D}_u& (E_{2}H+E_1)(I-BKCH{)}^{-1}G& (E_{2}H+E_1)(I-BKCH{)}^{-1}BK\\ J(I-HBKC{)}^{-1}H{D}_u& J(I-HBKC{)}^{-1}HG& J(I-HBKC{)}^{-1}HBK\\ (I-KCHB{)}^{-1}KCH{D}_u& (I-KCHB{)}^{-1}KCHG& (I-KCHB{)}^{-1}K\end{array}\right]$$

(32)

4. Results

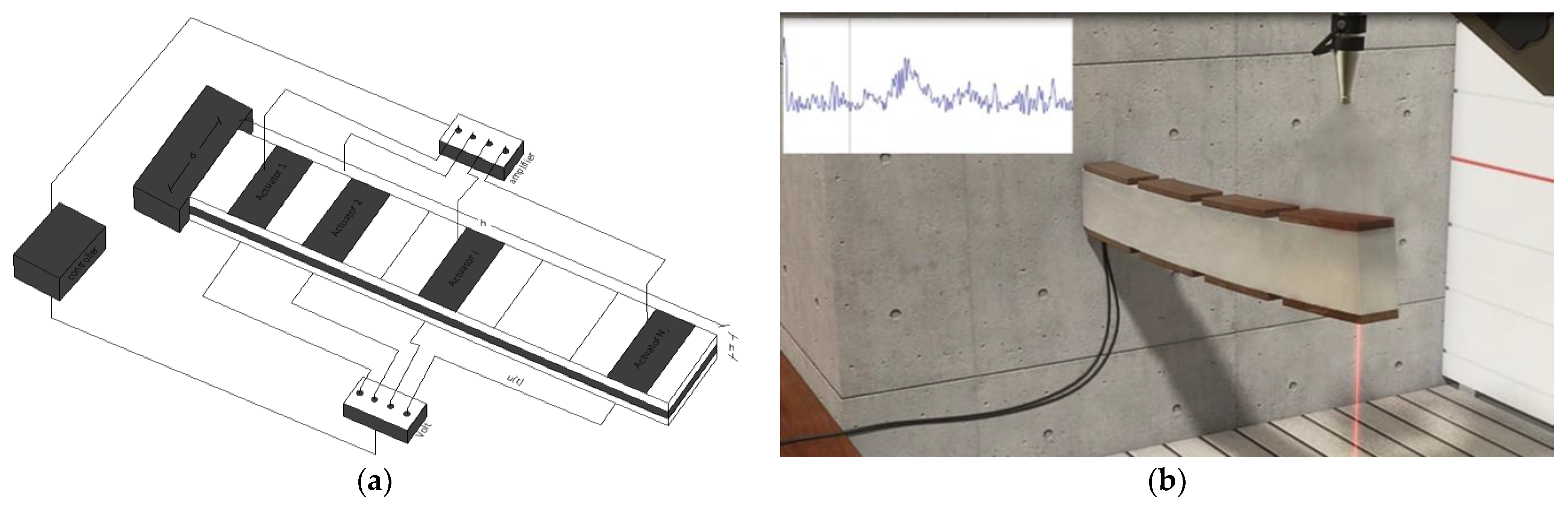

Figure 4a,b shows a cantilever smart beam with piezoelectric actuators and a sensor. It used the Euler-Bernoulli formulation. The beam’s specifications are given in

Table 1. Parameters of the smart beam.

Parameters	Values
L, for beam length	1.00 m
W, for beam width	0.08 m
h, for beam thickness	0.02 m
ρ, for beam density	1600 kg/m3
E, for Young’s modulus of the beam	1.5 × 1011 N/m2
bs, ba, for Pzt thickness	0.002 m
d31 the piezoelectric constant	280 × 10−12 m/V

. The beam has dimensions L × W × H, representing its length, width, and height. The piezoelectric sensors have a width of b_S, while the piezoelectric actuators have a thickness of b_A.

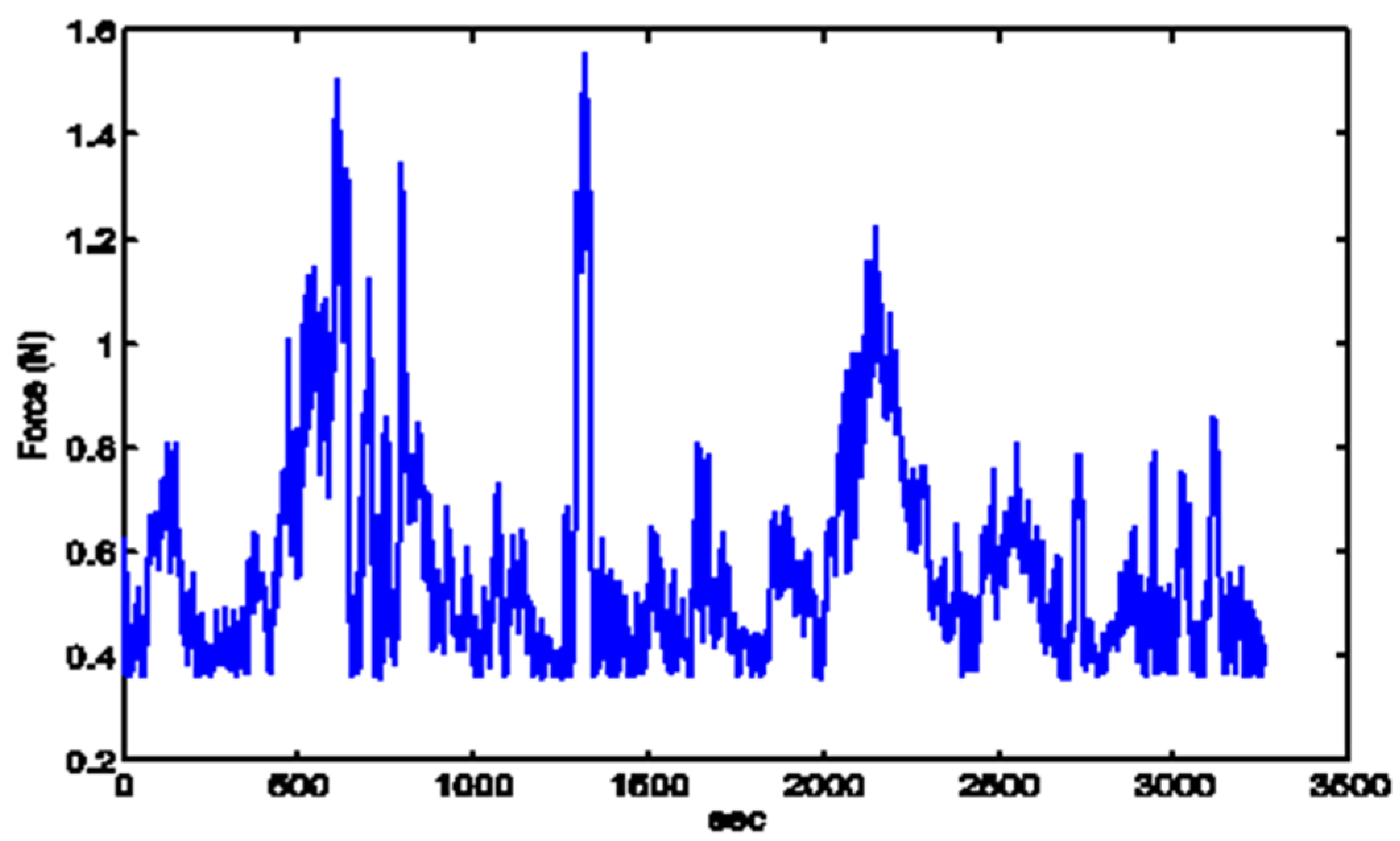

First, a wind force acting on the side of the smart beam is taken. The function d(t) = f_m(t), in Figure 5, is determined from the record of wind speed using the relation

$$f_m(t)=\frac{1}{2}\mathsf{\rho }{\mathrm{C}}_u{V}^2(t)$$

(33)

where ρ = density, V(t) = velocity, and C_u = 1.5 (orthogonal cross-section)

The mechanical force was calculated using actual wind speed measurements made in Estavromenos, Heraklion Crete. Furthermore, measurements at the system’s response sites were exposed to random noise with a probability of 1% in all simulations. As a result of the system nodal points’ minor displacements, the noise amplitude is considered to be minimal, on the order of 5 × 10⁻⁵ of the initial pricing. However, each node of the beam introduces a different proportion of the signal, with the first node’s percentage being lower due to the clamping of the beam’s endpoint.

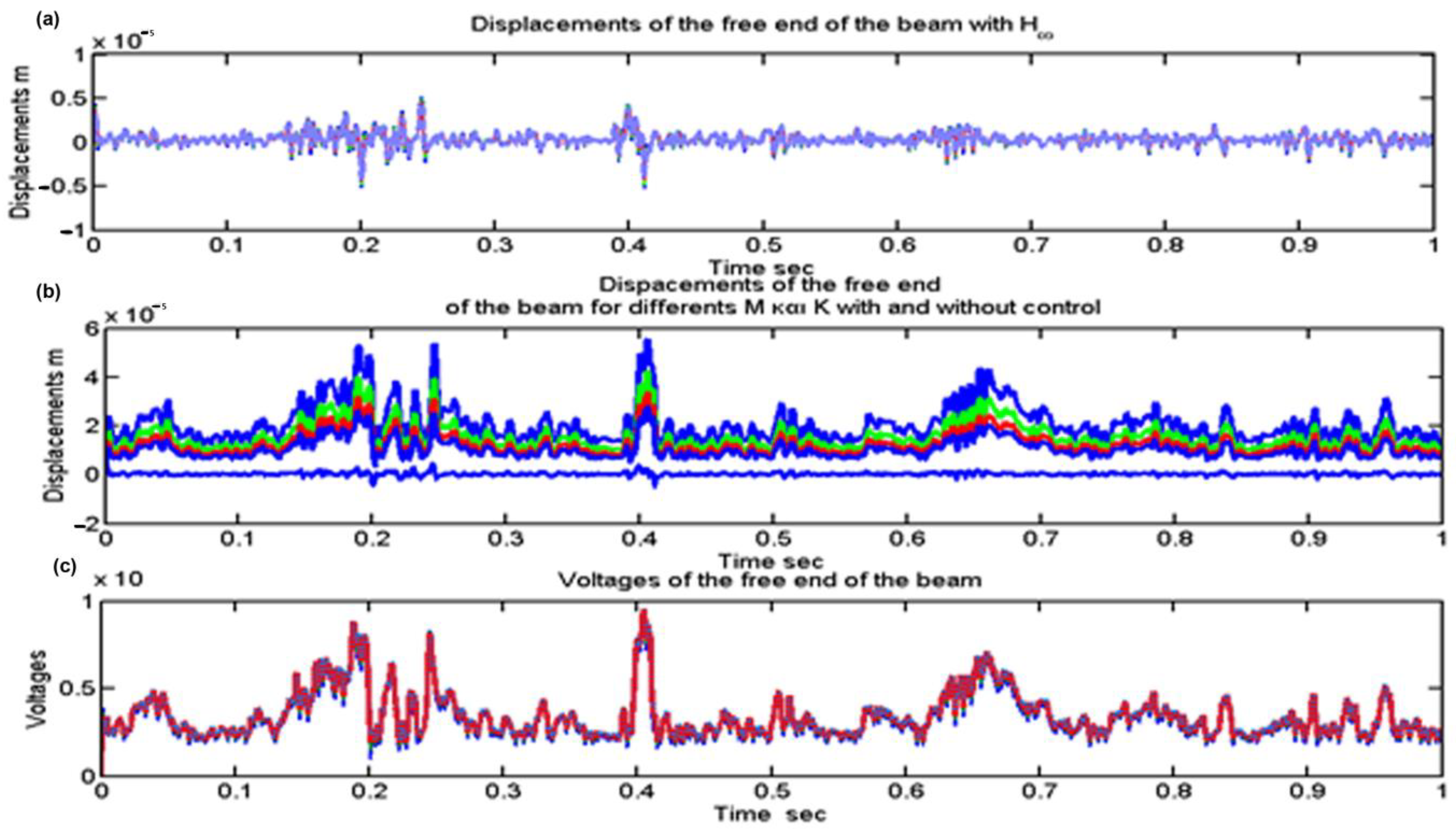

Figure 6 depicts the translation of the free end of the beam in the state space domain for closed and open loops with varied mass and stiffness matrices. Figure 6b (middle graphic) depicts the displacement of the cantilever beam’s free end for various stiffness and mass matrices (i.e., by changing m_p, k_p in the relation M = M₀(I + m_p δ_M), K = K₀(I + k_pδ_K). This displacement is shown in Equation (6) as a function of the stiffness and mass matrices. The blue diagram represents m_p with k_p equal to 0.7, the green diagram represents m_p with k_p equal to 0.6, and the red diagram represents m_p with k_p equal to 0.5. We take the light blue diagram in Figure 6a,b using PZT patches and the robust control theory H_infinit [29,30]. Even for varied costs of the Mass and Stiffness matrices, Figure 6a shows the prices for the closed loop with H_infinity control [30,31]. We used H_infini_ty control theory to get good results in suppressing structural oscillations in intelligent systems. The piezoelectric voltages for the closed loop, which implies H_infinity control for various costs of the Stiffness and Mass matrices, are shown in Figure 6c.

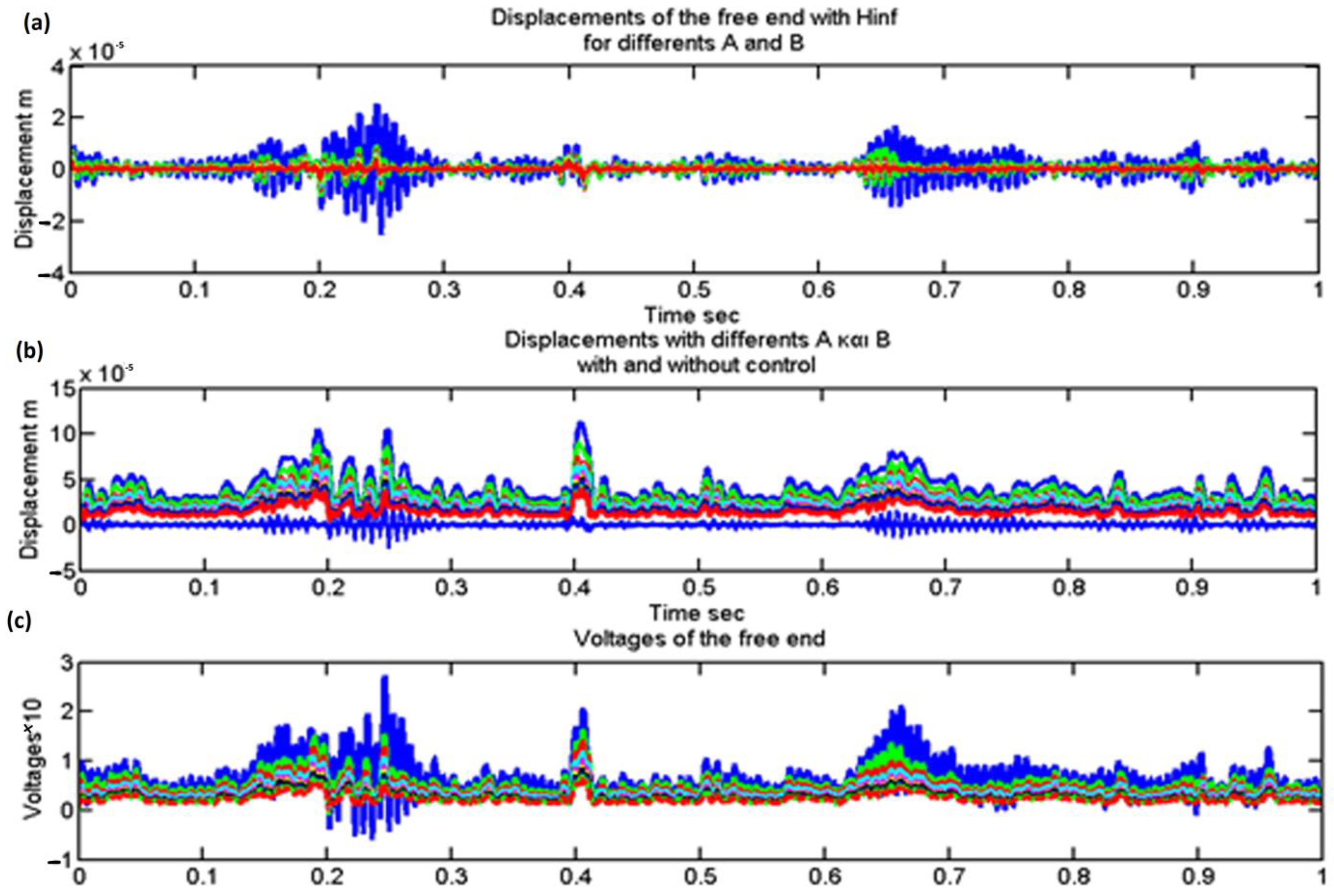

Figure 7 also depicts the translation of the free end of the beam with and without control (for closed and open loops). Figure 7b (middle diagram) depicts the translation of the cantilever beam’s free end for various values of matrices A and B in Equation (6). We take the light blue diagram in Figure 7a,b using PZT patches and the robust control theory Hinfinity. Even for varied costs of the Mass and Stiffness matrices, Figure 7a shows the pricing for the closed loop with Hinfinity control. We used Hinfinity control theory to obtain good results in suppressing structural oscillations in intelligent structures [30,31]. The control voltages for the PZT actuators are shown in diagram Figure 7c for the various costs of matrices A and B. The voltages fall below the piezoelectric limit of 500 Volts.

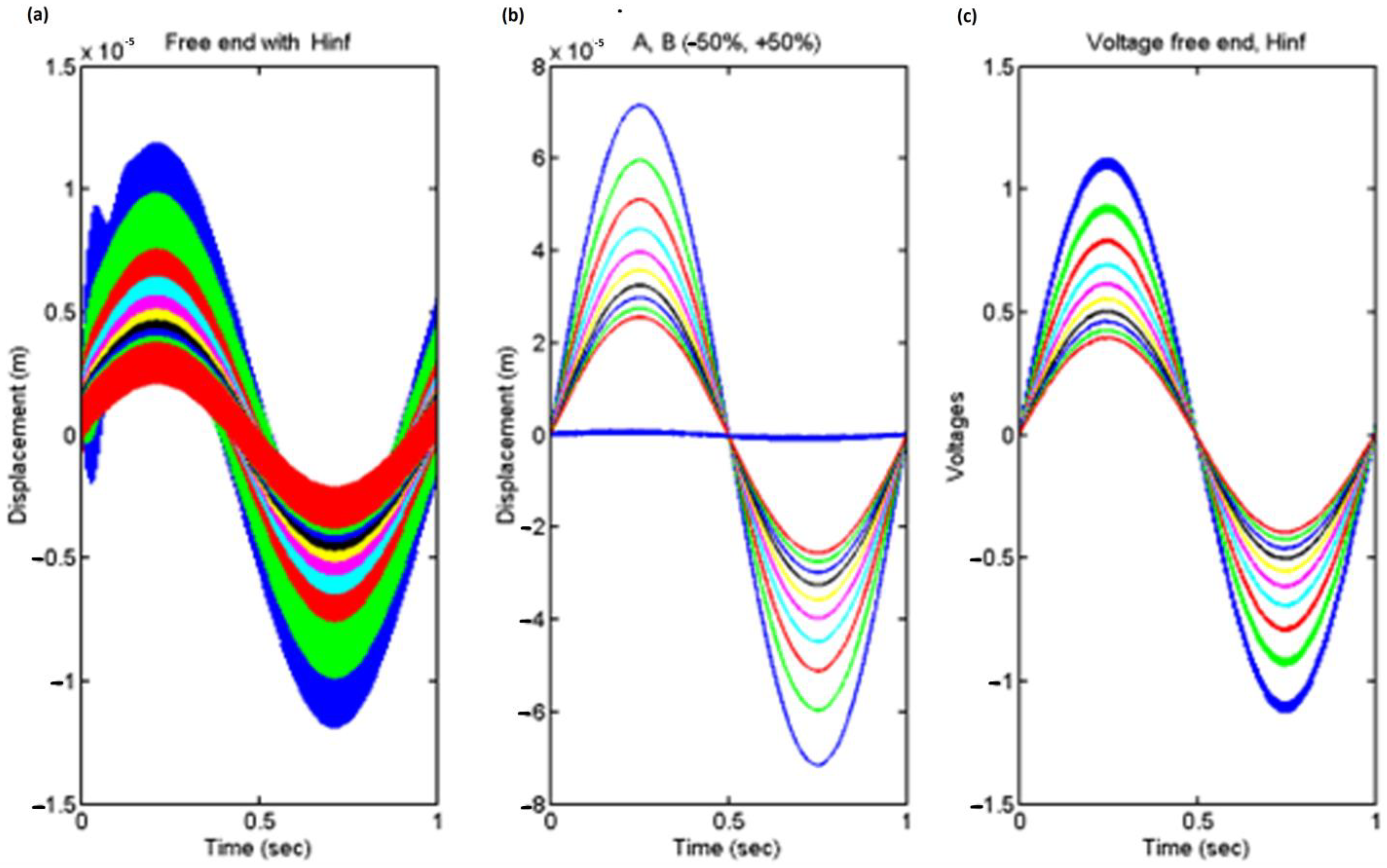

Additionally, a sinusoidal force is therefore regarded as an external mechanical force at the free end of the beam. In Figure 8, the displacement of the free end of the beam is shown both with and without the use of control theory. Figure 8b (middle diagram) illustrates the displacement of the free end of the cantilever beam for various values of the matrices A and B in Equation (6). We use the robust control theory Hinfinity and PZT patches to create the light blue diagram in Figure 8b. Prices for the near loop (with Hinfinity), even for prices A and B, which differ, are shown in Figure 8a. We used Hinfinity control theory to obtain excellent results in suppressing structural oscillations in intelligent systems. The piezoelectric voltages for the closed loop (with Hinfinity control) for various prices of the A and B matrices are shown in Figure 8c. The maximum piezoelectric voltage is 500 V. Our prices are below the maximum for piezoelectric materials.

The results were excellent. Using Hinfinity control theory, we could reduce structural oscillations in intelligent structures. In comparison to traditional control approaches, Hinfinity techniques offer the benefit of being easily adaptable to issues with multivariate systems. Figure 9 shows a schematic representation of the piezoelectric smart structure for closed-loop Hinfinity control. The construction totally suppresses its vibration.

In references [7,8,9,10,16], the same problem of the suppression of structure oscillation using piezoelectric materials is presented, but the displacement in none of these references is zero; that is, complete suppression of the oscillation is not achieved in any report. In addition, in no references is infinite control used to solve the specific problem.

This advanced control technique takes into account modeling uncertainties that correspond to construction imperfections or smears likely to be generated during oscillation. The problem of this control technique is the optimal selection of the weights resulting from optimization methods.

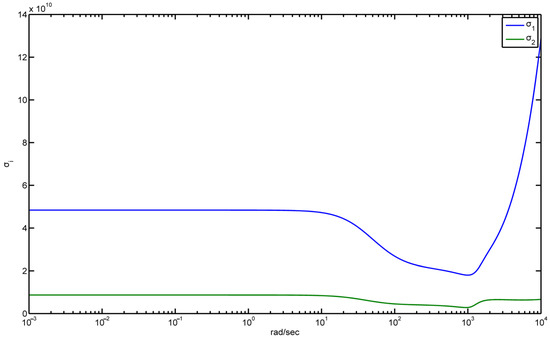

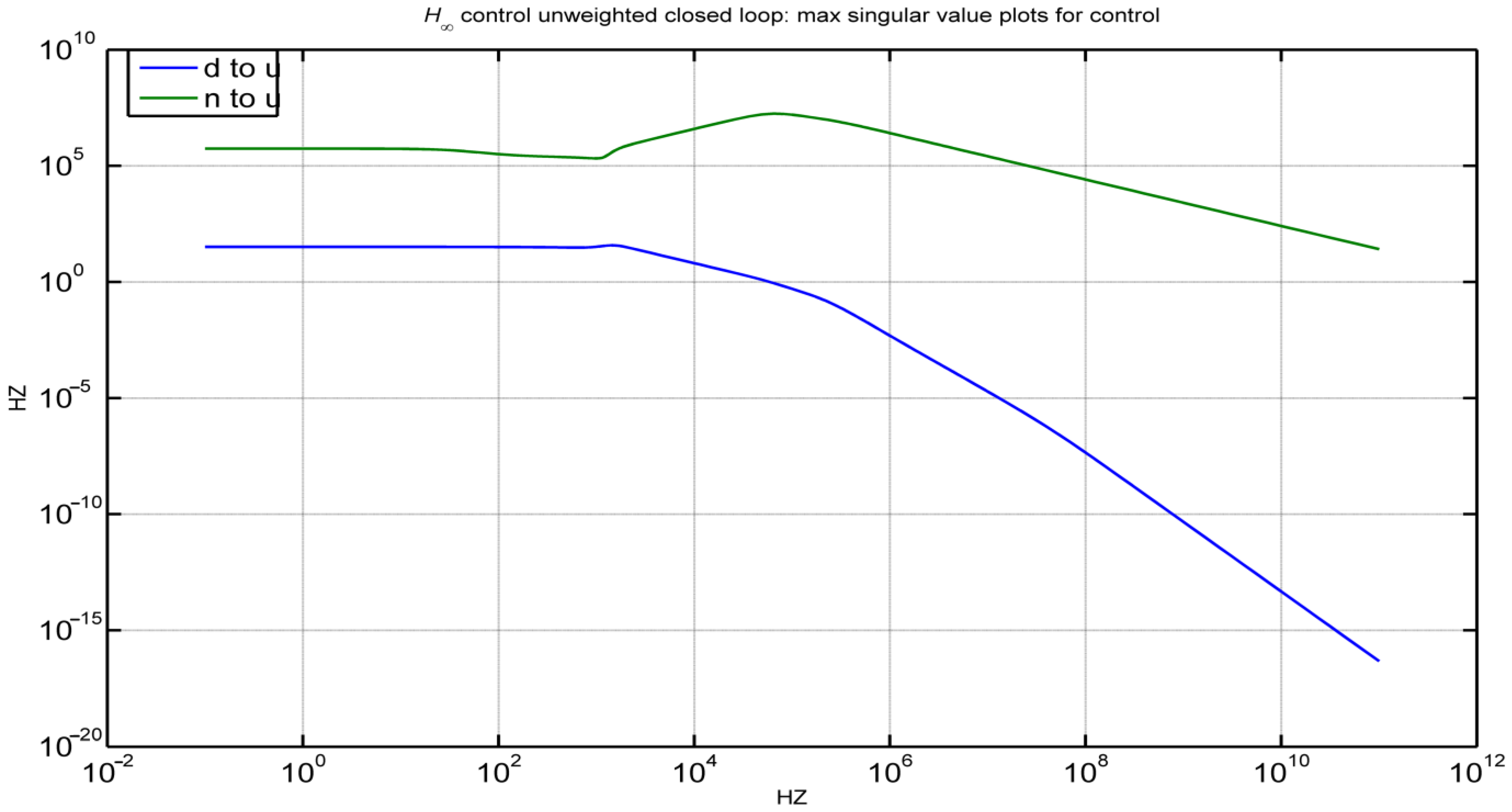

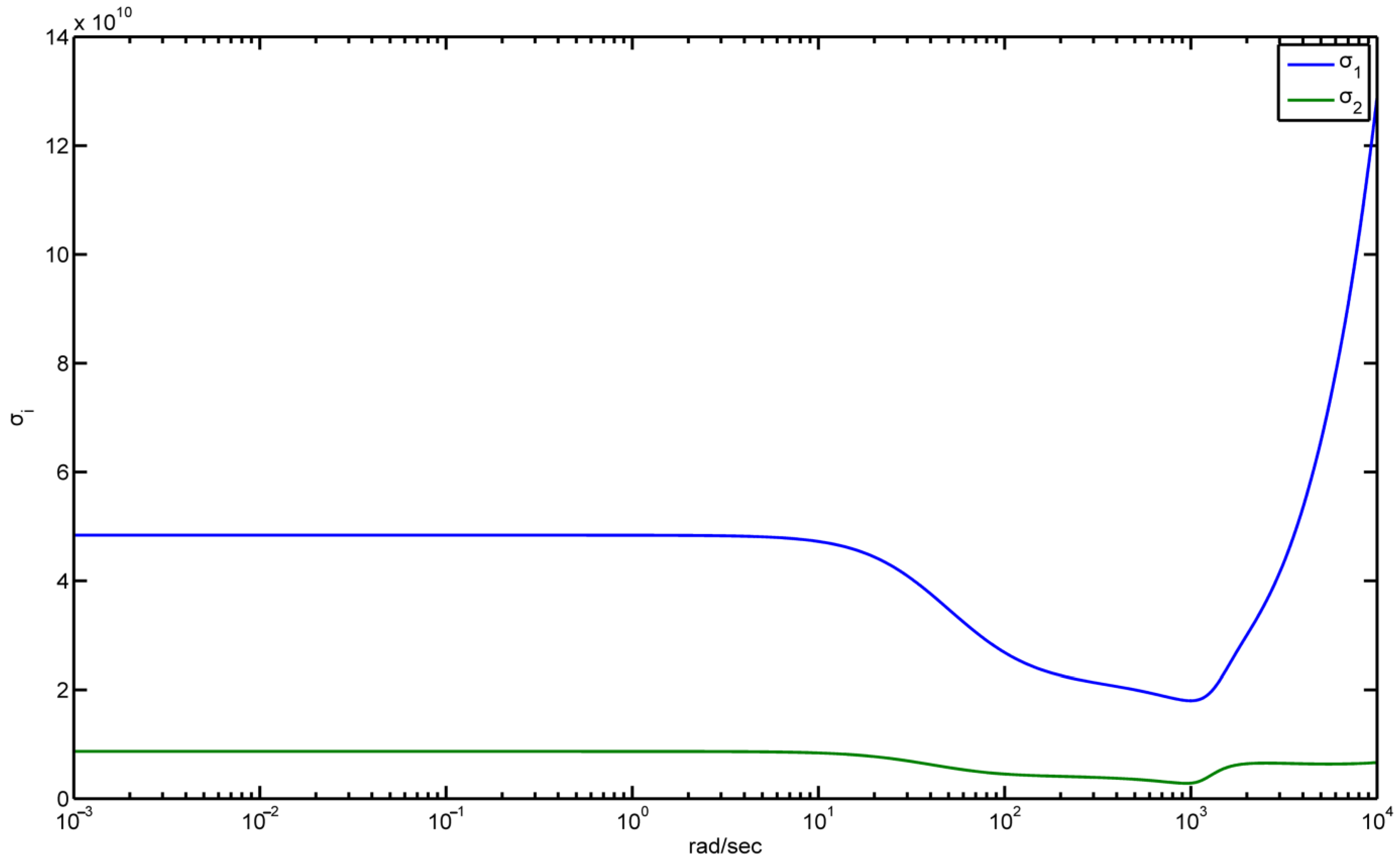

In the frequency domain, the robust controller infinity minimizes the maximum singular value of the transfer function in the frequency domain T_zw(s) from the input_Sw$=\left[\begin{array}{c}d\\ n\end{array}\right]$ (disturbances and nose of the system) to output z =$\left[\begin{array}{c}u\\ e\end{array}\right]$ (control and error). The design might be enhanced to lessen the noise (n) influence at frequencies of 1000 Hz. The acceptable impact of the disturbance (d) on the size of the control scheme is shown in Figure 10. An open loop system’s frequency graph and a closed loop system’s frequency graph (i.e., with and without Hinfinity control) cannot be distinguished from one another. The size of the control scheme (u) is sufficiently affected by the disturbance (d), as shown in Figure 10. According to Figure 10, the noise seems to have less of an effect on the error at frequencies greater than 1000 Hz. The design might be enhanced if it could reduce the noise influence at frequencies above 1000 Hz.

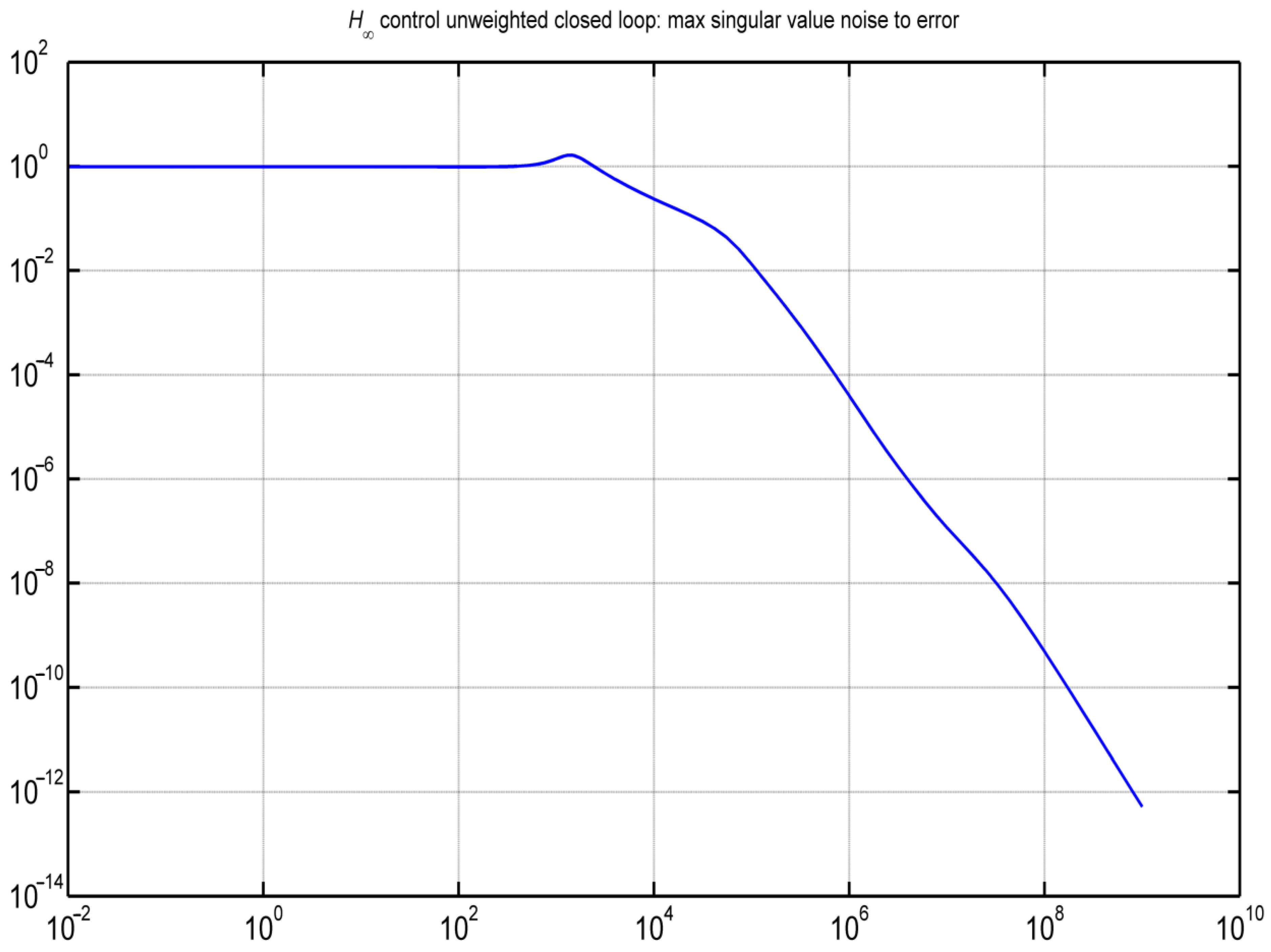

As shown in Figure 11, the impact of disturbance (d) on error (e) significantly improves up to a frequency of 1000 Hz. It is shown that there is little effect of noise on the jump for frequencies above 1000Hz. Figure 12 shows the maximum singular values for the diagram of the open (blue line) and closed loop (green line) in the field of frequencies. As can be seen after the frequency of 100 rad/s, there is a decrease in the values for both cases. The findings demonstrate the robust controller’s efficacy by being satisfactory in both the state space domain and the frequency domain.

5. Conclusions

The article examines the advantages of robust control in intelligent structures, showcasing the application of Hinfinity control in both the state space and frequency domain. It considers a dynamic model for intelligent structures under wind-induced excitations. The Hinfinity robust controller allows for the design by addressing uncertainties in the dynamical system and incomplete data measurements. Numerical simulations provide evidence that the proposed methods can effectively suppress vibrations in piezoelectric smart structures. The approach ensures a comprehensive and consistent methodology for designing and validating robust control systems. By accounting for uncertainties in the dynamical system and incomplete data, the Hinfinity robust controller facilitates the development of intelligent structures. The numerical simulation validates the efficacy of the general methods, presented in a tutorial format, in achieving satisfactory vibration suppression for a piezoelectric smart structure. This approach offers a comprehensive and cohesive framework for designing and validating robust controllers for smart structures. The findings highlight significant innovations and demonstrate the successful implementation of robust control techniques in intelligent structures, resulting in complete vibration suppression. The smart piezoelectric structure’s vibration is intended to be suppressed by a controller based on Hinfinity. In vibration suppuration issues, the resilience of the Hinfinity controller to parametric uncertainty is demonstrated. This paper provides a comprehensive illustration of the advantages of robust control and active vibration suppression in the dynamics of smart structures. There are several benefits of Hinfinity control for the examination of reliable control systems. With Hinfinity Control, the reduction in oscillations is achieved even for changes in the mass and stiffness of the original model that is presented for modeling uncertainties. The effectiveness of the suggested strategies to reduce vibrations in piezoelectric smart structures is demonstrated by numerical simulation. Notably, innovations in intelligent structures with advanced control techniques are clearly showcased. In our future scientific plans, an experimental approach as presented in the article would be implemented, aiming to confirm the very good modeling results.
