Full-Digital Customized Meshes in Guided Bone Regeneration Procedures: A Scoping Review

Andrea Scribante
Martina Ghizzoni
Matteo Pellegrini
Federica Pulicari
Mattia Manfredini
Pier Paolo Poli
Carlo Maiorana
2,3 and
Francesco Spadari
Section of Dentistry, Department of Clinical, Surgical, Diagnostic and Pediatric Sciences, University of Pavia, 27100 Pavia, Italy
Maxillofacial Surgery and Dental Unit, Fondazione IRCCS Cà Granda Ospedale Maggiore Policlinico, 20122 Milan, Italy
Department of Biomedical, Surgical and Dental Sciences, University of Milan, Via della Commenda 10, 20122 Milan, Italy
Authors to whom correspondence should be addressed.
Prosthesis 2023, 5(2), 480-495;
Submission received: 28 April 2023 / Revised: 14 May 2023 / Accepted: 16 May 2023 / Published: 18 May 2023
(This article belongs to the Collection Oral Implantology: Current Aspects and Future Perspectives)


Meshes, especially titanium ones, are being widely applied in oral surgery. In guided bone regeneration (GBR) procedures, their use is often paired with membranes, being resorbable or non-resorbable. However, they present some limitations, such as difficulty in the treatment of severe bone defects, alongside frequent mesh exposure. Customized meshes, produced by a full-digital process, have been recently introduced in GBR procedures. Therefore, the focus of the present review is to describe the main findings in recent years of clinical trials regarding patient-specific mesh produced by CAD/CAM and 3D printing workflow, made in titanium or even PEEK, applied to GBR surgeries. The purpose is to analyze their clinical management, advantages, and complications. This scoping review considered randomized clinical trials, observational studies, cohort studies, and case series/case reports studies. Studies that did not meet inclusion criteria were excluded. The preferred reporting items for scoping reviews (PRISMA-ScR) consensus was followed. A total of 15 studies were selected for this review. Based on the studies included, the literature suggests that meshes produced by a digital process are used to restore complex and severe bone defects. Moreover, they give satisfactory aesthetic results and fit the defects, counteracting grid exposure. However, more clinical trials should be conducted to evaluate long-term results, the rate of complications, and new materials for mesh manufacturing.

1. Introduction

The alveolar bone undergoes two successive processes after extraction or loss of a dental element: resorption and atrophy. This leads to a reduction in the alveolar ridge in the first six months in the horizontal dimension and then in the vertical dimension. Therefore, the bone is often inadequate for implant placement [1,2].
The guided bone regeneration (GBR) procedure, due to its numerous advantages, such as osteogenic stability and multidirectional osteogenesis capability, appears to be one of the most used and reliable techniques to restore bone deficits in height and/or width in association with implant treatment [3,4].
Currently, the GBR technique involves the employment of membranes, resorbable or non-resorbable, combined with bone substitute materials, depending on bone defect features [5].
Bone grafts, membranes, and biological materials have been tested for their regenerative characteristics for intrabony defect treatment, as well as furcation defects, peri-implantitis sites, alveolar ridge preservation, and implant site development [6,7,8,9].
Throughout the GBR procedure, osteoblasts can favorably and selectively enter the site of the defect to stimulate and regenerate the affected bone. Indeed, barrier membranes have the purpose of inhibiting early epithelial and connective cells’ colonization of the area, while bone-filling materials direct and control osteoblastic progenitor cells’ proliferation and differentiation [5,10].
Thanks to their excellent mechanical properties, titanium meshes are broadly used in the surgical field. Stiffness and strength help the osteogenesis process, stability permits bone-filling materials to maintain their volume during healing, and elasticity may decrease oral mucosa’s compression [11,12].
Bone-augmentation techniques that require titanium mesh and implant placement can occur synchronically or delayed, as well as GBR with other bone-grafting techniques [11,13,14,15,16].
When using surgical meshes, the main complication is wound dehiscence and subsequent mesh exposure during the healing process. Mesh exposure can be classified as early exposure occurring within 4 weeks post-surgery and delayed mesh exposure occurring after 4 weeks post-surgery. Early dehiscence manifestation is related to a reduction in new bone formation and synchronic increment in fibrous tissue; when this event occurs, the grid should be quickly eliminated, and disinfection procedures carried out [17,18]. On the other hand, late mesh exposure could potentially create substitute materials’ resorption, leading to a decrease in bone dimension and inadequate quantity. However, the mesh can be left in place, as disinfection with chlorhexidine, plaque management, and smoothing of the sharp edges could solve the problem without alterations in the process of bone regeneration [19,20,21].
Standardized meshes are products with pre-determined characteristics such as thickness and width; hence they must be manually modeled to adapt to the alveolar ridge of the specific patient. This procedure presents many drawbacks, such as longer surgery, imprecise fitting, infection, pain, flap laceration, and possible future mesh exposure [22,23,24].
Therefore, recent clinical research has focused more on customized titanium mesh, thanks to the latest digitalization trends and technologies available on the market (Figure 1). Pre-operative cross-sectional imaging (cone beam computed tomography-CBCT) and 3D digital models have to be collected; thus, the patient’s alveolar ridge can be virtually reconstructed with CAD technology [25].

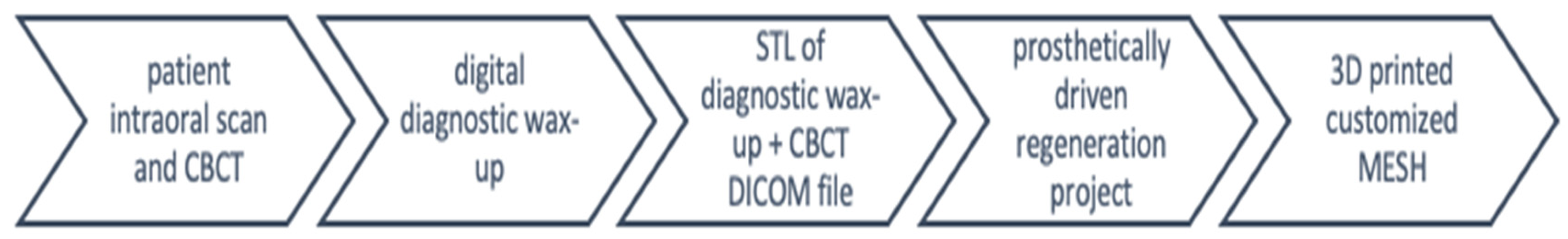

Custom-made titanium mesh can be produced with different protocols: CAD/CAM-3D printing or mesh-preforming on patients’ 3D jaws models [26,27].
Personalized meshes showed numerous advantages, such as quicker surgery, tailored fitting, less retention used to pin the mesh, smoother edges, and subsequent mucosal stress reduction [11,28].
In the last decade, research has concentrated on customized mesh applications in the surgical field. Therefore, this review aims to analyze the recent literature concerning full-digital customized mesh applied to guided bone regeneration in oral surgery, their clinical aspects and management (complex bone defects, aesthetic outcomes, bone regeneration rates), and future perspectives.

2. Materials and Methods

2.1. Focused Questions

Do full-digital customized mesh in GBR surgeries provide clinical advantages? Are they useful for treating bone defects and giving satisfactory aesthetic results?

2.2. Eligibility Criteria

The inclusion criteria guiding this review were: (I) study model—interventional studies, observational studies, cohort studies, case series/case reports studies; (II) patients with bone defects undergoing GBR; (III) interventions—guided bone regeneration with digitally custom-made mesh; and (IV) outcome—clinical results for customized mesh produced with a fully digital process. Exclusively studies that adhere to all the inclusion criteria were examined. Regarding exclusion criteria, the following were considered: (I) abstract of articles published in non-English languages; (II) duplicate studies; (III) irrelevant studies (full-text articles purpose not appropriate to answer the focused questions, analysis of different supplementary treatments, and full-text content not corresponding to abstract); (IV) ex vivo or experimental animal studies; (V) absence of Ethics Committee approval; and (VI) narrative reviews, systematic reviews, or systematic and meta-analysis reviews.

2.3. Search Strategy

According to the JBI methodology for scoping review, a three-step searching process was performed: (i) preliminary limited search on PubMed (MEDLINE) and Scopus; (ii) key terms selection from retrieved articles for devising search strategy; and (iii) reference list search of all included articles for additional research [29].
Additionally, the PCC model was applied, which is based on the following three elements: population (people undergoing GBR procedures), concept (full-digital customized meshes), and context (in this regard, the review has not been circumscribed to any specific cultural element or setting). Studies’ abstracts that analyzed the effects of digitally customized mesh in GBR procedures and their clinical outcomes were reviewed. During this scoping review of the literature, the preferred reporting items for scoping reviews (PRISMA-ScR) consensus was followed (Table S1 Supplementary Material) [30].

2.4. Research

The medical subject heading (MeSH) terms are bone regeneration, computer-aided design and manufacturing, digital technology, guided tissue regeneration, surgical mesh, and 3D printing; an electronic search was performed with PubMed (MEDLINE) and Scopus databases. The articles published in the years 2010 to 2023 were selected. The data extraction period was between November 2022 and April 2023. The last search was performed on 24 April 2023. Four calibrated reviewers (M.G., M.P., F.P., and M.M.) conducted the search. Disagreements and discrepancies were resolved by consensus, and four other reviewers were consulted (A.S., C.M., F.S., and P.P.P.). All the titles and abstracts were analyzed carefully from the articles searched first, and non-relevant studies were not included. All relevant articles were reviewed and scrutinized by analyzing full texts, documenting the findings, and recognizing any similar studies that matched the inclusion criteria selected.
The present protocol has been registered within the Open Science Framework platform (Registration DOI-10.17605/OSF.IO/VRDF6).
The elaborated strategies applied for each electronic database are exhibited in Table S2 (Supplementary Material).

2.5. Quality Assessment of Included Studies

This review was performed by evaluating the risk of bias by conducting a qualitative analysis of the clinical studies via the National Heart, Lung, and Blood Institute (NHLBI) Quality Assessment of Controlled Intervention Studies for Observational Cohort and Cross-Sectional Studies [31].

3. Results

The primary search identified 143 articles based on MeSH terms. Following this, 117 articles were removed (13 abstracts of articles published in non-English languages, 198 duplicates, 68 in vitro or animal clinical studies, 114 because they were not pertinent, and 9 because of the absence of Ethics Committee approval), and 26 articles were screened based on title and abstracts. The remaining 15 full-text articles were assessed for eligibility. Additionally, 11 full-text articles were further excluded because they were irrelevant articles. The 15 relevant articles were finally included and analyzed in this review. The flowchart of the review process is described in Figure 2.
Table S3 (Supplementary Materials) shows the studies excluded from this review and the reasons for exclusion [32,33,34,35,36,37,38,39,40,41,42].
The studies were from four categories: controlled intervention studies [43,44], before–after (Pre–Post) studies with no control group [45], observational cohort studies [46,47,48,49,50,51], and case series/case report studies [52,53,54,55,56,57].

Risk of Bias

The Cochrane Collaboration tool was applied to assess the risk of bias in the articles included in this review (Table 1), using the judging criteria for risk of bias shown in Table S4 (Supplementary Materials). A moderate risk of bias was observed in this review.
Table 2 shows the baseline characteristics of patients included in the selected studies. Evidence of studies included in this review (study design and aim, methods, results, and conclusions) is shown in Table S5 (Supplementary Materials).
The NHLBI Quality Assessment Tool for Controlled Intervention Studies is shown in Table S6 (Supplementary Materials). The NHLBI Quality Assessment Tool for Before–After (Pre–Post) Studies with No Control Group is shown in Table S7. The NHLBI Quality Assessment Tool for Observational Cohort and Cross-Sectional Studies is shown in Table S8 (Supplementary Materials). The NHLBI Quality Assessment Tool for Case Series Studies/Case Reports is shown in Table S9 (Supplementary Materials).

4. Discussion

A total of 15 studies belonging to 4 different categories (controlled intervention studies, observational cohort studies, before–after (Pre–Post) studies with no control group, and case series/case report studies) were considered in this review.
In the last few years, thanks to recent digital technologies development and new materials testing, the GBR procedure has improved its clinical outcomes. Materials such as titanium (Ti) and polyether-ether-ketone (PEEK) have been used to perform alveolar bone enhancement and reconstruction thanks to their antimicrobial and osteogenic aspects [58]. Concerning oncologic, traumatological, and implantology fields, alveolar bone dimensions are fundamental to satisfy both aesthetic and functional aspects [59]. In the recent literature, several authors suggested customized mesh as an efficient device to reconstruct complex or severe bone deficits, intended as wide horizontal or vertical deficiencies or even the combination of both [45,60].
Therefore, this scoping review focuses on clinical management and clinical outcomes of the GBR procedure using custom-made full-digital meshes.

4.1. Bone Defect Dimension

The 3D technology and additive manufacturing procedure development permitted the creation of a patient-specific grid for GBR, established on the bone defect dimension, with notable properties, being physical or biological [27,61]. Contrary to standard Ti-mesh, the 3D-printed ones have smooth margins, with the chance of reducing mucosal detriment and consequential mesh exposure, the main complication occurring after GBR surgery. Moreover, bone deficits could be reconstructed more accurately and patient-specifically [28,62].
Some studies showed that 3D precision of bone increment is not significantly related to bone deficit dimensions, being minor or major bone defects [51]. Large combined alveolar bone defects in a horizontal and vertical dimension and simultaneous implant placement could be safely and predictably treated with virtual planning and CAD/CAM patient-specific mesh manufacturing [53]. The 3D patient models used for shaping the customized mesh permit a correct fitting to the alveolar bone.
Vertical bone deficiency can be efficiently treated with up to a 90% bone regeneration rate [45,46]. In complex bone defects, patient-specific Ti-mesh has been demonstrated to potentially concur to significant bone augmentation up to 11.48 mm in horizontal and 8.90 mm in vertical dimensions, suggesting laser-sintered CAD/CAM mesh as a reliable alternative in GBR procedure related to extended atrophic alveolar ridges [49].

4.2. Aesthetic Aspects

Maxillary and mandibular defects, being related to traumatic, tumoral, or congenital conditions, can significantly impact functional and aesthetic aspects of patients’ lives; thus, their reconstruction is essential [63]. A key factor to consider when restoring aesthetic and functional features is the application of a grid, which permits obtaining and reinforcing 3D bone reconstruction.
Digital planning of the surgical procedure and tailored mesh permit the maintenance of bone shape. Additionally, they cooperate in the correct positioning of graft material to place implant fixtures and enhance the precision of bone augmentation and maxillary interconnection [50,64]. Regarding the anterior maxillary region, aesthetic considerations need to be conducted.
Implant placement is strictly related to an adequate volume of alveolar bone. Thus, individualized mesh seems to give promising results as far as it concerns bone augmentation and aesthetics [56].
In patients who present critical concavities of the vestibular bone, virtual bone volume augmentation and customized titanium mesh fabrication through 3D-printing technology showed a notable bone augmentation (after 6 months 3.7 mm SD ± 0.59 and after 12 months 4.3 mm (SD ± 0.83) [54].

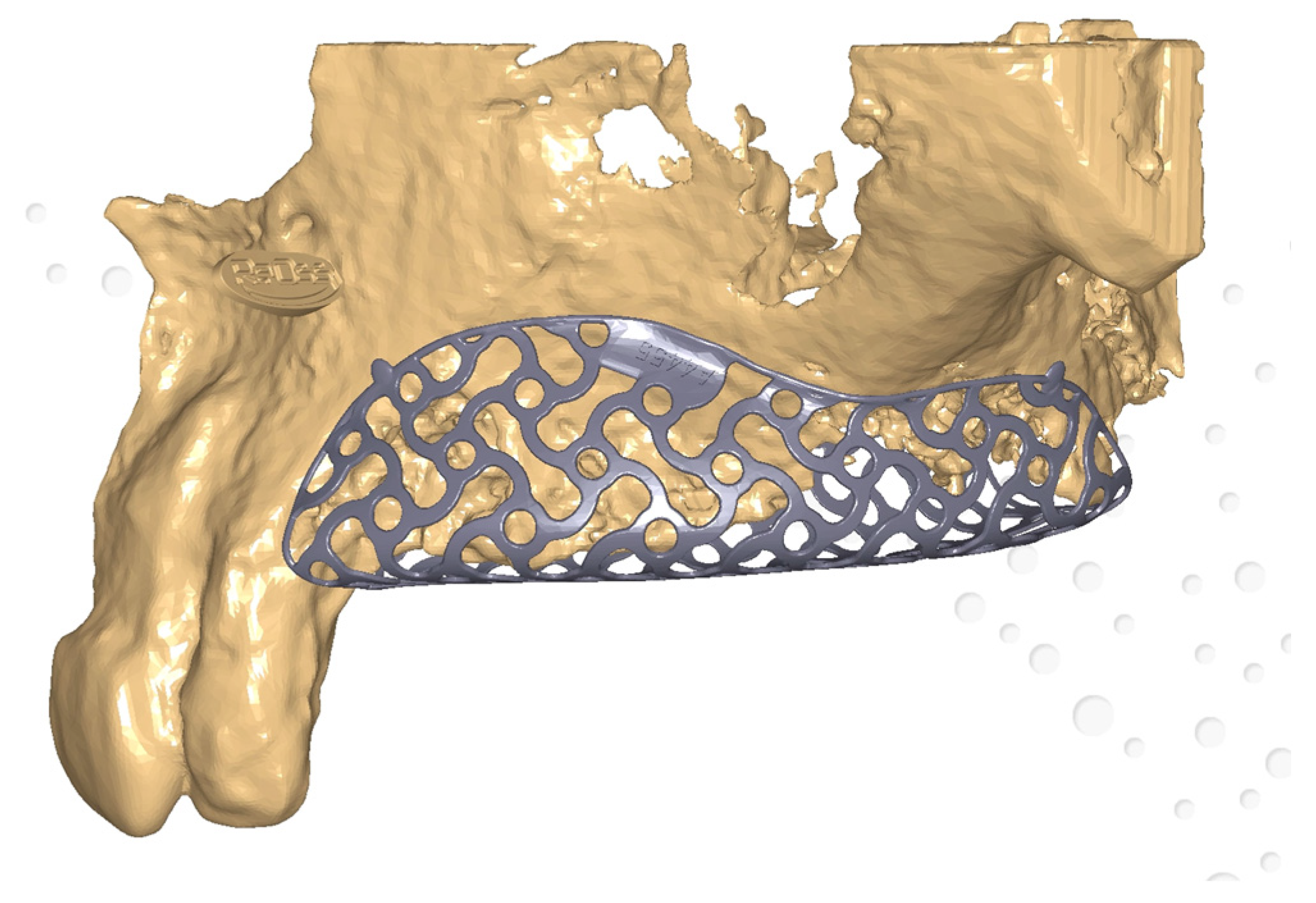

When positioning a personalized 3D Ti-mesh, it is important to consider the chance of obtaining good soft tissue management as well as good aesthetic results with voluminous and healthy tissue characteristics without any signs of scar or fibrosis [52].
A possible solution to ensure a complex bone regeneration in the aesthetic area could be a fully digital protocol that some clinicians already apply. This combines patient-specific titanium mesh with a prosthetically guided regeneration (PGR) to achieve predictable and satisfactory outcomes (Figure 3 and Figure 4) [57].

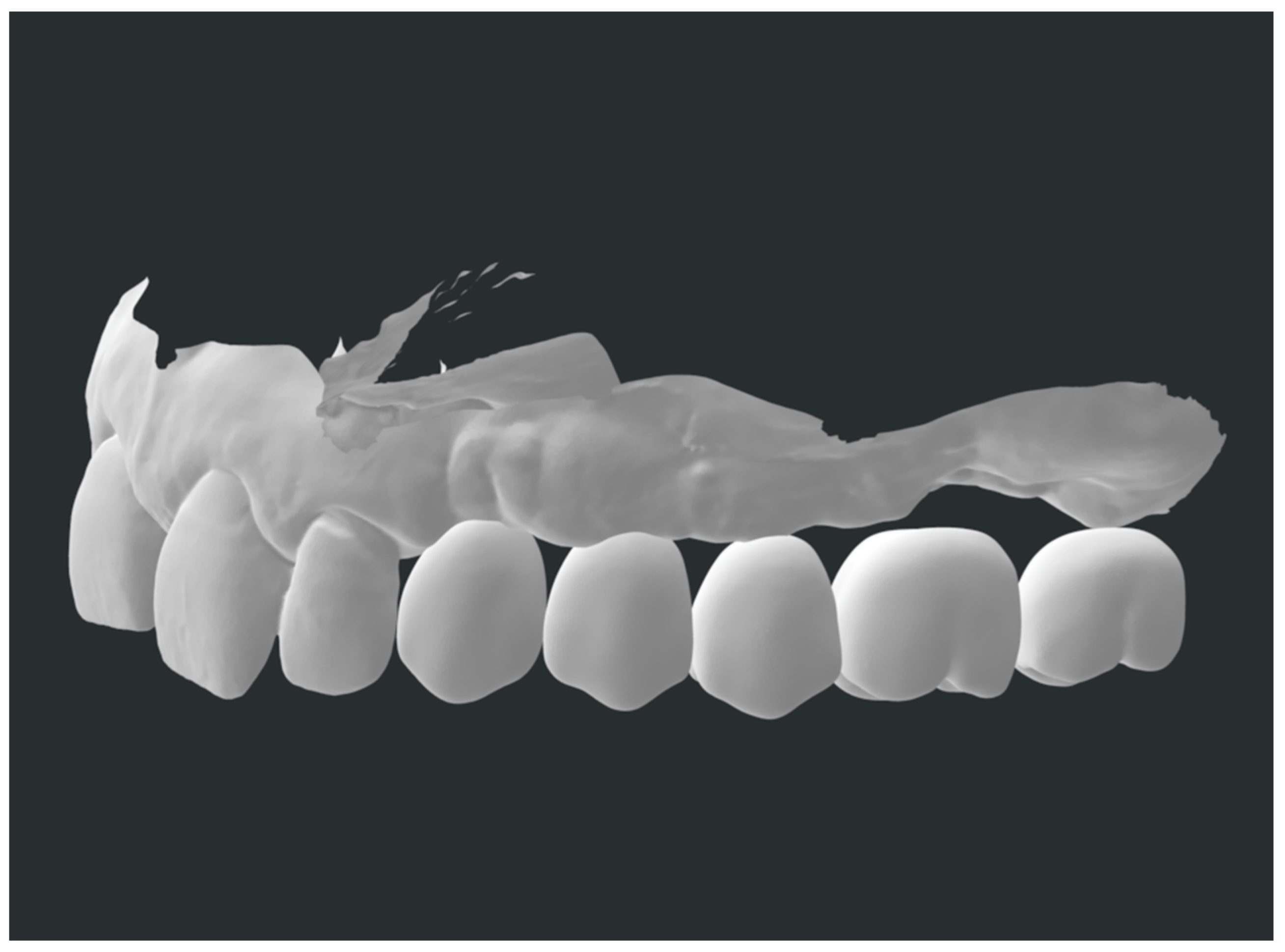

Specifically, overlaying a digital diagnostic wax-up can make the bone reconstruction procedure prophetically guided, allowing the maintenance of an adequate buccal cortical to ensure a satisfactory esthetic outcome [65,66].

4.3. Biological Considerations

Considering the histological characteristics of augmented alveolar bone, thanks to digital and individualized meshes, the freshly regenerated bone appeared mineralized at different stages. Close to the bone substitute materials residues in the connective tissue or medullary cavities, no signs of inflammation were noticed, leading to a newly regenerated tissue with structure, organization, vitality, and functioning processes of remodeling and assimilation of grafting materials [47].
Associated with bone regeneration, in the case of custom-made grid positioning, rapid and natural re-epithelialization under the intern portion of the mesh was noticed. This sign may be related to the initial bone augmentation with limited depletion [49].

4.4. Clinical Success and Complications

Virtual planning and personalized grid manufacturing associated with flap layout and its control are crucial aspects to consider in order to achieve clinical success in the GBR procedure [55]. Individualized Ti-meshes are more rigid than standard ones; thus, mesh exposure could happen eventually, even with this digital procedure [67].
This may be due to mechanical stress to the mucosal tissue’s flap, post-surgical removable prosthesis positioning, or eventually, the digital software learning curve and grid-projecting procedures [48].
Thus, a prudent approach must be adopted to ensure the clinical success of the procedure and avoid complications. Some authors showed that the application of a resorbable membrane above the customized mesh could reduce healing complication rates (13.3% vs. 33.3%) [43].

4.5. Early and Late Complication Management

In the case of mesh exposure, correct management can still lead to GBR success. The treatment consists of pharmacological or mechanical procedures.
Mesh exposure that occurs within 4 weeks after the surgical procedure is usually treated with chlorhexidine 0.2% (CHX) gels applied two to four times daily, followed by curettage of the interested site until tissue healing. Bone augmentation for implant positioning purposes is not limited in any way [21,68].
Alternatively, for CHX gel applications, the literature also suggests CHX mouthwashes or CHX spray with heterogeneous concentrations. However, gel preparations seem to be more effective than mouthwashes [69].
In the case of suspects of graft infection, topical antibiotic administration becomes relevant, while in the occurrence of mesh exposure, antibiotic administration is scarcely reported in the literature. This condition requires immediate mesh removal because of infection and pus. Plaque control and correct oral hygiene are also fundamental in these stages. Hence, saline washes and toothbrushes allow plaque removal [21].
For late exposure management, CHX 0.2% or, in some cases, 1% gel application two times a day until tissue healing appears to be useful and permits the maintenance of the mesh [20,70].
Mechanical smoothing of mesh edges with carbide or diamond burs for late exposure helps to create secondary healing of the wound [71,72].

4.6. New Materials

Despite titanium mesh being the most utilized material in guided-bone-regeneration processes, recently, the research has focused on different materials. Since PEEK material is starting to be broadly applied in the surgical field—orthopedic, traumatological, or even craniomaxillofacial—due to its inertness and biocompatibility, it could also be used in regenerative approaches [73,74].
In GBR procedures, customized PEEK grids have been applied to three-dimensional alveolar bone defects to place implant fixtures, and it has been demonstrated that there are no statistical differences (p-value = 0.2) between PEEK and pre-bent Ti-mesh, as far as it concerns bone regenerative processes [44].
Full-digital meshes represent one component of a digitization process that includes other stages that complete a surgical case, such as case design, CAD/CAM abutments and crowns, and other 3D-printed components [75,76,77,78].
This report presents some limitations. The search procedure could have been too specific for a scoping question. Moreover, the comparison between results could be complicated and might vary depending on the sample considered; indeed, digital software may give different results considering individual learning curves or technicians’ capabilities. The same consideration should be applied to surgical procedures, mesh positioning, and management, which can vary based on clinician experience or patient compliance. Lastly, the heterogeneity of digital software and 3D-printing devices available on the market can influence clinical results and thus clinical trial outcomes.
Future studies, especially randomized clinical trials, are needed to deeply analyze customized mesh produced through digital approaches for complex defects and new material testing other than titanium, as well as their complication rates.

5. Conclusions

The recent development of digital technologies such as CAD/CAM and 3D printing permits the creation of full-digital customized meshes, which can be applied in GBR procedures.
Personalized meshes are used to restore complex and severe bone defects, giving satisfactory aesthetic results. They adapt to the defects, counteracting grid exposure.
However, more studies should be conducted to evaluate long-term results, the rate of complications, and eventually to test new materials or technologies for mesh manufacturing.
