Effects of Substituents on Photophysical and CO-Photoreleasing Properties of 2,6-Substituted meso-Carboxy BODIPY Derivatives ^†

Abstract

Carbon monoxide (CO) is an endogenously produced signaling molecule involved in the control of a vast array of physiological processes. One of the strategies to administer therapeutic amounts of CO is the precise spatial and temporal control over its release from photoactivatable CO-releasing molecules (photoCORMs). Here we present the synthesis and photophysical and photochemical properties of a small library of meso-carboxy BODIPY derivatives bearing different substituents at positions 2 and 6. We show that the nature of substituents has a major impact on both their photophysics and the efficiency of CO photorelease. CO was found to be efficiently released from π-extended 2,6-arylethynyl BODIPY derivatives possessing absorption spectra shifted to a more biologically desirable wavelength range. Selected photoCORMs were subjected to in vitro experiments that did not reveal any serious toxic effects, suggesting their potential for further biological research.

1. Introduction

4,4-Difluoro-4-bora-3a,4a-diaza-s-indacene (BODIPY) dyes have attracted increasing attention in bioapplications [1,2] as sensors [3,4,5] or fluorescent tags [6,7] for their high molar absorption coefficients, sharp and intense fluorescence emission bands, chemical stability, and low toxicity [8]. Synthetic methods are available to fine-tune the dye structure to achieve the required spectroscopic and photophysical characteristics [9,10,11,12]. The intersystem crossing (ISC) efficiency in most BODIPY fluorophores is usually small, which precludes their use as triplet photosensitizers [13]. Specific structural modifications, such as the introduction of iodine or bromine atoms as core substituents [8,14,15], can enhance ISC thanks to a strong spin–orbit coupling [16] between the singlet and triplet states (heavy atom effect) [17,18].

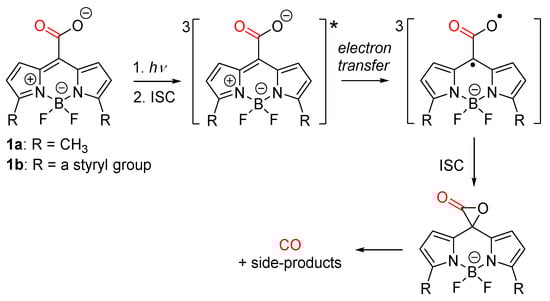

It has been found that, despite its overt toxicity when present in high concentrations, carbon monoxide (CO) as an endogenously produced signaling molecule can have beneficial effects in various physiological processes and cellular functions, including apoptosis, proliferation, and inflammation at sub-micromolar concentrations (≈0.2 μM) [19,20,21]. When considering its therapeutic applications, sufficiently low concentrations of CO must be administered in a controlled manner to avoid its toxic effects. One CO delivery strategy is based on metal carbonyl complexes that release a weakly bound CO by simple hydrolytic ligand exchange upon dissolution in aqueous media [22,23]. Another approach is the use of photochemically activatable CO-releasing molecules (photoCORMs), which allow precise spatial and temporal control over its release in tissues [24,25,26,27,28]. Visible/NIR light has a reduced tissue penetration due to high optical scattering and strong absorbance by endogenous chromophores, such as hemoglobin or melanin [29,30]; therefore, photoCORMs activatable in this wavelength range are highly desirable. Most of the reported visible/NIR light-absorbing photoCORMs are metal carbonyl complexes, but several transition-metal-free (organic) photoCORMs, such as xanthene-9-carboxylic acid [31] or flavonol derivatives [32,33,34,35], have also been designed and studied. Some of us have introduced meso-carboxy BODIPY-based photoCORM derivatives 1a and b that can release CO upon irradiation at wavelengths of up to ≈750 nm (Scheme 1) [36]. The density functional theory (DFT) calculations suggested that a strained α-lactone intermediate, formed upon irradiation via a triplet biradical, is responsible for the subsequent CO liberation.

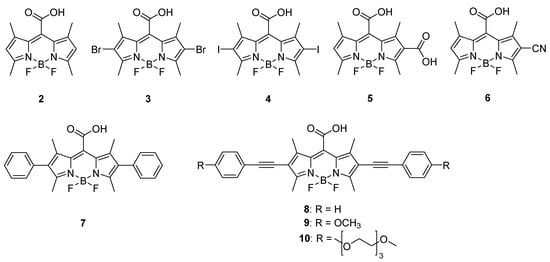

In this work, we prepared several meso-carboxy BODIPY derivatives of 2, compounds 3–10 (Figure 1), as potential new BODIPY-based photoCORMs, and studied their photophysical and photochemical properties. We evaluated the effects of various electron-donating and electron-withdrawing substituents at positions 2 and 6 on their absorption and emission properties, and the efficiencies of CO release and singlet oxygen production upon irradiation. The selected derivatives with the highest yields of CO were subjected to cell culture experiments to determine possible cytotoxic effects to assess their potential for future therapeutic use.

2. Results and Discussion

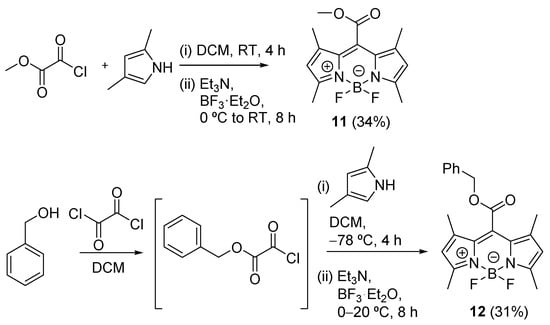

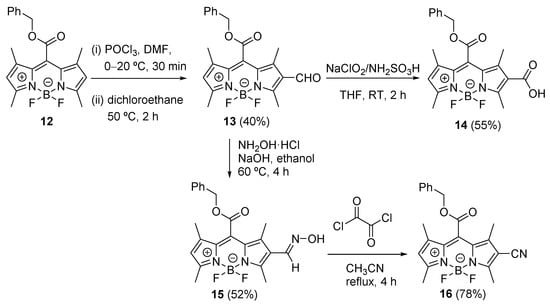

Synthesis: Methyl and benzyl esters of carboxylic acid derivative 2, compounds 11 and 12, were prepared from 2,4-dimethylpyrrole and the corresponding chlorooxalate in 34 and 31% chemical yields (Scheme 2), respectively, using a modified procedure previously described [37]. Compound 12 was treated with POCl₃ in DMF to give aldehyde 13 as a synthetic precursor, which was subsequently converted to carboxylic acid 14 in the presence of NaClO₂ and NH₂SO₃H in 55% yield (Scheme 3). Compound 13 was used for the preparation of oxime 15 by the reaction with hydroxylamine hydrochloride and sodium hydroxide in ethanol (52% yield), and then the resulting 15 was treated with oxalyl chloride in acetonitrile to give 2-cyano derivative 16 in 78% yield (Scheme 3).

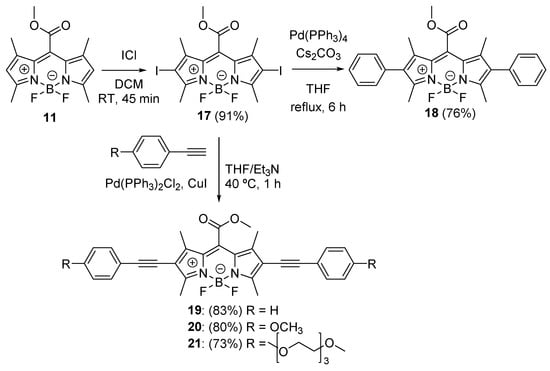

2,6-Diiodo derivative 17, obtained by the reaction of 11 with iodine monochloride in dichloromethane in an excellent yield (91%), was used for the preparation of 2,6-diphenyl analog 18 by Suzuki–Miyaura cross-coupling reaction in 76% yield (Scheme 4). Compound 17 was used for the preparation of 2,6-diethynylbenzene derivatives 19–21 by Sonogashira cross-coupling reactions in good yields (73–83%; Scheme 4).

The target meso-carboxy BODIPY derivatives 2 and 4–10 were obtained by the deprotection of the corresponding methyl esters using lithium iodide or by catalytic hydrogenation from the benzyl esters in good isolated yields (65–92%; Scheme 5). 2,6-Dibromo analog 3 was prepared by the reaction of 2 with NBS in 49% yield (Scheme 5).

Photophysical properties of BODIPY derivatives 2–10: The absorption and emission spectra of compounds 2–10 in methanol or phosphate buffered saline (PBS)/DMSO mixtures are shown in

Table 1. Photophysical properties of meso-Carboxy BODIPY derivatives in methanol.

Compound	${\mathit{\lambda }}_{\mathbf{max}}^{\mathbf{abs}}/\mathbf{nm}$	ε/104 M−1 cm−1	${\mathit{\lambda }}_{\mathbf{max}}^{\mathbf{em}}/\mathbf{nm}$	Φfa	ΦΔb
2	494	5.22	504	0.37 ± 0.03	0.044 ± 0.003
3	516	5.61	531	0.24 ± 0.02	0.59 ± 0.05
4	521	5.83	540	0.03 ± 0.002	0.72 ± 0.05
5	490	3.95	502	0.37 ± 0.02	0.055 ± 0.005
6	481	4.07	500	0.108 ± 0.003	0.07 ± 0.01 c
7	518	3.58	548	0.53 ± 0.04	– d
8	554	4.31	590	0.41 ± 0.03	0.07 ± 0.01
9	561	5.06	616	0.11 ± 0.02	0.032 ± 0.004
10	562	5.36	617	0.15 ± 0.01	– d

^a Determined from three independent measurements. ^b Determined by irradiation at 525 nm (compounds 3 and 4) and 545 nm (compound 8); 1,3-diphenylisobenzofuran (DPBF) was used as a singlet oxygen trap; rose bengal was used as a reference sensitizer [46]. ^c Determined by irradiation at 490 nm using DPBF as a singlet oxygen trap and compound 3 as a reference. ^d Not measured.

and

Table 2. Photophysical and photochemical properties of meso-Carboxy BODIPY derivatives in PBS/DMSO mixtures ^a.

Compound	${\mathit{\lambda }}_{\mathbf{max}}^{\mathbf{abs}}/\mathbf{nm}$	ε/104 M−1 cm−1	${\mathit{\lambda }}_{\mathbf{max}}^{\mathbf{em}}/\mathbf{nm}$	Φfb	Φr/10−4 c	(CO)/% h
2	497	4.35	507	0.58 ± 0.02	4.1 ± 0.04 d 5.2 ± 0.06 e	7 i 15 j
3	521	5.20	563	0.13 ± 0.01	58.4 ± 0.7 d 68.2 ± 0.05 e	8 i 18 j
4	528	5.04	548	0.012 ± 0.001	– k	10 i 7 j
5	500	4.65	510	0.23 ± 0.01	– k	5 i 7 j
6	484	3.82	500	0.072 ± 0.001	– k	13 i 8 j
7	522	4.78	556	0.49 ± 0.03	– k	6 i 7 j
8	558	4.13	603	0.13 ± 0.01	0.70 ± 0.02 f 1.30 ± 0.06 g	19 i 32 j
9	564	3.17	637	0.020 ± 0.002	0.57 ± 0.05 f 0.78 ± 0.01 g	16 i 44 j
10	565	3.95	633	0.067 ± 0.005	0.20 ± 0.01 f 0.80 ± 0.03 g	24 i 43 j

^a Measured in PBS (I = 0.1 M, pH = 7.4)/DMSO (2–7, 90:10; 8–10, 80:20) mixtures. ^b Determined from three independent measurements. ^c Quantum yields of photochemical degradation determined by irradiation at 525 nm using meso-carboxy BODIPY derivative 22 [47] (see the Experimental section) as an actinometer in ^d aerated or ^e degassed PBS/DMSO mixtures (90:10, v/v; I = 0.1 M, pH = 7.4) or in ^f aerated or ^g degassed PBS/DMSO mixtures (80:20, v/v; I = 0.1 M, pH = 7.4). ^h Maximum chemical yields of the CO photoproduction in ⁱ aerated or ^j degassed PBS (I = 0.1 M, pH = 7.4)/DMSO (2, 7, 8, 10, 99:1; 3–6, 90:10; 9, 80:20) mixtures upon irradiation at ${\lambda }_{\max }^{\mathrm{abs}}$. ^k Not measured.

and Figures S57–S73. The absorption (${\lambda }_{\max }^{\mathrm{abs}}$) and emission (${\lambda }_{\max }^{\mathrm{em}}$) maxima of BODIPYs 3–5 and 7–10 are bathochromically shifted compared to those of the reference derivative 2, particularly in the case of π-extended ethynyl [38,39,40] derivatives 8–10. Both ${\lambda }_{\max }^{\mathrm{abs}}$ and ${\lambda }_{\max }^{\mathrm{em}}$ of 6, bearing an electron-withdrawing group at position 2, are slightly hypsochromically shifted. The molar absorption coefficients (ε) were found to be in the range of 3.2–5.8 × 10⁴ M^–1 cm^–1, which is common for BODIPY chromophores [11]. The type of the solvent (methanol, Table 1, and PBS, Table 2) had only a marginal effect on the ${\lambda }_{\max }^{\mathrm{abs}}$, ${\lambda }_{\max }^{\mathrm{em}}$, and ε values. The solvent and properties of the substituents at positions 2 and 6 had a substantial effect on the fluorescence quantum yields (Φ_f). Except for compound 2, all Φ_f values were found to be higher in methanol; indeed, increasing the solvent polarity leads to a low fluorescence efficiency of BODIPY derivatives [12]. Besides, the Φ_f was found to be relatively small for bromo- and iodo- derivatives 3 and 4 due to the presence of heavy atoms (i.e., an efficient ISC). An efficient nonradiative decay must also be responsible for the small values of Φ_f in the case of 2-cyano (6) and 2-phenylethynyl (9 and 10) derivatives. This is consistent with the low Φ_f found for 2-phenylethynyl [38,41] or 2,6-arylethynyl [40] BODIPY derivatives. Analogous meso-alkenyl substituted BODIPYs have also been reported to be practically non-fluorescent [39,42]. It has been explained by the effect of large stabilization upon excitation along with the bending of the fused BODIPY core, and the accessible S₁/S₀ conical intersection point [16]; the small geometrical evolution prompts the nonradiative relaxation to the ground state [43]. We also cannot exclude fluorescence quenching by internal charge transfer (ICT) in derivatives 9 and 10 [42,44,45]. Different amounts of DMSO were added to PBS to dissolve the BODIPY derivatives because, except for 10 (the p-phenyl polyethylene glycol substituents were introduced in 10 to improve its solubility in aqueous solutions), they are only partially soluble in aqueous solutions. The pK_a of non-substituted meso-carboxy BODIPY derivatives has previously been determined to be 4.7; the absorption band of the conjugate acid is bathochromically shifted by ≈100 nm [36]. The pH titration of 9 in a PBS/methanol (95:5, v/v) solution showed that the signal of the conjugate acid appears at ≈680 nm and a pH below 5 (Figure S99). BODIPY derivatives were present only as conjugate base forms in solutions under the experimental conditions used in this work.

Time-resolved spectroscopy: We performed nanosecond transient absorption (TA) spectroscopy of selected BODIPY derivatives in both aerated and degassed PBS/DMSO mixtures (c ∼ 10⁻⁵ M; λ_exc = 532 nm) to identify long-lived intermediates. Derivatives 3 and 4 gave strong transient signals with λ_max at ≈436 nm (Figures S102–S111). A prominent ground state bleach with λ_max = 506 and 530 nm (Figures S102, S103, S107 and S108) for 3 and 4, respectively, was also observed. The kinetic traces were fitted to a first-order rate law (the oxygen concentration in an aerated solution at 20 °C (∼2.7 × 10⁻⁴ M [48]) was almost 30 times higher than that of a BODIPY derivative) to provide the lifetimes of 320 ns and 25 μs for 3 and 256 ns and 11.40 μs for 4 in aerated and degassed solutions, respectively (Table S1), which is in good agreement with the lifetimes reported for analogous BODIPY systems [36]. We assigned these signals to the triplet states [49]. Derivatives 2 and 7 did not show any apparent signals in the range typical for the triplet-excited BODIPYs; only fluorescence and ground-state bleach signals were detected (Figures S100, S101, S112 and S113); thus, triplet state concentrations were below the detection limit of our TA spectroscopy setup.

Intersystem crossing efficiency and singlet oxygen production: As the photochemical release of CO from meso-carboxy BODIPYs was reported to occur from the triplet-excited state [36], we evaluated the ISC efficiency (Φ_ISC) by quantitative analysis of the transient optical density [50,51] using nanosecond TA spectroscopy. Triplet state transient signals of 3 and 4 in methanol were sufficiently strong to obtain the Φ_ISC values of 0.66 and 0.83, respectively. Besides, we evaluated quantum yields of the singlet oxygen production (Φ_Δ) for selected derivatives in methanol using 1,3-diphenylisobenzofuran (DPBF) as a ¹O₂ trap (Table 1). The high Φ_Δ values of 0.59 and 0.72 for 3 and 4 (Figures S95 and S96), respectively, bearing heavy halogen atoms directly attached to the BODIPY core, match those of analogous BODIPY derivatives with halogen or chalcogen atoms in various core positions [8,11,14,15]. These values are only slightly lower than those of Φ_ISC, thus Φ_Δ can be used advantageously to estimate the lower limit of Φ_ISC. As anticipated, a small Φ_Δ was found for compounds 2, 5, 6, 8, and 9 (Figures S97 and S98).

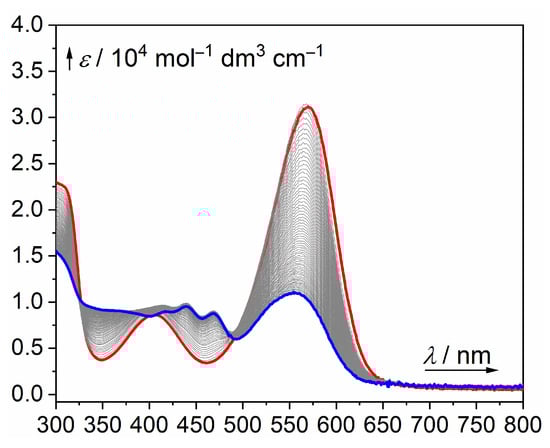

Photorelease of CO: We evaluated the quantum yields of photochemical degradation (Φ_r) of selected derivatives in a PBS/DMSO mixture (Table 2). In all cases, the efficiencies were greater in the absence of oxygen because of quenching of the reactive triplet state. Besides, the Φ_r value for 3 (58 × 10⁻⁴) was larger than that of 8 by two orders of magnitude (0.7 × 10⁻⁴), indicating that the triplet state is considerably more photochemically active, as previously discussed [36]. Because the efficiency of photodegradation of all BODIPY derivatives in methanol was too low (irradiation of 8 in methanol under the same conditions led to a ≈5% conversion in 12 h, for example), we have not investigated their photochemistry in this solvent in detail.

Compounds 2–10 in PBS/DMSO mixtures were found to produce different amounts of CO upon irradiation at the corresponding ${\lambda }_{\max }^{\mathrm{abs}}$ (Table 2; Figure 2 and Figures S77–S94). The chemical yields obtained upon exhaustive photolysis were rather small for BODIPYs 2–7 (<15%) but considerably higher for phenethynyl derivatives 8–10 (up to 45% upon complete conversion in a degassed solvent). As expected (see above), the yields dropped approximately by half in aerated solutions. However, compounds 3 and 4 with an enhanced ISC, which could promote a more efficient CO release from the triplet state [36], did not liberate CO in high yields. Besides, lower chemical yields of CO found in degassed rather than aerated solutions for compounds 4 and 6 (Table 2) suggest that at least one of the competing degradation pathways is independent of the presence of oxygen.

Therefore, we analyzed the photoproducts formed upon irradiation of 10 in a PBS/DMSO mixture by high-resolution mass spectra (HRMS). Based on the proposed photoproduct structures (Supplementary Materials), we suggest that the CO production competes with bleaching of the starting material with the generated singlet oxygen [36] (for example, by oxidative cleavage of the triple bond or ring opening of the BODIPY core, reported before in [52]), or the compound undergoes a photoinduced attack of water as a nucleophile at position 3 [53] or an exchange of fluorine(s) by the OH group(s). Figure 2 shows that a photoproduct formed upon irradiation of 10, characterized by a slight hypsochromic shift of the main absorption band, is further consumed upon continuing irradiation. Because the absorption maximum of this intermediate is similar to that of the starting material, the compound must still retain a BODIPY or BODIPY-like chromophore (Supplementary Materials).

The introduction of an electron-withdrawing group (6) or an additional carboxy group (5) at position 2 did not improve the CO yields. According to the proposed mechanism of the CO release from meso-carboxy BODIPYs 1a, b (Scheme 1), electron-withdrawing groups should enhance electron transfer from the carboxylate (with pK_a of ≈4.7 [36]; the acids are fully dissociated at pH = 7.4) to the triplet-excited BODIPY core. However, we could not verify this hypothesis because the competing dye degradation in both the presence and absence of oxygen was more efficient than the CO release. A low CO yield in 2 was also unexpected because analogous BODIPY derivatives with the unsubstituted 1,7-positions (1, Scheme 1) were reported to liberate CO in up to 87% yields in degassed solutions [36]. The methyl substituents at positions 2 and 6, which were introduced to improve the stability in the dark (Figures S74–S76) and simplify the synthesis of meso-carboxy BODIPYs, thus must play a detrimental role in the CO photorelease. This behavior may be related to an out-of-plane geometry of the BODIPY core induced by the steric hindrance of a meso-substituent and the 1,7-dimethyl groups that are responsible for a more efficient nonradiative decay via “butterfly motion” discussed for analogous substituted BODIPY derivatives [24,54].

Fortunately, π-extended derivatives 8–10 not only provided improved chemical yields of the CO formation but their absorption bands were bathochromically shifted toward the biologically desired longer wavelengths. Compounds 8 and water-soluble 10 were therefore selected for the assessment of the cellular cytotoxicity before their use in further biological studies.

Cellular toxicity: To determine the cellular toxicity of compounds 8 and 10 and their corresponding photoproducts, an MTT test was used to assess cell viability on the human hepatoblastoma HepG2 cell line. HepG2 cells were incubated with selected photoCORMs or their respective photoproducts for 2, 6, and 24 h. Compound 8 displayed no cytotoxicity within the concentration range of 12.5–100 µmol L^–1 (Figure S116), whereas compound 10 showed no effects on cell viability up to the concentration of 50 µmol L^–1 (Figure S117). Their photoproducts were found to be non-cytotoxic in the concentration range of 12.5–200 µmol L^–1 (Figures S117 and 118). These cytotoxicity data are comparable to those observed for meso-carboxy BODIPY photoCORMs 1a, b (Scheme 1) [36].

3. Experimental Section

Materials: Reagents and solvents of the highest purity available were used as purchased, or they were purified/dried using the standard methods when necessary.

Methods: The lowest possible intensity of incident light was used in the spectroscopic identification of the samples to prevent their photodegradation. All measurements were accomplished using fresh solutions prepared in the dark. ¹H and ¹³C NMR spectra were obtained in CDCl₃, CD₂Cl₂, DMSO-d₅, or CD₃OD on 75, 125, 300, and 500 MHz spectrometers (Bruker AVANCE III (300 MHz) and AVANCE III HD (500 MHz) spectrometers). ¹H chemical shifts are reported in ppm relative to the tetramethylsilane signal (TMS, δ = 0.00 ppm) using the residual solvent signal as an internal reference. ¹³C NMR chemical shifts are reported in ppm relative to the solvent signal as an internal standard. High-resolution mass spectra (HRMS) were recorded on an Agilent 6224 Accurate-Mass TOF LC-MS instrument using ESI or APCl techniques. Absorption spectra and the molar absorption coefficients were obtained on a UV–vis spectrometer with matched 1.0 or 0.1 cm quartz cells. Molar absorption coefficients were determined from the absorption spectra; the average values were obtained from three independent measurements with solutions of different concentrations. No dependence of the molar absorption coefficient on the sample concentration was observed in the range from 1 × 10⁻⁴ to 1 × 10⁻⁶ M. All glassware was oven-dried before use. Purification procedures were performed using silica gel (Merck 60; 230–400 mesh) columns or by recrystallization.

Determination of CO yields: A solution of compounds 2–10 (100–10 mM) in a PBS (I = 0.1 M, pH ≈ 7.4)/DMSO solution was irradiated with LEDs emitting at the corresponding wavelengths (λ_max = 490, 525, or 545 nm) in closed GC vials fitted with PTFE septa to complete the conversion of the starting material. The released CO into the vial headspace was determined by a GC-Agilent 5973 Mass Selective Detector headspace technique, which was calibrated using the photoreaction of cyclopropenone photoCORM [55] (50−500 μL, c ≈ 5 × 10^–4 M, in methanol).

Decomposition quantum yields: The quantum yields of the decomposition of BODIPY derivatives in both aerated and degassed (purged with argon for 20 min) PBS/DMSO solutions were determined at λ_irr = 525 nm (LEDs) using the BODIPY derivative 22 [36] as an actinometer dissolved in PBS (I = 0.1 M, pH = 7.4) according to the published procedure [36]. All quantum yield measurements were repeated five times with independently prepared samples.

Singlet oxygen production quantum yields: Quantum yields for the singlet oxygen production, sensitized by BODIPYs derivatives in methanol at 525 (compounds 2, 3 and 4), 490 (compounds 5 and 6), and 545 nm (compounds 8 and 9), were determined by monitoring the photooxidation of 1,3-diphenylisobenzofuran (DPBF) using rose bengal (RB) [46] as a reference sensitizer. For derivatives 5 and 6, compound 3 was used as a reference. A solution of DPBF (c = 5 × 10⁻⁵) and either BODIPY (c = 1 × 10⁻⁵ M) or RB (c =5 × 10⁻⁶ M) sensitizers in methanol was prepared. The stirred solution (3 mL) in a 1 cm quartz cell was irradiated using LEDs at a selected wavelength, and the UV−vis spectra were recorded periodically. The irradiation time was chosen to reach approximately 10% conversion of DPBF. The procedure was repeated five times.

Fluorescence quantum yields: Fluorescence quantum yields were determined on an Edinburg Instrument FLS920 fluorimeter as the absolute values using an integrating sphere. The quantum yields were measured three times and were averaged for each sample. The solution concentrations were kept low (A < 0.1). The fluorescence quantum yields were determined in methanol or a PBS (pH = 7.4, 10 mM, I = 0.1 M)/DMSO mixture.

Transient spectroscopy: The nanosecond laser flash spectroscopy setup was generally operated in a right-angle arrangement of the pump and probe beams. Laser pulses of ≤170 ps or 700 ps duration at 532 nm (20–240 mJ) were obtained from an Nd:YAG laser. The laser beam was dispersed onto a 40 mm long and 10 mm wide modified fluorescence cuvette held in a laying arrangement. An overpulsed Xe arc lamp was used as a source of the probe light. Kinetic traces were recorded using a photomultiplier. Transient absorption spectra were obtained using an ICCD camera equipped with a spectrograph. The samples were degassed by three freeze–pump–thaw cycles under reduced pressure (0.01 Torr). Absorption spectra of the sample solutions were measured regularly between laser flashes to test for possible photodegradation of the solution components using a diode-array spectrophotometer [56].

Intersystem crossing quantum yield: The ISC efficiency (Φ_ISC) was evaluated by a quantitative analysis of the transient optical density (see Supplementary Materials for details) [50,51] using nanosecond TA spectroscopy for selected derivatives in degassed methanol solutions (three freeze−pump−thaw cycles) at three different concentrations (3.0, 6.0, and 10.0 × 10⁻⁶ M).

Cellular toxicity experiments: Human hepatobastoma HepG2 cell line (ATCC, Manassas, VA, USA) was used to test the cytotoxicity. The cells were grown in supplemented MEM media in 96-well plates according to the manufacturer´s instructions. The cells were kept at 37 °C and 5% CO₂ atmosphere during the experiment. The stock solution was prepared by dissolving a BODIPY derivative in DMSO; the final solutions were prepared by dissolution of stock solutions with Minimal Essential Medium (MEM). The final concentration of DMSO in media did not exceed 1%. The corresponding photoproducts were prepared by exhaustive irradiation of the solutions at λ_irr = 505 nm for 24 h. Viability was determined using an MTT test (colorimetric assay based on the reduction of a yellow tetrazolium salt (3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide) as described before [57]. All experiments were performed at least in triplicates.

Synthesis

4,4′-Difluoro-8-methoxycarbonyl-1,3,5,7-tetramethyl-4-bora-3a,4a-diaza-s-indacene (11). This compound was prepared using a slightly modified procedure described in the literature [37]. 2,4-Dimethylpyrrole (1 mL, 9.71 mmol, 2.5 equiv.) in dry dichloromethane (10 mL) was added dropwise to the solution of methyl oxochlorooxalate (0.36 mL, 3.88 mmol, 1 equiv.) in dry dichloromethane (25 mL) at room temperature under nitrogen atmosphere. The reaction mixture was stirred at 22 °C for 4 h and then cooled to 0 °C. Triethylamine (2.70 mL, 19.4 mmol, 5 equiv.) and, after 5 min, BF₃∙Et₂O (46%, 5.22 mL, 19.4 mmol, 5 equiv.) were added. The reaction mixture was stirred at 22 °C for 8 h. Aq. HCl (10%, 50 mL) was added, and the crude mixture was extracted with dichloromethane (3 × 40 mL). The collected organic layers were dried over anhydrous magnesium sulfate, filtered, and concentrated to dryness under reduced pressure. The product was purified by flash chromatography on silica gel (cyclohexane/dichloromethane, 7:3) and recrystallization from hexane containing a small amount of dichloromethane. Yield 0.400 g (34%). Orange solid. The spectroscopic data are in good agreement with those from the literature [37]. ¹H NMR (300 MHz, CDCl₃): δ (ppm) 6.07 (s, 2H), 3.98 (s, 3H), 2.54 (s, 6H), 2.13 (s, 6H) (Figure S1). ¹³C NMR (75 MHz, CDCl₃): δ (ppm) 165.7, 157.6, 141.0, 128.8, 128.7, 121.2, 53.0, 14.7, 12.5 (Figure S21). HRMS-APCl⁺ m/z: [M+H]⁺ calculated for C₁₅H₁₈BF₂N₂O₂ 307.1427, found 307.1426 (Figure S39).

8-Benzyloxycarbonyl-4,4′-difluoro-1,3,5,7-tetramethyl-4-bora-3a,4a-diaza-s-indacene (12). This compound was prepared according to the literature [37]. Benzyl alcohol (10.8 g, 100 mmol, 1 equiv.) in dry dichloromethane (8 mL) was added through a syringe pump to a solution of oxalyl chloride (12.7 g, 100 mmol, 1 equiv.) in anhydrous dichloromethane (50 mL) over 0.5 h. The solvent was removed under reduced pressure, affording benzyl chlorooxalate as colorless oil. The solution of previously generated benzyl chlorooxalate (2 g, 10.1 mmol, 1 equiv.) in anhydrous dichloromethane (20 mL) was added dropwise to the solution of 2,4-dimethylpyrrole (2.4 g, 25.4 mmol, 2.5 equiv.) in dry dichloromethane (20 mL) through a syringe pump over 1 h at −78 °C under argon atmosphere. The resulting mixture was stirred at this temperature for 4 h, and cooled to 0 °C. Then, triethylamine (5.6 mL, 57.2 mmol, 5.7 equiv.) was added dropwise. After 5 min, BF₃∙Et₂O (8.0 mL, 64.8 mmol, 6.5 equiv.) was added, and the solution was warmed slowly to room temperature and stirred overnight. After removing the solvent under reduced pressure, the residue was purified by column chromatography (dichloromethane/hexane, 1:6 to 1:2). Yield: 1.2 g (31%). Red solid. The spectroscopic data are in good agreement with those from the literature [37]. ¹H NMR (300 MHz, CDCl₃): δ (ppm) 7.43–7.38 (m, 5H), 6.03 (s, 2H), 5.39 (s, 2H), 2.52 (s, 6H), 2.02 (s, 6H) (Figure S2). ¹³C NMR (75 MHz, CDCl₃): δ (ppm) 165.2, 157.8, 141.3, 133.8, 129.3, 129.2, 128.9, 121.3, 68.7, 14.9, 12.8 (Figure S22). HRMS-APCl^– m/z: [M]^– calculated for C₂₁H₂₁BF₂N₂O₂ 382.1664, found 382.1671 (Figure S40).

8-Benzyloxycarbonyl-4,4′-difluoro-1,3,5,7-tetramethyl-2-oxo-4-bora-3a,4a-diaza-s-indacene (13). Dry DMF (6.0 mL, 135.0 mmol, 128 equiv.) was submitted in a dry schlenk flask and cooled down to 0 °C. POCl₃ (6.0 mL, 37.1 mmol, 35 equiv.) was slowly added at 0 °C and the solution was stirred for 5 min under intensive stirring. The ice bath was removed, and the solution was stirred at room temperature for 30 min. BODIPY 12 (0.4 g, 1.05 mmol, 1 equiv.) dissolved in dry dichloroethane (25 mL) was added to the solution. The resulting mixture was stirred for 2 h at 50 °C under argon atmosphere. The reaction mixture was cooled to room temperature and slowly poured into saturated aqueous NaHCO₃ (200 mL) under ice-cold conditions. After being warmed to room temperature, the reaction mixture was further stirred for 30 min and washed with water (2 × 150 mL). The organic layers were combined, dried over anhydrous magnesium sulfate, and evaporated under reduced pressure. The crude product was further purified by column chromatography (dichloromethane/hexane, 2:1). Yield 0.17 g (40%). Dark red solid. ¹H NMR (300 MHz, CDCl₃): δ (ppm) 10.04 (s, 1H), 7.43–7.38 (m, 5H), 6.21 (s, 1H), 5.42 (s, 2H), 2.78 (s, 3H), 2.59 (s, 3H), 2.31 (s, 3H), 2.07 (s, 3H) (Figure S3). ¹³C NMR (125 MHz, CDCl₃): δ (ppm) 185.6, 164.3, 157.9, 145.3, 140.7, 133.1, 132.0, 130.4, 129.4, 129.4, 128.9, 126.9, 126.0, 124.2, 69.1, 15.4, 13.04, 13.0, 12.3 (Figure S23). HRMS-APCl^– m/z: [M–H]^– calculated for C₂₂H₂₀BF₂N₂O₃ 409.1545, found 409.1544 (Figure S41).

8-Benzyloxycarbonyl-2-carboxyl-4,4′-difluoro-1,3,5,7-tetramethyl-4-bora-3a,4a-diaza-s-indacene (14). To 13 (0.15 g, 0.36 mmol, 1 equiv.) in mixed solution of THF (15 mL) and water (7 mL), NaClO₂ (0.33 g, 3.66 mmol, 10 equiv.) and NH₂SO₃H (0.36 g, 3.66 mmol, 10 equiv.) were added. The mixture was stirred at room temperature for 2 h. Then the mixture was diluted with ethyl acetate and washed with aqueous Na₂S₂O₃. The organic layers were combined, dried over anhydrous magnesium sulfate, and evaporated under reduced pressure. The crude product was further purified by column chromatography (silica gel; hexane/ethyl acetate, 4:1 to 1:1) to give compound 14. Yield 0.085 g (55%). Dark red solid. ¹H NMR (300 MHz, DMSO-d5): δ (ppm) 12.71 (bs, 1H), 7.52–7.42 (m, 5H), 6.50 (s, 1H), 5.51 (s, 2H), 2.65 (s, 3H), 2.50 (s, 3H, solvent peak), 2.23 (s, 3H), 2.07 (s, 3H) (Figure S4). ¹³C NMR (125 MHz, DMSO-d5): δ (ppm) 165.0, 163.8, 163.0, 156.8, 144.3, 141.1, 133.5, 130.1, 129.7, 129.6, 129.1, 128.7, 125.8, 124.2, 69.1, 14.9, 14.4, 12.6, 11.2 (Figure S24). HRMS-APCl^– m/z: [M]^– calculated for C₂₂H₂₁BF₂N₂O₄ 426.1566, found 426.1569 (Figure S42).

8-Benzyloxycarbonyl-4,4’-difluoro-2-hydroxyimino-1,3,5,7-tetramethyl-4-bora-3a,4a-diaza-s-indacene (15). BODIPY 13 (0.13 g, 0.31 mmol, 1 equiv.) was added to the solution of hydroxylamine hydrochloride (0.22 g, 3.17 mmol, 10 equiv.) and sodium hydroxide (0.12 g, 3.17 mmol, 10 equiv.) in ethanol (10 mL) by a syringe pump within 30 min. The mixture was then heated at 60 °C for 4 h. The resulting mixture was diluted with ethyl acetate and washed by using water and brine. The organic layer was collected, dried over anhydrous magnesium sulfate, filtered, and concentrated under reduced pressure. The residue was purified by column chromatography (hexane/ethyl acetate/dichloromethane, 7:2:1). Yield 0.070 g (52%). Purple powder. ¹H NMR (300 MHz, CDCl₃): δ (ppm) 8.13 (s, 1H), 7.46–7.39 (m, 5H), 6.12 (s, 1H), 5.42 (s, 2H), 2.68 (s, 3H), 2.57 (s, 3H), 2.14 (s, 3H), 2.07 (s, 3H) (Figure S5). This intermediate was subsequently used in the next reaction without further purification.

8-Benzyloxycarbonyl-2-cyano-4,4′-difluoro-1,3,5,7-tetramethyl-4-bora-3a,4a-diaza-s-indacene (16). BODIPY 15 (0.07 g, 0.16 mmol, 1 equiv.) was treated with oxalyl chloride (0.21 g, 1.65 mmol, 10 equiv.) in acetonitrile (20 mL) under reflux for 4 h. The mixture was diluted with ethyl acetate and washed with saturated aqueous NaHCO₃. The organic layers were collected, dried over anhydrous magnesium sulfate, filtered, and concentrated under reduced pressure. The residue was purified by column chromatography (hexane/ethyl acetate/dichloromethane, 7:2:1). Yield 0.052 g, 78%). Red powder. ¹H NMR (300 MHz, CDCl₃): δ (ppm) 7.47–7.41 (m, 5H), 6.23 (s, 1H), 5.44 (s, 2H), 2.64 (s, 3H), 2.61 (s, 3H), 2.13 (s, 3H), 2.07 (s, 3H) (Figure S6). This intermediate was subsequently used in the next reaction without further purification.

4,4′-Difluoro-2,6-diiodo-8-methoxycarbonyl-1,3,5,7-tetramethyl-4-bora-3a,4a-diaza-s-indacene (17). ICl solution (1 M in dichloromethane, 0.98 mL, 0.98 mmol, 2.5 equiv.) was added to a solution of BODIPY 11 (0.150 g, 0.39 mmol, 1 equiv.) in dry dichloromethane (30 mL) at room temperature under a nitrogen atmosphere, and the reaction mixture was stirred at 22 °C for 45 min. Water was added, and the mixture was extracted with dichloromethane (3 × 20 mL). The collected organic layers were dried over anhydrous magnesium sulfate, filtered, and concentrated to dryness under reduced pressure. The product was purified by flash chromatography on silica gel (cyclohexane/dichloromethane, 8:2) and recrystallization from hexane containing a small amount of dichloromethane. Yield 0.200 g (91%). Purple solid. ¹H NMR (300 MHz, CDCl₃): δ (ppm) 4.01 (s, 3H), 2.63 (s, 6H), 2.14 (s, 6H) (Figure S7). ¹³C NMR (75 MHz, CDCl₃): δ (ppm) 165.2, 158.8, 143.4, 128.4, 128.2, 85.5, 53.5, 16.1, 15.1 (Figure S25). HRMS-APCl⁺ m/z: [M+H–HF]⁺ calculated for C₁₅H₁₅BFI₂N₂O₂ 538.9297, found 538.9294 (Figure S43).

4,4′-Difluoro-8-methoxycarbonyl-1,3,5,7-tetramethyl-2,6-diphenyl-4-bora-3a,4a-diaza-s-indacene (18). Pd(PPh₃)₄ (0.012 g, 0.01 mmol, 0.05 equiv.) and 1M Cs₂CO₃ (aq., 4 mL) were added to a degassed solution of BODIPY 17 (0.120 g, 0.21 mmol, 1 equiv.) in THF (15 mL) under nitrogen atmosphere. Phenylboronic acid (0.100 g, 0.84 mmol, 4 equiv.) was added portion-wise, and the reaction mixture was stirred under reflux for 6 h under nitrogen atmosphere. TLC was used to monitor the reaction. When the reaction was complete, water was added, and the mixture was extracted with dichloromethane (3 × 10 mL). The collected organic layers were dried over anhydrous magnesium sulfate, filtered, and concentrated to dryness under reduced pressure. The product was purified by flash chromatography on silica gel (cyclohexane/dichloromethane, 6:4) and recrystallization from hexane containing a small amount of dichloromethane. Yield 0.073 g (76%). Red solid. ¹H NMR (300 MHz, CDCl₃): δ (ppm) 7.48–7.43 (m, 4H), 7.40-7.34 (m, 2H), 7.25–7.22 (m, 4H), 4.00 (s, 3H), 2.53 (s, 6 H), 2.08 (s, 6H) (Figure S8). ¹³C NMR (75 MHz, CDCl₃): δ (ppm) 166.1, 156.5, 136.9, 134.0, 133.04, 133.06, 129.0, 128.6, 128.5, 127.4, 53.2, 13.6, 10.1 ppm (Figure S26). HRMS-APCl^– m/z: [M–H]^– calculated for C₂₇H₂₄BF₂N₂O₂ 457.1909, found 457.1913 (Figure S44).

General procedure for Sonogashira coupling: BODIPY 17 (1 equiv.) was dissolved in degassed THF/Et₃N (2:1). The flask was evacuated under nitrogen and Pd(PPh₃)₂Cl₂ was then added (0.1 equiv.). After 5 min of a constant flow of nitrogen, CuI (0.1 equiv.) was added and, 5 min later, an ethynyl derivative (5 equiv.) was added. The reaction mixture was stirred at 40 °C for 1 h under nitrogen. TLC was used to monitor the reaction. When the reaction was finished, water was added, and the mixture was extracted with dichloromethane (3 × 10 mL). The collected organic layers were dried over anhydrous magnesium sulfate, filtered, and concentrated to dryness under reduced pressure. The product was purified by flash chromatography on silica gel and recrystallization.

4,4′-Difluoro-8-methoxycarbonyl-1,3,5,7-tetramethyl-2,6-diphenylethynyl-4-bora-3a,4a-diaza-s-indacene (19). The title compound was prepared according to the general procedure for Sonogashira coupling from 17 (0.200 g, 0.36 mmol), Pd(PPh₃)₂Cl₂ (0.025 g, 0.036 mmol), CuI (0.007 g, 0.036 mmol), and phenylacetylene (0.2 ml, 1.79 mmol) in degassed THF/Et₃N (2:1, 30 mL); the reaction time was 1 h. It was purified by flash chromatography (hexane/dichloromethane, 7:3) and recrystallization from hexane containing a small amount of dichloromethane. Yield 0.150 g (83%). Blue solid. ¹H NMR (300 MHz, CDCl₃): δ (ppm) 7.54–7.51 (m, 4H), 7.37–7.35 (m, 6H), 4.04 (s, 3H), 2.71 (s, 6H), 2.27 (s, 6H) (Figure S9). ¹³C NMR (75 MHz, CDCl₃): δ (ppm) 165.1, 160.5, 145.4, 141.5, 131.4, 128.6, 128.41, 128.39, 123.2, 116.6, 97.0, 81.0, 53.4, 13.9, 11.6 (Figure S27). HRMS-APCl⁺ m/z: [M+H]⁺ calculated for C₃₁H₂₆BF₂N₂O₂ 507.2055, found 507.2060 (Figure S45).

4,4′-Difluoro-8-methoxycarbonyl-2,6-di(4-methoxyphenyl)ethynyl-1,3,5,7-tetramethyl-4-bora-3a,4a-diaza-s-indacene (20). The title compound was prepared according to the general procedure for Sonogashira coupling from 17 (0.050 g, 0.09 mmol), Pd(PPh₃)₂Cl₂ (0.006 g, 0.009 mmol), CuI (0.002 g, 0.009 mmol), and 4-ethynylanisole (0.06 ml, 0.45 mmol) in degassed THF/Et₃N (2:1, 8 mL); the reaction time was 1 h. It was purified by flash chromatography (hexane/dichloromethane, 6:4) and recrystallization from hexane containing a small amount of dichloromethane. Yield 0.040 g (80%). Blue solid. ¹H NMR (300 MHz, CDCl₃): δ (ppm) 7.45 (d, J = 8.7 Hz, 4H), 6.89 (d, J = 8.7 Hz, 4H), 4.02 (s, 3H), 3.85 (s, 6H), 2.69 (s, 6H), 2.25 (s, 6H) ppm (Figure S10). ¹³C NMR (75 MHz, CDCl₃): δ (ppm) 166.3, 160.3, 159.8, 141.0, 132.9, 128.9, 128.5, 116.8, 115.3, 114.1, 97.0, 79.6, 55.3, 53.2, 13.9, 11.6 (Figure S28). HRMS-APCl^–m/z: [M-H]^– calculated for C₃₃H₂₈BF₂N₂O₂ 565.2121, found 565.2124 (Figure S46).

4,4′-Difluoro-8-methoxycarbonyl-2,6-di[4-[2-[2-(2-methoxyethoxy)ethoxy]ethoxy]phenyl)ethynyl-1,3,5,7-tetramethyl-4-bora-3a,4a-diaza-s-indacene (21). The title compound was prepared according to the general procedure for Sonogashira coupling from 17 (0.200 g, 0.36 mmol), Pd(PPh₃)₂Cl₂ (0.025 g, 0.036 mmol), CuI (0.007 g, 0.036 mmol), and 1-ethynyl-4-[2-[2-(2-methoxyethoxy)ethoxy]ethoxybenzene [58] (0.474 g, 1.792 mmol) in degassed THF/Et₃N (2:1, 30 mL); the reaction time was 1.5 h. It was purified by flash chromatography (dichloromethane/ethyl acetate, 3:7) and recrystallization from hexane containing a small amount of dichloromethane. Yield 0.217 g (73%). Green solid. ¹H NMR (300 MHz, CD₂Cl₂): δ (ppm) 7.45 (d, J = 8.8 Hz, 4H), 6.91 (d, J = 8.8 Hz, 4H), 4.14 (t, J = 5.1 Hz, 4H), 4.02 (s, 3 H), 3.82 (t, J = 5.1 Hz, 4H), 3.70–3.57 (m, 12H), 3.53–3.49 (m, 4H), 3.34 (s, 6H), 2.66 (s, 6H), 2.25 (s, 6H) (Figure S11). ¹³C NMR (75 MHz, CD₂Cl₂): δ (ppm) 165.5, 160.6, 159.6, 141.6, 134.4, 133.3, 129.6, 129.0, 117.2, 115.8, 115.1, 97.4, 80.0, 72.4, 71.3, 71.0, 70.9, 70.0, 68.1, 59.0, 14.1, 12.0 (Figure S29). HRMS-APCl⁺ m/z: [M+H]⁺ calculated for C₄₅H₅₄BF₂N₂O₁₀ 831.3842, found 831.3846 (Figure S47).

Synthesis of meso-carboxy BODIPYs: general procedure A. A methyl ester of meso-carboxy BODIPYs (1 equiv.) was dissolved in dry ethyl acetate and LiI (10 equiv.) was added. The reaction mixture was heated to reflux for 16 h under a nitrogen atmosphere. TLC was used to monitor the reaction. When the reaction was finished, the mixture was cooled to room temperature, and a small amount of HCl (0.2 mL) was added to quench the reaction. Water was added, and the mixture was extracted with ethyl acetate (3 × 10 mL). The combined organic layers were washed with water (20 mL), dried over anhydrous sodium sulfate, filtered, and concentrated to dryness under reduced pressure. The compounds were purified by flash chromatography on silica gel.

Synthesis of meso-carboxy BODIPYs: general procedure B. A methyl ester of meso-carboxy BODIPYs (1 equiv.) was dissolved in a mixed solution of dry dichloromethane and dry methanol (2:1), and Pd/C (5%) was added to the solution. A balloon with H₂ was connected to the flask, and air was replaced by H₂ atmosphere. The reaction mixture was stirred for 15 min at room temperature. TLC was used to monitor the reaction. When the reaction was finished, the mixture was filtered, and concentrated to dryness under reduced pressure. The compounds were purified by flash chromatography on silica gel.

8-Carboxy-4,4′-difluoro-1,3,5,7-tetramethyl-4-bora-3a,4a-diaza-s-indacene (2). The title compound was prepared according to general procedure A from 11 (0.040 g, 0.13 mmol) and LiI (0.175 g, 1.3 mmol) in dry ethyl acetate (20 mL); the reaction time was 14 h. It was purified by flash chromatography (ethyl acetate/methanol, 9:1). Yield 0.026 g (69%). Orange solid. ¹H NMR (300 MHz, CD₃OD): δ (ppm) 6.07 (s, 2H), 2.44 (s, 6H), 2.36 (s, 6H) (Figure S12). ¹³C NMR (75 MHz, CD₃OD): δ (ppm) 155.4, 142.8, 140.7, 129.40, 129.38, 120.7, 14.5, 13.0 (Figure S30). HRMS-ESI^– m/z: [M–H]^– calculated for C₁₄H₁₄BF₂N₂O₂ 291.1124, found 291.1122 (Figure S48). The spectroscopic data are in good agreement with those from the literature [37].

8-Carboxy-4,4′-difluoro-2,6-diiodo-1,3,5,7-tetramethyl-4-bora-3a,4a-diaza-s-indacene (4). The title compound was prepared according to general procedure A from 17 (0.100 g, 0.179 mmol) and LiI (0.240 g, 1.79 mmol) in dry ethyl acetate (50 mL); the reaction time was 15 h. It was purified by flash chromatography (ethyl acetate/methanol, 9:1). Yield 0.071 g (73%). Red solid. ¹H NMR (300 MHz, CD₃OD): δ (ppm) 2.53 (s, 6H), 2.38 (s, 6H) (Figure S14). ¹³C NMR (125 MHz, CD₃OD): δ (ppm) 170.5, 156.4, 145.0, 141.0, 129.0, 84.0, 16.0, 15.6 (Figure S32). HRMS-APCl^– m/z: [M–H]⁻ calculated for C₁₄H₁₂BF₂I₂N₂O₂ 542.9057, found 542.9054 (Figure S50).

2,8-Dicarboxy-4,4′-difluoro-1,3,5,7-tetramethyl-4-bora-3a,4a-diaza-s-indacene (5). The title compound was prepared according to general procedure B from 14 (0.08 g, 0.18 mmol) and Pd/C (0.01 g, 0.009 mmol) in dry dichloromethane (3 mL) and dry methanol (6 mL); the reaction time was 15 min. It was purified by flash chromatography (ethyl acetate/methanol, 2:1). Yield 0.045 g (71%). Dark red solid. ¹H NMR (300 MHz, CD₃OD): δ (ppm) 6.14 (s, 1H), 2.51 (s, 6H), 2.42 (s, 6H) (Figure S15). ¹³C NMR (75 MHz, CD₃OD): δ (ppm) 171.4, 155.5, 142.8, 140.6, 129.4, 120.8, 14.5, 13.0 (Figure S33). HRMS-ESI^– m/z: [M–H]^–calculated for C₁₅H₁₄BF₂N₂O₄ 335.1023, found 335.1021 (Figure S51).

8-Carboxy-2-cyano-4,4′-difluoro-1,3,5,7-tetramethyl-4-bora-3a,4a-diaza-s-indacene (6). The title compound was prepared according to general procedure B from 16 (0.04 g, 0.10 mmol) and Pd/C (0.005 g, 0.005 mmol) in dry dichloromethane (3 mL) and dry methanol (6 mL); the reaction time was 15 min. Purified by flash chromatography (ethyl acetate/methanol, 2:1). Yield 0.021 g (65%). Dark red solid. ¹H NMR (300 MHz, CD₃OD) δ (ppm) 6.41 (s, 1H), 2.63 (s, 3H), 2.61 (s, 3H), 2.63 (s, 3H), 2.52 (s, 3H), 2.49 (s, 3H), (Figure S16). ¹³C NMR (75 MHz, CD₃OD): δ (ppm) 169.9, 163.8, 153.8, 148.5, 141.4, 140.8, 132.4, 127.2, 124.2, 116.0, 101.9, 15.0, 13.3, 13.2, 11.7 (Figure S34). HRMS-ESI^– m/z: [M–H]^– calculated for C₁₅H₁₃BF₂N₃O₂ 316.1077, found 316.1078 (Figure S52).

8-Carboxy-4,4′-difluoro-1,3,5,7-tetramethyl-2,6-diphenyl-4-bora-3a,4a-diaza-s-indacene (7). The title compound was prepared according to general procedure A from 18 (0.040 g, 0.09 mmol) and LiI (0.117 g, 0.9 mmol) in dry ethyl acetate (20 mL); the reaction time was 15 h. Purified by flash chromatography (ethyl acetate/methanol, 9:1). Yield 0.032 g (81%). Red solid. ¹H NMR (300 MHz, CD₃OD): δ (ppm) 7.47–7.42 (m, 4H), 7.37–7.32 (m, 2H), 7.24–7.22 (m, 2H), 2.42 (s, 6H), 2.31 (s, 6H) (Figure S17). ¹³C NMR (75 MHz, CD₃OD): δ (ppm) 172.2, 154.2, 140.1, 138.6, 135.1, 134.0, 131.2, 129.40, 129.1, 128.2, 13.4, 11.5 (Figure S35). HRMS-ESI^– m/z: [M–H]^– calculated for C₂₆H₂₂BF₂N₂O₂ 443.1753, found 443.1745 (Figure S53).

8-Carboxy-4,4′-difluoro-1,3,5,7-tetramethyl-2,6-phenylethynyl-4-bora-3a,4a-diaza-s-indacene (8). The title compound was prepared according to general procedure A from 19 (0.090 g, 0.178 mmol) and LiI (0.238 g, 1.78 mmol) in dry ethyl acetate (80 mL); the reaction time was 16 h. Purified by flash chromatography (ethyl acetate/methanol, 9:1). Yield 0.081 g (92%). Red solid. ¹H NMR (300 MHz, CD₃OD): δ (ppm) 7.52–7.50 (m, 4H), 7.40–7.34 (m, 6H), 2.62 (s, 6H), 2.51 (s, 6H) (Figure S18). ¹³C NMR (75 MHz, CD₃OD): δ (ppm) 170.4, 158.0, 143.6, 141.7, 132.3, 129.5, 129.2, 129.0, 124.8, 115.9, 97.2, 82.3, 13.6, 12.1 (Figure S36). HRMS-ESI^– m/z: [M–H]^– calculated for C₃₀H₂₂BF₂N₂O₂ 491.1753, found 491.1756 (Figure S54).

8-Carboxy-4,4′-difluoro-2,6-di(4-methoxyphenyl)ethynyl-1,3,5,7-tetramethyl-4-bora-3a,4a-diaza-s-indacene (9). The title compound was prepared according to general procedure A from 20 (0.020 g, 0.035 mmol) and LiI (0.047 g, 0.35 mmol) in dry ethyl acetate (20 mL); the reaction time was 16 h. Purified by flash chromatography (ethyl acetate/methanol, 9:1). Yield 0.015 g (79%). Purple solid. ¹H NMR (CD₃OD, 300 MHz): δ (ppm) 7.43 (d, J = 8.8 Hz, 4H), 6.92 (d, J = 8.8 Hz, 4H), 3.82 (s, 6H), 2.60 (s, 6H), 2.49 (s, 6H) (Figure S19). ¹³C NMR (125 MHz, CD₃OD): δ (ppm) 170.5, 161.4, 158.0, 143.1, 133.8, 129.0, 116.8, 116.3, 115.2, 97.2, 80.8, 55.8, 13.6, 12.1 (Figure S37). HRMS-ESI^– m/z: [M–H]^– calculated for C₃₂H₂₆BF₂N₂O₄ 551.1965, found 551.1962 (Figure S55).

8-Carboxy-4,4′-difluoro-2,6-di[4-[2-[2-(2-methoxyethoxy)ethoxy]ethoxy]phenyl)ethynyl-1,3,5,7-tetramethyl-4-bora-3a,4a-diaza-s-indacene (10). The title compound was prepared according to the general procedure A from 21 (0.070 g, 0.084 mmol) and LiI (0.112 g, 0.84 mmol) in dry ethyl acetate (60 mL); the reaction time was 16 h. Purified by flash chromatography (ethyl acetate/methanol, 9:1). Yield 0.056 g (82%). Blue solid. ¹H NMR (300 MHz, CD₃OD): δ (ppm) 7.43 (d, J = 8.8 Hz, 4H), 6.95 (d, J = 8.8 Hz, 4H), 4.16 (t, J = 4.9 Hz, 4H), 3.85 (t, J = 4.9 Hz, 4H), 3.72–3.62 (m, 12H), 3.55–3.52 (m, 4H), 3.35 (s, 6H), 2.60 (s, 6H), 2.49 (s, 6H) (Figure S20). ¹³C NMR (75 MHz, CD₃OD): δ (ppm) 170.3, 160.3, 157.8, 143.1, 141.7, 133.8, 129.1, 117.1, 116.2, 115.9, 97.2, 80.9, 72.8, 71.6, 71.4, 71.2, 70.7, 68.7, 59.1, 13.7, 12.1 (Figure S38). HRMS-ESI^– m/z: [M–H]^– calculated for C₄₄H₅₀BF₂N₂O₁₀ 815.3540, found 815.3540 (Figure S56).

2,6-Dibromo-8-carboxy-4,4′-difluoro-1,3,5,7-tetramethyl-4-bora-3a,4a-diaza-s-indacene (3). BODIPY 1 (0.04 g, 0.14 mmol, 1 equiv.) was solved in a mixed solution of dichloromethane/DMF (1:1), and NBS (0.05 g, 0.29 mmol, 2.1 equiv.) was added. The solution was stirred 4 h at room temperature. The reaction was quenched with water, and the organic matter was extracted with dichloromethane. The organic layers were washed with water, dried over anhydrous magnesium sulfate, filtered, and the solvent was evaporated under reduced pressure. The crude mixture was purified by flash chromatography (ethyl acetate/methanol 9:1 to 7:1). Yield 0.03 g (49%). Orange powder. ¹H NMR (300 MHz, CD₃OD): δ (ppm) 2.50 (s, 6H), 2,36 (s, 6H) (Figure S13). ¹³C NMR (125 MHz, CD₃OD): δ (ppm) 170.2, 153.4, 141.5, 140.3, 128.1, 110.8, 13.6, 12.4 (Figure S31). HRMS-ESI^– m/z: [M–H]^–calculated for C₁₄H₁₄BBr₂F₂N₂O₂ 448.9315, found 448.9311 (Figure S49).

4. Conclusions

We report the synthesis and photophysical and photochemical properties of a series of 2,6-substituted meso-carboxy BODIPY derivatives designed as photoactivatable CO-releasing molecules (photoCORMs). The results provide valuable insights into the structural and electronic factors that affect their photoreactivity. We show that the methyl substituents at positions 1 and 7, originally introduced to improve the chemical stability of BODIPY derivatives, play an unfavorable role in the release of CO. Neither the enhancement of intersystem crossing by heavy-atom substituents nor the decrease in the electron density thanks to electron-withdrawing substituents improved the CO yields. However, CO was efficiently released from π-extended 2,6-arylethynyl BODIPY derivatives with absorption spectra shifted toward a more biologically desirable wavelength range. Subsequently, in vitro cytotoxicity experiments with the most potent meso-carboxy BODIPY photoCORMs and their photoproducts did not reveal any major toxic effects, which justifies them for further biological studies.
