Communication

Selenium-Epoxy ‘Click’ Reaction and Se-Alkylation—Efficient Access to Organo-Selenium and Selenonium Compounds

by
Taejun Eom
and
Anzar Khan
*
Department of Chemical and Biological Engineering, Korea University, 145 Anam-Ro, Seongbuk-Gu, Seoul 02841, Korea
*
Author to whom correspondence should be addressed.
Chemistry 2020, 2(4), 827-836; https://doi.org/10.3390/chemistry2040054
Submission received: 3 September 2020 / Revised: 23 September 2020 / Accepted: 29 September 2020 / Published: 5 October 2020
(This article belongs to the Section Molecular Organics)
Browse Figures
Versions Notes

Abstract

:
This work establishes the ‘click’ nature of the base-catalyzed oxirane ring opening reaction by the selenolate nucleophile. The ‘click’-generated ß-hydroxy selenide can be alkylated to afford cationic selenium species. Hemolytic studies suggest that selenonium cations do not lyse red blood cells even at high concentrations. Overall, these results indicate the future applicability of the developed organo-selenium chemistry in the preparation of a new class of cationic materials based on the seleno-ether motif.

Graphical Abstract

1. Introduction

Selenium was discovered in early 1800 [1,2]. The chemistry of organo-selenium nucleophiles, however, only began in 1973 with Sharpless and Lauers’ report on the preparation of phenylselenolate and its application in converting epoxides into allylic alcohols [3]. Since then a wide range of reactions based on nucleophilic selenium reagents have been developed for use in organic synthesis [1,2]. Inspired by Sharpless’ selenium reagent and the growing interest in organoselenium materials [4], we began to examine the full scope of the ring opening reaction of epoxides by the selenolates in context of ‘click’ chemistry—another area of research pioneered by Sharpless [5]. ‘Click’ chemistry entails modular and wide in scope reactions that can be carried out under simple experimental conditions and produce quantitative yields and inoffensive byproducts [6]. This philosophy has been quickly adapted in the arena of materials science and application of ‘click’ reactions has revolutionized the way functional soft materials are being created [7,8,9,10,11,12]. The copper catalyzed azide-alkyne cycloaddition reaction has been at the forefront of this revolution since its advent in 2002 [6]. However, other potential ‘click’ processes originally identified by Sharpless, such as thiol and amine-based ring opening of the epoxide group, are also making a considerable impact in the protective-group-free synthesis of reactive and functionalizable polymers [13], hydrogels [14] and patterned surfaces [15]. The addition of selenium to this list would enhance the repertoire of nucleophilic ring opening ‘click’ reactions. Simple and efficient access to the ß-hydroxy selenide motif would also help in evaluating its applicability in terms of creating new bio-relevant materials.
In examining previous studies, it becomes clear that the most successful method to access ß-hydroxy selenides relies on stoichiometric amounts of metal-hydrides (e.g., LiAlH4, NaH, LiBEt3H, Na/NH3, Bu3SnH, NaBH4) or reducing agents such as zinc metal to create selenolate from diselenide precursors [16,17,18,19,20]. Often, selenolate is used in excess, reaction times range in hours at elevated temperatures (>50 °C), the isolated yields are moderate to high (<90%) and inert conditions are required. A strong reducing atmosphere also compromises functional group tolerance in such reactions. These attributes do not satisfy the ‘click’ chemistry criteria.
Since selenols possess a relatively low pKa (5.2) [21], we hypothesized that simple organic and inorganic bases such as triethylamine (TEA), diazabicycloundecene (DBU) or lithium hydroxide (LiOH) may catalyze selenolate formation under mild conditions and may lead to the development of simple protocols in epoxide ring opening reactions. Herein, we show that indeed small amounts (0.01–0.05 eq./SeH) of the aforementioned bases in an organic or aqueous medium can catalyze regio-selective formation of ß-hydroxy selenides in >95% yield in 15 min of reaction time under ambient conditions. Due to a mild and fast nature, the reaction tolerates a variety of electrophiles and nucleophiles in the system. The selenium atom in the formed ß-hydroxy selenides can be quantitatively transformed into selenonium-based cationic species with full compatibility towards mammalian red blood cells. Overall, these results indicate that the base-catalyzed selenium-epoxy reaction meets the requirements of a ‘click’ reaction. The strength of this chemistry is also the reactivity of the ‘click’-generated motif that allows for further installation of an alkyl group and cationization of the structure.

2. Results

2.1. Selenol Nucleophile in Organic Medium

Initially, commercially available benzene selenol (1) and glycidol (2) were chosen as the precursors (Scheme 1) [22,23,24,25]. The reaction was performed under ambient conditions in chloroform and the crude reaction mixture was analyzed with the help of 1H-NMR spectroscopy (Figure 1, Figures S1–S3). Ambient conditions were chosen to fulfill one of the criteria of ‘click’ chemistry, which entails the reactions to be tolerant of moisture and oxygen. A 1:1 stoichiometry between the reactants was employed. From the 1H-NMR data, it became clear that prolonging the reaction (from 15 min to 30 min) did not improve the yield of the product 3 significantly (Table 1). Instead, the nature and the amount of the catalyst influenced the reaction in a more profound way. The relatively stronger bases, DBU and LiOH, led to 94 and 97% ring opening reaction within 15 min of reaction time with 0.03 eq./SeH (4.76 mol%) loading. In all cases, diselenide 4 (PhSeSePh) was produced as the side product. It appears that stronger catalysts and short reaction times are required to facilitate a fast ring opening reaction and to hinder the formation of diselenide through oxidative dimerization of selenol reactant under ambient conditions.

2.2. Selenol Nucleophile in Water

Water is clearly a better reaction medium than chloroform (Table 2, Figures S4–S6) [26,27]. The best results were obtained with the help of LiOH that produces near quantitative ring opening reaction even when used in 0.99 mol% (0.01 eq./SeH) loading. DBU required 2.91 mol% (0.03 eq./SeH) to achieve similar results. Interestingly, TEA also led to near full conversion with 2.91 mol% loading.

2.3. Non-Stoichiometric System

In general, the reaction performs very well in water (>99%) under stoichiometric conditions. In an organic medium, however, it is relatively sluggish (75%–97%). Therefore, a slight excess of selenol (1.1 eq./epoxide) was employed to further push the reaction in an organic medium. These results indicated that even in the case of TEA in chloroform, a reaction that typically underperformed, conversions exceeding 90% could be obtained with stoichiometry imbalance (Figures S7 and S8). In all other catalysts/solvent combinations, a quantitative ring opening reaction was observed (Tables S1 and S2).

2.4. Regio-Chemistry

Depending upon electronic and steric situation as well as reaction conditions, two isomers can form upon ring opening reaction (Scheme 2) [28]. Compound 3 is formed when the nucleophile attacks the least substituted carbon atom. Conversely, 5 is formed if the new bond is established between the nucleophile and the most substituted carbon atom.
To examine whether the present reaction led to the formation of one or more regio-isomers, 3 was synthesized from a different synthetic route. In this scheme, a commercially available compound 6 with the known structure was allowed to react to benzene selenol through selenium-halide reaction. The proton resonances from the compounds prepared by the selenium-epoxy and selenium-halide reactions were identical (Figure 2). In addition, no extra signals could be observed from the isomer 5. The 1H-NMRs were recorded in deuterated dimethylsulfoxide (DMSO-d6), which allows for observing the hydroxyl protons too and indicate that one hydroxyl group is located adjacent to a tertiary carbon atom and the other to a secondary carbon atom. Hence, a doublet and a triplet arise and the doublet is downfield shifted due to its vicinity to the selenium atom. In isomer 5, the hydroxyl groups are both secondary and would only produce one (triplet) signal for the hydroxyl group. The signal assignment was further confirmed by esterification with acetic acid (7), which produces two different types of acetyl groups and the signals from the hydroxyl groups disappear upon acetylation. From these experiments, it can be concluded that regio-isomer 3 forms exclusively under basic conditions. The carbon (Figures S9 and S10) and selenium NMRs discussed later further reinforces this notion.

2.5. Chemo-Selectivity

The mild and fast reaction indicated that the selenium-epoxy reaction might tolerate other functional groups. For this, initially, epoxides 8 and 9 carrying terminal acetylene and allyl groups were chosen (Scheme 3). These groups can be involved in azide-alkyne and thiol-ene/yne ‘click’ reactions [29,30,31,32,33], respectively. In these cases, complete preservation of the acetylene and allyl moieties were observed (Figures S11–S14). Encouraged by this, epoxide 10 with a more reactive methacrylate group was chosen. In this case as well, the methacrylate was not involved in a Michael-type of addition reaction with benzeneselenolate (Figures S15 and S16) [34]. A further increase in the reactivity of the second electrophilic site in the molecule was sought with the help of an alkyl halide (11). Surprisingly, even in this case, no substitution reaction was observed (Figures S17 and S18). These results indicated that the selenium-epoxy reaction tolerated a number of other electrophilic sites in the system and only the ring-opened products 12–15 were obtained.
To examine tolerance for other nucleophilic sites in the system, competing reactions were performed (Scheme 4, Figures S19–S22). Initially, phenol, benzoic acid and aniline were employed in a 1:1 ratio with selenol 1. Although these nucleophiles are known to open the epoxide ring, they fail due to a faster ring opening reaction with the selenolate nucleophile. This led us to employ thiophenol as the nucleophile. It is one of the best nucleophiles that organic chemistry can offer. As expected, it can compete with selenol and 18% thio-ether can form under LiOH catalysis. In this case, therefore, milder systems employing DBU and TEA were also explored and led to 16 and 11% thio-ether formation, respectively.

2.6. Selenium Alkylation

Methylation of the selenium atom in 3 and 7 could be achieved with the help of AgBF4 as a catalyst and methyl iodide as an alkylating agent in acetonitrile at 50 °C for 24 h (Scheme 5, Figures S23–S26) [35]. This reaction proceeds cleanly and requires just precipitation for isolation of the cationic products 16 and 17. Interestingly, the addition of a substituent on selenium adds one more stereogenic center to the molecule and the 1H- and 13C-NMR becomes relatively complex due to the formation of four diastereomers (Figure 3).

2.7. Selenium NMR

Among six natural isotopes, 77Se with spin quantum number l = ½ is active in nuclear magnetic resonance spectroscopy. A common reference, however, is not established in the field. Historically, a number of compounds have been used as standards [36]. A practical standard is diphenyldiselenide (4) with a chemical shift of δ = 463 ppm. This standard allows for fathoming the chemical shifts of other selenium compounds (Figure 4 and Figures S27–S30). As can be seen in Figure 4, selenium in 3 resonates at 262 ppm. The single signal once again confirms one regio-isomer. Upon esterification of this compound into 7, a downfield shift in the selenium is observed by 10 ppm due to the electron withdrawing nature of the carbonyl groups. In compounds 16 and 17 in which the selenium atom becomes a cation and electron poor, a downfield shift of >100 ppm is observed. Interestingly, as expected from the 1H and 13C-NMRs, two signals for two diastereomers were observed in the case of 17. However, 16 only exhibited one broad signal, perhaps due to an overlap of the two expected signals.

2.8. Hemolysis

A hemolysis assay was performed to evaluate the lytic activity of 16 and 17 using sheep red blood cells (RBCs). In this study, the released hemoglobin was detected with the help of a microplate reader at the wavelength of 540 nm and compared to control systems. The negative control was phosphate buffered saline (PBS) in which the RBCs do not rupture due to the isotonic effect and a net zero movement of molecules across the cell membrane [37]. The positive control is represented by deionized (DI) water in which cells rupture fully due to a hypotonic effect and movement of pure water into the RBCs through osmosis. In the case of 16 and 17, however, no hemolysis was observed even at a concentration of 1000 μg/mL (Figure 5). This indicates that selenonium cations 16 and 17 have no toxic effects on the mammalian cell membranes.

3. Conclusions

In summary, by tweaking the nature of the base-catalyst and reaction medium, high (>95%) yields of ß-hydroxy selenides can be obtained in a 15 min of reaction time under ambient conditions. The reaction is regio-selective and tolerates many electrophilic and nucleophilic sites in the system. A post-synthesis alkylation of the ‘click’-generated seleno-ether linkage furnishes selenonium-based cationic structures with hemocompatibility. Overall, the presented chemistry is anticipated to become a practical synthetic tool in accessing selenium-based materials of ever increasing demand in biological applications.

Supplementary Materials

The synthesis and characterization details are available online at https://www.mdpi.com/2624-8549/2/4/54/s1.

Author Contributions

Conceptualization, T.E. and A.K.; methodology, T.E.; validation, T.E.; formal analysis, T.E.; investigation, T.E.; writing—original draft preparation, T.E. and A.K.; writing—review and editing, T.E. and A.K.; supervision, A.K.; project administration, T.E. and A.K.; funding acquisition, A.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by National Research Foundation of Korea grant funded by the Korean government (MSIP) (NRF-18R1D1A1B07048527).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wirth, T. Organoselenium Chemistry: Synthesis and Reactions; John Wiley & Sons: Weinheim, Germany, 2012. [Google Scholar]
  2. Lenardao, E.J.; Santi, C.; Sancineto, L. Organoselenium compounds as reagents and catalysts to develop new green protocols. In New Frontiers in Organoselenium Compounds; Springer Science and Business Media LLC: Cham, Switzerland, 2018; pp. 1–97. [Google Scholar]
  3. Sharpless, K.B.; Lauer, R.F. Mild procedure for the conversion of epoxides to allylic alcohols. First organoselenium reagent. J. Am. Chem. Soc. 1973, 95, 2697–2699. [Google Scholar] [CrossRef]
  4. Nogueira, C.W.; Zeni, G.; Da Rocha, J.B.T. Organoselenium and organotellurium compounds: Toxicology and pharmacology. Chem. Rev. 2004, 104, 6255–6286. [Google Scholar] [CrossRef] [PubMed]
  5. Kolb, H.C.; Finn, M.G.; Sharpless, K.B. Click chemistry: Diverse chemical function from a few good reactions. Angew. Chem. Int. Ed. 2001, 40, 2004–2021. [Google Scholar] [CrossRef]
  6. Rostovtsev, V.V.; Green, L.G.; Fokin, V.V.; Sharpless, K.B. A Stepwise huisgen cycloaddition process: Copper(I)-catalyzed regioselective “ligation” of azides and terminal alkynes. Angew. Chem. Int. Ed. 2002, 41, 2596–2599. [Google Scholar] [CrossRef]
  7. Hawker, C.J.; Fokin, V.V.; Finn, M.G.; Sharpless, K.B. Bringing efficiency to materials synthesis: The philosophy of click chemistry. Aust. J. Chem. 2007, 60, 381–383. [Google Scholar] [CrossRef]
  8. Iha, R.K.; Wooley, K.L.; Nyström, A.M.; Burke, D.J.; Kade, M.J.; Hawker, C.J. Applications of orthogonal “click” chemistries in the synthesis of functional soft materials. Chem. Rev. 2009, 109, 5620–5686. [Google Scholar] [CrossRef] [Green Version]
  9. Espeel, P.; Du Prez, F.E. “Click”-inspired chemistry in macromolecular science: Matching recent progress and user expectations. Macromolecules 2014, 48, 2–14. [Google Scholar] [CrossRef]
  10. Sumerlin, B.S.; Vogt, A.P. Macromolecular engineering through click chemistry and other efficient transformations. Macromolecules 2010, 43, 1–13. [Google Scholar] [CrossRef]
  11. Durmaz, H.; Sanyal, A.; Hizal, G.; Tunca, U. Double click reaction strategies for polymer conjugation and post-functionalization of polymers. Polym. Chem. 2012, 3, 825–835. [Google Scholar] [CrossRef]
  12. Becer, C.R.; Hoogenboom, R.; Schubert, U.S. Click chemistry beyond metal-catalyzed cycloaddition. Angew. Chem. Int. Ed. 2009, 48, 4900–4908. [Google Scholar] [CrossRef]
  13. Saha, A.; De, S.; Stuparu, M.C.; Khan, A. Facile and general preparation of multifunctional main-chain cationic polymers through application of robust, efficient and orthogonal click chemistries. J. Am. Chem. Soc. 2012, 134, 17291–17297. [Google Scholar] [CrossRef] [PubMed]
  14. Hwang, J.; Lee, D.G.; Yeo, H.; Rao, J.; Zhu, Z.; Shin, J.; Jeong, K.; Kim, S.; Jung, H.W.; Khan, A. Proton transfer hydrogels: Versatility and applications. J. Am. Chem. Soc. 2018, 140, 6700–6709. [Google Scholar] [CrossRef] [PubMed]
  15. Yeo, H.; Khan, A. Photoinduced Proton-Transfer Polymerization: A practical synthetic tool for soft lithography applications. J. Am. Chem. Soc. 2020, 142, 3479–3488. [Google Scholar] [CrossRef] [PubMed]
  16. Tanini, D.; Capperucci, A. Ring opening reactions of heterocycles with selenium and tellurium nucleophiles. N. J. Chem. 2019, 43, 11451–11468. [Google Scholar] [CrossRef] [Green Version]
  17. Movassagh, B.; Shamsipoor, M. Stereo and regioselective zinc-mediated ring-opening of epoxides with diselenides. Synlett 2005, 8, 1316–1318. [Google Scholar] [CrossRef]
  18. Tiecco, M.; Testaferri, L.; Marini, F.; Sternativo, S.; Del Verme, F.; Santi, C.; Bagnoli, L.; Temperini, A. Synthesis of enantiomerically enriched β-hydroxy selenides by catalytic asymmetric ring opening of meso-epoxides with (phenylseleno) silanes. Tetrahedron 2008, 64, 3337–3342. [Google Scholar] [CrossRef]
  19. Santi, C.; Santoro, S.; Battistelli, B.; Testaferri, L.; Tiecco, M. Preparation of the first bench-stable phenyl selenolate: An interesting “on water” nucleophilic reagent. Eur. J. Org. Chem. 2008, 2008, 5387–5390. [Google Scholar] [CrossRef]
  20. Santi, C.; Santoro, S.; Testaferri, L.; Tiecco, M. A Simple zinc-mediated preparation of selenols. Synlett 2008, 2008, 1471–1474. [Google Scholar] [CrossRef]
  21. Huber, R.; Criddle, R. Comparison of the chemical properties of selenocysteine and selenocystine with their sulfur analogs. Arch. Biochem. Biophys. 1967, 122, 164–173. [Google Scholar] [CrossRef]
  22. Sridhar, R.; Srinivas, B.; Surendra, K.; Krishnaveni, N.S.; Rao, K.R. Synthesis of β-hydroxy selenides using benzeneselenol and oxiranes under supramolecular catalysis in the presence of β-cyclodextrin in water. Tetrahedron Lett. 2005, 46, 8837–8839. [Google Scholar] [CrossRef]
  23. Yang, M.-H.; Yan, G.-B.; Zheng, Y.-F. Regioselective ring-opening reactions of 1,2-epoxides with thiols and arylselenols directly promoted by [Bmim]BF4. Tetrahedron Lett. 2008, 49, 6471–6474. [Google Scholar] [CrossRef]
  24. Yang, M.; Zhu, C.; Yuan, F.; Huang, Y.; Pan, Y. Enantioselective ring-opening reaction of meso-epoxides with ArSeH catalyzed by heterometallic Ti−Ga−salen system. Org. Lett. 2005, 7, 1927–1930. [Google Scholar] [CrossRef] [PubMed]
  25. Tanini, D.; Tiberi, C.; Gellini, C.; Salvi, P.R.; Capperucci, A. A straightforward access to stable β-functionalized alkyl selenols. Adv. Synth. Catal. 2018, 360, 3367–3375. [Google Scholar] [CrossRef]
  26. Freudendahl, D.M.; Santoro, S.; Shahzad, S.A.; Santi, C.; Wirth, T. Green chemistry with selenium reagents: Development of efficient catalytic reactions. Angew. Chem. Int. Ed. 2009, 48, 8409–8411. [Google Scholar] [CrossRef] [PubMed]
  27. Santi, C.; Jacob, R.G.; Monti, B.; Bagnoli, L.; Sancineto, L.; Lenardao, E.J. Water and aqueous mixtures as convenient alternative media for organoselenium chemistry. Molecules 2016, 21, 1482. [Google Scholar] [CrossRef] [Green Version]
  28. Muzammil, E.M.; Khan, A.; Stuparu, M.C. Post-polymerization modification reactions of poly(glycidyl methacrylate)s. RSC Adv. 2017, 7, 55874–55884. [Google Scholar] [CrossRef] [Green Version]
  29. Kade, M.J.; Burke, D.J.; Hawker, C.J. The power of thiol-ene chemistry. J. Polym. Sci. Part A Polym. Chem. 2010, 48, 743–750. [Google Scholar] [CrossRef]
  30. Lowe, A.B. Thiol-yne ‘click’/coupling chemistry and recent applications in polymer and materials synthesis and modification. Polymer 2014, 55, 5517–5549. [Google Scholar] [CrossRef]
  31. Daglar, O.; Gunay, U.S.; Hizal, G.; Tunca, U.; Durmaz, H. Extremely rapid polythioether synthesis in the presence of TBD. Macromolecules 2019, 52, 3558–3572. [Google Scholar] [CrossRef]
  32. Gunay, U.S.; Cetin, M.; Daglar, O.; Hizal, G.; Tunca, U.; Durmaz, H.; Butun, M. Ultrafast and efficient aza- and thiol-Michael reactions on a polyester scaffold with internal electron deficient triple bonds. Polym. Chem. 2018, 9, 3037–3054. [Google Scholar] [CrossRef]
  33. Daglar, O.; Ozcan, B.; Gunay, U.S.; Hizal, G.; Tunca, U.; Durmaz, H. Extremely rapid postfunctionalization of maleate and fumarate main chain polyesters in the presence of TBD. Polymer 2019, 182, 121844. [Google Scholar] [CrossRef]
  34. Nacca, F.G.; Monti, B.; Lenardao, E.J.; Evans, P.; Santi, C. A Simple zinc-mediated method for selenium addition to michael acceptors. Molecules 2020, 25, 2018. [Google Scholar] [CrossRef] [PubMed]
  35. He, X.; Wang, X.; Tse, Y.-L.S.; Ke, Z.; Yeung, Y.-Y. Applications of selenonium cations as lewis acids in organocatalytic reactions. Angew. Chem. Int. Ed. 2018, 57, 12869–12873. [Google Scholar] [CrossRef] [PubMed]
  36. Duddeck, H. Selenium-77 nuclear magnetic resonance spectroscopy. Prog. Nucl. Magn. Reson. Spectrosc. 1995, 27, 1–323. [Google Scholar] [CrossRef]
  37. Goodhead, L.K.; Macmillan, F.M. Measuring osmosis and hemolysis of red blood cells. Adv. Physiol. Educ. 2017, 41, 298–305. [Google Scholar] [CrossRef]
Chemistry 02 00054 sch001 550

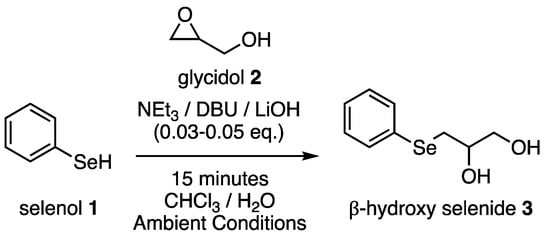

Scheme 1. Base-catalyzed epoxide ring opening reaction with selenol nucleophile.
Scheme 1. Base-catalyzed epoxide ring opening reaction with selenol nucleophile.
Chemistry 02 00054 sch001
Chemistry 02 00054 g001 550

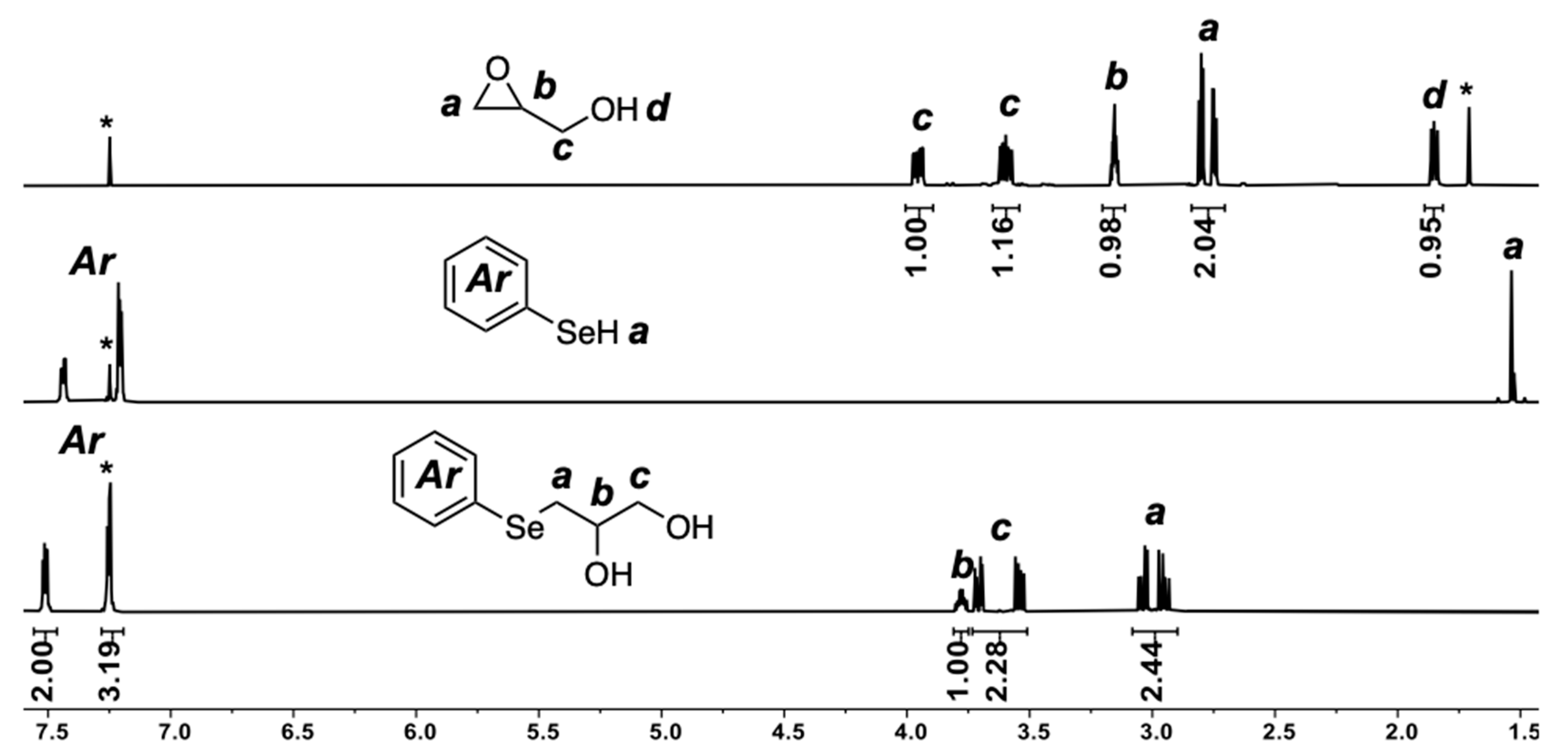

Figure 1. 1H-NMR of the reactants and the reaction mixture (bottom) in deuterated chloroform (CDCl3).
Figure 1. 1H-NMR of the reactants and the reaction mixture (bottom) in deuterated chloroform (CDCl3).
Chemistry 02 00054 g001
Chemistry 02 00054 sch002 550

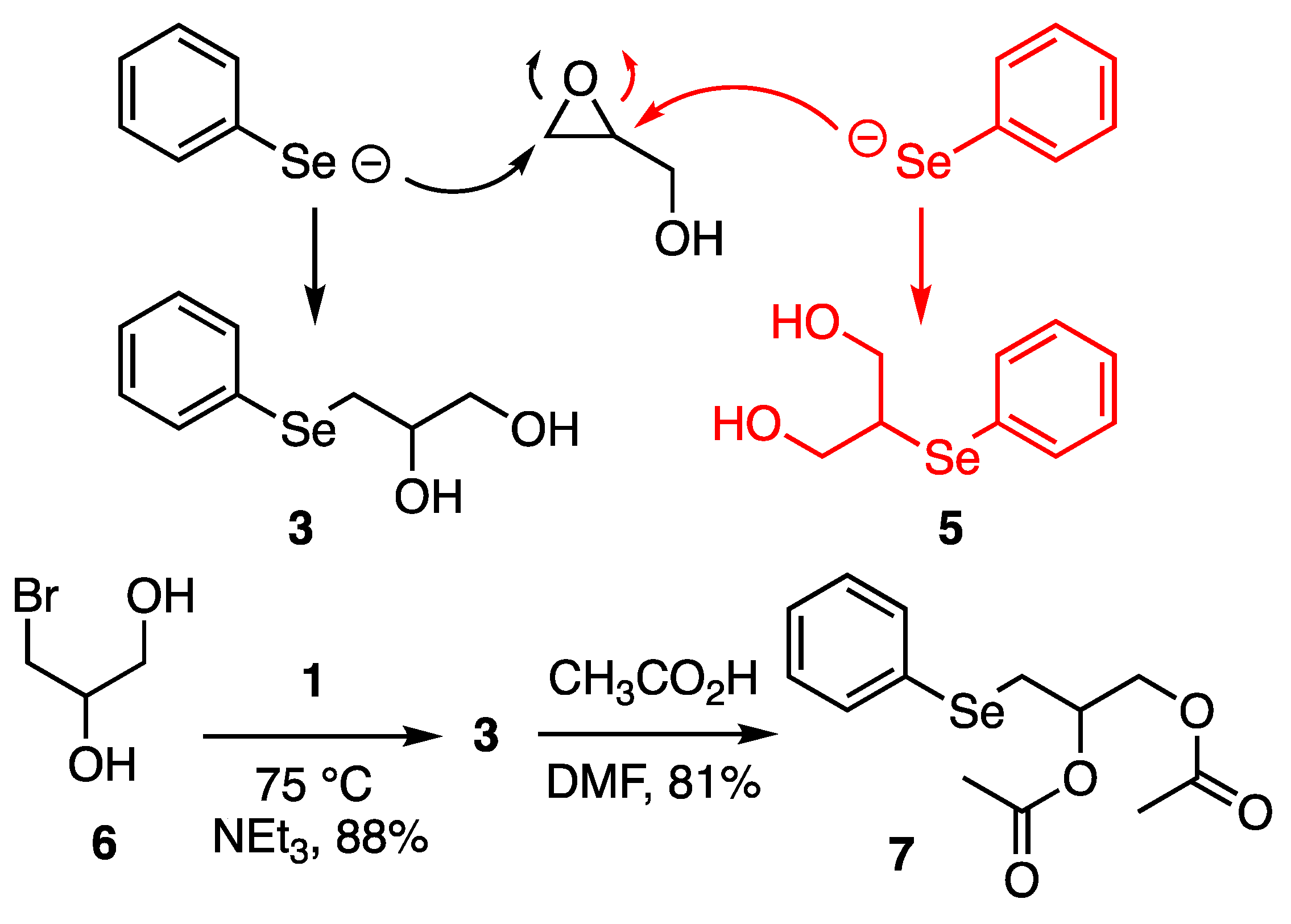

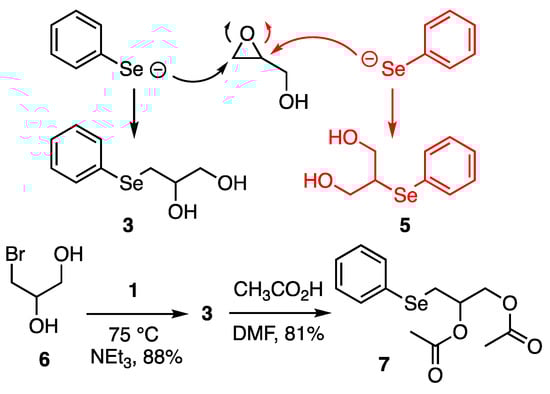

Scheme 2. The regio-isomers 3 and 5 that can form upon ring opening reaction. The bottom shows an alternative synthesis of 3 through the alkylation route.
Scheme 2. The regio-isomers 3 and 5 that can form upon ring opening reaction. The bottom shows an alternative synthesis of 3 through the alkylation route.
Chemistry 02 00054 sch002
Chemistry 02 00054 g002 550

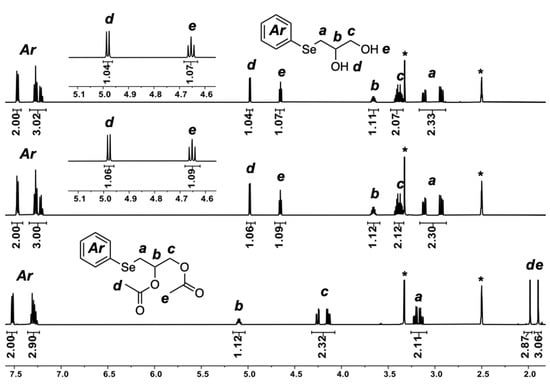

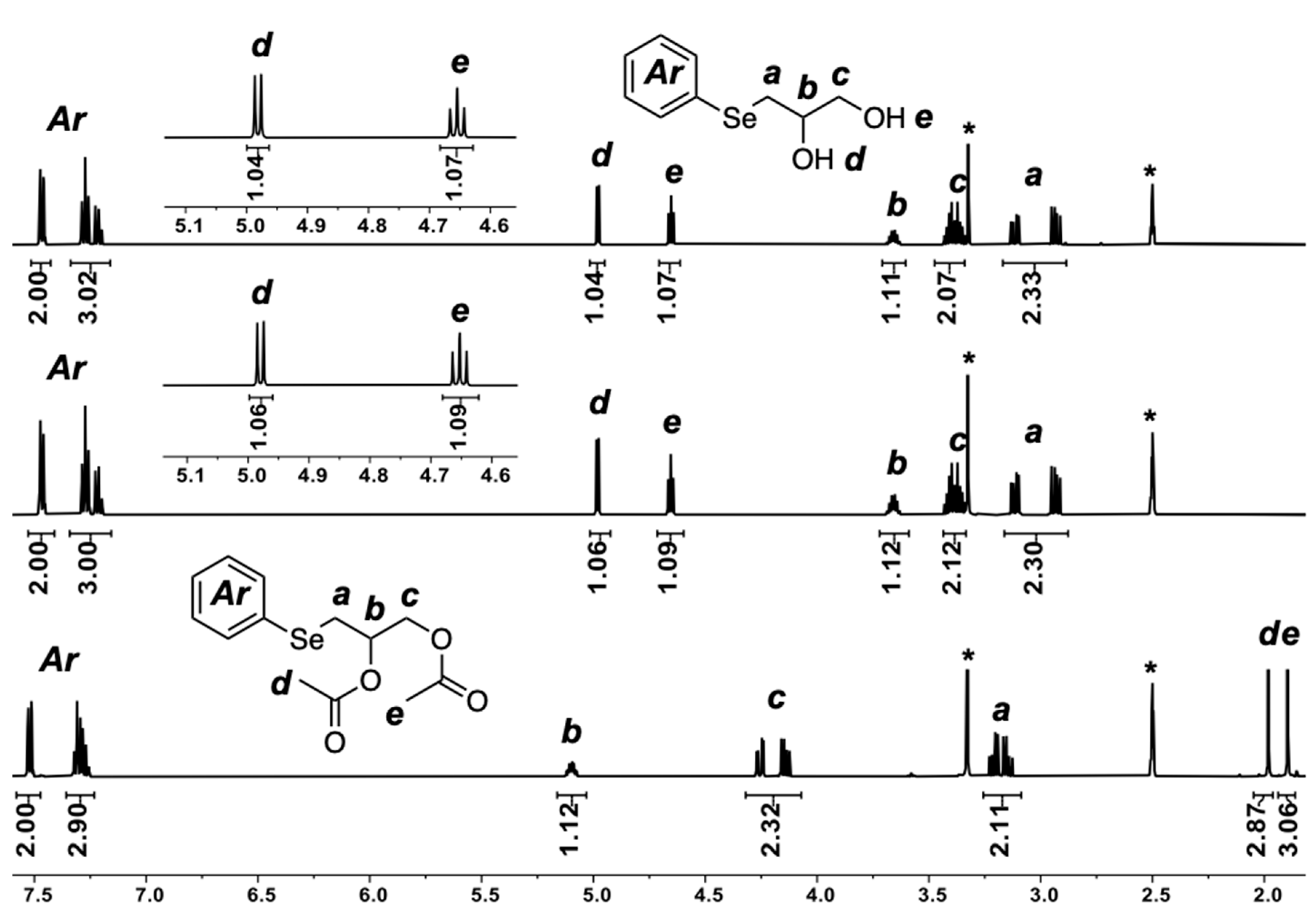

Figure 2. Crude 1H-NMRs of 3 produced by ring opening reaction (top) and alkylation reaction (middle) and after acetylation (bottom) in deuterated dimethylsulfoxide (DMSO-d6).
Figure 2. Crude 1H-NMRs of 3 produced by ring opening reaction (top) and alkylation reaction (middle) and after acetylation (bottom) in deuterated dimethylsulfoxide (DMSO-d6).
Chemistry 02 00054 g002
Chemistry 02 00054 sch003 550

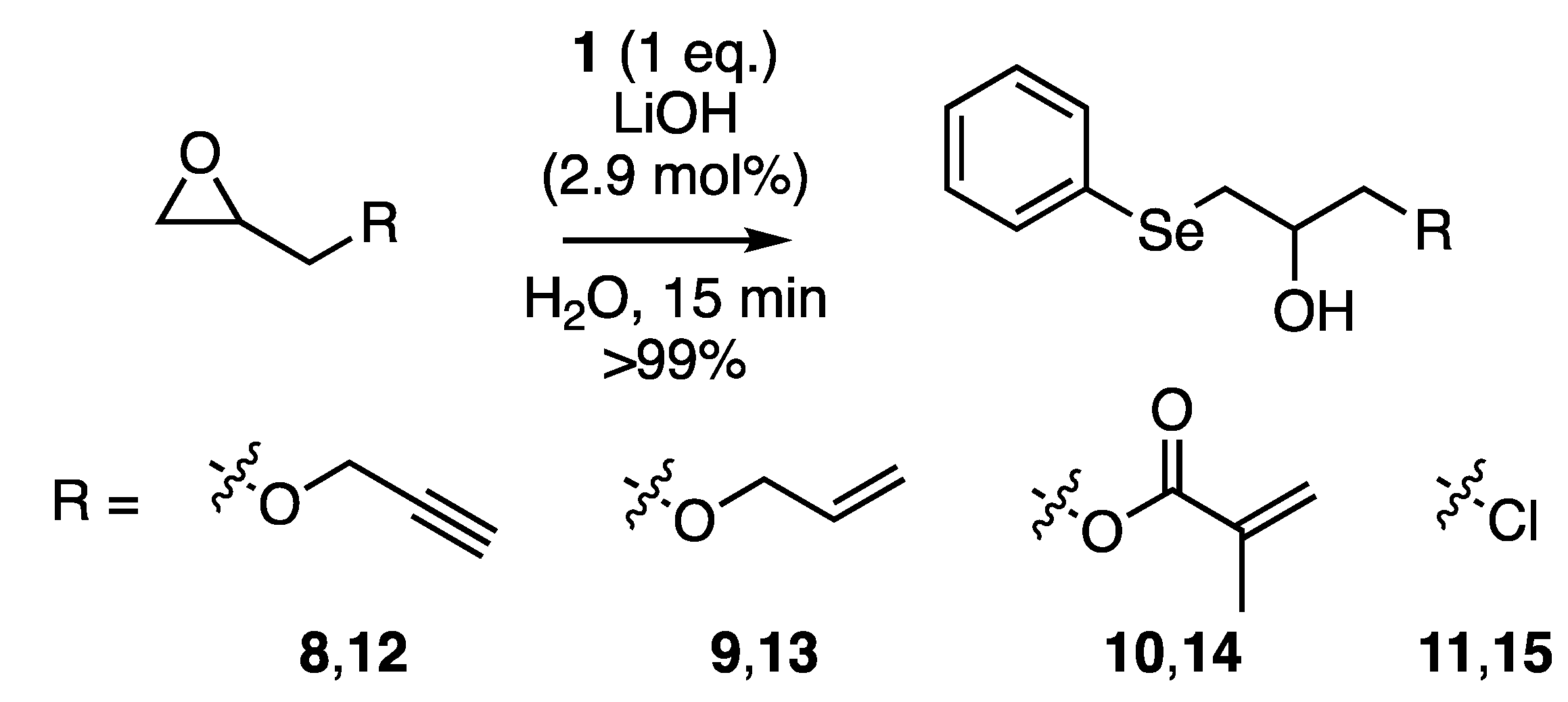

Scheme 3. Ring opening reaction in the presence of other electrophiles in the system.
Scheme 3. Ring opening reaction in the presence of other electrophiles in the system.
Chemistry 02 00054 sch003
Chemistry 02 00054 sch004 550

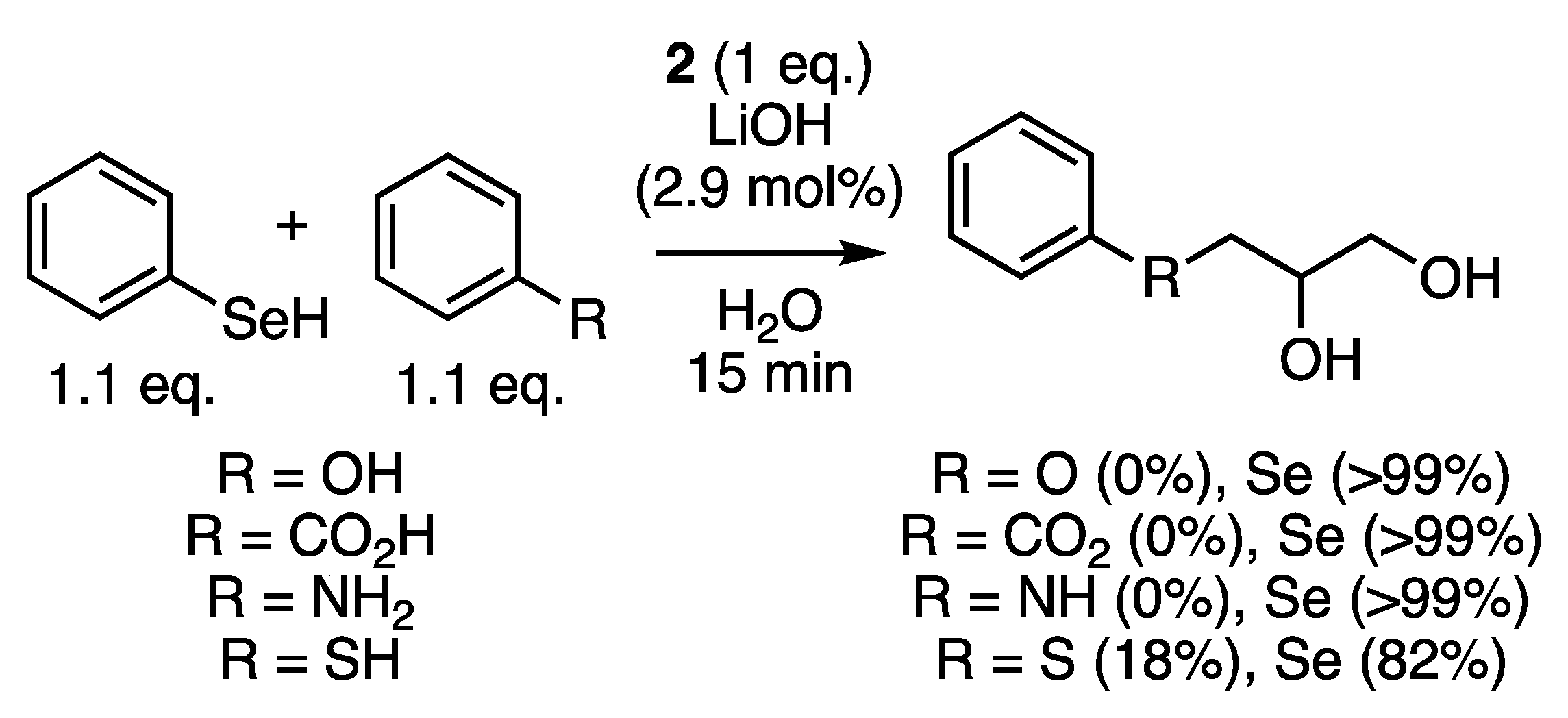

Scheme 4. Ring opening reaction in the presence of other nucleophiles in the system.
Scheme 4. Ring opening reaction in the presence of other nucleophiles in the system.
Chemistry 02 00054 sch004
Chemistry 02 00054 sch005 550

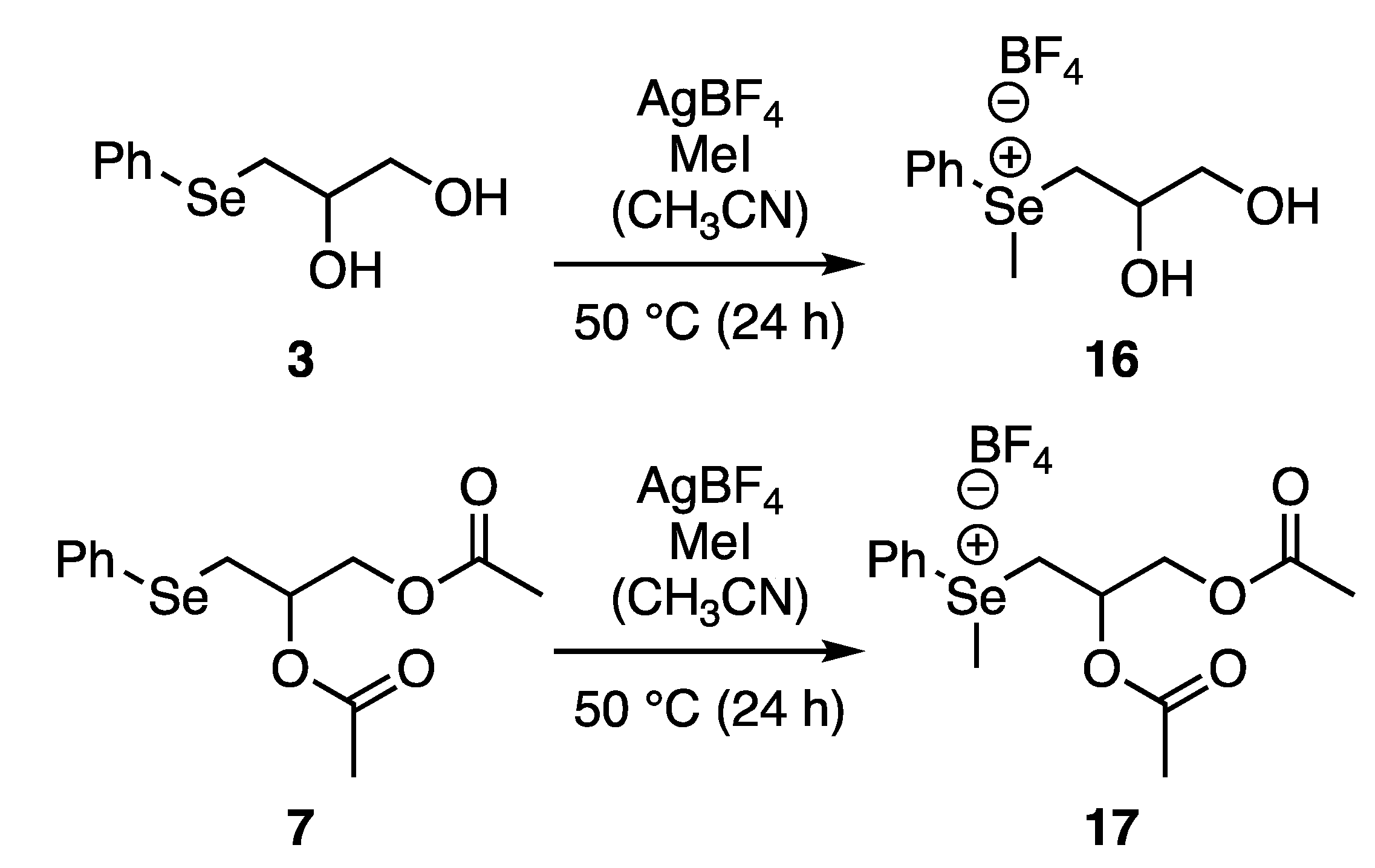

Scheme 5. Alkylation of seleno-ethers to access selenonium cations.
Scheme 5. Alkylation of seleno-ethers to access selenonium cations.
Chemistry 02 00054 sch005
Chemistry 02 00054 g003 550

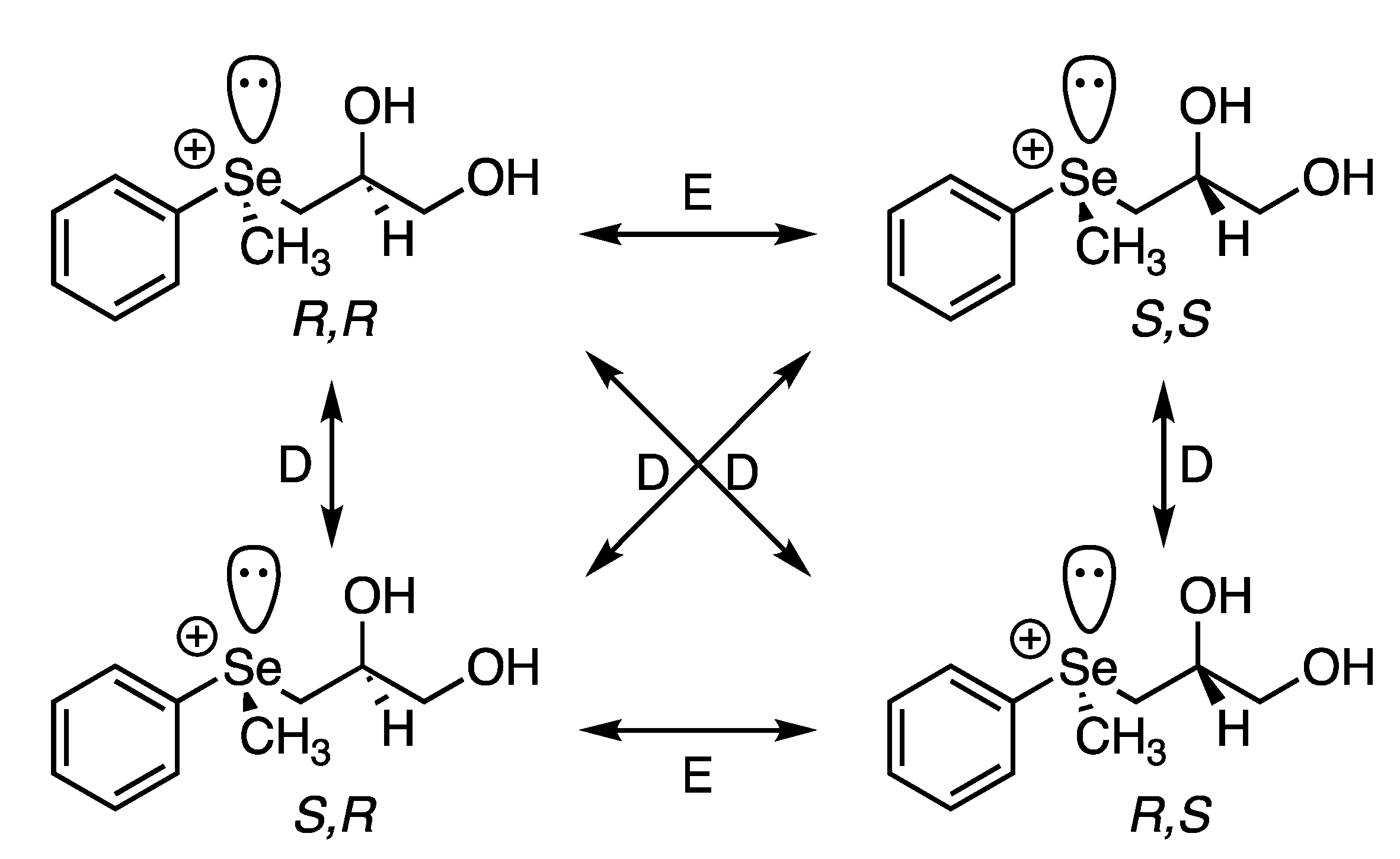

Figure 3. Formation of diastereomers upon Se-alkylation (E = enantiomer, D = diastereomer).
Figure 3. Formation of diastereomers upon Se-alkylation (E = enantiomer, D = diastereomer).
Chemistry 02 00054 g003
Chemistry 02 00054 g004 550

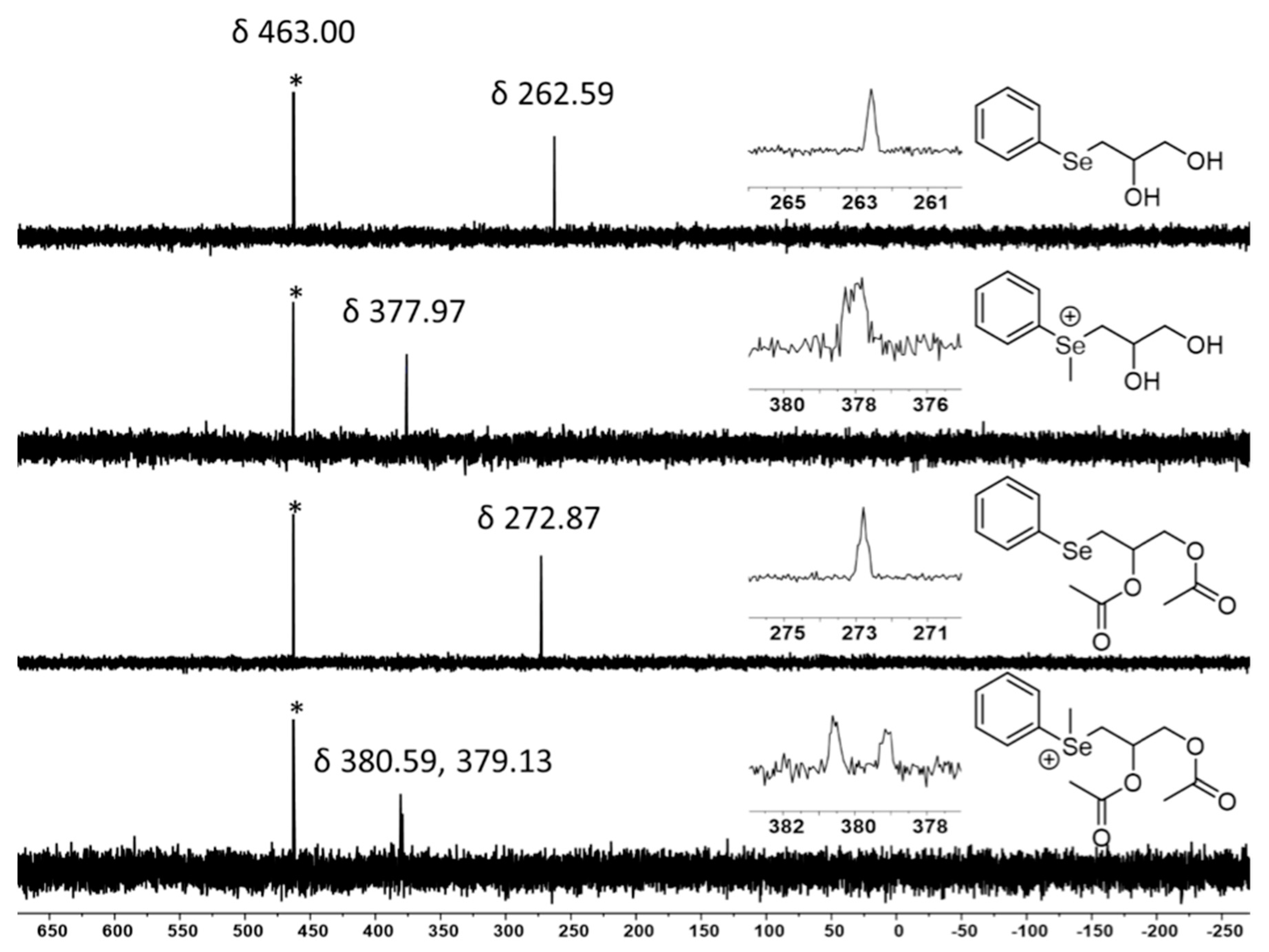

Figure 4. 77Se-NMR of 3, 7 and 16–17.
Figure 4. 77Se-NMR of 3, 7 and 16–17.
Chemistry 02 00054 g004
Chemistry 02 00054 g005 550
Figure 5. Digital picture showing the release of hemoglobin from red blood cells in DI water and complete orthogonality with PBS, 16 and 17.
Figure 5. Digital picture showing the release of hemoglobin from red blood cells in DI water and complete orthogonality with PBS, 16 and 17.
Chemistry 02 00054 g005
Table
Table 1. Ring opening reaction in chloroform.
Table 1. Ring opening reaction in chloroform.
EntrySolventSelenol (1)Epoxide (2)CatalystCatalyst (mol%)Catalyst (eq./SeH)Time (min)Ring Opening (%)
1CHCl311TEA0.990.011575
2CHCl311TEA0.990.013077
3CHCl311TEA2.910.031581
4CHCl311TEA2.910.033083
5CHCl311TEA4.760.051587
6CHCl311TEA4.760.053087
7CHCl311DBU0.990.011588
8CHCl311DBU0.990.013089
9CHCl311DBU2.910.031589
10CHCl311DBU2.910.033090
11CHCl311DBU4.760.051594
12CHCl311DBU4.760.053094
13CHCl311LiOH0.990.011594
14CHCl311LiOH0.990.013094
15CHCl311LiOH2.910.031595
16CHCl311LiOH2.910.033096
17CHCl311LiOH4.760.051597
18CHCl311LiOH4.760.053097
19CHCl31.11TEA3.190.031591
20CHCl31.11DBU3.190.0315>99
21CHCl31.11LiOH3.190.0315>99
Table
Table 2. Ring opening reaction in water.
Table 2. Ring opening reaction in water.
EntrySolventSelenol (1)Epoxide (2)CatalystCatalyst (mol%)Catalyst (eq./SeH)Time (min)Ring Opening (%)
1H2O11TEA0.990.011594
2H2O11TEA0.990.013095
3H2O11TEA2.910.0315>99
4H2O11TEA2.910.0330>99
5H2O11TEA4.760.0515>99
6H2O11TEA4.760.0530>99
7H2O11DBU0.990.011594
8H2O11DBU0.990.013095
9H2O11DBU2.910.0315>99
10H2O11DBU2.910.0330>99
11H2O11DBU4.760.0515>99
12H2O11DBU4.760.0530>99
13H2O11LiOH0.990.0115>99
14H2O11LiOH0.990.0130>99
15H2O11LiOH2.910.0315>99
16H2O11LiOH2.910.0330>99
17H2O11LiOH4.760.0515>99
18H2O11LiOH4.760.0530>99
19H2O1.11TEA3.190.0315>99
20H2O1.11DBU3.190.0315>99
21H2O1.11LiOH3.190.0315>99
