Combining Coordination and Hydrogen Bonds to Develop Discrete Supramolecular Metalla-Assemblies

Institute of Chemistry, University of Neuchatel, Avenue de Bellevaux 51, CH-2000 Neuchatel, Switzerland
Chemistry 2020, 2(2), 565-576; https://doi.org/10.3390/chemistry2020034
Received: 6 April 2020 / Revised: 8 May 2020 / Accepted: 18 May 2020 / Published: 8 June 2020
(This article belongs to the Special Issue Supramolecular Chemistry in the 3rd Millennium)

Abstract

In Nature, metal ions play critical roles at different levels, and they are often found in proteins. Therefore, metal ions are naturally incorporated in hydrogen-bonded systems. In addition, the combination of metal coordination and hydrogen bonds have been used extensively to develop supramolecular materials. However, despite this win-win combination between coordination and hydrogen bonds in many supramolecular systems, the same combination remains scarce in the field of coordination-driven self-assemblies. Indeed, as illustrated in this mini-review, only a few discrete supramolecular metalla-assemblies combining coordination and hydrogen bonds can be found in the literature, but that figure might change rapidly.
Keywords: coordination chemistry; hydrogen bonds; supramolecular chemistry; metalla-assemblies; coordination-driven self-assembly; orthogonality; ligands; metal ions coordination chemistry; hydrogen bonds; supramolecular chemistry; metalla-assemblies; coordination-driven self-assembly; orthogonality; ligands; metal ions

1. Introduction

The preparation and characterization of discrete metal-based assemblies have been the focus of several research groups. Such metalla-assemblies are obtained by combining metal ions and multidentate ligands in a pre-designed and controlled manner [1,2,3,4,5]. These supramolecular metalla-assemblies can be used as sensors [6,7,8], anticancer agents [9,10], hosts for guest molecules [11,12], drug carriers [13], mesogens [14,15], or molecular flasks [16,17]. About 40 years ago, the first coordination-driven metal-based squares (Figure 1), composed of linear diphosphine ligands and tetracarbonyl metal ions (Cr, Mo, W), were synthesized [18].
A few years later, the field really took off with the introduction of 90° square-planar palladium ions, which are versatile building blocks in supramolecular chemistry [19]. Nowadays, all kind of transition metal ions with different coordination geometries have been introduced in metalla-assemblies, and the field is flourishing.
Like the field of coordination-driven self-assemblies, hydrogen-bonded self-assembled systems have received for many years a great deal of attention [20,21,22,23,24,25]. The directionality, stability, reversibility, and biological importance of hydrogen bonds have encouraged research groups to use hydrogen-bonded motifs to construct supramolecular assemblies. An appropriate selection of donor and acceptor groups, in a pre-organized fashion, can control the strength and geometry of the designed supramolecular structures, and accordingly, allow the formation of two-dimensional and three-dimensional assemblies. Nowadays, the degree of sophistication has reached an incredible level, far beyond the simple DNA helices, and beautiful examples are published at a regular pace with different applications in mind [20,21,22,23,24,25].
In the field of materials science, coordination and hydrogen bonds have been joint to generate polymers, dendrimers, and other supramolecular assemblies [26,27,28,29,30,31,32]. An early example of such materials comes from the group of Reinhoudt, in which a barbituric acid entity was coupled to palladium-based metallo-dendrons to generate metallo-dendrimers [33]. In these systems, the barbituric acid residue forms a rosette type structure via hydrogen bonds, while the supramolecular network is further extended by the dendritic arms: The two functions are linked together by coordination chemistry. Following this pioneer report, similar combinations have been used to develop coordination and hydrogen-bonded materials [26,27,28,29,30,31,32,33,34,35].
Surprisingly, despite this relative popularity, the combination of coordination and hydrogen bonds to form discrete supramolecular metalla-assemblies remains scarce. Most examples are limited to cyclic and planar entities (one and two dimensions), and only recently, systems showing cavities and cage-like structures (three dimensions) have appeared in the literature. These hybrid self-assembled systems involving coordination chemistry and hydrogen-bonded interactions to form discrete entities are presented and discussed in this short review, thus showing the great potential of combining coordination and hydrogen bonds to develop new supramolecular metalla-assemblies.

2. Planar and Macrocyclic Assemblies Exploiting Coordination and Hydrogen Bonds

In crystal engineering, the combination of metal ions and hydrogen bonds has been extensively explored [36], and the first examples of discrete coordination and hydrogen-bonded systems were probably inspired by solid-state chemistry. Joining several metal-based chromophores is needed for the preparation of light-harvesting systems, however, to better understand the electronic pathway and metal-metal communications involved in such systems, having a dinuclear compound can be more appropriate. With that in mind, the groups of Ward and Barigelletti have studied the electronic energy transfer process between metal-polypyridyl complexes linked by complementary hydrogen-bonded groups [37,38]. Bispyridyl ligands functionalized with nucleobases were synthesized and used to connect two metal ions, see Figure 2.
The relatively high binding constant of the nucleotide base pairs and the nature of the dinuclear systems have suggested that the energy transfer occurs, even in solution (CH2Cl2), via the hydrogen-bonded interface.
A similar bis-rhodium complex has been synthesized [39], and a single crystal X-ray structure analysis has confirmed the dimeric nature of the system (Figure 3). Interestingly, upon coordination to the rhodium pentamethylcyclopentadienyl unit, the hydrogen bond pairing between two 7-diphenylphosphino-1H-quinolin-2-one ligands is not disturbed. Diffusion-ordered NMR spectroscopy in CD2Cl2 shows that the dimeric structure is stable in aprotic solvents.
Other dinuclear systems have been prepared, in which a combination of coordination and hydrogen-bonded interactions were used. For instance, a platinum-based dimer has been prepared in view to synthesize higher nuclearity systems [40]. Unfortunately, the self-complementary quinolone hydrogen bonds were too weak compared to the π-stacking interactions of the ligands, thus forming in solution a coordination macrocycle instead of a hydrogen-bonded tetranuclear system (Scheme 1).
Quinolone-based ligands were also used with octahedral metal center. Indeed, a dinuclear rhodium-based complex was obtained by reacting [Cp*RhCl2]2 (Cp* = pentamethylcyclopentadienyl) with 7-diphenylphosphino-1H-quinolin-2-one in a 1:2 stoichiometry [39]. The cationic dinuclear complex (Figure 4) is stable in solution (CD2Cl2), and NMR studies suggest that no dynamic behavior (assembly-disassembly) is occurring at room temperature in aprotic solvent. As emphasized in Figure 4, strong π-π stacking interactions take place, which increases the stability of the macrocyclic structure. Analogous dinuclear systems were obtained by reacting [(para-cymene)RuCl2]2 with 1-(4-oxo-6-undecyl-1,4-dihydropyrimidin-2-yl)-3-(pyridine-4-ylethyl)urea (UPy-L) in a 1:2 fashion [41]. The neutral complex (Figure 5) is stable under ESI-MS (electro-spray ionization–mass spectrometry) conditions. The dinuclear complexes were also incorporated in tetranuclear systems, in which the UPy-L units were parallel to each other to generate metalla-rectangles [42].
Two-dimensional assemblies with more than two metal ions have also been synthesized, using for example square-planar complexes. Tetranuclear and hexanuclear platinum-based metalla-cycles were prepared by Rendina and his coworkers [43]. The nicotinic acid pair acts as a 120° bridging ligand, and upon coordination to trans-bis(diphenylphosphine)platinum units, it forms a dinuclear sub-unit that can be coupled to other bidentate ligands. In combination with a 180° bidentate spacer (4,4′-biphenyl), a hexanuclear metalla-cycle is obtained (Figure 6A), while in combination with a 120° bidentate ligand (4,4′-benzophenone), a tetranuclear metalla-cycle is isolated (Figure 6B). When iso-nicotinic acid is used instead, oligomeric and polymeric species are formed, demonstrating the importance of ligands and metal ions geometry for the preparation of discrete metalla-assemblies.
Hydrogen-bonded dimers of para-pyridyl-substituted 2-ureido-4-1H-pyrimidinone and cis-coordinated palladium complexes have been combined to afford a tetranuclear metalla-cycle [44]. In solution (CDCl3), a mixture of a metalla-square (Figure 7) and a metalla-triangle was observed. At low concentrations (1 mM), the triangular assembly is favored, while at higher concentrations, the amount of the square-like structure is increasing significantly. This study confirms that the nature of metalla-cycles can be controlled by steric factors, by the solubility of the final entity, and by the geometry of the different building blocks.
The same para-pyridyl-substituted 2-ureido-4-1H-pyrimidinone hydrogen-bonded dimer was used to construct tetranuclear arene ruthenium metalla-rectangles [42]. NMR spectroscopy and DFT calculations showed that the formation of the hydrogen-bonded assembly results in an energy gain of ΔE = −146.8 kJ mol−1, thus confirming the stability in solution of these multiple hydrogen-bonded assemblies.
The melamine ̶ cyanuric acid (barbituric acid) pairing is among the most studied hydrogen-bonded system [45,46,47,48]. Rosette-type and tapelike structures can be achieved by the controlled functionalization of the sub-units [49,50]. Steric groups will favored the formation of discrete rosette-type structures, while small and highly soluble groups will increase tapelike structures. Therefore, in view to obtain discrete metal-coordinated rosette-type systems, a series of pyridyl-functionalized cyanuric acid [51] and melamine [52] derivatives were synthesized. Coordination of arene ruthenium complexes to the pyridyl groups has generated trinuclear (Figure 8A) and hexanuclear (Figure 8B) rosette-type assemblies.
The use of metalated nucleobases has been another approach in supramolecular chemistry that combines coordination chemistry and hydrogen bonds [53,54,55,56,57,58,59]. In such systems, the natural pairing of nucleic acids is replaced by metal-mediated base pairs, which allows the generation of hybrid DNA structures. Various applications have been foreseen for these derivatives (sensing, expending the genetic code, forming nanoclusters or nanowires, DNA technology) and they have been the subject of many reviews [53,54,55,56,57,58,59]. Therefore, this abundant literature will not be covered here, and the readers who are interested in that particular area are encouraged to refer to these reviews to complete the discussion.

3. Cage-Like Assemblies Exploiting Coordination and Hydrogen Bonds

Several supramolecular capsules built by a combination of two functionalized C2 symmetrical calix[4]arene cavitands have been synthesized by Yamanaka and his coworkers [60,61,62]. In these systems, the two capsules are linked by two metal ions and two pairs of hydrogen bonds (Figure 9). The size of the calix[4]arene and the length of the functional groups (hydrogen-bonded derivatives and pyridyl groups) dictate the size of the cavity. In some cases, the cavity is filled by an anion, while in other systems, a guest molecule is trapped. The guest exchange dynamics are linked to the nature of the anions used, and their ability to generate conformational changes by disrupting the intramolecular hydrogen-bonded system.
The conical-shape of calix[4]arene was also used to generate giant uranyl-based cages [63]. In these systems, hydrogen bond interactions are exploited to ensure that the calixarene carboxylate ligands adopt a stable and symmetrical conformation, which ultimately forces the carboxylate anion to coordinate to the uranyl cation (UO22+) in a controlled manner. This strategy has allowed the formation of several discrete icosahedral cage-like structure (Figure 10), in which the metals are not located at the corners or edges of the assemblies, and for which the cavity of the large anionic capsule is relatively well shielded.
The cooperative action of coordination bonds and quadruple hydrogen-bonded interactions has allowed the synthesis of tetrahedron cage-like structures [64]. The symmetry, size, and nature of the assembly are linked to the flexibility of the ligands, the choice of the metal ions (Hg2+, Fe2+, Zn2+) and the conditions used (solvent polarity, concentration, anion, temperature). In the iron(II) derivatives, the quadruple hydrogen-bonded units are linked to 2,2′-bipyridyl group, to produce a tetrahedron cage-like structure (Figure 11). Stability studies have showed that protic solvents (DMSO, H2O) initiate the disassembly of the cage-like structure. However, some derivatives show remarkable stability in polar solvents, and even in the presence of coordinating competing agents, thus suggesting that these capsules can be used as reactors for catalytic reactions.
The nature of the metal ion was also a critical point when dealing with these quadruple hydrogen-bonded units linked to 2,2′-bipyridyl ligand [64]. Replacing Zn2+ or Fe2+ with Hg2+ not only modified the stability, but also the overall geometry. The large ionic radius of Hg2+ provides a wider separation of the coordinated 2,2′-bipyridyl ligands, thus allowing the quadruple hydrogen-bonded units to stack on top of each other and to form a triple decker system (Figure 12). The helicate structure is less stable than the tetrahedron systems, as the coordination energy of 2,2′-bipyridyl to Hg2+ remains relatively weak compared to Fe2+.

4. Conclusions

As pointed out here, as well as in several reviews and publications [26,27,28,29,30,31,32,33,34,35], allowing two or more non-covalent interactions to take place simultaneously can be quite challenging (orthogonality concept) [30]. To be successful, a compatibility between the hydrogen-bonded and coordination interactions is essential, as individually they show different solubility, different flexibility and different stability. Moreover, to form a discrete supramolecular metalla-assembly, the ligands and the hydrogen bonded units should not compete for the metal ions, and they should cooperate. Therefore, it is not so surprising that so far the number of discrete metalla-assemblies combining coordination and hydrogen bonds remains limited. Nevertheless, we can assume that considering recent progress in the understanding on how such orthogonal concepts can be applied to supramolecular systems, and how innovative strategies have recently emerged in the field, that soon, we will see more of these discrete supramolecular metalla-assemblies.

Funding

This research received no external funding.

Acknowledgments

The author would like to thank past and present members of his group.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Chen, L.-J.; Yang, H.-B. Construction of stimuli-responsive functional materials via hierarchical self-assembly involving coordination interactions. Acc. Chem. Res. 2018, 51, 2699–2710. [Google Scholar] [CrossRef] [PubMed]
  2. Cook, T.R.; Stang, P.J. Recent developments in the preparation and chemistry of metallacycles and metallacages via coordination. Chem. Rev. 2015, 115, 7001–7045. [Google Scholar] [CrossRef] [PubMed]
  3. Datta, S.; Saha, M.L.; Stang, P.J. Hierarchical assemblies of supramolecular coordination complexes. Acc. Chem. Res. 2018, 51, 2047–2063. [Google Scholar] [CrossRef] [PubMed]
  4. Stíbal, D.; Therrien, B. Organometallic chemistry in directed assembly. In Comprehensive Supramolecular Chemistry II; Atwood, J.L., Ed.; Elsevier: Oxford, UK, 2017; Volume 6, pp. 305–329. [Google Scholar]
  5. Hosseini, M.W. Molecular tectonics: From simple tectons to complex molecular networks. Acc. Chem. Res. 2005, 38, 313–323. [Google Scholar] [CrossRef] [PubMed]
  6. Li, M.; Chen, L.-J.; Zhang, Z.; Luo, Q.; Yang, H.-B.; Tian, H.; Zhu, W.-H. Conformer-dependent self-assembled metallacycles with photo-reversible response. Chem. Sci. 2019, 10, 4896–4904. [Google Scholar] [CrossRef] [PubMed]
  7. Percástegui, E.G.; Jancik, V. Coordination-driven assemblies based on meso-substituted porphyrins: Metal-organic cages and a new type of meso-metallaporphyrin macrocycles. Coord. Chem. Rev. 2020, 407, 213165. [Google Scholar] [CrossRef]
  8. Barry, N.P.E.; Therrien, B. Pyrene: The guest of honor. In Organic Nanoreactors; Sadjadi, S., Ed.; Elsevier: London, UK, 2016; pp. 421–461. [Google Scholar]
  9. Pöthig, A.; Casini, A. Recent developments of supramolecular metal-based structures for applications in cancer therapy and imaging. Theranostics 2019, 9, 93150–93169. [Google Scholar] [CrossRef]
  10. Sepehrpour, H.; Fu, W.; Sun, Y.; Stang, P.J. Biomedically relevant self-assembled metallacycles and metallacages. J. Am. Chem. Soc. 2019, 141, 14005–14020. [Google Scholar] [CrossRef]
  11. Amouri, H.; Desmarets, C.; Moussa, J. Confined nanospaces in metallocages: Guest molecules, weakly encapsulated anions, and catalyst sequestration. Chem. Rev. 2012, 112, 2015–2041. [Google Scholar] [CrossRef]
  12. Wang, G.-L.; Lin, Y.-J.; Berke, H.; Jin, G.-X. Two-step assembly of multinuclear metallacycles with half-sandwich Ir, Rh, and Ru fragments for counteranion encapsulation. Inorg. Chem. 2010, 49, 2193–2201. [Google Scholar] [CrossRef]
  13. Therrien, B. Biologically relevant arene ruthenium metalla-assemblies. CrystEngComm 2015, 17, 484–491. [Google Scholar] [CrossRef]
  14. Chen, L.; Chen, C.; Sun, Y.; Lu, S.; Huo, H.; Tan, T.; Li, A.; Li, X.; Ungar, G.; Liu, F.; et al. Luminescent metallacycle-cored liquid crystals induced by metal coordination. Angew. Chem. Int. Ed. 2020, 59. [Google Scholar] [CrossRef]
  15. Therrien, B. Thermotropic liquid-crystalline materials based on supramolecular coordination complex. Inorganics 2020, 8, 2. [Google Scholar] [CrossRef]
  16. Cullen, W.; Misuraca, M.C.; Hunter, C.A.; Williams, N.H.; Ward, M.D. Highly efficient catalysis of the Kemp elimination in the cavity of a cubic coordination cage. Nat. Chem. 2016, 8, 231–236. [Google Scholar] [CrossRef] [PubMed]
  17. Yoshizawa, M.; Klosterman, J.K.; Fujita, M. Functional molecular flasks: New properties and reactions within discrete, self-assembled hosts. Angew. Chem. Int. Ed. 2009, 48, 3418–3438. [Google Scholar] [CrossRef]
  18. Stricklen, P.M.; Volcko, E.J.; Verkade, J.G. Novel homo- and heterometallic coordination macrocycles. J. Am. Chem. Soc. 1983, 105, 2494–2495. [Google Scholar] [CrossRef]
  19. Fujita, M.; Tominaga, M.; Hori, A.; Therrien, B. Coordination assemblies from a Pd (II)-cornered square complex. Acc. Chem. Res. 2005, 38, 371–380. [Google Scholar] [CrossRef]
  20. Conn, M.M.; Rebek, J., Jr. Self-assembling capsules. Chem. Rev. 1997, 97, 1647–1668. [Google Scholar] [CrossRef]
  21. Adriaenssens, L.; Ballester, P. Hydrogen bonded supramolecular capsules with functionalized interiors: The controlled orientation of included guests. Chem. Soc. Rev. 2013, 42, 3261–3277. [Google Scholar] [CrossRef]
  22. Sigel, R.K.O.; Freisinger, E.; Metzger, S.; Lippert, B. Metalated nucleobase quartets: Dimerization of a metal-modified guanine, cytosine pair of trans-(NH3)2PtII and formation of CH···N hydrogen bonds. J. Am. Chem. Soc. 1998, 120, 12000–12007. [Google Scholar] [CrossRef]
  23. Young, M.C.; Holloway, L.R.; Johnson, A.M.; Hooley, R.J. A supramolecular sorting hat: Stereocontrol in metal-ligand self-assembly by complementary hydrogen bonding. Angew. Chem. Int. Ed. 2014, 53, 9832–9836. [Google Scholar] [CrossRef] [PubMed]
  24. McLaughlin, C.K.; Hamblin, G.D.; Sleiman, H.F. Supramolecular DNA assembly. Chem. Soc. Rev. 2011, 40, 5647–5656. [Google Scholar] [CrossRef] [PubMed]
  25. Philp, D.; Stoddart, J.F. Self-assembly in natural and unnatural systems. Angew. Chem. Int. Ed. 1996, 35, 1154–1196. [Google Scholar] [CrossRef]
  26. Krische, M.J.; Lehn, J.-M. The utilization of persistent H-bonding motifs in the self-assembly of supramolecular architectures. Struct. Bond. 2000, 96, 3–29. [Google Scholar]
  27. Sijbesma, R.P.; Meijer, E.W. Quadruple hydrogen bonded systems. Chem. Commun. 2003, 5–16. [Google Scholar] [CrossRef] [PubMed]
  28. Van Manen, H.-J.; Paraschiv, V.; García-López, J.J.; Schönherr, H.; Zapotoczny, S.; Vancso, G.J.; Crego-Calama, M.; Reinhoudt, D.N. Hydrogen-bonded assemblies as a scaffold for metal-containing nanostructures: From zero to two dimensions. Nano Lett. 2004, 4, 441–446. [Google Scholar] [CrossRef]
  29. Lehn, J.-M. Perspectives in Chemistry—Steps towards complex matter. Angew. Chem. Int. Ed. 2013, 52, 2836–2850. [Google Scholar] [CrossRef]
  30. Wong, C.-H.; Zimmerman, S.C. Orthogonality in organic, polymer, and supramolecular chemistry: From Merrifield to click chemistry. Chem. Commun. 2013, 49, 1679–1695. [Google Scholar] [CrossRef]
  31. Krieg, E.; Bastings, M.M.C.; Besenius, P.; Rybtchinski, B. Supramolecular polymers in aqueous media. Chem. Rev. 2016, 116, 2414–2477. [Google Scholar] [CrossRef]
  32. Ayme, J.-F.; Lehn, J.-M. From coordination chemistry to adaptive chemistry. Adv. Inorg. Chem. 2018, 71, 3–78. [Google Scholar]
  33. Huck, W.T.S.; Hulst, R.; Timmerman, P.; van Veggel, F.C.J.M.; Reinhoudt, D.N. Noncovalent synthesis of nanostructures: Combining coordination chemistry and hydrogen bonding. Angew. Chem. Int. Ed. 1997, 36, 1006–1008. [Google Scholar] [CrossRef]
  34. Yan, X.; Li, S.; Pollock, J.B.; Cook, T.R.; Chen, J.; Zhang, Y.; Ji, X.; Yu, Y.; Huang, F.; Stang, P.J. Supramolecular polymers with tunable topologies via hierarchical coordination-driven self-assembly and hydrogen bonding interfaces. Proc. Nat. Acad. Sci. USA 2013, 110, 15585–15590. [Google Scholar] [CrossRef] [PubMed]
  35. Zhang, Q.; Li, T.; Duan, A.; Dong, S.; Zhao, W.; Stang, P.J. Formation of a supramolecular polymeric adhesive via water-participant hydrogen bond formation. J. Am. Chem. Soc. 2019, 141, 8058–8063. [Google Scholar] [CrossRef] [PubMed]
  36. Burrows, A.D.; Chan, C.-W.; Chowdhry, M.M.; McGrady, J.E.; Mingos, D.M.P. Multidimensional crystal engineering of bifunctional metal complexes containing complementary triple hydrogen bonds. Chem. Soc. Rev. 1995, 24, 329–339. [Google Scholar] [CrossRef]
  37. Armaroli, N.; Barigelletti, F.; Calogero, G.; Flamigni, L.; White, C.M.; Ward, M.D. Electronic energy transfer between ruthenium (II) and osmium (II) polypyridyl luminophores in a hydrogen-bonded supramolecular assembly. Chem. Commun. 1997, 2181–2182. [Google Scholar] [CrossRef]
  38. White, C.M.; Fernandez Gonzalez, M.; Bardwell, D.A.; Rees, L.H.; Jeffery, J.C.; Ward, M.D.; Armaroli, N.; Calogero, G.; Barigelletti, F. Derivatives of luminescent metal-polypyridyl complexes with pendant adenine or thymine groups: Building blocks for supramolecular assemblies based on hydrogen bonding. J. Chem. Soc. Dalton Trans. 1997, 727–735. [Google Scholar] [CrossRef]
  39. Sommer, S.K.; Zakharov, L.N.; Pluth, M.D. Design, synthesis, and characterization of hybrid metal-ligand hydrogen-bonded (MLHB) supramolecular architectures. Inorg. Chem. 2015, 54, 1912–1918. [Google Scholar] [CrossRef]
  40. Sommer, S.K.; Henle, E.A.; Zakharov, L.N.; Pluth, M.D. Selection for a single self-assembled macrocycle from a hybrid metal-ligand hydrogen-bonded (MLHB) ligand subunit. Inorg. Chem. 2015, 54, 6910–6916. [Google Scholar] [CrossRef]
  41. Appavoo, D.; Carnevale, D.; Deschenaux, R.; Therrien, B. Combining coordination and hydrogen-bonds to form arene ruthenium metalla-assemblies. J. Organomet. Chem. 2016, 824, 80–87. [Google Scholar] [CrossRef]
  42. Appavoo, D.; Raja, N.; Deschenaux, R.; Therrien, B.; Carnevale, D. NMR spectroscopy and DFT calculations of a self-assembled arene ruthenium rectangle obtained from a combination of coordination and hydrogen bonds. Dalton Trans. 2016, 45, 1410–1421. [Google Scholar] [CrossRef]
  43. Gianneschi, N.C.; Tiekink, E.R.T.; Rendina, L.M. Dinuclear platinum complexes with hydrogen-bonding functionality: Noncovalent assembly of nanoscale cyclic arrays. J. Am. Chem. Soc. 2000, 122, 8474–8479. [Google Scholar] [CrossRef]
  44. Marshall, L.J.; de Mendoza, J. Self-assembled squares and triangles by simultaneous hydrogen bonding and metal coordination. Org. Lett. 2013, 15, 1548–1551. [Google Scholar] [CrossRef] [PubMed]
  45. Yagai, S.; Mahesh, S.; Kikkawa, Y.; Unoike, K.; Karatsu, T.; Kitamura, A.; Ajayaghosh, A. Toroidal Nanoobjects from rosette assemblies of melamine-linked oligo(p-phenyleneethynylene)s and cyanurates. Angew. Chem. Int. Ed. 2008, 47, 4691–4694. [Google Scholar] [CrossRef]
  46. Petelski, A.N.; Peruchena, N.M.; Sosa, G.L. Evolution of the hydrogen-bonding motif in the melamine-cyanuric acid co-crystal: A topological study. J. Mol. Model. 2016, 22, 202. [Google Scholar] [CrossRef]
  47. Adhikari, B.; Lin, X.; Yamauchi, M.; Ouchi, H.; Aratsu, K.; Yagai, S. Hydrogen-bonded rosettes comprising π-conjugated systems as building blocks for functional one-dimensional assemblies. Chem. Commun. 2017, 53, 9663–9683. [Google Scholar] [CrossRef] [PubMed]
  48. Ferigán, B.; Folcia, C.L.; Termine, R.; Golemme, A.; Granadino-Roldán, J.M.; Navarro, A.; Serrano, J.L.; Giménez, R.; Sierra, T. Inspecting the electronic architecture and semiconducting properties of a rosette-like supramolecular columnar liquid crystal. Chem. Eur. J. 2018, 24, 17459–17463. [Google Scholar] [CrossRef]
  49. Igci, C.; Karaman, O.; Fan, Y.; Gonzales III, A.A.; Fenniri, H.; Gumbas, G. Synthesis of N-bridged pyrido[4,3-d]pyrimidines and self-assembly into twin rosette cages and nanotubes in organic media. Sci. Rep. 2018, 8, 15949. [Google Scholar] [CrossRef]
  50. Whitesides, G.M.; Simanek, E.E.; Mathias, J.P.; Seto, C.T.; Chin, D.N.; Mammen, M.; Gordon, D.M. Noncovalent synthesis: Using physical-organic chemistry to make aggregates. Acc. Chem. Res. 1995, 28, 37–44. [Google Scholar] [CrossRef]
  51. Zhang, F.; Therrien, B. Coordination of piano-stool complexes to a hydrogen-bonded rosette-type assembly. Eur. J. Inorg. Chem. 2017, 3214–3221. [Google Scholar] [CrossRef]
  52. Zhang, F.; Therrien, B. Using hydrogen-bonded rosette-type scaffold to generate heteronuclear metalla-assemblies. Eur. J. Inorg. Chem. 2018, 2399–2407. [Google Scholar] [CrossRef]
  53. Müller, J. Nucleic acid duplexes with metal-mediated base pairs and their structures. Coord. Chem. Rev. 2019, 393, 37–47. [Google Scholar] [CrossRef]
  54. Park, K.S.; Jung, C.; Park, H.G. “Illusionary” polymerase activity triggered by metal ions: Use for molecular logic-gate operations. Angew. Chem. Int. Ed. 2010, 49, 9757–9760. [Google Scholar] [CrossRef]
  55. Ono, A.; Togashi, H. Highly selective oligonucleotide-based sensor for mercury (II) in aqueous solutions. Angew. Chem. Int. Ed. 2004, 43, 4300–4302. [Google Scholar] [CrossRef]
  56. Kobayashi, T.; Takezawa, Y.; Sakamoto, A.; Shionoya, M. Enzymatic synthesis of ligand-bearing DNAs for metal-mediated base pairing utilizing a template-independent polymerase. Chem. Commun. 2016, 52, 3762–3765. [Google Scholar] [CrossRef] [PubMed]
  57. Hirao, I.; Kimoto, M.; Yamashige, R. Natural versus artificial creation of base pairs in DNA: Origin of nucleobases from the perspectives of unnatural base pair studies. Acc. Chem. Res. 2012, 45, 2055–2065. [Google Scholar] [CrossRef] [PubMed]
  58. Takezawa, Y.; Shionoya, M. Metal-mediated DNA base pairing: Alternatives to hydrogen-bonded Watson-Crick base pairs. Acc. Chem. Res. 2012, 45, 2066–2076. [Google Scholar] [CrossRef] [PubMed]
  59. Scharf, P.; Müller, J. Nucleic acids with metal-mediated base pairs and their applications. ChemPlusChem 2013, 78, 20–34. [Google Scholar] [CrossRef]
  60. Yamanaka, M.; Toyoda, N.; Kobayashi, K. Hybrid cavitand capsule with hydrogen bonds and metal-ligand coordination bonds: Guest encapsulation with anion assistance. J. Am. Chem. Soc. 2009, 131, 9880–9881. [Google Scholar] [CrossRef] [PubMed]
  61. Yamanaka, M.; Kawaharada, M.; Nito, Y.; Takaya, H.; Kobayashi, K. Structural alteration of hybrid supramolecular capsule induced by guest encapsulation. J. Am. Chem. Soc. 2011, 133, 16650–16656. [Google Scholar] [CrossRef] [PubMed]
  62. Nito, Y.; Adachi, H.; Toyoda, N.; Takaya, H.; Kobayashi, K.; Yamanaka, M. Hydrogen-bond and metal-ligand coordination bond hybrid supramolecular capsules: Identification of hemicapsular intermediate and dual control of guest exchange dynamics. Chem. Asian J. 2014, 9, 1076–1082. [Google Scholar] [CrossRef]
  63. Pasquale, S.; Sattin, S.; Escudero-Adán, E.C.; Martínez-Belmonte, M.; de Mendoza, J. Giant regular polyhedral from calixarene carboxylates and uranyl. Nat. Commun. 2012, 3, 785. [Google Scholar] [CrossRef] [PubMed]
  64. Shi, Q.; Zhou, X.; Yuan, W.; Su, X.; Neniškis, A.; Wei, X.; Taujenis, L.; Snarskis, G.; Ward, J.S.; Rissanen, K.; et al. Selective formation of S4- and T-symmetric supramolecular tetrahedral cages and helicates in polar media assembled via cooperative action of coordination and hydrogen bonds. J. Am. Chem. Soc. 2020, 142, 3658–3670. [Google Scholar] [CrossRef] [PubMed]

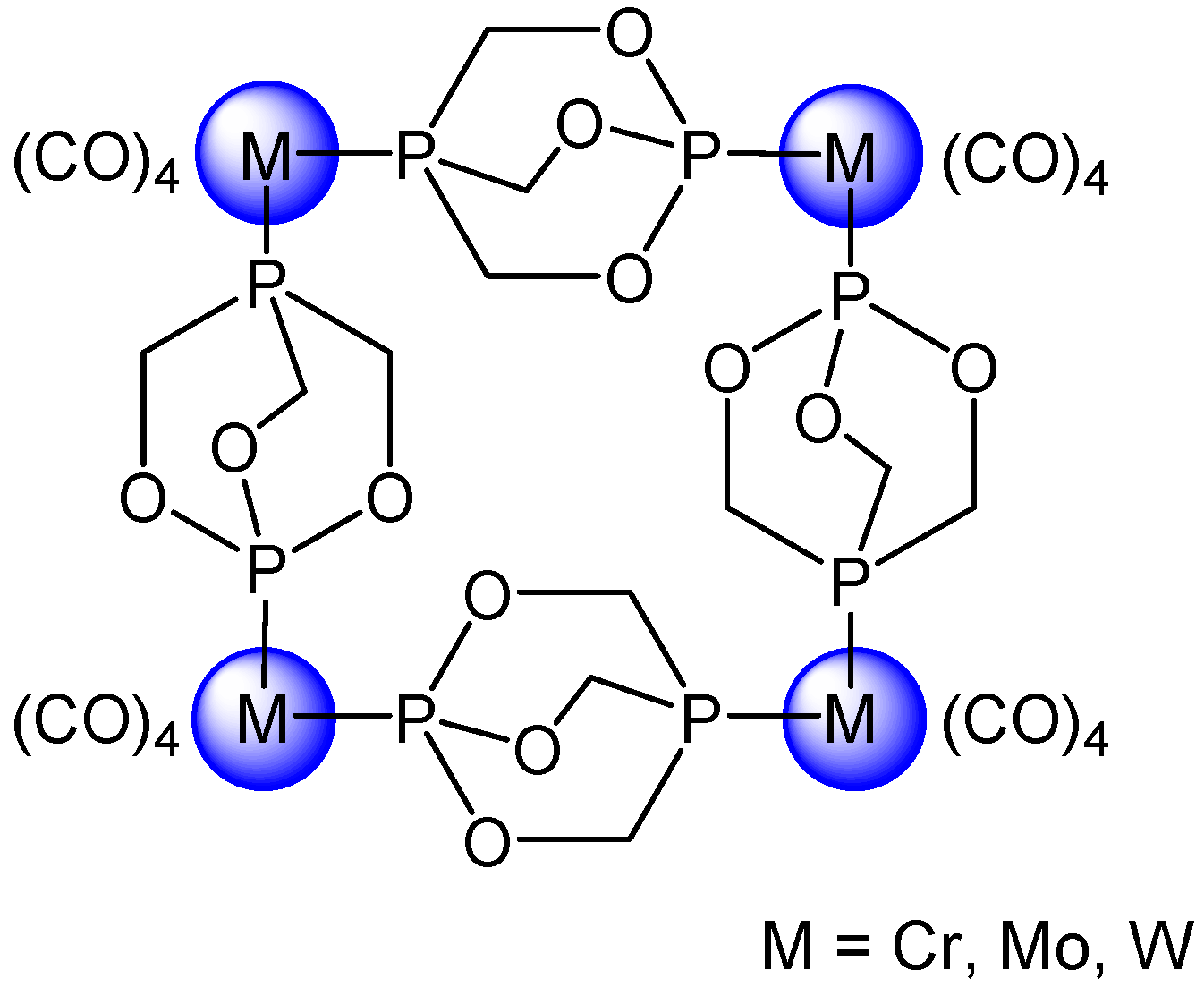

Figure 1. Molecular structure of the first coordination-linked metalla-squares [18].
Figure 1. Molecular structure of the first coordination-linked metalla-squares [18].
Chemistry 02 00034 g001

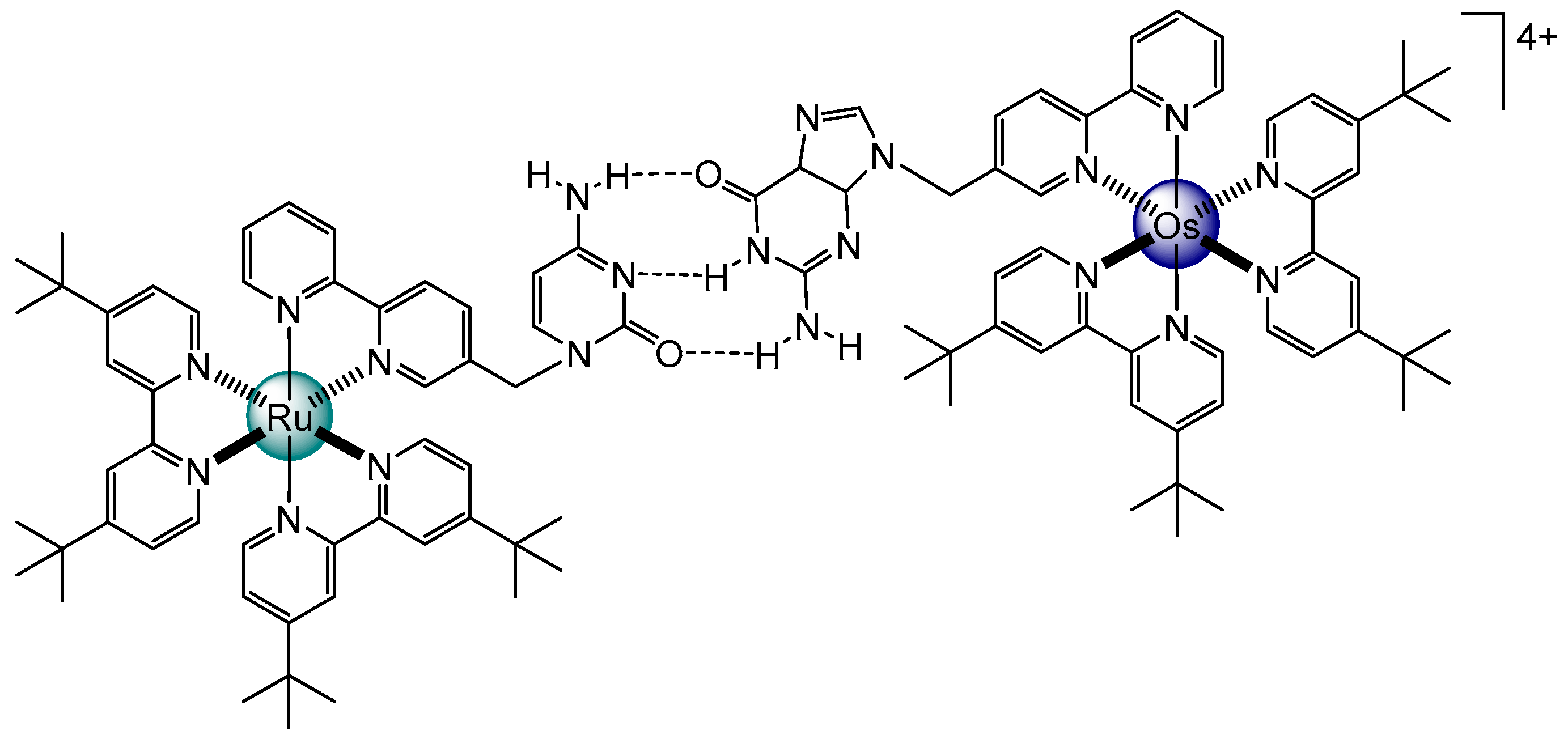

Figure 2. Cationic hydrogen-bonded dinuclear systems showing metal-metal energy transfer [37].
Figure 2. Cationic hydrogen-bonded dinuclear systems showing metal-metal energy transfer [37].
Chemistry 02 00034 g002

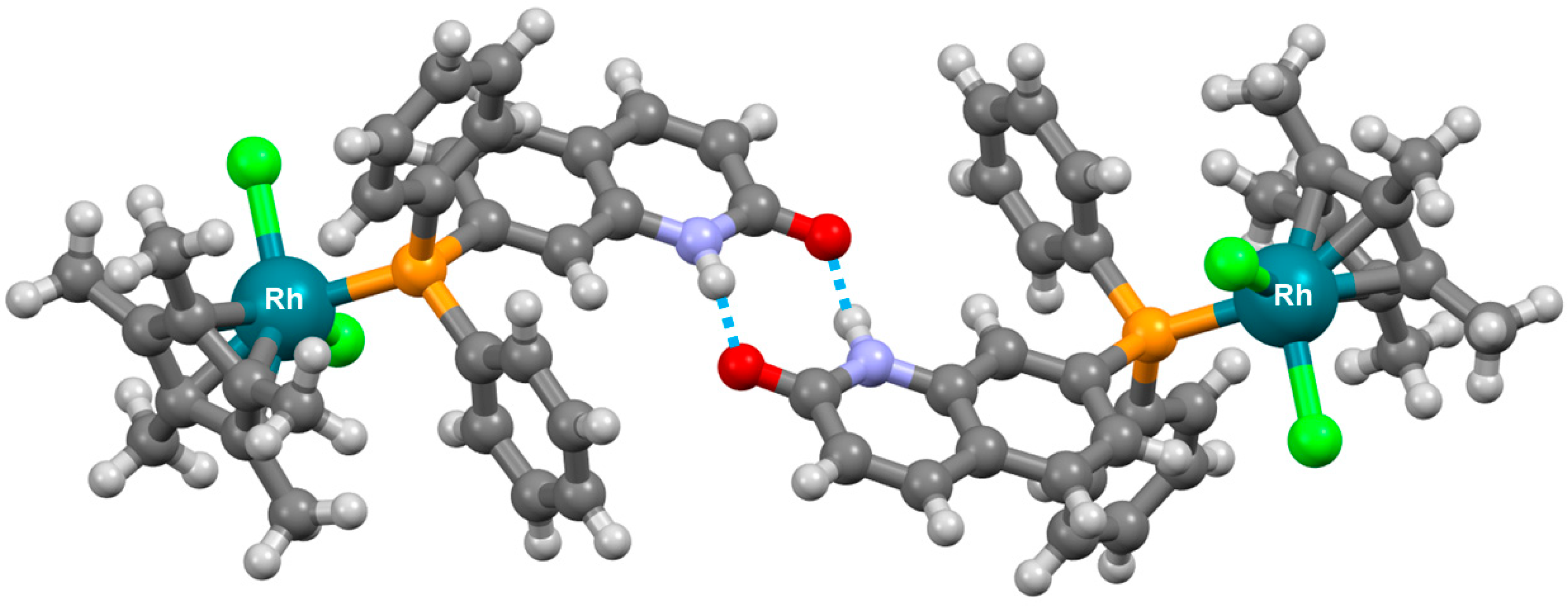

Figure 3. Dimeric structure of a hydrogen-bonded bis-rhodium complex [39].
Figure 3. Dimeric structure of a hydrogen-bonded bis-rhodium complex [39].
Chemistry 02 00034 g003

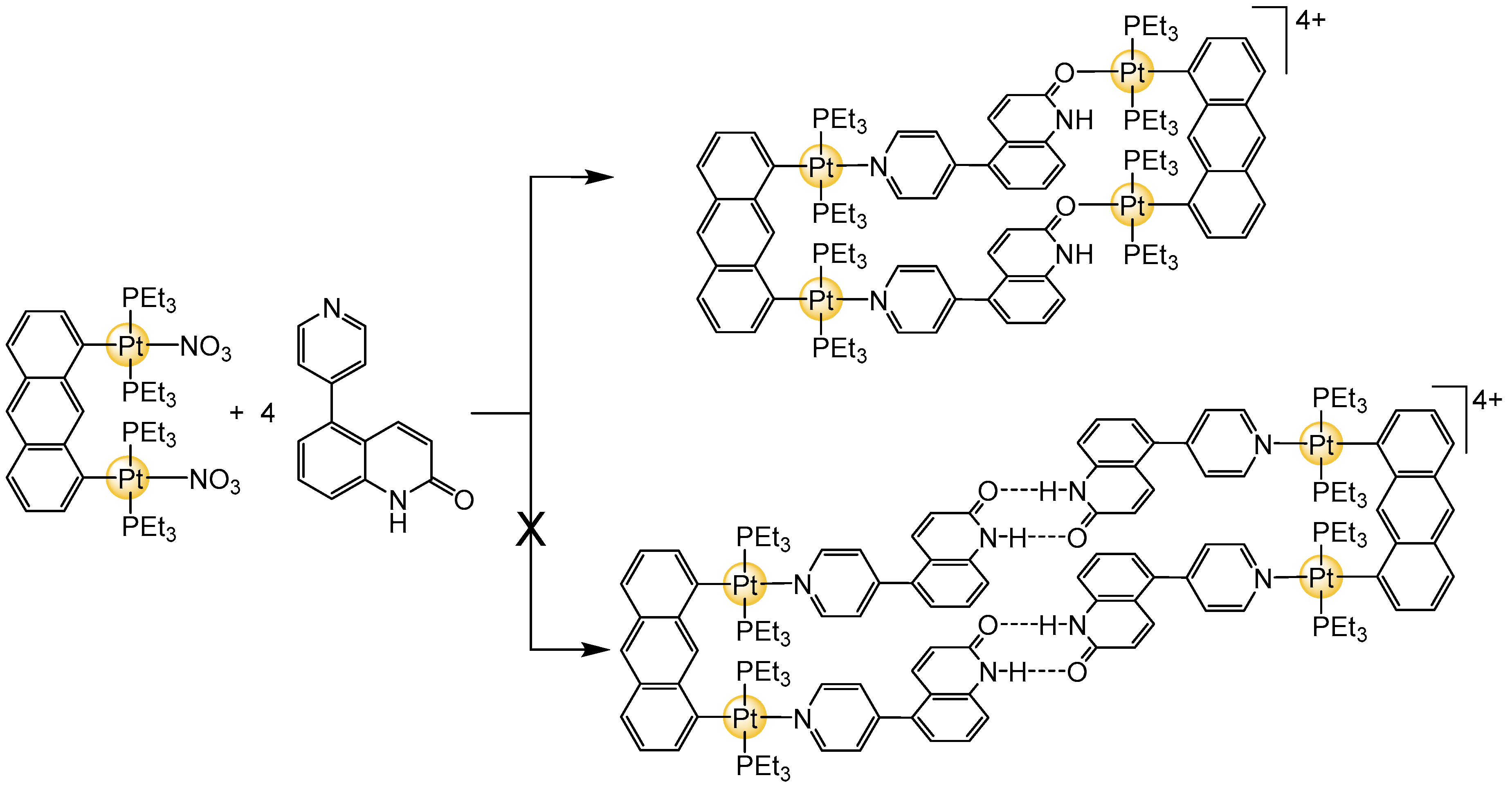

Scheme 1. Self-assembly of a coordination macrocycle (top) over a tetranuclear hydrogen-bonded system (bottom) [40].
Scheme 1. Self-assembly of a coordination macrocycle (top) over a tetranuclear hydrogen-bonded system (bottom) [40].
Chemistry 02 00034 sch001
Figure 4. Dinuclear rhodium-based metallacycle [39].
Figure 4. Dinuclear rhodium-based metallacycle [39].
Chemistry 02 00034 g004

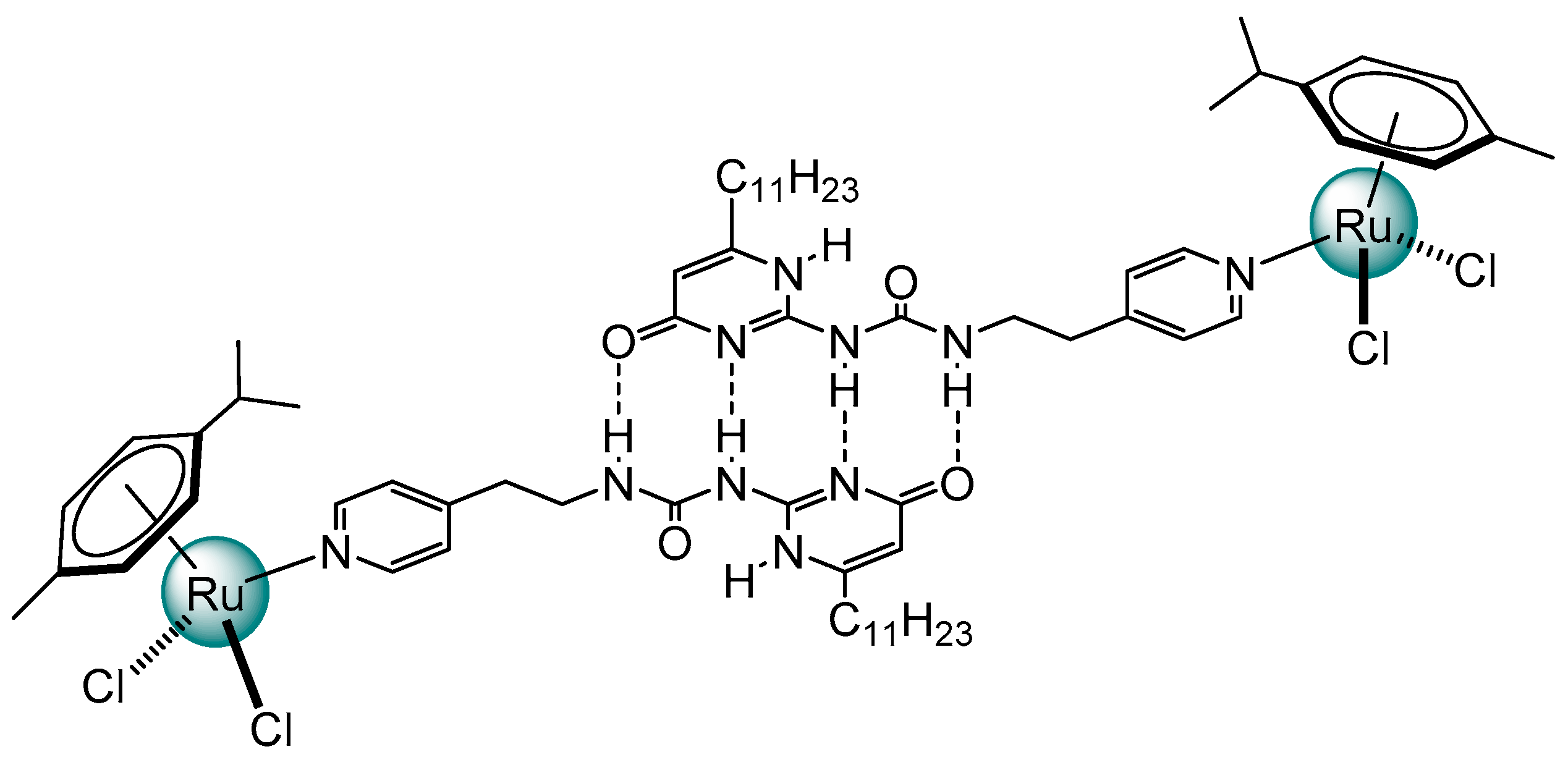

Figure 5. A dinuclear complex incorporating piano-stool complexes and derived-ligands allowing hydrogen-bonded assemblies [41].
Figure 5. A dinuclear complex incorporating piano-stool complexes and derived-ligands allowing hydrogen-bonded assemblies [41].
Chemistry 02 00034 g005

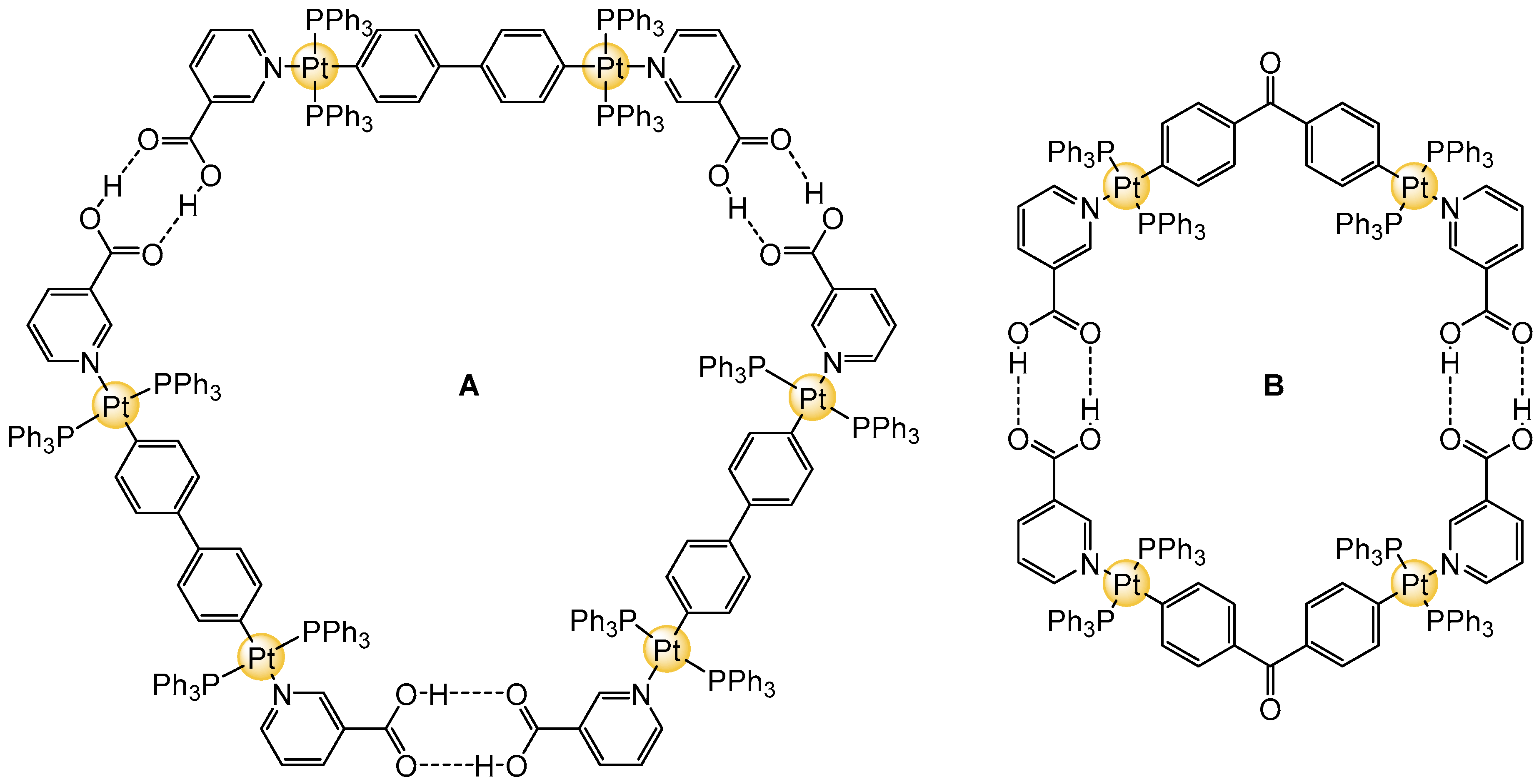

Figure 6. Hexanuclear (A) and tetranuclear (B) metalla-cycles built from nicotinic acid and square-planar platinum ions [43].
Figure 6. Hexanuclear (A) and tetranuclear (B) metalla-cycles built from nicotinic acid and square-planar platinum ions [43].
Chemistry 02 00034 g006

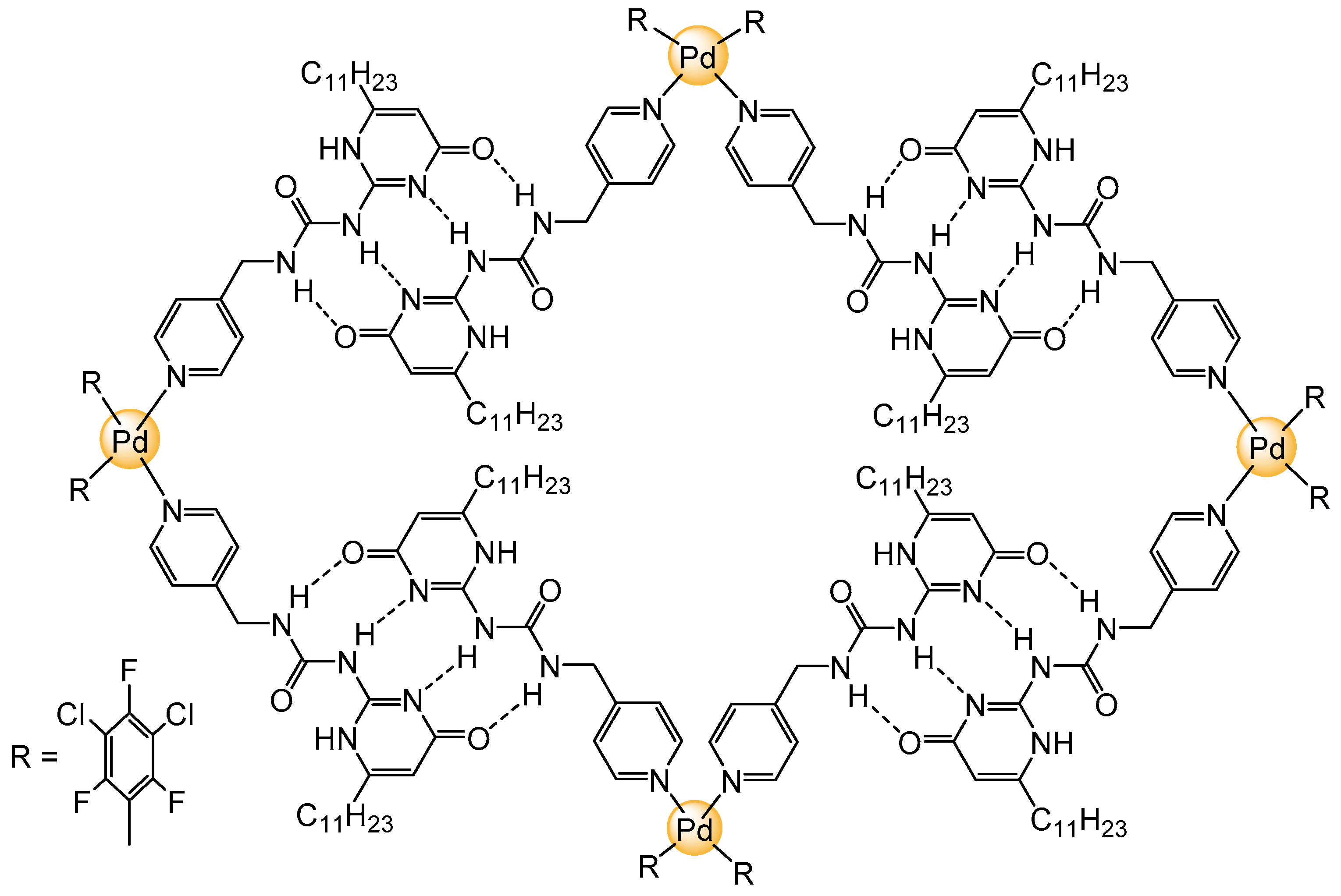

Figure 7. Molecular structure of a palladium-based tetranuclear assembly [44].
Figure 7. Molecular structure of a palladium-based tetranuclear assembly [44].
Chemistry 02 00034 g007
Figure 8. Examples of trinuclear (A) and hexanuclear (B) rosette-type metalla-assemblies [51,52].
Figure 8. Examples of trinuclear (A) and hexanuclear (B) rosette-type metalla-assemblies [51,52].
Chemistry 02 00034 g008
Figure 9. Hybrid capsules built from two functionalized calix[4]arene cavitands [62].
Figure 9. Hybrid capsules built from two functionalized calix[4]arene cavitands [62].
Chemistry 02 00034 g009

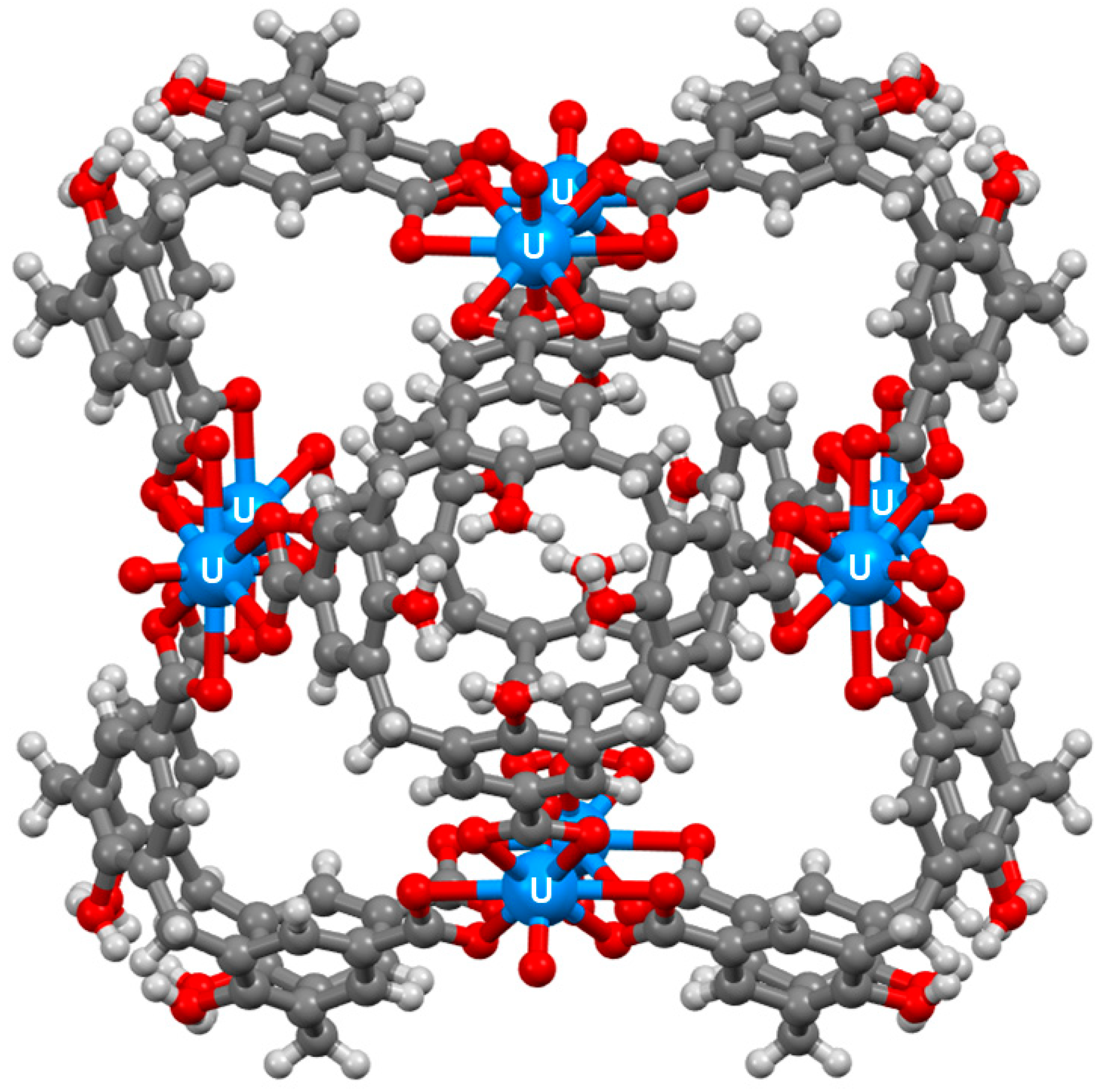

Figure 10. Molecular structure of a hexameric cage-like structure built from six calix[4]arene carboxylates and eight uranyl cations [63].
Figure 10. Molecular structure of a hexameric cage-like structure built from six calix[4]arene carboxylates and eight uranyl cations [63].
Chemistry 02 00034 g010

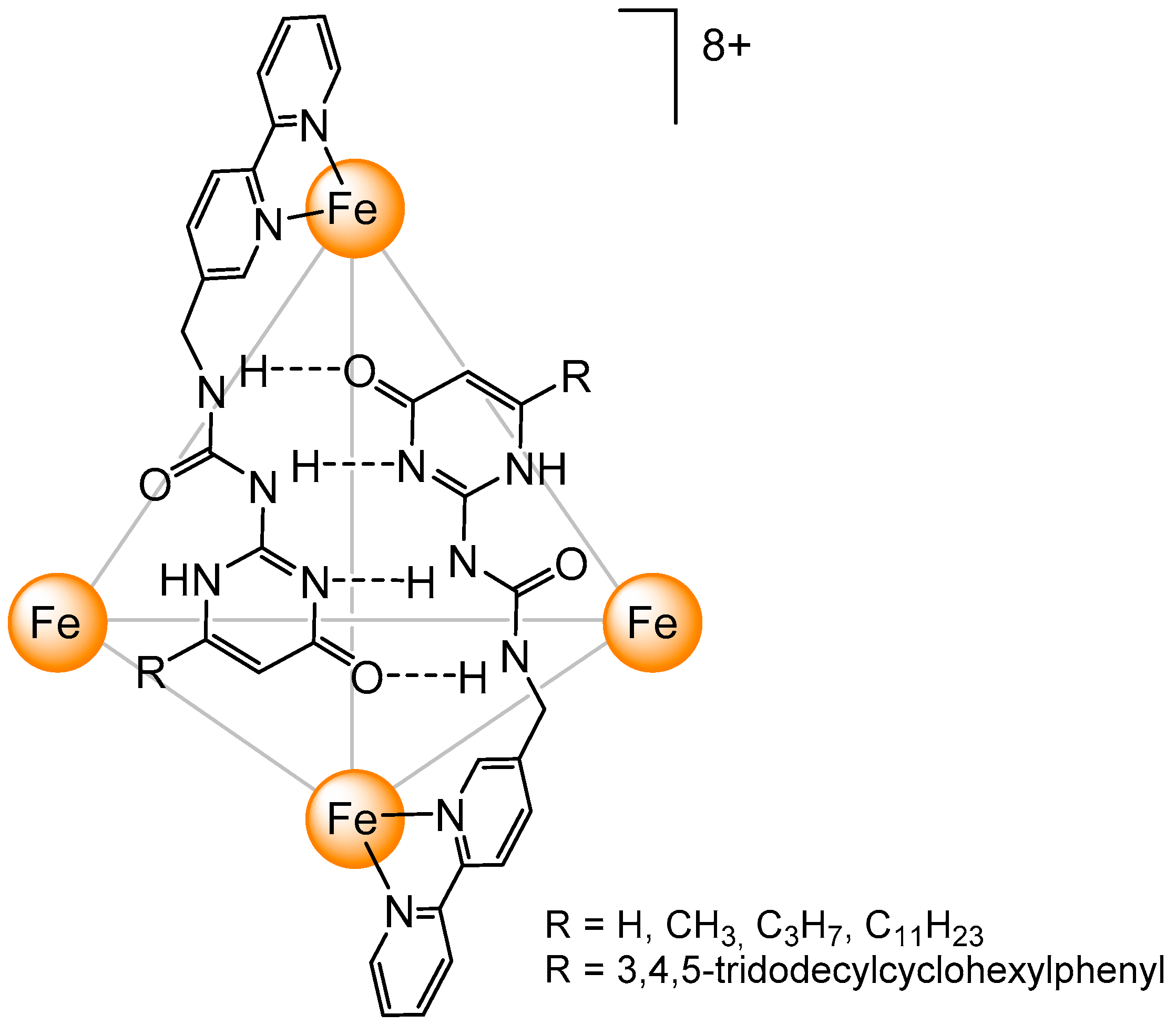

Figure 11. Molecular structure of a hydrogen-bonded tetrahedron cage-like system [64].
Figure 11. Molecular structure of a hydrogen-bonded tetrahedron cage-like system [64].
Chemistry 02 00034 g011

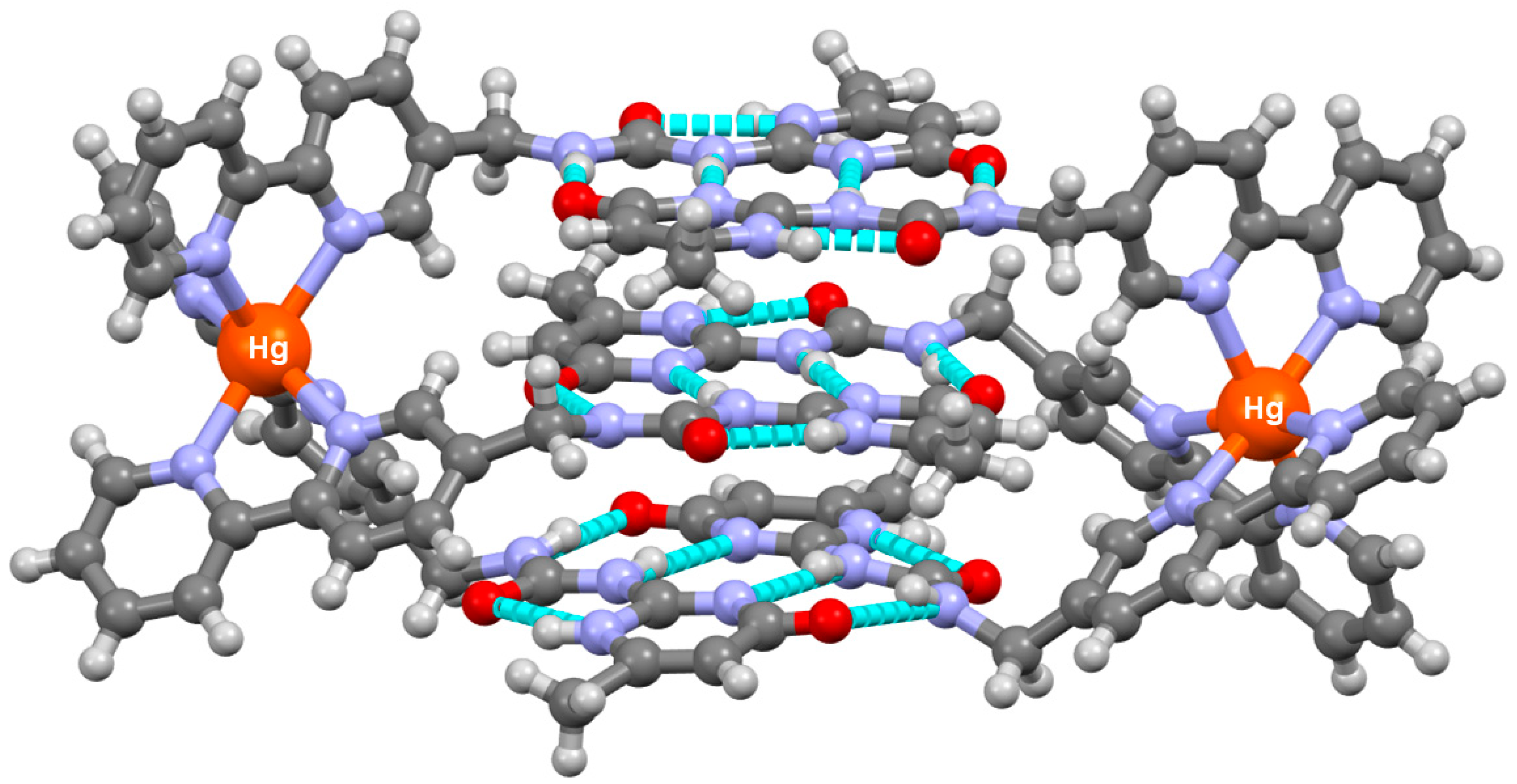

Figure 12. Dinuclear mercury-based hydrogen-bonded helicate [64].
