Earth Observation Data Synergy for the Enhanced Monitoring of Ephemeral Water Bodies to Anticipate Karst-Related Flooding

Abstract

With the increasing availability and diversity of satellite imagery, the multisensor fusion of data can more effectively address the improved monitoring of temporary water bodies. This study supports the attempt to apply well established methods to detect spatial and temporal changes in ephemeral shallow lakes in lowland karst terrain, as well as to improve the understanding concerning the dynamics of water storage and hydrological mechanisms during extreme precipitation events. Based on the joint analysis of Copernicus Sentinel SAR and optical mission data, as well as soil moisture and EO-based rainfall observations over the period of 2015–2020, we demonstrated the control of the karst system on the ephemeral lake appearances in the broader area of Chalkida (Evvia, Greece). A connection between the prolonged and extended water coverage in the ephemeral lakes and flooding in the area is documented. Our EO-supported findings may serve as indicators for flood alerts in future extreme precipitation events, improving responses in cases of emergencies.

1. Introduction

Surface waters, either permanent or temporary, with their distinct characteristics as rivers, lakes, reservoirs, and wetlands, are extremely dynamic entities that change over time and influence the hydrological water cycle. Depending on the prevailing hydrological conditions, the interactions between surface and subsurface water systems can make it rather complicated to delineate water recharge in karst terrains [1,2,3,4,5]. In cases of landscapes that periodically fill with water, as topographic depressions in karst regimes, they may be subjected to flooding depending on prolonged rainfall and in some cases lateral flow from adjacent catchments discharging onto the lowland karst [6,7]. Excess recharge that cannot be accommodated by a karst aquifer due to insufficient aquifer storage or flow capacity can cause groundwater levels to rise and inundate basins as well as the surrounding areas [7,8]. This ephemeral flooding can pose significant risks to humans, farmland, and infrastructures [9,10,11].

While the spatial distribution of surface water bodies on a global scale is adequately available [12,13,14,15,16], the actual information on the location and extent of temporary water bodies is incomplete. Despite individual limitations, existing geospatial databases are valuable sources of information for all geographic latitudes due to satellite remote sensing (RS) advances that provide global coverage with a high spatial resolution.

Remote sensing measurements can provide valuable information on hydrological systems by mapping permanent or temporary water bodies and by providing the temporal and spatial variations in the water coverage. Satellite observations are an effective way to detect surface water over large areas with a short revisiting time, supporting operational monitoring and being a rapid as well as effective response to natural disasters, such as floods [17,18,19,20,21].

Earth observation data from both optical and radar sensors offer the opportunity to map and monitor the spatiotemporal changes in water cover. Data from Copernicus Sentinel-1 (S-1) and Sentinel-2 (S-2) missions can provide significant monitoring capabilities for surface water detection and mapping. Sentinel-1 radar data have been widely used for water mapping [22,23,24,25,26], since radar sensors have the advantage of operating in nearly all-weather/day–night conditions, overcoming the limitations of optical imagery. Most available algorithms typically focus on single-image techniques and change detection approaches [27,28], while others exploit large data stacks to delineate surface water [22,29,30]. Radar backscatter is often used to distinguish water from surrounding areas, since strong specular reflection occurs at its surface, meaning that it appears to be very dark in radar images. For this purpose, among various techniques, thresholding approaches have been explored in cases of large datasets [31,32,33,34].

Water mapping by radar imagery can also be associated with additional remote sensing data, specifically multispectral optical imagery, for detecting the extent and evolution of water. Sentinel-2 optical data offer a high spatial resolution (10–20 m) with a nominal revisit time of 5 days, as well as monitoring in the near- and middle-infrared bands on a global scale [35,36,37]. Since water shows a very low reflectance value in these ranges of the spectrum, water indices [38,39,40,41] are widely used to identify water surfaces. In addition to radar and optical imageries, soil moisture ocean salinity (SMOS) data can be used in advance to provide timely estimates of soil moisture every three days, with an accuracy of 4% at a spatial resolution of 50 km [42]. Seasonal changes in soil moisture content are also important for contributing to the forecasting of hazardous events, such as floods [43,44,45,46].

Motivated by the need to improve existing global geodatabases of inland water bodies by fusing only remotely sensed data, as well as to build surface water data records for smaller and/or temporary water bodies linked to flooding phenomena in karst regimes, this paper aims (a) to compare multiple imagery sources to map and monitor, for the first time, the spatiotemporal changes in the ephemeral lakes in Chalkida that led to temporary inundations, (b) evaluate, with statistical analyses, the temporal and spatial dynamics of water storage using long-term remote sensing observations, and (c) create a water variations database that can serve as an important source of information for future water resource regulations in this region. The ultimate goal of this study is to create a framework for satellite-based water surface monitoring that will, in turn, provide important information to local authorities for hydrologic analyses and flood forecasting applications.

2. Hydrogeological Setting—Flooding Events

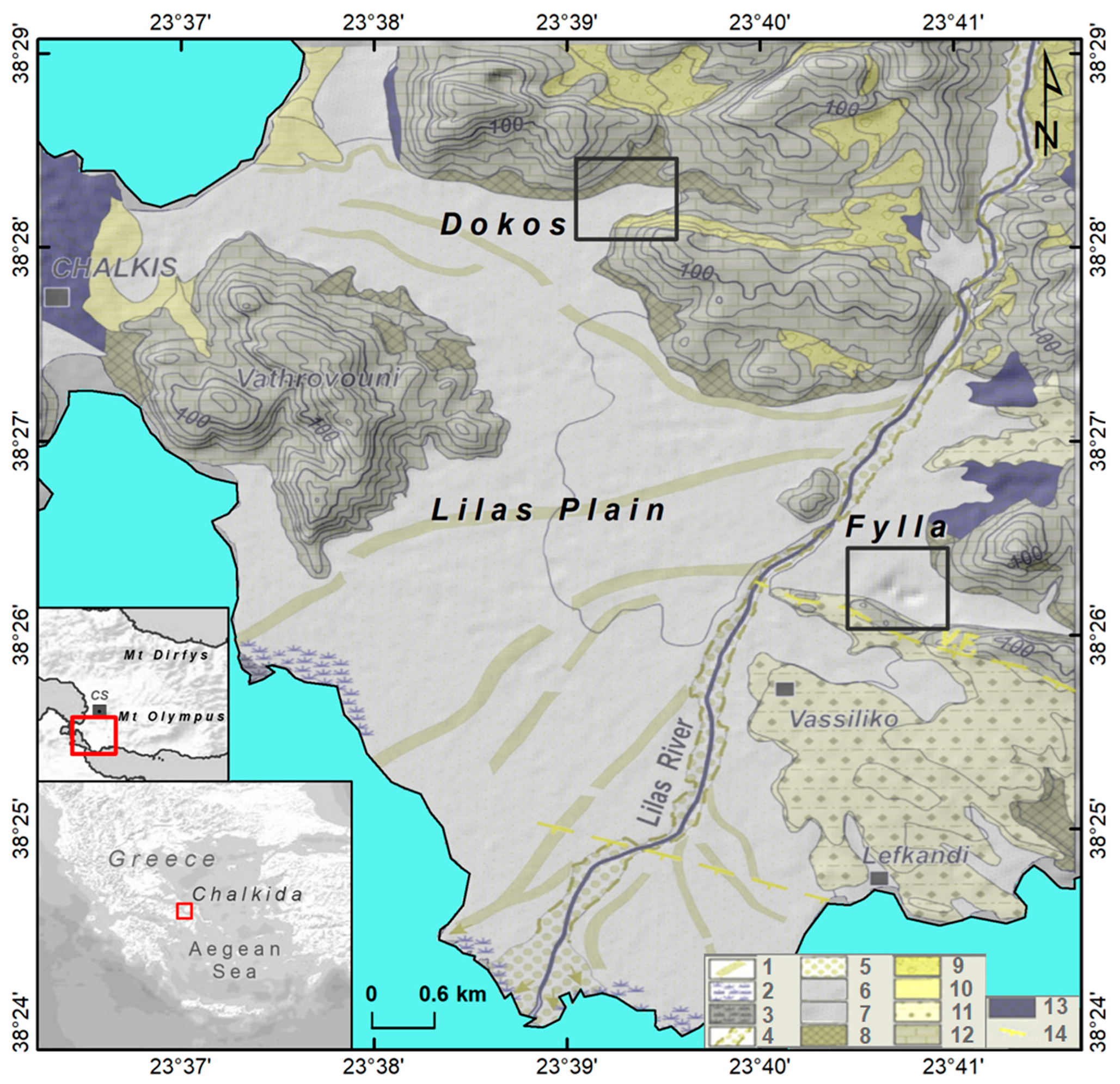

The municipality of Chalkida was selected as a pilot case for this study as it presents a representative example of temporary lake flooding in karst environments in proximity to river systems. Chalkida is located in the south of Evia, with its main geomorphological structures being the Dirfys Mt., reaching an elevation summit of 1743 m, and the Lilas River, with a drainage basin–fan delta system of about 300 km² flowing into the South Evoikos Gulf (Figure 1).

The morphology of the area varies between the high relief of the NE as well as east mountainous zones (Mt. Dirfys and Mt. Olympus) and the low relief to the SW, where the Lilas River fan delta is located, a low plain area that was shown to be a shallow marine environment during Holocene [47]. Several river channels have been activated in this area during severe rainfalls towards the south and west coastlines, causing the progradation of the Lilas River fan delta [47] (Figure 1). Although the climate conditions within the drainage basin show relatively high mean annual precipitation, on 11–12 September 2009 a severe flash flood event occurred and approximately 350 mm of rainfall was recorded in 28 h. The event resulted in the flooding of the low-lying part of the plain, which in turn caused extensive damage to settlements of several villages. A similar karst flood event occurred in the area during the period of February–March 2019; several floods have also been reported over the past decades, but of smaller extents and intensities (Figure S1). However, during the severe 2019 flood event, the area suffered from damage and the inundation of several properties, leading to evacuation efforts and the declaration of a state of emergency for a period of three months, until June 2019 [48]. At the northern margin of the floodplain, the groundwater levels have risen, causing a higher surface run-off that was in excess of local drainage capacity, resulting in temporary lake flooding (up to 3 m water height in Dokos), blocking the surrounding road network (Figure S2).

The drainage basin of the study area (the Lilas plain) is bordered to the NE and east with calcareous sedimentary rocks (mainly Mesozoic limestone), which are susceptible to a high degree of karstification. This karst landscape has developed an underground aquifer prone to karst flooding, providing a pathway along which groundwater flow in the lowland area causes flooding phenomena [49,50]. As a sequence, in the absence of a surface hydrographic network, ephemeral transient lakes emerge by the combination of high rainfall, the lateral inflow from the Lilas River catchment, and the accordingly high groundwater levels in the karstic depressions. The recharge zones are located in a well developed epikarst zone characterized by high permeability underlying a shallow unconfined aquifer [51]. Examples of similar karst wetlands characterized by ephemeral inundations have been reported in Wales, Slovenia, Spain, Italy, Greece, Ireland, and Canada [7,52,53,54,55,56,57,58,59,60].

3. Materials and Methods

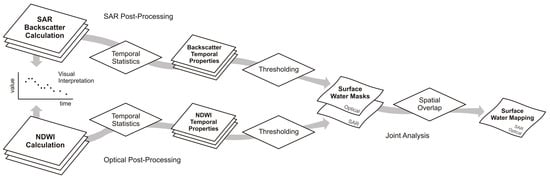

In principal, during rain events optical satellite imagery is not a preferable solution for earth observation due to the presence of clouds. An alternative is often provided by radar satellite imagery, which is unaffected by weather conditions (cloud penetration in microwaves). Therefore, even though the Sentinel-2 multispectral imaging mission can be suitable for monitoring surface water, it is not always applicable due to the limited availability of low-cloud-coverage acquisitions. The systematic acquisition of Sentinel-1 radar data, every 6 or 12 days depending on the location, allows for the detection and mapping of temporal changes that can be associated with the variability in water bodies. The synergistic utilization, however, of both optical and radar data, when applicable, could lead to improved mapping capabilities that exploit the complementarity of the two missions. On the other hand, passive microwave measurements, such as those of the SMOS mission, can be a supplementary source of information, which together with satellite-based precipitation observations can provide insights into the regional variability in soil moisture and improve our understanding of the water cycle in an area.

For the needs of the current work, Sentinel-1 GRD and Sentinel-2 L1C data were consulted via the Copernicus Open Access Hub [61]. SMOS Level 3 products were accessed via the CATDS (Centre Aval de Traitement des Données SMOS [62]) dissemination portal of the Centre National D’ Etudes Spatiales (CNES). The satellite data processing was performed using the open source SNAP Toolbox [63] of the European Space Agency (ESA), which consists of a collection of product readers and processing operators, as well as visualization and analysis tools, that support large imagery from various satellite missions [64].

3.1. Sentinel-1 SAR Backscatter Time Series

The availability of synthetic aperture radar (SAR) data since the ERS era, back in 1991, has enabled the development of several methods for different surface water and flood mapping applications [65,66,67,68,69,70]. The most commonly used SAR-based surface water mapping techniques include simple visual interpretation, unsupervised or supervised classification, histogram thresholding, interferometric coherence, and various multitemporal change detection approaches. Among them, most employed thresholding techniques aim to determine a threshold (value) of the backscatter, below which pixels are associated with water [31,32,33,34], while most of the approaches focus on a single image that represents the water conditions (e.g., surface water flooding) on a specific date [71,72]. Other approaches rely on change detection techniques, which allow for the detection of changes in backscatter intensities between two images acquired before and during a flood event [27,30,73,74,75,76,77,78,79]. In particular, the decrease in the backscattering due to the different water conditions of the two images can delimit the flooded areas. On the contrary, multitemporal data analyses can contribute to the improvement of the reliability of flood mapping as the radar backscatter time series can be used to derive temporal features associated with surface water presence along with their temporal variability, as well as to enable the more detailed extraction of flood-related classes [80,81,82].

This study follows a time series analysis approach for surface water/flood mapping with the use of SAR backscatter intensity from the Sentinel-1 image archive acquired between September 2015 and May 2020 (244 S-1A and S-1B images, descending orbit 7). A well designed image processing chain (Figure 2 and Figure S3) was applied to the Sentinel-1 IW GRD datasets in order to extract geophysical information in proper map geometry. Specifically, the initial processing steps involved the update of orbit state vectors to improve geolocation accuracy and the radiometric calibration to sigma naught (sigma0). The calibrated sigma0 values (in dB) represent the normalized radar cross-section and describe radar reflectance properties per pixel. The data calibration compensates for the radiometric influences of the different incidence angles. Further steps included multilooking for speckle reduction and terrain correction (ortho-rectification) of the results. It is worth mentioning that only the co-polarized VV channel was considered in the analysis, as it was more appropriate for land applications. The Shuttle Radar Topography Mission (SRTM) 1 arc-second heights [83] were used to transform SAR images from radar geometry into a selected map projection. The reduced spatial resolution (pixel size) of the outputs at 20 m was sufficient for the needs of the current work.

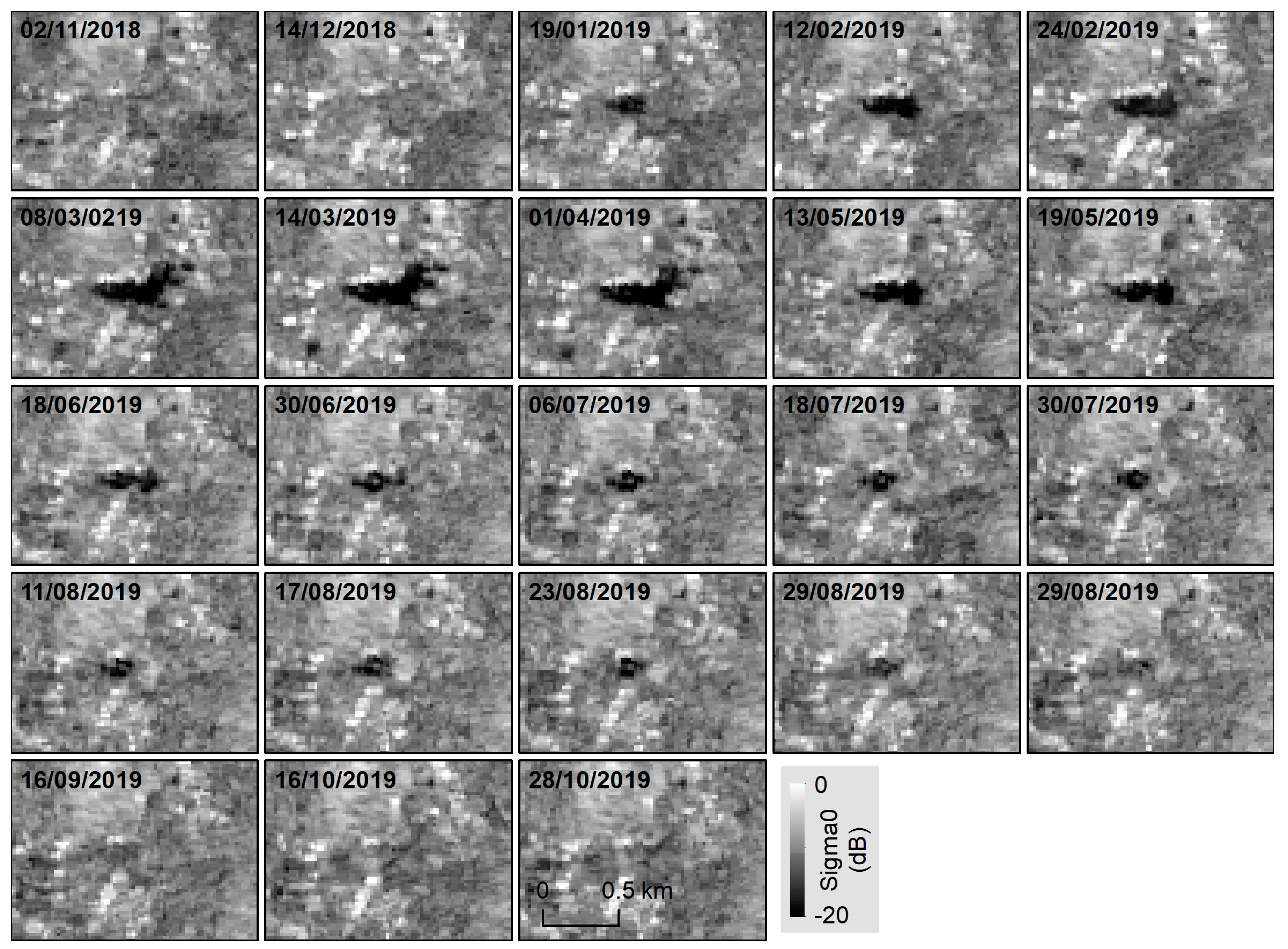

Using the Sentinel-1 backscatter time series (Figure 3), surface water changes were extracted in order to document the surface water dynamics in the area. Furthermore, the calculation of temporal statistics (minimum, maximum, average, and standard deviation), on a pixel basis and for the entire observation period, allowed for the study of the temporal variation in the backscatter, including seasonal or annual fluctuations related to normal water conditions (Figure 4). The advantage of this methodology was the ability to detect persistent surface water, as well as to identify the exact period in and extent to which the flood occurred. It allowed for the identification of regions with a prolonged presence of surface waters (defined time span), separating them from permanent water bodies.

Therefore, according to the time series analysis, and by evaluating the backscatter variations between flood periods and normal water level conditions, it appears that similarity in the backscatter response provided a clear indication of the periods of flooding across the various sites (Figure 5).

3.2. Sentinel-2 Time Series of Radiometric Indices

For the detection of increased water content and flood traces, the Copernicus Sentinel-2 mission has dedicated spectral bands in the visible green (B03) and near-infrared (B08) electromagnetic spectrum, with a 10 m spatial resolution, which make them suitable for delineating a flood’s extent.

Commonly applied methods used to extract water bodies from multispectral optical imagery are based on band indices specifically designed to enhance water content changes in a satellite image. A well performing method is the normalized difference water index (NDWI) developed by [38], which relies on the combination of the near-infrared (NIR) and green spectral bands (see Equation (1)). This index has demonstrated its efficiency in water discrimination for various environments as water features have positive values and are enhanced, while vegetation and soil features usually have values of zero or negative ones, and are suppressed:

NDWI = (GREEN − NIR)/(GREEN + NIR)

(1)

Sentinel-2 images were obtained for the period between July 2015 and May 2020 (119 S-2A and S-2B images, descending orbit 50), in Level-1C atmospheric top reflectivity products (top-of-atmosphere, TOA). The TOA L1C reflectance images were processed with the Sen2Cor [84] processor algorithm using a combination of state-of-the-art techniques to perform atmospheric corrections, creating bottom-of-atmosphere (BOA) Level 2A (L2A) corrected reflectance images (Figure 2 and Figure S3). Since the spatial resolution of the near-infrared and green bands is equally 10 m, Sentinel-2 L2A images were directly stacked to finally obtain a water index image for each input image in a 10 m resolution and then create the long-term time series of the spectral properties (Figure 6) for the purpose of studying the water trends, including seasonal or interannual patterns (Figure 5).

From water pixel values (either spectral values or combinations of them, such as ratios or indices) of the time series statistical parameters were calculated, such as the minimum, maximum, mean, median, standard deviation, trend, etc. The temporal features of the average and maximum water coverage used in this approach are shown in Figure 4. The temporal statistics are thus used to derive alternative features based on S-2 time series data that capture, in the best manner, the differences in the spectral behavior of the water extent over time.

3.3. SMOS- and EO-Based Precipitation

The ESA SMOS mission, launched in late 2009, determines, among other things, the surface soil moisture over land at a global scale. Knowledge of the spatiotemporal distribution of soil moisture is essential for various applications, such as water resource management, flood forecasting, and groundwater recharging. Soil moisture (SM) comprises an important hydrological and climatic parameter of the initial condition of the soil, and when combined with rainfall can provide valuable information for flood monitoring as well as prediction. SMOS provides soil moisture content to a depth of a few centimeters [85], typically in the range of 0–5 cm, depending on the degree of soil wetness, and features a 2–3-day revisit time [42].

For this study, SMOS Level 3 soil moisture data from March 2015 to May 2020 were selected with a 3-day temporal aggregation, which allows for the best estimation of SM when several multiorbit retrievals are available at a time [86]. SMOS measurements were acquired along the ascending pass, since the retrievals of the top 5 cm from the early morning show better agreement with in situ measurements [87,88,89,90,91]. In the ascending orbits (the early morning) the retrievals are more accurate, as the ionospheric effects are expected to be minimal and the surface conditions are close to thermal equilibrium [86].

In addition to direct soil moisture estimates, satellite precipitation products were also utilized. In fact, although rain gauges provide the most accurate and direct measurement of precipitation, due to a lack of well-distributed in situ rain gauge measurements satellite precipitation products represent a reliable alternative for providing global information and operational facilities for rainfall estimates. Furthermore, recent studies assess how soil moisture measurements from space-based sensors can be used to improve satellite-based precipitation estimates [92,93,94,95,96,97,98].

In this study, daily and monthly precipitation data were obtained from satellite measurements for the period between May 2015 and May 2020 through the Copernicus Climate Change Service (C3S) implemented by the ECMWF (European Centre for Medium-Range Weather Forecasts) and NASA Goddard Earth Sciences Data and Information Services Center (GES DISC). For rainfall-accumulated precipitation (in mm), the following products were used:

(a)

GPM IMERG Final Daily Precipitation (GPM_3IMERGDF) [99].

(b)

GPM IMERG Final Monthly Precipitation (GPM_3IMERGM) [100].

(c)

TRMM TMPA/3B43 Monthly Rainfall Estimate [101].

(d)

Rainfall observations from the local network.

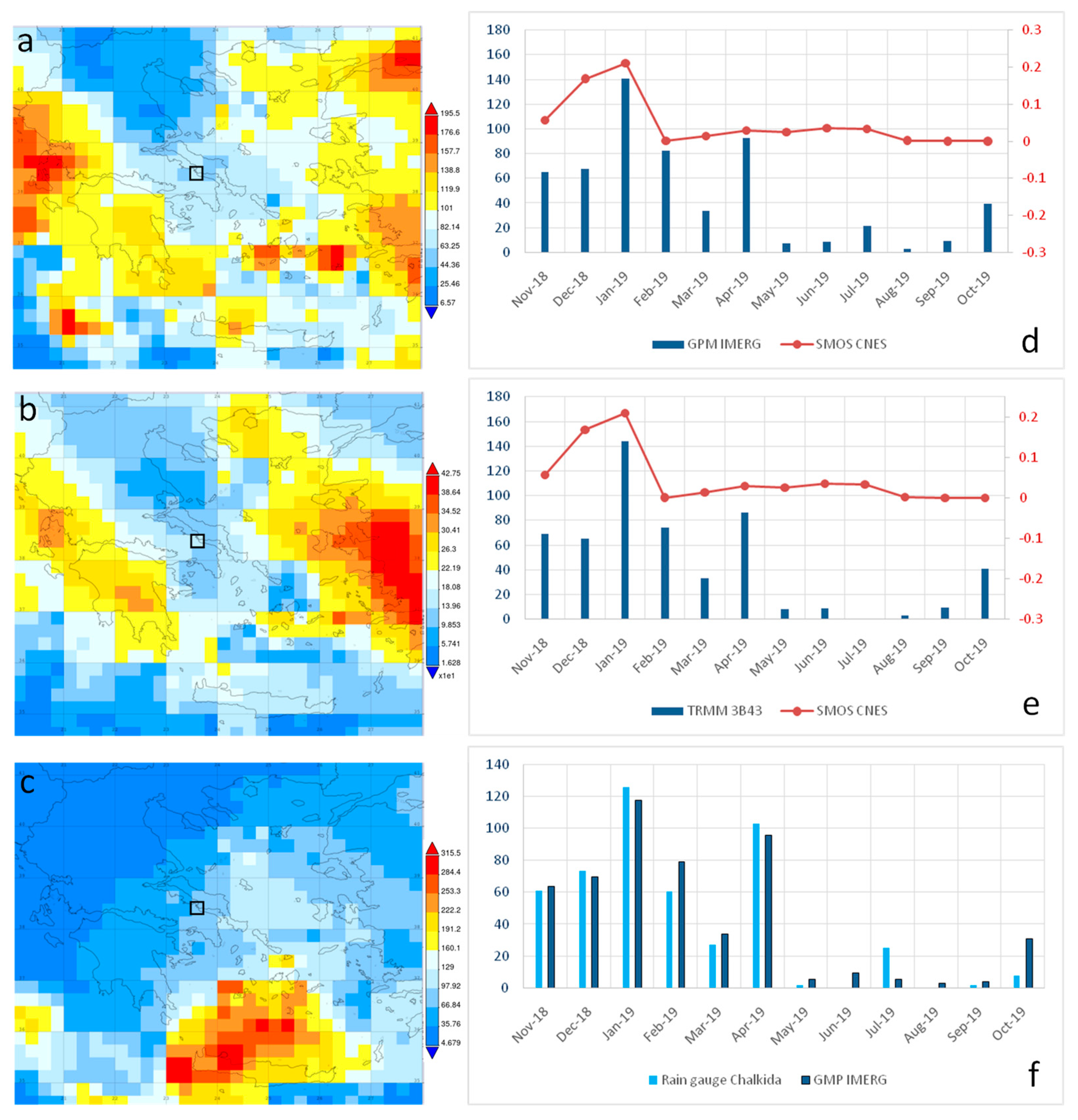

The precipitation data were jointly examined with SM measurements to derive the long-term changes in the meteorological conditions for the purpose of analyzing the 2019 flood event (Figure 7). The time series of precipitation were compared with SMOS measurements for a chosen pixel containing the monitoring sites (Figure 7). The time series indicate temporal consistency; in particular, an increase in soil moisture is observed following rainfall events, while maintaining lower values during spring and summer periods. This observation is important even though the amount of precipitation and the changes in soil moisture are not always proportional due to other controlling parameters, including surface runoff, drainage, intensive evaporation, the presence of vegetation, and different soil textures.

Furthermore, in situ observations from a single rain gauge station operating in the area, the Chalkida station (Figure 1), located 4–8 km away from the study areas (Figure 1), were obtained [103] in order to assess the performance of satellite data. Between December 2018 and January 2019, the Chalkida station received, on average, 200–210 mm of rain (Figure 7a,b), while the mean annual precipitation in the area does not exceed, on average, 290 mm. The high rainfalls can be clearly seen in the monthly precipitation time series for both the TRMM_3B43 and GPM IMERG estimates (Figure 7d,e). Considering the in situ and satellite observations (Figure 7f), they appear to be temporally strongly correlated, revealing that even though space-borne data have spatial resolutions of 10 km (GPM IMERG) and 25 km (TRMM_3B43), they happen to be consistent with site-specific rainfall heights.

Temporal satellite observations were able to provide supplementary, yet, as proven, independent sources of information concerning water inputs, contrary to in situ precipitation estimates, which are not always representative for the entire area considering the sparse monitoring stations (because of height differences, different geomorphological conditions, etc.).

4. Results

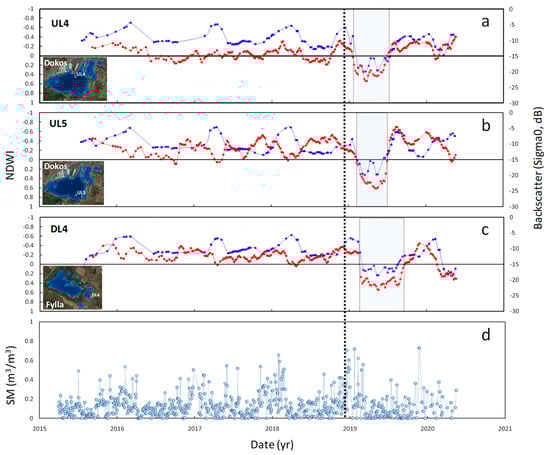

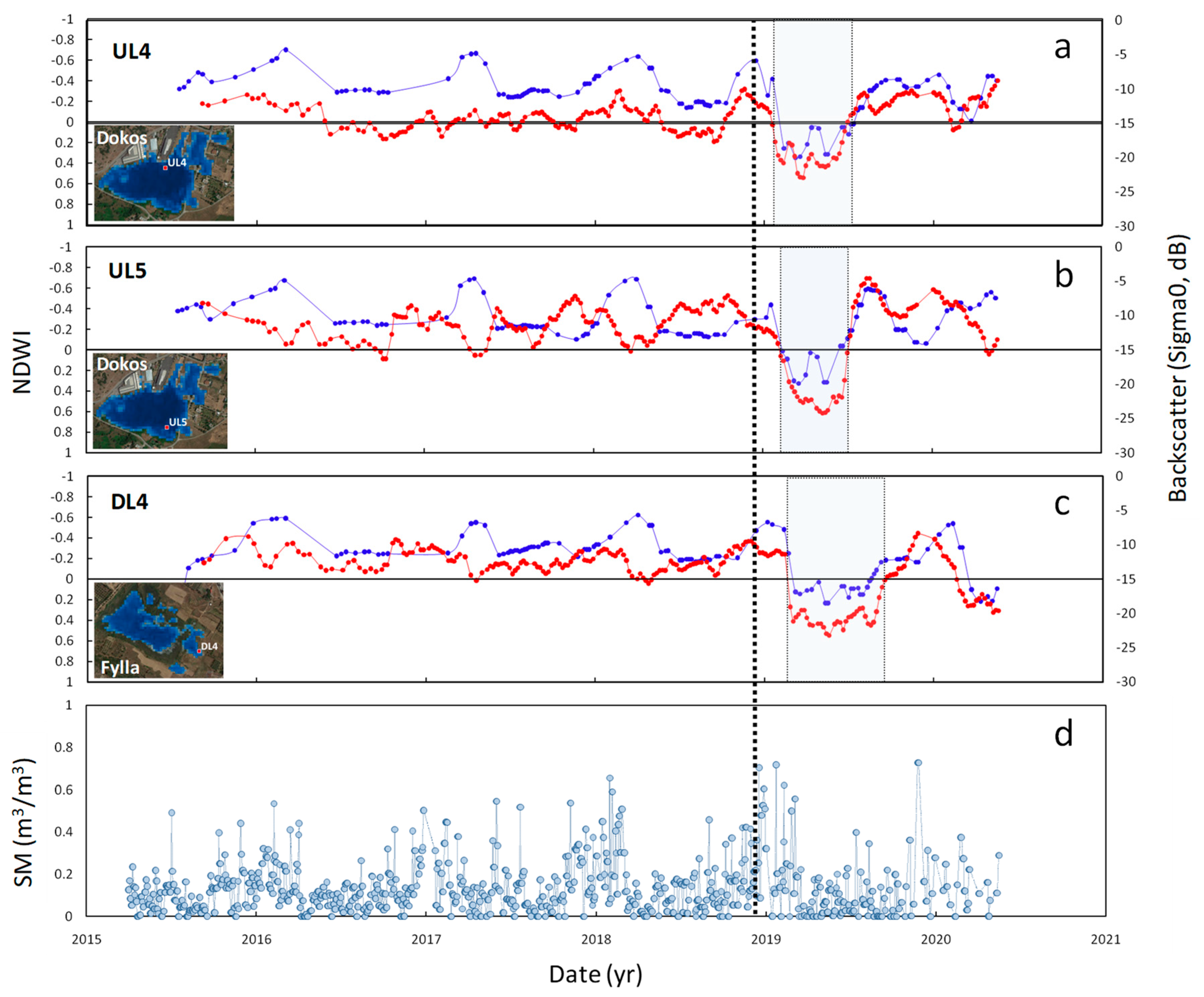

The multitemporal investigation on the period between 2015 and 2020 (Figure 5) concerning two reference lakes, the ephemeral lake in Dokos and the permanent lake in Fylla, underlines the fact that they were inundated during the 2019 flood period. Both sites are located in the surficial sediments of the Lilas River alluvial plain and are in close proximity to WNW-SE-oriented outcrops of limestone (Figure 1). Consistent temporal trends in the total estimated water area are observed between the different monitoring approaches (Figure 5); however, the joint analysis allowed the exclusion of local outliers (mainly NDWI false positives), improving in this way the outputs and facilitating their proper interpretation. While the time series of the NDWI and SAR backscatter are consistent during inundation events, they may deviate for the remaining observation period (i.e., during ‘normal’ conditions), showing a low degree of correlation. In fact, both the NDWI and SAR backscatter can be used to detect water bodies, yet SAR observations are sensitive to variability in vegetation growth, among other factors, which introduces differences into their temporal patterns compared to the NDWI; however, by combining the NDWI and SAR, we obtain a more accurate estimate of the water presence and dynamics.

The evolution of the radar backscatter over the entire monitoring period of 2015–2020 shows significant temporal variability across the lake, yet consistent low backscatter values ranging between −15 dB and −25 dB suggest that the area was governed by water supply during the 2019 flood event. This backscatter minimum, which is evident in all of the time series, is comparable for the reference period, with the positive ratios of the NDWI time series indicating that the reference lakes were only temporally inundated; the constant presence of water is equal to 1 and the constant absence of water is equal to 0. This observation is consistent with the occurrence of an extreme rainfall event almost three months before the observed flooding, as recorded by satellite rainfall observations (Figure 7) and soil moisture estimates (Figure 5d). The high level of moisture during the period of intense rainfall indicates an increase in the water content on the land surface and further supports the occurrence of the flood event in early 2019.

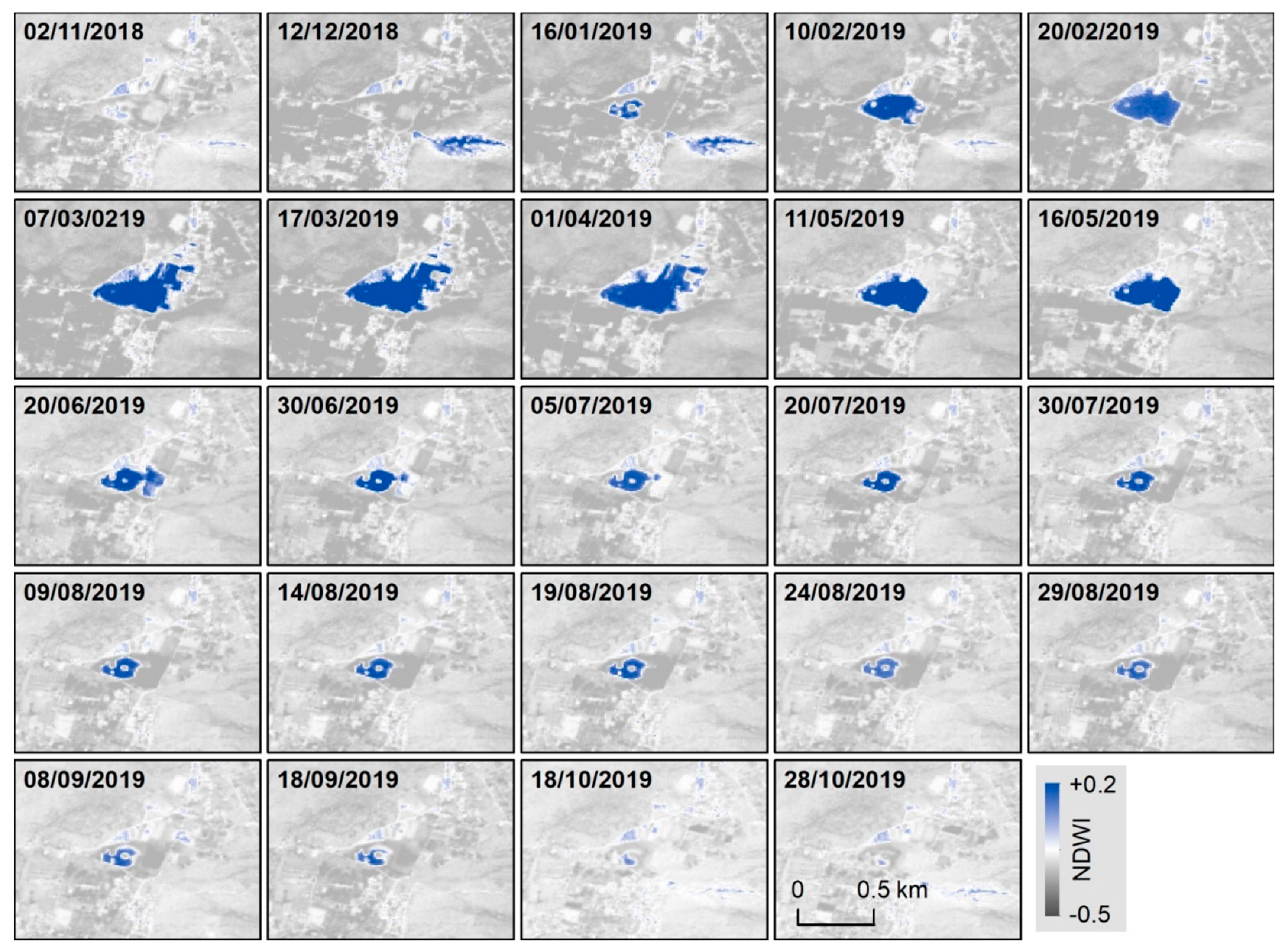

The spatiotemporal analysis of temporary surface water is chosen to be further presented for the Dokos lake in Figure 3 and Figure 6, as this lake was entirely formed during this flood episode. Surface water is first observed at the area on 16 January 2019, covering only a small part of the lake, the extent of which gradually increased in the following months, reaching its maximum coverage in March 2019. The visual interpretation with reference photos is shown in Figure S1 [104,105]. From May 2019 the amount of water reduced significantly, and only the part of the former lake seemed to still possess water. The ephemeral lake progressively declined and disappeared completely in October 2019. The evolution of the spatial variability in the S-1 backscattering coefficient and the S-2 NDWI shows identical performance (Figure 8).

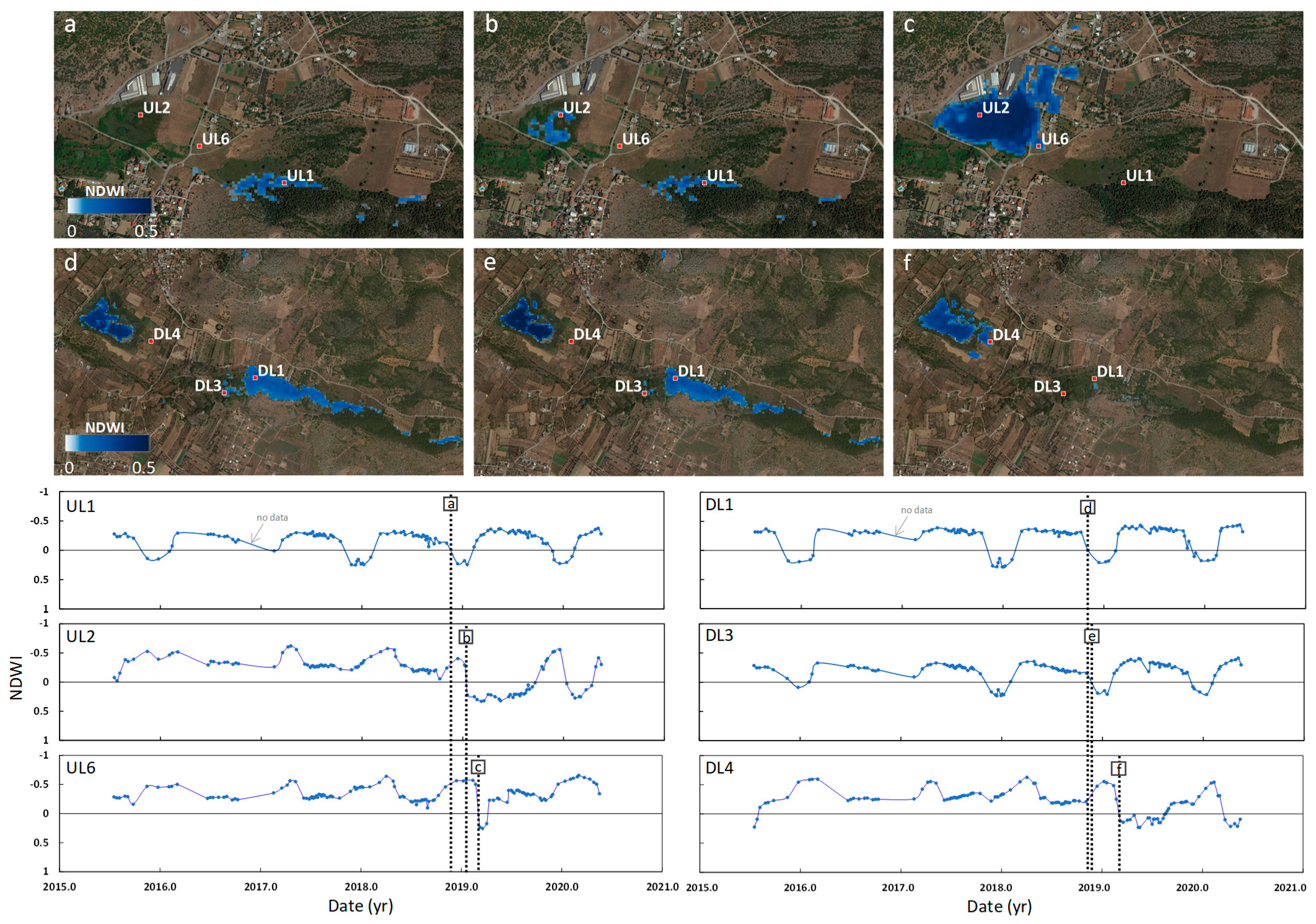

A noteworthy feature characterizes the former detection of water to the east of the Dokos lake on 12 December 2018 (site UL1, Figure 9), around a month before the appearance of the ephemeral lake (on 16 Jan 2019), following the WNW-SE outcrops of kastic limestone, which could potentially be the means that controlled and supplied the karstic flood. This phenomenon appears to be identical for the Fylla lake, suggesting for both lakes the origin of karstic groundwater and the flow processes that caused flooding (Figure 9). As described in Figure 9, there seems to be a gradual water flow from the east (sites UL1 and DL1) that progressively supplies the lakes in a time window of approx. 3 months. This fact seems to follow a dependency relation in which the recharging of the lakes continues to increase, with the maximum extent of water in March 2019, until the water in the karstic outcrop finally disappears. Other flooding events, limited in the karstic limestone, have been also recognized in the NDWI time series, indicating seasonal effects during November and December; however, they did not result in analogous lake flooding in the area.

Although seasonal patterns are more evident in the NDWI time series, as the SAR backscatter is also affected by factors other than moisture content (mainly vegetation changes), with annual minima in late spring and early summer, an important fact remains that the reference area records the first considerable and long-lasting increase in surface water in early 2019, during the 5-year time span. The detailed investigation of SAR backscatter time series was therefore followed by examining their statistical properties to determine the impact of the flood event. The results are shown in Figure 4. The standard deviation was computed based on the time series for each pixel, with the purpose of showing water variability. In this case, computing the standard deviation allows for the identification of areas that show strong variability exceeding expected seasonal behavior. Areas of such high deviations are indicative of water inundation, meaning that they were flooded during the 2019 event (Figure 4).

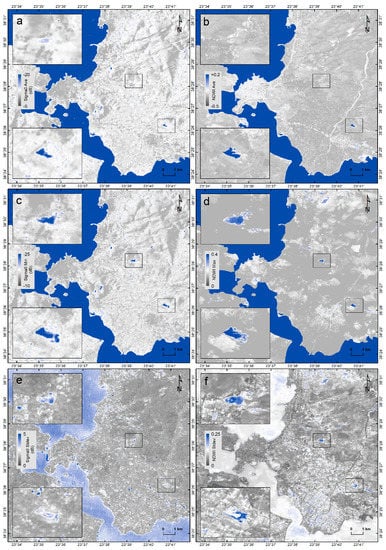

According to the average, minimum (negative values for sigma naught in dB), and maximum (positive NDWI values) results (Figure 4), the maximum water area change was observed in the northern ephemeral lake, whilst still considerable changes in the margins of the permanent southern lake were also noticed close to the flood peak date. Due to the lowland karst terrain, the maximum inundation areas were assumed to be associated with the storage capacity, as it is likely to hold the maximum water storage, hence lake basins. Note that the maximum water coverage of the two water bodies demonstrated similar local hydrological conditions that regulated inundation. The results highlight the suitability of the methods used for each satellite sensor.

5. Discussion

Data collected for approximately 5 years from different sensors with different spatial resolutions were processed, showing that, independently of the sensors’ characteristics and the applied processing chains, it is promising to obtain time series in qualitatively good agreement for contributing variables such as surface water. On the basis of satellite data (S-1 and S-2) mapping, surface water was effectively detected at a spatial resolution of 10–20 m, along with its long-term variation. Through this, it was also possible to identify water peaks related to the 2019 flood that are primarily associated with the ephemeral appearance of the Dokos lake to the north and the spreading of the permanent Fylla lake to the south (Figure 9).

The multisource and multitemporal data analysis determined the extent as well as intensity of the flooding and revealed that the reference lakes recommend flood-prone areas that are most affected when weather-related extreme events occur without an annual repeatability.

Diverse remotely sensed data were integrated into a GIS environment for further analysis, specifically the definition and extraction of the flood-affected areas and co-interpretation along with the morphological as well as geological features of the area (Figure 1). Both sites show great similarity since they lie in the alluvial fan deposits of the Lilas River, which allow rainfall to enter the karst system almost immediately. Furthermore, they are located next to limestone of the same WNW-SE orientation, suggesting the possibility of hydraulic connections between them. Any presence of favorable structural controls, such as dipping beds or folds, may also contribute to the accentuation of water flow. The limestone formations are located on the margins of the lowland karstic system and constitute the southern extension of the mountain masses found to the north. Coupled with the high rainfall levels for January 2019, both lakes’ vicinities with the relatively steep limestone hills seem to facilitate water flow between them; however, it is of great importance to understand the nature of the connection and the hydrological processes that prevailed between the floodplains and the water drainage system. It was shown that, during the rainfall peak in January 2019, localized water outflow partially covered the Dokos lake, while the time taken to reach the maximum outflow was in March 2019 (Figure 3 and Figure 6). This signifies that it took significantly longer to reach the maximum outflow, resulting in a prolonged flood duration. Indeed, despite the absence of rainfall during the spring and summer periods water levels have declined significantly, but flood waters are present. The maximum observed outflow may represent the maximum drainage capacity of the lakes under heavy rainfall conditions and should be considered for evaluating future extreme scenarios. The comparison of inundation with rainfall records for the same period shows a strong relationship between rainfall and flood dynamics, resulting in floodplains characterized by low-frequency and long-duration flooding. The spatially variable hydrodynamic properties and responses within the area helped in understanding that the underground karst flow is controlled by two discharge scenarios, the storage capacity of the lakes, and the floodwater that enters from proximal sources.

By means of satellite remote sensing, we were able to propose a flooding mechanism for both lakes, with the source of karst groundwater recharging initially at the east calcareous hills and progressively supplying the lakes with water via karst conduits and not surface runoff. Characteristically, in the case of the Dokos lake, the water seems to first discharge on the deeper western side of the lake, while it gradually increases to fill the shallower areas (Figure 9). It is very interesting that water gradually fills the lakes, starting from its deeper part, almost three months following the heavy rainfalls. This delay, combined with the local absence of runoff during the flooding, implies that the phenomenon is controlled by a groundwater transfer mechanism. In parallel, runoff on the limestone, which appears immediately after the rainfall event, disappears in a relatively short time without any traces. In particular, surface runoff following the extreme rainfall is limited to the karstic limestone and disappears relatively fast. Then, after several months, surface water starts appearing at the deepest part of the nearby ephemeral lake, which, in time, leads to overflooding. This flooding is maintained for approximately nine months, implying its connection to non-surficial hydrologic processes. In karstic terrains, the subsurface flow and storage of water can lead to delayed or prolonged responses to rainfall events.

The above observations may support our suggestion of groundwater rise and basin inundation due to the transfer of groundwater from the karstic to free aquifer systems. The homogeneity of the flood mechanism identified in this lowland karst area reinforced the understanding of the local hydrological and hydrogeological processes operating during flood conditions. An important base of knowledge has arisen from the recent extreme flooding event due to the increasing availability of diverse remote sensing data that offered the potential to describe flood conditions accurately, while overcoming the lack of a local monitoring network. The methodologies adopted provide the ability to monitor the long-term spatial and temporal changes in surface water, and consequently flood events that could be effectively addressed for flood risk analysis purposes.

In conclusion, the Lilas plain is susceptible to flooding when water levels within the nearby karstic aquifer rise during periods of intense or prolonged rainfall, even at neighboring basins, forming ephemeral lakes that may last for several months; however, it should be noted that, after the appearance of the ephemeral lake, inundated areas expand over urban settlements, mainly along the coastal zone, leading, in turn, to damages and sometimes the need for evacuation (Figure S1). In this case, the first indication of water lake outflow that insists on time (Figure 9b) could potentially signify a subsequent severe flooding reaching nearby villages and should be considered as a precursor in order to take measures and prevent property as well as human losses. Therefore, this multi-EO data analysis provides a basic conceptualization of the factors controlling precipitation, inflow, and discharge in the Lilas plain, and a valuable insight tool that should be used for determining hazards associated with groundwater-induced flooding in Chalkida. This inherent disaster should be explicitly acknowledged within the public authorities to permit proper flood hazard assessments for future extreme events.

6. Conclusions

Hydrological processes are dynamic phenomena acting at different timescales; therefore, a proper monitoring scheme is required for the effective identification of changes in surface water conditions. Following the 2019 flood event at the broader area of Chalkida, the spatial distribution of and temporal variability in surface water were analyzed and interpreted over the years of 2015–2020. It was demonstrated that EO data can play a significant role in improving our capacity for mapping temporary water bodies and provide key hydrological mechanisms.

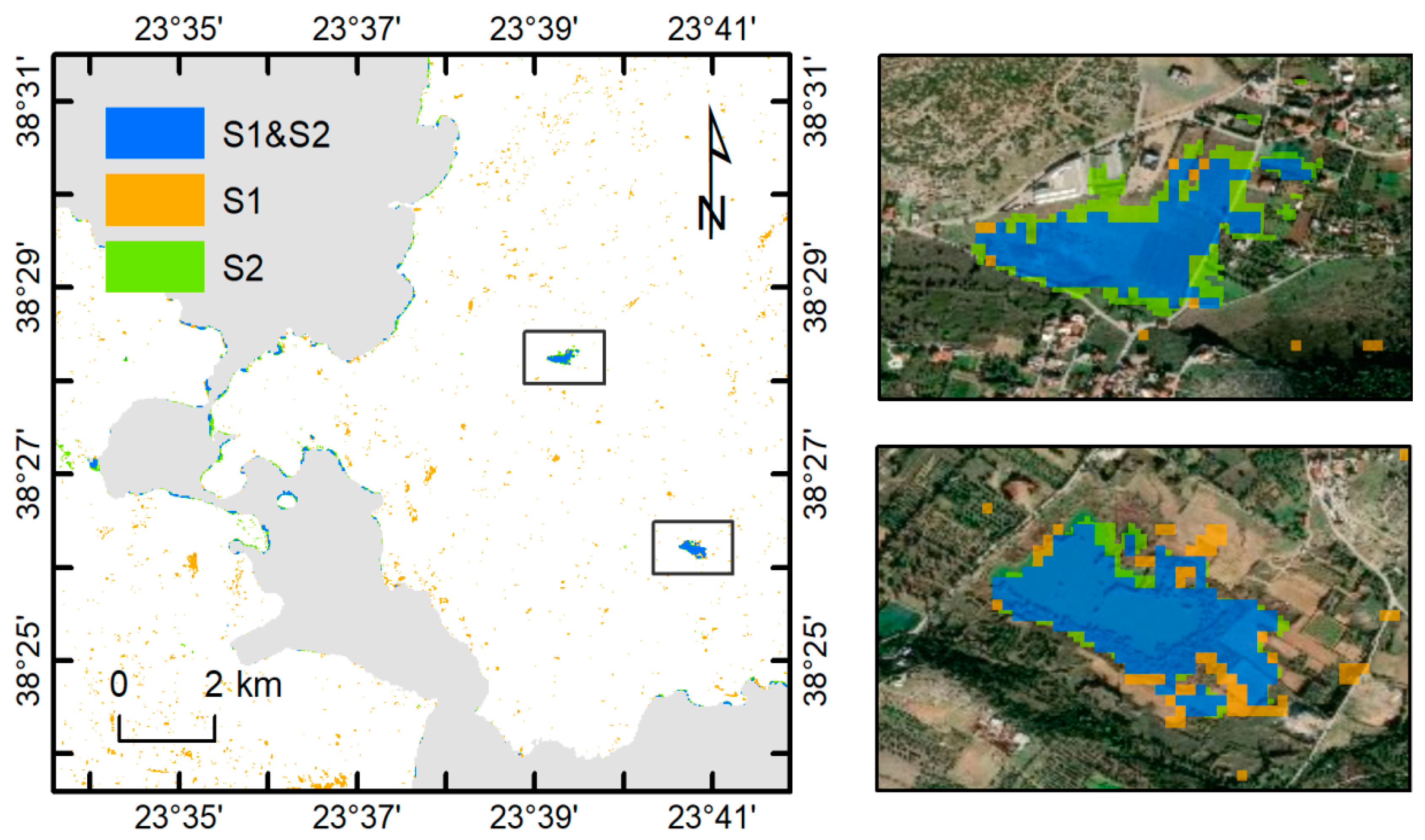

The accuracy of ephemeral surface water delineation, including flood-affected areas, was significantly improved through the joint assimilation of multitemporal satellite data (i.e., S-1 SAR and S-2 optical), rather than using individual satellite observations. By additionally integrating near-surface soil moisture from SMOS- and EO-based rainfall observations, more accurate estimates were achieved concerning the variability in surface water and the prevailing flooding mechanism that appears to be strongly controlled by the karst system.

Based on the joint analysis of diverse EO time series, the area has experienced a single noteworthy flood episode during the five-year monitoring period. The findings verify the primary appearance of water runoff along the karstic landscape with the onset of intense rainfall. As expected by the local geology, surface water runoff is quickly channeled through the underground karst system to the neighboring free aquifers on which ephemeral lakes develop. Whether heavy rainfall will lead to a flood event is highly associated with the prolonged and extended appearance of surface water in those ephemeral lakes.

Remote sensing from multiple satellite sensors offers a unique synoptic tool that is often unattainable by traditional local gauging networks. Our EO-supported findings may serve as indicators for flood alerts in future extreme precipitation events, supporting decision making and minimizing response times in cases of emergencies.
