Behavior of Premixed Sooting Flame in a High-Pressure Burner

Institute for Energy and Materials Processes—Reactive Fluids (EMPI-RF), University of Duisburg-Essen, 47057 Duisburg, Germany
Reactions 2023, 4(1), 155-170; https://doi.org/10.3390/reactions4010009
Submission received: 19 December 2022 / Revised: 5 January 2023 / Accepted: 30 January 2023 / Published: 2 February 2023
(This article belongs to the Special Issue Feature Papers in Reactions in 2022)

Abstract

:
The second-order factor effect of burner optical ports and edge inter-matrices (EIM) and the first-order factor of pressure on the soot formation process and behavior of premixed sooting flames in a high-pressure burner are numerically investigated here. Three-dimensional computational fluid dynamics (CFD) simulations of a premixed flame C2H4/air at p = 1.01 and 10 bar using a one-step chemistry approach are first performed to justify the satisfied predictability of the prospective axisymmetric two-dimensional (2D) and one-dimensional (1D) simulations. The justified 2D simulation approach shows the generation of an axial vorticity around the EIM and axial multi-vorticities due to the high expansion rate of burnt gases at the high pressure of 10 bar. This leads to the development of axial multi-sooting zones, which are manifested experimentally by visible luminous soot streaks, and to the boosting of soot formation conditions of a relatively low-temperature field, <1800 K, and a high mixing rate of gases in combustion around and above the EIM location. Nevertheless, a tolerable effect on the centerline soot volume fraction (fV) profile, fV < 3%, is manifested only at high heights above the burner of the atmospheric sooting flame C2H4/air ϕ = 2.1, and early at the high pressure of 10 bar of this flame, fV < 10%. Enhancing the combustion process reactivity by decreasing the rich equivalence ratio of the fuel/air mixture and/or rising the pressure results in the prior formation of soot precursors, which shifts the sooting zone upstream.

1. Introduction

In many cases, experimental data can be collected with a high spatial resolution, providing multi-dimensional information about important parameters such as temperature, species concentration, and soot particle properties. The use of these data in implementing detailed and, even an appropriately reduced, chemistry is still very expensive in terms of calculation time using 3D simulation of combustion processes. Therefore, the validation of 1D and/or at least 2D simulations for an experimental reactor, here an enclosed high-pressure burner, is a crucial step for the efficient exploitation of their predicted results.
Enclosed burners are often used to study species and particle formation at high- and low-pressure conditions in laboratories. This supports the development of detailed mechanisms and thermophysical models that describe this formation with different fuel/additive/air mixtures and in various operating conditions.
To study the effect of pressure on soot formation, several enclosed burner designs were employed [1,2,3,4,5,6,7]. Generally, these burners are often equipped with multi-optical ports allowing flame investigation using various optical diagnostic techniques. Furthermore, the laminar premixed flat flame concept is frequently used to conduct combustion evaluation in laboratory flames. The burner design must be able to stabilize such flames and maintain a laminar fuel/air mixture flow to generate a steady flame that approaches a quasi-one-dimensional reacting flow, such as those of the McKenna burner [8,9,10,11,12,13,14]. The latter consists generally of a circular sintered bronze or stainless-steel plug through which a mixture of fuel and oxidizer flows. To decrease the external disturbance of surrounding air diffusion and heat transfer on a studied sooting flame, two approaches are often employed. The more common is by shielding the target sooting flame by an inert gas coflow at relatively high velocity near to those of the hot burned gases [15]. The second, which is more efficient to limit the heat transfer with the surrounding, is the protection of the target sooting flame by another well-selected co-annular flame, which is often a slightly fuel-rich non-sooting methane/air flame [1,2,3,4,5,6]. Therefore, the inner matrix of the target sooting flame is surrounded by a co-annular one to envelop the shielding coflow of an inert gas or other premixed non-sooting flame mixtures. A co-annular edge of about 2 mm of thickness generally separates the matrices, referred to here as edge inter-matrices (EIM), which affects the homogeneity of the radial profiles of gas temperature and concentration of species and soot, especially at low heights above the burner (HABs).
In sooting flames, the partial pyrolysis of a parent fuel under fuel-rich conditions leads to the formation of soot precursors such as acetylene and benzene, leading to the formation of polycyclic aromatic hydrocarbons (PAHs). This process is often described based on gas-phase chemical kinetic mechanisms that provide species input to modeling the subsequent soot formation. The species growth eventually leads to soot inception/nucleation—one of the least understood steps in soot formation. The coalescence process occurs when a particle unites with another. Adding soot precursors to a particle leads to a build-up of the particle surface. The agglomeration process is the union of several of these previously formed particles. Detailed studies of soot nucleation in rich premixed flames were performed by Desgroux et al. [10,16,17]. This process occurs close to the flame front. At sub-atmospheric pressure, the zone of incipient soot formation is further enlarged and, therefore, easier to spatially resolve experimentally. Premixed low-pressure flame reactors are also often used to investigate the synthesis of nanoparticles [18,19,20].
Since most of the industrial applications of combustion occur at high pressure, it is important to understand the effect of pressure on soot formation using numerical and experimental studies. The impact of pressure on soot concentration is still not fully understood. Studies such as that of Gu et al. [21] realized that the increasing pressure enhances all soot formation processes (precursors forming, nucleation, coalescence, and agglomeration processes) and, thus, the final soot volume fraction (fV) showed an approximate power law relationship with pressure. The pressure exponent for laminar premixed ethylene/air flame is found to be in the range of 1.4–2, depending on pressure and HAB [6,7,22,23]. At this point, it is important to note that Heidermann et al. [7] attributed the appearance of luminous soot streaks in high-pressure sooting flames to the non-planarity and inhomogeneity of the burner matrix.
Temperature is known to have a strong influence on soot formation, resulting in specific temperature regimes that promote or reduce soot formation. The temperature influence on the soot yield is especially strong at the low- and high-temperature threshold of the so-called bell-shaped curve that describes the soot yield as a function of temperature [24,25]. In the early soot formation zone, where the flame temperature is low, small aromatics and PAHs are formed in larger amounts, but the low temperature hinders the reactive inception of these species and aliphatic radicals to condense into first nuclei [26]. At higher temperatures, oxidation is very active in the secondary oxidation zone of the flame, thus, destroying PAHs that are then not available for formation of larger species. Consequently, soot inception is reduced and only particularly stable structures such as graphene are formed [27,28]. In the intermediate temperature range, the temperature is ideal for the formation of PAHs and their transformation to soot particles [24].
As the aim of this work is to investigate the second-order effect of burner optical ports and EIM and the first-order effect of pressure on soot formation evaluation and premixed sooting flame behavior, especially that of the appearance of luminous soot streaks in high-pressure sooting flames, we first investigate by 3D simulations the ability of2D and/or 1D simulations to predict the centerline profiles of gas temperature, species, soot concentration, and particle size for the investigation of laminar premixed sooting flames in an enclosed high-pressure burner. The 2D and 1D simulation predictions of ethylene/air sooting flames conducted using the same enclosed burner of Mi et al. [6] are then performed as a demonstration study. Afterword, the justified 2D simulation approach is implemented to investigate the target effects of EIM and pressure on sooting flame evaluation and behavior. The highest pressure experimentally investigated by Mi et al. [6], 10 bar, is chosen for the high-pressure study in order to obtain a distinct effect of pressure on the sooting flame compared to atmospheric pressure.

2. Simulation Conditions and Approaches

To study soot formation of premixed fuel/air flames in the pressure range 1.01–30 bar, a high-pressure burner and its infrastructure was built at the Institute for Combustion and Gas Dynamics (IVG) of Duisburg-Essen university [2,4,5,6]. It consists, as shown in Figure 1, of a central burner with a diameter of 20 mm of a sintered stainless-steel plate (Siperm® R10, 10 mm thick), which is surrounded by a second burner with an outer diameter of 56 mm made of a sintered bronze disc (Siperm® B40, 22 mm thick) in which a copper cooling coil is embedded. The two burner matrices are surrounded by a ring of sintered bronze (Siperm® B40, 5 mm thick) through which is flown an air or dry nitrogen coflow to further stabilize the flame towards buoyancy effects and cool the exhaust gases by dilution. It also cools four thin quartz windows installed in the window ports close to the burner to avoid contact and keep hot exhaust gases and soot deposition off the outer quartz windows (19.5 mm thick) taking the pressure load. The burner housing is made from a solid block of stainless steel with a bore of 90 mm. The three burner matrices are kept at 300 K using a thermostat water flow. The burner housing and window flanges are cooled with water to keep the temperature at ~343 K.
This enclosed burner, shown in Figure 1, is equipped with four windows for the in-situ laser diagnostic measurements, which could affect the axisymmetric behavior of the fields of gas flow, temperature, and concentration of species and soot. The 3D simulations of the critical atmospheric nucleation flame [29] of ethylene/air ϕ = 1.77 are carried out to demonstrate the reasonable prediction of prospective 2D and 1D simulations for the prediction of this burner data. The CFD simulations are executed applying the laminar premixed flame approach of the computational fluid dynamic software fluent under Ansys [30] while implementing the mech domain and boundary conditions presented in Figure 2. The inlet temperature of unburnt gas is set at 300 K and the lateral boundary condition equates the burner housing wall to the fixed temperature of 323 K. For the 3D simulations, the one-step chemistry approach is adopted for the combustion of the inner target flame of ethylene/air mixture at its atmospheric near-threshold of sooting flame ϕ = 1.77 [29] and of the co-flame of slightly rich methane/air ϕ = 1.2. As part of this demonstration of sufficiently good predictions of 2D and 1D simulations, the predicted cross-sectional distributions along the window (Win) and inter-window (Int-win) axes of burner, shown in Figure 2, gas temperature, and radial gas velocity are compared and analyzed. Considering the diffusion influence of the surrounding coflow species on the temperature and formed species fields of target flame mixture, tracer gases (1 × 10−5 in mole fraction) of acetylene as a soot precursor and hydrogen as a high diffusivity species, and as an important species in the soot formation process, are injected within the premixed fuel/air mixtures of the inner and outer flames, respectively. Their predicted mole fraction cross-sectional distributions are also compared and analyzed.
For the demonstration study of 1D and 2D simulations predictivity, and especially afterwards for the investigation of pressure and EIM effects on soot formation evaluation and flame behavior, the measured fV using three-pass extinction in laminar premixed C2H4/air sooting flames at pressure 1.01 and 10 bar for ϕ = 2.1, and at only 1.01 bar for ϕ = 2.34 as performed by Mi et al. [6], using this burner is selected. The 2D simulation is accomplished by Fluent under Ansys [30] by implementing the p−1 model to estimate the thermal radiation, the Moss–Brookes approach considering acetylene and ethylene as soot precursors [31] to predict the soot formation, and the reduced mechanism of Luo et al. [32] for ethylene/methane mixtures combustion. Two soot formation models are available in Fluent because of their limited computational cost. Both the semi-empirical two-equation Moss–Brookes model considering acetylene and ethylene as soot precursors [31] and the Frenklach method of moments [33] were tested. The Moss–Brookes model was then adopted for its better prediction of the flame conditions investigated in this work. The effects of EIM and pressure on the soot formation evaluation and flame behavior are investigated using this 2D simulation approach. As the detailed chemistry mechanism of Saggese et al. [34] is still computationally very expensive to be used even in 2D simulation, its relatively high performance is exploited here using 1D simulation implementing the simulated centerline temperature profiles from the 2D simulation. This 1D simulation is performed using flat flame with a specified temperature profile approach of the software package Cantera [35] with switching off the energy equation. The temperature of burner housing is fixed at 343 K. The inlet velocities of the cold fuel/air mixtures of both target flame of C2H4/air ϕ = 2.1 and 3.34 and co-flame of CH4/air ϕ = 1.2 are set to 8 cm/s at 300 K and that of surrounding air coflow is set to 6 cm/s at 300 K (cf. Figure 2; inner burner, outer burner, and coflow, respectively). All the simulations are performed at 1.01 and 10 bar.

3. Results and Discussion

3.1. Justifying 2D and 1D Simulation

Figure 3 presents a comparison between the temperature cross-sectional distributions along the window and inter-window axes of the burner for the both the studied pressures of 1.01 and 10 bar. The temperature field along the windows axis of the burner is moderately cooler, <50 K, than that along the inter-windows axis. This difference is due to the nearest low-temperature boundary condition of the fixed temperature of 343 K of the burner housing wall along the inter-windows axis of the burner. This relatively low difference in temperature between the cross-sectional axes is a reasonable justification for the prospective axisymmetric 2D simulation. Obviously, the temperature increases with pressure and the burned gas temperature of the slightly rich co-flame of methane/air ϕ = 1.2 (outer flame) is higher than that of the nucleation flame of ethylene/air ϕ = 1.77 (inner target flame). Figure 4 shows the significant influence of pressure on the centerline profiles of gas temperature and the temperature increase as a function of the HAB of flames conducted in the studied enclosed burner without a stagnation plate of flame stabilization.
Similarly, comparable cross-sectional distributions of radial gas flow velocity are observed along the window and inter-window axes of the burner (cf. Figure 2) for the studied pressures of 1.01 and 10 bar, as shown in Figure 5, with slightly more non-homogeneity in the distribution of radial gas flow velocity along the windows axis, which is affected by the holes of the burner windows. This is another reasonable justification for prospective axisymmetric 2D simulations. An almost homogenous distribution of radial velocity is detected for the gas flow above the inner matrix of ethylene/air target flame with radial gas flow velocity in order of 5 mm/s, as shown in Figure 5. Furthermore, a low percentage of radial to centerline flow velocity, <0.5%, is predicted in Figure 6 for the two studied pressures. The two observations above show that it is practical to consider a one-dimensional flow of burnt gas, especially near the central axis of the burner.
Figure 7 presents a global flow map of tracer gases (1 × 10−5 in mole fraction) of acetylene and hydrogen injected into the premixed fuel/air mixtures of the inner and outer flames, respectively. For the two studied pressures, the flow map of the outer flame shows significant tracer species diffusion into the 20 mm diameter zone of the inner target flame, especially at high HABs. Furthermore, an important heat transfer takes place between the relatively cold burner housing wall and shielding coflow of air, at 343 and 300 K, respectively, and the hot burnt gas of both flames (cf. Figure 3). The lateral species diffusion and heat transfer will, indeed, affect the combustion process and, consequently, the fields of gas temperature, formed species concentration, and size and volume fraction of soot in the target flame. Therefore, the 1D simulation of such an enclosed burner and flame configuration of a target flame shielded by a non-sooting co-flame would only be demonstrated by implementing an experimental or a predicted centerline profile of temperature from a 2D simulation and switching off the energy equation in this 1D simulation.

3.2. Demonstration Study

As a demonstration study of the predictability of 1D and 2D simulation approaches described in paragraph 2, the experimental data of Mi et al. [6] of measured fV using three-pass extinction in laminar premixed C2H4/air flames at pressure 1.01 and 10 bar for ϕ = 2.1 and at only 1.01 bar for ϕ = 2.34 are selected. A comparison between the experimental data and the 2D simulation (2D-Sim) prediction of fV as a function of HAB of these premixed C2H4/air flame conditions is presented in Figure 8. Despite the agreement in trend and in sequence order between the predicted data using the Moss–Brookes model of soot formation and that measured by the three-pass extinction diagnostic, it is clear that this model strongly overestimates the experimental data. Therefore, the prediction of this model could be used to obtain an overview of sooting flames evaluation. Figure 9 presents the expected behavior of the centerline temperature profiles predicted by the 2D simulation of the studied flame conditions. At fixed pressure, which here is the atmospheric pressure, the flame becomes richer as the flame temperature decreases and the temperature increases as a function of HAB for both the equivalence ratios. For fixed equivalence ratio ϕ = 2.1, the temperature increases as a function of pressure, here from 1.01 to 10 bar. Figure 10 shows a comparison between the experimental and the predicted centerline fV profiles using Cantera’s 1D simulation and implementing the detailed mechanism of Saggese et al. [34], and the predicted centerline temperature profiles by the 2D simulation, shown in Figure 9. The 1D simulation predicts well the fV of the leaner condition of ϕ = 2.1 at atmospheric pressure. Nevertheless, and especially for high HABs, this simulation overestimates all the experimental data of the relatively high sooting conditions at 10 and 1.1 bar of ϕ = 2.1 and 2.34, respectively. The agreement in trend and in the order of magnitude of the predicted fV with the experimental data are much better than that predicted by the Moss–Brookes model of the 2D simulation.
This adequate agreement in the evolution trend of the fV centerline profiles with respect to the experimental data of the 1D and 2D simulation, presented in Figure 8 and Figure 10, could, therefore, be exploited in the following paragraph to investigate the effect of EIM and pressure on the evaluation and behavior of sooting flames.

3.3. Pressure and Edge Inter-Matrices Effect

CFD simulation is indeed necessary to numerically investigate this EIM effect on the soot formation process. Therefore, 2D simulations of the flame configuration and conditions of premixed target flame C2H4/air at ϕ = 2.1 and 2.34 and p = 1.01 and 10 bar shielded by a co-flame CH4/air at ϕ = 1.2 are executed. A comparison between the predicted temperature and soot cross-section distributions of these flames is presented in Figure 11. At atmospheric pressure, the richer flame ϕ = 2.34 shows an expected lower gas temperature of about 30 K compared to that of the leaner flame ϕ = 2.1, as shown in Figure 11a. As seen in Figure 11b, these atmospheric flames of ϕ = 2.1 and 2.34 produce fV in the ranges of 1–7 and 2–10 ppm, respectively. The effect of pressure on temperature and soot production of the target flame ϕ = 2.1 is presented in Figure 11c,d. They show that when increasing the pressure from 1.01 to 10 bar, the gas temperature increases up to 200 K and fV increases from 1–7 ppm at atmospheric pressure to 50–300 ppm at 10 bar, with an expansion of the axial distribution of soot and a reduction in the radial distribution. The soot formation of the leaner atmospheric flame of ϕ = 2.1 starts earlier than that of the richer flame of ϕ = 2.34, as shown in Fig. 11b. This refers to the higher reactivity of this leaner flame producing prior soot precursors, and this also is applied to the earliest soot formation at the high-pressure combustion of 10 bar, as seen in Figure 11d. Increasing the pressure from atmospheric pressure to 10 bar at fixed inlet velocity of 8 cm/s of unburned gas implements a significant increase in the injected fuel mass flow rate from 12 to 119 gr/s/m2. This results in an increase in flame temperature and sooting zone length, and a decrease in width, as observed in Figure 11c,d, respectively. The effect of EIM on the inner target flame and co-flame manifests obviously in the temperature cross-sectional distribution of the atmospheric flames at only low HABs, <10 mm, as shown in Figure 11a,c. The zone around the EIM location shows relatively lower gas temperature than its lateral zones, <1800 K. The co-flame of methane/air shows a significant higher temperature, >2000 K, than the target flame of ethylene/air at the high-pressure of 10 bar.
To quantify this EIM effect, the atmospheric target flame C2H4/air of ϕ = 2.1 at 8 cm/s (TF) of a 56 mm diameter burner matrix shielded by an air coflow at 6 cm/s (CF) is simulated by 2D simulation. Two target flame configurations are executed. The first one consists of injecting the C2H4/air mixture of ϕ = 2.1 using a 56 mm matrix, and the second one uses two co-annual matrices of 20 and 56 mm separated by a 2 mm thick edge. A comparison between the radial profiles of temperature, fV, and mole fraction of acetylene as soot precursor and OH radical as soot oxidizer is plotted in Figure 12 at 5 and 20 mm HABs. At HAB 20 mm, the radial profiles of temperature, fV, and mole fraction of acetylene and OH radical are almost identical with and without EIM, Figure 12a–d, respectively. At the low HAB 5 mm, relatively modest differences are detected between the radial profiles of temperature, acetylene, and OH radical with and without EIM. These modest differences are only observed around and above the edge location. The radial profiles of fV for the studied HABs do not show any significant change. As we are also interested in soot formation evaluation in this work, it would be interesting to explore this effect on the centerline profile of fV. Figure 13 presents, therefore, a comparison between the centerline fV profiles predicted by the 2D simulation of the ethylene/air flame ϕ = 2.1 at p = 1.01 and 10 bar with and without EIM. At atmospheric pressure, the EIM effect only manifests itself for high HABs, from 17 mm, by a slight increase in fV for the edge case. The relative lower gas temperature, <1800 K, observed in the area around the edge location compared to its surroundings may be an explanation to this modest increase in soot yield. This is due to the known inhabitant role of high temperature field, exceeding 1800 K [24,25,36], and the boosting one, around 1700 K, on soot formation. This increase in fV of the EIM effect demonstrates obviously at earlier HABs, from 3 mm, for the high-pressure flame of 10 bar. To investigate the behavior of the premixed sooting flame C2H4/air ϕ = 2.1 with and without EIM at atmospheric pressure and at the high-pressure of 10 bar, a comparison between the cross-sectional distributions of vorticity magnitude, acetylene mole fraction, fV, and gas temperature as a function of pressure, and for the both cases with and without EIM, is presented in Figure 14a–h. For comparison with similar experimental flame behavior, photos of this premixed sooting flame C2H4/air ϕ = 2.1 but 20 mm in diameter, shielded by a non-sooting flame of methane/air ϕ = 1.2 of 56 mm in diameter at pressure 1.01 and 10 bar are added, as shown in Figure 14i,j.
The development of vorticity around the EIM, shown in Figure 14a, which is the tendency of a fluid particle to rotate or circulate at a particular point, results in improved fuel/air distribution and mixing [37]. The latter affects the reactivity of the mixture in combustion and, subsequently, the rate of species and heat production. At high pressure, the combustion of the premixed sooting-flame generates axial multi-vorticities due to the thermal expansion effects in the flame [38,39], as observed in Figure 14b. The high heat-release rate of the mixture under compression leads to large changes in density of the combustion flow (high expansion rate) that generates vorticities. The generation of axial multi-vorticities at high pressure leads to axial multi-inhomogeneities in species production, as shown in Figure 14d,h for acetylene and soot, respectively, and observed experimentally as seen in Figure 14j. Therefore, the luminous soot streaks observed in Figure 14j, and by Heidermann et al. [7], are the results of the axial multi-vorticities generation by high-pressure premixed sooting flames. As the axial edge vorticity also occurs in an atmospheric flame and is the greatest at high pressure, as shown in Figure 14a,b, the formation of acetylene and soot arises downwards in the area above the edge location, as observed in Figure 14c,d,g,h. The 56 mm diameter atmospheric flame C2H4/air generates a higher concentration of acetylene using a single burner matrix (No-Edge) compared to using two matrices separated by an edge, as shown in Figure 14c. The enhanced gas mixing due to the axial edge vorticity, in the case of two coaxial flames C2H4/air separated by an edge, results in a more homogenous distribution of this soot precursor, as demonstrated for high HABs in Figure 14c. This affects the temperature field, seen in Figure 14e, and, subsequently, the soot formation process and the spatial distribution of soot. At high pressure, the maximum concentration of acetylene is mainly in the vicinity of the burner matrix; this soot precursor is rapidly consumed by the formation of soot and oxidation under these conditions of high reactivity compared to the atmosphere. The cooling effect of axial edge vorticity on the temperature distribution is evident for both the atmospheric and the high pressure flames, but the temperature distribution is more homogenous when there is no EIM, as seen in Figure 14e,f. The increase in mixing, and then formation and distribution of soot due to the axial edge vorticity, especially at high-pressure flames, results in a higher centerline fV profile for the EIM case compared to the non-edge case, especially for high HABs, as shown in Figure 13.

4. Conclusions

A three-dimensional CFD simulation using a one-step chemistry approach is carried out to investigate the ability to demonstrate the reasonably good predictivity of 1D and 2D simulations of an enclosed burner (cf. Figure 1), designed to study high-pressure premixed sooting flames shielded by reactive and/or non-reactive coflows. It is shown that the four thin quartz windows installed flush with the burner inner wall have no significant effect on the cross-sectional distributions of temperature and radial flow along the window and inter-window axes of the burner. The latter justifies the 2D axisymmetric simulation for the data prediction of this burner. Nevertheless, a significant diffusion of surrounding species is observed in the investigated sooting flame mixture. The latter and the heat transfer with the enclosed burner wall and shielding coflows affect the fields of gas temperature, formed species concentration, and size and volume fraction of soot. Therefore, the 1D simulation of such an enclosed burner and flame configuration is only justifiable by implementing an experimental or predicted centerline profile of temperature from the CFD simulation with switching off the energy equation.
A demonstration study to validate the predictability of the proposed 1D and 2D simulation approaches is carried out on the experimental fV data conducted by Mi et al. [6] using the same burner simulated above. The fV are measured using three-pass extinction in laminar premixed flames C2H4/air at pressure 1.01 and 10 bar for ϕ = 2.1 and at only 1.01 bar for ϕ = 2.34. The Moss–Brookes model of soot formation implemented in Fluent’s 2D simulation strongly overestimates the experimental data by retaining its order of magnitude trend and sequence. The implemented detailed chemistry of Saggese et al. [34], and the centerline temperature profiles predicted by the 2D simulation in Cantera‘s 1D simulation, predict the experimental data relatively well, especially for the atmospheric flame ϕ = 2.1 at all HABs, and only at low HABs of the other investigated flames.
The adequate trend evolution of the boosted fV centerline profiles of the 2D simulation with respect to the experimental data is then exploited to investigate the effect of pressure and EIM on soot formation evaluation and the behavior of the target premixed flames C2H4/air ϕ = 2.1 and 2.34 at p = 1.01 and 10 bar. For low HABs, <10 mm, only relatively modest differences are observed, with and without edge, around and above the edge location between the radial profiles of temperature, acetylene as soot precursor, and OH radical as soot oxidizer. The radial and centerline profiles of fV show, only at high pressure and HABs, relatively higher tolerable fV with the edge compared to the case without edge.
The occurrence of axial vorticity due to the EIM and axial multi-vorticities due to the thermal expansion effect in a high-pressure premixed sooting flame improves the burnt gas distribution and mixing. This then locally affects the reactivity of the mixture in combustion, generating axial-inhomogeneities in the fields of temperature and formed species and soot. These axial multi-zones of soot are manifested as luminous soot streaks observed in the high-pressure premixed sooting flame.
The higher reactivity of the atmospheric flame ϕ = 2.1 compared to that of ϕ = 2.34 and the high-pressure flame ϕ = 2.1 at 10 bar compared to the atmospheric pressure flame shows a sooting zone closer to the burner matrix of these more reactive flames than for the less reactive flames. This refers to the prior formation of soot precursors of the highly reactive flames.
Increasing the pressure, while maintaining a fixed inlet velocity of unburnt gases, leads to a significant increase in the mass flow rate of fuel/air injected into the combustion process, resulting in a longer and smaller soot zone compared to low pressure.
These modelling observations, indeed, require experimental validation and further study to explore the effect of pressure, equivalence ratio, and entry velocity on the location, shape, and behavior of the sooting zones of premixed flames.

Funding

This research was funded by the German Research Foundation (DFG) within DR 195/19-1 “Soot nucleation in low-sooting high-pressure flames: Experiment and modeling” under project No. 439059510.

Data Availability Statement

The simulation results of this investigation are generated to predict some experimental data and observations of the DFG project mentioned in the funding and acknowledgment.

Acknowledgments

Financial support by the German Research Foundation (DFG) under project No. 439059510 is gratefully acknowledged. The author thanks Christof Schulz (EMPI—University of Duisburg-Essen, Germany) and Pascale Desgroux (Laboratory PC2A—University of Lille, France) for their continuous support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hofmann, M.; Bessler, W.G.; Schulz, C.; Jander, H. Laser-induced incandescence for soot diagnostics at high pressures. Appl. Opt. 2003, 42, 2052–2062. [Google Scholar] [CrossRef] [PubMed]
  2. Hofmann, M.; Kronemayer, H.; Kock, B.; Jander, H.; Schulz, C. Laser-induced incandescence and multi-line NO-LIF thermometry for soot diagnostics at high pressures. In European Combustion Meeting; Optical Publishing Group: Louvain-la-Neuve, Belgium, 2005. [Google Scholar]
  3. Tsurikov, M.S.; Geigle, K.P.; Krüger, V.; Schneider-Kühnle, Y.; Stricker, W.; Lückerath, R.; Hadef, R.; Aigner, M. Laser-Based Investigation of Soot Formation in Laminar Premixed Flames at Atmospheric and Elevated Pressures. Combust. Sci. Technol. 2005, 177, 1835–1862. [Google Scholar] [CrossRef]
  4. Leschowski, M.; Dreier, T.; Schulz, C. An automated thermophoretic soot sampling device for laboratory-scale high-pressure flames. Rev. Sci. Instrum. 2014, 85, 045103. [Google Scholar] [CrossRef] [PubMed]
  5. Leschowski, M.; Dreier, T.; Schulz, C. A Standard Burner for High Pressure Laminar Premixed Flames: Detailed Soot Diagnostics. Z. Phys. Chem. 2015, 229, 781–805. [Google Scholar] [CrossRef]
  6. Mi, X.; Saylam, A.; Endres, T.; Schulz, C.; Dreier, T. Near-threshold soot formation in premixed flames at elevated pressure. Carbon 2021, 181, 143–154. [Google Scholar] [CrossRef]
  7. Heidermann, T.; Jander, H.; Gg, H. Wagner, Soot particles in premixed C2H4–air-flames at high pressures (P=30–70 bar). Phys. Chem. Chem. Phys. 1999, 1, 3497–3502. [Google Scholar] [CrossRef]
  8. Migliorini, F.; De Iuliis, S.; Cignoli, F.; Zizak, G. How “flat” is the rich premixed flame produced by your McKenna burner? Combust. Flame 2008, 153, 384–393. [Google Scholar] [CrossRef]
  9. Hadef, R.; Geigle, K.P.; Meier, W.; Aigner, M. Soot characterization with laser-induced incandescence applied to a laminar premixed ethylene–air flame. Int. J. Therm. Sci. 2010, 49, 1457–1467. [Google Scholar] [CrossRef]
  10. Desgroux, P.; Mercier, X.; Lefort, B.; Lemaire, R.; Therssen, E.; Pauwels, J. Soot volume fraction measurement in low-pressure methane flames by combining laser-induced incandescence and cavity ring-down spectroscopy: Effect of pressure on soot formation. Combust. Flame 2008, 155, 289–301. [Google Scholar] [CrossRef]
  11. Desgroux, P.; Faccinetto, A.; Mercier, X.; Mouton, T.; Karkar, D.A.; El Bakali, A. Comparative study of the soot formation process in a “nucleation” and a “sooting” low pressure premixed methane flame. Combust. Flame 2017, 184, 153–166. [Google Scholar] [CrossRef]
  12. Desgroux, P.; Betrancourt, C.; Mercier, X. Development of highly sensitive quantitative measurements of nascent soot particles in flames by coupling cavity-ring-down extinction and laser induced incandescence for improving the understanding of soot nucleation process. In Laser Applications to Chemical, Security and Environmental Analysis; Optical Publishing Group: Orlando, FL, USA, 2018; p. LTu5C-1. [Google Scholar]
  13. Bejaoui, S.; Batut, S.; Therssen, E.; Lamoureux, N.; Desgroux, P.; Liu, F. Measurements and modeling of laser-induced incandescence of soot at different heights in a flat premixed flame. Appl. Phys. B Laser Opt. 2015, 118, 449–469. [Google Scholar] [CrossRef]
  14. Holthuis & Associates, The McKenna Flat Flame Burner. Available online: https://www.flatflame.com/ (accessed on 4 January 2023).
  15. Kim, C.; Xu, F.; Sunderland, P.; El-Leathy, A.; Faeth, G. Soot formation and oxidation in laminar flames. In Proceedings of the 44th AIAA Aerospace Sciences Meeting and Exhibit, Reno, Nevada, 9–11 January 2006; p. 1508. [Google Scholar]
  16. Mouton, T.; Mercier, X.; Wartel, M.; Lamoureux, N.; Desgroux, P. Laser-induced incandescence technique to identify soot nucleation and very small particles in low-pressure methane flames. Appl. Phys. B Laser Opt. 2013, 112, 369–379. [Google Scholar] [CrossRef]
  17. Aubagnac-Karkar, D.; El Bakali, A.; Desgroux, P. Soot particles inception and PAH condensation modelling applied in a soot model utilizing a sectional method. Combust. Flame 2018, 189, 190–206. [Google Scholar] [CrossRef]
  18. Skandan, G.; Chen, Y.-J.; Glumac, N.; Kear, B. Synthesis of oxide nanoparticles in low pressure flames. Nanostructured Mater. 1999, 11, 149–158. [Google Scholar] [CrossRef]
  19. Weise, C.; Faccinetto, A.; Kluge, S.; Kasper, T.; Wiggers, H.; Schulz, C.; Wlokas, I.; Kempf, A. Buoyancy induced limits for nanoparticle synthesis experiments in horizontal premixed low-pressure flat-flame reactors. Combust. Theory Model. 2013, 17, 504–521. [Google Scholar] [CrossRef]
  20. Pennington, A.M.; Halim, H.; Shi, J.; Kear, B.H.; Celik, F.E.; Tse, S.D. Low-pressure flame synthesis of carbon-stabilized TiO2-II (srilankite) nanoparticles. J. Aerosol Sci. 2021, 156, 105775. [Google Scholar] [CrossRef]
  21. Gu, M.; Liu, F.; Consalvi, J.-L.; Gülder, Ö. Effects of pressure on soot formation in laminar coflow methane/air diffusion flames doped with n-heptane and toluene between 2 and 8 atm. Proc. Combust. Inst. 2021, 38, 1403–1412. [Google Scholar] [CrossRef]
  22. Böhm, H.; Feldermann, C.; Heidermann, T.; Jander, H.; Lüers, B.; Wagner, H. Soot formation in premixed C2H4-air flames for pressures up to 100 bar. Symp. (Int.) Combust. 1992, 24, 991–998. [Google Scholar] [CrossRef]
  23. Böhm, H.; Hesse, D.; Jander, H.; Lüers, B.; Pietscher, J.; Wagner, H.; Weiss, M. The influence of pressure and temperature on soot formation in premixed flames. Symp. (Int.) Combust. 1989, 22, 403–411. [Google Scholar] [CrossRef]
  24. Ciajolo, A.; D’Anna, A.; Barbella, R.; Tregrossi, A.; Violi, A. The effect of temperature on soot inception in premixed ethylene flames. Symp. (Int.) Combust. 1996, 26, 2327–2333. [Google Scholar] [CrossRef]
  25. Ishii, K.; Ohashi, N.; Teraji, A.; Kubo, M. Soot formation in hydrocarbon pyrolysis behind reflected shock waves. In Proceedings of the 22nd Int. Colloquium on the Dynamics of Explosions and Reactive Systems, Napoli, Italy, 19–24 June 2009. [Google Scholar]
  26. Prado, G.; Lahaye, J. Physical Aspects of Nucleation and Growth of Soot Particles. In Particulate Carbon: Formation During Combustion; Siegla, D., Smith, G., Eds.; Springer: Boston, MA, USA, 1981; pp. 143–175. [Google Scholar]
  27. Whitesides, R.; Frenklach, M. Detailed Kinetic Monte Carlo Simulations of Graphene-Edge Growth. J. Phys. Chem. A 2010, 114, 689–703. [Google Scholar] [CrossRef]
  28. Fortugno, P.; Musikhin, S.; Shi, X.; Wang, H.; Wiggers, H.; Schulz, C. Synthesis of freestanding few-layer graphene in microwave plasma: The role of oxygen. Carbon 2021, 186, 560–573. [Google Scholar] [CrossRef]
  29. Bladh, H.; Olofsson, N.-E.; Mouton, T.; Simonsson, J.; Mercier, X.; Faccinetto, A.; Bengtsson, P.-E.; Desgroux, P. Probing the smallest soot particles in low-sooting premixed flames using laser-induced incandescence. Proc. Combust. Inst. 2015, 35, 1843–1850. [Google Scholar] [CrossRef]
  30. ANSYS® Academic Research Mechanical; Release 2020 R1; ANSYS, Inc.: Canonsburg, PA, USA, 2020.
  31. Brookes, S.; Moss, J. Predictions of soot and thermal radiation properties in confined turbulent jet diffusion flames. Combust. Flame 1999, 116, 486–503. [Google Scholar] [CrossRef]
  32. Luo, Z.; Lu, T.; Liu, J. A reduced mechanism for ethylene/methane mixtures with excessive NO enrichment. Combust. Flame 2011, 158, 1245–1254. [Google Scholar] [CrossRef]
  33. Frenklach, M. Method of moments with interpolative closure. Chem. Eng. Sci. 2002, 57, 2229–2239. [Google Scholar] [CrossRef]
  34. Saggese, C.; Ferrario, S.; Camacho, J.; Cuoci, A.; Frassoldati, A.; Ranzi, E.; Wang, H.; Faravelli, T. Kinetic modeling of particle size distribution of soot in a premixed burner-stabilized stagnation ethylene flame. Combust. Flame 2015, 162, 3356–3369. [Google Scholar] [CrossRef]
  35. Goodwin, D.G.; Moffat, H.K.; Speth, R.L. Cantera: An Object-Oriented Software Toolkit for Chemical Kinetics, Thermodynamics, and Transport Processes. Available online: https://www.cantera.org (accessed on 11 March 2021). [CrossRef]
  36. Wang, T.; Matula, R.; Farmer, R. Combustion kinetics of soot formation from toluene. Symp. (Int.) Combust. 1981, 18, 1149–1158. [Google Scholar] [CrossRef]
  37. Zhang, Y.; Huang, Y.; Wang, F.; Wu, Y.; Xiao, Y. Influence of Multi-Source Vortex Structure on the Mixing of Fuel/Air. In Proceedings of the 2010 Asia-Pacific Power and Energy Engineering Conference, Chengdu, China, 28–31 March 2010; pp. 1–4. [Google Scholar]
  38. Chakraborty, N. Influence of Thermal Expansion on Fluid Dynamics of Turbulent Premixed Combustion and Its Modelling Implications. Flow Turbul. Combust. 2021, 106, 753–848. [Google Scholar] [CrossRef]
  39. DeNet, B.; Bychkov, V. Low vorticity and small gas expansion in premixed flames. Combust. Sci. Technol. 2005, 177, 1543–1566. [Google Scholar] [CrossRef] [Green Version]

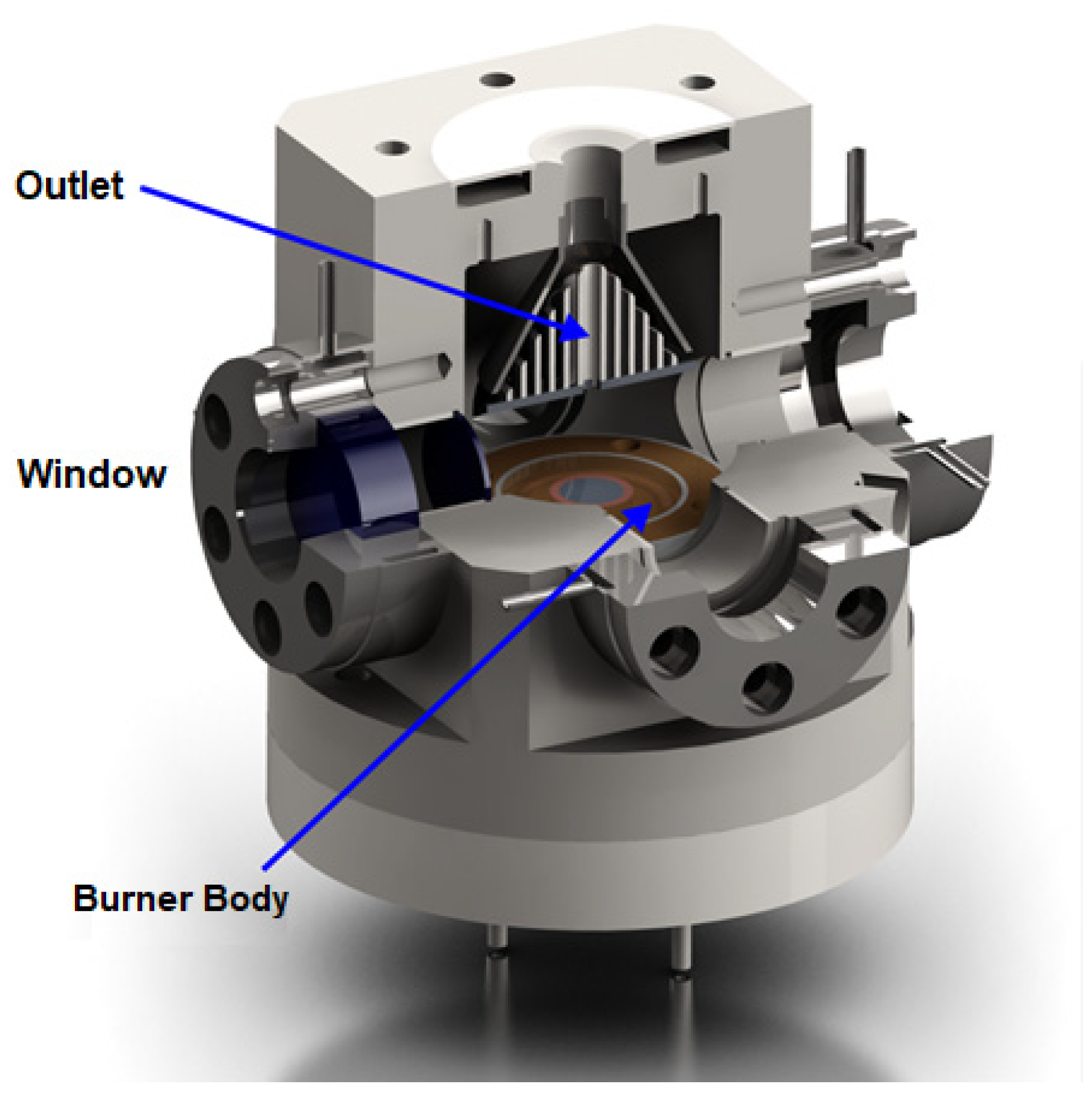

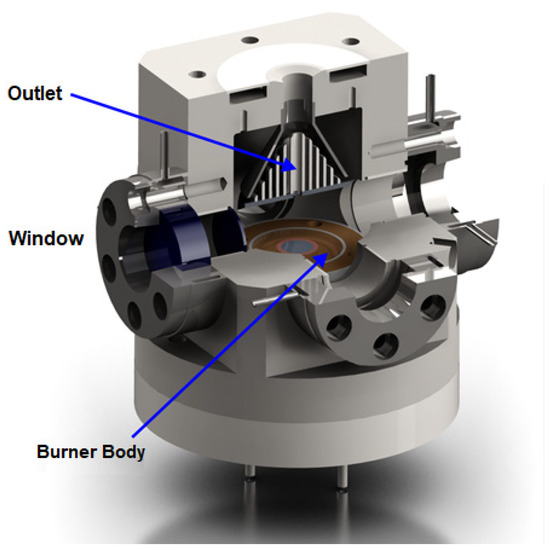

Figure 1. A sectional drawing of the enclosed high-pressure burner [2,4,5,6].
Figure 1. A sectional drawing of the enclosed high-pressure burner [2,4,5,6].
Reactions 04 00009 g001

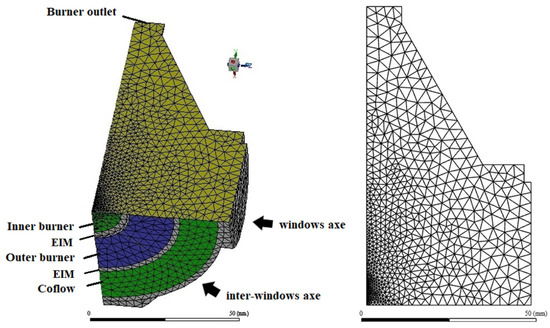

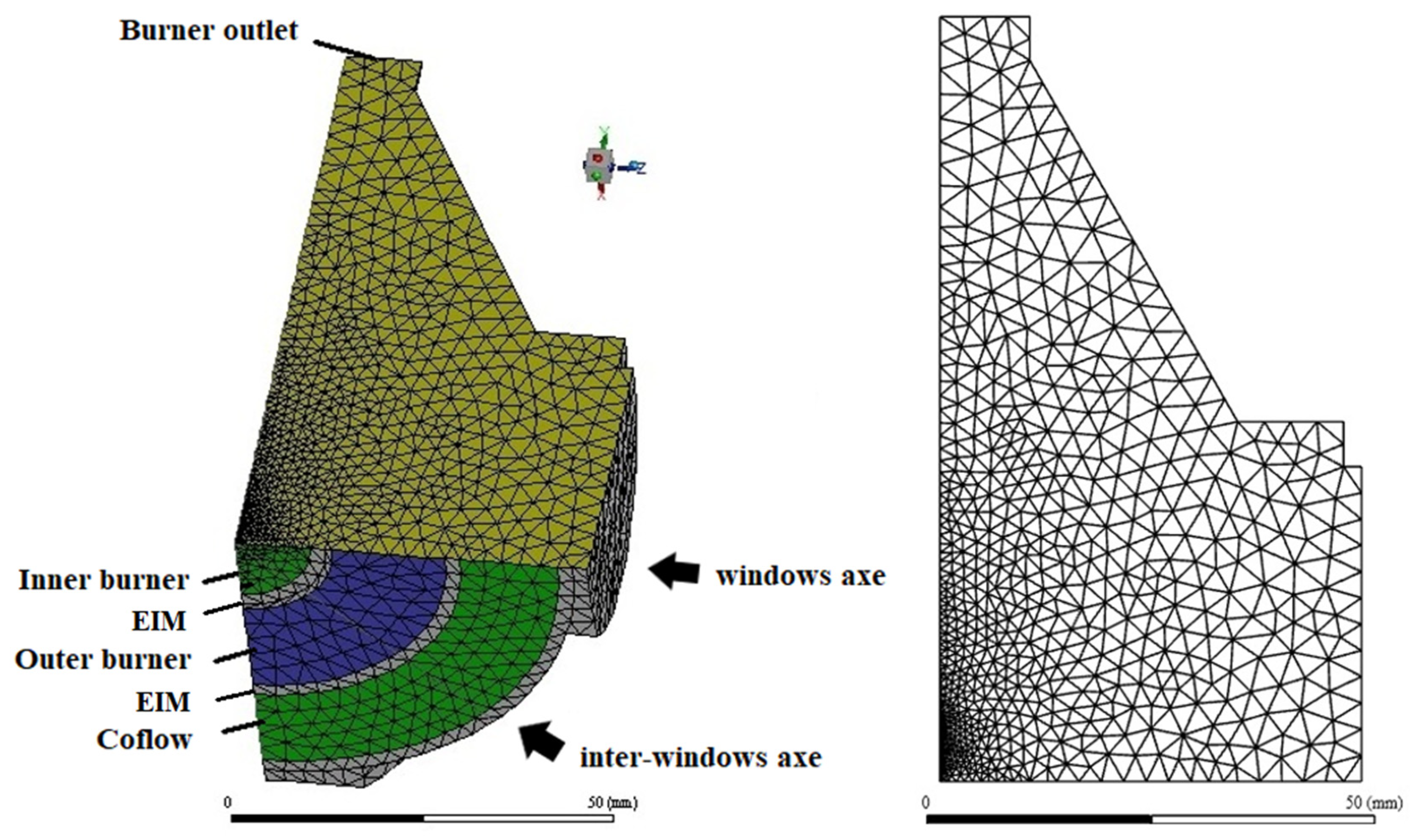

Figure 2. The 3D of mech domain and boundary conditions and the 2D section of the enclosed burner inner volume.
Figure 2. The 3D of mech domain and boundary conditions and the 2D section of the enclosed burner inner volume.
Reactions 04 00009 g002

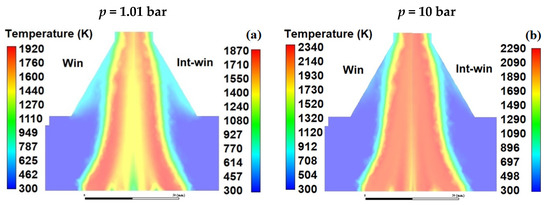

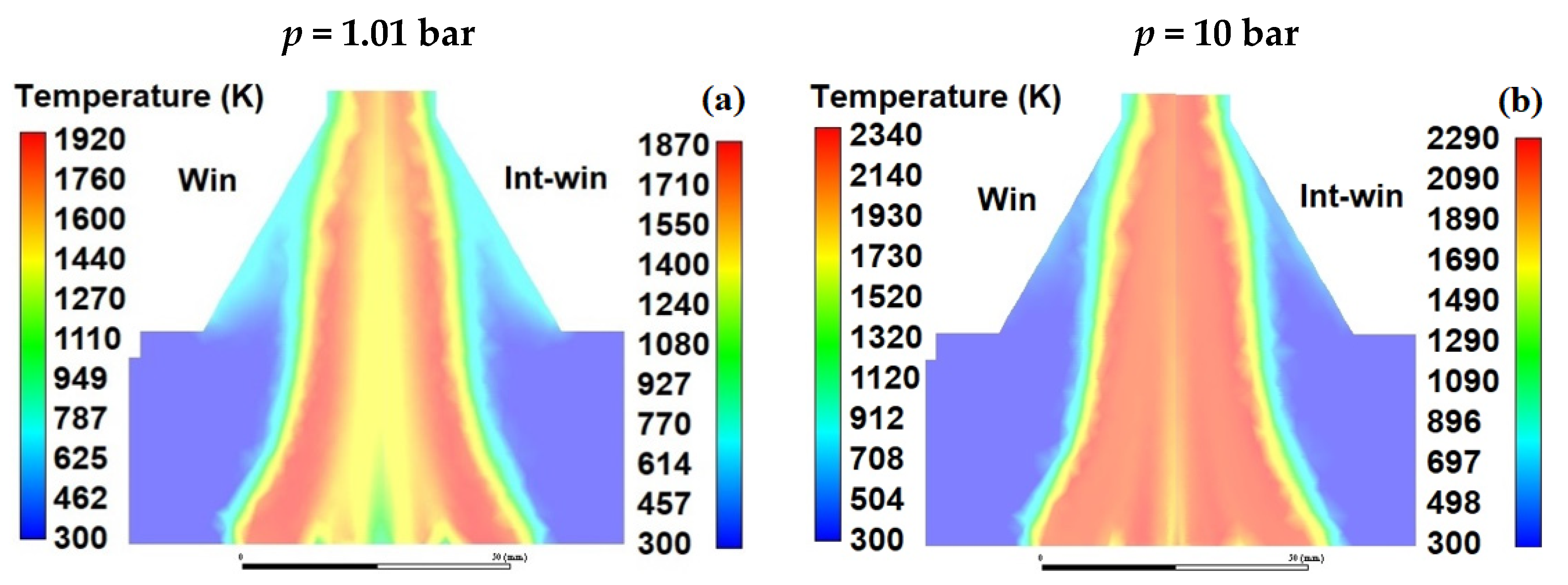

Figure 3. Temperature cross-sectional distributions (K) along window (Win) and inter-window (Int-win) axes of burner of premixed flame C2H4/air ϕ = 1.77 at atmospheric pressure (a) and 10 bar (b).
Figure 3. Temperature cross-sectional distributions (K) along window (Win) and inter-window (Int-win) axes of burner of premixed flame C2H4/air ϕ = 1.77 at atmospheric pressure (a) and 10 bar (b).
Reactions 04 00009 g003

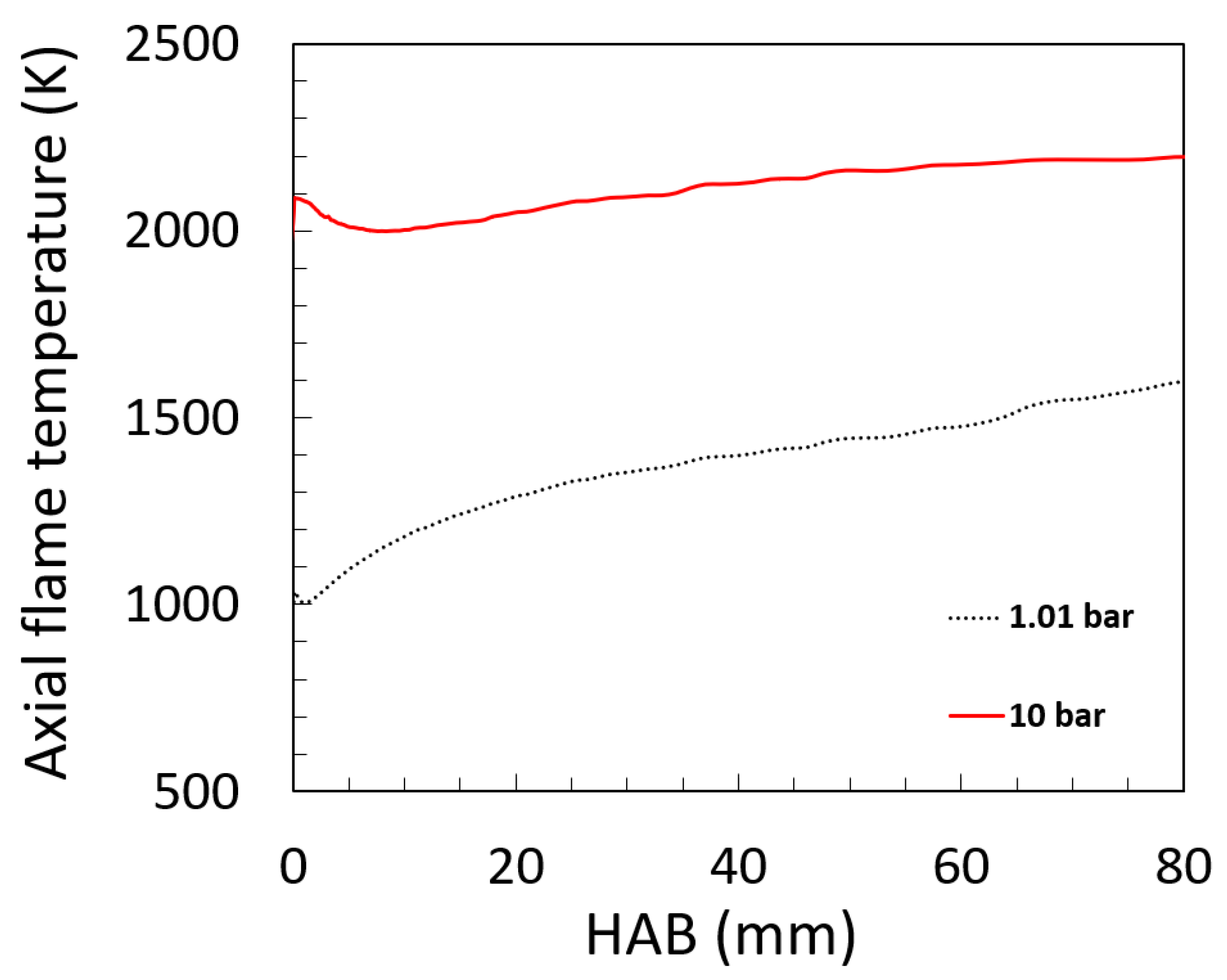

Figure 4. Centerline flame temperature (K) in function of HAB (mm) of premixed flame C2H4/air ϕ = 1.77 at atmospheric pressure (dotted line) and 10 bar (solid line).
Figure 4. Centerline flame temperature (K) in function of HAB (mm) of premixed flame C2H4/air ϕ = 1.77 at atmospheric pressure (dotted line) and 10 bar (solid line).
Reactions 04 00009 g004

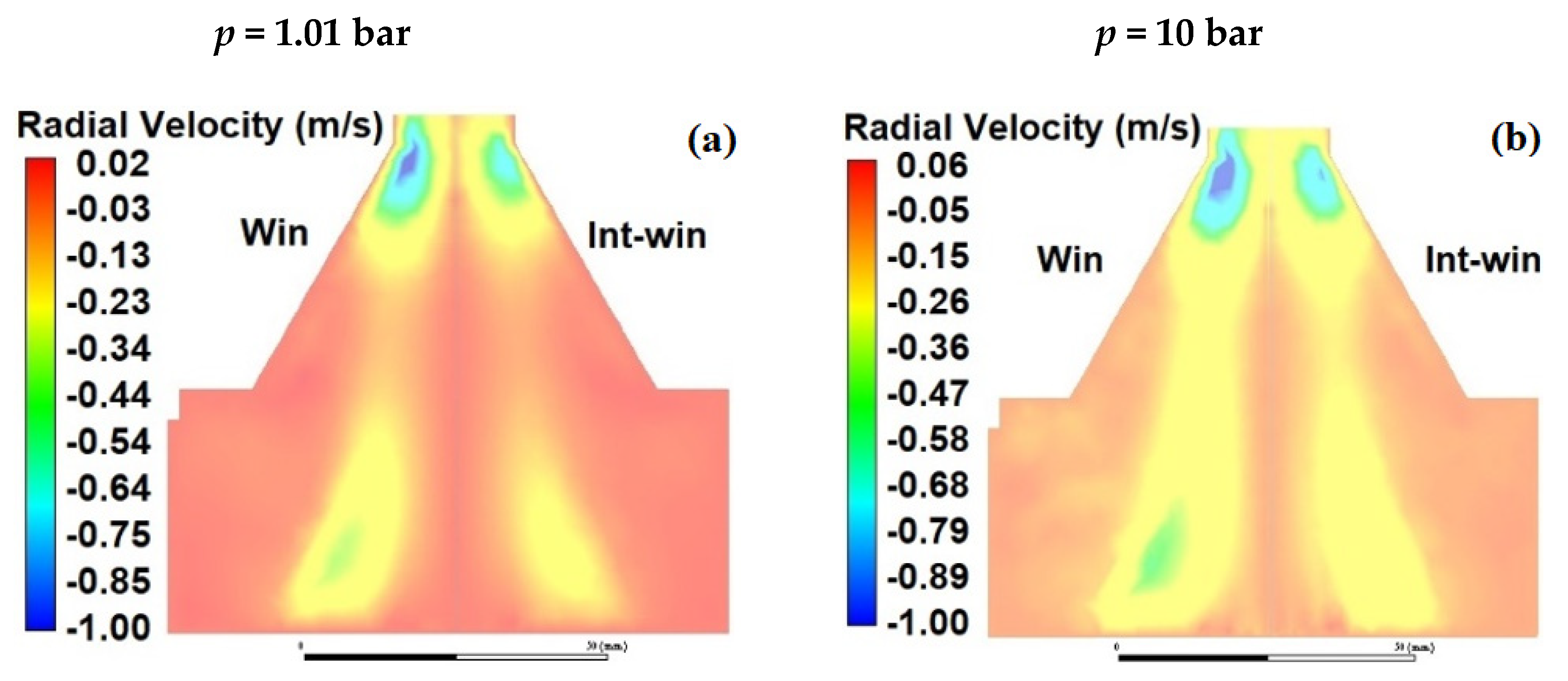

Figure 5. Cross-sectional distribution of radial flow velocity (m/s) along window and inter-window axes of burner of premixed flame C2H4/air ϕ = 1.77 at atmospheric pressure (a) and 10 bar (b).
Figure 5. Cross-sectional distribution of radial flow velocity (m/s) along window and inter-window axes of burner of premixed flame C2H4/air ϕ = 1.77 at atmospheric pressure (a) and 10 bar (b).
Reactions 04 00009 g005

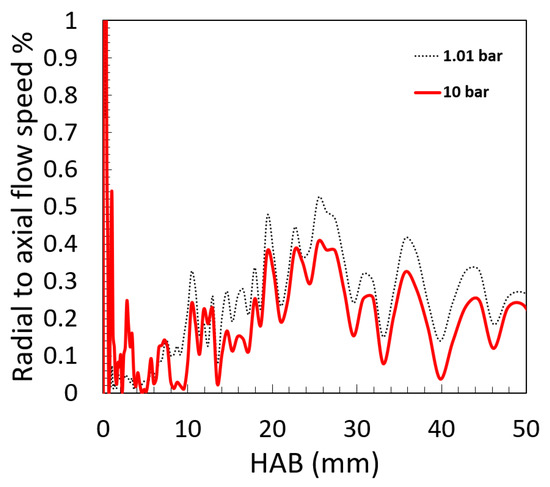

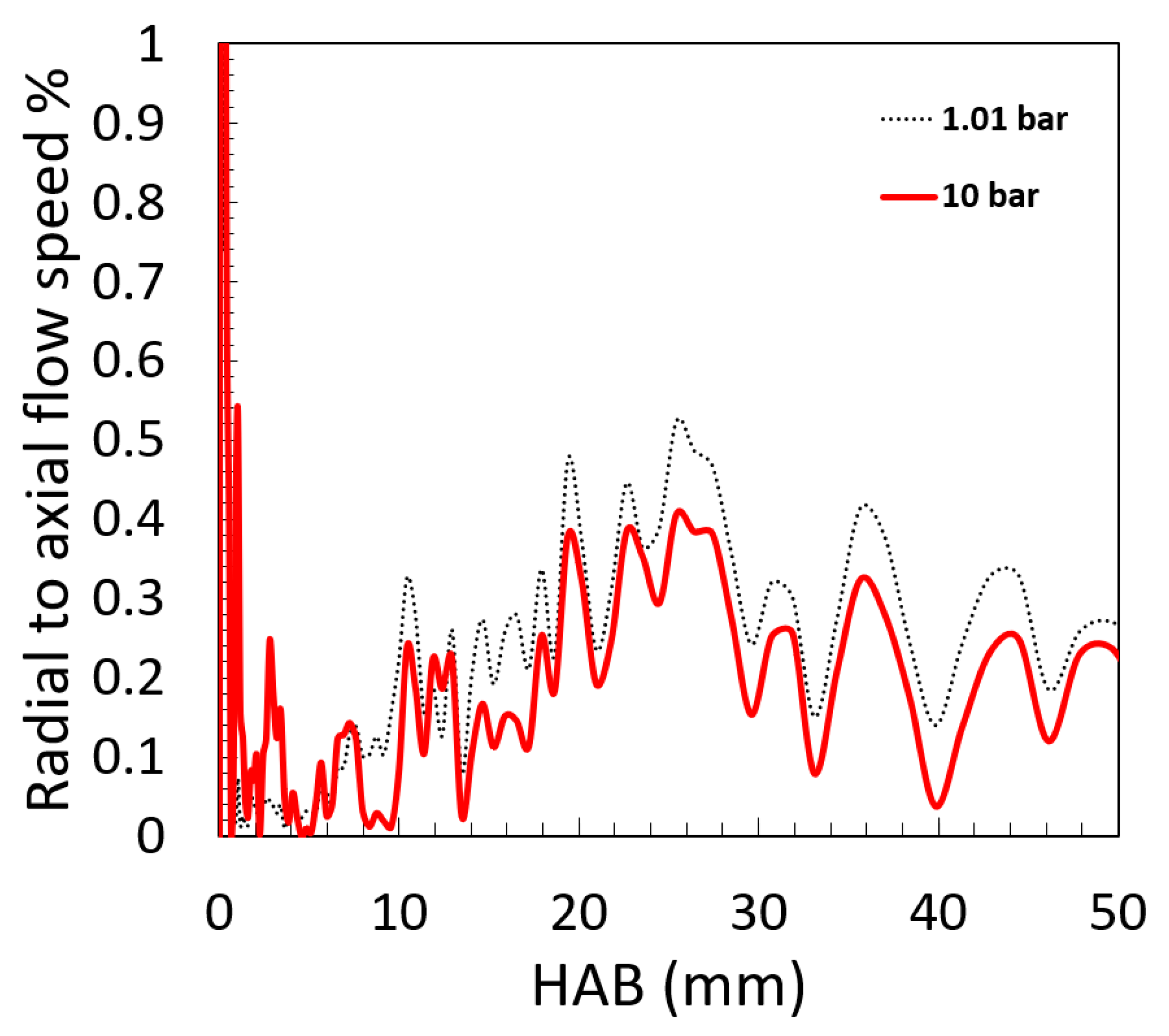

Figure 6. Percentage of radial to centerline flow speed at flame central axe in function of HAB (mm) of premixed flame C2H4/air ϕ = 1.77 at atmospheric pressure (dotted line) and 10 bar (solid line).
Figure 6. Percentage of radial to centerline flow speed at flame central axe in function of HAB (mm) of premixed flame C2H4/air ϕ = 1.77 at atmospheric pressure (dotted line) and 10 bar (solid line).
Reactions 04 00009 g006

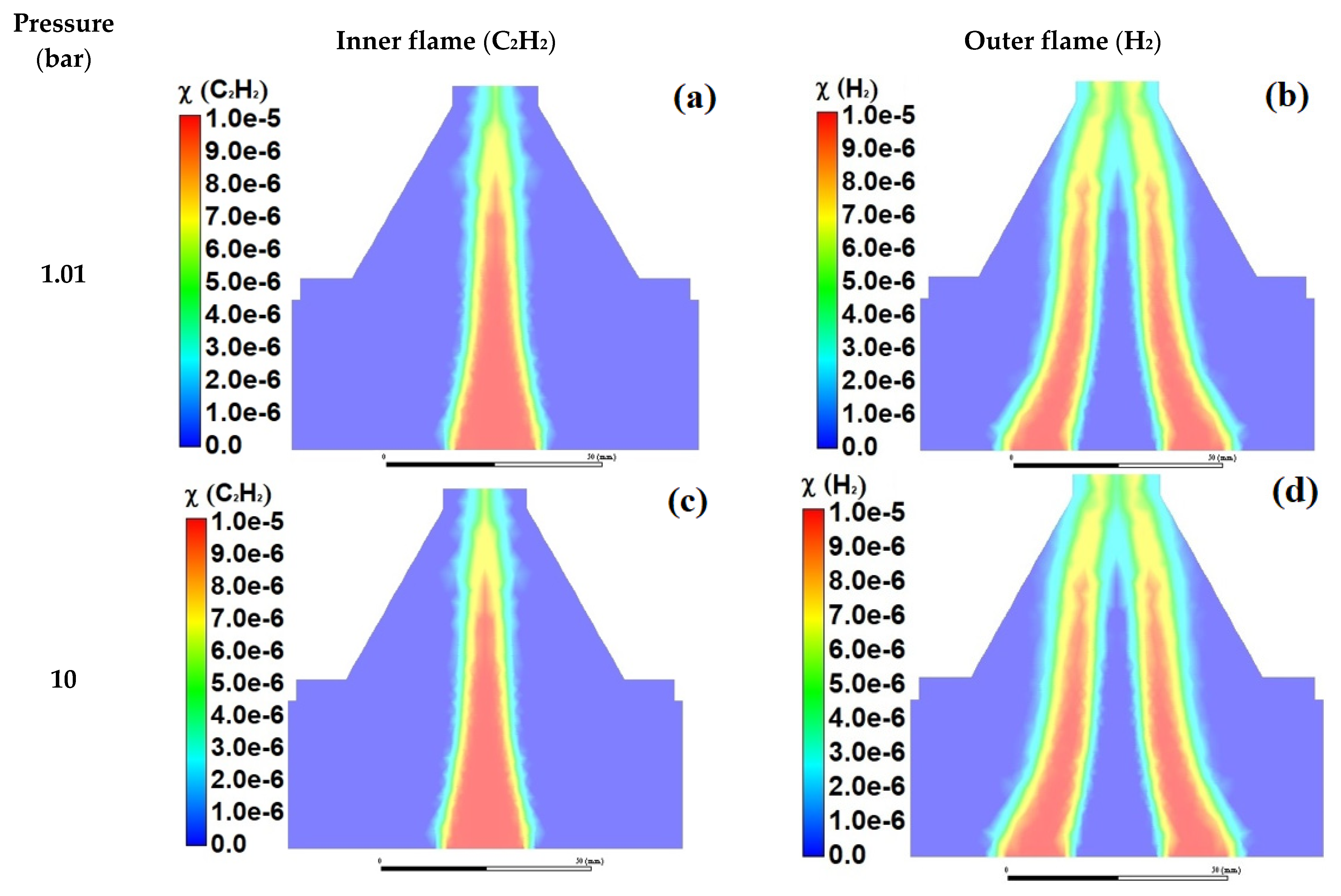

Figure 7. Cross-sectional distribution of H2 and C2H2 tracer gases (mole fraction) in inner and outer premixed flames of C2H4/air ϕ = 1.77 and CH4/air ϕ = 1.2, respectively, at atmospheric pressure (a,b) and 10 bar (c,d).
Figure 7. Cross-sectional distribution of H2 and C2H2 tracer gases (mole fraction) in inner and outer premixed flames of C2H4/air ϕ = 1.77 and CH4/air ϕ = 1.2, respectively, at atmospheric pressure (a,b) and 10 bar (c,d).
Reactions 04 00009 g007

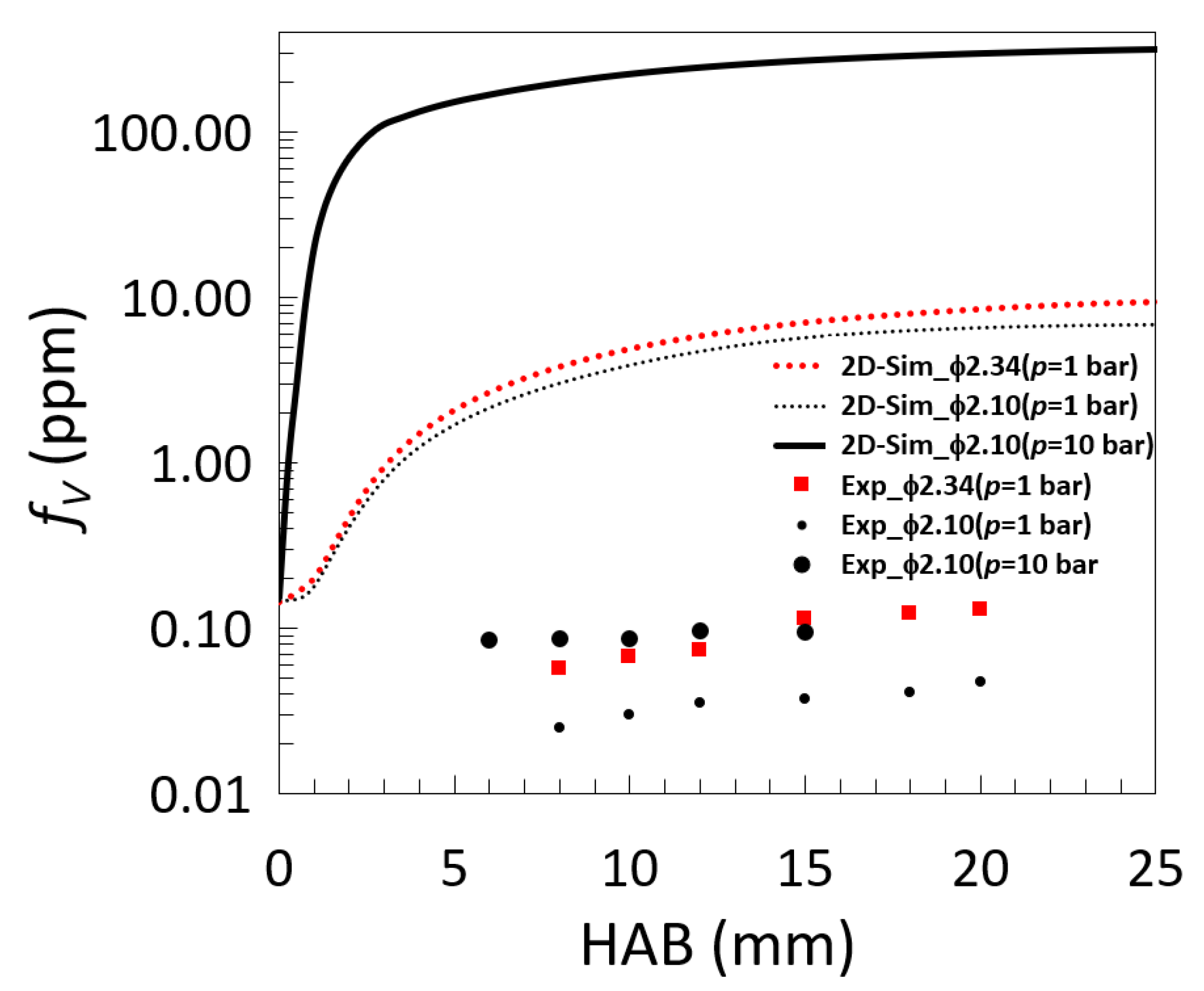

Figure 8. Comparison between the measured centerline fV (ppm) profiles [6] (symbols) and the 2D simulated ones (lines) of C2H4/air flames at p = 1.01 (dotted lines) and 10 (solid line) bar for ϕ = 2.1 (in black) and at p = 1.01 bar for ϕ = 2.34 (in red).
Figure 8. Comparison between the measured centerline fV (ppm) profiles [6] (symbols) and the 2D simulated ones (lines) of C2H4/air flames at p = 1.01 (dotted lines) and 10 (solid line) bar for ϕ = 2.1 (in black) and at p = 1.01 bar for ϕ = 2.34 (in red).
Reactions 04 00009 g008

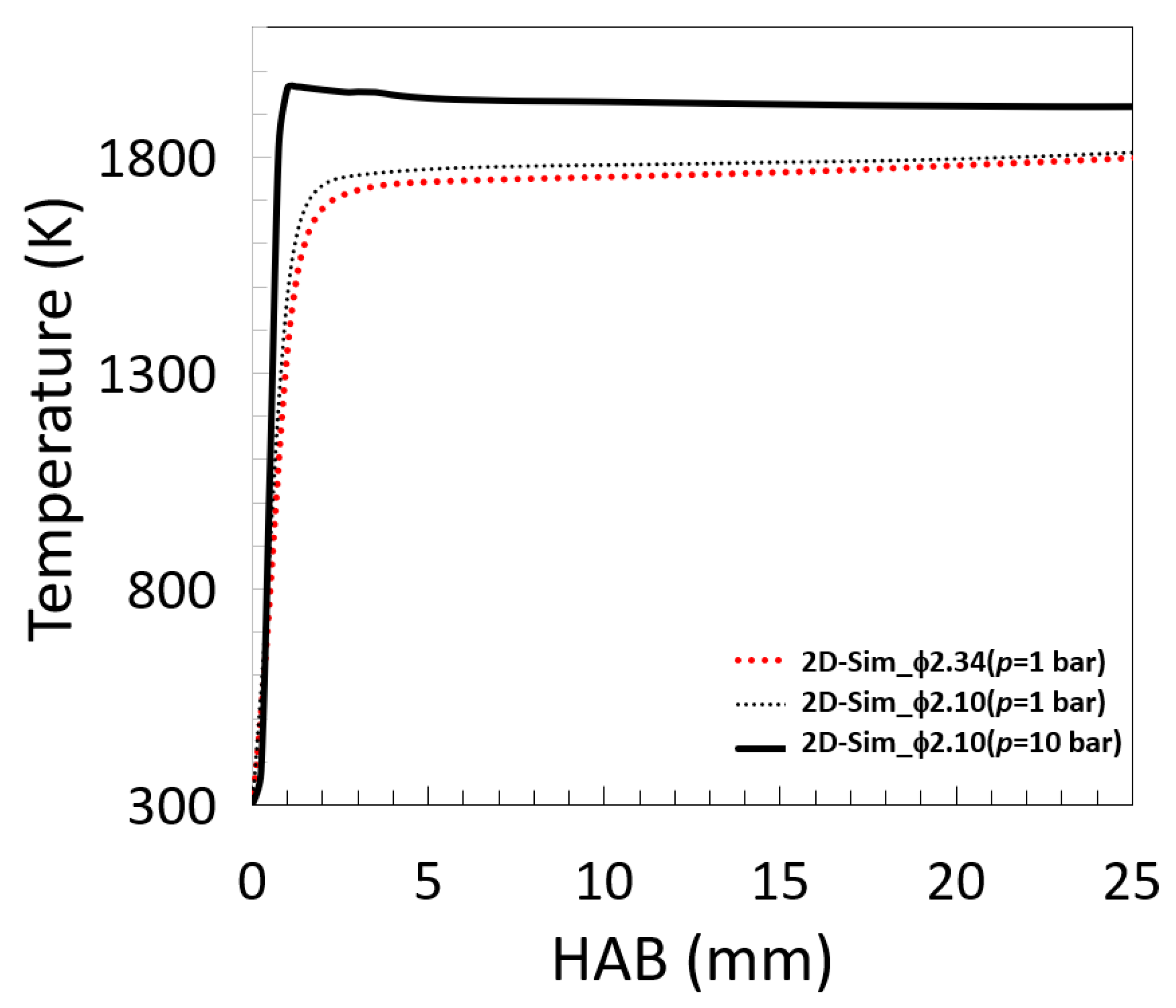

Figure 9. Predicted centerline flame temperature (K) by 2D simulation of C2H4/air flames at p = 1.01 (dotted lines) and 10 (solid line) bar for ϕ = 2.1 (in black) and at p = 1.01 bar for ϕ = 2.34 (in red).
Figure 9. Predicted centerline flame temperature (K) by 2D simulation of C2H4/air flames at p = 1.01 (dotted lines) and 10 (solid line) bar for ϕ = 2.1 (in black) and at p = 1.01 bar for ϕ = 2.34 (in red).
Reactions 04 00009 g009

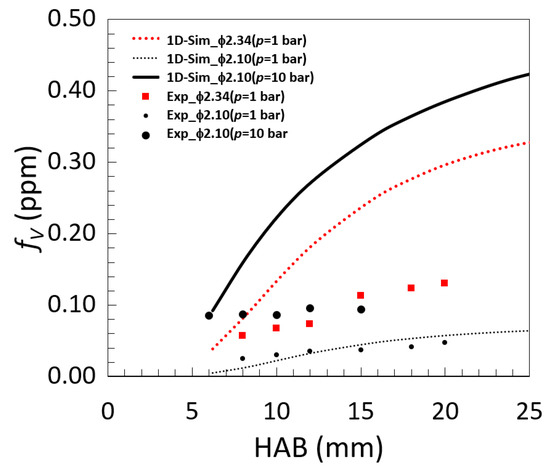

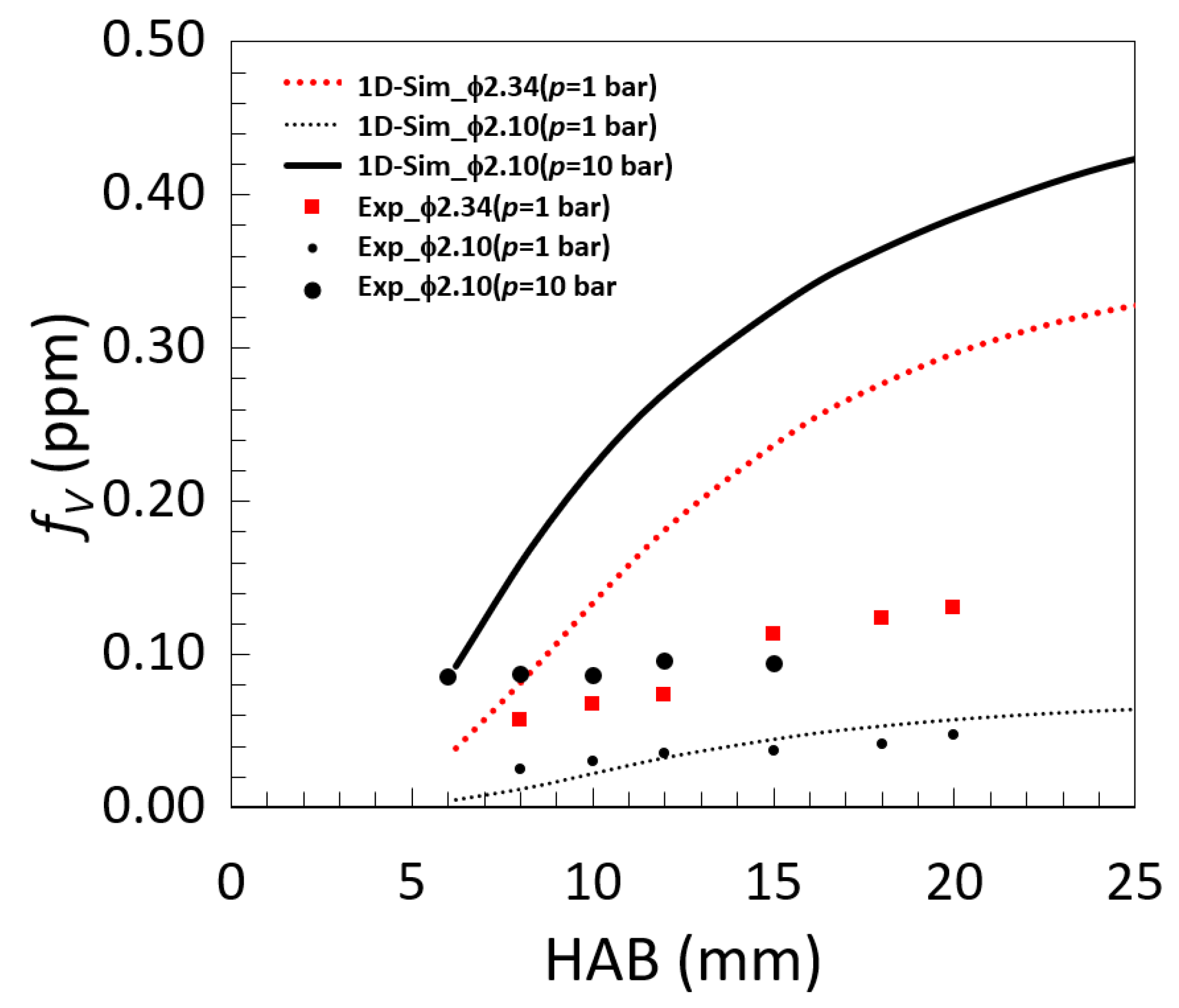

Figure 10. Comparison between the measured centerline fV (ppm) profiles [6] (symbols) and the 1D simulated ones (lines) of C2H4/air flames at p = 1.01 (dotted lines) and 10 (solid line) bar for ϕ = 2.1 (in black) and at p = 1.01 bar for ϕ = 2.34 (in red).
Figure 10. Comparison between the measured centerline fV (ppm) profiles [6] (symbols) and the 1D simulated ones (lines) of C2H4/air flames at p = 1.01 (dotted lines) and 10 (solid line) bar for ϕ = 2.1 (in black) and at p = 1.01 bar for ϕ = 2.34 (in red).
Reactions 04 00009 g010

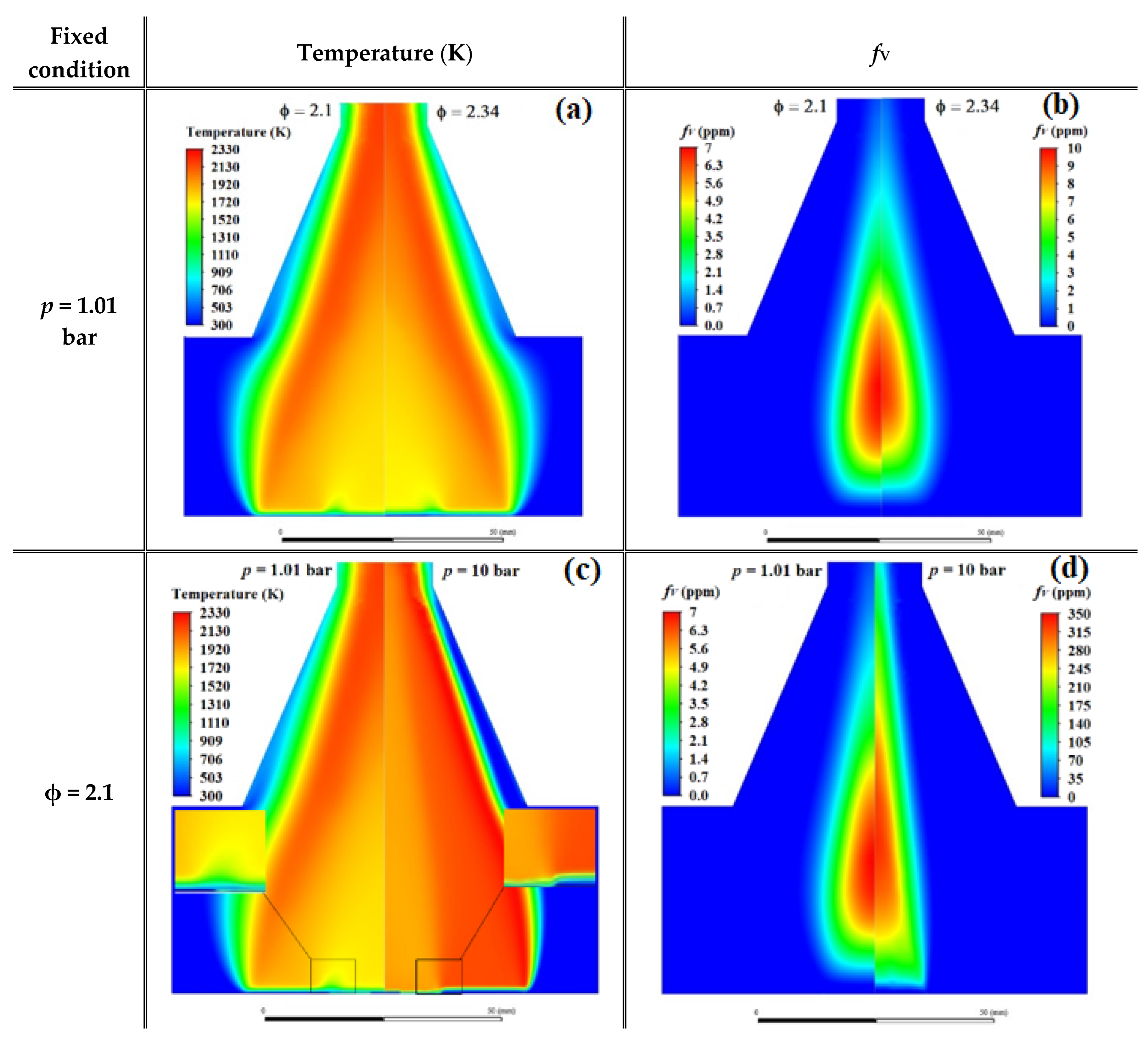

Figure 11. Temperature (K) and fV (ppm) cross-sectional distributions of premixed flames C2H4/air ϕ = 2.1 and 2.34 of matrix diameter 20 mm shielded by a non-sooting flame of CH4/air ϕ = 1.2 at p = 1.01 and 10 bar.
Figure 11. Temperature (K) and fV (ppm) cross-sectional distributions of premixed flames C2H4/air ϕ = 2.1 and 2.34 of matrix diameter 20 mm shielded by a non-sooting flame of CH4/air ϕ = 1.2 at p = 1.01 and 10 bar.
Reactions 04 00009 g011

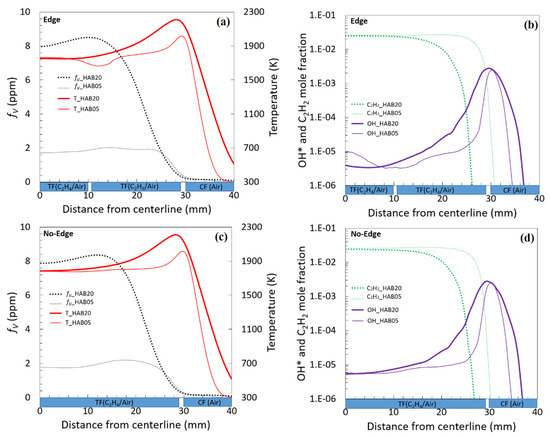

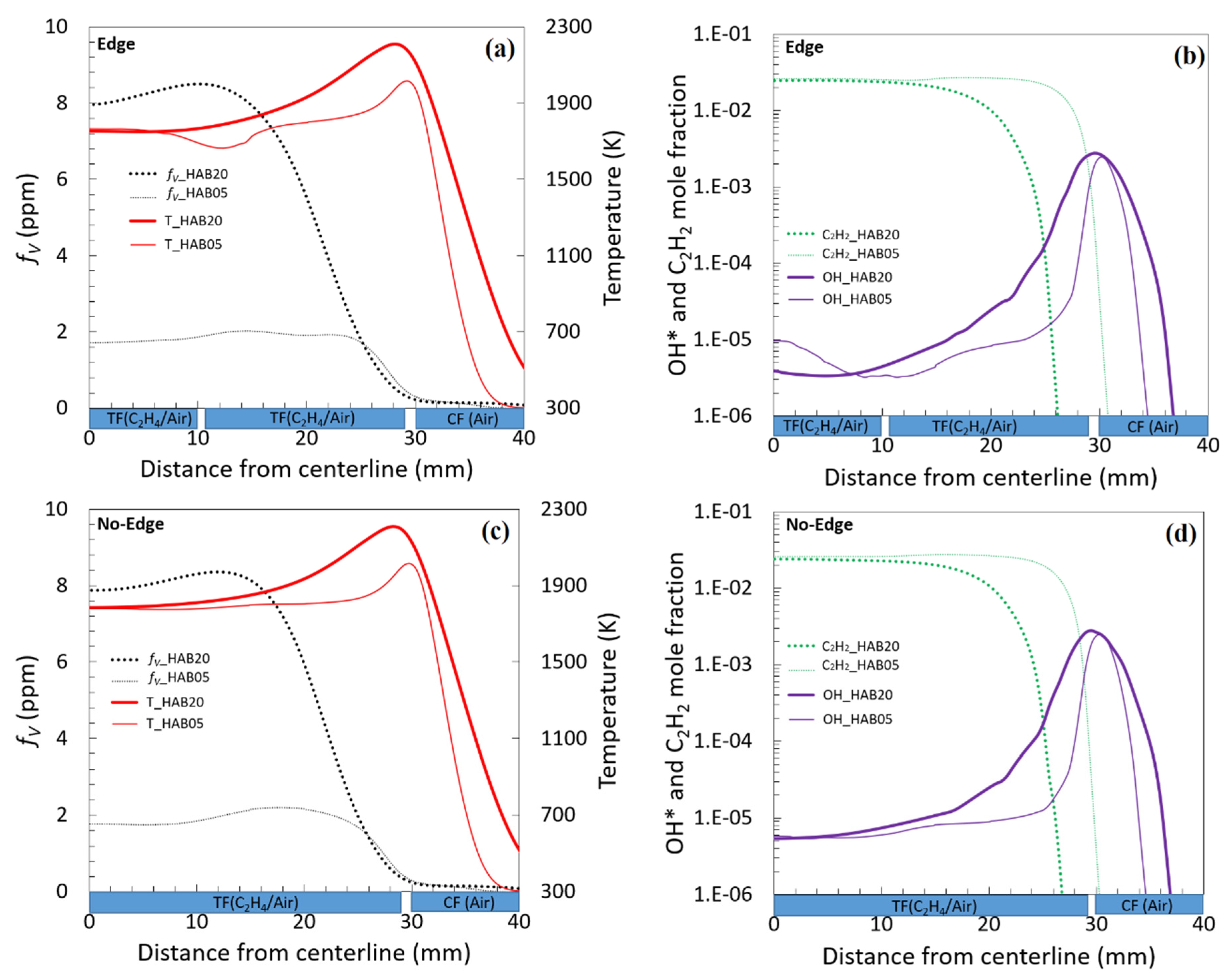

Figure 12. Predicted radial temperature in K (red solid lines), fV in ppm (black dotted lines), and mole fraction of OH radical (violet solid lines) and C2H2 (green dotted lines) as a function of HAB (mm) of the atmospheric target flame C2H4/air ϕ = 2.1 of matrix diameter 56 mm with (a,b) and without EIM (c,d) at HAB 5 (thin lines) and 20 (thick lines) mm.
Figure 12. Predicted radial temperature in K (red solid lines), fV in ppm (black dotted lines), and mole fraction of OH radical (violet solid lines) and C2H2 (green dotted lines) as a function of HAB (mm) of the atmospheric target flame C2H4/air ϕ = 2.1 of matrix diameter 56 mm with (a,b) and without EIM (c,d) at HAB 5 (thin lines) and 20 (thick lines) mm.
Reactions 04 00009 g012

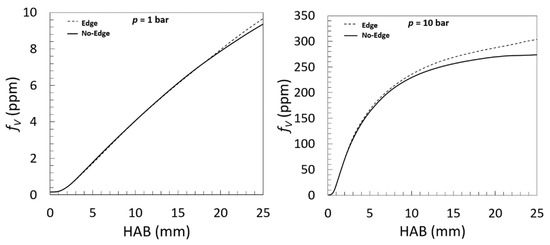

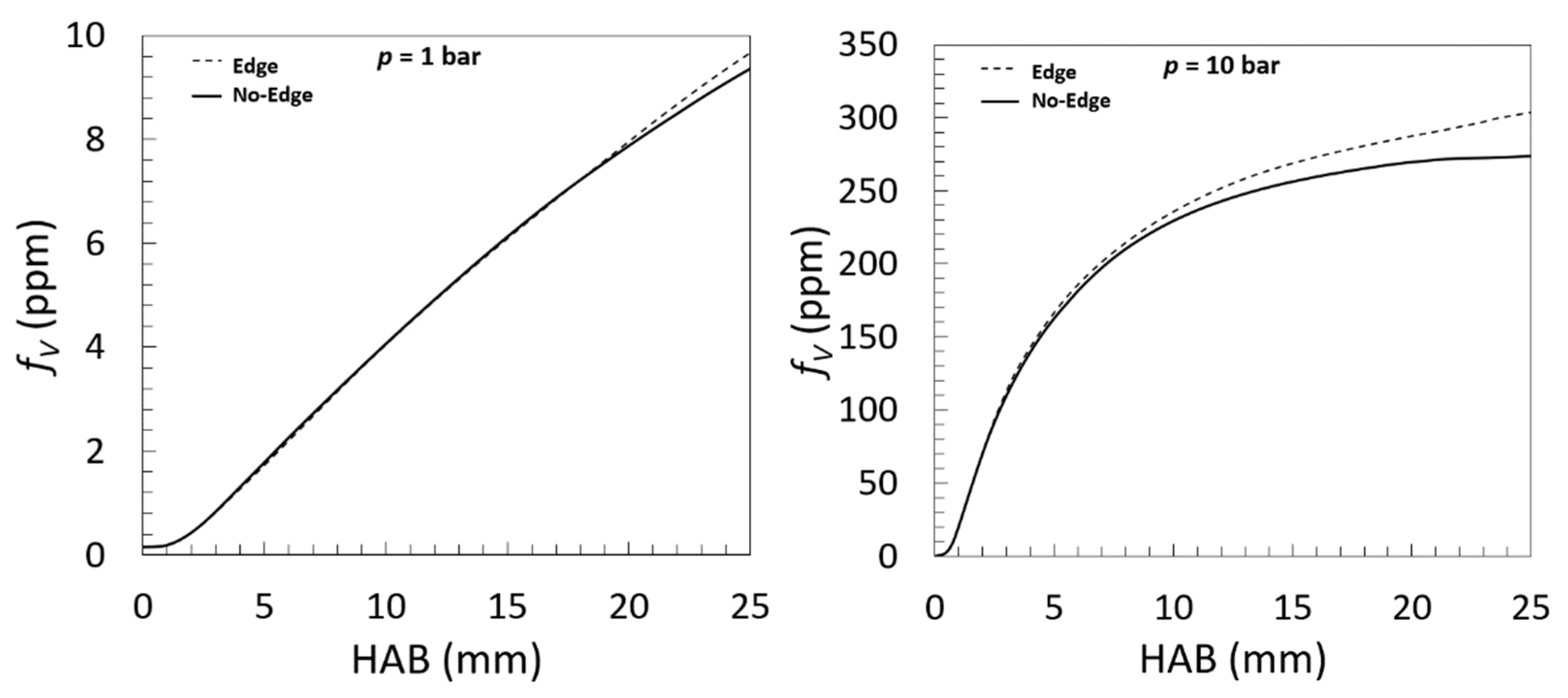

Figure 13. Predicted centerline fV (ppm) in function of HAB (mm) by 2D simulation at p = 1.01 and 10 bar of premixed flame C2H4/air ϕ = 2.1 of matrix diameter 56 mm with (dotted lines) and without edge (solid lines).
Figure 13. Predicted centerline fV (ppm) in function of HAB (mm) by 2D simulation at p = 1.01 and 10 bar of premixed flame C2H4/air ϕ = 2.1 of matrix diameter 56 mm with (dotted lines) and without edge (solid lines).
Reactions 04 00009 g013

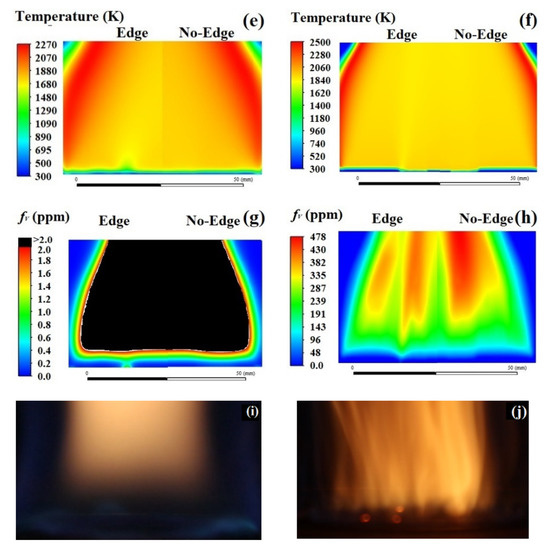

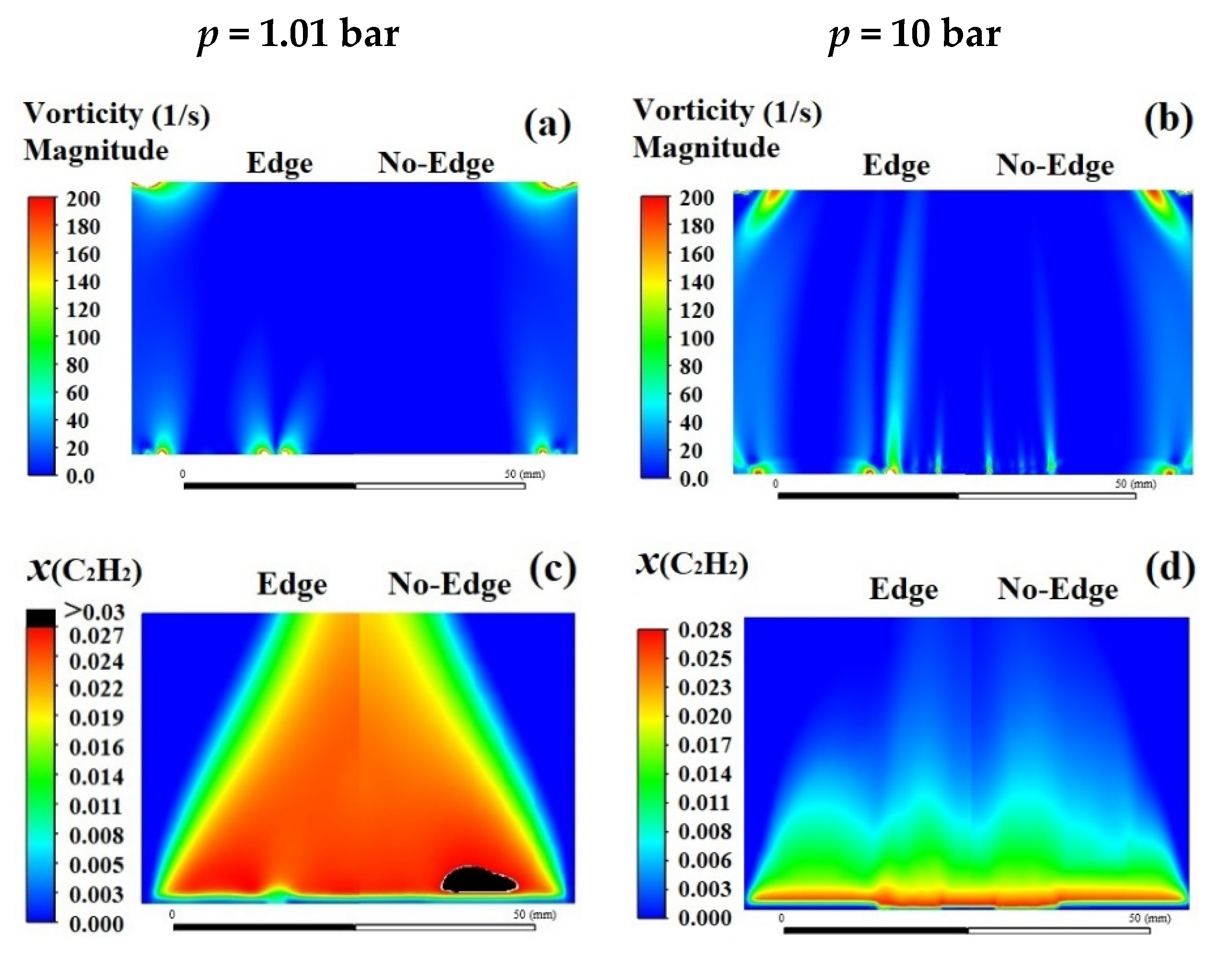

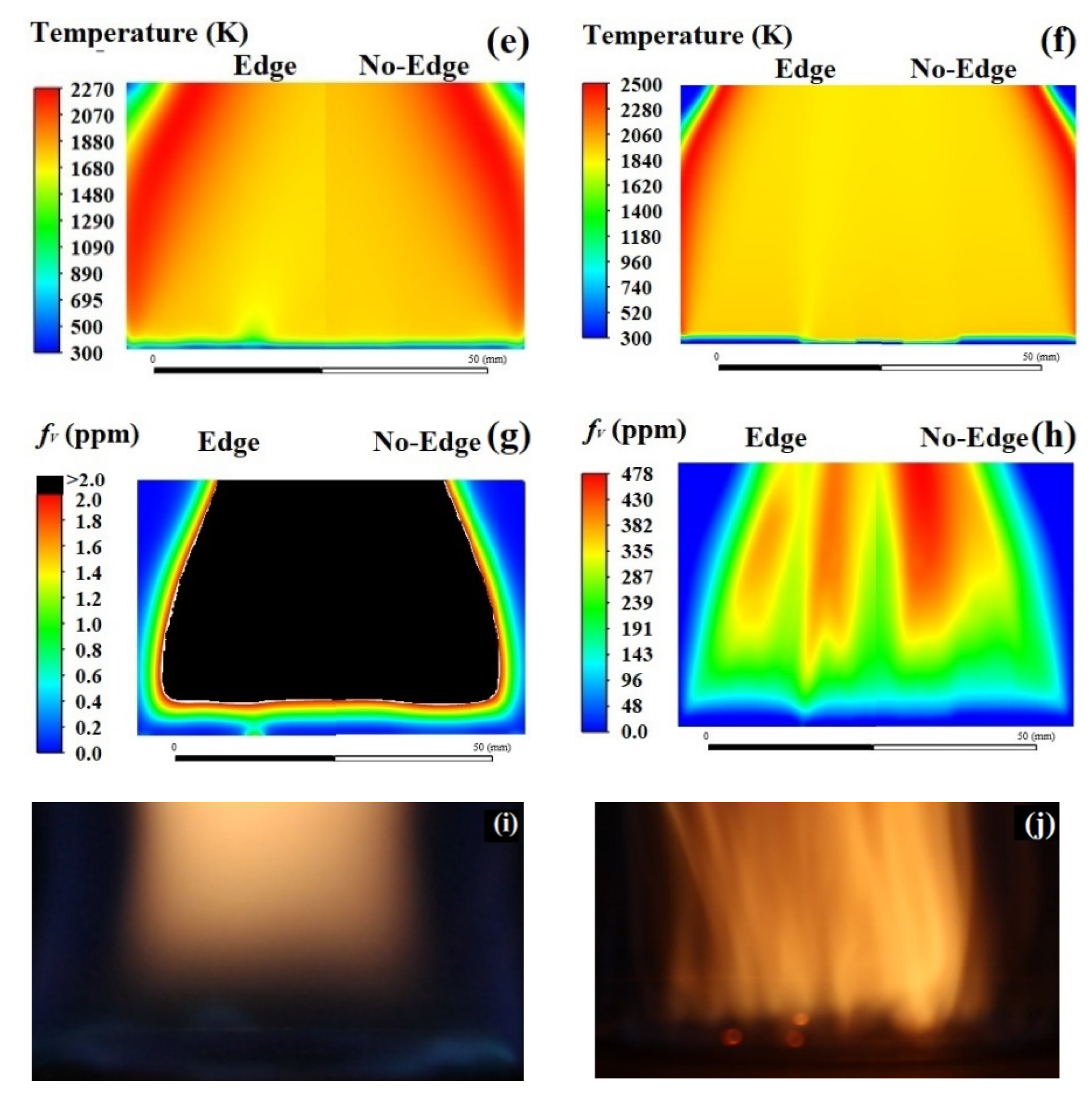

Figure 14. Cross-sectional distributions of vorticity magnitude, acetylene mole fraction, fV (ppm), and gas temperature (K) of the target flame C2H4/air ϕ = 2.1 of diameter 56 mm with and without edge, and photos of the same target flame but with diameter of 20 mm shielded by a non-sooting flame of CH4/air ϕ = 1.2 at p = 1.01 and 10 bar.
