Photocatalytic Degradation Pathways of the Valsartan Drug by TiO₂ and g-C₃N₄ Catalysts

Abstract

The photocatalytic degradation of the valsartan (VLS) pharmaceutical using TiO₂ and g-C₃N₄ catalysts under simulated solar light is studied in this paper by high-resolution Orbitrap mass spectrometry. ^•OH radicals were the major oxidant species for the degradation of valsartan using TiO₂, while positive holes (h⁺), followed by a much lesser amount of ^•OH radicals, were the major species in the case of g-C₃N₄. Valsartan degradation followed first order kinetics by both catalysts with TiO₂ being the catalyst with the better photocatalytic efficiency. The transformation products (TPs) and their evolution profiles are identified and monitored, respectively, by means of LC-HRMS. Based on TPs identification, the degradation mechanisms are discussed. The major degradation pathways for g-C₃N₄ include decarboxylation and subsequent oxidation, hydroxylation, and cleavage of C–N bond, while for TiO₂ cyclization, TPs are abundant and the hydroxylation occurs in the first stage products. The study highlights the complex nature of TPs formed during such processes, the different mechanisms involved and the necessity for the identification of TPs for the assessment of the treatment and the tracking of such TPs in different environmental compartments.

1. Introduction

During the last few years, the studies on the fate and transformation of pharmaceutical compounds are gaining scientific attention because of their continuous occurrence and increasing concentrations in different types of water, such as wastewater, surface water, ground water and even drinking water [1,2,3,4,5]. Valsartan (VAL) is an Angiotensin II receptor antagonist belonging to the commonest antihypertensive drugs [6,7]. As a result, high concentration levels of VAL in different types of water have been reported in several previous studies around the world. As example, the median and maximum concentration of VAL in surface waters from 33 European countries was 1507 and 7479 ng/L, respectively [8]. In addition, according to the studies of Castro et al. [9] and Peña Guzman et al. [10], maximum concentrations of VAL observed in wastewaters for Spain and 11 countries of Latin America were 9986 ng/L and 1900 ng/L, respectively. Finally, the presence of Valsartan in raw, secondary treated wastewaters and surface waters has been previously reported in our previous studies [11,12].

Because of this widespread occurrence of pharmaceutical residues, such as VLS, in different systems and the possible adverse effects that can exert in different organisms, advanced treatment technologies should be applied for environmental protection. Advanced oxidation processes (AOPs) have earned the attention because they can degrade/mineralize biorecalcitrant pollutants in short times. In addition, they can be applied to simulate oxidation processes in environmental media. Semiconductor photocatalysis is one of the most studied processes among AOPs with TiO₂ being by far the most studied catalyst because of its chemical and photochemical stability, low cost and high photocatalytic performance. However, the photocatalytic activity of TiO₂ using solar light is limited, because of its band gap (3.0–3.2 eV) [13,14]. g-C₃N₄, an alternative and promising polymeric semiconductor photocatalyst with visible light response (band gap 2.7 eV), has gained attention in recent years. This metal-free catalyst with a two-dimensional (2D) nanostructure demonstrates high thermal (up to 600 °C, in air) and chemical stability in acidic and basic media due to its s-triazinic structure, while it is insoluble in common solvents (ethanol, DMF, water) [15,16].

To date, very few studies performed lately deals with valsartan degradation in aqueous matrices by AOPs, i.e., by persulfate activation via sulfate radicals [17], photo-electro-Fenton [18], sonochemical degradation [19] and ozonation [20]. Some of these studies focused on the process parameters, while few data on the identification of degradation products are available. As a result, there is a lack of data concerning the heterogeneous semiconductor photocatalytic degradation of VLS in aquatic media.

Based on the above, the photocatalytic degradation of VAL by TiO₂ (P25) and graphitic carbon nitride (g-C₃N₄) catalysts in aqueous suspensions is studied in the present study. The particular aims of the present work are: (a) the application of heterogeneous photocatalysis using TiO₂ and g-C₃N₄ under simulated solar light for the removal of valsartan residues from water matrices, a topic that has not been investigated to date; (b) The identification of transformation products via the powerful instrumentation of ultra-performance liquid chromatography combined with high resolution and accurate mass linear ion trap-orbitrap mass spectrometer (UPLC—LIT–Orbitrap-MS); (c) the elucidation of transformation pathways by two different oxidant species, ^•OH radicals and positive holes (h⁺).

2. Results and Discussion

2.1. Preliminary Experiments

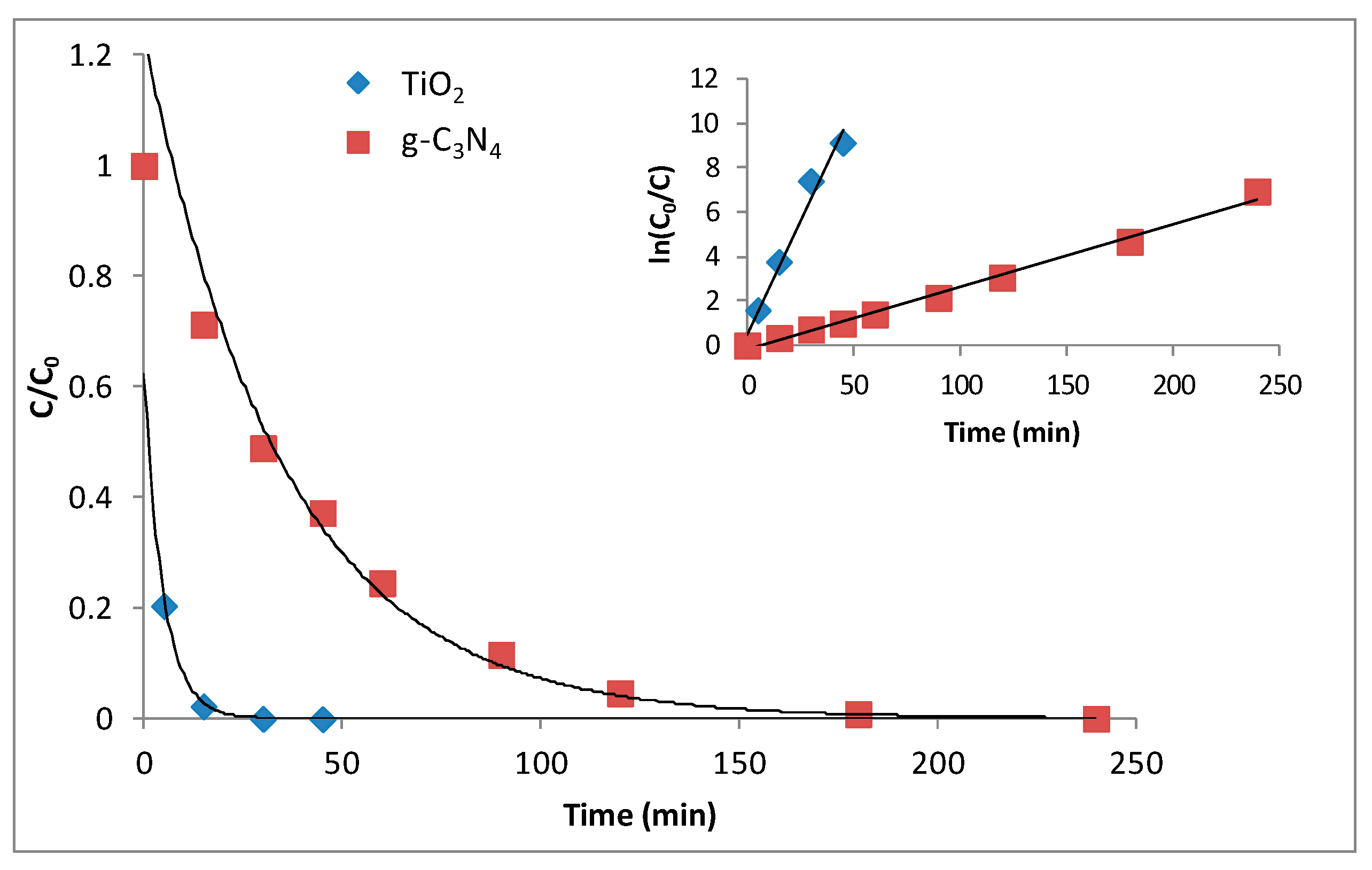

Valsartan photocatalytic degradation kinetics using TiO₂ and g-C₃N₄ catalysts are presented in Figure 1, while the linear transformation plot (natural logarithm of normalized concentration against irradiation time) is shown in the figure inset. Pseudo-first order kinetics were observed in both TiO₂ and g-C₃N₄ cases (R² > 0.979 and R² > 0.9927) with 0.205 min⁻¹ and 0.028 min⁻¹ being the corresponding reaction rate constants. The degradation of valsartan in the dark followed very slow kinetics (k = 0.0003 min⁻¹), while photolysis (k = 0.0059 min⁻¹) under the same irradiation conditions was also a much slower process than photocatalysis.

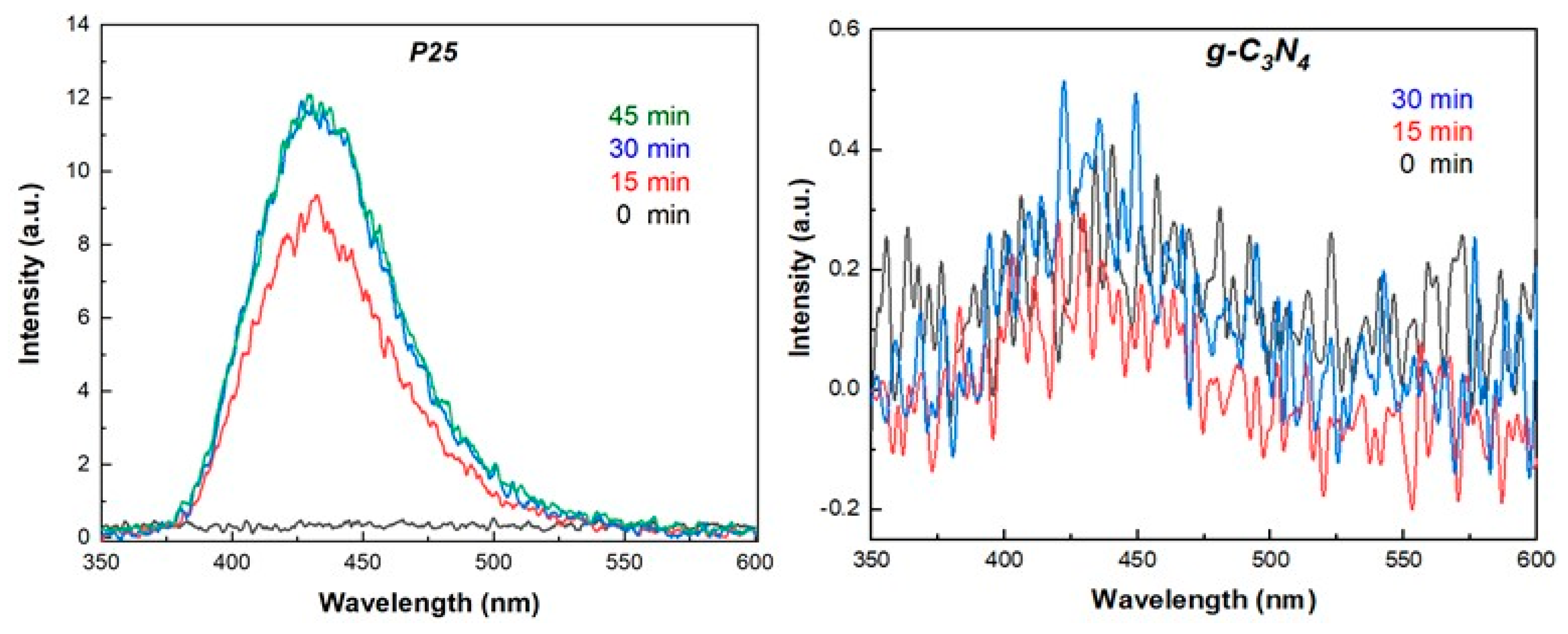

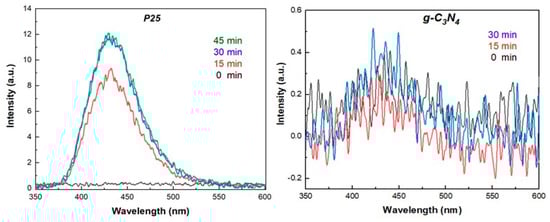

The concentrations of ^•OH radicals generated by TiO₂ and g-C₃N₄ catalysts, as determined by the hydroxy-terephthalic acid fluorescence method (Figure 2), were 22.4 μΜ and 0.32 μΜ, respectively. The above results are consistent with the catalysts conduction band energy levels, showing that TiO₂ photocatalytic degradation proceeded mainly through the generation of hydroxyl radicals, while g-C₃N₄ photocatalytic degradation proceed mainly through the positive holes and only a small amount of ^•OH radicals was formed, probably through the oxygen reduction pathway with the sequential formation of superoxide radical anion, hydrogen peroxide and finally ^•OH radicals. E_VB and E_CB of g-C₃N₄ were calculated at 1.58 eV and −1.24 eV, respectively while the OH^-/^•OH and O₂/O₂^•− potentials are 2.4 and −0.33 eV, respectively.

2.2. Photocatalytic Transformation Products and Pathways of Valsartan by UV-Vis/g-C₃N₄ Process

LC–HRMS identification data of VLS TPs by g-C₃N₄ photocatalysis are summarized in

Table 1. UPLC-ESI-HR-MS data (pseudo-molecular ions (M + H)⁺ or (M − H)⁻ */(M + Na)⁺; chemical formula; mass error Δ(ppm); and ring-double\bond equivalents, RDB) for VLS and transformation products by g-C₃N₄ photocatalytic oxidation.

VLS/TPs	(M + H)+/(M + Na)+ (M − H)−*	Formula	Δ(ppm)	RDB
VLS	436.2336 458.2145	C24H30O3N5 C24H29O3N5Na	−1.619	12.5
GCN-TP1	392.2437 414.2253	C23H30ON5 C23H29ON5Na	−2.083	11.5
GCN-TP2	406.2227 428.2045	C23H28O2N5 C23H27O2N5Na	−2.712	12.5
GCN-TP3	450.2148 *	C24H28O4N5	2.664	13.5
GCN-TP4	450.2144 *	C24H28O4N5	−0.506	13.5
GCN-TP5	364.1759 386.1574	C20H22O2N5 C20H21O2N5Na	−2.475	12.5
GCN-TP6	336.1810 358.1628	C19H22ON5 C19H21ON5Na	−2.727	11.5
GCN-TP7	356.1341 378.1161	C17H18O4N5 C17H17O4N5Na	−3.483	11.5
GCN-TP8	267.0868 289.0685	C14H11O2N4 C14H10O2N4Na	−3.228	11.5
GCN-TP9	400.1238 422.1057	C18H18O6N5 C18H17O6N5Na	−3.523	12.5
GCN-TP10	202.1433 224.1249	C10H20O3N C10H19O3NNa	−2.523	1.5

. Firstly, the parent compound (VLS) and sodium adduct [M + Na]⁺ were observed at m/z 436.2336 (C₂₄H₃₀O₃N₅⁺) and 458.2145 (C₂₄H₂₉O₃N₅Na⁺), respectively, while MS² and MS³ fragments are closely identical to those reported elsewhere [18]. In addition, VLS showed also a pseudo-molecular ion [M-H]⁻ at m/z 434.2194 (C₂₄H₂₈O₃N₅) in the negative ionization mode due to the presence of the carboxylic acid functional group. The screening of TPs performed under negative ESI ionization can be used as an indicative tool for the presence of the carboxylic acid group in the structure of TPs.

Positive holes (h⁺) react principally with the electron-rich moieties of organic substances via electron transfer [21]. In the case of valsartan, such electron-rich functional group sites are the phenyl and tetrazole moieties as well as the carboxylic acid and tertiary amine groups. TP1, with [M + H]⁺/[M + Na]⁺ at m/z 392.22437/414.2253, respectively, differs 44 amu less than the parent drug and the matching chemical formula (C₂₃H₃₀ON₅⁺) indicates clearly the loss of CO₂ group. The formation of TP1 can be rationalized through a photo-Kolbe decarboxylation according to the following equation:

RCOO⁻ + h⁺ → R^• + CO₂

(1)

TP2 with [M + H]⁺ at m/z 406.2227 and a chemical formula C₂₃H₃₀ON₅⁺, having a difference of 14 amu from TP1, was assigned to a ketone derivative. In addition, TP5 with [M + H]⁺ at m/z 364.1759 and a chemical formula C₂₀H₂₂O₂N₅⁺ presented characteristic MS²/MS³ fragments that showed that the biphenyl-tetrazole and valeryl groups were intact. Similarly, TP6 with [M + H]⁺ at m/z 336.1810 and a chemical formula C₁₉H₂₂ON₅⁺ was assigned to N-((2′-(1H-tetrazol-5-yl)biphenyl-4-yl)methyl) pentanamide. The alkyl radical formed after decarboxylation can react rapidly with molecular oxygen, leading to the formation of peroxy radical. Peroxy radicals are disproportionate to alcohols and ketones via the Russell and/or Bennet–Summers mechanisms [22], but also form alkoxy radicals that lead to aldehyde, as well as fragmentation to form new alkyl radicals [23]. The formation of TP2, TP5 and TP6 can be rationalized by the above-mentioned mechanisms. Based on the TPs profile (Figure 3), the peak concentrations of the above products were observed in the same time framework; thus, it can be considered that took place concurrently.

Alternatively, the attack of holes to phenyl moieties via the electron transfer mechanism may lead to the generation of an unstable carbon-centered cationic radical that is subsequently hydrolyzed to produce the corresponding hydroxy derivative, OH-VLS. In the same way, the attack to the tetrazole moiety can lead also to the formation of a hydroxy analogue. TP3 and TP4 with [M − H]⁻ at m/z 450.2148 and 450.2144, respectively, and a chemical formula C₂₄H₂₈O₄N₅⁻, differing 16 amu from VLS, were attributed to the hydroxy derivatives of VLS. Taking into account the MS²/MS³ characteristic fragments, the suggested hydroxylation position is on biphenyl or tetrazole ring. In a VAL sonochemical oxidation study, an ^•OH-based process, Serna-Galvis and co-workers [19] identified four hydroxy-TPs of VLS at phenyl, tetrazole and valeryl functional groups. The similar hydroxylation pathway may be applied for the first stage generated products leading to the formation of secondary TPs, such as TP9 and TP7 as justified also by their evolution profiles (Figure 3). TP7 presented [M + H]⁺ at m/z 356.1341 and C₁₇H₁₈O₄N₅⁺ chemical formula, while TP9 presented [M + H]⁺ at m/z 400.1238 and C₁₈H₁₈O₆N₅⁺ as a chemical formula.

One-electron oxidation of tertiary amine group yielding a nitrogen centered cation radical [24] can represent another degradation pathway. This intermediate cation radical is subsequently subjected to C–N cleavage to generate transformation products TP10 and TP8 with concurrent hydroxylation. TP10 presented [M + H]⁺ m/z 202.1433 (C₁₀H₂₀O₃N⁺), [M + Na]⁺ m/z 224.1249 (C₁₀H₁₉O₃NNa⁺), while TP8 presented [M + H]⁺ m/z 267.0868, C₁₄H₁₁O₂N₄⁺. TP10 has been also previously detected along photo-electro-Fenton degradation of VLS (Martínez-Pachón et al. 2018). No significant removal of TOC was observed in the presence of g-C₃N₄, which, in addition to the slower degradation rates of TPs, could be probably due to the partial dissolution or presence of g-C₃N₄ nanoparticles.

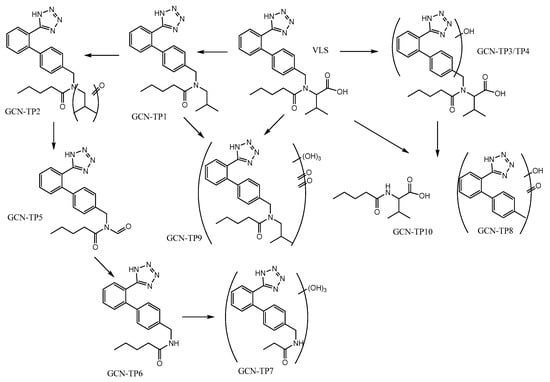

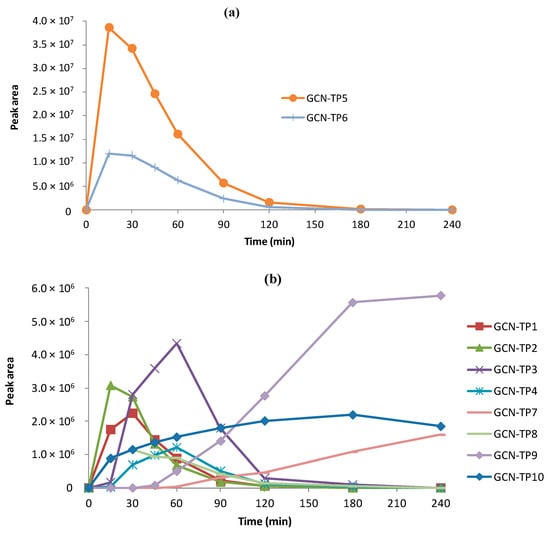

Based on the mass spectra maximum intensities, the formation of TPs followed the sequence TP5 > TP6 > TP9 > TP3 > TP2 > TP1 > TP10 ≥ TP7,TP8,TP4, while the time interval for the formation of maximum concentration followed the trend TP5, TP6, TP1, TP2 (15–30 min) < TP4,TP3 (60 min) < TP7, TP9, TP10 (180–240 min). As a result, decarboxylation and further oxidation can be regarded as the major path, while hydroxylation and C–N cleavage may be considered as secondary paths. Based on the identification of TPs, as described previously, as well as on the TPs evolution kinetics, the tentative transformation pathways are summarized in Figure 4. In conclusion, VLS degradation by the g-C₃N₄ photocatalytic oxidation process followed three major pathways (Figure 4): (a) decarboxylation with further oxidation; (b) biphenyl or tetrazole moiety hydroxylation; and (c) rupture of the C–N bond in the tertiary amine group.

2.3. Photocatalytic Transformation Products and Pathways of Valsartan by UV-Vis/TiO₂ Process

LC–HRMS data on the identification of VLS TPs by TiO₂ photocatalysis are summarized in

Table 2. UPLC-ESI(+)-HR-MS data (pseudo-molecular ions (M + H)⁺/(M + Na)⁺; chemical formula; mass error Δ(ppm); and ring-double bond equivalents, RDB) for VLS transformation products by TiO₂ photocatalytic oxidation.

TPs	(M + H)+/(M + Na)+	Formula	Δ(ppm)	RDB
T-TP1	406.2225 428.2044	C23H28O2N5 C23H27O2N5Na	−3.081	12.5
T-TP2	362.1599 384.1419	C20H20O2N5 C20H19O2N5Na	−3.345	13.5
T-TP3	364.1759 386.1575	C20H22O2N5 C20H21O2N5Na	−2.475	12.5
T-TP4	350.1600 372.1418	C19H20O2N5 C19H19O2N5Na	−3.374	12.5
T-TP5	380.1706 402.1523	C20H22O3N5 C20H21O3N5Na	−2.962	12.5
T-TP6	376.1392 398.1211	C20H18O3N5 C20H17O3N5Na	−3.180	14.5
T-TP7	336.1810 358.1629	C19H22ON5 C19H21ON5Na	−2.727	11.5
T-TP8	378.1550 400.1368	C20H20O3N5 C20H19O3N5	−2.819	13.5
T-TP9	278.1028 300.0847	C15H12ON5 C15H11ON5	−2.864	12.5
T-TP10	198.1273	C14H16N	−1.848	7.5

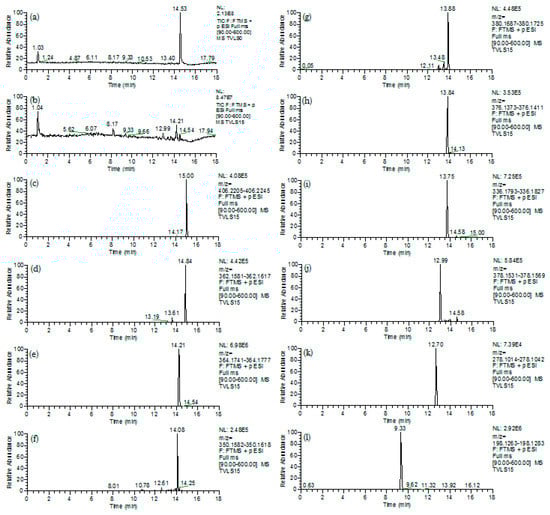

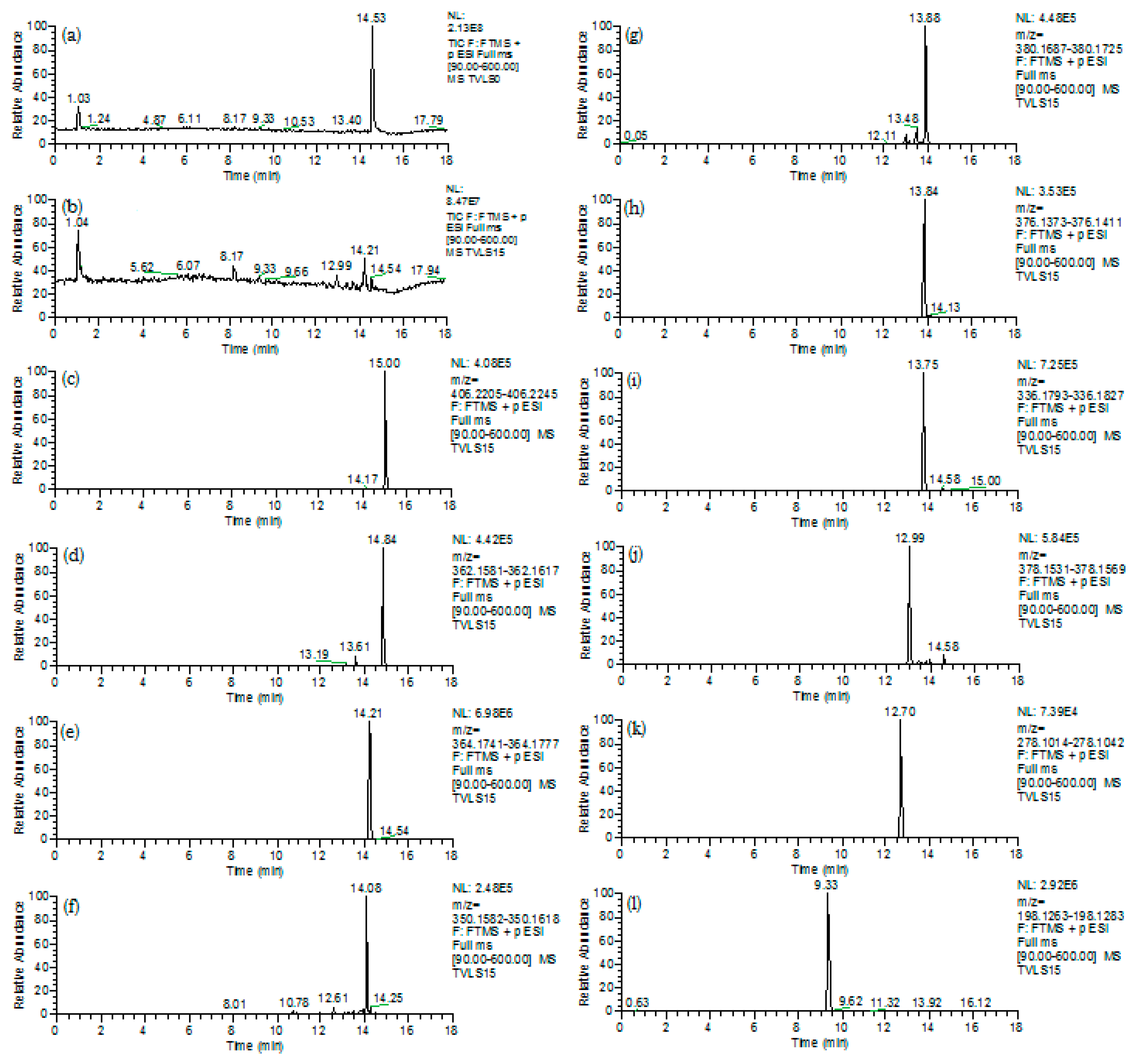

, while the respective chromatograms are depicted in Figure 5. TiO₂ photocatalytic oxidation is based on ^•OH radicals, which react preferably with the electron-rich groups of organic substances via addition/elimination pathways, H-abstraction, and electron transfer [21]. The ^•OH additions to aromatic moieties or unsaturated bonds compete overwhelming to H-abstraction. Electron transfer with ^•OH is limited to very electron rich systems. In the case of valsartan, such electron-rich functional groups are the phenyl and tetrazole moieties. For tetrazole, ^•OH radicals react at the -NH position either by electron transfer or H-abstraction [25]. The oxidation of primary, secondary, and tertiary aliphatic carbons is initiated by hydrogen atom abstraction forming a carbon-centered radical. The stabilization of such carbon-centered radicals can lead to the addition of molecular oxygen to form peroxy radicals, which subsequently yield the corresponding oxidation products as mentioned previously. Moreover, for the N-methylated amide function, abstraction by ^•OH radicals takes place mainly from the N-methyl group [26]. Finally, the reaction of carboxylic acids (i.e., 2-methylbutanoic acid group of VLS) with ^•OH radicals results in little decarboxylation and preferably proceeds through H-abstraction [27].

The identified TPs can be rationalized based on the above principal reaction mechanisms of ^•OH radicals towards the functionalities present in VLS molecule. More specifically, three TPs, T-TP1, T-TP3 and T-TP7, with [M + H]⁺ at m/z 406.2225, 364.1759 and 336.1810 are in common with the TPs detected by g-C₃N₄ catalyst, GCN-TP2, GCN-TP5 and GCN-TP6, respectively. T-TP5 with [M + H]⁺ at m/z 380.1706 differs 16 amu from T-TP3 and the suggested formula C₂₀H₂₂O₃N₅⁺ implied a hydroxylated derivative. T-TP2 with [M + H]⁺ at m/z 362.1599 is 2 amu less than T-TP3 and the suggested formula C₂₀H₂₀O₂N₅⁺ point out the formation of a double bond or a ring on the TP structure. T-TP2 was assigned to a cyclization product, with tetrazole –NH group participating in the cyclization after the abstraction of labile hydrogen by ^•OH radicals.

Similarly, T-TP8 and T-TP6 were assigned to a hydroxy and keto derivative of T-TP2 presenting [M + H]⁺ at m/z 378.1550 and 376.1392 with chemical formulas of C₂₀H₂₀O₃N₅⁺ and C₂₀H₁₈O₃N₅⁺_, respectively. Another evidence for the above tetra cyclic TPs (T-TP8, T-TP6) is the higher retention times compared to the precursor TPs due to the less polar character. Such cyclization derivatives are reported for VLS during oxidation by persulfate activation to SO₄^•− [17], but they have been identified also for the structurally related drug irbesartan, during photolysis [28] and hypochlorite treatment [29].

Amide bond cleavage and subsequent cyclization was considered for the formation of T-TP4 with [M + H]⁺ 350.1600 and C₁₉H₂₀O₂N₅⁺ as the suggested chemical formula. Further oxidation led to the formation of T-TP9 presenting [M + H]⁺ 278.1018 and C₁₅H₁₂ON₅⁺. Finally, the rupture of tetrazole ring and N-substituents led to the formation of T-TP10 with a formula of C₁₄H₁₆N⁺ bearing [M + H]⁺ 198.1273. The above assignments can be further rationalized considering their evolution profiles (Figure 6). T-TP1, T-TP3-TP5, and T-TP7 maximized at 15 min and can be considered as primary products, while all cyclization derivatives (T-TP2, T-TP6, T-TP8 and T-TP9) peak up at longer treatment times and are considered as secondary TPs. Finally, TP10 peak up at 90 min and can be considered as late stage product. The corresponding TOC removal after 240 min of irradiation under the current experimental conditions was 15%.

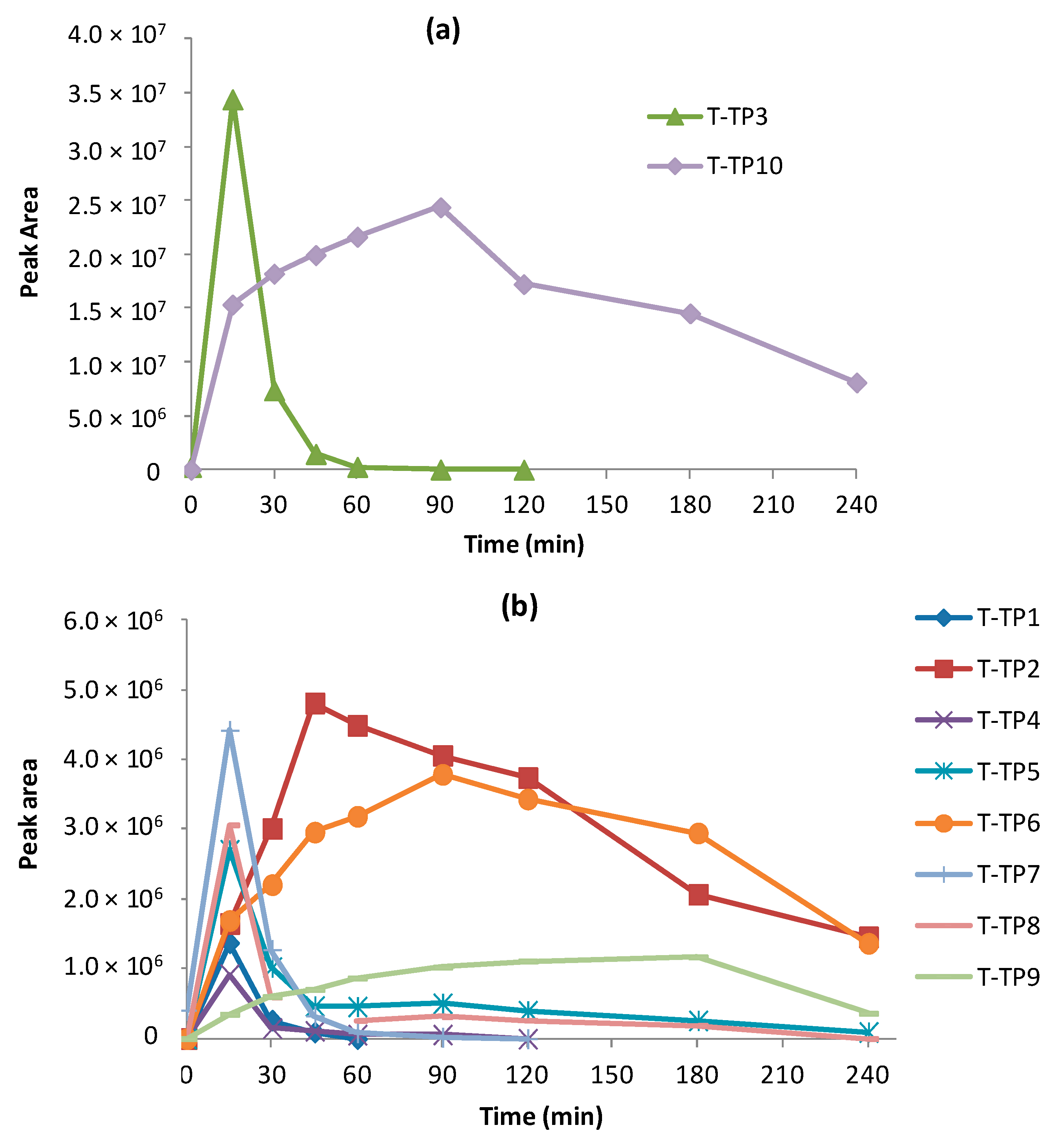

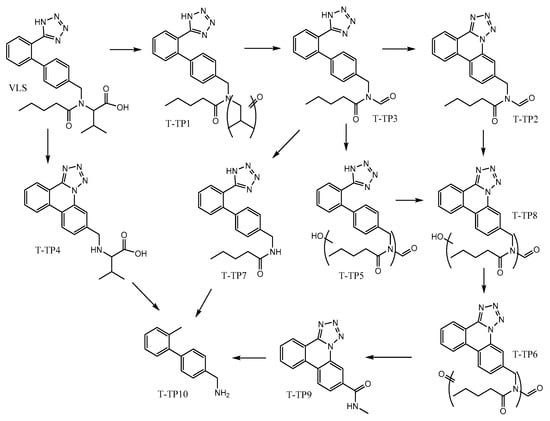

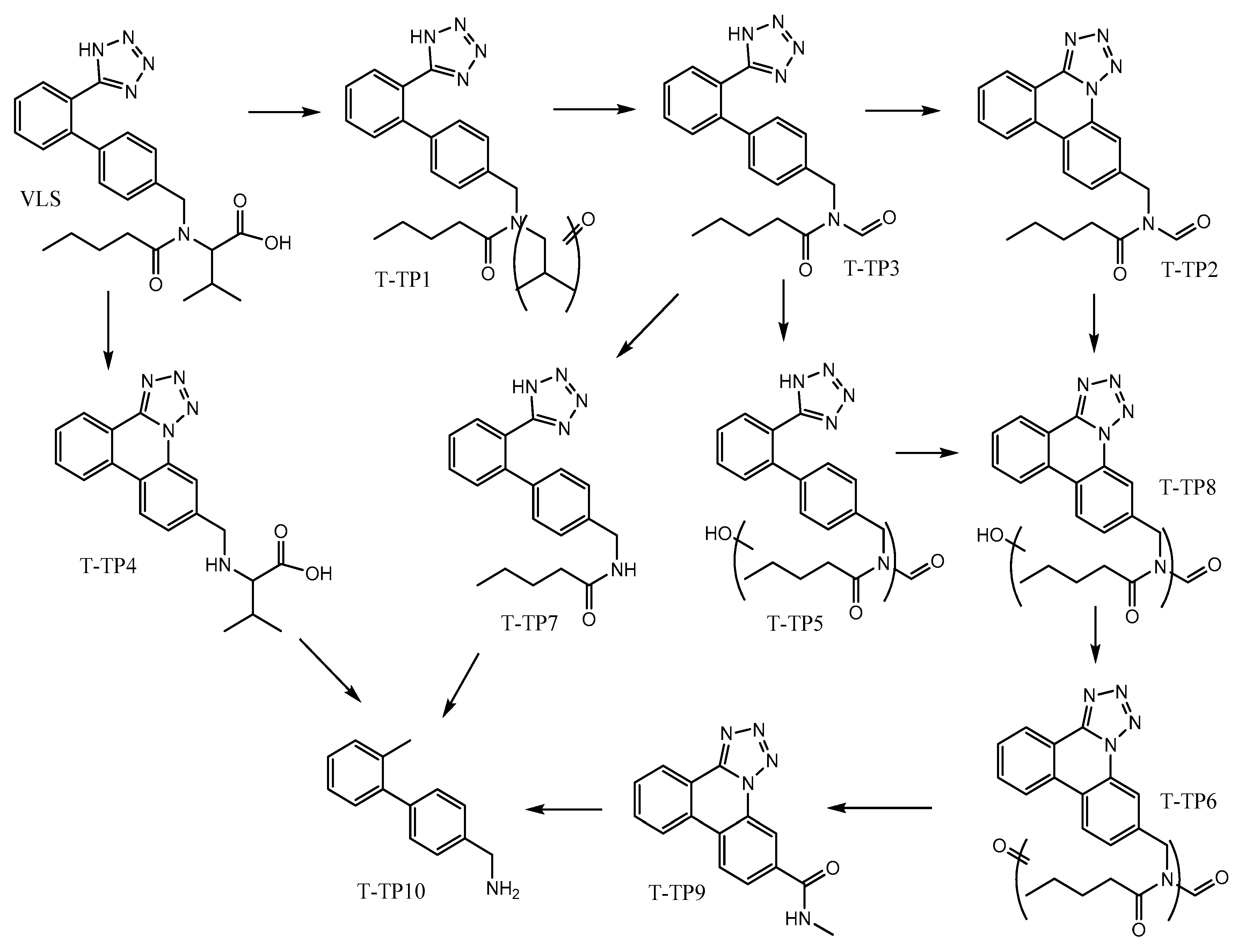

Based on the structure assignments and TPs evolution profiles, the tentative transformation pathways are summarized in Figure 7. In conclusion, the VLS TiO₂ photocatalytic degradation process followed four major pathways (Figure 7): (a) N-lateral chain oxidation; (b) cyclization; (c) hydroxylation; and (d) cleavage of the amide bond. Two main differences can be noted compared to the g-C₃N₄ process., i.e., the presence of cyclization TPs and the absence of hydroxy-derivatives of VLS.

3. Materials and Methods

3.1. Materials and Chemicals

Valsartan (98%) was purchased from Sigma—Aldrich. Methanol (MeOH) and water of LC-MS grade was supplied by Fisher Scientific (Loughborough, UK). Urea (99.5%) was obtained from Acrōs Organics (Geel, Belgium). Oasis HLB (divinylbenzene/N-vinylpyrrolidone copolymer) cartridges (60 mg, 3 mL) from Waters (Mildford, MA, USA) were used for the extraction of TPs. Two different semiconductor materials were used. The first included the aeroxide TiO₂-P25 supplied by the Evonik-Degussa Corporation (BET specific surface area (SSA) 50 ± 15 m²g⁻¹, 80% anatase, 20% rutile, average primary particle size 21 nm, E_g = 3.15 eV). The second, the g-C₃N₄ catalyst, was synthesized with the use of urea as a precursor compound. The urea was placed in an aluminum crucible and was dried in 90 °CC for 24 h. After that, was calcinated in air at 500 °CC with heating rate of 10 °C min⁻¹. The furnace was cooled down naturally and the collected yellow color solid was ground well into a powder in an agate mortar. The main physicochemical properties of g-C₃N₄ were as follows: specific surface area 35 m²g⁻¹, particle size of 25 nm, E_g = 2.82 eV [30].

3.2. Photocatalytic Treatment Experiments

A solar simulator (Suntest XLS+, Atlas, Linsengericht, Germany) equipped with a xenon lamp (2.2 kW) was used for performing photocatalytic experiments UV–vis irradiation (simulated solar light, λ > 290 nm) using a 290 nm cut-off glass filter. Before illumination, 0.1 mL of valsartan standard solution in methanol (C = 5000 mgL⁻¹) was added to 100 mL bidistilled water in order to achieve an initial concentration (C₀) of 5 mgL⁻¹ and then 100 mgL⁻¹ of photocatalyst was added under stirring (600 rpm). The suspension was loaded in Pyrex reactor (250 mL) and kept in the dark for 30 min in order to achieve the adsorption equilibrium. Adsorption experiments took place in dark conditions showed adsorption percentages of 14.3% and 1.8% for TiO₂ and g-C₃N₄, respectively. The above experimental conditions were selected in order to obtain not so fast kinetics and to facilitate the identification and the follow-up of the transformation products. A constant radiation intensity (500 W m⁻²) was kept throughout the experiments, while the temperature was kept at 23 ± 1 °C by a water circuit in the double-jacked photoreactor and air circulation. Samples ≈ 2 mL were periodically withdrawn and filtered by 0.22 μm filters for further LC-MS and total organic carbon (TOC) analysis using a TOC-L CSH/CSN (Shimadzu, Kyoto, Japan) analyzer.

3.3. Identification of Transformation Products by Liquid Chromatography-High Resolution Mass Spectrometry

The analysis of the photocatalytically treated aqueous samples was performed by accurate mass high resolution liquid chromatography-mass spectrometry (LTQ-Orbitrap XL, Thermo Fisher Scientific, Inc., GmbH, Bremen, Germany). The instrument combines a UHPLC Accela LC system (Accela LC pump, Accela Autosampler) and a linear–ion–trap–Orbitrap™ hybrid mass spectrometer. ESI ionization was performed in both positive and negative mode. The analysis was performed according to the following conditions: gradient elution with 0.1% formic acid in LC-MS grade water (mobile phase A) and 0.1% formic acid in LC-MS grade methanol (mobile phase B); Speedcore-Fortis diphenyl (2.1 mm × 50 mm, 2.6 μm particle size) column operated at 35 °C; gradient elution started with 95% A (2 min) and progressed according to 90% A, 70% A and 50% A in 3, 5 and 10 min, respectively, finally returned to 80% A and initial conditions in 15 and 18 min, respectively, with 1 min column re-equilibration time; flow rate 0.25 mL/min; injection volume 20 µL. The mass range was scanned within 90−600 m/z, while mass spectra data were recorded using a resolving power of 60.000 and 15.000 in FT-MS mode for MS and MS²/MS³ scans, respectively. A mass accuracy of ±5 ppm was adopted by performing external calibration of the Orbitrap mass analyzer. The processing of data was performed by Thermo Xcalibur 2.1 software (Thermo Electron, San Jose, CA, USA).

3.4. Determination of ^•OH Radicals by Fluorescence Measurements

The terephthalic acid (TA) (98%, Sigma-Aldrich, St. Louis, MO, USA) method was used for the quantification of the generated ^•OH radicals. Aqueous solutions (100 mL) of TA (5 × 10⁻⁴ M) and NaOH (2 × 10⁻³ M, 99% Riedel de Haẽn, Seelze, Germany) were prepared and then the catalysts were added to the solutions, which were placed to the reactor. The experimental conditions remained the same with the photocatalytic experiments. Samplings (5 mL) were performed at different time intervals and samples were filtered with 0.22 μm filters. The fluorescence peak at 425 nm (excitation wavelength at 310 nm) is ascribed to 2-hyroxyterephthalic acid (TAOH). A calibration curve plotting the fluorescence intensity of standard TAOH took place for measuring the concentrations of ^•OH.

4. Conclusions

The photocatalytic degradation pathways of the valsartan pharmaceutical were studied in the presence of g-C₃N₄ and TiO₂ catalysts using LC-MS-Orbitrap high resolution accurate mass spectrometry. Ten transformation products were identified for each catalyst, but only three of them are in common, suggesting the different degradation pathways followed. For g-C₃N₄, the major paths included decarboxylation and subsequent oxidation, hydroxylation, and cleavage of C–N bond. On the other hand, in the presence of TiO₂ cyclization, TPs are abundant and hydroxylation occurs in the first stage products due to the higher production of ^•OH radicals. Thus, the generation of transformation products is greatly influenced by the catalytic mechanism suggesting that their identification is highly significant in photocatalytic processes or in other oxidoreductive processes in the environment. In the case of TiO₂, all transformation products were also degraded for more than 60%, but, in the presence of g-C₃N₄, some products still increased their concentrations within the time framework of 240 min. Overall, this work demonstrated the importance of identifying the TPs for the assessment of photocatalytic processes since they can be more persistent and/or toxic depending on the catalyst used.
