Effect of the Deposition Time and Heating Temperature on the Structure of Chromium Silicides Synthesized by Pack Cementation Process
Abstract
:1. Introduction

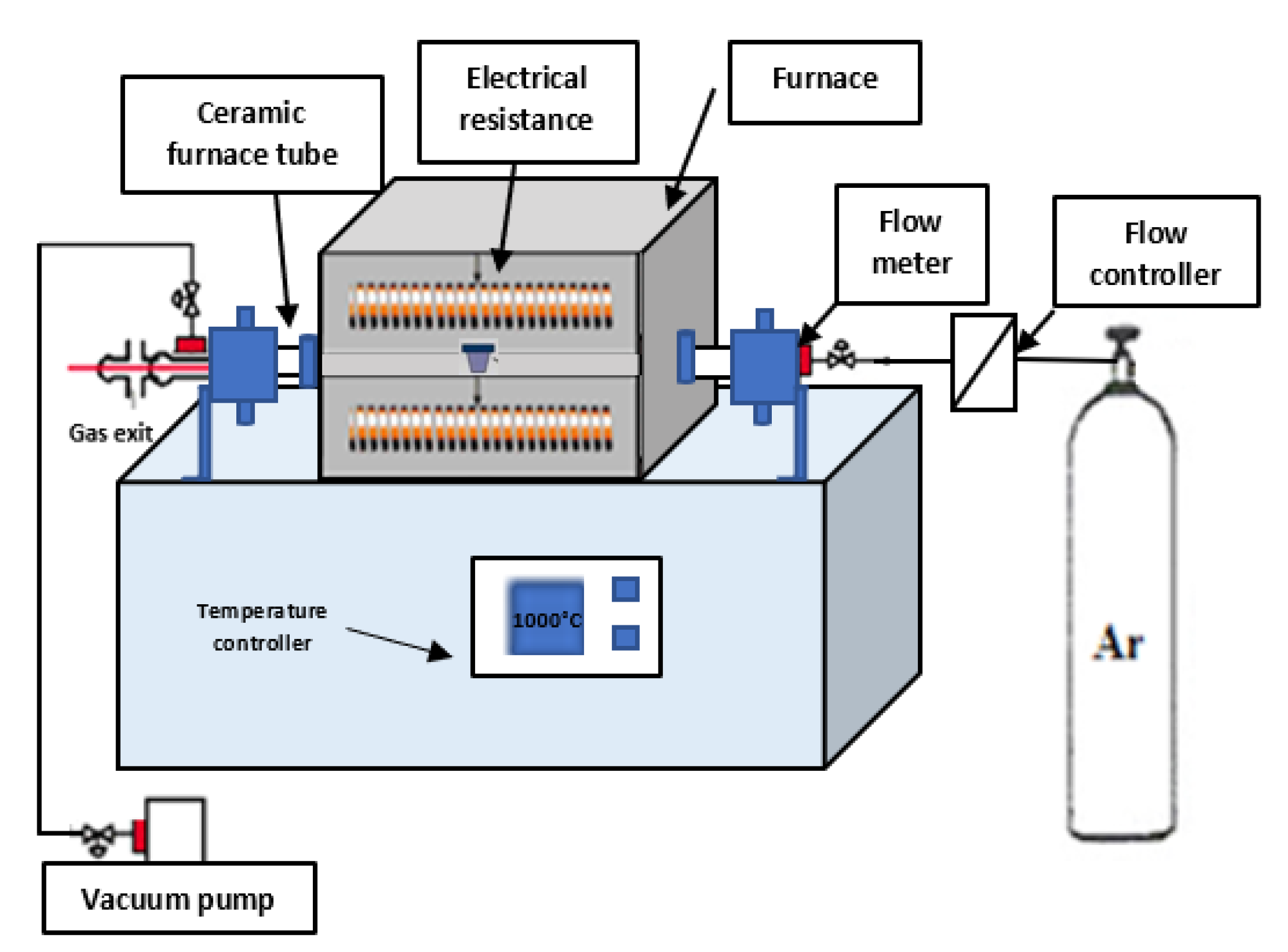

2. Materials and Methods
3. Results and Discussion
3.1. Thermodynamic Prediction of Pack Compounds Formed
3.2. Effect of Deposition Temperature

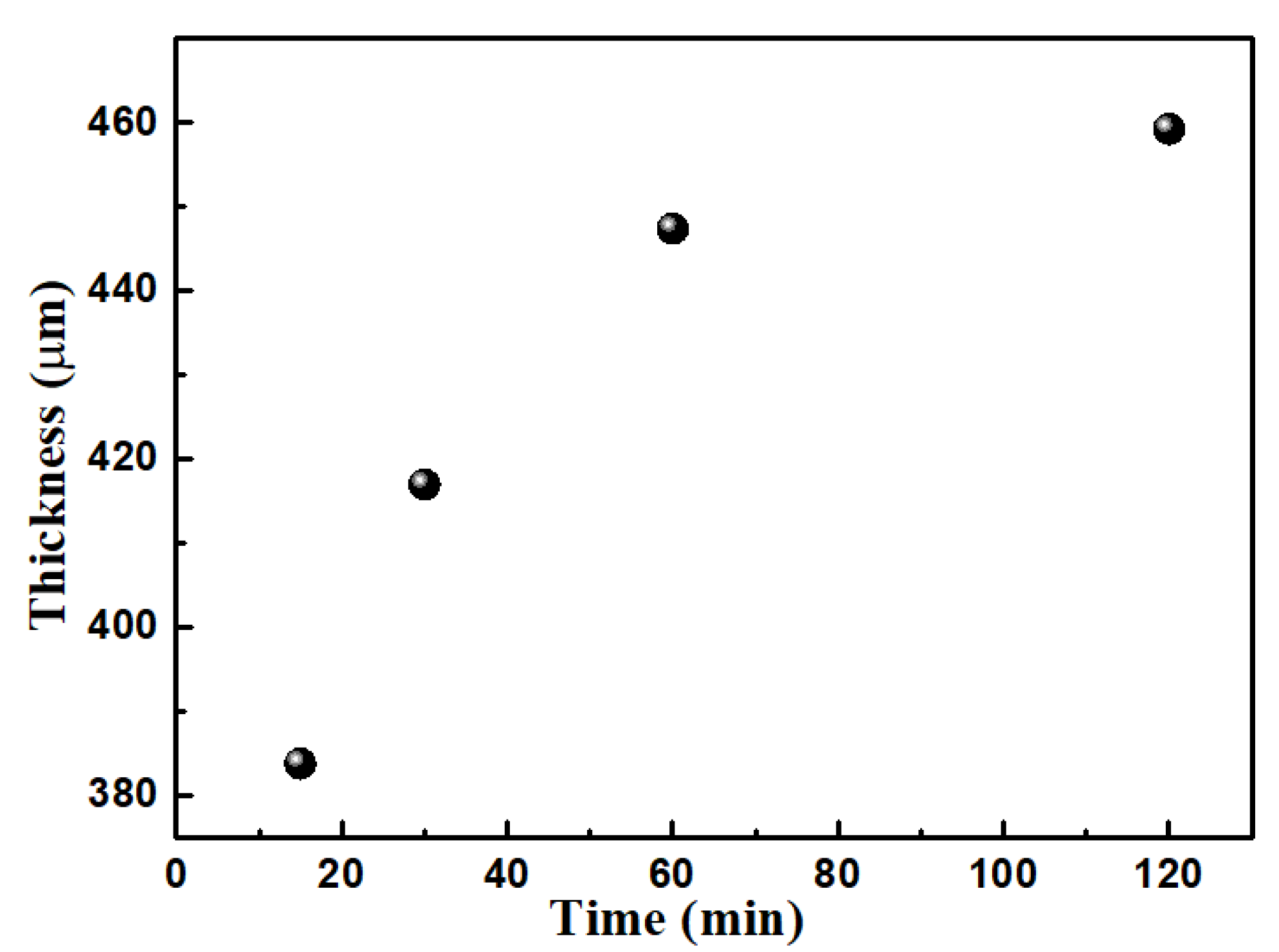

3.3. Effect of Deposition Time
3.4. Siliconizing Step
4. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Ma, J.; Gu, Y.; Shi, L.; Chen, L.; Yang, Z.; Qian, Y. Synthesis and Thermal Stability of Nanocrystalline Chromium Disilicide. J. Alloy Compd. 2004, 376, 176–179. [Google Scholar] [CrossRef]
- Tam, P.L.; Cao, Y.; Nyborg, L. XRD and XPS Characterisation of Transition Metal Silicide Thin Films. Surf. Sci. 2012, 606, 329–336. [Google Scholar] [CrossRef]
- Tam, P.L.; Cao, Y.; Nyborg, L. Thin Film Characterisation of Chromium Disilicide. Surf. Sci. 2013, 609, 152–156. [Google Scholar] [CrossRef]
- Khalil, M.; Moll, A.; Godfroy, M.; Letrouit-Lebranchu, A.; Villeroy, B.; Alleno, E.; Viennois, R.; Beaudhuin, M. Thermoelectric Properties and Stability of Nanostructured Chromium Disilicide CrSi2. J. Appl. Phys. 2019, 13, 126–132. [Google Scholar] [CrossRef]
- Gokhale, A.B.; Abbaschian, G.J. The Cr-Si (Chromium-Silicon) System. J. Phase Equilib. 1987, 8, 474–484. [Google Scholar] [CrossRef]
- Yin, Y.X.; Wang, H.M. Microstructure and Wear Resistance of Cuss-Toughened Cr5Si3/CrSi Metal Silicide Alloys. J. Mater. Res. 2005, 20, 1122–1130. [Google Scholar] [CrossRef]
- Gokhale, A.B.; Abbaschian, G.J.; Filonov, A.B.; Tralle, I.E.; Dorozhkin, N.N.; Migsas, D.B.; Shaposhnikov, V.L.; Petrov, G.V.; Anishchik, V.M.; Borisenko, V.E. Semiconducting Properties of Hexagonal Chromium, Molybdenum, and Tungsten Disilicides. Phys. Status Solidi (B) 1987, 186, 209–215. [Google Scholar]
- Dasgupta, T.; Etourneau, J.; Chevalier, B.; Matar, S.F.; Umarji, A.M. Structural Thermal and Electrical Properties of CrSi2. J. Appl. Phys. 2008, 103, 113516. [Google Scholar] [CrossRef]
- Vantomme, A.; Nicolet, M.A.; Long, R.G.; Mahan, J.E.; Pool, F.S. Reactive Deposition Epitaxy of CrSi2. Appl. Surf. Sci. 1993, 73, 146–152. [Google Scholar] [CrossRef]
- Heck, C.; Kusaka, M.; Hirai, M.; Iwami, M.; Yokota, Y. Thin Film Silicon Compound Growth Mechanisms: CrSi2/Si(001). Thin Solid Film. 1996, 281–282, 94–97. [Google Scholar] [CrossRef]
- Solomkin, F.Y.; Zaitsev, V.K.; Kartenko, N.F.; Kolosova, A.S.; Burkov, A.T.; Uryupin, O.N.; Shabaldin, A.A. Structure and Thermoelectric Properties of CrSi2 Crystallized from a Tin Solution-Melt. Tech. Phys. 2010, 55, 750–752. [Google Scholar] [CrossRef]
- Shinoda, D.; Asanabe, S.; Sasaki, Y. Semiconducting Properties of Chromium Disilicide. J. Phys. Soc. Jpn. 1964, 19, 269–272. [Google Scholar] [CrossRef]
- Nishida, I. The Crystal Growth and Thermoelectric Properties of Chromium Disilicide. J. Mater. Sci. 1972, 7, 1119–1124. [Google Scholar] [CrossRef]
- Zhang, D.L. The Sequence of Phase Formation during Mechanical Alloying of Chromium and Silicon Powders. J. Mater. Sci. 1996, 31, 895–899. [Google Scholar] [CrossRef]
- Fernandes, B.B.; Rodrigues, G.; Coelho, G.C.; Ramos, A.S. On Iron Contamination in Mechanically Alloyed Cr-Si Powders. Mater. Sci. Eng. A 2005, 405, 135–139. [Google Scholar] [CrossRef]
- Colgan, E.G.; Tsaur, B.Y.; Mayer, J.W. Phase Formation in Cr-Si Thin-Film Interactions. Appl. Phys. Lett. 1980, 37, 938–940. [Google Scholar] [CrossRef]
- Majumdar, S.; Sengupta, P.; Kale, G.B.; Sharma, I.G. Development of Multilayer Oxidation Resistant Coatings on Niobium and Tantalum. Surf. Coat. Technol. 2006, 200, 3713–3718. [Google Scholar] [CrossRef]
- Xiang, Z.D.; Datta, P.K. Relationship between Pack Chemistry and Aluminide Coating Formation for Low-Temperature Aluminisation of Alloy Steels. Acta Mater. 2006, 54, 4453–4463. [Google Scholar] [CrossRef]
- Teknetzi, A.; Tarani, E.; Symeou, E.; Karfaridis, K.; Stathokostopoulos, D.; Pavlidou, E.; Kyratsi, T.; Hatzikraniotis, E.; Chrissafis, K.; Vourlias, D. Structure and thermoelectric properties of higher manganese silicides synthesized by pack cementation. Ceram. Int. 2021, 47, 243–251. [Google Scholar] [CrossRef]
- Vourlias, G.; Pistofidis, N.; Chrissafis, K.; Pavlidou, E.; Stergioudis, G. Mechanism and Kinetics of the Formation of Zinc Pack Coatings. J. Therm. Anal. Calorim. 2008, 91, 497–501. [Google Scholar] [CrossRef]
- Tarani, E.; Chaliampalias, D.; Pavlidou, E.; Chrissafis, K.; Vourlias, G. Thermal Oxidation Kinetics of CrSi2 Powder Synthesized by Pack Cementation Process. J. Therm. Anal. Calorim. 2016, 125, 111–120. [Google Scholar] [CrossRef]
- Stathokostopoulos, D.; Chaliampalias, D.; Tarani, E.; Theodorakakos, A.; Giannoulatou, V.; Polymeris, G.S.; Pavlidou, E.; Chrissafis, K.; Hatzikraniotis, E.; Paraskevopoulos, K.M.; et al. Formation of the Thermoelectric Candidate Chromium Silicide by Use of a Pack-Cementation Process. J. Electron. Mater. 2014, 43, 3733–3739. [Google Scholar] [CrossRef]
- Stathokostopoulos, D.; Chaliampalias, D.; Stefanaki, E.C.; Polymeris, G.; Pavlidou, E.; Chrissafis, K.; Hatzikraniotis, E.; Paraskevopoulos, K.M.; Vourlias, G. Structure, Morphology and Electrical Properties of Mg2Si Layers Deposited by Pack Cementation. Appl. Surf. Sci. 2013, 285, 417–424. [Google Scholar] [CrossRef]
- Teknetzi, A.; Tarani, E.; Stathokostopoulos, D.; Karfaridis, D.; Chrissafis, K.; Vourlias, G. High-Temperature Oxidation Resistance and Thermal Stability of Higher Manganese Silicide Powder Synthesized by Pack Cementation. J. Alloy. Compd. 2021, 873, 159842. [Google Scholar] [CrossRef]
- Botha, A.P.; Pretorius, R. Co2Si, CrSi2, ZrSi2 and TiSi2 Formation Studied by a Radioactive 31Si Marker Technique. Thin Solid Film. 1982, 93, 127–133. [Google Scholar] [CrossRef]
- Levine, S.R.; Caves, R.M. Thermodynamics and Kinetics of Pack Aluminide Coating Formation on IN-100. J. Electrochem. Soc. 1974, 121, 1051–1064. [Google Scholar] [CrossRef] [Green Version]
- Bai, C.Y.; Luo, Y.J.; Koo, C.H. Improvement of High Temperature Oxidation and Corrosion Resistance of Superalloy IN-738LC by Pack Cementation. Surf. Coat. Technol. 2004, 183, 74–88. [Google Scholar] [CrossRef]
- Genova, V.; Paglia, L.; Pulci, G.; Bartuli, C.; Marra, F. Diffusion Aluminide Coatings for Hot Corrosion and Oxidation Protection of Nickel-Based Superalloys: Effect of Fluoride-Based Activator Salts. Coatings 2021, 11, 412. [Google Scholar] [CrossRef]
- Lien, C.D.; Nicolet, M.A. Mathematical Model for a Radioactive Marker in Silicide Formation. J. Appl. Phys. 1984, 55, 4187–4193. [Google Scholar] [CrossRef] [Green Version]
- Jayanth, C.S.; Nash, P. Factors Affecting Particle-Coarsening Kinetics and Size Distribution. J. Mater. Sci. 1989, 24, 3041–3052. [Google Scholar] [CrossRef]
- Pan, J.; Le, H.; Kucherenko, S.; Yeomans, J.A. A Model for the Sintering of Spherical Particles of Different Sizes by Solid State Diffusion. Acta Mater. 1998, 46, 4671–4690. [Google Scholar] [CrossRef]
- d’Heurle, F.M.; Gas, P. Kinetics of Formation of Silicides: A Review. J. Mater. Res. 1986, 1, 205–221. [Google Scholar] [CrossRef]
- Mattheiss, L.F. Electronic Structure of CrSi2 and Related Refractory Disilicides. Phys. Rev. B 1991, 43, 12549–12555. [Google Scholar] [CrossRef] [PubMed]
- International Centre for Diffraction Data (ICDD) (Formerly Joint Committee on Powder Diffraction Standards—JCPDS). Powder Diffraction File (PDF); ICDD: Newtown, PA, USA, 2003. [Google Scholar]
- Ostling, K.; Zaring, C. Thermal properties of TM silicides. In Properties of Metal Silicides, 2nd ed.; Maex, K., Rossum, M., Eds.; INSPEC, The Institution of Electrical Engineers: Leuven, Belgium, 1995; pp. 35–43. [Google Scholar]
- Martienssen, W.; Warlimont, H. Springer Handbook of Condensed Matter and Material Data, 1st ed.; Springer: Berlin/Heidelberg, Germany, 2005; p. 491. [Google Scholar]
- Engström, I.; Lönnberg, B. Thermal Expansion Studies of the Group IV-VII Transition-Metal Disilicides. J. Appl. Phys. 1988, 63, 4476–4484. [Google Scholar] [CrossRef]
- Ochiai, Y.; Kishida, K.; Tanaka, K.; Inui, H. Mechanical Properties of Cr5Si3 with the D8 m Structure. Mater. Res. Soc. Symp. Proc. 2011, 1295, 213–218. [Google Scholar] [CrossRef]
- Shah, D.M. MoSi2 and Other Silicides as High Temperature Structural Materials. In Superalloys; Antolovich, S.D., Stusrud, R.W., MacKay, R.A., Anton, D.L., Khan, T., Kissinger, R.D., Klastrom, D.L., Eds.; TMS (The Minerals, Metals & Materials Society): Pittsburgh, PA, USA, 2012; pp. 409–422. [Google Scholar]
- Zhang, L.; Wu, J. Thermal Expansion and Elastic Moduli of the Silicide Based Intermetallic Alloys Ti5Si3(X) and Nb5Si3. Scr. Mater. 1997, 38, 307–313. [Google Scholar] [CrossRef]
- Lien, C.D.; Nicolet, M.A.; Lau, S.S. Kinetics of Silicides on Si 〈100〉 and Evaporated Silicon Substrates. Thin Solid Film. 1986, 143, 63–72. [Google Scholar] [CrossRef]
- Filonenko, O.; Falke, M.; Hortenbach, H.; Henning, A.; Beddies, G.; Hinneberg, H.J. Structure of Thin CrSi2 Films on Si(0 0 1). Appl. Surf. Sci. 2004, 227, 341–348. [Google Scholar] [CrossRef]
- Seo, K.; Varadwaj, K.S.K.; Cha, D.; In, J.; Kim, J.; Park, J.; Kim, B. Synthesis and Electrical Properties of Single Crystalline CrSi2 Nanowires. J. Phys. Chem. C 2007, 111, 9072–9076. [Google Scholar] [CrossRef]
- Chen, S.; Chen, Y.; Yan, W.; Zhou, S.; Qin, X.; Xiong, W.; Liu, L. Electronic and Magnetic Properties of Bulk and Monolayer CrSi2: A First-Principle Study. Appl. Sci. 2018, 8, 1885. [Google Scholar] [CrossRef] [Green Version]
- Hashim, N.H.; Subramani, S.; Devarajan, M.; Ibrahim, A.R. Structural and Surface Characterization of Undoped ZnO and Cu Doped ZnO Using Sol–Gel Spin Coating Method. J. Mater. Sci.: Mater. Electron. 2016, 27, 3520–3530. [Google Scholar] [CrossRef]
- Nivedita, L.R.; Haubert, A.; Battu, A.K.; Ramana, C.V. Correlation between Crystal Structure, Surface/Interface Microstructure, and Electrical Properties of Nanocrystalline Niobium Thin Films. Nanomaterials 2020, 10, 1287. [Google Scholar] [CrossRef] [PubMed]
- Nakasawa, H.; Takamatsu, T.; Hayashi, K.; Miyazaki, Y. Relationships between Crystallite Size and Thermoelectric Properties of Nano-Structured CrSi2 Prepared by the Reduction-Diffusion and Spark Plasma Sintering Methods. J. Alloy. Compd. 2021, 861, 157967. [Google Scholar] [CrossRef]
- Lu, J.; Yang, H.; Liu, B.; Han, J.; Zou, G. Preparation and Physical Properties of Nanosized Semiconducting CrSi2 Powders. Mater. Chem. Phys. 1999, 59, 101–106. [Google Scholar] [CrossRef]
- Ma, J.; Gu, Y.; Shi, L.; Chen, L.; Yang, Z.; Qian, Y. Synthesis and Oxidation Behavior of Chromium Silicide (Cr3Si) Nanorods. J. Alloy. Compd. 2004, 375, 249–252. [Google Scholar] [CrossRef]
- Godfroy, M.; Khalil, M.; Niebel, C.; Jarrosson, T.; Foix, D.; Flaud, V.; Serein-Spirau, F.; Viennois, R.; Granier, M.; Beaudhuin, M. Transition Metal Silicide Surface Grafting by Multiple Functional Groups and Green Optimization by Mechanochemistry. Phys. Chem. Chem. Phys. 2019, 21, 25720–25727. [Google Scholar] [CrossRef]
- Liu, L.; Li, Y.; Wang, F. The Effect of Micro-Structure on the Oxidation Behavior of a Ni-Based Superalloy in Water Vapor plus Oxygen. Mater. Lett. 2008, 62, 4081–4084. [Google Scholar] [CrossRef]
- Evans, J.L. Effect of Surface Roughness on the Oxidation Behavior of the Ni-Base Superalloy ME3. J. Mater. Eng. Perform. 2010, 19, 1001–1004. [Google Scholar] [CrossRef]
- Charpentier, L.; Lucas, R.; Foucaud, S.; Glénat, H.; Balat-Pichelin, M. Influence of Surface Roughness and Temperature on the Oxidation Behavior of ZrC/SiC Samples. Ceram. Int. 2016, 42, 10985–10991. [Google Scholar] [CrossRef]
- Platt, P.; Allen, V.; Fenwick, M.; Gass, M.; Preuss, M. Observation of the Effect of Surface Roughness on the Oxidation of Zircaloy-4. Corros. Sci. 2015, 98, 1–5. [Google Scholar] [CrossRef]
- Uran, S.; Veal, B.; Grimsditch, M.; Pearson, J.; Berger, A. Effect of Surface Roughness on Oxidation: Changes in Scale Thickness, Composition, and Residual Stress. Oxid. Met. 2000, 54, 73–85. [Google Scholar] [CrossRef]
- Nowak, W.J. Effect of Surface Roughness on Early Stage Oxidation Behavior of Ni-Base Superalloy in 625. Appl. Syst. Innov. 2018, 1, 32. [Google Scholar] [CrossRef] [Green Version]
- Mahesh, B.V.; Raman, R.K.S. Role of Nanostructure in Electrochemical Corrosion and High Temperature Oxidation: A Review. Metall. Mater. Trans. A 2014, 45, 5799–5822. [Google Scholar] [CrossRef] [Green Version]
- Raman, R.K.S.; Gupta, R.K. Oxidation Resistance of Nanocrystalline Vis-à-Vis Microcrystalline Fe-Cr Alloys. Corros. Sci. 2009, 51, 316–321. [Google Scholar] [CrossRef]
- Gupta, R.K.; Birbilis, N.; Zhang, J. Oxidation Resistance of Nanocrystalline Alloys. In Corrosion Resistance, 1st ed.; Shih, H., Ed.; IntechOpen: Rijeka, Croatia, 2012; pp. 213–238. [Google Scholar]
- Xia, Z.X.; Zhang, C.; Huang, X.F.; Liu, W.B.; Yang, Z.G. Improve Oxidation Resistance at High Temperature by Nanocrystalline Surface Layer. Sci. Rep. 2015, 5, 1–7. [Google Scholar] [CrossRef] [PubMed]
- Stott, F.H.; Wood, G.C.; Stringer, J. The Influence of Alloying Elements on the Development and Maintenance of Protective Scales. Oxid. Met. 1995, 44, 113–145. [Google Scholar] [CrossRef]
1st Set | 2nd Set | ||
---|---|---|---|
Sample Name | Heating Temperature (°C) | Sample Name | Deposition Time (min) |
1000_120 min | 1000 | 1000_120 min | 120 |
1050_120 min | 1050 | 1000_60 min | 60 |
1100_120 min | 1100 | 1000_30 min | 30 |
1150_120 min | 1150 | 1000_15 min | 15 |

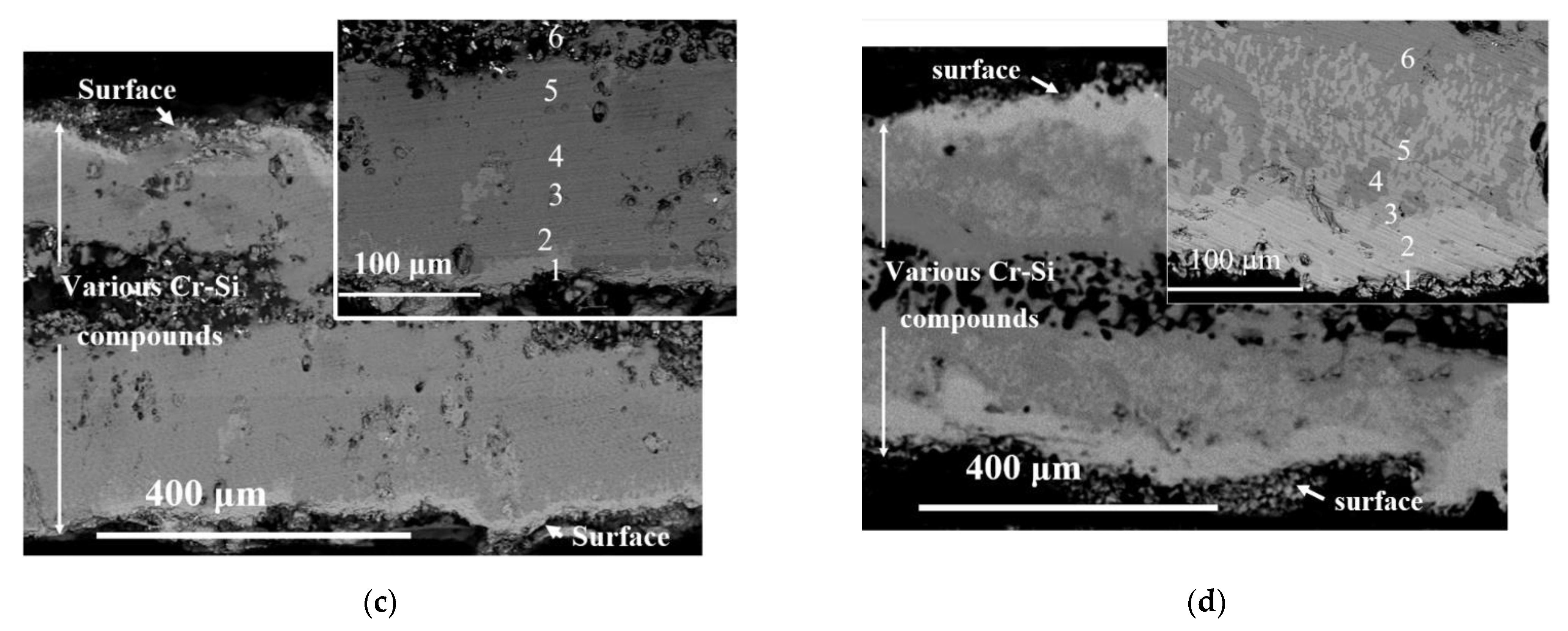

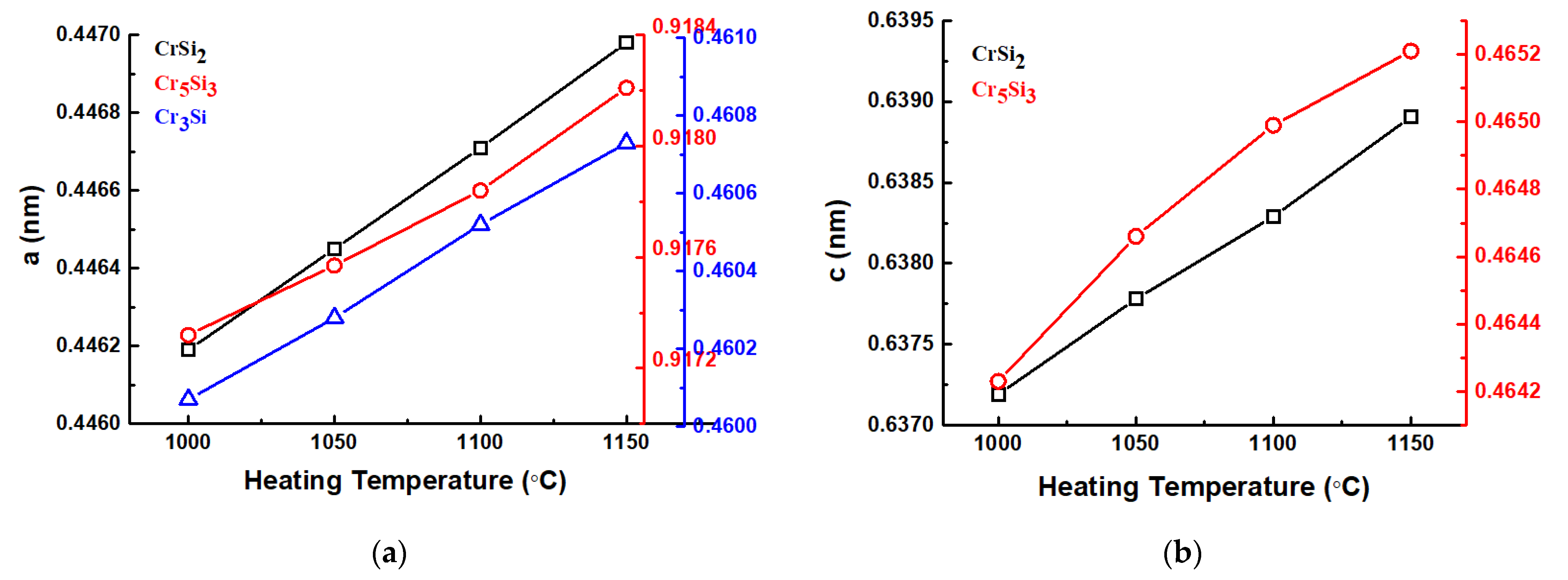

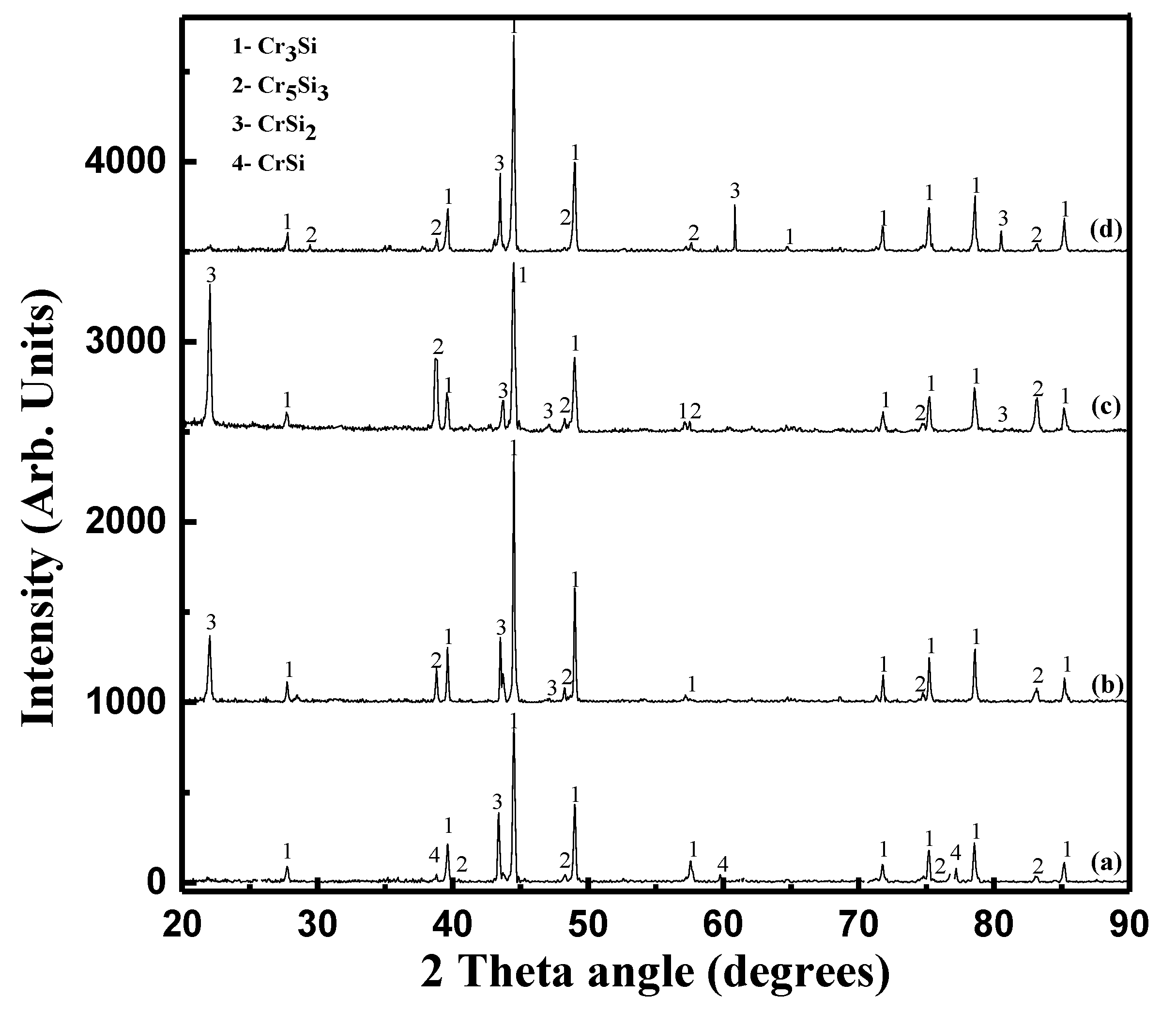

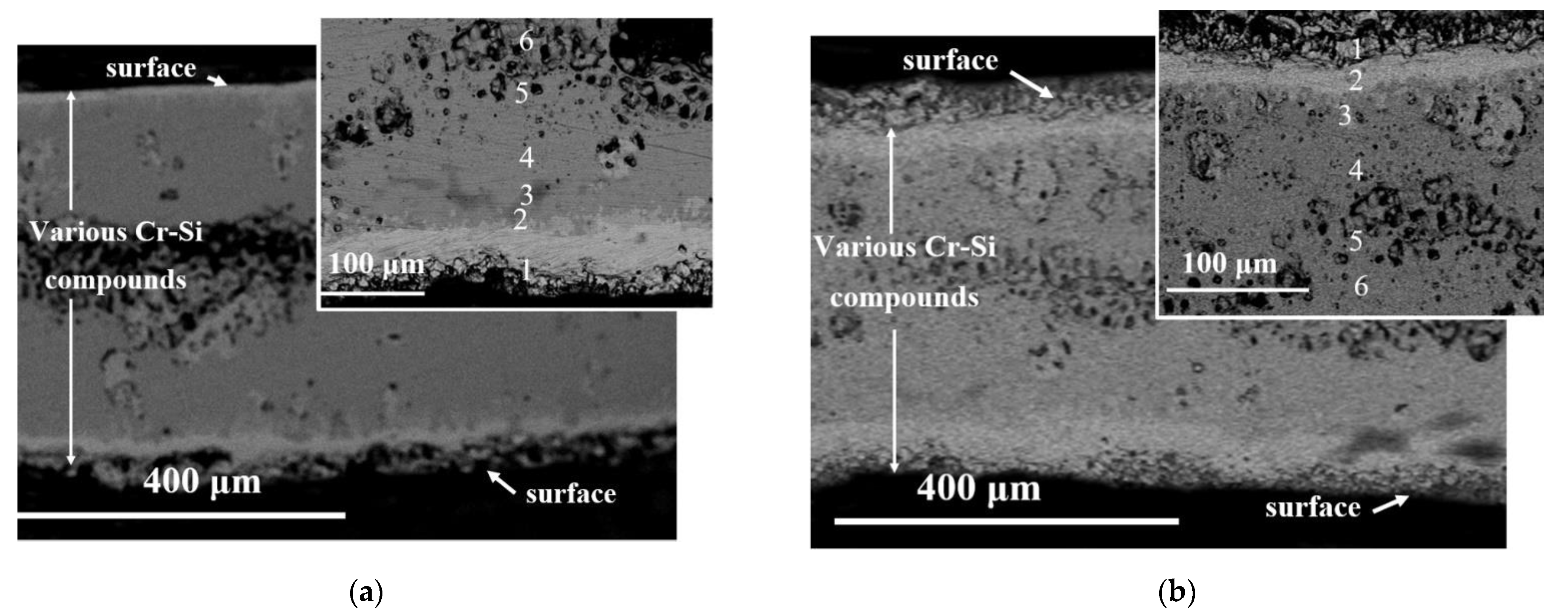

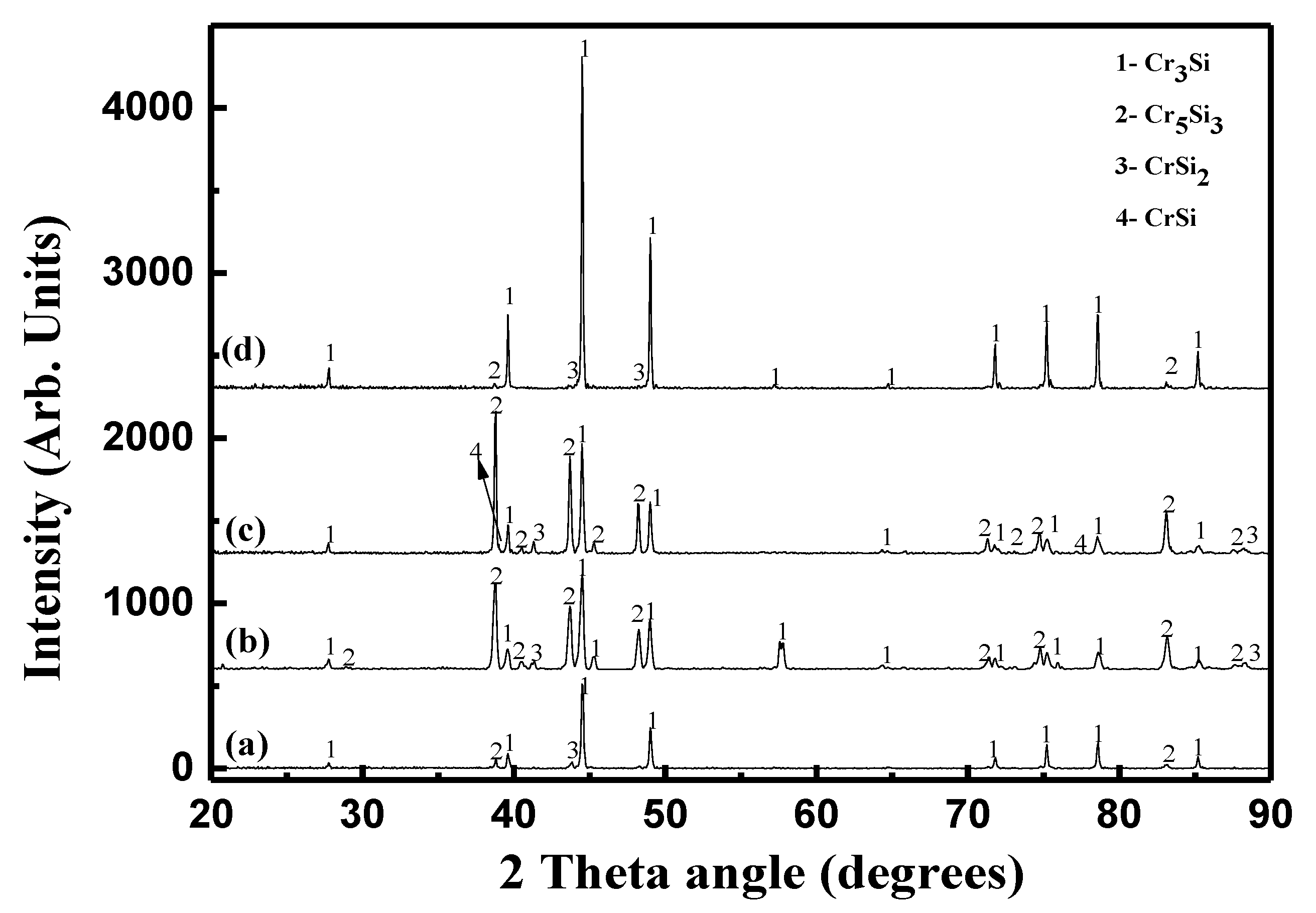

A/A | 1000_120 min | 1050_120 min | 1100_120 min | 1150_ 120 min | ||||
---|---|---|---|---|---|---|---|---|
Si (at.%) | Cr (at.%) | Si (at.%) | Cr (at.%) | Si (at.%) | Cr (at.%) | Si (at.%) | Cr (at.%) | |
1 | 34.74 ± 2.24 | 65.26 ± 2.67 | 38.67 ± 2.54 | 61.33 ± 3.01 | 31.23 ± 3.01 | 68.77 ± 2.56 | 32.63 ± 2.45 | 67.37 ± 2.78 |
2 | 50.75 ± 1.84 | 49.25 ± 1.96 | 36.01 ± 2.45 | 63.99 ± 2.67 | 52.14 ± 1.69 | 47.86 ± 1.82 | 33.16 ± 2.22 | 66.84 ± 2.67 |
3 | 44.77 ± 1.95 | 55.23 ± 1.71 | 47.56 ± 2.55 | 52.44 ± 2.15 | 66.62 ± 1.45 | 33.38 ± 1.23 | 49.53 ± 1.97 | 50.47 ± 1.61 |
4 | 62.44 ± 2.34 | 37.56 ± 1.98 | 61.22 ± 2.84 | 38.78 ± 1.95 | 66.54 ± 1.11 | 33.46 ± 1.23 | 63.81 ± 1.95 | 36.19 ± 1.71 |
5 | 66.78 ± 1.56 | 33.22 ± 1.26 | 65.23 ± 2.02 | 34.77 ± 1.94 | 66.38 ± 1.21 | 33.62 ± 1.10 | 49.91 ± 2.05 | 50.09 ± 1.69 |
6 | 62.72 ± 2.84 | 37.28 ± 1.94 | 66.80 ± 1.34 | 33.20 ± 1.54 | 65.75 ± 1.87 | 34.25 ± 1.76 | 66.75 ± 1.03 | 33.25 ± 1.33 |

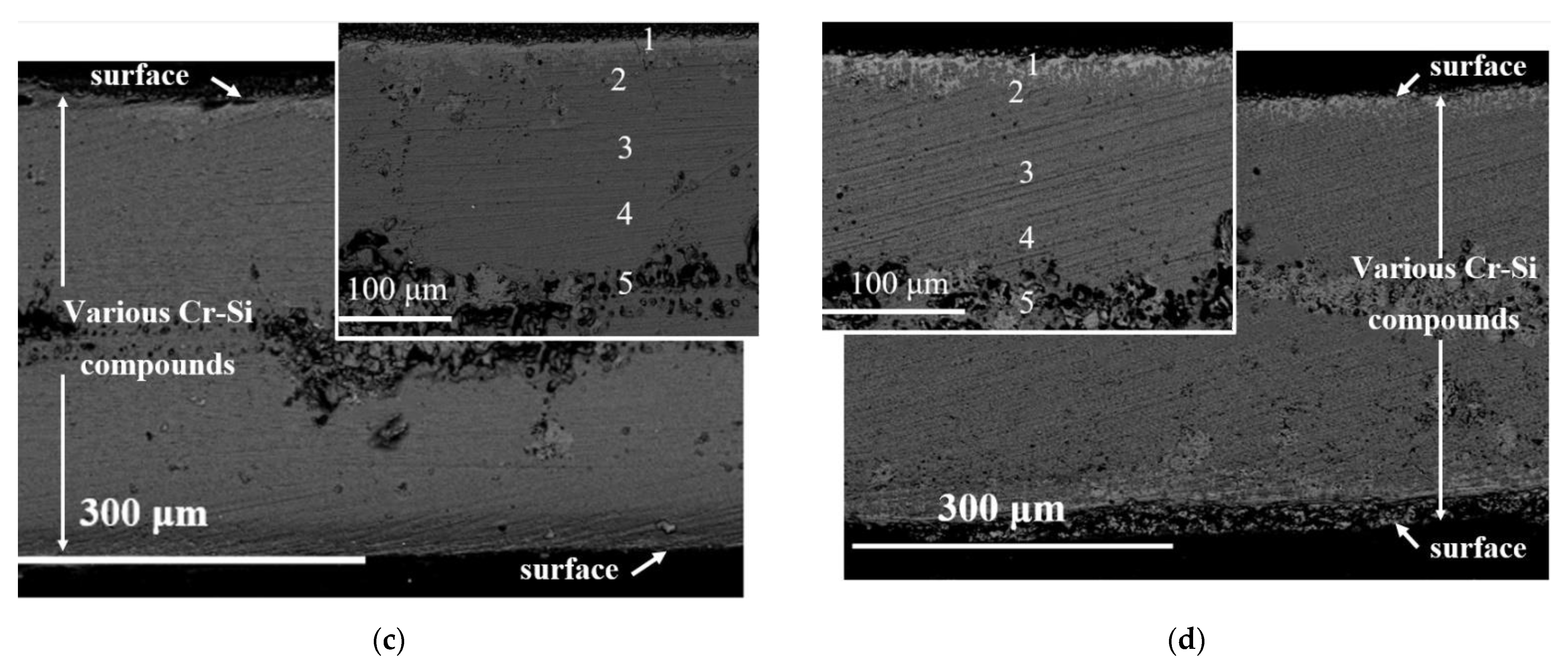

A/A | 1000_120 min | 1000_60 min | 1000_30 min | 1000_ 15 min | ||||
---|---|---|---|---|---|---|---|---|
Si (at.%) | Cr (at.%) | Si (at.%) | Cr (at.%) | Si (at.%) | Cr (at.%) | Si (at.%) | Cr (at.%) | |
1 | 22.62 ± 2.45 | 77.38 ± 2.56 | 36.41 ± 2.33 | 63.59 ± 2.11 | 31.89 ± 2.86 | 68.11 ± 2.45 | 31.25 ± 2.76 | 68.75 ± 2.44 |
2 | 48.67 ± 1.97 | 51.33 ± 1.44 | 62.87 ± 2.89 | 37.13 ± 1.84 | 47.65 ± 1.78 | 52.35 ± 1.43 | 45.26 ± 1.87 | 54.74 ± 1.35 |
3 | 54.60 ± 1.01 | 45.40 ± 2.33 | 51.22 ± 1.21 | 48.78 ± 1.67 | 67.43 ± 1.53 | 32.57 ± 1.64 | 62.33 ± 1.78 | 37.67 ± 1.34 |
4 | 65.40 ± 2.02 | 34.60 ± 1.44 | 61.37 ± 2.54 | 38.63 ± 1.73 | 61.09 ± 2.76 | 38.91 ± 1.80 | 61.89 ± 2.98 | 38.11 ± 1.71 |
5 | 64.21 ± 2.56 | 35.79 ± 1.65 | 65.45 ± 1.67 | 33.55 ± 1.21 | 66.64 ± 1.12 | 33.36 ± 1.21 | 65.88 ± 1.45 | 34.12 ± 1.34 |

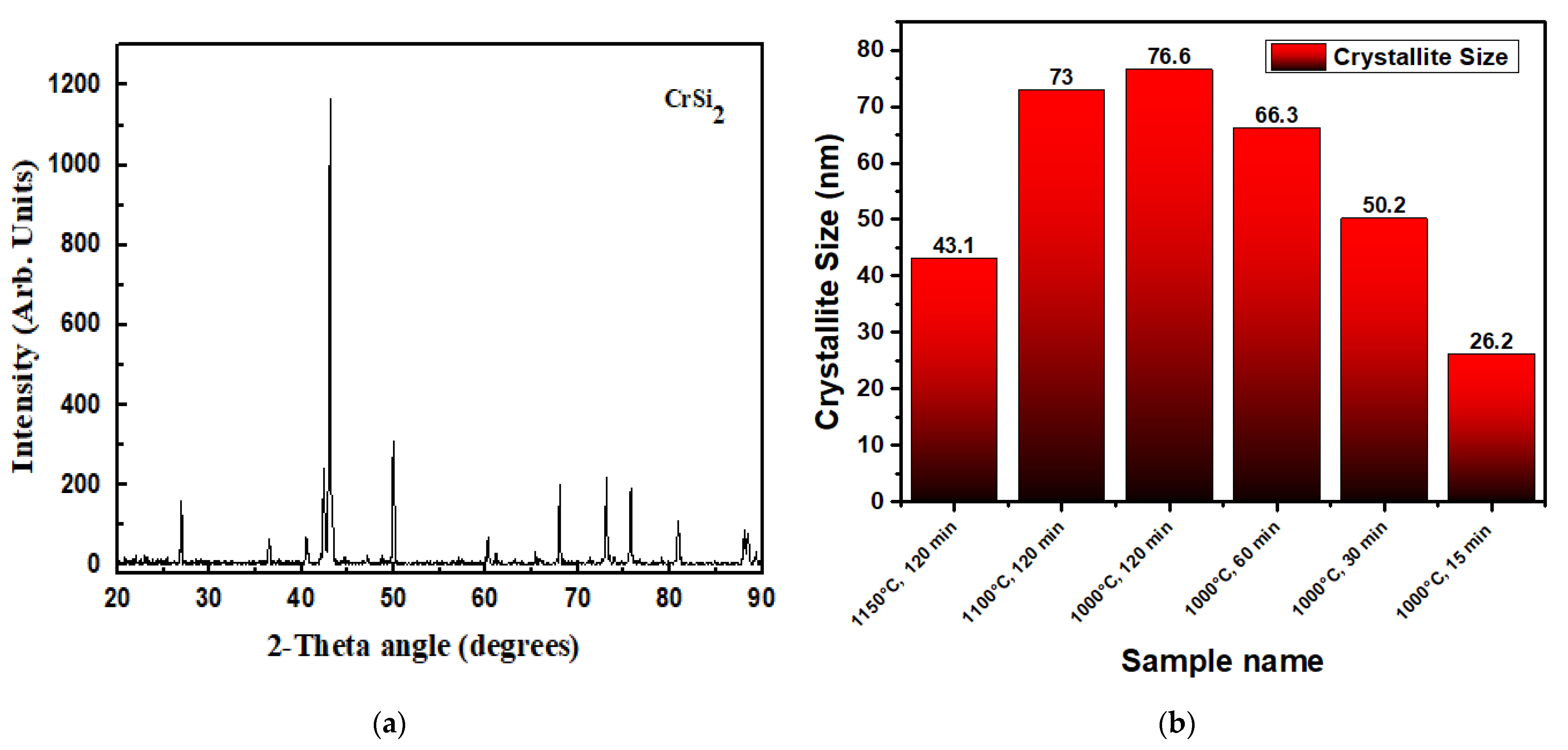

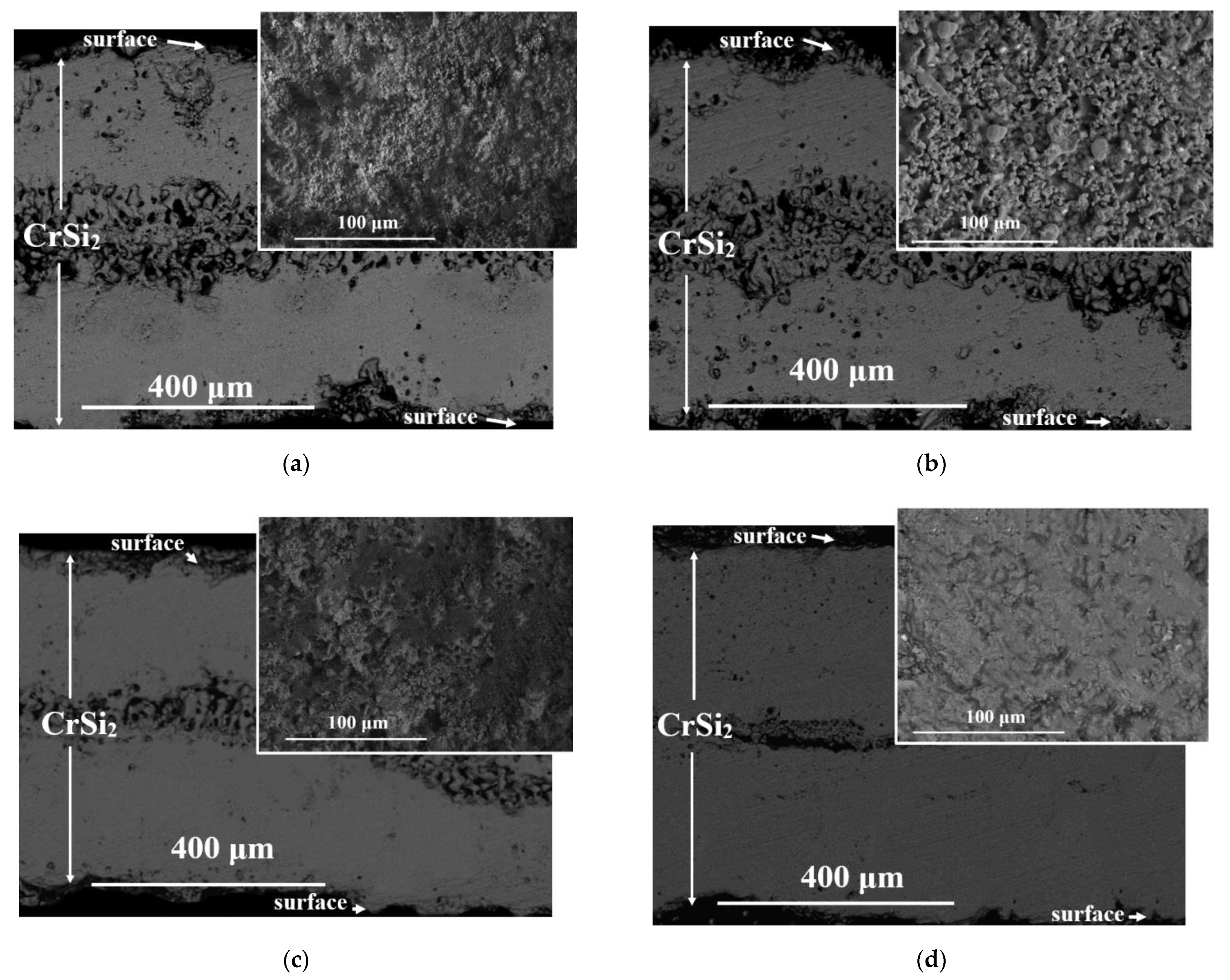

A/A | Sample Name | Thickness (μm) | Critical Temperature of Oxidation (°C) |
---|---|---|---|
1 | 1150_120 min | 620.5 | 504.9 |
2 | 1100_120 min | 547.9 | 358.9 |
3 | 1000_120 min | 540.4 | 331.1 |
4 | 1000_60 min | 567.3 | 344.1 |
5 | 1000_30 min | 589.4 | 514.4 |
6 | 1000_15 min | 611.6 | 609.0 |
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2021 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Tarani, E.; Stathokostopoulos, D.; Tsipas, S.A.; Chrissafis, K.; Vourlias, G. Effect of the Deposition Time and Heating Temperature on the Structure of Chromium Silicides Synthesized by Pack Cementation Process. Corros. Mater. Degrad. 2021, 2, 210-226. https://doi.org/10.3390/cmd2020012
Tarani E, Stathokostopoulos D, Tsipas SA, Chrissafis K, Vourlias G. Effect of the Deposition Time and Heating Temperature on the Structure of Chromium Silicides Synthesized by Pack Cementation Process. Corrosion and Materials Degradation. 2021; 2(2):210-226. https://doi.org/10.3390/cmd2020012
Chicago/Turabian StyleTarani, Evangelia, Dimitrios Stathokostopoulos, Sofia A. Tsipas, Konstantinos Chrissafis, and George Vourlias. 2021. "Effect of the Deposition Time and Heating Temperature on the Structure of Chromium Silicides Synthesized by Pack Cementation Process" Corrosion and Materials Degradation 2, no. 2: 210-226. https://doi.org/10.3390/cmd2020012
