Next Article in Journal
A Review on the Applications of Acoustic Emission Technique in the Study of Stress Corrosion Cracking
Previous Article in Journal
Indirect Galvanostatic Pulse in Wenner Configuration: Numerical Insights into Its Physical Aspect and Its Ability to Locate Highly Corroding Areas in Macrocell Corrosion of Steel in Concrete


Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
Review

Modification, Degradation and Evaluation of a Few Organic Coatings for Some Marine Applications

by
Guang-Ling Song
1,2,3,* and
Zhenliang Feng
1,†
1
Center for Marine Materials Corrosion and Protection, College of Materials, Xiamen University, Xiamen 361005, China
2
State Key Laboratory of Physical Chemistry of Solid Surfaces, College of Chemistry, Xiamen University, Xiamen 361005, China
3
School of Mechanical and Mining Engineering, The University of Queensland, Brisbane, QLD 4072, Australia
*
Author to whom correspondence should be addressed.
The author finished the work in Xiamen University and currently affiliated with School of Materials Science and Engineering, China University of Petroleum (East China), Qingdao 266580, China.
Corros. Mater. Degrad. 2020, 1(3), 408-442; https://doi.org/10.3390/cmd1030019
Submission received: 29 October 2020 / Revised: 8 December 2020 / Accepted: 18 December 2020 / Published: 21 December 2020

Abstract

:
Organic coatings for marine applications must have great corrosion protection and antifouling performance. This review presents an overview of recent investigations into coating microstructure, corrosion protection performance, antifouling behavior, and evaluation methods, particularly the substrate effect and environmental influence on coating protectiveness, aiming to improve operational practice in the coating industry. The review indicates that the presence of defects in an organic coating is the root cause of the corrosion damage of the coating. The protection performance of a coating system can be enhanced by proper treatment of the substrate and physical modification of the coating. Environmental factors may synergistically accelerate the coating degradation. The long-term protection performance of a coating system is extremely difficult to predict without coating defect information. Non-fouling coating and self-repairing coatings may be promising antifouling approaches. Based on the review, some important research topics are suggested, such as the exploration of rapid evaluation methods, the development of long-term cost-effective antifouling coatings in real marine environments.

1. Introduction

As an effective barrier to corrosion media, organic coating is one of the most popular corrosion protection approaches [1,2,3,4,5,6,7,8]. Since organic coating is usually more protective and relatively low cost, and can be more easily applied to large structures than other coating techniques, it is often the first option, particularly for heavy-duty anti-corrosion [9,10] in marine environments [11,12], where many factors, such as solar radiation, high salinity, hot–cold alternation, wet–dry cycling and micro and macro living species, can significantly exacerbate the environment corrosivity and dramatically accelerate the coating degradation [13,14]. Therefore, coatings used in such an aggressive environment must be extremely robust. For example, an organic coating for marine applications is usually a few hundred micrometers thick (typically around 250 μm), much thicker than a conversional coating [15]. Apart from the essential corrosion protection performance, the coatings for marine applications are usually required to be antifouling [16] or super-hydrophobic [17,18,19] to avoid the attachment of some creatures from sea.
Thus far, tremendous research efforts have been made to improve the corrosion resistance and antifouling performance for organic coatings in marine environments, including the design of new polymer molecules or chains [20,21,22], change in coating constituents or additives [23,24,25], modification of coating micro-structures [26,27], decoration of coating surfaces [28,29], and adjustment of coating layers or composite interfaces [30,31,32], as well as the development of new techniques for coating characterization, evaluation and prediction [33,34,35,36]. Apart from these well-known achievements in the coating field, there are also some fragmentary but important progresses that may fundamentally influence the future research of marine organic coatings. This overview basically summarizes some of these key results obtained mainly in the past 15 years, aiming to illustrate the implications of the new findings and developments in possible marine applications. Since there have been many conferences [37,38,39], articles [40,41,42] and books [43,44,45] on the traditional coating systems for marine engineering, this review tries to look at some specific marine applications of organic coatings differently, aiming to establish a relationship between coating microstructure and marine application performance. Therefore, only a few fundamental issues that have not been reviewed before are addressed for some non-traditional marine coatings, rather than the practical behavior of traditional marine paintings or coating systems. From this perspective, it is expected that new and deepened understandings may be obtained for the behavior of organic coatings in marine environments.

2. Organic Coatings for Marine Applications

Generally speaking, a coating plays two basic roles in protecting its substrate [46,47]: (1) isolating the substrate from the environment and (2) changing the substrate surface to a different one with desired properties. The barrier effect in the first role is responsible for the corrosion resistance of organic coatings, while antifouling coatings are typically dependent on the surface functionality in the second role. These two roles can be combined in practice. For example, an organic coating with Zn powder pigment can serve as a barrier to water permeation to isolate a steel substrate and also act as a sacrificial anode to cathodically inhibit the corrosion of the substrate. When some antifouling additives are mixed in an organic coating, the coating will become anticorrosion and antifouling in the same time.
A marine coating system basically includes at least a pretreated substrate surface, a primer layer and a topcoat [48]. The substrate treatment is to remove contaminants and enhance the coating adhesion. The primer is the barrier against water permeation and the carrier of various species, such as anodic passivators, cathodic protectors, and/or inhibitors with particular functions. Traditionally, Zn epoxy-based and silica-based primers with Zn powder as the pigment have been widely used in marine environments. The topcoat, which is typically an alkyd, vinyl or epoxy film, is normally applied to protect the primer from UV irradiation or accident scratching or for a decoration purpose. To prevent the attachment or growth of a biofilm or some fouling, an antifouling coating may also be coated on the top. It should be noted that to date marine coatings are not simply limited on ships and platforms. Unprecedented and extreme applications, such as polar region navigation, deep sea exploration, navy military, etc., have brought many new materials, system designs, and function requirements into the coating industry. Therefore, the marine coating family is currently growing rapidly. For example, many advanced devices are now being more and more frequently used in marine atmospheric conditions [49,50]. They are usually powder coated or E coated very differently from a traditional marine coating. Therefore, the performance of these non-traditional marine coatings should also be included in the scope of contemporary marine coating research. Additionally, with more new metallic materials being increasingly used in marine environments [51,52], such as Ti alloys for submarines, Al alloys and Mg alloys for helicopters and fighters on warships and aircraft carriers, etc., the substrate in a coating system for marine applications is not limited to the steel anymore. Thus, the pretreatments of these new alloys, the organic coating materials and the corresponding coating processes, as well as the coating performance, will be quite different. These are also important topics.
The performance evaluation or service life prediction of a coating system is always one of the biggest challenges in the coating field [53,54,55], which can be seriously affected by the corrosion of the substrate surface, the permeability of the primer, and the disfunction of the topcoat. More specifically, the defects formed during coating or introduced in service can facilitate the ingress of deteriorating and aggressive species into the primer coating, trigger the corrosion of the substrate and delaminate, and eventually rupture the coating, while the consumption of the antifouling species in the coating or the wearing of the special surface molecular microstructure of the coating can lead to the decay of antifouling performance. An organic coating can degrade or be damaged in some environmental conditions through various mechanisms. The deteriorating rate is critically determined by the microdefects for an anticorrosion coating, or the surface polymer molecular structure for an antifouling film. Therefore, in this review, the defects and polymer modification are focused.

3. Defects and Defect-Modification

Organic coatings inevitably contain macro- and microdefects. Under a certain condition, some of the defects are visible under SEM. For example, the SEM cross-section images of an epoxy E-coating and powder coating show that both the coatings are porous (see Figure 1). The E-coating contains more porous defects than the powder coating, and thus the latter is more corrosion resistant than the former on an Mg alloy [56].
It is normal that an organic coating can absorb some moisture [57]. A simple intake or ingress of environmental solution into the coating is usually a reversible process, which cannot damage the coating [58]. However, if the corrosive species, such water, oxygen and chloride, in the absorbed solution start to react with the substrate metal, then the accumulation of corrosion products on the substrate can eventually push off and distort the coating, resulting in coating blistering or spalling over the corroded areas, which will be an irreversible coating degradation and damage process. The irreversibly deteriorated coating defectiveness and eventually damaged coating will facilitate the ingress of corrosive species from the environment to more severely corrode the substrate. If the coating is originally defect free, then no aggressive media can reach the substrate to trigger the corrosion, and the coating damage will not take place. Hence, the size, number and distribution of the defects are critical to the protection performance of an organic coating.
Various macro- and microdefects may inevitably be formed during coating formation and introduced in service, which can actually act as short cuts for corrosive species to penetrate through the coating [59,60,61,62,63,64,65] and trigger the corrosion of the substrate. Obviously, the possibility of a defect continuously going through the entire coating can significantly reduce as the coating thickness increases, especially for a marine coating which is often a few hundred micrometers thick. However, this does not mean a thick organic coating is defect free, particularly after long-term service. It is possible to modify the defects through altering the coating curing conditions, such as temperature, pressure and airflow [66,67,68].
Apart from these natural environmental coating conditions well-known in industries, some artificial factors like electric, magnetic and electro-magnetic fields can also be employed to modify organic polymer coatings [69]. Feng et al. [70] controlled the airflow on the coating surface during curing to alter the defects in the coating to improve the coating anti-permeability. The airflow-modified thinner region of the coating was found to be more impermeable than the other thicker regions. The abnormal permeation behavior could be attributed to the different air pressures caused by the airflow (see Figure 2). The polymerization of the curing alkyd resin normally starts from the top surface layer [71]. A higher pressure can retard the solvent (or diluent) evaporation [72] from the surface and let the coating to fully polymerize, while the coating top layer will be cured more quickly or insufficiently polymerized at a low pressure. Moreover, faster evaporation at low pressure is likely to generate more cracks in the coating surface layer due to the poor polymerization [73]. Thus, the central region of the coating right facing the airflow with a higher pressure will have a lower density of defects, whereas the ring zone is more defective (see Figure 2). The reduction of coating permeability by airflow has not been realized in the coating industry. As alkyd is sometimes used as a topcoat in marine environments, this finding may be employed improve the coating protection performance in a selected area for some special applications.
Similarly, an electric field can also alter the microdefects locally in an organic coating, which is a traditional marine primer and topcoat, thus modifying the coating protection performance. A curing epoxy resin film under a local electric field can be attracted and repelled alternatingly, exhibiting an interesting oscillation behavior, and eventually forming a compression region [74]. A compression region was also found on an alkyd resin if it cured under a local electric field and the compression region had lower permeability in the cured coating (see Figure 3) [75]. However, such a local modification using an electric field may change the chemical compositions of a polymer coating [76] and may be too complicated to be used in the field [77,78].

4. Substrate Effect

Through the original defects formed during coating formation, the environmental media can reach the substrate after the coating is in service. Basically, an organic coating is bonded to the substrate physically and chemically through mechanical anchoring effect [79,80] and metal-organic/oxide-organic bonds [81]. Obviously, the corrosion of the substrate can significantly weaken its bond with the coating. If the substrate is corrosion resistant and the corrosion products are very slowly accumulated at the interface between the coating and substrate, then the coating degradation or failure, such as blistering and spalling, may be effectively delayed. In other words, the corrosion resistance of the substrate can also significantly influence the protection performance of a coating system, which has been verified in many studies [82,83,84,85,86]. It has been reported that a corrosion resistant substrate also has significantly improved corrosion resistance after coating [56,87].
In practice, organic coatings cannot protect an active metallic substrate as effectively as a passive one. For example, it is well known that Mg alloys are much more active than steel. Thus, coating delamination can usually be detected due to the severe corrosion of the substrate Mg alloy (see Figure 4) [56]. Therefore, the substrate pre-treatment is not only for better coating adhesion, it is also critical for the improvement of corrosion protection performance, particularly when the substrate itself is too active.
If the substrate has many anodic and cathodic sites that can form a large number of galvanic couples on the substrate surface, the protectiveness of the coating will be dramatically reduced at their joint region, because after corrosive solution penetrates through the coating, active galvanic corrosion will occur between the substrate couple. The corrosion damage of a coated joint is much more serious than that of a coated passive substrate [86,88,89]. It is an inappropriate idea in some industries to stop or prevent the serious galvanic corrosion around the joint of active metals simply by application of an organic coating in a conventional way.
The substrate corrosion may even occur while an organic coating is curing, which can adversely influence the protection performance of the coating after curing. For example, during polymerization of an epoxy coating, crosslink reaction occurs between the epoxy and curing agent [90,91,92]. The epoxy resin offers epoxy groups for the crosslinking [69], while the curing agent, including aliphatic, cycloaliphatic and aromatic amines or polyamides [93], provides active hydrogen to open the epoxy. In this period, environmental water vapor containing sufficient oxygen can be absorbed by the amines and amides in the curing agent. Therefore, when the mixture of the epoxy and amine is applied on the substrate metal, the water dissolved in the curing agent will facilitate the electrochemical reaction of the substrate, resulting in corrosion damage of the substrate. Consequently, the corrosion products, including oxides/hydroxides of the substrate metal and hydrogen bubbles, formed on the substrate under the curing coating will decrease the coating adhesion, increase the coating porosity, and exacerbate the coating permeability [94]. It was found that after 1 and 4 days of salt spray (ASTM B117), no corrosion was visualized on an epoxy coated carbon steel (CS) or a magnetron-sputtered Mg (SM), whereas nearly half of the coating surface area was damaged on a magnetron-sputtered Mg layer covering over the carbon steel coupon (CS+SM) or a magnetron-sputtered iron layer covering over a magnetron-sputtered Mg layer (SM+SI) (see Figure 5). The magnetron-sputtered Mg layer covering over a carbon steel coupon (CS+SM) and the magnetron-sputtered iron layer covering over a magnetron-sputtered Mg layer (SM+SI) are much more active in corrosion than the magnetron-sputtered Mg layer (SM) and the carbon steel (CS) due to the micro-galvanic effect among the sputtered magnesium, iron, and steel coupon. They suffered from different degrees of corrosion damaged during epoxy coating curing, which significantly affected the protection performance of the cured epoxy coating exposed in salt spray.
The above results, including Figure 5, suggest that a thick epoxy primer in a marine coating system may adversely affect the substrate surface state during coating, particularly when the substrate is not a traditional marine steel. The primer must be stored with great cautions, and applied on the substrate and then cured strictly following the recommended practices at a suitable temperature and carefully controlled humidity to avoid early delamination. For a given substrate and an organic coating, a proper surface treatment before coating is therefore extremely important for the coating adhesion and protection performance [95,96]. In some cases, a simple heating or dehydration of the substrate before coating may even significantly promote the corrosion resistance of the coating [89]. Tremendous research and engineering efforts have been made to develop more cost-effective substrate pretreatments for coatings [97,98,99].
It should be noted even through the importance of the substrate surface state or the essentiality of the substrate pre-treatment has been well-known, the “pre-corrosion” of a substrate during coating polymerization [94] has not been realized in the coating industry. According to this new knowledge, a good surface preparation of the substrate before coating is not enough. It is necessary to take some additional measures to prevent the substrate corrosion when coatings are being cured.

5. Environmental Influence

When a cured organic coating is exposed in its service environment, it will degrade and eventually fail. If the environment is aggressive like marine, a coating system involving different coating layers, interfaces and the substrate metal will degrade rapidly and severely. Due to the presence of defects, the environmental factors can influence the organic coating degradation deeply and even the substrate corrosion.

5.1. Environmental Factors

Many marine factors can affect coating degradation and the substrate corrosion, such as the solar irradiation, salinity condensation, dry–wet alternation, and cold–hot cycling [100,101,102,103]. For example, the detrimental effect of heating and polymer crystallization on coating behaviors has been widely studied [104,105]. It is also well-known that ultraviolet (UV) irradiation can stimulate the change of polymer structure in organic coatings [106], and thus an organic coating normally degrades more rapidly under UV due to the photo-oxidation effect. UV facilitates the formation of macromolecular radicals and the subsequent reactions of the radicals with polymer macromolecules and oxygen, and the formed unstable oxygenated species can further evolve towards stable macromolecules containing oxygenated groups [107,108]. Therefore, the overall damage of an organic coating by UV irradiation is usually surface chalking and roughening [17]. The following sections simply review some factors whose influencing mechanisms on coating formation and protection performance have not been comprehensively understood.

5.2. Water

Apart from the well-known temperature, humidity is a critical factor that can substantially affect the protection performance of an organic coating [109,110]. Under immersion condition, coating swelling is a common behavior, which may result in narrowed cracks or pores in an organic coating. The water absorption induced coating swelling has been experimentally verified [111]. It is generally influenced by coating porosity and salt concentration [112,113,114]. Similar cases also include the addition of water repellence in some coating systems, the variation in osmotic pressure when a ship/boat navigation from a river to sea and vice versa, etc.
As mentioned earlier, the water from the environment can be dissolved in curing agent. This can enhance the electrical conductivity of the mixture the curing agent and epoxy resin during curing, electrochemically facilitating the micro-galvanic activity of the substrate. It has been reported [94] that an Mg–steel couple immersed in epoxy resin (A) curing agent (B) and their mixture (A3B) has galvanic current densities increasing with increasing relative humidity (RH) due to the continuous absorption of water from the environment into the curing agent (see Figure 6). However, as the mixture (A3B) of epoxy resin and curing agent polymerizes and water absorption reduces with time, the galvanic current density decreases (see Figure 6c). As the mixture cannot solidified thoroughly when RH is too high [115,116], the galvanic current stabilizes at 60% RH and 95% RH. Since the curing behavior influenced by the environment humidity can also actually affect the cured coating quality and thus the final coating permeability, the storage and application of curing agents in the coating industry should be handled carefully.
Generally, on a new structure the best practices must be followed, and the coating is not applied at high humidity. However, when the coating in service needs to be repaired in the splash, tidal and immersion zones, the humidity cannot be ideally controlled. The corrosion of the substrate during coating and curing affected by the moisture cannot be ignored.

5.3. Salt

NaCl is one of the major components in seawater. Precipitated salt crystal particles may grow inside the pores or defects of a coating during drying in a wet–dry cycle, similar to the salt crystallization in a porous material [117,118,119]. This may lead to salt crystallization-assisted degradation of the organic coating in marine environments, which had not been realized before until the investigation by Feng et al. [120]. When fast evaporation of the remaining solution on a coating surface particularly in a windy day leads to precipitated NaCl crystal particles growing in the microdefects or pores in the surface layer of a coating, a force (△p) would be built up after the NaCl crystal particles in contact with the pore inner walls [117,121,122]. This pressure will enlarge the defects or pores, deform the coating surface layer, generate cracks and eventually damage the coating [123], resulting in a significantly roughened coating surface.
The finding of salt crystallization induced coating damage may open up a new topic in organic coating research. Some inhibitors that can combine with chloride or sodium to retard the salt-precipitation may be applied on the coating surface to mitigate the coating damage.

5.4. Synergistic Effect

Synergistic effect is known as a combined effect of different environmental factors stronger than simple addition of all the individual influences. In marine environments, the photo-oxidation resulting from solar irradiation may trigger chain scission of polymer molecules [108,124,125]. The wet–dry cycling can exert a swelling–shrinking effect on the coating, consequently degrading or even breaking down the coating [126,127]. Meanwhile, the hydrolysis of organic molecules may occur to facilitate the chain scission in the organic coating. When an epoxy resin surface is subjected to alternate UV irradiation and salt water immersion (ENaCl+UVA), the polymer molecules with broken cross-linking bonds by UV irritation can be more easily hydrolyzed, and the hydrolyzed polymer molecules can be more easily dissolved for UV to oxidize the new exposed surface. In this case, the alternate salt water immersion and UV irradiation (ENaCl+UVA) will more seriously accelerate the degradation of the epoxy resin than the sum of continuous salt water immersion effect (ENaCl) and continuous UV irradiation effect (EUVA). Experimentally, the epoxy resin surface after the alternate water immersion and UVA irradiation was indeed much rougher (see Figure 7). There was an obvious synergistic effect between the UV irradiation and the NaCl solution immersion on the coating degradation [120].
Based on the understanding of the synergistically accelerated effect of salt water immersion and UV irradiation, the degradation of an organic coating in the marine tidal and splash zones may be better predicted. For example, it has been estimated that the acceleration effect of the ENaCl+UVA on epoxy degradation in the lab is approximately 20 times stronger than the natural environment in Xiamen island if the other factors can be neglected [120]. In other words, a one-month lab test will be equivalent to a 20-month island exposure. Thus, with the understood acceleration effect and obtained short-term lab test results, the long-term coating degradation behavior in the field may be predicted.

6. Evaluation

Many techniques have been employed to evaluate the protection performance of organic coatings, among which, electrochemical methods are usually more attractive to researchers in the lab, because they are relatively more rapid than the others based on the corrosion reaction of the substrate metal, as well as the relevant processes through the coatings. Currently, in the lab, the most widely used technique is AC electrochemical impedance spectroscopy (EIS) [128,129,130] and electrochemical noise (EN) [131,132]. The former can measure the coating resistance and substrate corrosion resistance, while the latter basically provides some local damage activities of the coating. Technically, the former is more reliable than the latter in terms of the resistance against environmental noise, and hence can be used in the field and have been attracting more attention from coating researchers and engineers. As these electrochemical techniques measure instantaneous changes in the substrate and coating, they are good to be employed to monitor the degradation and damage of a coating system [133,134,135]. There are numerous non-electrochemical coating evaluation methods. Instead of going over all the well-known traditional approaches, this review simply list a few methods that are scientifically interesting in coating research. They include some surface, microstructure, composition, and chemical state analyzing techniques [136,137,138], such as the Fourier Transform Infrared Spectroscopy (FTIR) [139] and the Confocal Raman Microscopy (CRM) [140] to estimate the bonds and funcational groups involved in the coating as the polymer molecular changes, the Atomic Force Microscope (AFM) [141,142] to detect the coating surface structure and state. These techniques are more focused on the organic coating than the substrate. They are basically used only in the lab, not for field test. Either the electrochemical or the non-electrochemical methods are aiming to rapidly evaluate the corrosion resistance for an organic coating system in service or even predict its service life [143]. However, due to the lack of information on the coating defect size, number and distribution, the evaluation and prediction of coating performance are actually very difficult.

6.1. Simulation and Rapid Evaluation

There are already many conventional lab simulation and evaluation techniques and standards developed for organic coatings [144,145]. Some have been widely used in the industry, while some are used in the lab only for a fundamental research purpose. In this section, a few most popular and recently developed ones are reviewed.

6.1.1. Salt Spray

Salt spray is the most commonly used in the lab to simulate the marine atmospheric, splashing and tidal zones [146,147,148]. However, it cannot speed up the coating degradation very efficiently. It may still be used on some organic coating systems with a very active metal as the substrate, as the corrosion damage of these systems may occur quickly in salt spray [149]. For example, the improved anticorrosion property of a polyurethane coating containing Cr2O3 nanoparticles on carbon steel was successfully evaluated by 624 h of salt spray [150]. The standard salt spray has also be used to evaluate four differently coated Mg alloys. After 1000 h of the test, the epoxy powder coated AZ31 and AZ61 showed higher corrosion resistance but worse adhesion than that of the epoxy E-coated AZ31, while the epoxy E-coated + epoxy powder-coated AZ31 had the best corrosion protection performance [56,151]. How to speed up the degradation process of a coating system in the salt spray condition is currently an interesting topic in coating research and engineering.

6.1.2. Immersion and EIS

Immersion test basically simulates the underwater zone of the marine environment. It is even more time consuming than the salt spray, because for most coating systems it is even less aggressive due to relatively oxygen depletion. However, it has an outstanding advantage that many electrochemical techniques can be used during immersion to generation more detailed information of coating degradation process. Electrochemical impedance spectroscopy (EIS) is the most popular method used during immersion test, which can reliably monitor the degradation of an organic coating system [152,153,154,155] due to its high sensitivity and reliability for a high-impedance system. Due to the ingress of aggressive species or electrolyte, coating resistance decreases and coating capacitance increases [156,157]. After corrosion of the substrate and delamination of the coating, the overall resistance or total impedance and the double-layer capacitance vary further [156,157]. A high corrosion resistant coating system should have slowly decreasing impedance. An equivalent electrical circuit can help understand the degradation behavior of a coating system. With the values of the circuit elements, the degradation degree of a coating system can be quantified [156,157,158,159,160,161,162].
To better simulate the marine tidal or splashing zone, cyclic immersion in salt water is also frequently used in the lab, and the degradation of coating systems is usually monitored through intermittent EIS measurements [163,164,165,166].

6.1.3. AC/DC/AC

Both the immersion and salt spray simulated some marine conditions. They can only speed up the degradation process to a limited extent compared with the natural field marine exposure, and thus have been increasingly criticized for being time consuming [167], particularly when modern organic coatings are becoming more and more corrosion resistant.
AC/DC/AC technique is a combination of DC-driven coating delamination test and immersion EIS measurement to rapidly assess a coating protection performance [168]. It basically cathodically polarizes the organic coating system to speed up the coating blistering or delamination and meanwhile uses EIS to monitor the damage [159,169]. In effect, the AC/DC/AC method is in some senses also a simulation of the coating damage under cathodic protection. In practice, many organic coatings are used together with cathodic protection. Cathodic hydrogen evolution is the main source of the gas bubbles under the blistered coating. Meanwhile, the alkalization resulting from the cathodic reaction can also facilitate the coating blistering and delamination [170,171].
Since the AC/DC/AC method was first published in 2003 [161], its ability to accelerate coating damage and rapidly evaluate coating performance have been verified by other researchers [160]. For example, differently coated Mg alloys after 1 week (30 cycles) of AC/DC/AC were measured to have corrosion resistance in the same rank as that after 1 month of salt spray, and the EIS spectra in the AC/DC/AC were similar to those during a traditional immersion test [56,151]. These suggested that the AC/DC/AC accelerated the coating degradation, but did not change the coating damage mechanism.
However, the AC/DC/AC can change the corrosion mechanism of the substrate metal. The natural corrosion of a coated metal is a result of anodic dissolution of the metal and cathodic reduction of oxygen, both at the same rate on the metal under the coating. An acceleration of the cathodic process will in the same time depress the substrate anodic dissolution, which differs from the natural substrate corrosion process under the coating.

6.1.4. Scratch

Coating defects decisively influence the transfer of corrosive species from the environment through the coating to the coating/substrate interface to trigger the substrate corrosion. It has been reported that under salt spray or immersion condition, coatings with controlled defects can significantly accelerate the substrate corrosion and the coating peeling [172,173,174,175]. However, the defects naturally formed during curing are quite random in number, size and distribution, which cannot be easily adjusted to modify the overall corrosion performance of a coating system [67]. To rapidly reveal coating failure mechanism, controllable defects in organic coatings are needed.
A scratch is a macrodefect made on coating to simulate mechanical damage to a coating system during service [176,177]. Such an open defect may be employed to investigate the substrate corrosion after the environmental corrosive species have arrived at the substrate and the coating has peeled off. However, it should be noted that the corrosion damage along the scratch is mainly dependent on the corrosion resistance of the substrate and the adhesion of the coating on the substrate. The test result of a scratched coating does not reflect the permeability or protection performance of the organic coating in theory. Hence, the industrial engineers who still rely on salt spray test to evaluate coating protection performance must treat the results with caution.
A micro mechanical defect can also be made by Atomic Force Microscope (AFM), and its behavior can be monitored by Scanning Kelvin probe technique (SKP) [178]. This microdefect to a great degree simulates the naturally formed coating through pores.

6.1.5. UV Irradiation

Since UV can accelerate the oxidation and decomposition of polymers, it can be employed to speed up the degradation of organic coatings [179,180,181]. It was found that UV irradiation made an organic coating porous [17].
It is more reasonable if various techniques can be used together to accelerate and assess the degradation or damage of an organic coating system. For example, the combination of UV and salt spray may be used to speed up the coating degradation and meanwhile EIS employed to assess and monitor the degradation process [182]. The application of these kinds of multi-techniques will greatly help comprehend the coating degradation behavior and damage mechanism.

6.2. Degradation and Damage

In practical service environments, the media can reach the substrate through the coating defects quickly, leading to substrate corrosion and coating blistering or spalling [62,183,184,185]. Coating degradation can further accelerate the media intake and thus the damage of a coating system.
Coating degradation may be noticed as water-induced swelling and gas accumulation [63,186,187]. The damage can appear as coating chalking, blistering, peeling or spalling, resulting from photo-oxidation [107,108], hydrothermal degradation [109,110], particularly when the coating is subjected to dry–wet alternation [188] and cold–hot cycling [189]. There have been numerous relevant studies under marine conditions [100,101,102]. In many cases, coating degradation or damage starts from the outmost layer [190]. Hence, the coating surface can to a great extent determine the coating degradation rate [191].
In different marine conditions, a coating may have different degrees of degradation or damage [120]. For example, epoxy resin fully immersed in 5 wt.% NaCl solution (ENaCl) was found to have some small “particles” on the surface, while after alternate NaCl solution immersion and UV irradiation (ENaCl+UVA) it had a rough surface with a layer of particles. Continuous UV irradiation (EUVA) led to many small holes uniformly distributed on the epoxy surface. Alternated exposure in NaCl and air (ENaCl+air) resulted in loose product deposits on the surface. After the coating was alternately exposed in water and UV (Ewater+UVA), the damage was relatively mild. If surface roughness is employed to quantify the coating degradation degree, then the degradation processes of the epoxy resin under different exposure conditions can be formulated with a simple equation (see Figure 8) [120]:

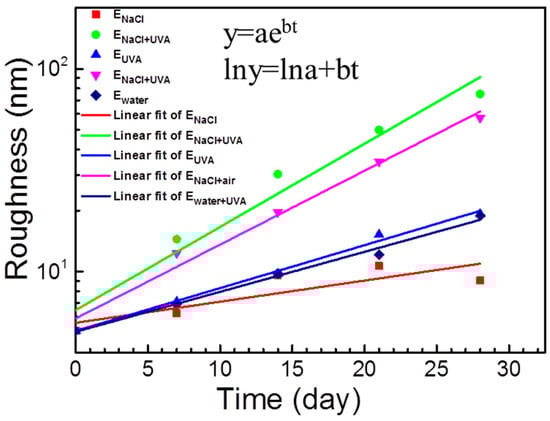

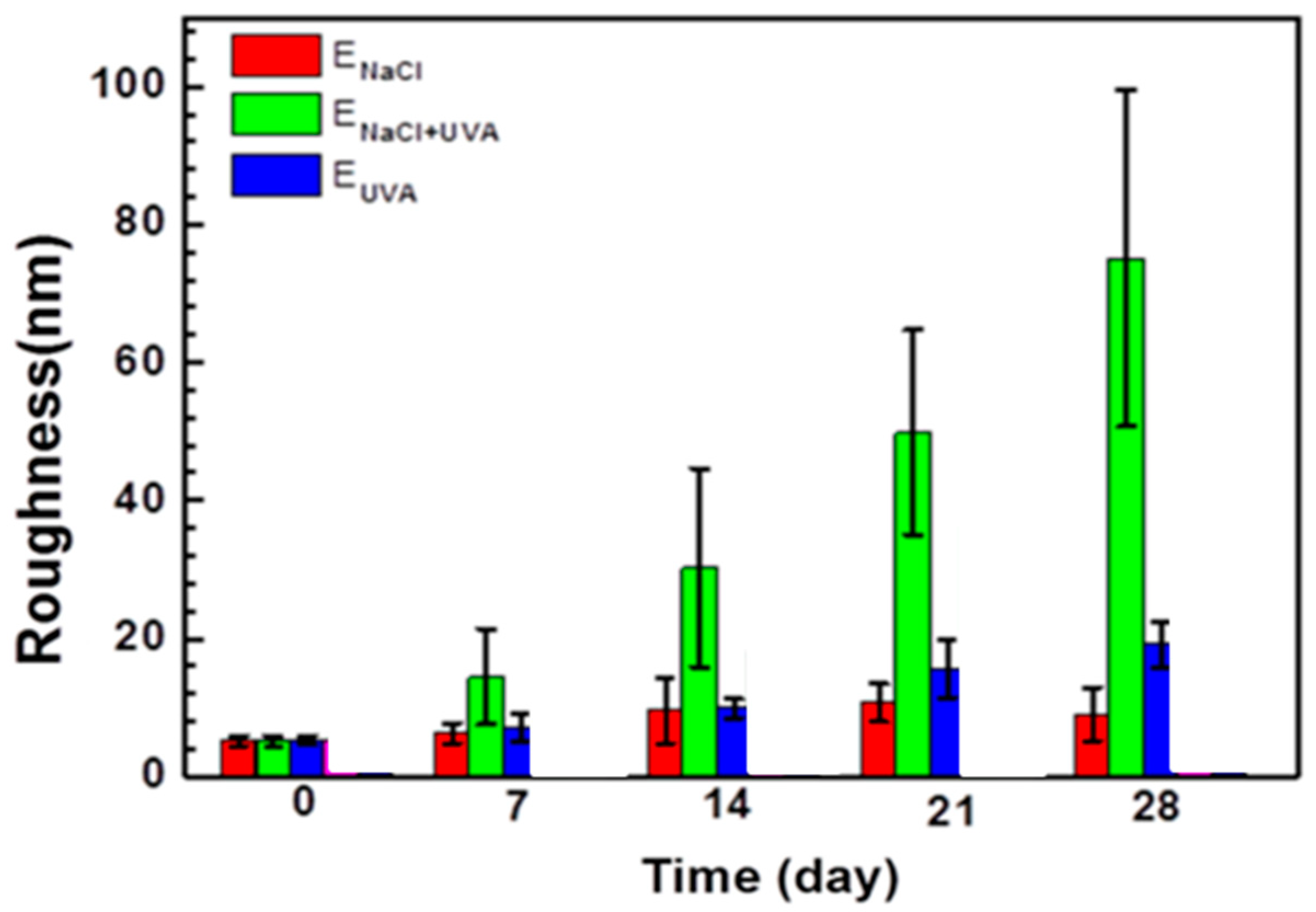

y = aebt
where y is the average surface roughness of the epoxy resin, t is the weathering time, constant a represents the original surface roughness, and constant b is an accelerating factor associated with the environment condition. According to the equation, the degradation acceleration effect in these different conditions can be arranged in the order of: ENaCl+UVA > ENaCl+air > EUVA ≈ Ewater+UVA > ENaCl.

7. Bio-Fouling

Apart from corrosion, bio-fouling is the other annoying problem that the organic coatings have to cope with for the devices and structures in the marine immersion and tidal zones [192,193,194,195]. The best way to prevent bio-fouling is to stop the formation or growth of the pre-conditioning film that is essential for bio-fouling species.

7.1. Antifouling Coatings

Antifouling coating (AF) is a traditional approach of preventing the attachment of marine biomass or organisms [196]. The incorporated biocide additive is a critical constituent in such coatings, which inhibits the micro- and macro-fouling behavior on the coating surface [197]. Cu2O/CuO and ZnO are traditional biocides and still being used somewhere [198]. They have been made into nanoparticles to further improve their anti-biofouling efficiency [199,200]. Unfortunately, most of the biocides, like Cu2O/CuO, ZnO, zinc pyrithione and copper pyrithione, tributyltin, diuron, and irgarol, are not environmentally friendly [198,199,200,201,202]. Due to increasing environmental concerns, many previously used biocides have been, or are going to be banned [203,204], which is stimulating the development of new biocide-releasing coatings. Coating developers have to seek for new environmentally friendly additives or biocides, such as antibiotics, quaternary ammonium ions, and some inorganic ions, compounds or particles [205,206,207,208,209]. To avoid possible pollution to the environment, it is import that the additives must be highly effective and strictly selective to fouling. A very small addition is already sufficient.
Another eco-friendly approach to antifouling is the fouling-releasing coating [210,211,212,213]. For example, silicone-based polymers can be developed into a fouling-releasing coating to release attached bio-foulings easily from the coating surface [214]. The composite poly(dimethysiloxane) coating with SiO2-ZnO nanoparticles has been reported to have self-cleaning and antifouling behaviors [215]. However, the coatings are costly and not strong enough in practice [216].
Currently, antifouling coating development has also been focused on self-polishing [217,218], environmentally friendly biocide-releasing antifouling [200,219,220,221], non-fouling [19,222,223] and self-healing [16,224] functions.

7.2. Self-Polishing and Biocides-Releasing Coatings

A self-polishing coating generally consists of acrylic and meth-acrylic copolymers that can easily be hydrolyzed in seawater [225,226]. The biocide embedded in the coating is gradually exposed and released to kill the biofoulants. Meanwhile, the surface layer of the coating running out biocide and already attached by biofoulants is polished/removed off to expose fresh coating surface containing sufficient biocide.
Although, nanoparticle inorganic biocides have higher antifouling efficiency and can reduce the required amounts, they are toxic to non-targeted organisms [227,228]. Some nontoxic organic biocides have been proposed [229]. They are expected to accelerate the degradation of protein molecules of biofoulants, reduce the adsorption Gibbs free energy of the degraded peptide fragments, and consequently prevent or slow down the formation of the pre-conditioning film to inhibit the growth of fouling organisms. For example, serine protease can be encapsulated and subtilized in a sol-gel coating, and applied on a stainless steel surface (see Figure 9), to retain the enzyme activity against the growth of biofilm for 9 months [230].

7.3. Non-Fouling Coatings

All the self-polishing coating and biocides will run out eventually. A permanent solution of biofouling may exist in coating surface functionalization [231,232,233,234,235,236,237]. Therefore, the research in this direction has attracted many efforts and resources. For example, hydrophobic coatings (with a water contact angle greater than 90 degree), such as silicone-based and fluorine-based coatings, have low surface energy, low elastic modulus and high surface roughness. The lower surface energy implies less active interaction with live species. When a surface is rough enough, the accumulated biofoulants can be easily removed in a hydrodynamic fluid [238]. With low elastic modulus and critical surface free energy, the coating surface will not be sticky to attached species [239]. Duong et al. [240] found that a synthesized poly(dimethylsiloxane) (PDMS) coating was hydrophobic in artificial seawater, having good anti-adhesion of bacteria and antifouling activity. Although high hydrophobic and low elastic modulus coatings are environment friendly antifouling, they are not wear- or scratch-resistant in static water, and thus cannot find wide practical applications.
A hydrophilic polymer “brush” can prevent adhesion of proteins due to the entropic repulsion, and thus it can avoid the formation of a biofilm for biofouling attachment [241]. Poly ethylene glycol (PEG) is one of the most commonly used hydrophilic polymers. PEG-based coatings can be obtained from self-assembled monolayers (SAMs) through atom transfer radical polymerization (ATRP) to graft the PEG brushes on a substrate surface. Therefore, the resistance of the surface against protein adhesion increases with the density of the grafted PEG and its chain length [242]. Benjamin et al. [243] fabricated PEG layers step by step on a silicon surface to significantly improve the stability and density of PEG in order to optimize the antifouling behavior (see Figure 10). It was recently further reported that a loop surface had better anti-protein performance than a brush-bearing surface [244].

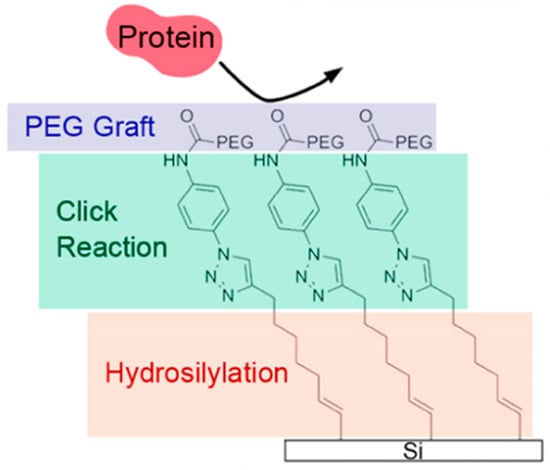

The biomimetic attachment of PEG to various substrates interests some antifouling coating developers. Trimeric catecholates have been synthesized and immobilized on TiO2 and stainless steel, and PEG conjugated to a trimeric catecholate surface to prevent the adsorption of human blood and bacteria [245]. Although most hydrophilic brush polymer systems have satisfactory antifouling performance, they have some obvious drawbacks, such as limited mechanical robustness, high sensitivity toward hydrolysis and oxidation, and selected effectiveness for only a few bio-fouling species.

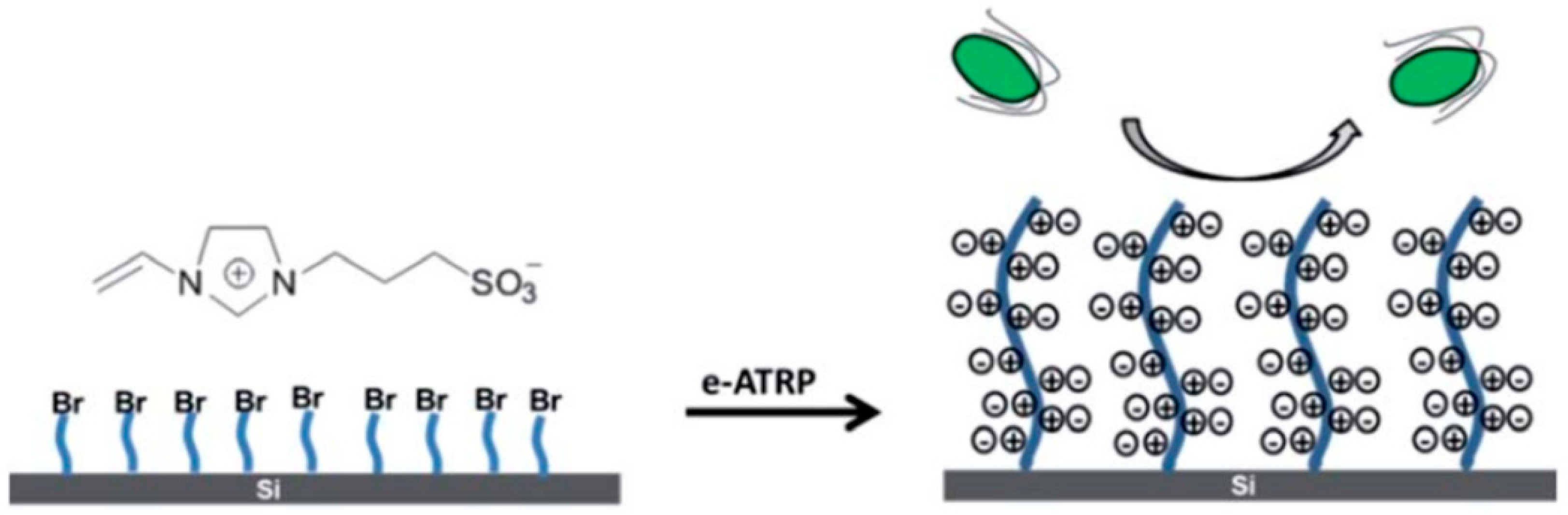

In recent years, several zwitterionic materials including sulfobetaine (SB), phosphorylcholine (PC), and carboxybetaine (CB), with both anionic and cationic groups were investigated for their resistance to protein adsorption [246,247,248], and found that their strong hydration and charge balance could reduce the entropy gain and the enthalpy loss against protein adsorption [249]. Two factors should be considered for a zwitterionic coating. Firstly, the protein resistance of a zwitterionic brush is also affected by the grafting density and chain length like hydrophilic brush. Secondly, a hydrophilic zwitterionic polymer coating tends to be dissolved in environmental water to gradually expose the underneath fresh surface. When a zwitterionic macro-crosslinker is applied on a polyurethane substrate, it will be much thicker and more durable than a common polymer brush coating, maintaining its hydrophilicity for more than two weeks in static water and retaining its resistance to the adsorption of proteins and bacteria for at least one week in flowing condition [250,251]. Zhao et al. [252] grafted zwitterionic sulfobetaine vinylimidazole (pSBVI)-based polymer brushes to a silicon substrate through electrochemical surface-initiated atomic-transfer radical polymerization (e-SIATRP) to reduce the adhesion of marine alga nannochloropsis maritima (see Figure 11). The e-SIATRP technology appeared to be more effective than a traditional ATRP as the reaction solution is recyclable.
Poly-cationic antibacterial materials obtained from quarternization of tertiary amine groups with alkyl halides have also an antifouling behavior, because the negatively charged cell membranes of bacteria could be damaged by the highly positively charged polymer chains [253]. They can be incorporated into polymers, films, dendrimers and particles on various substrates to make the surfaces antibacterial. Many researchers are trying to enhance the polycationic antibacterial activity [254,255]. For example, Yuan et al. [256] synthesized hydroxyl-rich cationic derivatives via the ring-opening reaction of a star-like poly (glycidyl mehacrylate) (s-PGMA) to a form antibacterial and antifouling coating (see in Figure 12).
Either a hydrophilic or hydrophobic surface is antifouling to only some species [257]. If the surface is made amphiphilic with a combined hydrophilic and hydrophobic effect, the antifouling resistance may be further improved [258,259,260]. Amphiphilic polymers general contain fluorinated and polyethylene glycol (PEG) or polyethylene oxide (PEO) based groups with an optimized ratio of hydrophobic and hydrophilic segments. The amphiphilic surfaces may be fabricated by a layer-by-layer self-assembly (LbL) method, which have a poly-anion grafted to amphiphilic fluoroalkyl polyethylene glycol (fPEG) side chains, and can effectively prevent the adhesion of marine bacterium Pseudomonas (NCIMB 2021) [261]. Chen et al. [262] synthesized a ternary copolymer composed of N-(4-hydroxy-3-methoxybenzyl)acrylamide (HMBA), poly(ethylene glycol) methyl ether methacrylate (PEGMA), and 2-hydroxyethyl acrylate (HEA) via facile radical polymerization, which was further cross-linked with PAPI to form polyurethane (PU) coatings (see Figure 13). The prepared copolymer coatings exhibited heterogeneity, amphiphilicity and excellent fouling resistance to protein Bovine serum albumin (BSA).

7.4. Self-Healing Antifouling Coatings

Even a non-fouling coating can lose its antifouling efficiency in the mechanically damaged areas. It will be ideal to have a coating that can resume its originally designed functions in the mechanically damaged local area. Inspired by some living organisms that can survive, revive or recover after being seriously hurt or partially damaged, researchers are now trying to develop some self-healing materials for coatings [263,264,265,266,267,268,269]. Chen et al. [16] developed an underwater superoleophobic and self-repairing anti-biofouling coating for the first time through self-assembly of the hydrophilic polymeric-chain-modified hierarchical microgel spheres (MHMSs) (see Figure 14). Xue et al. [224] also fabricated a robust self-healing superhydrophobic poly (ethylene terephthalate) (PET) fabric via a convenient solution-dipping method using widely available polydimethylsiloxane (PDMS) and octadecylamine (ODA), which exhibited remarkable durability to abrasion, washing in different pH solutions, and could resume its superhydrophobicity even after air-plasma treatment.
Currently, most of the environmentally friendly antifouling coatings are more successful in the lab than in field. There is still a long way to cost-effective long service life antifouling coatings for practical marine applications.

7.5. Evaluation of Antifouling Coatings

Coating characterization is critical to the design and development of organic coatings [270], which can help optimize coating chemical composition and microstructure [271], surface morphology [272] or surface energy [273]. Generally, the molecular structures of organic coatings can be detected by attenuated total reflectance Fourier transform infrared spectroscopy (ATR-FTIR) [137,139], X-ray Photoelectron Spectroscopy (XPS) [274] and proton nuclear magnetic resonance spectroscopy (1H-NMR) [275]. The inorganic additives in antifouling organic coatings, such as Cu2O or ZnO, can be detected by X-Ray Powder Diffraction (XRD), thermogravimetric analyzer (TGA) and atomic absorption spectroscopy [198,256]. The coating surface morphology can be analyzed by atomic force microscopy (AFM) [141,142], scanning electron microscopy (SEM) [276], laser scanning confocal microscopy (LSCM) [277] and fluorescent microscopy [278], and the surface energy can usually be estimated from the contact angle of water or methylene iodide [279]. The coating strength and bonding force can be determined by tensile test [280], adhesion test [281] and dynamic mechanical analysis (DMA) [180,282].
Antifouling performance is one of the most critical properties determining the success of a coating for marine applications. The antifouling performance evaluation methods include field tests and laboratory-based antifouling assays [283]. The field tests are more reliable, while laboratory methods are time-saving. A field assay can be either dynamic or static. In the static immersion, the designed antifouling specimens are exposed 1 m deep in seawater. During dynamic immersion, the specimen panels are attached to a moving float, exposing to the seawater parallel to the water flowing direction. In the laboratory, the traditional atomic force microscopy (AFM) [141,142], spinning disk [284], hydrodynamic shear force [285] can be applied to coating surfaces to quantify the adhesion of biological species.
In addition to the above conventional coating characterizations and performance evaluations, many new techniques had been developed to assess the antifouling behavior. Alles and Rosenhahn [286] established a microfluidic assay to quantitatively characterize diatom adhesion on different antifouling surfaces. In the method, micro-channels were formed by polydimethylsiloxane (PDMS) gaskets squeezed between a glass-lid and the sample surface. Thus, the shear stress on the channel walls could be calculated [287]. This sensitive method only requires a small volume of diatom suspension for test. George et al. [288] theoretically simulated fouling-release behavior on polymer surfaces, and demonstrated that the surface fouling-release was determined by the surface affinity to biofoulants and water. The observed wetting and adhesion phenomena could be related to the nanoscale surface features. A computational fluid dynamics (CFD) model was also proposed to predict the friction resistance of antifouling coatings based on surface roughness measurements [289,290].
The above methods are mainly for lab studies. Their reliability needs verification in field. It is highly desired that new methods as informative as the above lab techniques can be developed for reliable field tests.

8. Concluding Remarks

From a corrosion protection point of view, the defects ranging from nano-level broken molecular bonds to micro-level gas bubbles and shrunk pores, up to even millimeter-level cracks are the decisive factor for an organic coating. The degradation or damage of the organic coating is in nature an exacerbation process of the defective effect, which eases the travel of corrosive species through the coating from the environment to the substrate metal.
Since there are inevitably many short-cut defects in an organic coating and the accumulation of corrosion products on the substrate can facilitate the coating degradation and damage, the corrosion resistance of the substrate can affect the coating protectiveness. The coating protection performance can be improved by using a more corrosion resistant substrate or by pre-treating the substrate to enhance its passivity before coating or even simply by reducing the substrate corrosion damage during coating.
With the coating defects, the corrosive media can reach the substrate eventually. Thus environmental factors can sooner or later influence the substrate corrosion through the defects. Meanwhile, some environmental factors and processes can also make the coating more defective and accelerate the coating degradation. Particularly when the coating degradation is facilitated by multi environmental factors, there may be a synergistic acceleration effect on the coating decay and failure. The worst case is that the multi environmental factors simultaneously accelerate the substrate corrosion and coating degradation, which will lead to rapid coating delamination or spallation.
To predict the corrosion damage of a coating system, the most useful information is the defect size, number and distribution in the coating. However, direct determination of the nano- and microdefects in an organic coating on a metal is difficult. Even worse, a quality coating system usually degrades or corrodes slowly. In order to obtain enough results to predict the coating system’s long-term performance, the degradation and damage should be sped up. Unfortunately, it is highly risky to predict the long-term coating protection performance based on limited short-term test data.
Antifouling research has been focused by many coating researchers and engineers for decades. Non-fouling coating and self-repairing coatings are currently and will continue to be hot research topics. Based on the innovative ideas that have been proposed and tested, it is more important to develop some long-term cost-effective antifouling coatings in real marine environments.
Additionally, the rapid evaluation methods that can truly and rapidly characterize and assess the bio-fouling behavior of antifouling coatings in real marine environments are urgently needed.

9. Future Perspective

Current rapid development of the marine industry demands for more corrosion resistant organic coatings with more effective antifouling performance for a wider variety of marine devices and structures. There is no doubt that more research resources will be invested in new coating development in future. It is likely that coating researchers and engineers will make every endeavor to further improve the coating technology in the following areas.

9.1. Coating on New Marine Material

It is believed that more new materials will be used in marine environments. Due to the differences in physical and chemical properties, the coating systems required for them may be different from those for the traditional marine materials. For example, light weight Mg alloys [160,291,292,293,294,295,296,297,298] may be increasingly used in aircrafts and helicopters on marine gas/oil platforms, warships and aircraft carriers. They need very robust coatings in the marine atmosphere, as they are much more active than the traditional substrate metals and behave differently in electrochemical experiments [158], which can significantly influence the coating formation and protection performance. By utilizing the special surface alkalization effect of Mg, a new coating technique, Electroless E-coating process, has been developed for Mg alloys [86,158,162,299,300,301,302,303,304,305,306], in which surface wetness is critical to the coating performance [89,158,299,300]. Obviously, different substrates will have different electrochemical characteristics, which may lead to different coating formation and protection behaviors.

9.2. Environmentally Friendly Coating

Some toxic or polluting additives and compounds may be released into environment from coating materials in the coating system manufacturing, applying or using stage. The organic coating industry has been fighting for “green” products for decades. The importance of this environment hazard issue will be never overstressed in future.
Tremendous efforts have been made to advance environmentally friendly organic coating technology in the traditional corrosion prevention field [307]. Unfortunately, the antifouling requirement strictly limits the options of coating materials and manufacturing procedures. Therefore, in future the antifouling organic coating technique and system will continuously be a challenging research topic.
There are already some promising antifouling coating materials recently reported, such as exfoliated GO-Al2O3 hybrid sheet and MnO2-silicone hybrid polydimethylsiloxane film [308,309], silver nanoparticle [206,310,311,312,313,314,315], silver-doped graphene oxide nanosheet-chitosan nanoparticle [316]. Natural raw materials appear to be quite attractive to coating researchers [202,317,318]. The green materials are more likely to make an antifouling coating environmentally friendly. Along this approach, some cost-effective and long-term effective antifouling coatings may be developed for marine applications in future.

9.3. Rapid Reliable Coating Valuation

When the degradation of a coating system is accelerated artificially, the natural failure mechanism is likely changed. For example, temperature elevation may lead to polymer crystallization, scratching will completely eliminate the local barrier effect of a coating, and ultra-sounding can mechanically crack the coating or peel off the coating, all of which completely change the transfer mechanism of corrosive media in the coating. A system tested by means of these rapid methods will degrade and fail differently from its normal decay behavior, and the tested results will be meaningless. It is critical that an accelerated test method can significantly speed up the damage of a coating system, but not change its normal degradation mechanism. Obviously, this is difficult. Hopefully, it can be achieved after all the detailed coating degradation and damage mechanisms are comprehensively understood. For example, it is well-known that in principle the anodic polarization current density of the substrate metal is always equal to the cathodic polarization current density for a coating system in a corrosive environment. After a long-term natural exposure, the total electric charge from the anodic polarization should be equal to that from the cathodic polarization. More the charge produced means worse corrosion damage to the substrate, and a larger amount of oxide, hydroxide or hydrogen accumulated to peel off or crack the coating. Therefore, to reasonably accelerate the corrosion damage of the coating, the DC polarization in the AC/DC/AC test should be modified to equally enhance the anodic and cathodic processes, rather than accelerating the cathodic reaction but decelerating the anodic dissolution. With this understanding, the AC/DC/AC method may be optimized by a combination of cathodic and anodic polarization in the DC step.

9.4. Service Life Prediction

Corrosion behavior is always difficult to predict. Service life is the most challenging topic in corrosion science and protection engineering, particularly for an organic coating system with many complicated various and varying influencing factors.
Generally speaking, for corrosive species from the environment to corrode the substrate metal under an organic coating, there are 3 stages (see Figure 15): (1) ts-ingress into the coating, (2) tc-diffusion through the coating, and (3) ti-interaction with the substrate and initiation of corrosion. After that, coating will start blistering, peeling and spalling, and gradually lose its protectiveness, although sometimes the blistering, peeling or spalling process is slow and may not be easily detected. Therefore, the service life of the coating system is determined by these stages [156,319]:

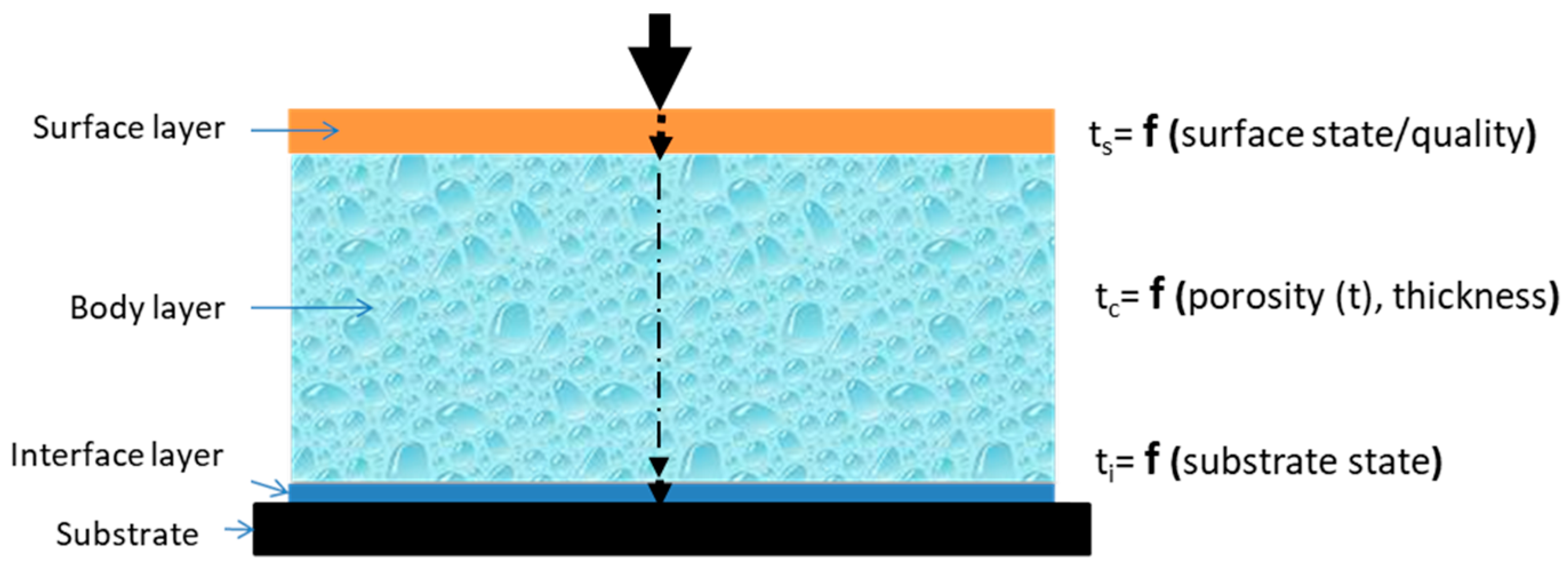

t = ts + tc + ti
where ts is dependent on the coating surface state, tc is determined by the coating porosity and thickness, and ti is controlled by the substrate state. The ts may be significantly shortened in the lab by increasing the concentrations the corrosive species, which does not change the ingress mechanism. The ti may be sped up by a specially designed electrochemical process. The most difficult step is how to speed up the tc stage, which is a diffusion process in the coating body. Limited by the surface layer of the coating, the diffusion cannot be sped up significantly by increasing the concentrations of those species from the environment, and the organic coating cannot be heated up too much to evidently accelerate the diffusion either. If the species transfer in the coating body is assisted by an electric, magnetic or other field, the diffusion process may be dominated by migration, and the transfer mechanism will be changed.
Unfortunately, almost all the organic coatings used in marine environments are thick with low permeability. Corrosive species cannot easily penetrate the coating. Without changing the slow diffusion mechanism of the corrosive species in the coating and the corrosion mechanism of the substrate metal to dramatically shorten these two stages, it will be extremely difficult to monitor the degradation and damage of the coating system. Without sufficient degradation and damage information, there is no way to predict the coating system’s service life. Hopefully, in future work, this hurdle for coating systems in marine applications will be targeted by more coating researchers.

Funding

National Key Research and Development Program of China (Grant No. 2017YFB0702100), the National Natural Science Foundation of China (key project Grant No.51731008 and general project Grant No.51671163), National Environmental Corrosion Platform of China, and the National Key Research, Science and Technology Planning Project of Fujian Province (2018H6017).

Acknowledgments

The authors also appreciate the assistance from Dajiang Zheng, Yuqing Xu, and Naiyuan Fang in some lab experiments.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Amirudin, A.; Thierry, D. Application of electrochemical impedance spectroscopy to study the degradation of polymer-coated metals. Prog. Org. Coat. 1995, 26, 1–28. [Google Scholar] [CrossRef]
  2. Bellucci, F.; Nicodemo, L.; Monetta, T.; Kloppers, M.J.; Latanision, R.M. A study of corrosion initiation on polyimide coatings. Corros. Sci. 1992, 33, 1203–1226. [Google Scholar] [CrossRef]
  3. Zhang, Z.; Wu, J.; Zhao, X.; Deng, H. Life evaluation of organic coatings on hydraulic metal structures. Prog. Org. Coat. 2020, 148, 105848. [Google Scholar] [CrossRef]
  4. Gimeno, M.J.; Puig, M.; Chamorro, S.; Molina, J.; March, R.; Oró, E.; Pérez, P.; Pérez, P.; Suay, J.J. Improvement of the anticorrosive properties of an alkyd coating with zinc phosphate pigments assessed by NSS and ACET. Prog. Org. Coat. 2016, 95, 46–53. [Google Scholar]
  5. Yi, H.; Deng, Y.; Wang, C. Technology. Pickering emulsion-based fabrication of epoxy and amine microcapsules for dual core self-healing coating. Compos. Sci. Technol. 2016, 133, 51–59. [Google Scholar] [CrossRef]
  6. Kaur, H.; Sharma, J.; Jindal, D.; Arya, R.K.; Ahuja, S.K.; Arya, S.B. Crosslinked polymer doped binary coatings for corrosion protection. Prog. Org. Coat. 2018, 125, 32–39. [Google Scholar] [CrossRef]
  7. Xu, H.; Zhang, X. A Review on Conducting Polymers and Nanopolymer Composite Coatings for Steel Corrosion Protection. Coatings 2019, 9, 807. [Google Scholar]
  8. Zhang, X.; Ma, R.; Du, A.; Liu, Q.; Fan, Y.; Zhao, X.; Wu, J.; Cao, X. Corrosion resistance of organic coating based on polyhedral oligomeric silsesquioxane-functionalized graphene oxide. Appl. Surf. Sci. 2019, 484, 814–824. [Google Scholar] [CrossRef]
  9. Monetta, T.; Bellucci, F.; Nicodemo, L.; Nicolais, L. Protective properties of epoxy-based organic coatings on mild steel. Prog. Org. Coat. 1993, 21, 353–369. [Google Scholar] [CrossRef]
  10. Waśkiewicz, S.; Zenkner, K.; Langer, E.; Lenartowicz, M.; Gajlewicz, I. Organic coatings based on new Schiff base epoxy resins. Prog. Org. Coat. 2013, 76, 1040–1045. [Google Scholar] [CrossRef]
  11. Chang, C.H.; Hsu, M.H.; Weng, C.J.; Hung, W.I.; Chuang, T.L.; Chang, K.C.; Peng, C.W.; Yen, Y.C.; Yeh, J.M. 3D-bioprinting approach to fabricate superhydrophobic epoxy/organophilic clay as an advanced anticorrosive coating with the synergistic effect of superhydrophobicity and gas barrier properties. J. Mater. Chem. A 2013, 1, 13869–13877. [Google Scholar] [CrossRef]
  12. Rout, T.K.; Gaikwad, A.V. In-situ generation and application of nanocomposites on steel surface for anti-corrosion coating. Prog. Org. Coat. 2015, 79, 98–105. [Google Scholar] [CrossRef]
  13. Jacques, L.F.E. Accelerated and outdoor/natural exposure testing of coatings. Prog. Polym. Sci. 2000, 25, 1337–1362. [Google Scholar] [CrossRef]
  14. Singh, S.K.; Tambe, S.P.; Raja, V.S.; Kumar, D. Thermally sprayable polyethylene coatings for marine environment. Prog. Org. Coat. 2007, 60, 186–193. [Google Scholar] [CrossRef]
  15. Armelin, E.; Alemán, C.; Iribarren, J. Anticorrosion performances of epoxy coatings modified with polyaniline: A comparison between the emeraldine base and salt forms. Prog. Org. Coat. 2009, 65, 88–93. [Google Scholar] [CrossRef]
  16. Chen, K.; Zhou, S.; Wu, L. Self-Healing Underwater Superoleophobic and Antibiofouling Coatings Based on the Assembly of Hierarchical Microgel Spheres. ACS Nano 2016, 10, 1386. [Google Scholar] [CrossRef]
  17. Hu, J.; Li, X.; Gao, J.; Zhao, Q. Design. UV aging characterization of epoxy varnish coated steel upon exposure to artificial weathering environment. Mater. Des. 2009, 30, 1542–1547. [Google Scholar] [CrossRef]
  18. Jisr, R.M.; Keller, T.C.S.; Schlenoff, J.B. Patterned Friction and Cell Attachment on Schizophobic Polyelectrolyte Surfaces. Langmuir 2013, 29, 15579–15588. [Google Scholar] [CrossRef]
  19. Wu, G.; Liu, D.; Chen, J.; Liu, G.; Kong, Z. Preparation and properties of super hydrophobic films from siloxane-modified two-component waterborne polyurethane and hydrophobic nano SiO2. Prog. Org. Coat. 2019, 127, 80–87. [Google Scholar] [CrossRef]
  20. Pidhatika, B.; Nalam, P.C. Investigation of design parameters in generating antifouling and lubricating surfaces using hydrophilic polymer brushes. J. Appl. Polym. Sci. 2019, 136, 47659. [Google Scholar] [CrossRef]
  21. Yeonwoo, J.; Le, T.T.; So, H.K.; Ko, S.; Kim, S.; Cho, W.K.; Choi, J.S.; Kang, S.M. Multipurpose Antifouling Coating of Solid Surfaces with the Marine-Derived Polymer Fucoidan. Macromol. Biosci. 2018, 18, 1800137. [Google Scholar]
  22. Hamidon, T.S.; Hussin, M.H. Susceptibility of hybrid sol-gel (TEOS-APTES) doped with caffeine as potent corrosion protective coatings for mild steel in 3.5 wt.% NaCl. Prog. Org. Coat. 2020, 140, 105478. [Google Scholar] [CrossRef]
  23. Rajkumar, R.; Vedhi, C. Study of the corrosion protection efficiency of polypyrrole/metal oxide nanocomposites as additives in anticorrosion coating. Anti-Corros. Methods Mater. 2020, 67, 305–312. [Google Scholar] [CrossRef]
  24. Zhang, J.; Liu, Y.; Wang, X.; Zhang, C.; Liu, H.; Yang, W.; Cai, M.; Pei, X.; Zhou, F. Self-polishing emulsion platforms: Eco-friendly surface engineering of coatings toward water borne marine antifouling. Prog. Org. Coat. 2020, 149, 108482. [Google Scholar] [CrossRef]
  25. Wanka, R.; Koc, J.; Clarke, J.; Hunsucker, K.; Swain, G.; Aldred, N.; Finlay, J.; Clare, A.; Rosenhahn, A. Sol–Gel-Based Hybrid Materials as Antifouling and Fouling-Release Coatings for Marine Applications. ACS Appl. Mater. Interfaces 2020, 12, 53286–53296. [Google Scholar] [CrossRef]
  26. Sun, W.; Xing, C.; Tang, X.; Zuo, Y.; Tang, Y.; Zhao, X. Comparative study on the degradation of a zinc-rich epoxy primer/acrylic polyurethane coating in different simulated atmospheric solutions. J. Coat. Technol. Res. 2020. [Google Scholar] [CrossRef]
  27. Chen, J.F.; Zhang, J.T.; Hu, M.J.; Zheng, Z.Q.; Wang, K.D.; Li, X.B. Preparation of Ni/graphene hydrophobic composite coating with micro-nano binary structure by poly-dopamine modification. Surf. Coat. Technol. 2018, 353, 1–7. [Google Scholar] [CrossRef]
  28. Zhan, Y.; Zhang, J.; Wan, X.; Long, Z.; He, S.; Yi, H. Epoxy composites coating with Fe3O4 decorated graphene oxide: Modified bio-inspired surface chemistry, synergistic effect and improved anti-corrosion performance. Appl. Surf. Sci. 2018, 436, 756–767. [Google Scholar] [CrossRef]
  29. Cho, H.; Lee, J.; Lee, S.; Hwang, W. Durable superhydrophilic/phobic surfaces based on green patina with corrosion resistance. Phys. Chem. Chem. Phys. 2015, 17, 6786–6793. [Google Scholar] [CrossRef] [Green Version]
  30. Yeganeh, M.; Omidi, M.; Rabizadeh, T. Anti-corrosion behavior of epoxy composite coatings containing molybdate-loaded mesoporous silica. Prog. Org. Coat. 2019, 126, 18–27. [Google Scholar] [CrossRef]
  31. Chen, C.; Wei, S.; Xiang, B.; Wang, B.; Yuan, Y.J.C. Synthesis of Silane Functionalized Graphene Oxide and Its Application in Anti-Corrosion Waterborne Polyurethane Composite Coatings. Coatings 2019, 9, 587. [Google Scholar] [CrossRef] [Green Version]
  32. Wang, C.J.; Wang, H.Y.; Li, M.L.; Liu, Z.J.; Lv, C.J.; Zhu, Y.J.; Bao, N.Z. Anti-corrosion and wear resistance properties of polymer composite coatings: Effect of oily functional fillers. J. Taiwan Inst. Chem. Eng. 2018, 85, 248–256. [Google Scholar] [CrossRef]
  33. Eom, S.; Kim, S.; Lee, J. Assessment of Anti-Corrosion Performances of Coating Systems for Corrosion Prevention of Offshore Wind Power Steel Structures. Coatings 2020, 10, 970. [Google Scholar] [CrossRef]
  34. Pélissier, K.; Thierry, D. Powder and High-Solid Coatings as Anticorrosive Solutions for Marine and Offshore Applications? A Review. Coatings 2020, 10, 916. [Google Scholar]
  35. Gu, Y.; Yu, L.; Mou, J.; Wu, D.; Ren, Y. Research Strategies to Develop Environmentally Friendly Marine Antifouling Coatings. Mar. Drugs 2020, 18, 371. [Google Scholar] [CrossRef]
  36. Selim, M.S.; El-Safty, S.A.; Shenashen, M.A.; Higazy, S.A.; Elmarakbi, A. Progress in biomimetic leverages for marine antifouling using nanocomposite coatings. J. Mater. Chem. B 2020, 8, 3701–3732. [Google Scholar] [CrossRef]
  37. Kalyva, Μ.; Chronaki, C.; Papaspyrides, C.D.; Korres, D.; Vouyiouka, S. Antifouling encapsulation systems for making coating applications. In Proceedings of the 12th Hellenic Polymer Society International Conference, Ioannina, Greece, 30 September–3 October 2018. [Google Scholar]
  38. Suleiman, R.; Khaled, M.; Khalil, A.; Bassam, S.A.; Ali, E. Marine Anticorrosion and Antifouling Assessment of Multifunctionalized Hybrid Sol-Gel Coatings. In Proceedings of the NACE International Corrosion Conference Proceedings, Phoenix, AZ, USA, 15–19 April 2018. [Google Scholar]
  39. Xu, S.; Hao, S.; Li, S. The Inhibitor Evaluation for Water Injection Pipeline of YanChang Oilfield. In Proceedings of the 7th International Conference on Energy, Environment and Sustainable, Development, Shenzhen, China, 30–31 March 2018; pp. 909–913. [Google Scholar]
  40. Fredj, N.; Cohendoz, S.; Mallarino, S.; Feaugas, X.; Touzain, S. Evidencing antagonist effects of water uptake and leaching processes in marine organic coatings by gravimetry and EIS. Prog. Org. Coat. 2010, 67, 287–295. [Google Scholar] [CrossRef]
  41. Deflorian, F.; Rossi, S.; Fedel, M. Aluminium components for marine applications protected against corrosion by organic coating cycles with low environmental impact. Corros. Eng. Sci. Technol. 2011, 46, 237–244. [Google Scholar] [CrossRef]
  42. Marceaux, S.; Bressy, C.; Perrin, F.; Martin, C.; Margaillan, A. Development of polyorganosilazane–silicone marine coatings. Prog. Org. Coat. 2014, 77, 1919–1928. [Google Scholar] [CrossRef]
  43. Chambers, L.D.; Walsh, F.C.; Wood, R.; Stokes, K.R. Biomimetic approach to the design of the marine antifouling coatings. In Proceedings of the World Maritime Technology Conference, London, UK, 6–10 March 2006. [Google Scholar]
  44. Wit, J.; Mol, J.; Bos, W.; Ferrari, G.M. Organic Coatings for Marine and Shipping Applications; Elsevier: Amsterdam, The Netherland, 2008; Chapter 16; pp. 337–371. [Google Scholar]
  45. Jones, F.N.; Nichols, M.E.; Pappas, S.P. Organic Coatings (Science and Technology); Wiley: Hoboken, NJ, USA, 2017; pp. 1–5. [Google Scholar]
  46. Manolakis, I.; Azhar, U. Recent Advances in Mussel-Inspired Synthetic Polymers as Marine Antifouling Coatings. Coatings 2020, 10, 653. [Google Scholar] [CrossRef]
  47. Xu, G.; Neoh, K.G.; Kang, E.T.; Teo, L. Switchable Antimicrobial and Antifouling Coatings from Tannic Acid-Scaffolded Binary Polymer Brushes. ACS Sustain. Chem. Eng. 2020, 8, 2586–2595. [Google Scholar] [CrossRef]
  48. Zhou, Y.; Rossi, B.; Zhou, Q.; Hihara, L.H.; Foster, M. Thin Plasma-Polymerized Coatings as a Primer with Polyurethane Topcoat for Improved Corrosion Resistance. Langmuir 2020, 36, 837–843. [Google Scholar] [CrossRef] [PubMed]
  49. Rucoba, D.; Arias, R.R.; Sánchez, I.G. First experiences in the assessment and mitigation of marine corrosion in metallic components for Marine Renewable Energy devices. Eurocorr 2013, 4, 1–3. [Google Scholar]
  50. Rucoba, D.; Arias, R.R.; Ruiz, L.; Martínez, Y. Degradation and corrosion testing of materials and coating systems for offshore wind turbine substructures in North Sea waters. IWEC 2014, 3, 1–8. [Google Scholar]
  51. Kathy, R.L. Tackling a Super Corrosion Challenge. Mater. Perform. 2009, 48, 32–38. [Google Scholar]
  52. Srinath, M.K.; Prasad, M. Corrosion Analysis of TiCN Coated Al-7075 Alloy for Marine Applications: A Case Study. J. Inst. Eng. 2019, 100, 371–377. [Google Scholar] [CrossRef]
  53. Bauer, D.R.; Martin, J.W. Service life prediction of organic coatings. Am. Chem. Soc. 1999, 8, 191–200. [Google Scholar]
  54. Pickett, J.; White, C. Service Life Prediction: Why Is This so Hard? In Service Life Prediction of Polymers and Plastics Exposed to Outdoor Weathering; Elsevier: Amsterdam, The Netherlands, 2018; Chapter 1; pp. 1–18. [Google Scholar]
  55. Reitman, M.; Dimitriou, M.D.; Vargas, J.R.; Madden, S.B. Why is service life prediction of polymers and plastics exposed to outdoor weathering important? In Service Life Prediction of Polymers and Coatings; Elsevier: Amsterdam, The Netherlands, 2020; pp. 19–32. [Google Scholar]
  56. Song, S.; Song, G.L.; Shen, W.; Liu, M.J.C. Corrosion and Electrochemical Evaluation of Coated Magnesium Alloys. Corrosion 2012, 68, 109–121. [Google Scholar] [CrossRef]
  57. Ji, W.G.; Hu, J.M.; Zhang, J.Q.; Cao, C. Reducing the water absorption in epoxy coatings by silane monomer incorporation. Corros. Sci. 2006, 48, 3731–3739. [Google Scholar] [CrossRef]
  58. Jiang, M.Y.; Wu, L.K.; Hu, J.M.; Zhang, J. Silane-incorporated epoxy coatings on aluminum alloy (AA2024). Part 1: Improved corrosion performance. Corros. Sci. 2015, 92, 118–126. [Google Scholar] [CrossRef]
  59. Francisco, J.S.; Capelossi, V.R.; Aoki, I. Evaluation of a sulfursilane anticorrosive pretreatment on galvannealed steel compared to phosphate under a waterborne epoxy coating. Electrochim. Acta 2014, 124, 128–136. [Google Scholar] [CrossRef]
  60. Leth-Olsen, H.; Nisancioglu, K. Filiform corrosion of aluminium sheet. I. corrosion behaviour of painted material. Corros. Sci. 1998, 40, 1179–1194. [Google Scholar] [CrossRef]
  61. Mills, D.J.; Mabbutt, S. Investigation of defects in organic anti-corrosive coatings using electrochemical noise measurement. Prog. Org. Coat. 2000, 39, 41–48. [Google Scholar] [CrossRef]
  62. Mišković-stanković, V.B.; Dražić, D.M.; Teodorović, M.J. Electrolyte penetration through epoxy coatings electrodeposited on steel. Corros. Sci. 1995, 37, 241–252. [Google Scholar] [CrossRef]
  63. Nguyen, T.; Hubbard, J.B.; Pommersheim, J.M. Unified model for the degradation of organic coatings on steel in a neutral electrolyte. J. Coat. Technol. 1996, 68, 45–56. [Google Scholar]
  64. Sørensen, P.A.; Kiil, S.; Dam-Johansen, K.; Weinell, C.E. Anticorrosive coatings: A review. J. Coat. Technol. Res. 2009, 6, 135–176. [Google Scholar] [CrossRef]
  65. Wang, L.; Deng, L.; Zhang, D.; Qian, H.; Du, C.; Li, X.; Mol, J.M.C.; Terryn, H. Shape memory composite (SMC) self-healing coatings for corrosion protection. Prog. Org. Coat. 2016, 97, 261–268. [Google Scholar] [CrossRef]
  66. Bastos, A.C.; Quevedo, M.C.; Ferreira, M.G.S. Investigating the separation of anodic and cathodic defects in organic coatings applied on metal substrates. An experimental contribution. Prog. Org. Coat. 2016, 96, 26–31. [Google Scholar] [CrossRef]
  67. Klüppel, I.; Schinkinger, B.; Grundmeier, G. In-situ Electrochemical Studies of Forming Induced Defects of Organic Coatings on Metals. Electrochim. Acta 2009, 54, 3553–3560. [Google Scholar] [CrossRef]
  68. Shi, X.; Croll, S.G. Recovery of surface defects on epoxy coatings and implications for the use of accelerated weathering. Prog. Org. Coat. 2010, 68, 79–87. [Google Scholar] [CrossRef]
  69. Duan, J.; Zhang, J.; Jiang, P. Effect of external electric field on morphologies and properties of the cured epoxy and epoxy/acrylate systems. J. Appl. Polym. Sci. 2012, 125, 902–914. [Google Scholar] [CrossRef]
  70. Feng, Z.; Wang, Z.M.; Song, G.L.; Zheng, D.; Xu, Y. Modification of an alkyd resin coating by airflow. Mater. Corros. 2019, 71, 637–645. [Google Scholar] [CrossRef]
  71. Erich, S.J.F.; Laven, J.; Pel, L.; Huinink, H.P.; Kopinga, K.J.P. Influence of catalyst type on the curing process and network structure of alkyd coatings. Polymer 2006, 47, 1141–1149. [Google Scholar] [CrossRef]
  72. Bernhard, A.M.; Czekaj, I.; Elsener, M.; Wokaun, A.; Oliver, K. Evaporation of urea at atmospheric pressure. J. Phys. Chem. A 2011, 115, 2581–2589. [Google Scholar] [CrossRef]
  73. Sefiane, K.; Wilson, S.K.; David, S.; Dunn, G.J.; Duffy, B.R. On the effect of the atmosphere on the evaporation of sessile droplets of water. Phys. Fluids 2009, 21, 625–646. [Google Scholar] [CrossRef] [Green Version]
  74. Feng, Z.L.; Song, G.L.; Zheng, D.J.; Xu, Y.Q. Response of a semiliquid epoxy film to a DC plasma. J. Phys. D Appl. Phys. 2019, 52, 16LT01. [Google Scholar] [CrossRef]
  75. Feng, Z.L.; Song, G.L.; Zheng, D.J.; Qi, G.; Xu, Y.Q. Electric field induced surface modification and impermeability enhancement for a polymer film. AIP Adv. 2018, 8, 075102. [Google Scholar] [CrossRef]
  76. Heng, P.W.S.; Chan, L.W.; Tang, E.S.K. Use of swirling airflow to enhance coating performance of bottom spray fluid bed coaters. Int. J. Pharm. 2006, 327, 26–35. [Google Scholar] [CrossRef]
  77. Ustun, S.V.; Demirtas, M. Optimal tuning of PI speed controller coefficients for electric drives using neural network and genetic algorithms. Electr. Eng. 2005, 87, 77–82. [Google Scholar] [CrossRef]
  78. Wiik, J.A.; Isobe, T.; Takaku, T.; Wijaya, F.D.; Usuki, K.; Arai, N.; Shimada, R. Feasible series compensation applications using Magnetic Energy Recovery Switch (MERS). In Proceedings of the 2007 European Conference on Power Electronics & Applications (IEEE), Aalborg, Denmark, 2–5 September 2007. [Google Scholar]
  79. Funke, W.; Zorll, U. Mechanical anchoring of polymer layers on polymer substrates with an open-porous surface structure. J. Appl. Polym. Sci. 1973, 17, 977. [Google Scholar] [CrossRef]
  80. Funke, W. Problems and Progress in Organic Coatings Science and Technology. Prog. Org. Coat. 1997, 31, 5–9. [Google Scholar] [CrossRef]
  81. Pletincx, S.; Abrahami, S.; Mol, J.; Hauffman, T.; Terryn, H. Advanced (In Situ) Surface Analysis of Organic Coating/Metal Oxide Interactions for Corrosion Protection of Passivated Metals. Encycl. Interfacial Chem. 2018. [Google Scholar] [CrossRef]
  82. Morcillo, M.; Simancas, J.; Fierro, J.L.G.; Feliu, S., Jr.; Galván, J.C. Accelerated degradation of a chlorinated rubber paint system applied over rusted steel. Prog. Org. Coat. 1993, 24, 315–325. [Google Scholar] [CrossRef]
  83. Roselli, S.N.; Amo, B.D.; Carbonari, R.O.; Sarli, A.R.D.; Romagnoli, R. Painting rusted steel: The role of aluminum phosphosilicate. Corros. Sci. 2013, 74, 194–205. [Google Scholar] [CrossRef]
  84. Saji, V. Progress in rust converters. Prog. Org. Coat. 2019, 127, 88–99. [Google Scholar] [CrossRef]
  85. Singh, D.D.N.; Bhattacharya, D. Performance and mechanism of action of self-priming organic coating on oxide covered steel surface. Prog. Org. Coat. 2010, 67, 129–136. [Google Scholar] [CrossRef]
  86. Song, G.L.; Liu, M. The effect of Mg alloy substrate on “electroless” E-coating performance. Corros. Sci. 2011, 53, 3500–3508. [Google Scholar] [CrossRef]
  87. Shi, Z.M.; Song, G.L.; Atrens, A. The corrosion performance of anodised magnesium alloys. Corros. Sci. 2006, 48, 3531–3546. [Google Scholar] [CrossRef]
  88. Chen, Y.; Zhao, S.; Chen, M.; Zhang, W.; Mao, J.; Zhao, Y.; Maitz, M.F.; Huang, N.; Wan, G. Sandwiched polydopamine (PDA) layer for titanium dioxide (TiO2) coating on magnesium to enhance corrosion protection. Corros. Sci. 2015, 96, 67–73. [Google Scholar] [CrossRef]
  89. Song, G.L.; Liu, M. The effect of surface pretreatment on the corrosion performance of Electroless E-coating coated AZ31. Corros. Sci. 2012, 62, 61–72. [Google Scholar] [CrossRef]
  90. Liu, D.; Zhao, W.; Wu, F.; Cen, Q.; Zeng, Z.; Wu, X.; Xue, Q. Effect of curing agent molecular structures on the tribological and corrosion behaviors of epoxy resin coatings. Colloid Surf. A 2015, 472, 85–91. [Google Scholar] [CrossRef]
  91. Luo, X.; Zhong, J.; Zhou, Q.; Du, S.; Yuan, S.; Liu, Y. Cationic Reduced Graphene Oxide as Self-Aligned Nanofiller in the Epoxy Nanocomposite Coating with Excellent Anticorrosive Performance and Its High Antibacterial Activity. ACS Appl. Mater. Interfaces 2018, 10, 18400–18415. [Google Scholar] [CrossRef] [PubMed]
  92. Parhizkar, N.; Ramezanzadeh, B.; Shahrabi, T. Corrosion protection and adhesion properties of the epoxy coating applied on the steel substrate pre-treated by a sol-gel based silane coating filled with amino and isocyanate silane functionalized graphene oxide nanosheets. Appl. Surf. Sci. 2018, 439, 45–59. [Google Scholar] [CrossRef]
  93. Guin, K.A.; Mallik, B.P.; Shreepathi, S. Journal SJPiOCAIR. Electrochemical and mechanical studies on influence of curing agents on performance of epoxy tank linings. Prog. Org. Coat. 2015, 78, 340–347. [Google Scholar] [CrossRef]
  94. Feng, Z.L.; Song, G.L.; Xu, Y.Q.; Zheng, D.; Chen, X. Micro-galvanic corrosion during formation of epoxy coating. Prog. Org. Coat. 2020, 147, 105799. [Google Scholar] [CrossRef]
  95. Tsutsumi, K.; Kitano, J.; Miyahara, O.; Kyouda, H. Substrate Treatment Method, Coating Film Removing Apparatus, and Substrate Treatment System. U.S. Patent 8,366,872, 2 May 2013. [Google Scholar]
  96. Lamraoui, A.; Costil, S.; Langlade, C.; Coddet, C. Laser surface texturing (LST) treatment before thermal spraying: A new process to improve the substrate-coating adherence. Surf. Coat. Technol. 2010, 205, S164–S167. [Google Scholar] [CrossRef]
  97. Rackhimyanov, H.M.; Nikitin, Y.V.; Semyonova, J.S. Surface preparation of machine parts and instruments by ultrasonic impact treatment before coating. In Proceedings of the 3rd International Forum on Strategic Technologies, Novosibirsk, Russia, 23–29 June 2008. [Google Scholar]
  98. Bajat, J.B.; Popić, J.P.; Mišković-Stanković, V.B. The influence of aluminium surface pretreatment on the corrosion stability and adhesion of powder polyester coating. Prog. Org. Coat. 2010, 69, 316–321. [Google Scholar] [CrossRef]
  99. Emeritus, F.; Nichols, M.E.; Consultant, S. Adhesion; John Wiley & Sons, Ltd.: Hoboken, NJ, USA, 2017. [Google Scholar]
  100. Cambier, S.M.; Frankel, G.S. Coating and Interface Degradation of Coated steel, Part 2: Accelerated Laboratory Tests. Electrochim. Acta 2014, 136, 442–449. [Google Scholar] [CrossRef]
  101. Bhargava, S.; Kubota, M.; Lewis, R.D.; Advani, S.G.; Prasad, A.K.; Deitzel, J.M. Ultraviolet, water, and thermal aging studies of a waterborne polyurethane elastomer-based high reflectivity coating. Prog. Org. Coat. 2015, 79, 75–82. [Google Scholar]
  102. Nguyen, T.V.; Tri, P.N.; Nguyen, T.D.; Aidani, R.E.; Trinh, V.T.; Decker, C. Accelerated degradation of water borne acrylic nanocomposites used in outdoor protective coatings. Polym. Degrad. Stab. 2016, 128, 65–76. [Google Scholar] [CrossRef]
  103. Wu, J.; Cui, J.P.; Zheng, Q.J.; Zhang, S.D.; Wang, J.Q. Insight into the corrosion evolution of Fe-based amorphous coatings under wet-dry cyclic conditions. Electrochim. Acta 2019, 319, 966–980. [Google Scholar] [CrossRef]
  104. Mathivanan, L.; Arof, A.K. The degradation of silicone coatings in high temperature atmospheres. Anti-Corros. Methods Mater. 1998, 45, 403–412. [Google Scholar] [CrossRef]
  105. Rose, N.; Bras, M.L.; Bourbigot, S.; Delobel, R.; Costes, B. Comprehensive study of the oxidative degradation of an epoxy resin using the degradation front model. Polym. Degrad. Stab. 1996, 54, 355–360. [Google Scholar] [CrossRef]
  106. Mantia, F.P.L.; Morreale, M.; Botta, L.; Mistretta, M.C.; Ceraulo, M.; Scaffaro, R. Degradation of polymer blends: A brief review. Polym. Degrad. Stab. 2017, 145, 79–92. [Google Scholar] [CrossRef]
  107. Johnson, B.W.; Mcintyre, R. Analysis of test methods for UV durability predictions of polymer coatings. Prog. Org. Coat. 1996, 27, 95–106. [Google Scholar] [CrossRef]
  108. Hult, A.; Rånby, B. Photostability of photo-cured organic coatings: Part II-Yellowing and photo-oxidation of thioxanthone/amine photo-cured organic coatings. Polym. Degrad. Stab. 1984, 8, 89–105. [Google Scholar] [CrossRef]
  109. Morita, K.; Yamashita, H.; Yabuuchi, N.; Ishii, M.; Arimoto, M.; Ishimoto, K.; Ohara, H.; Kobayashi, S. Anti-hydrolysis performance of cured coating films of acrylic polyols with pendant poly(lactic acid)s. Prog. Org. Coat. 2015, 78, 183–187. [Google Scholar] [CrossRef]
  110. Thoma, K.; Bechtold, K. Influence of aqueous coatings on the stability of enteric coated pellets and tablets. Eur. J. Pharm. Biopharm. 1999, 47, 39–50. [Google Scholar] [CrossRef]
  111. Xiao, G.Z.; Shanahan, M.E.R. Swelling of DGEBA/DDA epoxy resin during hygrothermal ageing. Polymer 1998, 39, 3253–3260. [Google Scholar] [CrossRef]
  112. Choi, S.S.; Ha, S.H. Water swelling behaviors of silica-reinforced NBR composites in deionized water and salt solution. J. Ind. Eng. Chem. 2010, 16, 238–242. [Google Scholar] [CrossRef]
  113. Vlachou, M.; Hani, N.; Efentakis, M.; Tarantili, P.A.; Andreopoulos, A.G. Polymers for use in controlled release systems: The effect of surfactants on their swelling properties. J. Biomater. Appl. 2000, 15, 65–77. [Google Scholar] [CrossRef] [PubMed]
  114. Vlachou, M.; Naseef, H.; Efentakis, M.; Tarantili, P.A.; Andreopoulos, A.G. Swelling properties of various polymers used in controlled release systems. J. Biomater. Appl. 2001, 15, 293–306. [Google Scholar] [CrossRef] [PubMed]
  115. Abdelkader, A.F.; White, J.R. Influence of relative humidity on the development of internal stresses in epoxy resin based coatings. J. Mater. Sci. 2002, 37, 4769–4773. [Google Scholar] [CrossRef]
  116. Tambe, S.P.; Jagtap, S.D.; Choudhari, R.N.; Mallik, B.P. Influence of cross-linking agents and curing condition on the performance of epoxy coating. Pigment. Resin Technol. 2016, 45, 354–362. [Google Scholar] [CrossRef]
  117. Espinosa-Marzal, R.M.; Scherer, G.W. Advances in Understanding Damage by Salt Crystallization. Acc. Chem. Res. 2010, 43, 897–905. [Google Scholar] [CrossRef] [PubMed]
  118. Rijniers, L.A.; Huinink, H.P.; Pel, L.; Kopinga, K. Experimental Evidence of Crystallization Pressure inside Porous Media. Phys. Rev. Lett. 2005, 94, 075503. [Google Scholar] [CrossRef] [Green Version]
  119. Schiro, M.; Ruiz-Agudo, E.; Rodriguez-Navarre, C. Damage Mechanisms of Porous Materials due to In-Pore Salt Crystallization. Phys. Rev. Lett. 2012, 109, 265503. [Google Scholar] [CrossRef]
  120. Feng, Z.L.; Song, G.L.; Wang, Z.M.; Xu, Y.Q.; Zheng, D.J.; Wu, P.P.; Chen, X.D. Salt crystallization-assisted degradation of epoxy resin surface in simulated marine environments. Prog. Org. Coat. 2020, 149, 105932. [Google Scholar] [CrossRef]
  121. Scherer, G.W. Crystallization in pores. Cem. Concr. Res. 1999, 29, 1347–1358. [Google Scholar] [CrossRef]
  122. Steiger, M.; Asmussen, S. Crystallization of sodium sulfate phases in porous materials: The phase diagram Na2SO4-H2O and the generation of stress. Geochim. Cosmochim. Acta 2008, 72, 4291–4306. [Google Scholar] [CrossRef]
  123. Scherer, G.W. Stress from crystallization of salt. Cem. Concr. Res. 2004, 34, 1613–1624. [Google Scholar] [CrossRef]
  124. Al-Turaif, H.A. Surface morphology and chemistry of epoxy-based coatings after exposure to ultraviolet radiation. Prog. Org. Coat. 2013, 76, 677–681. [Google Scholar] [CrossRef]
  125. Larche, J.F.; Bussiere, P.O.; Therias, S.; Gardette, J.L. Photooxidation of polymers: Relating material properties to chemical changes. Polym. Degrad. Stab. 2012, 97, 25–34. [Google Scholar] [CrossRef]
  126. Bouvet, G.; Cohendoz, S.; Feaugas, X.; Touzain, S.; Mallarino, S. Microstructural reorganization in model epoxy network during cyclic hygrothermal ageing. Polymer 2017, 122, 1–11. [Google Scholar] [CrossRef]
  127. Krakovsky, I.; Pleštil, J.; Almásy, L. Structure and swelling behaviour of hydrophilic epoxy networks investigated by SANS. Polymer 2006, 47, 218–226. [Google Scholar] [CrossRef]
  128. Deflorian, F.; Fedrizzi, L.; Rossi, S.; Bonora, P. Organic coating capacitance measurement by EIS: Ideal and actual trends. Electrochim. Acta 1999, 44, 4243–4249. [Google Scholar] [CrossRef]
  129. Deflorian, F.; Rossi, S.; Fedrizzi, L.; Bonora, P. EIS study of organic coating on zinc surface pretreated with environmentally friendly products. Prog. Org. Coat. 2005, 52, 271–279. [Google Scholar] [CrossRef]
  130. Liu, J.; Lu, Z.; Zhang, L.; Li, C.; Cui, H. Studies of corrosion behaviors of a carbon steel/copper-nickel alloy couple under epoxy coating with artificial defect in 3.5 wt.% NaCl solution using the WBE and EIS techniques. Prog. Org. Coat. 2020, 148, 105909. [Google Scholar] [CrossRef]
  131. Bierwagen, G.P.; Jeffcoate, C.S.; Li, J.; Balbyshev, S.; Mills, D. The use of electrochemical noise methods (ENM) to study thick, high impedance coatings. Prog. Org. Coat. 1996, 29, 21–29. [Google Scholar] [CrossRef]
  132. Mills, D.J.; Woodcock, C.P. Use of Electrochemical Noise Method and ElectrochemicalImpedance Spectroscopy for Investigation of a set of OrganicCoatings on steel. In Proceedings of the EuroCorr 2008, Edinburgh, UK, 7–11 September 2008. [Google Scholar]
  133. Zhao, B.; Yu, Y.X.; Zhou, T.Y.; Shi, W.Z.; Tong, X. Evaluation for Properties of Anti-Corrosion Epoxy Coating after Photo-Oxidation Aging. Key Eng. Mater. 2019, 795, 200–207. [Google Scholar] [CrossRef]
  134. Nuraini, L.; Prifiharni, S.; Gadang Priyotomo, S.; Gunawan, H. Evaluation of anticorrosion and antifouling paint performance after exposure under seawater Surabaya-Madura (Suramadu) bridge. AIP Conf. Proc. 2017, 1823, 020101. [Google Scholar]
  135. Palimi, M.J.; Peymannia, M.; Ramezanzadeh, B. An evaluation of the anticorrosion properties of the spinel nanopigment-filled epoxy composite coatings applied on the steel surface. Prog. Org. Coat. 2015, 80, 164–175. [Google Scholar] [CrossRef]
  136. Rajagopalan, R.; Jo, I. Characterization of polyaniline–polypyrrole composite coatings on low carbon steel: A XPS and infrared spectroscopy study. Appl. Surf. Sci. 2003, 218, 58–69. [Google Scholar] [CrossRef]
  137. Rosu, L.; Cascaval, C.N.; Ciobanu, C.; Rosu, D.; Ion, E.D.; Morosanu, C.; Enachescu, M. Effect of UV radiation on the semi-interpenetrating polymer networks based on polyurethane and epoxy maleate of bisphenol A. J. Photochem. Photobiol. A 2005, 169, 177–185. [Google Scholar] [CrossRef]
  138. Hsueh, H.C.; Jacobs, D.S.; Gorham, J.M.; Rabb, S.A.; Yu, L.L.; Tien, C.C.; Nguyen, T. L Sung. Kinetics of photodegradation and nanoparticle surface accumulation of a nanosilica/epoxy coating exposed to UV light. J. Coat. Technol. Res. 2017, 14, 893–902. [Google Scholar] [CrossRef]
  139. Cai, G.; Zhang, D.; Jiang, D.; Dong, Z. Degradation of fluorinated polyurethane coating under UVA and salt spray. Part Ⅱ: Molecular structures and depth profile. Prog. Org. Coat. 2018, 124, 25–32. [Google Scholar] [CrossRef]
  140. Zhang, W.R.; Zhu, T.T.; Smith, R.; Lowe, C. A non-destructive study on the degradation of polymer coating II: Modelling of degradation depth profiles. Polym. Test. 2012, 31, 1100–1104. [Google Scholar] [CrossRef]
  141. Ecco, L.G.; Pan, J.; Fedel, M.; Deflorian, F.; Pan, J. EIS and in situ AFM study of barrier property and stability of waterborne and solventborne clear coats. Prog. Org. Coat. 2014, 77, 600–608. [Google Scholar] [CrossRef]
  142. Suriano, R.; Oldani, V.; Bianchi, C.L.; Turri, S. AFM nanomechanical properties and durability of new hybrid fluorinated sol-gel coatings. Surf. Coat. Technol. 2015, 264, 87–96. [Google Scholar] [CrossRef]
  143. Wicks, Z.W.; Jones, F.N.; Pappas, S.P.; Wicks, D.A. Organic Coatings: Science and Technology, 3rd ed.; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2007. [Google Scholar]
  144. Khanna, A.S.; Kumar, S. Characterization, evaluation and testing of organic paint coatings. In High-performance organic coatings; Woodhead Publishing: Cambridge, UK, 2008. [Google Scholar]
  145. Mi, D.-W.; Liu, H.-F. Brief Introduction of Relative Standards of Neutral Salt-Fog Test for Organic Coatings. Mod. Paint Finish. 2007, 8, 47–48. [Google Scholar]
  146. Man, H.H.; Man, H.C.; Leung, L.K. Corrosion protection of NdFeB magnets by surface coatings-Part I: Salt spray test. J. Magn. Magn. Mater. 1996, 152, 40–46. [Google Scholar] [CrossRef]
  147. Liu, Y.; Wei, S.C.; Wang, Y.J.; Xu, B.S. An EIS Study of the Corrosion Behavior of Arc Spraying Al-RE Coating in Salt Spray Test. Adv. Mater. Res. 2011, 236–238, 1645–1648. [Google Scholar] [CrossRef]
  148. Kiosidou, E.D.; Karantonis, A.D.; Pantelis, I.; Silva, E.R.; Bordado, J.C.M. Rust morphology characterization of silicone-based marine antifouling paints after salt spray test on scribed specimens. J. Coat. Technol. Res. 2017, 14, 333–345. [Google Scholar] [CrossRef]
  149. Sakhri, A.; Perrin, F.X.; Benaboura, A.; Aragon, E.; Lamouri, S. Corrosion protection of steel by sulfo-doped polyaniline-pigmented coating. Prog. Org. Coat. 2011, 72, 473–479. [Google Scholar] [CrossRef]
  150. Palimi, M.J.; Rostami, M.; Mahdavian, M.; Ramezanzadeh, B. Application of EIS and salt spray tests for investigation of the anticorrosion properties of polyurethane-based nanocomposites containing Cr2O3 nanoparticles modified with 3-amino propyl trimethoxy silane. Prog. Org. Coat. 2014, 77, 1935–1945. [Google Scholar] [CrossRef]
  151. Song, S.; Shen, W.D.; Liu, M.H.; Song, G.L. Corrosion study of new surface treatment/coating for AZ31B magnesium alloy. Surf. Eng. 2013, 28, 486–490. [Google Scholar] [CrossRef]
  152. Rammelt, U.; Reinhard, G. Application of electrochemical impedance spectroscopy (EIS) for characterizing the corrosion-protective performance of organic coatings on metals. Prog. Org. Coat. 1992, 21, 205–226. [Google Scholar] [CrossRef]
  153. Liu, X.; Shao, Y.; Liu, M.; Chen, S.; Wang, L. LEIS study of the protection of zinc phosphate/epoxy coatings under cathodic protection. RSC Adv. 2016, 6, 46479–46486. [Google Scholar] [CrossRef]
  154. Huang, M.W.; Wu, S.L.; Orazem, M.E.; Pébère, N.; Tribollet, B.; Vivier, V. Local electrochemical impedance spectroscopy: A review and some recent developments. Electrochim. Acta 2011, 23, 8048–8057. [Google Scholar] [CrossRef] [Green Version]
  155. Ding, R.; Jiang, J.; Gui, T. Study of impedance model and water transport behavior of modified solvent-free epoxy anticorrosion coating by EIS. J. Coat. Technol. Res. 2016, 13, 501–515. [Google Scholar] [CrossRef]
  156. Kendig, M.; Mansfeld, F.; Tsai, S. Determination of the long term corrosion behavior of coated steel with A.C. impedance measurements. Chem. Inf. 1983, 23, 317–329. [Google Scholar] [CrossRef]
  157. Mansfeld, F.; Kendig, M.W.; Tsai, S. Evaluation of Corrosion Behavior of Coated Metals with AC Impedance Measurements. Corrosion 1982, 38, 478–485. [Google Scholar] [CrossRef]
  158. Song, G.L. A dipping E-coating for Mg alloys. Prog. Org. Coat. 2011, 70, 252–258. [Google Scholar] [CrossRef]
  159. García, S.J.; Suay, J. Anticorrosive properties of an epoxy-Meldrum acid cured system catalyzed by erbium III trifluromethanesulfonate. Prog. Org. Coat. 2006, 57, 319–331. [Google Scholar] [CrossRef]
  160. Poelman, M.; Olivier, M.G.; Gayarre, N.; Petitjean, J.P. Electrochemical study of different ageing tests for the evaluation of a cataphoretic epoxy primer on aluminium. Prog. Org. Coat. 2005, 54, 55–62. [Google Scholar] [CrossRef]
  161. Suay, J.J.; Rodriguez, M.T.; Izquierdo, R.; Kudama, A.H.; Saura, J.J. Rapid assessment of automotive epoxy primers by electrochemical techniques. J. Coat. Technol. 2003, 75, 103–111. [Google Scholar] [CrossRef]
  162. Song, G.L.; Xu, Z.Q. The surface, microstructure and corrosion of magnesium alloy AZ31 sheet. Electrochim. Acta 2010, 55, 4148–4161. [Google Scholar] [CrossRef]
  163. Song, C.H.; Choi, Y.; Shin, E.H.; Seong, B.S.; Han, Y.S. Analysis of organic-coated steels by using small-angle neutron scattering. Phys. Metal. Metallogr. 2014, 115, 1333–1337. [Google Scholar] [CrossRef]
  164. Yu-Nan, L.I.; Jia, W.; Wei, Z. Comparative Studies on the Deterioration Process of Organic Coatings under Immersed and Cyclic Wet-Dry Conditions by EIS. Electrochemistry 2010, 16, 393–400. [Google Scholar]
  165. Allahar, K.N.; Hinderliter, B.R.; Bierwagen, G.P.; Tallman, D.E.; Croll, S.G. Cyclic wet drying of an epoxy coating using an ionic liquid. Prog. Org. Coat. 2008, 62, 87–95. [Google Scholar] [CrossRef]
  166. Zhang, W.; Chen, X.Z.; Yin, P.F.; Xu, Z.K.; Han, B.; Wang, J. Eis study on the deterioration process of organic coatings under immersion and cyclic wet-dry conditions. Appl. Mechan. Mater. 2012, 161, 58–66. [Google Scholar] [CrossRef]
  167. Rodríguez, M.T.; Gracenea, J.J.; García, S.J.; Saura, J.J.; Suay, J.J. Testing the influence of the plasticizers addition on the anticorrosive properties of an epoxy primer by means of electrochemical techniques. Prog. Org. Coat. 2004, 50, 123–131. [Google Scholar] [CrossRef]
  168. Kendig, M.; Jeanjaquet, S.; Brown, R.; Thomas, F. Rapid electrochemical assessment of paint. J. Coat. Technol. 1996, 68, 39–47. [Google Scholar]
  169. Hollaender, J. Rapid assessment of food/package interactions by electrochemical impedance spectroscopy (EIS). Food Addit. Contam. 1997, 14, 617–626. [Google Scholar] [CrossRef]
  170. Floyd, F.L.; Groseclose, R.G.; Frey, C.M. Mechanistic Model for Corrosion Protection via Paint. J. Oil. Col. Chem. Assoc. 1983, 66, 329. [Google Scholar]
  171. Parks, J.; Leidheiser, H. Ionic migration through organic coatings and its consequences to corrosion. Ind. Eng. Chem. Prod. Res. Dev. 1986, 25, 1–6. [Google Scholar] [CrossRef]
  172. Bedoya, F.E.; Bermúdez, Á.; Castaño, O.J.G.; Echeverría, F.; Calderón, J.A. Electrochemical impedance study for modeling the anticorrosive performance of coatings based on accelerated tests and outdoor exposures. J. Coat. Technol. Res. 2016, 13, 1–10. [Google Scholar] [CrossRef]
  173. Khan, A.; Sliem, M.H.; Arif, A.; Salih, M.A.; Hasan, A. Progress in Organic Coatings Designing and performance evaluation of polyelectrolyte multilayered composite smart coatings. Prog. Org. Coat. 2019, 137, 105319. [Google Scholar] [CrossRef]
  174. Sambyal, P.; Ruhi, G.; Bhandari, H.; Dhawan, K.S. Advanced anti corrosive properties of poly(aniline-co-o-toluidine)/flyash composite coatings. Surf. Coat. Technol. 2015, 272, 129–140. [Google Scholar] [CrossRef]
  175. Yan, M.; Vetter, C.A.; Gelling, V.J. Corrosion inhibition performance of polypyrrole Al flake composite coatings for Al alloys. Corros. Sci. 2013, 70, 37–45. [Google Scholar] [CrossRef]
  176. Chen, T.; Fu, J.J. An intelligent anticorrosion coating based on pH-responsive supramolecular nanocontainers. Nanotechnology 2012, 23, 505705. [Google Scholar] [CrossRef] [PubMed]
  177. Liu, C.; Zhao, H.; Hou, P.; Qian, B.; Wang, X.; Guo, C.; Wang, L. Efficient Graphene/Cyclodextrin-Based Nanocontainer: Synthesis and Host-Guest Inclusion for Self-Healing Anticorrosion Application. ACS Appl. Mater. Interfaces 2018, 10, 36229–36239. [Google Scholar] [CrossRef] [PubMed]
  178. Morsch, S.; Lyon, S.; Gibbon, S.R. The generation of artificial microscopic defects in organic coatings by AFM scratching. Corros. Sci. 2015, 100, 517–523. [Google Scholar] [CrossRef]
  179. Ghasemi-Kahrizsangi, A.; Neshati, J.; Shariatpanahi, H.; Akbarinezhad, E. Improving the UV degradation resistance of epoxy coatings using modified carbon black nanoparticles. Prog. Org. Coat. 2015, 85, 199–207. [Google Scholar] [CrossRef]
  180. Irigoyen, M.; Bartolomeo, P.; Perrin, F.X.; Aragon, E.; Vernet, J.L. UV ageing characterisation of organic anticorrosion coatings by dynamic mechanical analysis, Vickers microhardness, and infra-red analysis. Polym. Degrad. Stab. 2001, 74, 59–67. [Google Scholar] [CrossRef]
  181. Ochs, H.; Vogelsang, J.; Meyer, G. Enhanced surface roughness of organic coatings due to UV-degradation: An unknown source of EIS-artifacts. Prog. Org. Coat. 2003, 46, 182–190. [Google Scholar] [CrossRef]
  182. Valentinelli, L.; Vogelsang, J.; Ochs, H.; Fedrizzi, L. Evaluation of barrier coatings by cycling testing. Prog. Org. Coat. 2002, 45, 405–413. [Google Scholar] [CrossRef]
  183. Funke, W. Towards environmentally acceptable corrosion protection by organic coating. Anti-Corros. Methods Mater. 1984, 31, 4–7. [Google Scholar] [CrossRef]
  184. Lyon, S.B.; Philippe, L.; Tsuousoglou, E. Direct measurements of ionic diffusion in protective organic coatings. Trans. IMF 2006, 84, 23–27. [Google Scholar] [CrossRef]
  185. Lahodny-Šarc, L.; Kaštelan, O. The influence of pH on the inhibition of corrosion of iron and mild steel by sodium silicate. Corros. Sci. 1981, 21, 265–271. [Google Scholar] [CrossRef]
  186. Vuong, V.D. Different behaviors of zinc rich paint against corrosion in atmospheric zone and tidal zone of industrial port environment. Brunt NA. Blistering of paint layers as an effect of swelling by water. Viet. J. Sci. Technol. 2017, 55, 194–202. [Google Scholar] [CrossRef] [Green Version]
  187. Lebozec, N.; Baudoin, J.L.; Orain, V.; Thierry, D. Blistering on Painted Automotive Materials Induced by Galvanic Coupling with Rubber Material. Corrosion 2012, 63, 635–639. [Google Scholar] [CrossRef]
  188. Croll, S.G.; Shi, X.; Fernando, B. The interplay of physical aging and degradation during weathering for two crosslinked coatings. Prog. Org. Coat. 2008, 61, 136–144. [Google Scholar] [CrossRef]
  189. Bierwagen, G.P.; Tallman, D.E. Choice and measurement of crucial aircraft coatings system properties. Prog. Org. Coat. 2001, 41, 201–216. [Google Scholar] [CrossRef]
  190. Kim, H.; Urban, M.W. Molecular Level Chain Scission Mechanisms of Epoxy and Urethane Polymeric Films Exposed to UV/H2O. Multidimensional Spectroscopic Studies. Langmuir 2000, 16, 5382–5390. [Google Scholar] [CrossRef]
  191. Liu, F.; Yin, M.; Xiong, B.; Zheng, F.; Mao, W.; Chen, Z.; He, C.; Zhao, X.; Fang, P. Evolution of microstructure of epoxy coating during UV degradation progress studied by slow positron annihilation spectroscopy and electrochemical impedance spectroscopy. Electrochim. Acta. 2014, 133, 283–293. [Google Scholar] [CrossRef]
  192. Lejars, M.; Margaillan, A.; Bressy, C. Fouling Release Coatings: A Nontoxic Alternative to Biocidal Antifouling Coatings. Chem. Rev. 2012, 112, 4347–4390. [Google Scholar]
  193. Liu, C.; Xie, Q.; Ma, C.; Zhang, G. Fouling Release Property of Polydimethylsiloxane-Based Polyurea with Improved Adhesion to Substrate. Ind. Eng. Chem. Res. 2016, 55, 6671–6676. [Google Scholar] [CrossRef]
  194. Nikolaou, M.; Neofitou, N.; Skordas, K.; Castritsi-Catharios, I.; Tziantziou, L. Fish farming and anti-fouling paints: A potential source of Cu and Zn in farmed fish. Aquacu. Environ. Interact. 2014, 5, 163–171. [Google Scholar] [CrossRef]
  195. Wisniewski, N.; Reichert, M. Methods for reducing biosensor membrane biofouling. Colloids Surf. B 2000, 18, 197–219. [Google Scholar] [CrossRef]
  196. Ware, C.S.; Smith-Palmer, T.; Peppou-Chapman, S.; Scarratt, L.R.J.; Humphries, E.M.; Balzer, D.; Neto, C. Marine Antifouling Behavior of Lubricant-Infused Nanowrinkled Polymeric Surfaces. ACS Appl. Mater. Interfaces 2018, 10, 4173–4182. [Google Scholar] [CrossRef] [PubMed]
  197. Selim, M.S.; Shenashen, M.A.; El-Safty, S.A.; Higazy, S.A.; Elmarakbi, A. Recent Progress in Marine Foul-Release Polymeric Nanocomposite Coatings. Prog. Mater. Sci. 2017, 87, 1–32. [Google Scholar] [CrossRef]
  198. Yang, W.; Zhao, W.; Liu, Y.; Hu, H.; Pei, X.; Wu, Y.; Zhou, F. The effect of wetting property on anti-fouling/foul-release performance under quasi-static/hydrodynamic conditions. Prog. Org. Coat. 2016, 95, 64–71. [Google Scholar] [CrossRef]
  199. Muñoz-Bonilla, A.; Fernández-García, M. Polymeric materials with antimicrobial activity. Prog. Polym. Sci. 2012, 37, 281–339. [Google Scholar] [CrossRef]
  200. Sathya, S.; Murthy, P.S.; Das, A.; Sankar, G.G.; Venkatnarayanan, S.; Pandian, R.; Sathyaseelan, V.S.; Pandiyan, V.; Doble, M.; Venugopalan, V.P. Marine antifouling property of PMMA nanocomposite films: Results of laboratory and field assessment. Int. Biodeterior. Biodegrad. 2016, 114, 57–66. [Google Scholar] [CrossRef]
  201. Dupraz, V.; Stachowski-Haberkorn, S.; Ménard, D.; Limon, G.; Akcha, F.; Budzinski, H.; Cedergreen, N. Combined effects of antifouling biocides on the growth of three marine microalgal species. Chemosphere 2018, 209, 801. [Google Scholar] [CrossRef] [Green Version]
  202. Konstantinou, I.K.; Albanis, T.A. Worldwide occurrence and effects of antifouling paint booster biocides in the aquatic environment: A review. Environ. Int. 2004, 30, 235–248. [Google Scholar] [CrossRef]
  203. Bader, S.L.; Luescher, M.U.; Gademann, K. Synthesis of maculalactone A and derivatives for environmental fate tracking studies. Org. Biomol. Chem. 2015, 13, 199–206. [Google Scholar] [CrossRef] [Green Version]
  204. Manzo, S.; Ansanelli, G.; Parrella, L.; Di, L.G.; Massanisso, P.; Schiavo, S.; Minopoli, C.; Lanza, B.; Boggia, R.; Aleksi, P. First evaluation of the threat posed by antifouling biocides in the Southern Adriatic Sea. Environ. Sci.-Proc. Impacts 2014, 16, 1981–1993. [Google Scholar] [CrossRef]
  205. Liu, C.; Ma, C.; Xie, Q.; Zhang, G. Self-repairing silicone coatings for marine anti-biofouling. J. Mater. Chem. A 2017, 5, 15855. [Google Scholar] [CrossRef]
  206. Li, Y.; Zhang, W.; Niu, J.; Chen, Y. Mechanism of photogenerated reactive oxygen species and correlation with the antibacterial properties of engineered metal-oxide nanoparticles. ACS Nano 2012, 6, 5164–5173. [Google Scholar] [CrossRef] [PubMed]
  207. Tan, P.; Li, Y.H.; Liu, X.Q.; Jiang, Y.; Sun, L.B. Core-Shell AgCl@SiO2 Nanoparticles: Ag(I)-Based Antibacterial Materials with Enhanced Stability. ACS Sustain. Chem. Eng. 2016, 4, 3268–3275. [Google Scholar] [CrossRef]
  208. Zhang, M.; Zhao, Y.; Yan, L.; Peltier, R.; Hui, W.; Yao, X.; Cui, Y.; Chen, X.; Sun, H.; Wang, Z. Interfacial Engineering of Bimetallic Ag/Pt Nanoparticles on Reduced Graphene Oxide Matrix for Enhanced Antimicrobial Activity. ACS Appl. Mater. Interfaces 2016, 8, 8834–8840. [Google Scholar] [CrossRef]
  209. Li, M.; Schlaich, C.; Kulka, M.W.; Donskyi, I.S.; Schwerdtle, T.; Unger, W.E.S.; Haag, R. Mussel-inspired coatings with tunable wettability, for enhanced antibacterial efficiency and reduced bacterial adhesion. J. Mater. Chem. B 2019, 7, 3438–3445. [Google Scholar] [CrossRef]
  210. Banerjee, I.; Pangule, R.C.; Kane, R.S. Antifouling Coatings: Recent Developments in the Design of Surfaces That Prevent Fouling by Proteins, Bacteria, and Marine Organisms. Adv. Mater. 2011, 23, 690–718. [Google Scholar] [CrossRef]
  211. Guo, H.S.; Yang, J.; Zhao, W.Q.; Xu, T.; Lin, C.; Zhang, J.; Zhang, L. Direct formation of amphiphilic crosslinked networks based on PVP as a marine anti-biofouling coating. Chem. Eng. J. 2019, 374, 1353–1363. [Google Scholar] [CrossRef]
  212. Lepoittevin, B.; Bedel, S.; Dragoé, D.; Bruzaud, J.M.; Barthés-Labrousse, M.G.; Mazerat, S.; Herry, J.M.; Bellon-Fontaine, M.N.; Roger, P. Antibacterial surfaces obtained through dopamine and fluorination functionalizations. Prog. Org. Coat. 2015, 82, 17–25. [Google Scholar] [CrossRef]
  213. Zhao, X.; Yu, B.; Zhang, J. Transparent and durable superhydrophobic coatings for anti-bioadhesion. J. Colloid Interface Sci. 2017, 501, 222–230. [Google Scholar] [CrossRef]
  214. Wang, K.K.; He, J.H. One-Pot Fabrication of Antireflective/Antibacterial Dual-Function Ag NP-Containing Mesoporous Silica Thin Films. ACS Appl. Mater. Interfaces 2018, 10, 11189–11196. [Google Scholar] [CrossRef]
  215. Selim, M.S.; Shenashen, M.A.; Elmarakbi, A.; Fatthallah, N.A.; Hasegawa, S.I.; El-Safty, S.A. Synthesis of ultrahydrophobic and thermally stable inorganic–organic nanocomposites for self-cleaning foul release coatings. Chem. Eng. J. 2017, 320, 653–666. [Google Scholar] [CrossRef]
  216. Maitz, M.F. Applications of synthetic polymers in clinical medicine. Biosurface Biotribol. 2015, 1, 161–176. [Google Scholar] [CrossRef] [Green Version]
  217. Shatpalkar, S. Self polishing coatings. Paintindia 2009, 59, 59. [Google Scholar]
  218. Monfared, H.; Sharif, F. Design guidelines for development of tin-free antifouling self-polishing coatings using simulation. Prog. Org. Coat. 2008, 63, 79–86. [Google Scholar] [CrossRef]
  219. Xu, G.; Liu, P.; Pranantyo, D.; Neoh, K.G.; Kang, E.T. Dextran- and Chitosan-Based Antifouling, Antimicrobial Adhesion, and Self-Polishing Multilayer Coatings from pH-Responsive Linkages-Enabled Layer-by-Layer Assembly. ACS Sustain. Chem. Eng. 2018, 6, 3916–3926. [Google Scholar] [CrossRef]
  220. Chen, Y.; Liu, Z.; Han, S.; Han, J.; Jiang, D. Poly(propylene carbonate) polyurethane self-polishing coating for marine antifouling application. J. Appl. Polym. Sci. 2016, 133, 43667. [Google Scholar] [CrossRef]
  221. Coneski, P.N.; Weise, N.K.; Fulmer, P.A.; Wynne, J. Development and evaluation of self-polishing urethane coatings with tethered quaternary ammonium biocides. Prog. Org. Coat. 2013, 76, 1376–1386. [Google Scholar] [CrossRef]
  222. Bartels, J.W.; Imbesi, P.M.; Finlay, J.A.; Fidge, C.; Ma, J.; Seppala, J.E.; Nystrom, A.M.; Mackay, M.E.; Callow, J.A.; Callow, M.E. Antibiofouling hybrid dendritic Boltorn/star PEG thiol-ene cross-linked networks. ACS Appl. Mater. Interfaces 2011, 3, 2118. [Google Scholar] [CrossRef]
  223. Yang, W.J.; Pranantyo, D.; Neoh, K.G.; Kang, E.T.; Teo, L.M.; Rittschof, D. Layer-by-Layer Click Deposition of Functional Polymer Coatings for Combating Marine Biofouling. Biomacromolecules 2012, 13, 2769–2780. [Google Scholar] [CrossRef]
  224. Xue, C.H.; Bai, X.; Jia, S. Robust, Self-Healing Superhydrophobic Fabrics Prepared by One-Step Coating of PDMS and Octadecylamine. Sci. Rep. 2016, 6, 27262. [Google Scholar] [CrossRef] [Green Version]
  225. Lowe, R.A. Putting Material Science to Work. Use of a Self Polishing Universal Nanohybrid Composite. Dent. Today 2016, 35, 96–98. [Google Scholar] [PubMed]
  226. Kim, S.M.; Kim, A.Y.; Lee, I.; Park, H.; Hwang, D.H. Synthesis and Characterization of Self-Polishing Copolymers Containing a New Zinc Acrylate Monomer. J. Nanosci. Nanotechnol. 2016, 16, 10903–10907. [Google Scholar] [CrossRef]
  227. Bai, L.; Tan, L.; Chen, L.; Liu, S.; Wang, Y. Preparation and characterizations of poly(2-methyl-2-oxazoline) based antifouling coating by thermally induced immobilization. J. Mater. Chem. B 2014, 2, 7785–7794. [Google Scholar] [CrossRef] [PubMed]
  228. Chai, C.L.L.; Teo, S.L.M.; Jameson, F.K.M.; Lee, S.S.C.; Likhitsup, A.; Chen, C.L.; Dan, R. Loperamide-based compounds as additives for biofouling management. Int. Biodeterior. Biodegrad. 2014, 89, 82–87. [Google Scholar] [CrossRef]
  229. Tasso, M.; Conlan, S.L.; Clare, A.S.; Werner, C. Active Enzyme Nanocoatings Affect Settlement of Balanus amphitrite Barnacle Cyprids. Adv. Funct. Mater. 2012, 22, 39–47. [Google Scholar] [CrossRef]
  230. Regina, V.R.; Søhoel, H.; Lokanathan, A.R.; Bischoff, C.; Kingshott, P.; Revsbech, N.P.; Meyer, R.L. Entrapment of Subtilisin in Ceramic Sol-Gel Coating for Antifouling Applications. ACS Appl. Mater. Interfaces 2012, 4, 5915–5921. [Google Scholar] [CrossRef]
  231. Emilsson, G.; Schoch, R.L.; Feuz, L.; Fredrik, H.k.; Dahlin, A.B. Strongly Stretched Protein Resistant Poly(ethylene glycol) Brushes Prepared by Grafting-To. ACS Appl. Mater. Interfaces 2015, 7, 7505–7515. [Google Scholar] [CrossRef]
  232. Martinelli, E.; Del Moro, I.; Galli, G.; Barbaglia, M.; Bibbiani, C.; Mennillo, E.; Oliva, M.; Pretti, C.; Antonioli, D.; Laus, M. Photo-polymerized Network Polysiloxane Films with Dangling Hydrophilic/Hydrophobic Chains for the Biofouling Release of Invasive Marine Serpulid Ficopomatus enigmaticus. ACS Appl. Mater. Interfaces 2015, 7, 8293. [Google Scholar] [CrossRef]
  233. Sundaram, H.S.; Han, X.; Nowinski, A.K.; Ella-Menye, J.R.; Wimbish, C.; Marek, P.; Senecal, K.; Jiang, S. One-Step Dip Coating of Zwitterionic Sulfobetaine Polymers on Hydrophobic and Hydrophilic Surfaces. ACS Appl. Mater. Interfaces 2014, 6, 6664–6671. [Google Scholar] [CrossRef]
  234. Sun, Q.H.; Li, H.Q.; Xian, C.; Yang, Y.; Song, Y.; Cong, P. Mimetic marine antifouling films based on fluorine-containing polymethacrylates. Appl. Surf. Sci. 2015, 344, 17–26. [Google Scholar] [CrossRef]
  235. Zhang, Z.; Finlay, J.A.; Wang, L.; Gao, Y.; Callow, J.A.; Callow, M.E.; Jiang, S.Y. Polysulfobetaine-grafted surfaces as environmentally benign ultralow fouling marine coatings. Langmuir 2009, 25, 13516–13521. [Google Scholar] [CrossRef] [PubMed]
  236. Imbrogno, J.; Williams, M.D.; Belfort, G. A New Combinatorial Method for Synthesizing, Screening, and Discovering Antifouling Surface Chemistries. ACS Appl. Mater. Interfaces 2015, 7, 2385–2392. [Google Scholar] [CrossRef] [PubMed]
  237. Sun, X.; Zhang, F.; Chen, Y.; Cheng, Z.; Su, Y.; Hang, J.; Jin, L.; Li, N.; Shang, D.; Shi, L. Preparation and properties of crosslinked network coatings based on perfluoropolyether/poly(dimethyl siloxane)/acrylic polyols for marine fouling-release applications. J. Appl. Polym. Sci. 2015, 132, 41860. [Google Scholar] [CrossRef]
  238. Wouters, M.; Corné, R.; Willemsen, P. Surface structuring and coating performance: Novel biocidefree nanocomposite coatings with anti-fouling and fouling-release properties. Progr. Org. Coat. 2010, 68, 4–11. [Google Scholar] [CrossRef]
  239. Robert, F.; Brady, J.; Irwin, L. Singer Mechanical factors favoring release from fouling release coatings. Biofouling 2000, 15, 73–81. [Google Scholar]
  240. Duong, T.H.; Briand, J.F.; Margaillan, A.; Bressy, C. Polysiloxane-Based Block Copolymers with Marine Bacterial Anti-Adhesion Properties. ACS Appl. Mater. Interfaces 2015, 7, 15578–15586. [Google Scholar] [CrossRef]
  241. Gittens, J.E.; Smith, T.J.; Suleiman, R.; Akid, R. Current and emerging environmentally-friendly systems for fouling control in the marine environment. Biotechnol. Adv. 2013, 31, 1738–1753. [Google Scholar] [CrossRef]
  242. Szleifer, I. Protein Adsorption on Surfaces with Grafted Polymers: A Theoretical Approach. Biophys. J. 1997, 72, 595–612. [Google Scholar] [CrossRef] [Green Version]
  243. Flavel, B.S.; Jasieniak, M.; Velleman, L.; Ciampi, S.; Gooding, J.J. Grafting of poly(ethylene glycol) on click chemistry modified Si(100) surfaces. Langmuir 2013, 29, 8355–8362. [Google Scholar] [CrossRef]
  244. Li, L.; Yan, B.; Zhang, L.; Tianb, Y.; Zeng, H.B. Mussel-inspired antifouling coatings bearing polymer loops. Chem. Commun. 2015, 51, 15780–15783. [Google Scholar] [CrossRef]
  245. Khalil, F.; Franzmann, E.; Ramcke, J.; Dakischew, O.; Lips, K.S.; Reinhardt, A.; Heisig, P.; Maison, W. Biomimetic PEG-catecholates for stabile antifouling coatings on metal surfaces: Applications on TiO2 and stainless steel. Colloids Surfaces B 2014, 117, 185–192. [Google Scholar] [CrossRef]
  246. Huang, C.J.; Brault, N.D.; Li, Y.; Yu, Q.; Jiang, S. Controlled Hierarchical Architecture in Surface-initiated Zwitterionic Polymer Brushes with Structurally Regulated Functionalities. Adv. Mater. 2012, 24, 1834–1837. [Google Scholar] [CrossRef]
  247. Jiang, S.; Cao, Z. Ultralow-Fouling, Functionalizable, and Hydrolyzable Zwitterionic Materials and Their Derivatives for Biological Applications. Adv. Mater. 2010, 22, 920–932. [Google Scholar] [CrossRef]
  248. Shao, Q.; Jiang, S. Molecular understanding and design of zwitterionic materials. Adv. Mater. 2015, 27, 15–26. [Google Scholar] [CrossRef]
  249. Huang, C.J.; Chu, S.H.; Wang, L.C.; Li, C.H.; Lee, T.R. Bioinspired Zwitterionic Surface Coatings with Robust Photostability and Fouling Resistance. ACS Appl. Mater. Interfaces 2015, 7, 23776–23786. [Google Scholar] [CrossRef]
  250. Gao, G.; Lange, D.; Kai, H.; Kindrachuk, J.; Zou, Y.; Cheng, J.T.J.; Kazemzadeh-Narbat, M.; Kai, Y.; Wang, R.; Straus, S.K. The biocompatibility and biofilm resistance of implant coatings based on hydrophilic polymer brushes conjugated with antimicrobial peptides. Biomaterials 2011, 32, 3899–3909. [Google Scholar] [CrossRef]
  251. Wang, W.; Lu, Y.; Xie, J.; Hui, Z.; Cao, Z. A zwitterionic macro-crosslinker for durable non-fouling coatings. Chem. Commun. 2016, 52, 4671–4674. [Google Scholar] [CrossRef]
  252. Zhao, W.; Ye, Q.; Hu, H.; Wang, X.; Zhou, F. Grafting zwitterionic polymer brushes via electrochemical surface-initiated atomic-transfer radical polymerization for anti-fouling applications. J. Mater. Chem. B 2014, 2, 5352–5357. [Google Scholar] [CrossRef]
  253. Krishnamoorthy, M.; Hakobyan, S.; Ramstedt, M.; Gautrot, J.E. Surface-initiated polymer brushes in the biomedical field: Applications in membrane science, biosensing, cell culture, regenerative medicine and antibacterial coatings. Chem. Rev. 2014, 114, 10976–11026. [Google Scholar] [CrossRef]
  254. Carpenter, A.W.; Worley, B.V.; Slomberg, D.L.; Schoenfisch, M.H. Dual Action Antimicrobials: Nitric Oxide Release from Quaternary Ammonium-Functionalized Silica Nanoparticles. Biomacromolecules 2012, 13, 3334–3342. [Google Scholar] [CrossRef] [Green Version]
  255. Song, J.; Kang, H.; Lee, C.; Hwang, S.H.; Jang, J. Aqueous Synthesis of Silver Nanoparticle Embedded Cationic Polymer Nanofibers and Their Antibacterial Activity. ACS Appl. Mater. Interfaces 2012, 4, 460–465. [Google Scholar] [CrossRef]
  256. Yuan, H.; Yu, B.; Fan, L.H.; Wang, M.; Zhu, Y.; Ding, X.; Xu, F.J. Multiple types of hydroxyl-rich cationic derivatives of PGMA for broad-spectrum antibacterial and antifouling coatings. Polym. Chem. 2016, 10, 1039. [Google Scholar] [CrossRef]
  257. Youngblood, J.P.; Andruzzi, L.; Ober, C.K.; Hexemer, A.; Kramer, E.J.; Callow, J.A.; Finlay, J.A.; Callow, M.E. Coatings based on side-chain ether-linked poly(ethylene glycol) and fluorocarbon polymers for the control of marine biofouling. Biofouling 2003, 19, 91–98. [Google Scholar] [CrossRef]
  258. Bhatt, S.; Pulpytel, J.; Ceccone, G.; Lisboa, P.; Rossi, F.; Kumar, V.; Arefi-Khonsari, F. Nanostructure protein repellant amphiphilic copolymer coatings with optimized surface energy by Inductively Excited Low Pressure Plasma. Langmuir 2011, 27, 14570–14580. [Google Scholar] [CrossRef]
  259. Bodkhe, R.B.; Stafslien, S.J.; Cilz, N.; Daniels, J.; Thompson, S.E.M.; Callow, M.E.; Callow, J.A.; Webster, D.C. Polyurethanes with amphiphilic surfaces made using telechelic functional PDMS having orthogonal acid functional groups. Prog. Org. Coat. 2012, 75, 38–48. [Google Scholar] [CrossRef]
  260. Sundaram, H.S.; Cho, Y.; Dimitriou, M.D.; Finlay, J.A.; Cone, G.; Williams, S.; Handlin, D.; Gatto, J.; Callow, M.E.; Callow, J.A. Fluorinated Amphiphilic Polymers and Their Blends for Fouling-Release Applications: The Benefits of a Triblock Copolymer Surface. ACS Appl. Mater. Interfaces 2011, 3, 3366. [Google Scholar] [CrossRef]
  261. Zhu, X.; Loh, X.J. Layer-by-layer assemblies for antibacterial applications. Biomater. Sci. 2015, 3, 1505–1518. [Google Scholar] [CrossRef]
  262. Chen, X.; Zhang, G.; Zhang, Q.; Zhan, X.; Chen, F. Preparation and Performance of Amphiphilic Polyurethane Copolymers with Capsaicin-Mimic and PEG Moieties for Protein Resistance and Antibacteria. Ind. Eng. Chem. Res. 2015, 54, 3813–3820. [Google Scholar] [CrossRef]
  263. Chen, S.; Li, X.; Li, Y.; Sun, J. Intumescent flame-retardant and self-healing superhydrophobic coatings on cotton fabric. ACS Nano 2015, 9, 4070–4076. [Google Scholar] [CrossRef]
  264. Ionov, L.; Synytska, A. Self-healing superhydrophobic materials. Phys. Chem. Chem. Phys. 2012, 14, 10497. [Google Scholar] [CrossRef]
  265. Li, Y.; Li, L.; Sun, J. Bioinspired Self-Healing Superhydrophobic Coatings. Angew. Chem. Int. Ed. 2010, 49, 6129–6133. [Google Scholar] [CrossRef]
  266. Wang, H.; Xue, Y.; Ding, J.; Feng, L.; Wang, X.; Lin, T. Durable, Self-Healing Superhydrophobic and Superoleophobic Surfaces from Fluorinated-Decyl Polyhedral Oligomeric Silsesquioxane and Hydrolyzed Fluorinated Alkyl Silane. Angew. Chem. Int. Ed. 2011, 50, 11433–11436. [Google Scholar] [CrossRef]
  267. Wang, H.; Zhou, H.; Gestos, A.; Jian, F.; Lin, T. Robust, Superamphiphobic Fabric with Multiple Self-HealingAbility against Both Physical and Chemical Damages. ACS Appl. Mater. Interfaces 2013, 5, 10221–10226. [Google Scholar] [CrossRef]
  268. Yin, X.; Liu, Z.; Wang, D.; Pei, X.; Bo, Y.; Feng, Z. Bioinspired Self-Healing Organic Materials: Chemical Mechanisms and Fabrications. J. Bionic Eng. 2015, 12, 1–16. [Google Scholar] [CrossRef]
  269. Zhou, H.; Wang, H.; Niu, H.; Gestos, A.; Lin, T. Robust, Self-Healing Superamphiphobic Fabrics Prepared by Two-Step Coating of Fluoro-Containing Polymer, Fluoroalkyl Silane, and Modified Silica Nanoparticles. Adv. Funct. Mater. 2013, 23, 1664–1670. [Google Scholar] [CrossRef]
  270. Kiil, S.; Dam-Johansen, K.; Weinell, C.E.; Pedersen, M.S.; Codolar, S.A. Estimation of Polishing and Leaching Behaviour of Antifouling Paints Using Mathematical Modelling: A Literature Review. Biofouling 2003, 19, 37–43. [Google Scholar] [CrossRef]
  271. Irani, F.; Jannesari, A.; Bastani, S. Effect of fluorination of multiwalled carbon nanotubes (MWCNTs) on the surface properties of fouling-release silicone/MWCNTs coatings. Prog. Org. Coat. 2013, 76, 375–383. [Google Scholar] [CrossRef]
  272. Cho, J.H.; Shanmuganathan, K.; Ellison, C.J. Bioinspired Catecholic Copolymers for Antifouling Surface Coatings. ACS Appl. Mater. Interfaces 2013, 5, 3794–3802. [Google Scholar] [CrossRef]
  273. Rath, S.K.; Chavan, J.G.; Sasane, S.; Jagannath; Patri, M.; Samui, A.B.; Chakraborty, B.C. Two component silicone modified epoxy foul release coatings: Effect of modulus, surface energy and surface restructuring on pseudobarnacle and macrofouling behavior. Appl. Surf. Sci. 2010, 256, 2440–2446. [Google Scholar] [CrossRef]
  274. Lv, J.L.; Liang, T.X.; Wang, C. Comparison of corrosion behavior between coarse grained and nanocrystalline NiFe alloys in chloride solutions and proton exchange membrane fuel cell environment by EIS, XPS and Raman spectra techniques. Energy 2016, 112, 67–74. [Google Scholar]
  275. Fang, C.; Zhou, X.; Yu, Q.; Liu, S.; Guo, D.; Yu, R.; Hu, J. Synthesis and characterization of low crystalline waterborne polyurethane for potential application in water-based ink binder. Prog. Org. Coat. 2014, 77, 61–71. [Google Scholar] [CrossRef]
  276. Ngo, S.; Lowe, C.; Lewis, O.; Greenfield, D. Development and optimisation of focused ion beam/scanning electron microscopy as a technique to investigate cross-sections of organic coatings. Prog. Org. Coat. 2017, 106, 33–40. [Google Scholar] [CrossRef]
  277. Scheerder, J.; Breur, R.; Slaghek, T.; Holtman, W.; Ferrari, G. Exopolysaccharides (EPS) as anti-corrosive additives for coatings. Prog. Org. Coat. 2012, 75, 224–230. [Google Scholar] [CrossRef]
  278. Murase, H.; Nanishi, K. Polymers and Environment II. Studies on the Adhesion Control of Marine Organisms by Means of a Heterogeneous Polymer Surface. Kobunshi Kagaku 1993, 50, 837–845. [Google Scholar]
  279. Owens, D.K.; Wendt, R.C. Estimation of the surface free energy of polymers. J. Appl. Polym. Sci. 1969, 13, 1741–1747. [Google Scholar] [CrossRef]
  280. Ping, L.V.; Yanzhu, F.; Weibo, H.; Xiaoli, Z.A.; Yanxuan, M.A. Anti-corrosion Performance of Qtech-413 Viscoelastic Protective Materials Used as Coating for Light Rail Concrete Beam. Corros. Sci. Protect. Technol. 2017, 3, 261–264. [Google Scholar]
  281. Ruixia, Y.; Hui, L.; Peng, Y.; Wang, H.; Liu, J. Enhancement of adhesion, mechanical strength and anti-corrosion by multilayer superhydrophobic coating embedded electroactive PANI/CNF nanocomposite. J. Polym. Res. 2018, 25, 151. [Google Scholar]
  282. Haghdadeh, P.; Ghaffari, M.; Ramezanzadeh, B.; Bahlakeh, G.; Saeb, M.R. The role of functionalized graphene oxide on the mechanical and anti-corrosion properties of polyurethane coating. J. Taiwan Inst. Chem. Eng. 2018, 86, 199–212. [Google Scholar] [CrossRef]
  283. Zhang, J.; Lin, C.; Wang, L.; Zheng, J.; Xu, F.; Sun, Z. Study on the correlation of lab assay and field test for fouling-release coatings. Prog. Org. Coat. 2013, 76, 1430–1434. [Google Scholar] [CrossRef]
  284. Sisoev, G.M.; Matar, O.K.; Lawrence, C.J. Modelling of film flow over a spinning disk. J. Chem. Technol. Biotechnol. 2010, 78, 151–155. [Google Scholar] [CrossRef]
  285. Bowen, W.R.; Fenton, A.S.; Lovitt, R.W.; Wright, C.J. The measurement of Bacillus mycoides spore adhesion using atomic force microscopy, simple counting methods, and a spinning disk technique. Biotechnol. Bioeng. 2010, 79, 170–179. [Google Scholar] [CrossRef] [PubMed]
  286. Alles, M.; Rosenhahn, A. Microfluidic detachment assay to probe the adhesion strength of diatoms. Biofouling 2015, 31, 469–480. [Google Scholar] [CrossRef] [PubMed]
  287. Christophis, C.; Grunze, M.; Rosenhahn, A. Quantification of the adhesion strength of fibroblast cells on ethylene glycol terminated self-assembled monolayers by a microfluidic shear force assay. Phys. Chem. Chem. Phys. 2010, 12, 4498–4504. [Google Scholar] [CrossRef] [PubMed]
  288. Yiapanis, G.; Maclaughlin, S.; Evans, E.J.; Yarovsky, I. Nanoscale wetting and fouling resistance of functionalized surfaces: A computational approach. Langmuir 2014, 30, 10617–10625. [Google Scholar] [CrossRef]
  289. Demirel, Y.K.; Khorasanchi, M.; Turan, O.; Incecik, A.; Schultz, M.P. A CFD model for the frictional resistance prediction of antifouling coatings. Ocean Eng. 2014, 89, 21–31. [Google Scholar] [CrossRef] [Green Version]
  290. Demirel, Y.K.; Khorasanchi, M.; Turan, O.; Incecik, A. A parametric study: Hull roughness effect on ship frictional resistance. In Proceedings of the Marine Coatings Conference, London, UK, 18 April 2013. [Google Scholar]
  291. Song, G.L. Recent Progress in Corrosion and Protection of Magnesium Alloys. Adv. Eng. Mater. 2010, 7, 563–586. [Google Scholar] [CrossRef]
  292. Cole, G.S. Summary of Ldquo & Magnesium Vision 2020: A North American Automotive Strategic Vision for Magnesium & Rdquo; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2014. [Google Scholar]
  293. Gaines, L.; Cuenca, R.; Wu, S.; Stodolsky, F. Potential Automotive Uses of Wrought Magnesium Alloys; Argonne National Lab.: Lemont, IL, USA, 1996.
  294. Ghali, E.; Dietzel, W.; Kainer, K.U. Testing of general and localized corrosion of magnesium alloys: A critical review. J. Mater. Eng. Perform. 2004, 13, 517–529. [Google Scholar] [CrossRef]
  295. Song, G.L.; Song, S. A Possible Biodegradable Magnesium Implant Material. Adv. Eng. Mater. 2010, 9, 298–302. [Google Scholar] [CrossRef]
  296. Song, G.L. Control of biodegradation of biocompatable magnesium alloys. Corros. Sci. 2007, 49, 1696–1701. [Google Scholar] [CrossRef]
  297. Song, G.L.; Mishra, R.; Xu, Z.Q. Crystallographic orientation and electrochemical activity of AZ31 Mg alloy. Electrochem. Commun. 2010, 12, 1009–1012. [Google Scholar] [CrossRef]
  298. Song, G.L. Effect of tin modification on corrosion of AM70 magnesium alloy. Corros. Sci. 2009, 51, 2063–2070. [Google Scholar] [CrossRef]
  299. Song, G.L. An irreversible dipping sealing technique for anodized ZE41 Mg alloy. Surf. Coat. Technol. 2009, 203, 3618–3625. [Google Scholar] [CrossRef]
  300. Song, G.L. “Electroless” deposition of a pre-film of electrophoresis coating and its corrosion resistance on a Mg alloy. Electrochim. Acta 2010, 55, 2258–2268. [Google Scholar] [CrossRef]
  301. Verdier, S.; Laak, N.V.D.; Delalande, S.; Metson, J.; Dalard, F. The surface reactivity of a magnesium-aluminium alloy in acidic fluoride solutions studied by electrochemical techniques and XPS. Appl. Surf. Sci. 2009, 235, 513–524. [Google Scholar] [CrossRef]
  302. Tang, J.; Azumi, K. Influence of zincate pretreatment on adhesion strength of a copper electroplating layer on AZ91 D magnesium alloy. Surf. Coat. Technol. 2011, 205, 3050–3057. [Google Scholar] [CrossRef] [Green Version]
  303. Song, G.L. “Electroless” E-Coating: An Innovative Surface Treatment for Magnesium Alloys. Electrochem. Solid-State Lett. 2009, 12, D77. [Google Scholar] [CrossRef]
  304. Maddela, S.; O’Keefe, M.J.; Wang, Y.M.; Kuo, H.H. Influence of Surface Pretreatment on Coating Morphology and Corrosion Performance of Cerium-Based Conversion Coatings on AZ91D Alloy. Corrosion 2010, 66, 1–8. [Google Scholar] [CrossRef]
  305. Chung, H.J.; Rhee, K.Y.; Kim, M.T.; Jung, Y.C. Surface treatment of stainless steel to improve coating strength of ZrO2 coated stainless steel needle. Surf. Eng. 2013, 27, 145–148. [Google Scholar] [CrossRef]
  306. Banerjee, P.C.; Raman, R.K.S. Electrochemical impedance spectroscopic investigation of the role of alkaline pre-treatment in corrosion resistance of a silane coating on magnesium alloy, ZE41. Electrochim. Acta 2011, 56, 3790–3798. [Google Scholar] [CrossRef]
  307. Uttaravalli, A.N.; Dinda, S. Studies on synthesis of environment-friendly products for paint and coating applications. Ind. Chem. Eng. 2019, 62, 1–14. [Google Scholar] [CrossRef]
  308. Selim, M.S.; Yang, H.; El-Safty, S.A.; Fatthallah, N.A.; Shenashen, M.A.; Wang, F.Q.; Huang, Y. Superhydrophobic coating of silicone/β–MnO2 nanorod composite for marine antifouling. Colloids Surf. A 2019, 570, 518–530. [Google Scholar] [CrossRef]
  309. Selim, M.S.; El-Safty, S.A.; Fatthallah, N.A.; Shenashen, M.A. Silicone/graphene oxide sheet-alumina nanorod ternary composite for superhydrophobic antifouling coating. Prog. Org. Coat. 2018, 121, 160–172. [Google Scholar] [CrossRef]
  310. Shi, Y.; Zhou, P.; Jerome, V.; Freitag, R.; Agarwal, S. Enzymatically Degradable Polyester Based Adhesives. ACS Biomater. Sci. Eng. 2017, 1, 971–977. [Google Scholar] [CrossRef]
  311. Agnihotri, S.; Bajaj, G.; Mukherji, S.; Mukherji, S. Arginine-assisted immobilization of silver nanoparticles on ZnO nanorods: An enhanced and reusable antibacterial substrate without human cell cytotoxicity. Nanoscale 2015, 7, 7415–7429. [Google Scholar] [CrossRef] [Green Version]
  312. Haider, M.S.; Shao, G.N.; Imran, S.M.; Park, S.S.; Abbas, N.; Tahir, M.S.; Hussain, M.; Bae, W.; Kim, H.T. Aminated polyethersulfone-silver nanoparticles (AgNPs-APES) composite membranes with controlled silver ion release for antibacterial and water treatment applications. Mater. Sci. Eng. C-Mater. 2016, 62, 732–745. [Google Scholar] [CrossRef]
  313. Aradmehr, A.; Javanbakht, V. A novel biofilm based on lignocellulosic compounds and chitosan modified with silver nanoparticles with multifunctional properties: Synthesis and characterization. Colloids Surf. A 2020, 600, 124952. [Google Scholar] [CrossRef]
  314. Tian, S.; Jiang, D.; Pu, J.; Sun, X.; Li, Z.; Wu, B.; Zheng, W.R.; Liu, W.Q.; Liu, Z.X. A new hybrid silicone-based antifouling coating with nanocomposite hydrogel for durable antifouling properties. Chem. Eng. J. 2019, 370, 1–9. [Google Scholar] [CrossRef]
  315. Firouzjaei, M.D.; Shamsabadi, A.A.; Aktij, S.A.; Seyedpour, S.F.; Sharifian Gh, M.; Rahimpour, A.; Esfahani, M.R.; Ulbricht, M.; Soroush, M. Exploiting Synergetic Effects of Graphene Oxide and a Silver-Based Metal-Organic Framework To Enhance Antifouling and Anti-Biofouling Properties of Thin-Film Nanocomposite Membranes. ACS Appl. Mater. Int. 2018, 10, 42967–49278. [Google Scholar] [CrossRef]
  316. Pounraj, S.; Somu, P.; Paul, S. Chitosan and graphene oxide hybrid nanocomposite film doped with silver nanoparticles efficiently prevents biofouling. Appl. Surf. Sci. 2018, 452, 487–497. [Google Scholar] [CrossRef]
  317. Xu, Z.Q.; Wang, X.H.; Liu, X.M.; Cui, Z.; Wu, S. Tannic Acid/Fe3+/Ag Nanofilm Exhibiting Superior Photodynamic and Physical Antibacterial Activity. ACS Appl. Mater. Int. 2017, 9, 39657–39671. [Google Scholar] [CrossRef]
  318. Sileika, T.S.; Barrett, D.G.; Zhang, R.; Lau, K.H.; Messersmith, P.B. Colorless Multifunctional Coatings Inspired by Polyphenols Found in Tea, Chocolate, and Wine. Angew. Chem. Int. Ed. 2013, 52, 10766–10770. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  319. Bethencourt, M.; Botana, F.J.; Cano, M.J.; Osuna, R.M.; Marcos, M. Lifetime prediction of waterborne acrylic paints with the AC-DC-AC method. Prog. Org. Coat. 2004, 49, 275–281. [Google Scholar] [CrossRef]

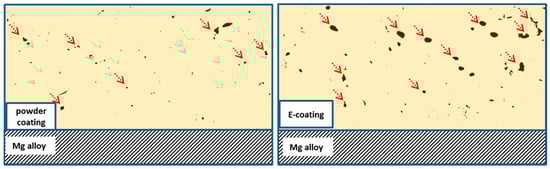

Figure 1. Schematic illustration of the cross-sections of epoxy powder coating and epoxy E-coating on a Mg alloy based on [56]. The defects may be across the entire coating, but present as pores or holes as pointed by arrows on the cross-sections.
Figure 1. Schematic illustration of the cross-sections of epoxy powder coating and epoxy E-coating on a Mg alloy based on [56]. The defects may be across the entire coating, but present as pores or holes as pointed by arrows on the cross-sections.
Cmd 01 00019 g001

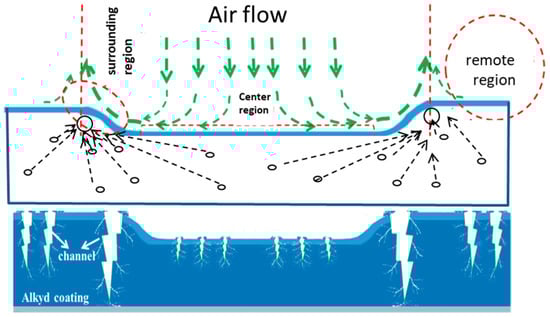

Figure 2. Schematic illustration of an airflow over an alkyd coating during curing, solvent evaporation distribution and possible micro-crack formation in the curing coating, adapted from [70].
Figure 2. Schematic illustration of an airflow over an alkyd coating during curing, solvent evaporation distribution and possible micro-crack formation in the curing coating, adapted from [70].
Cmd 01 00019 g002

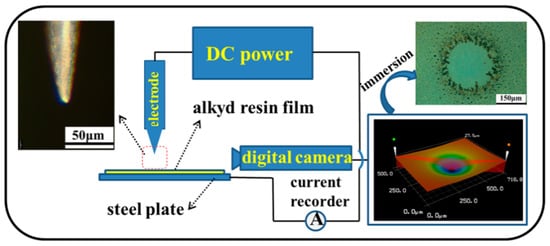

Figure 3. Schematic illustration of local modification of the surface morphology of a semiliquid alkyd film under a DC electric field [75].
Figure 3. Schematic illustration of local modification of the surface morphology of a semiliquid alkyd film under a DC electric field [75].
Cmd 01 00019 g003

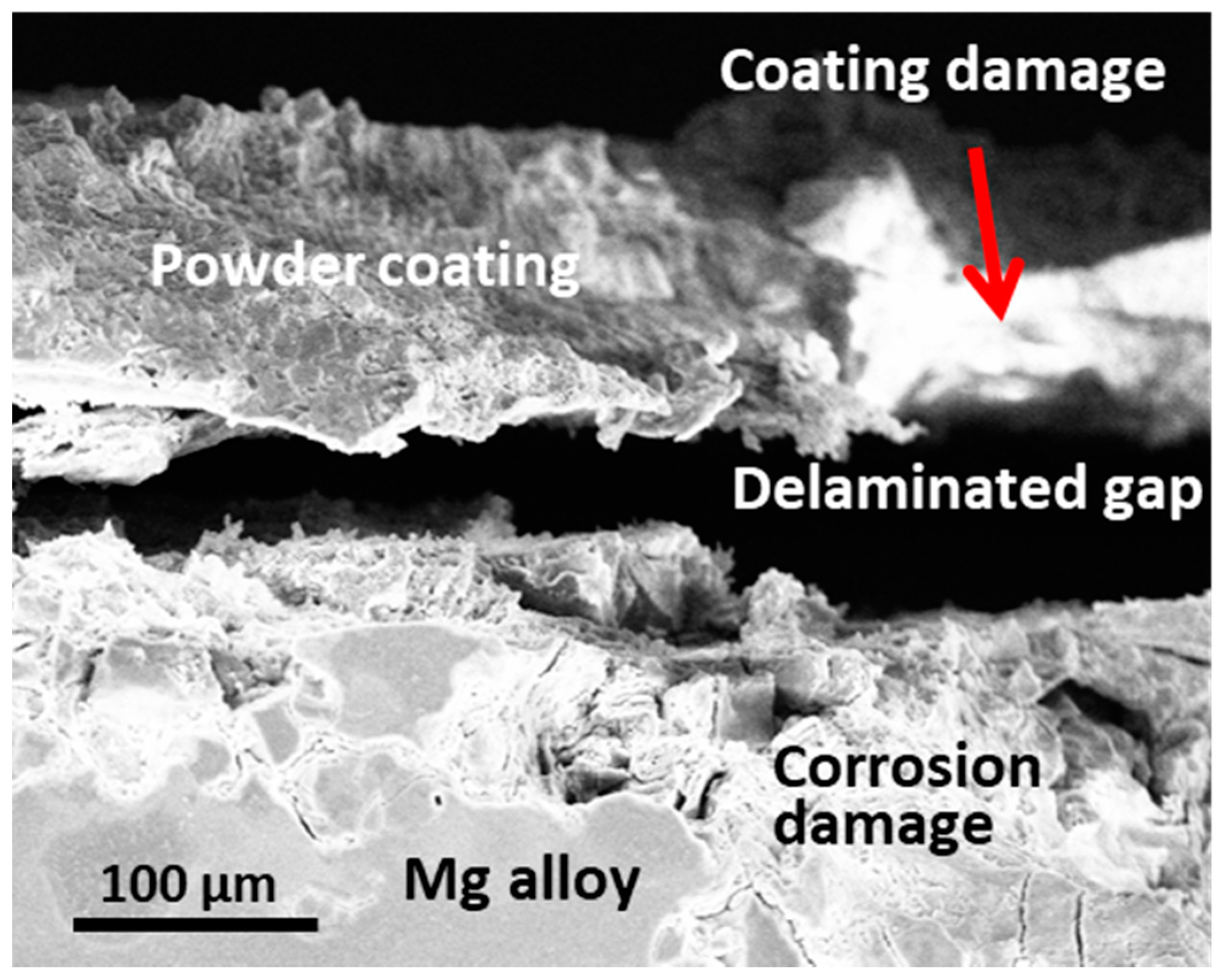

Figure 4. The substrate corrosion, coating damage and interface delamination for a coated AZ31 after 1000 h of salt spray, adapted from [56] (Copyright 2020, with permission from NACE International).
Figure 4. The substrate corrosion, coating damage and interface delamination for a coated AZ31 after 1000 h of salt spray, adapted from [56] (Copyright 2020, with permission from NACE International).
Cmd 01 00019 g004

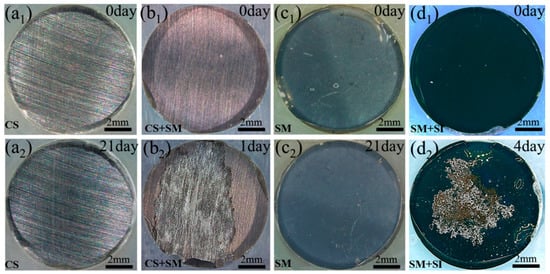

Figure 5. Corrosion damage of epoxy coated (a1,a2) carbon steel (CS), (b1,b2) magnetron-sputtered Mg layer (CS+SM) on carbon steel, (c1,c2) magnetron-sputtered Mg layer (SM) on glass and (d1,d2) magnetron-sputtered iron layer on magnetron sputtered Mg layer (SM+SI) after salt spray for different periods of time, reprinted from [94] (Copyright 2020 with permission from Elsevier).
Figure 5. Corrosion damage of epoxy coated (a1,a2) carbon steel (CS), (b1,b2) magnetron-sputtered Mg layer (CS+SM) on carbon steel, (c1,c2) magnetron-sputtered Mg layer (SM) on glass and (d1,d2) magnetron-sputtered iron layer on magnetron sputtered Mg layer (SM+SI) after salt spray for different periods of time, reprinted from [94] (Copyright 2020 with permission from Elsevier).
Cmd 01 00019 g005

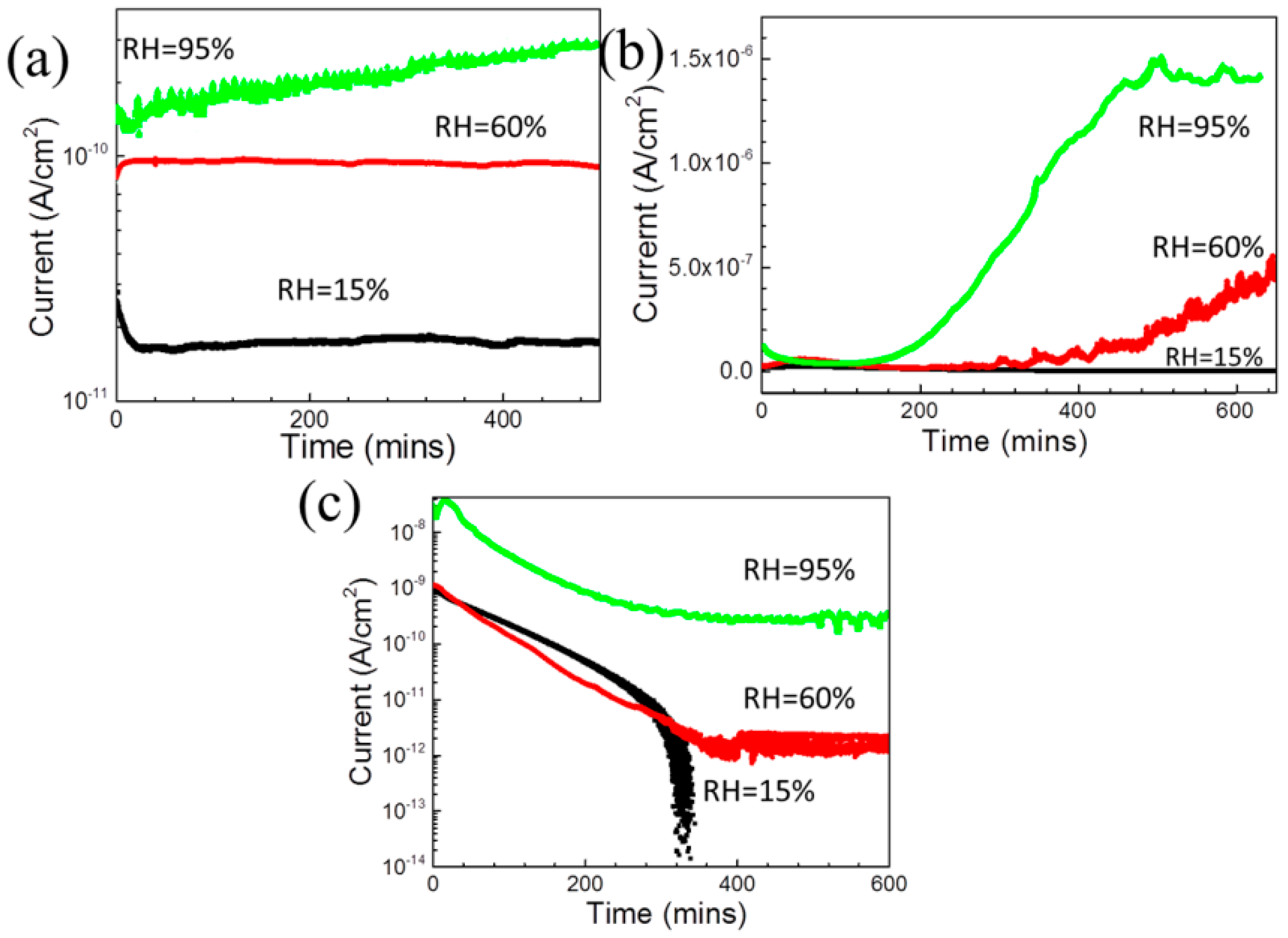

Figure 6. Galvanic corrosion current densities of coupled pure Mg and carbon steel immersed in (a) epoxy resin (A), (b) curing agent (B) and (c) their mixture (A3B) at different relatively humidity levels at 20 °C, reprinted from [94] (Copyright 2020, with permission from Elsevier).
Figure 6. Galvanic corrosion current densities of coupled pure Mg and carbon steel immersed in (a) epoxy resin (A), (b) curing agent (B) and (c) their mixture (A3B) at different relatively humidity levels at 20 °C, reprinted from [94] (Copyright 2020, with permission from Elsevier).
Cmd 01 00019 g006
Figure 7. Surface roughness of epoxy resin after continuous salt water immersion (ENaCl), continuous UV irradiation effect (EUVA) and alternate UV irradiation and salt water immersion, reprinted from [120] (Copyright 2020 with permission from Elsevier).
Figure 7. Surface roughness of epoxy resin after continuous salt water immersion (ENaCl), continuous UV irradiation effect (EUVA) and alternate UV irradiation and salt water immersion, reprinted from [120] (Copyright 2020 with permission from Elsevier).
Cmd 01 00019 g007
Figure 8. Curve fitting of the surface roughness vs. exposure time for epoxy under different weathering conditions, reprinted from [120] (Copyright 2020, with permission from Elsevier).
Figure 8. Curve fitting of the surface roughness vs. exposure time for epoxy under different weathering conditions, reprinted from [120] (Copyright 2020, with permission from Elsevier).
Cmd 01 00019 g008

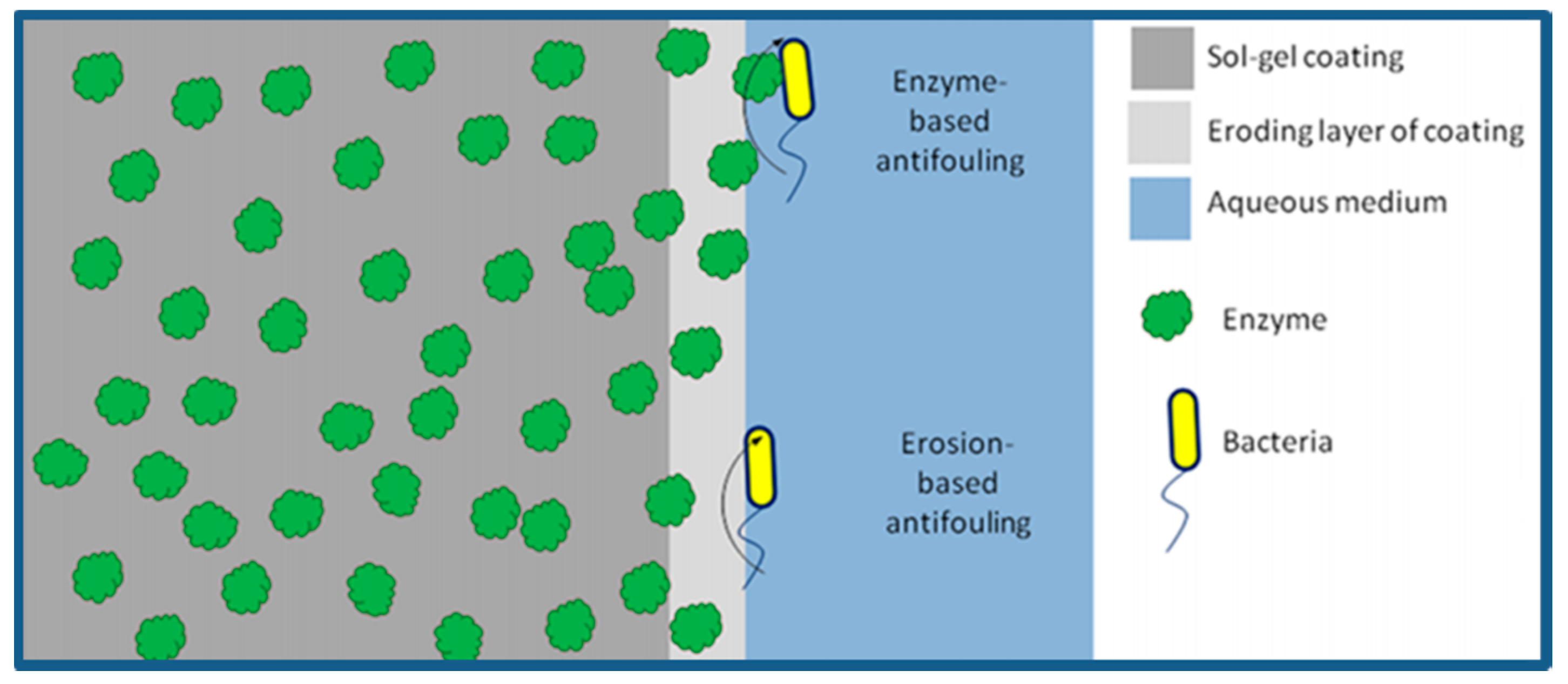

Figure 9. Schematic illustration of the antifouling mechanism of a serine protease encapsulated sol-gel coating, reprinted from [230] (Copyright 2020, with permission from American Chemical Society).
Figure 9. Schematic illustration of the antifouling mechanism of a serine protease encapsulated sol-gel coating, reprinted from [230] (Copyright 2020, with permission from American Chemical Society).
Cmd 01 00019 g009
Figure 10. Schematic illustration of the PEG layers on silicon, reprinted from [243] (Copyright 2020, with permission from American Chemical Society).
Figure 10. Schematic illustration of the PEG layers on silicon, reprinted from [243] (Copyright 2020, with permission from American Chemical Society).
Cmd 01 00019 g010
Figure 11. Grafted zwitterionic polymer for antifouling, reprinted from [252] (Copyright 2020, with permission from Royal Society of Chemistry).
Figure 11. Grafted zwitterionic polymer for antifouling, reprinted from [252] (Copyright 2020, with permission from Royal Society of Chemistry).
Cmd 01 00019 g011

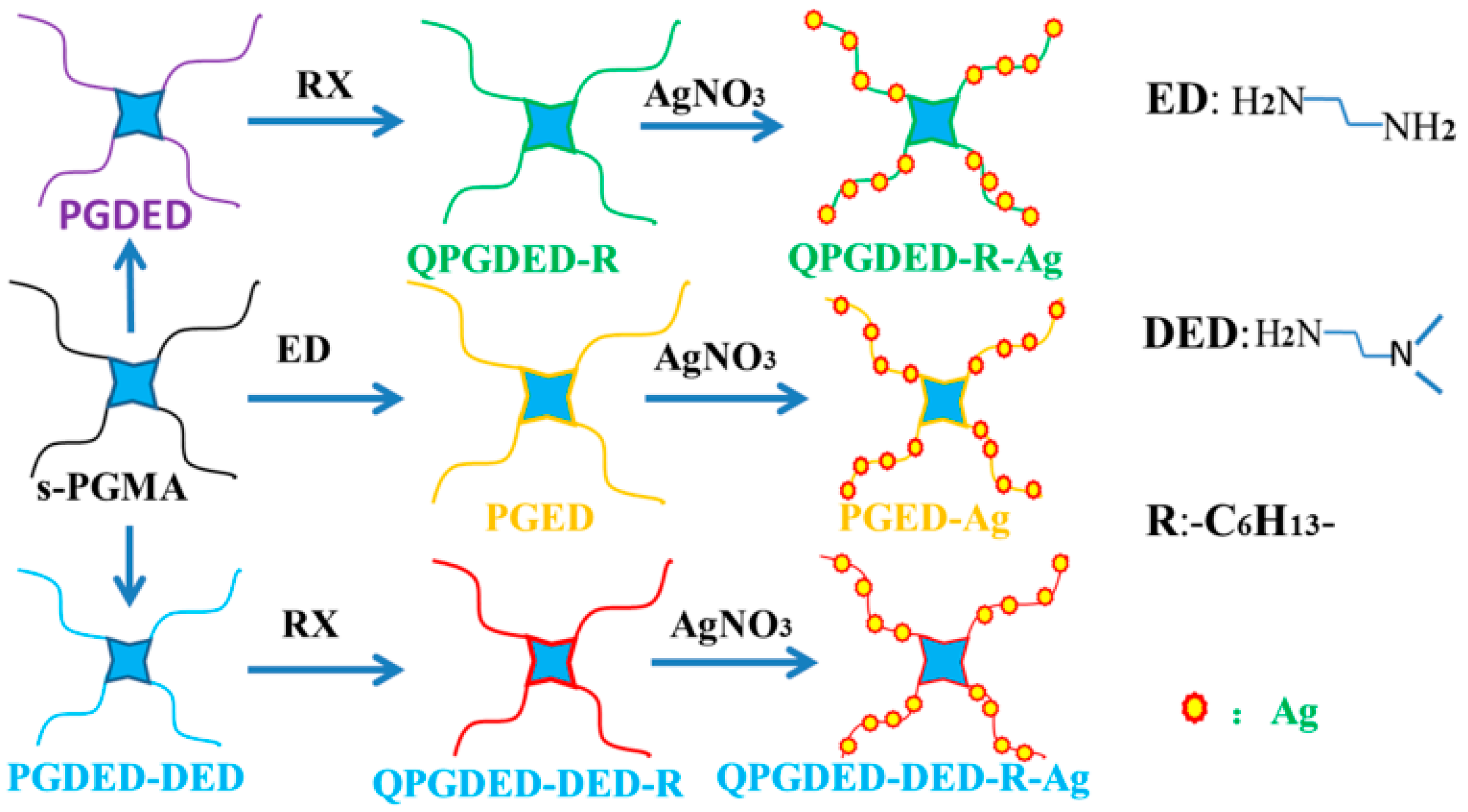

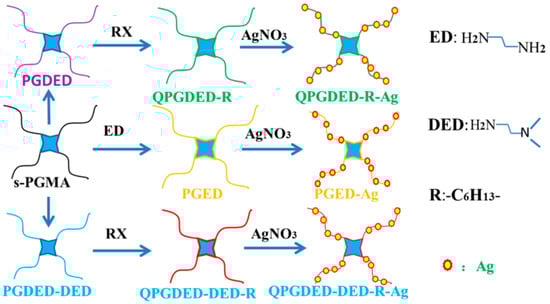

Figure 12. Schematic illustration of the formation processes of different hydroxyl-rich antibacterial polymers via the ring opening reaction of s-PGMA, adapted from [256] (RX: Haloalkane, PGMA: poly (glycidyl mehacrylate), PGDED and PGDED-DED: the products after DED and DED/ED being introduced into s-PGMA, QPGDED-R, PGED and QPGDED-DED-R: the products modified by RX and ED, QPGDED-R-Ag, GED-Ag, QPGDED-DED-R-Ag: the products modified by AgNO3).
Figure 12. Schematic illustration of the formation processes of different hydroxyl-rich antibacterial polymers via the ring opening reaction of s-PGMA, adapted from [256] (RX: Haloalkane, PGMA: poly (glycidyl mehacrylate), PGDED and PGDED-DED: the products after DED and DED/ED being introduced into s-PGMA, QPGDED-R, PGED and QPGDED-DED-R: the products modified by RX and ED, QPGDED-R-Ag, GED-Ag, QPGDED-DED-R-Ag: the products modified by AgNO3).
Cmd 01 00019 g012

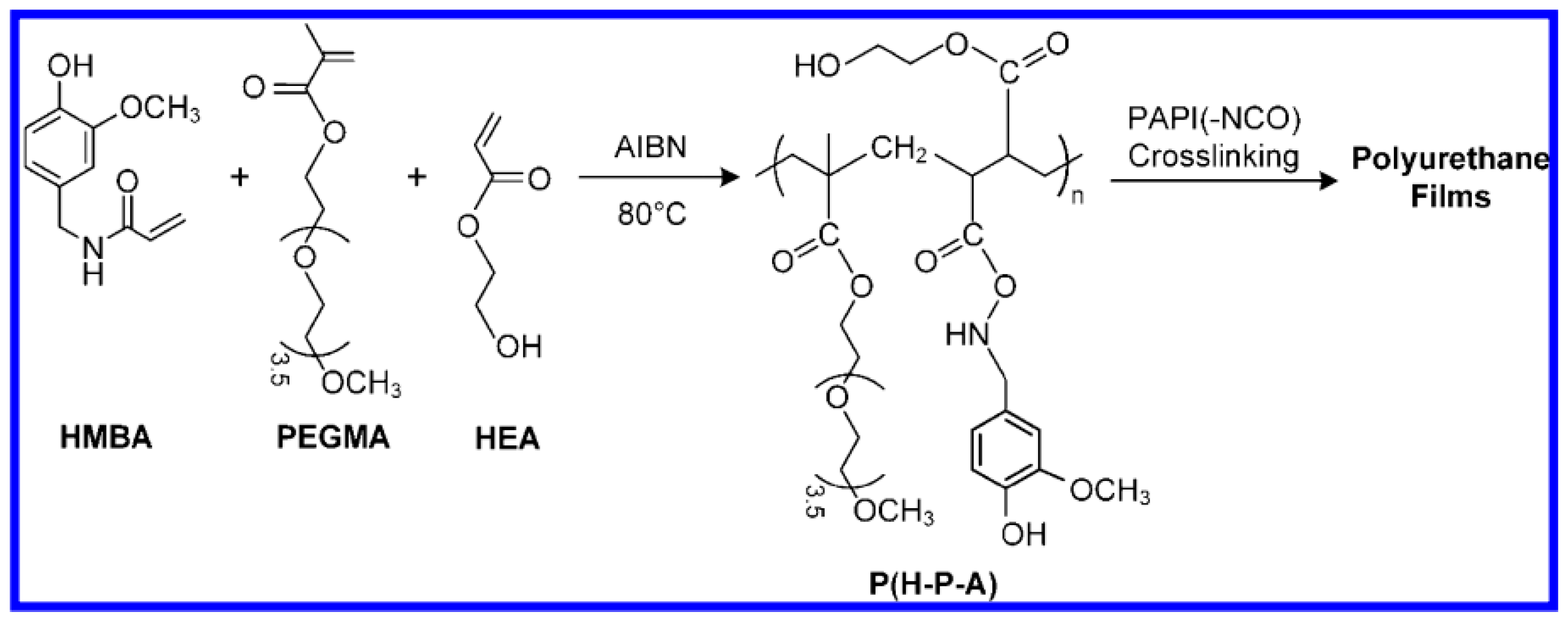

Figure 13. Synthesis route of P (H-P-A) and PU films, reprinted from [262] (Copyright 2020, with permission from American Chemical Society).
Figure 13. Synthesis route of P (H-P-A) and PU films, reprinted from [262] (Copyright 2020, with permission from American Chemical Society).
Cmd 01 00019 g013

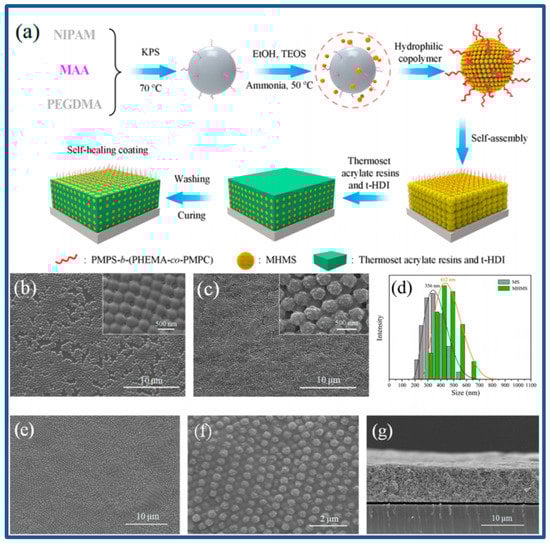

Figure 14. Schematic illustration of the preparation of a MHMS-based coating (a), SEM images of the microgel spheres (MS) (b) and MHMS (c), size distribution of the MS and MHMS (d), SEM image of the MHMS-based coating (e), the magnified SEM image (f) and cross-sectional SEM image (g) of the MHMS-based coating, reprinted from [16] (Copyright 2020, with permission from Springer Nature).
Figure 14. Schematic illustration of the preparation of a MHMS-based coating (a), SEM images of the microgel spheres (MS) (b) and MHMS (c), size distribution of the MS and MHMS (d), SEM image of the MHMS-based coating (e), the magnified SEM image (f) and cross-sectional SEM image (g) of the MHMS-based coating, reprinted from [16] (Copyright 2020, with permission from Springer Nature).
Cmd 01 00019 g014
Figure 15. Schematic illustration of the ingress of corrosive species into coating through the surface layer, the diffusion of corrosive species in the coating body and the interaction of corrosive species with the substrate through the interface layer.
Figure 15. Schematic illustration of the ingress of corrosive species into coating through the surface layer, the diffusion of corrosive species in the coating body and the interaction of corrosive species with the substrate through the interface layer.
Cmd 01 00019 g015
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Song, G.-L.; Feng, Z. Modification, Degradation and Evaluation of a Few Organic Coatings for Some Marine Applications. Corros. Mater. Degrad. 2020, 1, 408-442. https://doi.org/10.3390/cmd1030019

AMA Style

Song G-L, Feng Z. Modification, Degradation and Evaluation of a Few Organic Coatings for Some Marine Applications. Corrosion and Materials Degradation. 2020; 1(3):408-442. https://doi.org/10.3390/cmd1030019

Chicago/Turabian Style

Song, Guang-Ling, and Zhenliang Feng. 2020. "Modification, Degradation and Evaluation of a Few Organic Coatings for Some Marine Applications" Corrosion and Materials Degradation 1, no. 3: 408-442. https://doi.org/10.3390/cmd1030019

APA Style

Song, G. -L., & Feng, Z. (2020). Modification, Degradation and Evaluation of a Few Organic Coatings for Some Marine Applications. Corrosion and Materials Degradation, 1(3), 408-442. https://doi.org/10.3390/cmd1030019

Article Metrics

Back to TopTop
