Superior Obstacle Avoidance Capabilities of Personal Mobility Vehicles (PMVs) Equipped with an Active Inward Tilting Mechanism

Abstract

In recent years, novel Personal Mobility Vehicles (PMVs) with a narrow width and an inward tilting mechanism, similar to motorcycles (MCs), have been proposed to prevent overturning during turns. Due to their compact size, these vehicles have inherent limitations in collision safety, making their dynamic safety and accident avoidance capabilities particularly crucial. In this study, a comparative analysis was conducted using a simulated single lane change course to evaluate obstacle avoidance performance. The results reveal that PMVs equipped with an active inward tilting mechanism exhibit superior obstacle avoidance capabilities. Based on the roll moment equilibrium conditions of these vehicles, an investigation of vehicle states during avoidance maneuvers revealed that both actual and virtual tilt angles coexist in PMVs, and their combined equivalent tilt angle effectively balances the roll moment during turning. This unique mechanism, which integrates the responsiveness of passenger cars with motorcycle-like tire lateral force characteristics, underpins the exceptional obstacle avoidance capabilities of actively inward tilting PMVs.

1. Introduction

Personal Mobility Vehicles (PMVs) have a longstanding history as compact and efficient transportation options. A novel type of PMV has recently emerged, resembling motorcycles in their ability to narrow their width and tilt inwards during turns to prevent tipping [1,2,3]. While these small vehicles offer enhanced maneuverability, they present challenges in terms of collision safety, highlighting the critical role of dynamic stability for accident avoidance. However, due to the novelty of this concept, research on the dynamic characteristics of such PMVs is limited, especially concerning their dynamic mechanisms during inward tilting while turning.

The authors have consistently conducted research on PMVs equipped with two front wheels and one rear wheel that can tilt actively [4,5,6,7]. They have explored their motion characteristics and provided mechanical design guidelines. This paper aims to clarify the dynamic obstacle avoidance capability of these narrow-track PMVs, which tilt inwards during turns. The clarification is achieved through theoretical and computational analyses by comparing these PMVs with conventional automobiles and motorcycles.

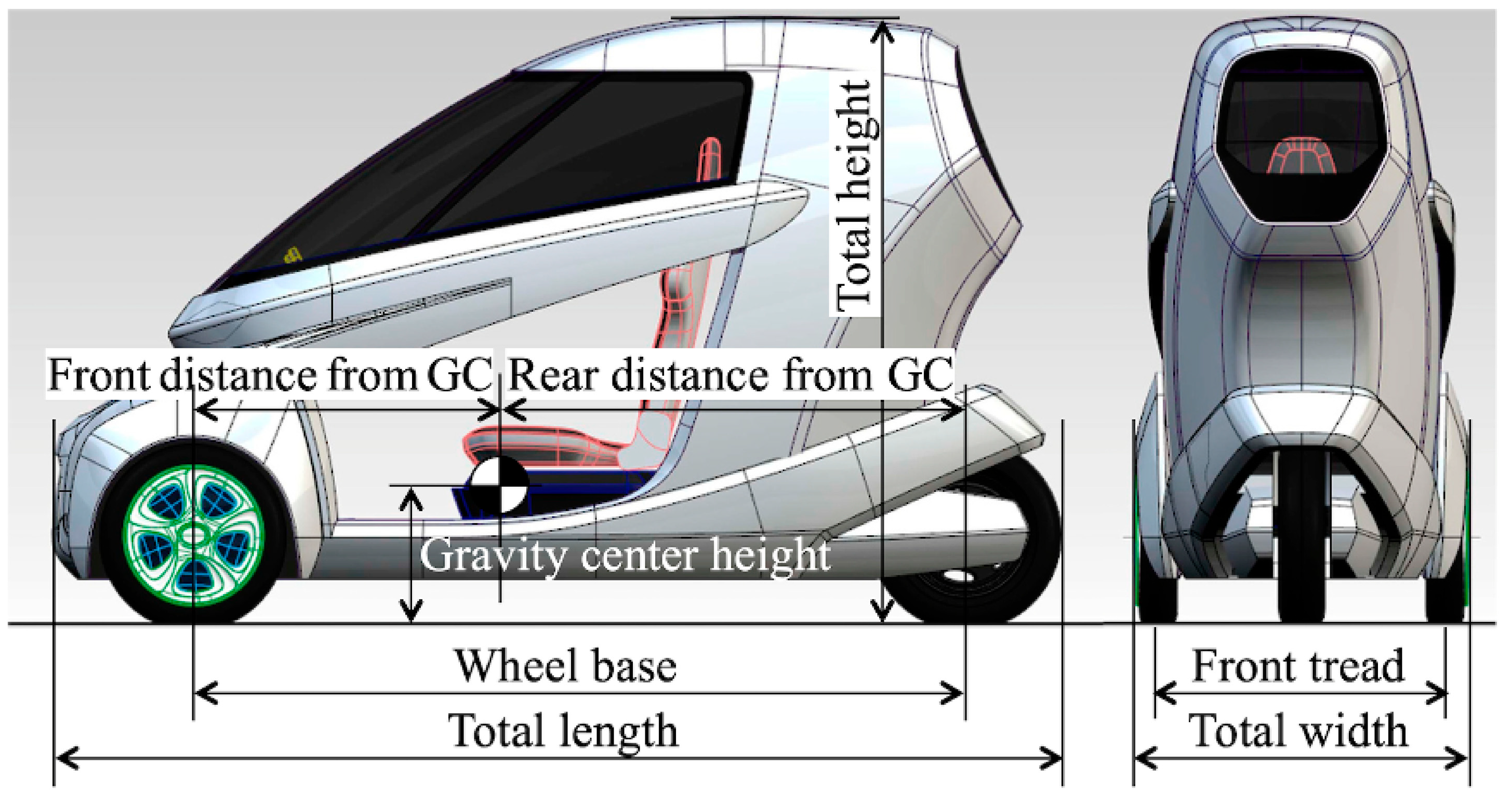

Figure 1 and

Table 1. Specifications of PMV [4,5,6].

Item	Unit	Value	Item	Unit	Value
Total length	m	2.645	Front mass distribution	kg	222
Total width	m	0.880	Rear mass distribution	kg	148
Total height	m	1.445	Total mass	kg	370
Gravity center height	m	0.358	Roll inertia moment	Kgm2	58.8
Wheel base	m	2.020	(Sprung inertia moment)	Kgm2	43.0
Front distance from GC	m	0.807	Pitch inertia moment	Kgm2	197.3
Rear distance from GC	m	1.213	(Sprung inertia moment)	Kgm2	118.0
Front tread	m	0.850	Yaw inertia moment	Kgm2	187.3
Steering gear ratio	—	16.0	(Sprung inertia moment)	Kgm2	102.3

provide details about the model vehicle specifications. For our study, we utilized the simulation tool CarMaker [8] from the German company IPG to build a vehicle model with two front wheels. Since CarMaker is designed for four- wheeled passenger cars, we made the following adjustments during the modeling process:

• To simulate the single rear wheel, we positioned two rear wheels width-wise at the vehicle’s center. One of these wheels was designated as a dummy wheel with zero mass and zero tire forces.
• To achieve inward tilting during turns, we employed CarMaker’s active stabilizer function to apply an active anti-roll torque that induces the desired tilt. This anti-roll torque acts as an internal force within the vehicle system and does not directly affect external forces like tire forces. This approach, as shown in Figure 2, does not hinder the examination of motion characteristics and their mechanisms.

Notes: In this work, IPG’s CarMaker 4.5.4 software is used for dynamic simulations. Since it is a commercially available software, its explanation is provided in reference [8], and the explanation within this work is kept to a minimum.

Existing software, including but not limited to IPG’s, offers models for four-wheeled passenger cars with passive outward rolling (double track) and motorcycles with vehicle balance causing (so to speak, passive) inward tilting (single track). The biggest difference between the two is that the former is dynamically stable when stationary, whereas the latter results to fall over when stationary (making error in a calculation).

Vehicles like the one in this work, with a front double track and rear single-track configuration, cannot be modeled directly using either of these models. Therefore, we devised a modification to CarMaker’s double track model by converting the rear wheels into a single wheel (see Section 1: Introduction) and incorporated a mechanism for active inward tilting (see Section 2: Vehicle Model), enabling the establishment of a valid simulation model. In fact, due to the model structure, MotorcycleMaker does not allow double-tracking or active inward tilting.

2. Vehicle Model

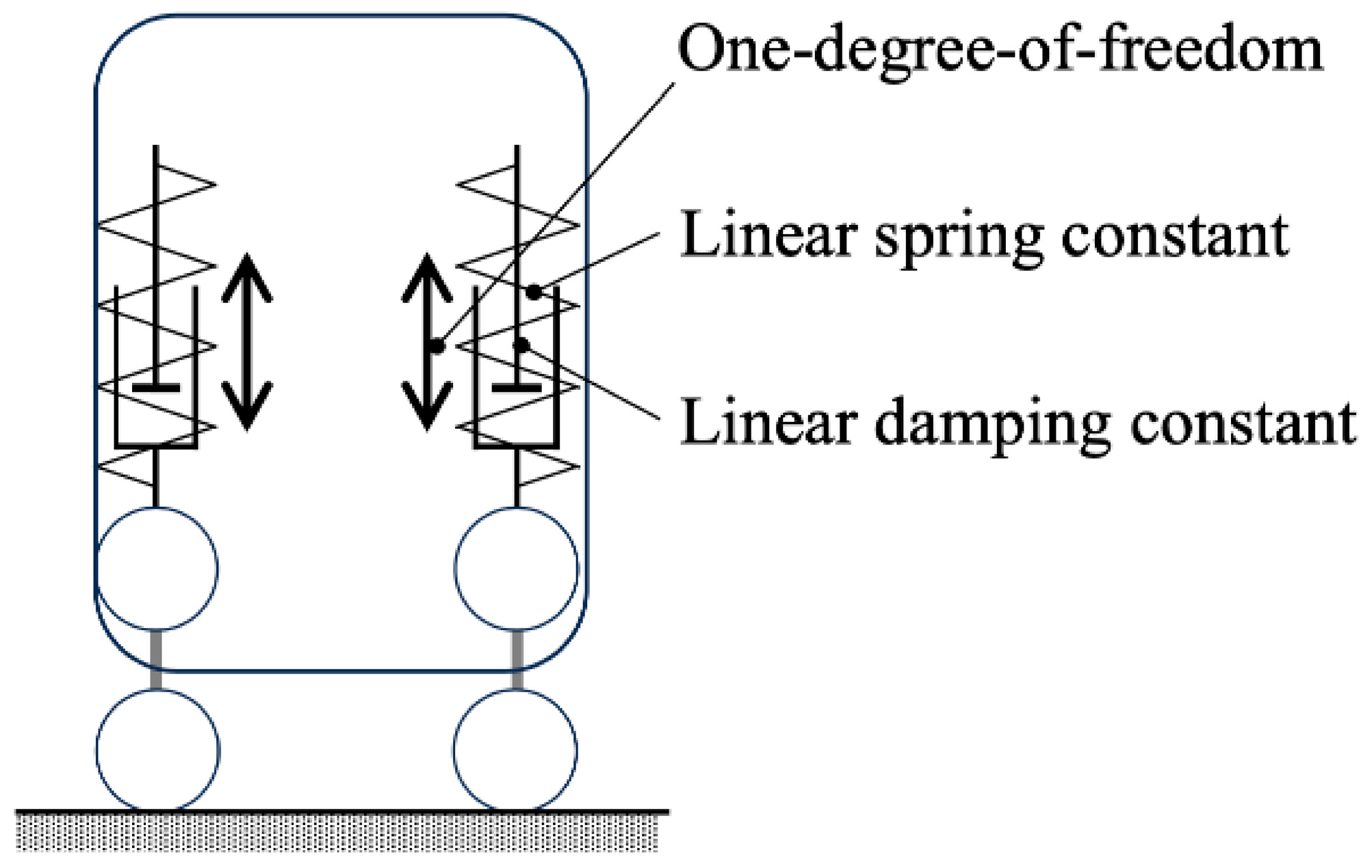

The model vehicle’s mass and inertial distribution are outlined in Table 1, and a simplified suspension mechanism is employed, as illustrated in Figure 3.

• We opted not to use realistic suspension mechanism models available in CarMaker. Instead, we employed a one-degree-of-freedom sliding mechanism for both front and rear wheels, incorporating moderate linear spring constants and damping characteristics (Table 2).
• The active stabilizer function is used as a simple addition of anti-roll torque, without simulating a realistic stabilizer structure.
• Tire force characteristics are defined through a characteristic map determined solely by ground load, slip angle, and camber angle, as shown in Figure 4. This characteristic map, adapted from motorcycle tire characteristics, does not account for tire force time delay.
• We did not consider the lateral shift of the ground contact center due to tire camber angle in this study.

Note: In this section, we will provide an explanation to deepen the understanding of the terms “target tilt angle” and “actual tilt angle” as used herein.

Table 2. Suspension characteristics.

Item	Unit	Front Wheel	Rear Wheel
Spring constant	N/m	5686	8654
Damping constant (stretching/compression)	Ns/m	1544/815	1142/727

Table 2. Suspension characteristics.

Item	Unit	Front Wheel	Rear Wheel
Spring constant	N/m	5686	8654
Damping constant (stretching/compression)	Ns/m	1544/815	1142/727

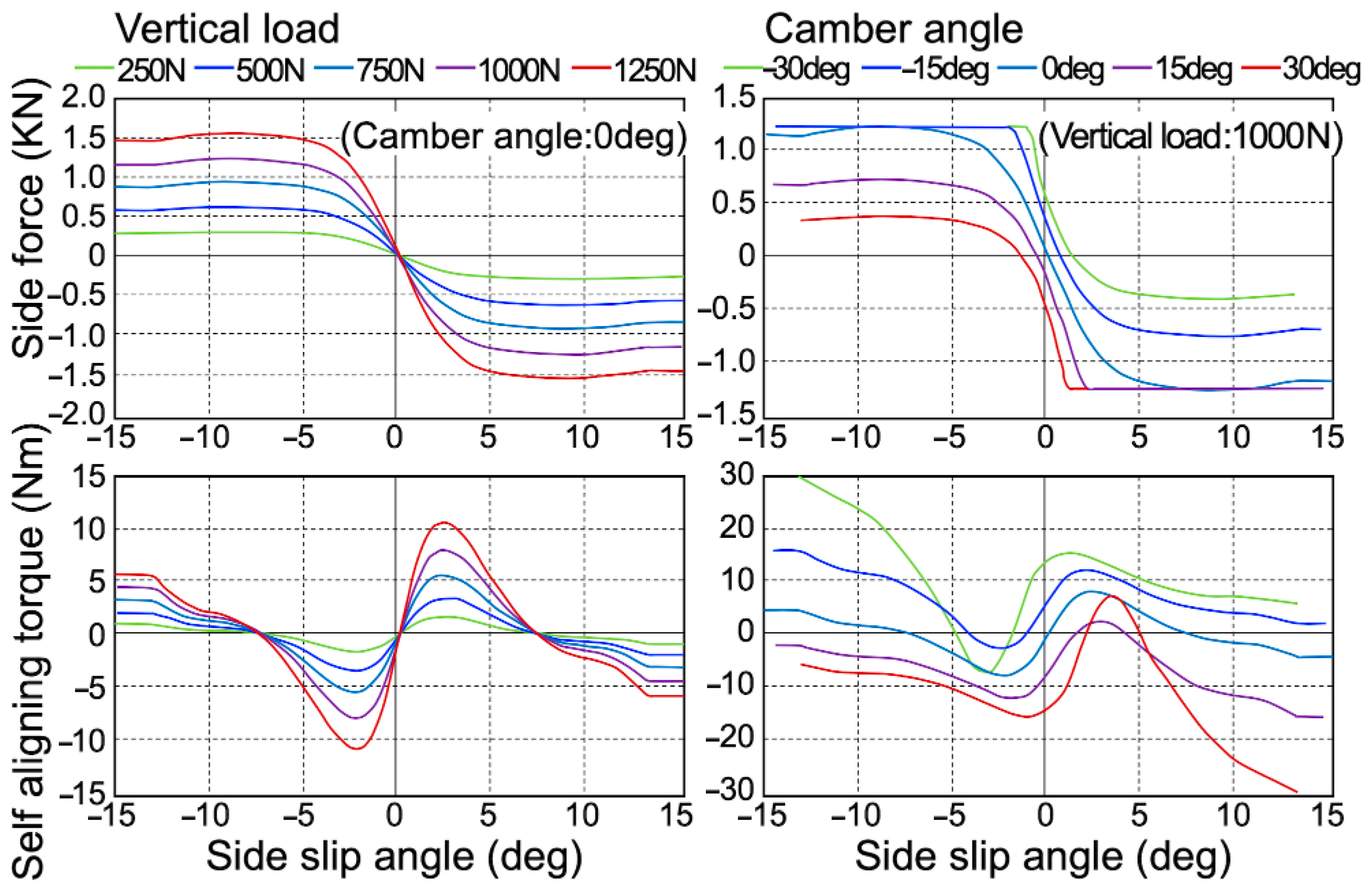

Figure 4. Tire characteristics 100/90R12 [4,5].

Figure 4. Tire characteristics 100/90R12 [4,5].

Target tilt angle: This refers to the tilt angle that should be applied to the vehicle by the active tilting mechanism. It is derived from the steering angle using Equations (1)–(3), which will be discussed later. In PID tracking control, it is given as the reference value for the tilt angle.

Actual tilt angle: This refers to the actual tilt angle experienced by the vehicle, which is compared with the target tilt angle in PID tracking control. It occurs with a considerable delay compared to the target tilt angle synchronized with the steering angle. As discussed in Section 7, it occurs significantly later than the lateral acceleration that quickly responds to the steering angle.

2.1. Target Tilt Angle

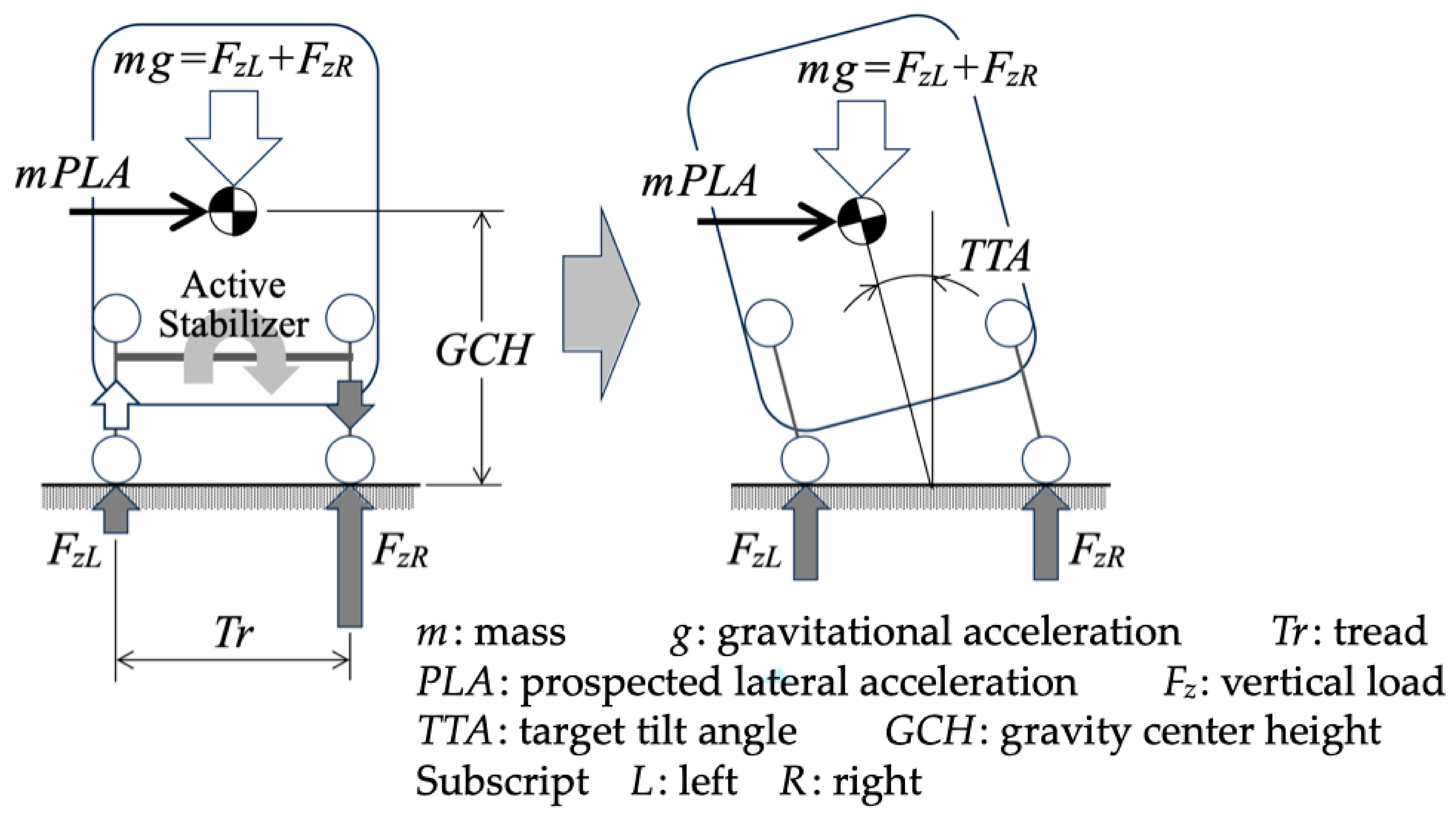

In motorcycles, an inward tilt angle is generated during turning to balance the roll moment induced by centrifugal force. In this scenario, motorcycles primarily rely on the camber thrust force generated by tire camber angles associated with this inward tilt angle to execute the turn. As a result, tire slip angles during turning are extremely small. More precisely, minor slip angles, either positive or negative, may arise due to tire lateral force characteristics and rider posture (lean-in or lean-out). This report assumes that the PMV also employs motorcycle tires, and therefore, similar to motorcycles, the PMV is designed to generate an inward tilt angle of a magnitude that balances the roll moment induced by centrifugal force during turning.

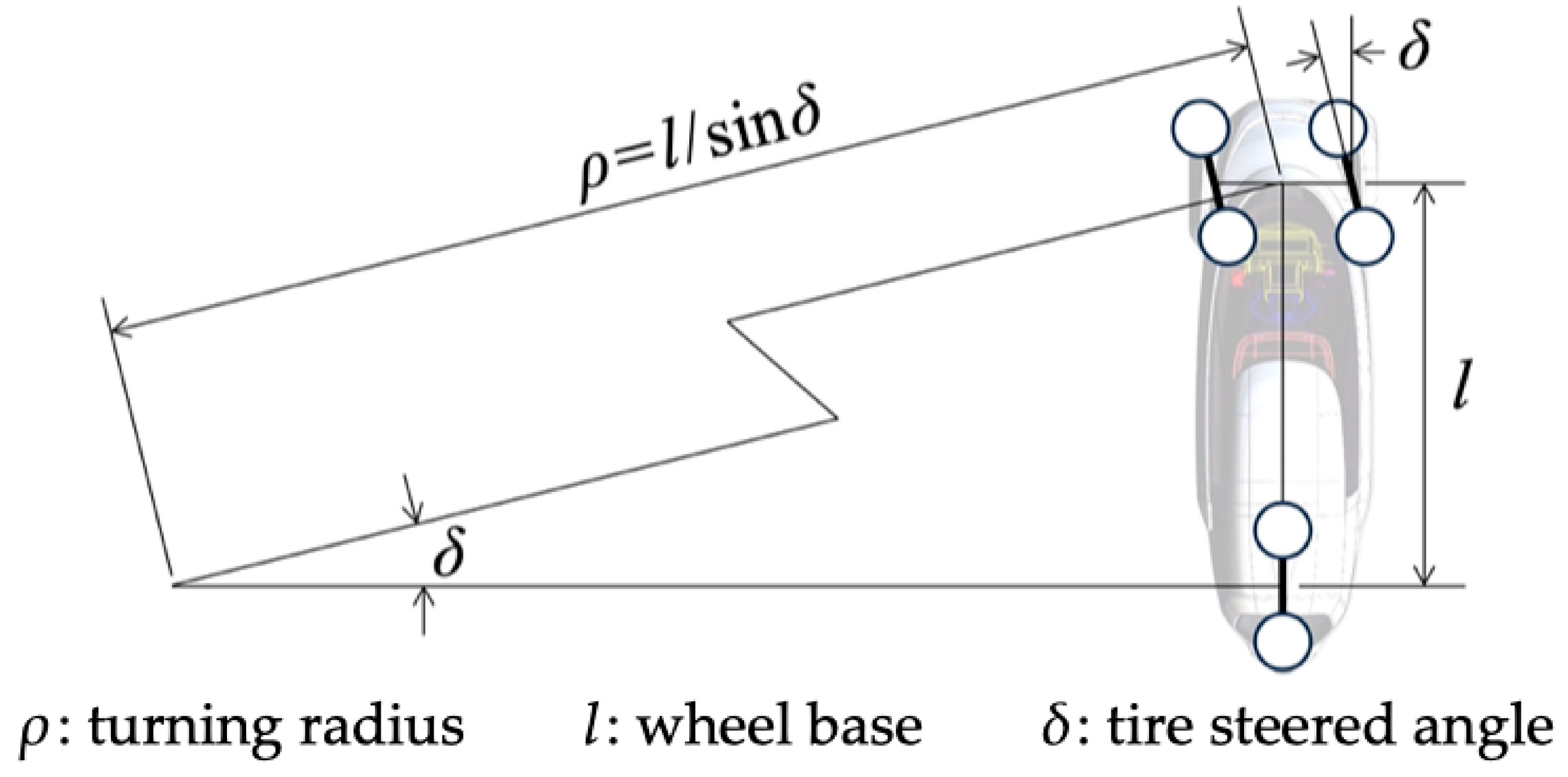

Figure 5 illustrates the behavior of a PMV executing a turn without slip angles. The turning radius is determined geometrically by the steering angle (Equation (1)), and as indicated by Equation (2), the lateral acceleration during the turn is uniquely determined by both the steering angle and the vehicle speed. Furthermore, as indicated in Equation (3), the inward tilt angle required to balance the roll moment induced by centrifugal force is also uniquely determined.

$$\rho ={\displaystyle \frac{l}{\mathit{sin}\delta }}$$

(1)

$$PLA={\displaystyle \frac{v^2}{\rho }}={\displaystyle \frac{v^2\mathit{sin}\delta }{l}}$$

(2)

$$TTA={\mathit{tan}}^{-1}{\displaystyle \frac{v^2\mathit{sin}\delta }{lg}}$$

(3)

PLA: prospected lateral acceleration; v: vehicle speed.

TTA: target tilt angle; g: gravitational acceleration.

2.2. Active Tilt Angle Tracking Control

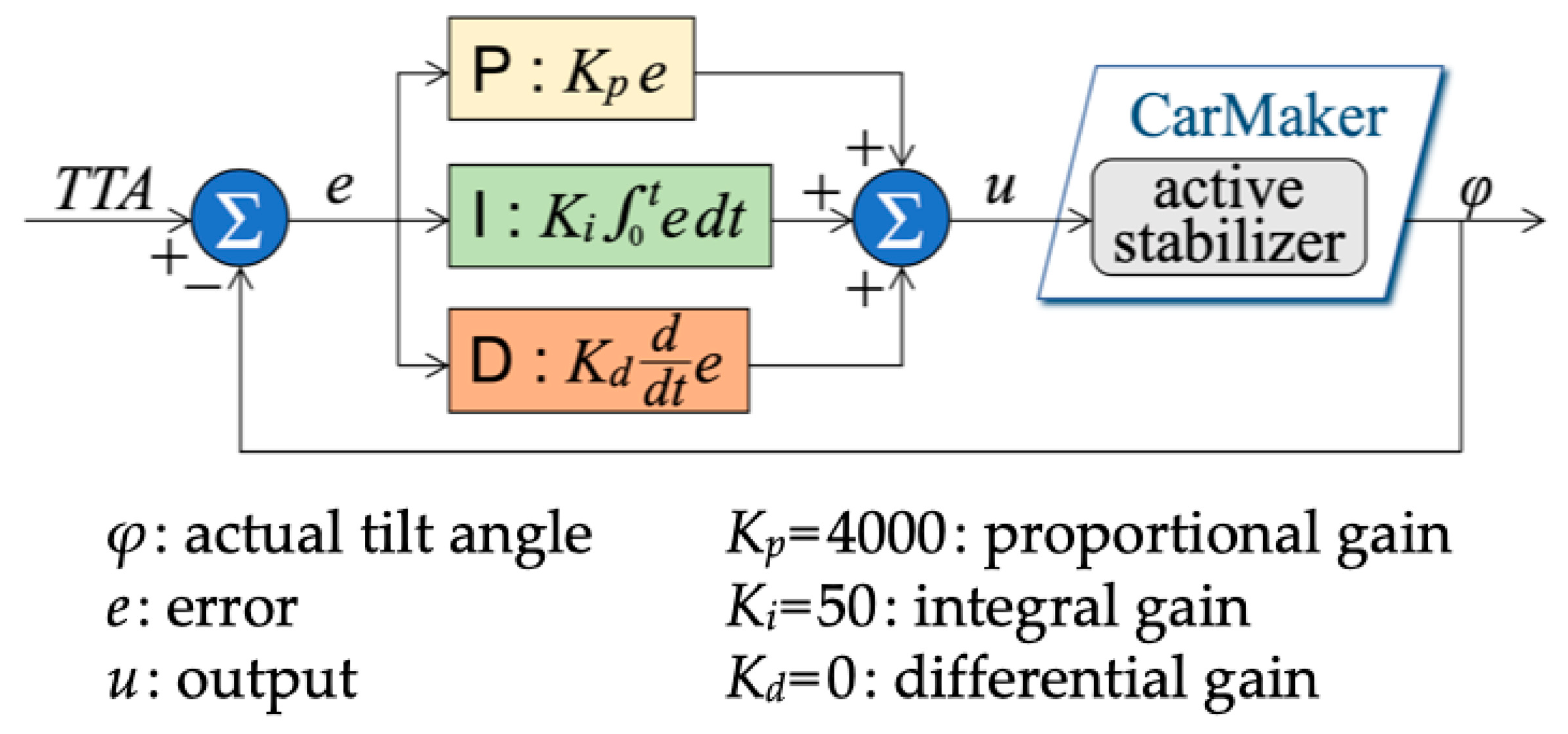

The active inward tilt angle is provided by the active stabilizer function. This active stabilizer generates an anti-roll torque using a general PID tracking control shown in Figure 6, with Equation (3) as the target inward tilt angle. The active stabilizer function adds the vertical couple loads on the left and right wheels. By comparing the target inward tilt angle with the actual inward tilt angle, the vertical loads on the wheels are adjusted accordingly. When the actual inward tilt angle matches the target, the vertical loads on the wheels provided by the active stabilizer become zero. At this time, the roll moment induced by centrifugal force is balanced by the inward tilt angle, resulting in no left-right difference in ground load.

The PID control parameters (P, I, D) are determined through experimentation. In this study, the authors utilize results from previous research [4] on dynamic stability preservation, setting Kp = 4000, Ki = 50, and Kd = 0 for further investigation.

Note: Reference [4] investigates the influence of the PID tracking control parameters Kp, Ki, and Kd. The results show that among these three parameters, Ki plays the most significant role in enhancing the tilting response, which is critical for obstacle avoidance. A higher Ki value leads to a more responsive system. However, if Ki is excessively large, the vehicle body may not be able to keep up with the tilt control during quick steering, resulting in a lifting of the inner wheel. While this phenomenon—similar to lifting the inside ski—is not directly linked to a loss of balance or a fall, it is undesirable for public road use. Ideally, no inner-wheel lift should occur even during quick steering inputs that a human driver could realistically perform. The control parameters mentioned above were selected by balancing the need for tilting responsiveness with the need to avoid inner-wheel lift.

3. Driver Model

3.1. IPGDriver

In the simulations for both PMV and passenger car, automated driving was conducted using the IPGDriver included with CarMaker. IPGDriver is a component of the virtual vehicle system that autonomously selects driving speed and trajectory within a controlled course based on the forward 2nd order prediction model, recognizing the vehicle’s motion characteristics.

The standard parameters for the driver model, which should generally be set, and the switching points for the maneuver-based driver model, configured according to the driving conditions, are presented in

Table 3. Driver parameter and maneuver [5].

Driver			Maneuver
Item	Unit	Value	Item	Model
Corner Cutting Coefficient		0.1	Longitudinal Dynamics	IPGDriver
Max. Long. Acceleration	m/s2	3.0	Lateral Dynamics < 841.5 m	Follow Course
Max. Long. Deceleration	m/s2	−4.0	(D = 1.5 m) > 841.5 m	IPGDriver
Max. Lat. Acceleration	m/s2	20	Lateral Dynamics < 843 m	Follow Course
PylonShiftFdCoef		0.15	(D = 2.0 m) > 843 m	IPGDriver
			Lateral Dynamics < 844 m	Follow Course
			(D = 2.5 m) > 844 m	IPGDriver

.

From a run-up section of over 800 m, the vehicles enter a controlled single lane change course. While the control of the longitudinal speed remains consistently automated, the lateral control switches from a straight-line driving model to automated driving. The straight-line driving model maintains travel along the center of the lane, while automated driving employs a narrower course width, allowing for advantageous path selection (feint steering) within the available range. As a result, the transition from the straight-line driving model to automated driving occurs after entering the controlled single lane change course.

The timing of this transition is set to be early enough upon entering the transition zone to avoid hitting the inner pylon, but late enough to not have the flexibility for path selection. Although the timing of the transition varies depending on the entry speed, by using the switching points indicated in Table 3, it was possible to conduct avoidance maneuvers in automated driving without the need for feint steering.

3.2. Rider Model in BikeSim

In the simulations for motorcycles, the rider model included with BikeSim was utilized, and a target trajectory was provided to simulate the motorcycle traveling on a course similar to that of the PMV.

4. Simulated Obstacle Avoidance Course

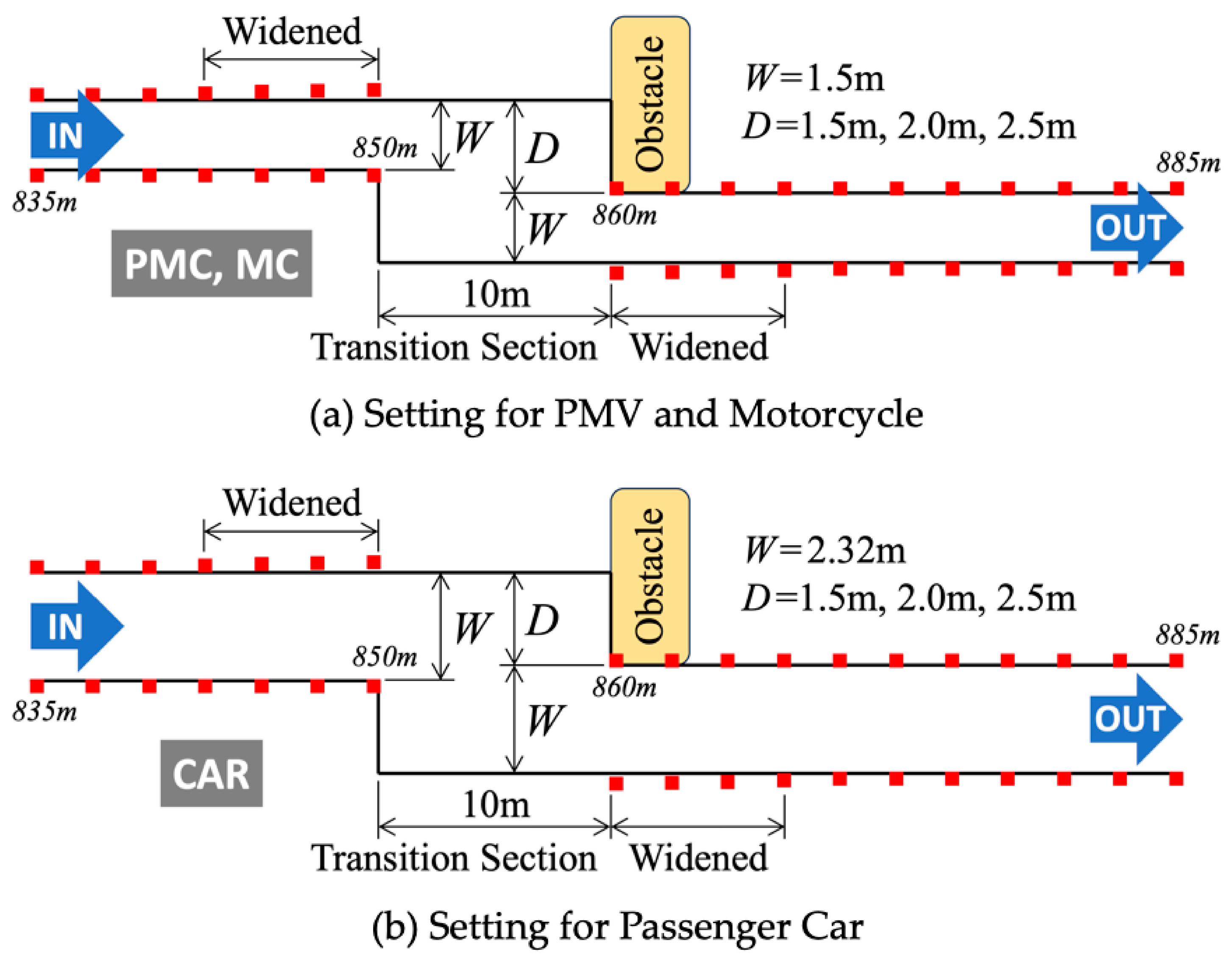

For simulating obstacle avoidance maneuvers, we employed a single lane change course as depicted in Figure 7. When comparing vehicles with significantly different widths, it is necessary to adjust the course width and avoidance width settings according to this study’s objectives. In this report, focusing on the dynamic safety of narrow-width PMVs during accident avoidance, although the conditions imposed might appear overly stringent in the real world, the most severe conditions were considered, and the following settings were chosen:

• When a vehicle is along the left edge of the road, we assume a certain protrusion width from the left road edge that the vehicle must avoid. Regardless of vehicle width, the same width of protrusion must be avoided.
• This study envisions scenarios where PMVs travel along the left road edge and avoid obstacles with minimal lane departure. Considering the lane width specified by Japan’s Road Structure Law (2.75 m to 3.5 m), an avoidance width of 2.0 m was chosen after confirming avoidance capability superiority within a range of 1.5 to 2.5 m. For passenger cars under the same conditions, deviation into the opposite lane is unavoidable.
• In CarMaker’s autonomous driving, the lane width was set as the vehicle width plus 0.62 m regardless of the vehicle’s width to eliminate the advantage of narrower PMVs based on lane width tolerance.
• Anticipating avoidance maneuvers near Japan’s legal speed limits, a 10 m avoidance section length was determined based on CarMaker simulations for approximately 60 km/h.

5. Comparison of Maximum Passable Speeds

Standard vehicle models available in CarMaker and BikeSim (from the US company Mechanical Simulation) were used for the passenger car and motorcycle, respectively, with key specifications outlined in

Table 4. Specifications of passenger car and motorcycle.

Passenger Car			Motorcycle
Item	Unit	Value	Item	Unit	Value
Total length	m	4.150	Total length	m	2.140
Total width	m	1.700	Total width	m	0.637
Total height	m	1.600	Total height	m	1.318
Gravity center height	m	0.580	Gravity center height	m	0.450
Wheel base	m	3.185	Wheel base	m	1.576
Front tread	m	1.508	Front mass distribution	kg	123
Rear tread	m	1.494	Rear mass distribution	kg	75
Total mass	kg	1463	Total mass	kg	198

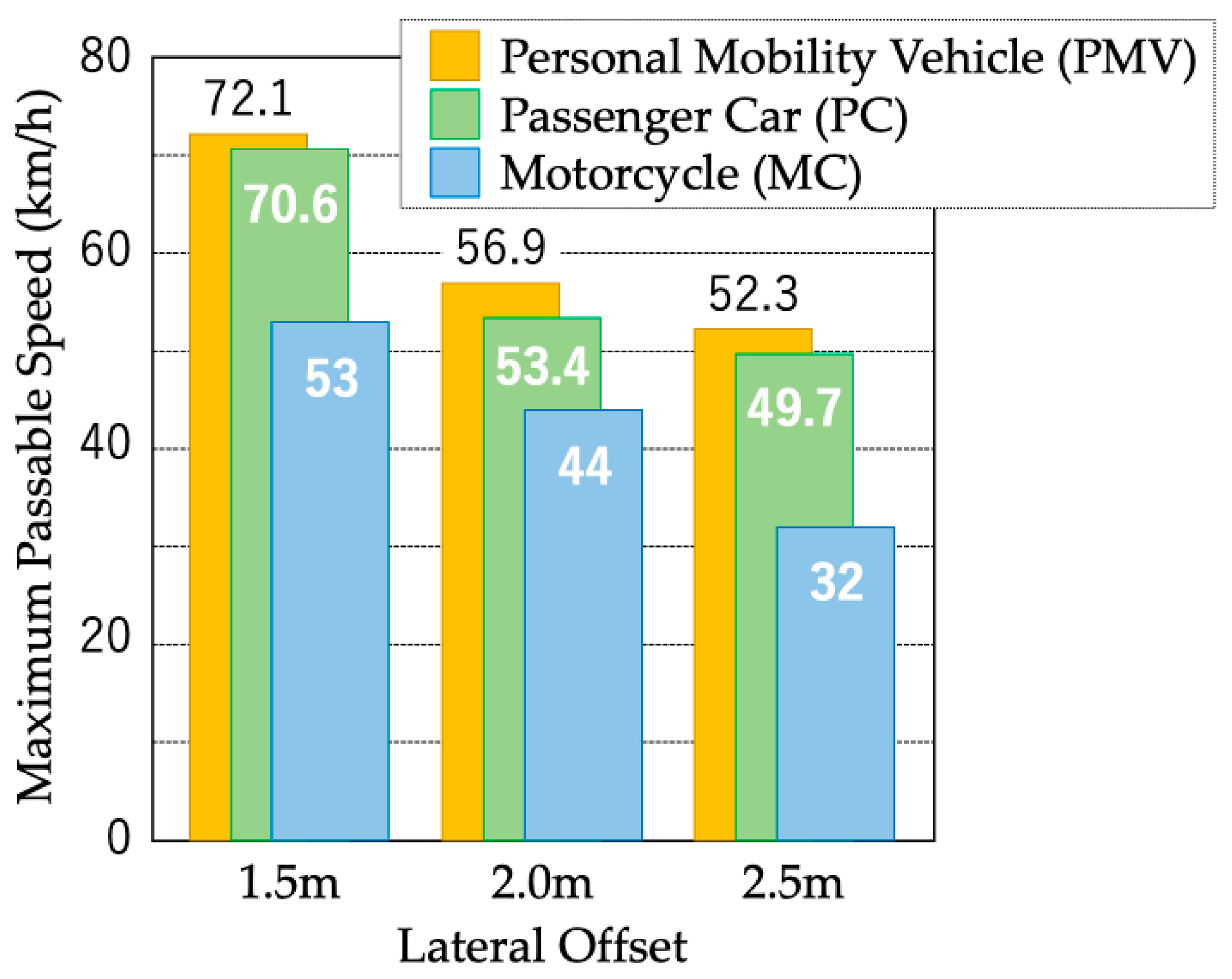

. The maximum passable speeds of the PMV, passenger car, and motorcycle on the course depicted in Figure 7 are presented in Figure 8. While the PMV and passenger car results are based on the same CarMaker, ensuring a fair comparison, the motorcycle results are borrowed from Bike Sim, thus not entirely equal.

As is well known, the obstacle avoidance capabilities of motorcycles are significantly inferior to those of passenger cars. This is because passenger cars produce avoidance maneuvers in the sequence of straight-line–steering–tire slip angle–lateral force, allowing substantial lateral force to be obtained promptly after steering, without significant delay. In contrast, motorcycles generate avoidance maneuvers in the sequence of straight-line–slight counter steering–inward roll moment–inward tilt angle–tire camber angle–camber thrust. As a result, the lateral force required for turning is obtained only after substantial body roll motion. This observation aligns well with the considerably lower passable speed of motorcycles, as depicted in Figure 8.

As shown in Figure 8, the inward tilting PMV achieves even higher speeds than the passenger car, indicating superior dynamic safety for accident avoidance. Here, the PMV that tilts inward is showing significantly different results from the motorcycle that leans inward in the same way. Therefore, clarifying the mechanism behind the high obstacle avoidance capability of the tilting PMV can be of great value.

6. Equilibrium of Mechanical Roll Moment

First, we consider the balance of mechanical roll moment to understand the state of each vehicle during the initial steering phase.

6.1. Equilibrium of the Roll Moment of a Four-Wheeled Passenger Car During Turning

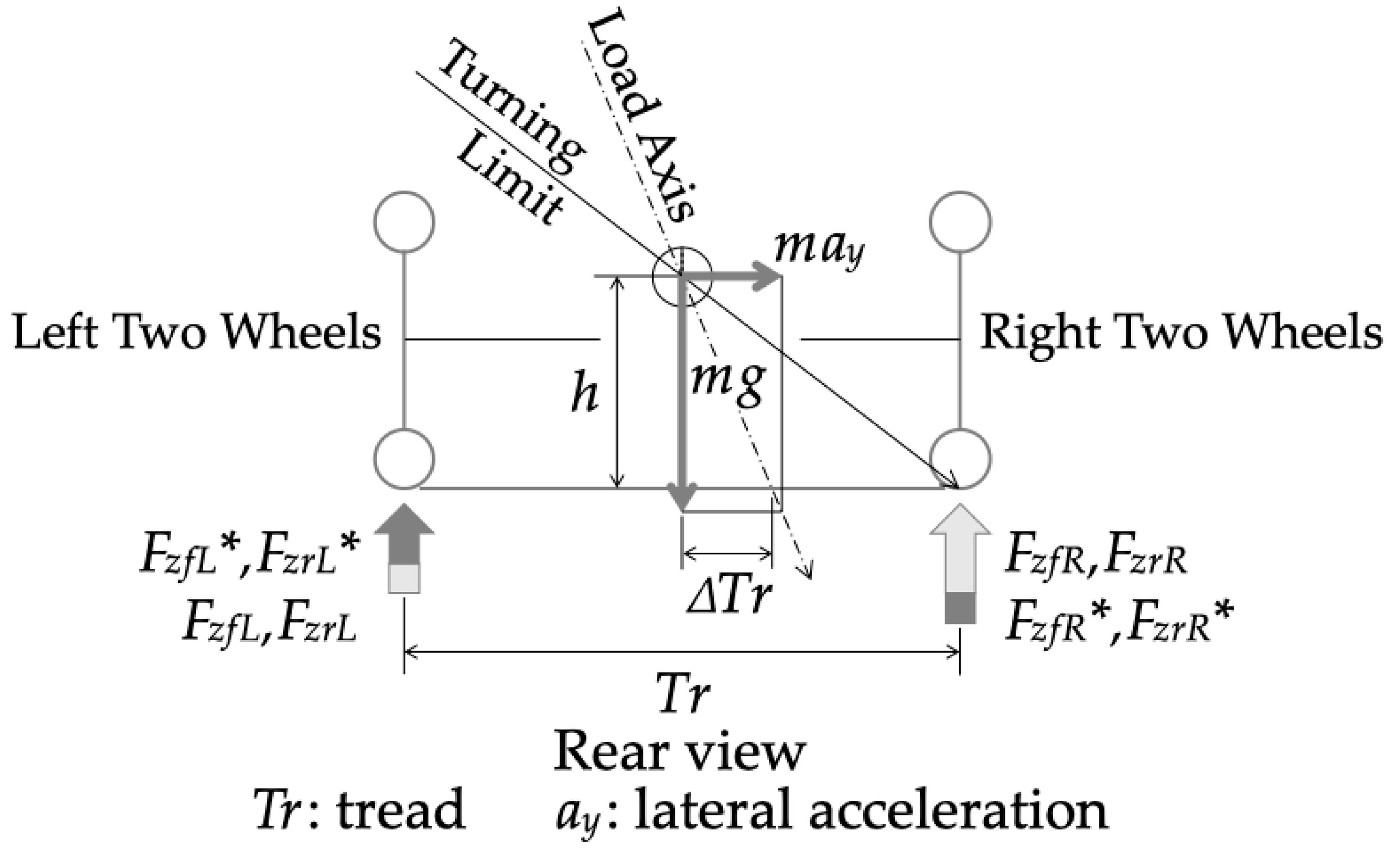

Figure 9 illustrates the load transfer during turning from a rear-view perspective. Equation (4) represents the load transfer to the outer wheels during turning, while Equation (5) describes the relationship between lateral acceleration and the vertical loads on each wheel. For simplicity, it is assumed that the front-to-rear distribution of roll moment and the roll stiffness distribution due to the suspension are equal. The effects of unequal roll stiffness distribution and other related factors are detailed in the authors’ previous study [6].

According to Equation (5a,c), the turning lateral acceleration at which the inner-wheel load becomes zero is calculated to be 1.31 G. This indicates that the likelihood of the vehicle tipping over (rollover) solely due to lateral acceleration during turning is low.

$${\displaystyle \frac{m{a}_y}{mg}}={\displaystyle \frac{\Delta Tr}{h}}$$

(4)

$${F_{zfL}}^{*}=F_{zf}(1-{\displaystyle \frac{2\Delta Tr}{Tr}})=F_{zf}(1-{\displaystyle \frac{2a_{y}h}{gTr}})$$

(5a)

$${F_{zfR}}^{*}=F_{zf}(1+{\displaystyle \frac{2\Delta Tr}{Tr}})=F_{zf}(1+{\displaystyle \frac{2a_{y}h}{gTr}})$$

(5b)

$${F_{zrL}}^{*}=F_{zr}(1-{\displaystyle \frac{2\Delta Tr}{Tr}})=F_{zr}(1-{\displaystyle \frac{2a_{y}h}{gTr}})$$

(5c)

$${F_{zfR}}^{*}=F_{zf}(1+{\displaystyle \frac{2\Delta Tr}{Tr}})=F_{zf}(1+{\displaystyle \frac{2a_{y}h}{gTr}})$$

(5d)

6.2. Equilibrium of the Roll Moment of a Three-Wheeled PMV During Turning

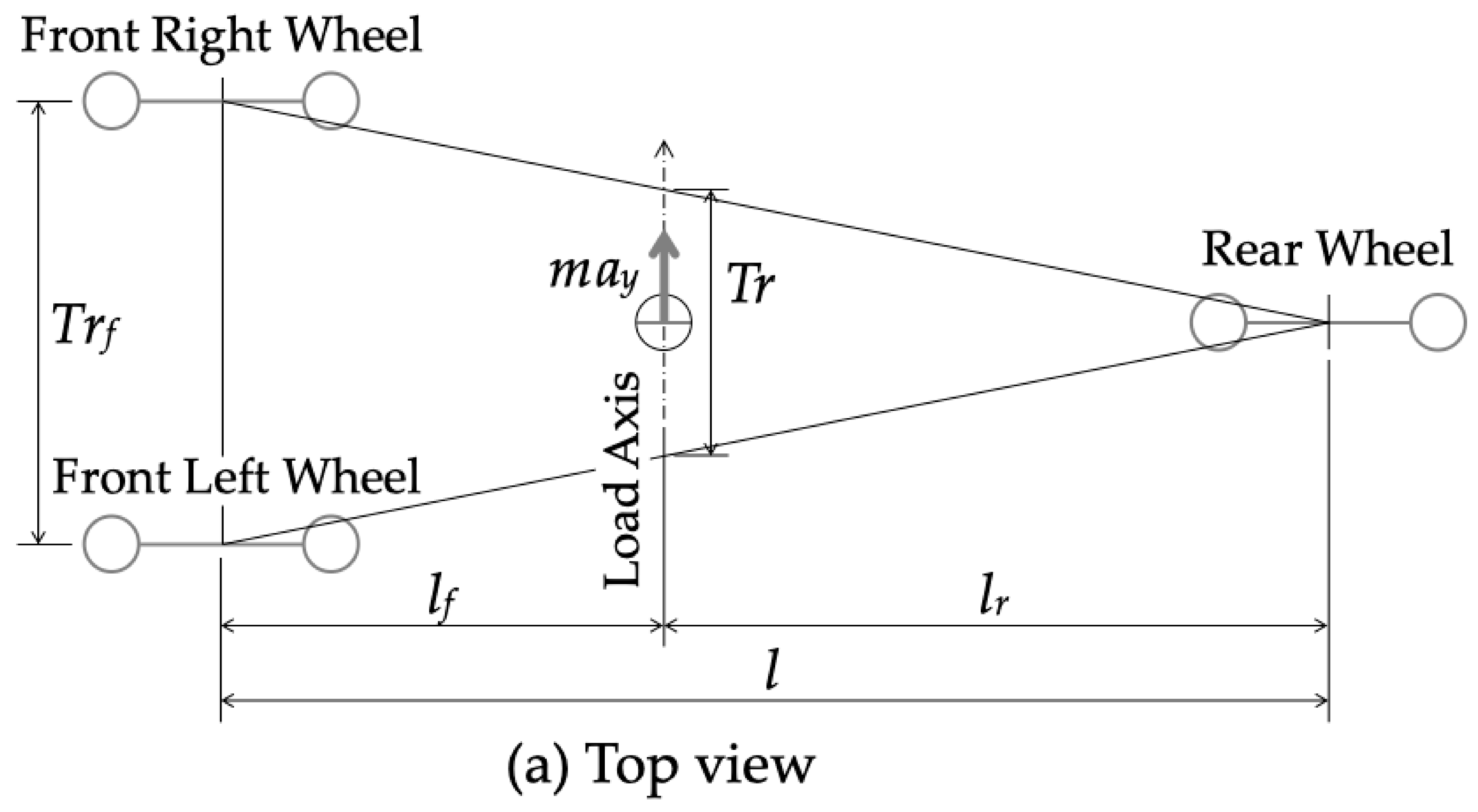

In a front-two-wheel, rear-one-wheel PMV, the effective tread width (Tr) during steady-state turning is defined at the lateral cross-section of the center of gravity, as shown in the top-view diagram in Figure 10a.

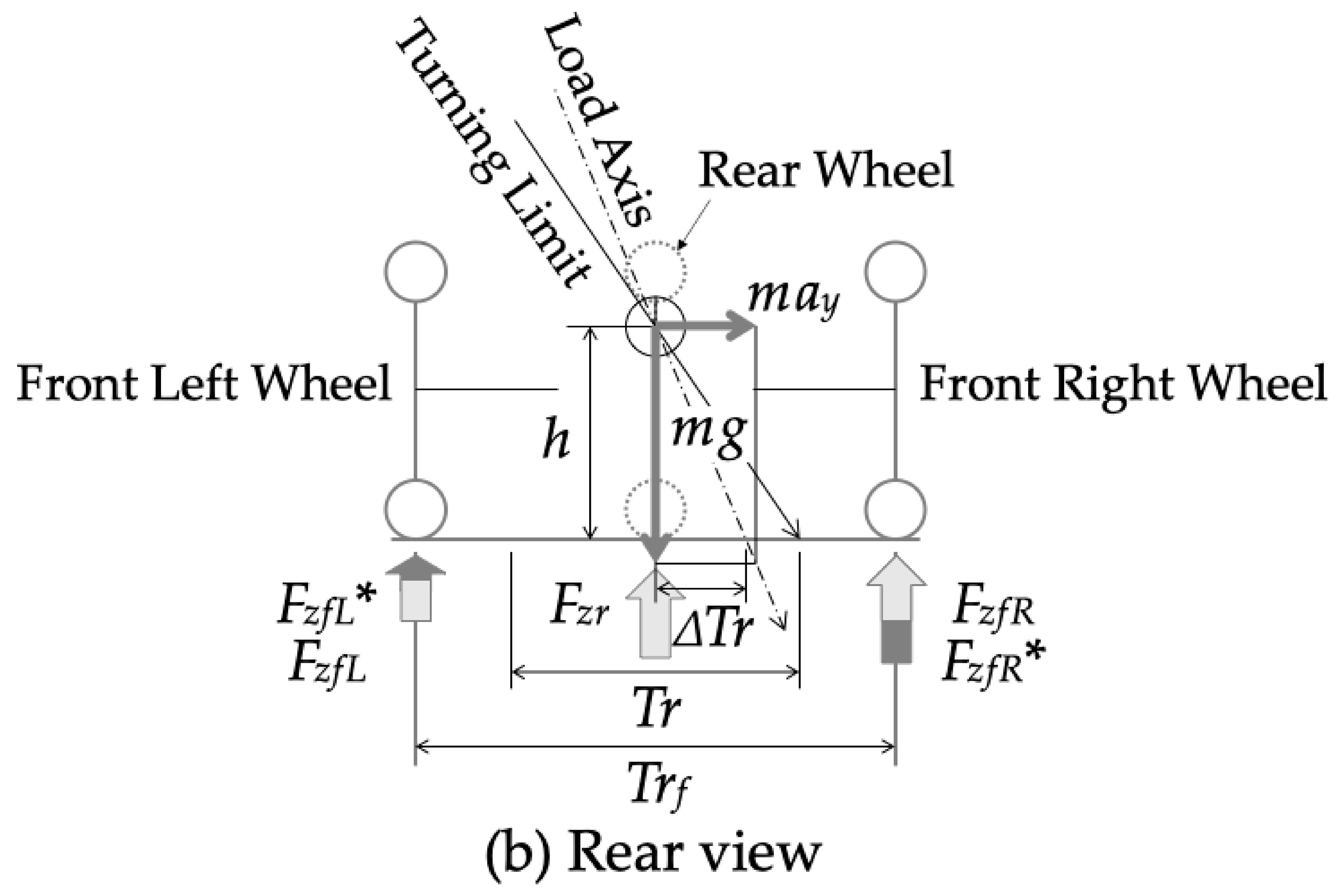

Figure 10b illustrates the load transfer during turning from a rear-view perspective. Equation (6) represents the tread width (Tr), while Equation (7) describes the load transfer to the outer wheel during turning. Equation (8) shows the relationship between lateral acceleration and vertical loads on each wheel.

Using Equation (8a), the limit lateral acceleration for tipping over (rollover) with the given parameters in Table 1 is calculated to be 0.68 G. This is significantly smaller than the tipping limit of 1.31 G for the four-wheeled passenger car derived in Section 6.1. Without the tilting mechanism, the vehicle has high risk to tipping (rolling over) due to the lateral acceleration during turning.

$$Tr={Tr}_f{\displaystyle \frac{l_r}{l}}$$

(6)

$${\displaystyle \frac{m{a}_y}{mg}}={\displaystyle \frac{\Delta Tr}{h}}$$

(7)

$${F_{zfL}}^{*}=F_{zf}(1-{\displaystyle \frac{2\Delta Tr}{Tr}})=F_{zf}(1-{\displaystyle \frac{2a_{y}h}{gTr}})$$

(8a)

$${F_{zfR}}^{*}=F_{zf}(1+{\displaystyle \frac{2\Delta Tr}{Tr}})=F_{zf}(1+{\displaystyle \frac{2a_{y}h}{gTr}})$$

(8b)

Next, the time when the avoidance phase has progressed and an inward tilt that is just balanced with the lateral acceleration has occurred is considered.

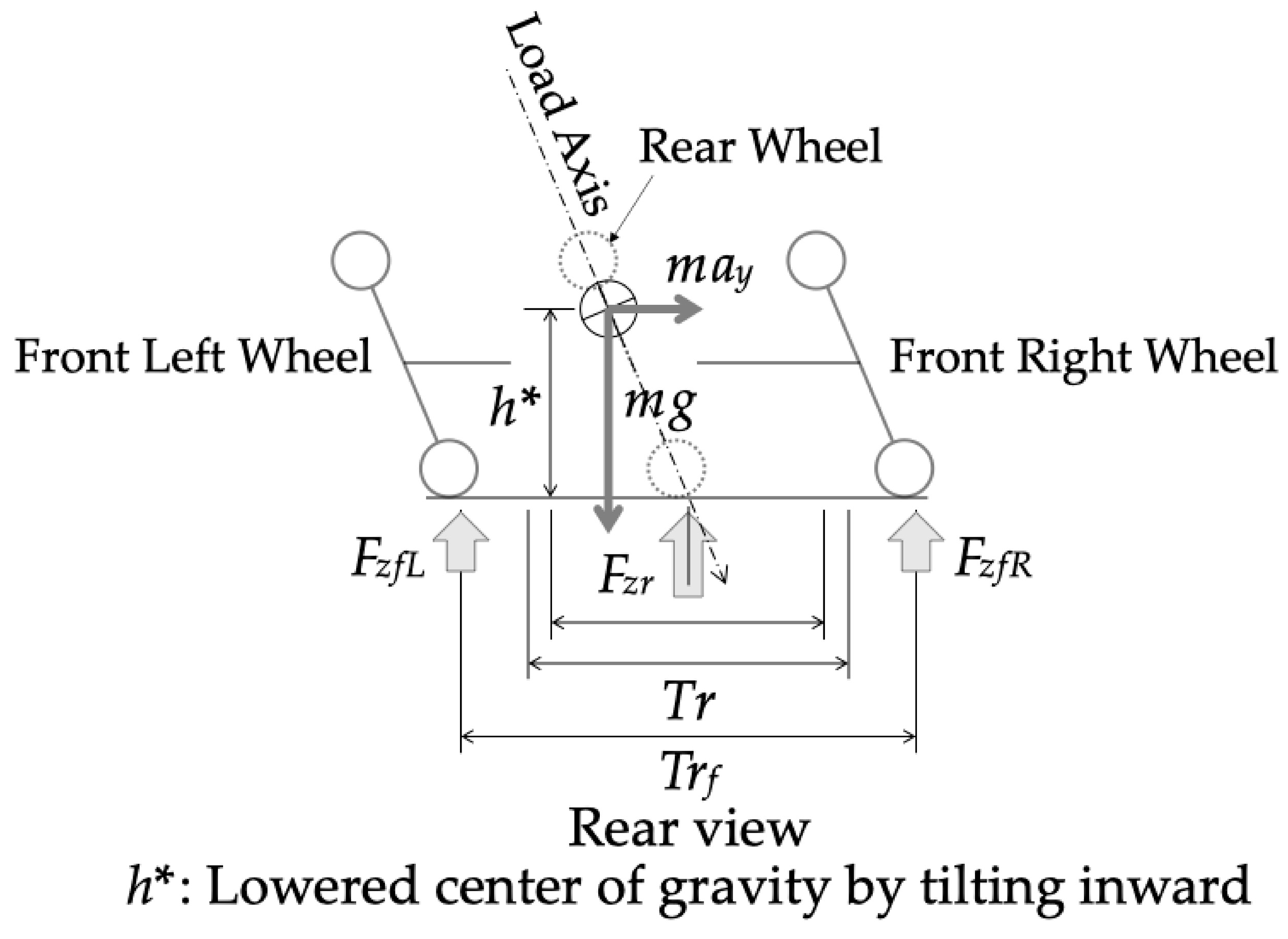

Figure 11 illustrates the load condition of a PMV with a tilting mechanism during turning, viewed from the rear. In steady-state cornering, the body’s inward tilt ensures that there is no difference in ground loads between the two front wheels. The even distribution of ground loads between the front wheels remains unchanged. Compared to the non-tilting PMV, the front wheels have an even greater margin in tire capacity.

When the avoidance phase has progressed and an inward tilt that is just balanced with the lateral acceleration has occurred, the ground load of each wheel is expressed by Equation (9). In this relationship, the phenomenon of the tire losing the ground load does not occur regardless of the lateral acceleration that has occurred. This shows the extremely high turning limit capability of the PMV with an inward tilt mechanism.

Since there is no difference in ground loads between the two front wheels during turning (F_zfL = F_zfR), the vehicle is essentially resistant to tipping (rollover) during turns and possesses an extremely high lateral acceleration limit.

$$F_{zfL}={\displaystyle \frac{mg{l}_r}{2l}}$$

(9a)

$$F_{zfR}={\displaystyle \frac{mg{l}_r}{2l}}$$

(9b)

$$F_{zr}={\displaystyle \frac{mg{l}_f}{l}}$$

(9c)

6.3. Equilibrium of the Roll Moment of a Motorcycle During Turning

In motorcycles with single wheels at both the front and rear, load transfer as seen in passenger cars (discussed earlier) or in PMVs does not occur. In fact, the vehicle cannot generate lateral acceleration until the body leans inward. As a result, the yaw response of motorcycles is extremely sluggish. Although a motorcycle can exhibit high cornering capability, comparable to that of a PMV, when it is turning with an inward lean that precisely balances the lateral acceleration, its obstacle avoidance performance must be considered quite poor due to its inherently slow yaw response.

7. Understanding Vehicles States on Dynamic Simulation

Note: In this section, we provide an explanation to deepen the understanding of the terms “actual tilt angle” and “virtual tilt angle” as used herein.

Actual tilt angle: This refers to the actual tilt angle experienced by the vehicle, and it is the same value as described in Section 2. In this section, the term specifically carries the nuance of the physically occurring tilt angle.

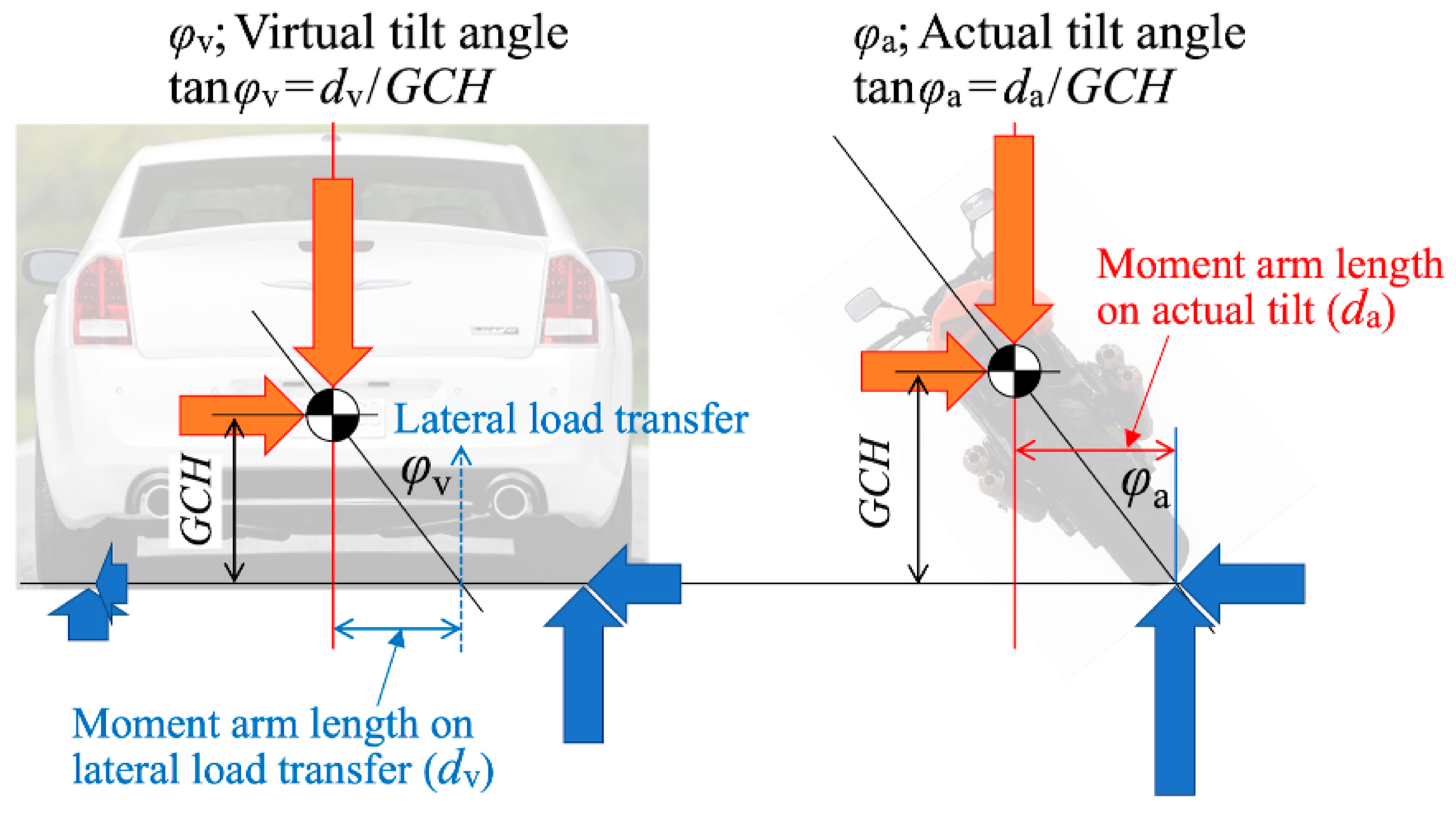

Virtual tilt angle: The roll moment generated by lateral acceleration is counteracted by an opposing roll moment caused by the shift in the wheel’s ground load, in addition to the moment caused by the actual tilt angle. Here, we define the virtual tilt angle as a hypothetical tilt angle that would produce the same roll moment as that caused by the load shift. This allows for a visual understanding of the total roll moment in the opposing direction as the sum of the actual tilt angle and the virtual tilt angle.

The relationship between the virtual tilt angle (φ_v) and the ground loads of the left and right wheels is expressed by Equation (10) for passenger cars and by Equation (11) for the PMV. For the definitions of the characters, refer to Figure 9 and Equations (4) and (5), as well as Figure 10 and Equations (6)–(8) in Section 6.

$$\mathit{tan}{\phi }_v={\displaystyle \frac{Tr}{2h}} {\displaystyle \frac{{F_{zfR}}^{*}+{F_{zrR}}^{*}-{F_{zfL}}^{*}-{F_{zrL}}^{*}}{{F_{zfR}}^{*}+{F_{zrR}}^{*}+{F_{zfL}}^{*}+{F_{zrL}}^{*}}}$$

(10)

$$\mathit{tan}{\phi }_v={\displaystyle \frac{{Tr}_f}{2h}} {\displaystyle \frac{{F_{zfR}}^{*}-{F_{zfL}}^{*}}{{F_{zfR}}^{*}+{F_{zfL}}^{*}}}$$

(11)

7.1. Passenger Car Vehicle State

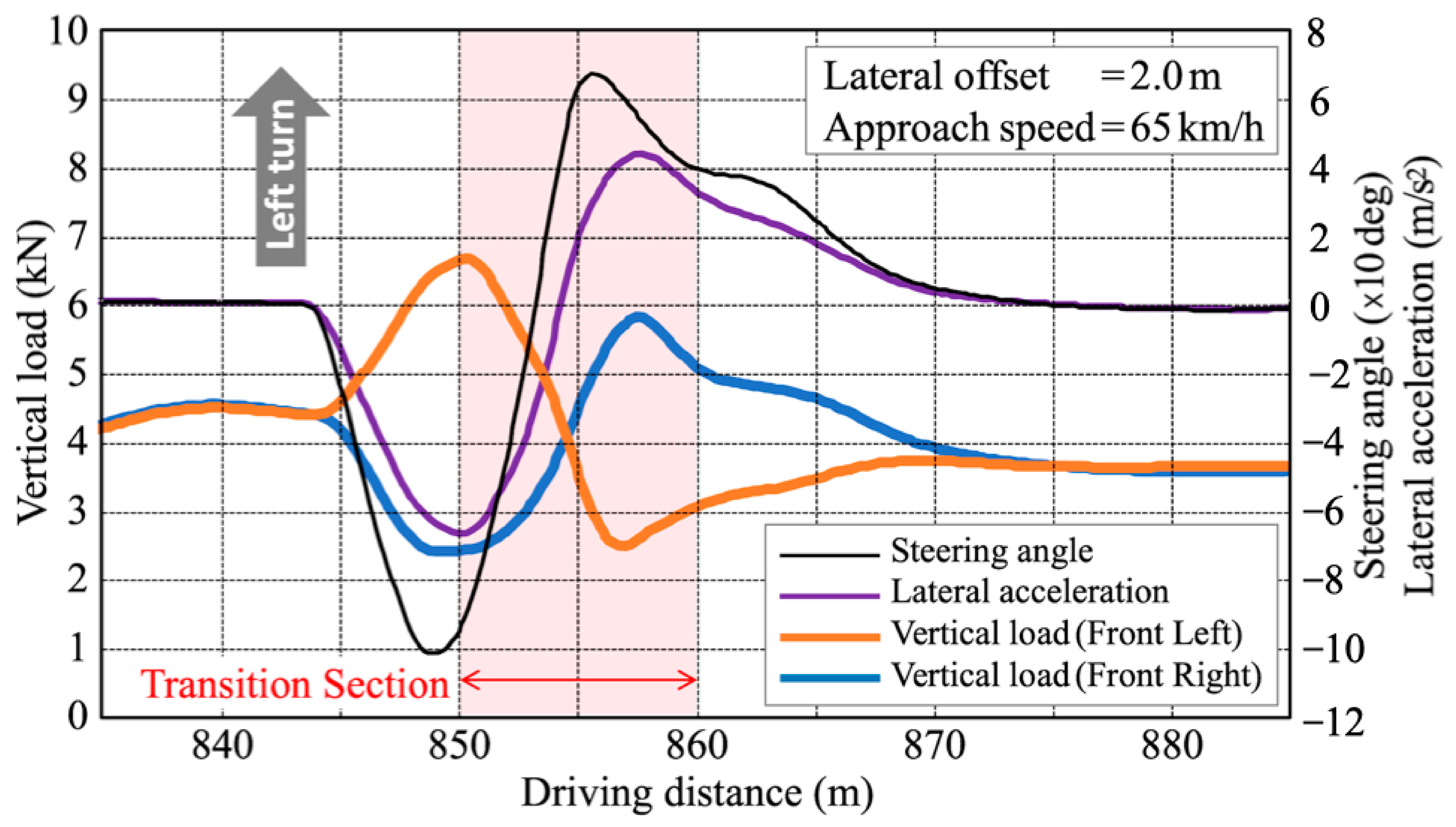

Figure 12 shows steering angle, lateral acceleration, and corresponding tire ground load of the passenger car during the single lane change course. Lateral acceleration lags slightly behind the steering angle, yet there is no noticeable delay between lateral acceleration and tire ground load changes. This implies that the outward roll moment due to centrifugal force is balanced by an inward roll moment resulting from transferring ground load from the inner wheel to the outer wheel. In other words, it can be said that the lateral shift of the neutral point of ground load generates a virtual tilt angle comparable in magnitude to the lean angle observed in motorcycles as shown in Figure 13.

7.2. PMV Vehicle State

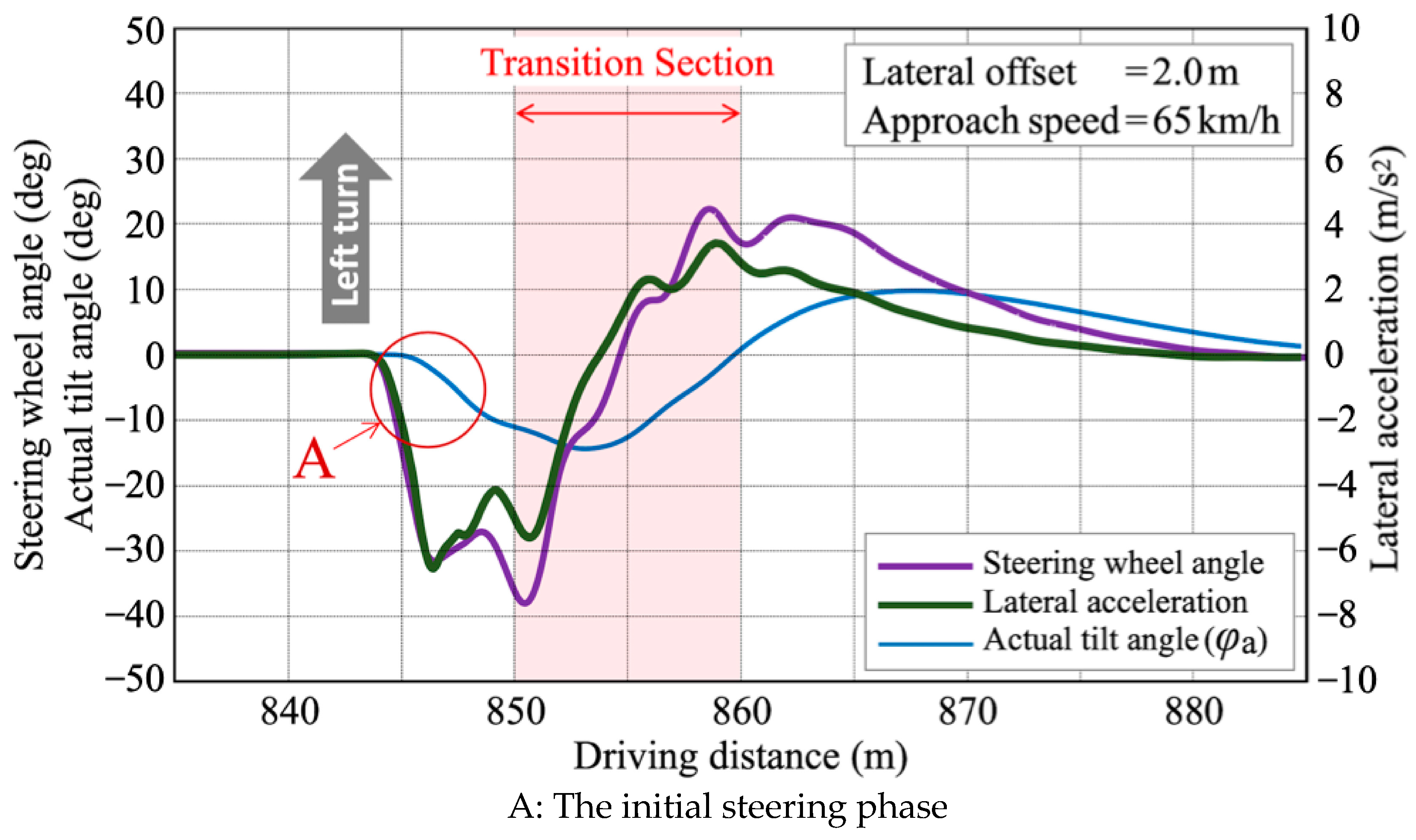

Figure 14 presents the steering angle, lateral acceleration, and corresponding tilt angle of the PMV during the single lane change course. Notably, the tilt angle that should balance the outward roll moment due to centrifugal force is significantly delayed relative to lateral acceleration (Figure 14, section A). Considering the passenger car behavior in Figure 12, at the beginning of steering, the outward roll moment resulting from centrifugal force should be complemented by a virtual inward tilt angle arising from the transition of tire ground load from inner to outer. Figure 15 illustrates the lateral acceleration and the responsive load transition of tire ground load (Figure 15, section A).

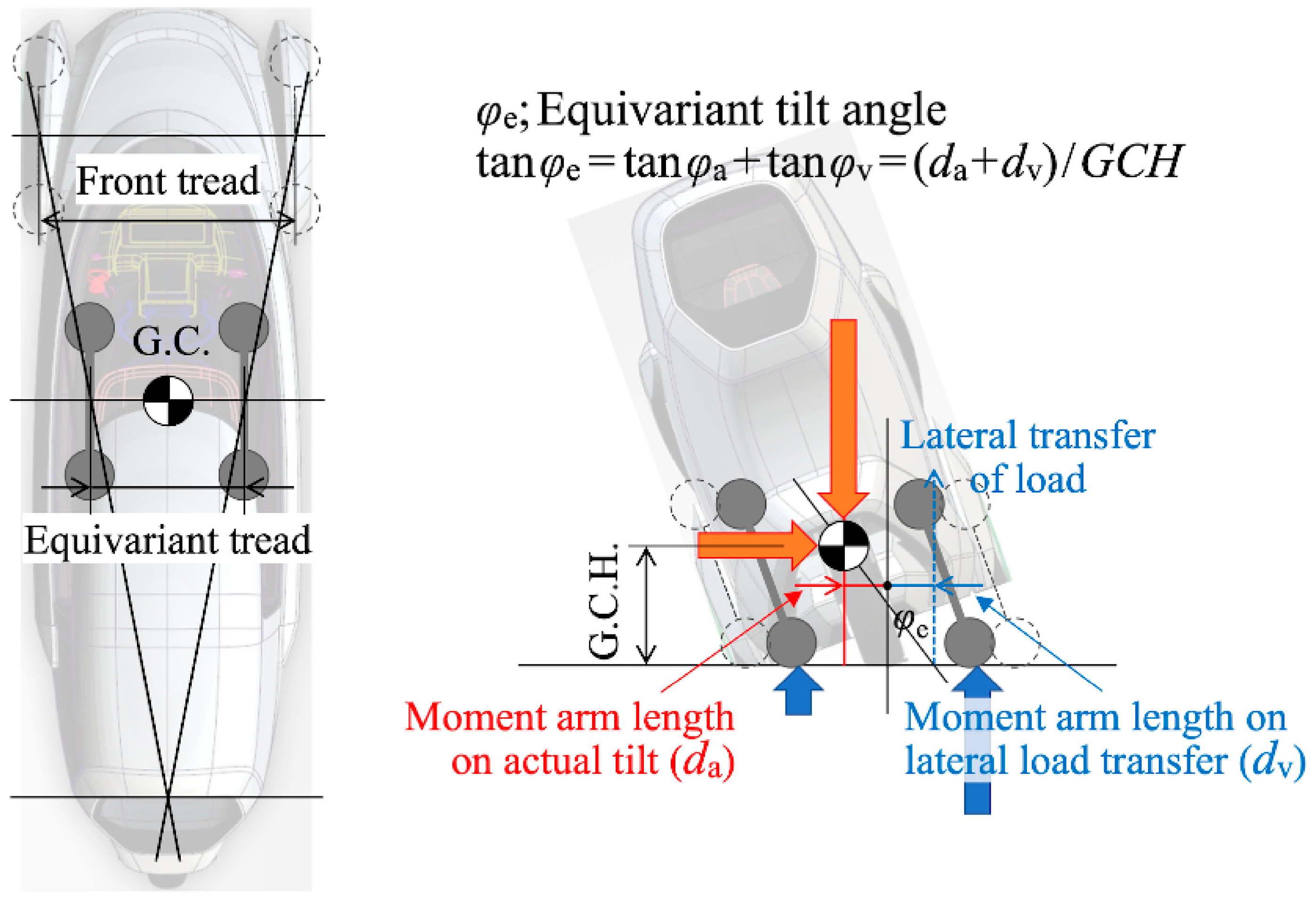

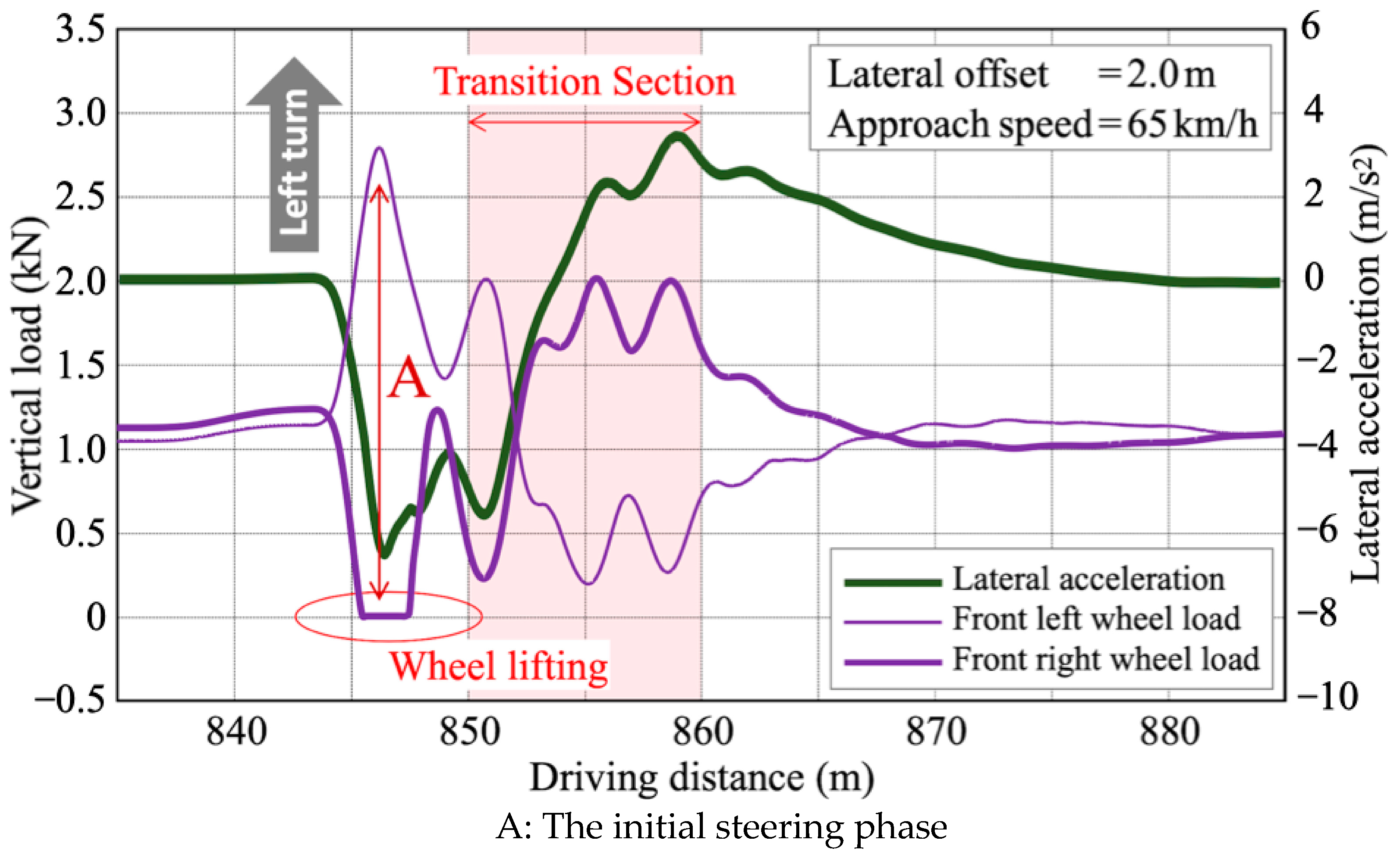

Following the example of Figure 13, Figure 16 illustrates the actual inward tilt angle of the PMV and the virtual inward tilt angle resulting from the transition of tire ground load between inner and outer wheels. In the case of the three-wheeled PMV, the virtual inward tilt angle resulting from the transition of tire ground load needs to be derived by converting it to an equivalent tread at the center of gravity position.

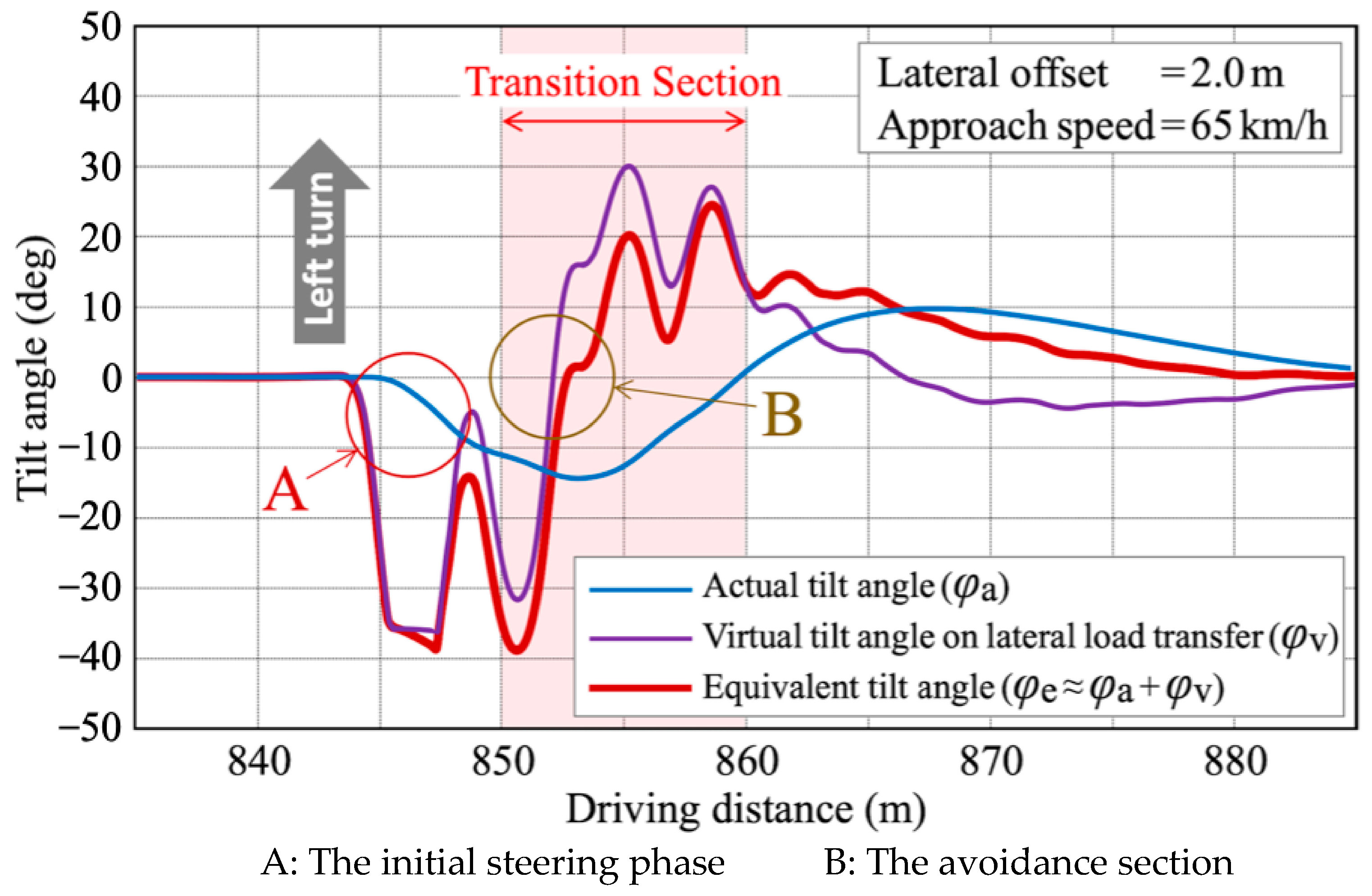

Figure 17 presents the actual tilt angle and the virtual tilt angle resulting from the transition of tire ground load, and the equivalent combined inward tilt angle (actual tilt angle + virtual tilt angle).

8. Discussion

In motorcycles, roll moments are balanced by the actual lean angle, while in passenger cars, equilibrium results from the virtual tilt angle arising from ground load transfer. For PMVs, observing Figure 16, both actual and virtual tilt angles coexist, combining to balance the outward roll moment induced by centrifugal force.

In the initial steering phase of the PMV (Figure 17, section A), lateral forces behave similarly to passenger cars, i.e., lateral forces are generated without significant delay due to slip accompanying steering input, and the outward roll moment induced by centrifugal force is balanced by mainly the transfer of ground load from the inner front wheel to the outer front wheel. This contrasts with motorcycles, as discussed in Section 5, and results in passenger car-like responsiveness.

Upon entering the avoidance section (Figure 17, section B), the inward roll moment generated by the actual tilt angle balances the outward roll moment induced by centrifugal force, and the transfer of ground load between the front wheels is resolved. The lateral force required for turning, akin to the mechanism of motorcycles, is provided by the camber thrust force resulting from the tire camber angle associated with the inward tilt. It is known that the lateral forces generated by tire slip angles exhibit saturation characteristics relative to the tire ground load and the sum of lateral forces generated by the left and right wheels also saturates in response to the transferring tire ground load from inner to outer [7]. However, in the case of PMVs, similar to motorcycles, it can be said that they do not possess such saturation characteristics for lateral forces, resulting in higher lateral force limits.

In summary, actively inward tilting PMVs integrate the responsiveness of passenger cars with the high tire lateral force of motorcycles, which contributes to their superior obstacle avoidance capabilities.

9. Future Works

Although in real-world scenarios, obstacle avoidance typically involves braking, this paper focused solely on steering-based avoidance for the sake of simplicity. In obstacle avoidance maneuvers that include braking, the temporal allocation between deceleration and lateral acceleration caused by steering leads to changes in tire ground loads, which in turn affects the size of the friction circle.

This interacts in a complex manner with the phenomena detailed in this paper, namely the redistribution of front wheel ground loads during initial steering and the cancellation of roll moments due to inward leaning. Future research will examine the roll moment equilibrium while taking deceleration into account, and based on that, conduct dynamic simulation analyses to investigate the obstacle avoidance capabilities of PMVs with an active tilting mechanism and a two-front, one-rear wheel configuration in greater detail.

10. Conclusions

Comparative analysis conducted on a simulated single lane change course for obstacle avoidance maneuvers has revealed that PMVs equipped with an active inward tilting mechanism possess superior obstacle avoidance capabilities not only compared to motorcycles but also surpassing those of passenger cars. Examination of the vehicle states during these maneuvers demonstrates that in PMVs, both actual and virtual tilt angles coexist, with their combined equivalent tilt angle balancing the roll moment during turns. This unique mechanism, integrating passenger car responsiveness and motorcycle-like tire lateral force, underpins the high obstacle avoidance capabilities of actively inward tilting PMVs.
