Soil Syst. 2019, 3(1), 10; https://doi.org/10.3390/soilsystems3010010

Article
Reconciling Negative Soil CO2 Fluxes: Insights from a Large-Scale Experimental Hillslope
1
Biosphere 2, University of Arizona, Tucson, AZ 85623, USA
2
Honors College, University of Arizona, Tucson, AZ 85721, USA
3
Department of Hydrology and Atmospheric Sciences, University of Arizona, Tucson, AZ 85721, USA
4
School of Natural Resources and the Environment, University of Arizona, Tucson, AZ 85721, USA
*
Author to whom correspondence should be addressed.
Received: 30 October 2018 / Accepted: 3 January 2019 / Published: 13 January 2019

Abstract

:
Soil fluxes of CO2 (Fs) have long been considered unidirectional, reflecting the predominant roles of metabolic activity by microbes and roots in ecosystem carbon cycling. Nonetheless, there is a growing body of evidence that non-biological processes in soils can outcompete biological ones, pivoting soils from a net source to sink of CO2, as evident mainly in hot and cold deserts with alkaline soils. Widespread reporting of unidirectional fluxes may lead to misrepresentation of Fs in process-based models and lead to errors in estimates of local to global carbon balances. In this study, we investigate the variability and environmental controls of Fs in a large-scale, vegetation-free, and highly instrumented hillslope located within the Biosphere 2 facility, where the main carbon sink is driven by carbonate weathering. We found that the hillslope soils were persistent sinks of CO2 comparable to natural desert shrublands, with an average rate of −0.15 ± 0.06 µmol CO2 m2 s−1 and annual sink of −56.8 ± 22.7 g C m−2 y−1. Furthermore, higher uptake rates (more negative Fs) were observed at night, coinciding with strong soil–air temperature gradients and [CO2] inversions in the soil profile, consistent with carbonate weathering. Our results confirm previous studies that reported negative values of Fs in hot and cold deserts around the globe and suggest that negative Fs are more common than previously assumed. This is particularly important as negative Fs may occur widely in arid and semiarid ecosystems, which play a dominant role in the interannual variability of the terrestrial carbon cycle. This study contributes to the growing recognition of the prevalence of negative Fs as an important yet, often overlooked component of ecosystem C cycling.
Keywords:
net soil exchange; biosphere 2; carbonate weathering; negative emission technology; microbial induced carbonate precipitation

1. Introduction

Arid and semiarid ecosystems across the globe play a fundamental role in the interannual variability of the terrestrial carbon cycle [1,2] and might be considered model systems to understand a future world that is becoming drier and warmer [3]. Covering ~40% of the terrestrial surface [4] and increasing in area [5], arid and semiarid ecosystems traditionally have been considered to have low carbon uptake, mainly due to low vegetation productivity [6]. Nonetheless, for more than a decade evidence exists from plot to ecosystem scales (Supplementary Table S1) that non-biological processes might be important to the local C-cycle in arid and semiarid ecosystems [7,8,9], where the inorganic soil C pool can be up to 10 times greater than the organic C pool [10]. A number of studies have implicated strong and anomalous downward fluxes of CO2 into soils as critical components of C cycling in these regions, which has received much attention [11,12,13].
Soil fluxes of CO2 (Fs) drive significant carbon exchange between the terrestrial surface and the atmosphere, second only to photosynthesis [14,15]. Due to their temperature sensitivity, Fs are considered to be the main determinant of future feedbacks to ongoing global climate change and, on a global scale, contribute an order of magnitude more than does anthropogenic activity [16]. Fs have been historically considered a flux from soils to the atmosphere (i.e., positive soil CO2 fluxes) driven by microbial decomposition of organic matter and respiration from roots and mycorrhizae [17]. However, a growing body of evidence shows that soils can also take up CO2 (i.e., negative soil CO2 fluxes), mainly in sparsely vegetated, cold or hot deserts, and with alkaline pH (Supplementary Table S1), although also seen in temperate forests [18]. The finding of bidirectional soil CO2 fluxes suggests that other processes beyond metabolic/biological activity can dominate carbon cycling within the soil profile, both in space and time. However, the physical and biogeochemical mechanisms that promote capture of CO2 by soils are still uncertain and spark debate, even regarding whether negative Fs represent carbon uptake by the ecosystem [19,20], especially over short temporal scales. This knowledge gap challenges confidence in the understanding and quantification of ecosystem carbon balance, from local to global scales.
A number of potential hypotheses have been proposed to explain anomalous carbon uptake across water-limited ecosystems, including the following: (i) nighttime uptake of CO2 by crassulacean acid metabolism (CAM) photosynthesis [21]; (ii) growth of lichens, mosses and cyanobacteria [22]; and (iii) non-biological processes, such as weathering and leaching [23]. Rather than being exclusive, competition may occur within soils between biological and non-biological processes that determine the direction of Fs. A combination of above- and below-ground measurements of CO2 and geochemical modeling determined that weathering reactions contribute considerably to the ecosystem carbon balance in shrubland with high levels of carbonaceous substrates [24]. Furthermore, carbonate reaction rates were found to be highly dynamic at short temporal scales, influencing the ecosystem net carbon balance, particularly during periods when the soil was dry. One of the principal characteristics of arid and semiarid ecosystems are seasonal dry spells, suggesting that this phenomenon should occur more frequently than expected (see Supplementary Table S1). Basalt weathering (i.e., from olivine: Mg2SiO4 + 2H2CO3 → 2Mg2+ + 2CO32− + H4SiO4) and carbonate reactions (i.e., Ca2+ + 2HCO3 ⇆ CaCO3 + CO2 + H2O), which are bidirectional at earth surface temperature and pressure, can draw CO2 from the atmosphere into the soil and, eventually through runoff and discharge, lead to sedimentation into the oceans [25]. Weathering rates are influenced by changes in soil moisture, air-filled space [26], pH due to atmospheric deposition and drainage [24], temperature [27], reactive surface area [25], as well as [CO2] and [cation; Ca2+, Mg2+] within the soil solution. The [CO2] can be influenced by microbial and root respiration [17], whereas [cation] is most affected by reaction progress. Since there is ambiguity on the direction of carbonate weathering fluxes [24], we will consider carbonate dissolution (i.e., CaCO3 + CO2 + H2O → Ca2+ + 2HCO3) as a sink since it represents a CO2 uptake from the atmosphere into the soil, and carbonate precipitation (i.e., Ca2+ + 2HCO3 → CaCO3 + CO2 + H2O) as a source of CO2 emissions from the soil to the atmosphere [24]. Thus, if the strength of the carbonate dissolution (i.e., acting as a sink of CO2) outpaces the strength of CO2 sources (i.e., by microbial and root respiration, and carbonate precipitation), negative Fs could result.
A challenge to understanding the temporal variability of negative Fs is that most evidence and theory comes from laboratory experiments performed on disturbed soil samples that do not represent natural conditions and may overestimate weathering rates [26,28]. Moreover, most studies using flux chambers or soil probes for gradient fluxes that report negative Fs were based on short field campaigns (e.g., days to months; see studies in Supplementary Table S1). Commonly used automated techniques to measure Fs and net ecosystem exchange of C (e.g., eddy covariance technique) also have their limitations and pitfalls [29,30]. For example, the eddy covariance technique is limited under low turbulence conditions, estimates the net ecosystem exchange of CO2 without information of its contributing components, and relies on flux partitioning algorithms that do not account for non-biological processes [31]. Furthermore, soil respiration chambers can introduce biases in estimations of Fs by disrupting stable atmospheric conditions during automated opening and closing [32]. Although the gradient method does not produce a similar disruption artefact, its main limitation comes from the sensitivity of Fs to the estimation of gas diffusion rates [33]. It is, therefore, a common practice to discard negative values of Fs because they are deemed improbable, although not impossible. Lastly, these kinds of automated measurements lack replication and potentially do not integrate spatial variability across the ecosystem [34,35,36].
Together, the expectation that Fs should only reflect biological respiration and the uncertainties inherent to measurement techniques may be limiting our understanding of the prevalence and variability of negative Fs. In this study, we use a large-scale research facility, the Landscape Evolution Observatory (LEO), consisting of artificial landscapes (surface area of 330 m2) filled with vegetation-free ground basaltic tephra and equipped with a dense array of sensors to monitor pore-space CO2 concentrations and meteorological variables. Previous work in this system has shown that carbonate weathering is the principal process fixing carbon from the atmosphere into the LEO soil [26]. Here, we take advantage of this large-scale model system to explore the environmental drivers of Fs and the belowground dynamics that determine Fs. We hypothesized that (H1) negative Fs occurs only at night, as has been seen in previous studies in natural ecosystems using automated measurements (Supplementary Table S1) despite the study system being a large-scale hillslope with a controlled environment; and (H2) experimental hillslopes should demonstrate features similar to those in natural ecosystems where negative Fs are observed, such as subsurface temperature gradients and [CO2] inversions [24,37]. Our overarching research goals were to describe the temporal patterns in Fs, as well as the frequency and strength of negative Fs at LEO, and to determine the extent to which physical processes drive negative Fs.

2. Materials and Methods

2.1. Study Site and Environmental Conditions

The Biosphere 2—Landscape Evolution Observatory (LEO) consists of three identically replicated experimental hillslopes (30 m × 11 m = 330 m2 surface area, with 10° average slope and uniform 1-m depth). Soils at LEO are basalt with a loamy sand texture and a bulk density of 1.5 g cm−3. For more information about the LEO facilities see References [38,39,40]. Here, we used a year-long time series of data obtained between November 2016 and November 2017 from one of the LEO hillslopes (referred to as LEO East). During this period, three different conditions of environmental forcing prevailed. In the first condition (October to December 2016, R-I in Figure 1B), two successive irrigation pulses (each of 3-h duration and 36-mm magnitude) were applied every 3.5 days. In the second condition (April to August 2017, R-II in Figure 1B), one irrigation pulse (9-h duration and 108-mm magnitude) was applied every 14 days. Finally, in the third condition (August to October 2017, R-III in Figure 1B), one irrigation pulse was applied every 28 days. These three conditions were interspersed by several-week-long periods without irrigation. As such, this controlled experiment offered a variety of reproducible environmental conditions, ranging between extremely wet and dry.

2.2. Environmental Measurements

LEO hillslopes are systematically instrumented below and above ground. In each hillslope, gaseous CO2 within the soil is measured with solid-state CO2 sensors (GMM 220, Vaisala, Helsinki, Finland) at 48 locations at four different depths (5 cm, 20 cm, 35 cm, and 50 cm). Soil temperature and moisture sensors (5TM, Decagon, Pullman, WA, USA), and soil water potential sensors (MPS-2, Decagon, Pullman, WA, USA) are distributed across 496 sampling locations in each hillslope at five different depths (5 cm, 20 cm, 35 cm, 50 cm, and 85 cm). Air temperature and relative humidity are monitored in 25 locations at five different heights (0.25 m, 1 m, 3 m, 6 m, and 9 m) above the hillslope surface. Measurements of atmospheric CO2 are made using an infrared gas analyzer (LI-7000, LICOR, Biosciences, Lincoln, NE, USA). We averaged the time series of environmental variables measured belowground in different locations by depth (i.e., 5 cm, 20 cm, 35 cm, 50 cm), and aboveground measurements were averaged across all sampling locations and heights. Data from LEO is publicly available (http://www.biosphere2.org/research/leo-data).

2.3. CO2 Flux Estimation

Fs (µmol CO2 m−2 s−1) was estimated based on Fick’s law of diffusion:
F s = D s C Z
where Ds is the diffusion coefficient (m2 s−1), C is the CO2 molar density (µmol m−3), computed using the universal gas law, and Z is depth (m). To estimate Ds, we included the diffusion of gases within the soil matrix in the gas and liquid phases:
D s = [ D w + D a ]
where Dw (m2 s−1) is the diffusion coefficient in the liquid phase, and Da (m2 s−1) is the diffusion of gases in free air. Here, we estimated the Dw coefficient as [41]:
D w = θ 10 / 3 D f w H 2
where θ is the soil volumetric water content (m3 m−3), Dfw is the diffusion coefficient of CO2 in free water, H is the dimensionless form of Henry’s solubility constant for CO2 in water (H = 0.8317), and ø is the total soil porosity. Da is expressed as [42]:
D a = 2 ( ϑ ) β S
where β = 2.9, S = silt + sand percentage (84.6 + 12.2 = 96.8%), and ϑ represents the air-filled porosity (m3 m−3):
ϑ = θ
where ø is the total soil porosity:
=   1 B D P S
where BD is the soil bulk density (1.5 g cm−3), and PS is the soil particle density size (2.65 g cm−3). To account for the effects of temperature and pressure on Da, we followed Reference [43]:
D a = D a 0 ( T T 0 ) 1.75 ( P 0 P )
where Da0 is a reference value of Da (1.47 × 10−5 m2 s−1) at a reference temperature (T0 = 293.15 K) and reference pressure (P0 = 1.013 × 105 Pa). Our formulation of Da has been used widely across different ecosystem types [44].
The diffusion coefficient Ds in soil was calculated separately for each soil layer. CO2 was assumed to move between soil layers due to physical displacement, driven by water replacing air in the soil–pore space [45]. Thus, at each time step a new [CO2] in each layer (ΔC), the product of CO2 transport between layers, was calculated as a function of the layer depth [46]:
Δ C = [ ϑ z ( t i ) ϑ z ( t i + 1 ) ]   l z   C z ( t i ) t i + 1 t i ,
where ϑz(ti) is the air-filled porosity of depth Z at time ti, lz (m) is the thickness of each layer (i.e., 5 cm for the first layer and 15 cm the next three layers), and Cz(ti) is the [CO2] at depth Z at time ti. Thus, the total Fs was estimated in individual soil layers (L) and calculated based on the mass balance of CO2:
F s , L = J L J L 1 + Δ C + ( C Z ( t i + 1 ) C Z ( t i ) )   ϑ z ,
where JL is the CO2 transport from soil layer L to L + 1 (i.e., from 20 cm to 5 cm), JL−1 is the CO2 transport from soil layer L − 1 to L (i.e., from 35 cm to 20 cm), and CZ is the [CO2] of depth Z at time ti. Note that we consider the thickness of the layer from one sensor to another in depth (i.e., layer thickness of 15 cm between sensors at 5 and 20 cm). For a graphical representation of Equation (9) the reader is referred to Supplementary Figure S1.
Previously, Cueva et al. [47] estimated the uncertainties for two different algorithms to calculate the soil CO2 efflux across different ecosystems, including semiarid, and found that the uncertainty due to random errors is relatively small (i.e., from 0.38 to 2.39% of the annual sum). Here, following References [48] and [49], we estimated the uncertainty of Fs, by summing the squares of the components errors and then taking the square root, yielding an uncertainty of ±0.22% of our annual sum.
Note that we used the same sign convention to report CO2 fluxes as in eddy covariance literature [50], where a net addition of CO2 to the atmosphere is a positive flux, and a net loss of CO2 from the atmosphere is a negative flux unless otherwise noted. For example, we consider carbonate dissolution as a sink since it represents a CO2 uptake from the atmosphere into the soil, and carbonate precipitation as a source since it causes a CO2 emission from the soil to the atmosphere [24].

2.4. Statistical Analysis

To establish relationships with environmental data, we bin-averaged hourly estimated Fs according to the environmental variable in equally spaced bins of one unit (i.e., each 1 m s−1 × 10−6 for soil diffusion, each 1 kPa for water potential), unless otherwise noted.
To estimate the activation energy of Fs, we used the Arrhenius equation [51]:
F s = A ( E a / R T ) ,
where Ea is the activation energy (kJ mol−1) of the reaction, T is the temperature (K), R is the gas constant (R = 8.31 × 10−3 kJ K−1 mol−1), and A is the pre-exponential constant. The temperature sensitivity of Fs was estimated using a Q10 function [52]:
F s = F 10   Q 10   ( ( T 10 ) / 10 ) ,
where F10 is the simulated flux at 10 °C, Q10 is the temperature sensitivity of Fs, and T (°C) is soil temperature. Both Ea and Q10 were estimated using daily averages of Fs and soil temperature at 5 cm. Estimations of Fs and all statistical analyses were performed in Matlab (R2017a, Mathworks).

3. Results

3.1. General Environmental Conditions at LEO

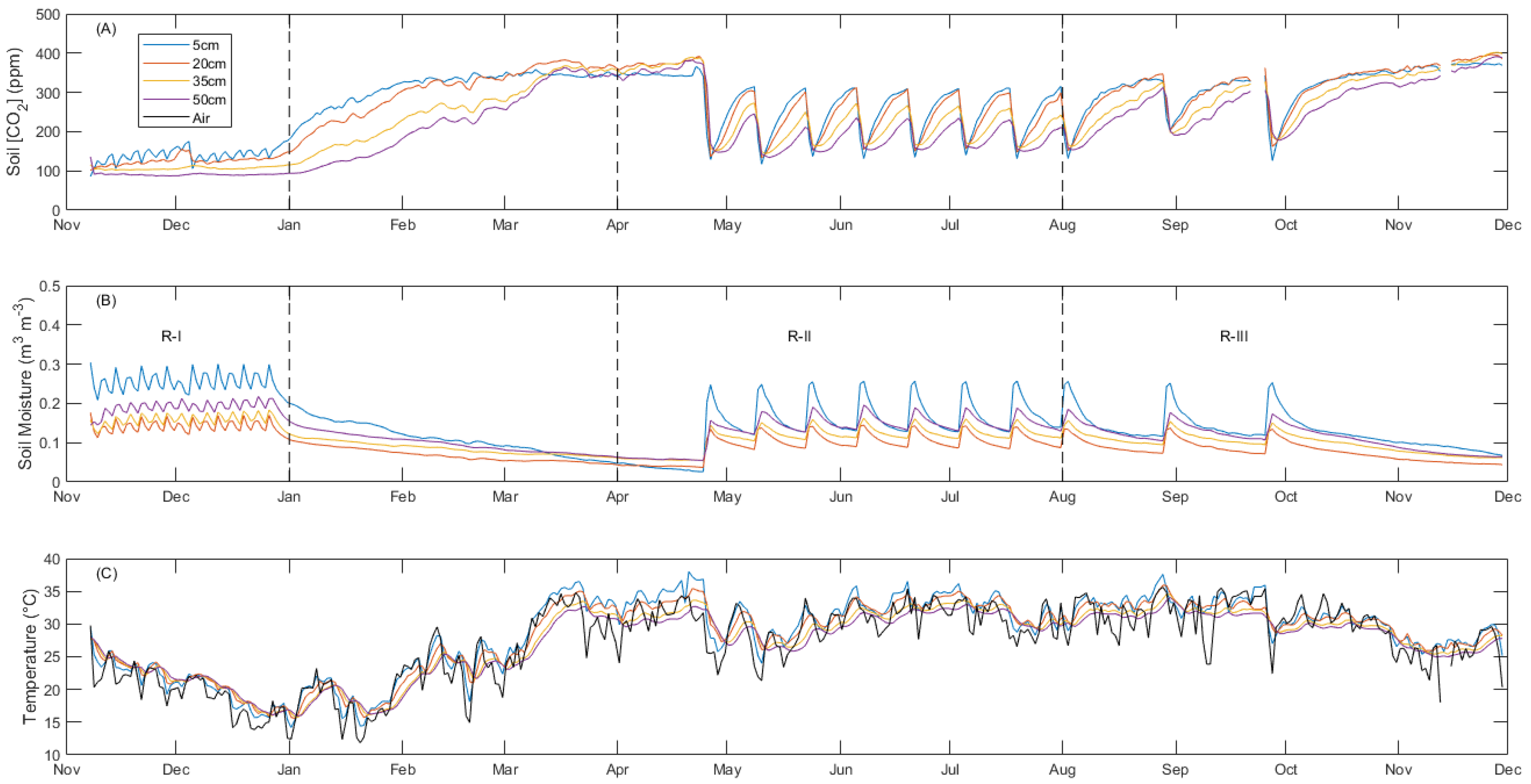

Air temperature (averaged across the whole study period) was slightly lower than the average soil temperature at the shallowest measurement depth, and average soil temperature decreased with depth (Table 1). Both air and soil temperature displayed a seasonal cycle and were lowest during wintertime and highest in the summertime (Figure 1). Atmospheric CO2 concentrations ([CO2]) within the LEO domain were similar to local ambient concentrations (~400 ppm). However, soil [CO2] were lower than in the LEO atmosphere and decreased with depth (Table 1, Figure 1). Soil moisture within the soil profile was on average highest at the top measurement depth and lowest at the second measurement depth (Table 1, Figure 1). Furthermore, soil moisture and [CO2] followed consistent and reproducible wet–dry patterns in response to the rainfall manipulation experiments (Figure 1).

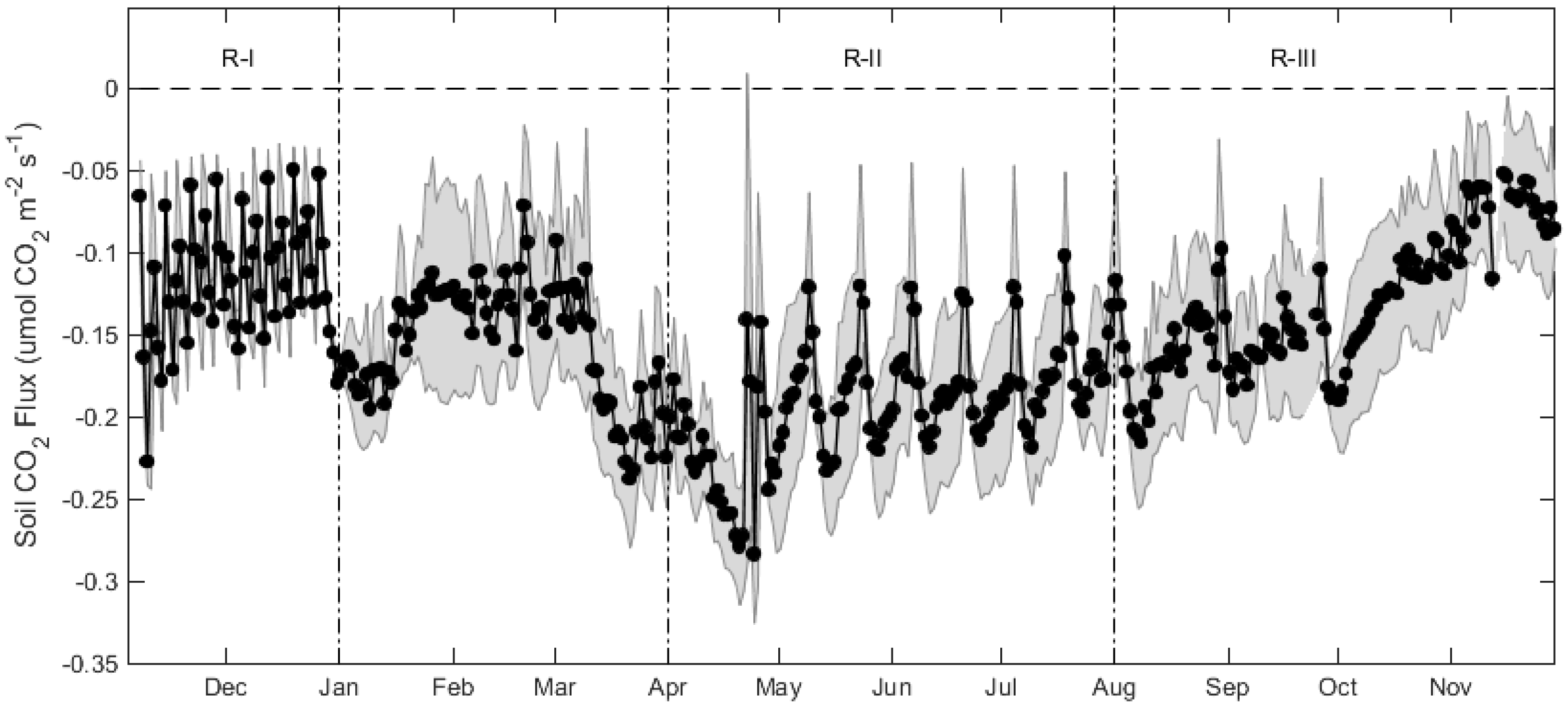

Soil CO2 fluxes (Fs) estimated by the gradient method showed persistently negative values across the study period (Figure 2), representing an influx of CO2 from the atmosphere into the soil, with an average (± standard deviation) Fs of −0.15 ± 0.06 µmol CO2 m2 s−1, and annual Fs of −57 ± 23 g C m−2 y−1. Moreover, Fs also showed wetting–drying patterns corresponding to the rainfall manipulation experiments. The lowest value of Fs (i.e., most negative or highest uptake flux) was observed after a prolonged drying period at the end of April (i.e., before the start of the second rainfall condition), and Fs became less negative (i.e., closer to zero) immediately following each rain event.

3.2. Diurnal Variability

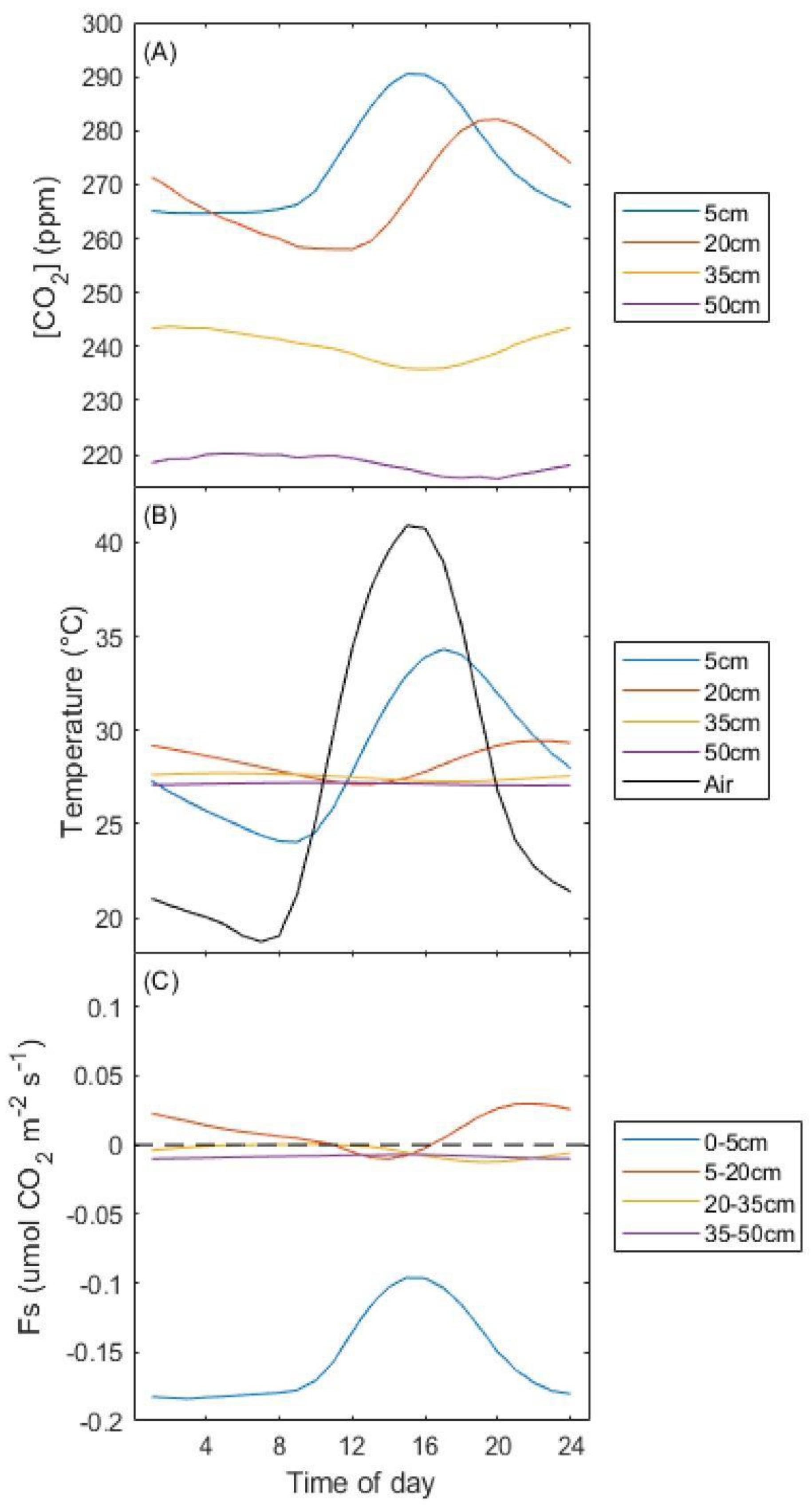

We found different diurnal patterns in soil [CO2] in relation to soil depth. On the diurnal scale, soil [CO2] dynamics showed a temporal lag between the 5 and 20 cm measurement depths: [CO2] peaked first at 5 cm, were highest during daytime at 5 cm, and were highest during nighttime at 20 cm (Figure 3). Soil [CO2] at 35 and 50 cm depth also varied diurnally, however, with lower amplitude than at 5 and 20 cm depth (Figure 3). Furthermore, soil [CO2] at 35 and 50 cm were much lower than in the upper layers (e.g., consistently lower [CO2]). Nor did the [CO2] at 35 and 50 cm overlap as found in the shallower layers.
Soil temperature also showed distinct temporal lags among layers in comparison to air temperature (Figure 3). Air temperature peaked earliest in the day, followed by a peak of soil temperature at 5 cm, while soil temperature at 20 cm was lowest around midday and increased during the afternoon–nighttime hours (Figure 3). In addition, like [CO2] with depth, the amplitude of the diurnal variation in temperature decreased with depth. We also noted a slight temporal lag between soil [CO2] and temperature at 5 cm, with [CO2] peaking first. Fs in each layer varied diurnally, although without an evident temporal lag, switching in positive to negative values at 20 and 35 cm depth (Figure 3). Fs in the top layer (0–5 cm) became less negative during daytime and was most negative at night (Figure 3). Fs at the second layer (5–20 cm) was negative during the daytime (after midday) and switched to positive values during the afternoon and remained positive most of the night (Figure 3). Fs in the bottom layers (20–35 cm and 35–50 cm) were close to zero and showed weak diurnal variability in the third layer (20–35 cm) with nearly constant values in the lowermost layer (35–50 cm; Figure 3).

3.3. Physical Drivers of Negative Soil CO2 Fluxes

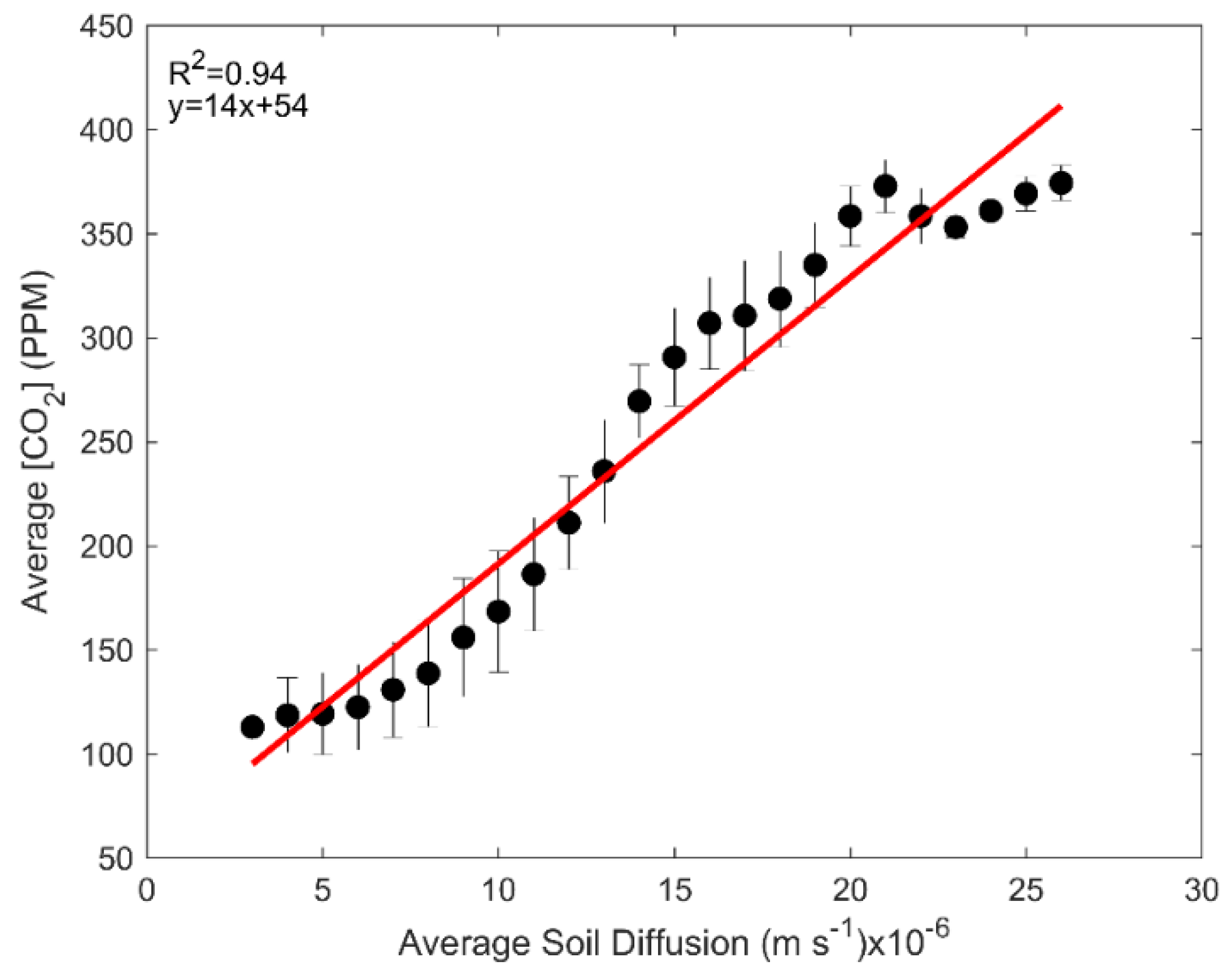

We found a positive linear relationship (p < 0.05, R2 = 0.94) between the profile-average soil [CO2] and profile-average soil diffusion coefficient (Ds; Figure 4). This relationship indicates that as soil diffusivity increases, [CO2] (sourced from the atmosphere) within the soil profile also increases. However, contrary to the case of soil [CO2], when we compared Fs with Ds we did not find a linear relationship (Figure 5). Instead, Fs demonstrated the following three phases in relation to Ds: (1) Low soil diffusion coefficients (Ds) between 0 and ~7 × 10−6 m s−1, when soil water content (SWC) was greater than 0.2 m3 m−3, and Fs became more negative (higher uptake rates) as Ds increased; (2) a pivot of Fs increasing towards less negative values (lower uptake rates), while Ds values increased between ~7 and ~15 × 10−6 m s−1 and SWC decreased between 0.1 and 0.2 m3 m−3; and (3) a return to the trend of Fs becoming more negative (higher uptake rates) while Ds increased to values greater than 15 × 10−6 m s−1 and SWC decreased to less than 0.1 m3 m−3.
A similar relationship was observed between Fs and soil water potential (ψ), which had the following two main phases (Figure 6): (1) at high soil water potential (ψ between −5 kPa and −20 kPa) values of Fs become less negative (uptake rates decrease) from approximately −0.18 to −0.9 µmol CO2 m2 s−1; and (2) at lower soil water potential values (ψ < −20 kPa) Fs becomes more negative (uptake rates increase) from approximately −0.9 to −0.25 µmol CO2 m−2 s−1.
We found a significant relationship (p < 0.05, R2 = 0.92, Figure 7) between surface Fs and the temperature difference between air and soil (Tair − Tsoil). Thus, Fs was more negative (stronger uptake) when Tsoil > Tair, and as the temperature gradient increases changed to Tair > Tsoil, Fs became less negative. We also found a clockwise hysteresis relationship between Fs and surface Tsoil across the diurnal cycle (Figure 8). This hysteresis showed the lowest values (strongest uptake) of Fs during nighttime, moving to values of Fs closer to zero (less uptake) during daytime (Figure 8). Additionally, we found that the activation energy (Ea; Equation (10)) of the relationship of Fs with soil temperature at 5 cm was significant (p < 0.001) with a value of 74.02 kJ mol−1, although only a small proportion of the variability was explained (R2 = 0.19) (Figure 9). The overall temperature sensitivity of Fs in this LEO hillslope was Q10 = 1.31 ± 0.07 (dimensionless).

4. Discussion

The LEO hillslope basalt soils constantly removed CO2 from the atmosphere and at rates similar to previous studies that used automatic measurements of Fs in natural ecosystems, including hot and cold deserts [37,53,54,55]. On an annual basis, LEO soils functioned as a net C sink (Fs = −56.8 ± 22.7 g C m−2 y−1) with a magnitude comparable to the net ecosystem exchange of CO2 in a desert shrub community (−52 g C m−2 y−1; [21]), a mature semiarid shrubland (−52 g C m−2 y−1; [56]), both using the eddy covariance technique, and a saline desert (−62 g C m−2 y−1; [57]) using respiration chambers. However, we have to highlight that LEO had a higher water availability than those natural ecosystems. Moreover, we found more negative Fs (more uptake) at night (partially supporting our H1), coinciding with strong soil–air temperature gradients, and [CO2] inversions in the soil profile (supporting H2). These results corroborate previous evidence of negative Fs in natural ecosystems (Supplementary Table S1) and suggest that negative Fs are a more prevalent phenomenon than previously assumed. Here we discuss the implications of these results.

4.1. Reversible Flux or Sequestration

There is a growing debate about whether negative Fs observed across natural ecosystems represent a true uptake of CO2 from the atmosphere into soils [19,20,58]. There are various non-biological mechanisms that could explain such anomalous CO2 uptake, including pressure pumping and atmospheric turbulence [23]. Fs estimates, combined with soil solution and seepage export, C chemistry across several rainfall events, could be used to close the carbon balance of an LEO hillslope [26], confirming the sequestration potential of a basalt hillslope landscape. However, as stated by References [19] and [26], this uptake inferred from flux measurements was one-to-two orders of magnitude lower (i.e., less CO2 uptake from the atmosphere to the soil) than laboratory estimates of carbonate weathering rates. Moreover, Reference [24] found that carbonate weathering fluxes can be highly dynamic. Since weathering reactions are bidirectional (i.e., carbonate dissolution and precipitation), they should have a relatively small effect on global carbon uptake on month to annual time-scales because of constant changes in disequilibrium due to fluctuations in: (1) CO2 concentration within the soil profile; (2) moisture; and (3) atmospheric conditions. Although these fluxes are significant, carbonate weathering may not represent a missing carbon sink, as previously thought [8,13], but is nonetheless often overlooked.
A common practice is to discard fluxes close to or below zero when using respiration chambers or the gradient method. This is partially due to quality assurance and control (QA/QC) procedures based on the R2 parameter of a linear relationship between time and [CO2] inside the chambers [34]. Moreover, a pervasive rule of thumb has been to assume that Fs is only positive (i.e., fluxes from the soil to the atmosphere). However, increasing evidence indicates that negative Fs are potentially common and feasible (see Supplementary Table S1), and not an artefact of the measurement methods. Furthermore, negative Fs are commonly present at nighttime, while soil CO2 fluxes—measured with manual and portable equipment during short field campaigns—are mainly gathered during daytime [59]. Negative Fs are likely most prevalent in ecosystems with high levels of carbonates, which includes ~10% of the terrestrial surface [23], low-density vegetation cover [53,60], and in systems with high pore connectivity [24]. Furthermore, we found that negative Fs have mostly been seen in alkaline soils, with pH values of 8.7 ± 1.1 (average ± standard deviation of data from Supplementary Table S1), in line with the global pH values of soil carbonate distribution [61].

4.2. Temporal Variability

We found that Fs followed a diurnal pattern and that the sign and magnitude depended on soil depth (Figure 3). Negative Fs in the soil surface reached lowest values at night [37,62,63]. We did not observe positive Fs (i.e., CO2 moving from the soil to the atmosphere). This could have two potential explanations: (1) Weathering reactions within the LEO slopes generate an inverted [CO2] gradient, i.e., [CO2] is higher in the atmosphere than in the soil (Figure 3), thus, preventing an efflux; (2) lack of vegetation and the highly oligotrophic nature of the LEO soils, with incipient amounts of organic matter (7.03 ± 1.63 × 10−5 g C g dry soil−1; [38]), limit the potential of CO2 production within the slopes through respiration/metabolic activity. However, we did find that Fs became less negative (i.e., closer to zero) throughout the day. Microbial life does exist in LEO soils [39,40], and as a result, metabolic processes are present and could be more active during the daytime, mainly due to the relationship between temperature and microbial respiration [16,51,64]. Nonetheless, CO2 production by microbes in LEO soils was apparently not enough to switch from negative to positive Fs. Furthermore, we cannot discard that heterotrophic bacterial carbonatogenesis or microbial induced carbonate precipitation [65,66,67], or the fixation of carbon from the atmosphere by autotrophic microorganisms [68] could drive a carbon sink, removing CO2 from the atmosphere into the soil.
The diurnal variability of Fs changes in magnitude and sign as a function of soil depth, with greater amplitudes in the first two layers of soil (i.e., 0–5 cm and 5–20 cm). We noted that Fs values were more negative at night in the 0 to 5 cm layer. However, the Fs from the 5 to 20 cm layer to the 0 to 5 cm layer were positive (Figure 3C). Positive Fs from the 5 to 20 cm layer coincided with a temperature (Figure 3B) and soil [CO2] inversion (Figure 3A). This suggests that CO2 consumption uptake occurs in the soil surface layer of LEO, with CO2 supplied both from atmospheric and from deeper layers of the soil, in agreement with References [24,37]. Carbonate saturation state changes can induce a diurnal cycle, where carbonate formation/precipitation and atmospheric ventilation/turbulence have been suggested to drive this pattern [24], mainly driven by the supply and removal of CO2 through transport and carbonate dissolution and precipitation reactions. In this case, low daytime soil [CO2] are due to ventilation/turbulence that induce a sustained CO2 geochemical production due to carbonate precipitation (i.e., Ca2+ + 2HCO3 → CaCO3 + CO2 + H2O). At night, ventilation/turbulence decreases and coupled with the inverted [CO2] gradient at LEO, CO2 migrates from deeper layers due to advection to shallower layers (Figure 3), where carbonate dissolution occurs (i.e., CaCO3 + CO2 + H2O → Ca2+ + 2HCO3), resulting in a CO2 consumption.
Other studies have suggested that outgassing of CO2 from deeper layers, mainly due to cracks and caves, could be the cause of this weathering at shallower soil layers, especially during the day [23,24,53]. However, LEO hillslopes are relatively shallow in depth (1 m), and physically isolated by its steel structure, and carbonate was always chemically undersaturated at all depths [69]. Thus, this change in sign of Fs in the shallower layers could be a result of convective exchange, mainly due to the inversion of air and soil temperature across the profile [37,70]. This was supported by the relationship between Fs and the difference in air and soil temperature (Figure 7), where strong temperature gradients were associated with more negative Fs.

4.3. Physical vs. Biological Drivers

Soil diffusion (Ds) strongly controlled Fs, and low Ds limited CO2 movement within the soil profile (Figure 1 and Figure 4), especially during the first days after the rain events. Since CO2 is a precursor to carbonic acid, the main reactant in carbonate weathering, weathering rates were consequently limited [26]. The limitation of CO2 movement resulted in Fs values closer to zero, though never pivoting towards positive values. Other studies have found that during wet periods negative Fs were not observed [37], however, in more saline and sandy environments negative Fs were observed and remained constant or even became more negative during the rainy period [53,71]. This effect (e.g., pivoting between negative and positive Fs) might be a result of enhanced respiration activity by roots and microorganisms tied to the vegetation cover in those natural ecosystems. In environments with vegetation cover, such as the Chihuahuan desert where the vegetation cover was 34% [37], positive Fs indicated that microbial metabolism and root respiration could dominate the total Fs, especially during wet periods [72]. While in saline and sandy environments [53,71], where vegetation cover was less than 20%, CO2 uptake outpaced biological respiration, and the net Fs remained negative. Thus, in non-vegetated LEO hillslopes it is more likely that non-biological processes dominate, and although microbes are present, their metabolic contribution is not yet significant enough to shift the sign of Fs.
The correlation between Fs and Ds may give insights into microbial activity in the LEO soils (Figure 5). If this simple system was only driven by diffusion, we would expect this relationship to be linear or to follow a decay function. However, we found that for intermediate SWC conditions, there is an absolute increase of Fs towards zero. This could be explained at high moisture levels by low diffusion rates in saturated soil, leading to [CO2] and [O2] depletion within the soil, limiting both weathering and microbial activity. On the other hand, when the soil is very dry, despite the availability of [CO2], microbial metabolism is limited by water availability. The relationship of Fs and water potential (ψ) at ψ <−20 kPa appears to point to a microbial respiration limitation (Figure 6). ψ plays a fundamental role in microbial metabolism and activity [73,74,75,76], and our results agree with the meta-analysis of [77]. Cessation of microbial respiration generally occurs at ψ less than−15 MPa in mineral soils [74]. In LEO, we measured a lower threshold of cessation (approx. −20 kPa ψ or −0.02 MPa), which corresponds to the limit for the cessation of bacterial motion [75]. Thus, our results can be seen as a lower potential threshold for the response of microbial metabolism to ψ in highly oligotrophic soils. In contrast with laboratory and field studies, where the optimal value of ψ for microbial respiration is close to field capacity (approx. −33 kPa) [78], our observed higher (i.e., less negative) potential threshold of ψ for the cessation of microbial activity could be due to the low amount of nutrients or water retention characteristics in the LEO hillslopes.

4.4. Temperature Relationship and Hysteresis

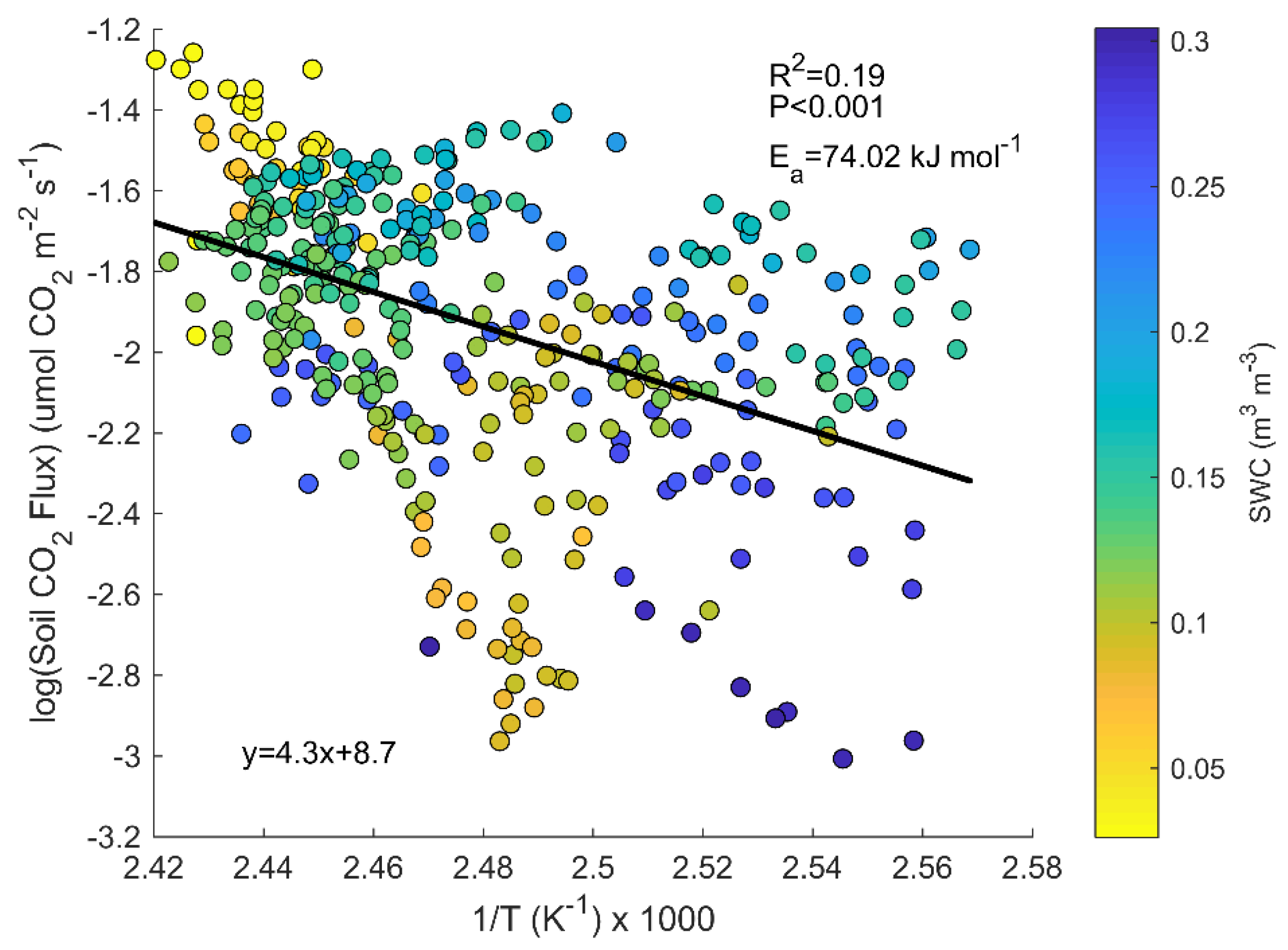

We found that the activation energy (Ea), inferred from the inverse of the soil temperature and the natural logarithm of Fs (Figure 9), of LEO soils (74.02 kJ mol−1) is similar to other studies where Ea of weathering reactions was estimated in laboratory experiments. For example, the Ea of silicate weathering reactions in the Yamuna River system across the Himalaya varied between 51 and 83 kJ mol−1 for sodium and silicon [79]; however, our Ea value is almost double those reported in a global synthesis of basalt weathering (i.e., ~37 to ~42 kJ mol−1) [80]. We have to note that Ea could vary across different thresholds of soil moisture, as has been previously seen in the field [81,82] and in synthetic [83] experiments. This implies that weathering reactions in natural conditions also varies across seasons influenced by water availability, a common feature of arid and semiarid ecosystems, although it remains for further testing. A higher Ea of negative Fs for carbonate weathering indicates a less reactive and more recalcitrant substrate and should have a higher temperature sensitivity. Thus, despite basalt areas only representing a small fraction of the terrestrial surface (~3.5 to 5%) [80], the increasing trends in temperature across the globe could create a feedback in the terrestrial carbonate system, increasing weathering rates. Nonetheless, caution must be taken since carbonate weathering is a bidirectional reaction, but a stable and recalcitrant carbon sink.
Our estimated temperature sensitivity (Q10 = 1.31 ± 0.07) is in line with previous findings [84,85]. Our results imply that an increase in temperature could also increase the carbonate weathering rates. However, caution has to be taken in the interpretation of our findings. Our Fs estimates have to be taken as a net flux (i.e., a combination of abiotic and biotic processes). Thus, our Q10 estimate is a composite of different temperatures sensitivities (e.g., carbonate weathering, microbial metabolism, and growth). As discussed by Reference [34] for aboveground carbon fluxes, those processes may have different feedback mechanisms. For example, the increase in [CO2] in the atmosphere could positively feedback carbonate dissolution (i.e., CaCO3 + CO2 + H2O → Ca2+ + 2HCO3). Moreover, in the last decades, soil microbial respiration has been increasing providing additional CO2 [86]. These sources of CO2 could increase carbonate weathering rates. Our Q10 estimates could vary across different soil moisture conditions, as has been noted previously for positive Fs [87,88]. This indicates that the temperature sensitivity of weathering rates can fluctuate seasonally. As suggested by Reference [89], there is a need to better comprehend the interactions and feedbacks between increases in [CO2] and temperature on carbonate weathering rates.

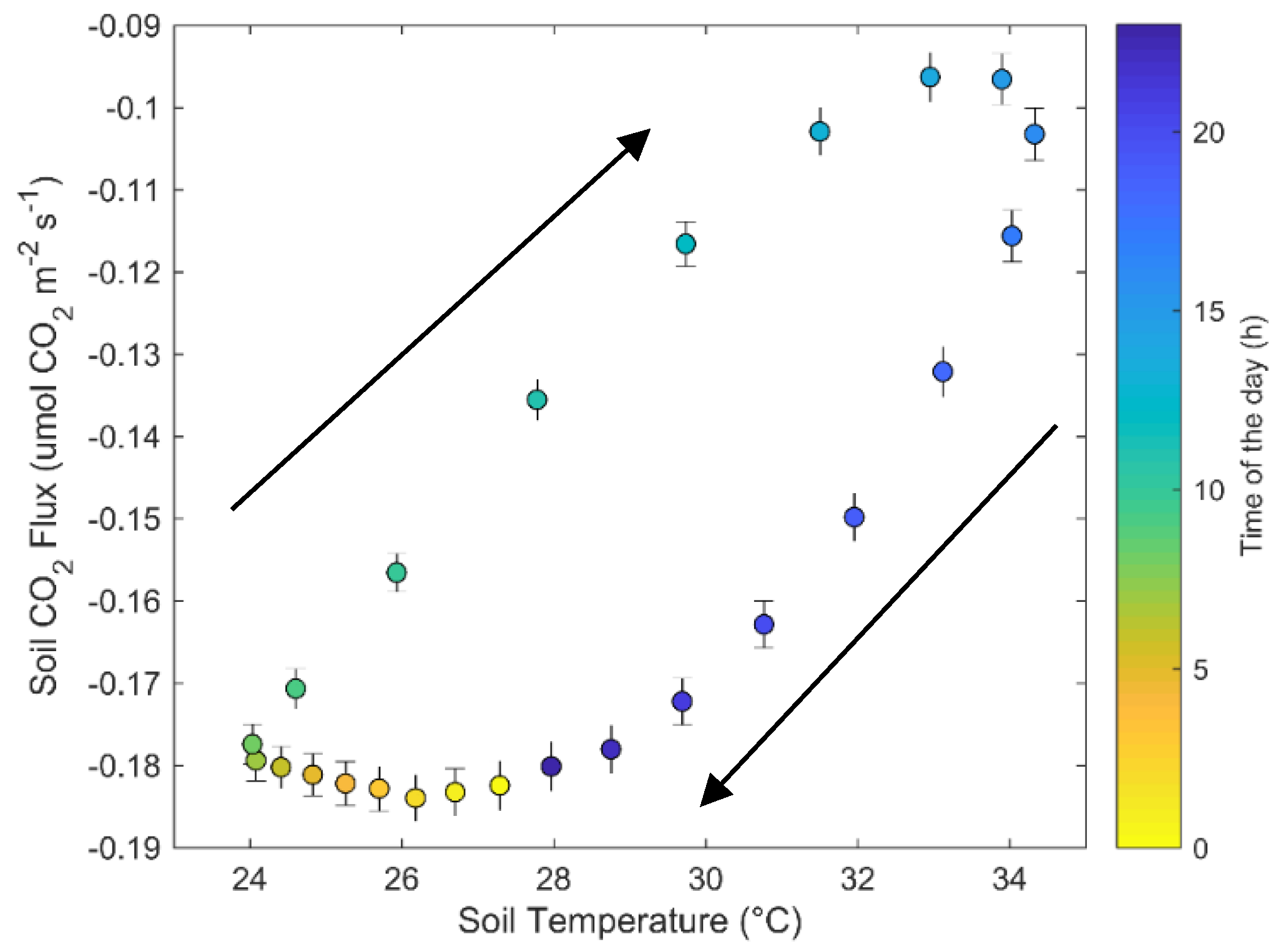

We found a clockwise diel hysteresis in the relationship between Fs and soil temperature (Ts) (Figure 8). Diel cycles have been seen across natural ecosystems with positive [90,91,92], and negative [37,71] Fs, as well as in simulation models [93]. It is noteworthy that in studies reporting negative Fs, the hysteresis direction is clockwise, indicating that Fs peaked before Ts, while in sites that do not report negative Fs the hysteresis direction is counterclockwise, indicating that Ts peaked first. There is a consensus that these hysteresis loops could result from different biophysical factors, including photosynthetic carbon supply [90,94,95], non-rainfall water inputs, such as hydraulic redistribution by roots [96], and lateral transport of mist/fog/marine breeze [97], different temperature sensitivity of biological (e.g., microbial and root respiration) and non-biological (e.g., carbonate weathering) activity [34], temporal lags between CO2 production/consumption and the actual surface CO2 flux [95], unrepresentative measurement depths of temperature in relation to CO2 production/consumption [52], and thermal diffusivity [93]. In the LEO hillslopes, we can discard plant photosynthetic carbon supply and root-associated autotrophic respiration, as well as non-rainfall water inputs, but there could be confounding effects for different temperature sensitivities for microbial metabolism and carbonate weathering. Soper et al. [98] found in the Mojave Desert that carbonate precipitation (i.e., positive Fs) occurs at high soil surface temperatures (e.g., >33–75 °C), and there is evidence that the biological component of Fs decreases substantially between 20 °C and 50 °C across hot deserts [99]. Thus, a combination of different processes producing and consuming CO2 within the soil can influence the temperature relationship with Fs. Moreover, during nighttime when soils are cooling, there could be a migration of air from deeper soil to upper soil horizons, as seen in this study (Figure 3) and Reference [37], promoting carbonate dissolution (e.g., negative Fs). Thus, this combination of biological and non-biological components could result in different temperature sensitivities, which might be expected to vary across landscapes. Currently, flux partitioning algorithms for eddy covariance data do not take into account the non-biological component of ecosystem C fluxes [31], which may lead to biases in estimated ecosystem respiration and gross primary productivity in some ecosystems.

5. Conclusions

Here we demonstrated that LEO hillslopes are a consistent carbon sink, with comparable CO2 flux rates to natural deserts across the globe. We showed that negative soil CO2 fluxes are possible and probable, and should not be discarded in future studies, as they can influence local carbon balances that, in turn, propagate into global estimates. Our results from this large-scale experimental hillslope agreed with previous studies on the biophysical controls of negative soil CO2 fluxes in natural ecosystems, giving insights into key controlling environmental factors. Negative soil CO2 fluxes could be more prevalent across arid and semiarid ecosystems representing ~40% of the terrestrial surface. Mainly driven by non-biological processes, in alkaline soils with high levels of carbonate and low vegetation cover, these negative fluxes should be further studied to better comprehend their potential as a carbon sink. If the strength of the CO2 sink due to non-biological processes (i.e., basalt and carbonate weathering) results to be considerable under short periods, further experimentations should be done to address current uncertainties, especially due to soil management [58].
Soil CO2 fluxes are bidirectional and can shift in sign in response to the predominance of various biological and non-biological components. This work implies measured (e.g., with respiration chambers) and estimated (e.g., with the soil gradient method) soil CO2 fluxes actually reflect a net soil exchange (NSE), analogous to the net ecosystem exchange (NEE), rather than only respiration or efflux [100]. In most ecosystems across the globe, NEE is usually negative, representing a fixation of CO2 from the atmosphere through photosynthetic fixation into the biosphere, but exceptions in time and space have been reported [101]. Similarly, the NSE is commonly positive across the globe, where metabolic and respiratory processes dominate, representing, from the perspective of soils, a loss of CO2 from the soil to the atmosphere. While these processes dominate, there are again exceptions in time and space, including the fixation of CO2 in soils as a result of non-biological processes as we observed in the LEO system.
The concept of NSE requires new source partitioning methods for quantifying various biological and non-biological components, analogously to eddy covariance flux partitioning algorithms used to estimate the gross primary productivity and ecosystem respiration [102,103]. These may include isotopic methods to distinguish different CO2 sources, such as been done in the Mojave Desert to differentiate biological from non-biological CO2 production in the soil, due to the different δ13C signatures between the soil organic carbon and carbonates [98,104]. Additional measurements should be considered to interpret biological CO2 production within the soil profile. The apparent respiratory quotient (i.e., ratio of CO2 efflux to the oxygen influx) was used to show that the biological respiration rate was 3.8 times higher than the surface-measured CO2 with chambers [105]. Furthermore, incorporating oxygen measurements within the soil profile will improve the capability of current state-of-the-art microbial enzyme models [81,106].
Finally, we believe that the concept of the NSE could be broadly used across different soil biogeochemical cycles. For example, methane (CH4) can be both produced (i.e., methanogenesis) or consumed (i.e., methanotrophy) within the soil [107]; similarly, carbonyl sulfide (COS/OCS) fluxes are thought to be a combination of biological and non-biological sources [108,109]. Such features of soil gases can be used to develop soil functional types [110], analogous to plant and ecosystem functional types, to better represent soil functionality at global scales.

Supplementary Materials

The following are available online at https://www.mdpi.com/2571-8789/3/1/10/s1, Table S1: Studies reporting negative CO2 fluxes and potential carbonate weathering. Figure S1. Schematic representation of Equation (9).

Author Contributions

J.v.H. and T.H.M.V. contributed to the experimental design. A.C. conceived and performed the data analyses. A.C. wrote the manuscript. A.C., T.H.M.V., J.v.H., P.A.T. and L.K.M. edited the manuscript until its final version. P.A.T. and L.K.M. secured support for the project.

Funding

The authors gratefully acknowledge financial support from the Philecology Foundation of Fort Worth, Texas, and its founder, Mr. Edward Bass. The authors thank the Research, Development and Innovation office of the Vice President for Research at the University of Arizona for their financial support.

Acknowledgments

We appreciate feedback from four anonymous reviewers.

Conflicts of Interest

The authors declare no conflict of interest.
