Numerical Analysis of Seismic Performances of Post-Fire Scoria Aggregate Concrete Beam-Column Joints
Abstract
:1. Introduction

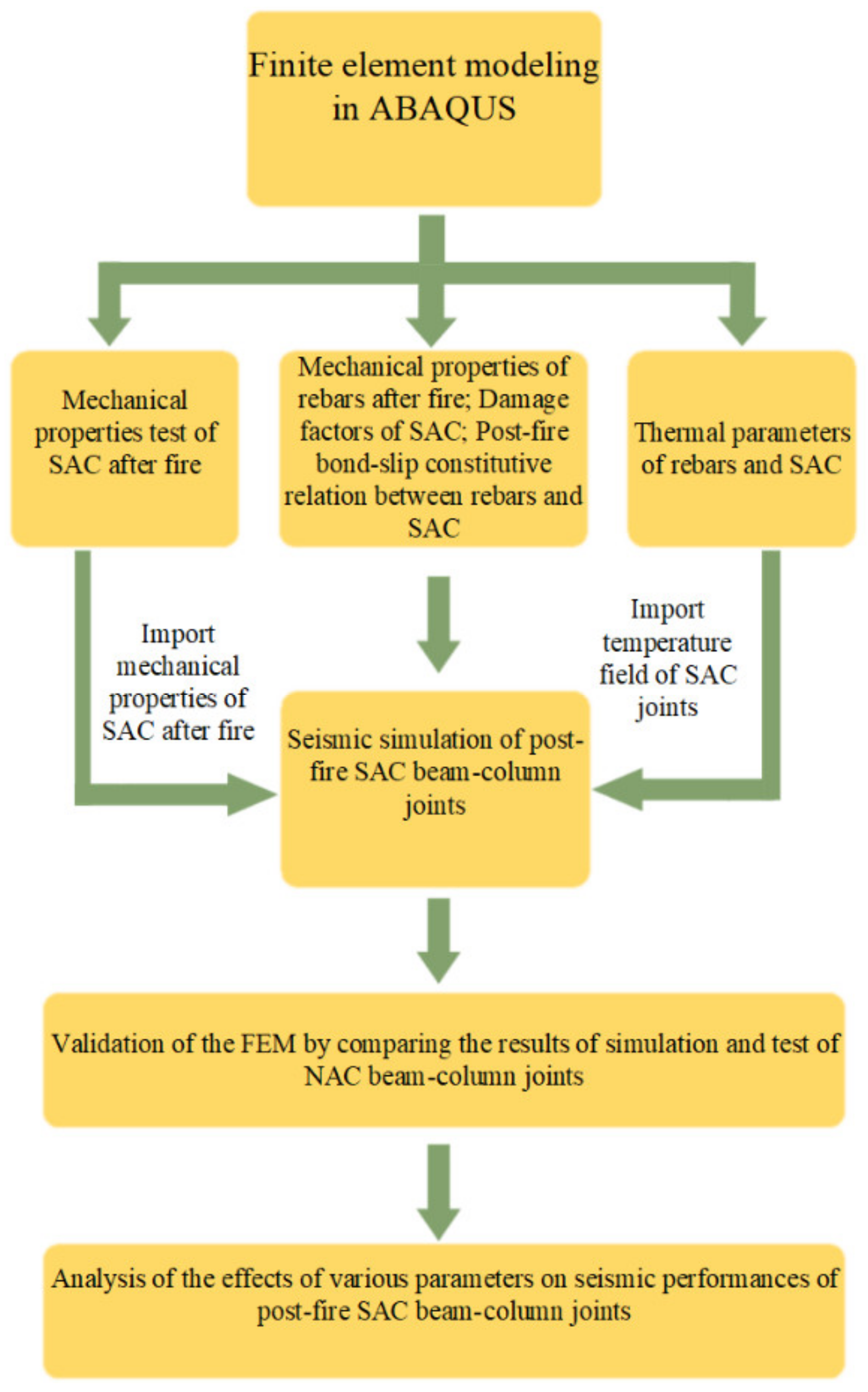

2. Analysis Procedure
- (1)
- Heat transfer analysis: the heat transfer analysis was performed first in ABAQUS to determine the temperature distributions of the joints. This type of analysis is used when the stress or deformation field in a structure depends on the temperature field in that structure, but the temperature field can be found without knowledge of the stress/deformation response. Additionally, this type of analysis is usually performed by first conducting an uncoupled heat transfer analysis and then a stress/deformation analysis.
- (2)
- Seismic analysis: after the thermal damage of both rebars and SAC was both transmitted to the mechanical model, the seismic analysis considering thermal degradation of the material was implemented. However, the mechanical properties of SAC after fire needed to be measured experimentally. For this reason, before simulating the seismic performance of SAC beam-column joints, an experiment to get the mechanical properties of SAC after fire was designed and conducted in this paper.
- (3)
- Validation: to validate the FEM, the results of seismic performance of post-fire NAC joints simulated by the same FEM were compared with the test data of the reference [26] and analyzed. On the basis of this, effects of various parameters on the seismic performance of SAC beam-column joints after fire were investigated in depth reasonably. The workflow is shown in Figure 1.
3. Heat Transfer Analysis of SAC Joints
3.1. Thermal Material Modelling for SAC
3.2. Heat Transferring Analysis in ABAQUS
4. Post-Fire Seismic Analysis of SAC
4.1. Thermomechanical Damage Modeling for SAC
4.1.1. Test Program
4.1.2. Material Simulation through Experimental Tests Results Regression
- (1)

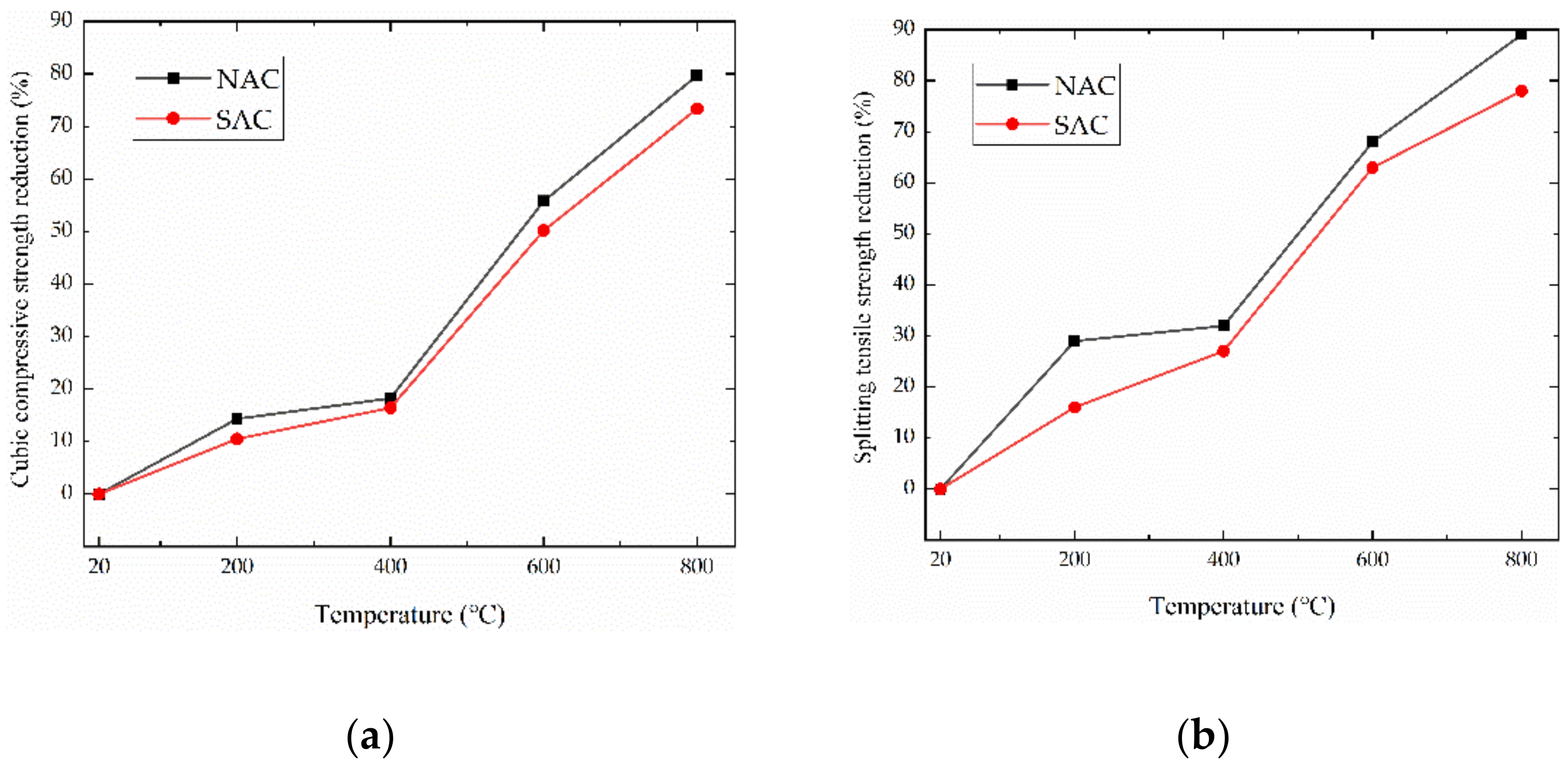

- Compressive and splitting tensile strengths
- (2)
- Peak Strain
- (3)
- Ultimate strain
- (4)
- Elastic modulus
- (5)

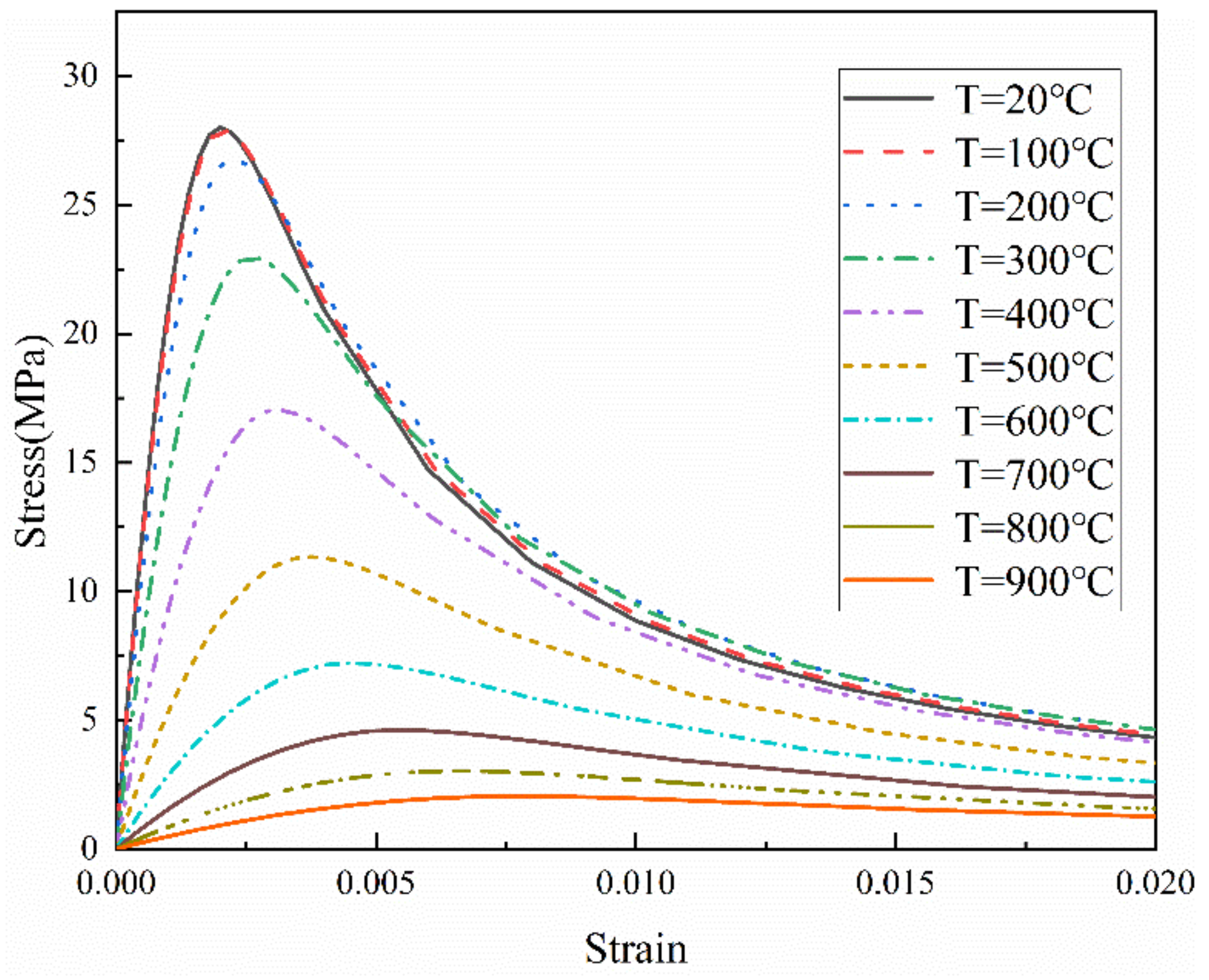

- Stress-strain curve
- (6)
- Constitutive equation
4.1.3. Thermal Damage Coefficient of SAC
4.1.4. Thermomechanical Damage Model for Rebars
4.2. Bond–Slip Model Considering Material Degradation of Rebars and SAC
4.2.1. Bond–Slip Model

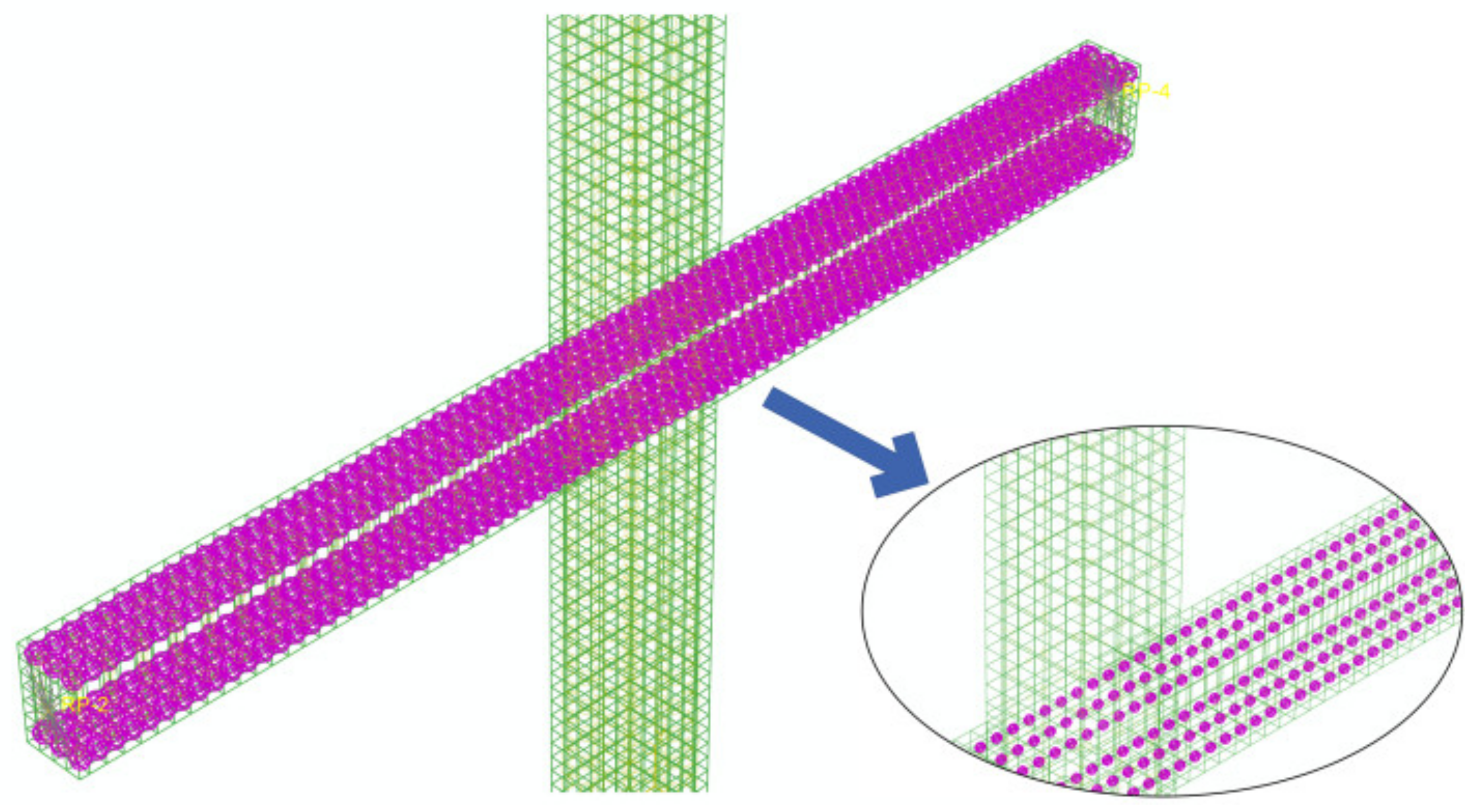

4.2.2. Implementation in ABAQUS Using Spring Element
4.3. Element Selection

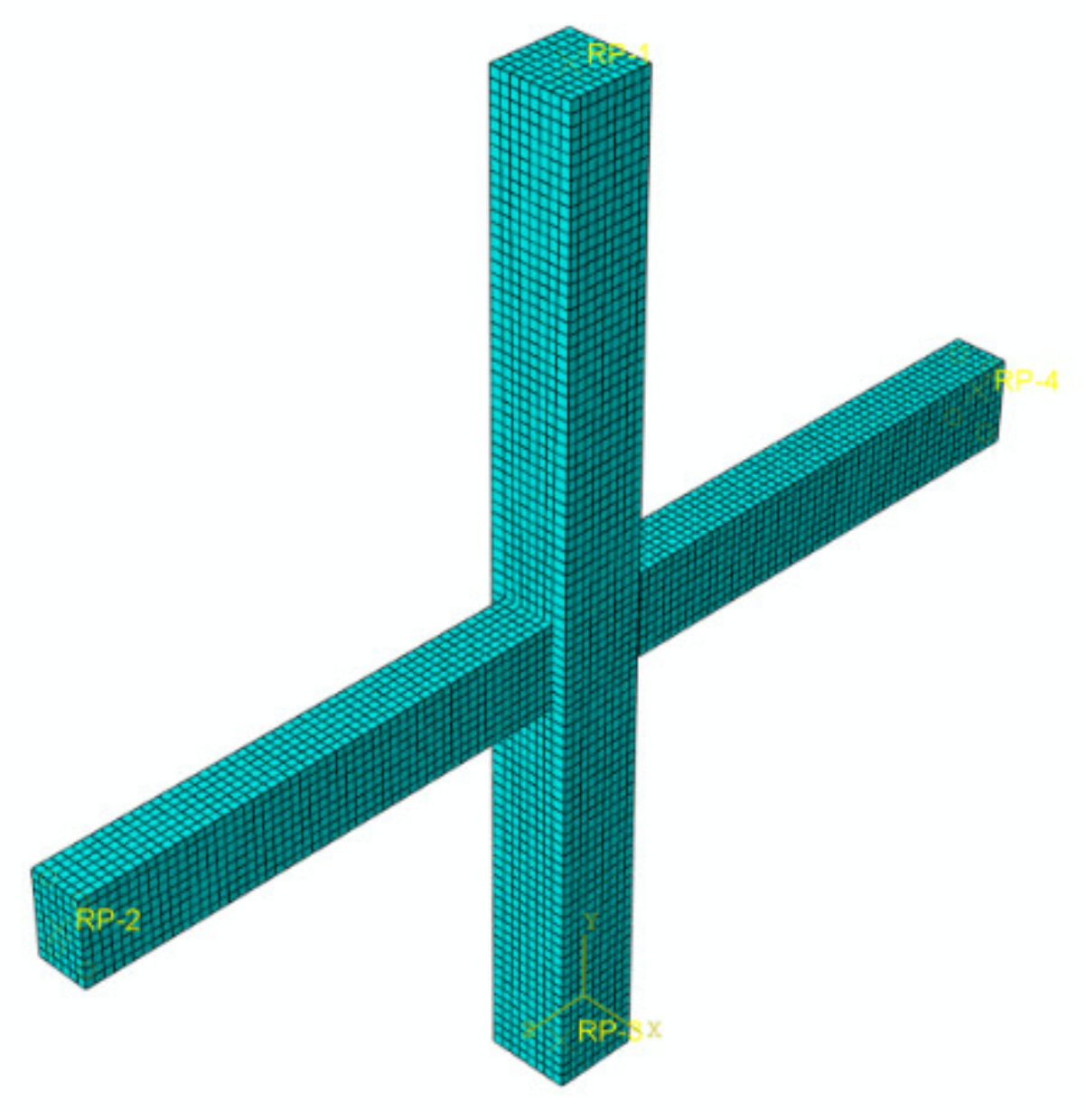

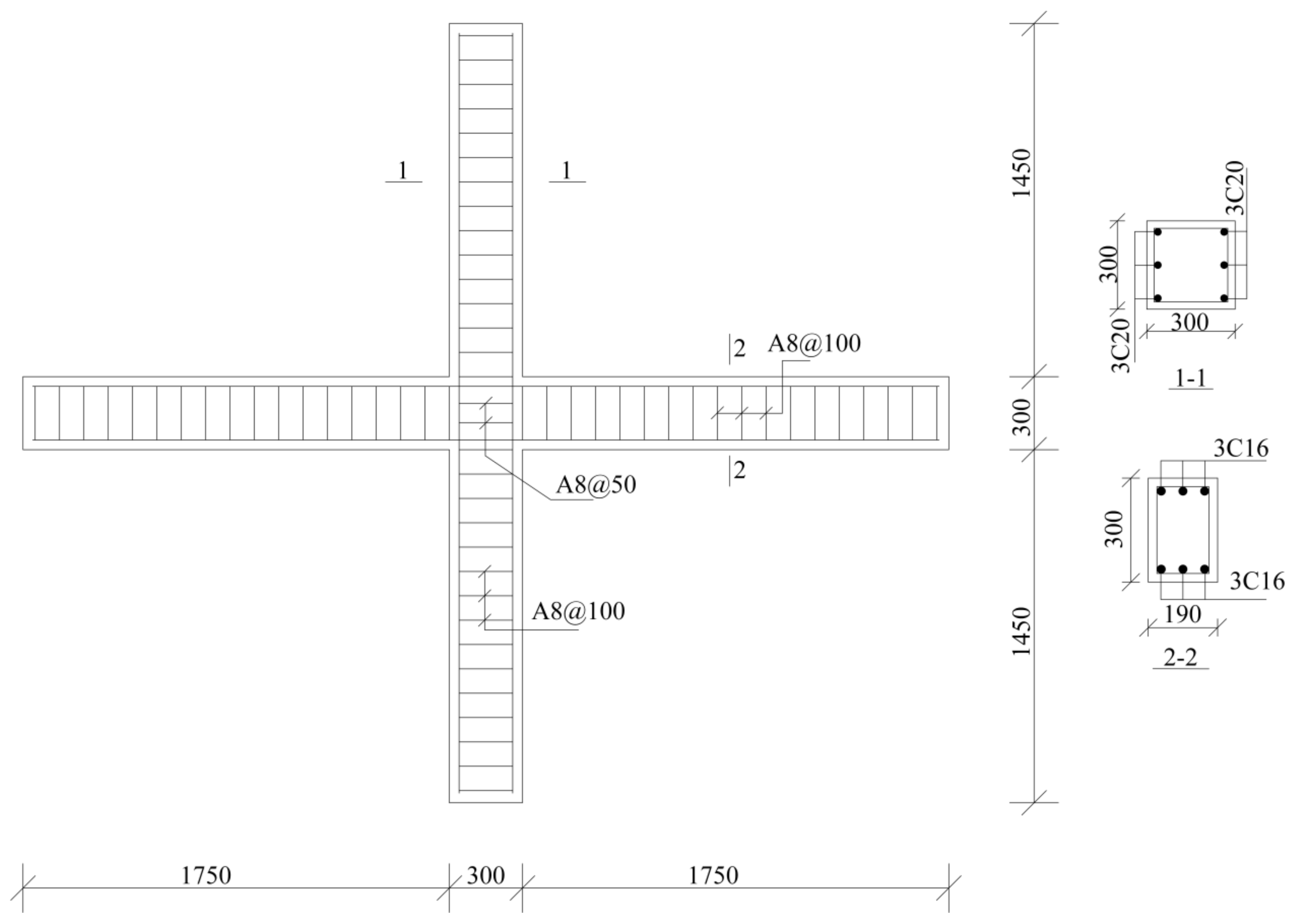

4.4. Geometrical Modeling
4.5. Analysis Results
5. Analysis Procedure Validation
5.1. Heat Transfer Analysis of NAC Joints
5.1.1. Thermal Material Modelling for NAC
5.1.2. Heat Transferring Analysis in ABAQUS
5.2. Post-Fire Seismic Analysis of NAC
5.2.1. Thermomechanical Damage Model of NAC and Rebars
5.2.2. Bond–Slip Model Considering Material Degradation of Rebars and NAC
5.3. Test from the Reference

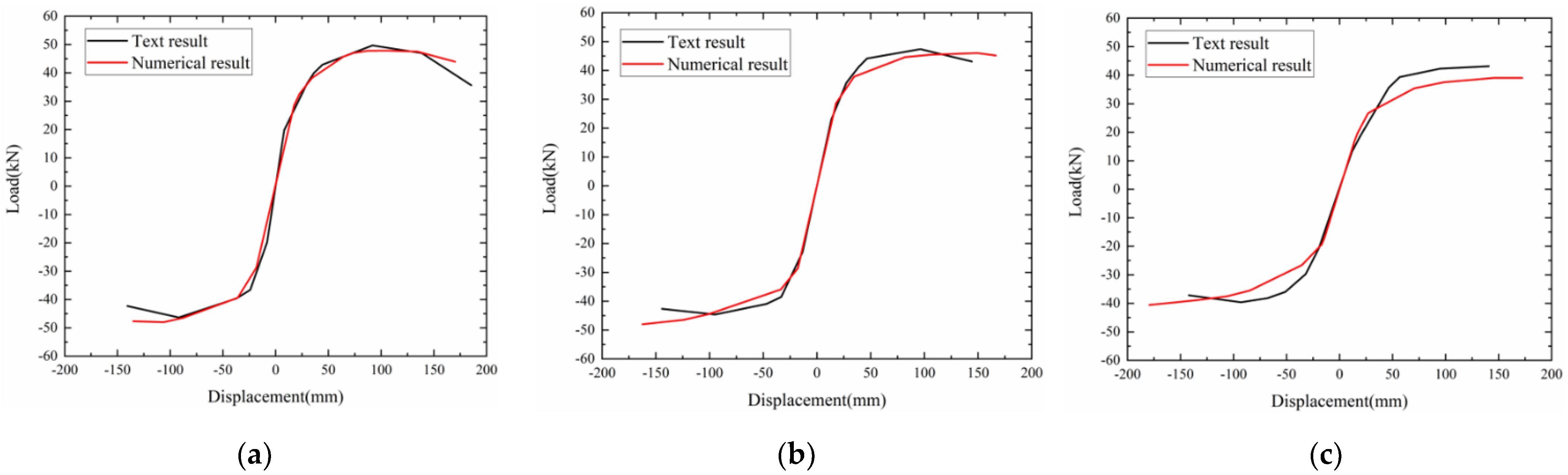

5.4. Validation Results
6. Analysis of the Effect of Different Parameters on Seismic Performance of Post-Fire SAC Beam-Column Joints

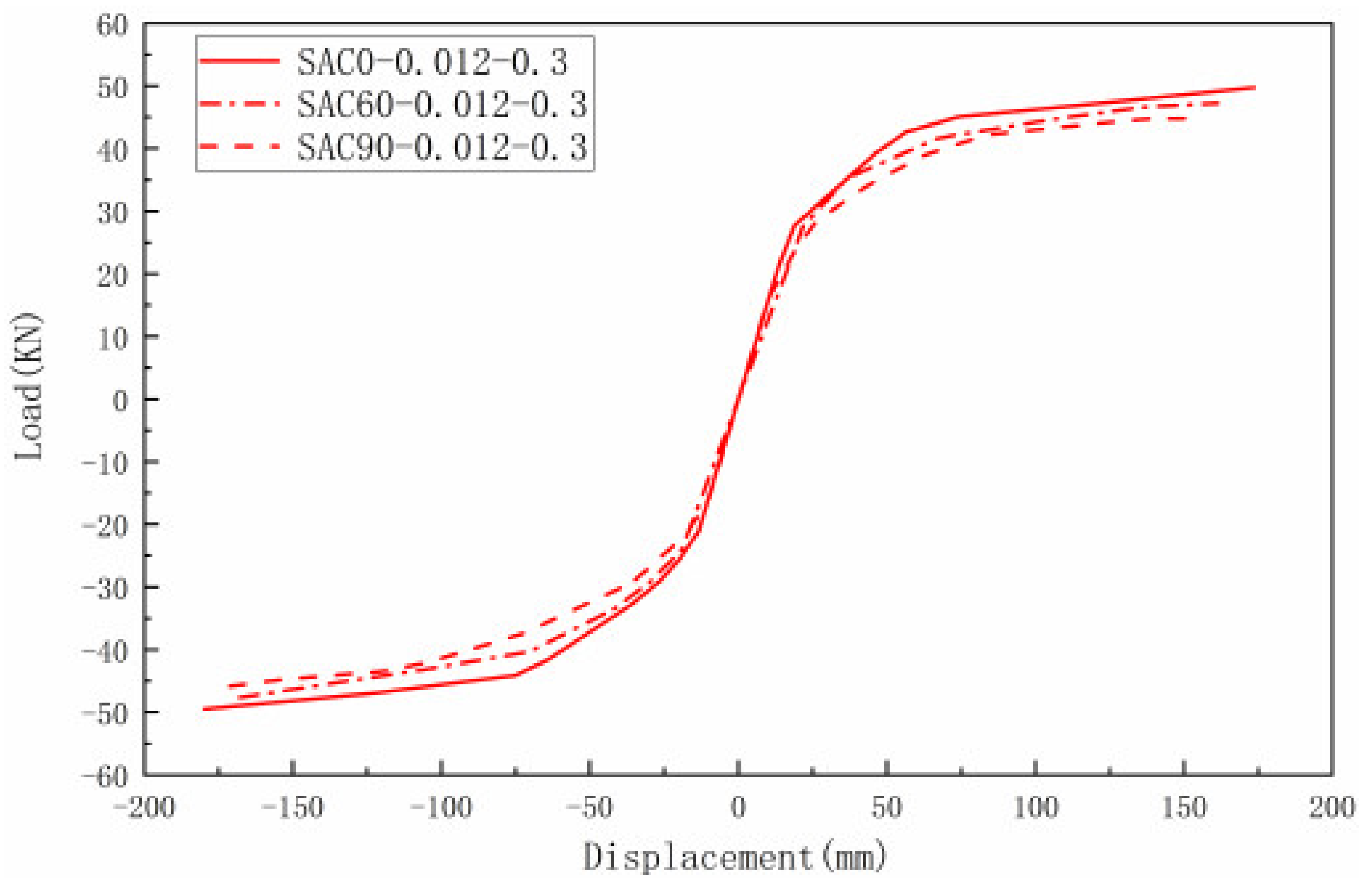

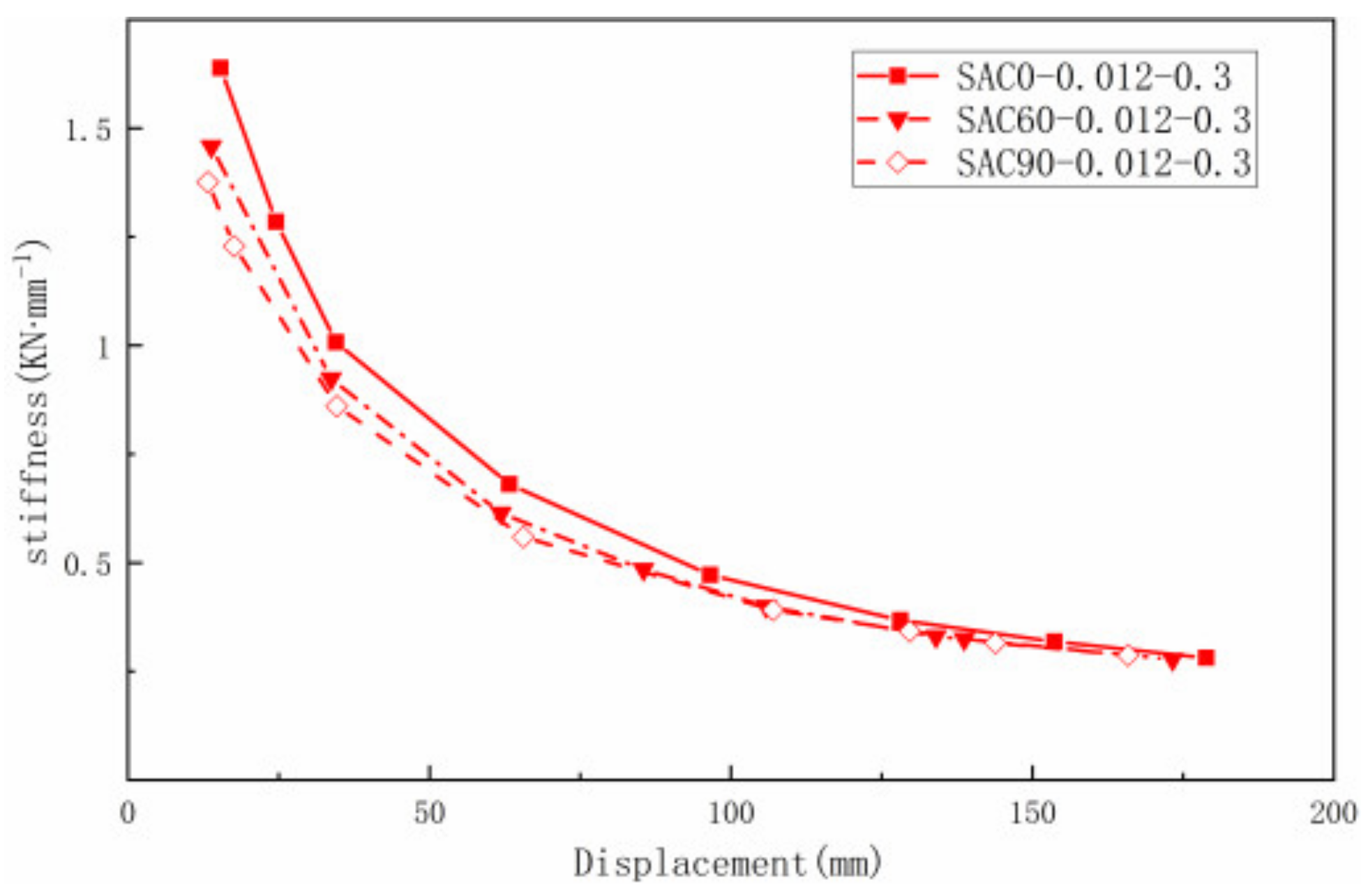

6.1. Analysis of the Effects of Fire Time

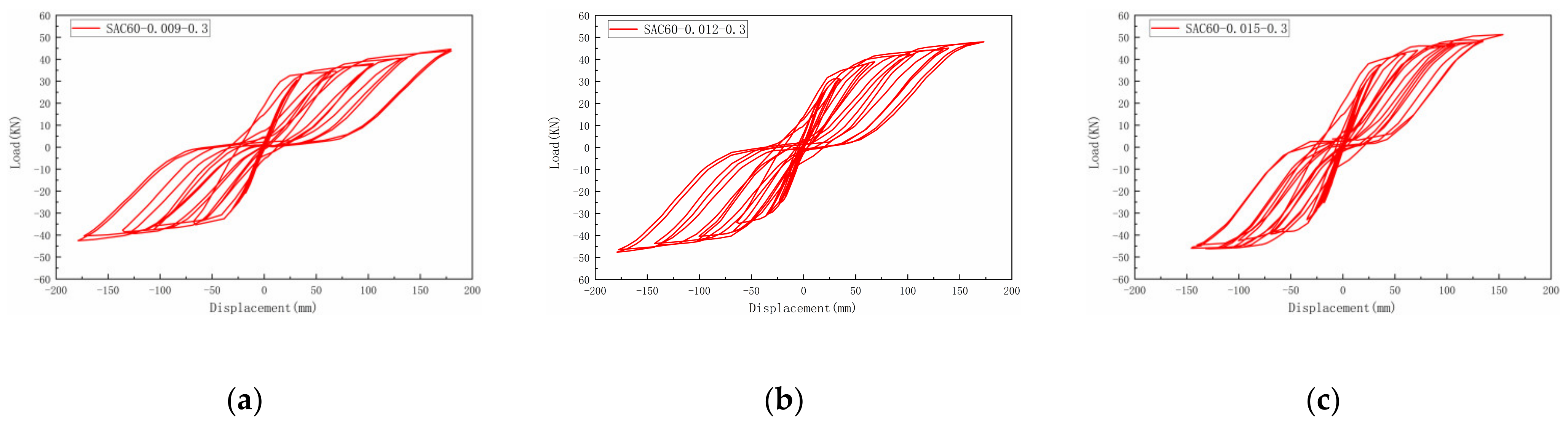

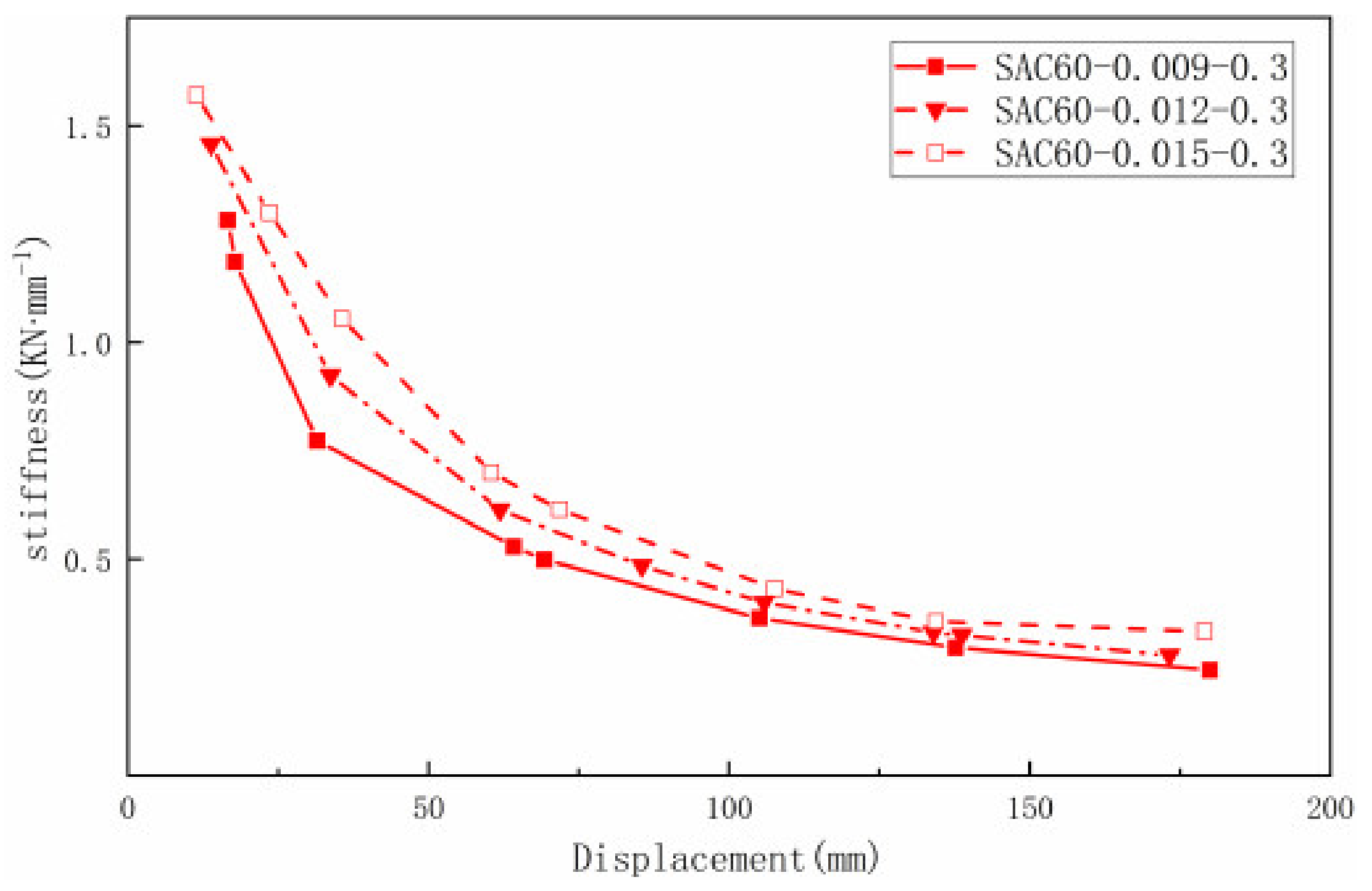

6.2. Analysis of the Effects of Reinforcement Ratio

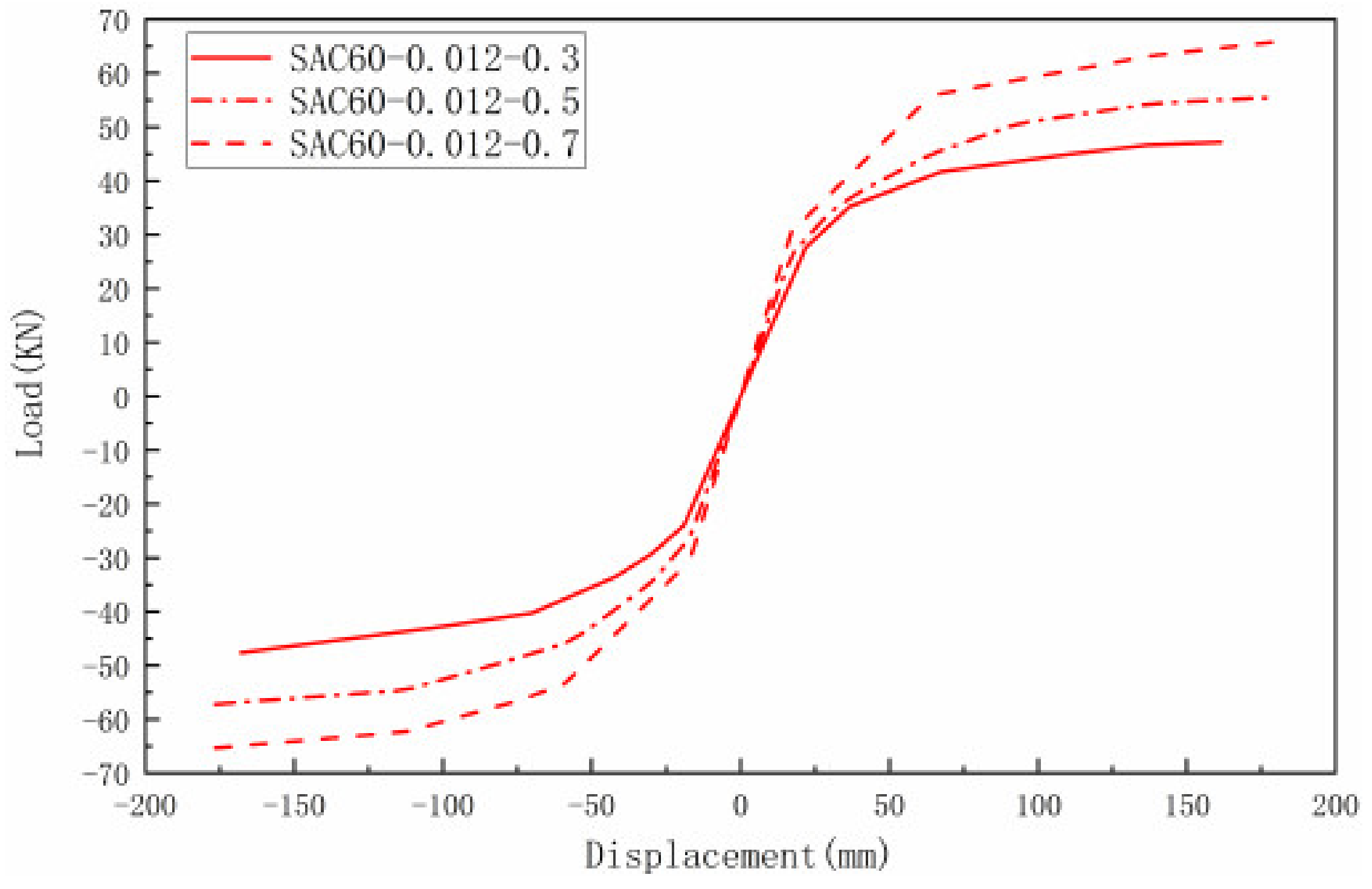

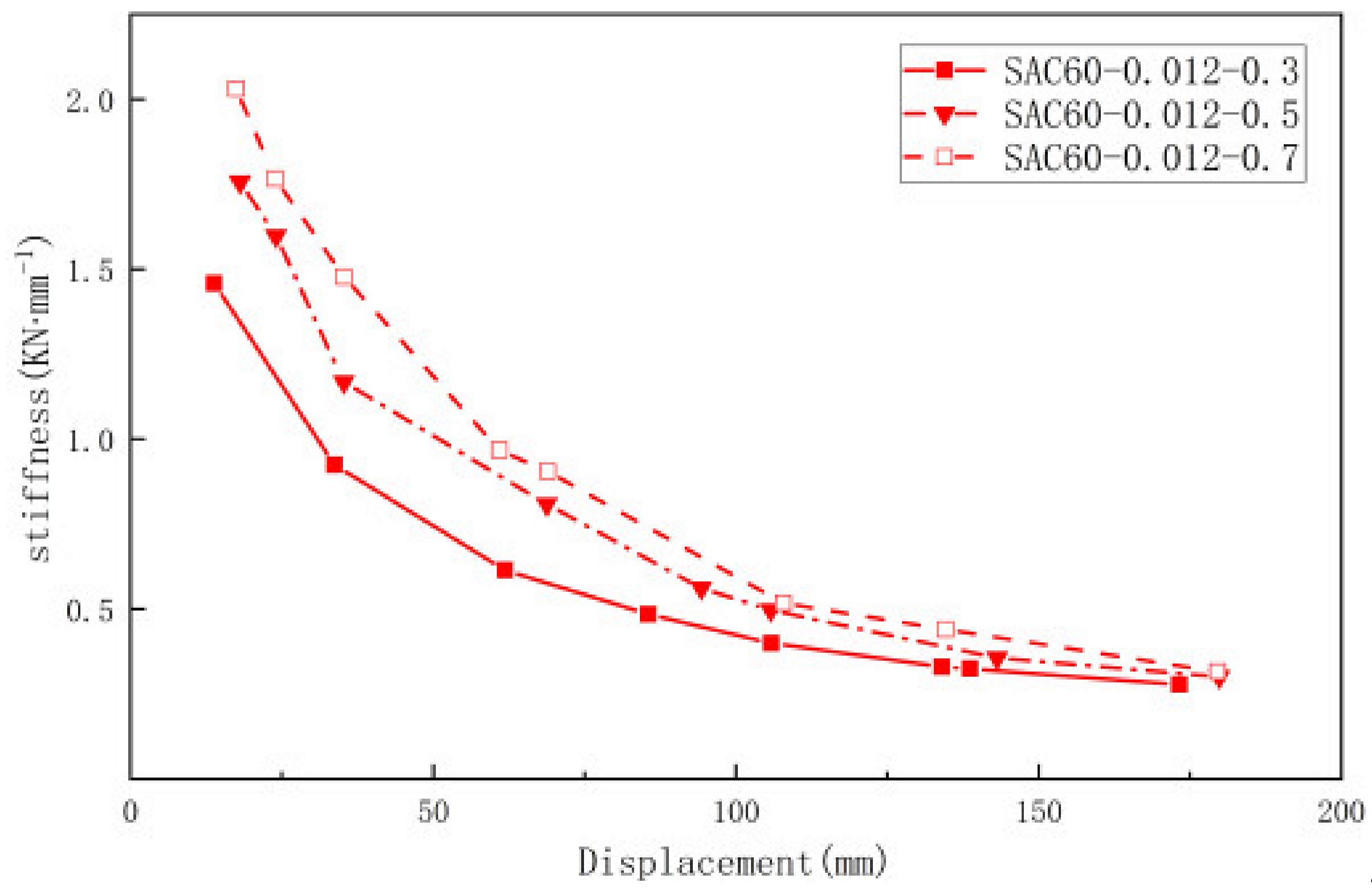

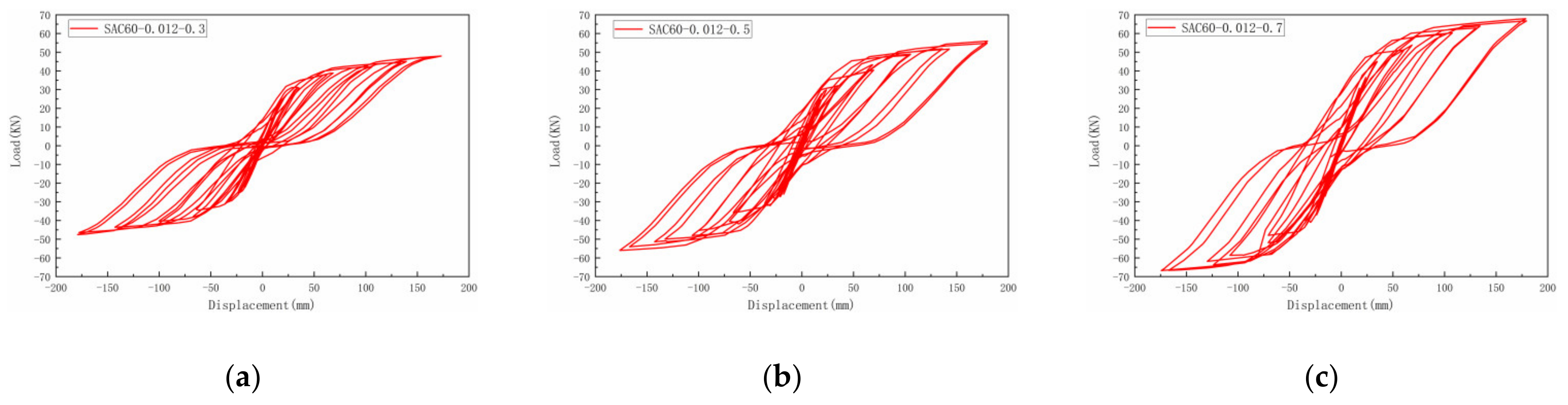

6.3. Analysis of the Effects of Axial Compression Ratio
7. Conclusions
- (1)
- The simulated hysteretic curves and skeleton curves are in good agreement with the test data, indicating the proposed FEM is accurate and can be used to predict the seismic behaviors of post-fire SAC beam-column joints.
- (2)
- Nonlinear spring elements were used between the reinforcement and concrete with both scoria and natural aggregate to simulate the bond–slip behavior. The spring elements can simulate the pinching hysteretic curves well and avoid the overestimation of seismic performance of post-fire RC beam-column joints.
- (3)
- Analysis of the simulation results shows that the increase of fire time causes a significant decrease in the load bearing capacity, stiffness, and energy dissipation capacity of the SAC joints. The application of spring elements can simulate the pinching effect of the hysteresis curves well, but the simulations of the falling section of the curves are not very obvious, which may be caused by the insufficient consideration of the spalling of concrete after high temperature by the FEM delaying the strength degradation of the concrete.
- (4)
- Although the increase in the reinforcement ratio of tensile rebars can slightly increase the strength and stiffness of the SAC joints, an excessively high reinforcement ratio will weaken the energy dissipation capacity and ductility of the SAC joints. Therefore, when the reinforcement ratio exceeds 1.5%, it will be detrimental to the seismic performance of post-fire SAC structures.
- (5)
- The increase of the axial compression ratio can increase the strength and initial stiffness of the SAC joints, reduce the degrees of pinching effects of the hysteretic curves, increase the energy dissipation capacity of the SAC joints, and delay the stiffness degradation of the SAC joints.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Ni, S.; Birely, A.C. Post-fire seismic behavior of reinforced concrete structural walls. Eng. Struct. 2018, 168, 163–178. [Google Scholar] [CrossRef]
- Ni, S.; Birely, A.C. Simulation procedure for the post-fire seismic analysis of reinforced concrete structural walls. Fire Saf. J. 2018, 95, 101–112. [Google Scholar] [CrossRef]
- Al-Ameri, R.A.; Abid, S.R.; Murali, G.; Ali, S.H.; Özakça, M. Residual Repeated Impact Strength of Concrete Exposed to Elevated Temperatures. Crystals 2021, 11, 941. [Google Scholar] [CrossRef]
- Drozdzol, K. Thermal and Mechanical Studies of Perlite Concrete Casing for Chimneys in Residential Buildings. Materials 2021, 14, 2011. [Google Scholar] [CrossRef] [PubMed]
- Chen, Y.-H.; Chang, Y.-F.; Yao, G.C.; Sheu, M.-S. Experimental research on post-fire behavior of reinforced concrete columns. Fire Saf. J. 2009, 44, 741–748. [Google Scholar] [CrossRef]
- Yu-ye, X.; Yan-qing, L.; Qing-wen, Y.; Bi-lan, L. Experimental study on seismic performance of concrete short columns after fire and strengthened with CFRP. Eng. Mech. 2014, 31, 92–100. [Google Scholar] [CrossRef]
- Sun, C.Z.; Wu, R.X.; Zhao, H.N. Research on concrete columns seismic performance of super early-strength composite fibers after high temperature. In Applied Mechanics and Materials; Trans Tech Publications, Ltd.: Zurich, Switzerland, 2014; pp. 2671–2674. [Google Scholar]
- Li, L.-Z.; Liu, X.; Yu, J.-T.; Lu, Z.-D.; Su, M.-N.; Liao, J.-H.; Xia, M. Experimental study on seismic performance of post-fire reinforced concrete frames. Eng. Struct. 2019, 179, 161–173. [Google Scholar] [CrossRef]
- Libre, N.A.; Shekarchi, M.; Mahoutian, M.; Soroushian, P. Mechanical properties of hybrid fiber reinforced lightweight aggregate concrete made with natural pumice. Constr. Build. Mater. 2011, 25, 2458–2464. [Google Scholar] [CrossRef]
- Hu, B.; Kundu, T. Seismic performance of interior and exterior beam–column joints in recycled aggregate concrete frames. J. Struct. Eng. 2019, 145, 04018262. [Google Scholar] [CrossRef]
- Faleschini, F.; Bragolusi, P.; Zanini, M.A.; Zampieri, P.; Pellegrino, C. Experimental and numerical investigation on the cyclic behavior of RC beam column joints with EAF slag concrete. Eng. Struct. 2017, 152, 335–347. [Google Scholar] [CrossRef]
- Xu, Z.; Chen, Z.; Yang, S. Effect of a new type of high-strength lightweight foamed concrete on seismic performance of cold-formed steel shear walls. Constr. Build. Mater. 2018, 181, 287–300. [Google Scholar] [CrossRef]
- Cai, B. Reliability analysis of post-fire flexural load bearing capacity of volcanic slag concrete beams. Fire Sci. Technol. 2019, 38, 874–879. [Google Scholar]
- Yang, D.L.; Bin, L.I.; Wei-Shi, L.I.; Xia, J.L.; Zhou, Y.X. Domestic and Overseas Research and Utilization on Lightweight Aggregate Concrete Prepared with Scoria. World Build. Mater. 2017, 38, 26–30. [Google Scholar]
- Qian, K.; Liang, S.-L.; Xiong, X.-Y.; Fu, F.; Fang, Q. Quasi-static and dynamic behavior of precast concrete frames with high performance dry connections subjected to loss of a penultimate column scenario. Eng. Struct. 2020, 205, 110115. [Google Scholar] [CrossRef]
- Ni, S.; Birely, A. Post-fire earthquake resistance of reinforced concrete structural walls. In Proceedings of the 11th Canadian Conference on Earthquake Engineering, Victoria, BC, Canada, 21–24 July 2015; pp. 1–9. [Google Scholar]
- Faleschini, F.; Hofer, L.; Zanini, M.A.; dalla Benetta, M.; Pellegrino, C. Experimental behavior of beam-column joints made with EAF concrete under cyclic loading. Eng. Struct. 2017, 139, 81–95. [Google Scholar] [CrossRef]
- Do, T.N.; Filippou, F.C. A damage model for structures with degrading response. Earthq. Eng. Struct. Dyn. 2018, 47, 311–332. [Google Scholar] [CrossRef]
- Mazza, F. A plastic-damage hysteretic model to reproduce strength stiffness degradation. Bull. Earthq. Eng. 2019, 17, 3517–3544. [Google Scholar] [CrossRef]
- Mazza, F. Seismic vulnerability and retrofitting by damped braces of fire-damaged rc framed buildings. Eng. Struct. 2015, 101, 179–192. [Google Scholar] [CrossRef]
- Mazza, F. Residual seismic load capacity of fire-damaged rubber bearings of rc base-isolated buildings. Eng. Fail. Anal. 2017, 79, 951–970. [Google Scholar] [CrossRef]
- Miao, J.; Cheng, W.P.; Song, Y.P. Finite element analysis for prefabricated parts of SRC frame beam-column joints. J. Dalian Univ. Technol. 2014, 54, 568–574. [Google Scholar] [CrossRef]
- Li, C.; Li, Q.; Li, X.; Zhang, X.; Zhao, S. Elasto-plastic Bending Behaviors of Steel Fiber Reinforced Expanded-shale Lightweight Concrete Beams Analyzed by Nonlinear Finite-element Method. Case Stud. Constr. Mater. 2020, 13, e00372. [Google Scholar] [CrossRef]
- Zhang, J.W.; Guo, S.H. Finite Element Analysis of the Pull-Out Specimens of Steel Reinforced Lightweight Concrete. In Applied Mechanics and Materials; Trans Tech Publications, Ltd.: Zurich, Switzerland, 2012; pp. 514–519. [Google Scholar]
- Liu, X.; Liu, Y.; Wu, T.; Wei, H. Bond-slip properties between lightweight aggregate concrete and rebar. Constr. Build. Mater. 2020, 255, 119355. [Google Scholar] [CrossRef]
- Wang, Y.; Fu, C.; Qiu, H. Experimental study on seismic behavior of reinforced concrete frame joints after fire. J. Build. Struct. 2009, 30, 121–127. [Google Scholar]
- EN 1994-1-2. Eurocode 4: Design of Composite Steel and Concrete Structures—Part 1–2: General Rules—Structural Fire Design; European Committee for Standardization: Brussels, Belgium, 2005. [Google Scholar]
- EN 1992-1-2. Eurocode 2: Design of Concrete Structures—Part 1–2: General Rules—Structural Fire Design; European Committee for Standardization: Brussels, Belgium, 2004. [Google Scholar]
- Cai, B.; Li, B.; Fu, F. Finite element analysis and calculation method of residual flexural capacity of post-fire RC beams. Int. J. Concr. Struct. Mater. 2020, 14, 1–17. [Google Scholar] [CrossRef]
- Fu, F. Advanced Modelling Techniques in Structural Design; John Wiley & Sons: Oxford, UK, 2015; ISBN 978-1-118-82543-3. [Google Scholar]
- Fu, F. 3D finite element analysis of the whole-building behavior of tall building in fire. Adv. Comput. Des. 2016, 1, 329–344. [Google Scholar] [CrossRef]
- Fu, F. Structural Analysis and Design to Prevent Disproportionate Collapse; CRC Press: Boca Raton, FL, USA, 2016; ISBN 978-1-4987-8820-5. [Google Scholar]
- Fu, F. Design and Analysis of Tall and Complex Structures; Butterworth-Heinemann: Oxford, UK, 2018; ISBN 978-0-08-101018-1. [Google Scholar]
- Fu, F. Fire induced progressive collapse potential assessment of steel framed buildings using machine learning. J. Constr. Steel Res. 2020, 166, 105918. [Google Scholar] [CrossRef]
- European Convention for Constructional Steelwork. N°55 Calculation of Centrally Loaded Composite Steel-Concrete Columns Exposed to the Standard Fire; ECCS: Brussels, Belgium, 1988. [Google Scholar]
- Qian, K.; Liang, S.-L.; Fu, F.; Fang, Q. Progressive collapse resistance of precast concrete beam-column sub-assemblages with high-performance dry connections. Eng. Struct. 2019, 198, 109552. [Google Scholar] [CrossRef]
- Fu, F.; Parke, G.A.R. Assessment of the Progressive Collapse Resistance of Double-Layer Grid Space Structures Using Implicit and Explicit Methods. Int. J. Steel Struct. 2018, 18, 831–842. [Google Scholar] [CrossRef]
- Wang, L.; Shen, N.; Zhang, M.; Fu, F.; Qian, K. Bond performance of Steel-CFRP bar reinforced coral concrete beams. Constr. Build. Mater. 2020, 245, 118456. [Google Scholar] [CrossRef]
- Fu, F.; Lam, D.; Ye, J. Moment resistance and rotation capacity of semi-rigid composite connections with precast hollowcore slabs. J. Constr. Steel Res. 2010, 66, 452–461. [Google Scholar] [CrossRef]
- ShuGuang, H. Light Aggregate Concrete; Chemical Industry Press: Shanghai, China, 2006; ISBN 7-5025-8208-8. [Google Scholar]
- GB 50010-2010. Technical Specification for Concrete Structure; China Architecture & Building Press: Beijing, China, 2015. [Google Scholar]
- Sidoroff, F. Description of anisotropic damage application to elasticity. In Physical Non-Linearities in Structural Analysis; Springer: Berlin/Heidelberg, Germany, 1981; pp. 237–244. [Google Scholar] [CrossRef]
- Shen, R.; Feng, L.; Rong, K. Evaluation of rebar mechanical properties after high temperature (Fire Exposure). Sichuan Build. Sci. 1991, 2, 5–9. [Google Scholar]
- Cai, B.; Wu, A.; Fu, F. Bond behavior of PP fiber-reinforced cinder concrete after fire exposure. Comput. Concr. 2020, 26, 115–125. [Google Scholar]
- JGJ/T101-2015. Specification for Seismic Test of Buildings; China Architecture & Building Press: Beijing, China, 2015. [Google Scholar]
- Yan, J.L.; Hu, Y. The effects of high temperature on compressive strength of concrete. China Civ. Eng. J. 2002, 35, 17–19. [Google Scholar]
- Yu, Z.-W.; Ding, F.-X.; Luo, J.-P. Experimental research on mechanical properties of different type of concrete after high temperature. J. Saf. Environ. 2005, 5, 1–6. [Google Scholar]
- Yu, Z.; Ding, F. Unified calculation method of compressive mechanical properties of concrete. J. Build. Struct. 2003, 24, 41–46. [Google Scholar]
- Hu, C.; Xu, Y.; Luo, Y.; Zheng, Y.; Lin, B. Experimental study on the tensile strength of concrete after high temperature. J. Huaqiao Univ. Nat. Sci. 2014, 35, 196–201. [Google Scholar]
- Song, T. Research on Post-Fire Performance of Steel-Concrete Composite Beam-Column Joints. Ph.D. Thesis, Tsinghua University, Beijing, China, 2010. [Google Scholar]
T (°C) | Cubic Compressive Strength (MPa) | Splitting Tensile Strength (MPa) | ||
---|---|---|---|---|
SAC | NAC | SAC | NAC | |
20 | 41.66 | 39.95 | 2.69 | 2.02 |
200 | 37.33 | 34.25 | 2.26 | 1.44 |
400 | 34.83 | 32.67 | 1.96 | 1.37 |
600 | 20.74 | 17.66 | 1 | 0.65 |
800 | 11.1 | 8.09 | 0.6 | 0.22 |
Mechanical Properties | Equations |
---|---|
Cubic compressive strength | |
Splitting tensile strength | |
Peak strain | |
Ultimate strain | |
Elastic modulus |
T (°C) | Peak Strain | |
---|---|---|
SAC | NAC | |
20 | 0.00187 | 0.001887 |
200 | 0.001646 | 0.001551 |
400 | 0.002683 | 0.003564 |
600 | 0.003549 | 0.010222 |
800 | 0.005809 | 0.011266 |
T(°C) | Ultimate Strain | |
---|---|---|
SAC | NAC | |
20 | 0.00209 | 0.005243 |
200 | 0.00184 | 0.003438 |
400 | 0.003959 | 0.008294 |
600 | 0.008862 | 0.013817 |
800 | 0.015472 | 0.018866 |
T(°C) | Residual Elastic Modulus | |
---|---|---|
SAC | NAC | |
20 | 57,851 | 33,898 |
200 | 40,441 | 23,691 |
400 | 17,456 | 7100 |
600 | 7861 | 499 |
800 | 2039 | 229 |
T(°C) | n | |
---|---|---|
20 | 1.898 | 49.31 |
200 | 2.17 | 72.44 |
400 | 1.827 | 9.993 |
600 | 2.201 | 1.079 |
800 | 1.991 | 0.676 |
Diameter/mm | Elastic Modulus/MPa | Yield Strength/MPa |
---|---|---|
20 | 1.993 × 105 | 484 |
16 | 2.053 × 105 | 452.5 |
Parameters | Time for Exposure to Fire (min) | Ratio of Reinforcement | Axial Compression Ratio | |
---|---|---|---|---|
Numbers | ||||
SAC0-0.012-0.3 | 0 | 0.012 | 0.3 | |
SAC60-0.012-0.3 | 60 | 0.012 | 0.3 | |
SAC90-0.012-0.3 | 90 | 0.012 | 0.3 | |
SAC60-0.009-0.3 | 60 | 0.009 | 0.3 | |
SAC60-0.015-0.3 | 60 | 0.015 | 0.3 | |
SAC60-0.012-0.5 | 60 | 0.012 | 0.5 | |
SAC60-0.012-0.7 | 60 | 0.012 | 0.7 |
