Article

Quantifying Plasma Dose for Barley Seed Treatment by Volume Dielectric Barrier Discharges in Atmospheric-Pressure Synthetic Air

Institute of Plasma Physics Czech Academy of Sciences, U Slovanky 2525/1a, 182 00 Praha, Czech Republic
*
Author to whom correspondence should be addressed.
Plasma 2025, 8(1), 11; https://doi.org/10.3390/plasma8010011
Submission received: 7 February 2025 / Revised: 28 February 2025 / Accepted: 13 March 2025 / Published: 17 March 2025
(This article belongs to the Special Issue Processes in Atmospheric Pressure Plasmas)

Abstract

:
Plasma-assisted treatment is a potentially interesting technology for advanced seed processing. In this work, we address the issue of defining and quantifying the plasma dose during the exposure of seeds to microdischarges formed in a barrier discharge configuration fed with synthetic air at atmospheric pressure. Using advanced imaging and other optoelectrical diagnostics, we identify suitable conditions for the formation of microdischarges developing exclusively between the powered electrode and the seed coat, which allows for the relatively accurate quantification of the plasma dose for an individual barley seed. In addition to determining the microdischarge energy/power consumed to treat a single seed during controlled exposure, we also provide an estimate of the electric field and gas temperature, which are key parameters that can affect seed viability. In this way, each individually exposed seed can be linked to the exact exposure time, total number, energy, and temperature of the microdischarges that came into contact with it. This is fundamentally different from conventional “averaging” approaches based on the simultaneous exposure of many seeds, which makes it virtually impossible to correlate the responses of individual seeds with the corresponding individual plasma dose. Finally, we propose a minimal treatment protocol that could allow for the more direct interpretation of the results of subsequent biological tests to reveal seed responses to specific plasma–chemical stimuli during germination and seedling growth.

Graphical Abstract

1. Introduction

Plasma-assisted seed treatment is currently being investigated as a suitable technology for agricultural purposes, where seeds can be treated either to improve their germinability (i.e., increase the likelihood of early and uniform germination) or to increase their storage shelf life (i.e., reduce the likelihood of crop loss due to various pathogens) [1,2,3,4,5,6,7,8,9,10,11,12,13,14].
As noted by Wascow et al. [15], the main current problem is the lack of standardization of the experimental methodology, which prevents a convincing evaluation of the outcomes of plasma-assisted seed treatments. As a result, it remains challenging to achieve the reproducibility of experimental observations and unambiguously attribute the response (e.g., seed germination parameters and seedling growth) to a specific stimulus (specific parameters of the plasma used to treat the seeds). To achieve this, it is important to provide both the complete characteristics of the plasma device (e.g., characteristics of the high-voltage source, electrode configuration, and corresponding materials) and the parameters of the plasma treatment of seeds (e.g., discharge mode and power, composition and flow rate of the working gas, treatment time and geometry of seed exposure to the plasma, and basic plasma parameters). Since any practical application would have to allow for the efficient and economical treatment of large volumes of seeds, the greatest potential in using a plasma source for seed treatment is with atmospheric-pressure dielectric barrier discharges (DBDs), using air as the working medium [16]. With a few exceptions, DBD configurations produce strongly inhomogeneous streamer-based transient microdischarges (MDs) characterized by very short durations (tens of nanoseconds), making it difficult to accurately characterize the plasma–seed interaction [17,18,19,20,21,22]. The effect of the treatment strongly depends on whether the seed is in direct (MDs directly impinging on treated samples) [23] or indirect (MDs close to but not impinging on treated samples) [24] contact with the MDs or is only remotely exposed to a bath of reactive species produced by the discharge [7]. The characterization of remote treatment is a relatively easy task, as it only requires the measurement of the concentrations of more or less stable species (e.g., O3 or NOx) and the temperature/humidity of the working gas mixture. In contrast, the most complex treatment is when the seed is in direct contact with the MDs, as the seed is exposed to an electric field, ionizing electrons, charged and excited species, reactive oxygen and nitrogen species (RONS), and plasma-induced (vacuum ultraviolet, ultraviolet, visible, near-infrared (VUV–UV–Vis–NIR) emissions, which makes this task extremely challenging. Furthermore, depending on the duration and intensity, direct treatment can lead to the etching of the seed coat, which can significantly affect the seed viability [25,26]. A simplified approach and procedure, therefore, appear to be essential in identifying the characteristics and parameters of direct seed treatment.
In this work, we propose a possible approach based on treating a group of seeds one by one to determine the plasma dose with high accuracy (i.e., the number of MDs that reach a given seed). Further treatment characteristics can be obtained by determining the average properties of a typical microdischarge (MD). Using advanced optoelectric diagnostics, we identified suitable conditions for the counting of MDs and the determination of several basic parameters, such as the energy load associated with exposure, the temperature of the gas with which the seed surface comes into contact, exposure to UV-A/B/C light, and the effective electric field. Finally, we propose a minimal treatment protocol that could allow for the more direct interpretation of the results of subsequent biological tests.

2. Experimental Setup, Materials, and Methods

Figure 1a displays the compact and modular 3D-printed reactor with a volume dielectric barrier discharge (VDBD) geometry utilized in this study. The reactor is composed of two circular (Ø = 2.54 cm) alumina dielectrics (AD-96; CoorsTek, Inc., Golden, CO, USA) attached to polylactide (PLA) holders sealed in a main PLA reactor body [26,27]. The opposite sides of the disks are covered by silver-based electrodes (Ø = 2.1 cm), with the discharge generated in the volume formed by the alumina disks. The movable holders (Figure 1b) allow the easy insertion of treated samples, the simple replacement and/or cleaning of the dielectric or electrodes, and, most importantly, the adjustment of the discharge volume gap. The gap size is set using an appropriate spacer (Figure 1b), which is inserted first to ensure the correct position of the outer collar. This slip-on collar restricts the insertion of the grounded electrode into the chamber, allowing for accurate and reproducible electrode placement during repeated insertions and seed replacements after treatment.
The reactor was powered by a combination of a TG1010A Function Generator (Aim-TTi, Ltd., Huntingdon, Cambridgeshire, UK), Powertron Model 1000A RF Amplifier (Industrial Test Equipment Co., Inc., Port Washington, NY, USA) and a high-voltage step-up transformer. The sinusoidal HV waveform (f = 5 kHz) is modulated by a square waveform (fM = 500 Hz) with a fixed duty cycle of D = TON/(TON + TOFF) = 40%, resulting in four consecutive HV-sine waves (TON = 0.8 ms), followed by a cooling period with TOFF = 1.2 ms. The burst mode of the applied AC voltage appears to be suitable for heating heat-sensitive samples, as it guarantees the maintenance of constant treatment conditions (especially a low gas temperature) at low airflow rates for longer exposure times (several minutes) [26,27]. In all reported plasma treatments, synthetic air (Scientific, Messer, Bad Soden, Germany; H2O < 2 ppm, CO + CO2 < 0.2 ppm) was used as the working gas, with a fixed airflow of 1 slm. A fast-digitizing oscilloscope Tektronix DPO5204 (Tektronix, Inc., Beaverton, OR, USA) (bandwidth 2 GHz, sampling rate 5 GS/s) was used to sample the discharge characteristics, with an average of 2048 individual samples to reduce noise. The applied voltage, current, and transferred charge were measured using a Tektronix P6015A high-voltage probe (1000:1@1 MΩ, bandwidth 25 MHz), a Pearson Electronic m. 2877 current probe (Pearson Electronics, Inc., Palo Alto, CA, USA) (bandwidth 200 MHz, risetime 2 ns), and a 490 nF capacitor connected in series. Two quartz side windows allow for the sampling of optical emissions from the discharge area. An Andor iStar ICCD (intensified charge-coupled device) camera DH740i-18U-03 (Oxford Instruments, Abingdon, UK) was coupled with an iHR-320 spectrometer (Jobin-Yvon, Horiba Instruments Inc., Edison, NJ, USA) equipped with 300, 1200, and 3600 G mm−1 dispersion gratings. The visualization of streamer formation in the reactor gap was realized using a four-channel XXRapidFrame ICCD camera (Stanford Computer Optics, Inc., Berkeley, CA, USA) focused on the entire discharge area. The power source, oscilloscope, and ICCD detectors were synchronized using an external trigger provided by a digital delay/pulse generator BNC Model 575 (Berkeley Nucleonics Corporation, San Rafael, CA, USA). The ozone and NOx concentrations, as the principal plasma products, were measured using a non-dispersive UV absorption ozone monitor (Advanced Pollution Instrumentation Model 450, Teledyne API, San Diego, CA, USA) and chemiluminescence NOx analyzer (Model T200H, Teledyne API, San Diego, CA, USA), respectively.
As sample seeds, we used spring barley, a medium–late variety belonging to the malting variety group (Hordeum vulgare L., cv. Malz, country of origin: Czech Republic). Germination tests were performed using an agar water medium placed in a Petri dish. In terms of seed treatment, three basic categories (direct, indirect, and remote treatment) have been established in a recent review [7]. These specific approaches differ in the complexity of the interaction between the treated biosample and the plasma source. In the case of direct treatment, treated samples come into direct contact with electric fields, energetic electrons/ions, excited species, radicals, and the full spectrum of radiation (including VUV and UV photons) produced within active plasma regions. On the other hand, in the case of indirect treatment, the samples are not in direct contact with the active plasma region; however, the distance between the active plasma and samples is sufficiently short that the samples are still exposed to UV photons, diffusing ions, and short-lived radicals (energetic electrons and VUV can be neglected). Finally, in remote treatment, only long-lived plasma products, such as reactive oxygen and nitrogen species, can reach the treated samples. In this work, we utilized the direct treatment approach, meaning that the MDs produced by the VDBD geometry came into direct contact with the seed. In this study, seeds were loosely placed on the dielectric of a grounded electrode (direct treatment), leaving sufficient space between the seeds to safely distinguish MDs associated with a given seed in the acquired images.

3. Results

3.1. Basic Discharge Characteristics

Figure 2a shows one DBD driving an HV burst composed of four consecutive AC waves and the corresponding current and transferred charge waveforms. While the evolution of the voltage is symmetric with regard to the voltage polarity (the amplitudes of the positive and negative half-cycles are comparable), the transferred charge exhibits a noticeably larger amplitude in positive polarity, which is more than twice as high as the negative one. The observed charge asymmetry (Section 3.1) can be attributed to the sinusoidal HV waveform settings specified in Section 2, where the function generator and RF amplifier’s modulation may influence the MD formation dynamics (e.g., different mechanisms of MD formation at positive and negative polarities and/or residual charge deposited on the surface of the seeds and alumina substrate).
The energy dissipated in the reactor gap during the HV burst was calculated using the Q-V plot (or Lissajous figure) method [28] as follows:
E d = U d Q ,
where the surface enclosed by the Q-V plot of one AC wave (U and Q are the applied voltage and transferred charge, respectively) is equal to the dissipated energy during the same period. The characteristic Q-V plot of all four AC waves for a discharge gap of 3 mm is shown in Figure 2b. The sine waves 2–4 are almost perfectly symmetrical (with regard to the polarity switch) and almond-shaped, which is typical of surface DBDs [29,30,31] rather than volume DBDs [26,32,33,34], with an average dissipated energy of 1.27 mJ per wave. However, the Q-V plot corresponding to the first sine exhibits noticeable asymmetry in positive polarity and a resulting increase in the total dissipated energy of roughly 10% (to 1.39 mJ). This indicates that the first discharge event per HV burst is the most intense, and this property is true for all measured conditions.
The aforementioned symmetry and regular shape of the Q-V plots allow us to easily utilize the equivalent circuit approach [35,36,37] to infer further discharge properties from the Q-V plots. In the simplest approach, the equivalent circuit considers the reactor to consist of a dielectric (with effective capacitance Cd) and a gas gap (Cg) connected in parallel, together forming the total reactor capacitance (Ccell). The two distinct slopes on the Q-V plot ( C = d Q d V ) then indicate the two values of effective discharge capacitance: Ccell for the phase without discharge, when the reactor behaves as a pure capacitor, and Cd for the discharge phase, when the air gap becomes conductive and only the dielectric barrier contributes to the capacitance. However, in most cases, this is not a valid assumption, and the slope of the active phase (usually marked ζd) serves as the bottom estimate of Cd [35,38]. Additionally, in all phases, parasitic capacitances, which are basically unavoidable due to the high-voltage connections and cables, together with stray capacitances, influence the capacitances measured by the equivalent circuit method.
Figure 3a,b display Lissajous figures for two electrode distances (3 and 5 mm) and various fillings of the reactor with barley seeds (0, 1, 3, and 5). For an electrode gap of 5 mm, at least one seed must be present for discharge to occur under the applied voltages. For a 3 mm gap, in which the barley seed is in contact (or nearly in contact) with both electrodes, the differences in shape between the Lissajous figures are marginal, with the slope of the discharge phase being independent of seed presence (ζd = 15.2 ± 0.6 pF) and a slope without discharge exhibiting a slight increase with seed presence. As the reactor gap is packed with an increasing number of seeds with a higher dielectric constant than that of air, the reactor capacitance increases accordingly. The dielectric permittivity of seeds generally lies in the range of 2–6, depending on the frequency of the applied voltage and the moisture content in the seeds [39,40,41]. The total capacitance increases by 30% (from 2.28 to 2.99 pF) when the electrode gap is fully filled with seeds (5 seeds) in comparison with that of the empty gap. The seeds also affect the onset of the discharge, as evidenced by the fact that the change in slope to the discharge phase occurs at lower voltages when at least one seed is present. The seeds or any other packing material serve as an artificial inhomogeneity (shortening) in the electrode gap and cause the local intensification of the electric field [42]. Therefore, MDs tend to form predominantly in the seed–electrode gaps and subsequently propagate on the seed surface in the form of a surface ionization wave [43,44]. However, the relatively constant value of the dielectric capacitance ζd for all displayed conditions shows that the discharge eventually covers the same area irrespective of the seed presence because, for sufficiently high voltages or short gas gaps (as in the case of a 3 mm gap), MDs also form beside the packing particles [45]. It should be noted that the equivalent circuit provides only a general description of the reactor and discharge properties, which are averaged over the entire volume, with all local effects (discussed in Section 3.2) presumed here.
When the electrode gap is increased to 5 mm, the seeds are no longer in close contact with the upper electrode. This leads to a change in the behavior of both phases. In the phase without a discharge, the capacitance once again increases with the seed number; however, the change is even less notable than for a shorter electrode gap, as the increase in reactor volume (by 66%) means that the seeds’ dielectric permittivity replaces a smaller ratio of air in relative terms. A more significant change occurs in the discharge phase, which requires a higher voltage than that in the 3 mm gap and does not exhibit a single, distinctive slope but has a rather gradual transition to the “full discharge” phase (when the slope reaches its maximum). The maximal value of ζd also directly depends on the number of seeds in the reactor, unlike the 3 mm gap case, where it was independent. This indicates that the presence of MDs is directly tied to the seeds, with MDs being initiated only in the seed–electrode gap and then spreading around the seed surface; thus, only this area, which directly scales with the number of seeds, contributes to the measured slope of the discharge phase, while the remaining space retains its air capacitance (hence the lower value of the measured ζd). The gradual onset of the discharge and, thus, the continuous change in slope in the Lissajous figures is probably the result of the uneven height of the seeds, leading to the unequal distribution of the first MDs.
Figure 4a,b display the dependence of the discharge power and ozone concentration in the outlet gas on the amplitude of the applied voltage and the number of seeds in the reactor for electrode gaps of 3 and 5 mm, respectively. For a 3 mm gap, the power is independent of the number of seeds and increases almost linearly with the applied voltage. This power independence also shows that, despite the changes in discharge morphology (discussed earlier in Figure 3a,b), the average surface of the Lissajous figure remains approximately constant, only slightly changing in shape. The ozone concentration, however, decreases with the seed content. This is likely a result of the surface interactions of O radicals with the seeds, which inhibit ozone production. The dependence on the applied voltage of the discharge power and the ozone concentration changes in the case of a longer 5 mm gap (Figure 4b), where MDs form only in the seed–electrode gap. Thus, the number of MDs and, therefore, the discharge power are tied to the available seed surface and increase with the number of seeds in the reactor. The ozone concentration also appears to be dependent on the seed content. However, when it is normalized to the discharge power (i.e., recalculated to the yield), it remains roughly constant, meaning that the synthesis of ozone in a 5 mm gap is directly controlled only by the amount of dissipated energy, as the larger reactor volume allows the gas particles to more easily avoid coming into contact with the seed surface. Similar to ozone, the NOx generation is also noticeably weaker in the case of a 5 mm gap, where it does not exceed 3 ppm, while, for a shorter gap (3 mm), the concentration reaches levels as high as 30 ppm [26].

3.2. Four-Channel High-Speed Imaging

The discharge morphology variations across different DBD gaps are a direct consequence of our uniquely designed reactor (Section 2), allowing the precise adjustment of the electrode distance, thereby affecting MD development. Time-resolved images of the discharge luminosity evolution during an AC HV cycle provide crucial information about the discharge morphology. The 4-Picos optics splits the photon flux collected from the DBD gap and provides four equivalent images formed at the splitter output, with each output image sampled by a single ICCD detector [46]. The ICCD detectors capture MD light by integrating the broadband optical emission (determined by the transmittance of the collection and imaging optics and the quantum efficiency of the MCP S20 photocathode) at time intervals defined by adjusting the MCP gate for each of the four ICCDs separately. Here, we used the same MCP gate (5 microseconds) for all ICCDs synchronized in such a way as to cover a 20-microsecond time interval continuously, without any dead time. We then zoomed in on each AC cycle within the burst where MDs occurred and recorded characteristic images for each half-cycle sequentially one after the other.
To find suitable discharge conditions that allowed the better quantification of the plasma dose, we acquired phase-resolved images to reveal the MD morphology in different DBD gaps, ranging from 3 to 6 mm. In the case of the smallest DBD gap, the seeds almost touched the surface of the top-powered DBD electrode, while, in the case of the largest gap, the seed surface was about 3 mm away from the top electrode. The discharge morphology was inspected with a microsecond time resolution for each AC half-cycle within an AC burst. The most important results obtained at a fixed AC HV amplitude are shown in Figure 5, Figure 6, Figure 7 and Figure 8 (t0 = 0 represents the unifying trigger time of the entire setup and corresponds to the start of the HV burst).
Figure 5 shows the MDs in the shortest DBD gap (3 mm) propagating directly between the powered and grounded electrodes. These MDs pass around the seeds at different distances, and the intensity of their interaction with the seed surface is practically impossible to quantify since this MD “shower” is highly unstable in spatiotemporal terms and because individual seeds vary slightly in both shape and size. Seeds treated under such conditions are likely to be relatively homogeneously exposed to UV radiation and discharge products such as ozone or NOx, but exposure to charged particles and the electric field is apparently random. However, with larger DBD gaps, MDs (for a given AC amplitude and frequency) cease to develop directly between the electrode surfaces and start to propagate toward and across the seed surface. This “uncertainty” is due to small individual differences between the three seeds, so that each seed is exposed to its own individual plasma dose. However, all of the energy of the discharge is already directed toward the seeds, as all MDs develop between the powered electrode and the top of the seed and then slide along the seed coat toward the grounded electrode below.
The images shown in Figure 7 (DBD gap 5 mm) reveal that, with a larger gap, MDs develop similarly to the previous case (DBD gap 4 mm), but with a notably higher temporal spread in the onset of MD formation. This spread is well captured in the fourth frame in Figure 7 (t0 + 545 μs), where the seed in the center is hit by two MDs, while the MDs that developed toward the left and right seeds are already extinguished (compare with the first three frames at t0 + 530, t0 + 535, and t0 + 540 μs). With the largest DBD gap (6 mm) captured in Figure 8, each seed is hit by one MD during one AC half-cycle, and, sometimes, even the seed on the right remains without being hit by an MD. The MDs also do not propagate further along the seed surface, as is the case for smaller gaps (Figure 5, Figure 6 and Figure 7); thus, only the top of each seed is directly treated by plasma.
It follows from the above that, for given external discharge parameters (AC amplitude/frequency, duty cycle, and gas flow), we can “tune” the DBD gap so that seeds of a given size and shape (in this case, malting barley) are hit by a defined number of MD filaments. The total number of MDs can then be easily determined from the optical signal obtained from the gap above a given seed. Furthermore, the given MD count number can be linked to the results obtained from the electrical and spectrometric measurements presented in the previous (Section 3.1) and following (Section 3.3) sections, respectively.

3.3. Optical Emission Spectroscopy

Optical emission spectra were monitored around a seed located on the axis of the DBD gap from a region precisely defined by lenses and iris diaphragms pre-set using a red diode laser (see inset of Figure 9). The spectral range between 200 and 500 nm is of primary interest because the emission bands of molecular nitrogen (N2) and nitrogen ions (N2+) allow for the estimation of fundamental plasma parameters [47]. In addition, UV light likely plays an important role in the process of triggering germination and the decontamination of seed surfaces contaminated with various pathogens.
We obtained characteristic UV–vis–NIR spectra by averaging the emissions in the positive and negative half-cycles for all four AC cycles within the burst. The spectral analysis revealing the dominant UV-A exposure leverages the sensitivity of the iHR-320 spectrometer in the UV range, as outlined in our methodology (Section 2), ensuring the accurate measurement of plasma-induced UV emissions. The spectra in the UV range were produced exclusively by two dipole-allowed transitions, the second positive system (SPS) N2 (transition) and the first negative system (FNS) N2+ (transition), while the vis–NIR range (Figure 9) was used to detect one sequence (∆v = +2) of the first positive system (FPS) and the potential atomic emission of neutral oxygen. The oxygen triplet OI(3s 5S0→3p 5P) at 777 nm overlaps with the weak satellite branches of the FPS(2,0) band and is usually the most intense transition of neutral oxygen in the vis–NIR range [47,48].
Its apparent absence in all detected spectra (Figure 9) in a 5 mm gap indicates the limited dissociative excitation of molecular oxygen, which is in contrast to a previous study that reported a shorter 3 mm gap, in which the 777 nm triplet was clearly detectable [26]. This can also further explain the limited synthesis of NOx and O3 noted for larger gaps (Figure 4), for which the oxygen radical is an important precursor [49,50,51].
Both the SPS and FNS are often used to estimate the gas temperature in MD filaments (a crucial parameter in the plasma-assisted processing of heat-sensitive samples such as seeds) by analyzing the at least partially resolved structure of the strongest vibronic bands. Furthermore, the ratio between the intensities of the FNS and SPS bands allows, under certain conditions, for the estimation of the reduced electric field (E/N) characterizing the MD filaments [52,53,54]. The smallest residual between the measured and synthetic spectra was achieved for the rotational temperature of the N2(C) state Trot = 330 ± 20 K (Figure 10) for both voltage polarities (which limits the maximum gas temperature to approximately 360 ± 20 K), indicating the limited heating of the seed surface (and inside the seed) if plasma treatment is applied for a short period of time (see discussion of overtreatment in Section 3.4). The vibrational distribution functions (VDFs) of the N2(C3Πu) and N2+(B2Σ+u) states in the positive/negative half-cycles in Figure 11 reveal marginal differences between both polarities, with only N2+ exhibiting a close-to-FCF-like distribution [55]. However, the ratios between the FNS and SPS band intensities and the reduced electric field E/N (Figure 12) differ significantly, with the E/N in the positive half-cycle being twice that in the negative half-cycle.
After determining the rotational temperatures and vibrational distributions of the N2(C3Πu) and N2+(B2Σ+u) states from the emission registered in the spectral interval of 300–450 nm and verifying that no NO-γ and NO-β bands are detectable in the UV region, we can better analyze the exposure of seeds to whole UV radiation, which is important for seed germination (dormancy breaking) [56,57] but also for the microbiota residing on seeds (e.g., bacteria and fungi) [58,59,60] and possibly for the evolution of germinating seeds and seedlings (not addressed in this work) [61,62,63]. The experimental emission spectra in the range of 300–450 nm were extended using the synthetic SPS and FNS models toward lower and higher wavelengths and subsequently integrated from 200 nm to 500 nm. In Figure 13, we show the dependence of the integral values on the upper limit of the integral for the UV–vis spectra characteristics of both polarities. Note that the curves are normalized for a wavelength of 400 nm in order to easily visualize the UV-A (320–400 nm), B (290–320 nm), and C (200–290 nm) fractions from the total UV load. Under the conditions studied, UV-A exposure evidently dominates, while the UV-C fraction remains below 0.1% (which by no means implies a negligible effect on biological samples). At higher energy densities (not the case in this study), the weight of the UV-C contribution can be significantly increased by the band emission of nitric oxide molecules from the three lowest electronically excited doublet states (A2Σ+, B2Πr, and C2Πr), which are usually produced by the recombination of atomic species. Furthermore, in the case of humid air, the UV-B contribution can, in principle, be enhanced by the OH band emission around 308 nm.
UV exposure is important not only in maintaining seed quality during storage but also for seed germination and vigor [62,64,65]. Therefore, we consider information on seed exposure to individual UV fractions to be of the utmost importance and propose that these data form an integral part of standard protocols describing plasma-assisted seed treatment experiments.

3.4. Advantages and Consequences of Controlled Seed Treatment

To demonstrate the benefits of the controlled treatment proposed and implemented in this work (i.e., quantifying the exposure of isolated barley seed as outlined in the previous sections), we performed a simplified experiment to verify the effect of MDs on seed germination. Barley seeds were treated in batches of three (see Figure 5, Figure 6, Figure 7 and Figure 8) for several exposure times (20, 60, and 180 s) using a DBD gap of 5 mm. The treatment for each exposure time was performed in quadruplicate (12 seeds altogether for each exposure). After the treatment, the four groups (three exposure times + control) were placed separately on four Petri dishes containing water agar medium and observed under a USB microscope for 6 days. The results of the germination test are shown in the microscopic images in Figure 14. The first two columns (untreated controls and seeds after 20 s of exposure) show that the seed viability remained unaffected, i.e., 100% after the shortest treatment. In contrast, seeds treated for 60 and 180 s (third and fourth columns) did not germinate at all. The images clearly demonstrate the existence of a threshold beyond which the seed viability was severely reduced by an overdose of plasma exposure, which was formed by a combination of an electric field, heating, ozone (and other chemically active products), and UV emission. In particular, the seed heating caused by plasma needs to be considered in studying the reduced viability of seeds as different varieties of the same seed species can have vastly different responses to heat stress [66]. While certain barley varieties can withstand elevated temperatures similar to those measured in this study (≈70–80 °C) for a short period with a minimal drop in viability [67], other varieties can exhibit total germination inhibition as a result of the same heat stress [66]. This is very important when considering the plasma-assisted treatment of seeds as a potential pre-sowing priming technique.
Figure 15 illustrates how the treatment affects the surface properties of the seed coat and the part of the seed (micropyle) through which water enters during germination. The two frames in the figure were extracted from a time-lapse video capturing the imbibition process triggered by placing a small drop (volume of approximately 2 μL) of distilled water on two seeds. The first drop was placed on the reference (untreated) sample, and, immediately afterward, another drop was placed on the treated seed (treatment time of 15 s). The top frame (T0) represents the first frame after placing the drop on the treated sample, and the bottom frame shows the situation after ten seconds (T0 + 10 s). While the drop practically did not change in shape or volume in the reference sample, in the treated sample, the drop immediately spread upon impact and, within ten seconds, was completely soaked into the seed coat. This demonstrates a significant change in the wettability of the seed surface. Before the treatment, the surface is hydrophobic (contact angle > 105 degrees), while, after a short treatment, it becomes superhydrophilic (contact angle < 35 degrees). A collateral effect caused by the absorption of a single drop of water is the mechanical stress in the coat layer, which induces expansion in the micropyle/pedicel regions of the seed. This is highlighted by the two zooms on the left, which clearly show the opening of the seed tip (by a factor of 1.5). It is important to note that the micropyle is a narrow pore or passage through which water enters the seed during germination. The expansion of this pore might allow for faster imbibition and, consequently, the faster germination of the seed.

4. Discussion and Conclusions

In this study, we demonstrate that, under well-defined conditions, there is a clear transition (between treatment times of 20 and 40 s) in seed viability after treatment, where germination is not affected at exposures of 20 s or less, whereas, at exposures equal to or greater than 40 s, the treatment has a clearly lethal effect on germinability. We show that, by appropriately combining the DBD gap size with the AC amplitude/frequency with respect to the seed size/shape, it is possible to achieve a discharge regime in which all of the discharge energy is directed to the treated seeds. When working with barley seeds and an AC frequency of 5 kHz (peak-to-peak amplitude slightly above 20 kV), a DBD gap of 4–5 mm appears to be suitable for generating MDs developing exclusively toward the seeds, as shown in particular by diagnostics based on fast phase-resolved imaging and electrical properties inferred from equivalent circuit models. For larger electrode gaps (6 mm), MD formation is not guaranteed (see the rightmost seed in Figure 8) and MDs do not propagate beyond the top of each seed, resulting in a spatially inconsistent plasma treatment. On the other hand, short electrode distances (3 mm) lead to MD formation and the position being almost independent of the seed presence. This then leads to the wasteful and unfocused dissipation of discharge energy out of direct reach of the seeds.
The appropriately chosen conditions can subsequently be used to evaluate other treatment parameters, the most important of which is the total energy deposited by the MDs into an individual seed during the entire exposure time. Furthermore, using phase-resolved optical emission spectroscopy, we can obtain detailed MD characteristics, such as the average gas temperature in MD microfilaments, characteristic UV-A/B/C fractions, and averaged reduced electric field E/N, which are probably the most important factors affecting not only the surface but also the entire volume of seeds, thus determining the viability of treated seeds.
A detailed analysis of the emission spectra obtained from the interaction area of MDs with a single seed can provide other semi-quantitative treatment characteristics, such as the total exposure of the seed to UV–vis–NIR light, the presence of electronically excited neutral atomic N/O species, and eventually ions. The determination of stable species (O3 and NOx) can then complete the treatment picture, which can be correlated with parameters obtained from the subsequent analysis of the seeds during germination and the development of new plantlets.
Lastly, to facilitate easy comparison and reproducibility across plasma treatment experiments reported by different groups, we summarize the basic characteristics of the plasma reactor and seed samples, along with a list of the electrical and plasma parameters characterizing the treatment and post-treatment testing, in Table 1. The structure and content that we introduce in Table 1 follow the proposals for a unified treatment protocol/checklist put forth by Waskow et al. [15].
Work is underway to expand on the post-treatment characteristics through a detailed analysis of the morphological and chemical changes induced by the direct impact of MD filaments on the barley surface.

Author Contributions

Conceptualization, M.Š. and V.P.; methodology, P.H.; software, J.F. and V.P.; validation, J.F.; formal analysis, V.P. and P.H.; investigation, V.P. and P.H.; resources, V.P. and P.H.; data curation, J.F.; writing—original draft preparation, J.F. and M.Š.; writing—review and editing, M.Š.; supervision, M.Š.; project administration, M.Š.; funding acquisition, M.Š. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the Strategy AV21 Project.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The raw data supporting the conclusions of this article will be made available by the authors upon request.

Conflicts of Interest

The authors declare no conflicts of interest.

Abbreviations

The following abbreviations are used in this manuscript:
DBDDielectric barrier discharge
VDBDVolume DBD
MD(s)Microdischarge(s)
ICCDIntensified charge-coupled device
SPSSecond positive system
FNSFirst positive system
VDFVibrational distribution function

References

  1. Knorr, D.; Froehling, A.; Jaeger, H.; Reineke, K.; Schlueter, O.; Schoessler, K. Emerging Technologies in Food Processing. Annu. Rev. Food Sci. Technol. 2011, 2, 203–235. [Google Scholar] [CrossRef] [PubMed]
  2. Niemira, B.A. Cold Plasma Decontamination of Food. Annu. Rev. Food Sci. Technol. 2012, 3, 125–142. [Google Scholar] [CrossRef]
  3. Ito, M.; Oh, J.S.; Ohta, T.; Shiratani, M.; Hori, M. Current Status and Future Prospects of Agricultural Applications Using Atmospheric-Pressure Plasma Technologies. Plasma Process. Polym. 2018, 15, 1700073. [Google Scholar] [CrossRef]
  4. Bourke, P.; Ziuzina, D.; Boehm, D.; Cullen, P.J.; Keener, K. The Potential of Cold Plasma for Safe and Sustainable Food Production. Trends Biotechnol. 2018, 36, 615–626. [Google Scholar] [CrossRef]
  5. Song, J.S.; Kim, S.B.; Ryu, S.; Oh, J.; Kim, D.S. Emerging Plasma Technology That Alleviates Crop Stress During the Early Growth Stages of Plants: A Review. Front. Plant Sci. 2020, 11, 545104. [Google Scholar] [CrossRef]
  6. Attri, P.; Ishikawa, K.; Okumura, T.; Koga, K.; Shiratani, M. Plasma Agriculture from Laboratory to Farm: A Review. Processes 2020, 8, 1002. [Google Scholar] [CrossRef]
  7. Šimek, M.; Homola, T. Plasma-Assisted Agriculture: History, Presence, and Prospects—A Review. Eur. Phys. J. D 2021, 75, 210. [Google Scholar] [CrossRef]
  8. Colonna, G.; Capitelli, M.; Laricchiuta, A. Cold Plasmas: Fundamentals and Applications. Eur. Phys. J. D 2021, 75, 242. [Google Scholar] [CrossRef]
  9. Mildaziene, V.; Ivankov, A.; Sera, B.; Baniulis, D. Biochemical and Physiological Plant Processes Affected by Seed Treatment with Non-Thermal Plasma. Plants 2022, 11, 856. [Google Scholar] [CrossRef]
  10. Bozhanova, V.; Marinova, P.; Videva, M.; Nedjalkova, S.; Benova, E. Effect of Cold Plasma on the Germination and Seedling Growth of Durum Wheat Genotypes. Processes 2024, 12, 544. [Google Scholar] [CrossRef]
  11. Capelli, F.; Laghi, G.; Laurita, R.; Puač, N.; Gherardi, M. Recommendations and Guidelines for the Description of Cold Atmospheric Plasma Devices in Studies of Their Application in Food Processing. Innov. Food Sci. Emerg. Technol. 2024, 97, 103818. [Google Scholar] [CrossRef]
  12. Bilea, F.; Garcia-vaquero, M.; Magureanu, M.; Mihaila, I.; Mozetič, M.; Pawłat, J.; Primc, G.; Puač, N.; Stancampiano, A.; Topala, I.; et al. Non-Thermal Plasma as Environmentally-Friendly Technology for Agriculture: A Review and Roadmap. CRC Crit. Rev. Plant Sci. 2024, 43, 428–486. [Google Scholar] [CrossRef]
  13. Ahmed, N.; Yong, L.X.; Yang, J.H.C.; Siow, K.S. Review of Non-Thermal Plasma Technology and Its Potential Impact on Food Crop Seed Types in Plasma Agriculture. Plasma Chem. Plasma Process. 2024, 45, 421–462. [Google Scholar] [CrossRef]
  14. Veerana, M.; Mumtaz, S.; Rana, J.N.; Javed, R.; Panngom, K.; Ahmed, B.; Akter, K.; Choi, E.H. Recent Advances in Non-Thermal Plasma for Seed Germination, Plant Growth, and Secondary Metabolite Synthesis: A Promising Frontier for Sustainable Agriculture. Plasma Chem. Plasma Process. 2024, 44, 2263–2302. [Google Scholar] [CrossRef]
  15. Waskow, A.; Avino, F.; Howling, A.; Furno, I. Entering the Plasma Agriculture Field: An Attempt to Standardize Protocols for Plasma Treatment of Seeds. Plasma Process. Polym. 2022, 19, 2100152. [Google Scholar] [CrossRef]
  16. Štěpánová, V.; Slavíček, P.; Kelar, J.; Prášil, J.; Smékal, M.; Stupavská, M.; Jurmanová, J.; Černák, M. Atmospheric Pressure Plasma Treatment of Agricultural Seeds of Cucumber (Cucumis sativus L.) and Pepper (Capsicum annuum L.) with Effect on Reduction of Diseases and Germination Improvement. Plasma Process. Polym. 2018, 15, 1700076. [Google Scholar] [CrossRef]
  17. Kettlitz, M.; Höft, H.; Hoder, T.; Weltmann, K.D.; Brandenburg, R. Comparison of Sinusoidal and Pulsed-Operated Dielectric Barrier Discharges in an O2/N2 Mixture at Atmospheric Pressure. Plasma Sources Sci. Technol. 2013, 22, 025003. [Google Scholar] [CrossRef]
  18. Callegari, T.; Bernecker, B.; Boeuf, J.P. Pattern Formation and Dynamics of Plasma Filaments in Dielectric Barrier Discharges. Plasma Sources Sci. Technol. 2014, 23, 054003. [Google Scholar] [CrossRef]
  19. Brandenburg, R. Dielectric Barrier Discharges: Progress on Plasma Sources and on the Understanding of Regimes and Single Filaments. Plasma Sources Sci. Technol. 2018, 27, 079501. [Google Scholar] [CrossRef]
  20. Mrkvičková, M.; Kuthanová, L.; Bílek, P.; Obrusník, A.; Navrátil, Z.; Dvořák, P.; Adamovich, I.; Šimek, M.; Hoder, T. Electric Field in APTD in Nitrogen Determined by EFISH, FNS/SPS Ratio, α-Fitting and Electrical Equivalent Circuit Model. Plasma Sources Sci. Technol. 2023, 32, 065009. [Google Scholar] [CrossRef]
  21. Bílek, P.; Dias, T.C.; Prukner, V.; Hoffer, P.; Guerra, V.; Šimek, M. Streamer-Induced Kinetics of Excited States in Pure N2: I. Propagation Velocity, E/N and Vibrational Distributions of N2(C3Πu) and N2 + (B2Σu+) States. Plasma Sources Sci. Technol. 2023, 32, 105002. [Google Scholar] [CrossRef]
  22. Fujera, J.; Homola, T.; Jirásek, V.; Ondráček, J.; Tarabová, B.; Prukner, V.; Šimek, M. Aerosol-Based Multihollow Surface DBD: A Promising Approach for Nitrogen Fixation. Plasma Sources Sci. Technol. 2024, 33, 075002. [Google Scholar] [CrossRef]
  23. Feizollahi, E.; Iqdiam, B.; Vasanthan, T.; Thilakarathna, M.S.; Roopesh, M.S. Effects of Atmospheric-Pressure Cold Plasma Treatment on Deoxynivalenol Degradation, Quality Parameters, and Germination of Barley Grains. Appl. Sci. 2020, 10, 3530. [Google Scholar] [CrossRef]
  24. Lim, J.S.; Kim, D.; Ki, S.; Mumtaz, S.; Shaik, A.M.; Han, I.; Hong, Y.J.; Park, G.; Choi, E.H. Characteristics of a Rollable Dielectric Barrier Discharge Plasma and Its Effects on Spinach-Seed Germination. Int. J. Mol. Sci. 2023, 24, 4638. [Google Scholar] [CrossRef] [PubMed]
  25. Kuzminova, A.; Kretková, T.; Kylián, O.; Hanuš, J.; Khalakhan, I.; Prukner, V.; Doležalová, E.; Šimek, M.; Biederman, H. Etching of Polymers, Proteins and Bacterial Spores by Atmospheric Pressure DBD Plasma in Air. J. Phys. D Appl. Phys. 2017, 50, 135201. [Google Scholar] [CrossRef]
  26. Homola, T.; Prukner, V.; Artemenko, A.; Hanuš, J.; Kylián, O.; Šimek, M. Direct Treatment of Pepper (Capsicum annuum L.) and Melon (Cucumis Melo) Seeds by Amplitude-Modulated Dielectric Barrier Discharge in Air. J. Appl. Phys. 2021, 129, 193303. [Google Scholar] [CrossRef]
  27. Kalachova, T.; Jindrǐchová, B.; Pospíchalová, R.; Fujera, J.; Artemenko, A.; Jančík, J.; Antonova, A.; Kylián, O.; Prukner, V.; Burketová, L.; et al. Plasma Treatment Modifies Element Distribution in Seed Coating and Affects Further Germination and Plant Growth through Interaction with Soil Microbiome. J. Agric. Food Chem. 2024, 72, 5609–5624. [Google Scholar] [CrossRef]
  28. Manley, T.C. The Electric Characteristics of the Ozonator Discharge. Trans. Electrochem. Soc. 1943, 84, 83. [Google Scholar] [CrossRef]
  29. Kriegseis, J.; Möller, B.; Grundmann, S.; Tropea, C. Light Emission, Discharge Capacitance and Thrust Production of DBD Plasma Actuators. In Proceedings of the 49th AIAA Aerospace Sciences Meeting Including the New Horizons Forum and Aerospace Exposition, Orlando, FL, USA, 4–7 January 2011; American Institute of Aeronautics and Astronautics: Reston, VA, USA, 2011. [Google Scholar]
  30. Jiang, H.; Shao, T.; Zhang, C.; Li, W.; Yan, P.; Che, X.; Schamiloglu, E. Experimental Study of Q-V Lissajous Figures in Nanosecond-Pulse Surface Discharges. IEEE Trans. Dielectr. Electr. Insul. 2013, 20, 1101–1111. [Google Scholar] [CrossRef]
  31. Wang, C.; Zhang, G.; Wang, X.; He, X. The Effect of Air Plasma on Barrier Dielectric Surface in Dielectric Barrier Discharge. Appl. Surf. Sci. 2010, 257, 1698–1702. [Google Scholar] [CrossRef]
  32. Jodzis, S.; Patkowski, W. Kinetic and Energetic Analysis of the Ozone Synthesis Process in Oxygen-Fed DBD Reactor. Effect of Power Density, Gap Volume and Residence Time. Ozone Sci. Eng. 2016, 38, 86–99. [Google Scholar] [CrossRef]
  33. Li, M.; Yan, Y.; Zhang, L.; Zhou, Z.; Zheng, L.; Zhu, B.; Wang, L.; Li, T.; Tang, X.; Zhu, Y. Promoting Ozone Synthesis from Oxygen by a High Performance Volume-Surface Hybrid Discharge. Appl. Phys. Lett. 2019, 114, 114102. [Google Scholar] [CrossRef]
  34. Wagner, H.-E.; Brandenburg, R.; Kozlov, K.V.; Sonnenfeld, A.; Michel, P.; Behnke, J.F. The Barrier Discharge: Basic Properties and Applications to Surface Treatment. Vacuum 2003, 71, 417–436. [Google Scholar] [CrossRef]
  35. Pipa, A.V.; Brandenburg, R. The Equivalent Circuit Approach for the Electrical Diagnostics of Dielectric Barrier Discharges: The Classical Theory and Recent Developments. Atoms 2019, 7, 14. [Google Scholar] [CrossRef]
  36. Pipa, A.V.; Koskulics, J.; Brandenburg, R.; Hoder, T. The Simplest Equivalent Circuit of a Pulsed Dielectric Barrier Discharge and the Determination of the Gas Gap Charge Transfer. Rev. Sci. Instrum. 2012, 83, 115112. [Google Scholar] [CrossRef]
  37. Pipa, A.V.; Hoder, T.; Koskulics, J.; Schmidt, M.; Brandenburg, R. Experimental Determination of Dielectric Barrier Discharge Capacitance. Rev. Sci. Instrum. 2012, 83, 075111. [Google Scholar] [CrossRef]
  38. Rad, R.H.; Brüser, V.; Brandenburg, R. Electrical Characterization and Imaging of Discharge Morphology in a Small-Scale Packed Bed Dielectric Barrier Discharge. Plasma Sources Sci. Technol. 2024, 33, 025027. [Google Scholar] [CrossRef]
  39. Trabelsi, S.; Nelson, S.O. Unified Microwave Moisture Sensing Technique for Grain and Seed. Meas. Sci. Technol. 2007, 18, 997–1003. [Google Scholar] [CrossRef]
  40. Sacilik, K.; Colak, A. Determination of Dielectric Properties of Corn Seeds from 1 to 100 MHz. Powder Technol. 2010, 203, 365–370. [Google Scholar] [CrossRef]
  41. Nelson, S.O.; Trabelsi, S. Models for the Microwave Dielectric Properties of Grain and Seed. Trans. ASABE 2011, 54, 549–553. [Google Scholar] [CrossRef]
  42. Stutz, A.M.; Tobin, J.J.; Stanke, T.; Engeling, K.W.; Kruszelnicki, J.; Kushner, M.J.; Foster, J.E. Time-Resolved Evolution of Micro-Discharges, Surface Ionization Waves and Plasma Propagation in a Two-Dimensional Packed Bed Reactor. Plasma Sources Sci. Technol. 2018, 27, 085002. [Google Scholar] [CrossRef]
  43. Butterworth, T.; Allen, R.W.K. Plasma-Catalyst Interaction Studied in a Single Pellet DBD Reactor: Dielectric Constant Effect on Plasma Dynamics. Plasma Sources Sci. Technol. 2017, 26, 065008. [Google Scholar] [CrossRef]
  44. Cheng, H.; Li, Y.; Zheng, K.; Liu, D.; Lu, X. Numerical Analysis of Nitrogen Fixation by Nanosecond Pulse Plasma. J. Phys. D Appl. Phys. 2021, 54, 184003. [Google Scholar] [CrossRef]
  45. Kim, H.-H.; Teramoto, Y.; Ogata, A. Time-Resolved Imaging of Positive Pulsed Corona-Induced Surface Streamers on TiO2 and γ-Al2O3-Supported Ag Catalysts. J. Phys. D Appl. Phys. 2016, 49, 459501. [Google Scholar] [CrossRef]
  46. Prukner, V.; Schmidt, J.; Hoffer, P.; Šimek, M. Demonstration of Dynamics of Nanosecond Discharge in Liquid Water Using Four-Channel Time-Resolved ICCD Microscopy. Plasma 2021, 4, 183–200. [Google Scholar] [CrossRef]
  47. Šimek, M. Optical Diagnostics of Streamer Discharges in Atmospheric Gases. J. Phys. D Appl. Phys. 2014, 47, 463001. [Google Scholar] [CrossRef]
  48. Vassallo, E.; Cremona, A.; Ghezzi, F.; Ricci, D. Characterization by Optical Emission Spectroscopy of an Oxygen Plasma Used for Improving PET Wettability. Vacuum 2010, 84, 902–906. [Google Scholar] [CrossRef]
  49. Shimizu, T.; Sakiyama, Y.; Graves, D.B.; Zimmermann, J.L.; Morfill, G.E. The Dynamics of Ozone Generation and Mode Transition in Air Surface Micro-Discharge Plasma at Atmospheric Pressure. New J. Phys. 2012, 14, 103028. [Google Scholar] [CrossRef]
  50. Nakagawa, Y.; Kawakita, T.; Uchida, S.; Tochikubo, F. Simultaneous Measurement of Local Densities of Atomic Oxygen and Ozone in Pure Oxygen Pulsed Barrier Discharge under Atmospheric Pressure. J. Phys. D Appl. Phys. 2020, 53, 135201. [Google Scholar] [CrossRef]
  51. Baldus, S.; Schröder, D.; Bibinov, N.; Schulz-Von Der Gathen, V.; Awakowicz, P. Atomic Oxygen Dynamics in an Air Dielectric Barrier Discharge: A Combined Diagnostic and Modeling Approach. J. Phys. D Appl. Phys. 2015, 48, 275203. [Google Scholar] [CrossRef]
  52. Obrusnik, A.; Bilek, P.; Hoder, T.; Šimek, M.; Bonaventura, Z. Electric Field Determination in Air Plasmas from Intensity Ratio of Nitrogen Spectral Bands: I. Sensitivity Analysis and Uncertainty Quantification of Dominant Processes. Plasma Sources Sci. Technol. 2018, 27, 085013. [Google Scholar] [CrossRef]
  53. Bílek, P.; Obrusník, A.; Hoder, T.; Šimek, M.; Bonaventura, Z. Electric Field Determination in Air Plasmas from Intensity Ratio of Nitrogen Spectral Bands: II. Reduction of the Uncertainty and State-of-the-Art Model. Plasma Sources Sci. Technol. 2018, 27, 085012. [Google Scholar] [CrossRef]
  54. Bílek, P.; Šimek, M.; Bonaventura, Z. Electric Field Determination from Intensity Ratio of N2+ and N2 Bands: Nonequilibrium Transient Discharges in Pure Nitrogen. Plasma Sources Sci. Technol. 2019, 28, 115011. [Google Scholar] [CrossRef]
  55. Gilmore, F.R.; Laher, R.R.; Espy, P.J. Franck–Condon Factors, R-Centroids, Electronic Transition Moments, and Einstein Coefficients for Many Nitrogen and Oxygen Band Systems. J. Phys. Chem. Ref. Data 1992, 21, 1005–1107. [Google Scholar] [CrossRef]
  56. Ayesha, S.; Abideen, Z.; Haider, G.; Zulfiqar, F.; El-Keblawy, A.; Rasheed, A.; Siddique, K.H.M.; Khan, M.B.; Radicetti, E. Enhancing Sustainable Plant Production and Food Security: Understanding the Mechanisms and Impacts of Electromagnetic Fields. Plant Stress. 2023, 9, 100198. [Google Scholar] [CrossRef]
  57. Yang, L.; Liu, S.; Lin, R. The Role of Light in Regulating Seed Dormancy and Germination. J. Integr. Plant Biol. 2020, 62, 1310–1326. [Google Scholar] [CrossRef]
  58. Vanhaelewyn, L.; Van Der Straeten, D.; De Coninck, B.; Vandenbussche, F. Ultraviolet Radiation From a Plant Perspective: The Plant-Microorganism Context. Front. Plant Sci. 2020, 11, 597642. [Google Scholar] [CrossRef]
  59. Aarrouf, J.; Urban, L. Flashes of UV-C Light: An Innovative Method for Stimulating Plant Defences. PLoS ONE 2020, 15, e0235918. [Google Scholar] [CrossRef]
  60. Meyer, P.; Van de Poel, B.; De Coninck, B. UV-B Light and Its Application Potential to Reduce Disease and Pest Incidence in Crops. Hortic. Res. 2021, 8, 194. [Google Scholar] [CrossRef]
  61. Noble, R.E. Effects of UV-Irradiation on Seed Germination. Sci. Total Environ. 2002, 299, 173–176. [Google Scholar] [CrossRef]
  62. Pournavab, R.F.; Mejía, E.B.; Mendoza, A.B.; Salas Cruz, L.R.; Heya, M.N. Ultraviolet Radiation Effect on Seed Germination and Seedling Growth of Common Species from Northeastern Mexico. Agronomy 2019, 9, 269. [Google Scholar] [CrossRef]
  63. Hohm, T.; Preuten, T.; Fankhauser, C. Phototropism: Translating Light into Directional Growth. Am. J. Bot. 2013, 100, 47–59. [Google Scholar] [CrossRef] [PubMed]
  64. Sadeghianfar, P.; Nazari, M.; Backes, G. Exposure to Ultraviolet (UV-C) Radiation Increases Germination Rate of Maize (Zea maize L.) and Sugar Beet (Beta vulgaris) Seeds. Plants 2019, 8, 49. [Google Scholar] [CrossRef] [PubMed]
  65. Kamel, R.M.; El-kholy, M.M.; Tolba, N.M.; Amer, A.; Eltarawy, A.M.; Ali, L.M. Influence of Germicidal Ultraviolet Radiation UV-C on the Quality of Apiaceae Spices Seeds. Chem. Biol. Technol. Agric. 2022, 9, 89. [Google Scholar] [CrossRef]
  66. Møller, B.; Munck, L. Seed Vigour In Relation To Heat Sensitivity And Heat Resistance In Barley Evaluated By Multivariate Data Analysis. J. Inst. Brew. 2002, 108, 286–293. [Google Scholar] [CrossRef]
  67. Couture, L.; Sutton, J.C. Effect of dry heat treatments on survival of seed borne Bipolaris sorokiniana and germination of barley seeds. Can. Plant Dis. Surv. 1980, 60, 59–61. [Google Scholar]

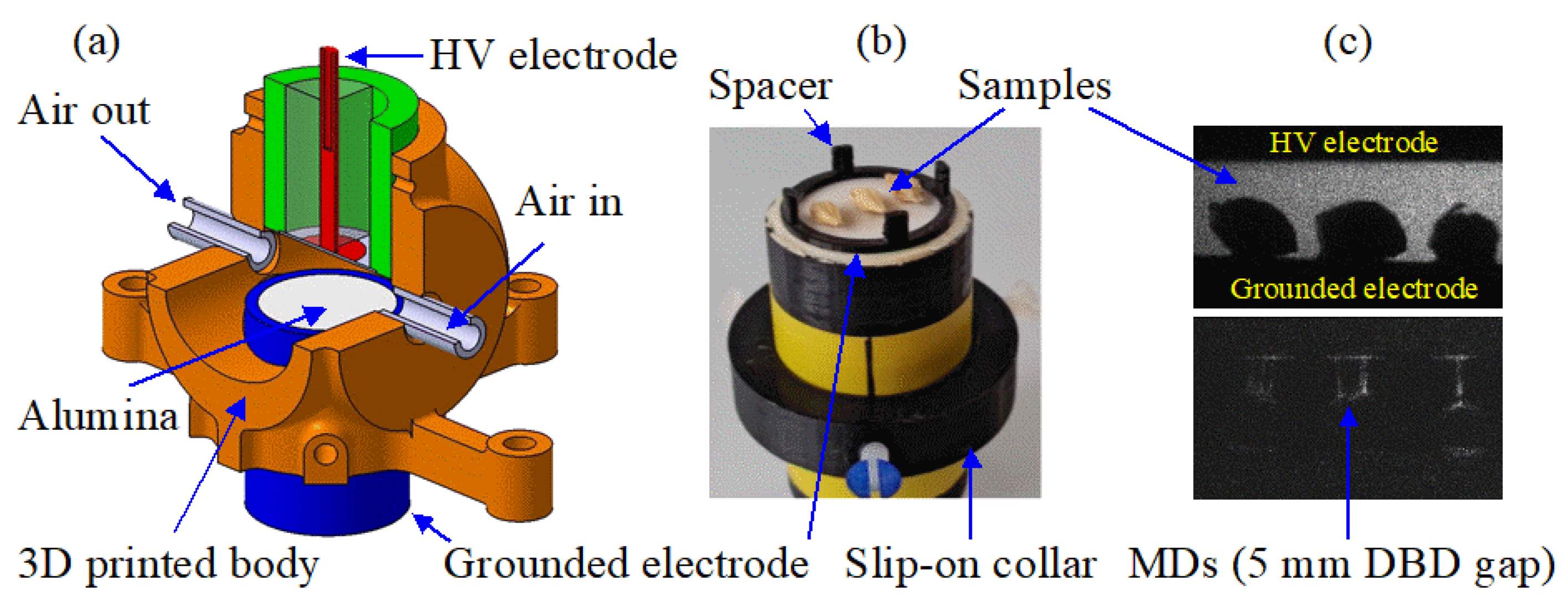

Figure 1. Experimental setup: (a) a simplified sketch of the 3D-printed volume DBD reactor used for sample treatment; (b) a photograph of the sample holder with Hordeum vulgare seeds and a DBD gap spacer; and (c) photographs of the DBD gap with seeds.
Figure 1. Experimental setup: (a) a simplified sketch of the 3D-printed volume DBD reactor used for sample treatment; (b) a photograph of the sample holder with Hordeum vulgare seeds and a DBD gap spacer; and (c) photographs of the DBD gap with seeds.
Plasma 08 00011 g001

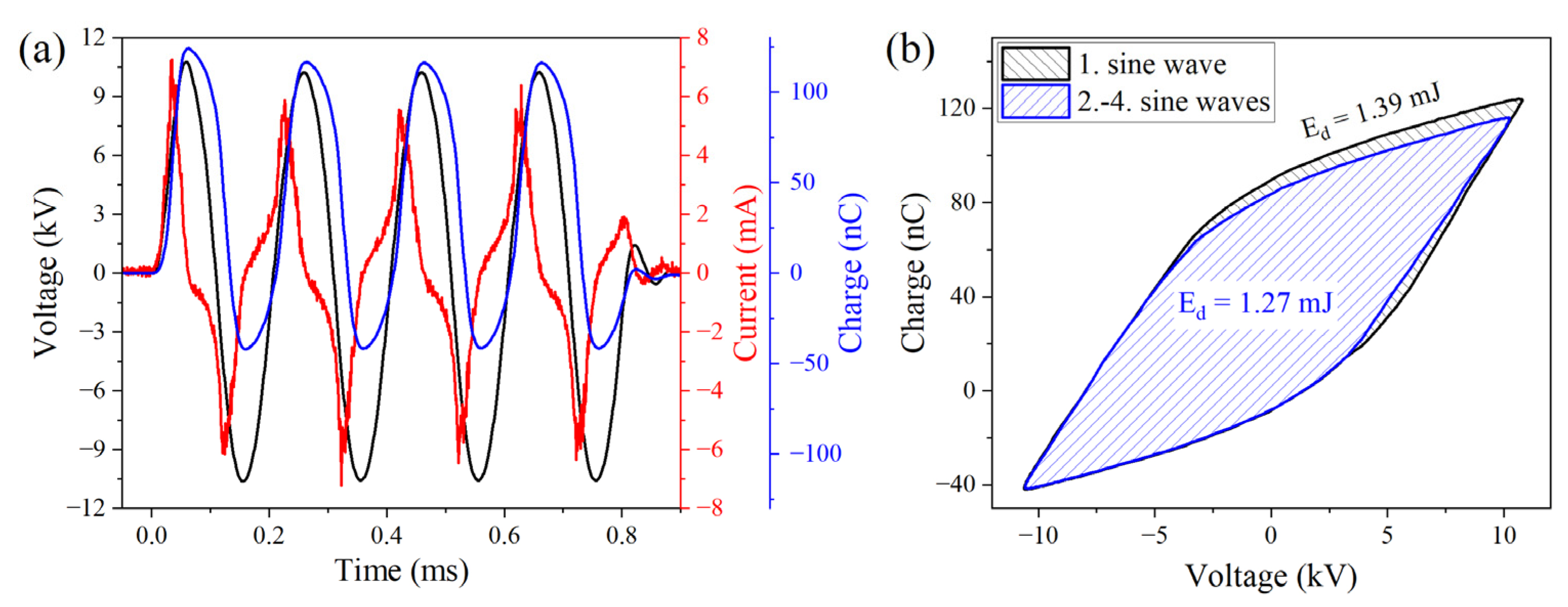

Figure 2. Basic electrical characteristics: (a) characteristic time evolution of the applied voltage, current, and charge during one HV burst and (b) corresponding Lissajous Q-V plots illustrating the difference in shape and total surface (i.e., deposited energy) between the first and subsequent sine waves.
Figure 2. Basic electrical characteristics: (a) characteristic time evolution of the applied voltage, current, and charge during one HV burst and (b) corresponding Lissajous Q-V plots illustrating the difference in shape and total surface (i.e., deposited energy) between the first and subsequent sine waves.
Plasma 08 00011 g002

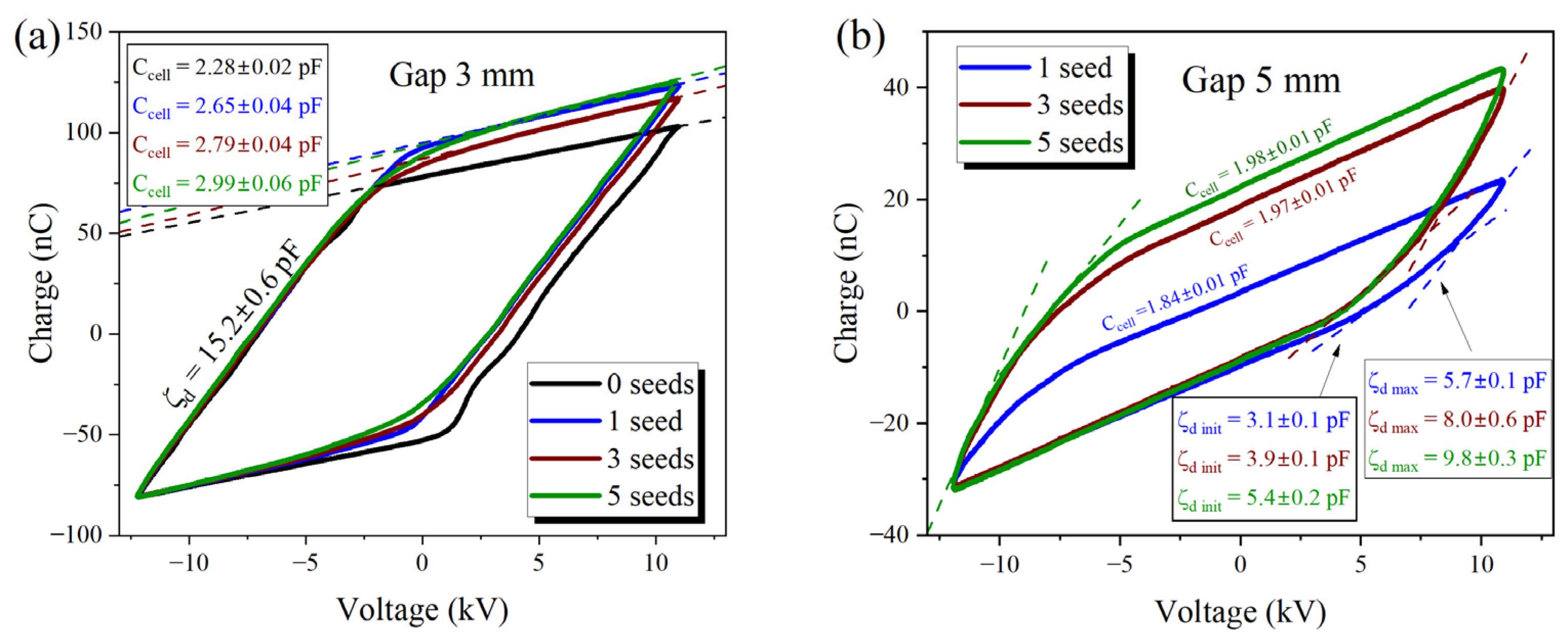

Figure 3. Examples of Lissajous Q-V plots with/without seeds inserted in the interelectrode DBD gap for (a) a gap of 3 mm and (b) a gap of 5 mm.
Figure 3. Examples of Lissajous Q-V plots with/without seeds inserted in the interelectrode DBD gap for (a) a gap of 3 mm and (b) a gap of 5 mm.
Plasma 08 00011 g003

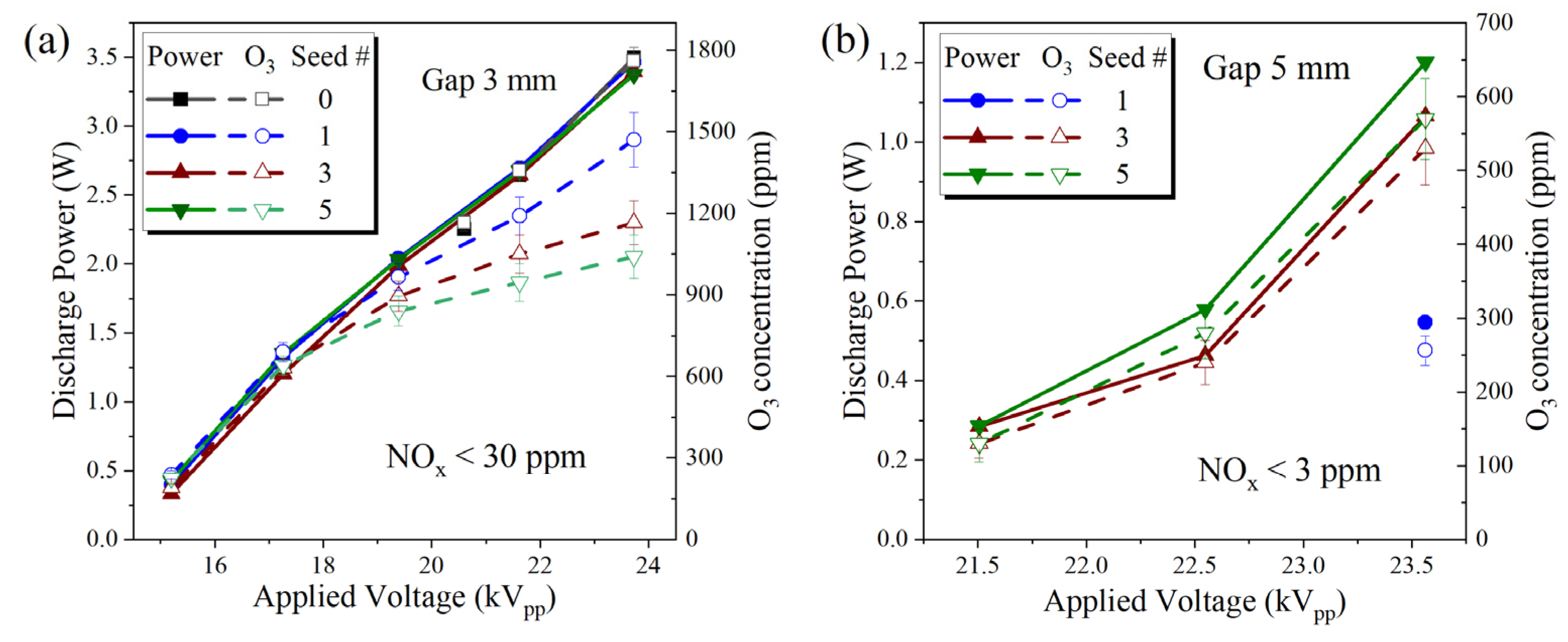

Figure 4. Discharge power determined from Q-V plots and ozone concentrations sampled at the reactor outlet with/without seeds for (a) a gap of 3 mm and (b) a gap of 5 mm.
Figure 4. Discharge power determined from Q-V plots and ozone concentrations sampled at the reactor outlet with/without seeds for (a) a gap of 3 mm and (b) a gap of 5 mm.
Plasma 08 00011 g004
Figure 5. Image sequence captured during the third AC cycle (negative phase) with a gate of 5 microseconds. The DBD was triggered in the 3 mm gap. t0 corresponds to the beginning of the HV burst.
Figure 5. Image sequence captured during the third AC cycle (negative phase) with a gate of 5 microseconds. The DBD was triggered in the 3 mm gap. t0 corresponds to the beginning of the HV burst.
Plasma 08 00011 g005

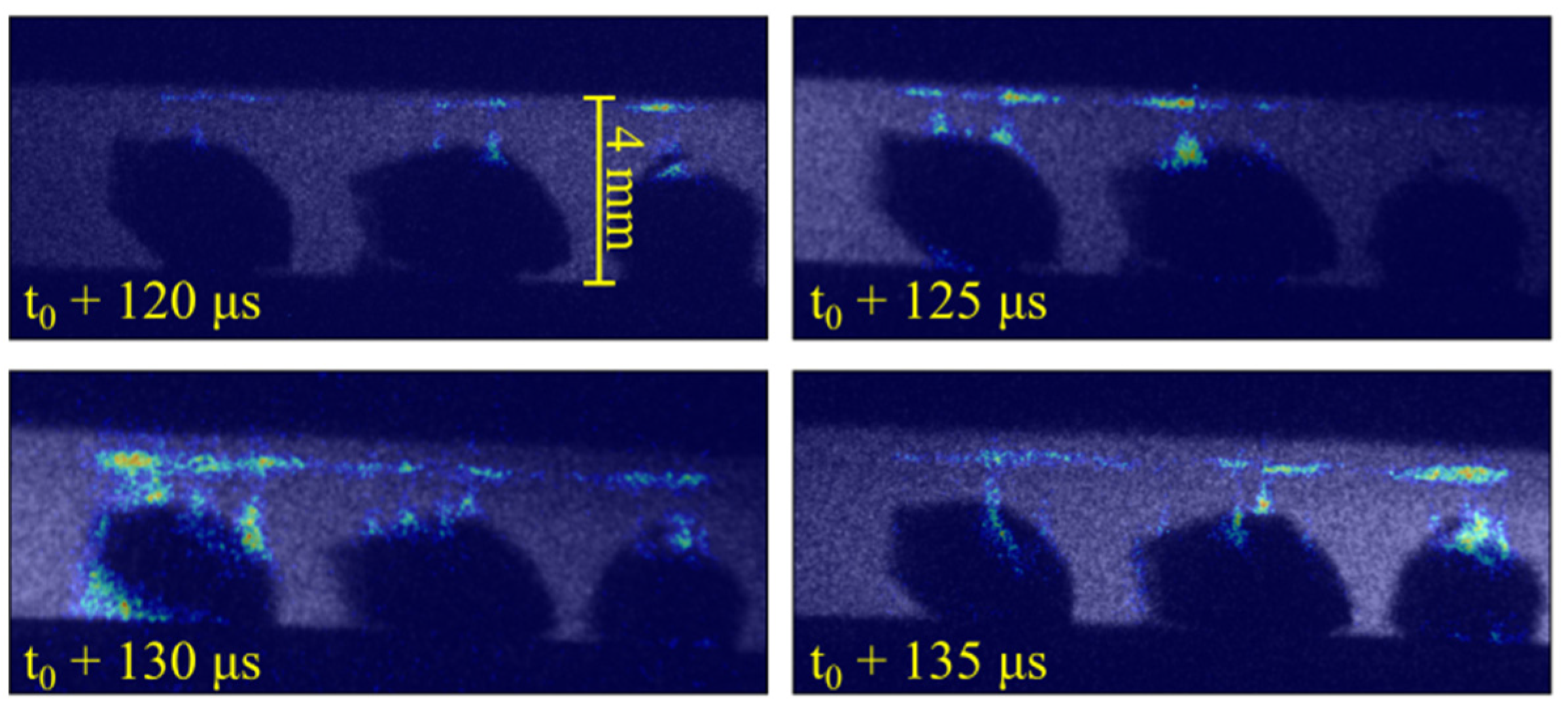

Figure 6. Image sequence captured during the first AC cycle (negative phase) with a gate of 5 µs. The DBD was triggered in the 4 mm gap. t0 corresponds to the beginning of the HV burst.
Figure 6. Image sequence captured during the first AC cycle (negative phase) with a gate of 5 µs. The DBD was triggered in the 4 mm gap. t0 corresponds to the beginning of the HV burst.
Plasma 08 00011 g006
Figure 7. Image sequence captured during the third AC cycle (negative phase) with a gate of 5 microseconds. The DBD was triggered in the 5 mm gap. t0 corresponds to the beginning of the HV burst.
Figure 7. Image sequence captured during the third AC cycle (negative phase) with a gate of 5 microseconds. The DBD was triggered in the 5 mm gap. t0 corresponds to the beginning of the HV burst.
Plasma 08 00011 g007

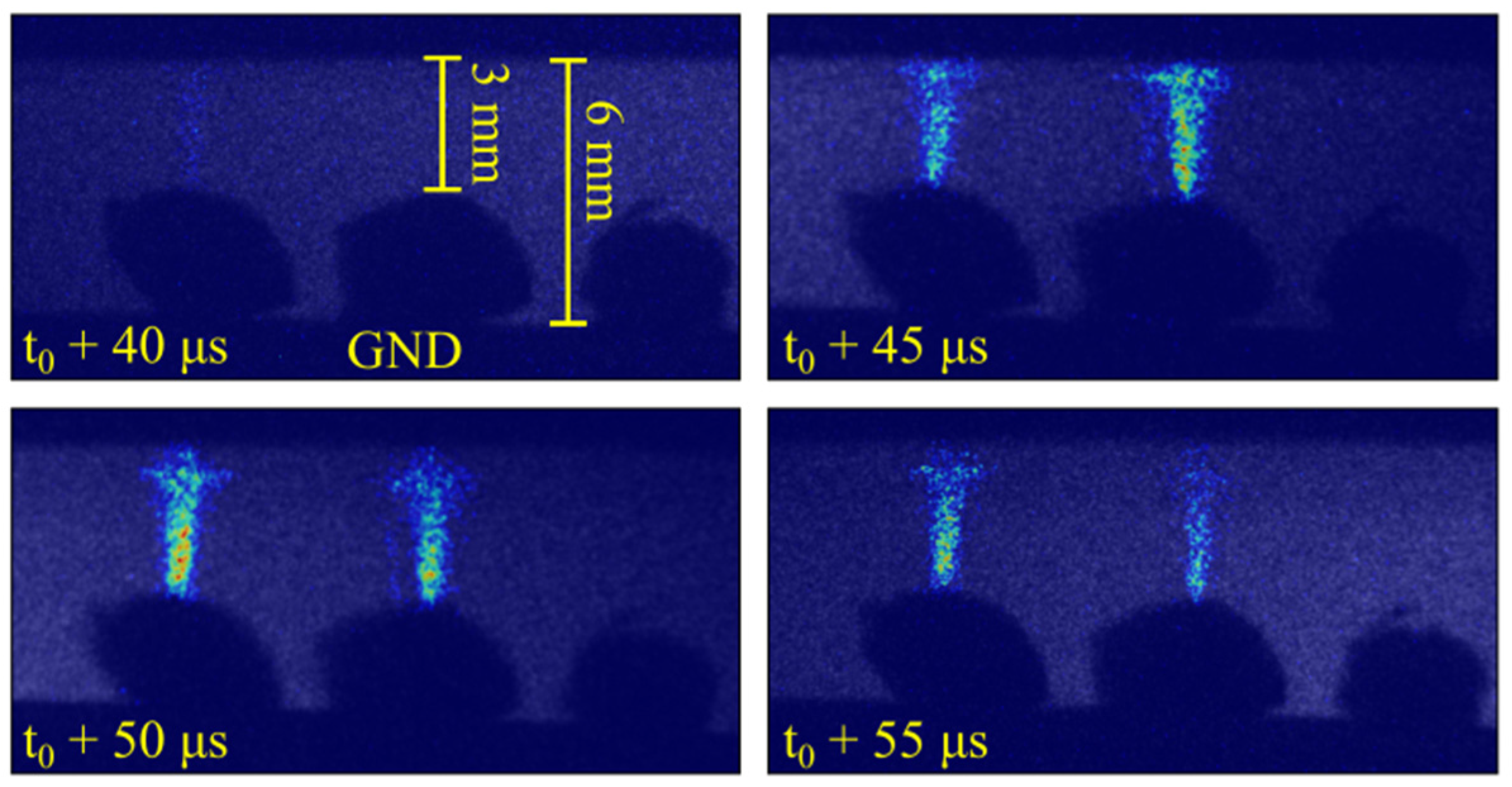

Figure 8. Image sequence captured during the first AC cycle (negative phase) with a gate of 5 µs. The DBD was triggered in the 6 mm gap. t0 corresponds to the beginning of the HV burst.
Figure 8. Image sequence captured during the first AC cycle (negative phase) with a gate of 5 µs. The DBD was triggered in the 6 mm gap. t0 corresponds to the beginning of the HV burst.
Plasma 08 00011 g008

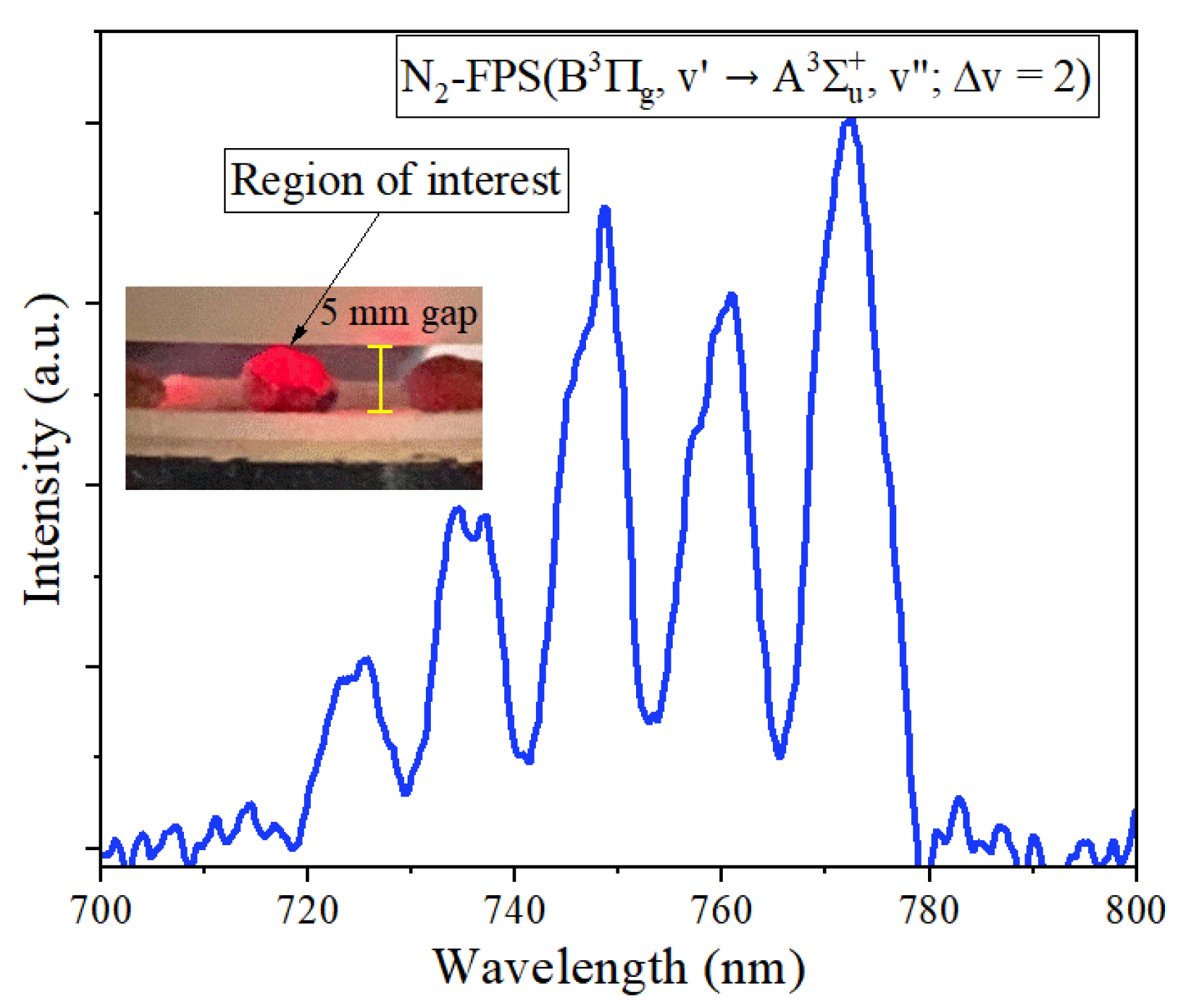

Figure 9. The vis–NIR spectral region with the first positive system (FPS) emission. The inset figure and red laser spot on the seed in the center indicate the region of interest for the collection and analysis of plasma-induced emissions.
Figure 9. The vis–NIR spectral region with the first positive system (FPS) emission. The inset figure and red laser spot on the seed in the center indicate the region of interest for the collection and analysis of plasma-induced emissions.
Plasma 08 00011 g009
Figure 10. The UV emission spectra from the SPS ∆v = −3, −4 and FNS ∆v = 0, −1 sequences averaged over (a) positive and (b) negative half-cycles compared to the synthetic emission spectra (blue traces) with SPS rotational temperature Tr = 330 ± 20 K.
Figure 10. The UV emission spectra from the SPS ∆v = −3, −4 and FNS ∆v = 0, −1 sequences averaged over (a) positive and (b) negative half-cycles compared to the synthetic emission spectra (blue traces) with SPS rotational temperature Tr = 330 ± 20 K.
Plasma 08 00011 g010

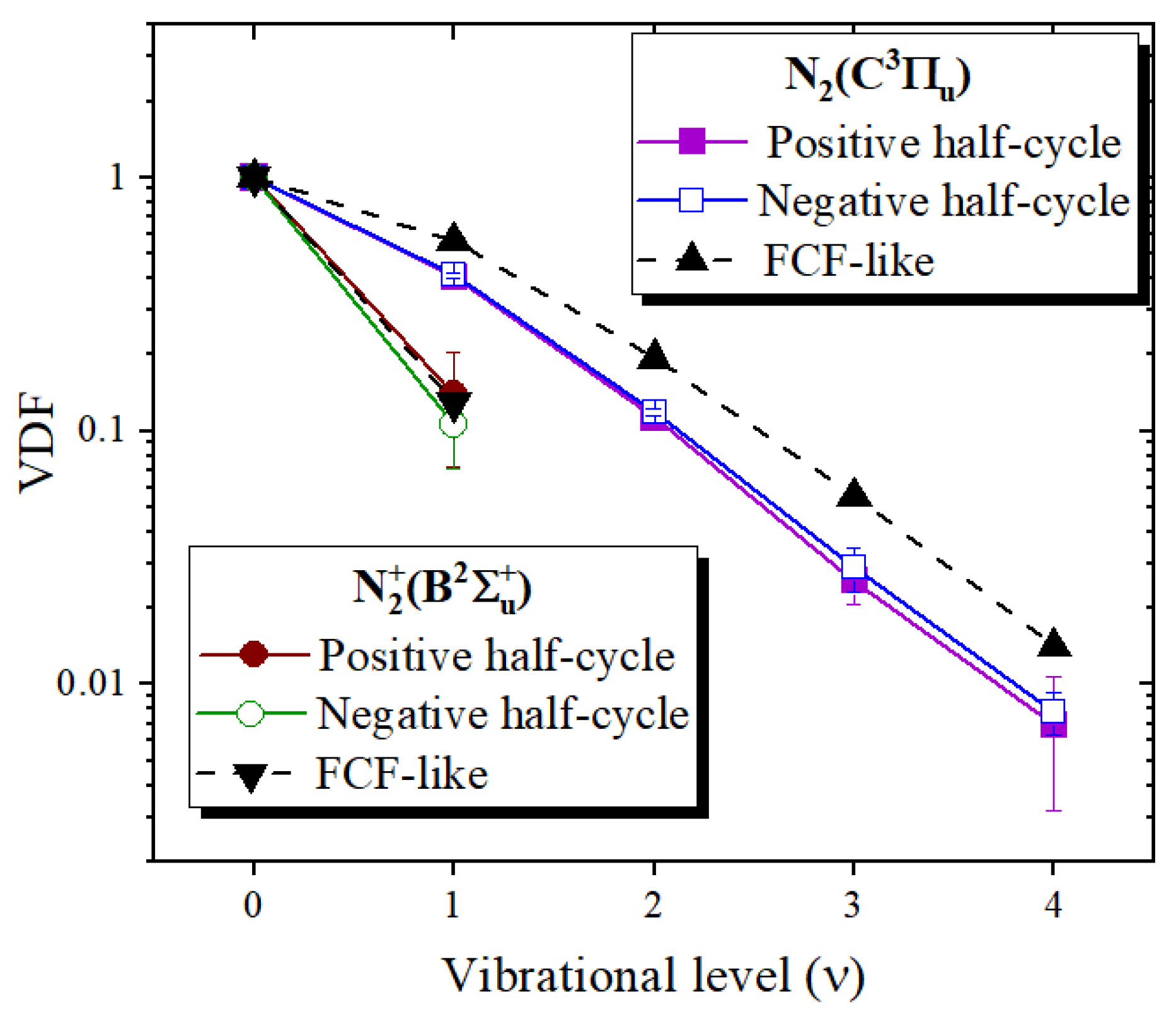

Figure 11. The average VDFs of the N2(C3Πu) and N2+(B2Σ+u) states in the positive/negative half-cycles obtained from the SPS and FNS emissions in Figure 9.
Figure 11. The average VDFs of the N2(C3Πu) and N2+(B2Σ+u) states in the positive/negative half-cycles obtained from the SPS and FNS emissions in Figure 9.
Plasma 08 00011 g011
Figure 12. The intensity ratios of the FNS(0,0) band and SPS(0,3), (1,4), and (2,5) bands averaged over half-cycles with the calculated E/N. Odd half-waves have positive polarity and even half-waves have negative polarity.
Figure 12. The intensity ratios of the FNS(0,0) band and SPS(0,3), (1,4), and (2,5) bands averaged over half-cycles with the calculated E/N. Odd half-waves have positive polarity and even half-waves have negative polarity.
Plasma 08 00011 g012

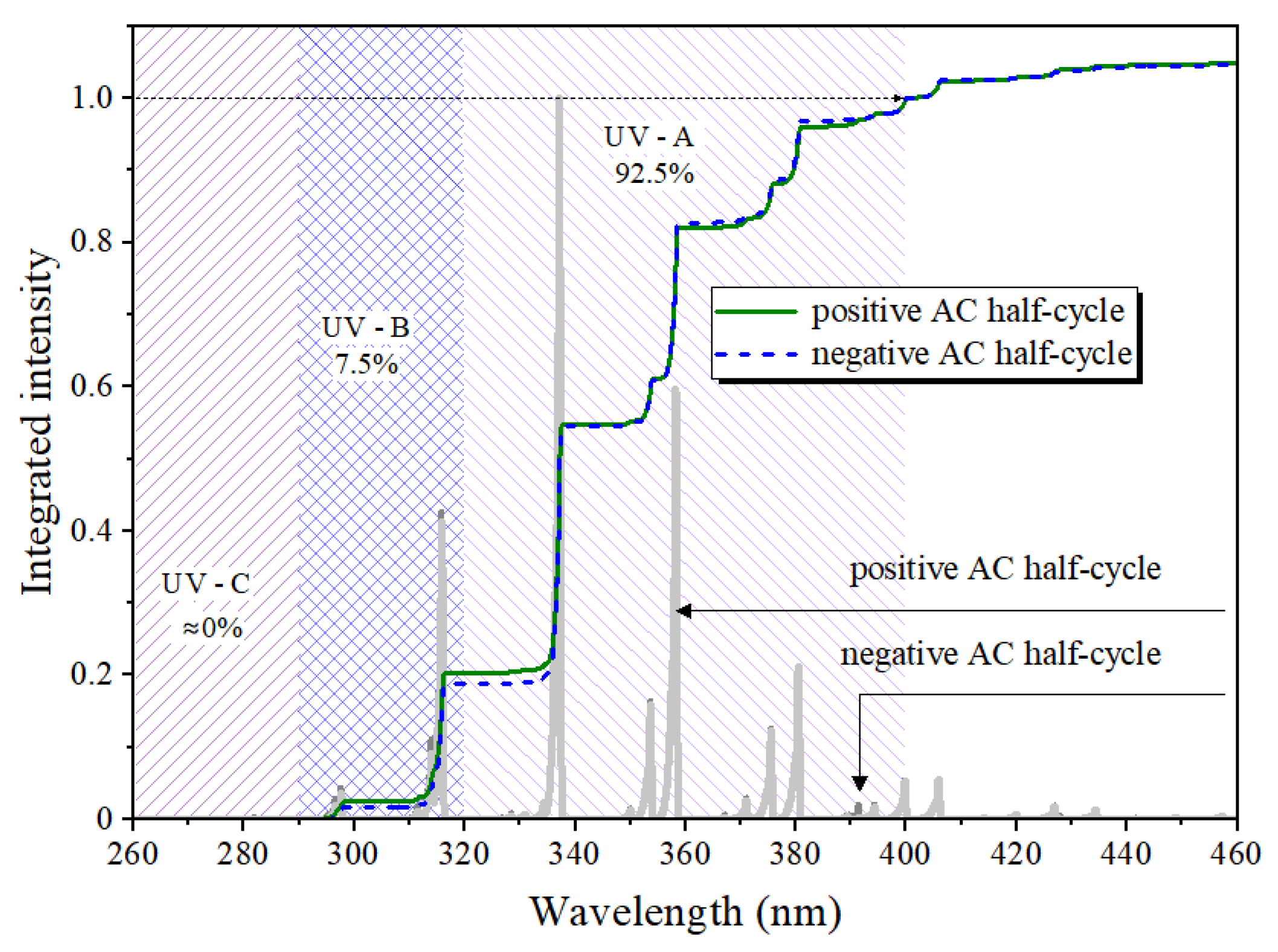

Figure 13. The extension of the SPS and FNS based on the measured emissions in the highlighted areas belonging to UV-C, B, and A, respectively, as well as their corresponding integrated intensity ratios.
Figure 13. The extension of the SPS and FNS based on the measured emissions in the highlighted areas belonging to UV-C, B, and A, respectively, as well as their corresponding integrated intensity ratios.
Plasma 08 00011 g013
Figure 14. The germinability test of treated barley seeds 48 h, 72 h, and 6 days after treatment compared to untreated seeds.
Figure 14. The germinability test of treated barley seeds 48 h, 72 h, and 6 days after treatment compared to untreated seeds.
Plasma 08 00011 g014

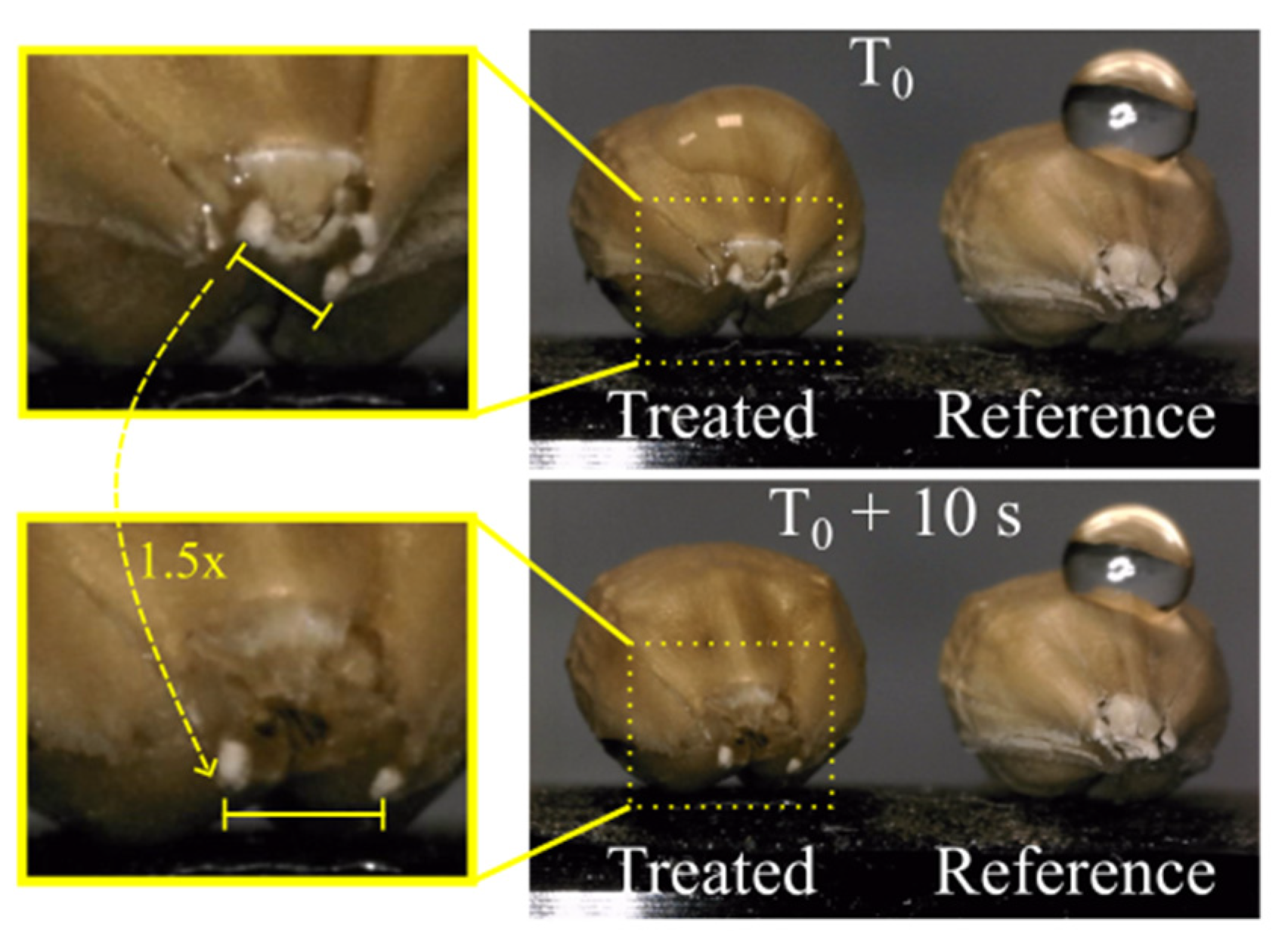

Figure 15. Microscopic images of reference/treated barley seeds captured during wettability tests. T0 is the moment of water droplet impact.
Figure 15. Microscopic images of reference/treated barley seeds captured during wettability tests. T0 is the moment of water droplet impact.
Plasma 08 00011 g015
Table 1. Specifications of used plasma device and seed type.
Table 1. Specifications of used plasma device and seed type.
Plasma Reactor Characteristics and Treated Samples
Discharge configurationVolume DBD in parallel plane geometry, symmetric electrodes
Electrode materialsAlumina dielectric plates Ø = 25.4 mm, d = 0.5 mm
Embedded silver powered/grounded electrodes Ø = 21 mm, d = 0.05 mm
Discharge gapVariable: 3/4/5/6 mm
Discharge powerPeriodic AC (5 kHz) bursts at 500 Hz repetition frequency,
HV amplitude 21 kV (peak-to-peak)
Working gasSynthetic air (scientific, Messer), 1 slm at 20 °C and 760 Torr
Treated samplesSpring barley (Hordeum vulgare L., cv. Malz, country of origin: Czech Republic),
0/1/3/5 seeds freely placed on the grounded side
Sample preparationNo soaking or sterilization (base moisture content 11.5%)
Treatment approachDirect (filamentary microdischarges directly impacting seeds)
Treatment timettr = 0, 20, 40, and 180 s at a discharge duty cycle of 0.4
Discharge and Treatment Characteristics (gap 5 mm)
Average discharge power0.28 ± 0.03 W
Exposure energy per seed1.9 (ttr = 20 s), 5.6 (ttr = 40 s), and 16.8 (ttr = 180 s) [J/seed]
Number of MDs per seed16 ± 3 (ttr = 20 s), 32 ± 5 (ttr = 40 s), and 48 ± 8 (ttr = 180 s) [104 NMD/seed]
Average energy per MD35 ± 7 [μJ]
Exposure to temperature≤360 ± 20 K (estimation based on the time-averaged rotational temperature of the N2(C3Πu) state)
Exposure to electric fieldPositive half-cycle: 430 ± 60 Td, negative half-cycle: 870 ± 70 Td
(E/N estimated spectroscopically using FNS/SPS ratio method)
Exposure to gas productsO3: 200–300 ppm, NOx: <3 ppm
Exposure to UV≤0.1% * (UV-C): 7.5% (UV-B):92.5% (UV-A)
Post-Treatment Testing
Contact angle≈105° (no treatment), <35°(ttr ≥ 20 s)
(droplet of distilled water right after treatment, registered time lapse)
Germinability100% (ttr = 0 and 20 s), 0% (ttr = 40 and 180 s)
(in Petri dish with water agar for 6 days, registered time lapse)
* UV-C detection is limited to approximately 225 nm by the photocathode of the ICCD and the efficiency of the dispersion grating used to detect the spectra.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Fujera, J.; Hoffer, P.; Prukner, V.; Šimek, M. Quantifying Plasma Dose for Barley Seed Treatment by Volume Dielectric Barrier Discharges in Atmospheric-Pressure Synthetic Air. Plasma 2025, 8, 11. https://doi.org/10.3390/plasma8010011

AMA Style

Fujera J, Hoffer P, Prukner V, Šimek M. Quantifying Plasma Dose for Barley Seed Treatment by Volume Dielectric Barrier Discharges in Atmospheric-Pressure Synthetic Air. Plasma. 2025; 8(1):11. https://doi.org/10.3390/plasma8010011

Chicago/Turabian Style

Fujera, Jiří, Petr Hoffer, Václav Prukner, and Milan Šimek. 2025. "Quantifying Plasma Dose for Barley Seed Treatment by Volume Dielectric Barrier Discharges in Atmospheric-Pressure Synthetic Air" Plasma 8, no. 1: 11. https://doi.org/10.3390/plasma8010011

APA Style

Fujera, J., Hoffer, P., Prukner, V., & Šimek, M. (2025). Quantifying Plasma Dose for Barley Seed Treatment by Volume Dielectric Barrier Discharges in Atmospheric-Pressure Synthetic Air. Plasma, 8(1), 11. https://doi.org/10.3390/plasma8010011

Article Metrics

Back to TopTop
