Mastoid Obliteration Using Bioceramic Scaffold After Canal Wall Down Mastoidectomy: A Systematic Review
Abstract
1. Introduction
2. Materials and Methods
2.1. Protocol and Reporting
2.2. Search Strategy
2.3. Eligibility Criteria

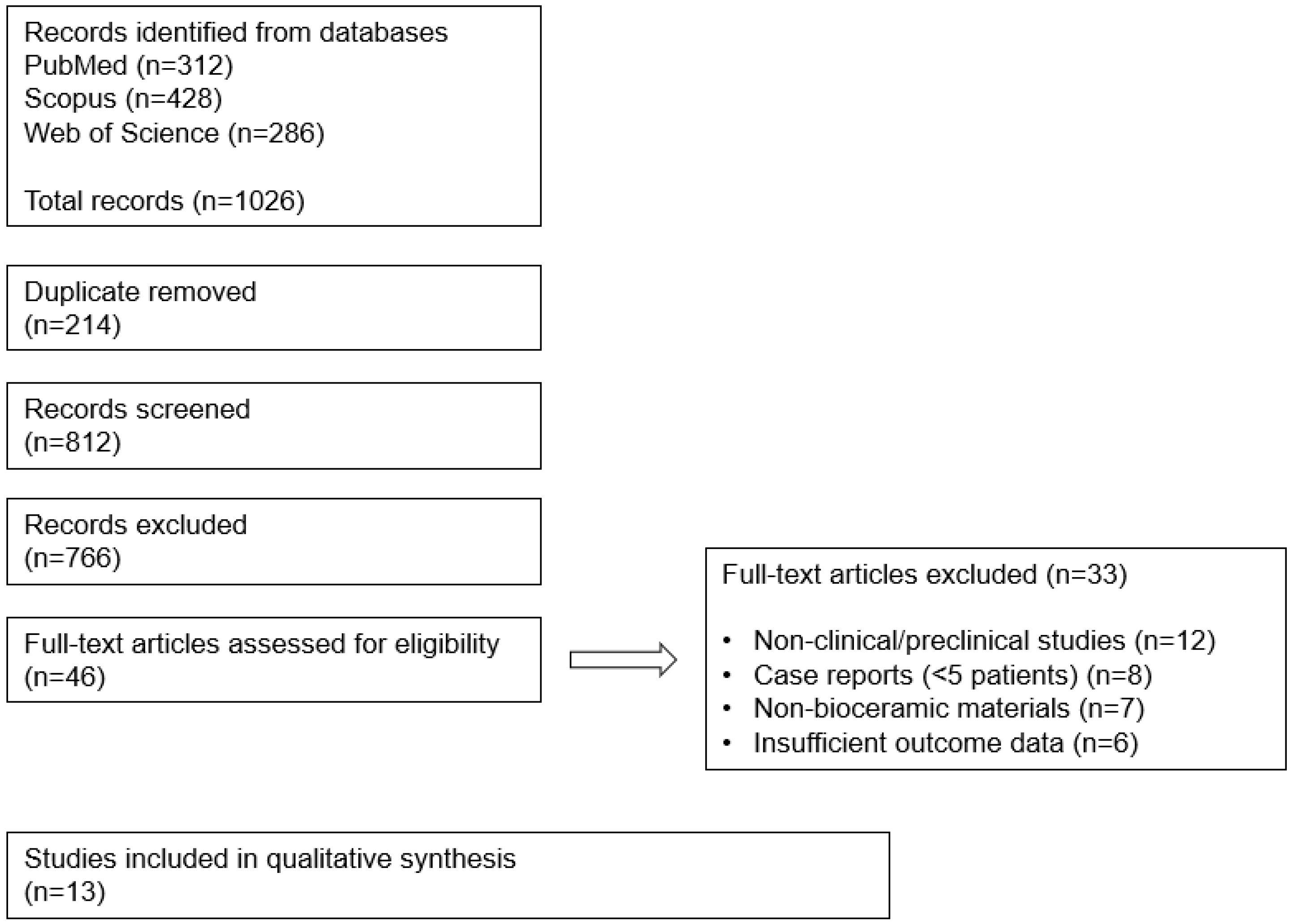

2.4. Study Selection and Data Extraction
2.5. Risk of Bias Assessment
3. Results
3.1. Clinical Outcomes
3.2. Complications
| Author | Ears | Material and FU Duration | Results and Complications | Ref. |
|---|---|---|---|---|
| Hashimi S et al. [28] | 26 | HA cement, 1 yr | 1 case explantation. EAC granulation, wound dehiscence. | J Laryngol Otol. 2025;139(6):458–463 |
| Liu M et al. [29] | 56 | HA | achieved complete epithelialization within 60 days post-operation was significantly higher in the CGF/HA group than in the HA group. | Braz J Otorhinolaryngol 2025;91(3):101561 |
| Chomarat J et al. [30] | 236 | 108 control, 66 Bone pâté, 62 BAG | Highlights the benefits of bone pâté obliteration versus BAG. | Eur Arch Otorhinolaryngol 2025;282(11):5635–5643 |
| Kroon VJ et al. [31] | 208 | 124 BAG. 84 non-ob 1 year | Continuous discharge: 1, revision: 10 in the non-obliteration group. | Otol Neurotol 2025;46(8):949–955 |
| Zwiez A et al. [32] | 28 | 21 sticky bone, 7 BAG 9 months | No difference between the 2 groups. | J Clin Med 2025;14(5):1681 |
| Kroon VJ et al. [33] | 97 | 97 BAG 3.9 years | Only 1 retroauricular skin defect. Ossiculoplasty: 42, 11.2 dB improvement. | OTO Open 2023;7(4):e96. |
| G Leonard C et al. [34] | 90 | BAG 6.59 months | Recurred cholesteatoma: 2, delayed healing: 12. In all cases, conservative management resulted in complete healing. | J Int Adv Otol 2021;17(3):234–238. |
| Sorour SS et al. [35] | 20 | BAG 1–3 years | No granulation, foreign-body reaction, or extrusion; no displacement of BAG material No recurrent facial palsy or cholesteatoma Significant hearing improvement. | Am J Otolaryngol 2018;39(3):282–285. |
| Sahli-Vivicorsi S et al. [16] | 21 | Biological HA vs. BAG 10.4 months | Biological HA seems to provide a more optimal osseointegration versus BG, with no significant differences in graft resorption and clinical tolerance. | Eur Arch Otorhinolaryngol 2022;279(9):4379–4388 |
| Yung M et al. [36] | 140 revision | HA | Revision mastoidectomy using HA was highly successful in converting troublesome mastoid cavities into dry, water-resistant ears. The cumulative complication rate was 16.6%. | J Laryngol Otol 2011;125(3):221–226 |
| Minoda R et al. [37] | 12 | Beta-TCP | 53.8 months TBCT, no continuous discharge, | Otol Neurotol 2007;28(8):1018–1021 |
| Yanagihara N et al. [38] | 42 | Bone pâté combined with HA for 1 year CWUMT with mastoid obliteration Second-stage ossiculoplasty 1 year after the first-stage operation | No postoperative complications nor residual cholesteatoma were encountered. | Otol Neurotol 2009;30(6):766–770 |
| Vos J et al. [23] | 23 | BAG, 2.4 years (1.1–4.1) CWD or CWU with mastoid obliteration | Safe and not prone to adverse events. The positive effect of BAG is more prominently observed in revision procedures. | Eur Arch Otorhinolaryngol 2017;274(12):4121–4126. |

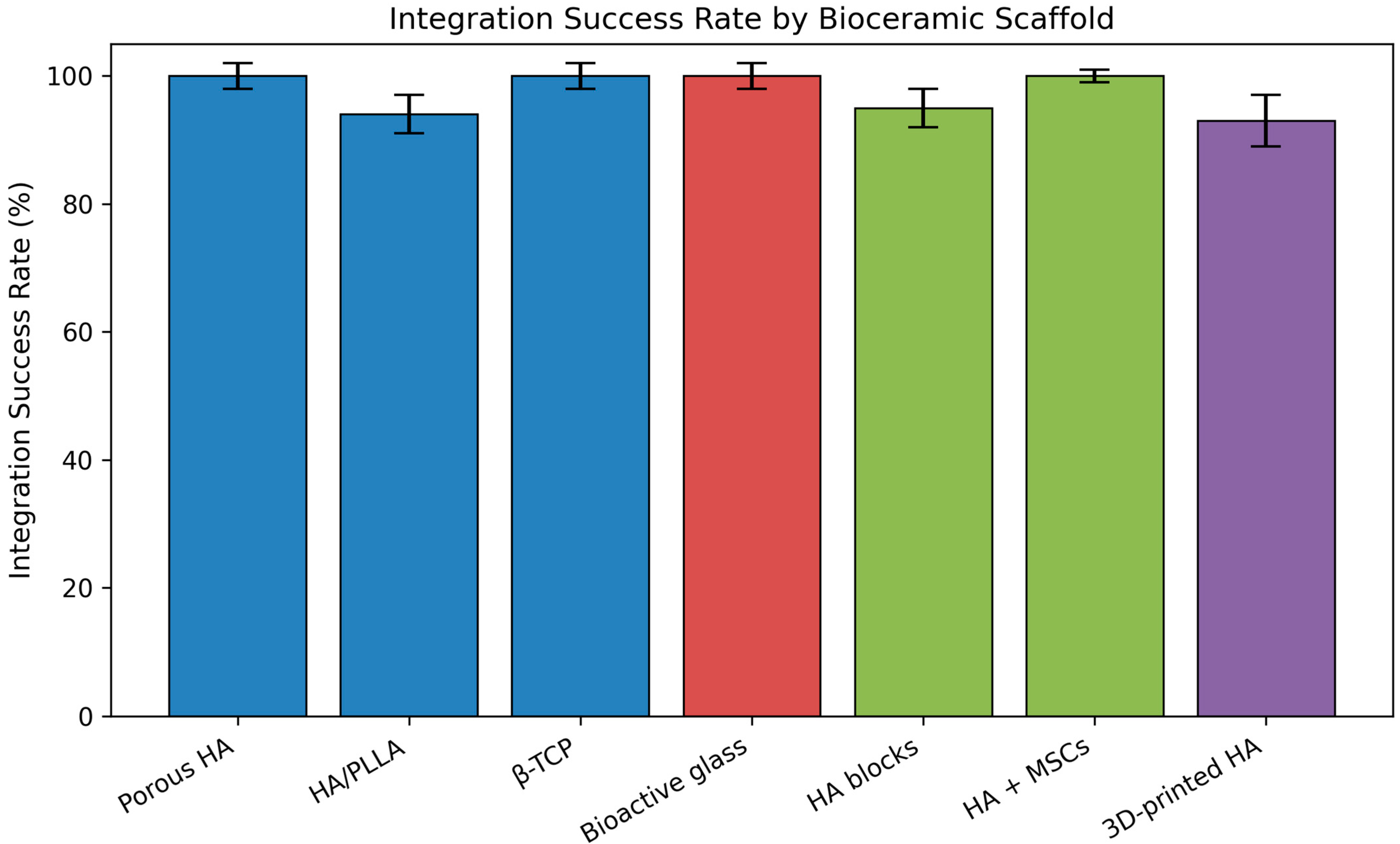

3.3. Comparative Outcomes Based on Material Type
| Study (First Author, Year) | Confounding | Selection of Participants | Classification of Intervention | Deviations from Intended Intervention | Missing Data | Outcome Measurement | Selective Reporting | Overall Risk |
|---|---|---|---|---|---|---|---|---|
| Hashmi et al., 2025 [28] | Moderate | Moderate | Low | Low | Low | Moderate | Low | Moderate |
| Liu et al., 2025 [29] | Moderate | Low | Low | Low | Low | Low | Low | Low–Moderate |
| Chomarat et al., 2025 [30] | Moderate | Moderate | Low | Low | Moderate | Moderate | Low | Moderate |
| Kroon et al., 2025 [31] | Moderate | Low | Low | Low | Low | Moderate | Low | Low–Moderate |
| Zwierz et al., 2025 [32] | Moderate | Moderate | Low | Low | Low | Moderate | Low | Moderate |
| Kroon et al., 2023 [33] | Moderate | Low | Low | Low | Low | Low | Low | Low–Moderate |
| Leonard et al., 2021 [34] | Moderate | Moderate | Low | Low | Moderate | Moderate | Low | Moderate |
| Sorour et al., 2018 [35] | Moderate | Moderate | Low | Low | Low | Moderate | Low | Moderate |
| Sahli-Vivicorsi et al., 2022 [16] | Moderate | Low | Low | Low | Low | Low | Low | Low–Moderate |
| Yung et al., 2011 [36] | Serious | Moderate | Low | Low | Moderate | Moderate | Low | Moderate–Serious |
| Minoda et al., 2007 [37] | Serious | Moderate | Low | Low | Moderate | Moderate | Low | Moderate–Serious |
| Yanagihara et al., 2009 [38] | Moderate | Moderate | Low | Low | Low | Moderate | Low | Moderate |
| Vos et al., 2017 [23] | Moderate | Low | Low | Low | Low | Low | Low |
| Bias Domain | Low Risk | Moderate Risk | Serious Risk |
|---|---|---|---|
| Confounding | 0 | 11 | 2 |
| Participant selection | 6 | 7 | 0 |
| Intervention classification | 13 | 0 | 0 |
| Deviations from intervention | 13 | 0 | 0 |
| Missing data | 9 | 4 | 0 |
| Outcome measurement | 5 | 8 | 0 |
| Selective reporting | 13 | 0 | 0 |
4. Discussion
4.1. Bioceramic Materials and Limitations

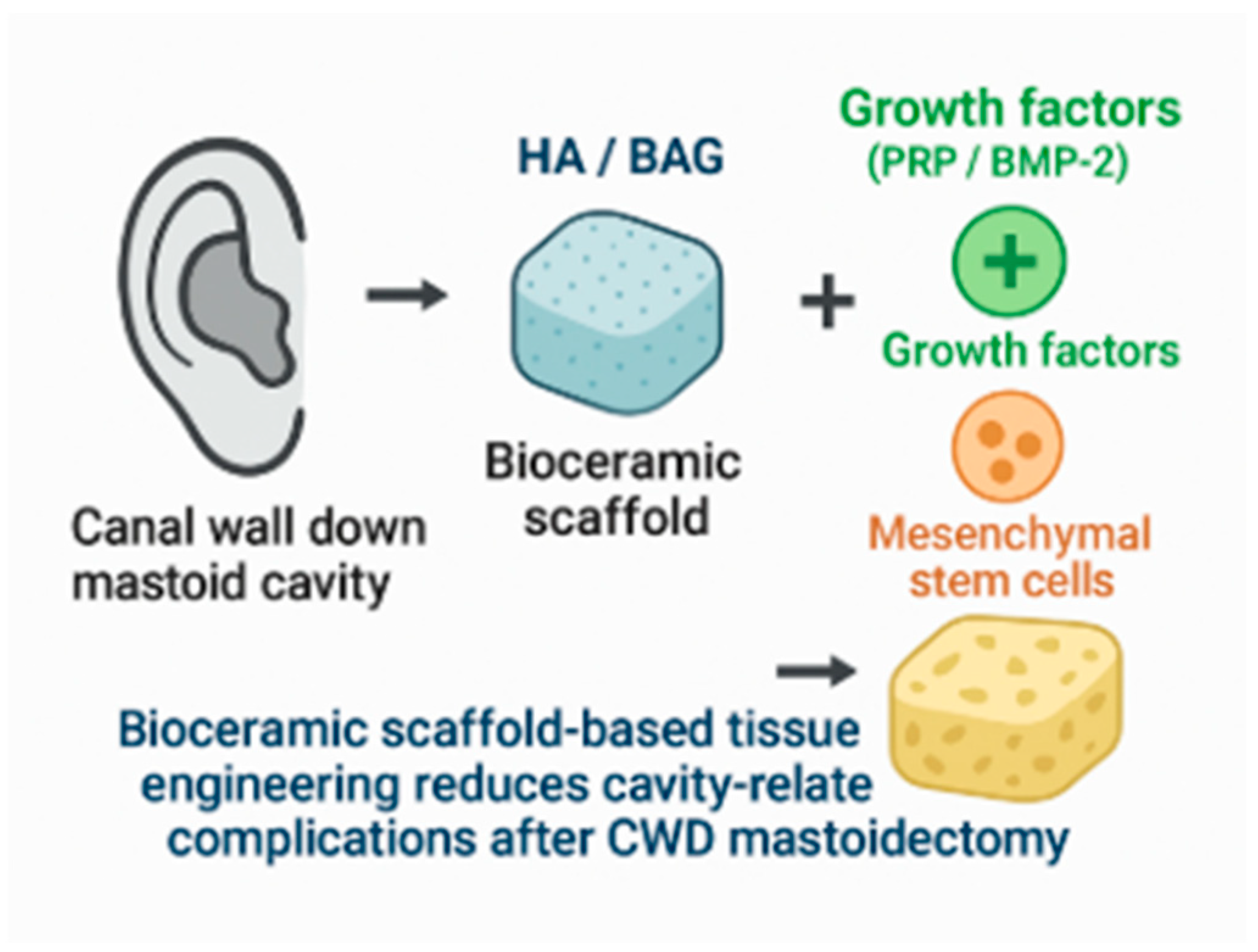

4.2. Future Direction
| Component | Example | Biological Role | Expected Benefit |
|---|---|---|---|
| Scaffold | BAG (S53P4) | Osteoconduction, antibacterial | Volume stability, infection control |
| Growth factor | BMP-2 | Osteoinduction | Accelerated bone regeneration |
| Platelet product | PRP | Angiogenesis, healing | Reduced early complications |
| Cells | MSCs | Osteogenic differentiation | True bone regeneration |
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
