Compositionally Disordered Ceramic (Gd,Y,Tb,Ce)3Al2Ga3O12 Phosphor for an Effective Conversion of Isotopes’ Ionizing Radiation to Light

by
Mikhail V. Korzhik
1,2,*,
Petr V. Karpyuk
1,
Aliaksei G. Bondarau
2,
Daria E. Lelecova
1,
Vitaly A. Mechinsky
1,2,
Vladimir Pustovarov
3,
Vasilii Retivov
1,
Valentina G. Smyslova
1,
Dmitry Tavrunov
3 and
Denis N. Yanushevich
4
1
National Research Center “Kurchatov Institute”, 123098 Moscow, Russia
2
Institute for Nuclear Problems, Belarus State University, 11 Bobruiskaya, 220006 Minsk, Belarus
3
Experimental Physics Department, Ural Federal University, 620075 Yekaterinburg, Russia
4
Physical Department, Belarus State University, 4 Independence Av., 220006 Minsk, Belarus
*
Author to whom correspondence should be addressed.
Ceramics 2023, 6(3), 1900-1912; https://doi.org/10.3390/ceramics6030117
Submission received: 21 July 2023 / Revised: 7 September 2023 / Accepted: 15 September 2023 / Published: 21 September 2023
Browse Figures
Review Reports Versions Notes

Abstract

:
Compositionally disordered crystalline material (Gd,Y,Tb,Ce)3Al2Ga3O12 was demonstrated to be a highly effective converter of corpuscular ionizing radiation into light. The material was found to be radiation-tolerant to an intense 10 MeV electron beam and had a low temperature dependence on light yield. These findings open an opportunity to utilize the developed material to create long-living, high-flux sources of optical photons under the irradiation of isotope sources. Besides the purposes of the measurement of ionizing radiation by the scintillation method in a harsh irradiation environment, this puts forward the exploiting of the developed material for indirect isotope voltaic batteries and the consideration of a photon engine for travel beyond the solar system, where solar wind force becomes negligible.

1. Introduction

Scintillation materials are widely used in ionizing radiation detectors [1]. Among the many luminescent materials utilized for this purpose, inorganic crystalline scintillation materials stand out because they provide high stopping power. At the same time, the increase in the nomenclature of such materials is significantly constrained by the limited number of methods for their preparation in crystalline form. Practically any inorganic scintillator can be produced in powder form by coprecipitation [2], solid-phase synthesis [3], and pyrolysis [4,5]. However, the set of methods that ensures the rapid transformation of raw materials into a single crystalline mass is limited [6]. Moreover, the growth of crystals with an increase in the number of cations in a compound of more than four inevitably encounters problems with different evaporation rates of the components and, consequently, an increased rate of defect formation in the crystalline mass [7]. An increased concentration of defects leads to a deterioration in the user properties of materials under the influence of ionizing radiation, especially radiation resistance and phosphorescence, which creates additional optical noise.
Production of scintillation materials in the form of ceramics is becoming more and more widely used both in research and in the production of scintillation elements [8]. Although the number of compounds available to obtain high-quality transparent ceramics is limited by the crystalline materials with spatial cubic symmetry, its production is not burdened by the use of expensive tooling based on precious metals. Moreover, ceramic elements can be produced in complex shapes and sizes, which is not achievable with crystal pulling techniques.
The methods of ceramic production make it possible to accurately control the composition of a compound even with a large number of cations in the matrix. These methods are well developed for systems with a garnet structure [9]. Moreover, complicated garnet compounds can be created by mixing and further sintering the less complex compounds of the same structural type as well. An increase in the number of cations in the garnet crystal lattice inevitably leads to compositional disordering of the crystal system [10]. The varying lattice composition and the concentration of activator centers make it possible to tune the properties of the material for a specific application [11,12,13,14,15,16,17,18,19].
In this work, we set the goal of creating a scintillator with a high yield and radiation resistance not only for detection purposes but also for obtaining maximum optical photon fluxes when converting the energy of absorbed charged particles in the visible spectral range. The activator providing high excitation efficiency in the compositionally disordered garnet compound (Gd,Y)3Al2Ga3O12 is the Tb3+ ion [20], which isovalently substitutes for the Gd and Y ions in the matrix. Tb3+ ions possess slowly decaying luminescence but with a high luminosity [21,22,23] and cathodoluminescence yield [24]. However, the emission spectrum of Tb3+ ions is formed by a set of narrow luminescence bands due to the 5D3,4→7FJ transitions. Coactivation with Ce ions is used to increase the spectral density of luminescence in the visible range. Materials doped with Tb and Ce ions are also the subject of lively discussion for the purposes of LED lighting [25,26,27,28,29,30,31] and photoconversion [32]. Nevertheless, the use of codoping by the Ce and Tb ions requires a carefully chosen excitation length for the simultaneous effective excitation of the luminescence of both activators. When excited by ionizing radiation, the Ce and Tb ions quite effectively interact with nonequilibrium carriers [33], thereby providing the addition of luminescent fluxes. Moreover, the Ce and Tb ions also interact with each other; the luminescence of the Ce3+ ions is sensitized by the Tb3+ ions and vice versa [34,35,36,37,38,39].
For the new promising applications, the radiation resistance of the material, combined with the thermal stability of the scintillation yield, are critical parameters. Crystalline materials activated with both cerium [40] and terbium [41,42,43] are tolerant to exposure to the electromagnetic component of ionizing radiation and high-energy protons. Codoping with Ce3+ and Tb3+ ions increases the radiation resistance of materials [44]. Among materials with compositional disorder, the highest tolerance to irradiation with charged particles was measured for crystalline compounds of the family of gadolinium–aluminum–gallium garnets Gd3Al2Ga3O12 (GAGG) and (Gd,Y)3Al2Ga3O12 (GYAGG) [45,46]. It is caused by the obstruction to the formation of the metastable trapping centers that captured nonequilibrium electrons between the bottom of the conduction band and sub-bands formed by the f-states (6P, 6I, 6D) of Gd3+ ions in the band gap. In crystalline compounds, the codoping by Ce3+ and Tb3+ ions creates a sufficiently dense filling of the bandgap by 4f- and 5d-states, which ensures fast relaxation of nonequilibrium carriers formed by ionizing radiation.
Fine-tuning the efficiency of the transfer of electronic excitations to the Ce3+ and Tb3+ activator ions is carried out by partial substitution of gadolinium ions by yttrium ions in the matrix host [47]. Managing the high scintillation yield, especially in GYAGG:Tb ceramics, made it possible to expand a number of possible applications of the material, in particular for indirect converters of charged particle radiation from isotope sources into electricity [48].
When using isotopes emitting α-particles, the efficiency of conversion to light in GYAGG:Tb can reach 10% per scintillator plate. For simplicity, if at least half of the photons move in the direction opposite to the plane with the isotope deposited on the scintillator, we can estimate that the pressure created by the system (scintillator-241Am) is ~1 pN/cm2;. Having a converter plate with a thickness of no more than 100 microns, which is more than enough to absorb α-particles, and a square of 25 m2, we obtain a resulting force of 250 nN. That is comparable to the force due to the anisotropic thermal radiation of the Pioneer apparatus, which provided an additional acceleration of 8.74 ± 1.33 × 10−10 m/s2; [49,50]. Interestingly, it is not necessary to associate the photon engine only with the annihilation of matter; isotope photon engines are also of interest for movement beyond the solar system.
We focused in this study on optimizing the concentration ratio of Ce and Tb ions in the (Gd,Y,Tb,Ce)3Al2Ga3O12 phosphor converter material. This parameter is key to achieving the highest tolerance to ionizing radiation, a high light yield, and a moderate temperature dependence. Besides the highly promising utilizations, the listed combination of parameters opens the door for other applications of the material, including X-ray radiography devices and computed tomography (CT) scanners. The light yield was estimated using several methods, exploiting different excitations ranging from charged particles to hard photons, including X-rays. The conclusions drawn are supported by the results of measuring the properties of luminescence for various types of excitations.

2. Materials and Methods

A series of (Gd,Y,Tb,Ce)3Al2Ga3O12 samples was produced. For comparison, a sample solely doped with Tb (Gd,Y,Tb)3Al2Ga3O12 was manufactured as well. Compositions of the samples are in Table 1. Indexes X in the compound of Gd, Y, Tb, Ce ions can be obtained by multiplying the numbers in the composition by a factor of three.
Figure 1a,b depicts the SEM image of the calcined at 850 °C for 2 h and the representative precursor obtained by the reverse coprecipitation method and the resulting ceramics, namely sample 3. The method of reverse coprecipitation consisted of adding a mixed nitrate solution of the components (Gd, Y, Tb, Ce, Al, Ga) to an excess of ammonium bicarbonate solution (NH4HCO3) under constant stirring. The resultant precipitate was calcined at 850 °C and compacted by the uniaxial pressing method.
The ceramics samples were produced by sintering in air of the densified pellets in the Nabertherm LHT 02/17 LB furnace (Germany) at 1600 °C for 2 h. All samples had a diameter of 12 mm and were translucent. They were ground and polished to a thickness of 1 mm. After measurements with X-ray and electron beam excitations, samples were cut into two parts each. One part was used for X-ray diffraction spectra measurements. Second halves at different UV excitations are depicted in Figure 1 (bottom panels).
X-ray diffraction spectra measured with a 2D Phaser, Bruker (Germany) (Cu kα doublet 1.5406 and 1.5444 Å) confirmed that codoping of GYAGG crystal does not change the structure of the compound; it remains cubic, as seen from Figure 2.
The scintillation yield was evaluated by the following methods. The total scintillation yield of Ce3+ and Tb3+ ions was measured using Philips XP 2020 photomultiplier (Philips, The Netherlands) in the current mode, as described in [51]. A reference sample with ground surfaces to mimic translucent sample, a YAG:Ce single crystal possessing a light yield of 4100 ph/MeV under α-particles was used.
In addition, the temperature dependence of the total scintillation yield and the spectral distribution before and after irradiation with a 10 MeV electron beam were measured with X-ray excitation by the URS-55A apparatus (Ekaterinburg, Russia) with the BSV-2 X-ray tube (30 kV, 10 mA, Cu anode). The radioluminescence (XRL) was detected using a LOMO MDR-23 monochromator (LOMO, Russia) with a spectral resolution of 2 nm and a photon-counting FEU-106 photomultiplier tube. The same bench was used to evaluate thermostimulated luminescence (TSL) above room temperature.
The total scintillation yield for γ-quanta was estimated from the obtained data with α-particles by using the α/γ ratio. For a YAG:Ce single crystal, the α/γ ratio was selected to be 0.2 [52,53]. For GYAGG:Ce, this coefficient was taken to be equal to 0.24. For terbium-activated samples, the values of the α/γ ratio determined in [49] were used.
Irradiation with fast electrons (E = 10 MeV) was performed at the UELR-10-10C2 linear electron accelerator (Ekaterinburg, Russia). To avoid samples heating under the irradiation beam, an existing conveyor system with partial irradiation doses of 11 kGy per cycle was used [54]. Measurement of the total absorbed dose during the exposure was carried out using a certified film dosimeter SO PD (E)-1/10 “VNIIFTRI” by measuring the induced optical density at a wavelength of 550 nm. The total absorbed dose was 105 kGy.

3. Results and Discussion

The XRL spectra of the samples are shown in Figure 3. The spectrum is a superposition of Ce3+ and Tb3+ ion bands: a wide Ce3+ interconfiguration luminescence overlaps narrow intraconfiguration luminescence bands of Tb3+ ions.
The contribution of the cerium band increases with an increase in its concentration. At the lowest Ce concentration, its contribution is small, which indicates that the Tb3+ ions catch most of the matrix excitations. However, at Ce concentration x = 0.01, its proportion increases and further stabilizes. Apparently, the optimal Ce concentration is close to x = 0.01. With an increase in the Tb concentration, the intensity of the bands in the blue region of the spectrum is redistributed in favor of the bands in the green–yellow region, which is due to the concentration quenching of the 5D3→7DJ transition [55].
A comparison of their integrated intensities in the spectral range of 360–750 nm is shown in Figure 4. The points with the same concentration of Tb are connected by straight lines on the plots of the dependence of the integral intensities for better perception. As seen, it is not advisable to increase the concentration of terbium more than x = 0.2, and the optimum concentration in terms of light output is close to x = 0.1.
The temperature dependence of the XRL intensity for samples with an optimal Ce content is shown in Figure 5.
It is known that crystals of the GAGG family, upon activation with Ce3+ ions, have a high temperature coefficient of scintillation yield, while upon activation with Tb3+, it is very small in the temperature range of up to 500 K [23]. The superposition of the XRL temperature dependences of Ce and Tb ions forms the observed results. In addition, the temperature increase accelerates the electronic excitation transfer from Tb to Ce ions, which is followed by nonradiative relaxation at high temperatures in the latter. At the same time, we note that the decrease in intensity upon heating to 500 K does not exceed 25%.
For the sample solely doped with Tb and samples with the optimal Ce content and in the Tb concentration range, the XRL spectra were measured before and after irradiation by a 10 MeV electron beam with a total absorbed dose of 105 kGy. A comparison of the spectra is shown in Figure 6. No change in the XRL spectral distribution was found. A change in the XRL integrated intensity for a Tb-doped sample was estimated to be 0.3%, whereas it was defined as small as 0.1% for codoped samples. The latter estimation is within the error of the measurements and might be even less. This confirms the high stability of the parameters of the developed converter materials for operation with isotope sources.
The radiation resistance of the material was measured under irradiation with a 10 MeV electron beam. Electrons of such energy damage the lattice due to the displacement of atoms into interstices in the crystal lattice [1]. From the point of view of using the phosphor as a converter, the concentration of the point structure defects is crucially important. They lead to the creation of deep trapping centers, i.e., they ensure the redistribution of the stored energy of electronic excitations to the phosphorescence region. Temperature-stimulated luminescence (TSL) spectra were measured in the temperature range in which the temperature dependence of the XRL yield was measured. Since terbium ions make the main contribution to radioluminescence intensity, the TSL spectra were measured at a wavelength of 544 nm. The results of a comparison of TSL curves measured with a nonirradiated sample with the smallest Ce content and with an optimal Ce content after irradiation with 10 MeV electrons to an absorbed dose of 105 kGy are shown in Figure 7. Before measuring TSL, the samples were irradiated with X-rays for 20 min to a dose of 525 Gy. No new quasistationary trapping centers were found that could potentially provide an increase in the phosphorescence yield.
The results of measuring the light yield upon excitation with α-particles are depicted in Figure 8a. Straight lines on the plots connect the points with the different concentrations of Tb for better perception.
As seen, coactivation with Ce ions smooths out the dependence of the yield of scintillation at high concentrations with terbium ions. This effect is due to the sensitization of the luminescence of Tb3+ ions by Ce3+ ions. A difference in the behavior of the light yield at the highest Ce concentration, apparently, is caused by combining the concentration quenching of Ce3+ luminescence with high transfer efficiency from Tb3+ to Ce3+ ions due to a shortening of the average distance between Ce and Tb ions in the lattice. For typical isotopes that emit α-particles and are of practical importance, the energy of an α-particle emitted from a thin layer is ~5.5 MeV. Thus, at least 220,000 photons will be emitted when one α-particle is absorbed.
To estimate the yield of scintillations at the registration of electromagnetic particles, the previously indicated numbers of α/γ were used. The evaluation results are shown in Figure 8b. The results of the estimation correlate with the data presented in Figure 4; however, the sample with the highest concentration of Ce demonstrated a difference at the level of 40% compared with other samples. Apparently, this difference is caused by the sensitivity of the method used to the α/γ ratio. Nevertheless, the codoped samples show better light yield than the solely Tb-doped sample. Thus, besides α-particles, (Gd,Y,Tb,Ce)3Al2Ga3O12 is an efficient converter for excitation by β-emitting isotopes as well.
The longevity of the conversion material developed was estimated. Table 2 lists some parameters of isotope sources that can be deposited on converter material plates. Table 2 demonstrates that activities and energy deposits from the isotopes suitable for α- and β-irradiation conversion are comparable with the irradiation conditions used.
The profiles of the energy losses in (Gd,Y,Tb,Ce)3Al2Ga3O12 material for 5.5 MeV α-particles and β-particles having a spectrum of 147Pm [58] are shown in Figure 9.
When using a converter with an area of 1 cm2 and a density of 6 g/cm3, α-particles with an energy of 5.5 MeV are absorbed with an average range of approximately 17 μm (90% of the energy deposition), and the mass of the layer subjected to the radiation damage is 10−5 kg. The 17 µm scintillator layer is affected by less than half of the energy released from the 1 µm thick radioisotope foil since (a) α-particles exit the foil in both directions, (b) approximately 10% of the initial energy is absorbed by the foil itself, and (c) 10% of the initial energy in the case of α-particles is carried away by scintillation photons (at a light output of 40,000 ph/MeV and an average photon energy of 2.5 eV). Therefore, radiation damage of the convertor material by α-particles is created by an energy equal to that of 3.5 × 10−4 (238Pu) and 0.43 × 10−4 W (241Am).
In the case of 147Pm, 50% of the electrons will exit in the opposite direction from the convertor, absorption in a 1 μm thick foil is less than 5%, and photons will carry away (at a light output of 85,000 ph/MeV and an average photon energy of 2.5 eV) ~20% of the initial energy. Therefore, the radiation damage of the converter under 147Pm is created by an energy equal to 1.2 × 10−4 W.
Thus, the expected radiation load provided by α-particles on the 17 µm thick converter layer is 35 Gy/s and 4.3 Gy/s for 238Pu and 241Am, respectively. Finally, 90% of the β-particles energy release will be reached at a depth of less than 29 µm when 147Pm is used. The mass of the layer subjected to the radiation damage is 1.7 × 10−5 kg. The expected radiation load on the 29 µm scintillator layer is 7.1 Gy/s. The light yield of the convertor was estimated to be a little degraded (~0.1%) at the absorbed dose of 105 kGy. Assuming that the operation time of the converter is limited by a 50% degradation, one can estimate the minimal longevity of the converter material as follows: at the use of 238Pu, 241Am, and 147Pm, it is ~400, 3400, and 2000 h, respectively. Such an assessment is indeed minimal since it does not take into account two important aspects. First, both alpha and beta particles of the isotope sources considered in the study do not produce new defects in the crystal lattice. The number of defects existing in ceramics is limited; therefore, the level of induced absorption due to the limited number of color centers can relatively quickly reach the level of dynamic saturation, which will cause degradation of the light output much less than the estimated level. Moreover, the converter material will heat up during operation, which will undoubtedly lead to thermal annealing of the color centers. Most of the trapping centers will be annealed at temperatures below 450 K, as seen from the high-temperature TSL data.
Considering the assembly of the converter isotope for a photon engine, one must keep in mind that an additional impulse will also be from the pressure of solar wind protons on the sail of the converter material, of course, if it moves in the direction opposite to the sun. The pressure of the sun’s wind in the region of the Earth is about 1 nN [59]. The converter provides 1 pN force per 1 cm2, i.e., 1000 times smaller. According to the law 1/R2, the sail can operate on its own power already at 32 astronomical units, i.e., beyond the orbit of Neptune.

4. Conclusions

A (Gd, Y, Tb, Ce)3Al2Ga3O12 ceramic phosphor was, for the first time, developed and optimized for use as a converter of radiation from isotope sources into a beam of optical photons. It was shown that the developed material combines several unique properties, namely, high radiation resistance when absorbing corpuscular radiation, high light yield, and high stability with increasing temperature.
For typical isotopes that emit α-particles with an energy ~5.5 MeV, the photon flash at the level of 220,000 ph from the convertor material will be emitted when one α-particle is absorbed. At the same time, the decrease in the photon number in the flash upon heating to 500 K does not exceed 25%.
Apparently, a combination of Ce and Tb concentrations at the levels x = 0.01 and x = 0.1–0.2, respectively, is optimal to provide the best luminosity of the material.
Samples with optimal Ce and Tb concentrations were subjected to exposure to a 10 MeV electron beam with an absorbed dose of 105 kGy. Practically, no visible changes in the spectral distribution or intensity were detected. A comparison of the spectra showed that the change in the radioluminescence-integrated intensity is less than 0.1%. This allowed, for the first time, an estimation of the minimal longevity of the converter material with the use of 238Pu, 241Am, and 147Pr isotope sources.

Author Contributions

Conceptualization, M.V.K. and V.R.; methodology, P.V.K. and V.G.S.; validation, V.P.; formal analysis, D.N.Y.; investigation, A.G.B., D.E.L., V.A.M., D.T. and V.G.S.; data curation, V.A.M.; writing—original draft preparation, M.V.K. and P.V.K.; writing—review and editing, D.E.L. and V.P.; visualization, V.G.S. and V.A.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

No institutional review board statement is required.

Informed Consent Statement

Not applicable.

Data Availability Statement

No new and additional data are available.

Acknowledgments

The work was supported by the National Research Center “Kurchatov Institute”. Analytical research was conducted using the equipment of the Research Chemical and Analytical Center NRC, Kurchatov Institute, Shared Research Facilities, under the project’s financial support by the Russian Federation, represented by The Ministry of Science and Higher Education of the Russian Federation, Agreement No. 075-15-2023-370 dd. 22.02.2023. The research at Ural Federal University was partially supported by the Russian Ministry of Science and Education, Project FEUZ 2023-0013.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lecoq, P.; Gektin, A.; Korzhik, M. Inorganic Scintillators for Detector Systems. Particle Acceleration and Detection; Springer: Berlin/Heidelberg, Germany, 2017; p. 408. ISBN 978-3-319-45521-1. [Google Scholar]
  2. Luo, Z.; Jiang, H.; Jiang, J. Synthesis of Cerium Doped Gd3(Al,Ga)5O12 Powder for Ceramic Scintillators with Ultrasonic-Assisted Chemical Coprecipitation Method. J. Am. Ceram. Soc. 2013, 96, 3038–3041. [Google Scholar] [CrossRef]
  3. Ye, S.; Xiao, F.; Pan, Y.X.; Ma, Y.Y.; Zhang, Q.Y. Phosphors in phosphor-converted white light emitting diodes: Recentadvances in materials, techniques and properties. Mater. Sci. Eng. 2010, 71, 1–34. [Google Scholar] [CrossRef]
  4. Marchal, J.; John, T.; Baranwal, R.; Hinklin, T.; Laine, R.M. Yttrium aluminum garnet nanopowders produced by liquid-feed flame spray pyrolysis (LF-FSP) of metalloorganic precursors. Chem. Mater. 2004, 16, 822–831. [Google Scholar] [CrossRef]
  5. Seeley, Z.M.; Cherepy, N.J.; Payne, S.A. Expanded phase stability of Gd-based garnet transparent ceramics cintillators. J. Mater. Res. 2014, 29, 2332–2337. [Google Scholar] [CrossRef]
  6. Scheel, H.J.; Capper, P. (Eds.) Crystal Growth Technology: From Fundamentals and Simulation to Large-Scale Production; Wiley-VCH Verlag GmbH & Co. KgaA: Weinheim, Germany, 2008; p. 495. ISBN 9783527623440. [Google Scholar]
  7. Stepanov, R.S.; Marland, P.I.; Kolobov, A.V. Compositional and Structural Disorder in Two-Dimensional AIIIBVI Materials. Crystals 2023, 13, 1209. [Google Scholar] [CrossRef]
  8. Zhu, D.; Nikl, M.; Chewpraditkul, W.; Li, J. Development and prospects of garnet ceramic scintillators: A review. J. Adv. Ceram. 2022, 11, 1825–1848. [Google Scholar] [CrossRef]
  9. Cherepy, N.J.; Kuntz, J.D.; Roberts, J.J.; Hurst, T.A.; Drury, O.B.; Sanner, R.D.; Tillotson, T.M.; Payne, S.A. Transparent ceramic scintillator fabrication, properties, and applications. In Proceedings of the SPIE 7079, Hard X-ray, Gamma-Ray, and Neutron Detector Physics X, San Diego, CA, USA; 2008; p. 70790X. [Google Scholar] [CrossRef]
  10. Retivov, V.; Dubov, V.; Komendo, I.; Karpyuk, P.; Kuznetsova, D.; Sokolov, P.; Talochka, Y.; Korzhik, M. Compositionally Disordered Crystalline Compounds for Next Generation of Radiation Detectors. Nanomaterials 2022, 12, 4295. [Google Scholar] [CrossRef] [PubMed]
  11. Corey, Z.J.; Lu, P.; Zhang, G.; Sharma, Y.; Rutherford, B.X.; Dhole, S.; Roy, P.; Wang, Z.; Wu, Y.; Wang, H.; et al. Structural and Optical Properties of High Entropy (La,Lu,Y,Gd,Ce)AlO3 Perovskite Thin Films. Adv. Sci. 2022, 9, 2202671. [Google Scholar] [CrossRef]
  12. Krawczyk, P.A.; Salamon, W.; Marzec, M.; Szuwarzyński, M.; Pawlak, J.; Kanak, J.; Dziubaniuk, M.; Kubiak, W.W.; Żywczak, A. High-Entropy Perovskite Thin Film in the Gd-Nd-Sm-La-Y-Co System: Deposition, Structure and Optoelectronic Properties. Materials 2023, 16, 4210. [Google Scholar] [CrossRef]
  13. Yadav, S.K.; Uberuaga, B.P.; Nikl, M.; Jiang, C.; Stanek, C.R. Band-Gap and Band-Edge Engineering of Multicomponent Garnet Scintillators from First Principles. Phys. Rev. Appl. 2015, 4, 054012. [Google Scholar] [CrossRef]
  14. Gundiah, G.; Bizarri, G.; Hanrahan, S.M.; Weber, M.J.; Bourret-Courchesne, E.D.; Derenzo, S.E. Structure and Scintillation of Eu2+-Activated Solid Solutions in the BaBr2–BaI2 System. Nucl. Instrum. Methods A 2011, 652, 234–237. [Google Scholar] [CrossRef]
  15. Broerman, B.; Laubenstein, M.; Nagorny, S.; Song, N.; Vincent, A.C. A search for rare and induced nuclear decays in hafnium. Nuclear Physics A 2021, 1012, 122212. [Google Scholar] [CrossRef]
  16. Hawrami, R.; Ariesanti, E.; Buliga, V.; Matei, L.; Motakef, S.; Burger, A. Advanced high-performance large diameter Cs2HfCl6 (CHC) and mixed halides scintillator. J. Cryst. Growth 2020, 533, 125473. [Google Scholar] [CrossRef]
  17. Nikl, M.; Yoshikawa, A. Recent R&D Trends in Inorganic Single-Crystal Scintillator Materials for Radiation Detection. Adv. Opt. Mater. 2015, 3, 463–481. [Google Scholar] [CrossRef]
  18. Witkiewicz-Lukaszek, S.; Gorbenko, V.; Zorenko, T.; Sidletskiy, O.; Gerasymov, I.; Fedorov, A.; Yoshikawa, A.; Mares, J.A.; Nikl, M.; Zorenko, Y. Development of Composite Scintillators Based on Single Crystalline Films and Crystals of Ce3+-Doped (Lu,Gd)3(Al,Ga)5O12 Mixed Garnet Compounds. Cryst. Growth Des. 2018, 18, 1834–1842. [Google Scholar] [CrossRef]
  19. Kumar, V.; Luo, Z. A Review on X-ray Excited Emission Decay Dynamics in Inorganic Scintillator Materials. Photonics 2021, 8, 71. [Google Scholar] [CrossRef]
  20. Korzhik, M.; Retivov, V.; Dosovitskiy, G.; Dubov, V.; Kamenskikh, I.; Karpuk, P.; Komendo, I.; Kuznetsova, D.; Smyslova, V.; Mechinsky, V.; et al. First Observation of the Scintillation Cascade in Tb3+-Doped Quaternary Garnet Ceramics. Phys. Status Solidi (RRL) 2023, 17, 2200368. [Google Scholar] [CrossRef]
  21. Wang, Y.; Li, X. Photoluminesnce properties of BaGdB9O16:Tb3+ codpped Zn2+ or Ce3+ under ultraviolet and vacuum ultraviolet excitation. J. Mater. Res. 2007, 22, 238–243. [Google Scholar] [CrossRef]
  22. Teng, X.; Li, J.; Duan, G.; Liu, Z. Development of Tb3+ activated gadolinium aluminate garnet (Gd3Al5O12) as highly efficient green-emitting phosphors. J. Lumin. 2016, 179, 165–170. [Google Scholar] [CrossRef]
  23. Peng, G.; Zou, Z.; Li, J.; Liao, J.; Wen, H. (Gd1−xTbx)3(Al1−yGay)5O12 green phosphors with high quantum yield and low thermal quenching via modulation the Ga3+ admixture. J. Lumin. 2021, 236, 118066. [Google Scholar] [CrossRef]
  24. Choe, J.Y.; Ravichandran, D.; Blomquist, S.M.; Kirchner, K.W.; Forsythe, E.W.; Morton, D.C. Cathodoluminescence study of novel sol–gel derived Y3−xAl5O12:Tbx phosphors. J. Lumin. 2011, 93, 119–128. [Google Scholar] [CrossRef]
  25. Chen, J.; Tang, Y.; Yi, X.; Tian, Y.; Ao, G.; Hao, D.; Lin, Y.; Zhou, S. Fabrication of (Tb, Gd)3Al5O12:Ce3+phosphor ceramics for warm white light-emitting diodes application. Opt. Mater. Express 2019, 9, 3333–3341. [Google Scholar] [CrossRef]
  26. Li, X.; Guan, L.; Liu, C.; Cong, F.; Yang, Z.P. Fabrication and Properties of Ce3+ and Tb3+ Co-Doped Ca2SrAl2O6 Phosphor. Adv. Mater. Res.-Trans. Tech. 2009, 79, 1823–1826. [Google Scholar] [CrossRef]
  27. Zhang, N.; Guo, C.; Jing, H.; Jeong, J.H. Color tunable emission in Ce3+ and Tb3+ co-doped Ba2Ln(BO3)2Cl (Ln=Gd and Y) phosphors for white light-emitting diodes. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2013, 116, 556–561. [Google Scholar] [CrossRef]
  28. Gong, M.; Xiang, W.; Liang, W.; Zhong, J.; Chen, D.; Huang, J.; Gu, G.; Yang, C.; Xiang, R. Growth and characterization of air annealing Tb-doped YAG: Ce single crystal for white-light-emitting diode. J. Alloys Compd. 2015, 639, 611–616. [Google Scholar] [CrossRef]
  29. Wang, S.; Devakumar, B.; Sun, Q.; Liang, J.; Sun, L.; Huang, X. Efficient green-emitting Ca2GdZr2Al3O12:Ce3+, Tb3+ phosphors for near-UV-pumped high-CRI warm-white LEDs. J. Lumin. 2020, 220, 117012. [Google Scholar] [CrossRef]
  30. Wang, S.; Sun, Q.; Li, B.; Guo, H.; Huang, X. High-efficiency and thermal-stable tunable blue-green-emitting Ca3Lu(AlO)3(BO3)4:Ce3+, Tb3+ phosphors for near-UV-excited white LEDs. Dye. Pigment. 2018, 157, 314–320. [Google Scholar] [CrossRef]
  31. Yang, Y.-G.; Wei, L.; Xu, J.-H.; Yu, H.-J.; Hu, Y.-Y.; Zhang, H.-D.; Wang, X.-P.; Liu, B.; Zhang, C.; Li, Q.-G. Luminescence of Tb3Al5O12 phosphors co-doped with Ce3+/Gd3+ for white light-emitting diodes. Beilstein J. Nanotech. 2019, 10, 1237–1242. [Google Scholar] [CrossRef] [PubMed]
  32. Markovskyi, A.; Gieszczyk, W.; Bilski, P.; Fedorov, A.; Bartosiewicz, K.; Paprocki, K.; Zorenko, T.; Zorenko, Y. Composition engineering of Tb3-xGdxAl5-yGayO12:Ce single crystals and their luminescent, scintillation and photoconversion properties. J. Alloys Compd. 2020, 849, 155808. [Google Scholar] [CrossRef]
  33. Korjik, M.; Bondarau, A.; Dosovitskiy, G.; Dubov, V.; Gordienko, K.; Karpuk, P.; Komendo, I.; Kuznetsova, D.; Mechinsky, V.; Pustovarov, V.; et al. Lanthanoid-doped quaternary garnets as phosphors for high brightness cathodoluminescence-based light sources. Heliyon 2022, 8, e10193. [Google Scholar] [CrossRef]
  34. Kulesskij, A.; Korovkin, A.; Kruzhalov, A.; Viktorov, L.; Shul’gin, B. Radioluminescence and scintillation properties of monocrystals of silicates of yttrium and rare earth elements. J. Appl. Spectrosc. 1998, 48, 446–449. [Google Scholar] [CrossRef]
  35. Zavartsev, Y.; Koutovoi, S.; Zagumennyi, A. Czochralski growth and characterisation of large Ce3+:Lu2SiO5 single crystals co-doped with Mg2+ or Ca2+ or Tb3+ for scintillators. J. Cryst. Gr. 2005, 275, e2167–e2171. [Google Scholar] [CrossRef]
  36. He, D.; Yu, C.; Cheng, J.; Li, S.; Hu, L. Effect of Tb3+ concentration and sensitization of Ce3+ on luminescence properties of terbium doped phosphate scintillating glass. J. Alloys Compd. 2011, 509, 1906–1909. [Google Scholar] [CrossRef]
  37. Ca, N.X.; Vinh, N.D.; Bharti, S.; Tan, P.M.; Hien, N.T.; Hoa, V.X.; Peng, Y.; Do, P.V. Optical properties of Ce3+ and Tb3+ co-doped ZnS quantum dots. J. Alloys Compd. 2021, 883, 160764. [Google Scholar] [CrossRef]
  38. Xiao, W.; Liu, X.; Zhang, J.; Qiu, J. Realizing visible light excitation of Tb3+ via highly efficient energy transfer from Ce3+ for LED-based applications. J. Adv. Opt. Mater. 2019, 7, 1801677. [Google Scholar] [CrossRef]
  39. Yaiphaba, N. Effect of Ce3+ co-doping on GdPO4:Tb3+ nanoparticles: Photoluminescence and energy transfer studies. Asian J. Chem. 2021, 33, 903–908. [Google Scholar] [CrossRef]
  40. Korjik, M.; Auffray, E. Limits of inorganic scintillating materials to operate in a high dose rate environment at future collider experiments. IEEE Trans. Nucl. Sci. 2016, 63, 552–563. [Google Scholar] [CrossRef]
  41. Yang, X.; Li, J.; Wang, B. Growth of trivalent ions doped PbWO4 crystals and their scintillation properties. Cryst. Res. Technol. J. Exp. Ind. Cryst. 2004, 39, 297–300. [Google Scholar] [CrossRef]
  42. Lu, H.; Xu, X.; Feng, G.; Sun, B.; Wang, S.; Wu, S. Terbium doped LiLuF4 nanocrystal scintillator-based flexible composite film for high resolution X-ray imaging. RSC Adv. 2022, 12, 4615–4623. [Google Scholar] [CrossRef]
  43. Jia, M.; Wen, J.; Pan, X.; Xin, Z.; Pang, F.; He, L.; Wang, T. Tapered fiber radiation sensor based on Ce/Tb:YAG crystals for remote γ-ray dosimetry. Opt. Express 2021, 29, 1210–1220. [Google Scholar] [CrossRef]
  44. Gorokhova, E.; Demidenko, V.; Mikhrin, S.; Rodnyi, P.; van Eijk, C.W.E. Luminescence and scintillation properties of Gd2O2S:Tb,Ce ceramics. IEEE Trans. Nucl. Sci. 2005, 52, 3129–3132. [Google Scholar] [CrossRef]
  45. Alenkov, V.; Buzanov, O.; Dosovitskiy, G.; Egorychev, V.; Fedorov, A.; Golutvin, A.; Guz, Y.; Jacobsson, R.; Korjik, M.; Kozlov, D.; et al. Irradiation studies of a multi-doped Gd3Al2Ga3O12 scintillator. Nucl. Instrum. Methods Phys. Res. Sect. A Accel. Spectrometers Detect. Assoc. Equip. 2019, 916, 226–229. [Google Scholar] [CrossRef]
  46. Jarrell, J.; Cherepy, N.; Seeley, Z.; Murphy, J.; Swanberg, E.; Voss, L.; Frye, C.; Stoyer, M.; Henderson, R.; O’Neal, S.; et al. Beta radiation hardness of GYAGG(Ce) transparent ceramics scintillator. IEEE Trans. Nucl. Sci. 2022, 69, 938–941. [Google Scholar] [CrossRef]
  47. Korzhik, M.; Borisevich, A.; Fedorov, A.; Gordienko, E.; Karpyuk, P.; Dubov, V.; Sokolov, P.; Mikhlin, A.; Dosovitskiy, G.; Mechninsky, V.; et al. The scintillation mechanisms in Ce and Tb doped (GdxY1−x)Al2Ga3O12 quaternary garnet structure crystalline ceramics. J. Lumin. 2021, 234, 117933. [Google Scholar] [CrossRef]
  48. Korzhik, M.; Abashev, R.; Fedorov, A.; Dosovitskiy, G.; Gordienko, E.; Kamenskikh, I.; Kazlou, D.; Kuznecova, D.; Mechinsky, V.; Pustovarov, V.; et al. Towards effective indirect radioisotope energy converters with bright and radiation hard scintillators of (Gd,Y)3Al2Ga3O12 family. Nucl. Eng. Technol. 2022, 54, 2579–2585. [Google Scholar] [CrossRef]
  49. Anderson, J.; Laing, P.; Lau, E.; Liu, A.; Nieto, M.; Turyshev, S. Study of the anomalous acceleration of Pioneer 10 and 11. Phys. Rev. D 2022, 65, 082004. [Google Scholar] [CrossRef]
  50. Turyshev, S.; Toth, V.; Ellis, J.; Markwardt, C. Support for temporally varying behavior of the Pioneer anomaly from the extended Pioneer 10 and 11 Doppler data sets. Phys. Rev. Lett. 2011, 107, 081103. [Google Scholar] [CrossRef]
  51. Gordienko, E.; Fedorov, A.; Radiuk, E.; Mechinsky, V.; Dosovitskiy, G.; Vashchenkova, E.; Kuznetsova, D.; Retivov, V.; Dosovitskiy, A.; Korjik, M.; et al. Synthesis of crystalline Ce-activated garnet phosphor powders and technique to characterize their scintillation light yield. Opt. Mater. 2018, 78, 312–318. [Google Scholar] [CrossRef]
  52. Yanagida, T.; Takahashi, H.; Ito, T.; Kasama, D.; Enoto, T.; Sato, M.; Hirakuri, S.; Kokubun, M.; Makshima, K.; Yanagitani, T.; et al. Evaluation of properties of YAG (Ce) ceramic scintillators. IEEE Trans. Nucl. Sci. 2005, 52, 1836–1841. [Google Scholar] [CrossRef]
  53. Wolszczak, W.; Dorenbos, P. Nonproportional response of scintillators to alpha particle excitation. IEEE Trans. Nucl. Sci. 2017, 64, 1580–1591. [Google Scholar]
  54. Riabukhin, O.; Ivanov, V.; Zyrianov, S.; Maksimova, T. The practice of electron and proton accelerators utilizing for industry, education and science. In Proceedings of the International Conference on Accelerators for Research and Sustainable Development: From Good Practices towards Socioeconomic Impact, Vienna, Austria, 23–27 May 2022; Volume 3, pp. 106–113. [Google Scholar]
  55. Robbins, D.; Cockayne, B.; Lent, B.; Glasper, J. The mechanism of 5D3–5D4 cross-relaxation in Y3Al5O12:Tb3+. Solid State Commun. 1976, 20, 673–676. [Google Scholar] [CrossRef]
  56. Chu, S.; Ekström, L.; Firestone, R. The Lund/LBNL Nuclear Data Search, Version 2.0; 1999. Available online: http://nucleardata.nuclear.lu.se/toi/ (accessed on 1 July 2023).
  57. Winberg, M.; Garcia, R. National Low-Level Waste Management Program Radionuclide Report Series: Americium-241; EG and G Idaho, Inc.: Gaithersburg, MD, USA, 1995; Volume 14. [Google Scholar]
  58. Kavetskiy, A.; Yakubova, G.; Lin, Q.; Chan, D.; Yousaf, S.M.; Bower, K.; Robertso, J.D.; Garnov, A.; Meier, D. Promethium-147 capacitor. Appl. Radiat. Isot. 2009, 67, 1057–1062. [Google Scholar] [CrossRef]
  59. Kopp, G.; Lean, J.L. A new, lower value of total solar irradiance: Evidence and climate significance. Geophys. Res. Lett. 2011, 38, L01706. [Google Scholar] [CrossRef]
Ceramics 06 00117 g001
Figure 1. SEM images of representative precursor of (Gd,Y,Tb,Ce)3Al2Ga3O12 (a) and ceramics (Gd0.372Y0.558Tb0.067Ce0.016)3Al2Ga3O12 (b) and samples under UV excitation of different wavelengths (bottom panels).
Figure 1. SEM images of representative precursor of (Gd,Y,Tb,Ce)3Al2Ga3O12 (a) and ceramics (Gd0.372Y0.558Tb0.067Ce0.016)3Al2Ga3O12 (b) and samples under UV excitation of different wavelengths (bottom panels).
Ceramics 06 00117 g001
Ceramics 06 00117 g002

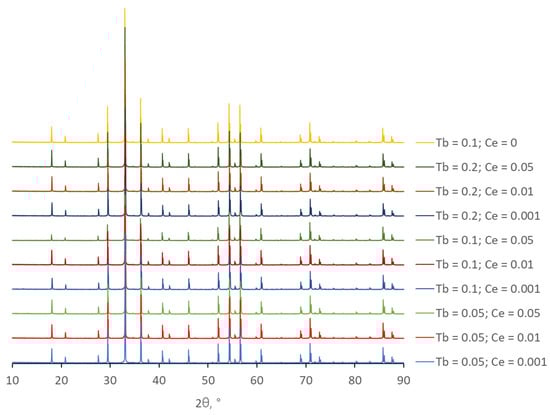

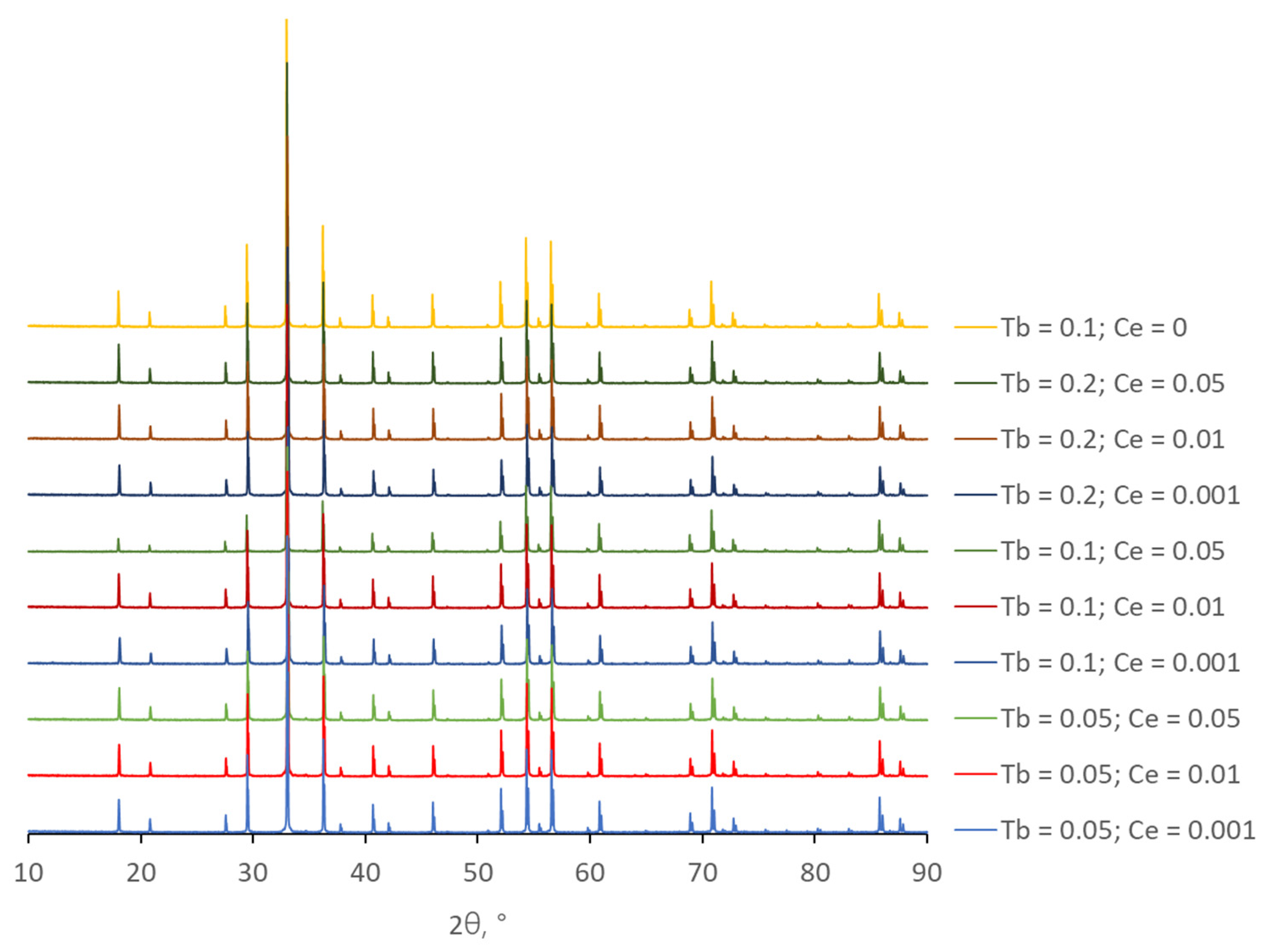

Figure 2. X-ray diffraction pattern of GYAGG:Tb,Ce ceramics samples with different terbium and cerium concentrations.
Figure 2. X-ray diffraction pattern of GYAGG:Tb,Ce ceramics samples with different terbium and cerium concentrations.
Ceramics 06 00117 g002
Ceramics 06 00117 g003

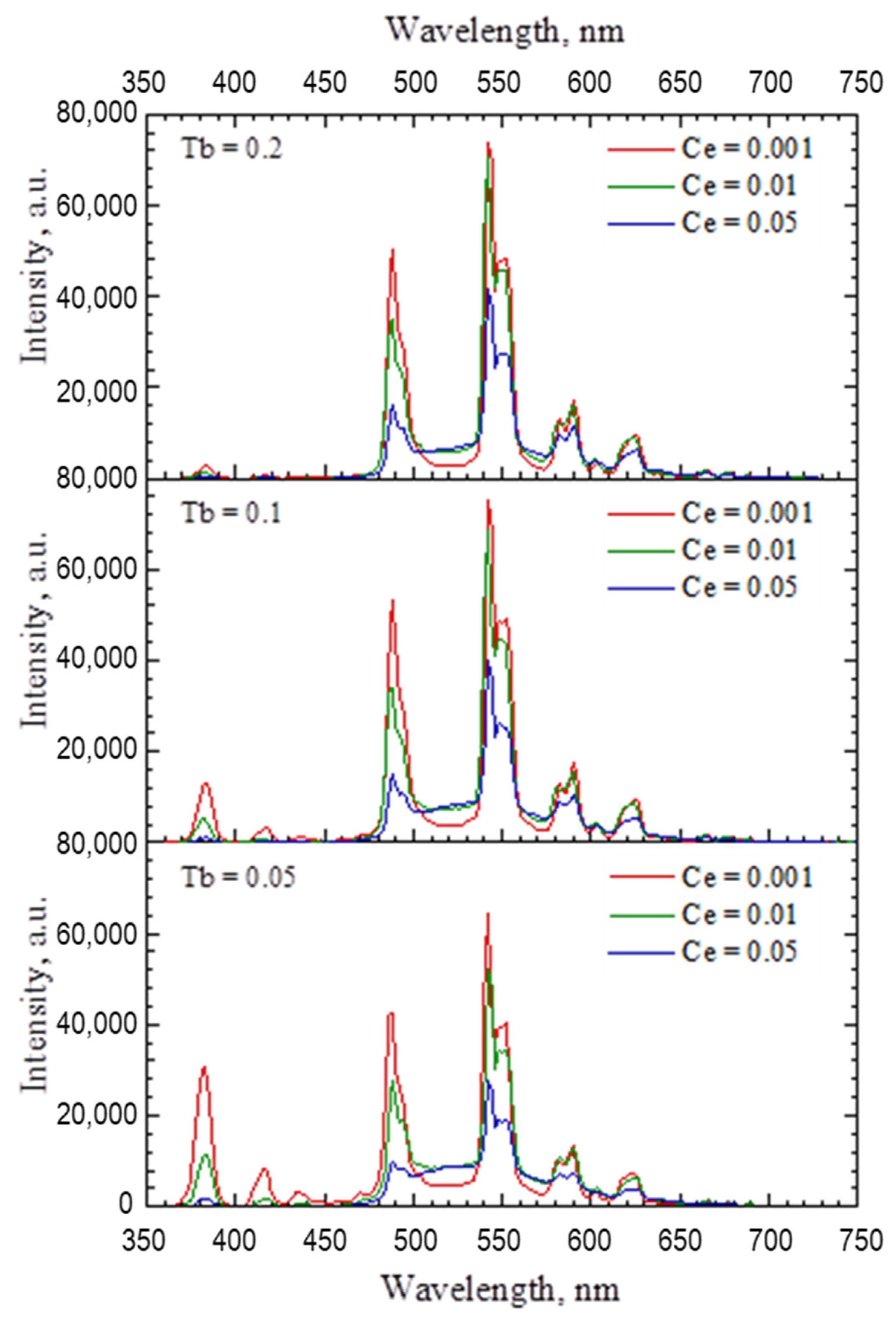

Figure 3. XRL spectra of the samples measured at room temperature. Indexes X of Ce and Tb in the compound indicated.
Figure 3. XRL spectra of the samples measured at room temperature. Indexes X of Ce and Tb in the compound indicated.
Ceramics 06 00117 g003
Ceramics 06 00117 g004

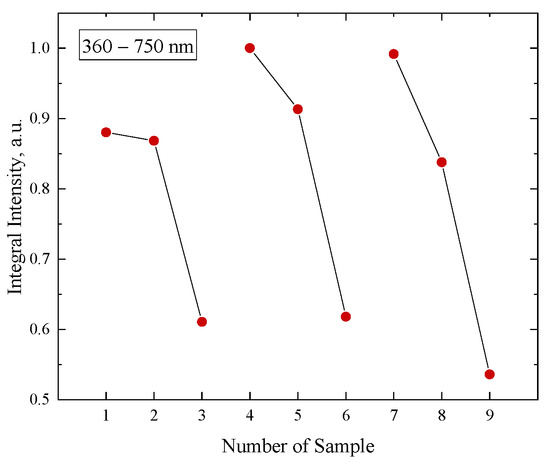

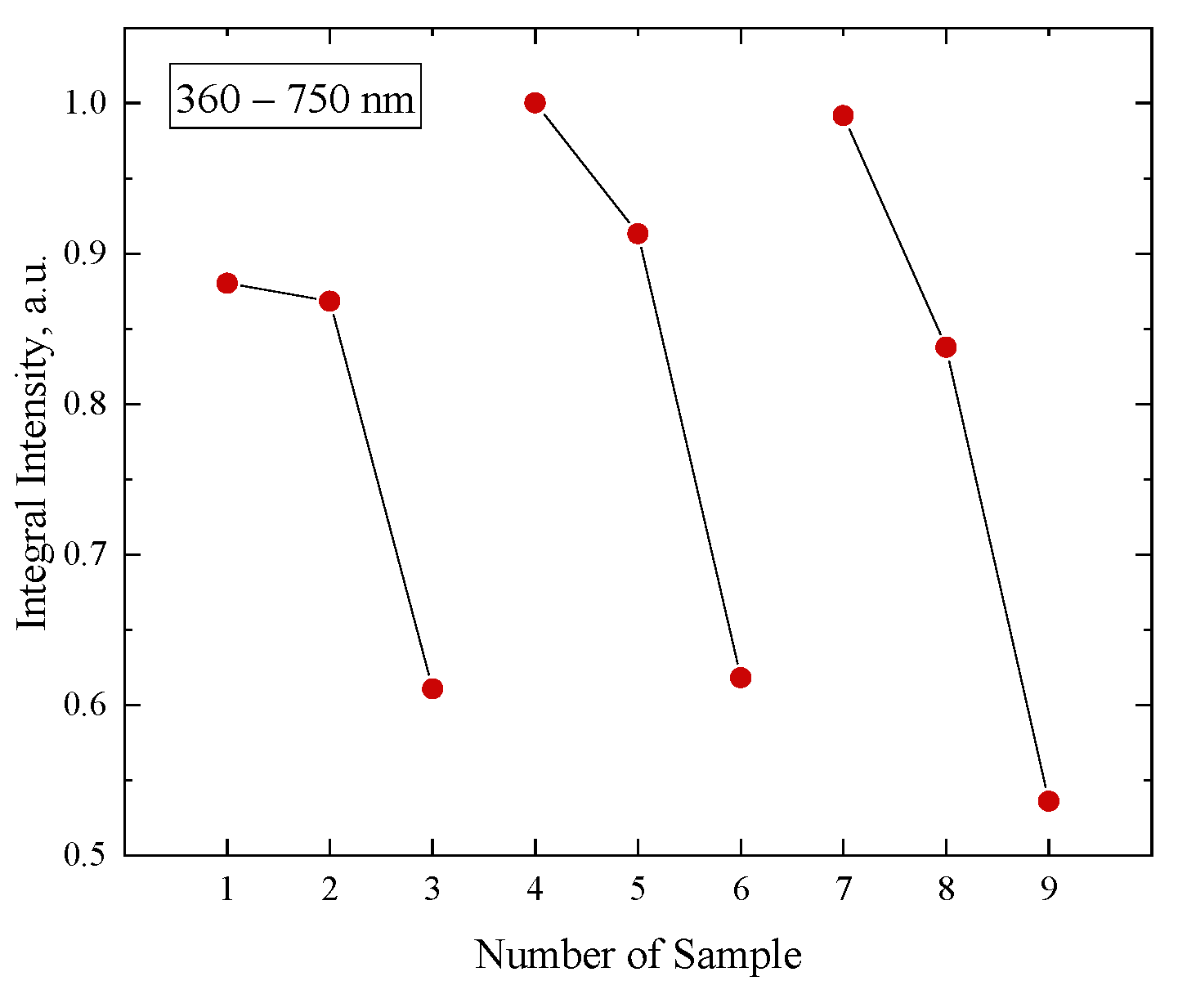

Figure 4. Samples normalized X-ray excited luminescence integral intensity measured in the spectral range of 360–750 nm.
Figure 4. Samples normalized X-ray excited luminescence integral intensity measured in the spectral range of 360–750 nm.
Ceramics 06 00117 g004
Ceramics 06 00117 g005

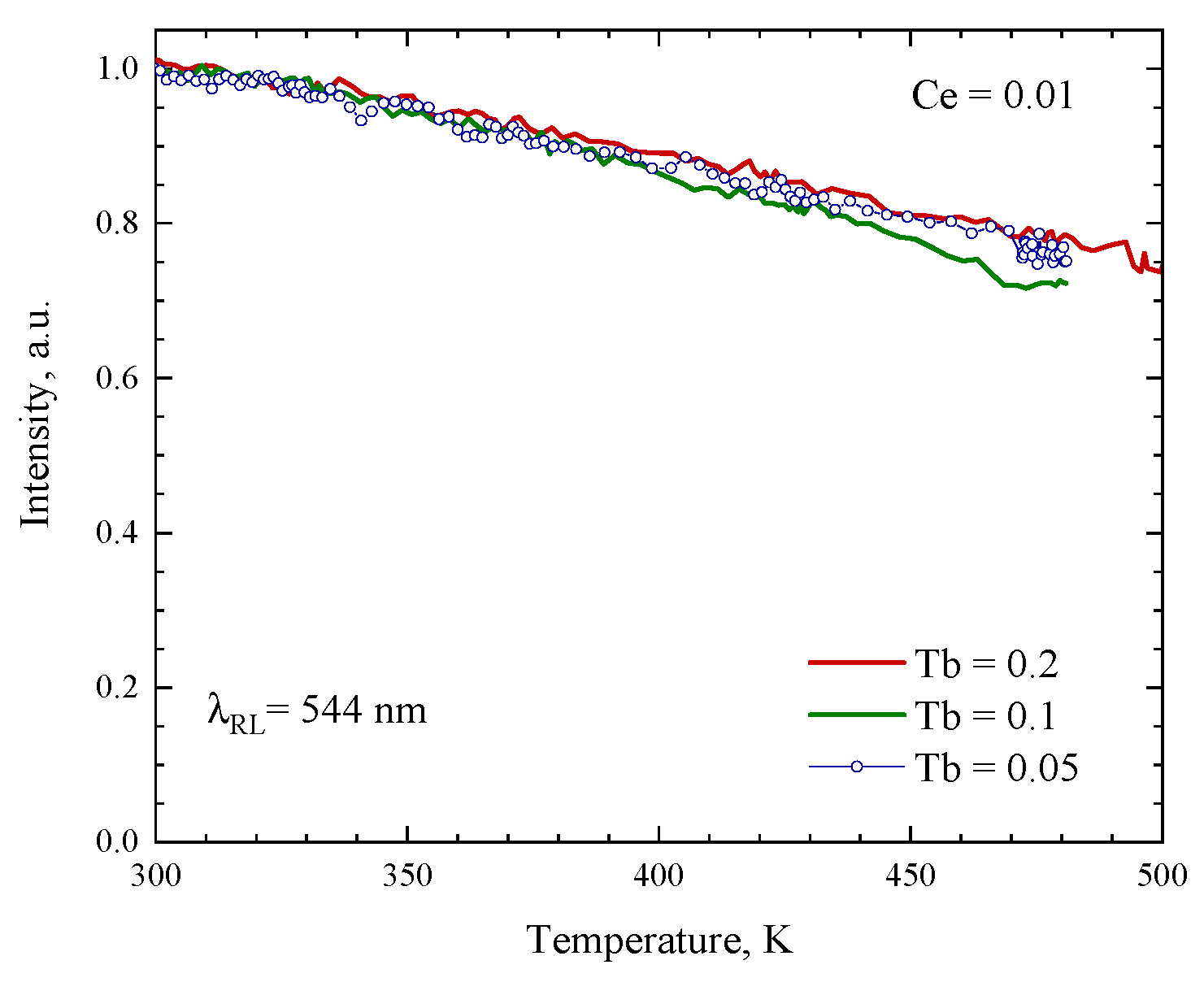

Figure 5. Normalized temperature dependence of the XRL intensity at the registration at 544 nm for samples with an optimal Ce content. Concentrations of Ce and Tb indicated.
Figure 5. Normalized temperature dependence of the XRL intensity at the registration at 544 nm for samples with an optimal Ce content. Concentrations of Ce and Tb indicated.
Ceramics 06 00117 g005
Ceramics 06 00117 g006

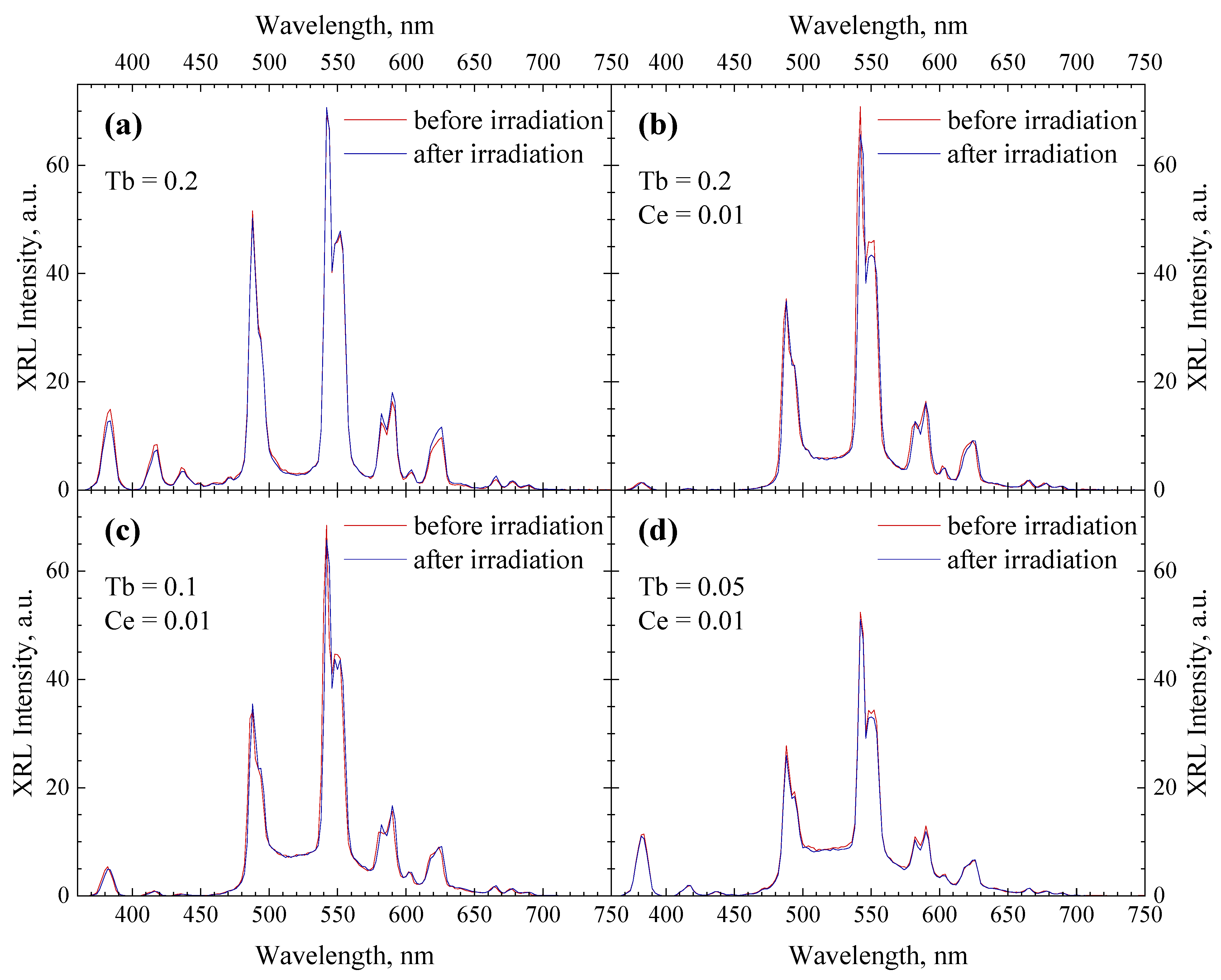

Figure 6. A comparison of the XRL spectra of samples without Ce (a) and representative samples with an optimal Ce content and in the Tb concentration range (b–d) before and after irradiation with a 10 MeV electron beam.
Figure 6. A comparison of the XRL spectra of samples without Ce (a) and representative samples with an optimal Ce content and in the Tb concentration range (b–d) before and after irradiation with a 10 MeV electron beam.
Ceramics 06 00117 g006
Ceramics 06 00117 g007

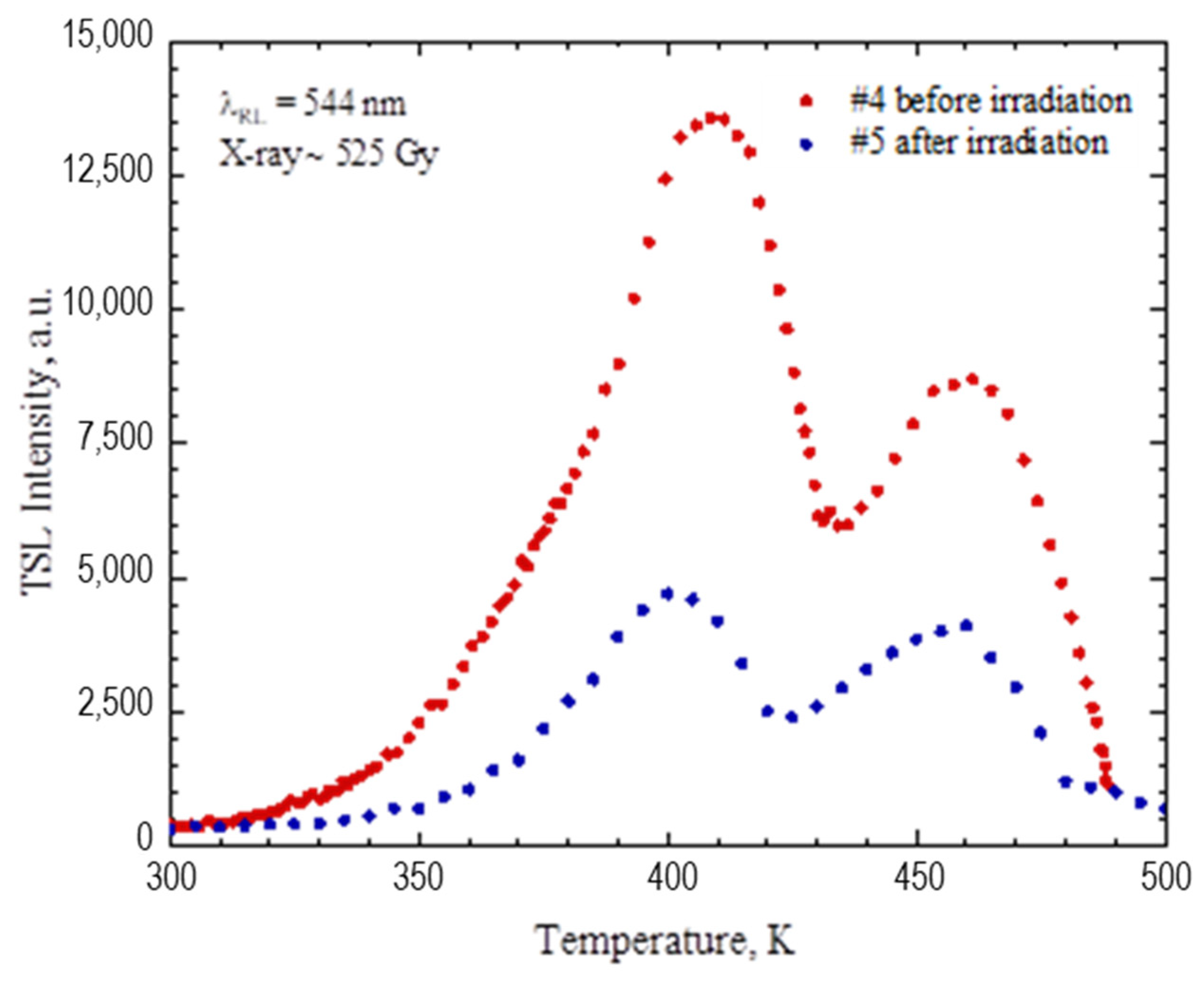

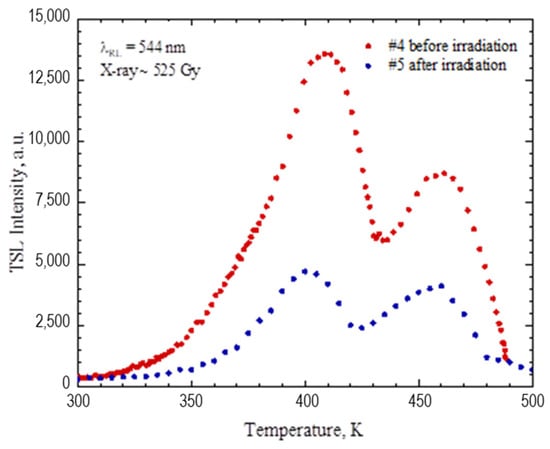

Figure 7. Thermally stimulated luminescence of (Gd,Y,Tb,Ce)3Al2Ga3O12 representative sample #4 before irradiation and #5 after irradiation with a 10 MeV electron beam. Linear heating rate: 0.33 K/s.
Figure 7. Thermally stimulated luminescence of (Gd,Y,Tb,Ce)3Al2Ga3O12 representative sample #4 before irradiation and #5 after irradiation with a 10 MeV electron beam. Linear heating rate: 0.33 K/s.
Ceramics 06 00117 g007
Ceramics 06 00117 g008

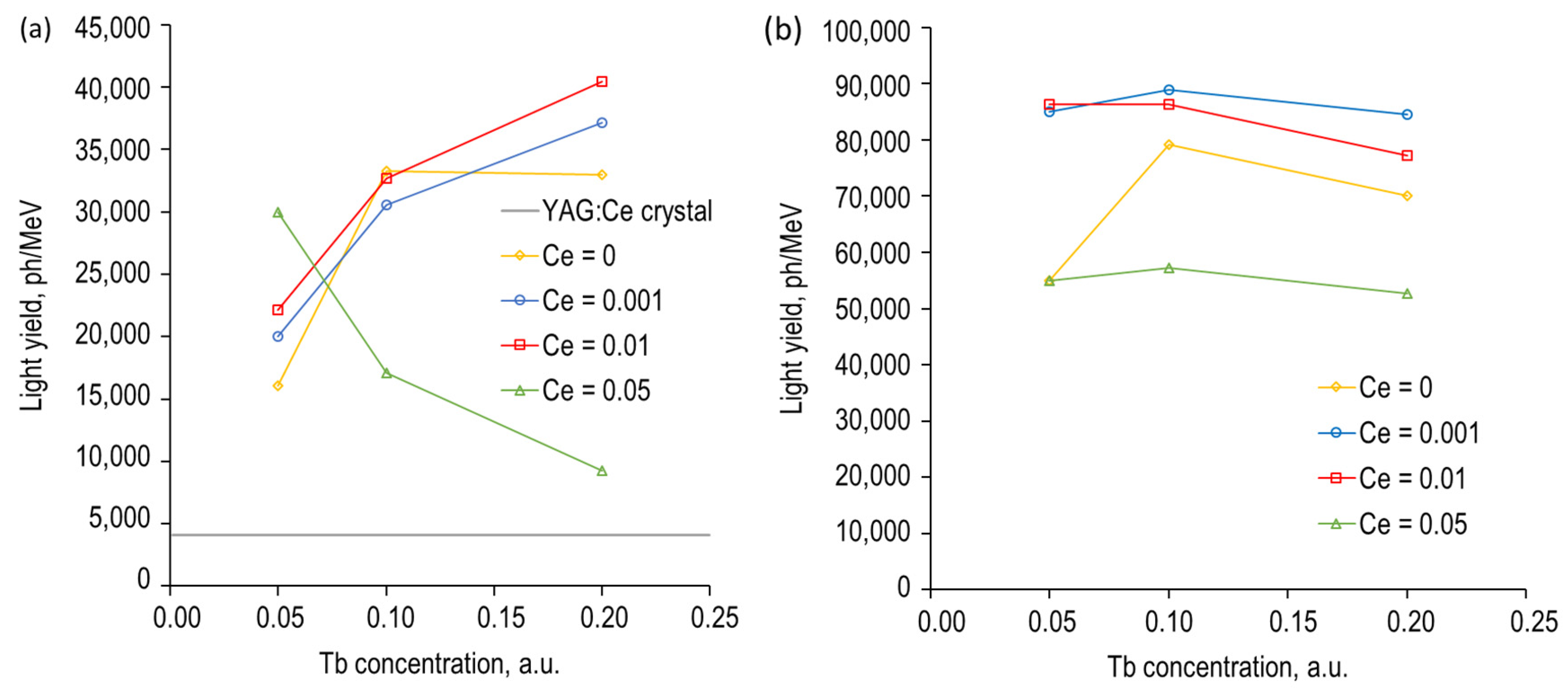

Figure 8. The total light yield measured at room temperature at excitation with α-particles of 241Am source (a) and calculated for γ-quanta excitation by using the α/γ ratio (b).
Figure 8. The total light yield measured at room temperature at excitation with α-particles of 241Am source (a) and calculated for γ-quanta excitation by using the α/γ ratio (b).
Ceramics 06 00117 g008
Ceramics 06 00117 g009

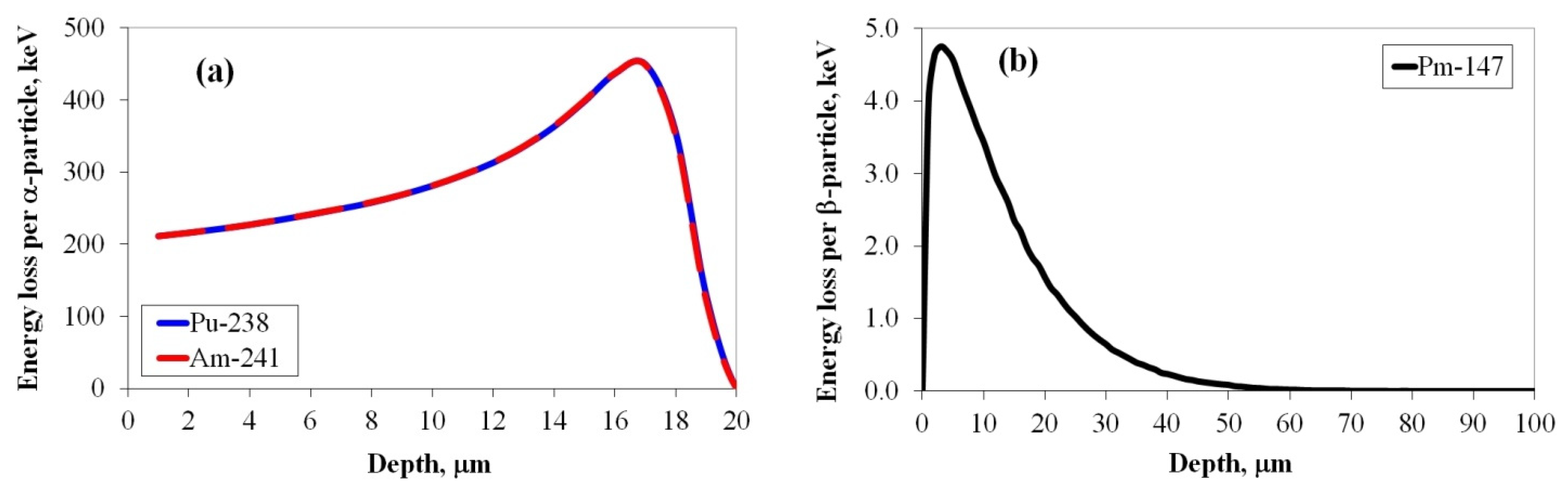

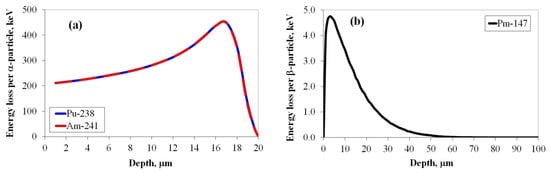

Figure 9. Energy loss profile for α-particles (a) and β-particles (b) of specified isotopes in (Gd,Y,Tb,Ce)3Al2Ga3O12 converter material.
Figure 9. Energy loss profile for α-particles (a) and β-particles (b) of specified isotopes in (Gd,Y,Tb,Ce)3Al2Ga3O12 converter material.
Ceramics 06 00117 g009
Table 1. Composition of the studied samples.
Table 1. Composition of the studied samples.
No.Composition
1(Gd0.373Y0.560Tb0.067Ce0.0003)3Al2Ga3O12
2(Gd0.372Y0.558Tb0.067Ce0.003)3Al2Ga3O12
3(Gd0.367Y0.550Tb0.067Ce0.016)3Al2Ga3O12
4(Gd0.387Y0.580Tb0.03Ce0.0003)3Al2Ga3O12
5(Gd0.385Y0.578Tb0.03Ce0.003)3Al2Ga3O12
6(Gd0.380Y0.570Tb0.03Ce0.016)3Al2Ga3O12
7(Gd0.393Y0.590Tb0.016Ce0.0003)3Al2Ga3O12
8(Gd0.393Y0.590Tb0.016Ce0.003)3Al2Ga3O12
9(Gd0.393Y0.589Tb0.016Ce0.016)3Al2Ga3O12
10(Gd0.387Y0.580Tb0.03)3Al2Ga3O12
Table 2. Some features of commonly used isotope sources.
Table 2. Some features of commonly used isotope sources.
Isotope238Pu241Am147Pm
Emitted particlesα-particle emitterα-particle emitterβ-particle emitter
Half-life, year/s87.7/2.77 × 109432.2/1.36 × 10102.62/8.26 × 107
Radiation energy, eV (branching, %) [56]5.499 × 106 (71)
5.456 × 106 (29)		5.486 × 106 (85)
5.443 × 106 (13)
5.388 × 106 (2)		Emax = 224.5 keV (100%)
<E> = 61.78 keV
Density in metallic form, g/cm319.813.8 [57]7.26
Activity of 1 cm3, Bq/Ci12.53 × 1012/3391.76 × 1012/47.62.50 × 1014/6756.8
Released energy from 1 cm3, W11.1 (α-particles only)1.38 (α-particles only)3.25
Released energy from 1 g, W0.56 (α-particles only)0.10 (α-particles only)0.46
Released energy from a radioisotope foil with an area of 1 cm2 and a thickness of 1 μm, W11.1 × 10−41.38 × 10−43.34 × 10−4
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Korzhik, M.V.; Karpyuk, P.V.; Bondarau, A.G.; Lelecova, D.E.; Mechinsky, V.A.; Pustovarov, V.; Retivov, V.; Smyslova, V.G.; Tavrunov, D.; Yanushevich, D.N. Compositionally Disordered Ceramic (Gd,Y,Tb,Ce)3Al2Ga3O12 Phosphor for an Effective Conversion of Isotopes’ Ionizing Radiation to Light. Ceramics 2023, 6, 1900-1912. https://doi.org/10.3390/ceramics6030117

AMA Style

Korzhik MV, Karpyuk PV, Bondarau AG, Lelecova DE, Mechinsky VA, Pustovarov V, Retivov V, Smyslova VG, Tavrunov D, Yanushevich DN. Compositionally Disordered Ceramic (Gd,Y,Tb,Ce)3Al2Ga3O12 Phosphor for an Effective Conversion of Isotopes’ Ionizing Radiation to Light. Ceramics. 2023; 6(3):1900-1912. https://doi.org/10.3390/ceramics6030117

Chicago/Turabian Style

Korzhik, Mikhail V., Petr V. Karpyuk, Aliaksei G. Bondarau, Daria E. Lelecova, Vitaly A. Mechinsky, Vladimir Pustovarov, Vasilii Retivov, Valentina G. Smyslova, Dmitry Tavrunov, and Denis N. Yanushevich. 2023. "Compositionally Disordered Ceramic (Gd,Y,Tb,Ce)3Al2Ga3O12 Phosphor for an Effective Conversion of Isotopes’ Ionizing Radiation to Light" Ceramics 6, no. 3: 1900-1912. https://doi.org/10.3390/ceramics6030117

Article Metrics

Back to TopTop
