Structural and Mechanical Properties of Amorphous Si₃N₄ Nanoparticles Reinforced Al Matrix Composites Prepared by Microwave Sintering

Abstract

The present study focuses on the synthesis and characterization of amorphous silicon nitride (Si₃N₄) reinforced aluminum matrix nanocomposites through the microwave sintering process. The effect of Si₃N₄ (0, 1, 2 and 3 wt.%) nanoparticles addition to the microstructure and mechanical properties of the Al-Si₃N₄ nanocomposites were investigated. The density of Al-Si₃N₄ nanocomposites increased with increased Si₃N₄ content, while porosity decreased. X-ray diffraction (XRD) analysis reveals the presence of Si₃N₄ nanoparticles in Al matrix. Microstructural investigation of the nanocomposites shows the uniform distribution of Si₃N₄ nanoparticles in the aluminum matrix. Mechanical properties of the composites were found to increase with an increasing volume fraction of amorphous Si₃N₄ reinforcement particles. Al-Si₃N₄ nanocomposites exhibits higher hardness, yield strength and enhanced compressive performance than the pure Al matrix. A maximum increase of approximately 72% and 37% in ultimate compressive strength and 0.2% yield strength are achieved. Among the synthesized nanocomposites, Al-3wt.% Si₃N₄ nanocomposites displayed the maximum hardness (77 ± 2 Hv) and compressive strength (364 ± 2 MPa) with minimum porosity level of 1.1%.

1. Introduction

Aluminum metal matrix composites (AMMCs) have been widely used and have vast applications in automotive and aerospace industries due to their light weight, low density, high strength to weight ratio and attractive properties [1,2,3]. The process of choosing the matrix and reinforcement is complex, and by adding suitable reinforcements to the matrix material, the properties of the composites can be tailored to meet the specific requirements. The main aim to develop the aluminum metal matrix composites is to produce materials that are lightweight, high strength, and lower cost when compared to the aluminum and traditional aluminum alloys.

Aluminum is the most commonly used matrix material in metal matrix composites. Ceramics that are generally used as the reinforcements in metal matrix composites are SiC, B₄C, Si₃N₄, Al₂O₃, Y₂O₃, and TiC. These reinforcements provide better microstructure and mechanical properties when combined with the metal matrix materials [4]. When compared to monolithic aluminum, Al-based metal matrix composites shows the significant improvement in mechanical properties in terms of enhanced strength and stiffness, good fatigue and wear resistance, less weight and high-temperature stability [5,6,7,8].

There are different methods available to fabricate the aluminum metal matrix composites, such as powder metallurgy, forging and stir casting routs [9,10,11]. Among these, powder metallurgy (PM) technique, involving blending, compaction and sintering, is one of the common methods used in the synthesis of metal matrix composites. In the blending process, planetary ball mill was used for blending the matrix and reinforcements powders in order to get uniform distribution of nanoparticles in the matrix phase. The sintering process has the ability to develop the microstructural and mechanical properties of the final synthesized product. There are many heating processes in the sintering method, such as microwave, vacuum, spark plasma, and the conventional sintering process [12,13,14]. In the microwave sintering process, heat is generated within the samples by rapid oscillation of dipoles at microwave frequencies. Additionally, uniform volumetric heating of the microwave sintering results in significant improvement in the microstructure and mechanical properties.

So far, few ceramic materials are used as the reinforcing materials like SiC, B₄C, Si₃N₄, Al₂O₃, Y₂O₃, TiC and TiB₂, and so on, in metal matrix composites [15,16,17,18]. Among these ceramic reinforcements, amorphous silicon nitride (Si₃N₄) is selected as the reinforcement used in the present study owing to its good mechanical, thermal and electrical properties, superior corrosion and good thermal stability [19,20,21]. To the best of authors knowledge, there has been no study conducted on the compressive behavior of the amorphous silicon nitride (Si₃N₄) reinforced Al-matrix nanocomposites.

The present research work deals with the fabrication and characterization of Al-Si₃N₄ nanocomposites using microwave sintering technique (MWS) and the effect of varying contents of amorphous Si₃N₄ nanoparticles on the microstructure and compressive performance of the synthesized nanocomposites were investigated in detail.

2. Materials and Methods

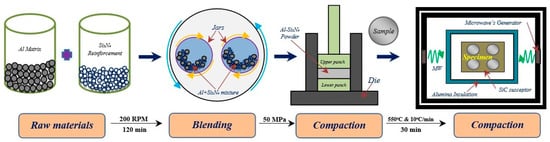

Pure Al (99.5% purity, ~10 µm, Alfa Aesar, Tewksbury, MA, USA) and amorphous Si₃N₄ nanoparticles (98.5+% purity, ~15–30 nm, Alfa Aesar, USA) were used as raw materials for the synthesis of Al-Si₃N₄ nanocomposites. Aluminum powder was mixed with 0, 1, 2 and 3wt.% of amorphous Si₃N₄ nanoparticles. The blending of two mixtures was carried out at room temperature in a planetary ball mill (PM 200) for 2 hours with the 200 rpm. No balls were used during the blending of powders. The blended powder was compacted into cylindrical pellets by applying uniaxial pressure of 50 MPa with holding time of 1 min. The compacted cylindrical pellets were sintered in a microwave sintering furnace at 550 °C with a heating rate of 10 °C/min for 30 min. The compacted pellets were placed at the center of the cavity and sintering was performed inside the multimode cavity [22]. The schematic of the experimental procedure is presented in Figure 1.

The density of the microwave sintered samples was calculated by using the Archimedes’ principle. The X-ray diffraction (XRD, PANalytical X’pert pro) analysis was performed to identify the phases present in Al-Si₃N₄ nanocomposites and to identify the presence of any impurities in the developed composites. The XRD analysis was performed in the 2θ range of 30–90° with a scanning rate of 1.5°/min. The morphology of the sintered composites was observed using scanning electron microscopy (SEM, JeolNeoscope JSM6000, Peabody, MA, USA) equipped with energy dispersive X-ray spectroscopy (EDX).

The microhardness of the Al-Si₃N₄ nanocomposites was determined by using Vickers Microhardness tester (MKV-h21) with an applied load of 25 gf and a dwell time of 10 s, for each sample with an average of 5 successive indentations.

Compression analysis of the nanocomposites was performed at room temperature by using the universal testing machine (UTM-Lloyd), under an engineering strain rate of 10⁻⁴/s. The respective data of each sample was obtained by an average of three successive values of test results. Yield strength (YS), ultimate compressive strength (UCS) and failure strain (FS) values of the nanocomposites were calculated by the obtained stress-strain curves. Fractographic analysis was performed to study the fractured surfaces of the Al-Si₃N₄ nanocomposites by using the field emission scanning electron microscope (Hitachi FESEM-S4300, Tokyo, Japan).

3. Experimental Analysis

3.1. Density and Porosity of Al-Si₃N₄ Nanocomposites

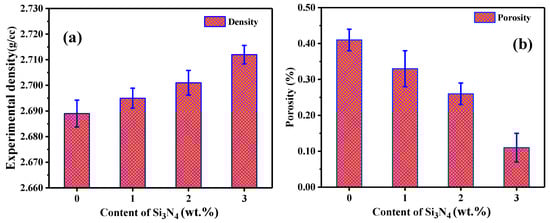

Figure 2 shows the variation of density and porosity of the microwave sintered Al-Si₃N₄ nanocomposites with varying Si₃N₄ content. It can be observed from Figure 2 that the density of the composites increased with the increasing amorphous Si₃N₄ content, due to the higher density of Si₃N₄ phase [23]. The higher density of the sintered nanocomposites influences the microstructural and mechanical properties of the synthesized Al composite materials. The porosity of the composites has shown a decreasing trend with the increasing amount of amorphous Si₃N₄ content. The nature of the reinforcement content and volumetric heating phenomenon is one of the main reasons for the low porosity.

3.2. XRD Analysis of Al-Si₃N₄ Nanocomposites

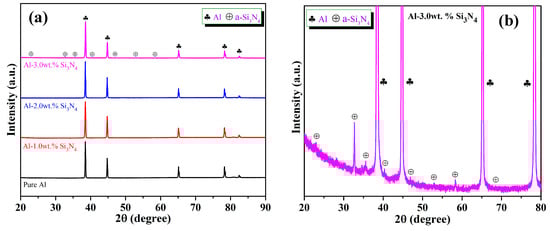

Figure 3 shows the XRD patterns of the microwave sintered Al-Si₃N₄ nanocomposites. Figure 3b shows the enlarged pattern of the Al-3wt.% Si₃N₄ nanocomposite. The XRD patterns clearly indicate that the presence of Al and amorphous Si₃N₄ in Al-Si₃N₄ nanocomposites and also shows that no other phases and impurities are present in Al composites [24,25]. Due to the presence of a small percentage of the reinforcement content, the reinforcement phase appears smaller in intensity as compared to the peaks of the Al matrix phase. The intensity of the amorphous Si₃N₄ diffraction peak increased with the increasing amount of reinforcement content.

3.3. SEM Analysis of Al-Si₃N₄ Nanocomposites

Figure 4 shows SEM images of microwave sintered Al-Si₃N₄ nanocomposites with different Si₃N₄ contents. It can be observed that clearly the amorphous Si₃N₄ nanoparticles are homogeneously distributed in the Al matrix.

The white color particles represent the amorphous silicon nitride and a gray phase represents the aluminum matrix. The EDS analysis was employed to identify the elemental distribution in the Al matrix. Figure 4e shows the EDX spectrum of Al-2wt.% Si₃N₄ nanocomposite was composed of mainly Al, Si and N elements. The homogeneous distribution and an excess amount of amorphous silicon nitride in aluminum matrix influence on the microstructure and mechanical properties of the Al- Si₃N₄ nanocomposites.

3.4. Microhardness of Al-Si₃N₄ Nanocomposites

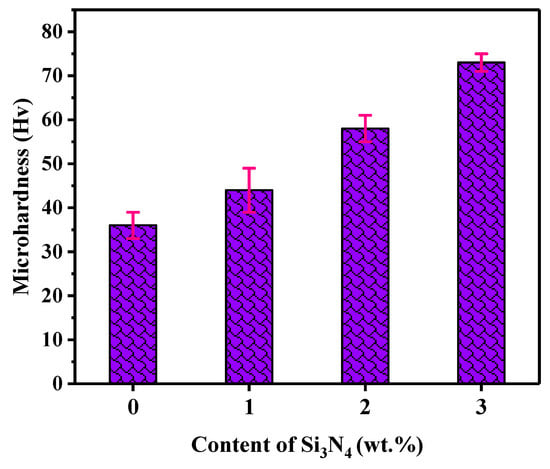

Hardness is a useful mechanical property that provides valuable insight into the overall mechanical behaviour of composites. Generally, several factors would affect the microhardness of the composites such as particle size, amount of reinforcement and method of preparation. The effect of Si₃N₄ nanoparticles in Al composites is shown in Figure 5 and

Table 1. Microhardness, yield strength and ultimate compressive strength of Al-Si₃N₄ nanocomposites.

Composition	Microhardness (Hv)	CYS (MPa)	UCS (MPa)	Failure Strain (%)
Pure Al	38 ± 3	70 ± 4	305 ± 3	>7
Al-1wt.% Si3N4	43 ± 5	86 ± 5	325 ± 5	>7
Al-2wt.% Si3N4	58 ± 3	104 ± 3	349 ± 4	>7
Al-3wt.% Si3N4	77 ± 2	127 ± 4	364 ± 2	>7
Al-3wt.% Si3N4 [29]	57 ± 2	198 ± 21	292 ± 18	--
Al-9wt.% Si3N4 [33]	59.5	--	--	--
Al alloy-3wt.% Si3N4 [34]	82	---	---	--

.

It can be clearly seen that the microhardness of the Al-Si₃N₄ nanocomposites gradually increased with the increase in amorphous Si₃N₄ content [26]. The Al-3wt.% Si₃N₄ composite has the highest hardness value (77 ± 4) when compared with that of pure Al. This higher value of the hardness of the nanocomposites can be associated with the presence of hard amorphous silicon nitride nanoparticles in the aluminum matrix and the dispersion hardening effect [27,28]. The microhardness of the microwave sintered samples in this study was found to be higher than the vacuum sintering samples [29].

The presence of hard amorphous Si₃N₄ nanoparticles improves the hardness of the composites materials as explained by the rule of mixtures [30].

H_c = H_mV_m + H_rV_r

where H_c represents the hardness of the composite, H_m and V_m represents the hardness and volume fraction of the matrix and H_r and V_r represents the hardness and volume fraction of the reinforcements, respectively.

3.5. Compressive Analysis of Al-Si₃N₄ Nanocomposites

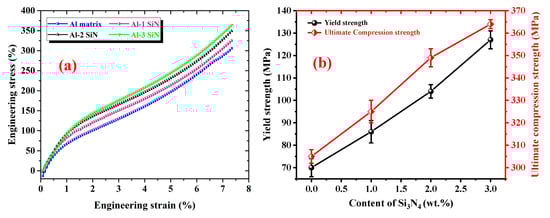

Figure 6a presents the engineering stress-strain curves of the microwave sintered Al-Si₃N₄ nanocomposites and their corresponding mechanical data presented in Figure 6b and Table 1.

It can be seen that the yield strength (YS) and ultimate compressive strength (UCS) significantly increase with the addition of amorphous Si₃N₄ content. The value of yield strength (YS) obtained for Al-3wt.% Si₃N₄ composite was 127 ± 4 MPa, with an ultimate compressive strength (UCS) of 364 ± 2 MPa at a uniform failure strain of 7.4%. The increase in yield strength and compressive strength of the nanocomposites can be attributed to the strengthening mechanisms because of the effective load transfer between the matrix and reinforcement particles, dispersion hardening effect and uniform distribution of reinforcement particles in the matrix [31,32].

There are several strengthening mechanisms and theories to enhance the mechanical properties of the composite materials. In the present study, the main strengthening mechanism is dispersion hardening. Dispersion hardening, also known as Orowan strengthening, is caused by the dispersed second phase. The Orowan strengthening mechanism is given by the Orowan-Ashby equation [35].

$${\sigma }_{Orowan}=\frac{0.13Gb}{\lambda }\ln \frac{d}{2b}$$

(1)

where G is the shear modulus of Al, b is the Burgers vector of Al, d is the average diameter of nanoparticles, and λ is the interparticulate distance between the reinforcement particles, which is given by the following equation [36].

$$\lambda =d\left[{\left(\frac{1}{2f}\right)}^{1/3}-1\right]$$

(2)

where, f is the volume fraction of the reinforcement particles.

3.6. Fractography of Al-Si₃N₄ Nanocomposites

The fracture morphology analysis of the microwave sintered pure Al and Al-Si₃N₄ nanocomposites tested under compression loading is shown in Figure 7. A typical shear mode fracture can be observed in the nanocomposites and the fracture surfaces show the cracks at 45^o to the compression loading axis. The compressive deformations obtained in Al composites are indifferent. This is due to the work hardening behavior. The plastic deformations of the composites are restricted by the presence of a dispersion of the second phase in the matrix [37].

4. Conclusions

In this study, amorphous Si₃N₄ nanoparticle reinforced Al matrix nanocomposites were successfully synthesized using microwave sintering process. The effect of amorphous Si₃N₄ content on the microstructural and mechanical of the developed Al composites are investigated. Experimental density of the synthesized composites increased with the increase in amorphous Si₃N₄ content, while porosity slightly decreased. The XRD analysis reveals the presence of amorphous Si₃N₄ in Al matrix. SEM and EDX analyses show the uniform distribution of amorphous Si₃N₄ nanoparticles in the aluminum matrix. Hardness, Yield strength and compressive strengths of the nanocomposites increased with an increasing silicon nitride content, hence, Al-3wt.%Si₃N₄ nanocomposite exhibited enhanced hardness (77 ± 2 Hv), yield strength (27 ± 4 MPa) and UCS (364 ± 2 MPa).
