A Prototype of an Electronic Pegboard Test to Measure Hand-Time Dexterity with Impaired Hand Functionality

Abstract

This paper proposes an electronic prototype of the Grooved Pegboard Test (GPT), which is normally used to test the presence of hand dexterity. The prototype imitates the geometrical dimensions of an on-the-market GPT device, but it is electronic, not manual like the one available now for users. The suggested electronic GPT device makes automated time calculation between placing the first and the last peg in their designated locations, instead of manually observing a stopwatch normally used during the GPT. The electronic GPT prototype consists of a fabricated wooden box, electronics (switches and microcontroller), and liquid crystal display (LCD). A set of 40 normal volunteers, 20 females and 20 males, tested the designed prototype. A set of six volunteers with chronic medical conditions also participated in evaluating the proposed model. The results on normal volunteers showed that the proposed electronic GPT device yielded time calculations that match the population mean value of similar calculations by the GPT device. The one-sample t-test showed no significant difference in calculations between the new electronic GPT and the manual GPT device. The p-value was much higher than 0.05, indicating the possible use of the suggested electronic GPT device.

1. Introduction

There are many validated tests to measure hand dexterity for patients with impaired hand function. Among them, there are the Grooved Pegboard Test (GPT), Purdue Pegboard Test (PPT), and Nine Holes Peg Test (NHPT) that were manufactured by Lafayette Instrument Company [1]. Each testing tool has a board with holes on it, a pegs tray, and a certain number of pegs. The common idea of these tests is placing a certain number of pegs in a set of holes, which are arranged differently on a board, as fast as a tested person can. The hands’ dexterity is assessed by recording the reaction time in placing pegs on the holes at the pegs board.

The GPT has been used previously in diagnosing many diseases [2,3,4,5,6,7,8,9,10,11,12]. For example, Amirjani et al. used the GPT to assess the carpal tunnel syndromes. They compared 190 carpal tunnel patients with 122 healthy people, claiming that the GPT exhibits high reliability in observing and assessing carpal tunnel syndromes [2]. In an early study in 1995, a set of normal elderly people from 60 to 89 years old participated in evaluating the GPT, yielding high reliability in monitoring the hands’ dexterity for normal elderly people [3]. Moreover, there were several studies to assess the handgrip strength for patients with hyperthyroidism [4,5]. In addition, the GPT was used with patients suffering from the neurocognitive and fine motor deficit in asymptomatic adolescents during the subacute period after concussion [6,7]. The Grooved Pegboard Test was also used to assess the fine dexterity after virtual reality (VR) immersion and cyber-sickness for 89 participants aged between 19 and 36 years [8]. In addition, the GPT was used to assess the hand dexterity for various diseases [9,10,11,12].

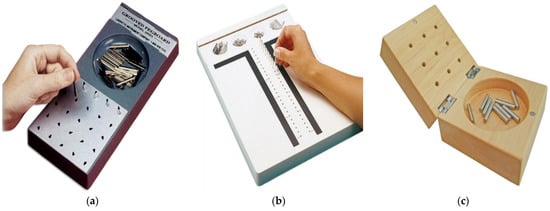

Although the FPT, PPT, and NHPT all have the same testing principle in examining hand dexterity, they differ in the number and the arrangement of the board configuration, as shown in Figure 1. They also proved to be efficient in different diseases. The GPT has 25 holes, which are arranged as five rows by five columns, and has been used for the post-brain surgery and for the possibility of assessing the lateral brain damage [13,14,15]. The study by Ying-Chih et al. has shown that the GPT is not efficient when used with very young or very old adults and with patients in the early stage of neurological diseases [16]. In contrast, the PPT has two sets of 25 holes arranged as right and left columns. The PPT has been used extensively to aid in the selection of employees for jobs that require fine motor dexterity and coordination, such as assembly work settings and industrial factories. Further, this test has been used with patients affected by the Parkinson, Multiple Sclerosis, Stroke, and other patients with neurological diseases [17,18]. It has been used in the rehabilitation for evaluating the progress and/or degree of the disability documentation [19,20]. Finally, the NHPT is designed with three rows and three columns of holes (nine holes). It has the benefit of being a shorter version and easier than the GPT and PPT. The NHPT has been used with adult cases with severe and complicated neurological conditions such as the Parkinson’s disease and Multiple Sclerosis [21,22,23]. Figure 1 demonstrates samples of the GPT, PPT, and NHPT boards.

The GPT is a rectangle board with a tray for the 25 pegs and a stopwatch to calculate the time for placing the pegs in the holes [19,24,25,26]. The stopwatch starts once a tested person has picked the first peg and ends with placing the last peg in the hole, then performance time is calculated. However, the manual time calculation might be vulnerable to human errors when switching the stopwatch on and off. The test needs to be held and supervised by a therapist.

The aim of this study is to build a prototype of an automated GPT device to calculate the precise performance time and omit any lost time due to human errors. The system is easy to use at home without the supervision of a therapist. This would enable the patients, by themselves, to observe their progression from treatment or their compliance to the home program treatment. The system has an LCD screen reading the elapsed performance time. It mimics the GPT device’s configuration in which it has similar dimensions to the tray, pegs, and holes. Therefore, the usage of the suggested electronic Pegboard Test (PT) device has been compared against the GPT device. A pilot study was conducted, and the one-sample t-test was calculated, comparing the mean of the measurements from the electronic GPT prototype with the population mean value of measurements from GPT devices. To the best of our knowledge, this is the first pilot study to design an electric and automated GPT; there are no similar experiments in the literature.

This research work is structured as follows: Section 2 describes the materials and method, including the geometrical design of the wooden board, electronic circuits, microcontroller (i.e., Arduino MEGA acquisition and processing board), and the display unit (Liquid Crystal Display, LCD). Section 3 demonstrates the results obtained from testing the proposed electronic GPT system. The statistical analysis of the results is presented in Section 4, as well as the benefits and the performance stability of the proposed device.

2. Materials and Methods

2.1. Pegboard Construction

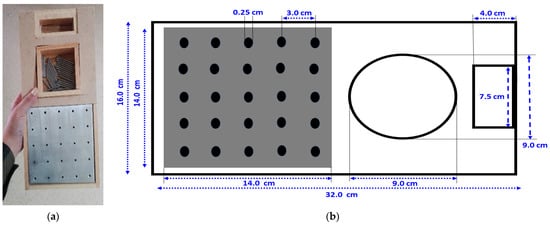

The suggested prototype of the GPT device consisted of a wooden board with an aluminum sheet and an electrical circuit, which was composed of a microcontroller and a liquid crystal display (LCD). The prototype imitates the GP’s geometrical architecture in which it has a tray of holes and a peg container. Figure 2 illustrates an image of the suggested prototype (a) and its architecture geometry (b).

2.2. The GPT Board

It is made from wood and an aluminum sheet. The wooden board was constructed at the cast carpentry workshop. Its length, width, and height were erected to 32, 16, and 4.5 cm, respectively. These dimensions are similar to standard GPT devices [13]. Then, an aluminum sheet was cut to a 14 by 14 cm square aluminum sheet at a cast iron workshop. The sheet was dotted to design a pattern of 25 holes with a 3 cm distance between every two adjacent holes. Finally, the sheet was drilled at the designated dotted points. The diameter of each hole was 0.25 cm, after which the sheet was fixed at the top of the wooden peg tray, as shown in Figure 2.

2.3. Electric Circuit

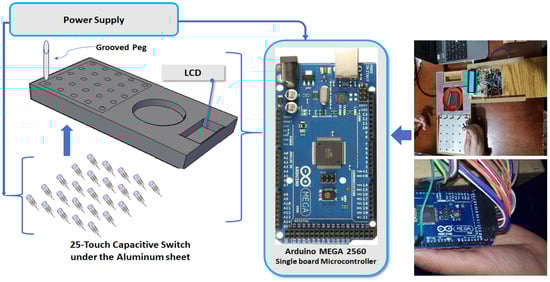

The electric circuit consisted of a microcontroller (i.e., Arduino MEGA) and a liquid crystal display (LCD), as shown in Figure 3. The Arduino MEGA is a single-board microcontroller with 54 input/output pins. It has its own programming language (i.e., Arduino software), permitting the design of electronic projects and systems for various applications. It is equipped with a USB cable port to transfer code from the computer to the board. The detailed structure and specifications can be found in ref. [27]. A matrix of 25 switches is mounted under the aluminum sheet, so there is an electronic switch under each hole. The experiment employed the Stainless-Steel Capacitive Switches type CPS16B (Langir Electric Co., Zhejiang, China). Each switch is 16 mm in size and requires a 5V DC power supply. The microcontroller, which can be mounted under the aluminum sheet, receives an input pulse signal from each switch via an electric wire. Thus, there are 25 wires, one wire under each hole. Once the participant places the peg in the correct hole, the electronic switch becomes “closed” generating a pulse signal sent to the Arduino board. The microcontroller was programmed to calculate the elapsed time between the first and last peg. The result was displayed on the LCD screen. The power supply was drawn from a computer laptop. Figure 3 shows images of the electric circuit and the circuit block diagram.

2.4. Participants

Forty normal participants were asked to test the prototype, 20 women and 20 men. They are all between 20 and 29 years old. Six people with medical conditions were also included in this study, four patients with neurological disorders, and two with bone accidents.

Table 1. The participants’ distribution.

	Normal Participants	Abnormal Participants
Pathology	Normal	Neurology Disorders	Bone accidents
Women	20	2	1
Men	20	2	1
Total	40	4	2

illustrates the distribution of all the participants; all of them, the normal and abnormal people, were asked to sign a consent before testing the designed system in order to meet the research ethics (i.e., all aspects of the experiment were explained, including the test description, equipment, and any risks). The Institutional Review Board (IRB) approved the experiment; the IRB number is reported in the Institutional Review Board Statement section at the end of the manuscript.

2.5. Procedures

Each participant was asked to place the pegs in their designated places using the dominant hand. Then, the participants were asked to repeat the test but using the non-dominant hand. For each run, the participant placed the 25 pegs in their correct designated holes in sequential order. The first peg should be placed in the first left hole in the first row of holes, while the last peg should be placed in the last right hole in the fifth row of holes (Figure 2). In contrast, for the non-dominant hand, the first peg should be placed in the first right hole in the first holes’ line while the last peg should be placed in the left hole in the last holes’ line. The microcontroller calculated the elapsed time between putting the first and last peg and then displayed it on the LCD.

3. Results

Table 2. The AVG and STDev of measurements of time on Normal Participants aged 20–29 years old.

	Dominant Hands (s)		Non Dominant Hands (s)
	AVG	STDev	AVG	STDev
Women (No. 20 participants)	63.2	7.6	69.8	8.7
Men (No. 20 participants)	64.0	10.5	70.1	12.4
Total (No. 40 Participants)	63.6	9.1	69.9	10.6
Population Mean Value [2]	63.4	7.9	69.05	18.7
p-value (Women)	0.91		0.72
p-value (Men)	0.82		0.74
p-value (Women + Men)	0.90		0.62

illustrates the average (AVG) and the standard deviation (STDev) in the recorded time (i.e., measurements) of the dominant and non-dominant hands of female, male, and all participants. On the other hand, to assess the validation of the prototype, the measurements were compared with the population mean values (i.e., reference values for normal people) stipulated by the manufacturer of the manual GPT device [1,2], which are reported in Appendix A. This value was evaluated by calculating the one-sample t-test, which assesses the significant difference (p-value) between the mean of the measurements and the population mean value (i.e., the hypothesized value). The null hypothesis was set that the mean of measurements from the two different GPT devices is different. The resultant p-values are listed in Table 2. It also lists the AVG and the STDev of the population records, which is the AVG and STDev of time to finish the test by normal people whose age is in the range 20–29 years old.

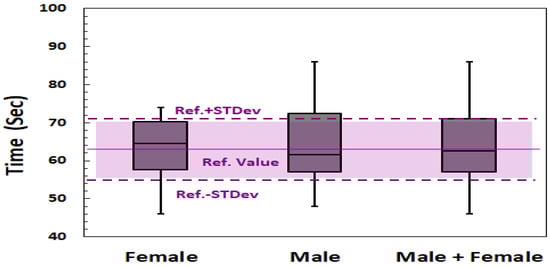

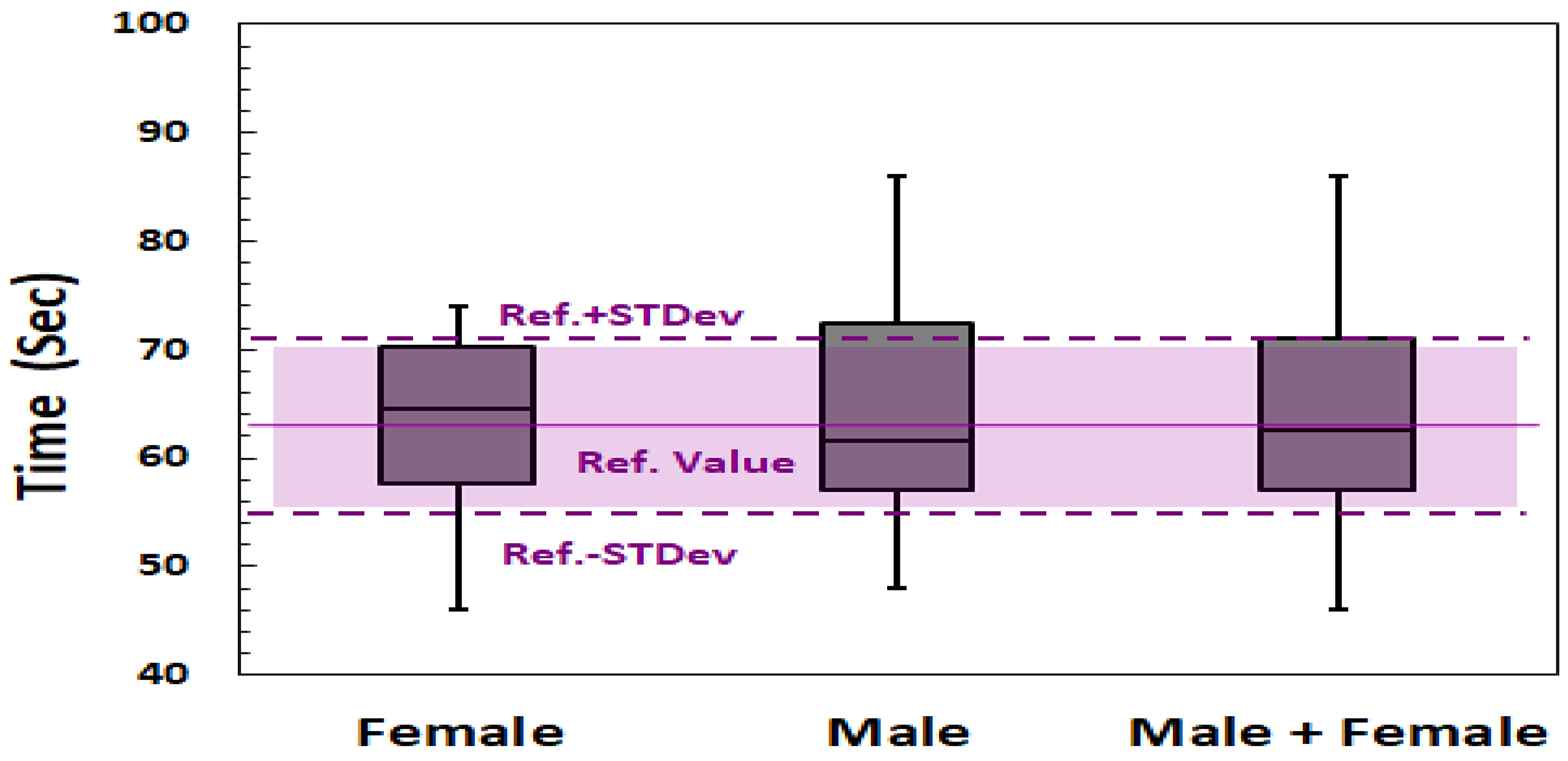

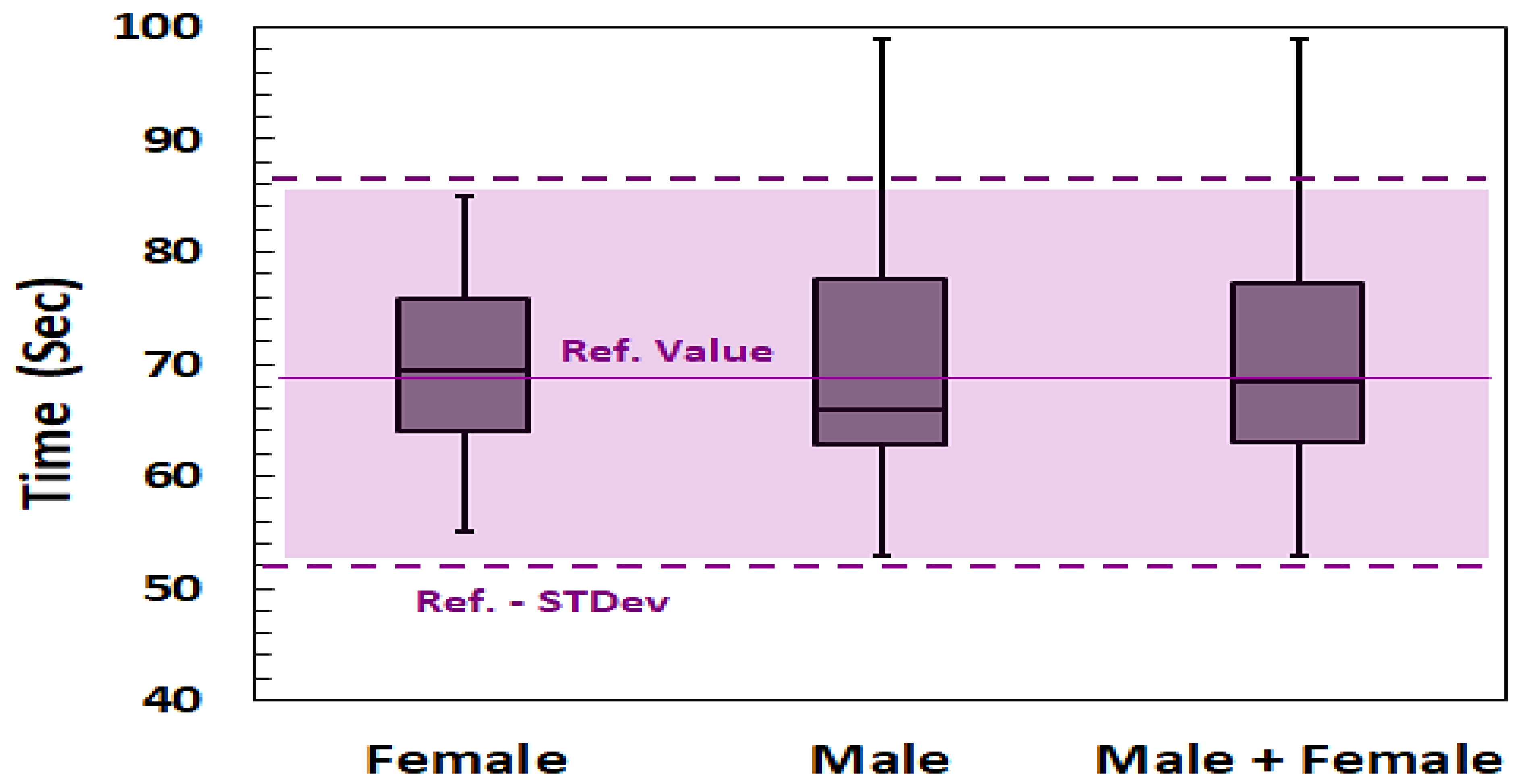

In addition, for further demonstration of the results, Figure 4 and Figure 5 demonstrate the box plots of all measurements on the dominant and non-dominant hands from females, males, and all participants. These figures allowed us to see the distribution of calculations from all volunteers who underwent the new electronic GPT, with reference to the AVG ± STDev of the population mean of records from GPT devices.

On the flip side, the six participants with medical conditions underwent the same test. They were from a different range of age groups.

Table 3. The measurements of time on right and left hands for some people with medical conditions.

Medical Condition	Right Hand (s)	Left Hand (s)
Ataxia (in right hand)	441	165
Autism	586	333
Cerebrovascular accident (CVA) (Stroke in right hand)	171	96
Cerebral Palsy (CP) (in Right hand)	567	421
Patient no. 1: Bone Fracture (in left Hand)	99	109
Patient no. 2: Bone Fracture (in left Hand)	85	184
Limits of Population Mean Values from GPT devices [2]	Dominant Hand: 60.96–82.7 s Non-dominant hand: 65.61–87.95 s

shows the measurements on the right and left hands for each separate case. For comparison, it also illustrates the limits of the population mean (i.e., Maximum and Minimum) of the required time to finish the test by normal people of different ages (as reported in ref. [13], specifically in the table related to the reference-population mean values of time measurements on healthy people undergo manual GPT devices). Exceeding these limits indicates the presence of a hand dexterity.

4. Discussion

Table 2 shows the experimental results on 40 normal people who are 20–29 years old. The AVG ± STD of measurements from dominant hands was 63.2 ± 7.6, 64.0 ± 10.5, and 63.6 ± 9.1 for female, male, and all participants, respectively. These values approached the population AVG and STDev values, which are 63.4 ± 7.9 s (Appendix A) in reference [13]. Similarly, the AVG ± STDev values of the measurements from non-dominant hands also come close to those of the population values. Therefore, the measurements on dominant and non-dominant hands comply with the population mean value that is reported from the manual GPT device [13].

On the other hand, in Table 2, the p-value of the significant difference between the measurements mean and the population mean on dominant hands was 0.91, 0.82, and 0.90, while it was 0.72, 0.74, and 0.62 for non-dominant hands of female, male, and all participants, in order. All these values reject the hypothesis that there could be a significant difference between calculations from the proposed electronic GPT device (Figure 2 and Figure 3) and the commercially accepted manual GPT device (Figure 1). Therefore, the pilot results in Table 2 rationalize the statement that “the proposed electronic GPT model is technically correct”.

Figure 4 and Figure 5 sustain the preceding discussion and findings. They showed that measurements from the suggested electronic GPT were within the zone of AVG ± STDev interval of the population’s calculations by the manual GPT device.

On the other hand, Table 3 illustrates the obtained results related to measurement tests on some volunteers suffering from neurology disorders such as Ataxia, Autism, Stroke, or Cerebral Palsy. The table also demonstrates calculations on volunteers suffering from bone accidents. For both types of disorders (i.e., nerve or bone accidents), the calculations were outside the population mean value limits of normal people (i.e., reference values from GPT devices in Appendix A), indicating the presence of hand dexterity [13]. The clinical analysis of each situation is beyond the scope of this paper. These results, however, could rationalize another proof about the feasibility of the usage of the suggested electronic GPT prototype by patients.

There are two prospective advantages of the suggested electronic GPT. First, the device can be used at home without the supervision of a physiotherapist, allowing patients, by themselves, to observe their medical situations, such as the progression from treatment. The therapists normally use a stopwatch so discomfort or mistakes may occur, which leads to repeat the test. Therefore, the second advantage is the possibility to use the electronic GPT at physiotherapy clinics, minimizing discomfort to both the patient and the therapist [28]. Finally, it may be of importance to note that the prototype can be similarly designed as the PPT or NHPT devices’ configuration in Figure 1.

However, the encouraging results in Table 2 and Table 3 were only from the pilot study. Therefore, they need to be verified on a large number of volunteers, which is not easily available, to include different groups of ages and different medical conditions. In addition, the matter of importance would be the price effectiveness of the suggested electronic GPT. The predictable cost includes the prices of the microcontroller, electronic switches, and the fabrication of the wooden box.

Unfortunately, no similar studies were reported in the literature to compare with the results in this paper, to the best of our knowledge.

5. Conclusions

An electronic GPT prototype was designed and preliminarily tested on 46 volunteers (pilot study). The prototype was equipped with electronic switches, microcontroller, LCD, and wooden box, and was fabricated to match the dimensions of the manual GPT device. The results approached the population mean of calculations by the company’s device. They showed no significant difference between calculations by the suggested model and the GPT device. However, in some circumstances related to Epileptic and motor-sensory dysfunction, the new model of the GPT may use as an assistive evaluation [29,30].
