Soils in Understanding Land Surface Construction: An Example from Campania Plain, Southern Italy

by
Antonella Ermice
1,*,
Rossana Marzaioli
1,
Marco Vigliotti
2,
Pierferdinando Lamberti
1 and
Daniela Ruberti
2
1
Department of Environmental, Biological, Pharmaceutical Sciences and Technologies, University of Campania L. Vanvitelli, 81100 Caserta, Italy
2
Department of Engineering, University of Campania L. Vanvitelli, 81031 Aversa, Italy
*
Author to whom correspondence should be addressed.
Quaternary 2024, 7(3), 39; https://doi.org/10.3390/quat7030039
Submission received: 4 March 2024 / Revised: 31 August 2024 / Accepted: 11 September 2024 / Published: 19 September 2024
Browse Figures
Versions Notes

Abstract

:
The contribution of sediment transport and accumulation to soil formation was investigated in an area characterized by continental sedimentary activity since the Late Pleistocene. The area was the north-eastern portion of the large Quaternary graben represented by the Campania Plain, which is rimmed to the north–east–south by the Mesozoic carbonate Apennine nappes. The plain was filled mainly by products generated by eruptions from the Phlegrean Fields, which were also distributed on the slopes bordering the plain and remobilized toward the adjacent surfaces. Five sites were selected in the area in question. They were studied using morphological features and pertinent characteristics of the mineral soil fraction >2.0 mm, such as their volume and lithological description. Soils were compared to selected lithostratigraphic sequences characterizing the studied area, which were collected from literature and reinterpreted in pedological keys. The results showed that soils derived from the emplacement of Phlegrean primary volcanic materials, such as Campania Ignimbrite (~39–40 ky B.P.) and Neapolitan Yellow Tuff (~15 ky B.P.), with the related weathering products, and from volcanic materials reworked and transported by alluvial/colluvial episodes. The latter formed contrasting soil horizons which, differing in both rock fragment content and lithological composition, testified to the presence of lithological discontinuities. The formation of the horizons in question interrupted the genetic sequence derived from the in situ alteration of the volcanic substrata, suggesting that processes of transport and redistribution of sediments from the adjacent mountain slopes contributed to soil formation. The comparison of the pedostratigraphies with the lithostratigraphic sequences indicated a strong relation between geomorphic and pedogenetic events.

1. Introduction

Pedogenesis implicates formation with the time of soil horizons with different characteristics and properties, depending on the processes active on the soil parent material. The participation of multiple materials in soil architecture can affect soil horizon differentiation, as occurs in the presence of repeated sedimentary processes [1]. Sedimentation is one of the geological processes responsible for land surface construction, and when involved in soil genesis, it is variously incorporated in most of the pedogenetic models developed for understanding the pedological systems and their complexity [1]. Intricate genetic relationships among soil portions can derive from the interplay of sedimentary processes in soil formation as an effect of the introduction of various parent materials differing in both particle size and lithological composition, which produces the so-called soil lithological discontinuities (LDs). The latter are contacts between horizons with significant changes in particle size distribution or mineralogy, which represent differences in lithology within a soil [2]. The detection and interpretation of the LDs are a crucial step in soil studies [1,3] due to the great influence of the parent material on the soil genesis pathway. Lithologically contrasting horizons occur in a lot of soils in the world: Ahr et al. [3] report the wide occurrence of LDs on the planetary surfaces “in loess and sand covers over glacial tills in relict periglacial environments across Europe, in volcanic soils, in sandy Atlantic and Gulf Coastal Plain soils, in the loess-mantled landscapes in North America [4,5], in soil complexes in Australia, and in highly weathered soils of the tropics” [4,5].
The relationships among the contrasting horizons and layers are important for numerous investigations in earth and environmental sciences due to the implications of LDs in pedological, ecological, and geomorphological processes and their role as stratigraphic, archeological, and paleoclimatic markers [1,3,4,5,6,7,8,9]. LDs are useful for ascertaining the depositional history of a soil, which is relevant in reconstructing the relationships between soils and geomorphic surfaces. Pedological studies also benefit from the detection and interpretation of LDs because of the influence of vertical changes on all processes of translocation along a soil profile. From this perspective, the vertically differentiated zones along a soil profile are important in the investigations of landslide hazard and risk prediction due to the influence exercised by these soil portions on the soil hydraulic behavior [10,11,12].
Depositional processes, such as the fallout of tephra, as well as the transport of colluvial and alluvial materials, can impact the formation of the pedological covers through both allogenic sediment scattering and massive and instantaneous burial. In this last case, deposits blanket the surfaces faster than they can be incorporated into soils by pedogenetic processes [1,5]. In this way, geological deposits generate vertical breaks in the “regular” pedogenetic activity, generating contrasting horizons. The resulting complex soil patterns can be further complicated by lateral variations, especially on steep slopes that simultaneously operate as sinks and sources, and can receive and lose variable portions of sediments and soils, with consequent soil morphological and constitutional changes over short distances. An example, among others, is offered by the complex distribution of the pedological covers on the carbonate Campanian Apennines in Southern Italy, where the combination of geomorphological, sedimentological, and climatic circumstances produces the removal and transport of portions of pedogenized materials and/or the primary Phlegrean and Vesuvian pyroclastics deposited on such reliefs, interrupting the continuity of the sequences, truncating and burying the surfaces [13]. By contrast, in flat areas and in the absence of important tectonic movements, the geomorphological stability should enable the preservation of the pedostratigraphic sequences that document sedimentary inputs, stimulating the study of the role of sedimentation on soil formation.
Such a geomorphological setting is offered by the large structural depression corresponding to the Campania Plain in Southern Italy (Figure 1 [14,15]). The Campania Plain evolved during the Quaternary as a large graben [16] in which thousands of meters of sediments and volcanic deposits accumulated due to fluvial and coastal processes along with volcanism [17,18,19,20,21,22,23,24]. To the North, East, and South, the Plain is rimmed by the Mesozoic carbonate Apennine nappes, while its western portion faces the Tyrrhenian Sea and hosts the Phlegrean Fields and Somma–Vesuvius volcanic districts. The latter, developed during the Late Pleistocene, produced important volcaniclastic deposits that interfingered with alluvial and transitional sediments, covering the Apennine ridges. Such a morpho-sedimentary evolution is particularly developed in the north-eastern sector of the Plain, facing the foothills, where pyroclastic deposition was associated with weathering processes that affected the carbonate slopes, favoring the formation of alluvial fans and colluvial deposits often enriched in detrital carbonate components [16,17,18,19,20,21,22,23,24,25].
While extensive geological literature is available on the stratigraphic concerns, especially regarding surface processes (see the references in this manuscript, among others), less interest has been devoted to the mechanisms of formation and development of the pedological covers.
The aims of this work were to detect the soil cover organization and the main factors implicated in the pedogenesis in an area characterized by active sedimentary processes in the past and explore the genetic relationships existing among the soil horizons, as well as the effects on pedogenesis of the sedimentary–geomorphic processes in the studied context. The study was conducted through field investigation and pertinent laboratory analyses of soil profiles surveyed in an area located in the north-eastern part of the Campania Plain and by comparing the soils to selected local lithostratigraphic sequences collected from the literature.

2. Study Area

The study area corresponds to the north-eastern part of the Campania Plain, delimited by the towns of Caserta, Maddaloni, Recale, S. Nicola la Strada, and S. Marco Evangelista (Figure 2). The plain was filled with clastic and volcanic sediments deriving from the interaction between fluvial deposits from the Apennines Mountain and the sea and the numerous pyroclastic products emitted mainly by Phlegrean Fields. These latter are a group of polygenic volcanoes to the west of Naples, whose activity lasted between about 205 and 157 ky B.P. [26]. The deepest portion of the Campania Plain consists of marine, transitional, and continental deposits from the Middle–Late Pleistocene, which are sealed at the top by pyroclastic materials. One of the last explosive eruptions of the Phlegrean Fields emplaced Campania Ignimbrite (CI) (~39–40 ky) [27,28], a thick (50 m on average), laterally continuous, pyroclastic unit that covered the whole Campania Plain. In the studied sector of the Plain, this unit represents one of the two most important marker levels recognized in the subsoil, overlain by the surge deposits of the following eruption known as the Neapolitan Yellow Tuff (NYT) (~15 ky B.P.) [29,30]. A volcanic ash layer from the Y-3 eruption, dated 29,000 years B.P., could have affected sedimentation in the area in question [31].
Colluvial layers form a large piedmont glacis, which is laterally associated with the hills and characterized by wedges of detrital fans consisting of reworked volcanoclastic and calcareous debris [17]. Alluvial sediments also occur close to the hill slopes.
The study area is nowadays characterized by a Mediterranean climate with an average annual precipitation of about 1000 mm and an average annual temperature of 16 °C [32]. Land surfaces are mainly characterized by urban and artificial land covers, industrial crops, horticultural crops, and fruit tree plantations. Land areas with more natural conditions, such as natural grasslands, broad-leaved forests, and sparsely vegetated areas, occupy only limited surfaces [33].

3. Materials and Methods

We selected five sites at an elevation ranging from 37 to 58 m a.s.l., on which five soil profiles were studied: SP1, SP2, SP3, SP4, and SP5 (Figure 2; Table 1). Three of them (SP3, SP4, and SP5) were on uncultivated surfaces. SP1 has not been tilled for about 20 years. SP2 was used until 1985 as a walnut plantation, which was substituted with a fruit plantation until 1993 and was then replaced by maize and tobacco plantations.
The soils were excavated to a depth of at least 200 cm; SP3 and SP4 soil profiles were studied on a surface delimiting a tuff quarry; the SP5 soil profile was documented from an exposure of an appropriate section created by excavations for building construction.
Based on the characteristics listed above, we identified and designated the soil layers approximately parallel to the soil surface, i.e., the so-called master horizons, which are the soil layers distinguishable from adjacent layers by a distinctive set of pedogenetic characteristics [2,34]. The morphological features described in the field were the horizon or layer depth, color (using the Munsell color charts), texture (the weight proportion of the separates for particles less than 2 mm in diameter, i.e., fine earth, which is conventionally separated in sand, silt, and clay), rock fragments (pieces of geological material 2 mm in diameter or larger, which have resistance to rupture), structure (the natural arrangement of the soil particles into aggregates, characterized by a grade, which is the distinctness of units composed of primary particles, size, ranging from <1 mm to ≥50 mm, depending on the kind, and kind, which is the structure shape), consistency (soil material degree of cohesion and adhesion, or resistance to deformation or rupture), and horizon boundaries (transition from a horizon or layer to the underlying one, recorded by distinctness, which is the thickness of the transition, and topography, which is the shape of the contact between horizons or layers. Distinctness is defined in terms of thickness of the transitional zone as follows: very abrupt, less than 0.5 cm; abrupt, 0.5 to less than 2 cm; clear, 2 to less than 5 cm; gradual, 5 to less than 15 cm; diffuse, 15 cm or more) [2,34,35].
To detect LDs, the volume and composition of the mineral soil fraction ≥2.0 mm (rock fragments, as defined above) were unraveled [1,8]. This fraction was selected because it represents the primary parent material suitable for identifying the origin of the soil horizons. On bulk samples collected from each horizon or layer of four selected soil profiles, SP1, SP2, SP3, and SP4, the evaluation of the volume and the description of the lithological characteristics of the ≥2.0 mm fraction (rock fragments) was performed as follows: the air-dried whole soil samples were gently ground; a known volume of each whole soil sample was sieved to separate the ≥2.0 mm fraction. The separated fraction was transferred into a container with a known volume; its content was measured and related to the volume of the whole soil sample [36]. The separated ≥2 mm fraction was used to implement a description of the lithological characteristics examined in the field through the evaluation of the fragment kinds, their dominant size, roundness, shape, color, and apparent alteration degree [2,34].
The investigation was completed using four lithostratigraphies that were selected from literature and reinterpreted in pedological key. They included three stratigraphic sections: OC1 [37], reported by [17,38] and [25], OC2 [38], OC3 [17], and one borehole: BH1 [25].
Pertinent characteristics of the soil profile and lithostratigraphy locations are listed in Table 1. The lithostratigraphy description is reported as a part of the results of the present investigation only for the benefit of the manuscript organization.

4. Results

4.1. Lithostratigraphic Sequences

Figure 3 shows the general stratigraphic pattern reconstructed from the cited literature. From the top to the bottom, the sequences are organized as follows:
Unit I.
Post-NYT soil and colluvial sediments.
Unit II.
Multistratified pyroclastic unit (NYT).
Unit III.
Post-CI soil and/or colluvial/alluvial sediments.
Unit IV.
Tuff unit (CI).
Unit II and IV were considered marker levels attributed to the Phlegrean eruptive phases and recognized over the entire study area.
Unit II consists of white and gray pumice layers alternating with white ashy layers, the deepest of which everywhere marks the base of this pyroclastic unit; the thickness ranges from 50 to 150 cm.
The CI products (Unit IV) are characterized by vertical and lateral facies changes, varying from the yellow zeolitized tuff facies (recognized in the OC1 section) to the gray tuff facies (present in the OC3 and OC2 sections).
In all analyzed sections, the CI deposit was separated from the upper NYT by a thick depositional unit, which varies in thickness from 100 to 200 cm (Unit III). In the OC1 section, it consists of a brown paleosol; in the OC2 and OC3 sections, the paleosol is also accompanied or substituted by a level of colluvial and/or alluvial sediments. In particular, in the OC3 section, these latter were described as a pedogenized level, which consisted of discontinuous deposits of altered pumices in the pyroclastic matrix, where the characteristics of these reworked pumices suggested the participation of CI products in the formation of the level in question [16]. The effects of sediment mobilization post-CI were also recorded in the BH1 borehole in which the deepest horizons, although apparently linked to the underlying CI substratum, were separated from this latter by an erosional surface [18].
Unit I consists of a pedogenized portion varying in thickness from 100 to 150 cm, resting on the NYT products. In the OC2 section, a massive yellowish pumiceous level was described resting on Unit II, although it is not attributable to NYT. In the OC3 sequence, this upper Unit is separated from the underlying NYT products by a colluvial level described as a whitish and yellowish ashy matrix, which showed a gradual transition into the uppermost pedogenized cover.

4.2. Soil Profiles

4.2.1. Morphological Characteristics

As an effect of the pedogenesis, the soil bodies result in a sequence of identifiable horizons and layers, which contain the marks of the processes responsible for their formation. The pedological approach [2] points out the different pedogenetic processes, discriminating among the possible steps of soil formation through an accurate description of the portions of the surfaces involved in the pedogenesis.
Based on these considerations, in Figure 4, we depict a general pattern of the studied soil profiles, whose morphological features are reported in Table 2. This sequence of the soil horizons results from the information surveyed in the field and from that deriving from the laboratory analyses conducted on the rock fragment fraction (≥2 mm), reported further on. It is important to underline that from this point, the term “Unit” applied to soils will only be used to quickly identify the single soil portions and their related horizons or strata and to facilitate the comparison with the Stratigraphic Units sketched in Figure 3.
All soil profiles were at least 2 m deep. Unit IV in SP3 and SP4 soil profiles consisted of a zeolitized lithified tuff, yellowish in color, with sparse columnar jointing and a pipe structure (Figure 5b,c).
In all soil profiles (on Unit IV where present) a first pedogenized portion (Unit III) occurred (Figure 5a,c). The soil profiles that better exhibited Unit III (SP1, SP3, SP4, and SP5) consisted of buried soil horizons (Ab, Bwb, and CB), with a total thickness varying from 70 to 120 cm. Variable proportions of volcanic lithics and pumices, with some loose, fragmented crystals, constituted the rock fragment fraction of these buried soil horizons. Mainly sandy loam textures and clear or abrupt horizon boundaries were mainly found. In a position like that occupied in the soils by the buried horizons, a paleosol level is recognized on the land surface extending from the Phlegrean Fields to the Campania Plain [39,40], as well as in the reported lithostratigraphies. In some of them, it also occurred above a colluvial layer [16,25,38].
On Unit III, multiple C soil horizons were present (Unit II) (Figure 5a,c), which corresponded to a stratified pyroclastic package. It had the following main features: it consisted of one level of pumices and subordinate lithics, or a level of dominant welded ashes over a pumice stratum, which was superimposed on a laminated ash level; it varied in thickness from 30 to 60 cm. In the SP4 soil profile, at the bottom of Unit II, there were two thin strata of pyroclastics (Unit IIb). The textures were mainly sandy loam and loam. Horizon boundaries were abrupt.
As also in the lithostratigraphic sequences, on Unit II, an uppermost pedogenized portion, Unit I (Figure 5a,c), consisting of A, Bw, and BC soil horizons, completed the profiles on their top. In the soils, the thickness of Unit I ranged from 135 to 170 cm. The texture was sandy loam, loamy sand, and loam. The horizon boundaries were mainly clear. Also here, pumices and volcanic lithics, in variable proportions, compose the rock fragment fraction.
No horizon of the studied soil profiles exhibited clay illuviation or concretions.

4.2.2. Laboratory Analyses

The results of the analysis of the rock fragment volume conducted on soil samples from the selected SP1, SP2, SP3, and SP4 soil profiles are reported in Table 2. In accordance with field observations, variations in rock fragment content were recorded along Unit III of SP1, SP3, and SP4 soil profiles. In this Unit, the volume increased from the 8Bwb3 to 6Bwb1 horizons of SP1, from 6Bwb3 to 4Bwb1 horizons of SP3, and from 8Bwb3 to 6Bwb1 horizons of SP4. In contrast, in this Unit, the content decreased from 4Bwb1 to 4Ab in SP3 and from 6Bw1 to 6Ab in SP4. Unit IIa consisted of two or three C pyroclastic soil layers, whose rock fragment content depended on the texture of this primary pyroclastic material [39]. Variations in rock fragment content were also detected in Unit I. In particular, in SP1, from the bottom to the top, after the decrease recorded in the 3Bwsoil horizons with respect to the underlying 3C1 pumiceous layer (Unit II), an increase in the volume of the rock fragments was measured from the 3Bw2 to the 2Bw1horizon and from this latter to the A horizon; in SP2, after the decrease recorded in 2CB and 2Bw horizons, an increase was seen from the 2Bw2 horizon to one part (A2) of the overlying A2/2Bw1, and a decrease from this part to the uppermost A1 soil horizon; in SP3 and SP4 profiles, after the decrease recorded from the 2C1 horizon (Unit II) to the overlying three 2Bw horizons, rock fragment increment was detected from the 2Bw2 to the overlying Bw1 horizon. A small decrease in the rock fragment content was seen in the uppermost A soil horizon of weather SP3 or SP4.
The evaluation of the genetic relationships among soil horizons was completed using the observation of the composition of the rock fragment fraction. As an example, we report the results related to the horizon sequence of the SP1 soil profile (Figure 5a). From the bottom to the top, the analysis of the rock fragments of the deepest 8Bwb3 horizon of Unit III showed that in such a horizon, the fraction in question consisted mainly of fine pumices (about 0.5 cm) and lithics and that pumices were brownish, with some whitish elements, rounded and strongly weathered. In the overlying 7Bwb2 soil horizon, which had recorded an increase in the content of the rock fragments compared to the underlying 8Bwb3 horizon, most of the fraction is composed of pumices with a larger size (up to about 1.5 cm), grayish and whitish in color, mainly angular, with a high degree of alteration. In the 6Bwb1 horizon, recording a further increase in the rock fragment content, particles mainly consisted of medium and fine, rounded and elonged, brownish altered pumices. The layers constituting Unit II, lying on the 6Bwb1 horizon, had the most abundant (up to 50%) and coarsest rock fragments (up to 5 cm) along the soil profile. This Unit consisted, at the bottom, of a very gravelly ashy layer (5C3 horizon) underlying a thin pumiceous layer (4C2 horizon) and, at the top, a gravelly 3C1 horizon in which the rock fragments consisted of angular and elonged ashy elements, subordinate lithics, and mainly gray pumices (up to about 2 cm). These components, in a lower content, also constituted the pedogenetic substratum of the two 3Bw soil horizons of the overlying Unit I in which, nevertheless, they had sizes from a few mm up to about 1.5 cm and were covered by a yellowish coating; no differences were detected among rock fragment fractions of the two 3Bw soil horizons, except for the size (max about 1.0 cm) of the fragments of the 3Bw2 horizon, which were smaller than those of the underlying 3Bw3 horizon. In contrast, a distinctly different composition of the increased rock fragment fraction was found in the 2Bw1 soil horizon, in which very fine and fine elements (max 0.5 cm) were mainly brownish altered rounded pumices, with only a few lithics. This composition also differed from that of the A soil horizon, where a higher amount of lithics and the occurrence of whitish pumices, in addition to brownish altered ones, contributed to the further measured increment in the rock fragment content (see Supplementary Materials S1 for information on the other soil profiles analyzed).
Other features which, even if with caution, could be invoked to better understand the genetic relations among the soil horizons were color and structure. In particular, in Unit III of the SP1 soil profile, the 8Bwb3 horizon had a darker color (2.5Y 4/4) compared to that of the overlying 7Bwb2 horizon (2.5Y 5/4), which suggested a break in the expected increase in organic matter from the bottom to the top of the soil. With respect to the soil horizon structure, in Unit I of the SP2 soil profile, the A1 and the A2 part of A2/2Bw1 displayed a chaotic and sometimes firm aggregation of soil portions, in contrast with the angular and subangular rocky structure, which had a grade from moderate to weak, characterizing the contiguous soil horizons. Finally, in the soil profile in question, there was an A2/2Bw1 combination soil horizon, which is a horizon with two distinct parts that have recognizable properties of two kinds of master horizons indicated by capital letters [2]: the presence of this horizon provided a signal of the participation of two different soil masses to the formation of the soil in question.

5. Discussion

5.1. Soil Horizonation Settlement

All soil profiles were developed from volcanic materials that constituted the particles of all soil horizons and layers in accordance with the wide distribution of volcanic substrata in the study area. In particular, one of the main features of the horizonation of the studied soils was the multi-storied arrangement resulting in two multileveled pedogenized portions, such as those of Unit II and Unit IV, which were separated by a stratified pyroclastic bed (Unit III). The organization, position, composition, and thickness of this soil portion indicated that it consisted of the distal fall and surge deposits of NYT eruption [39,40,41], as also found in the stratified pyroclastic package surveyed in the lithostratigraphic sequences reported above. Unit IIb, occurring in SP4, was not clearly referable to NYT fall materials, and it could be the result of erosion activity accumulating loose volcanic materials on the soil location during the time. Unit IV was intercepted and closed, in turn, the soil profiles at the bottom. It showed the position and characteristics of the zeolitized facies of the CI deposit, outcropping in some portions of the Campania Plain as a modification of the widespread Campania Ignimbrite gray facies [42,43]. Accordingly, this deposit was always recorded at the bottom of the lithostratigraphies reported in the present investigation, corroborating its correspondence with the R horizon of the studied soil profiles in which it was surveyed. The increasing depth of the CI products toward the west in the studied area [25,30] was likely responsible for their absence in the soil horizonation of SP1 and SP2: these soil profiles, in fact, were in areas where the CI upper surface is deeper than the lower boundary of the related pit excavation. In the SP5 soil profile, this Unit consisted of two levels, which were different facies of the CI.
This pedostratigraphic framework depicted a pathway in which, in the first instance, there were at least two pedogenetic intervals, each of which occurred after the deposition of the respective underlying primary volcanic products, in analogy with the reported lithostratigraphic sequences sketched in Figure 3. A pedostratigraphic organization like this typically characterizes the volcanically influenced environments in various parts of the world, where different tephra intermittently cover the existing landforms, substantially contributing to soil formation ([36,44,45,46,47,48], among others). In these environments, soils are generally characterized by the so-called andic soil properties [49]. These are properties that develop, to various extents, from the weathering, mainly at the expense of glass components [44]. In these contexts, the soils can constitute interesting paleomarkers according to the different conditions of formation and evolution [50]. The morphological features of the studied soil profiles also excluded mechanisms of water infiltration and circulation able to promote the dispersion and flocculation of clay particles and formation of clay coatings, as well as hydromorphic conditions affecting the mobile elements and forming concretion or nodules, which are documented in other pedological environments ([50] and references therein).
The second feature of the surveyed soils concerned the genetic relationships among the soil horizons and strata, which have been inferred by the mutual variation along the soil profile, of rock fragment content and composition, and by the other reported morphological features. As a general rule, rock fragment content can vary from the bottom to the top of a soil profile as a result of three mechanisms, such as (1) weathering from the parent material, which can favor the decrease in the volume of fragments from the parent material to the surface; (2) biological displacement, which can be responsible for variations in the rock fragment volume in upper horizons, mainly through tree uprooting or faunal activities; (3) sediment additions from transport and redistribution processes, which, besides those operating by humans, are important when geomorphic conditions promote material transport and redistribution from adjacent sites on existing surfaces [51,52].
In the studied soils, there were no evident marks of biological displacement, except for the possible anthropic contribution to Unit I of the SP2 soil profile, which was only deduced from the local agriculture history. So, two mechanisms could be responsible for the decrease in the rock fragments: the weathering of the parent material or the addition of sediments with a content of rock fragments lower than that of the horizon on which the sediments are deposited. In the analyzed cases, all horizons displaying the decrease in question had lithological constitutions like that of the respective underlying horizons but with marks of weathering of the original mineral components: this suggested that, in such cases, the weathering process was the most probable mechanism, and this implicated genetic continuity between the involved soil horizons. Unlike the decrease, a unique mechanism could explicate the rock fragment increase from a horizon to the overlying one in the studied soils: the sedimentary input from the neighboring slopes. This indicated that supplemental materials also contributed to soil formation, generating lithological discontinuities, as recorded in Table 2 by the devoted horizon designation. As a result, in the studies of soil profiles, in addition to weathering processes, there were constructional events determined by the introduction of both the primary volcanoclastic and reworked soil materials.

5.2. Pedological Signature of Sedimentary–Geomorphic Processes in the Studied Area

In Figure 6, the genetic correspondence among the horizons of the different soil profiles is depicted. Lithological discontinuities marked the studied soil profiles in two ways: in correspondence with the transition from the soil horizons of Unit III to the overlying C horizons of Unit II, consisting of NYT pyroclastics, and among some of the horizons constituting Unit I and those of Unit III. The first case of discontinuities was the expected effect of the introduction on the surfaces of new primary pyroclastic material (C soil horizons). The second case of discontinuities was that which interrupted the genetic sequence in the pedogenized “Units”. This suggested that surfaces have suffered additional periodic inputs of materials other than those deriving from the primary volcanic products. In line with the location of the studied soils on a plain surrounded by mountain relief, these materials would have been introduced into the pedostratigraphies through processes of transport and the redistribution of sediments.
They buried the surfaces during the interval from the CI and NYT pyroclastic deposition and after the sedimentation of NYT pyroclastics until the present. Involving more episodes of the addition of materials contributed to soil construction.

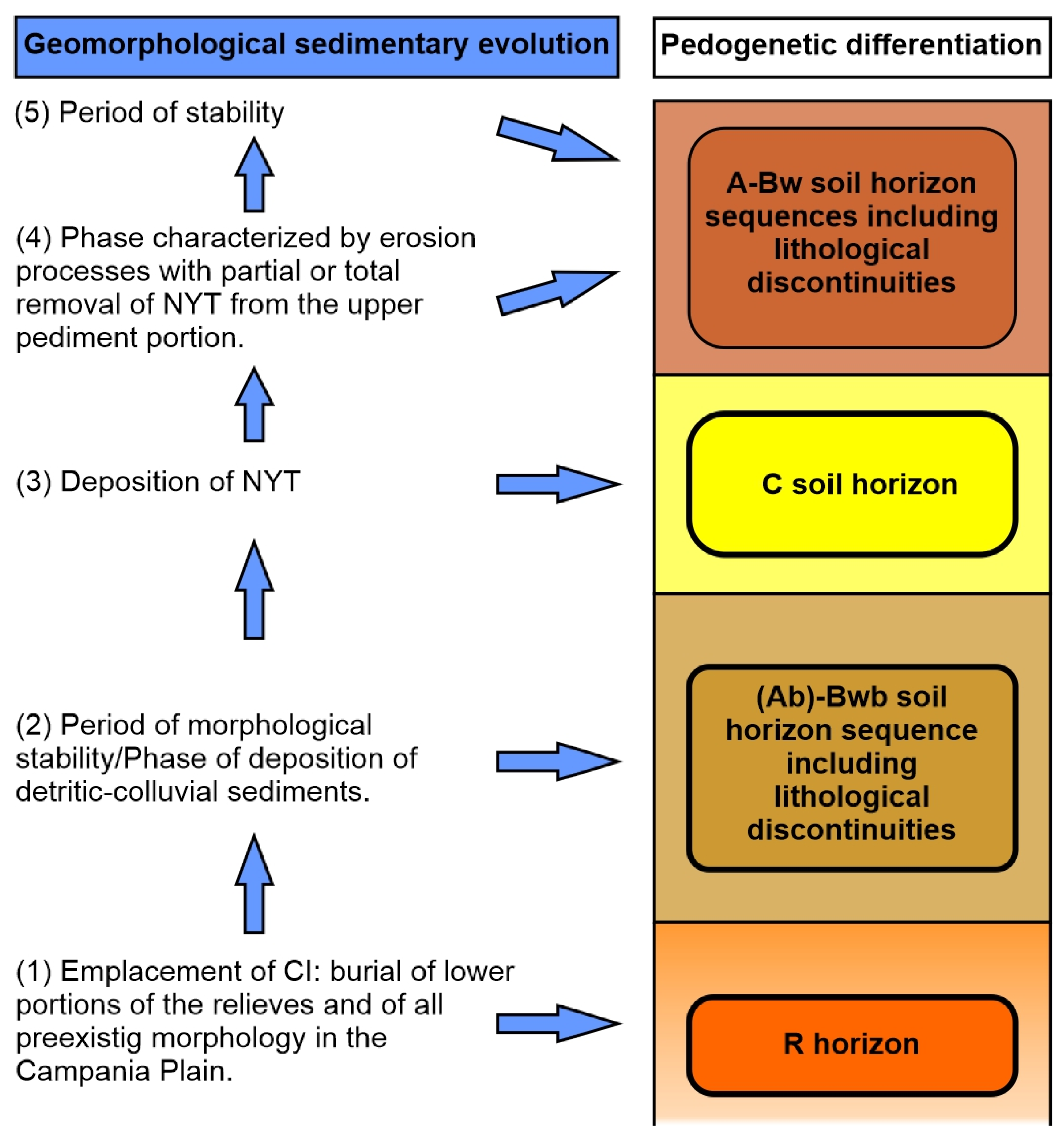

These pedo-sedimentary dynamics developed during the succession of the Late Quaternary abrupt climatic events ([53,54] and references therein), especially those linked to the Last Glacial–Interglacial Transition [55]. The climatic evolution at the LGIT is characterized by multiple episodes of climatic instability, which are often difficult to interpret in the patterns of climatic and environmental changes recorded in the sedimentary sequences, especially where precise stratigraphic constraints are absent. However, it should be highlighted that the environmental and landscape response to these oscillations, on a global scale, has often shown an increase in clastic sedimentation during climate deterioration, suggesting catchment erosion; the return to favorable climatic conditions is usually associated with a reduction in clastic sedimentation through reduced allogenic sediment loading and increased catchment stabilization [54].
Even though precise dating of the horizons described is not available, the succession of the pedostratigraphic events can be framed within the context of the climatic evolution mentioned above, considering the studies carried out on the Campanian Plain by [20,22,56,57]. In particular, it has demonstrated that during the CI emplacement, the sea level was lowered following the Last Glacial (LG) period, and, during the maximum of the LG, the upper surface of this unit was eroded by river down cutting [20,57,58]. It is known from the ice core chronology that during the boundary of the Last Glacial Maximum and the Holocene, the climate varied between alternating centennial warm and cool phases [59], but the record of these changes can be modified or altered by the overprinting of local events, such as volcanic activity. The emplacement of the NYT surge deposits occurred during this transitional climate phase. The latest Pleistocene–Early Holocene sea level rise resulted in rapid flooding of the lower Volturno Plain with the development of a back-stepping regressive-to-aggrading sedimentation. During the Middle–Late Holocene deceleration of the post-glacial sea-level rise, a prograding deposition took place on the whole plain. The detected lithologically discontinuous soil horizons could be tentatively read in light of the above large-scale climate changes. Nevertheless, the lack of accurate stratigraphic constraints makes it difficult to identify an unambiguous correlation with globally recognized climatic events. Unlike this, the identification of the detected lithologically discontinuous soil horizons constitutes a key for the reconstruction of the dynamics of the surfaces in response to the characteristics of the local geomorphological context.
Overall, however, the results obtained by the pedological investigation were consistent with the reported lithostratigraphic investigations conducted in the study area, which suggested that sediments deriving from runoff and dissection activities post-CI and NYT deposition contributed to the formation of buried and modern soils, as described in the lithostratigraphic sequences. The interpretation of these lithostratigraphic sequences in the pedological key showed the close correspondence between geomorphic–sedimentary events and pedostratigraphic characteristics, as depicted in Figure 7. In particular, the susceptibility of the slopes bordering the Campania Plain to loss and transfer of loose materials, also probably under favorable climatic events [17], contributed to generating colluvial, dendritic, and erosion phases that have been redistributed on surfaces morphologically suitable not only to receive but also to retain sediments: these participated effectively in the construction of the pedological covers, interrupting the “normal top down” pedogenesis from the primary volcanic deposits through the burial of the primary deposits or their pedogenetic products. In the described soil architecture, the identification of “exogenous soil materials” and their differentiation from the “endogenous” ones, as well as their contribution to the comprehension of the surface dynamic construction, provide information on characteristics and properties that can abruptly vary and contrast along the soil profile. This is particularly relevant in the relationship between soil and water. Water, in addition to its primary role as a vector of most of the weathering processes of the mineral components and decomposition of the organic matter, is directly connected to the hydraulic soil properties. The study of the latter, which is one of the main concerns in the rainfall-induced landslide assessment, is a particularly complex task when applied to vertically heterogeneous soils: in these cases, where discontinuities are found to contribute to the infiltration process [60], the investigation of contrasting hydraulic properties [61,62,63,64,65,66] can highly benefit from the pedological approach.

6. Summary and Conclusions

The fundamental concern in studying the soils in the selected portion of the Campanian alluvial plain was to connect their morphology and architecture with the sedimentary–geomorphic processes characterizing the area in question. From this perspective, a key point was offered by the polygenetic volcanic character of the surveyed soils. In fact, the soils were formed via two mechanisms, such as through in situ pedogenetic development from the Phlegrean substrata and through the addition of extra situ materials.
The two factors important for the pedogenesis currently dominating the studied area were as follows: (1) the sedimentary dynamics governing the intermittence and relative temporal intervals among sediment supplies; (2) the almost flat geomorphology of the surface area able to receive and retain the primary Phlegrean tephra, such as the surveyed products of CI and the pyroclastic fall and surge deposits of NYT, the overlying pedogenetic phases related to these primary volcanic sediments, and the sediments transported by alluviation/colluviation episodes coming from the Apennines slopes. All this generated a soil architecture in which genetically discontinuous horizons interrupted the pedogenetic activity from the original substrata. Therefore, the studied pedogenetic covers resulted from top-down processes alternating with the massive and rapid accumulation of both primary tephra and reworked materials, which was closely consistent with the geomorphic–sedimentary events characterizing the studied area. The effects on pedogenesis of the sedimentary–geomorphic processes in the studied context were the growth of the surface thickness, the storage in soils of the original volcanic substrata, and the increment in the polygenetic nature of the soils. The collected pedological evidence also indicated that the factors responsible for soil formation produced a pedogenetic pattern that repeated throughout the surveyed surface. On the one hand, the lack of precise chronostratigraphic constraints does not allow, at this stage of the work, to unequivocally correlate the lithologically discontinuous soil horizons to the climatic variations documented for the Late Pleistocene–Holocene. On the other hand, the results supported the idea that the pedological study implemented by the detection of the soil lithological discontinuities provides an effective clue in the assessment of the relationships existing between the soils and the related geomorphological environment. More generally, the pedological tools in question can be effective in reading and interpreting the phases of the land surface construction in other environments. This is particularly relevant considering the processes involving soil covers in mountain areas. Here, slope inclination forces soil masses to move from one site to another, modifying the primary sequence of the soil horizons and their related properties, which, especially in the environments in question, have important outcomes in surface stability. So, the knowledge of the organization of this soil cover assumes a fundamental role in the comprehension of the mechanisms affecting slope stability and the definition of methods for the control of hazards from rainfall-induced landslides. Finally, future research developments could provide an interpretation of the studied pedological context from a morphoclimatic perspective.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/quat7030039/s1: S1_Soil lithic component.

Author Contributions

Conceptualization: A.E.; methodology: A.E.; software: M.V.; validation: M.V. and A.E.; formal analysis: A.E., R.M., M.V. and P.L.; resources: A.E., R.M., M.V. and D.R.; data curation: R.M., M.V. and A.E.; writing—original draft preparation: A.E.; writing—review and editing: D.R., M.V., R.M. and A.E.; supervision: A.E. and D.R.; project administration: A.E. and D.R.; funding acquisition: A.E. and D.R. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

The datasets presented herein are not readily available because they are part of an ongoing study. Further inquiries can be directed to the corresponding author.

Acknowledgments

The authors acknowledge the MPDI Editorial Board for having allowed the submission of this manuscript. Special thanks to Guido Del Monaco for granting us access to some outcrops located in areas he owns.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Schaetzl, R.J.; Anderson, S. Soils: Genesis and Geomorphology, 2nd ed.; Cambridge University Press: Cambridge, MA, USA, 2015; 817p. [Google Scholar]
  2. Soil Science Division Staff (USDA-NRCS). Soil Survey Manual; Ditzler, C., Scheffe, K., Monger, H.C., Eds.; USDA Handbook 18; Government Printing Office: Washington, DC, USA, 2017; Volume 18. [Google Scholar]
  3. Ahr, S.W.; Nordt, L.C.; Schaetzl, R.J. Lithologic Discontinuities in Soils. In International Encyclopedia of Geography; Richardson, D.L., Ed.; Wiley and Sons: New York, NY, USA, 2017. [Google Scholar] [CrossRef]
  4. Lowe, D.J. Using soil stratigraphy and tephrochronology to understand the origin, age, and classification of a unique Late Quaternary tephra-derived Ultisol in Aotearoa New Zealand. Quaternary 2019, 2, 9. [Google Scholar] [CrossRef]
  5. Palmer, A.S.; Lowe, D.J.; Almond, P.C. Pedostratigraphy. In Encyclopaedia of Quaternary Science, 3rd ed.; Elias, S.A., Ed.; Elsevier: Amsterdam, The Netherlands, 2024; 22p. [Google Scholar]
  6. Lorz, C.; Phillips, J.D. Pedo-Ecological Consequences of Lithological Discontinuities in Soils—Examples from Central Europe. J. Plant Nutr. Soil Sci. 2006, 169, 573–581. [Google Scholar] [CrossRef]
  7. Scarciglia, F.; Vecchio, G.; De Rosa, R.; Robustelli, G.; Muto, F.; Le Pera, E.; Critelli, S. Il contributo della pedologia nell’analisi geomorfologica. L’esempio della Sila (Calabria, Italia meridionale)—The contribution of pedology to geomorphologicalanalysis. The case of Sila (Calabria, Southern Italy). Mem. Descr. Carta Geol. d’Italia 2008, LXXVIII, 253–276. [Google Scholar]
  8. Kowalska, J.B.; Kajdas, B.M.; Zaleski, T. Lithological indicators of discontinuities in mountain soils rich in calcium carbonate in the Polish Carpathians. J. Mt. Sci. 2020, 17, 1058–1083. [Google Scholar] [CrossRef]
  9. Huang, W.S.; Liang, C.S.; Tsai, H.; Hseu, Z.Y.; Huang, S.T. Pedogenesis of Fluvial Terrace Soils Related to Geomorphic Processes in Central Taiwan. Land 2023, 12, 535. [Google Scholar] [CrossRef]
  10. Martignier, L.; Verrecchia, E.P. Weathering Processes in Superficial Deposits (Regolith) and Their Influence on Pedogenesis: A Case Study in the Swiss Jura Mountains. Geomorphology 2013, 189, 26–40. [Google Scholar] [CrossRef]
  11. Crosta, G.B.; Dal Negro, P. Observations and Modelling of Soil Slip-Debris Flow Initiation Processes in Pyroclastic Deposits: The Sarno 1998 Event. Nat. Hazards Earth Syst. Sci. 2003, 3, 53–69. [Google Scholar] [CrossRef]
  12. Damiano, E.; Olivares, L. The Role of Infiltration Processes in Steep Slope Stability of Pyroclastic Granular Soils: Laboratory and Numerical Investigation. Nat. Hazards 2010, 52, 329–350. [Google Scholar] [CrossRef]
  13. Celico, P.; Guadagno, F.M. L’ instabilità delle coltri piroclastiche delle dorsali carbonatiche in Campania: Attuali conoscenze. Quad. Geol. Appl. 1998, 5, 75–133. [Google Scholar]
  14. Tarquini, S.; Isola, I.; Favalli, M.; Mazzarini, F.; Bisson, M.; Pareschi, M.T.; Boschi, E. TINITALY/01: A New Triangular Irregular Network of Italy. Ann. Geophys. 2007, 50, 407–425. [Google Scholar] [CrossRef]
  15. Tarquini, S.; Vinci, S.; Favalli, M.; Doumaz, F.; Fornaciai, A.; Nannipieri, L. Release of a 10-m-Resolution DEM for the Italian Territory: Comparison with Global-Coverage DEMs and Anaglyph-Mode Exploration via the Web. Comput. Geosci. 2012, 38, 168–170. [Google Scholar] [CrossRef]
  16. Milia, A.; Torrente, M.M. Tectonics and Stratigraphic Architecture of a Peri-Tyrrhenian Half-Graben (Bay of Naples, Italy). Tectonophysics 1999, 315, 301–318. [Google Scholar] [CrossRef]
  17. Putignano, M.L.; Ruberti, D.; Tescione, M.; Vigliotti, M. Evoluzione Tardo Quaternaria Del Margine Casertano Della Piana Campana (Italia Meridionale). Boll. Della Soc. Geol. Ital. 2007, 126, 11–24. [Google Scholar]
  18. Santangelo, N.; Ciampo, G.; Di Donato, V.; Esposito, P.; Petrosino, P.; Romano, P.; Ermolli, E.R.; Santo, A.; Toscano, F.; Villa, I. Late Quaternary Buried Lagoons in the Northern Campania Plain (Southern Italy): Evolution of a Coastal System under the Influence of Volcano-Tectonics and Eustatism. Ital. J. Geosci. 2010, 129, 156–175. [Google Scholar] [CrossRef]
  19. Romano, P.; Santo, A.; Voltaggio, M. L’evoluzione geomorfologia della Pianura del Fiume Volturno (Campania) durante il tardo Quaternario (Pleistocene medio-superiore-Olocene). Il Quat. Ital. J. Quat. Sci. 1994, 7, 41–56. [Google Scholar]
  20. Amorosi, A.; Pacifico, A.; Rossi, V.; Ruberti, D. Late Quaternary Incision and Deposition in an Active Volcanic Setting: The Volturno Valley Fill, Southern Italy. Sediment. Geol. 2012, 282, 307–320. [Google Scholar] [CrossRef]
  21. Aiello, G.; Barra, D.; Collina, C.; Piperno, M.; Guidi, A.; Stanislao, C.; Saracino, M.; Donadio, C. Geomorphological and paleoenvironmental evolution in the prehistoric framework of the coastland of Mondragone, southern Italy. Quat. Int. 2018, 493, 70–85. [Google Scholar] [CrossRef]
  22. Corrado, G.; Amodio, S.; Aucelli, P.P.C.; Pappone, G.; Schiattarella, M. The subsurface geology and landscape evolution of the Volturno coastal plain, Italy: Interplay between tectonics and sea-level changes during the quaternary. Water 2020, 12, 3386. [Google Scholar] [CrossRef]
  23. Rolandi, G.; Di Lascio, M.; Rolandi, R. The Neapolitan Yellow Tuff eruption as the source of the Campi Flegrei caldera. In Vesuvius, Campi Flegrei, and Campanian Volcanism; De Vivo, B., Belkin, H.E., Rolandi, G., Eds.; Elsevier: Amsterdam, The Netherlands, 2020; pp. 273–296. [Google Scholar] [CrossRef]
  24. Ruberti, D.; Buffardi, C.; Sacchi, M.; Vigliotti, M. The late Pleistocene-Holocene changing morphology of the Volturno delta and coast (northern Campania, Italy): Geological architecture and human influence. Quat. Int. 2022, 625, 14–28. [Google Scholar] [CrossRef]
  25. Ruberti, D.; Vigliotti, M.; Marzaioli, R.; Pacifico, A.; Ermice, A. Stratigraphic Architecture and Anthropic Impacts on Subsoil to Assess the Intrinsic Potential Vulnerability of Groundwater: The Northeastern Campania Plain Case Study, Southern Italy. Environ. Earth Sci. 2014, 71, 319–339. [Google Scholar] [CrossRef]
  26. De Vivo, B.; Rolandi, G.; Gans, P.B.; Calvert, A.; Bohrson, W.A.; Spera, F.J.; Belkin, H.E. New Constraints on the Pyroclastic Eruptive History of the Campanian Volcanic Plain (Italy). Mineral. Petrol. 2001, 73, 47–65. [Google Scholar] [CrossRef]
  27. Gebauer, S.K.; Schmitt, A.K.; Pappalardo, L.; Stockli, D.F.; Lovera, O.M. Crystallization and Eruption Ages of Breccia Museo (Campi Flegrei Caldera, Italy) Plutonic Clasts and Their Relation to the Campanian Ignimbrite. Contrib. Miner. Petrol. 2014, 167, 953. [Google Scholar] [CrossRef]
  28. Rolandi, G.; De Natale, G.; Kilburn, C.R.J.; Troise, C.; Somma, R.; Di Lascio, M.; Fedele, A.; Rolandi, R. The 39 Ka Campanian Ignimbrite Eruption: New Data on Source Area in the Campanian Plain. In Vesuvius, Campi Flegrei, and Campanian Volcanism; De Vivo, B., Belkin, H.E., Rolandi, G., Eds.; Elsevier: Amsterdam, The Netherlands, 2020; pp. 175–205. [Google Scholar]
  29. Cappelletti, P.; Cerri, G.; Colella, A.; de’Gennaro, M.; Langella, A.; Perrotta, A.; Scarpati, C. Post-Eruptive Processes in the Campanian Ignimbrite. Miner. Pet. 2003, 79, 79–97. [Google Scholar] [CrossRef]
  30. Ruberti, D.; Vigliotti, M.; Rolandi, R.; Di Lascio, M. Effect of Paleomorphology on Facies Distribution of the Campania Ignimbrite in the Northern Campania Plain, Southern Italy. In Vesuvius, Campi Flegrei, and Campanian Volcanism; De Vivo, B., Belkin, H.E., Rolandi, G., Eds.; Elsevier: Amsterdam, The Netherlands, 2020; pp. 207–229. [Google Scholar]
  31. Albert, P.G.; Giaccio, B.; Isaia, R.; Costa, A.; Niespolo, E.M.; Nomade, S.; Pereira, A.; Renne, P.R.; Hinchliffe, A.; Mark, D.F.; et al. Evidence for a Large-Magnitude Eruption from Campi Flegrei Caldera (Italy) at 29 Ka. Geology 2019, 47, 595–599. [Google Scholar] [CrossRef]
  32. Vingiani, S.; Buonanno, M.; D’Antonio, A.; De Mascellis, R.; di Gennaro, A.; Iamarino, M.; Lagella, G.; Manna, P.; Moretto, P.; Terribile, F. Soil of the Aversa Plain (Southern Italy). J. Maps 2018, 14, 312–320. [Google Scholar] [CrossRef]
  33. Vigliotti, M.; Busico, G.; Ruberti, D. Assessment of the Vulnerability to Agricultural Nitrate in Two Highly Diversified Environmental Settings. Environments 2020, 7, 80. [Google Scholar] [CrossRef]
  34. Schoeneberger, P.J.; DAWysocki, E.C. Benham, and Soil Survey Staff. Field Book for Describing and Sampling Soils; Version 3.0; Natural Resources Conservation Service, National Soil Survey Center: Lincoln, NE, USA, 2012. [Google Scholar]
  35. Ciolkosz, E.J.; Waltman, W.J. Cambic Horizons in Pennsylvania Soils; Agronomy Series Number 133; Agronomy Department The Pennsylvania State University: University Park, PA, USA, 1995; pp. 75–91. [Google Scholar]
  36. Ermice, A. A Pedological Case Study of Volcanoclastically Impacted Landscapes: The Vesuvian Avellino Air-Fall Deposits, Southern Italy. Catena 2017, 149, 241–252. [Google Scholar] [CrossRef]
  37. Di Girolamo, P.; Lirer, L.; Porcelli, C.; Stanzione, D. Correlazioni stratigrafiche fra le principali formazioni piroclastiche della Campania. Rend. Della Soc. Ital. Mineral. Petrol. 1972, 28, 75–123. [Google Scholar]
  38. Bellucci, F.; Santangelo, N.; Santo, A. Segnalazione Di Nuovi Depositi piroclastici intercalati alle successioni continentali del Pleistocene Superiore-Olocene della porzione Nord-Orientale della Piana Campana. Alp. Mediterr. Quat. 2003, 16, 279–287. [Google Scholar]
  39. Deino, A.L.; Orsi, G.; de Vita, S.; Piochi, M. The Age of the Neapolitan Yellow Tuff Caldera-Forming Eruption (Campi Flegrei Caldera—Italy) Assessed by 40Ar/39Ar Dating Method. J. Volcanol. Geotherm. Res. 2004, 133, 157–170. [Google Scholar] [CrossRef]
  40. Scarpati, C.; Cole, P.; Perrotta, A. The Neapolitan Yellow Tuff—A Large Volume Multiphase Eruption from Campi Flegrei, Southern Italy. Bull. Volcanol. 1993, 55, 343–356. [Google Scholar] [CrossRef]
  41. Wohletz, K.; Orsi, G.; de Vita, S. Eruptive Mechanisms of the Neapolitan Yellow Tuff Interpreted from Stratigraphie, Chemical, and Granulometric Data. J. Volcanol. Geotherm. Res. 1995, 67, 263–290. [Google Scholar] [CrossRef]
  42. Barberi, F.; Innocenti, F.; Lirer, L.; Munno, R.; Pescatore, T.; Santacroce, R. The Campanian Ignimbrite: A Major Prehistoric Eruption in the Neapolitan Area (Italy). Bull. Volcanol. 1978, 41, 1–22. [Google Scholar] [CrossRef]
  43. Scandone, R.; Bellucci, F.; Lirer, L.; Rolandi, G. The Structure of the Campanian Plain and the Activity of the Neapolitan Volcanoes (Italy). J. Volcanol. Geotherm. Res. 1991, 48, 1–31. [Google Scholar] [CrossRef]
  44. Shoji, S.; Dahlgren, R.; Nanzyo, M. Chapter 3 Genesis of Volcanic Ash Soils. In Volcanic Ash Soils. Genesis, Properties and Utilization; Shoji, S., Ed.; Development in Soil Science; Elsevier Science Publisher: Amsterdam, The Netherlands, 1993; pp. 37–72. [Google Scholar] [CrossRef]
  45. Terribile, F.; Basile, A.; De Mascellis, R.; Iamarino, M.; Magliulo, P.; Pepe, S.; Vingiani, S. Landslide processes and Andosols: The case study of the Campania region, Italy. In Soils of Volcanic Regions in Europe; Arnalds, Ó., Óskarsson, H., Bartoli, F., Buurman, P., Stoops, G., García-Rodeja, E., Eds.; Springer: Berlin/Heidelberg, Germany, 2007. [Google Scholar] [CrossRef]
  46. Lowe, D.J.; Lanigan, K.M.; Palmer, D.J. Where geology meets pedology: Late Quaternary tephras, loess, and paleosols in the Mamaku Plateau and Lake Rerewhakaaitu areas. In Field Trip Guides, Proceedings of the Geosciences 2012 Conference, Hamilton, New Zealand, 25–28 November 2012; Pittari, A. (Compiler) Geoscience Society of New Zealand Miscellaneous Publication 134B; Geoscience Society of New Zealand: Wellington, New Zealand, 2012; pp. 2.1–2.45. [Google Scholar]
  47. Uwitonze, P.; Msanya, B.M.; Mtakwa, P.W.; Uwingabire, S.; Sirikare, S. Pedological Characterization of Soils Developed from Volcanic Parent Materials of Northern Province of Rwanda Agric. For. Fish. 2016, 5, 225–236. [Google Scholar] [CrossRef]
  48. Anda, M.; Purwanto, S.; Dariah, A.; Watanabe, T.; Dahlgren, R.A. A 200-year snapshot of soil development in pyroclastic deposits derived from the 1815 super explosive eruption of Mount Tambora in Indonesia. Geoderma 2023, 433, 116554. [Google Scholar] [CrossRef]
  49. Soil Survey Staff. Keys to Soil Taxonomy, 13th ed.; USDA-Natural Resources Consevation Service: Washington, DC, USA, 2022; 402p. [Google Scholar]
  50. Scarciglia, F.; Sauer, D.; Zerboni, A. Pleistocene paleosols of Italy: Pedostratigraphy, genesis, paleoclimate and geoarchaeology. Alp. Mediterr. Quat. 2023, 36, 1–35. [Google Scholar] [CrossRef]
  51. Phillips, J.D.; Lorz, C. Origins and Implications of Soil Layering. Earth Sci. Rev. 2008, 89, 144–155. [Google Scholar] [CrossRef]
  52. Phillips, J.D.; Luckow, K.; Marion, D.A.; Adams, K.R. Rock Fragment Distributions and Regolith Evolution in the Ouachita Mountains, Arkansas, USA. Earth Surf. Process. Landforms 2005, 30, 429–442. [Google Scholar] [CrossRef]
  53. Lowe, J.J.; Rasmussen, S.O.; Bjeorck, S.; Hoek, W.Z.; Steffensen, J.P.; Walker, M.J.C.; Yu, Z.C.; INTIMATE Members. Synchronisation of palaeoenvironmental events in the north Atlantic region during the Last Termination: A revised protocol recommended by the INTIMATE group. Quat. Sci. Rev. 2008, 27, 6–17. [Google Scholar] [CrossRef]
  54. Abrook, A.M.; Matthews, I.P.; Candy, I.; Palmer, A.P.; Francis, C.P.; Turner, L.; Brooks, S.J.; Self, A.E.; Milner, A.M. Complexity and asynchrony of climatic drivers and environmental responses during the Last Glacial-Interglacial Transition (LGIT) in north-west Europe. Quat. Sci. Rev. 2020, 250, 106634. [Google Scholar] [CrossRef]
  55. Rasmussen, S.O.; Bigler, M.; Blockley, S.P.; Blunier, T.; Buchardt, S.L.; Clausen, H.B.; Cvijanovic, I.; Dahl-Jensen, D.; Johnsen, S.J.; Fischer, H.; et al. A stratigraphic framework for abrupt climatic changes during the Last Glacial period based on three synchronized Greenland ice-core records: Refining and extending the INTIMATE event stratigraphy. Quat. Sci. Rev. 2014, 106, 14.e28. [Google Scholar] [CrossRef]
  56. Santangelo, N.; Romano, P.; Ascione, A.; Russo Ermolli, E. Quaternary evolution of the southern Apennines coastal plains: A review. Geol. Carpathica 2017, 68, 43–56. [Google Scholar] [CrossRef]
  57. Buffardi, C.; Barbato, R.; Vigliotti, M.; Mandolini, A.; Ruberti, D. The Holocene Evolution of the Volturno Coastal Plain (Northern Campania, Southern Italy): Implications for the Understanding of Subsidence Patterns. Water 2021, 13, 2692. [Google Scholar] [CrossRef]
  58. Ruberti, D.; Sacchi, M.; Pepe, F.; Vigliotti, M. LGM Incised Valley in a volcanic setting. The Northern Campania Plain (SouthernItaly). Alp. Mediterr. Quat. 2018, 31, 35–38. [Google Scholar]
  59. Borzenkova, I.; Zorita, E.; Borisova, O.; Kalniņa, L.; Kisielienė, D.; Koff, T.; Kuznetsov, D.; Lemdahl, G.; Sapelko, T.; Stančikaitė, M.; et al. Climate Change During the Holocene (Past 12,000 Years). In Second Assessment of Climate Change for the Baltic Sea Basin; Regional Climate Studies; The BACC II Author Team, Ed.; Springer: Cham, Switzerland, 2014. [Google Scholar] [CrossRef]
  60. Damiano, E. Effects of layering on triggering mechanisms of rainfall-induced landslides in unsaturated pyroclastic granular soils. Can. Geotech. J. 2018, 56, 1278–1290. [Google Scholar] [CrossRef]
  61. Basile, A.; Mele, G.; Terribile, F. Soil hydraulic behaviour of a selected benchmark soil involved in the landslide of Sarno 1998. Geoderma 2003, 117, 331–346. [Google Scholar] [CrossRef]
  62. Mirus, B.B. Evaluating the importance of characterizing soil structure and horizons in parameterizing a hy-drologic process model. Hydrol. Process. 2015, 29, 4611–4623. [Google Scholar] [CrossRef]
  63. Damiano, E.; Greco, R.; Guida, A.; Olivares, L.; Picarelli, L. Investigation on rainwater infiltration into layered shallow covers in pyroclastic soils and its effect on slope stability. Eng. Geol. 2017, 220, 208–218. [Google Scholar] [CrossRef]
  64. Fusco, F.; Allocca, V.; De Vita, P. Hydro-geomorphological modelling of ash-fall pyroclastic soils for debris flow initiation and groundwater recharge in Campania (southern Italy). Catena 2017, 158, 235–249. [Google Scholar] [CrossRef]
  65. Hübner, R.; Günther, T.; Heller, K.; Noell, U.; Kleber, A. Impacts of a capillary barrier on infiltration and sub-surface stormflow in layered slope deposits monitored with 3-D ERTand hydrometric measurements. Hydrol. Earth Syst. Sci. 2017, 21, 5181–5199. [Google Scholar] [CrossRef]
  66. Fusco, F.; Mirus, B.B.; Baum, R.L.; Calcaterra, D.; De Vita, P. Incorporating the Effects of Complex Soil Layering and Thickness Local Variability into Distributed Landslide Susceptibility Assessments. Water 2021, 13, 713. [Google Scholar] [CrossRef]
Quaternary 07 00039 g001

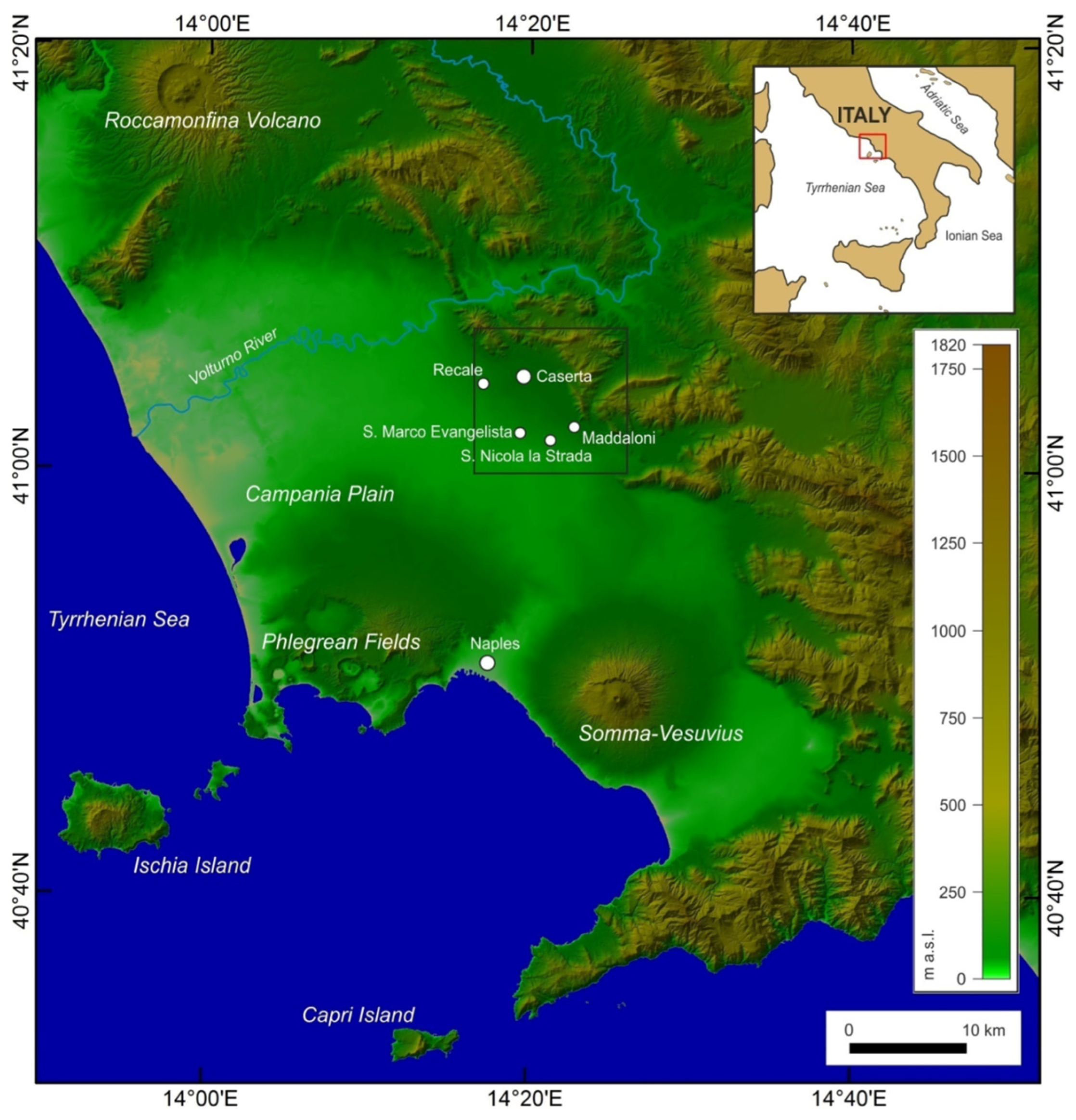

Figure 1. Location map of the study area (black box). Digital Terrain Model of the Campania Plain, based on TinItaly dataset [14,15].
Figure 1. Location map of the study area (black box). Digital Terrain Model of the Campania Plain, based on TinItaly dataset [14,15].
Quaternary 07 00039 g001
Quaternary 07 00039 g002

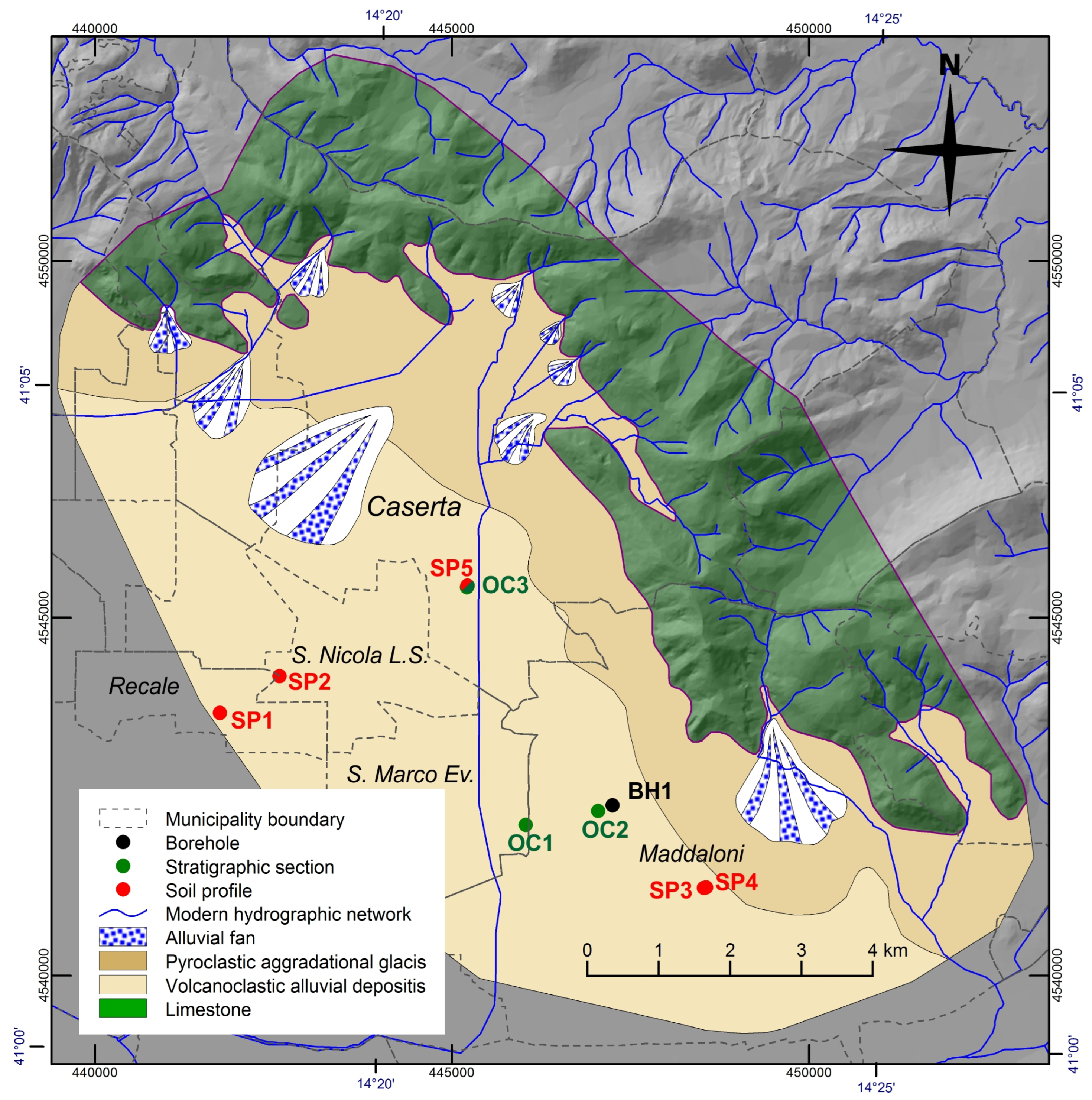

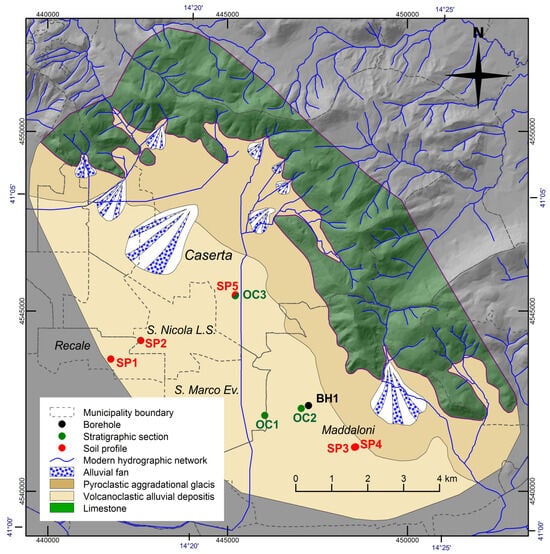

Figure 2. Schematic geological map of the study area (based on [17]). Location of the studied soil profiles and lithostratigraphies.
Figure 2. Schematic geological map of the study area (based on [17]). Location of the studied soil profiles and lithostratigraphies.
Quaternary 07 00039 g002
Quaternary 07 00039 g003

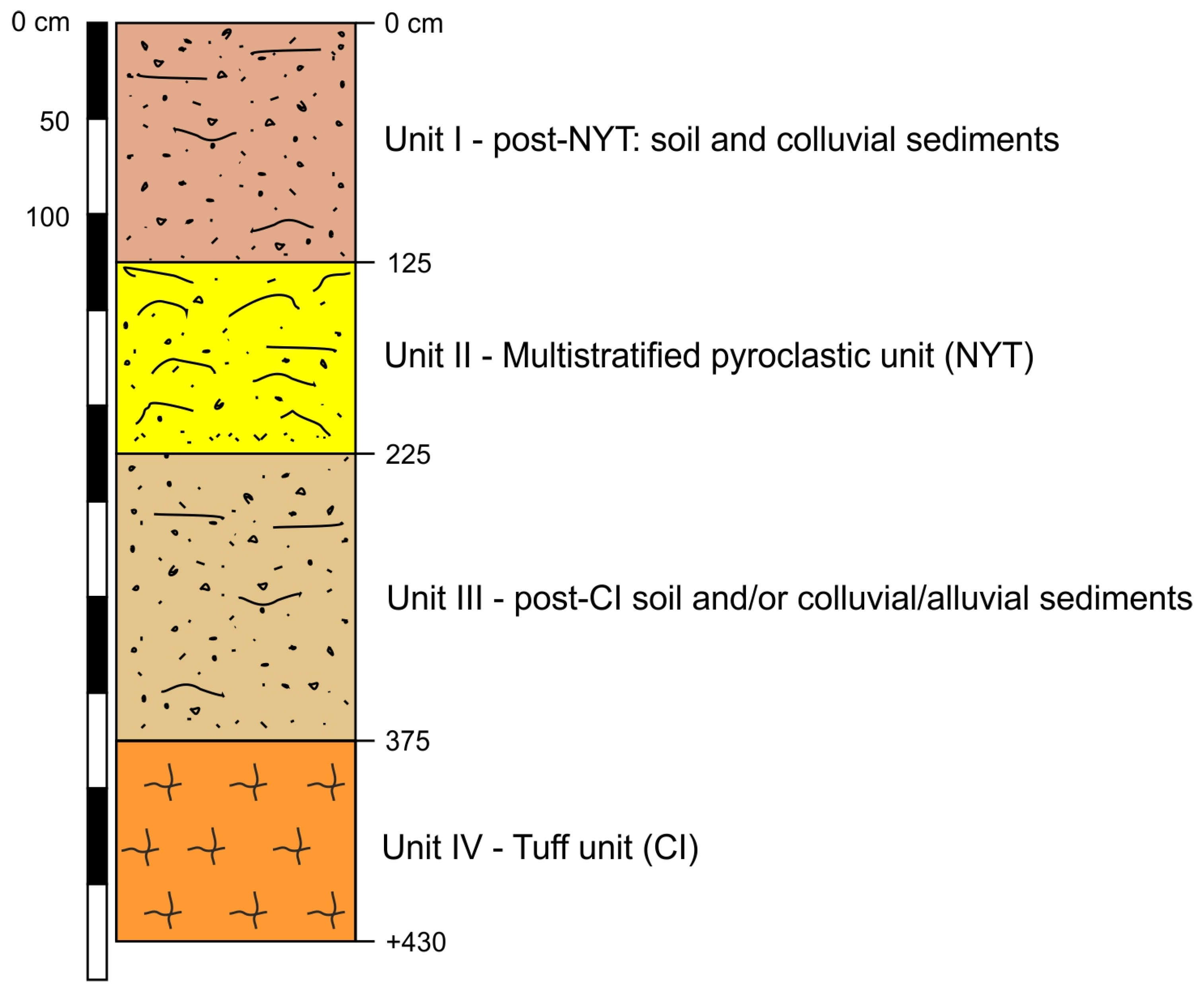

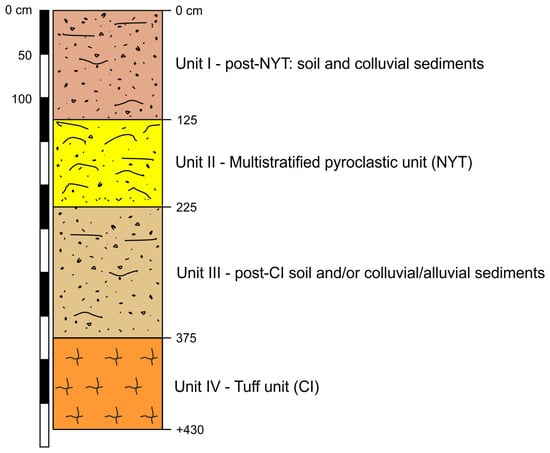

Figure 3. Sketch of the general pattern of the lithostratigraphic units reconstructed based on the selected literature (OC1, OC2, OC3, and BH1). The thicknesses of the first three portions are the mean of those reported in each section considered.
Figure 3. Sketch of the general pattern of the lithostratigraphic units reconstructed based on the selected literature (OC1, OC2, OC3, and BH1). The thicknesses of the first three portions are the mean of those reported in each section considered.
Quaternary 07 00039 g003
Quaternary 07 00039 g004

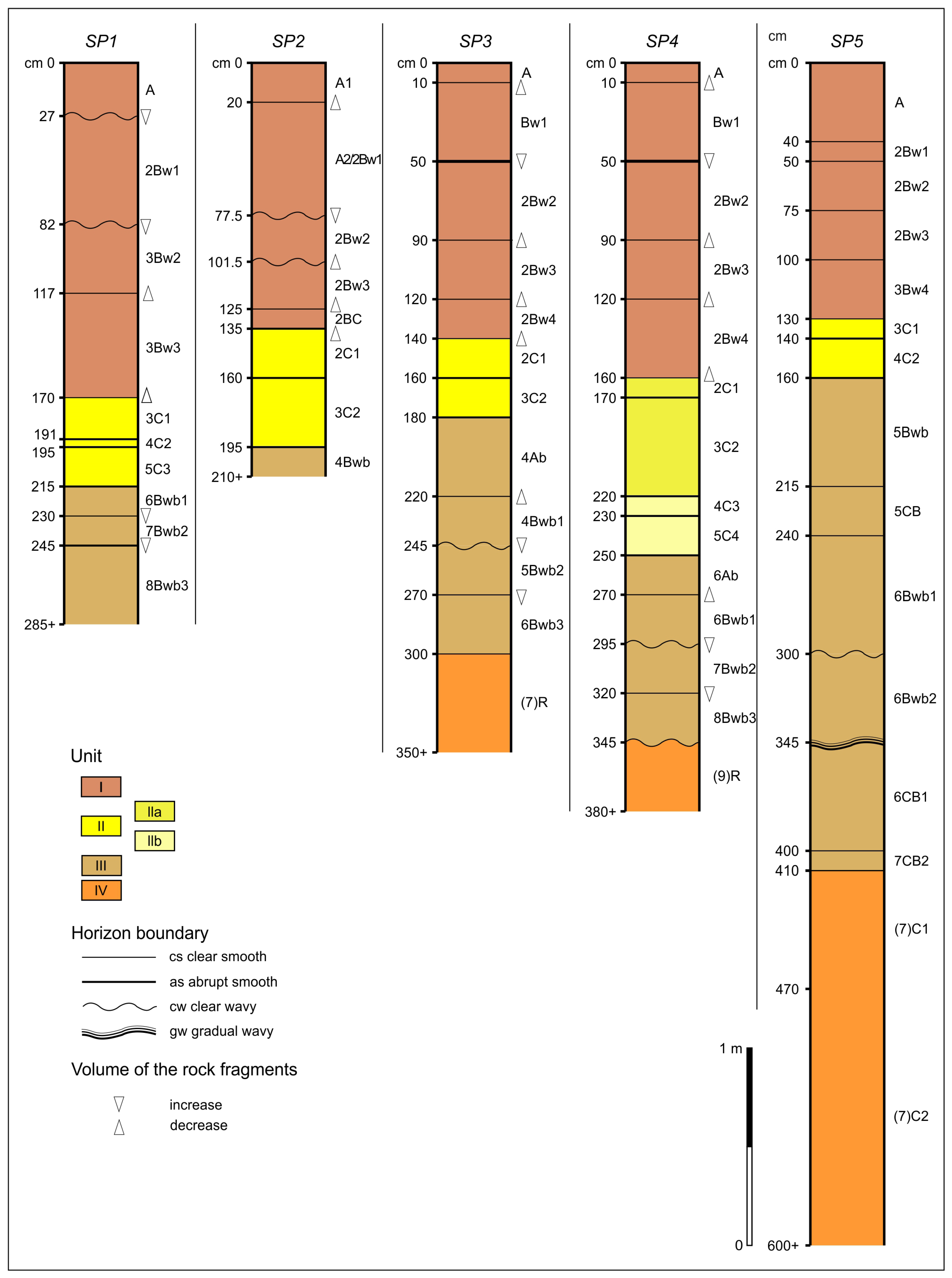

Figure 4. Pedostratigraphy of soil profiles. The morphological features of each soil profile are reported in Table 2. The soil profiles are characterized by lithological discontinuities: these are contacts between horizons with significant changes in particle size distribution or mineralogy, that represent differences in lithology within a soil [2]. The lithological discontinuity is the horizon designed by a number prefix which precedes the capital letter of the horizon (A, B, …). Horizons designed by two different number prefixes (in ascending order from the top to the bottom) are lithologically discontinuous horizons [2]. In SP5 soil profile, the two deepest (7)C1 and (7)C2 soil layers of Unit IV are another facies of Campania Ignimbrite. Volume of rock fragments: the two symbols mean that the volume of the rock fragments increases or decreases from a horizon to the overlying one. In SP2 profile the A2/2Bw1 horizon was composed by two parts: the A2 and the 2Bw1. The genetic discontinuity between the A2 horizon portion and the underlying 2Bw2 horizon was due to the higher rock fragment content and the different composition in A2 with respect to the underlying 2Bw2. By contrast, the composition of the 2Bw1 horizon portion, in which the content of rock fragments did not significantly vary with respect to the underlying horizon, was similar to that of the underlying 2Bw2 horizon, indicating genetic continuity between this 2Bw1 horizon portion and the underlying 2Bw2 horizon. Further, the rock fragments contained in the upper A1 horizon decreased with respect to the A2 portion of the underlying A2/2Bw1 horizon and were similar those contained in horizon portion in question, indicating genetic continuity between the A1 horizon and the underlying A2 horizon portion.
Figure 4. Pedostratigraphy of soil profiles. The morphological features of each soil profile are reported in Table 2. The soil profiles are characterized by lithological discontinuities: these are contacts between horizons with significant changes in particle size distribution or mineralogy, that represent differences in lithology within a soil [2]. The lithological discontinuity is the horizon designed by a number prefix which precedes the capital letter of the horizon (A, B, …). Horizons designed by two different number prefixes (in ascending order from the top to the bottom) are lithologically discontinuous horizons [2]. In SP5 soil profile, the two deepest (7)C1 and (7)C2 soil layers of Unit IV are another facies of Campania Ignimbrite. Volume of rock fragments: the two symbols mean that the volume of the rock fragments increases or decreases from a horizon to the overlying one. In SP2 profile the A2/2Bw1 horizon was composed by two parts: the A2 and the 2Bw1. The genetic discontinuity between the A2 horizon portion and the underlying 2Bw2 horizon was due to the higher rock fragment content and the different composition in A2 with respect to the underlying 2Bw2. By contrast, the composition of the 2Bw1 horizon portion, in which the content of rock fragments did not significantly vary with respect to the underlying horizon, was similar to that of the underlying 2Bw2 horizon, indicating genetic continuity between this 2Bw1 horizon portion and the underlying 2Bw2 horizon. Further, the rock fragments contained in the upper A1 horizon decreased with respect to the A2 portion of the underlying A2/2Bw1 horizon and were similar those contained in horizon portion in question, indicating genetic continuity between the A1 horizon and the underlying A2 horizon portion.
Quaternary 07 00039 g004
Quaternary 07 00039 g005

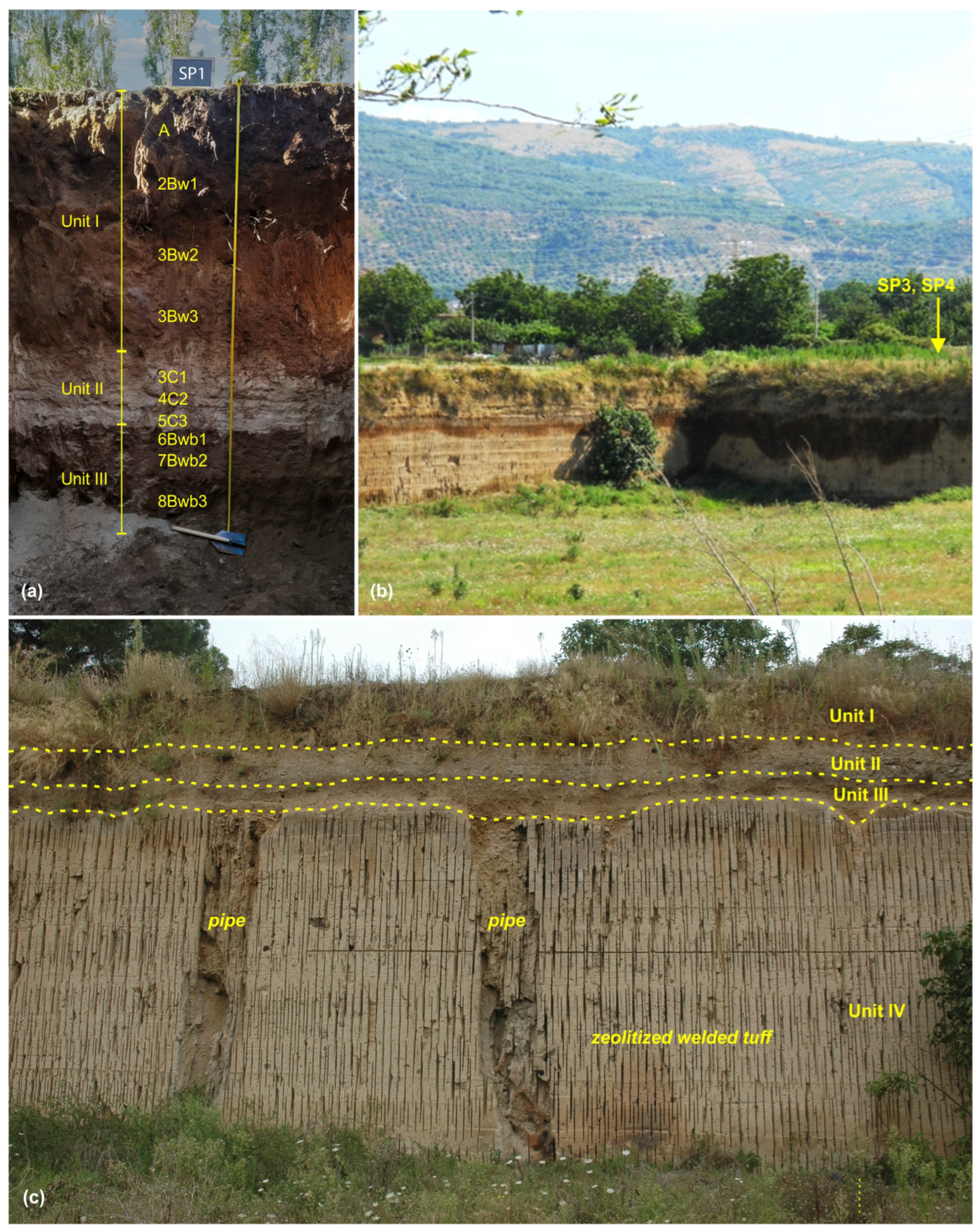

Figure 5. Field characteristics of the soil profiles. (a) SP1 soil profile. Unit II (C soil horizons) consisted of a stratified pyroclastic package from the products of NYT. (b) Overview of the location of the SP3 and SP4 soil profiles, showing the outcrop corresponding to the excavation area and the relieves bordering the study area. (c) Detail of the outcrop in (b), exhibiting Unit IV (R horizon consisting of zeolitized lithified tuff with evident pipe structures) and the continuous whitish layer of NYT products (Unit II).
Figure 5. Field characteristics of the soil profiles. (a) SP1 soil profile. Unit II (C soil horizons) consisted of a stratified pyroclastic package from the products of NYT. (b) Overview of the location of the SP3 and SP4 soil profiles, showing the outcrop corresponding to the excavation area and the relieves bordering the study area. (c) Detail of the outcrop in (b), exhibiting Unit IV (R horizon consisting of zeolitized lithified tuff with evident pipe structures) and the continuous whitish layer of NYT products (Unit II).
Quaternary 07 00039 g005
Quaternary 07 00039 g006

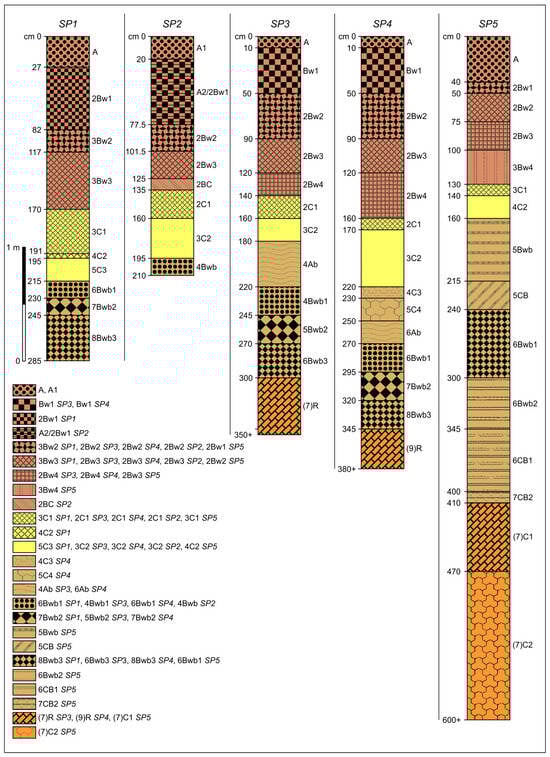

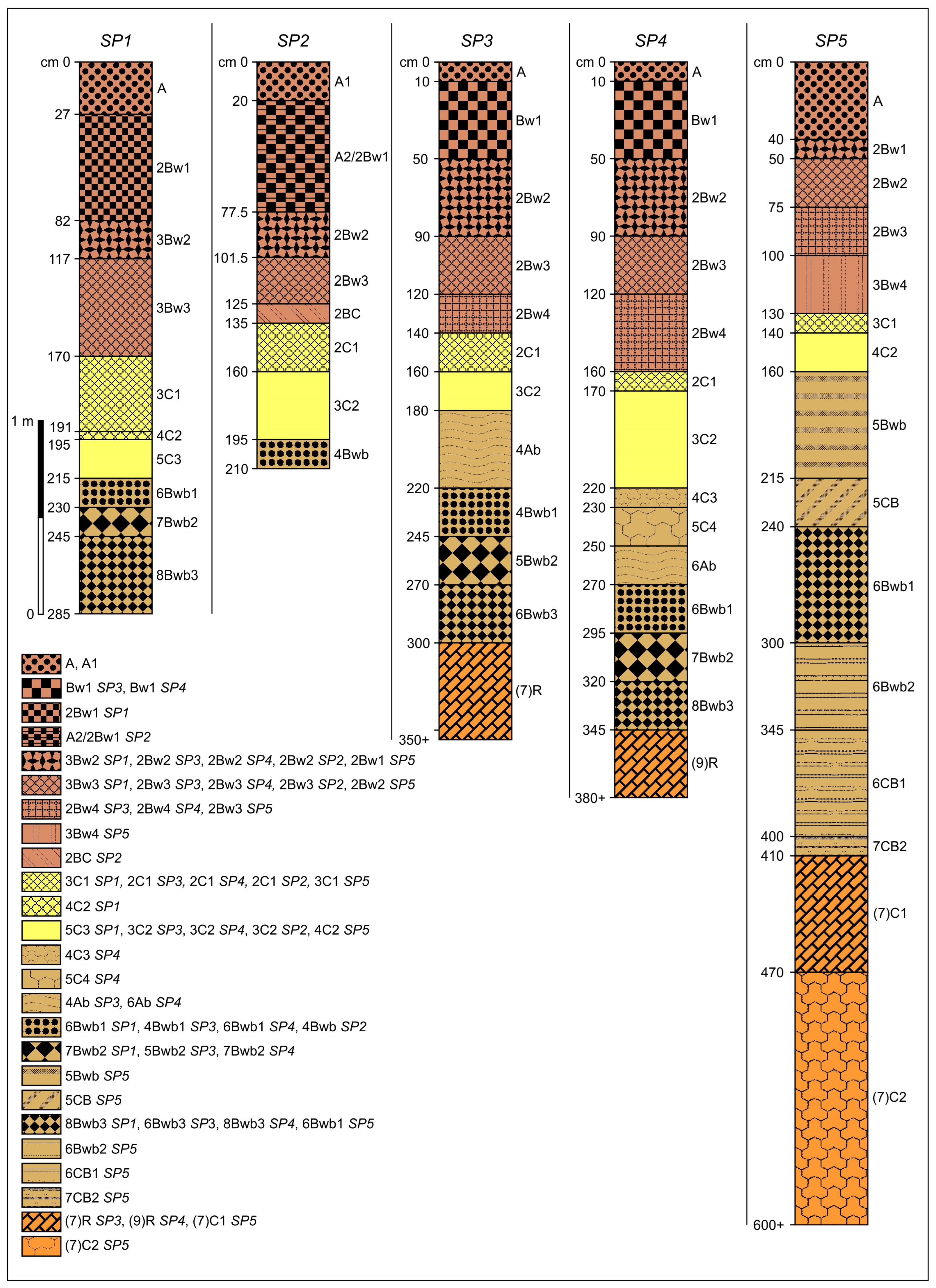

Figure 6. Genetic correspondence among the studied soil profiles. The same drawing depicting the horizons of different soil profiles serves to tentatively correlate the horizons in question in terms of function of their origin and position in pedostratigraphy. The horizons designed by the change of the Arabic number preceding the capital letter of the soil horizon with respect to the number of the underlying horizon have sedimentary origin; the horizons not designed by this change have residual origin (see text for further details).
Figure 6. Genetic correspondence among the studied soil profiles. The same drawing depicting the horizons of different soil profiles serves to tentatively correlate the horizons in question in terms of function of their origin and position in pedostratigraphy. The horizons designed by the change of the Arabic number preceding the capital letter of the soil horizon with respect to the number of the underlying horizon have sedimentary origin; the horizons not designed by this change have residual origin (see text for further details).
Quaternary 07 00039 g006
Quaternary 07 00039 g007
Figure 7. Relation between geomorphic and pedogenetic events in the studied area.
Figure 7. Relation between geomorphic and pedogenetic events in the studied area.
Quaternary 07 00039 g007
Table 1. Pertinent characteristics of the soil, outcrop, and borehole sites.
Table 1. Pertinent characteristics of the soil, outcrop, and borehole sites.
LabelLocationElevation (m a.s.l.)Geographic CoordinatesSoil Use
Easting (m)Northing (m)Long. EstLat. Nord
Soil
SP1Recale37.0441,7494,544,60714°18′24″41°3′2″Meadow grass cultivation
SP2San Nicola41.8442,6294,544,39314°19′2″41°2′55″Plants for sod production
SP3Maddaloni41.9448,5534,541,21914°23′17″41°1′14″Sparse shrub vegetation
SP4Maddaloni41.7448,5364,541,20814°23′16″41°1′13″Sparse shrub vegetation
SP5Caserta43445,2134,545,41814°20′52″41°3′29″Sparse shrub vegetation
Outcrop
OC1S. Marco Evangelista58445,2144,545,42614°20′52″41°3′29″Sparse shrub vegetation
OC2Maddaloni46447,0484,542,29014°22′12″41°1′48″Sparse shrub vegetation
OC3Caserta43445,2144,545,42614°20′52″41°3′29″Sparse shrub vegetation
Borehole
BH1Maddaloni47.9447,0484,542,29014°22′12″41°1′48″Sparse shrub vegetation
Table 2. Morphological characteristics and rock fragment volume of the studied soils.
Table 2. Morphological characteristics and rock fragment volume of the studied soils.
SoilUnitHorizonDepth
(cm)		Dry Munsell
Color		>2 Mmfragments a
and Texture b		Structure cConsistency dBoundary e>2 mm
Fragments (% vol)
SP1IA0–272.5Y 4/4fg ls4 m/c abkmfi/ficw24
2Bw127–822.5YR 5/4f/vf sl3 m/c abk/sbkmficw14
3Bw282–1172.5Y 5/6f/m l2/1/0 m/f sbk/abkfrcs7.3
3Bw3117–1702.5Y 5/4c/m/fg sl1/2 f/msbk/abkvfrcs16.6
II3C1170–1912.5 Y 7/2m/c/fg sl0/2lo/mfias20
4C2191–19510YR 7/2f/m vg sl0loas50
5C3195–2152.5Y 7/2m/c vg l0/1 malo/vfras46.0
III6Bwb1215–2302.5Y 4/4m/f sl2 f/m/c sbkvfrcs13
7Bwb2230–2452.5Y 5/4m/f l1/2 f/m sbkvfras7.4
8Bwb3245–285+2.5Y 4/4f sl1/2 m/f sbkvfr-3.7
SP2IA10–202.5Y5/4vf/f ls3/4 f/m/vc sbk/abkfr/mfi/fics3.7
A2/2Bw120–77.52.5Y 4/2vf/f/ls-3/1/2 c/vc/f sbk/abklo/mfr/mficw7.6–4.5
2.5Y4/4f/m/vf sl
2Bw277.5–101.52.5Y 5/6f/m/vf/sl2 c/m/f abk/sbkmfrcw4.2
2Bw3101.5–1252.5Y 5/4m/f sl1 f/m abk/sbklo/vfrcs9.3
2BC125–1352.5Y 7/4f/m/cg sl0/1/2 f/m sbklo/vfras25
II2C1135–16010YR 7/2f/m/c eg sl0loas62.5
3C2160–1952.5Y 7/2m/f vg l0/1 malo/vfras55
III4Bwb195–210+2.5Y 4/4m/f sl2 m/c sbk/abkmmi-14
SP3IA0–102.5Y 4/4vf/f sl0/2 vf/f sbk/grlo/vfrcs10
Bw110–502.5Y 5/4vf sl4/3 m sbkmfias12
2Bw250–902.5Y 5/6vf/f l3 c/m sbk/abkmfics4
2Bw390–12010YR 6/6vf/f/m l2 m/c abk/sbkmfics8
2Bw4120–14010YR 6/4f/m vg l1 m/c/vc abk/sbkmfrcs36
II2C1140–16010YR 7/3m/f/c gr sl0loas92
3C2160–18010YR 7/2m/f l0/1 malo/fras8
III4Ab180–22010YR 6/3f vg ls2 m/f abk/sbkfrcs48
4Bwb1220–24510YR 5/4f/vf vg sl2 m/f abkfrcw52
5Bwb2245–27010YR 6/3f/vf g l2 m abkmfr/fras23
6Bwb3270–30010YR 6/4vf/f slvf/f 2 m abk/sbkmfr/frcs14
IV(7)R300–350+------
SP4IA0–102.5Y 4/4vf/f sl0/1/2 f sbk/grvfrcs10
Bw110–502.5Y 5/4vf g sl3/4 m sbkmfias15
2Bw250–902.5Y 5/6vf/f l3 m sbk/abkmfics5
2Bw390–1202.5Y 6/6vf/f/m l2 m/c abk/sbkmfics8
2Bw4120–1602.5Y 6/4m/f/vf g l2/1 m/c/vc abk/sbkmfr/mfics30
IIIIa2C1160–17010YR 7/3m/f/c eg sl0loas90
3C2170–22010YR 7/2m/f l0/1 malo/vfras10
IIb4C3220–230-vf/f s0loasabs 1
5C4230–250-vf/f s0loasabs 1
III 6Ab250–27010YR 6/3f vg ls2 m/f abk/sbkfrcs45
6Bwb1270–29510YR 5/4f/vf vg sl2/3 m sbkfrcw54
7Bwb2295–32010YR 6/3f/vf g2/3 m abk/sbkmfr/fras25
8Bwb3320–34510YR 6/4vf/f sl2/3 abkmfr/frcs12
IV (9)R345–380+------
SP5I A0–402.5Y 3/4vfg ls2 m/f abk/sbkfrcs-
2Bw140–502.5YR 4/4f ls2 m/f sbk/abkmfrcs-
2Bw250–752.5Y 4/5f/m ls2 m/f/c sbkfrcs-
2Bw375–1002.5Y 5/4f/m ls2 m/c sbkfrcs-
3Bw4100–1302.5 Y 6/2m/fg sl2/1 c/m sbkfr/mfrcs-
II 3C1130–14010YR 6/2m/fg sl0/1 m/f sbkfras-
4C2140–1602.5Y 7/2c/m/fg l0/1 m/f/c malo/vf/mfias-
III 5Bwb160–2152.5Y 3/4f/m ls2 m/f sbk/abkfrcs-
5CB215–2402.5Y 4/4m/f vg s0/1 f/m sbklo/vfcs-
6Bwb1240–3002.5Y 3/4vf ls1 m/f sbk/abkfrcw-
6Bwb2300–34510YR 3/4f sl1 m/f abk/sbkfrgw-
6CB1345–40010YR 5/4fg s1 m/f abkfr/mfrcs-
IV 7CB2400–41010YR 6/3m/fg s1 m/f abkmfrcs-
(7)C1410–470------
(7)C2470–600+------
a >2 mm fragments = g = gravelly, gr = gravel; e = extremely, v = very, f = fine, m = medium, c = coarse. b Texture = ls = loamy sand, sl = sandy loam, l = loam, s = sand. c Structure = Grade: 0 = structureless, 1 = very weak, 2 = weak, 3 = moderate, 4 = strong; Size: f = fine, m = medium, c = coarse, vc = very coarse; Kind: gr = granular, abk = angular blocky, sbk = subangular blocky, ma = massive. d Consistency = lo = loose, vfr = very friable, fr = friable, mfr = moderately friable, mfi = moderately firm, fi = firm. e Horizon boundaries = Distinctness: a = abrupt, c = clear, g = gradual; Topography: s = smooth, w = wavy. 1 abs = absent. The slashes mean that on the same horizon, there are different sizes and kinds of coarse fragments and different structures and consistencies. The number prefix in parenthesis indicates the possible discontinuity of the R layer with respect to the overlying horizon.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Ermice, A.; Marzaioli, R.; Vigliotti, M.; Lamberti, P.; Ruberti, D. Soils in Understanding Land Surface Construction: An Example from Campania Plain, Southern Italy. Quaternary 2024, 7, 39. https://doi.org/10.3390/quat7030039

AMA Style

Ermice A, Marzaioli R, Vigliotti M, Lamberti P, Ruberti D. Soils in Understanding Land Surface Construction: An Example from Campania Plain, Southern Italy. Quaternary. 2024; 7(3):39. https://doi.org/10.3390/quat7030039

Chicago/Turabian Style

Ermice, Antonella, Rossana Marzaioli, Marco Vigliotti, Pierferdinando Lamberti, and Daniela Ruberti. 2024. "Soils in Understanding Land Surface Construction: An Example from Campania Plain, Southern Italy" Quaternary 7, no. 3: 39. https://doi.org/10.3390/quat7030039

APA Style

Ermice, A., Marzaioli, R., Vigliotti, M., Lamberti, P., & Ruberti, D. (2024). Soils in Understanding Land Surface Construction: An Example from Campania Plain, Southern Italy. Quaternary, 7(3), 39. https://doi.org/10.3390/quat7030039

Article Metrics

Back to TopTop
