Biomarker Evaluation and Clinical Development

Abstract

Most candidate biomarkers are never adopted into clinical practice. The likelihood that a biomarker with good predictive properties will be incorporated into urologic decision-making and will improve patient care can be enhanced by following established principles of biomarker development. Studies should follow the REMARK guidelines, should have clinically relevant outcomes, and should evaluate the biomarker on the same patients to whom the biomarker would be applied in practice. It is also important to recognize that biomarker research is comparative: the question is not whether a biomarker provides information, but whether it provides better information than is already available. Continuous biomarkers should not be categorized above or below a fixed cutpoint: risk prediction allows for individualization of care. The risk predictions must be calibrated, that is, close to a patient’s true risk, and decision analysis is required to determine whether using the biomarker in clinical practice would change decisions and improve outcomes. Finally, impact studies are needed to evaluate how use of the biomarker in the real world affects outcomes.

Introduction

Biomarkers are used either to assess the risk of a current diagnostic state, such as having biopsy-detectable cancer, or to predict the risk of a future event, such as prostate cancer death. In the former case, the biomarker gives the clinician information at less cost, risk, and inconvenience than the diagnostic test; in the latter case, it provides an estimate of probability for occurrence of a future outcome in an individual patient. In this paper, we review methodologic considerations for biomarker development using serum biomarkers in prostate cancer as an example. We do not discuss how biomarkers are discovered or how they can best be measured accurately and reproducibly. We start from early phase studies in humans evaluating the association between the biomarker and the outcome, and move to the later phase trials (ie, impact studies) examining the effects of the biomarker when used in the clinic.

To be used most effectively, biomarkers need to be integrated into other information available to the clinician, such as a patient’s age or the stage of the tumor. This can be done informally by “clinical judgment,” using cutpoints and clinical rules, or by using a prediction model. In the case of PSA for prostate cancer early detection, an early approach was to use the clinical rule of “PSA > 4 or positive digital rectal examination (DRE).” This subsequently evolved to the more informal clinical judgment approach, in which the urologist considers the age of the patient, the recent clinical history (such as symptoms of benign prostate disease) and the DRE, as well as the absolute level of PSA. In the last 10 to 15 years, there has been a move to statistical methods of risk prediction. Using statistical models such as the “PCPT risk calculator [1]” or the “PBCG model [2],” the urologist enters clinical data about the patient age, race, DRE, family history, and history of prior negative biopsy, as well as the level of PSA, and obtains a percentage risk of high-grade cancer. The advantage of prediction models is that they give more accurate predictions than either informal clinical judgment—numerous studies have demonstrated that computer models outperform clinicians [3,4,5]—or the risk groupings used for clinical prediction rules [6,7,8,9]. Moreover, use of prediction models allows greater individualization of care. A man who is older, has comorbidities, or is averse to medical procedures, but has a PSA level just above 4 might reasonably ask whether his PSA warrants a biopsy; comparably, a man anxious about prostate cancer who has a PSA just below 4 might want reassurance that his risk is indeed low. It is only by using predicted probabilities that urologists can have a rational conversation about risk that takes into account patient preferences and characteristics.

Statistical methods for building models are described at length in various publications and are not further discussed here [10]. Instead, we focus on approaches to assess the predictiveness of a biomarker in 2 different scenarios: when the biomarker is used independently and when it is incorporated into a prediction model.

Can the Biomarker Predict the Outcome of Interest?

Choose the right outcome

The appropriate clinical endpoint for a biomarker is sometimes more complex that it appears. Well-known studies such as the PRACTICAL collaboration have developed polygenic risk scores for the endpoint of incident prostate cancer [11]. But incident prostate cancer is not synonymous with cancer-related mortality or morbidity. The central problem of prostate cancer early detection is overdiagnosis, reflecting that cancers are diagnosed that would never cause symptoms during the course of the patient’s natural life. It is thus not as useful to know a man’s risk of a prostate cancer diagnosis as it is to know the risk of prostate cancer metastasis or death: a man at high risk of prostate cancer death might want to consider screening to find a cancer early before it spreads; it is not at all clear what a man should do if he is at higher risk of prostate cancer. Biomarkers or models that predict the risk of any grade cancer on prostate biopsy can be subject to a similar criticism: we want to find cancers that we would consider treating (eg, grade 2 or higher disease); we do not need to know about the risk of all cancers, including grade group 1 disease, the most appropriate management strategy for which is to order a second biopsy.

Naturally, the ideal endpoint for any biomarker to predict is cancer-specific morbidity (ie, metastasis) or mortality. Given that such endpoints may occur 10 or 20 years after diagnosis, this is challenging and has been attempted only for a handful of prostate cancer biomarkers, including the 4Kscore [12,13], the DECIPHER score [14], and, of course, PSA [15,16].

Does the biomarker distinguish between samples of clearly distinguishable patients?

Investigators can test whether biomarker levels differ in clearly distinguishable groups of people. These studies can be performed relatively quickly as samples can be obtained from patients on the basis of an outcome status already achieved as opposed to following a cohort of patients prospectively until the outcome of interest occurs, or waiting to accrue patients undergoing a procedure such as biopsy. For example, in the now retracted EPCA study, levels of EPCA in men with prostate cancer were compared with those in healthy men, healthy women, and patients with other diseases, such as liver cancer or benign lung disease.

Diagnostic accuracy should instead be assessed using a sample representative of the population, as shown in

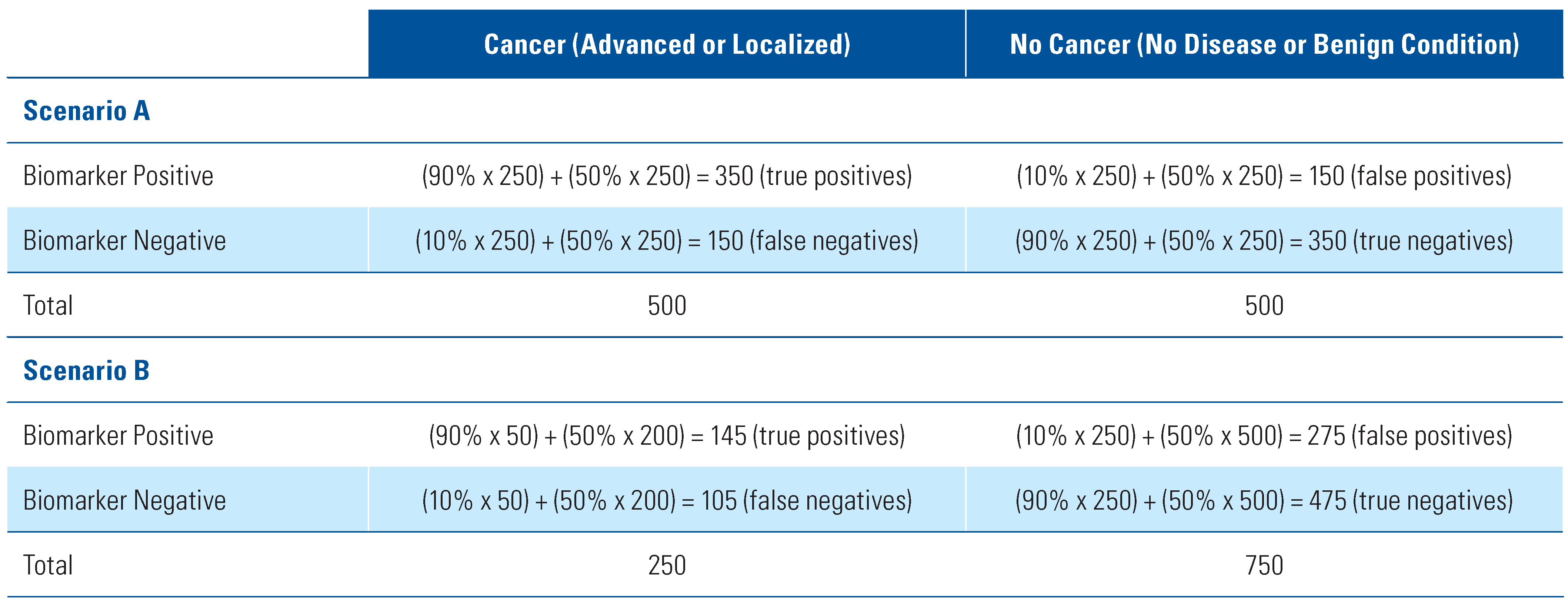

Table 1. Two hypothetical studies that sample from individuals without disease, with benign disease, with localized disease, or with advanced cancer*.

. In scenarios A and B, we have a biomarker with high sensitivity and specificity (both 90%) for advanced disease, but unable to distinguish localized disease (sensitivity and specificity of 50%). Scenario A represents a sample with an equal number of patients in each disease group, in which the sensitivity and specificity in the entire population for detecting cancer is 70%. However, if the distribution of patients were more reflective of the population, as in scenario B, the sensitivity and specificity drop to 58% and 63%, respectively.

Is the biomarker associated with the outcome in patients the biomarker would be applied to in practice?

Just as drugs are studied in the patients who would receive the drug were it shown to be effective, biomarkers should be studied in the patients to whom they would be applied in practice. The development of free-to-total PSA ratio is a good example of a marker that moved from research on convenience samples to the target population of men considering biopsy. First, Christensson et al. demonstrated an association between the ratio of a PSA isoform, free PSA, and the total amount of PSA in serum (free-to-total PSA ratio) is significantly lower among men with prostate cancer than in men with benign prostate hyperplasia [18]. Catalona et al. then determined that free-to-total PSA can enhance the specificity of prostate cancer screening by confirming that the association of free-to-total PSA and prostate cancer on biopsy remains significant among men with total PSA values of 4.1 to 10 ng/mL indicated for prostate biopsy in clinical practice [19].

How well does the biomarker predict the outcome of interest compared to information available to the clinician?

A useful biomarker should make additional information available to the clinician. In the Catalona et al. example above, measurement of free-to-total PSA ratio added information about prostate cancer risk over and above total PSA and DRE [19]. Assessments of discrimination or clinical utility (explained in detail below) can be used to compare the performance of a new biomarker with the performance of an existing model or existing biomarker.

Alternatively, a biomarker can be combined with other clinical factors by building a prediction model. For example, Klein et al. assess the added value of the Genomic Prostate Score by demonstrating that it is significantly associated with the risk of adverse pathology on multivariable logistic regression analysis when added to model containing standard clinical predictors (age, PSA, clinical stage, and biopsy) or established prediction models, including Cancer of the Prostate Risk Assessment score [20] and the National Comprehensive Cancer Network risk groupings [21].

Assessing Predictiveness

Discrimination

The area under the receiver operating characteristic curve (AUC), also referred to as the concordance statistic (or C index), is commonly used to assess discrimination: the probability that a randomly selected patient with the disease will have higher predicted probability of having the disease according to the test compared to a randomly selected subject without the disease [22,23,24].

When comparing the discrimination of different models or biomarkers, investigators are encouraged to report the difference in discrimination along with 95% confidence intervals. Approaches to assess whether there is a significant difference in discrimination depend on whether the models being compared are “nested.” A nested model is created when, for example, a new biomarker is added to an existing model, for instance, when the 2 models are PSA, DRE, and age versus PSA, DRE, age, and free-to-total-ratio. A comparison of 2 existing models, such as the PCPT and the PBCG model, would be non-nested. In these cases, the Delong test can be used to test for a difference in discrimination [25]. When models are nested, the P-value from the Wald test corresponding to the biomarker should be reported, the Delong test being invalid [26,27].

Calibration

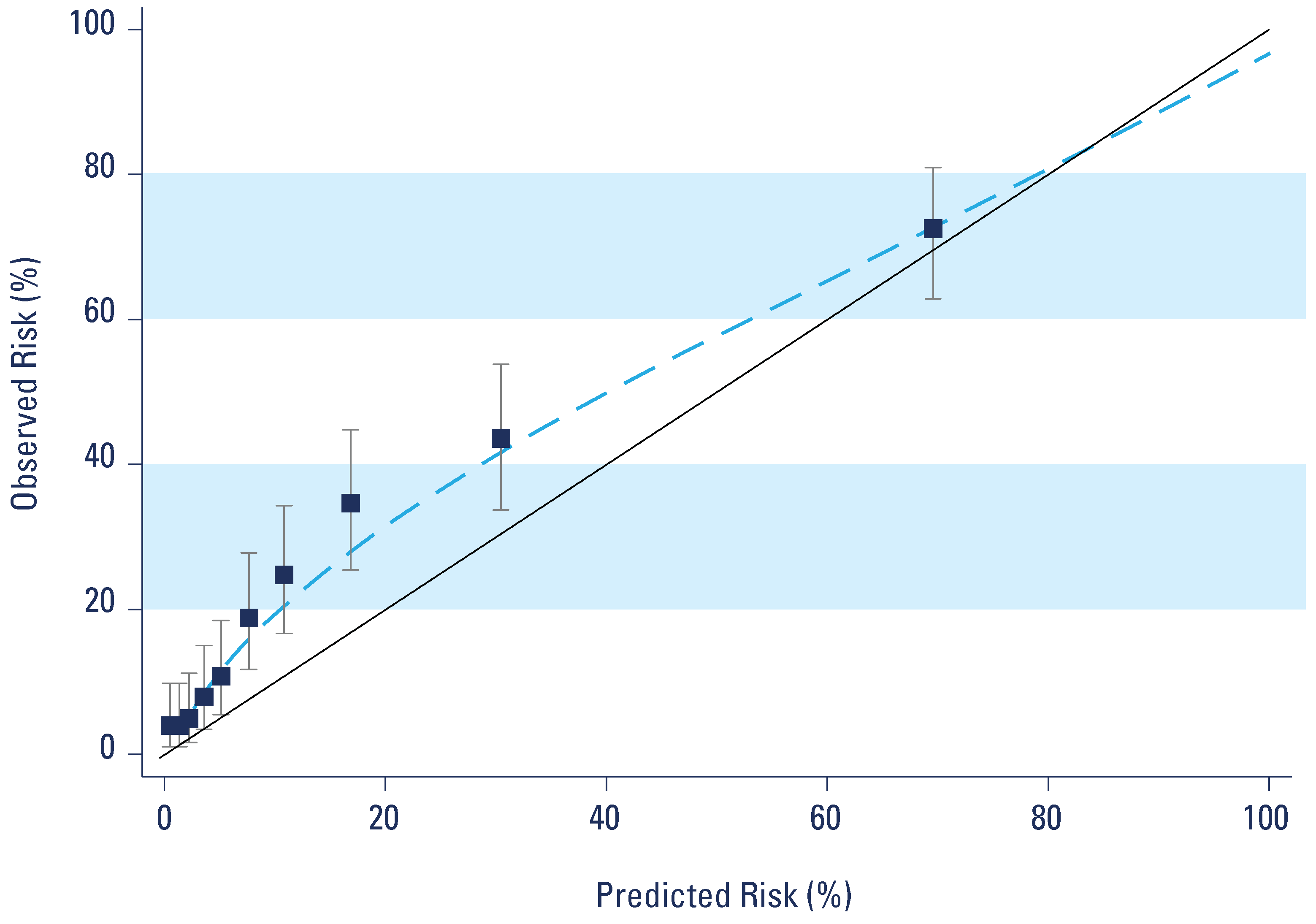

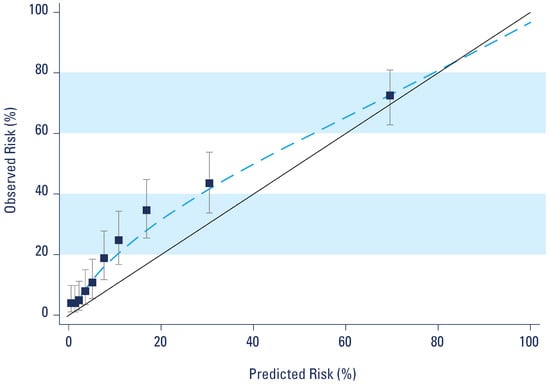

To be clinically useful, a prediction model must not only be able to discriminate between patients with and without the disease but also provide an accurate risk prediction. The degree to which predictions are in agreement with the observed outcomes is known as calibration [28]. A calibration plot visualizes the agreement between model predictions on the x-axis and the actual outcome on the y-axis. This is typically done by splitting the data into equal sized groups of increasing predicted probabilities (deciles) and plot the mean of the observed outcome by the decile of prediction [23]. See Figure 1 for an example of a calibration plot. A model with poor calibration in ranges of probabilities in which treatment decisions can reasonably differ is likely to be of limited clinical value, even if discrimination is excellent: it is difficult to make a good decision if information about patient risk is wrong.

Some biomarkers, such as the prostate health index [29] and ExoDx Prostate IntelliScore, provide a score, and decisions are made by comparing the score with a proposed cutpoint but these scores do not represent risk of disease. Therefore, it is not possible to assess calibration in the traditional sense, although investigators can report the probability of the outcome above and below the previously proposed cutpoints to assess clinical value.

Clinical utility

A new biomarker is of value only if its use leads to improvement in patient outcome via a change in treatment decision patterns. A full assessment of the prognostic value of a biomarker or model must incorporate clinical consequences of the resulting decisions made.

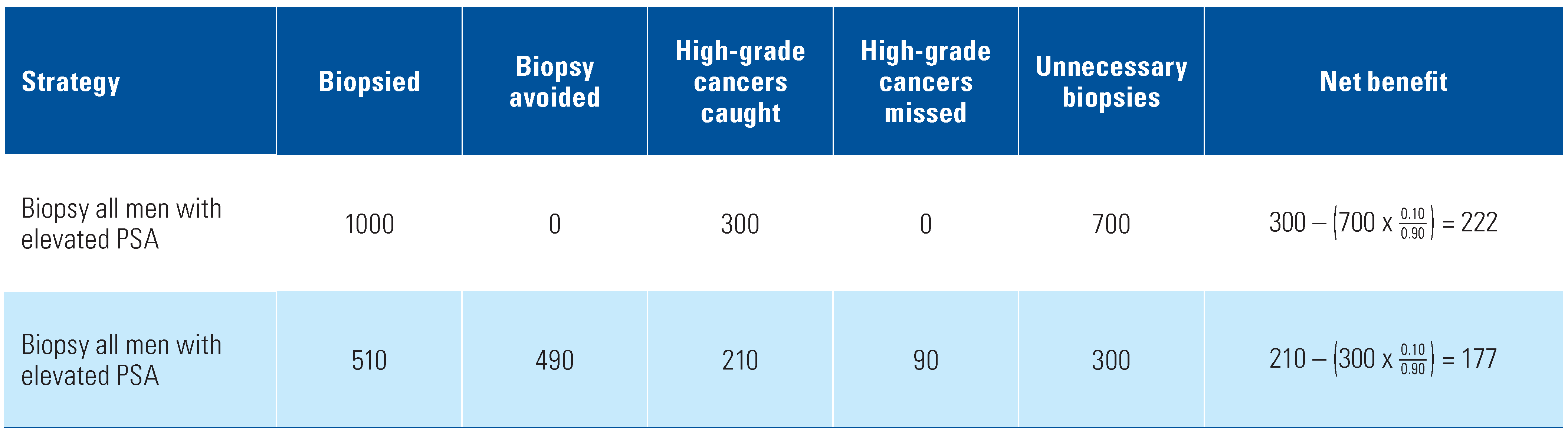

Table 2. Hypothetical results of a biomarker study for prostate biopsy illustrating clinical consequences and decision analysis.

shows a hypothetical study of 1000 men with elevated PSA levels. Risk of cancer on biopsy was calculated on the basis of a prediction model including a new biomarker. This shows that 300 men had high-grade cancer and that among the 510 men with a predicted risk of 10% or greater (our threshold to indicate biopsy) cancer was detected in 210 of these men (Table 2). The clinical consequences shown in Table 2 indicate that to determine whether it is better to biopsy all men or to use the statistical model and biopsy those with a 10% risk of high-grade cancer, we need to consider whether it is worth missing 90 cancers to avoid 490 biopsies.

In some cases, the results will be fairly obvious: if, for instance, there were only 10 high-grade cancers missed for a reduction of 490 biopsies, the value of the biomarker would be apparent. When results are not immediately clear, decision analysis can be of value. One of the simplest approaches, and the most widely used according to the urologic literature, is “net benefit,” which incorporates the consequences of clinical decisions of a prediction model or biomarker in the analysis [30]. Net benefit incorporates both discrimination (AUC) and calibration, making it an ideal statistic for comparing prognostic value [31]. A key aspect of net benefit is that the level of risk at which a patient opts to undergo a biopsy is informative of how a patient weighs the relative harms of a false-positive (an unnecessary biopsy with risks of side-effects including infectious complications and hospitalization) versus a false-negative (missing or delaying the detection of a high-grade cancer) result. This level of risk is termed threshold probability [30]. The threshold probability chosen in Table 2 was 10%, corresponding to odds of 10:90, implying that missing a cancer is 9 times worse than performing an unnecessary biopsy [32]. A threshold of 10% corresponds to a “number-needed-to-test” of 1/10% = 10, meaning that 10 men need to be biopsied to find 1 cancer [32,33]. Applying this 9:1 ratio to the study results gives the findings in Table 2, where it can be seen that the biomarker is actually harmful. Even though the marker has reasonable sensitivity and specificity (~70% and ~60%), too many high-grade cancers are missed for the decrease in unnecessary biopsy achieved [34]. One obvious issue is that the threshold can vary between patients or doctors: a patient worried about cancer might opt of a threshold of 6%, whereas one nervous about medical procedures might demand a 15% risk before considering biopsy. In decision curve analysis, the threshold probability is varied over a reasonable range and net benefit plotted against threshold probability [30]. By visualizing the decision curve, one can readily ascertain whether one strategy or model is optimal for across the full range of threshold probabilities of interest. For more on decision curves, which are very widely used in urology research, a selection of further reading is available at www.decisioncurveanalysis.org.

Impact Studies

Decision analytic techniques provide hypothetical assessments of clinical consequences. Impact studies assess the real-world consequences of a new biomarker-or model-based strategy. For example, an impact study might assess whether the results of the biomarker translated to changes in decisions. For instance, a typical study of the 4Kscore would conclude that, hypothetically, were doctors to use the 4Kscore to make biopsy decisions based on a cut-off of 10%, then the biopsy rates would fall by about 50%. In a study designed to determine what happens in actual practice, Konety et al. reported a 65% reduction in prostate biopsies in men receiving the 4Kscore [35]. However, not all impact studies are consistent with clinical biomarker studies: White et al. found that use of the PHI in practice led to a very large decrease in the capture of high-grade cancers, with an approximate 30% risk of high-grade cancer amongst men who avoided biopsy [36]. Impact studies are also undertaken because some endpoints are not entirely predictable from clinical research. Early research on PSA did find that it detected prostate cancer at an early stage, but it was unclear if prostate cancer screening regimens based on PSA led to reductions in mortality. The European Randomized Study of Screening for Prostate Cancer followed men for 16 years and demonstrated a reduction in mortality with PSA screening, and can therefore be considered an impact study [37,38].

Study Design Issues

The REMARK guidelines discuss study design considerations at length [39]. For instance, one key point is that assessors of the outcome should be blinded from the biomarker status. Another key concept is that of internal versus external validation. Interval validation occurs when a multivariable regression model is developed or a new cutpoint for a biomarker is selected and evaluated for performance on the same dataset. When a prediction model or biomarker cutpoint is developed and assessed on the same dataset estimates of performance are over-optimistic, a phenomenon known as overfitting [40,41]. Harrell et al. describe methods for obtaining optimism-corrected internal assessments of performance including data splitting, cross validation, and bootstrapping [42].

External validation not only solves the problem of overoptimism but evaluates genuine differences between cohorts. A model predicting recurrence after radical prostatectomy, for instance, may be affected by surgeon skill—less skilled surgeons having higher recurrence rates—or by differences in pathologic grading. An excellent practical example of external validation was a study showing that the risk of prostate cancer among Chinese men with a given PSA had been shown to be lower than for European men, the most likely explanation being that Chinese men have higher rates of benign disease. This true difference between cohorts will mean that prediction models using PSA will likely have poor properties when applied in China [43].

Recommendations

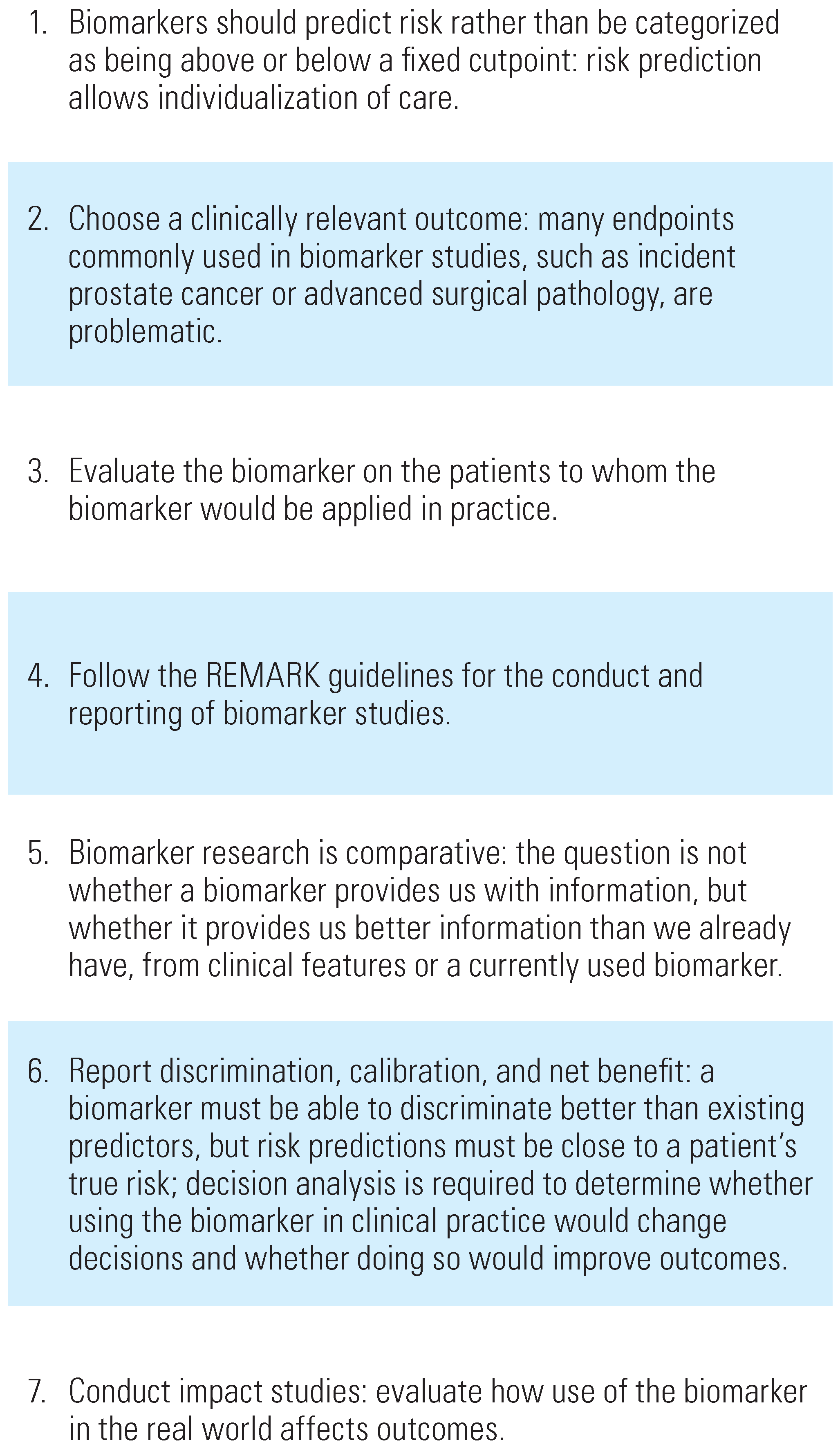

In this paper, we have outlined the evaluation of pros-tate cancer biomarkers. Our key “take-aways” can be summarized as follows:

Conclusions

It has often been noted that biomarker research has a poor track record of getting biomarkers into clinical practice. Following established principles of biomarker development increases the chances that a biomarker with good predictive properties will be incorporated into urologic decision-making and ultimately improve patient care.
