Colloid. Interface. 2018, 2(2), 24; doi:10.3390/colloids2020024

Hydrolase-Like Activity Provided by Zinc(II) and Oleoyl-Histidine at Liposome Membrane Surface
Division of Chemical Engineering, Graduate School of Engineering Science, Osaka University, 1–3 Machikaneyama-cho, Toyonaka, Osaka 560-8531, Japan
Author to whom correspondence should be addressed.
Received: 20 April 2018 / Accepted: 11 June 2018 / Published: 13 June 2018


Carbonic anhydrase (CA) is a hydrolase enzyme possessing an active center composed of three histidines (His), zinc(II) (Zn2+), and a hydration water. Here we report the hydrolase-like catalytic activity provided by the oleoyl-histidine (O-His) modified on liposome membranes. O-His was synthesized by the amide bond between oleic acid and His, and was incorporated into 1,2-dioleoyl-sn-glycero-3-phosphocholine (DOPC) and 1,2-dipalmitoyl-sn-glycero-3-phosphocholine (DPPC) liposomes. The hydrolysis of p-nitrophenylacetate was promoted by O-His modified DOPC liposomes in the presence of Zn2+. The formation of the active center was revealed by UV resonance Raman spectra. We conclude that the liposome membrane surface can be utilized as a platform for artificial hydrolysis reactions by modifying essential ligands inspired from natural enzymes.
artificial enzyme; liposome; membrane interface; histidine; Zinc(II)

1. Introduction

Carbonic anhydrase (CA) is a typical metalloenzyme that has an active site consisting of zinc(II) (Zn2+), three imidazole residues of l-histidine (His), and a hydration water [1]. The CA in vivo has the ability of converting CO2 to HCO3 and H+, which plays a central role in controlling pH in the cell [2]. Currently, several researchers have attempted to mimic the activity of CA in the industrial field: the active center like Zn-imidazole complex was created on solid supported catalysis to reduce CO2 exhausted from the factory [3,4].
In the enzymatic reaction of CA, the diffusion of CO2 is a rate-limiting step due to poor solubility of CO2 in water. The use of an organic solvent, for example, solves this problem, while it might reduce the enzymatic activity drastically due to denaturation [5]. In addition, the active site becomes unstable by immobilization of the enzyme on solid surface. To overcome such problems, self-assemblies (micelles and emulsions) have been used to develop technologies with high efficiency and selectivity [6,7,8]. It has been reported that the active site, similar to that of CA, was created by bolaamphiphile [9]. However, this method has a problem: the size and structure of the active center could not be adjusted because of the solid-like rigid surface. Therefore, in this study, the “flexible” interface of self-assembly was used as a rationally-designed platform for the CA-like hydrolysis reaction.
A liposome membrane is a vesicular self-assembly that is constructed of phospholipids in an aqueous solution. The self-assembly surface can be applied to induce emergent properties, such as molecular recognition and molecular conversion [10]. For example, the chiral selective adsorption of l-amino acid could be proceeded at a liposome membrane interface [11]. Moreover, in the case of a liposome membrane, the phase state, which affects fluidity, polarity, and micro size domain, can be easily controlled by their composition and temperature [12,13]. Therefore, it is considered that a liposome membrane interface is a superior platform for constructing the active site like Zn-imidazole complex, since the localization of the ligands can be dynamically controlled depending on the liposome membrane properties (e.g., fluidity and polarity).
In the active center of CA, the Zn(II) binding pocket consists of both a polar surface and a nonpolar surface, which provides an affinity between the ligand and metal ion via non-covalent interactions [14]. Inspired from CA, herein the histidine derivative modified with oleoyl group (oleoyl-histidine, O-His) was synthesized. Although O-His itself showed less solubility in water, the incorporation of O-His in the liposome membranes enables not only the dispersal of O-His in water, but also the imidazole groups are aligned in the polar region at the membrane surface. By adding Zn2+, the creation of the active site like Zn-imidazole complex was evaluated from (i) hydrolysis activity and (ii) varied membrane properties.

2. Results and Discussion

2.1. Evaluation of Hydrolysis Catalytic Activity

CA can promote the hydrolysis of p-nitrophenylacetate (p-NPA). Thus, to monitor the hydrolysis of p-NPA, the catalytic activity of the Zn-imidazole complex can be evaluated [15]. The production rates of p-nitrophenol (p-NP) were estimated for free His and O-His modified 1,2-dioleoyl-sn-glycero-3-phosphocholine (DOPC) liposomes (Figure 1a). In the cases of Zn2+ only, and free His + Zn2+, the production rates of p-NP were almost the same, while it was increased by the O-His modified DOPC liposome with Zn2+. Based on these results, a Lineweaver–Burk plot was made to evaluate the catalytic activity (kcat/Km) and substrate affinity (1/Km) (Figure 1b). The slope and intercept of the O–His modified DOPC liposome were smaller and bigger than those of Zn2+ only and free His + Zn2+ solution, respectively. The substrate affinity (1/Km) and catalytic activity (kcat/Km) are summarized in Figure 1c. In the absence of liposome membrane, Lineweaver–Burk plots were almost the same both in the Zn2+ only solution and in the free His + Zn2+ solution, suggesting that the interaction between Zn2+ and the imidazole group of His is weak in solution. In the absence of Zn2+, a slight increase in kcat/Km and 1/Km was observed in 1,2-dipalmitoyl-sn-glycero-3-phosphocholine (DPPC)/O-His liposomes, indicating that the O-His itself has a small effect on the hydrolysis. In the presence of Zn2+, O-His modified liposomes obviously increased both catalytic activity (kcat/Km) and, especially, substrate affinity (1/Km). The O-His modified DPPC liposome showed a bigger 1/Km value than the O-His modified DOPC liposome (Figure 1c, supporting information Figure S3).
Earlier, it was reported that the p-NPA hydrolysis is promoted by the constructed Zn-imidazole complex [9]. Moreover, the immobilization of an enzyme at the membrane interface made the enzyme reaction rate higher [16]. The reported hydrolysis activities are summarized in Table 1. Based on kcat/Km values, the CA (enzyme) shows the value of 453.2 [3], while an artificial enzyme shows that of 0.73 [9]. As compared to Kim et al. [9], the substrate affinity (1/Km) of DOPC/O-His with Zn2+ was superior. Therefore, the imidazole group could be immobilized at the liposome membrane surface, which made the formation of Zn-imidazole complex easier, and increased the affinity between the active site and substrate. However, the maximum reaction rate (Vmax) was decreased. O-His molecules could be distributed between the two (inner and outer) layers of the liposomes bilayer: the O-His exposed to the external medium is active to the reaction while the O-His distributed in the inner leaflet is inactive, because hydrophilic materials (Zn2+, substrate) are less permeable across the lipid bilayer. Roughly, less than half of the O-His molecules incorporated into the liposome membrane resulted in a three times higher kcat/Km value, as compared to free His molecules. The substrate p-NPA is hydrophilic, so only small amount of p-NPA can potentially be adsorbed onto liposome membranes: about 7% of p-NPA (initial conc. 2.5 mM) adsorbed on DOPC liposome (total lipid: 2.5 mM). In liposome system, the substrate adsorption could be a rate-limiting step, so that the reaction rate decreased at a high concentration of substrate. Therefore, the hydrolysis of p-NPA could be promoted at the liposome membrane surface by the formation of Zn-imidazole complex.

2.2. Evaluation of Complex Creation

For the evaluation of the Zn-imidazole complex formation, UV resonance Raman spectroscopy measurements were carried out (Figure 2). In the case of the O-His modified DOPC liposome suspension, significant peaks were not observed at the range from 350 to 1800 cm−1. By adding Zn2+, two peaks at 614 cm−1 and 1416 cm−1 were generated: these peaks were assigned as the imidazole ring and N-H moiety, respectively [17,18]. Because the lipid molecules (DOPC, O-His) are almost inactive for Raman in our experimental conditions, the generated peaks indicate the formation of Zn-imidazole complex. The O-His modified DOPC liposome showed a stronger peak at 1416 cm−1 than O-His modified DPPC liposome (Figure 2b). The Raman peak intensity increased in proportion to the O-His amount (Figure 2c). These data suggest that a large number of Zn-imidazole complex was formed on the O-His modified DOPC liposome, while the 1/Km value of the O-His modified DOPC liposome was smaller than the O-His modified DPPC liposome. Considering the catalytic activities in the presence of Zn2+ (Figure 1c), the formation of Zn-imidazole complex on the liposome surface plays an important role on the hydrolysis reaction of p-NPA. However, the amount of active site, which is relevant to the coordination number of O-His to Zn2+, is still unclear. The membrane properties of liposome; e.g., polar environment—differ between the DOPC and DPPC liposomes. Considering the local environment around the active center, the membrane property could be a factor in regulating the hydrolysis reaction.

2.3. Evaluation of the Membrane Property of O-His Modified Liposomes in the Presence of Zn2+

At room temperature, the DOPC liposome shows high fluidity (liquid-disordered phase), while the DPPC liposome shows low fluidity (solid-ordered phase). Thus O-His molecules can freely diffuse in the DOPC membrane, but are less diffusible in the DPPC membrane. For details, the membrane properties were evaluated by using fluorescence probes. 6-Lauroyl-2-dimethylamino-naphthalene (Laurdan) and 1,6-diphenyl-1,3,5-hexatriene (DPH) reflect the inner membrane polarity and fluidity, respectively. 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine-N-(5-dimethylamino-1-naphthalenesulfonyl) (Dansyl-DHPE) and 1-(4-trimethylammoniumphenyl)-6-phenyl-1,3,5-hexatriene (TMA-DPH) can be used to monitor the surface hydrophobicity and fluidity, respectively [13,19,20,21]. Regarding the inner properties, the GP340 values and 1/P values were hardly affected by the presence of Zn2+ (see supporting information Figure S4). This suggests that Zn2+ could not localize in the inner region of the liposomes.
In the surface properties, the hydrophobicity of O-His modified DOPC liposome became hydrophilic by adding Zn2+ (Figure 3a). This suggests that the formation of Zn-imidazole complex could bring the water molecule onto the membrane surface. Similarly, the hydrophobicity of O-His modified DPPC liposome turned out to be slightly hydrophilic. The membrane surface fluidity of O-His modified DOPC liposome was decreased by Zn2+, suggesting that the Zn-imidazole complex could be in an ordered state (like liquid-ordered phase). In contrast, the addition of Zn2+ slightly increased the membrane surface fluidity of the O-His modified DPPC liposome (Figure 3b). The incorporation of a water-soluble molecule into DPPC liposome can lead the membrane to become fluidized [13]. In addition, the liquid-ordered phase, seen in the case of DOPC-cholesterol liposome, shows a decreased membrane surface fluidity as compared to DOPC liposome, while it shows an increased fluidity as compared to DPPC liposome [22]. Although it might be difficult to obtain direct evidence of Zn-imidazole complex on the membrane, the varied membrane “surface” properties could reflect the interaction between Zn2+ and O-His molecules. Together with the hydrolysis activity, it could be concluded that the artificial active center is constructed by the O-His, which is modified on the liposome membrane in the presence of Zn2+ ion.

3. Conclusions

The active site, which performed the catalytic activity like CA, was constructed at the liposome membrane surface by modifying the liposome with O-His. By adding Zn2+ into O-His modified DOPC and DPPC liposomes, the hydrolysis activities were enhanced because of the increase in substrate affinity (1/Km). Based on UV resonance Raman spectra, the interaction O-His with Zn2+ could be confirmed. The formation of Zn-imidazole complex resulted in a decreased membrane surface fluidity in the DOPC membrane, together with an increase of membrane surface hydrophilicity. In natural systems (CA enzyme), both hydrophilic and hydrophobic surfaces, which are provided by polar amino acids (Asn, His, Asn, Gln, etc.) and non-polar amino acids (Phe, Val, Leu, Pro, etc.), respectively, play an important role to in hydrolysis.
Thanks to recent advances in methodology, the dynamics of enzymatic functions can be studied at a single-molecule level [23]. Some of the enzymatic reactions can be proceeded at the lipid membrane interface; e.g., phospholipase A2. The kinetic parameter obtained from conventional approaches (e.g., Lineweaver–Burk plot) might be different from the correct one [24]. A single-molecule assay will also shed a light into the enzymatic reaction at the membrane interface [25]. Such approaches will contribute to the investigation of the true role of functional ligands incorporated into liposome membranes. One of the advantages of using liposomes is that the interior region of the membrane can act as the “hydrophobic” site, then the functional ligands, such as amino acid derivatives like O-His, can be activated by the complex formation with metal ions.

4. Materials and Methods

4.1. Materials

DOPC, DPPC, and Dansyl-DHPE were purchased from Avanti Polar Lipids, Inc. (Alabaster, AL, USA). l-His, Hydrochloric acid, chloroform, and 2-amino-2-hydroxymethyl-1,3-propanediol were purchased from Tokyo Chemical Industry Co., Ltd. (Tokyo, Japan). 1,6-Diphenyl-1,3,5-hexatriene (DPH), 6-lauroyl-2-dimethylamino-naphthalene (Laurdan), p-nitrophenol (p-NP) and acetonitrile were obtained from Sigma Aldrich (St. Louis, MO, USA). Other chemicals were purchased from Wako Pure Chemical Industry Ltd. (Osaka, Japan) and were used without further purification. The chemical structures of lipid molecules are shown in Figure S1.

4.2. Synthesis of O-His

The O-His synthesis route is shown in supporting information Figure S1 [26]. In particular, oleic acid and N-hydroxysuccinimide were dissolved in ethyl acetate solution by mixing with a stirrer. N,N-dicyclohexylcarbodiimide in ethyl acetate solution was added, and stirred over one night. After the solution was stirred, N-hydroxysuccinimide, white precipitate, were filtered, and the filtrate was evaporated. After the obtained activated ester was recrystallized with ethanol, the product was dissolved in chloroform and added to the solution including histidine and Na+. After stirring over one night, glycine-HCl buffer (0.15 μM, pH = 2.0) and chloroform were added, and the chloroform phase was recovered by using a separation funnel. The recovered chloroform phase was evaporated and the solvent was removed. The obtained O-His was recrystallized with chloroform, and impurities were removed. Formation of O-His was confirmed by measurements of mass spectrum, and Raman spectrum (Figure S2).

4.3. Liposome Preparation

Liposomes of different compositions were prepared by the reported method [27]. Briefly, a chloroform solution of phospholipid was dried in a round-bottom flask by a rotary evaporator under a vacuum. The lipid thin film was kept under a high vacuum for at least 3 h, and then was hydrated with Tris-HCl buffer (50 mM, pH = 8.0) at 60 °C. The liposome suspension was frozen at −80 °C and was thawed at 60 °C. This freeze-thaw cycle was performed five times. The liposome suspension was extruded 11 times through two layers of polycarbonate membranes, with mean pore diameters of 100 nm using an extruding device (LiposoFast; Avestin Inc., Ottawa, ON, Canada). The mole fractions of liposome membrane were phospholipid/O-His = 10/0 and 8/2.

4.4. Evaluation of Hydrolysis Activity

The reaction mixture was prepared with O-His modified DOPC liposome (total amphiphile content: 2.5 mM, O-His content: 0.5 mM) and Zn(OAc)2 (total content of Zn2+: 0.17 mM). The mixture was incubated at 25 °C for 2 h. After incubation, the solution was diluted with Tris-HCl buffer (50 mM, pH = 8.0, final concentration of Zn2+ was 0.1 mM). The reaction was initiated by adding p-NPA (initial concentration of 1.0, 1.5, 2.5 mM). The absorbance at 400 nm, derived from p-NP, was measured every minute. The production rate of p-NP and catalytic activity were calculated by using Michaelis–Menten model and Lineweaver–Burk plot, respectively. Here, [E]T was regarded as [Zn2+]. The slope and intercept show Km/Vmax and 1/Vmax, respectively. Km and Vmax represents the Michaelis–Menten constant and maximum reaction rate, respectively.
v = V max [ S ] ( K m + [ S ] )
1 v = K m V max [ S ] + 1 V max
k c a t = V max [ E ] T

4.5. Evaluation of Zn-Imidazole Complex by Raman Spectroscopy

Zn(OAc)2 was selected as a source of Zn2+, according to literature [28]. The solutions of O-His modified DOPC liposome (total amphiphile content: 2.5 mM) and Zn(OAc)2 were mixed with a mole ratio of O-His/Zn2+ = 3/1, and the mixture was incubated at 25 °C for 2 h. After incubation, Raman spectra were measured using a confocal Raman microscopy (LabRAM HR-800, Horiba, Ltd., Kyoto, Japan). The 266 nm YAG laser of a 100 mW was used for excitation, and a 10× objective lens was used to focus the laser beam. All the spectra reported here were measured with an accumulation time of 20 s, and each spectrum data was accumulated three times. The background signal of the solution was removed, and the baseline was corrected.

4.6. Evaluation of Membrane Fluidity and Polarity

The membrane fluidity of the liposomes was evaluated by reported methods [19,20,21]. The fluorescent probe DPH, TMA-DPH was added to the liposome suspension in a lipid/probe molar ratio of 250:1; the final concentrations of the lipid and probe were 100 and 0.4 μM, respectively. The fluorescence polarization of DPH (Ex = 360 nm, Em = 430 nm) was measured using a fluorescence spectrophotometer after incubation at 25 °C for 30 min. The sample was excited using vertically polarized light (360 nm), and the emission intensities, both perpendicular ( I ) and parallel ( I ) to the excitation light, were recorded at 430 nm. The polarization (P) of DPH was then calculated from the following equations:
P = I G I I + G I
G = I I
where G is the correction factor. The membrane fluidity was evaluated on the basis of the reciprocal of polarization, 1/P.
Laurdan is sensitive to the polarity around the molecule itself, and its fluorescence property enables the evaluation of the surface polarity of the lipid membranes. The emission spectra were measured using a fluorescence spectrophotometer at an excitation wavelength of 340 nm. The general polarization (GP340), the membrane polarity, was calculated as follows [21]
G P 340 = ( I 440 I 490 ) ( I 440 + I 490 )
where I440 and I490 represent the fluorescence intensity of Laurdan at 440 and 490 nm, respectively. The total concentrations of lipid and Laurdan were 100 and 1.0 μM, respectively.
As for the polarity of the membrane surface, Dansyl-DHPE was used as a probe molecule and mixed in a liposome suspension, with final concentrations of lipid and Dansyl-DHPE that were 100 and 1.0 μM, respectively. The fluorescence spectra were analyzed by the excitation light (336 nm) to observe the emission peak wavelengths (λ). The hydrophobicity of the membrane surface can be evaluated by the normalized value (λN) by using the equation [11]
λ N = ( λ λ 1 ) ( λ 0 λ 1 )
where λ0 and λ1 represent the maximum wavelengths in hydrophilic (527 nm) and hydrophobic (512 nm) conditions, respectively.

4.7. Statistical Analysis

Results are expressed as mean ± standard deviation. All experiments were performed at least three times.

Supplementary Materials

The following are available online at Figure S1: Synthesis scheme for O-His; Figure S2: MS spectrum and Raman spectra of O-His; Figure S3: Lineweaver–Burk plot of DPPC(O-His) +Zn2+; Figure S4: Liposome membrane inner properties.

Author Contributions

A.T. and K.S. performed experiments. A.T., K.S. and H.U. wrote paper. A.T., K.S. and H.U. directed the research.


This research was supported by the Japan Society for the Promotion of Science (JSPS) Grant-in-Aid for Scientific Research A (26249116), JSPS Grant-in-Aid for Young Scientist B (16K18279), and JSPS Grant-in-Aid for Challenging Exploratory Research (T15K142040).

Conflicts of Interest

There are no conflicts of interest to declare.


CAcarbonic anhydrase
DPH1,6-diphenyl-1,3,5-hexatriene (DPH),


  1. Savile, C.K.; Lalonde, J.J. Biotechnology for the acceleration of carbon dioxide capture and sequestration. Curr. Opin. Biotechnol. 2011, 22, 818–823. [Google Scholar] [CrossRef] [PubMed]
  2. Krishnamurthy, V.M.; Kaufman, G.K.; Urbach, A.R.; Gitlin, I.; Gudiksen, K.L.; Weibel, D.B.; Whitesides, G.M. Carbonic Anhydrase as a Model for Biophysical and Physical-Organic Studies of Proteins and Protein−Ligand Binding. Chem. Rev. 2008, 108, 946–1051. [Google Scholar] [CrossRef] [PubMed]
  3. Sahoo, P.C.; Jang, Y.-N.; Lee, S.-W. Immobilization of carbonic anhydrase and an artificial Zn (II) complex on a magnetic support for biomimetic carbon dioxide sequestration. J. Mol. Catal. B Enzym. 2012, 82, 37–45. [Google Scholar] [CrossRef]
  4. Sahoo, P.C.; Jang, Y.-N.; Suh, Y.-J.; Lee, S.-W. Bioinspired design of mesoporous silica complex based on active site of carbonic anhydrase. J. Mol. Catal. A Chem. 2014, 390, 105–113. [Google Scholar] [CrossRef]
  5. Cioci, F.; Lavecchia, R.; Marrelli, L. Effect of surface tension on the conformational stability of erythrocyte carbonic anhydrase. Fluid Phase Equilib. 1996, 116, 118–125. [Google Scholar] [CrossRef]
  6. Juan, D.; Bingying, J.; Xingming, K.; Xiancheng, Z.; Qingxiang, X. Enhanced Hydrolysis of Carboxylic Acid Esters Catalyzed by Metallomicelles Made of Cu(II) and Zn(II) Complexes. J. Colloid Interface Sci. 2002, 256, 428–434. [Google Scholar] [CrossRef]
  7. Poznik, M.; König, B. Cooperative hydrolysis of aryl esters on functionalized membrane surfaces and in micellar solutions. Org. Biomol. Chem. 2014, 12, 3175–3180. [Google Scholar] [CrossRef] [PubMed]
  8. Garcia-Rio, L.; Mejuto, J.C.; Perez-Lorenzo, M. Modification of reactivity by changing microemulsion composition. Basic hydrolysis of nitrophenyl acetate in AOT/isooctane/water systems. New. J. Chem. 2004, 28, 988–995. [Google Scholar] [CrossRef]
  9. Kim, M.-C.; Lee, S.-Y. Carbonic Anhydrase-Mimetic Bolaamphiphile Self-Assembly for CO2 Hydration and Sequestration. Chem. Eur. J. 2014, 20, 17019–17024. [Google Scholar] [CrossRef] [PubMed]
  10. Walde, P.; Umakoshi, H.; Stano, P.; Mavelli, F. Emergent Properties Arising from the Assembly of Amphiphiles. Artificial vesicle membranes as reaction promoters and regulators. Chem. Commun. 2014, 50, 10177–10197. [Google Scholar] [CrossRef] [PubMed]
  11. Ishigami, T.; Tauchi, A.; Suga, K.; Umakoshi, H. Effect of Boundary Edge in DOPC/DPPC/Cholesterol Liposomes on Acceleration of l-Histidine Preferential Adsorption. Langmuir 2016, 32, 6011–6019. [Google Scholar] [CrossRef] [PubMed]
  12. Metso, A.J.; Zhao, H.; Tuunainen, I.; Kinnunen, P.K.J. Observation of the main phase transition of dinervonoylphosphocholine giant liposomes by fluorescence microscopy. Biochim. Biophys. Acta 2005, 1713, 83–91. [Google Scholar] [CrossRef] [PubMed]
  13. Zhao, J.; Wu, J.; Heberle, F.A.; Mills, T.T.; Klawitter, P.; Huang, G.; Costanza, G.; Freigenson, G.W. Phase studies of model biomembranes: Complex behavior of DSPC/DOPC/Cholesterol. Biochim. Biophys. Acta 2007, 1768, 2764–2776. [Google Scholar] [CrossRef] [PubMed]
  14. Christianson, D.W.; Fierke, C.A. Carbonic Anhydrase:  Evolution of the Zinc Binding Site by Nature and by Design. Acc. Chem. Res. 1996, 29, 331–339. [Google Scholar] [CrossRef]
  15. Pocker, Y.; Stone, T. The Catalytic Versatility of Erythrocyte Carbonic Anhydrase. III. Kinetic Studies of the Enzyme-Catalyzed Hydrolysis of p-Nitrophenyl Acetate. Bichemistry 1967, 6, 668–678. [Google Scholar] [CrossRef]
  16. Suga, K.; Hamasaki, A.; Chinzaka, J.; Umakoshi, H. Liposomes modified with cardiolipin can act as a platform to regulate the potential flux of NADP+-dependent isocitrate dehydrogenase. Metab. Eng. 2016, 3, 8–14. [Google Scholar] [CrossRef] [PubMed]
  17. Mesu, J.G.; Visser, T.; Soulimani, F.; Weckhuysen, B.M. Infrared and Raman spectroscopic study of pH-induced structural changes of l-histidine in aqueous environment. Vib. Spectrpsc. 2005, 39, 114–125. [Google Scholar] [CrossRef]
  18. Salama, S.; Spiro, T.G. Resonance Raman Spectra of Cobalt(II)-Imidazole Complexes: Analogues of the Binding Site of Cobalt-Substituted Zinc Proteins. J. Am. Chem. Soc. 1978, 100, 1105–1111. [Google Scholar] [CrossRef]
  19. Lentz, B.R. Membrane “fluidity” as detected by dipheylhexatriene probes. Chem. Phys. Lipids 1989, 50, 171–190. [Google Scholar] [CrossRef]
  20. Hayashi, K.; Shimanouchi, T.; Kato, K.; Miyazaki, T.; Nakamura, A.; Umakoshi, H. Investigation of Fatty Acid Ketohydrazone Modified Liposome’s Properties as a Drug Carrier. Colloids Surf. B 2011, 87, 28–35. [Google Scholar] [CrossRef] [PubMed]
  21. Parasassi, T.; Krasnowska, E.-K.; Bagatolli, L.; Gratton, E. Laurdan and Prodan as Polarity-Sensitive Fluorescent Membrane Probes. J. Fluoresc. 1998, 8, 365–373. [Google Scholar] [CrossRef]
  22. Bui, T.T.; Suga, K.; Umakoshi, H. Roles of Sterol Derivatives in Regulating the Properties of Phospholipid Bilayer Systems. Langmuir 2016, 32, 6176–6184. [Google Scholar] [CrossRef] [PubMed]
  23. Jørgensen, S.K.; Hatzakis, N.S. Insights in enzyme functional dynamics and activity regulation by single molecule studies. Biophys. Rev. Lett. 2013, 8, 137–160. [Google Scholar] [CrossRef]
  24. Rabe, M.; Tabaei, S.R.; Zetterberg, H.; Zhdanov, V.P.; Höök, F. Hydrolysis of a lipid membrane by single enzyme molecules: Accurate determination of kinetic parameters. Angew. Chem. Int. Ed. 2015, 54, 1022–1026. [Google Scholar] [CrossRef] [PubMed]
  25. Gunnarsson, A.; Snijder, A.; Hicks, J.; Gunnarsson, J.; Höök, F.; Geschwindner, S. Drug discovery at the single molecule level: Inhibition-in-solution assay of membrane-reconstituted β-secretase using single-molecule imaging. Anal. Chem. 2015, 87, 4100–4103. [Google Scholar] [CrossRef] [PubMed]
  26. Lapidot, Y.; Rappoport, S.; Wolman, Y. Use of esters of N-hydroxysuccinimide in the synthesis of N-acylamino acids. J. Lipid Res. 1967, 8, 142–145. [Google Scholar] [PubMed]
  27. MacDonald, R.C.; MacDonald, R.I.; Menco, B.P.H.M.; Takeshita, K.; Subbarao, N.K.; Hu, L.-R. Small-volume extrusion apparatus for preparation of large, unilamellar vesicles. BBA Biomembr. 1991, 30, 297–303. [Google Scholar] [CrossRef]
  28. Kim, M.-C.; Lee, S.-Y. Comparative Study on the Catalytic Hydration of Carbon Dioxide by Catalysts that Mimic Carbonic Anhydrase Prepared with Zinc Salts. ChemCatChem 2015, 7, 698–704. [Google Scholar] [CrossRef]

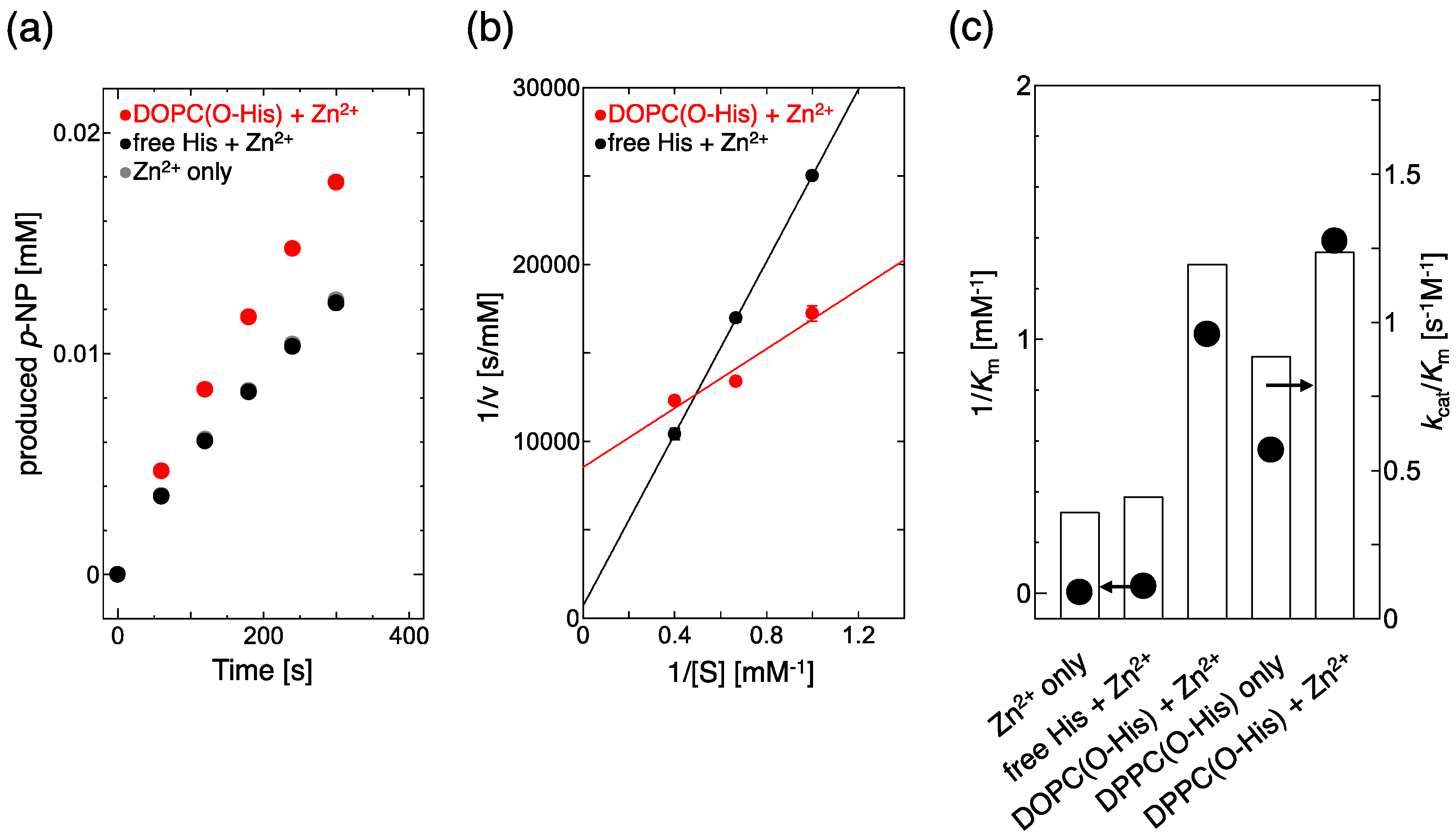

Figure 1. (a) Time course of p-NP production; (b) Lineweaver–Burk plot for 1,2-dioleoyl-sn-glycero-3-phosphocholine (DOPC) (O-His 20 mol%) and free His. The standard deviations were less than 0.05; (c) Comparison of 1/Km (y axis) and kcat/Km (R axis) values. As a negative control, the free His (as amino acid) was directly added into the reaction mixture. [Zn2+] = 0.1 mM, [O-His] = 0.3 mM for DOPC (O-His 20 mol%) and DPPC(O-His 20 mol%). Experiments were conducted at 25 °C.
Figure 1. (a) Time course of p-NP production; (b) Lineweaver–Burk plot for 1,2-dioleoyl-sn-glycero-3-phosphocholine (DOPC) (O-His 20 mol%) and free His. The standard deviations were less than 0.05; (c) Comparison of 1/Km (y axis) and kcat/Km (R axis) values. As a negative control, the free His (as amino acid) was directly added into the reaction mixture. [Zn2+] = 0.1 mM, [O-His] = 0.3 mM for DOPC (O-His 20 mol%) and DPPC(O-His 20 mol%). Experiments were conducted at 25 °C.
Colloids 02 00024 g001

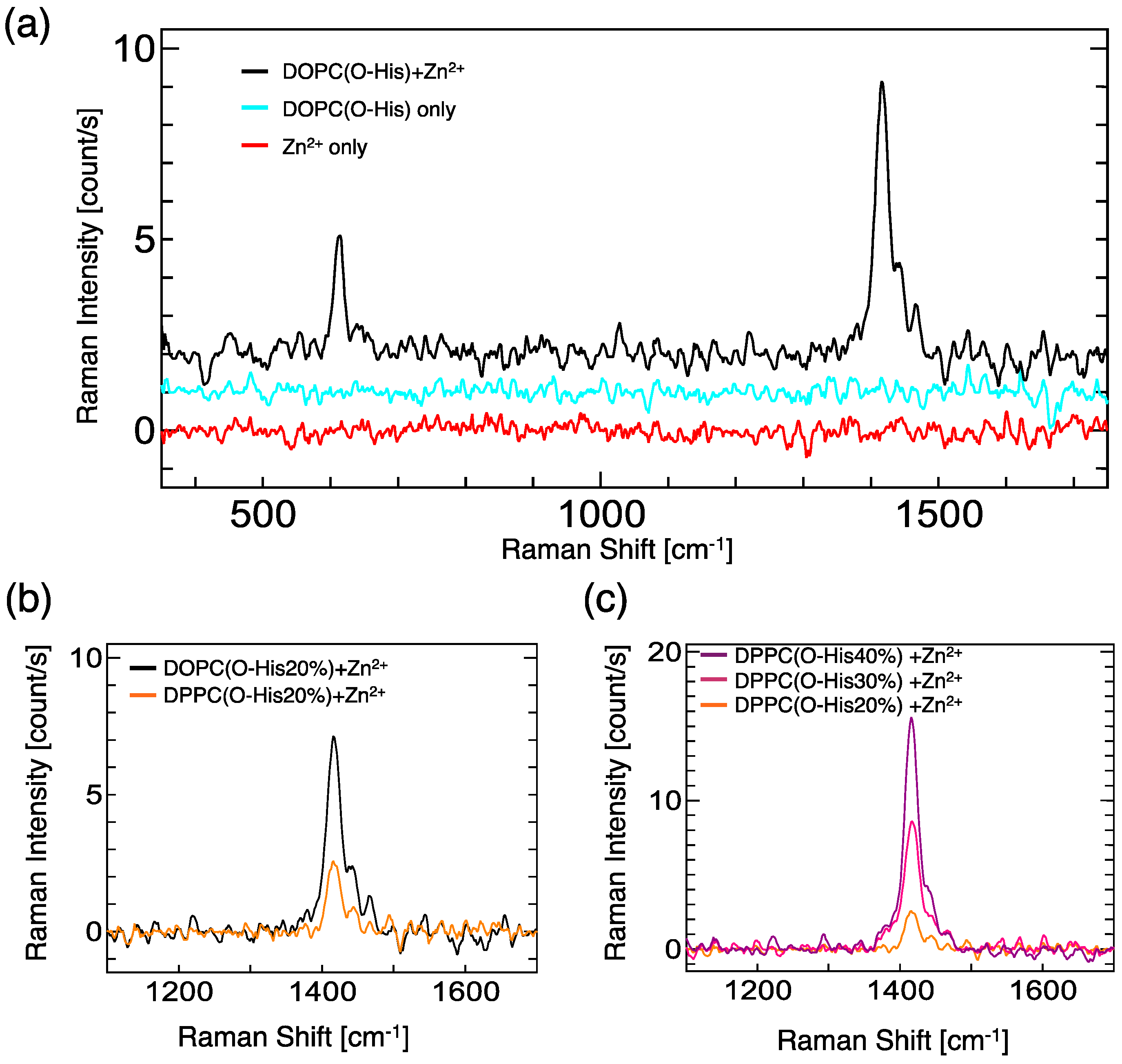

Figure 2. (a) UV resonance Raman spectra of DOPC (O-His 20 mol%), in the presence or absence of Zn2+. [O-His] = 0.5 mM, [O-His]/[Zn2+] = 3/1; (b) UV resonance Raman spectra of DOPC (O-His 20 mol%) and DPPC(O-His 20 mol%). [O-His] = 0.5 mM, [O-His]/[Zn2+] = 3/1; (c) Dependence of O-His concentration in DPPC liposomes. Experiments were conducted at 25 °C, and the total amphiphile concentration was 2.5 mM, [O-His]/[Zn2+] = 3/1.
Figure 2. (a) UV resonance Raman spectra of DOPC (O-His 20 mol%), in the presence or absence of Zn2+. [O-His] = 0.5 mM, [O-His]/[Zn2+] = 3/1; (b) UV resonance Raman spectra of DOPC (O-His 20 mol%) and DPPC(O-His 20 mol%). [O-His] = 0.5 mM, [O-His]/[Zn2+] = 3/1; (c) Dependence of O-His concentration in DPPC liposomes. Experiments were conducted at 25 °C, and the total amphiphile concentration was 2.5 mM, [O-His]/[Zn2+] = 3/1.
Colloids 02 00024 g002
Figure 3. (a) Membrane surface hydrophobicity (λN) of liposomes. A lower λN indicates an increase of polarity; (b) Membrane surface fluidity (1/PTMA-DPH) of liposomes. A lower 1/PTMA-DPH indicates a decrease of fluidity. [Total amphiphile] = 100 μM, [Dansyl-DHPE] = 1 μM, [TMA-DPH] = 0.4 μM [O-His] = 20 μM, [O-His]/[Zn2+] = 3/1. Experiments were conducted at 25 °C.
Figure 3. (a) Membrane surface hydrophobicity (λN) of liposomes. A lower λN indicates an increase of polarity; (b) Membrane surface fluidity (1/PTMA-DPH) of liposomes. A lower 1/PTMA-DPH indicates a decrease of fluidity. [Total amphiphile] = 100 μM, [Dansyl-DHPE] = 1 μM, [TMA-DPH] = 0.4 μM [O-His] = 20 μM, [O-His]/[Zn2+] = 3/1. Experiments were conducted at 25 °C.
Colloids 02 00024 g003
Table 1. Hydrolysis activities of carbonic anhydrase (CA) and artificial enzymes.
Table 1. Hydrolysis activities of carbonic anhydrase (CA) and artificial enzymes.
1/Km (mM−1)kcat/Km (M−1 s−1)
CA [3]0.104453.2
His-C7 (bolaamphiphile) + Zn2+ [9]0.009170.73
DOPC/O-His + Zn2+1.021.20
