Developing Wound Moisture Sensors: Opportunities and Challenges for Laser-Induced Graphene-Based Materials

by
Emma Crowe
1,
Cameron Scott
1,
Sarah Cameron
1,
Jill H. Cundell
2 and
James Davis
1,*
1
School of Engineering, Ulster University, Jordanstown BT37 0QB, UK
2
School of Health Sciences, Ulster University, Jordanstown BT37 0QB, UK
*
Author to whom correspondence should be addressed.
J. Compos. Sci. 2022, 6(6), 176; https://doi.org/10.3390/jcs6060176
Submission received: 17 May 2022 / Revised: 29 May 2022 / Accepted: 9 June 2022 / Published: 16 June 2022
(This article belongs to the Special Issue Polymer Composites for Sensing Applications)
Browse Figures
Versions Notes

Abstract

:
Recent advances in polymer composites have led to new, multifunctional wound dressings that can greatly improve healing processes, but assessing the moisture status of the underlying wound site still requires frequent visual inspection. Moisture is a key mediator in tissue regeneration and it has long been recognised that there is an opportunity for smart systems to provide quantitative information such that dressing selection can be optimised and nursing time prioritised. Composite technologies have a rich history in the development of moisture/humidity sensors but the challenges presented within the clinical context have been considerable. This review aims to train a spotlight on existing barriers and highlight how laser-induced graphene could lead to emerging material design strategies that could allow clinically acceptable systems to emerge.

1. Introduction

The quantitative measurement of moisture level is a core requisite within the agri-food sector and countless industrial processes, and it is little surprise that a wealth of strategies have been employed to facilitate rapid, real-time monitoring. Moisture level also plays a critical role within the healthcare sector and especially in wound management, but, as yet the translation of those technologies that are routinely applied within industrial processes have yet to make substantive headway at the front line of patient care. In many cases, the composition of the sensing systems would be far from appropriate when considering their application in clinical contexts, but there have been considerable advances in composite technologies within the emerging wearable sector to suggest that this may be beginning to change. Wound care has long been a recipient of major advances in polymer technologies, with many of the current dressings being composed of multi-layer multi-functional materials designed to protect the wound site, encourage healing and minimise damage upon redressing [1,2,3,4]. The evolution of smart dressings has been underway for some time, but it is only recently that manufacturers have started to explore the development of dressings with diagnostic capabilities [5,6,7,8,9,10].
The key device requirements are for the low-cost manufacture of conductive elements whose size, shape and mechanical flexibility will not impede the use of existing wound dressings nor impact on the underlying healing processes. There is an extensive literature base on the development of moisture/humidity sensors, but a detailed discussion of the respective merits and limitations is beyond the scope of the present communication. Rather, we posit the potential suitability of one subsection towards wound management: laser-induced graphene (LIG) [11,12,13,14]. While graphene has long been promoted as a wonder material for a multitude of sensing applications, the complexities of the processes needed for both reproducible manufacture and integration within the intended sensor have traditionally been problematic. The discovery of laser-induced graphene, however, has provided a step change in the development process as it allows direct scribing onto inexpensive films through simply changing the design within an appropriate graphic design application—much in the same way as an image is prepared for a conventional desktop printer [11]. This stands in marked contrast to conventional fabrication processes such as photolithography or screen printing, where even small changes incur significant cost overheads associated with the re-tooling of masks. The ability to rapidly prototype LIG-based sensors on a variety of substrates has undoubtedly increased interest in their use as electrode substrates, but the material properties of the resulting 3D carbon framework can also provide a number of advantages in terms of wound sensing applications. The intrinsic conductivity, mechanical flexibility and rich interfacial chemistry yield a functional material that could be ideally suited to the demands of moisture sensing within wound dressings. The aim of this review has been to consider how developments in LIG-based materials could be harnessed to address the challenges presented by such application and to critically assess their appropriateness and potential impact.

2. Wound Care Context

An appreciation of the significance of moisture in wound management dates back to antiquity, but the first scientific exploration is often attributed to Winter (1962) [15]. An appropriate level of moisture in the wound has since been proven to be critical in triggering re-epithelialisation and granulation processes, with wound hydration often considered to be a key factor contributing towards normal wound healing [16]. It is important to acknowledge, however, that excess hydration, especially when combined with a high level of matrix metalloproteinases, can lead to wound maceration, which will disrupt the healing process and can be common in chronic wounds [17]. In such conditions, the wound fluid itself serves as a “wounding agent” and hence monitoring the hydration level of a wound becomes critical. At present, this is done via visual inspection by the patient, caregiver or nurse when the dressing is replaced, but it is possible that the periwound surfaces could be exposed to the action of excess wound fluid/exudate for considerable periods before the physical signs of strikethrough or saturation appear [17].
While the frequency of dressing changes will vary from one patient to another, Ousey and colleagues (2013) conducted a detailed study of dressing management and found that the majority of wound dressings are replaced twice weekly [18]. It must be noted, however, that dressing changes do not simply occur when the signs of saturation are evident but that they are often changed when it is not necessary, creating avoidable excess waste. Milne and co-workers (2016) found that, in a study of 30 patients, some 45% of 588 dressings studied were changed while the wounds were considered to be within an optimum moisture range [19]. These values are comparable to those found by Ousey et al. (2013), where 55% of patient wound redressings were due to routine care changes. Ousey’s study also found that, in fact, only around 15% of changes were due to the dressing being saturated, with the other 30% of dressing changes due to maximum wear time being reached. As dressing changes are often accompanied by pain for the patient, it is easy to appreciate how the introduction of a sensing system to monitor wound moisture levels would be very advantageous in preventing premature dressing changes and would ultimately improve patient care.
It is easy to rationalise how minimising disruption at the wound–dressing interface could reduce pain. There are also clear cost-saving opportunities in relation to staff time associated with the dressing change, but it can also be anticipated that critical management of the data from a wound moisture sensor could enable a more judicious choice of dressing type to better meet the requirements of a given wound. Optimisation of the dressing type could therefore speed up healing and, in doing so, lead to substantive savings. The integration of sensing technology here could dramatically improve nurse–patient interactions, allowing more efficient prioritisation and visit scheduling.
The scale of the problem is evident when considering that, in the UK, of the 2.2 million wounds being managed by the NHS, 1.45 million are treated by community/district nursing staff [20]. The treatment of chronic wounds is a particular issue where delays in healing and the development of complications will inevitably lead to longer and more intensive treatment and can lead to hospitalisation and the need for further specialist intervention [21]. This can be problematic for those being treated in the community, where access to clinical help can be difficult, especially under the continuing COVID-19 pandemic [22]. Connected health systems (mHealth) have long been heralded as a means for enhancing community care but, while there have been tremendous advances in some aspects of decentralised sensor technologies (i.e., vital signs [23,24]), there has been much slower progress in the commercial realisation of networked wound diagnostics. In this case, the underpinning community communication network is not the prime hurdle as current estimates suggest that 96% of households in the UK have some form of internet connection [25]. As the infrastructure for both rural and urban connectivity is clearly well developed, the main impediment to connected wound moisture monitoring lies with the sensors themselves. Attempts to develop a commercial wound sensor were pioneered by Milne and colleagues through their WoundSense system [19], but the physical bulk and need for manual interrogation are limiting factors in its adoption. A more recent prototype by Mehmood attempted to address these issues through a wearable format offering wireless reporting [26,27] but, again, miniaturisation of the device footprint and the economics of the device manufacture are significant detractors.

3. Design Requirements and Sensing Methodologies

Given the frequency of dressing changes and the fact that the sensing component would need to be replaced with each new dressing to prevent contamination, there is a need for devices that are small, inexpensive and mechanically flexible. The latter is particularly important to avoid the situation where the device itself aggravates the wound and impedes the healing processes. It would be necessary to separate the sensing (disposable) component and the electronics (monitoring) component, which would mirror the approach taken with home glucose measurements, where the disposable test strip is the primary consumable with a reusable meter. Various measurement methodologies have been employed and fall within the electrical, optical and mass detection divisions. In this communication, however, attention has been focused on the electrical and, in particular, those systems which are adaptable to mass manufacturing processes. The latter will be crucial when considering the journey from lab bench to commercial reality while acknowledging the fact that a wound sensor integrated within a dressing could easily have a lifetime of less than a day [18]. This aspect stands in marked contrast to domestic or industrial moisture/humidity sensing applications, where sensors may be expected to last for months (or years). Electrical systems have traditionally been dominated by resistance-, impedance- and capacitance-based devices, though there is increasing interest in radio frequency identification (RFID) systems based on inductive–capacitive coupling.
A brief inspection of commercial moisture/humidity sensors reveals that few would be acceptable for use in a wound management context as a consequence of their physical bulk and the inflexibility of the sensor. Two examples of low-cost moisture probes typically used in precision agriculture applications are highlighted in Figure 1. The sensing components are deposited as a patterned thin film but on rigid substrates. This is purely to comply with the demands of the agricultural applications—where perpendicular insertion into the soil surface is required.
Transferring the electrodes onto soft substrates that can be unobtrusively positioned within a dressing is clearly a critical step and, as such, there is a need for the sensing component to be immobilised onto thin flexible films. Devices from two distinct sensing directions, wearables and disposables, however, have led to material advances that could help meet the requirements of wound sensors. Some of these are highlighted in Table 1 and typically fall within the polymeric (PET, PI, PDMS) and cellulosic paper domains.
A common design approach is to deposit a pair of interdigitated electrodes on the target substrate through either printing silver (screen or inkjet), evaporation of Ti/Au layers [41,42] or through the laser scribing of carbon tracks directly within the material [43,44,45], as indicated in Figure 2A. In some instances, the base substrate can facilitate ionic conduction between the electrodes upon interaction/adsorption of water and may be sufficient to enable the acquisition of a quantifiable signal and is common in the case of those employing cellulosic fibres [41,42,43,44]. The more common approach relies upon the deposition of a second, moisture-sensitive layer via drop casting, spraying, etc. [33,35,36,45]. A pertinent example is the work by Lan and colleagues (2020), where lasered graphene electrodes coated with graphene oxide were employed to facilitate measurement of stomatal moisture dynamics on leaves [45].
The detection mechanism will vary depending on the methodology being adopted (resistance, capacitance, etc.) and the material configuration, but the core requirement in each case will be the incorporation of a hygroscopic material that can interact with the moisture within the wound. As such, they rely on the water vapour undergoing chemical adsorption (chemisorption), physical adsorption (physisorption) and capillary condensation processes [46,47]. At low relative humidity (RH), chemisorption of the water occurs to the electrode material itself or the composite component (cellulose fibres, graphene oxide particles, etc.), as indicated in Figure 2B. Proton hopping via a hydronium ion (H3O+) serves as the main charge carrier, with conductivity increasing as subsequent layers of water are physisorbed. As the number of physisorbed layers of water increases, the interfacial layer becomes more liquid-like (capillary condensation), with conductivity greatly eased via the Grotthuss pathway (H2O + H3O+ ⇔ H3O+ + H2O) [46]. The adsorption of moisture can also markedly change the dielectric properties of the sensing layer, with the resulting change in capacitance facilitating another detection option.
A second resistive approach can also be exploited where the analytical signal is influenced by physical changes in the moisture-sensitive layer. In this case, penetration of moisture within a film (PVA) or fibre (polyamide) laced with a conductive element (typically carbon nanotubes) leads to swelling of the former (Figure 2C) [28,48]. Conduction in such cases is typically though electron tunnelling between adjacent nanotubes and thus the swelling induces the displacement of the nanotubes, with the consequent increase in distance between the latter leading to an increase in resistance, which can be correlated to the moisture level.
As indicated in Table 1, a large variety of moisture-sensitive materials have been employed, but their application to wound monitoring contexts necessitates consideration of the wider design issues. A multilayer approach would be needed in which the sensing component is protected from direct contact with the wound surface and a secondary layer would be required to manage the release of exudate. A triple-layer “bandage” approach has been described by Tessarolo et al. (2021) in what is one of the few direct attempts to investigate moisture sensors within a wound environment [29]. In this case, the impedimetric sensor (PEDOT:PSS) was sandwiched between two passive gauze layers (wound contact; excess exudate capture). The sensor itself was printed on an “active” gauze layer, which served to manage the response to moisture. Critically, the team demonstrated that the distribution of the moisture across and within the active gauze layer differed depending on the composition (cotton, rayon or polyethylene terephthalate (PET)). As such, it could be envisaged that individual sensors could be optimised for particular wounds through judicious selection of the supporting textile substrate.

4. Laser-Induced Graphene (LIG)

The accessibility of LIG has increased dramatically in recent years through the increasing availability of consumer-orientated laser engravers—some costing less than GBP 100. Such systems can be used to pattern graphitic/graphene tracks on a range of substrates (polymers, wood, food, textiles) under ambient conditions, and, while they provide a simple means of rapid prototyping, the underpinning methodology is scalable and could be readily adapted for volume production either on a batch basis or through roll-to-roll processing [49,50,51].
The laser-induced photothermal conversion of the film results in a micro-nanoporous foam, as indicated in the electron micrographs detailed in Figure 3. The localised heat leads to degradation of the polymer (polyimide or cellulosic materials), resulting in the release of gas. This initially causes the polymer film to foam, with the subsequent cooling yielding raised carbonised structures. There is considerable morphological heterogeneity and this tends to be highly dependent on the laser configuration. The electron micrographs in Figure 3 detail the LIG features arising from two different laser settings: 7.5 W and 12.5 W [52]. It is clear that the resulting LIG structures possess a huge surface area, which is particularly suited to sensors employing a capacitive methodology [53,54,55,56,57].
The mechanical flexibility of the LIG-based sensors is widely touted as a major feature and, while this would certainly be advantageous when attempting translation to wound management, there are several important caveats to reconcile. It is necessary to note that simple bending of the film will lead to changes in resistance—a feature that has led to its use in strain sensing [13,58,59], but which can be considered a limitation in chemical sensing—especially in regard to those systems relying on resistive methodologies, where subtle changes in shape could lead to ambiguous responses.
In the case of the leaf-based measurements, it could be anticipated that the sensor would be applied to a flat portion of a leaf, but this option may not be available (or appropriate) in the context of wound management, where the position and morphology of the wound can be extremely variable. A prospective sensor placed on the leg (anterior aspect of the tibia) will experience markedly different forces upon movement than a similar sensor placed on the plantar aspect of the foot, which will endure pressure and shear. It could be envisaged that the borders of the foot, in particular, will experience pressure from footwear and shear from movement within a shoe/sock. While LIG scribed directly onto a substrate can undergo bending motion, stretching is much more problematic—with physical extension leading to fragmentation and circuit breaks. There have been attempts to address such limitations with serpentine designs or the transfer of the LIG from conventional PI to elastomeric substrates such as silicone or polyurethane [60,61,62]. It is important to note that the actual size of the sensing component itself can be very small (in the order of millimetres) and it could be envisaged that, when placed within a dressing, this component could remain relatively unperturbed by motion in the underlying skin—it is the track connections to the external monitoring device that are liable to be affected. If these could be removed, then the issue of flexibility/stretchability may be redundant.

5. Radio Frequency Identification (RFID)

The introduction of radio frequency identification (RFID) technology—such as that used on packaging/security labels—partly addresses this issue, allowing the sensor to be read wirelessly without the need for the controlling circuitry to be located next to the wound [63,64,65]. The latter is often neglected in the literature, where the focus is often on the bioanalytical responses for the sensing component rather than the electronics and power source that must accompany it. On one level, RFID systems could be considered to be relatively simple in terms of composition and placement (at least relative to wired sensors) but there are substantial design and material challenges that need to be addressed in order to facilitate the retrieval of real-time wound data. The conceptual system would be composed of a tag (comprising an integrated circuit and antenna), which is placed within the wound dressing, with the information held within the tag read wirelessly by a reader (mounted or handheld). The basic approach is highlighted in Figure 4 and it is clear that, while the controlling chip may be tiny, the key component, from a clinical perspective, will be the design of the antenna as it will dictate the overall dimensions.
In contrast to the wired sensing systems, the RFID chips can take their power directly from the reader device. In its simplest iteration, the reader transmits an appropriate electromagnetic wave that is received by the tag antenna, which subsequently converts it to dc power and activates the chip [66]. The chip transmits the stored data as a modulated (encoded) signal using the antenna, which is then received and decoded by the reader to obtain the information from the tag. While such devices are common to modern business—enhancing logistics and tracking—it is easy to envisage how this could be adapted to clinical environs and patient care, where the information is a unique patient identifier [67,68]. While their adoption could be considered as a more robust form of barcoding or QR coding, careful manipulation of the tag components and antenna design can open up possibilities for the tag to go beyond simple data storage, and there has been considerable interest in their adaptation to the measurement of temperature and moisture, which would clearly have direct application to wound management [64,65,69,70,71].
The removal of ancillary electronics and power cells greatly reduces the dimensions and cost of the individual devices. The integrated circuit within the chip is the principal cost element and, for passive systems, can be of the order of several euro cents, which, even with a high frequency of dressing change, could be economically acceptable given the potential savings in nursing time. Nevertheless, there has been extensive interest in the development of chipless tags [72,73,74]. The latter can offer much simpler (and scalable) fabrication processes, which can significantly reduce costs. However, such systems have lower data storage capabilities but, critically, their sensing capabilities are still available despite the loss of the IC chip component. The nature of the antenna materials that comprise the antenna can be adapted such that their properties change in response to environmental stimuli (i.e., change in dielectric constant as a consequence of moisture adsorption) and thereby alter the resonant frequency of the tag [63,71]. It is here that LIG again has been found to have considerable impact through being able to rapidly prototype antenna designs, and it is perhaps little surprise that the next generation of chipless RFID tags with sensing capabilities are LIG-based [53].
The RFID tag can be read at a distance of up to several metres without the need for line of sight, which is critical given that the tag can be buried within the various layers of dressing. A common misconception is that the tag must be manually scanned by a person yielding a reader, but precision agriculture has demonstrated the capability of interrogating RFID tags at a distance and transmitting the data (via LoRaWAN) to the cloud [75]. It could be envisaged that a reader could be positioned on a bed for autonomous processing for those who are immobile or capable of being positioned within a room where the patient is liable to spend a significant period of time. The main cost is attributed to the reader, but this would be re-usable/transferrable from patient to patient and again would mirror current approaches to 24–48 hr vital signs monitoring, where the device uses replaceable electrodes but the sensing unit is returned to the clinical practice once complete. The pursuit of RFID humidity technology is clearly a promising pathway, with a concerted move away from the bulk of hardwired systems to the much more patient-acceptable wireless format [29,30].

6. Conclusions

The management of chronic wounds can require daily care, which can place considerable demands on community care nursing provision. This can be especially problematic given the increasing complexities borne by the COVID-19 pandemic and where it is widely recognised that there have been substantial reductions in nurses working within the community. There is a place for technology to assist in the prioritisation of visits and it could be envisaged that a simple monitor to periodically monitor strikethrough in moderately/highly exuding wounds could significantly improve management and provide more consistency in care. The technology is clearly available, as witnessed by the ever-expanding analytics base used in modern industry and, as hopefully indicated herein, the translation of the technology to community wound care is not unrealistic. The advances in laser graphene methods for fast tracking the development of sensors and the emergence of chipless tags that can be read wirelessly should be capable of impacting daily wound management practices.

Author Contributions

Conceptualisation, E.C. and J.D.; methodology, E.C. and J.D.; formal analysis, C.S. and S.C.; investigation, E.C., C.S. and S.C.; data curation, E.C. and J.D.; writing—original draft preparation, E.C. and J.D.; writing—review and editing, J.D., J.H.C. and C.S.; supervision, J.D. and J.H.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Department for the Economy (DfE), Northern Ireland.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Baptista-Silva, S.; Alves, P.; Guimarães, I.; Borges, S.; Tavaria, F.; Granja, P.; Pintado, M.; Oliveira, A.L. A View on Polymer-Based Composite Materials for Smart Wound Dressingsin in Polymeric and Natural Composites; Hassain, M., Nayak, A.M., Alkahtani, S., Eds.; Springer: Cham, Switzerland, 2022; pp. 425–456. [Google Scholar]
  2. Joshi, M.; Purwar, R.; Purwar, R. Composite Dressings for Wound Care. In Advanced Textiles for Wound Care; Elsevier: Amsterdam, The Netherlands, 2019; pp. 313–327. [Google Scholar]
  3. Dhivya, S.; Padma, V.V.; Santhini, E. Wound Dressings—A Review. BioMedicine 2015, 5, 24–28. [Google Scholar] [CrossRef] [PubMed]
  4. Rezvani Ghomi, E.; Khalili, S.; Nouri Khorasani, S.; Esmaeely Neisiany, R.; Ramakrishna, S. Wound Dressings: Current Advances and Future Directions. J. Appl. Polym. Sci. 2019, 136, 47738. [Google Scholar] [CrossRef] [Green Version]
  5. Davis, J.; McLister, A.; Cundell, J.; Finlay, D. Smart Bandage Technologies; Elsevier: Amsterdam, The Netherlands, 2016; ISBN 9780128037621. [Google Scholar]
  6. Dargaville, T.R.; Farrugia, B.L.; Broadbent, J.A.; Pace, S.; Upton, Z.; Voelcker, N.H. Sensors and Imaging for Wound Healing: A Review. Biosens. Bioelectron. 2013, 41, 30–42. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. McLister, A.; McHugh, J.; Cundell, J.; Davis, J. New Developments in Smart Bandage Technologies for Wound Diagnostics. Adv. Mater. 2016, 28, 5732–5737. [Google Scholar] [CrossRef]
  8. Scott, C.; Cameron, S.; Cundell, J.; Mathur, A.; Davis, J. Adapting Resistive Sensors for Monitoring Moisture in Smart Wound Dressings. Curr. Opin. Electrochem. 2020, 23, 31–35. [Google Scholar] [CrossRef]
  9. Ochoa, M.; Rahimi, R.; Ziaie, B. Flexible Sensors for Chronic Wound Management. IEEE Rev. Biomed. Eng. 2014, 7, 73–86. [Google Scholar] [CrossRef]
  10. Mehmood, N.; Hariz, A.; Fitridge, R.; Voelcker, N.H. Applications of Modern Sensors and Wireless Technology in Effective Wound Management. J. Biomed. Mater. Res. Part B Appl. Biomater. 2014, 102, 885–895. [Google Scholar] [CrossRef]
  11. Ye, R.; James, D.K.; Tour, J.M. Laser-Induced Graphene. Acc. Chem. Res. 2018, 51, 1609–1620. [Google Scholar] [CrossRef]
  12. Wang, H.; Zhao, Z.; Liu, P.; Guo, X. Laser-Induced Graphene Based Flexible Electronic Devices. Biosensors 2022, 12, 55. [Google Scholar] [CrossRef]
  13. Xu, Y.; Fei, Q.; Page, M.; Zhao, G.; Ling, Y.; Chen, D.; Yan, Z. Laser-Induced Graphene for Bioelectronics and Soft Actuators. Nano Res. 2021, 14, 3033–3050. [Google Scholar] [CrossRef]
  14. Lin, J.; Peng, Z.; Liu, Y.; Ruiz-Zepeda, F.; Ye, R.; Samuel, E.L.G.; Yacaman, M.J.; Yakobson, B.I.; Tour, J.M. Laser-Induced Porous Graphene Films from Commercial Polymers. Nat. Commun. 2014, 5, 5714. [Google Scholar] [CrossRef] [PubMed]
  15. Winter, G.D. Formation of the Scab and the Rate of Epithelization of Superficial Wounds in the Skin of the Young Domestic Pig. Nature 1962, 193, 293–294. [Google Scholar] [CrossRef] [PubMed]
  16. Pastar, I.; Stojadinovic, O.; Yin, N.C.; Ramirez, H.; Nusbaum, A.G.; Sawaya, A.; Patel, S.B.; Khalid, L.; Isseroff, R.R.; Tomic-Canic, M. Epithelialization in Wound Healing: A Comprehensive Review. Adv. Wound Care 2014, 3, 445–464. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Krejner, A.; Grzela, T. Modulation of Matrix Metalloproteinases MMP-2 and MMP-9 Activity by Hydrofiber-Foam Hybrid Dressing—Relevant Support in the Treatment of Chronic Wounds. Cent. Eur. J. Immunol. 2015, 3, 391–394. [Google Scholar] [CrossRef] [Green Version]
  18. Ousey, K.; Stephenson, J.; Barret, S.; King, B.; Morton, N.; Fenwick, K.; Carr, C. Wound Care in Five English NHS Trusts: Results of a Survey. Wounds UK 2013, 9, 20–28. [Google Scholar]
  19. Milne, S.D.; Seoudi, I.; al Hamad, H.; Talal, T.K.; Anoop, A.A.; Allahverdi, N.; Zakaria, Z.; Menzies, R.; Connolly, P. A Wearable Wound Moisture Sensor as an Indicator for Wound Dressing Change: An Observational Study of Wound Moisture and Status. Int. Wound J. 2016, 13, 1309–1314. [Google Scholar] [CrossRef] [Green Version]
  20. Guest, J.F.; Ayoub, N.; McIlwraith, T.; Uchegbu, I.; Gerrish, A.; Weidlich, D.; Vowden, K.; Vowden, P. Health Economic Burden That Wounds Impose on the National Health Service in the UK. BMJ Open 2015, 5, e009283. [Google Scholar] [CrossRef] [Green Version]
  21. Dowsett, C. Breaking the Cycle of Hard-to-Heal Wounds: Balancing Cost and Care. Wounds Int. 2015, 2, 17–21. [Google Scholar]
  22. Guest, J.F.; Ayoub, N.; McIlwraith, T.; Uchegbu, I.; Gerrish, A.; Weidlich, D.; Vowden, K.; Vowden, P. Health Economic Burden That Different Wound Types Impose on the UK’s National Health Service. Int. Wound J. 2017, 14, 322–330. [Google Scholar] [CrossRef]
  23. Nicolò, A.; Massaroni, C.; Schena, E.; Sacchetti, M. The Importance of Respiratory Rate Monitoring: From Healthcare to Sport and Exercise. Sensors 2020, 20, 6396. [Google Scholar] [CrossRef]
  24. Mohammadzadeh, N.; Gholamzadeh, M.; Saeedi, S.; Rezayi, S. The Application of Wearable Smart Sensors for Monitoring the Vital Signs of Patients in Epidemics: A Systematic Literature Review. J. Ambient. Intell. Humaniz. Comput. 2020, 1–15. [Google Scholar] [CrossRef] [PubMed]
  25. Statistica Research Department. EU27/EU28. Share of Households with Internet Access in the United Kingdom (UK) and the European Union (EU27/EU28) from 2009 to 2020. 2021. Available online: https://www.statista.com/statistics/275043/percentage-of-households-with-internet-access-in-the-uk-and-eu/ (accessed on 16 May 2022).
  26. Mehmood, N.; Hariz, A.; Templeton, S.; Voelcker, N.H. An Improved Flexible Telemetry System to Autonomously Monitor Sub-Bandage Pressure and Wound Moisture. Sensors 2014, 14, 21770–21790. [Google Scholar] [CrossRef] [PubMed]
  27. Mehmood, N.; Hariz, A.; Templeton, S.; Voelcker, N.H. Calibration of Sensors for Reliable Radio Telemetry in a Prototype Flexible Wound Monitoring Device. Sens. Biosensing Res. 2014, 2, 23–30. [Google Scholar] [CrossRef]
  28. Zhou, G.; Byun, J.H.; Oh, Y.; Jung, B.M.; Cha, H.J.; Seong, D.G.; Um, M.K.; Hyun, S.; Chou, T.W. Highly Sensitive Wearable Textile-Based Humidity Sensor Made of High-Strength, Single-Walled Carbon Nanotube/Poly(Vinyl Alcohol) Filaments. ACS Appl. Mater. Interfaces 2017, 9, 4788–4797. [Google Scholar] [CrossRef]
  29. Tessarolo, M.; Possanzini, L.; Gualandi, I.; Mariani, F.; Torchia, L.D.; Arcangeli, D.; Melandri, F.; Scavetta, E.; Fraboni, B. Wireless Textile Moisture Sensor for Wound Care. Front. Phys. 2021, 9, 616. [Google Scholar] [CrossRef]
  30. Ma, L.; Wu, R.; Patil, A.; Zhu, S.; Meng, Z.; Meng, H.; Hou, C.; Zhang, Y.; Liu, Q.; Yu, R.; et al. Full-Textile Wireless Flexible Humidity Sensor for Human Physiological Monitoring. Adv. Funct. Mater. 2019, 29, 1904549. [Google Scholar] [CrossRef]
  31. Iversen, M.; Monisha, M.; Agarwala, S. Flexible, Wearable and Fully-Printed Smart Patch for PH and Hydration Sensing in Wounds. Int. J. Bioprinting 2022, 8, 41–49. [Google Scholar] [CrossRef]
  32. Zhang, X.; Wu, Y.; Wang, X.; Zhong, X.; Wang, J.; Zhang, Y. Realization of a Flexible Humidity Sensor Based on α-In2Se3 Nanosheets. ChemNanoMat 2022, 8, e202100394. [Google Scholar] [CrossRef]
  33. Ma, Y.; Hu, X.; Li, S.; He, Y.; Xia, Z.; Cai, K. A Facile and Flexible Humidity Sensor Based on Porous PDMS/AgNWs and GO for Environmental Humidity and Respiratory Detection. Macromol. Mater. Eng. 2022, 307, 2100686. [Google Scholar] [CrossRef]
  34. Rahman, S.A.; Khan, S.A.; Rehman, M.M.; Kim, W.Y. Highly Sensitive and Stable Humidity Sensor Based on the Bi-Layered PVA/Graphene Flower Composite Film. Nanomaterials 2022, 12, 1026. [Google Scholar] [CrossRef]
  35. Li, C.; Zhang, Y.; Yang, S.; Zhao, H.; Guo, Y.; Cong, T.; Huang, H.; Fan, Z.; Liang, H.; Pan, L. A Flexible Tissue–Carbon Nanocoil–Carbon Nanotube-Based Humidity Sensor with High Performance and Durability. Nanoscale 2022, 14, 7025–7038. [Google Scholar] [CrossRef] [PubMed]
  36. Tao, B.; Yin, J.; Miao, F.; Zang, Y. High-Performance Humidity Sensor Based on GO/ZnO/Plant Cellulose Film for Respiratory Monitoring. Ionics 2022, 28, 2413–2421. [Google Scholar] [CrossRef]
  37. Jiang, W.; Zhang, F.; Lin, Q. Flexible Relative Humidity Sensor Based on Reduced Graphene Oxide and Interdigital Electrode for Smart Home. Micro Nano Lett. 2022, 17, 134–138. [Google Scholar] [CrossRef]
  38. Zhang, X.; He, D.; Yang, Q.; Atashbar, M.Z. Rapid, Highly Sensitive, and Highly Repeatable Printed Porous Paper Humidity Sensor. Chem. Eng. J. 2022, 433, 133751. [Google Scholar] [CrossRef]
  39. Zhou, R.; Li, J.; Jiang, H.; Li, H.; Wang, Y.; Briand, D.; Camara, M.; Zhou, G.; de Rooij, N.F. Highly Transparent Humidity Sensor with Thin Cellulose Acetate Butyrate and Hydrophobic AF1600X Vapor Permeating Layers Fabricated by Screen Printing. Sens. Actuators B Chem. 2019, 281, 212–220. [Google Scholar] [CrossRef]
  40. Gopalakrishnan, S.; Sedaghat, S.; Krishnakumar, A.; He, Z.; Wang, H.; Rahimi, R. Wireless Humidity Sensor for Smart Packaging via One-Step Laser-Induced Patterning and Nanoparticle Formation on Metallized Paper. Adv. Electron. Mater. 2022, 2101149. [Google Scholar] [CrossRef]
  41. Im, H.; Lee, S.; Naqi, M.; Lee, C.; Kim, S. Flexible PI-Based Plant Drought Stress Sensor for Real-Time Monitoring System in Smart Farm. Electronics 2018, 7, 114. [Google Scholar] [CrossRef] [Green Version]
  42. Nassar, J.M.; Khan, S.M.; Villalva, D.R.; Nour, M.M.; Almuslem, A.S.; Hussain, M.M. Compliant Plant Wearables for Localized Microclimate and Plant Growth Monitoring. NPJ Flex. Electron. 2018, 2, 24. [Google Scholar] [CrossRef] [Green Version]
  43. Kulyk, B.; Silva, B.F.R.; Carvalho, A.F.; Barbosa, P.; Girão, A.V.; Deuermeier, J.; Fernandes, A.J.S.; Figueiredo, F.M.L.; Fortunato, E.; Costa, F.M. Laser-Induced Graphene from Paper by Ultraviolet Irradiation: Humidity and Temperature Sensors. Adv. Mater. Technol. 2022, 2101311. [Google Scholar] [CrossRef]
  44. Zhu, L.; Li, X.; Kasuga, T.; Uetani, K.; Nogi, M.; Koga, H. All-Cellulose-Derived Humidity Sensor Prepared via Direct Laser Writing of Conductive and Moisture-Stable Electrodes on TEMPO-Oxidized Cellulose Paper. J. Mater. Chem. C 2022, 10, 3712–3719. [Google Scholar] [CrossRef]
  45. Lan, L.; Le, X.; Dong, H.; Xie, J.; Ying, Y.; Ping, J. One-Step and Large-Scale Fabrication of Flexible and Wearable Humidity Sensor Based on Laser-Induced Graphene for Real-Time Tracking of Plant Transpiration at Bio-Interface. Biosens. Bioelectron. 2020, 165, 112360. [Google Scholar] [CrossRef] [PubMed]
  46. Farahani, H.; Wagiran, R.; Hamidon, M.N. Humidity Sensors Principle, Mechanism, and Fabrication Technologies: A Comprehensive Review. Sensors 2014, 14, 7881–7939. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Farahani, M.; Shafiee, A. Wound Healing: From Passive to Smart Dressings. Adv. Healthc. Mater. 2021, 10, 2100477. [Google Scholar] [CrossRef]
  48. Lv, C.; Hu, C.; Luo, J.; Liu, S.; Qiao, Y.; Zhang, Z.; Song, J.; Shi, Y.; Cai, J.; Watanabe, A. Recent Advances in Graphene-Based Humidity Sensors. Nanomaterials 2019, 9, 422. [Google Scholar] [CrossRef] [Green Version]
  49. Wang, Y.; Wang, Y.; Zhang, P.; Liu, F.; Luo, S. Laser-Induced Freestanding Graphene Papers: A New Route of Scalable Fabrication with Tunable Morphologies and Properties for Multifunctional Devices and Structures. Small 2018, 14, e1802350. [Google Scholar] [CrossRef] [PubMed]
  50. Yang, J.C.; Mun, J.; Kwon, S.Y.; Park, S.; Bao, Z.; Park, S. Electronic Skin: Recent Progress and Future Prospects for Skin-Attachable Devices for Health Monitoring, Robotics, and Prosthetics. Adv. Mater. 2019, 31, 1904765. [Google Scholar] [CrossRef] [Green Version]
  51. Yang, Y.; Song, Y.; Bo, X.; Min, J.; Pak, O.S.; Zhu, L.; Wang, M.; Tu, J.; Kogan, A.; Zhang, H.; et al. A Laser-Engraved Wearable Sensor for Sensitive Detection of Uric Acid and Tyrosine in Sweat. Nat. Biotechnol. 2020, 38, 217–224. [Google Scholar] [CrossRef] [Green Version]
  52. Barber, R.; Cameron, S.; Devine, A.; McCombe, A.; Kirsty Pourshahidi, L.; Cundell, J.; Roy, S.; Mathur, A.; Casimero, C.; Papakonstantinou, P.; et al. Laser Induced Graphene Sensors for Assessing PH: Application to Wound Management. Electrochem. Commun. 2021, 123, 106914. [Google Scholar] [CrossRef]
  53. Romero, F.J.; Rivadeneyra, A.; Salinas-Castillo, A.; Ohata, A.; Morales, D.P.; Becherer, M.; Rodriguez, N. Design, Fabrication and Characterization of Capacitive Humidity Sensors Based on Emerging Flexible Technologies. Sens. Actuators B Chem. 2019, 287, 459–467. [Google Scholar] [CrossRef]
  54. Lee, J.U.; Ma, Y.W.; Jeong, S.Y.; Shin, B.S. Direct Fabrication of Ultra-Sensitive Humidity Sensor Based on Hair-like Laser-Induced Graphene Patterns. Micromachines 2020, 11, 476. [Google Scholar] [CrossRef]
  55. Zhu, C.; Tao, L.-Q.; Wang, Y.; Zheng, K.; Yu, J.; Li, X.; Chen, X.; Huang, Y. Graphene Oxide Humidity Sensor with Laser-Induced Graphene Porous Electrodes. Sens. Actuators B Chem. 2020, 325, 128790. [Google Scholar] [CrossRef]
  56. Strauss, V.; Delacroix, S.; Zieleniewska, A.; Ferguson, A.J.; Blackburn, J.L.; Ronneberger, S.; Loeffler, F.F. Using Carbon Laser Patterning to Produce Flexible, Metal-Free Humidity Sensors. ACS Appl. Electron. Mater. 2020, 2, 4146–4154. [Google Scholar] [CrossRef]
  57. Nie, J.; Wu, Y.; Huang, Q.; Joshi, N.; Li, N.; Meng, X.; Zheng, S.; Zhang, M.; Mi, B.; Lin, L. Dew Point Measurement Using a Carbon-Based Capacitive Sensor with Active Temperature Control. ACS Appl. Mater. Interfaces 2019, 11, 1699–1705. [Google Scholar] [CrossRef] [PubMed]
  58. Keller, K.; Grafinger, D.; Greco, F. Printed and Laser-Scribed Stretchable Conductors on Thin Elastomers for Soft and Wearable Electronics. Front. Mater. 2021, 8, 290. [Google Scholar] [CrossRef]
  59. Xu, K.; Fujita, Y.; Lu, Y.; Honda, S.; Shiomi, M.; Arie, T.; Akita, S.; Takei, K. A Wearable Body Condition Sensor System with Wireless Feedback Alarm Functions. Adv. Mater. 2021, 33, e2008701. [Google Scholar] [CrossRef]
  60. Rahimi, R.; Ochoa, M.; Yu, W.; Ziaie, B. Highly Stretchable and Sensitive Unidirectional Strain Sensor via Laser Carbonization. ACS Appl. Mater. Interfaces 2015, 7, 4463–4470. [Google Scholar] [CrossRef]
  61. Dallinger, A.; Keller, K.; Fitzek, H.; Greco, F. Stretchable and Skin-Conformable Conductors Based on Polyurethane/Laser-Induced Graphene. ACS Appl. Mater. Interfaces 2020, 12, 19855–19865. [Google Scholar] [CrossRef]
  62. Lü, X.; Yang, J.; Qi, L.; Bao, W.; Zhao, L.; Chen, R. High Sensitivity Flexible Electronic Skin Based on Graphene Film. Sensors 2019, 19, 794. [Google Scholar] [CrossRef] [Green Version]
  63. Dey, S.; Bhattacharyya, R.; Sarma, S.E.; Karmakar, N.C. A Novel “Smart Skin” Sensor for Chipless RFID-Based Structural Health Monitoring Applications. IEEE Internet Things J. 2021, 8, 3955–3971. [Google Scholar] [CrossRef]
  64. Milici, S.; Amendola, S.; Bianco, A.; Marrocco, G. Epidermal RFID Passive Sensor for Body Temperature Measurements. In Proceedings of the 2014 IEEE RFID Technology and Applications Conference, Tampere, Finland, 8–9 September 2014; Institute of Electrical and Electronics Engineers Inc.: Piscataway, NJ, USA, 2014; pp. 140–144. [Google Scholar]
  65. Occhiuzzi, C.; Ajovalasit, A.; Sabatino, M.A.; Dispenza, C.; Marrocco, G. RFID Epidermal Sensor Including Hydrogel Membranes for Wound Monitoring and Healing. In Proceedings of the 2015 IEEE International Conference on RFID, San Diego, CA, USA, 15–17 April 2015; Institute of Electrical and Electronics Engineers Inc.: Piscataway, NJ, USA, 2015; pp. 182–188. [Google Scholar]
  66. Rayhana, R.; Xiao, G.; Liu, Z. RFID Sensing Technologies for Smart Agriculture; RFID Sensing Technologies for Smart Agriculture. IEEE Instrum. Meas. Mag. 2021, 24, 50–60. [Google Scholar] [CrossRef]
  67. Liao, Y.T.; Chen, T.L.; Chen, T.S.; Zhong, Z.H.; Hwang, J.H. The Application of RFID to Healthcare Management of Nursing House. Wirel. Pers. Commun. 2016, 91, 1237–1257. [Google Scholar] [CrossRef]
  68. Parlak, S.; Sarcevic, A.; Marsic, I.; Burd, R.S. Introducing RFID Technology in Dynamic and Time-Critical Medical Settings: Requirements and Challenges. J. Biomed. Inform. 2012, 45, 958–974. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  69. Rigelsford, J.M.; Davenport, C.J. A Passive RFID Implant for Soft Tissue Trauma Monitoring. In Proceedings of the 2013 Loughborough Antennas and Propagation Conference, Loughborough, UK, 11–12 November 2013; pp. 127–130. [Google Scholar]
  70. Amendola, S.; Occhiuzzi, C.; Ajovalasit, A.; Sabatino, M.A.; Dispenza, C.; Marrocco, G. Dielectric Characterization of Biocompatible Hydrogels for Application to Epidermal RFID Devices. In Proceedings of the European Microwave Week 2015: “Freedom through Microwaves”, EuMW 2015, Paris, France, 6–11 September 2015; Institute of Electrical and Electronics Engineers Inc.: Piscataway, NJ, USA, 2015; pp. 379–382. [Google Scholar]
  71. Hasan, M.M.; Pala, N. Cross-Polarized RCS Based Chipless RFID Tag for Wound Monitoring through PH Sensing. In Proceedings of the Proceedings of the 2021 IEEE Texas Symposium on Wireless and Microwave Circuits and Systems: Making Waves in Texas, WMCS 2021, Virtual Conference, 18–20 May 2021; Institute of Electrical and Electronics Engineers Inc.: Piscataway, NJ, USA, 2021. [Google Scholar]
  72. Herrojo, C.; Paredes, F.; Mata-Contreras, J.; Martín, F. Chipless-RFID: A Review and Recent Developments. Sensors 2019, 19, 3385. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  73. Behera, S.K. Chipless RFID Sensors for Wearable Applications: A Review. IEEE Sens. J. 2022, 22, 1105–1120. [Google Scholar] [CrossRef]
  74. Dey, S.; Bhattacharyya, R.; Karmakar, N.; Sarma, S. A Folded Monopole Shaped Novel Soil Moisture and Salinity Sensor for Precision Agriculture Based Chipless RFID Applications. In Proceedings of the 2019 IEEE MTT-S International Microwave and RF Conference, IMARC 2019, Mumbai, India, 13–15 December 2019; Institute of Electrical and Electronics Engineers Inc.: Piscataway, NJ, USA, 2019. [Google Scholar]
  75. Deng, F.; Zuo, P.; Wen, K.; Wu, X. Novel Soil Environment Monitoring System Based on RFID Sensor and LoRa. Comput. Electron. Agric. 2020, 169, 105169. [Google Scholar] [CrossRef]
Jcs 06 00176 g001 550

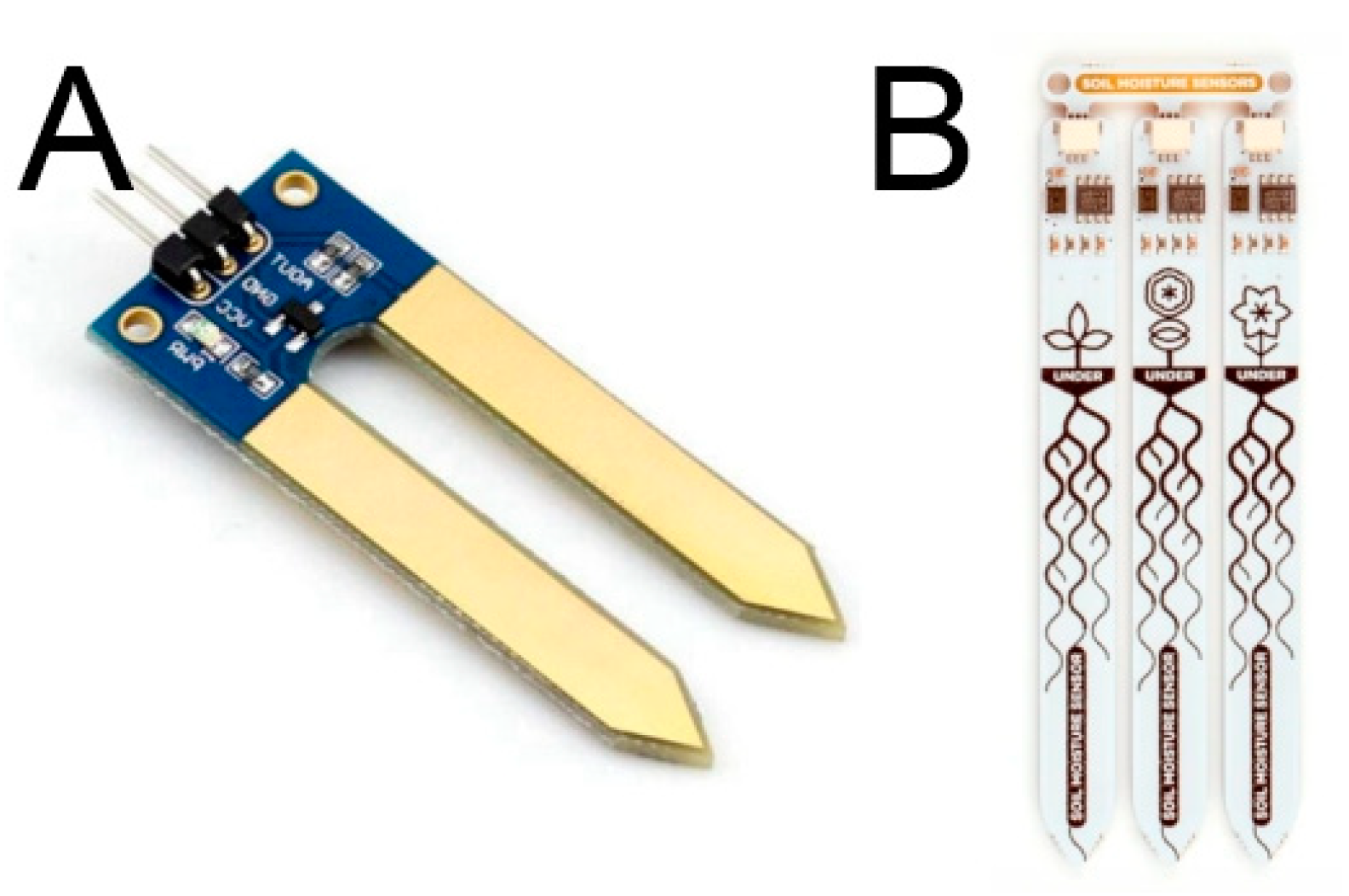

Figure 1. Planar soil moisture sensors based on resistance (A) and capacitance (B) measurement methodologies.
Figure 1. Planar soil moisture sensors based on resistance (A) and capacitance (B) measurement methodologies.
Jcs 06 00176 g001
Jcs 06 00176 g002 550

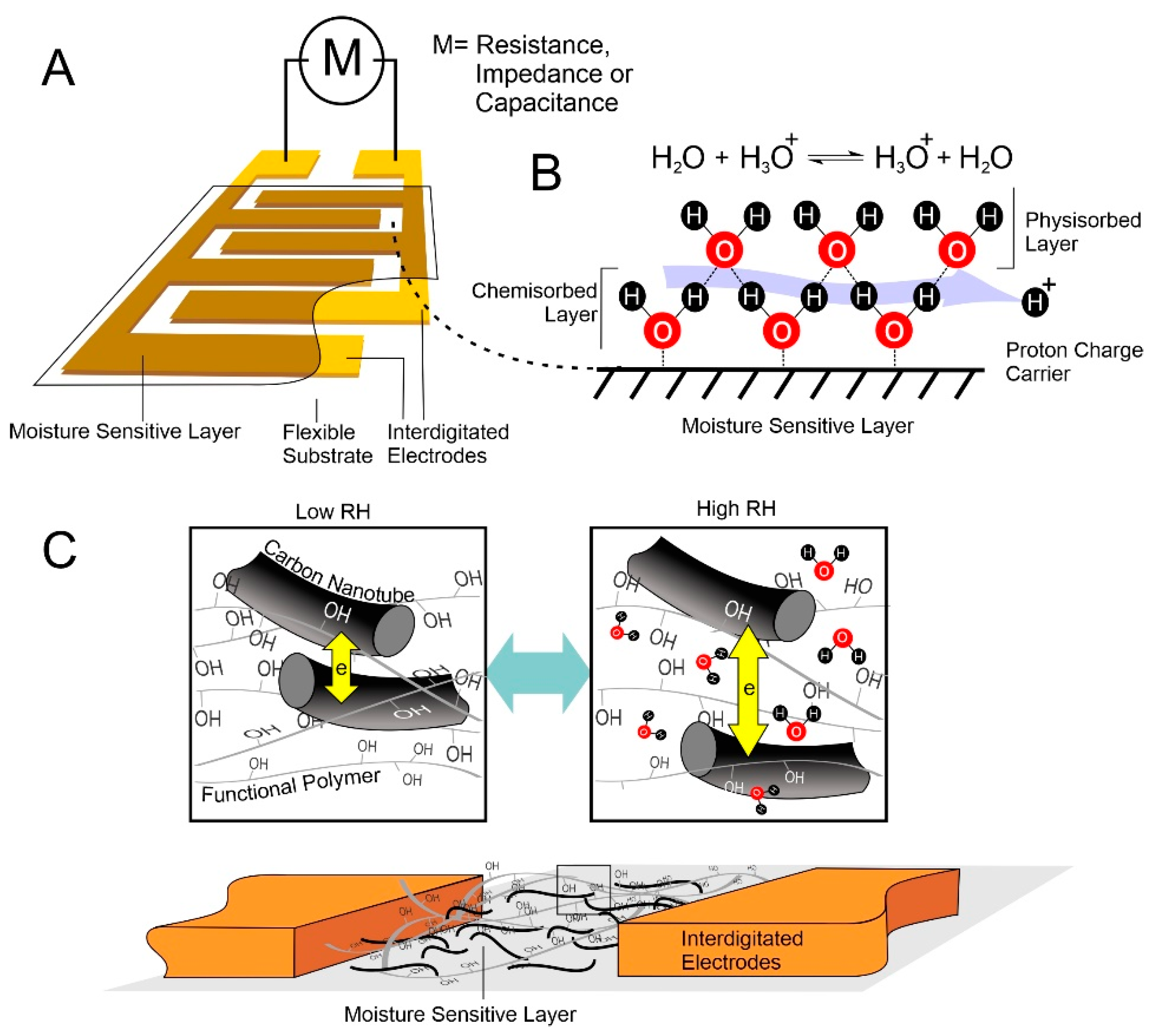

Figure 2. (A) Typical format of electrochemical humidity sensors and the resistive sensing methodologies associated with (B) ionic conduction and (C) physical changes brought about through swelling of the moisture sensitive film.
Figure 2. (A) Typical format of electrochemical humidity sensors and the resistive sensing methodologies associated with (B) ionic conduction and (C) physical changes brought about through swelling of the moisture sensitive film.
Jcs 06 00176 g002
Jcs 06 00176 g003 550
Figure 3. Scanning electron micrograph images of lasered polyimide tracks produced at a power of 7.5 W (A–C) and 12.5 W (D–F). Reproduced with permission [52].
Figure 3. Scanning electron micrograph images of lasered polyimide tracks produced at a power of 7.5 W (A–C) and 12.5 W (D–F). Reproduced with permission [52].
Jcs 06 00176 g003
Jcs 06 00176 g004 550
Figure 4. Conceptual implementation of a radio frequency identification (RFID) sensor within a wound dressing.
Figure 4. Conceptual implementation of a radio frequency identification (RFID) sensor within a wound dressing.
Jcs 06 00176 g004
Table
Table 1. Moisture sensing strategies based on interdigitated sensors deposited on thin flexible films.
Table 1. Moisture sensing strategies based on interdigitated sensors deposited on thin flexible films.
MaterialMethodSubstrateRef
SWCNT/PVARFiber[28]
PEDOT:PSSIRayon/PET[29]
Cu wire/PE/PIC/LCFiber[30]
AgRPDMS[31]
α-In2Se3 nanosheetR/IPET[32]
Ag nanowire/graphene oxideRPDMS[33]
PVA/graphene flowersC/R/IPET[34]
Carbon nanocoil/nanotubeRPaper[35]
Graphene oxide/ZnORPaper[36]
Reduced graphene oxideRPI[37]
MWCNT inkCPaper[38]
Cellulose acetate butyrateCPET[39]
Cellulose–AgLCPaper[40]
Ti/AuCPI/PET[41]
Ti/AuRPI/PET[42]
LIG–celluloseRPaper[43]
LIG–celluloseRPaper[44]
LIG/graphene oxideCPI/PET[45]
Abbreviations: C = capacitance; I = impedance; R = resistance; LC = inductive–capacitive coupling; SWCNT = single-walled carbon nanotube; PVA = polyvinyl alcohol; PE = polyester; PEDOT:PSS = poly(3,4-ethylenedioxythiophene):polystyrene sulfonate; LIG = laser-induced graphene; PDMS = polydimethoxysiloxane; PI = polyimide; PET = polyethylene terephthalate.
