Microwave Synthesis of MnO2-Lignin Composite Electrodes for Supercapacitors

Department of Materials Science and Engineering, Texas A&M University, 575 Ross Street, College Station, TX 77843-3127, USA
J. Mike Walker ’66 Department of Mechanical Engineering, Texas A&M University, 202 Spence Street, College Station, TX 77843-3123, USA
Author to whom correspondence should be addressed.
J. Compos. Sci. 2021, 5(8), 216;
Received: 1 July 2021 / Revised: 26 July 2021 / Accepted: 4 August 2021 / Published: 13 August 2021


The demand for energy storage devices made from biodegradable materials has increased significantly due to sustainability. Currently, such devices possess vital issues, such as high manufacturing costs and toxicity, low reliability, as well as poor electrochemical performance. In this research, microwave synthesis was conducted to fabricate a low-cost, high-performing, plant-based electroactive material. MnO2 microparticles fabricated via microwave irradiation were deposited on two plant-based materials as substrates made of Al/lignin and Al/AC/lignin. The quasi-solid-state supercapacitors were assembled using a polymeric gel electrolyte of PVA/H3PO4. Scanning electron microscopy was performed to examine the polydispersity, morphology, and porosity of the micro-MnO2 deposited materials. FTIR and UV-vis spectroscopy were performed to study the composition and verify deposition of micro-MnO2 on the lignin-based matrixes. Cyclic voltammetry (CV) was employed to study the polarization resistance of the system. The cyclic charge-discharge (CCD) and electrochemical impedance spectroscopy (EIS) were performed to observe cyclic performance and interfacial resistances. Electrochemical tests showed that after 700 cycles of charge-discharge, both the supercapacitors exhibited high capacitance retention above 90%. Compared to the existing technology, this method enables consistent material structurization with tunable properties due to the controlled heating time and exposure to radiation with minimal waste. This work provides an alternative approach to synthesize low-cost and scalable green composite electrodes for flexible supercapacitors.

1. Introduction

The advancement in energy storage demands innovation for sustainability. The rapid technological development of consumer electronics with multiple applications has motivated research to develop high-performing, flexible, and eco-friendly energy storage devices [1,2,3,4,5,6,7,8,9,10]. These electrochemical devices are categorized as supercapacitors, batteries, and fuel cells. Supercapacitors are high-power-density storage systems with the ability to rapidly charge-discharge in an extended lifecycle [11,12,13]. Owing to this, supercapacitors have wide applications in industry, healthcare, and our daily life [14]. However, due to their low energy densities, their applications are restricted.
Many electronic devices manufactured today use hazardous materials that pose a risk to the environment. To avoid the detrimental impacts of spent energy storage systems, they must be processed and properly disposed of. The presence of toxic materials poses a major challenge in the disposal of these systems [15]. With an increasing demand for mobile computing and portable electronics, eco-friendly and biodegradable energy storage devices are of vital importance. For this purpose, green materials such as carbon-based electroactive materials and biomaterials are being considered. These materials are cost-effective, have an adaptable morphology, and are biodegradable, making them excellent candidates. Lignin, an abundantly available biomaterial, is acquired as a waste product from the paper and pulping industries [16]. The porous structure and defects present in lignin make it a favorable candidate for use as an electroactive material [17,18]. In order to improve the performance of lignin, it has been doped with transition metal oxides, conduction polymers, and other carbonaceous materials [19]. Lignin has been used as a precursor to developing hierarchical porous carbons as electrode materials. Transition metal oxides (TMOs) such as NiO, RuO2, Co2O3, and MnO2 have been incorporated into the matrix of lignin. This has proven to be a successful method to boost the capacitive performance of the supercapacitor [20,21,22]. Owing to its synergistic behavior, ideal capacitive behavior, abundant availability, and low cost, MnO2 is considered the most favorable candidate to improve the electrochemical performance of lignin [11,23].
Efficient charging/discharging requires electroactive materials with designated pores to increase the surface area. The reduced time of fabrication, enabling rapid nucleation and deep penetration, make microwave irradiation an attractive option to make electrode materials. Due to those characteristics, structural uniformity of metal oxides has been achieved [24]. However, few studies have performed microwave irradiation for the synthesis of MnO2 particles. In addition, most of these methods are coupled with the template method or with hydrothermal conditions. The specific effect of microwave irradiation cannot be examined clearly when coupled with hydrothermal conditions. This is because the reaction conditions of the additional hydrothermal method alter the kinetics of crystal growth. For instance, Wang et al. used an ultrasound-microwave method for polymer P123 and acetylene black for a supercapacitor electrode [25]. The distinct advantage of microwaves on electrode properties could not be deciphered. Similarly, Liu et al. used a potassium-based catalyst and microwave radiation to make electrodes using corn straw [26]. This method creates a problem of catalyst poisoning and environmental disposal issues. Seong et al. used a potassium citrate-based synthesis method that utilized microwave radiation to obtain a hierarchical porous carbon electrode. Not only was the process expensive but also the chemicals used pose health hazards to humans [27]. Moreover, the effect of microwaves on the pseudo-capacitance could not be established. There is no report about decorating lignin with MnO2 microparticles. It is necessary to understand the surface morphology, composition, and electrochemical performance of the MnO2 particles fabricated via microwave synthesis deposited on green materials.
In this research, microwave irradiation was used to synthesize micro-MnO2 particles, which were then deposited onto the lignin matrix via hydrothermal treatment. A solid-state asymmetric supercapacitor with an AC-Lig-MnO2 composite electrode as an anode was fabricated. SEM was performed to study morphology, porosity, and polydispersity of the lignin-based matrix. Cyclic voltammetry (CV) was employed to study the polarization resistance of the system. The cyclic charge-discharge (CCD) and electrochemical impedance spectroscopy (EIS) were performed to observe cyclic performance and interfacial resistances. This work provides new insights into the synthesis of low-cost and scalable plant-based flexible supercapacitors.

2. Materials and Methods

2.1. Microwave-Irradiated Green Composite Electrode Preparation

To fabricate the green composite AC/Lig-MnO2 electrode, 1 g of AC (Sigma Aldrich MW = 12.01 g mol−1) was mixed with 0.5 g of alkali lignin (TCI) powder and DI water. This solution was then sonicated for 5 min. To prepare the MnO2 particles, 22.2 mmol of 37% HCl (Sigma Aldrich, MW = 36.46 g mol−1, density = 1.2 g mL−1) was added to 5.5 mmol of KMnO4 purchased from Sigma Aldrich (99%, MW = 158.03 g mol−1, density = 2.7 g mL−1). This solution was then placed in a 1000 W microwave for 4 min. The AC/Lignin solution was then mixed with the microwaved KMnO4 solution and stirred magnetically for 15 min. After hydrothermal treatment at 160 °C for 1 h, the solution was centrifuged, washed with ethanol and DI water, and dried overnight. The final powder obtained was mixed with NMP (Sigma Aldrich, MW = 99.13 g mol−1, density = 1.028 g mL−1, ≥99%) and PVDF (Sigma Aldrich, MW = 275,000 by GPC) to form a slurry, which was then coated on an Al foil (thickness = 0.98 mm) and dried in a vacuum furnace at 100 °C for 4 h. The substrate was cut in a circular plate with a diameter of 4 cm. The supercapacitor’s interface thickness was 100 µm. The green composite Lig-MnO2 electrode was fabricated in a similar manner. The schematic for the preparation method is shown in Figure 1.

2.2. Preparation of PVA/H3PO4 Gel Electrolyte

The gel electrolyte was prepared in a similar method as in our previous work [22].

2.3. Materials’ Characterization

The scanning electron microscopy was performed using a VEGA/TESCAN SEM, using an SE detector at scanning voltage of 5 KV and magnification of 300×. The elemental composition analysis was performed using an Oxford EDS detector on FEI Quanta 600 SEM, and results were investigated using AZtec software offered by Oxford Instruments. EDS mapping was performed at 20 kV acceleration voltage. For XRD, we employed a Bruker D8 Advanced Powder Diffractometer. FTIR was performed using a Shimadzu FTIR Spectrophotometer IR Affinity-1, while UV spectroscopy was performed using a Shimadzu UV-2450 Spectrophotometer.

3. Results and Discussion

3.1. Materials’ Characterization

3.1.1. Scanning Electron Microscope (SEM)

SEM analysis was performed to gauge the electrode surface and particle distribution. Figure 2a shows the uniform distribution of electroactive AC/Lig-MnO2 (Figure 2a) and Lig-MnO2 (Figure 2c) on the electrode surface. Micron-size MnO2 particles can be seen embedded in the AC/lignin (Figure 2a) and lignin (Figure 2c) matrices. The electrode surfaces appear intact without any sign of wear or damage. This is important for good contact with the electrolyte and ensuring smooth charge transfer. In Figure 2b, the supercapacitor interface can be seen. The quasi-solid gel electrolyte can be seen placed between the outer Al electrodes. The interface appears mechanically stable and intact. The interface thickness is about 0.1 mm. A stable interface helps with the consistent performance of the supercapacitor.

3.1.2. FTIR Spectroscopy

The FTIR spectra are shown for both the composite electrodes in Figure 3. Peaks 1 and 2 at 526 and 536 cm−1 represent the Mn-O bond stretch. This demonstrates the successful deposition of micro-MnO2 particles on the lignin and AC/lignin matrices [28]. Peak 3 at 1031.79 and peak 4 at 1257.36 correspond with O-H bending vibrations bonded with Mn atoms [29]. The peaks at 1614.15 (on the purple line) and 1720.19 (on the green line) correspond to the C=C bond stretch, indicating the presence of aromatic rings [22,30]. The presence of OH bonds indicates absorbed molecules of water in the MnO2 structure. These water molecules enhance the diffusion of ions and improve the overall capacitance performance of the materials [31,32].

3.1.3. UV-Vis Spectroscopy

The UV-vis spectroscopy is shown for both the composite electrodes in Figure 4. A characteristic broad peak of absorption can be seen in the range 300–350 nm [21]. This confirms the successful deposition of the micro-MnO2 particles onto the lignin and AC/lignin matrices.

3.1.4. Powder X-ray Diffraction

The XRD plot in Figure 5a for AC-lignin-MnO2 shows a broad diffraction peak (002) in the range 2θ = 15–30°, which indicates that the amorphous AC particles dominate in the structure [33]. Lignin-MnO2 (Figure 5b) showed a broad peak in the range 2θ = 20–25°, indicating its highly amorphous nature. However, another set of peaks is indicative of the MnO2, which particularly fits the γ-MnO2 XRD pattern by matching of the main peak between 30° and 35° [34]. The same peak is also observed in the PXRD pattern of AC with a lower intensity. Combining all proof, it is safe to say that both AC-lignin and non-AC-lignin maintain the crystallinity of MnO2, while the latter does so to a higher degree.

3.1.5. Energy Dispersive X-ray Spectroscopy

EDS mapping (Figure 6) indicates an elemental composition for Sample 1 (Lig/MnO2) and sample 2 (Ac/Lig/MnO2) of C/O/Mn/S = 66:27.4:5.5:1.1 (wt.%) and C/O/Mn/S = 36.8:30.7:28.8:3.8 (wt.%), respectively. Element mappings reveal that C, O, Mn, and S atoms are uniformly distributed throughout the entire structure.

3.1.6. Electrochemical Analysis

Electrochemical testing is performed to compare and analyze the stability and cycling life of the microwave synthesis-based green composite electrodes. Cyclic voltammetry (CV), cyclic charge-discharge (CCD), and impedance tests were run to explore their potential for supercapacitor applications. CV responses of the AC/Lig-MnO2 and Lig-MnO2 samples performed at multiple scan rates are shown in Figure 7a,b. A polymer-gel electrolyte of PVA/H3PO4 is used. The operating potential range for both samples is 1.0–2.0 V. The different scan rates implemented are 10, 25, 50, and 100 mV s−1. The rate of diffusion was observed to increase for larger scan rates, and the specific capacitance decreased. This can be attributed to diffusion limitations leading to an ineffective interaction between the electro-active material and the electrolyte. Hence, the scan rate of 10 mV s−1 was selected for further CV testing. The CV plots at 10 mV s−1 for AC/Lig-MnO2 and Lig-MnO2 can be seen in Figure 7c. Figure 7d displays a comparative histogram of the obtained specific capacitance for both materials. The highest specific capacitance obtained for AC/Lig-MnO2 is 7.4 F g−1 (22 mF cm−2), and for Lig-MnO2 is 1.1 F g−1 (12.03 mF cm−2). Initially, during the CV tests, the AC/Lig-MnO2 supercapacitor displays a higher specific capacitance as compared to Lig-MnO2. This can be attributed to the higher surface area as well as the high porosity of AC.
The cycling life and stability of the system are the most vital requirements for a supercapacitor. To study the pseudo-capacitance behavior further, cyclic charge-discharge (CCD) tests were carried out for 750 cycles at 0.26 A g−1 current density. Figure 8a compares the specific capacitance performance of both materials. The initial specific capacitance for Lig-MnO2 is 16.22 mF cm−2, and for AC/Lig-MnO2 is 14.03 mF cm−2. After 750 cycles, the final specific capacitance of the Lig-MnO2 supercapacitor is 16.18 mF cm−2, and of the AC/Lig-MnO2 supercapacitor is 12.64 mF cm−2. Lig-MnO2 displays a better specific capacitance performance in comparison to AC/Lig-MnO2. This is due to the presence of a higher number of functional groups in lignin. While AC has a very high surface area and porosity, it does not have as many functional groups present. Therefore, lignin has a comparatively higher pseudo-capacitance than AC. Figure 8b displays the capacitance retention for both supercapacitors. Lig-MnO2 exhibits a high retention performance of ~99.7%, while AC/Lig-MnO2 has a retention of ~90%. The lower number of functional groups in AC causes a comparatively quick degradation of the material as compared to lignin. Due to this, AC will degrade quicker than lignin, leading to lower retention. The impact of current density on the discharge voltage and the subsequent variation in specific capacitance can be seen in Figure 8c. As the current density increases from 0.03 to 0.26 mA g−1, the specific capacitance for both supercapacitors decrease. This depicts the general characteristics of a supercapacitor. Figure 8d shows a Ragone plot obtained from the CCD experiment. The Ragone plot depicts the relationship between the energy and power densities at different current densities. The shape of the curve corresponds to those reported in the literature for MnO2 supercapacitors.
The electrical double-layer impedance behavior of the supercapacitor was studied via the electrochemical impedance spectroscopy (EIS) test. A frequency range of 0.1–106 Hz, AC Volts = 10 mV, and DC Volts = 1 V was applied. Nyquist plots were obtained at the 0th and the 750th cycle for both supercapacitors, as shown in Figure 8e,f. In Figure 6e, the initial and final impedance were almost the same. For the Lig-MnO2 supercapacitor, a very small increase in impedance was observed even after 750 cycles. This is in line with the retention performance of the system. The initial impedance was 5945 ohms, and the final impedance was 6493 ohms. The impedance performance of AC/Lig-MnO2 is shown in Figure 6f. Here, an increase in the impedance can be observed. The initial impedance was 310.8 ohms, and the final impedance was 1089 ohms. As the impedance of the system increases, subsequently, the current flow decreases, leading to lower capacity retention. An equivalent circuit is presented in Figure 6i. The electrolyte resistance (R1), double-layer capacitance (C1), resistance (R2, in parallel with C1), and the electrode diffusion resistance (R3) are shown.

4. Conclusions

In this research, we have successfully synthesized two types of green composite electrodes via microwave synthesis. MnO2 microparticles were synthesized via microwave irradiation. Due to the high penetration depth and rate of nucleation of microwave irradiation, uniform surface morphology and particle distribution of micro-MnO2 particles on the lignin and AC/lignin matrices were successfully achieved. The electrochemical evaluation showed the high capacitive performance of lignin-based materials deposited with the microwave-synthesized micro-MnO2 particles, as compared to that of pure lignin materials. Among the two materials, Lig-MnO2 exhibited better performance, with a specific capacitance of 16.22 mF cm−2 and a ~99.7% capacitance retention. Both materials exhibited capacitance retention of ~90% or higher. In comparison to the reported literature, these materials performed with higher stability and exhibited consistent material structurization with tunable properties. As a result, the high-performing, quasi-solid-state supercapacitors with reduced synthesis time have been successfully fabricated from biomaterials. This work provided a simple and low-cost approach in synthesizing green composite electrodes for supercapacitor applications via microwave irradiation.

Author Contributions

Conceptualization: S.M., S.J. and H.L.; Methodology: S.M. and S.J.; Material Characterization: D.H., K.A. and S.M.; Writing—Original Draft Preparation: S.M.; Writing—Review and Editing: S.M., S.J. and H.L.; Visualization: S.M.; Supervision: H.L.; Project Administration: H.L. All authors have read and agreed to the published version of the manuscript.


This research received no external funding.

Institutional Review Board Statement

Not Applicable.

Informed Consent Statement

Not Applicable.

Data Availability Statement

Not Applicable.


Authors acknowledge Weston Stewart and Raj Likhari for their assistance in collecting data, Tariq Chagouri for creating some sketches, and Hengyu Lin for XRD characterization.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Hall, P.J.; Mirzaeian, M.; Fletcher, S.I.; Sillars, F.B.; Rennie, A.J.R.; Shitta-Bey, G.O.; Wilson, G.; Cruden, A.; Carter, R. Energy storage in electrochemical capacitors: Designing functional materials to improve performance. Energy Environ. Sci. 2010, 3, 1238–1251. [Google Scholar] [CrossRef]
  2. Yan, J.; Wang, Q.; Wei, T.; Fan, Z. Recent Advances in Design and Fabrication of Electrochemical Supercapacitors with High Energy Densities. Adv. Energy Mater. 2014, 4, 1300816. [Google Scholar] [CrossRef]
  3. Inganäs, O.; Admassie, S. 25th Anniversary Article: Organic Photovoltaic Modules and Biopolymer Supercapacitors for Supply of Renewable Electricity: A Perspective from Africa. Adv. Mater. 2014, 26, 830–848. [Google Scholar] [CrossRef] [PubMed]
  4. Liu, Z.; Xu, J.; Chen, D.; Shen, G. Flexible electronics based on inorganic nanowires. Chem. Soc. Rev. 2015, 44, 161–192. [Google Scholar] [CrossRef]
  5. Li, L.; Wu, Z.; Yuan, S.; Zhang, X.-B. Advances and challenges for flexible energy storage and conversion devices and systems. Energy Environ. Sci. 2014, 7, 2101–2122. [Google Scholar] [CrossRef]
  6. Liu, Q.-C.; Xu, J.-J.; Xu, D.; Zhang, X.-B. Flexible lithium–oxygen battery based on a recoverable cathode. Nat. Commun. 2015, 6, 7892. [Google Scholar] [CrossRef] [PubMed][Green Version]
  7. Chen, Y.; Jha, S.; Raut, A.; Zhang, W.; Liang, H. Performance Characteristics of Lubricants in Electric and Hybrid Vehicles: A Review of Current and Future Needs. Front. Mech. Eng. 2020, 6, 82. [Google Scholar] [CrossRef]
  8. Jha, S.; Chen, Y.; Zhang, B.; Elwany, A.; Parkinson, D.; Liang, H. Influence of morphology on electrochemical and capacity performance of open-porous structured electrodes. J. Appl. Electrochem. 2020, 50, 231–244. [Google Scholar] [CrossRef]
  9. Jha, S.; Ponce, V.; Seminario, J.M. Investigating the effects of vacancies on self-diffusion in silicon clusters using classical molecular dynamics. J. Mol. Model. 2018, 24, 290. [Google Scholar] [CrossRef]
  10. Renner, P.; Jha, S.; Chen, Y.; Raut, A.; Mehta, S.G.; Liang, H. A Review on Corrosion and Wear of Additively Manufactured Alloys. J. Tribol. 2021, 143, 050802. [Google Scholar] [CrossRef]
  11. Yang, Z.; Tian, J.; Yin, Z.; Cui, C.; Qian, W.; Wei, F. Carbon nanotube- and graphene-based nanomaterials and applications in high-voltage supercapacitor: A review. Carbon 2019, 141, 467–480. [Google Scholar] [CrossRef]
  12. Jha, S.; Mehta, S.; Chen, E.; Sankar, S.S.; Kundu, S.; Liang, H. Bimetallic tungstate nanoparticle-decorated-lignin electrodes for flexible supercapacitors. Mater. Adv. 2020, 1, 2124–2135. [Google Scholar] [CrossRef]
  13. Jha, S.; Mehta, S.; Chen, Y.; Renner, P.; Sankar, S.S.; Parkinson, D.; Kundu, S.; Liang, H. NiWO4 nanoparticle decorated lignin as electrodes for asymmetric flexible supercapacitors. J. Mater. Chem. C 2020, 8, 3418–3430. [Google Scholar] [CrossRef]
  14. Mehta, S.; Jha, S.; Liang, H. Lignocellulose materials for supercapacitor and battery electrodes: A review. Renew. Sustain. Energy Rev. 2020, 134, 110345. [Google Scholar] [CrossRef]
  15. Archuleta, M.M. Toxicity of materials used in the manufacture of lithium batteries. J. Power Sources 1995, 54, 138–142. [Google Scholar] [CrossRef][Green Version]
  16. Inagaki, M.; Konno, H.; Tanaike, O. Carbon materials for electrochemical capacitors. J. Power Sources 2010, 195, 7880–7903. [Google Scholar] [CrossRef]
  17. Zhang, W.; Yin, J.; Lin, Z.; Lin, H.; Lu, H.; Wang, Y.; Huang, W. Facile preparation of 3D hierarchical porous carbon from lignin for the anode material in lithium ion battery with high rate performance. Electrochim. Acta 2015, 176, 1136–1142. [Google Scholar] [CrossRef]
  18. Zhang, X.; Glüsen, A.; Garcia-Valls, R. Porous lignosulfonate membranes for direct methanol fuel cells. J. Membr. Sci. 2006, 276, 301–307. [Google Scholar] [CrossRef][Green Version]
  19. Juikar, S.J.; Vigneshwaran, N. Extraction of nanolignin from coconut fibers by controlled microbial hydrolysis. Ind. Crop. Prod. 2017, 109, 420–425. [Google Scholar] [CrossRef]
  20. Ma, W.; Chen, S.; Yang, S.; Chen, W.; Weng, W.; Cheng, Y.; Zhu, M. Flexible all-solid-state asymmetric supercapacitor based on transition metal oxide nanorods/reduced graphene oxide hybrid fibers with high energy density. Carbon 2017, 113, 151–158. [Google Scholar] [CrossRef]
  21. Jha, S.; Mehta, S.; Chen, Y.; Likhari, R.; Stewart, W.; Parkinson, D.; Liang, H. Design and synthesis of high performance flexible and green supercapacitors made of manganese-dioxide-decorated alkali lignin. Energy Storage 2020, 2, e184. [Google Scholar] [CrossRef]
  22. Jha, S.; Mehta, S.; Chen, Y.; Ma, L.; Renner, P.; Parkinson, D.Y.; Liang, H. Design and Synthesis of Lignin-Based Flexible Supercapacitors. ACS Sustain. Chem. Eng. 2020, 8, 498–511. [Google Scholar] [CrossRef]
  23. Zhang, Q.-Z.; Zhang, D.; Miao, Z.-C.; Zhang, X.-L.; Chou, S.-L. Research Progress in MnO2–Carbon Based Supercapacitor Electrode Materials. Small 2018, 14, 1702883. [Google Scholar] [CrossRef] [PubMed]
  24. Meher, S.K.; Rao, G.R. Enhanced activity of microwave synthesized hierarchical MnO2 for high performance supercapacitor applications. J. Power Sources 2012, 215, 317–328. [Google Scholar] [CrossRef]
  25. Wang, P.; Zhao, Y.-J.; Wen, L.-X.; Chen, J.-F.; Lei, Z.-G. Ultrasound–Microwave-Assisted Synthesis of MnO2 Supercapacitor Electrode Materials. Ind. Eng. Chem. Res. 2014, 53, 20116–20123. [Google Scholar] [CrossRef]
  26. Liu, D.; Wang, Y.; Jia, B.; Wei, J.; Liu, C.; Zhu, J.; Tang, S.; Wu, Z.; Chen, G. Microwave-Assisted Hydrothermal Preparation of Corn Straw Hydrochar as Supercapacitor Electrode Materials. ACS Omega 2020, 5, 26084–26093. [Google Scholar] [CrossRef]
  27. Seong, K.-d.; Jin, X.; Kim, D.; Kim, J.M.; Ko, D.; Cho, Y.; Hwang, M.; Kim, J.-H.; Piao, Y. Ultrafast and scalable microwave-assisted synthesis of activated hierarchical porous carbon for high-performance supercapacitor electrodes. J. Electroanal. Chem. 2020, 874, 114464. [Google Scholar] [CrossRef]
  28. Mylarappa, M.; Lakshmi, V.; Mahesh K R, V.; H P, N.; Raghavendra, N. A facile hydrothermal recovery of nano sealed MnO 2 particle from waste batteries: An advanced material for electrochemical and environmental applications. IOP Conf. Ser. Mater. Sci. Eng. 2016, 149, 012178. [Google Scholar] [CrossRef]
  29. Mayerhöfer, T. Wave Optics in Infrared Spectroscopy. 2021. Available online: (accessed on 12 August 2021).
  30. Azimvand, J.; Didehban, K.; Mirshokrai, S.A. Preparation and characterization of lignin polymeric nanoparticles using the green solvent Ethylene glycol: Acid precipitation technology. BioResources 2018, 13, 2887–2897. [Google Scholar] [CrossRef]
  31. Nandiyanto, A.B.D.; Oktiani, R.; Ragadhita, R. How to read and interpret FTIR spectroscope of organic material. Indones. J. Sci. Technol. 2019, 4, 97–118. [Google Scholar] [CrossRef]
  32. Zhang, S.; Wang, Z.; Zhang, Y.; Pan, H.; Tao, L. Adsorption of methylene blue on organosolv lignin from rice straw. Procedia Environ. Sci. 2016, 31, 3–11. [Google Scholar] [CrossRef][Green Version]
  33. Liu, X.-Y.; Huang, M.; Ma, H.-L.; Zhang, Z.-Q.; Gao, J.-M.; Zhu, Y.-L.; Han, X.-J.; Guo, X.-Y. Preparation of a carbon-based solid acid catalyst by sulfonating activated carbon in a chemical reduction process. Molecules 2010, 15, 7188–7196. [Google Scholar] [CrossRef] [PubMed][Green Version]
  34. Musil, M.; Choi, B.; Tsutsumi, A. Morphology and Electrochemical Properties of α-, β-, γ-, and δ-MnO2Synthesized by Redox Method. J. Electrochem. Soc. 2015, 162, A2058–A2065. [Google Scholar] [CrossRef]

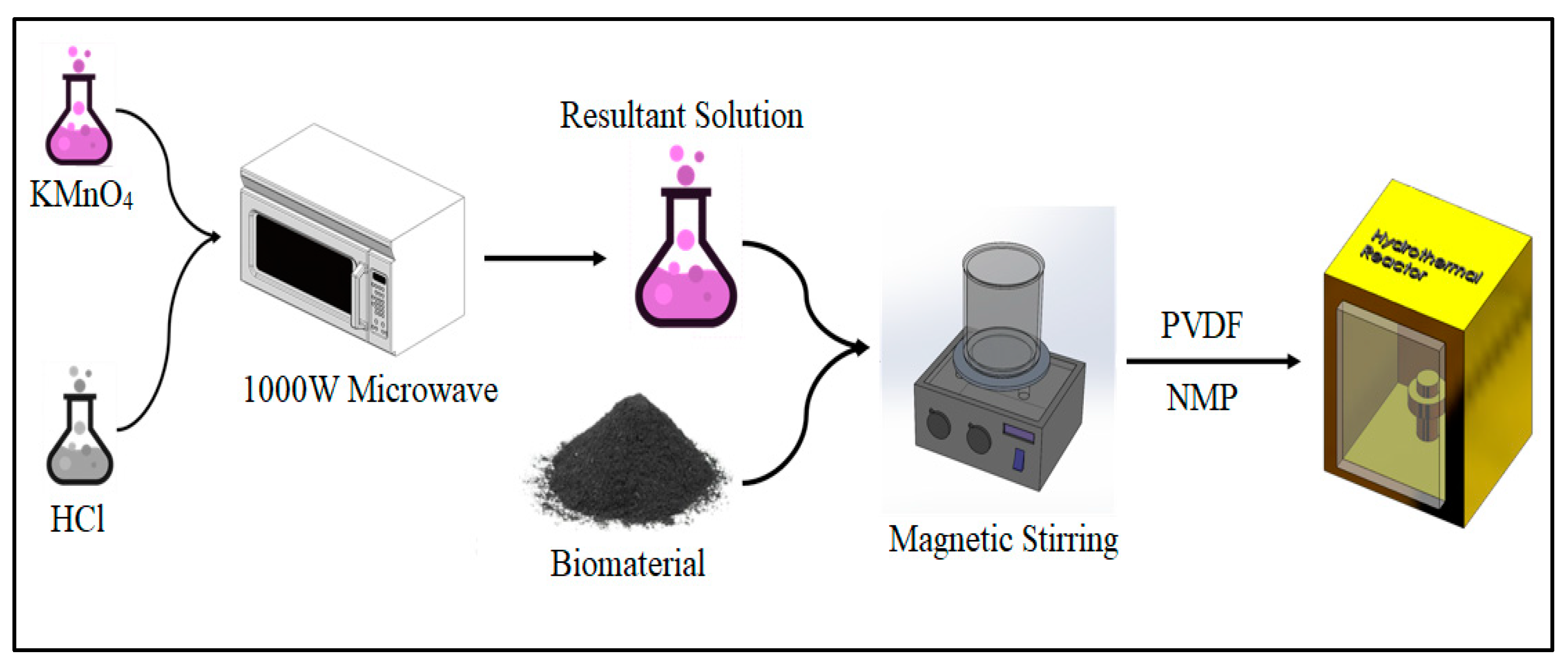

Figure 1. Schematic for the preparation of the electroactive materials.
Figure 1. Schematic for the preparation of the electroactive materials.
Jcs 05 00216 g001

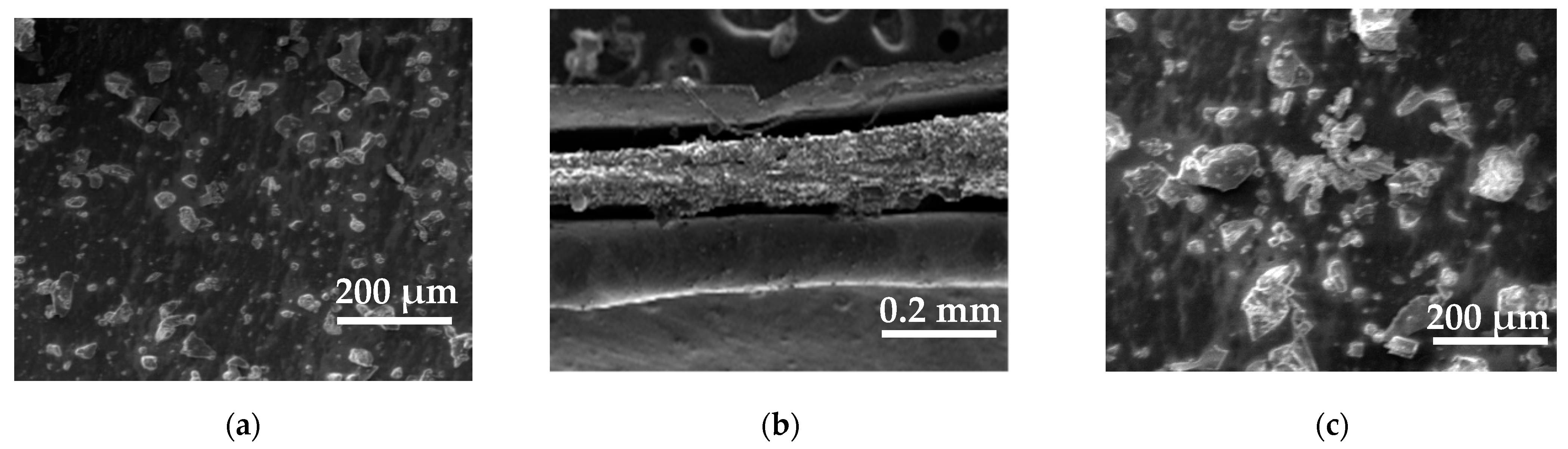

Figure 2. SEM images of (a) AC/Lig-MnO2, (b) the supercapacitor interface, and (c) Lig-MnO2.
Figure 2. SEM images of (a) AC/Lig-MnO2, (b) the supercapacitor interface, and (c) Lig-MnO2.
Jcs 05 00216 g002

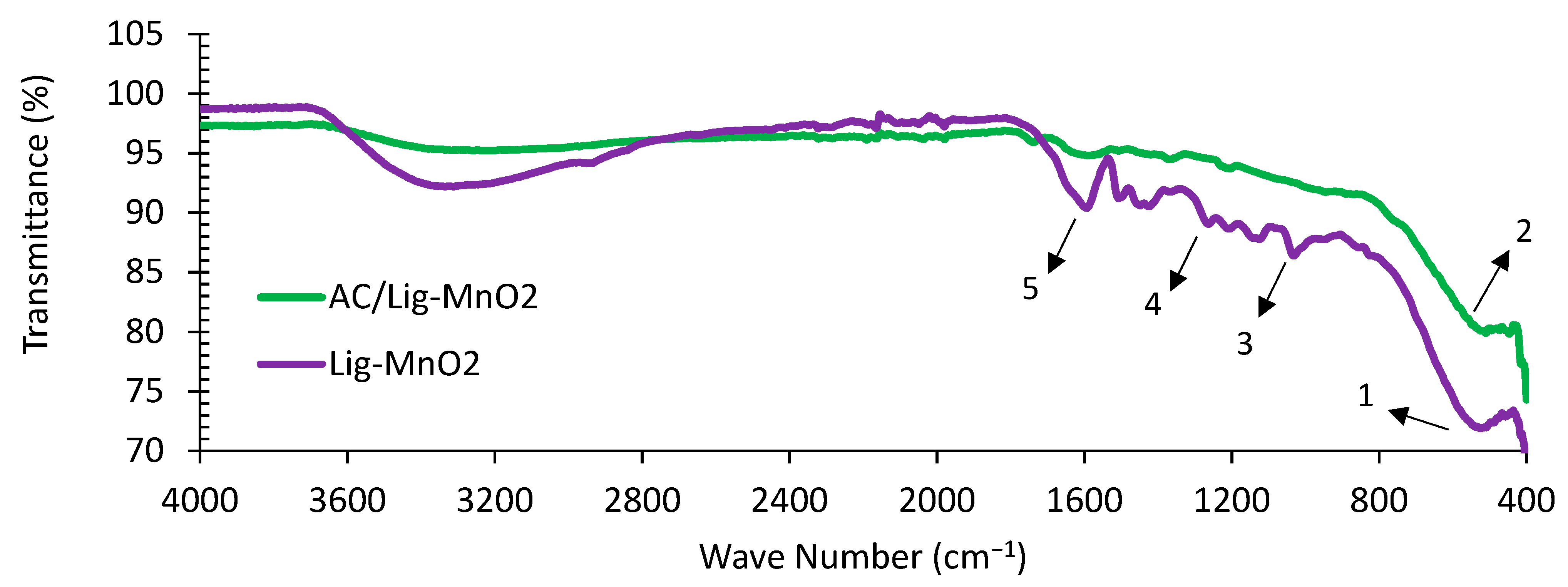

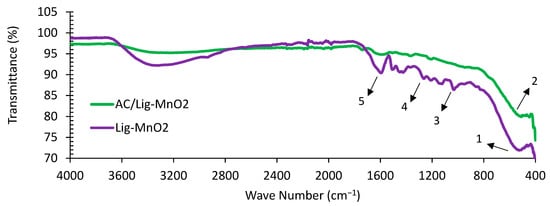

Figure 3. FTIR spectroscopy of AC/Lig-MnO2 and Lig-MnO2.
Figure 3. FTIR spectroscopy of AC/Lig-MnO2 and Lig-MnO2.
Jcs 05 00216 g003

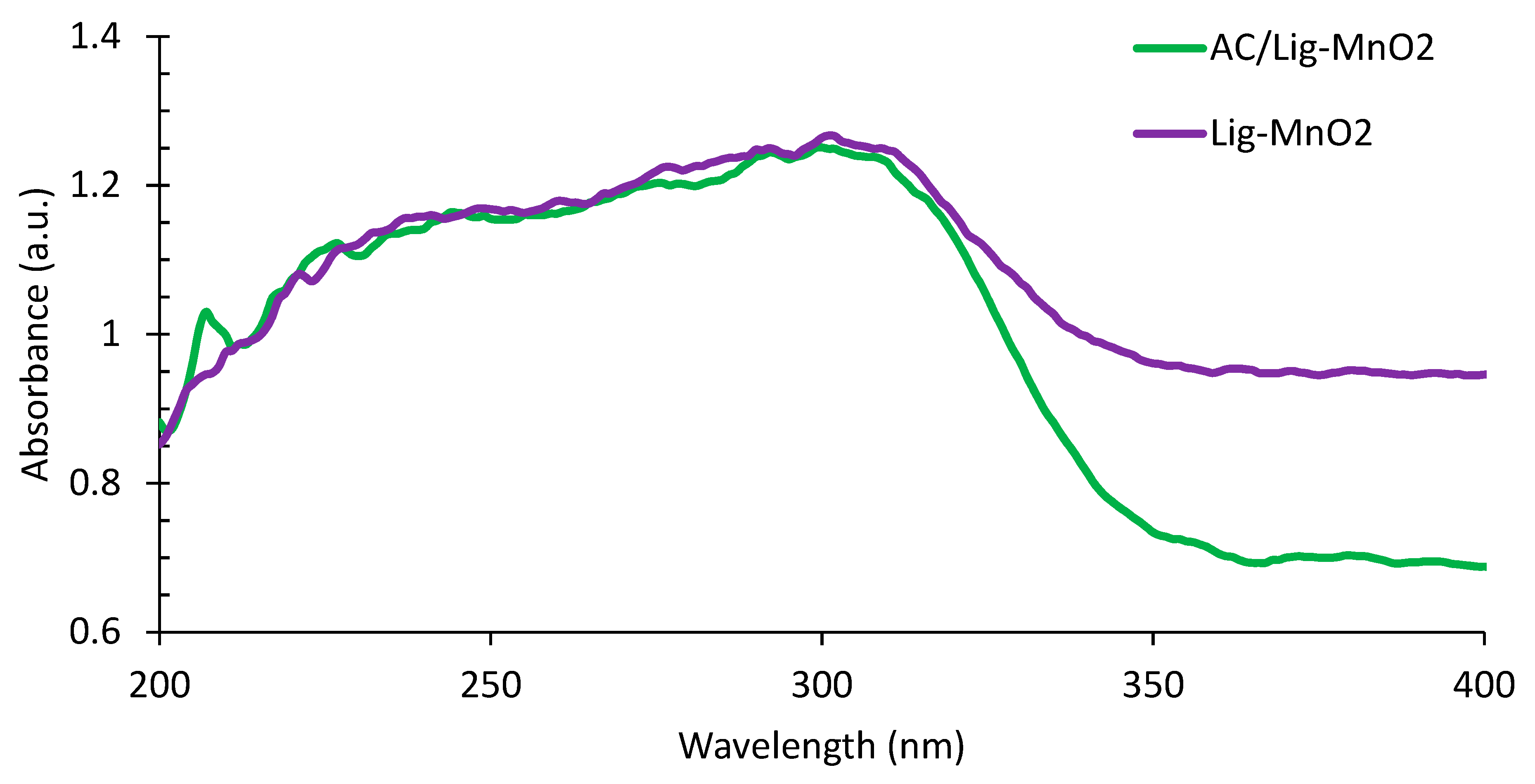

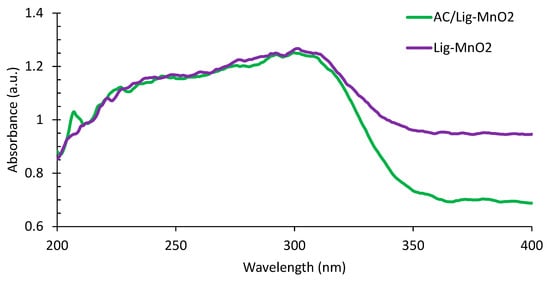

Figure 4. UV-vis spectroscopy of AC/Lig-MnO2 and Lig-MnO2.
Figure 4. UV-vis spectroscopy of AC/Lig-MnO2 and Lig-MnO2.
Jcs 05 00216 g004

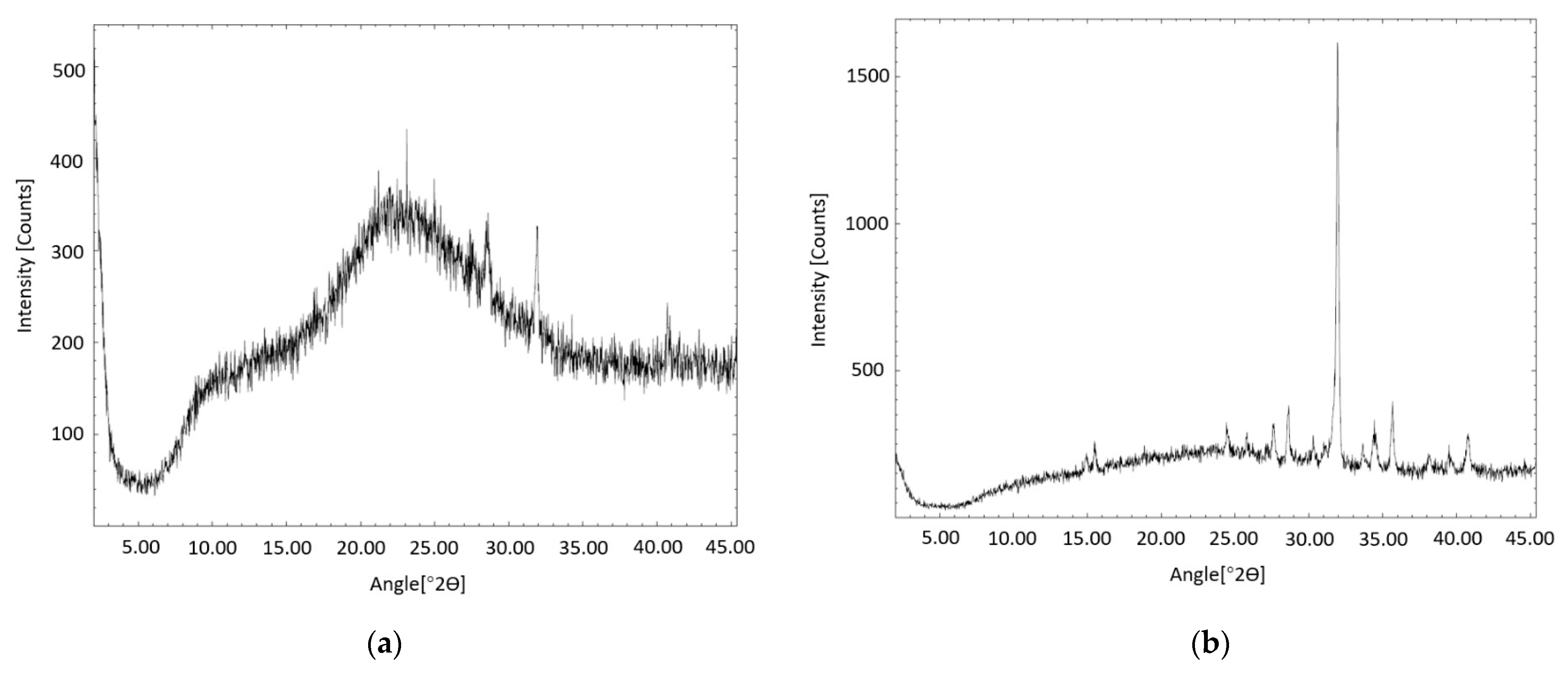

Figure 5. XRD plots of (a) AC/Lig-MnO2 and (b) Lig-MnO2.
Figure 5. XRD plots of (a) AC/Lig-MnO2 and (b) Lig-MnO2.
Jcs 05 00216 g005

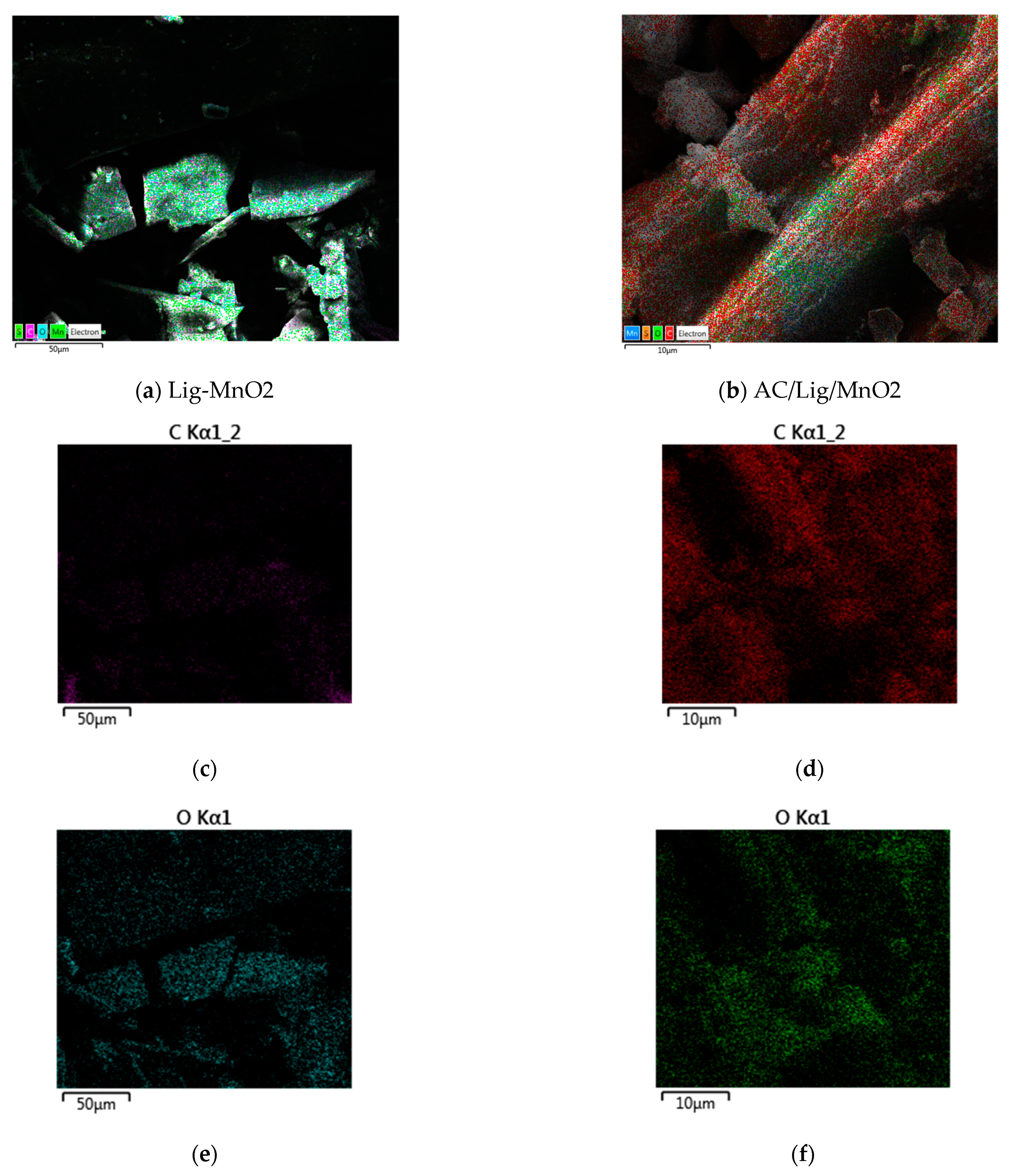

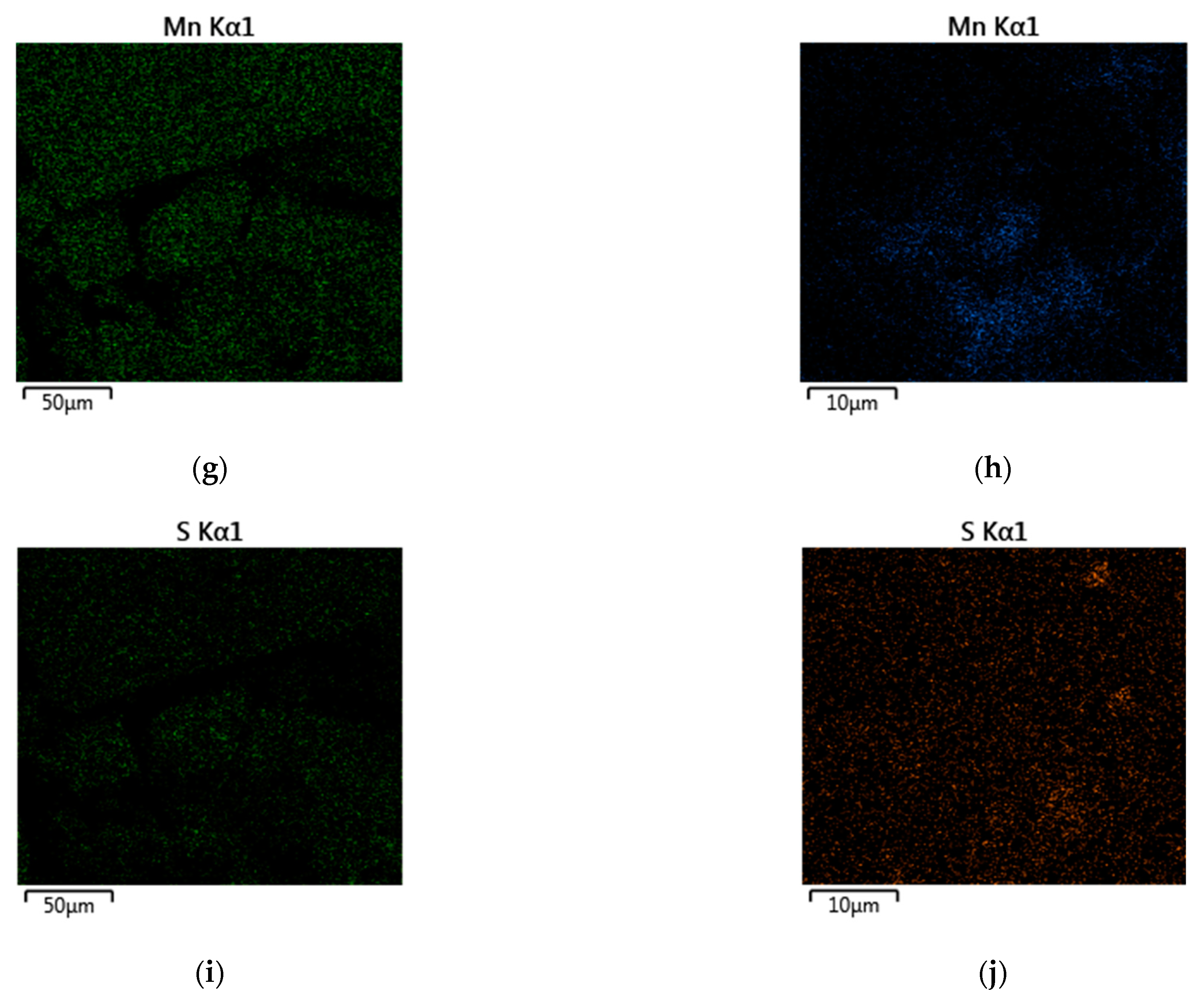

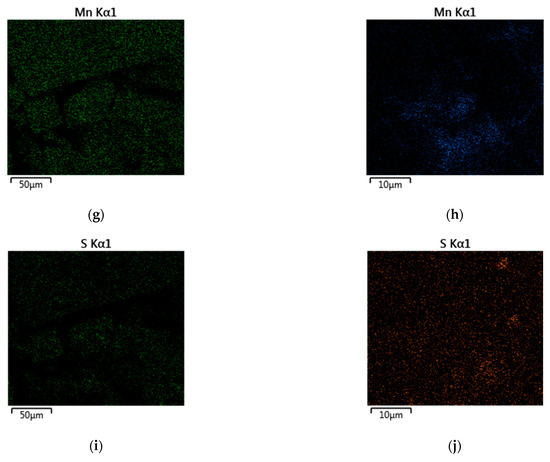

Figure 6. EDS mapping of (a) Lig-MnO2 and (b) AC/Lig/MnO2. For Lig-MnO2, EDS mapping for C (c), O (e), Mn (g), and S (i) are shown. For AC/Lig/MnO2, EDS mapping for C (d), O (f), Mn (h), and S (j) are also shown.
Figure 6. EDS mapping of (a) Lig-MnO2 and (b) AC/Lig/MnO2. For Lig-MnO2, EDS mapping for C (c), O (e), Mn (g), and S (i) are shown. For AC/Lig/MnO2, EDS mapping for C (d), O (f), Mn (h), and S (j) are also shown.
Jcs 05 00216 g006aJcs 05 00216 g006b

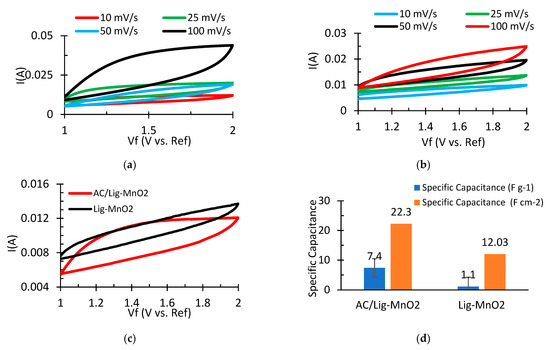

Figure 7. CV plots for (a) AC/Lig-MnO2, (b) Lig-MnO2 at various scan rates, (c) comparison of CV plots of AC/Lig-MnO2 and Lig-MnO2 at 10 mV s−1, and (d) comparative histogram of specific capacitances.
Figure 7. CV plots for (a) AC/Lig-MnO2, (b) Lig-MnO2 at various scan rates, (c) comparison of CV plots of AC/Lig-MnO2 and Lig-MnO2 at 10 mV s−1, and (d) comparative histogram of specific capacitances.
Jcs 05 00216 g007

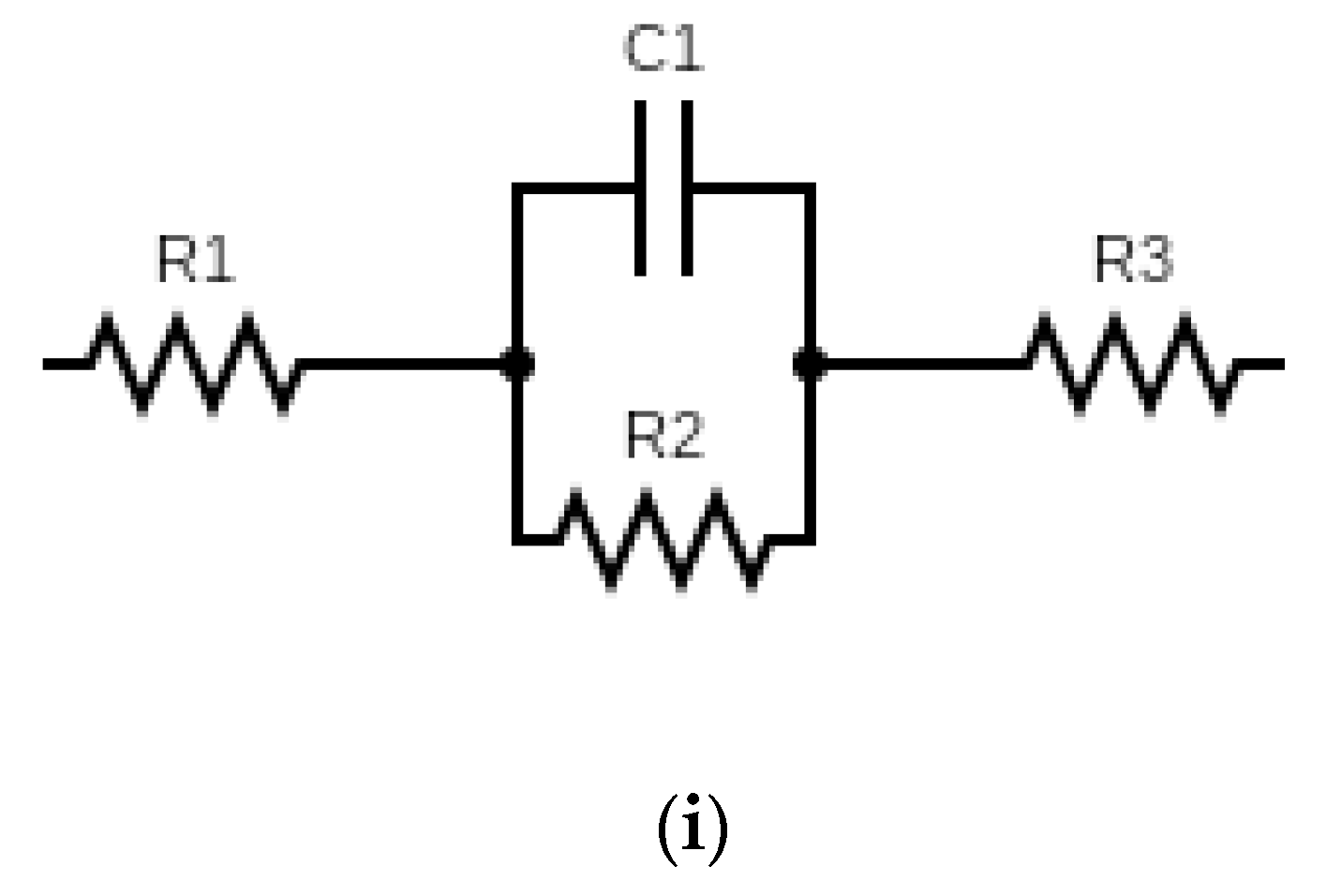

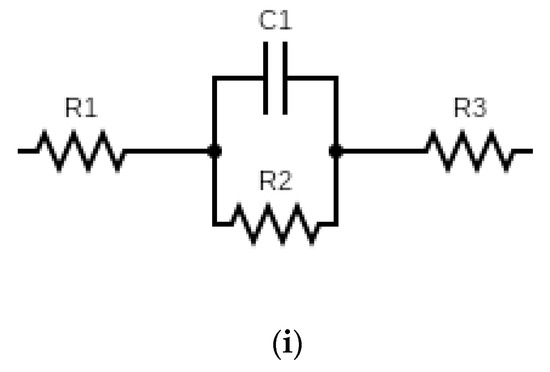

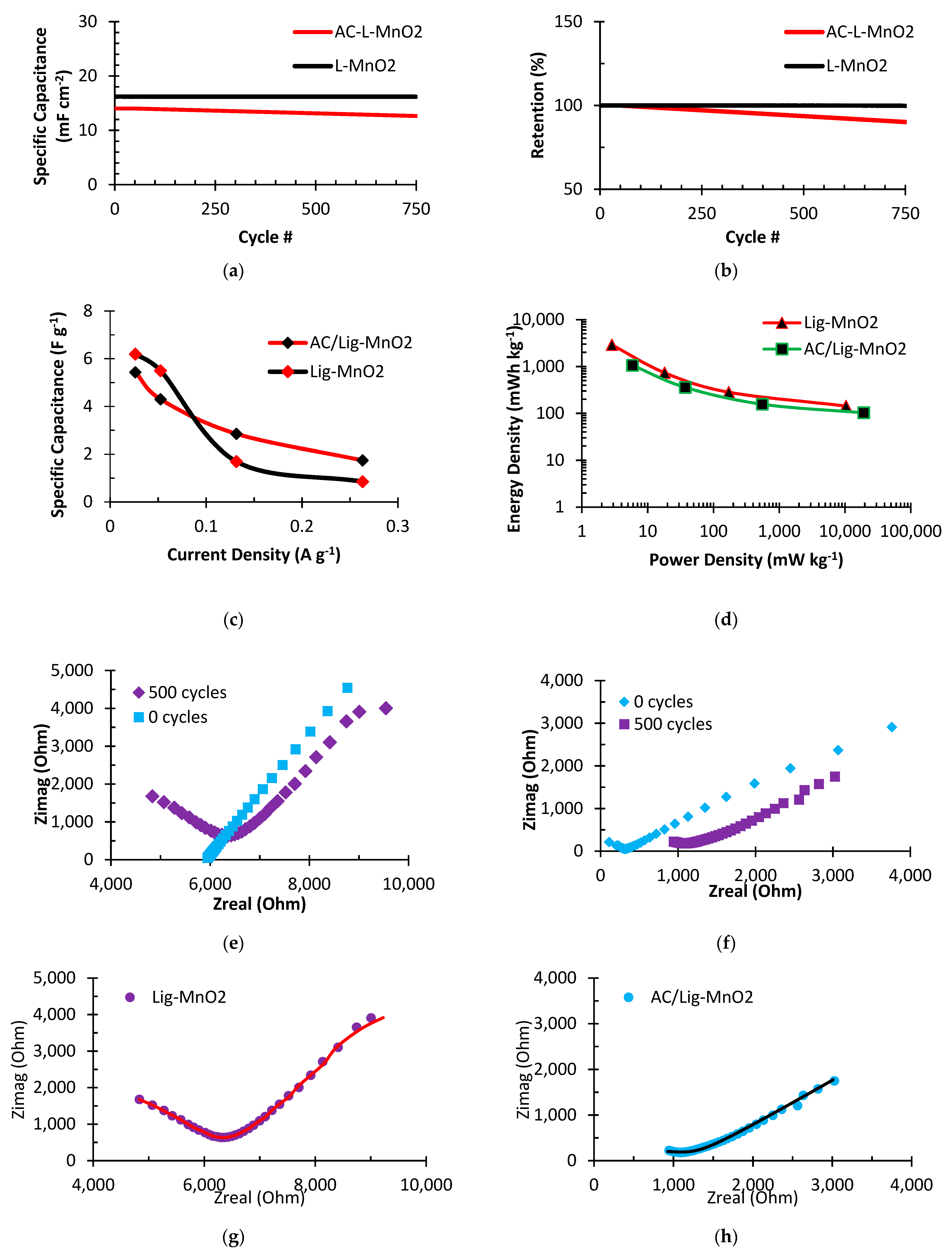

Figure 8. Comparative CCD plots for (a) specific capacitance vs. cycle number, (b) retention (%) vs. cycle number, (c) specific capacitance vs. current density. (d) Ragone plot, (e) EIS plot for Lig-MnO2 supercapacitor, and (f) EIS plot for AC/Lig-MnO2 supercapacitor. (g) EIS fitted curve at 500 cycles for Lig-MnO2 supercapacitor, (h) EIS fitted curve at 500 cycles for AC/Lig-MnO2 supercapacitor, (i) equivalent circuit for EIS 4.
Figure 8. Comparative CCD plots for (a) specific capacitance vs. cycle number, (b) retention (%) vs. cycle number, (c) specific capacitance vs. current density. (d) Ragone plot, (e) EIS plot for Lig-MnO2 supercapacitor, and (f) EIS plot for AC/Lig-MnO2 supercapacitor. (g) EIS fitted curve at 500 cycles for Lig-MnO2 supercapacitor, (h) EIS fitted curve at 500 cycles for AC/Lig-MnO2 supercapacitor, (i) equivalent circuit for EIS 4.
Jcs 05 00216 g008aJcs 05 00216 g008b
