Numerical Buckling Analysis of Hybrid Honeycomb Cores for Advanced Helmholtz Resonator Liners
Abstract
:1. Introduction
2. Materials and Methods

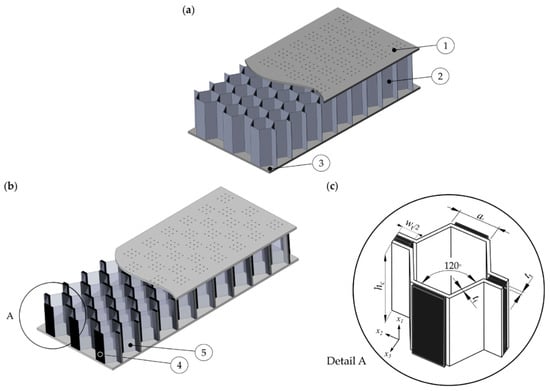

2.1. Structural Design
2.2. Material and Failure Behavior of Polymer and Composite Structures
2.3. Modelling and Numerical Implementation of Honeycomb Core Buckling

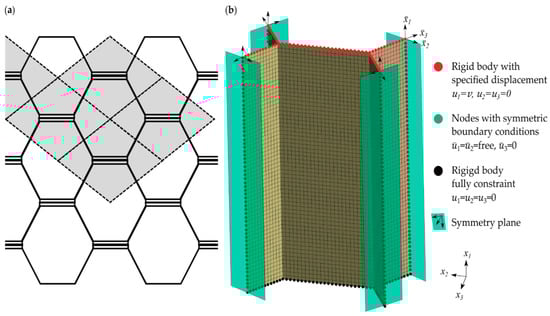

2.3.1. Geometry and Boundary Conditions

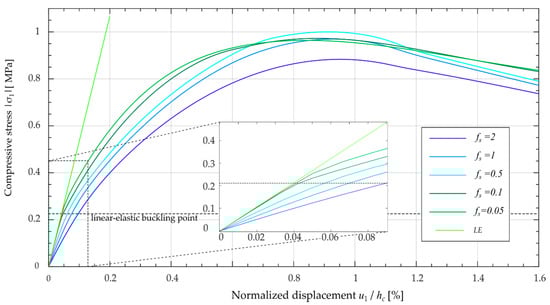

2.3.2. Implementation of Geometrical Imperfection
2.3.3. Determination of the Fiber Reinforced Plastic Failure Behavior
3. Results and Discussion

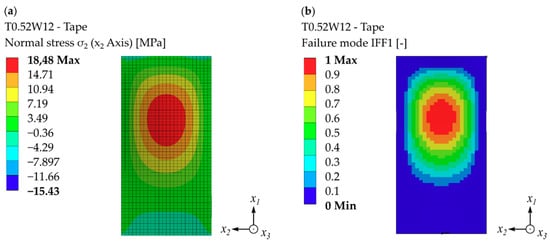

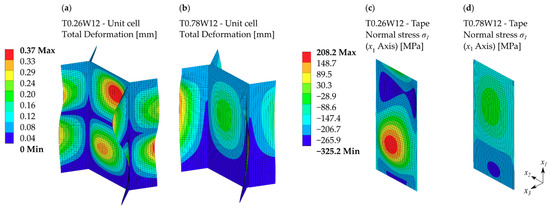

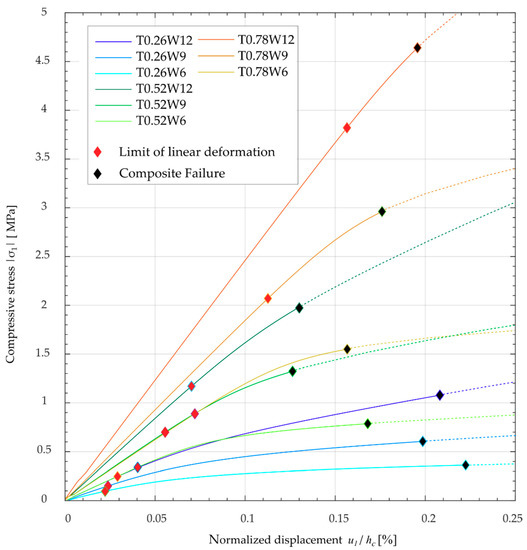

3.1. Resulting Deformation Behavior and Composite Failure

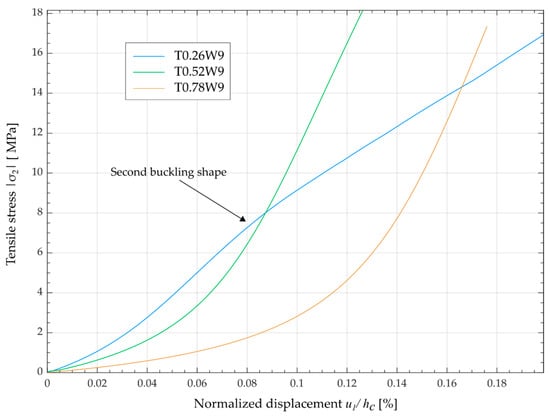

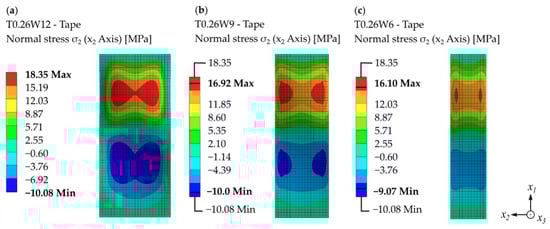

3.2. Influence of Tape Configuration on Failure Behavior

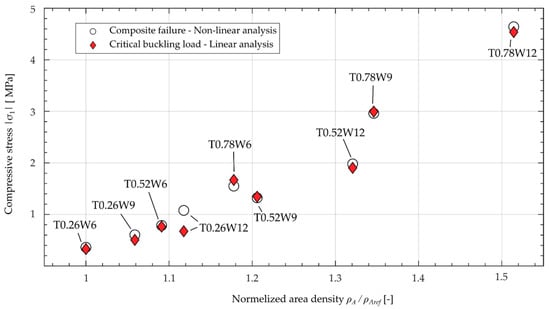

3.3. Resulting Properties of the Composite Core Structure
4. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Modler, N.; Winkler, A.; Filippatos, A.; Weck, D.; Dannemann, M. Function-integrative Lightweight Engineering-Design Methods and Applications. Chem. Ing. Tech. 2020, 92, 949–959. [Google Scholar] [CrossRef]
- Ruijgrok, G.J.J. Elements of Aviation Acoustics; Delft University Press: Delft, The Netherlands, 1993; ISBN 9062758991. [Google Scholar]
- Smith, M.J.T. Aircraft Noise; Cambridge University Press: Cambridge, UK, 1989; ISBN 9780521331869. [Google Scholar]
- Azimi, M.; Ommi, F.; Alashti, N.J. Using Acoustic Liner for Fan Noise Reduction in Modern Turbofan Engines. Int. J. Aeronaut. Space Sci. 2014, 15, 97–101. [Google Scholar] [CrossRef]
- Zhao, D.; Li, X.Y. A review of acoustic dampers applied to combustion chambers in aerospace industry. Prog. Aerosp. Sci. 2015, 74, 114–130. [Google Scholar] [CrossRef]
- Rayleigh, L. The Theory of the Helmholtz Resonator. Proc. R. Soc. Lond. Ser. A Contain. Pap. Math. Phys. Character 1916, 92, 265–275. [Google Scholar]
- Barnobi, C.L. Improvement in Acoustic Liner Attenuation in Turbofan Engines by Means of Plasma Synthetic Jet Actuator. Master’s Thesis, Virginia Polytechnic Institute and State University, Blacksburg, VA, USA, 2010. [Google Scholar]
- Follet, J.; Betts, J.; Kelly, J. Improvements to Acoustic Liner Broadband Absorption Using Bias Flow. In Proceedings of the 39th Aerospace Sciences Meeting and Exhibit, Reno, NV, USA, 8–11 January 2001. [Google Scholar]
- Dannemann, M.; Kucher, M.; Kunze, E.; Modler, N.; Knobloch, K.; Enghardt, L.; Sarradj, E.; Höschler, K. Experimental Study of Advanced Helmholtz Resonator Liners with Increased Acoustic Performance by Utilising Material Damping Effects. Appl. Sci. 2018, 8, 1923. [Google Scholar] [CrossRef] [Green Version]
- Knobloch, K.; Enghardt, L.; Bake, F. (Eds.) Investigation of Flexible Walls for Acoustic Liners. In Proceedings of the 25th AIAA/CEAS Aeroacoustics Conference, Delft, The Netherlands, 20–23 May 2019. [Google Scholar]
- Fan, H.K.; Lam, G.C.; Leung, R.C.K. Spatio-temporal aeroacoustic-structural responses of cavity-backed elastic panel liner exposed to grazing duct flow. J. Fluids Struct. 2021, 102, 103228. [Google Scholar] [CrossRef]
- Różyło, P.; Wysmulski, P.; Falkowicz, K. Fem and Experimental Analysis of Thin-Walled Composite Elements under Compression. Int. J. Appl. Mech. Eng. 2017, 22, 393–402. [Google Scholar] [CrossRef] [Green Version]
- Falkowicz, K.; Mazurek, P.; Różyło, P.; Wysmulski, P.; Smagowski, W. Experimental and Numerical Analysis of the Compression of a Thin-Walled Composite Plate. Adv. Sci. Technol. Res. J. 2016, 10, 177–184. [Google Scholar] [CrossRef] [Green Version]
- McFarland, R.K., Jr. Hexagonal Cell Structures under Post-Buckling Axial Load. AIAA J. 1963, 1, 1380–1385. [Google Scholar] [CrossRef]
- Wierzbicki, T. Crushing analysis of metal honeycombs. Int. J. Impact Eng. 1983, 1, 157–174. [Google Scholar] [CrossRef]
- Sun, Z.; Shi, S.; Guo, X.; Hu, X.; Chen, H. On compressive properties of composite sandwich structures with grid reinforced honeycomb core. Compos. Part B Eng. 2016, 94, 245–252. [Google Scholar] [CrossRef]
- Aktay, L.; Johnson, A.F.; Kröplin, B.-H. Numerical modelling of honeycomb core crush behaviour. Eng. Fract. Mech. 2008, 75, 2616–2630. [Google Scholar] [CrossRef]
- Vondřejc, J.; de Geus, T.W.J. Energy-based comparison between the Fourier-Galerkin method and the finite element method. J. Comput. Appl. Math. 2020, 374, 112585. [Google Scholar] [CrossRef] [Green Version]
- Liu, N.; Jeffers, A.E. Isogeometric analysis of laminated composite and functionally graded sandwich plates based on a layerwise displacement theory. Compos. Struct. 2017, 176, 143–153. [Google Scholar] [CrossRef]
- Wu, E.; Jiang, W.-S. Axial crush of metallic honeycombs. Int. J. Impact Eng. 1997, 19, 439–456. [Google Scholar] [CrossRef]
- Seemann, R.; Krause, D. Numerical modelling of Nomex honeycomb sandwich cores at meso-scale level. Compos. Struct. 2017, 159, 702–718. [Google Scholar] [CrossRef]
- Hähnel, F.; Wolf, K.; Hauffe, A.; Alekseev, K.A.; Il’dus, M.Z. Wedge-shaped folded sandwich cores for aircraft applications: From design and manufacturing process to experimental structure validation. CEAS Aeronaut. J. 2011, 2, 203–212. [Google Scholar] [CrossRef]
- Asprone, D.; Auricchio, F.; Menna, C.; Morganti, S.; Prota, A.; Reali, A. Statistical finite element analysis of the buckling behavior of honeycomb structures. Compos. Struct. 2013, 105, 240–255. [Google Scholar] [CrossRef]
- Yuan, W.; Song, H.; Lu, L.; Huang, C. Effect of local damages on the buckling behaviour of pyramidal truss core sandwich panels. Compos. Struct. 2016, 149, 271–278. [Google Scholar] [CrossRef]
- Wang, B.; Hu, J.; Li, Y.; Yao, Y.; Wang, S.; Ma, L. Mechanical properties and failure behavior of the sandwich structures with carbon fiber-reinforced X-type lattice truss core. Compos. Struct. 2018, 185, 619–633. [Google Scholar] [CrossRef]
- Djama, K.; Michel, L.; Ferrier, E.; Gabor, A. Numerical modelling of a truss core sandwich panel: Influence of the connectors’ geometry and mechanical parameters on the mechanical response. Compos. Struct. 2020, 245, 112335. [Google Scholar] [CrossRef]
- Bitzer, T. Honeycomb Technology: Materials, Design, Manufacturing, Applications and Testing; Springer: Dordrecht, The Netherlands, 1997; ISBN 978-94-010-6474-3. [Google Scholar]
- Yu, G.-C.; Feng, L.-J.; Wu, L.-Z. Thermal and mechanical properties of a multifunctional composite square honeycomb sandwich structure. Mater. Des. 2016, 102, 238–246. [Google Scholar] [CrossRef]
- John, M.; Petersilge, M.; Geyer, A.; Schlimper, R.; Pflug, J. (Eds.) Modeling and Assessment of Folded Thermoplastic Honeycomb Core Sandwich Structures Using a Representative Volume Element. In Proceedings of the 12th International Conference on Sandwich Structures ICSS-12, Lausanne, Switzerland, 19–22 August 2018; EPFL-CCLab Composite Construction Laboratory: Lausanne, Switzerland, 2018. [Google Scholar]
- Kucher, M.; Dannemann, M.; Adam, F.; Modler, N.; Zichner, M. Verfahren und Vorrichtung zur Kontinuierlichen Herstellung Gefalteter Zellstrukturen, Sowie Gefaltete Zellstruktur; Technische Universitaet Dresden: Dresden, Germany, 2019. [Google Scholar]
- Li, W.; Sun, F.; Wang, P.; Fan, H.; Fang, D. A novel carbon fiber reinforced lattice truss sandwich cylinder: Fabrication and experiments. Compos. Part A Appl. Sci. Manuf. 2016, 81, 313–322. [Google Scholar] [CrossRef]
- Puck, A. Festigkeitsanalyse von Faser-Matrix-Laminaten: Modelle für die Praxis; Hanser: München, Germany, 1996; ISBN 3446181946. [Google Scholar]
- Bake, F.; Knobloch, K. Novel liner concepts. CEAS Aeronaut. J. 2019, 10, 123–136. [Google Scholar] [CrossRef] [Green Version]
- Schürmann, H. Konstruieren Mit Faser-Kunststoff-Verbunden, 2nd ed.; Springer: Berlin/Heidelberg, Germany, 2007; ISBN 9783540721901. [Google Scholar]
- Huschle, T. DFG SPP 1712. Available online: http://www.wbk.kit.edu/wbkintern/Forschung/Projekte/SPP-1712/index.php (accessed on 28 January 2021).
- Puck, A.; Kopp, J.; Knops, M. Guidelines for the determination of the parameters in Puck’s action plane strength criterion. Compos. Sci. Technol. 2002, 62, 371–378. [Google Scholar] [CrossRef]
- Cuntze, R.G.; Freund, A. The predictive capability of failure mode concept-based strength criteria for multidirectional laminates. Compos. Sci. Technol. 2004, 64, 343–377. [Google Scholar] [CrossRef]
- Hinton, M.J.; Kaddour, A.S.; Soden, P.D. (Eds.) Failure Criteria in Fibre Reinforced Polymer Composites: The World-Wide Failure Exercise; Elsevier: Amersterdam, The Netherlands; London, UK, 2004; ISBN 008044475X. [Google Scholar]
- D30 Committee. Standard Test Method for Flatwise Compressive Properties of Sandwich Cores; ASTM International: West Conshohocken, PA, USA, 2016. [Google Scholar]
- Jang, W.Y.; Kyriakides, S. On the buckling and crushing of expanded honeycomb. Int. J. Mech. Sci. 2015, 91, 81–90. [Google Scholar] [CrossRef]
- Liu, L.; Meng, P.; Wang, H.; Guan, Z. The flatwise compressive properties of Nomex honeycomb core with debonding imperfections in the double cell wall. Compos. Part B Eng. 2015, 76, 122–132. [Google Scholar] [CrossRef]
- Lucas, P. Zur Auslegung von Faserverbund-Bandagen für Elektromotoren, 1st ed.; Technische Universität Dresden, Institut für Leichtbau und Kunststofftechnik: Dresden, Germany, 2020; ISBN 9783867806299. [Google Scholar]
Square | Square | Square | Hexagonal | Hexagonal | |
---|---|---|---|---|---|
Cell structure | |||||
Sketch of core |
12 | 9 | 6 | ||
---|---|---|---|---|
[mm] | 0.78 | |||
0.52 | ||||
0.26 |
Property 1 | Symbol | Unit | Quantity |
---|---|---|---|
Thermoplastic Polyurethane | |||
Young’s modulus | MPa | 1647 | |
Poisson ratio | - | 0.4078 | |
Density | g/cm³ | 1.178 | |
Tensile Strength | MPa | 48.84 | |
Carbon fiber reinforced polyamide 6 | |||
Youngs modulus in | MPa | 103,400 | |
Youngs modulus | MPa | 3600 | |
Poisson ratio / | - | 0.29 | |
Poisson ratio / | - | 0.37 | |
Shear modulus / | MPa | 1810 | |
Shear modulus matrix | MPa | 1193 | |
Tensile strength | MPa | 1637 | |
Tensile strength ⊥ | MPa | 18.4 | |
Compression strength | MPa | 324 | |
Compression strength | MPa | 91 | |
Shear strength / | MPa | 36.6 | |
Shear strength ⊥/⊥ | MPa | 19.5 | |
Density | g/cm³ | 1.450 |
Tape thickness [mm] | 0.78 | 0.52 | 0.26 | ||||||
Tape width [mm] | 12 | 9 | 6 | 12 | 9 | 6 | 12 | 9 | 6 |
Puck | |||||||||
Fiber compression failure [-] | 0.99 | 1.00 | 1.00 | 0.73 | 0.75 | 0.98 | 0.95 | 1.00 | 1.00 |
Inter-fiber tensile failure [-] | 1.00 | 0.94 | 0.50 | 1.00 | 1.00 | 1.00 | 1.00 | 0.96 | 0.95 |
Inter-fiber compression failure [-] | 0.26 | 0.22 | 0.14 | 0.25 | 0.21 | 0.19 | 0.38 | 0.30 | 0.24 |
Cuntze | |||||||||
Inter-fiber tensile failure- IFF1 [-] | 1.00 | 0.94 | 0.50 | 1.00 | 1.00 | 1.00 | 1.00 | 0.96 | 0.95 |
Inter-fiber shear failure- IFF2 [-] | 0.02 | 0.01 | 0.02 | 0.02 | 0.01 | 0.04 | 0.07 | 0.08 | 0.18 |
Inter-fiber compression failure- IFF3 [-] | 0.19 | 0.17 | 0.09 | 0.17 | 0.16 | 0.07 | 0.11 | 0.11 | 0.11 |
[N/mm2] | 4.64 | 2.96 | 1.55 | 1.98 | 1.32 | 0.79 | 1.07 | 0.6 | 0.36 |
[%] | 0.19 | 0.18 | 0.16 | 0.13 | 0.13 | 0.17 | 0.21 | 0.20 | 0.22 |
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2021 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Neubauer, M.; Dannemann, M.; Kucher, M.; Bleil, N.; Wollmann, T.; Modler, N. Numerical Buckling Analysis of Hybrid Honeycomb Cores for Advanced Helmholtz Resonator Liners. J. Compos. Sci. 2021, 5, 116. https://doi.org/10.3390/jcs5050116
Neubauer M, Dannemann M, Kucher M, Bleil N, Wollmann T, Modler N. Numerical Buckling Analysis of Hybrid Honeycomb Cores for Advanced Helmholtz Resonator Liners. Journal of Composites Science. 2021; 5(5):116. https://doi.org/10.3390/jcs5050116
Chicago/Turabian StyleNeubauer, Moritz, Martin Dannemann, Michael Kucher, Niklas Bleil, Tino Wollmann, and Niels Modler. 2021. "Numerical Buckling Analysis of Hybrid Honeycomb Cores for Advanced Helmholtz Resonator Liners" Journal of Composites Science 5, no. 5: 116. https://doi.org/10.3390/jcs5050116
