Article

Method for Determining the Contact and Bulk Resistance of Aluminum Alloys in the Initial State for Resistance Spot Welding †

Materials Testing Institute (MPA), University of Stuttgart, Pfaffenwaldring 32, D-70569 Stuttgart, Germany
*
Author to whom correspondence should be addressed.
This paper is an extended version of our paper published in Fezer, A.; Werz, M.; Weihe, S. Method for determining the contact and material resistance of aluminum alloys in the initial state. In Proceedings of the 77th IIW Annual Assembly and International Conference on Welding and Joining, Rhodes, Greece, 7–12 July 2024.
J. Manuf. Mater. Process. 2025, 9(8), 266; https://doi.org/10.3390/jmmp9080266
Submission received: 21 June 2025 / Revised: 21 July 2025 / Accepted: 2 August 2025 / Published: 7 August 2025
(This article belongs to the Special Issue Recent Advances in Welding and Joining Metallic Materials)

Abstract

In resistance spot welding (RSW), the total electrical resistance (dynamic resistance) as the sum of bulk and contact resistance is a key variable. Both of these respective resistances influence the welding result, but the exact ratio to the total resistance of a real existing sheet is not known. Due to the high scatter in the RSW of aluminum alloys compared to steel, it is of interest to be able to explicitly determine the individual resistance components in order to gain a better understanding of the relationship between the initial state and the lower reproducibility of aluminum welding in the future. So far, only the total resistance and the bulk resistance could be determined experimentally. Due to the different sample shapes, it was not possible to consistently determine the contact resistance from the measurements. In order to realize this, a method was developed that contains the following innovations with the aid of simulation: determination of the absolute bulk resistance at room temperature (RT), determination of the absolute contact resistance at RT and determination of the ratio of bulk and contact resistance. This method makes it possible to compare the resistances of the bulk material and the surface in the initial state quantitatively. This now allows the comparison of batches regarding the surface resistance, especially for welding processes. For the aluminum sheets (EN AW-5182-O, EN AW-6014-T4) investigated, the method showed that the contact resistance dominates and the bulk resistance is less than 20%. These data can also be used to make predictions about the weldability of the alloy using artificial intelligence (AI). If experimental data are available, the method can also be applied to higher temperatures.

1. Introduction

Resistance spot welding (RSW) is a very frequently used joining process in body-in-white. In the RSW process, two or more flat workpieces are placed overlapping between two electrodes. A short, high-current pulse partially melts the workpieces and forms a bond between the workpieces if the parameters are set correctly. In addition to good efficiency, the welding process of RSW can be easily automated. Further advantages of RSW are the short welding times and the frequent elimination of rework [1]. Due to the increasing regulatory control of carbon dioxide emissions from vehicles [2], the focus in recent years has been increasingly on the body-in-white in addition to the drive types [3]. Lightweight materials such as aluminum alloys are increasingly being used [4,5,6]. In general, aluminum alloys are increasingly employed in sustainable lightweight applications across mechanical engineering and aerospace and automotive industries, aiming to significantly reduce CO2 emissions [7]. Instead of steel, aluminum alloys are often used due to their low density and high ratio between strength and modulus of elasticity [3]. Aluminum alloys of the series 5xxx and 6xxx are mainly used for the body-in-white [3,4,8].
The RSW of steel has been researched much longer and much more intensively than that of aluminum. This is also reflected in the understanding of the behavior of the total dynamic electrical resistance and the respective resistance components (volume and surface). In RSW, the dynamic resistance is one of the most important influencing variables and has a significant impact on the quality of the welded joint and the formation of the spot diameter [9,10]. The dynamic resistance consists of the contact resistance at all contact surfaces of the workpieces and the electrodes, the bulk resistance of the workpieces and electrodes, and the system resistance of the welding machine. The dynamic resistance changes during welding and behaves differently depending on the workpiece material. A characteristic feature of aluminum is the steadily decreasing dynamic resistance during welding, which differs from steel (Ref. [11,12] cited from [13]). There are many studies on the resistance of steel [14,15,16], whereas little is known about this for aluminum alloys. In particular, very little is known about the division of the total electrical resistance (dynamic resistance Rdyn) into its components of contact resistance Rcont and bulk resistance Rbulk of the bulk material. One of the differences between aluminum and steel is the lower bulk resistance of aluminum, which necessitates the generation of a great proportion of heat through the contact resistance when welding aluminum. Due to the collapse of the contact resistance during welding [3], no significant heat can be generated due to the low bulk resistance of aluminum, which is why short welding times with high amperages are necessary. When welding aluminum, the amperages are approximately twice as high as with steel, which is also due to the higher thermal conductivity of aluminum [3]. The dynamic resistance is therefore a dynamic variable and changes over the welding time. The dynamic resistance is also referred to as total resistance [17,18,19] or transition resistance [20]. In this paper, the dynamic resistance is referred to as the total resistance Rtot (or R) if the dynamic resistance is considered at a specific point in time, e.g., at the beginning of a weld.
The division of the total resistance into contact and bulk resistance is of particular interest, as large, sometimes inexplicable fluctuations occur in the RSW of aluminum. For this purpose, the total resistance of aluminum sheets (EN AW-6016) of different thicknesses was measured at the Materials Testing Institute of the University of Stuttgart (MPA) in accordance with data sheet DVS 2929-1 [20]. According to the data sheet, these sheets all had the same surface configuration (passivation, dry lubricant, roll texturing). However, these measurements yielded unexpected results (see Figure 1). The total resistance varies greatly and it appears that the total resistance does not depend on the sheet thickness. A thorough exposition of the measurements and the measurement method employed is provided in the ensuing chapters.
Nowadays, the dynamic resistance is determined by many welding control systems during welding. This resistance curve can be used to control steel but not aluminum. The qualitative progression of steel and aluminum can be seen in Andrews et al. (Ref. [12] cited from [13]). However, a division into contact and bulk resistance is not possible with the welding controller. Numerical simulation models taking assumptions into account [21] can realize this division into the respective resistance components. However, an experimental determination of the resistance components during welding is not known in the literature.
In the initial state, the total resistance of one or two sheets can be determined experimentally according to DVS data sheet 2929-1 [20] or DIN EN ISO 18594 [22]. This only allows the total resistance to be determined, but not the contact or bulk resistance. In this study, an approach is shown how the resistance components in the initial state of the sheet can be determined using experiments and numerical simulation.
The aim of this study is to determine the contact and bulk resistance as well as their ratio to the total resistance in the initial state of an aluminum sheet. Although there are measurement data of contact resistance or bulk resistance, which were determined separately from each other, a measurement of both resistance components of the same material batch for a quantitative comparison is not available in the literature. In addition to the qualitative, theoretical comparison of the resistance components (Ref. [12] cited from [13]), there is also the possibility of simulative comparison [21], which, however, can only represent real conditions to a limited extent. The study shown here is intended to demonstrate a way of determining real sheet metal by measurement and comparing it with simulative support so that a quantitative comparison of a real sample can be carried out. In addition, the aim is to create a basis for characterizing different sheets in order to analyze their measurement data in future work using AI methods and to identify the influence of the initial condition on the welding behavior and welding quality.

2. Materials and Methods

This chapter describes two experimental setups to characterize aluminum alloy sheets. One setup can be used to determine the total resistance, the other the bulk resistance. The sheet material investigated were the alloy EN AW-5182-O and EN AW-6014-T4, which are typically used in body-in-white (see Table 1 for the chemical composition of the alloys). All aluminum sheets used in this work have an EDT surface (Electron Discharge Texturing), a TiZr passivation layer, and the dry lubricant “Multidraw Drylube E1”. Finally, the comparability of the measured values is discussed.

2.1. Measurement of the Total Resistance

In RSW, at least two sheets are welded together. As shown in Figure 2, the total resistance is made up of the bulk resistance and the contact resistance. Using two sheets, the bulk resistance includes the resistances R1 and R7 for the electrodes and the resistances R3 and R5 for the sheets. The contact resistances include the resistances R2 and R6 between the electrodes and the sheets and the resistance R4 for the contact surface between the sheets. A single sheet measurement was selected here to characterize the sheet material. This eliminates the contact resistance R4 between the sheets and the bulk resistance R5 of the second sheet.
A standardized method was used to characterize an aluminum sheet according to DVS 2929-1 [20]. The measurements were conducted using a force of 7.5 kN and a measuring current of 10 A. The sample geometry is 100 mm × 50 mm, and the samples were cut with guillotine shears. To characterize a single batch, five sheets were always measured one after the other. Seven measurements were carried out on each sheet at different positions on the sheet (see DVS data sheet 2929-1), i.e., the mean value was ultimately calculated from 35 measured values per batch. The test setup for determining the total resistance can be seen in Figure 3. The tests were carried out on a Zwick Roell 10 kN universal testing machine with an electrode setup and an ohmmeter RESISTOMAT 2304 from Burster.

2.2. Measurement of the Bulk Resistance

The test setup, as shown in Figure 4, was used to measure the bulk resistance Rbulk of the samples. The ohmmeter RESISTOMAT 2304 from Burster (Gernsbach, Germany) was used for this purpose. An eroded aluminum sample is provided with current contacts, voltage taps, and thermocouples and is then heated in a vacuum oven (see Figure 4 and Figure 5). The measuring current used is 1 A. The resistance and temperature are measured continuously during heating. This allows the calculation of the temperature-dependent specific resistance. An oven would not have been necessary to determine the bulk resistance at room temperature. However, the bulk resistance was measured up to over 500 °C in order to use the measurement data also for advanced simulations, such as RSW process simulations, and to be able to apply the method presented here in future investigations at higher temperatures. However, only the measurement data at room temperature are used in this work.

2.3. Comparability of the Experimental Data

The geometries and test conditions of the two measurements provide different information. The latter test is suitable for determining the bulk resistance of the aluminum samples. The first test determines the total resistance, which includes bulk and contact resistance. With the help of these two complementary tests, the total resistance Rtot and the bulk resistance Rbulk are now available. However, these are limited to the sample geometry used in each case, since the current flow behaves differently depending on the sample geometry (see Figure 6). A uniform, standardized sample geometry that can be used for both measurement methods cannot be found in the standards.
When measuring the bulk resistance, a narrow sample geometry was selected (L × W × s = 150 mm × 10 mm × s) in order to obtain a current flow through the entire cross-sectional area of the sample. This assumption can represent a potential source of error if the current does not require the entire sample cross-section for the current flow. However, with this assumption, the specific bulk resistance Rbulk,spec can be calculated from the absolute bulk resistance Rbulk,abs. The current flows parallel to the long side L.
When measuring the total resistance, the sample geometry was selected using the standardized method according to DVS 2929-1 [20] and DIN EN ISO 18594 [22] (L × W × s = 100 mm × 50 mm × s). Here, analogous to the RSW, the sheet lies perpendicular to the electrode tips so that the current flows in the direction of the sheet thickness s. A current density distribution occurs due to the geometry at the contact surface between the electrode and the sheet. This means that the current flow path does not have to be directly vertical, but the paths may well be curved (see gray arrows in Figure 6). The exact area or volume through which the current flows is not known in detail. However, as the measured total resistance depends on the volume through which the current flows, it is not possible to convert the absolute total resistance into a specific one, or only with a great deal of effort. Therefore, the measured total and bulk resistances cannot simply be offset against each other using the equation Rcont = Rtot − Rbulk.
To illustrate the aforementioned, two different fictitious and oversimplified hypotheses were drawn up to show the two extremes (see Figure 7). The first hypothesis assumes that the current flows directly from the upper to the lower electrode tip without changing the cross-sectional area of the current flow. In the second hypothesis, the current flows through the entire cross-sectional area of the sheet. For this purpose, the sample geometry of the total resistance measurement is used and the measured specific bulk resistance is converted into the absolute bulk resistance using the hypotheses.
The hypotheses were tested on both alloys, with the results illustrated in Figure 8. The total resistance is the measured total resistance. The measured specific bulk resistance Rbulk,spec was converted to an absolute bulk resistance according to the respective hypothesis using the following formula:
R b u l k , a b s =   R b u l k , s p e c × L A
The results show that the bulk resistance of hypothesis 2 yields very low values (bulk resistance ≈ 0) and therefore, a negligible bulk resistance should be assumed. In the case of hypothesis 1, a bulk resistance is calculated for E AW-6014 that is greater than the measured total resistance. This is not physically possible. As both hypotheses do not reflect reality, the truth lies between the two hypotheses. Consequently, a methodology is now being sought that would enable the true current density distribution and the resulting resistance of the geometric arrangement to be determined and taken into account.

2.4. Combined Method (Experiment and Simulation)

As shown in the previous chapter, the measurement results of the two test setups cannot be easily compared. For this reason, a procedure will be developed in this study that takes the different test conditions into account and determines the contact resistance based on the difference between the resistances.
An analytical approach does not lead to a solution without in-depth physical knowledge of the current flow. A simulation model was therefore created in order to compare the measurement data. The aim is to use the simulation to calculate the absolute bulk resistance based on the specific bulk resistance (see Figure 9). For this purpose, a bulk resistance measurement is simulated with the test boundary conditions of the total resistance setup.
A three-dimensional (3D) fully coupled thermal–electrical–structural model with the hexahedral mesh element type Q3D8 was set up in Abaqus 2018 for this purpose (see Figure 10). The finite element model (FEM) reflects the test setup of the total resistance measurement. This includes two electrode tips and a metal sheet. The measuring current Iin and the electrode force F were selected analogously to the total resistance measurement. As the material properties can affect the simulation result, the aim was to use the material properties as close as possible to the sample alloy. The specific electrical conductivity of the sheet σel,Sh comes from the bulk resistance test, as the conductivity can be calculated from the specific bulk resistance. Young’s modulus was taken from the literature [25,26]. The contact resistances Rcont between the electrode and the sheet were set to almost zero, so that the model only considers the bulk resistances. Abaqus does not allow a contact resistance of exactly zero, so the resistance was set to a very small value (Rcont,spec = 10−15 Ω × mm2). A sensitivity analysis was used to check and prove that this value is small enough and does not negatively affect the simulation result. The simulation result provides the electrical potential Uout. The absolute bulk resistance can be calculated using Ohm’s law R = U/I.

3. Results and Discussion

Figure 11 shows the results of five sheets of EN AW-6014 alloy with a sheet thickness of 3 mm from the same batch. The fluctuations on each sheet can be seen, which vary in size. The fluctuations can be caused by contamination, as the sheets were not cleaned before the measurement to ensure production conditions. Scratches or other surface damage also affect the measurement result. Special care was taken during the measurements to ensure that sheets with clearly visible scratches and contamination were not measured. Seven individual measurements were carried out on each sheet, which are represented by the scatter bar. The total resistance calculated from the mean value of the five sheets (blue bar) gives the characteristic total resistance for a single material batch.
These measurements were carried out for the sheet thicknesses of 1.0–1.5–2.0–2.5–3.0 mm of EN AW-5182 and EN AW-6014 alloys. The results are shown in Figure 12. The measurement results agree with the findings of Eichhorn et al. (Ref. [27] cited from [11]), where the total resistances of passivated sheets were less than 30 µΩ. In the resistances measured here, no apparent dependence between the sheet thickness and the total resistance is recognizable. This means that the bulk resistance cannot have the main influence on the total resistance because the bulk resistance increases with increasing sheet thickness and there is no monotonic increase in the total resistance with increasing sheet thickness. From this it can be concluded that it is mainly the contact resistance that influences the total resistance. This can depend on many factors, such as oxide layer, passivation, dry lubricant, sheet storage time, sheet rolling direction, etc. Therefore, the results shown here only apply to this specific measured batch at the respective time of measurement and cannot be transferred to other sheets, even if they are made of the same alloy.
The simulation described above can now be used to calculate the absolute bulk resistance Rbulk,abs. This allows the absolute contact resistance Rcont,abs to be calculated using the following equation:
R c o n t , a b s =   R t o t , a b s   R b u l k , a b s
The absolute values of all three resistances are shown in Figure 13. It is evident that the contact resistance is significantly greater than the bulk resistance for both alloys. The method also shows that the contact resistance of EN AW-5182 is higher than that of EN AW-6014 for almost all sheet thicknesses shown here. However, the method cannot provide an explanation for the different resistance behavior. Further investigations are necessary to explain these differences.
The resistance percentages for each sheet thickness are shown in Figure 14. It is clear that the bulk resistance for EN AW-6014 accounts for less than 20% of the total resistance and for EN AW-5182 even less than 10%.
As the results show, at the beginning of a weld, the contact resistance is the dominant resistance component of the total resistance. This has been confirmed qualitatively several times in the literature [3,11,13,21]. However, the exact proportion of resistance can also be determined quantitatively using the method presented here. This makes it possible to determine whether the material in question contains a pronounced oxide layer or a passivation layer if the passivation is unknown. According to Eichhorn et al. (Ref. [27] cited from [11]), the contact resistances without a passivation layer are significantly higher due to the oxide layer. Fluctuations in the contact resistance are already apparent with the measurement of the total resistance due to the low proportion of bulk resistance, which is significantly lower with passivated sheets than with unpassivated sheets (Ref. [3,27] cited from [11]).

4. Conclusions

Experimental tests were carried out to determine the total resistance and the bulk resistance of the aluminum alloy EN AW-5182 and EN AW-6014. An analytical comparison of the two measurement results is not possible due to the different sample shapes and the lack of knowledge about the current flow propagation. Therefore, a simulation model was set up to be able to compare the measurement results with each other. This method, encompassing two experimental tests and a simulation model, has the following characteristics:
  • The total resistance can be divided into bulk and contact resistance in the initial state before welding;
  • The resistance division only applies to the initial state of a sheet metal;
  • Easy to use, but time-consuming (two different experiments and one simulation);
  • It can also be applied at higher temperatures if measurement data are available;
  • It can also be applied for other electrically conductive materials, such as steel, provided measurement data are available;
  • Cannot be applied for non-conductive materials;
  • The quality of the results is only as good as the quality of the measurement data;
  • It does not provide information on the resistance components regarding welding behavior.
The method demonstrated that the contact resistance before welding (in the initial state of a sheet metal) is significantly greater than the bulk resistance. With the help of this method, the influence of surface conditions, such as oxide layer, impurities, or surface roughness, can also be investigated more precisely in future work. To obtain information at higher temperatures, experimental data at higher temperatures are required. In order to draw conclusions about the welding process, the use of AI methods is sought. The characterization data must be linked to the welding process data and made accessible to AI.
In order to avoid the use of simulations to compare measurement data, it would make sense to design a standardized sample geometry for both measurement methods in future research. This would simplify the comparison of measurement data enormously and save time and resources.

Author Contributions

Conceptualization, A.F. and M.W.; methodology, A.F.; software, A.F.; validation, A.F.; formal analysis, A.F.; investigation, A.F.; data curation, A.F.; writing—original draft preparation, A.F.; writing—review and editing, M.W. and A.F.; visualization, A.F.; supervision, M.W. and S.W.; project administration, A.F. and M.W.; funding acquisition, S.W., A.F. and M.W. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the German Federal Ministry for Economic Affairs and Energy (BMWE) on the basis of a decision by the German Bundestag within the scope of the “Technologietransfer-Programm Leichtbau”, (FKZ: 03LB1009A).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Dilthey, U. Schweißtechnische Fertigungsverfahren 1 [Welding Manufacturing Processes 1]: Schweiß- und Schneidtechnologien [Welding and Cutting Technologies], 3rd ed.; Springer: Berlin/Heidelberg, Germany, 2006. [Google Scholar]
  2. European Parliament Regulation (EU) 2019/631 of the European Parliament and of the Council of 17 April 2019: Setting CO2 Emission Performance Standards for New Passenger Cars and for New Light Commercial Vehicles, and Repealing Regulations (EC) No 443/2009 and (EU) No 510/2011. Available online: https://eur-lex.europa.eu/legal-content/EN/ALL/?uri=CELEX%3A32019R0631 (accessed on 3 June 2024).
  3. Ostermann, F. Anwendungstechnologie Aluminium [Application Technology Aluminum], 3rd ed.; Springer: Berlin/Heidelberg, Germany, 2014. [Google Scholar]
  4. Friedrich, H.E. Leichtbau in der Fahrzeugtechnik [Lightweight Construction in Automotive Engineering], 2nd ed.; Springer: Wiesbaden, Germany, 2017. [Google Scholar]
  5. Hirsch, J. Aluminium in Innovative Light-Weight Car Design. Jpn. Inst. Met. Mater.-Mater. Trans. 2011, 52, 818–824. [Google Scholar] [CrossRef]
  6. Tisza, M.; Czinege, I. Comparative study of the application of steels and aluminium in lightweight production of automotive parts. Int. J. Lightweight Mater. Manuf. 2018, 1, 229–238. [Google Scholar] [CrossRef]
  7. Emadi, P.; Andilab, B.; Ravindran, C. Engineering Lightweight Aluminum and Magnesium Alloys for a Sustainable Future. J. Indian Inst. Sci. 2022, 102, 405–420. [Google Scholar] [CrossRef]
  8. Gould, J.E. Joining Aluminum Sheet in the Automotive Industry—A 30 Year History. Weld. Res. 2012, 91, 23–34. [Google Scholar]
  9. Thornton, P.H.; Krause, A.R.; Davies, R.G. Contact Resistances in Spot Welding. Weld. Res. Suppl. 1996, 75, 402–412. [Google Scholar]
  10. Hamm, K.J. Beitrag zur Qualitätssicherung durch Analyse des Widerstandspunktschweißprozesses beim Fügen von Aluminiumwerkstoffen [Contribution to Quality Assurance by Analyzing the Resistance Spot Welding Process When Joining Aluminum Materials]. Ph.D. Dissertation, RWTH Aachen, Aachen, Germany, 1989. [Google Scholar]
  11. Leuschen, B. Beitrag zum Tragverhalten von Aluminum- und Aluminium/Stahl-Widerstandspunktschweissverbindungen bei verschiedenartiger Beanspruchung [Contribution to the Load-Bearing Behavior of Aluminum and Aluminum/Steel Resistance Spot Welded Joints Under Different Types of Stress]. Ph.D. Dissertation, RWTH Aachen, Aachen, Germany, 1984. [Google Scholar]
  12. Andrews, D.R.; Bhattacharya, S. Dynamic Resistance and Its Application to In-Process Control of Spot Welding. In Proceedings of the International Conference on Exploiting Welding in Production Technology, London, UK, 22–24 April 1975; pp. 221–227. [Google Scholar]
  13. Ma, Y.; Wu, P.; Xuan, C.; Zhang, Y.; Su, H. Review on Techniques for On-Line Monitoring of Resistance Spot Welding Process. Adv. Mater. Sci. Eng. 2013, 2013, 630984. [Google Scholar] [CrossRef]
  14. Dickinson, D.W.; Franklin, J.E.; Stanya, A. Characterization of Spot Welding Behavior by Dynamic Electrical Parameter Monitoring. Weld. Res. Suppl. 1980, 59, 170–176. [Google Scholar]
  15. Gedeon, S.A.; Eagar, T.W. Resistance Spot Welding of Galvanized Steel: Part II. Mechanisms of Spot Weld Nugget Formation. Metall. Trans. B 1986, 17B, 887–901. [Google Scholar] [CrossRef]
  16. Savage, W.F.; Nippes, E.F.; Wassell, F.A. Dynamic contact resistance of series spot welds. Weld. J. 1978, 57, 43–50. [Google Scholar]
  17. Biele, L.; Schaaf, P.; Schmid, F. Method for contact resistance determination of copper during fast temperature changes. J. Mater. Sci. Mater. Electron. 2021, 56, 3827–3845. [Google Scholar] [CrossRef]
  18. Aslanlar, S.; Ogur, A.; Ozsarac, U.; Ilhan, E. Welding time effect on mechanical properties of automotive sheets in electrical resistance spot welding. Mater. Des. 2008, 29, 1427–1431. [Google Scholar] [CrossRef]
  19. Han, Z.; Orozco, J.; Indacochea, J.E.; Chen, C.H. Resistance Spot Welding: A Heat Transfer Study: Real and simulated welds were used to develop a model for predicting temperature distribution. Weld. J. 1989, 68, 363–371. [Google Scholar]
  20. DVS 2929-1; Messung des Übergangswiderstands—Grundlagen, Messmethoden und -einrichtungen [Method for Determining the Transition Resistance—Basics, Measurement Methods and Set-Up]. DVS—Deutscher Verband für Schweißen und verwandte Verfahren e.V.: Düsseldorf, Germany; DVS Media GmbH: Düsseldorf, Germany, 2014.
  21. Piott, M.; Werber, A.; Schleuss, L.; Doynov, N.; Ossenbrink, R.; Michailov, V.G. Numerical and experimental analysis of heat transfer in resistance spot welding process of aluminum alloy AA5182. Int. J. Adv. Manuf. Technol. 2020, 111, 1671–1682. [Google Scholar] [CrossRef]
  22. DIN EN ISO 18594; Widerstandspunkt-, Buckel- und Rollennahtschweißen—Verfahren für das Bestimmen des Übergangswiderstands von Aluminium- und Stahlwerkstoffen [Resistance Spot-, Projection- and Seam-Welding—Method for Determining the Transition Resistance on Aluminium and Steel Material]. DIN—Deutsches Institut für Normung e. V., Beuth Verlag GmbH: Berlin, Germany, 2007.
  23. DIN EN 573-3; Aluminium und Aluminiumlegierungen—Chemische Zusammensetzung und Form von Halbzeug—Teil 3: Chemische Zusammensetzung und Erzeugnisformen [Aluminium and aluminium alloys—Chemical Composition and Form of Wrought Products—Part 3: Chemical Composition and Form of Products]. DIN—Deutsches Institut für Normung e. V., Beuth Verlag GmbH: Berlin, Germany, 2024.
  24. VDA 239-200; Flacherzeugnisse aus Aluminium [Aluminium Sheet Material]. Verband der Automobilindustrie e. V.: Berlin, Germany, 2017.
  25. Spittel, M.; Spittel, T. AlMg5Mn: Metal Forming Data-Non-Ferrous Alloys-Light Metals-Deformation Behaviour: Part 2: Non-Ferrous Alloys-Light Metals; Springer: Berlin/Heidelberg, Germany, 2011. [Google Scholar]
  26. Spittel, M.; Spittel, T. AlMg1SiCu: Metal Forming Data-Non-Ferrous Alloys-Light Metals-Deformation Behaviour: Part 2: Non-Ferrous Alloys-Light Metals; Springer: Berlin/Heidelberg, Germany, 2011. [Google Scholar]
  27. Eichhorn, F.; Emonts, M.; Leuschen, B. Widerstandspunktschweißen tiefziehfähiger Al-Werkstoffe [Resistance Spot Welding of Deep-Drawing Aluminium Materials]. Bänder Bleche Rohre 1980, 21, 464–468. [Google Scholar]

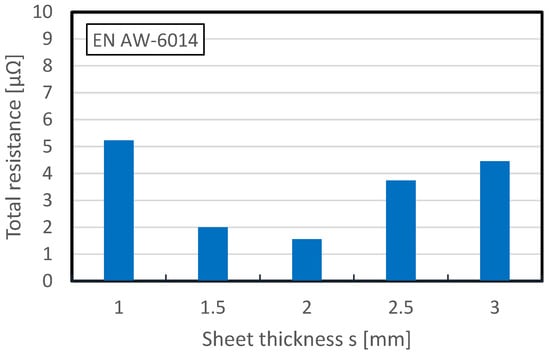

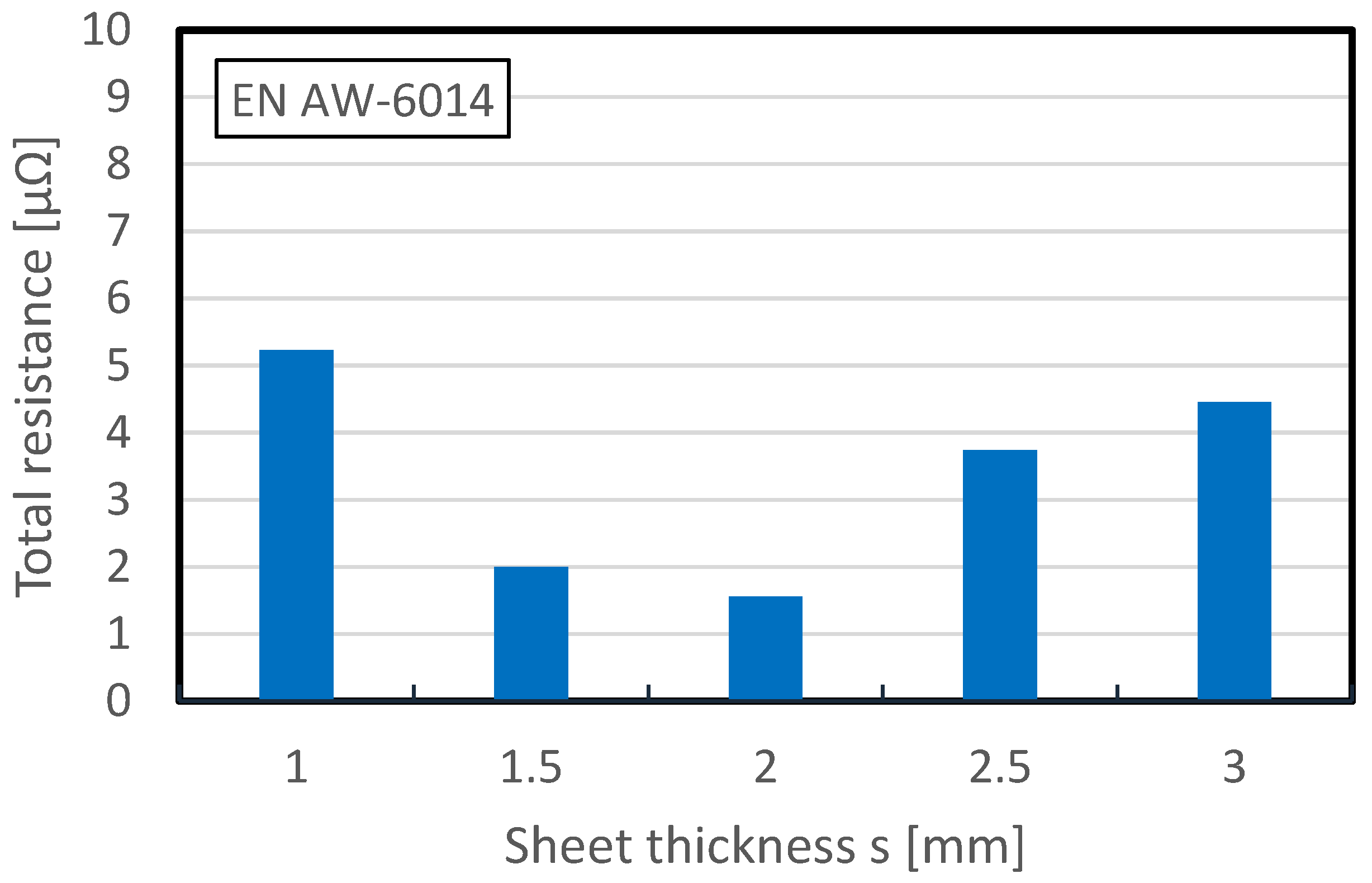

Figure 1. Total resistance for different sheet thicknesses.
Figure 1. Total resistance for different sheet thicknesses.
Jmmp 09 00266 g001

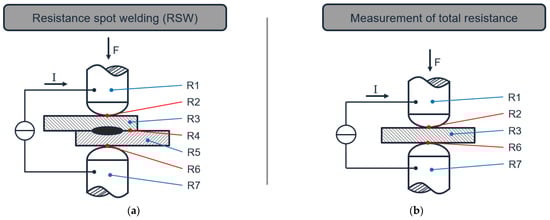

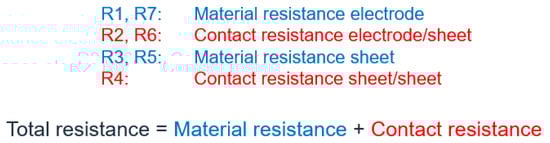

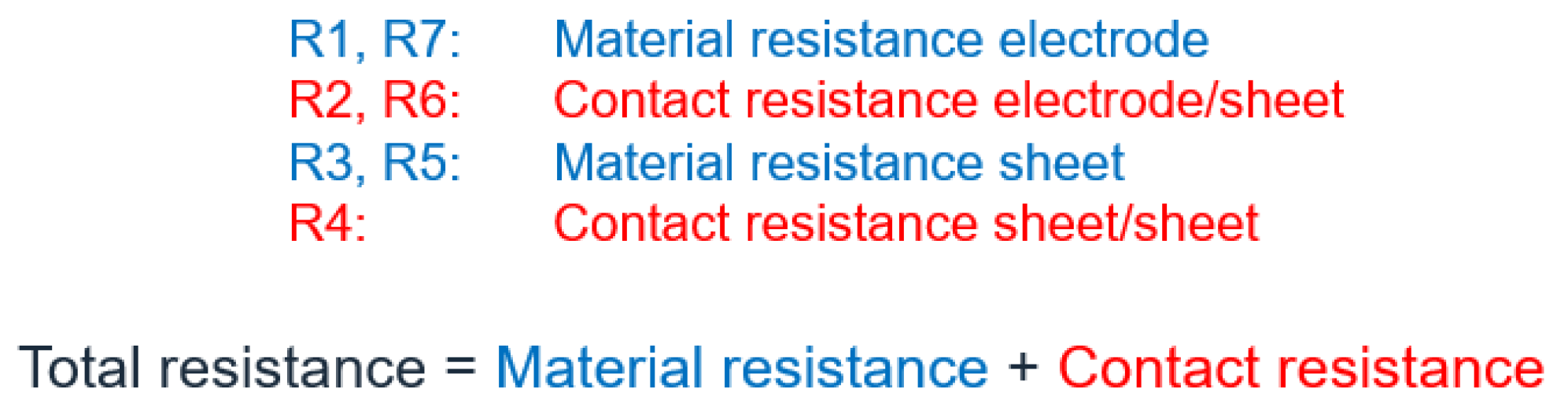

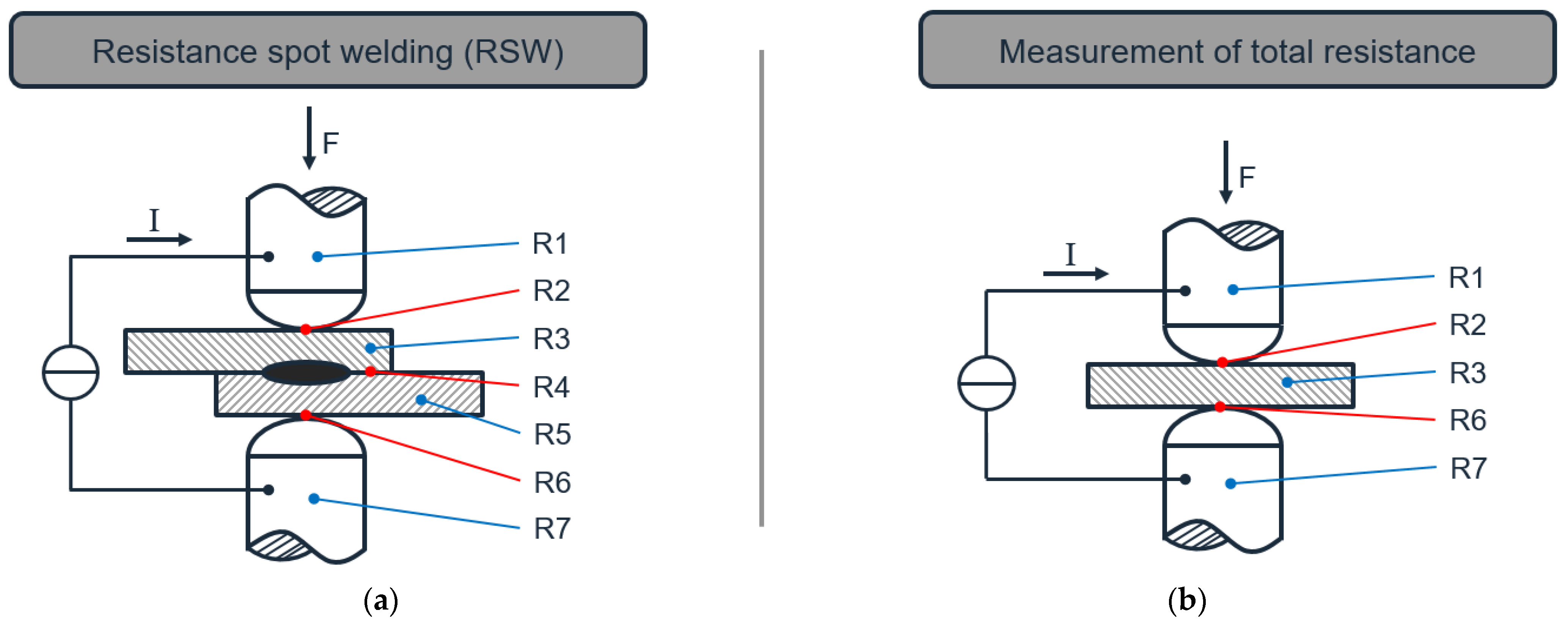

Figure 2. Resistance components in RSW (a) and in the determination of the total resistance of one sheet (b).
Figure 2. Resistance components in RSW (a) and in the determination of the total resistance of one sheet (b).
Jmmp 09 00266 g002aJmmp 09 00266 g002b

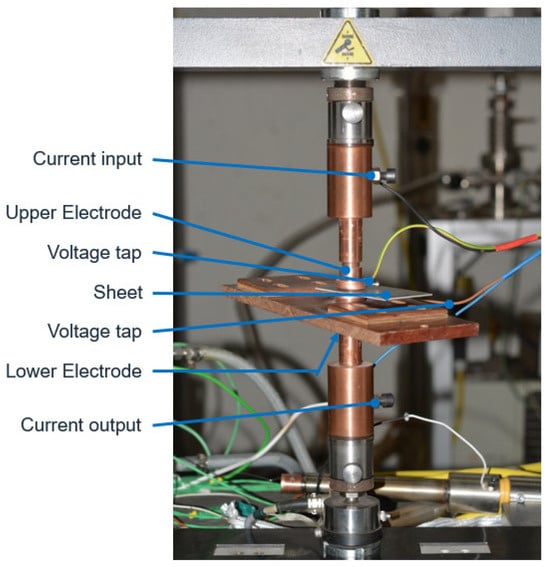

Figure 3. Test setup for measuring the total resistance of one sheet.
Figure 3. Test setup for measuring the total resistance of one sheet.
Jmmp 09 00266 g003

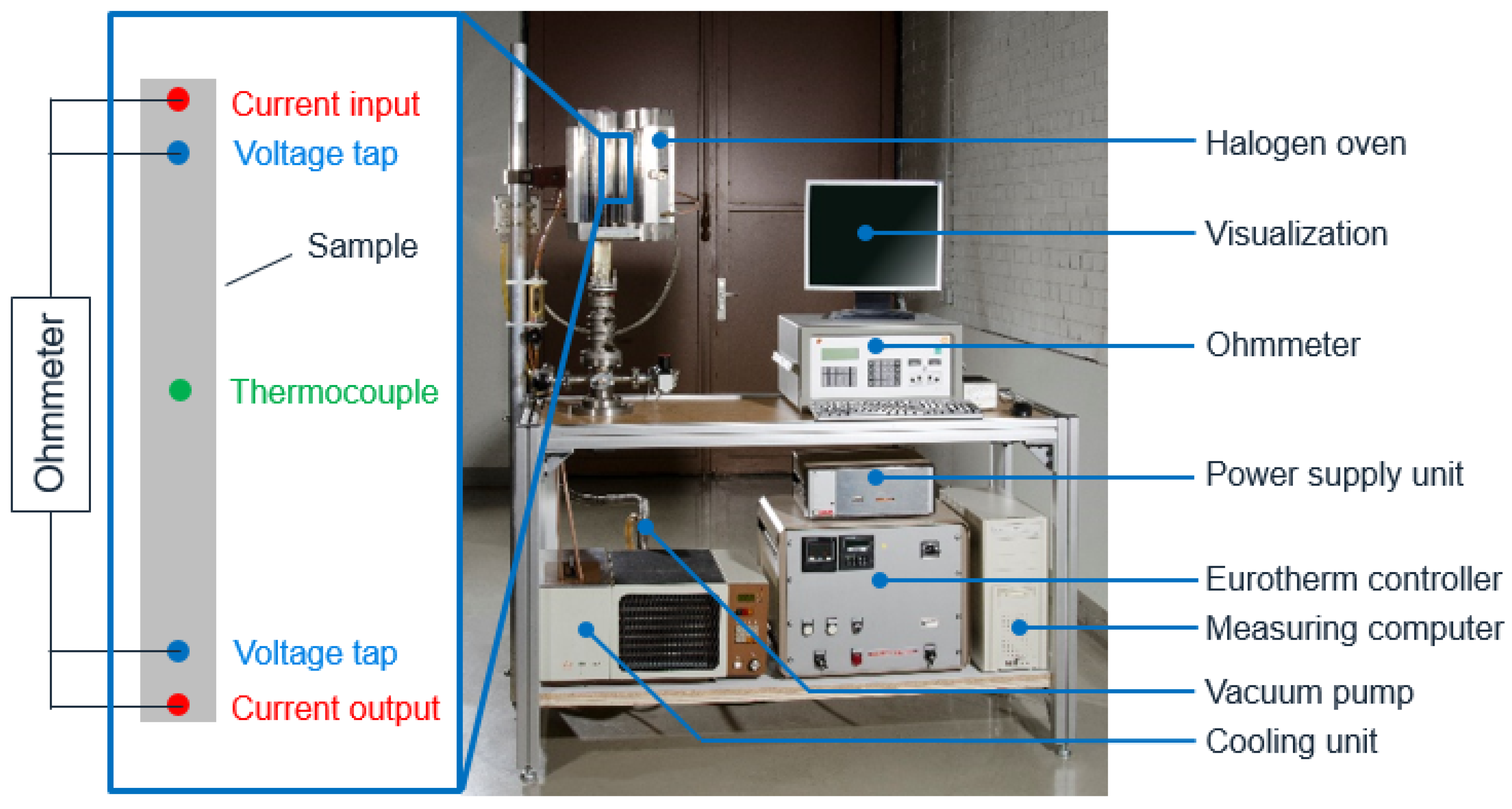

Figure 4. Test setup for measuring the bulk resistance.
Figure 4. Test setup for measuring the bulk resistance.
Jmmp 09 00266 g004

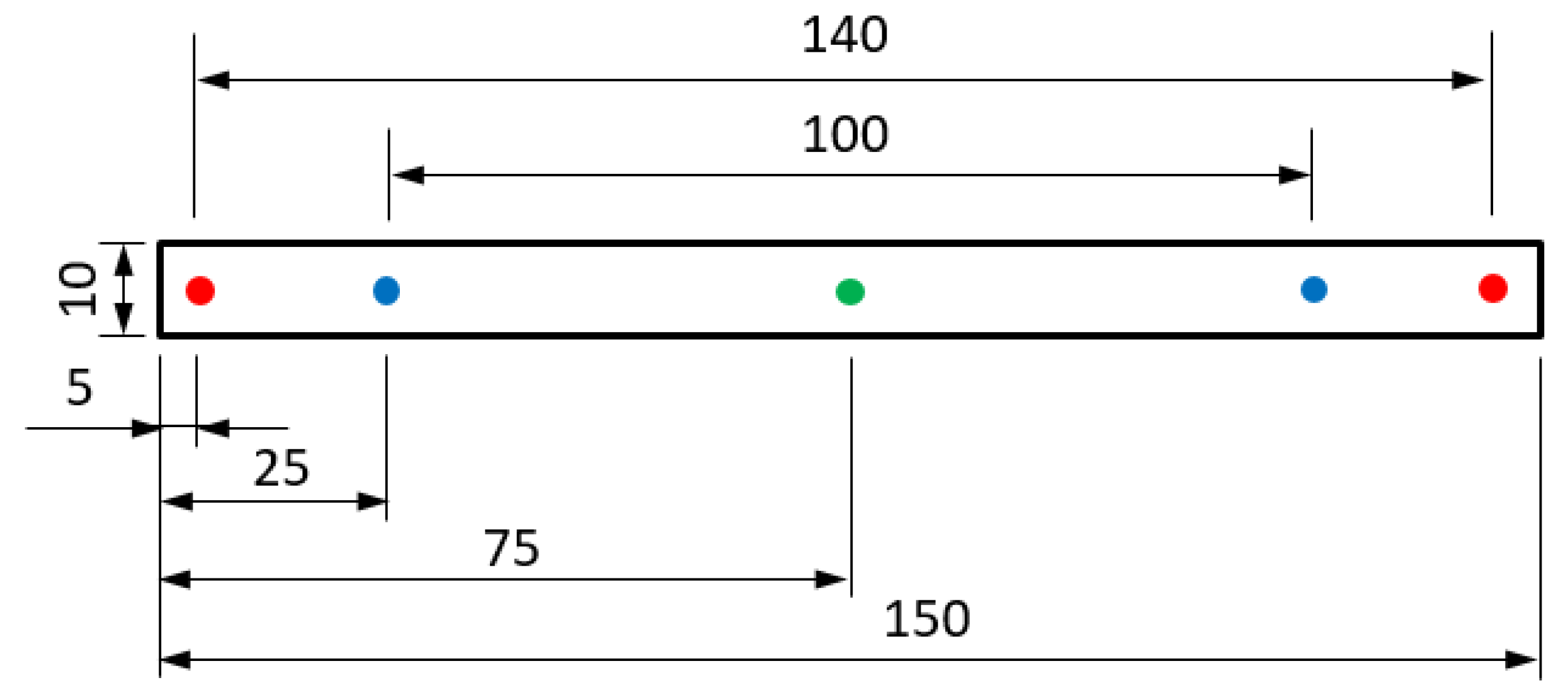

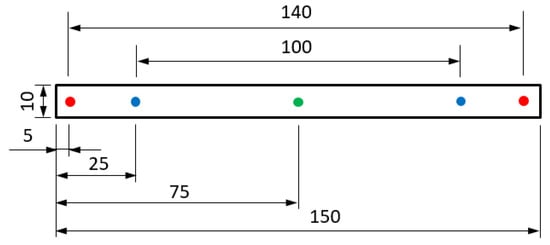

Figure 5. Sample for measuring the bulk resistance.
Figure 5. Sample for measuring the bulk resistance.
Jmmp 09 00266 g005

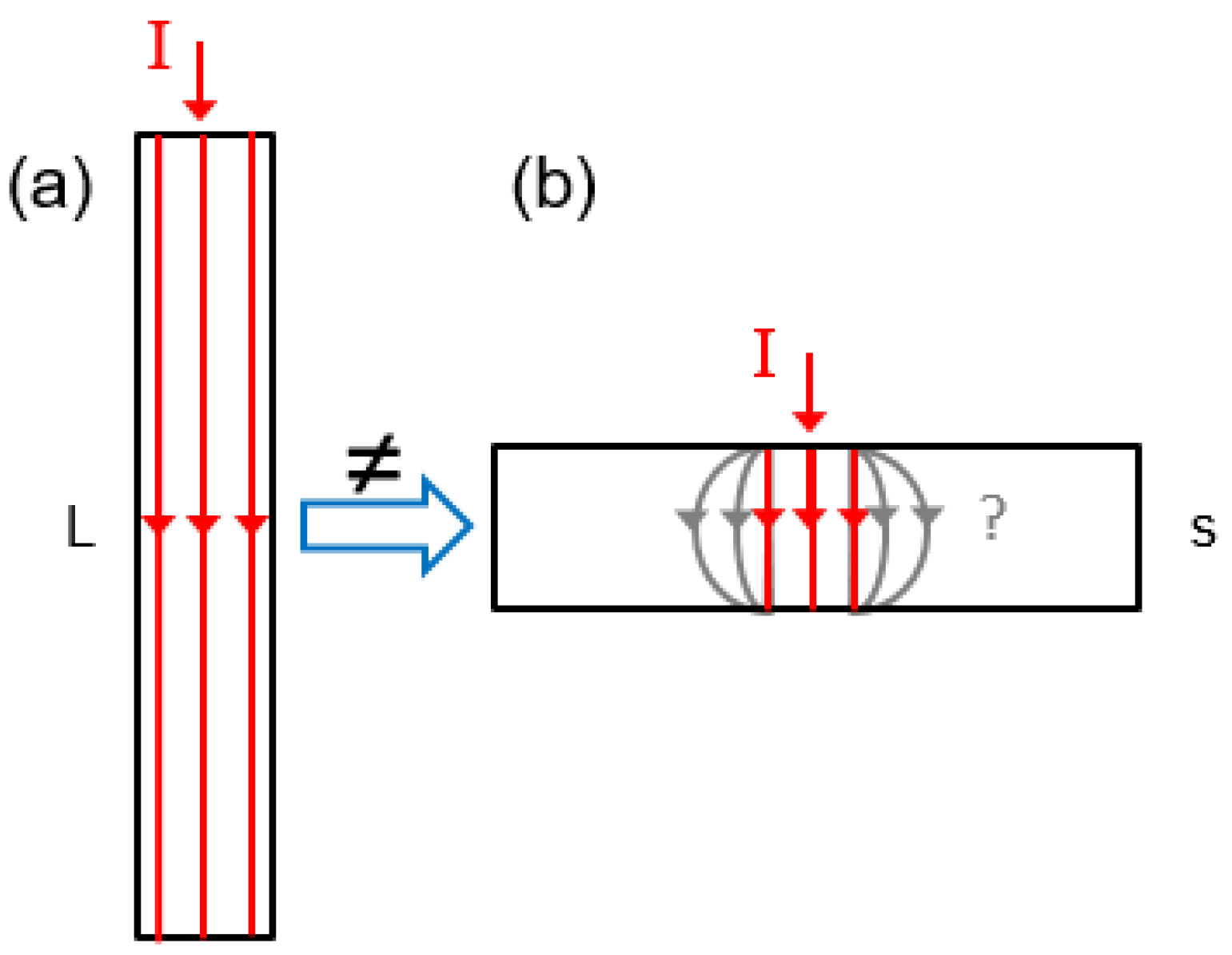

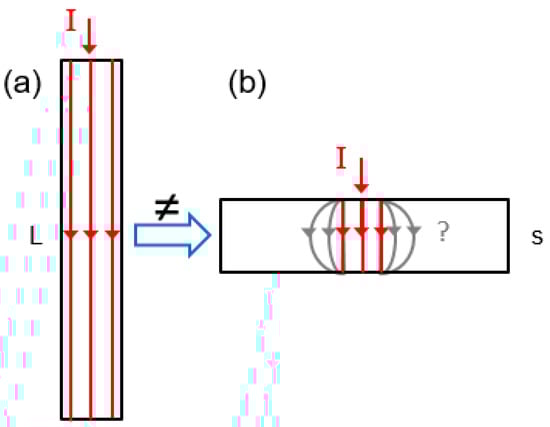

Figure 6. Different sample geometries of the two experimental measurements: (a) bulk resistance and (b) total resistance.
Figure 6. Different sample geometries of the two experimental measurements: (a) bulk resistance and (b) total resistance.
Jmmp 09 00266 g006

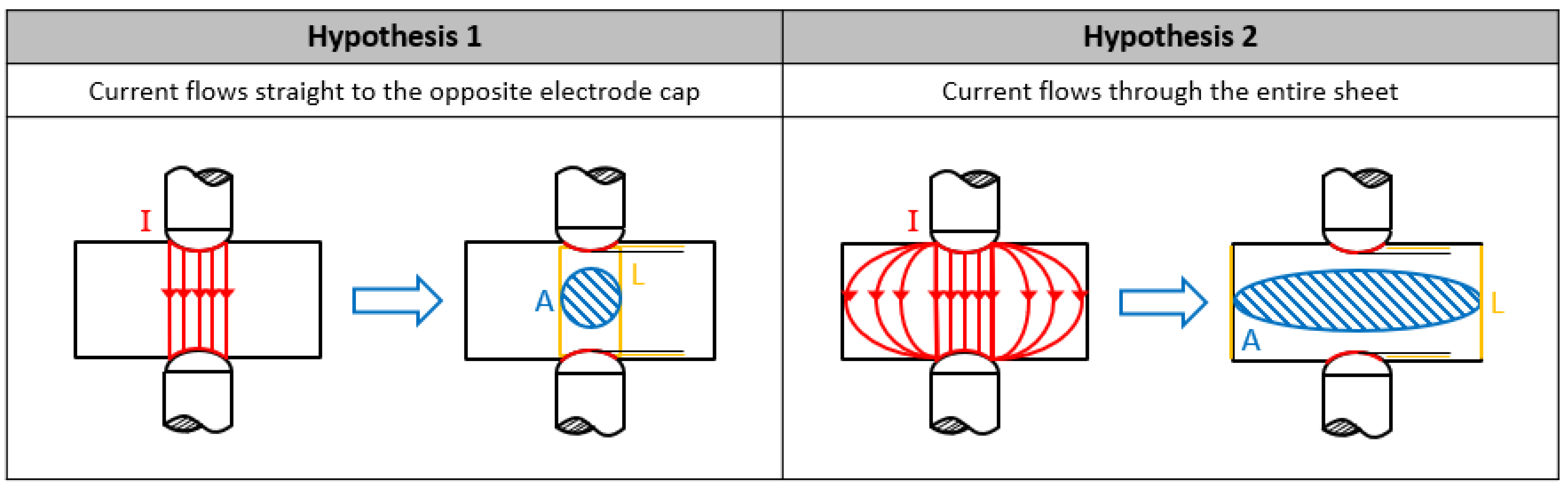

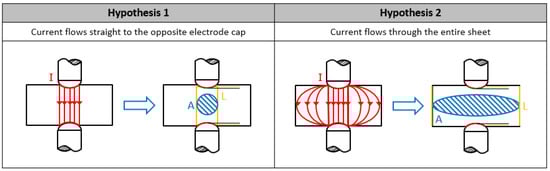

Figure 7. Two hypotheses for the analytical calculation of the absolute bulk resistance based on the sample for the total resistance measurement.
Figure 7. Two hypotheses for the analytical calculation of the absolute bulk resistance based on the sample for the total resistance measurement.
Jmmp 09 00266 g007

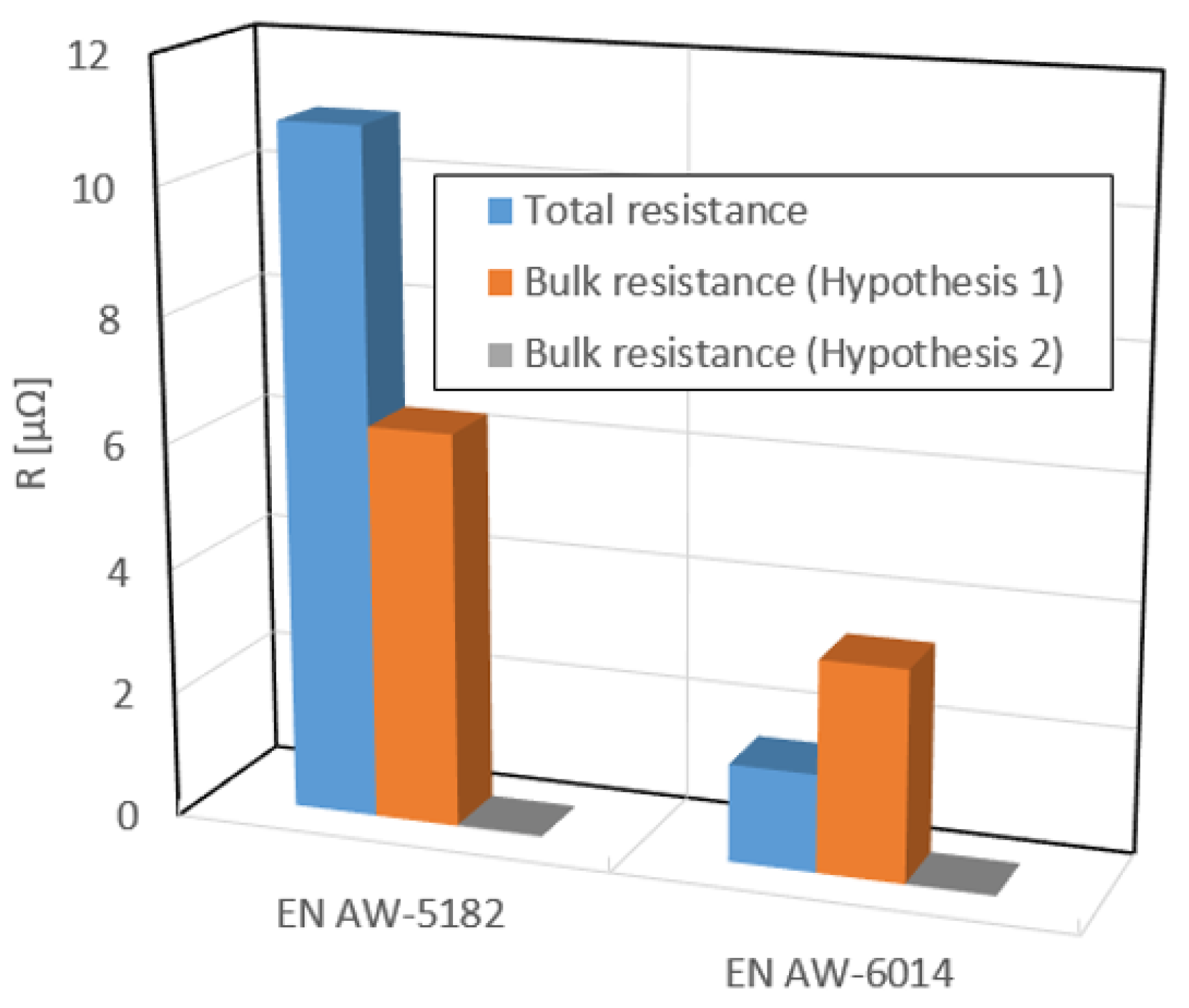

Figure 8. Measured total resistance and calculated bulk resistances using the two hypotheses.
Figure 8. Measured total resistance and calculated bulk resistances using the two hypotheses.
Jmmp 09 00266 g008

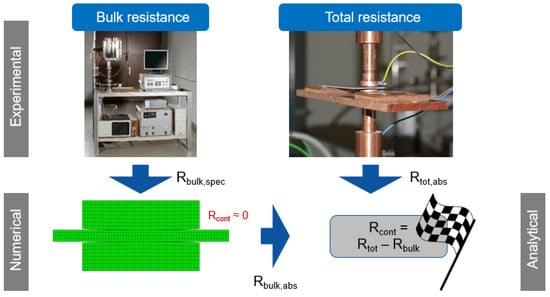

Figure 9. Schematic of the method with simulative aid.
Figure 9. Schematic of the method with simulative aid.
Jmmp 09 00266 g009

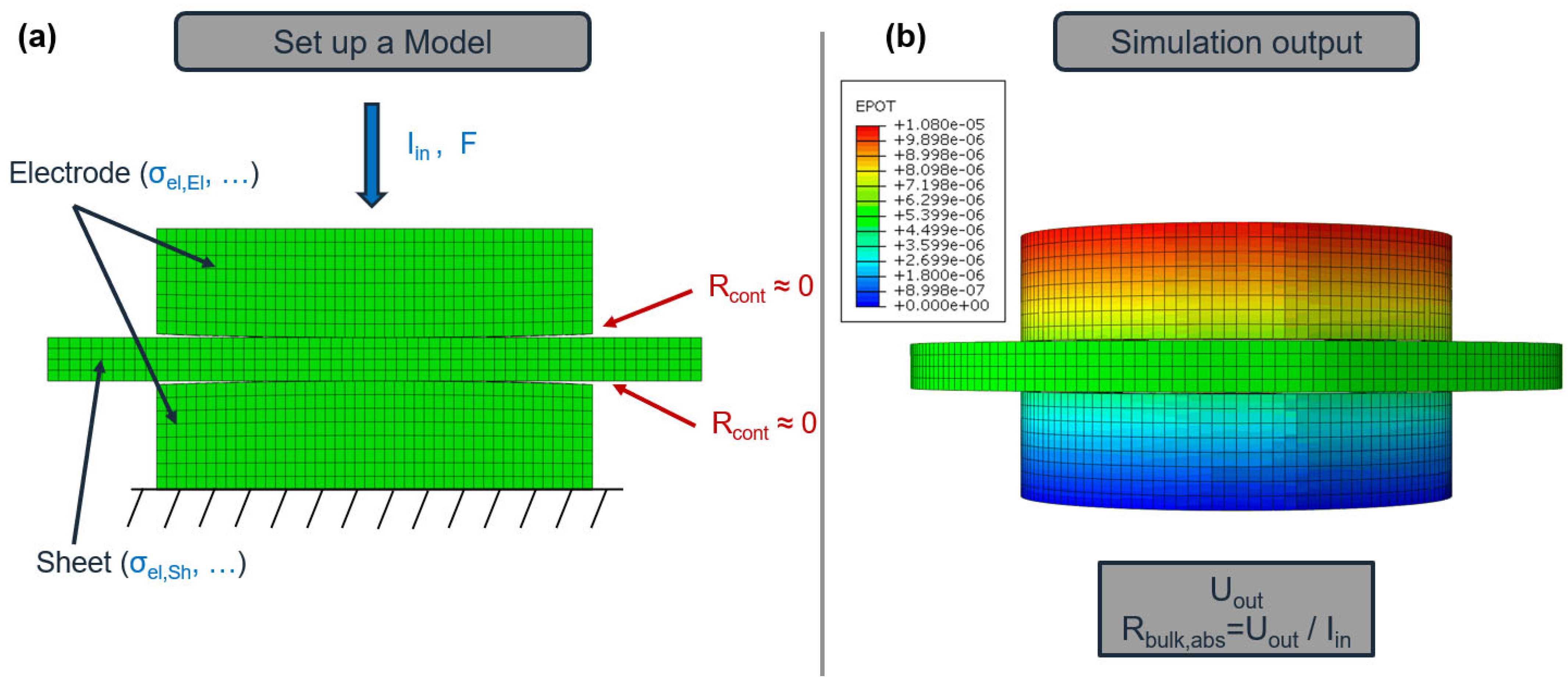

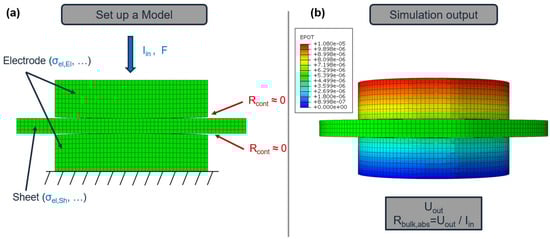

Figure 10. Model geometry (a) and exemplary potential distribution as simulation output (b) in Abaqus.
Figure 10. Model geometry (a) and exemplary potential distribution as simulation output (b) in Abaqus.
Jmmp 09 00266 g010

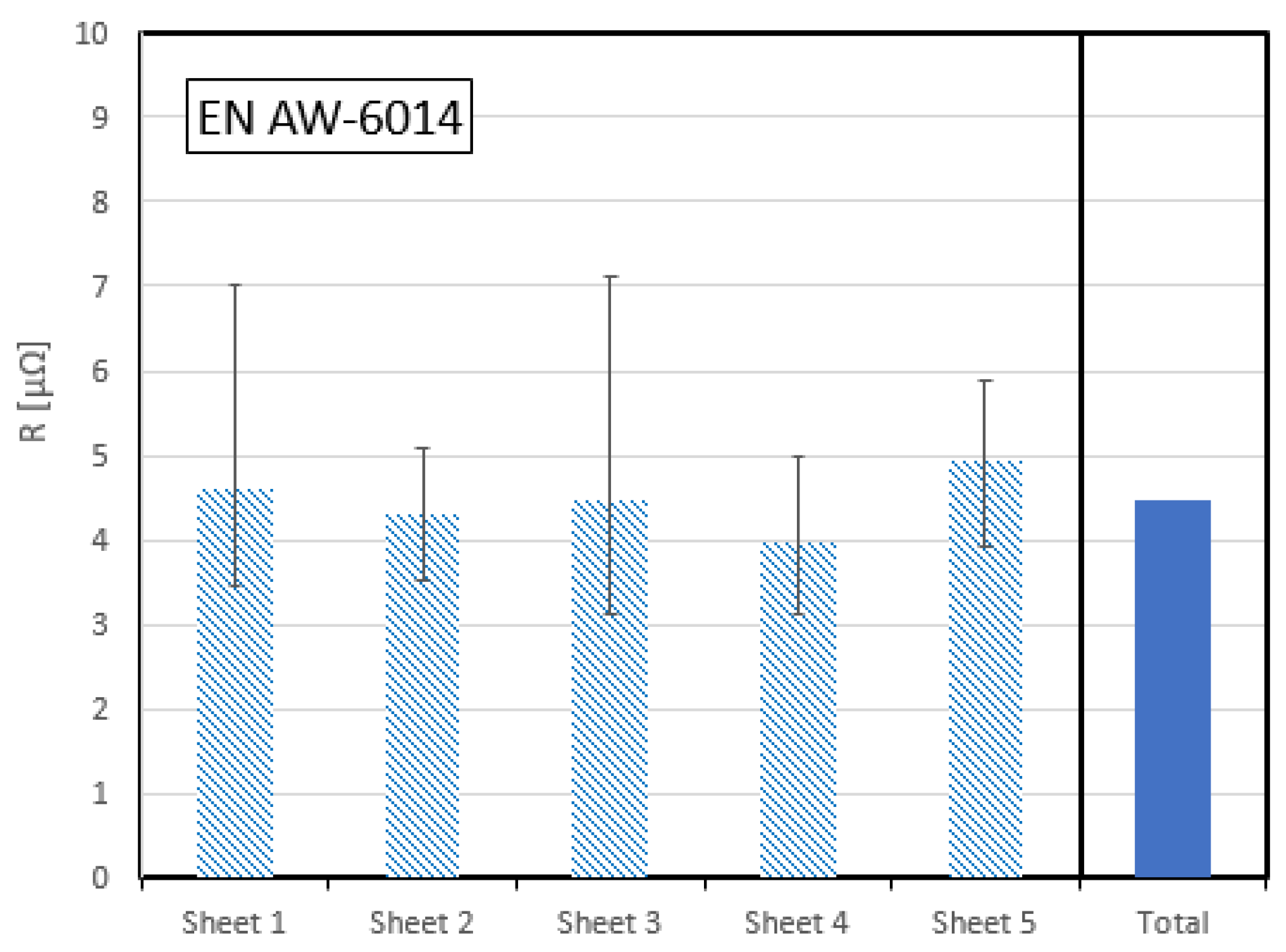

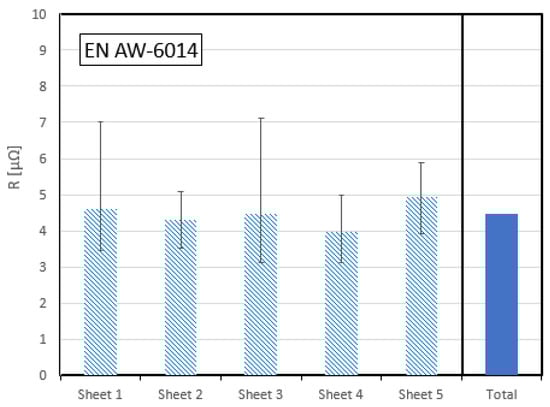

Figure 11. Total resistance of five sheets (blue hatched bars) and average value of all five sheets (blue bar) of alloy EN AW-6014 with a sheet thickness of 3 mm.
Figure 11. Total resistance of five sheets (blue hatched bars) and average value of all five sheets (blue bar) of alloy EN AW-6014 with a sheet thickness of 3 mm.
Jmmp 09 00266 g011

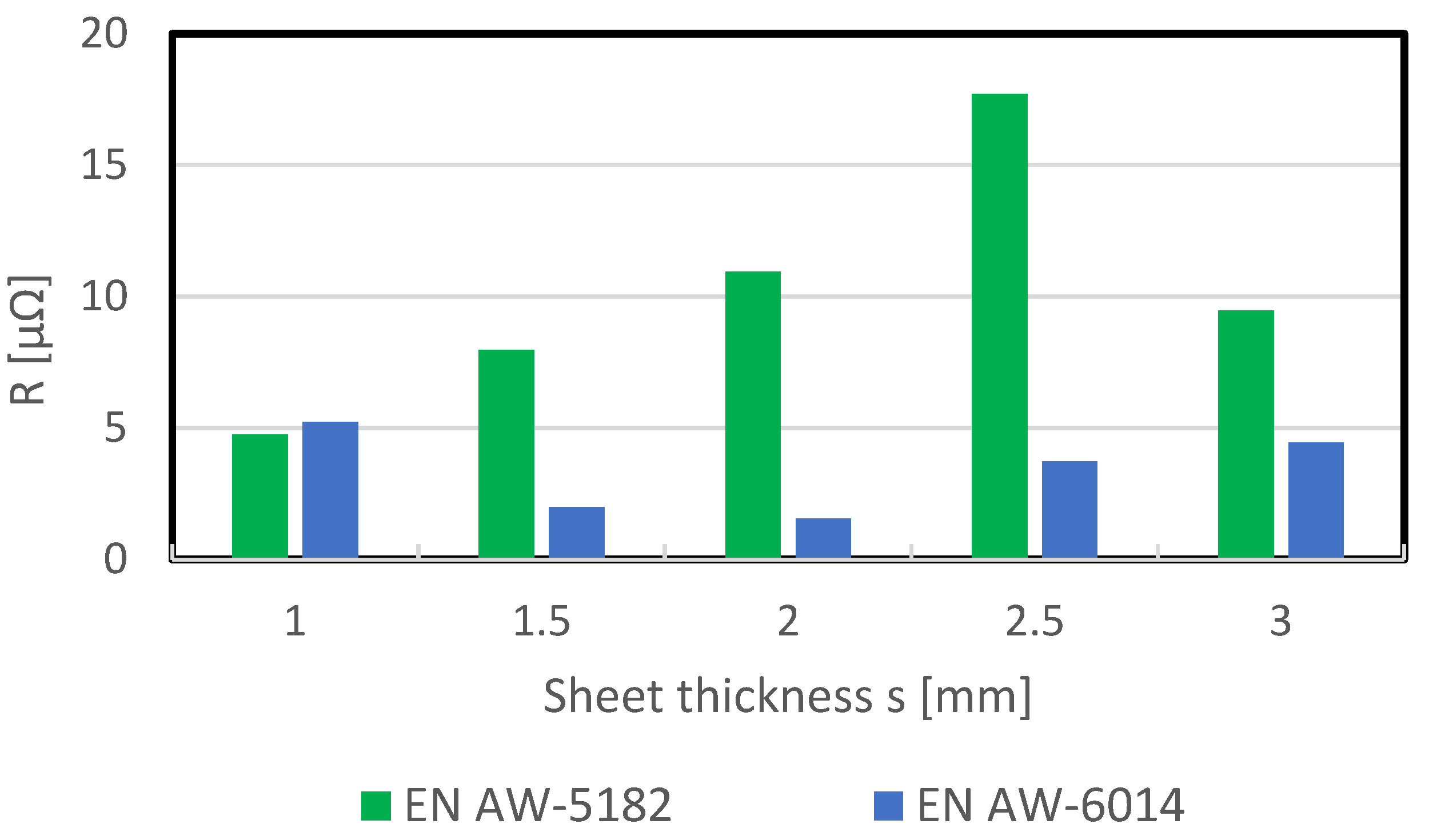

Figure 12. Measured total resistance for the alloys EN AW-5182 and EN AW-6014.
Figure 12. Measured total resistance for the alloys EN AW-5182 and EN AW-6014.
Jmmp 09 00266 g012

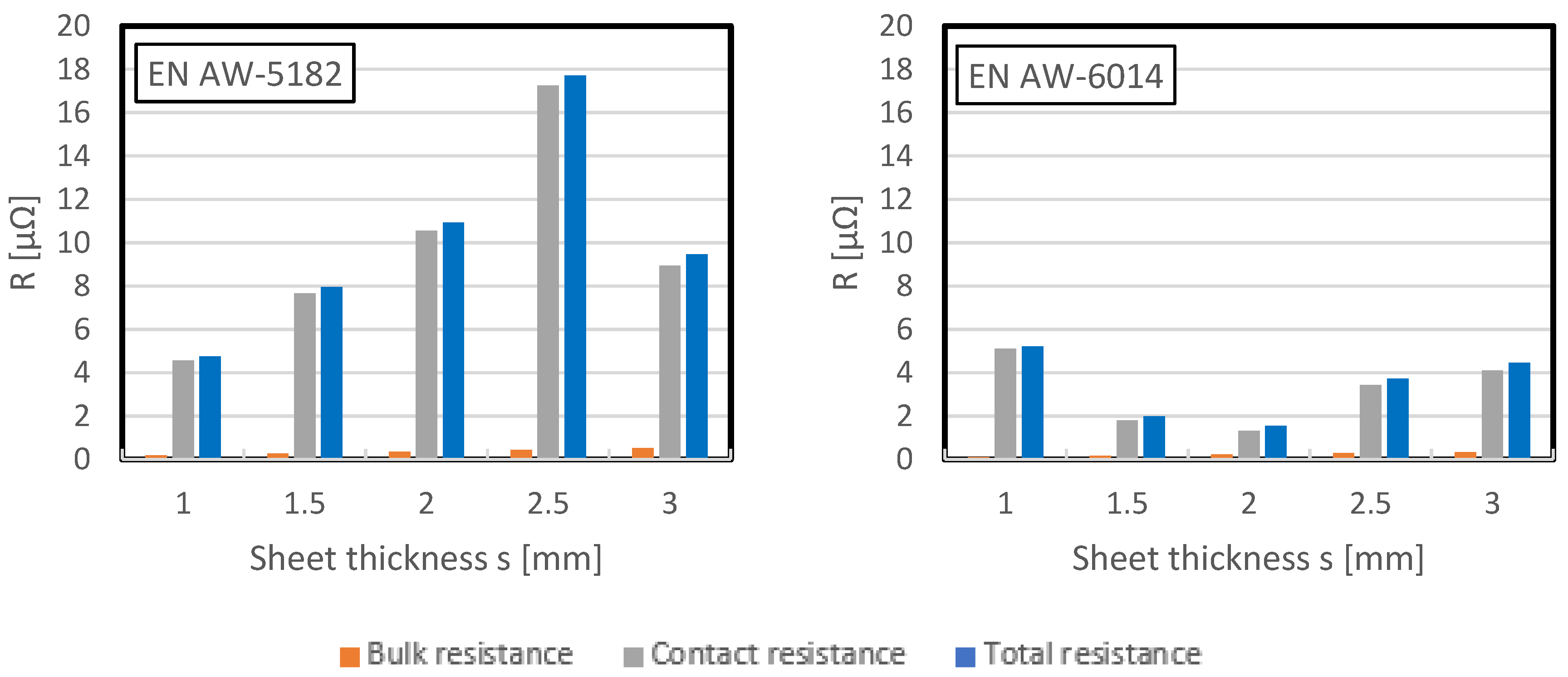

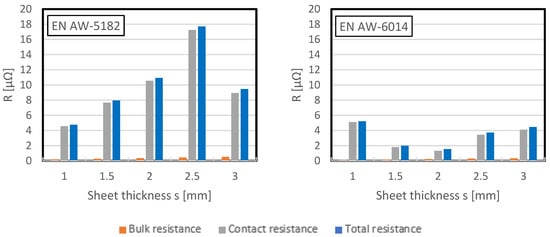

Figure 13. Resistances of alloy EN AW-5182 and EN AW-6014 in the initial state (before welding).
Figure 13. Resistances of alloy EN AW-5182 and EN AW-6014 in the initial state (before welding).
Jmmp 09 00266 g013

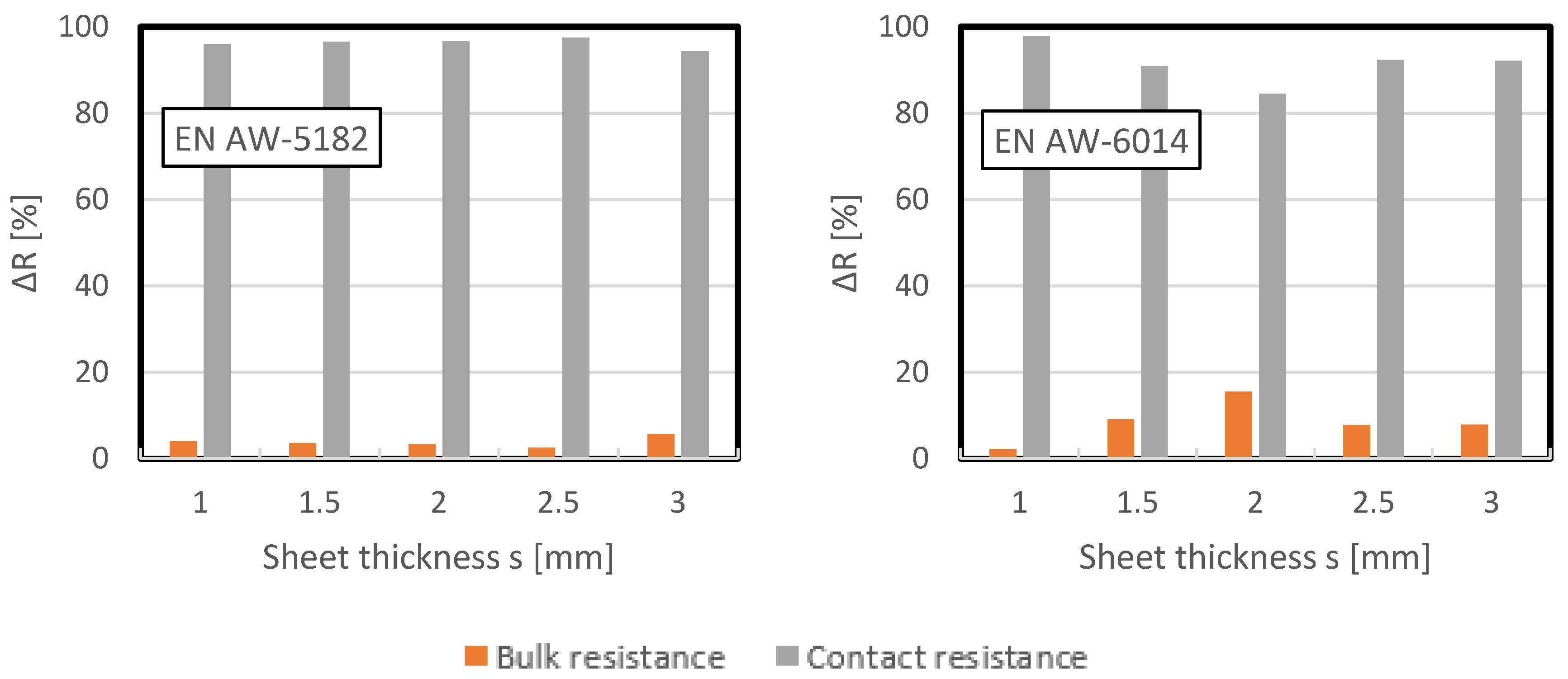

Figure 14. Percentages of bulk and contact resistance.
