A Data-Based Tool Failure Prevention Approach in Progressive Die Stamping

1
Dipartimento di Meccanica, Politecnico di Milano, 20156 Milan, Italy
2
Growermetal S.p.A., Via Nazionale, 3, 23885 Calco, Italy
*
Author to whom correspondence should be addressed.
J. Manuf. Mater. Process. 2023, 7(3), 92; https://doi.org/10.3390/jmmp7030092
Submission received: 6 April 2023 / Revised: 2 May 2023 / Accepted: 4 May 2023 / Published: 8 May 2023
(This article belongs to the Special Issue Industry 4.0: Manufacturing and Materials Processing)

Abstract

:
The research on methods for monitoring sheet metal stamping is benefiting from the increased availability of enabling technologies such as sensors, data mining software, cloud computing, and artificial intelligence. The predictive maintenance policies of tools (punches and dies) can be targeted at monitoring progressive wear or at the detection of sudden failures or anomalies. Early detection of tool failure is the method preferred by the recent literature on data management in sheet metal stamping. However, the stamping of small parts poses challenges due to multiple tools and signals and limited visibility of die wear, requiring management of multiple sensors and data sources. This paper proposes a failure prevention approach for progressive die stamping using global and local force sensors with upper bounds for maximum values to indicate unhealthy conditions. The methodology was tested on millions of small washers made of carbon steel. The stamping process was implemented using a servo-press with a high rate. The press was equipped with eight in-process sensors, including strain gauges, thin foil force sensors, and acoustic sensors. The data of material properties, maintenance reports, statistical process control data, and in-process sensors were collected and stored in a data lake. By combining the in-process sensor acquisition with the corresponding log events and maintenance data in the same time span, it is possible to look for correlations among the variables and build an effective tool health prevention policy.

1. Introduction

The research on methods for the continuous monitoring of sheet metal forming processes in general, especially the stamping process, has been continuously increasing in the last years, following the increased availability of enabling technologies such as sensors [1], data mining software [2], cloud and internet communication devices [3], artificial intelligence (AI) methods [4], and all the ingredients of the “Industry 4.0” revolution. Data-driven analysis strategies can help improve the monitoring methods of stamped part quality [5], which generally requires the use of multivariate statistical methods [6]. Greater attention has been devoted to maintenance strategies than quality. In deep drawing processes, part failure may occur independently of the health condition of the tools [7]. Conversely, in progressive die stamping, a deterioration of the condition of the tools easily leads to a reduction in quality (or an increase in defects); therefore, an effective maintenance strategy also indirectly improves production quality. Predictive maintenance policies can address the mechanical and electrical components of the presses [8] or, more frequently, aim to control and improve the life of tools (punches and dies). Predictive maintenance for tools can be focused on the monitoring of progressive wear [9] phenomena and/or the detection/prevention of sudden failures or anomalies [10].
Early Failure Detection and Condition Monitoring. The vast majority of smart and predictive maintenance approaches in the literature are aimed at early detection of such failures or anomalies in stamping or bending [11,12]. Several examples of algorithms for anomaly detection can be found. As an example, Shiu et al. [13] developed a two-stage approach for progressive stamping using tonnage signals. The first stage uses a combined Haar transform and power spectrum analysis to map features extracted from aggregated signals to individual operations. The second stage develops a two-step control chart strategy for anomaly detection and identification. Since in progressive die stamping the tonnage comes from the combined effect of multiple simultaneously working tools, the force signal of a single stamping cycle must be segmented in smaller portions [14,15]. The problem of decomposing the force signals and identifying features inside the signals requires complex and sophisticated mathematical or artificial intelligence approaches, e.g., recurrence plots [16], wavelets [17], or machine learning approaches such as support vector machines (SVMs) [18]. While the scientific literature on tool maintenance approaches in progressive die stamping centres on early failure detection, it is a strategy that presents some serious risks and drawbacks. In fact, progressive die stamping (especially for small metal parts) is a process with a very high throughput (tens of thousands of parts per shift), and a strategy based on early detection of failure might easily lead to the production of many defective parts and high costs. A more efficient architecture should, rather, be based on condition monitoring [19] and preventive maintenance. In other words, rather than using in-process sensors to detect when the process has failed, condition-based maintenance [20] helps by predicting the condition of tools in advance to make decisions that might either increase tool life or better schedule the maintenance tasks. Unfortunately, the complexity and the dimensionality of condition monitoring problems require a greater effort than those of early failure detection, and the literature that addresses this topic in progressive die stamping is very scarce.
The curse of dimensionality. Progressive die stamping is especially challenging because multiple tools and multiple signals are the cause of a cumbersome “curse of dimensionality” [21] to any control or optimization process. To make things worse, when progressive die stamping involves tiny components, such as washers [22], a single tooling setup can include more than 50 tools simultaneously operating and the stamping rate can be as high as several hundreds of strokes per minutes. In this case, not only are technologies required for the real-time handling of a very big amount of data [23], but smart methods are needed for the filtering and compression of process signals [24]. Modern presses are equipped with four force sensors, one for each of the press columns [25], but four signals might not be enough to achieve effective decomposition and feature recognition. For this reason, multiple sensors are used to achieve a richer supply of data, such as acoustic sensors embedded in the tool holders [26,27,28], thin film local load sensors [29] or sensors to measure in-process the geometry [30], the quality [31] or the temperature [32] of the stamped parts. Another problem connected to data-driven approaches is that in real industrial cases, signals may shift for reasons that are often unknown and lead to conditions that are “false positives”, i.e., conditions that apparently indicate an anomaly but that eventually correspond to regular production with good quality and no evidently worn or failed tools. Indeed, many sources of variability affect progressive die stamping, including material variations (thickness and properties), strip vibrations [33], piloting imprecisions [34] and many others. Another relevant issue connected with the progressive die stamping of small metal parts is the inherent difficulty of observing and measuring the progression of die wear in real industrial environments [35].
The problem of managing the “big data” generated by multiple sensors over time calls for advanced techniques for data storage and simultaneous analysis of multiple data. Recently, the trend in the field of predictive maintenance obtained through the management of Big Data is to implement and use “data lakes” [36] instead of more traditional and structured data bases. A data lake is a centralised repository that allows for the storage of structured, semi-structured and unstructured data at any scale. Its implementation in sheet metal forming problems is still in the beginning stage; the only example known to the authors is by prof. Klocke [37]. When it comes to the problem of analysing the multiple data provided by multiple simultaneous sensors, so-called “sensor fusion” techniques are required (often applied to sheet metal forming, e.g., [38]).
Barriers to industrial implementation. Several barriers limit the real industrial application of fully integrated, even semi-supervised, predictive maintenance plans based on in-process sensor acquisition [39]. Due to the many practical issues listed above and the complexity of the problems, several approaches in the literature are either limited to lab-scale environments [40] or are based on a very small sample of real industrial data. This is especially true for progressive die stamping of very small components, because tens of tools work simultaneously, the tonnage contribution of individual tools to the overall force profile is negligible and signal monitoring is extremely difficult. Even if it was technically and economically feasible to place an individual sensor per each tool, failure detection would still be difficult because of a poor signal-to-noise ratio [41]. Conversely, the global tonnage signal is influenced and potentially shifted or altered by many phenomena and external interacting variables. Consequently, the effort required for training a robust AI is larger and longer than any industrial company can realistically bear. In conclusion, in this specific field, a simpler, process-specific approach is required to set up an effective and realistic procedure.
In this paper, a simple failure prevention approach is proposed that aims to simplify the inherent complexity of progressive die stamping of small parts and reduce the curse of dimensionality induced by it, circumventing the many problems described above. This method is based on a combination of global and local force sensors and uses upper bounds for the maximum values recorded by the sensors, above which unhealthy conditions may be triggered.

2. Description of the Test Cases

Two test cases were used to develop the proposed methodology. They are small washers made of C60S carbon steel, each produced in millions of parts per year. C60S is a low-alloyed medium carbon steel with 0.57–0.65% carbon content and 0.6–0.9% Mn. In Figure 1, the drawings of the parts are shown and the tooling layout is presented. In Table 1, the main features of the productions are listed.
In the first case (Figure 1), the part is obtained with 5 stations (punching, piloting, chamfering, coining and blanking) and 4 parts are stamped at once. Therefore, a total of 40 tools (20 dies and 20 punches) operates in a single stroke of the progressive die stamping press. The press normally runs at 600 strokes per minute (SPM), with a potential production of 2400 washers per minute. In the second case (Figure 2), the part is obtained with 5 stations.
The material is nominally constant for all cases, but its actual material properties may vary from lot to lot as the coil is changed and to some extent even within a single coil. The material properties are also dependent on sheet thickness. The variability of the material properties was monitored over 20 months, with a summary reported in Figure 3 in terms of ultimate tensile stress UTS vs. elongation A% and yield stress Ys.
Although Figure 3 shows large variability in the materials, the FEM simulations, which will be later described, evidence that the consequences of this variability on the stamping process are limited and may easily be confounded with other effects and sources of variation. C60ISOB is the same alloy of C60S but with a post-rolling thermal treatment to reduce its anisotropy. The initial thicknesses are t0 = 1.8 ± 0.05 mm for case 1 and t0 = 1.5 ± 0.05 mm for case 2.

3. FEM Simulations and Sensitivity Analysis

The test cases were simulated by means of the FEM software package Forge using Transvalor (a non-linear solver with implicit time integration). The main objective of the simulations was to model the sensitivity of process parameters and variations (material properties, sheet thickness, sheet alignment, tool geometry and precision, etc.) with respect to the following responses:
  • The quality and dimensions of stamped washers;
  • The force profile of each single operation and of the overall die;
  • The non-dimensional tool wear indicator FEAwear, computed from the FEM simulations as the ratio between the highest shear stress acting on the tool surface during stamping and the Vickers hardness of the tool surface (formulation described in reference [22];
  • The non-dimensional tool failure indicator FEAdamage, defined as the difference between the maximum von Mises stress detected on the tools and the residual stress on the tool coating, with normalised division by the yield stress of the die [22].
Numerical setup. FEA simulations were performed; for brevity, only a brief sample of the results is reported as follows. Only half of the tools were simulated, assuming a symmetry plane. The top die was simulated with the movement of a mechanical press operating at 500 rpm with a crank radius of 13 mm. Self-contact was enabled to prevent self-penetration of the material in case of folds.

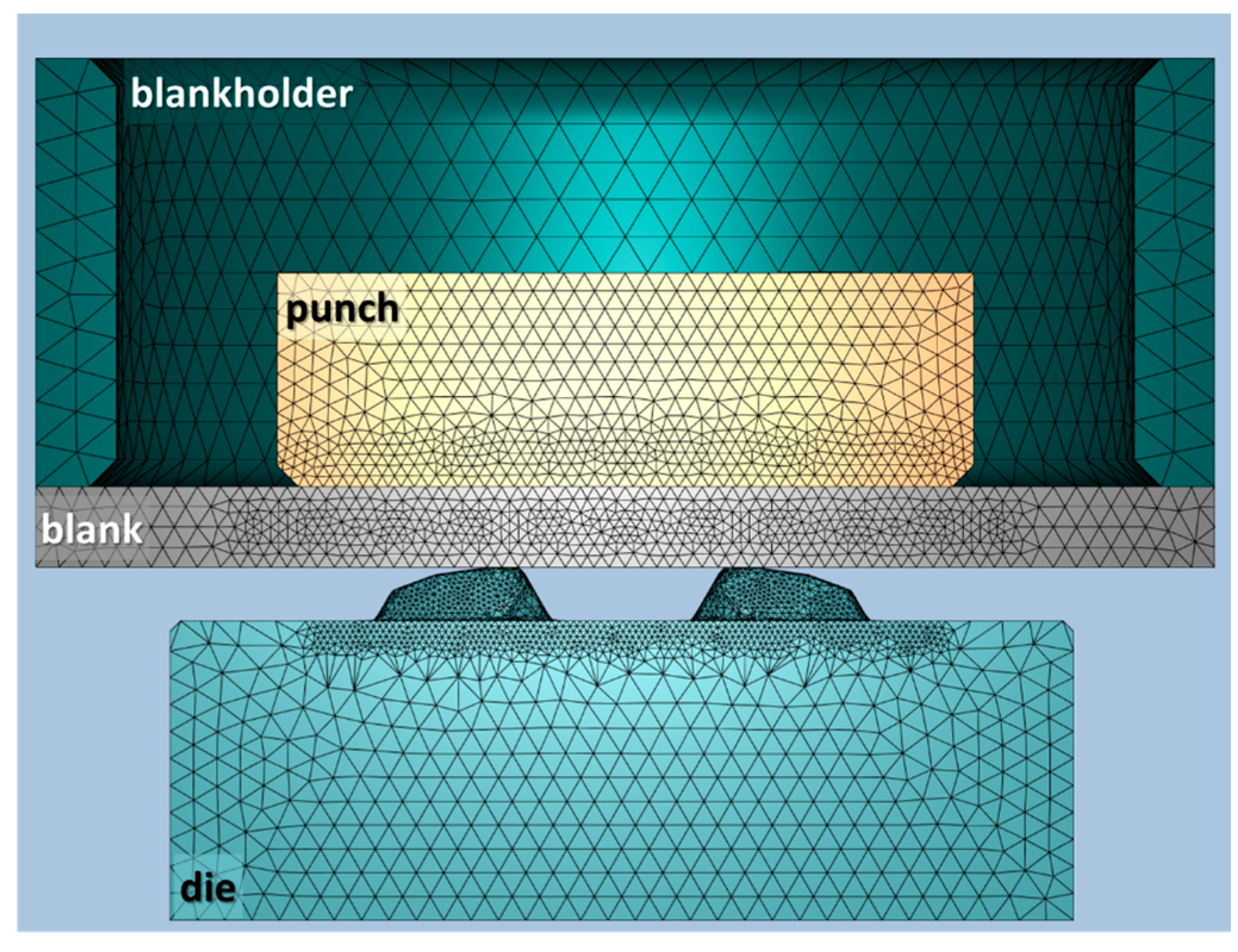

In the deformation and shearing zones, a fine mesh of tetrahedral elements with 0.2 mm size was built using mesh boxes, and the rest of the tools and the sheet were meshed with coarser mesh size. An example of initial meshing can be seen in Figure 4 for the coining (embossing) station of case 2. Automatic remeshing on deformation was activated on the tetrahedral elements, with a strain threshold of 0.4.
The friction between the sheet and tools was modelled using a Coulomb-limited Tresca model, with the Coulomb coefficient μ assumed to be 0.1 and the Tresca friction factor μ equal to 0.2. The Latham and Cockcroft normalised damage model was activated for all simulations with an element deletion threshold of 0.4, activated for punching and blanking operation, to simulate shearing.
Simulations were run assuming rigid dies and then replicated with deformable purely elastic dies (Young’s modulus E = 520 GPa for tungsten carbide tools and E = 226.5 GPa for 1.3343 tool steel tools). For the calculation of wear indicators, a coating on the tools was assumed with 3000–3200 HV hardness. The reference sheet material was isotropic, with hardening modelled using the Hansel–Spittel equation. The C60 material suggested by the FORGE material database was used as a starting value to validate the simulations because it is well inside the cloud of possible materials shown in Figure 3.

3.1. FEM Validation

A reference or base scenario was initially simulated for all cases. The simulations were validated with real data by comparing:
  • The real values of some relevant dimensions with simulated values;
  • The simulated and real maximum total pressing force values;
  • A simulated indicator of ductile damage FEAdamage with the statistical tool maintenance data related to tool failure by fracture;
  • A simulated indicator of progressive die wear FEAwear with the statistical tool maintenance data related to tool replacement or conditioning operations due to wear.
These comparisons were performed for all cases and they confirmed the reliability and accuracy of the FEM simulations. In Table 2, comparisons are reported for some dimensions of the case 2 washer. As another example, in Figure 5, the maximum simulated pressing force for 1/8 of the whole tool set is plotted for case 1 (the dented washer).

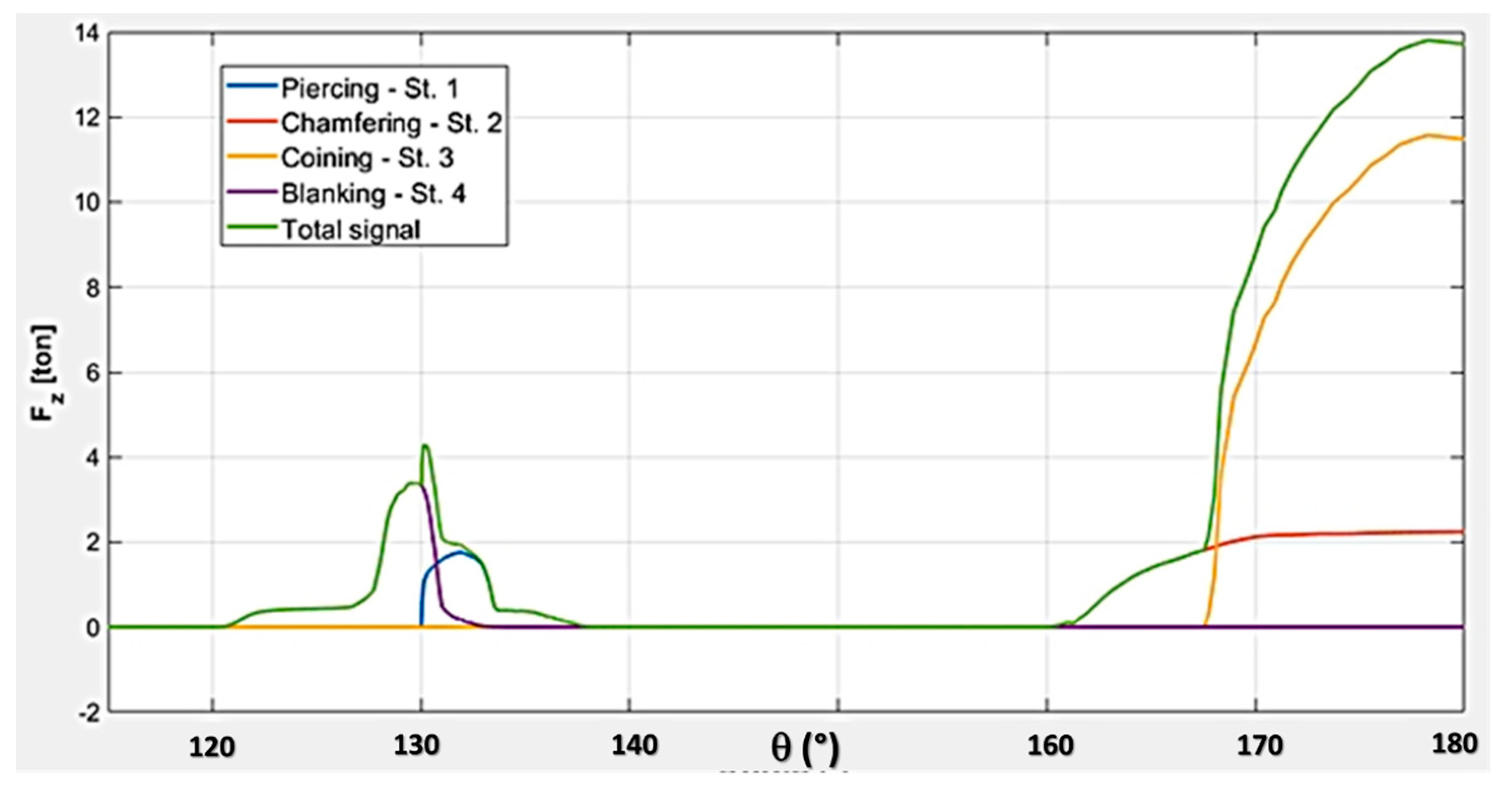

The total experimental force Fz must be divided by 8 to consider symmetry and to consider that 4 parts are formed simultaneously for case 1. The maximum simulated force amounts to nearly 14 tons, while the real values range between 12.4 and 14.4 tons.
Finally, the simulations were validated by comparing the simulated values of FEAwear and FEAdamage indicators to the actual maintenance data recorded over the last 4 years of production. An example is reported in Figure 6 for case 2. The FEAdamage indicator is built in order to provide a non-null value for tools at non-negligible risk of failure. In Figure 6, FEAdamage is larger than 0 only for the three tools (the embossing die, the upper chamfering punch and the blanking punch) that have the largest numbers of maintenance interventions. The figure shows, therefore, that the actual number of interventions correlates quite well with the proposed indicators. Similar considerations can be performed for FEAwear, and the two indicators can be safely used in this type of sensitivity analysis.

3.2. Sensitivity to the Blank Material Properties and Thickness

The press force signal has very wide variations in real operations; it may increase or decrease depending on many factors. Different scenarios were simulated based on real situations to have a better understanding of the most critical factors affecting the press force. For brevity, they are here reported only for the most complex of the studied cases, i.e., case 1, the dented washer. For these sensitivity analyses, simulations were performed using rigid, non-deformable tools. The maximum press force was computed after reconstructing the signal, as already shown in Figure 5. The sensitivity analyses described as follows were run:

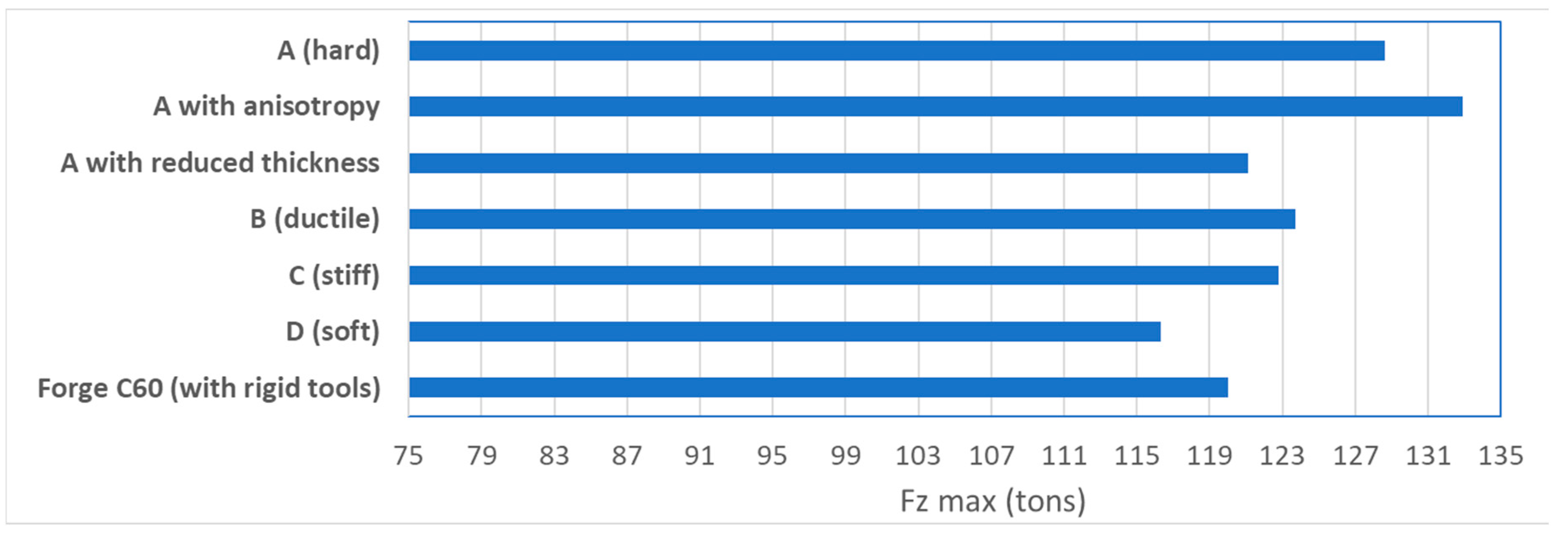

The material “A” shown in Figure 3, with initial thickness t0 = 1.85 mm and isotropic properties, was used as the baseline in the sensitivity analysis. It is particularly hard in terms of ultimate tensile strength (633 MPa). The 3 other materials labelled as B, C and D in Figure 3 were also simulated, and the maximum Fz was compared to the validated simulation and to the minimum and maximum values registered in the real process. Material B is particularly ductile (A% = 0.27), material C is stiffer than the others (yield stress is 482 MPa) and material D is softer (UTS is 568 MPa). Materials A, B, C, D and the standard Forge material are assumed to be isotropic, but an additional simulation was run by modelling the material A as anisotropic, with realistic Lankford coefficients taken from the performed tensile tests (r0 = 1.18, r45 = 1.22. and r90 = 1.2). Furthermore, while all simulations, including the reference case, were run with an initial blank thickness of 1.85 mm, material A was also simulated with a reduced thickness, 1.8 mm, which is the central value of the acceptable tolerance of the incoming sheet. The real measured total Fz can be as low as 75 and as high as 135 tons. The result of the sensitivity analysis, given in Figure 7, clearly shows how the variability, which can be attributed to the material property variations, is much smaller than the measured variability in the real process, since the max force in the many different simulated cases ranges from 112 to 133 tons, with a total variation of about ±9%. This is not surprising, because the actual force variability may come from many different sources, not only from material and thickness.
The same analysis was repeated on the other two cases, with similar results.

3.3. Sensitivity to Sabering

One of the main problems in this process is the potential misalignment of the coil, due to a sabering (or swording) defect of the incoming material, which means that the axis of the strip might not be perfectly straight [42]. The role of sabering in progressive die stamping is substantially neglected by the scientific literature, but it has indeed a very large impact on the process. For investigating the sabering effect, the coil was given a rotation so that the centre of the initially punched circular hole was misaligned with the centre of each subsequent station. This is better explained in Figure 8. The maximum displacement is given to the strip at the blanking station.

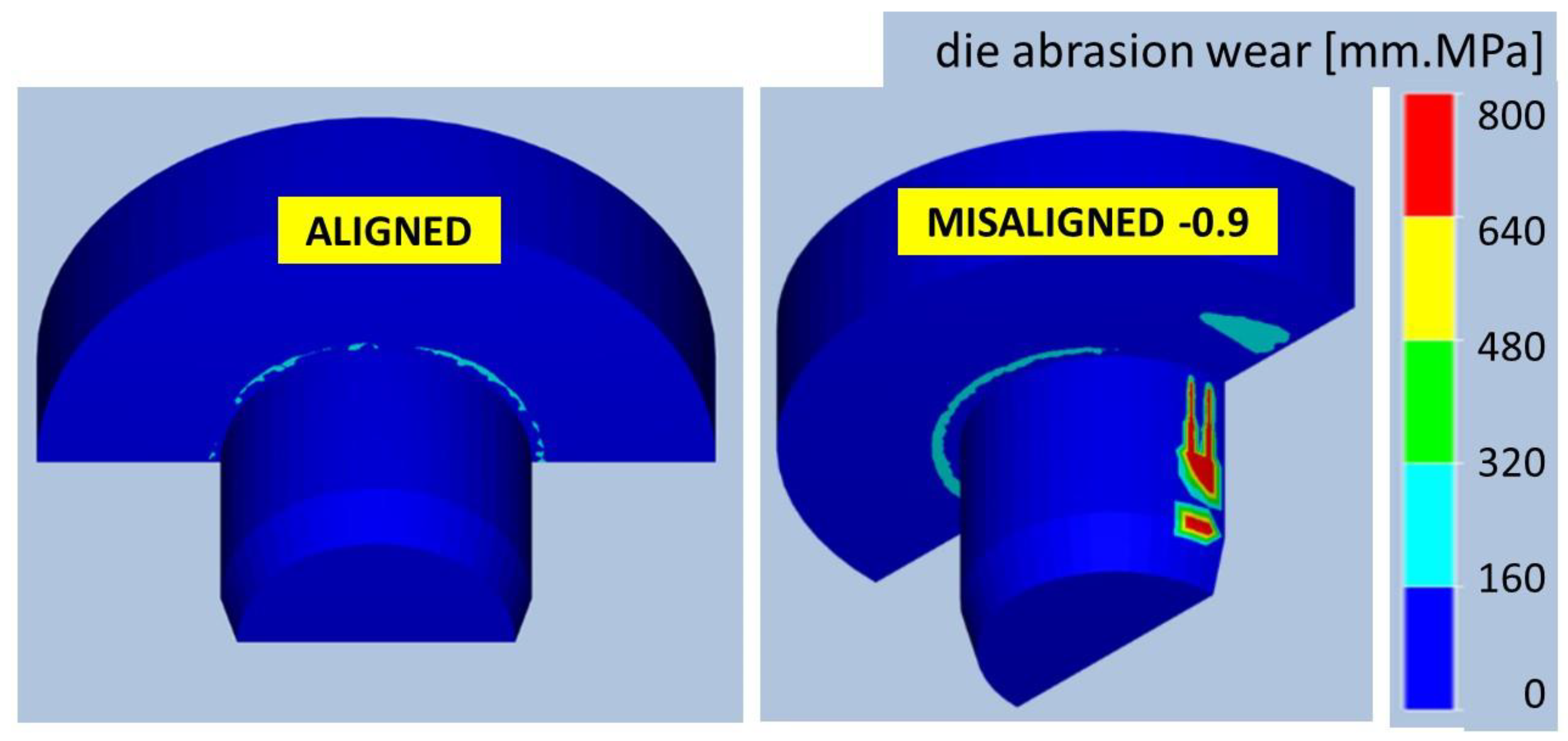

The total sabering was measured as the distance along the Y-direction (horizontal) between the centre of the initially punched hole and the axis of the tool.
The case with isotropic material “A” and nominal initial thickness 1.80 mm was taken as the baseline in this analysis. The baseline simulation was modified by setting the total sabering displacement at the last station (blanking) at two values: 0.2 mm and 0.9 mm; both values may occasionally occur during real-time operations. When the sabering amounts to 0.9 mm, the washer is defective, as it is out of tolerance.
The effect of sabering can be appreciated on the total maximum Fz as a reduction in its value, because this force, as already shown in Figure 5, is mainly influenced by the coining and chamfering operations, which see a decrease in the deformed cross section as a consequence of chamfering. In fact, with respect to the baseline simulation with material A and t0 = 1.8 mm (where Fz = 120 tons), the total Fz decreases merely by 1.7% for a small 0.2 mm total displacement and decreases by 8.8% (109 tons) for a large 0.9 mm displacement.
While in all other sensitivity studies conducted, the Fz and the FEAwear and FEAdamage indicators are well correlated with each other, this is not the case when sabering occurs. Despite the maximum force decreasing, the risk of tool wear increases, especially for the blanking punch and for the piloting portion of the coining punches (i.e., the cylindrical portion in Figure 9). This is the only case, indeed, where the pilots might suffer some relevant frictional wear.

3.4. Sensitivity to Tool Wear

Sensitivity analyses were run on the three test cases, but here only the results of case 1 are reported, because the dented coining die is the single tool, among all the investigated ones, that received the largest number of maintenance interventions over the observed period of time. The reason is that the teeth of the die must bear a very high compressive and shear stress and might progressively wear out or even break dramatically, as shown in Figure 10. To model how the pressing force is influenced by a tool failure or by a progressive die wear phenomenon, two scenarios were simulated:

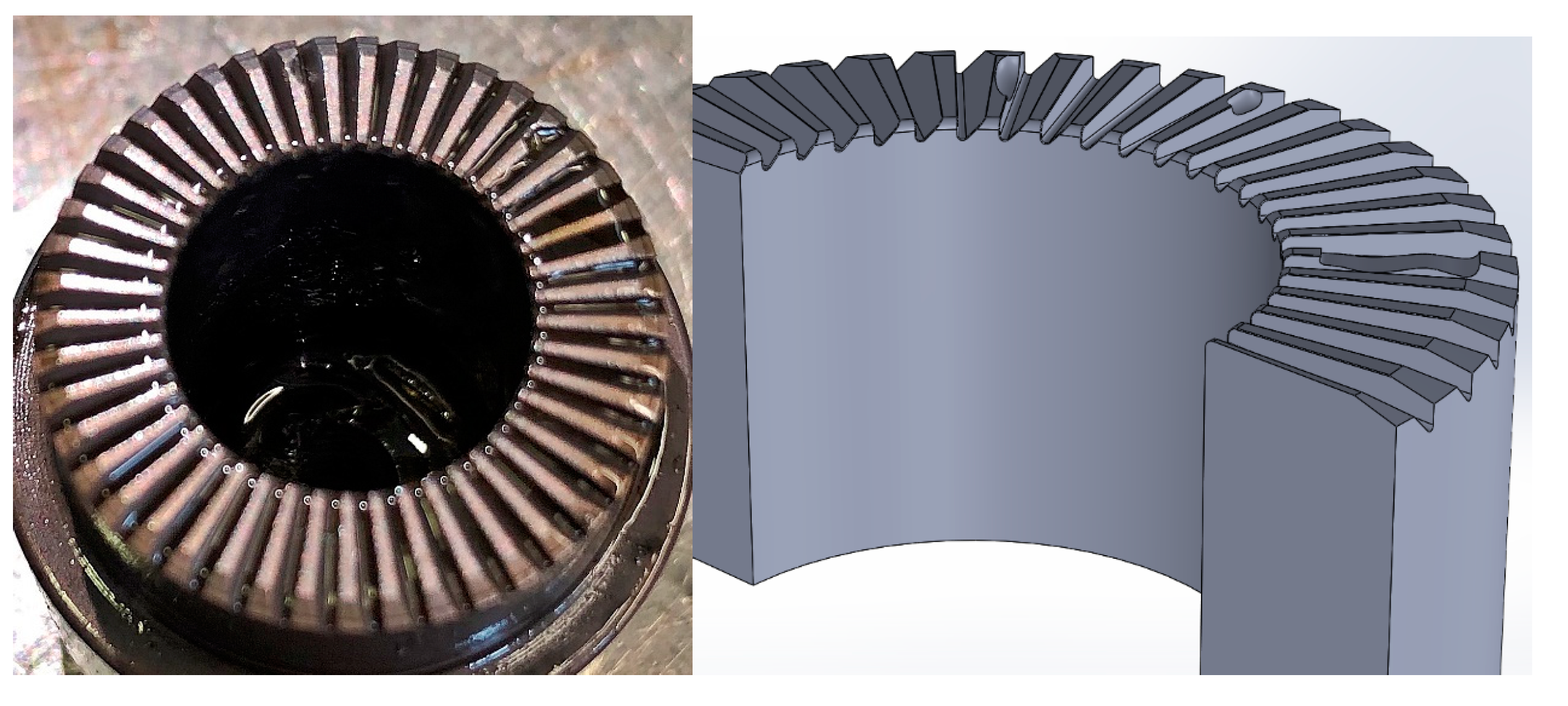

  • A case where all the teeth of all 4 coining dies were rounded in the initial mesh of the tool to emulate the actual corner rounding that occurs due to wear;
  • A case where 6 teeth were broken for each of the 4 coining dies (Figure 10).

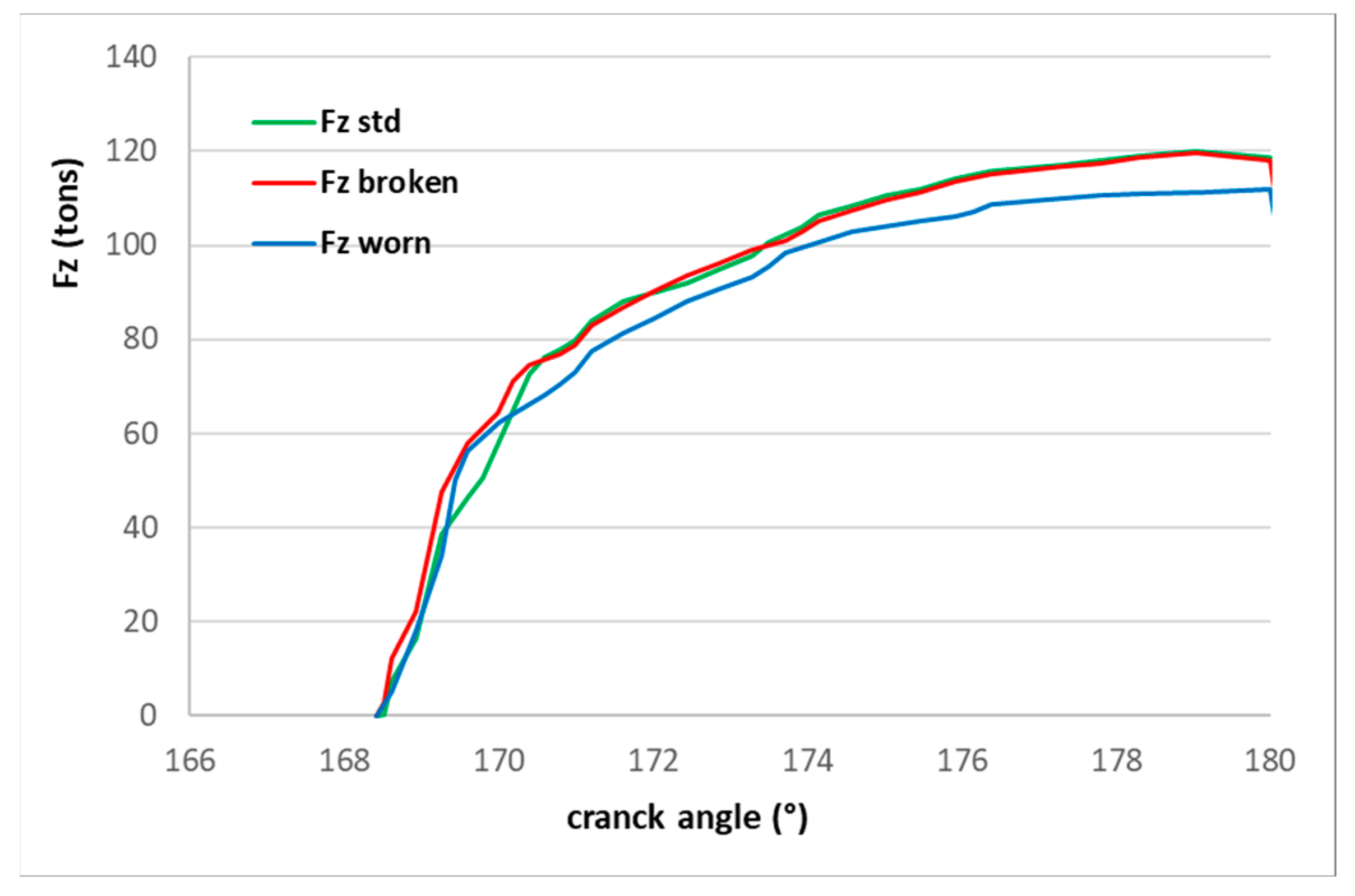

The consequences on the max Fz can be appreciated in Figure 11, which clearly shows how the “broken teeth” profile is nearly overlapped with the standard force profile. Any early failure detection for the major event, which is the fragile fracture of a tooth, based on the online monitoring of some load signal is bound to fail, because the noise would be much larger than the signal shift due to a rupture. On the contrary, there is a little (−3%) but evident decrease in force as a consequence of the rounding of all teeth edges. However, the wear of the edges of the teeth is a progressive, relatively slow phenomenon. In the real press it would be very easily confounded with other drifts, e.g., thermal dilatation of the press columns, heating of the tools, and slow deviation in sheet thickness through the coil. It would be impossible to detect such a drift in a real situation.

3.5. Sensitivity to the Bottom Dead Centre Position

In all progressive die stamping operations where chamfering or coining are involved, a major and obvious source of variation, by far the most important, is the actual position of the bottom dead centre (BDC) of the coining or chamfering tools. In fact, a small variation in the final position of the coining punch at the end of its stroke may cause a very large variation in coining force. The actual position of the BDC may vary either within the same production run or between different runs. Within the same run, the instantaneous value of the BDC may change for several reasons: dynamic control errors of the servo-press, inertial effects in case the SPM is changed, thermal dilatation of the press columns and the tools, and tool wear [43]. The BDC may also change between different runs because of small height adjustment errors during assembly or maintenance of tooling or because of adjustments performed by the press operator. Indeed, whenever the operator at the press detects an overall force that is out of the specified boundaries or whenever some quality issues arise in the workpiece, the first reaction is always to perform small adjustments to the press slide control, i.e., small adjustments of the BDC. The effect of changing the BDC is somehow similar to a variation in sheet thickness, but while the sheet thickness may vary only by a few cents of a millimetre (within-run and between-runs), the position of the BDC may vary significantly, even by tenths of a millimetre. In fact, in stamping operations at high rate (hundreds of SPM), thermal dilatations may occur in the tools, but especially in the four press columns, which are long. The four columns of a stamping servo-press might heat up because of changing environmental conditions or (more likely) because of their own elastic deformation work. As an example, a press with 3 m long columns that heat up by only 3 °C will elongate by 0.1 mm, and this will have a consequence on the measured maximum load.
Sensitivity FEM analyses were run on all test cases and major variations in total force took place even with small variations in height.

3.6. Discussion of the Results of the Sensitivity Analysis

In real operations, the range of variability of the maximum pressing force is very large. Fz can experience slow variations of ±8% within the same production run. When the production is stopped, e.g., because of maintenance or a change in material coil or simply a shift change for the workers, the maximum Fz can have sudden run-to-run variations of ±29%, according the collected historical data.
On the contrary, in FEM simulations, even drastic variations in single factors such as the material mechanical properties, the sheet thickness, the strip sabering or the failure of a coining tool do not induce large variations, with only one exception: the position of the BDC, which, as explained in Section 3.5, may induce force variations in excess of ±100%.
In conclusion, the outcome of the FEM simulations is that the overall tonnage may vary for several interfering reasons, and many of them cannot be directly related to an anomaly in the process. Even the rupture of several simultaneous tools, in a progressive die stamping operation of small components, cannot be distinguished, if looking at the force profile, from other sources of variation. The same considerations hold even if, instead of calculating the maximum value of the overall pressing force, the single loads of each of the four columns of a press are monitored. The order of magnitude of variations and sensitivities does not change.
If an early failure detection monitoring device must be implemented, the only viable option would be to place small local load sensors within the holders of those tools that are at greater failure risk. However, this approach is cumbersome for a tooling setup where tens of different tools operate simultaneously.
As stated in the introduction, a wide range of the literature is based on techniques (e.g., wavelets [44]) for monitoring the time profile of process signals and trying to predict pathological conditions by identifying some variation in the features of the profiles. These applications are always focused on problems with a limited number of relatively large tools, and they are not suited to stamping of small components with many tools, because the individual contribution of a single faulty tool would be lost inside the natural variability of the process signal. A different strategy is required.

4. Stamping Equipment, Sensors and Data Lake

The stamping process of the test cases was implemented in a 150-ton 4-column vertical mechanical press by Bruderer. The stamping rate could be varied from 100 up to a maximum of 760 strokes per minute (SPM).
A data lake was created that collects all relevant process data related to the mechanical press under investigation, connecting them with a time-stamp:
  • The sheet coil properties, i.e., the tensile test data, when available with direct measurements;
  • The log file of the press events and status, i.e., which operation is being conducted on the press at any time (9 types of events are coded, including stamping, setup, idle, etc.);
  • The maintenance reports (i.e., which tool is being replaced or reconditioned, which type of maintenance operation has been performed);
  • The statistical process control (SPC) data, i.e., the measured dimensions and quality of the washers;
  • The data coming from the in process-sensors.
The data lake was populated with the production files of the three parts over a time span of a few years: the material properties over nearly 2 years and the maintenance data, the log files and the SPC data over 4 years. The data coming from the process sensors were more recently implemented; though data are available only for the last year, they still refer to the production of millions of washers. As an example, the average production volume is about 2.2 million pieces per year for case 1; at an average stamping rate of 400 strokes per minute and 4 parts per stroke, this amounts to about 23 h of useful active stamping time per year.
The press is equipped with 8 in-process sensors (see Figure 12a for a schematical representation of their layout):
  • Four Baumer DSRT 23DF strain gauges are installed at each of the four columns, and the measured vertical strain is converted into a force signal. The maximum of the values of each column is registered at each cycle of the press and stored in the variables Fmaxfr, Fmaxbr, Fmaxfl, Fmaxbl, where the suffix b stands for back, f for front, r for right and l for left. These four values can be summed to obtain the total maximum vertical force Fz, which is the one simulated in Figure 5 for case 1.
  • Two Brankamp Marposs thin foil force sensors are embedded in the bottom die-holder inside two rectangular 90 × 120 mm slots. When the die-holder is loaded at each cycle, it deflects elastically, causing a small deformation of the right and left foil sensors. Their output voltage signal is normalised to non-dimensional load indicators Lr(θ) and Ll(θ) (r for right, l for left) that range from 0 to 1000. The whole signal is monitored with a synchronization with the rotation θ of the press crankshaft so that one value is registered every 0.23° of rotation for a total of 115° around the bottom dead centre. A total of 500 values per stroke are acquired. The maximum values Lmaxl and Lmaxr of the two load signals are stored.
  • Two Brankamp Marposs acoustic sensors (microphones) are installed at the back side of the bottom die-holder, and their output voltage is also converted to non-dimensional noise indicators Nr(θ) and Nl(θ) ranging from 0 to 100, with the same sampling frequency as the Lc indicators.
Not all the above listed sensor variables are stored in the data lake. To reduce the dimensionality, only the maximum values of each stroke are stored: the 4 global force Fmax and the 2 local load Lmax values. The maximum values of the noise indicators N are not stored because the analysis of the data showed that they are clearly not correlated to maintenance events nor to part quality issues. Furthermore, the 4 local load L and noise N time signals are not stored in the data lake, but they are used for real time detection of relevant anomalies and failures. When any of the four Lr(θ), Ll(θ), Nr(θ) and Nl(θ) signals exceeds given upper and lower control limits, the press issues a warning, as explained in Section 5.1.

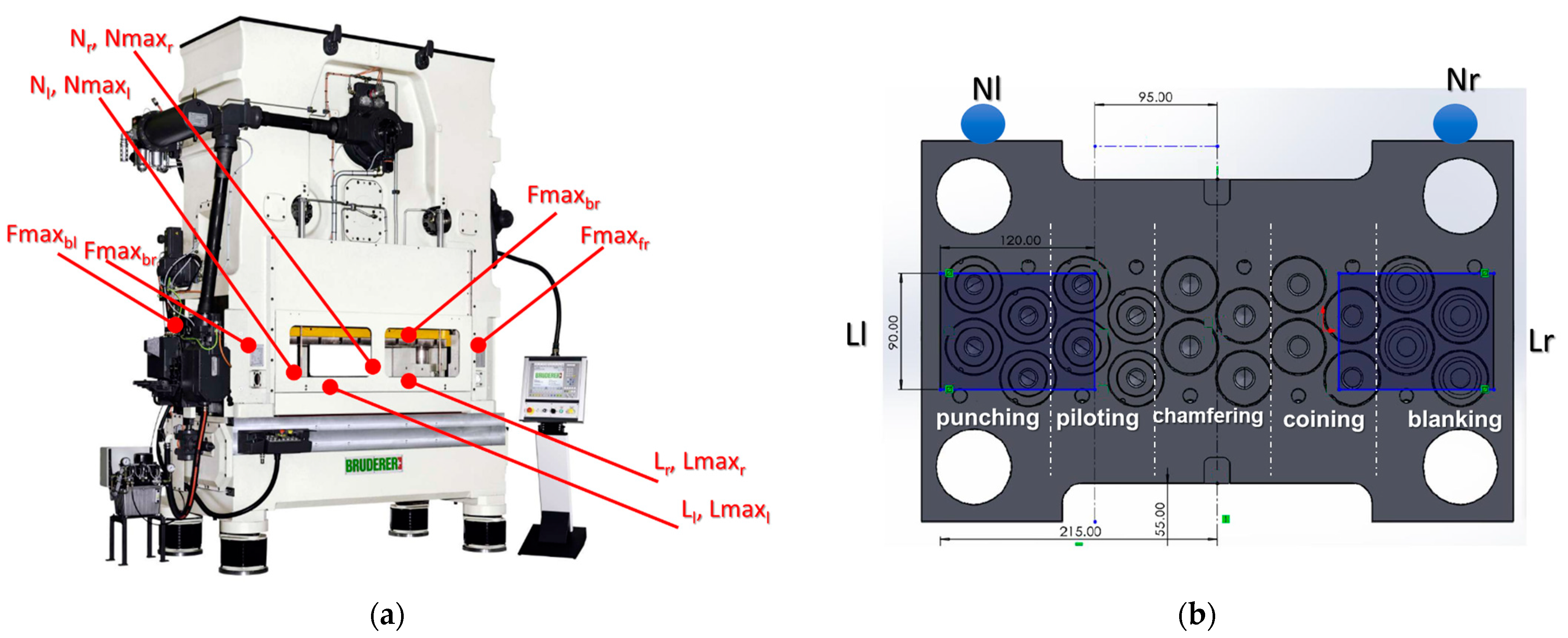

Figure 12b shows the locations of the local load and noise sensors with respect to the tooling of case 1. Their signal is mostly influenced, i.e., sense more, the operations that are closer to them. Sensors Lr(θ) and Nr(θ) are more influenced by the coining and the trimming operations for case 1; coining is, surely, the operation that requires the highest load. Sensors Ll(θ) and Nl(θ) are more influenced by the initial punching operation, while piloting generates a negligible noise and load (except when sabering occurs). In the case of Figure 12b, using 20 smaller local load sensors (instead of only 2), each placed under every tool, would provide cleaner and more direct information for every single operation, but it would also have a tremendous impact on the cost and complexity of manufacturing.
A controller is connected to the four local sensors and its output is also shown on the GUI (graphical user interface) panel of the press. At the beginning of every new production run, the first 100 strokes (after a steady condition is reached) are used by the controller to compute the average expected temporal profile of each signal L ¯ r θ , L ¯ l θ , N ¯ r θ , N ¯ r θ . These variables are all functions of the crankshaft rotation θ. Then, a control band is built between a lower control limit (LCL) and an upper control limit (UCL). The UCL is obtained by adding to the mean value of the signal a fraction α of the mean signal itself. The LCL is determined by subtracting the same quantity. The value of α is set arbitrarily by the press operator, according to their personal experience of the expected process variability, and it generally ranges between 10 and 20%. Therefore, the load indicator coming from the right load foil sensor must remain within the following limits:
L C L = L ¯ r θ ( 1 α ) < L r ( θ ) < L ¯ r θ ( 1 + α ) = U C L ,
If Lr(θ) exceeds these boundaries, a warning alarm is shown on the GUI of the press and the operator is advised to stop the stamping press and check whether any problem or failure has occurred (tool failure, quality problems of the parts, any anomaly in coil position or any other type of anomaly). The results of this check should be noted, if positive, i.e., if any anomaly has been detected, in the event log file. The most frequent correction is the micro-adjustment of the actual position of the bottom dead centre (BDC): if the UCL is exceeded, often the BDC is raised by some tens of microns. However, the BDC can be raised only if the measured thickness of the coined washer is within the lower half of its dimensional tolerance, otherwise raising the BDC would generate a risk of stamping defective parts (too thick). On the opposite case, if the LCL is crossed, the BDC might be lowered, but only if there is no risk of generating a part that is excessively coined. If no anomaly is detected by the operator and no adjustment is performed on the BDC, the press is started again without any intervention. In this case, the alarm is labelled as a “false positive”. The occurrence of false positives is indeed very frequent.

5. Analysis of In-Process Sensor Measurements

By combining the in-process sensor acquisitions with the corresponding log events and maintenance data in the same time span, it is possible to look for correlations among the variables and to build an effective health prediction policy. In this section, some representative examples of sensor data acquisition are shown and commented upon.

5.1. Analysis of Local Load and Noise Profiles

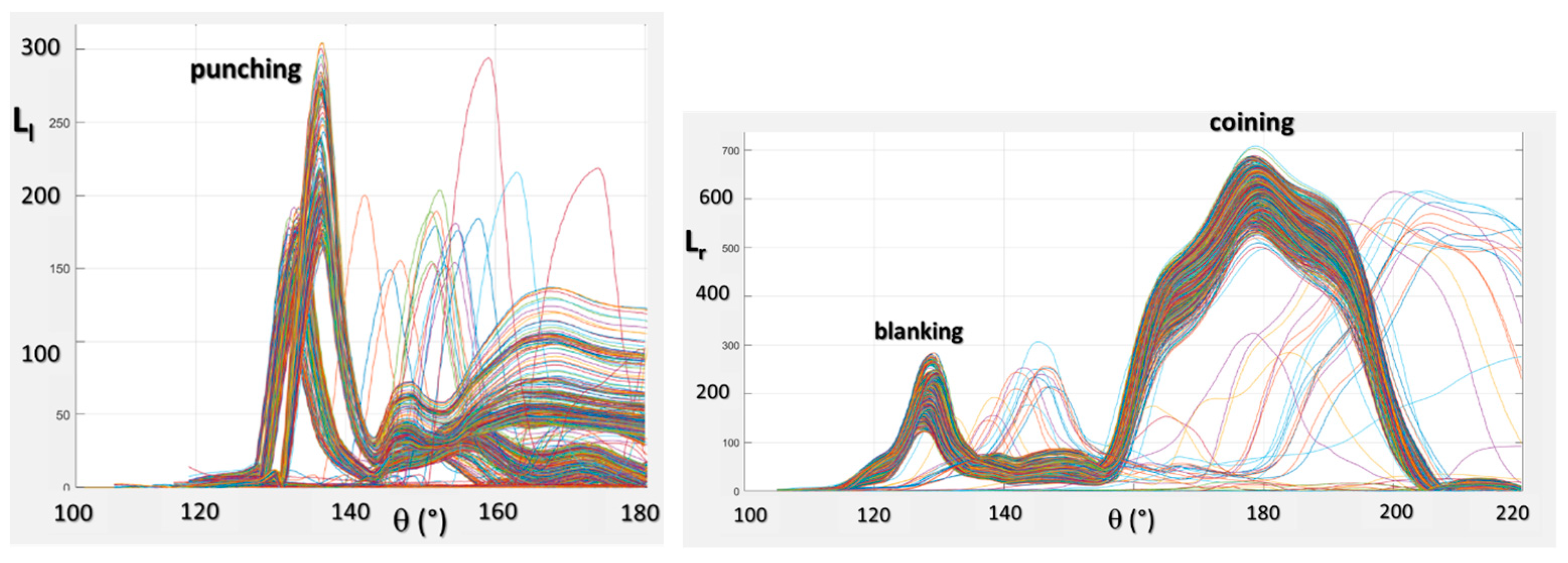

In Figure 13, as an example, the plots of the two local left and right load sensors are shown, coming from nearly three days of production of the dented washer, case 1. In the Ll(θ) group of signals, two different groups of profiles can be identified. This means that at some point during the 3 days, there must have been a shift in the punching operation (which is more sensed by the left Ll load cell). Despite this evident shift, no failure event occurred in the punching tools and no deterioration in the punched edge quality was observed during these three days. In the right Lr(θ) group of signals, a large variability is evident, especially at 180° (when coining takes place), but there is no clear shift in the process. The shifts of the signal are of course more evident when the signals are plotted in a time sequence rather than all together. The trend in the maximum values of the signals over time is discussed in the next section, Section 5.2.

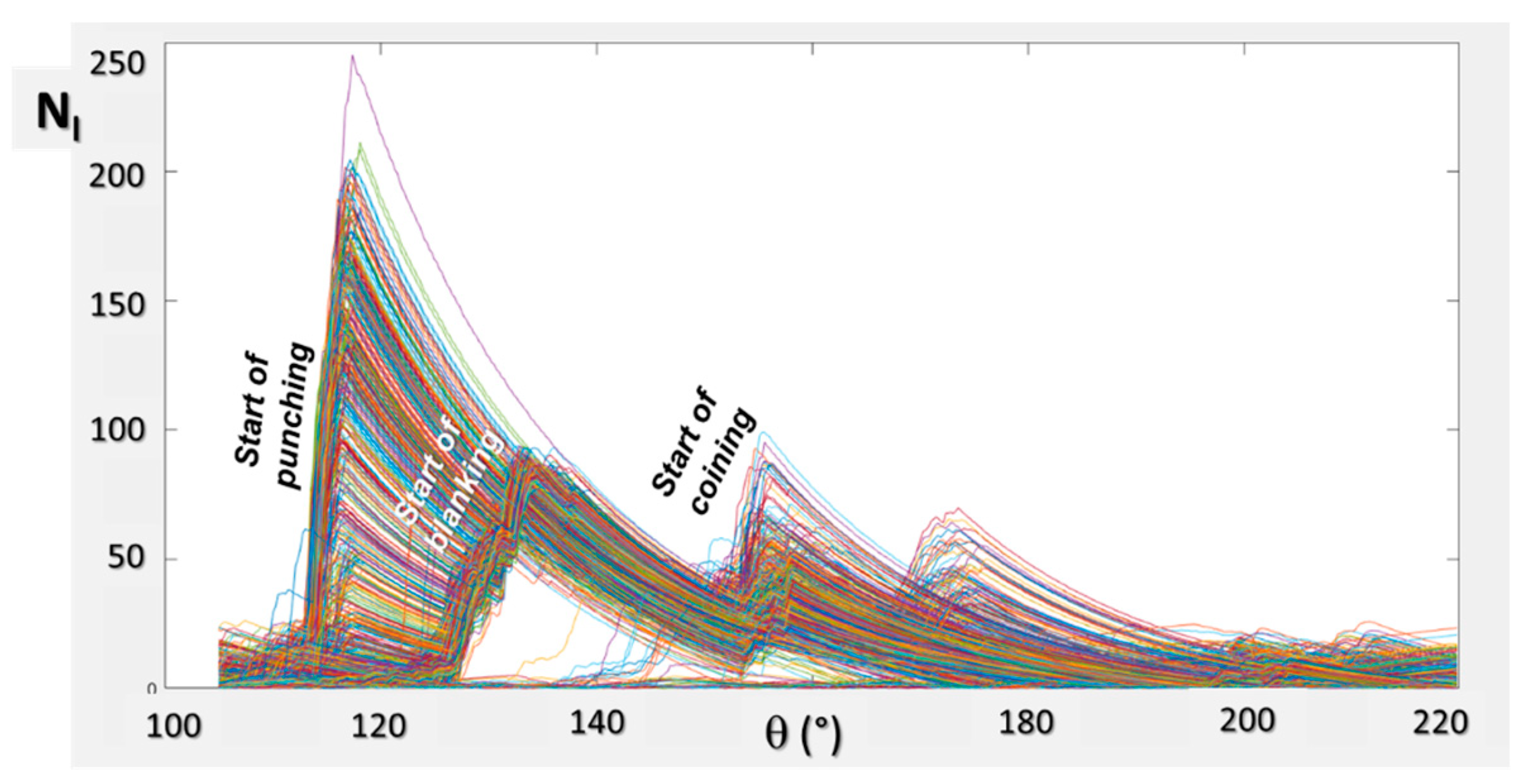

In Figure 14 the left noise Nl signal is shown vs. the rotation over another 3-day time span. The figure shows that the Nl profiles do not exhibit any clear trend, but the observed variability is still very large, much larger than 10 or 20% of the average values.
With reference to Figure 13 and Figure 14 and considering the control logic described by Equation (1), if setting α = 0.2 , the control panel would continuously raise alarms, regarded as false alarms, and production would be continuously stopped. As a consequence, the operators would typically increase the α-value to a level where it does not interfere with the regular production and would not detect any minor anomalies, but instead only major anomalies (e.g., when some trimmed sheet metal scrap is stuck to the tooling). However, major anomalies generally make the overall pressing force Fz dramatically change, and therefore the press itself, even without using the four local sensors, would detect a problem and automatically stop.
In other words, while the typical variations in the local signals can be very large, they do not induce any obvious failure and are therefore tolerated; they have no immediate consequence on stamping operations. The profiles shown in Figure 13 and Figure 14 have a tremendously large variability, both in terms of shape and maximum values. The reasons for this variability was explained previously in Section 3: the FEM sensitivity analysis shows how the response of the process is influenced by many variables, none of which clearly prevail over the others, except for the variation in BDC. Any variation in material thickness, material properties, lubrication conditions, tool wear progression, swording of the coil, inclination of the tools, planarity of the die plane, and vertical positioning of the tools influences the shape of the profiles.
In conclusion, early failure detection algorithms are bound to fail because the operator will likely interpret the alarms as “false positives”.

5.2. Analysis of Maximum Load Time Series

The profiles shown in Figure 13 and Figure 14 are useful to highlight the variability of the process, but they do not easily indicate temporal drifts (i.e., slow modifications of the signal profiles) and shifts (i.e., sudden modifications of the signal profiles). Drifts can be caused by thermal dilatations or by progressive tool wear. A more useful graphical representation in this regard is to report as a function of time only the maximum values of any of the monitored variables. The most significant variables are the maximum total pressing force Fz and the maximum value of either Lr or Ll. For case 1, the Lrmax value is well correlated to the coining operations, which is most dangerous operation with respect to tool failure. In Figure 15, an example is given of the sequence of Fz and Lrmax for two consecutive production runs of case 1, during which two failure events were observed on the coining die. Both runs were terminated after the operator detected a defect on the dented washer caused by a failure of the coining die. The coining die failed after 28,000 and then after 45,000 strokes. In both cases, the Lrmax and Fz values increase (most likely because of thermal drifts), then a maximum is reached shortly after the failure is detected. Within a single run of a few hours, the variation in tonnage can be as high as 100 kN. Between runs, after the tooling was repaired and adjusted, the force dropped significantly.

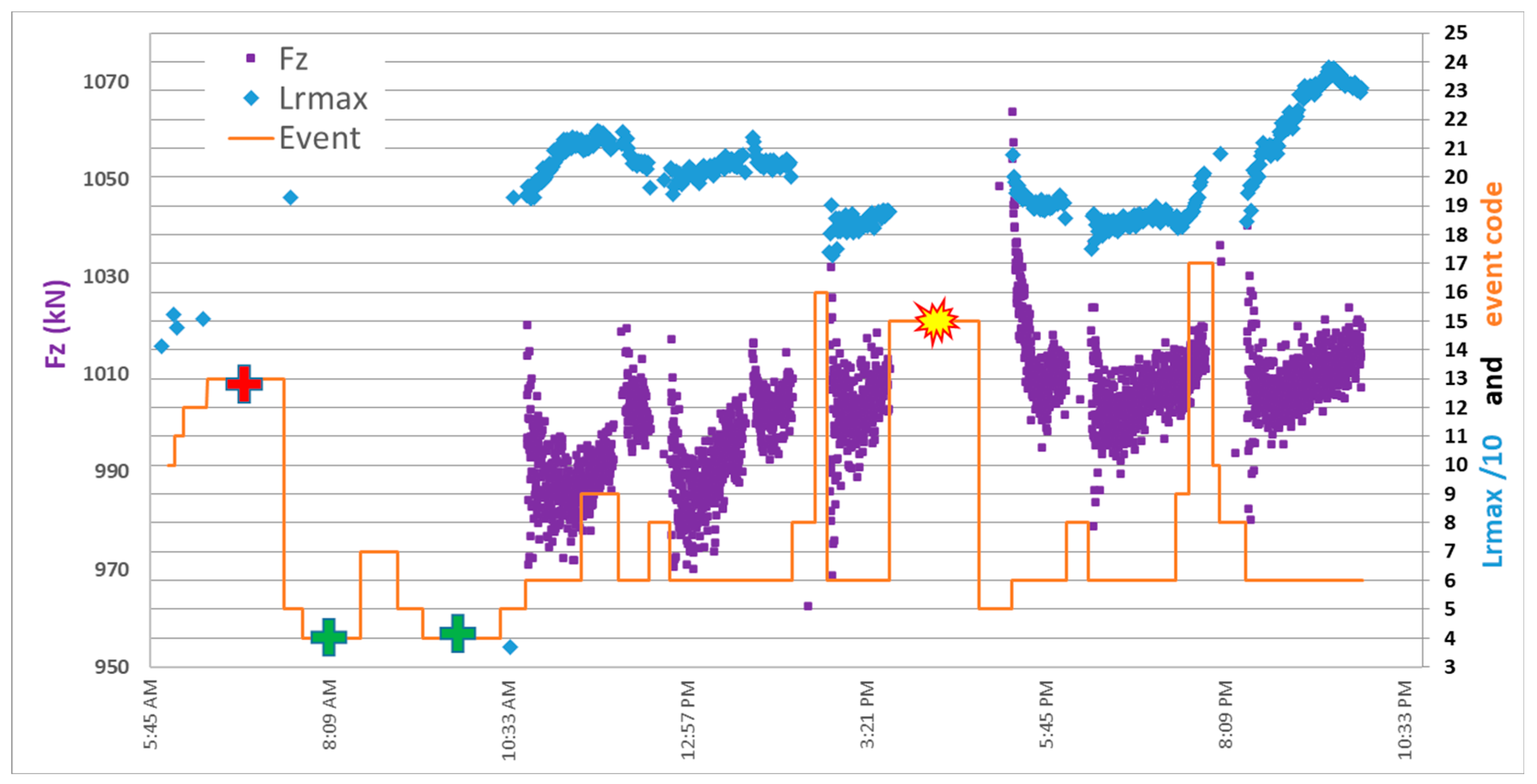

Figure 15 is only a very small example of a large campaign of data collected and stored in the data lake. Several different situations were observed, and they cannot all be reported here for brevity. However, in any of the observed trends for all cases:
  • Large variations in Lrmax, Llmax and Fz can be observed both within a single run and within subsequent runs;
  • The most typical variation in maximum load value within a single run is of a continuous increase, most likely due to thermal drifts, because thermal dimensional variations in the press components are the only phenomenon that can logically explain such monotonous and large short-run increasing trends;
  • Not only may the values of Lrmax, Llmax and Fz have significant run-to-run and between-run variations, but the shape of the curves shown in the previous figures is also neither constant nor repeatable;
  • Failure of tools occasionally seems to follow the occurrence of very high force or load values, but some other times, failure occurs without evident alteration of the loads. This is not surprising because in punching, trimming and coining tools failure may often occur by fatigue. In this case, the useful tool life may be reached with no warning signs. Fatigue failure could possibly be detected with advanced experimental analyses, but this is almost impossible in a real industrial environment.
The availability of the data lake allows us to look for correlations among the peak loads monitored over time and the occurrence of defects on the parts or maintenance events. As an example, Figure 16 reports the log of a few hours of production for washer case 2.
As shown in Figure 6, the tool that is mostly at risk is the blanking punch, located at the far right of the tool. It makes sense, therefore, to monitor the right local load cell Lrmax and the maximum pressing force Fz. The figure shows the trend of Lrmax and Fz together with the event log. Every type of event has a code. For instance, event no. 6 is the regular attended production; event code no. 13 represents a grinding operation performed on a tool (also signalled with a red cross in the diagram) because of tool wear. Event no. 4 is the tooling setup or adjustment on the press (also labelled with a green cross in the figure); event no. 17 (labelled with a yellow star) is the detection of a tool failure in operation. The figure shows that Lrmax and Fz are not correlated and that tool failure does not seem to be forewarned or indicated by any drift/shift in the sensor profiles.

6. A New Tool Health Prevention Strategy

In the previous sections, we showed how difficult it is to detect failure in progressive die stamping of small parts. Additionally, for a process that produces thousands of defective parts in a minute, the early detection of a failure can never be rapid enough to prevent the accumulation of large amounts of scrap. Failure (by wear or fracture of the tools) cannot be avoided, but it might be predicted in advance, although only in statistical terms. As they are used now, the six load sensors installed at the press area are able to detect only major events, such as the lack of a metal strip of the missed ejection of a stamped part.
However, they become useful to build maintenance strategy aimed at avoiding unsafe stamping conditions. By observing the whole set of maintenance events, process variables and quality measurements stored in the data lake, some weak statistical observations emerge, especially looking at the maximum Fz value and the Lmax value of the load cell, which more closely reflect the tools that are at greater risk of failure (e.g., the right foil load sensor Lrmax in case 1). The data show that upper thresholds may exist for Fz and Lrmax. If Fz and Lrmax simultaneously exceed these thresholds, the tooling is at a higher risk of failure and can, therefore, be considered as overloaded. This situation is summarised in Table 3, which reports the percentage of recorded failures during the observed time span of the coining die of case 1 in different scenarios. The process is not interrupted immediately as failure occurs: it takes some time before the operator realises that failure has occurred and stops the press. After any major failure event of the coining die of case 1, the maximum values of Fz and Lrmax in the production run preceding the failure event are considered. When Lrmax and Fz are both below given thresholds (identified respectively in 570 and 1160 kN), no failure event is recorded. On the contrary, when both values have exceeded these thresholds, 50% of the failure events occurred. Thirty-eight percent of the coining die failure took place when Fz exceeded 1160 kN but Lrmax was below its threshold.
Obviously, the thresholds in Table 3 cannot be generalised; every progressive stamping die will have its own. However, similar trends were also observed for test case no. 2, where thresholds seem to exist for Fz and Lrmax at 230 and 1030 kN, respectively, above which the probability of tool failure increases. When the sensors detect values that are above those thresholds, the mean time to failure of the riskiest tool (the chamfering/coining die, in this case) seems to be shortened.
We demonstrated in Section 3 that peak loads may vary for several reasons, which are not, in many cases, pathological. However, it is a fact that when the maximum pressing force increases and the local load sensors value increase, there is an increased stress on the tool. This explains why the probability of failure seems to increase above given thresholds. An advisable prevention strategy is: when thresholds are exceeded, stop production and implement some force reduction action, such as raising the BD by 1 cent of a millimetre, if the part quality is controlled. If changing the BDC alters the part quality, then the solution is to decrease the SPM, which has a relevant effect on the stamping force. Reducing the SPM has a cost, but this is worthwhile if it delays tool failure. In fact, any tool failure dramatically reduces productivity because production is completely stopped for several hours when a failure event takes place.

7. Conclusions

In this paper, we investigated the stamping process of small metal components, such as washers, with multiple simultaneous tools. FEM analysis was run to understand the sensitivity of the process, especially the stamping force, with respect to different potential sources of variation. Our paper shows that, except for a variation in the BDC, which in turn may be influenced by thermal drifts of the press and tooling, no single source of variation can explain the large variability that can be measured in the real process. In this type of production, given the small dimensions and the large number of simultaneously operating tools under a unique press slide, tool maintenance policies based on early failure detection are bound to fail. However, our paper shows that a combination of local load sensors and the global tonnage indicator can be used to identify thresholds above which the probability of failure of the riskiest tools increases. During regular operations, care should be taken to avoid overcoming those thresholds to prolong tool life. In other words, while failure cannot be detected immediately after it has occurred and cannot be predicted with certainty, it is still possible to identify conditions that are dangerous, that is, conditions that can induce larger probability of failure; therefore, mitigation actions or countermeasures can be taken to delay tool failure (e.g., raising the BDC or reducing the SPM).
The research has shown that implementing a robust predictive maintenance plan exploiting the state-of-the-art technology in in-process sensor measurements is a very challenging, albeit not impossible task. A large amount of data are required to implement an effective predictive maintenance strategy. This can be obtained either by multiplying the number of local sensors or by using a “big data” approach that over a long period of time collects enough information to elaborate more advanced algorithms. The present paper can be seen as a first step towards this direction.

Author Contributions

Conceptualization, P.C. and M.S.; methodology, M.S.; software, E.K.; validation, A.F.; formal analysis, D.F and M.S.; investigation, D.F and A.F.; resources, P.C.; data curation, D.F.; writing M.S.; supervision, M.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Joint Research Center MATT (Material and Transformation Technologies) of Politecnico di Milano, Lecco Campus.

Data Availability Statement

Data will be made available upon request to the corresponding author.

Acknowledgments

The authors gratefully acknowledge Marco Tarabini, the director of the JRC MATT, for suggesting the research project and Giovanni Bianchi of Marposs for his precious suggestions for data analysis and for contributing to the data collection of the local sensors.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Albano, M.; Lino Ferreira, L.; Di Orio, G.; Maló, P.; Webers, G.; Jantunen, E.; Gabilondo, I.; Viguera, M.; Papa, G. Advanced Sensor-Based Maintenance in Real-World Exemplary Cases. Automatika 2020, 61, 537–553. [Google Scholar] [CrossRef]
  2. Purr, S.; Meinhardt, J.; Lipp, A.; Werner, A.; Ostermair, M.; Glück, B. Stamping Plant 4.0—Basics for the Application of Data Mining Methods in Manufacturing Car Body Parts. Key Eng. Mater. 2015, 639, 21–30. [Google Scholar] [CrossRef]
  3. Yang, M. Smart Metal Forming with Digital Process and IoT. Int. J. Lightweight Mater. Manuf. 2018, 1, 207–214. [Google Scholar] [CrossRef]
  4. Hoppe, F.; Hohmann, J.; Knoll, M.; Kubik, C.; Groche, P. Feature-Based Supervision of Shear Cutting Processes on the Basis of Force Measurements: Evaluation of Feature Engineering and Feature Extraction. Procedia Manuf. 2019, 34, 847–856. [Google Scholar] [CrossRef]
  5. González, I.; Sánchez, I. Principal Alarms in Multivariate Statistical Process Control Using Independent Component Analysis. Int. J. Prod. Res. 2008, 46, 6345–6366. [Google Scholar] [CrossRef]
  6. Shi, J. Stream of Variation Modeling and Analysis for Multistage Manufacturing Processes; CRC Press: Boca Raton, FL, USA, 2007; ISBN 0-8493-2151-4. [Google Scholar]
  7. Tsuruya, T.; Danseko, M.; Sasaki, K.; Honda, S.; Takeda, R. Forming State Recognition in Deep Drawing Process with Machine Learning. J. Adv. Mech. Des. Syst. Manuf. 2019, 13, JAMDSM0066. [Google Scholar] [CrossRef]
  8. Cachada, A.; Barbosa, J.; Leitao, P.; Alves, A.; Alves, L.; Teixeira, J.; Teixeira, C. Using Internet of Things Technologies for an Efficient Data Collection in Maintenance 4.0. In Proceedings of the 2019 IEEE International Conference on Industrial Cyber Physical Systems (ICPS), Taipei, Taiwan, 6–9 May 2019; pp. 113–118. [Google Scholar] [CrossRef]
  9. Kubik, C.; Knauer, S.M.; Groche, P. Smart Sheet Metal Forming: Importance of Data Acquisition, Preprocessing and Transformation on the Performance of a Multiclass Support Vector Machine for Predicting Wear States during Blanking. J. Intell. Manuf. 2022, 33, 259–282. [Google Scholar] [CrossRef]
  10. Coelho, D.; Costa, D.; Rocha, E.M.; Almeida, D.; Santos, J.P. Predictive Maintenance on Sensorized Stamping Presses by Time Series Segmentation, Anomaly Detection, and Classification Algorithms. Procedia Comput. Sci. 2022, 200, 1184–1193. [Google Scholar] [CrossRef]
  11. Alves, F.; Badikyan, H.; Antonio Moreira, H.J.; Azevedo, J.; Moreira, P.M.; Romero, L.; Leitao, P. Deployment of a Smart and Predictive Maintenance System in an Industrial Case Study. In Proceedings of the 2020 IEEE 29th International Symposium on Industrial Electronics (ISIE), Delft, The Netherlands, 17–19 June 2020; pp. 493–498. [Google Scholar] [CrossRef]
  12. Serradilla, O.; Zugasti, E.; Ramirez de Okariz, J.; Rodriguez, J.; Zurutuza, U. Adaptable and Explainable Predictive Maintenance: Semi-Supervised Deep Learning for Anomaly Detection and Diagnosis in Press Machine Data. Appl. Sci. 2021, 11, 7376. [Google Scholar] [CrossRef]
  13. Shui, H.; Jin, X.; Ni, J. An Anomaly Detection and Diagnosis Method Based on Real-Time Health Monitoring for Progressive Stamping Processes. In The ASME 2015 International Manufacturing Science and Engineering Conference; American Society of Mechanical Engineers: Charlotte, NC, USA, 2015; Volume 2. [Google Scholar] [CrossRef]
  14. Jin, J. Individual Station Monitoring Using Press Tonnage Sensors for Multiple Operation Stamping Processes. J. Manuf. Sci. Eng. Trans. ASME 2004, 126, 83–90. [Google Scholar] [CrossRef]
  15. Jin, J.; Shi, J. Press Tonnage Signal Decomposition and Validation Analysis for Transfer or Progressive Die Processes. J. Manuf. Sci. Eng. Trans. ASME 2005, 127, 231–235. [Google Scholar] [CrossRef]
  16. Zhou, C.; Liu, K.; Zhang, X.; Zhang, W.; Shi, J. An Automatic Process Monitoring Method Using Recurrence Plot in Progressive Stamping Processes. IEEE Trans. Autom. Sci. Eng. 2016, 13, 1102–1111. [Google Scholar] [CrossRef]
  17. Jin, J.; Li, J. Multiscale Mapping of Aggregated Signal Features to Embedded Time-Frequency Localized Operations Using Wavelets. IIE Trans. Inst. Ind. Eng. 2009, 41, 615–625. [Google Scholar] [CrossRef]
  18. Qiu, T.; Lai, X.; Ni, J. Machine Learning Based Novelty Detection Methods for Progressive Stamping Process Health Monitoring. In The ASME 2015 International Manufacturing Science and Engineering Conference; American Society of Mechanical Engineers: Charlotte, NC, USA, 2020; Volume 2. [Google Scholar] [CrossRef]
  19. Cachada, A.; Barbosa, J.; Leitão, P.; Geraldes, C.A.S.; Deusdado, L.; Costa, J.; Teixeira, C.; Teixeira, J.; Moreira, A.H.J.; Moreira, P.M.; et al. Maintenance 4.0: Intelligent and Predictive Maintenance System Architecture. In Proceedings of the 2018 IEEE 23rd International Conference on Emerging Technologies and Factory Automation, Torino, Italy, 4–7 September 2018; pp. 139–146. [Google Scholar] [CrossRef]
  20. Kolhatkar, A.; Pandey, A. Predictive Maintenance Methodology in Sheet Metal Progressive Tooling: A Case Study. Int. J. Syst. Assur. Eng. Manag. 2022, 13, 1–10. [Google Scholar] [CrossRef]
  21. Unterberg, M.; Voigts, H.; Weiser, I.F.; Feuerhack, A.; Trauth, D.; Bergs, T. Wear Monitoring in Fine Blanking Processes Using Feature Based Analysis of Acoustic Emission Signals. Procedia CIRP 2021, 104, 164–169. [Google Scholar] [CrossRef]
  22. Kaya, E.; Farioli, D.; Strano, M. FEA Approach for Wear and Damage Prediction of Tools for the Progressive Die Stamping of Steel Washers. Key Eng. Mater. 2022, 926, 1168–1177. [Google Scholar] [CrossRef]
  23. Quaranta, G.; Ziane, M.; Barri, S.M.; Aboitiz, C.T.; Chambard, A.; Duval, J.L.; Cueto, E.; Chinesta, F. From Component Reduced Models to Reduced Modelling of Multi-Component Systems. Procedia Manuf. 2020, 47, 696–701. [Google Scholar] [CrossRef]
  24. Soriani, A.; Gemignani, R.; Strano, M. A Metamodel for the Management of Large Databases: Toward Industry 4.0 in Metal Forming. Procedia Manuf. 2020, 47, 889–895. [Google Scholar] [CrossRef]
  25. Peinado-Asensi, I.; Montes, N.; García, E. Towards Real Time Predictive System for Mechanical Stamping Presses to Assure Correct Slide Parallelism. In Proceedings of the 18th International Conference on Informatics in Control, Automation and Robotics—ICINCO, online, 6–8 July 2021; pp. 396–402. [Google Scholar] [CrossRef]
  26. Ubhayaratne, I.; Pereira, M.P.; Xiang, Y.; Rolfe, B.F. Audio Signal Analysis for Tool Wear Monitoring in Sheet Metal Stamping. Mech. Syst. Signal Process. 2017, 85, 809–826. [Google Scholar] [CrossRef]
  27. Behrens, B.-A.; Hübner, S.; Wölki, K. Acoustic Emission—A Promising and Challenging Technique for Process Monitoring in Sheet Metal Forming. J. Manuf. Process. 2017, 29, 281–288. [Google Scholar] [CrossRef]
  28. Griffin, J.M.; Shanbhag, V.V.; Pereira, M.P.; Rolfe, B.F. Application of Machine Learning for Acoustic Emissions Waveform to Classify Galling Wear on Sheet Metal Stamping Tools. Int. J. Adv. Manuf. Technol. 2021, 116, 579–596. [Google Scholar] [CrossRef]
  29. Biehl, S.; Paetsch, N.; Meyer-Kornblum, E. Thin Film System with Integrated Load and Temperature Sensors for the Technical Application in Deep Drawing Process. In Proceedings of the SPIE Microtechnologies, Barcelona, Spain, 31 May 2017; Fonseca, L., Prunnila, M., Peiner, E., Eds.; Volume 102460. [Google Scholar] [CrossRef]
  30. Elkins, K.L.; Sturges, R.H. Design of a Sensor for On-Line Measurement of Loaded Bend Angle for Pressbrake Control. Robot. Comput. Integr. Manuf. 2001, 17, 329–340. [Google Scholar] [CrossRef]
  31. Lorenz, M.; Menzl, M.; Donhauser, C.; Layh, M.; Pinzer, B.R. Optical Inline Monitoring of the Burnish Surface in the Punching Process. Int. J. Adv. Manuf. Technol. 2022, 118, 3585–3600. [Google Scholar] [CrossRef]
  32. D’Annibale, A.; Di Ilio, A.; Trozzi, M.; Bonaventura, L. The Use of Infrared Thermography for Maintenance Purposes in the Production Process of Components for Automotive Alternators. Procedia CIRP 2015, 38, 143–146. [Google Scholar] [CrossRef]
  33. Steinlehner, F.; Ott, M.; Budnick, D.; Weinschenk, A.; Laumann, S.; Worswick, M.; Volk, W. Development of Inline Closed-Loop Vibration Control in Progressive Die Stamping Using Finite Element Simulation. IOP Conf. Ser. Mater. Sci. Eng. 2020, 967, 012035. [Google Scholar] [CrossRef]
  34. Vallance, R.R.; Kiani, S. A Predictive Model for Variation in the Pitch between Stamped Pilot Holes. J. Manuf. Sci. Eng. Trans. ASME 2003, 125, 384–393. [Google Scholar] [CrossRef]
  35. Wu, W.; Zhou, D.J.; Adamski, D.J.; Young, D.; Wang, Y.W. Investigating the Evolution of Progressive Die Wear on Uncoated Dp1180 Steel in Production Environment. J. Phys. Conf. Ser. 2017, 896, 012029. [Google Scholar] [CrossRef]
  36. Yu, W.; Dillon, T.; Mostafa, F.; Rahayu, W.; Liu, Y. A Global Manufacturing Big Data Ecosystem for Fault Detection in Predictive Maintenance. IEEE Trans. Ind. Inform. 2020, 16, 183–192. [Google Scholar] [CrossRef]
  37. Trauth, D.; Stanke, J.; Feuerhack, A.; Bergs, T.; Mattfeld, P.; Klocke, F. A Characterization of Quality of Sheared Edge in Fine Blanking Using Edge-Computing Approach. Procedia Manuf. 2018, 15, 578–583. [Google Scholar] [CrossRef]
  38. Yang, M.; Manabe, K.; Hayashi, K.; Miyazaki, M.; Aikawa, N. Data Fusion of Distributed AE Sensors for the Detection of Friction Sources during Press Forming. J. Mater. Process. Technol. 2003, 139, 368–372. [Google Scholar] [CrossRef]
  39. Cannas, V.G.; Pozzi, R. Barriers to Predictive Maintenance Implementation in the Italian Machinery Industry. IFAC-PapersOnLine 2021, 54, 1266–1271. [Google Scholar] [CrossRef]
  40. Ge, M.; Du, R.; Zhang, G.; Xu, Y. Fault Diagnosis Using Support Vector Machine with an Application in Sheet Metal Stamping Operations. Mech. Syst. Signal Process. 2004, 18, 143–159. [Google Scholar] [CrossRef]
  41. Wu, T.-L.; Hwang, Y.-C. Failure Detection for Multiple Micro-Punches Outfitted in Progressive Piercing Processes With Artificial Intelligent Model. In Proceedings of the ASME 2019 28th Conference on Information Storage and Processing Systems, San Diego, CA, USA, 27–28 June 2019; American Society of Mechanical Engineers: Charlotte, NC, USA. [Google Scholar] [CrossRef]
  42. Bader, F.; Bathelt, L.; Djakow, E.; Henke, C.; Homberg, W.; Trächtler, A. An Approach for an Innovative 3D Steel Strip Straightening Machine for Curvature and Saber Compensation. Key Eng. Mater. 2022, 926, 2391–2396. [Google Scholar] [CrossRef]
  43. Wang, L.; Xu, F.-Y.; Wang, X.-S. Analysis of Thermally Induced Machine Tool Errors of a Crank Press. Proc. Inst. Mech. Eng. Part B J. Eng. Manuf. 2012, 226, 1465–1478. [Google Scholar] [CrossRef]
  44. Jin, J.; Shi, J. Automatic Feature Extraction of Waveform Signals for In-Process Diagnostic Performance Improvement. J. Intell. Manuf. 2001, 12, 257–268. [Google Scholar] [CrossRef]
Figure 1. Tooling lay-out, drawings and pictures of a dented washer (test case 1).
Figure 1. Tooling lay-out, drawings and pictures of a dented washer (test case 1).
Jmmp 07 00092 g001

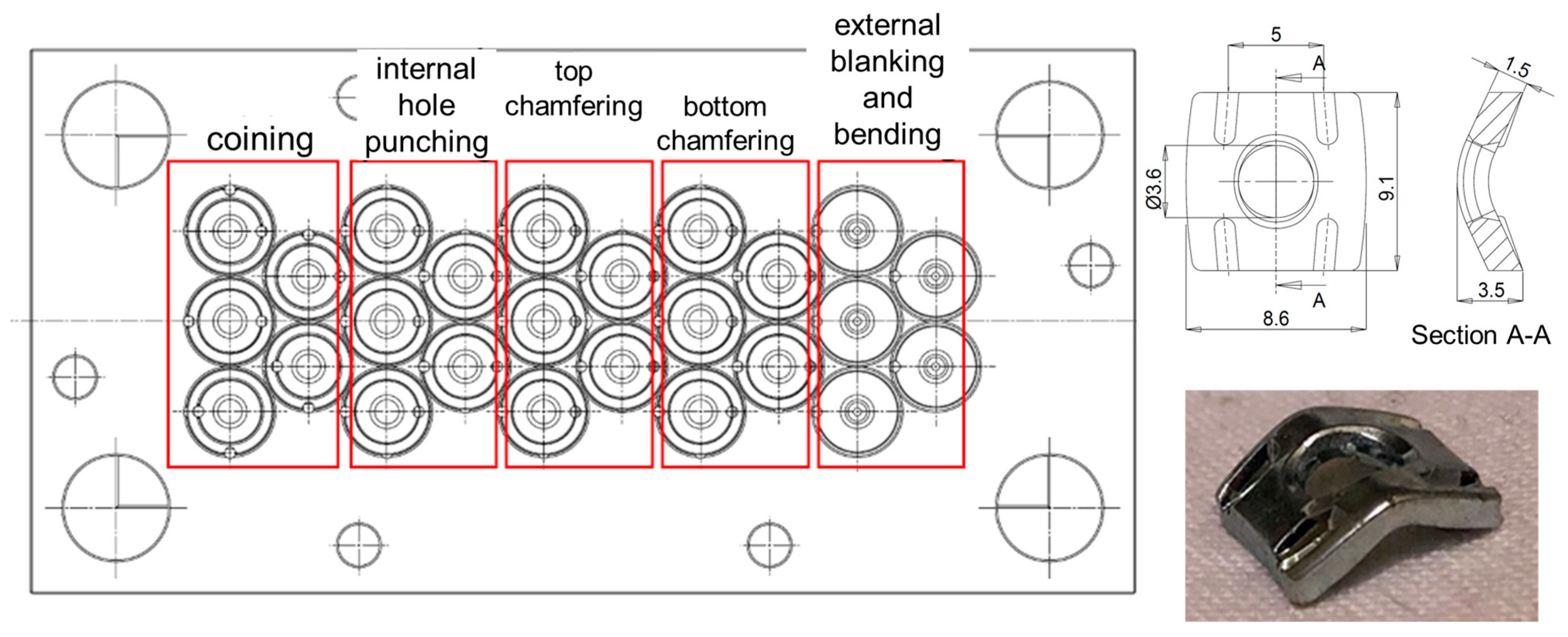

Figure 2. Tooling lay-out, drawings and pictures of a square indented washer (test case 2).
Figure 2. Tooling lay-out, drawings and pictures of a square indented washer (test case 2).
Jmmp 07 00092 g002

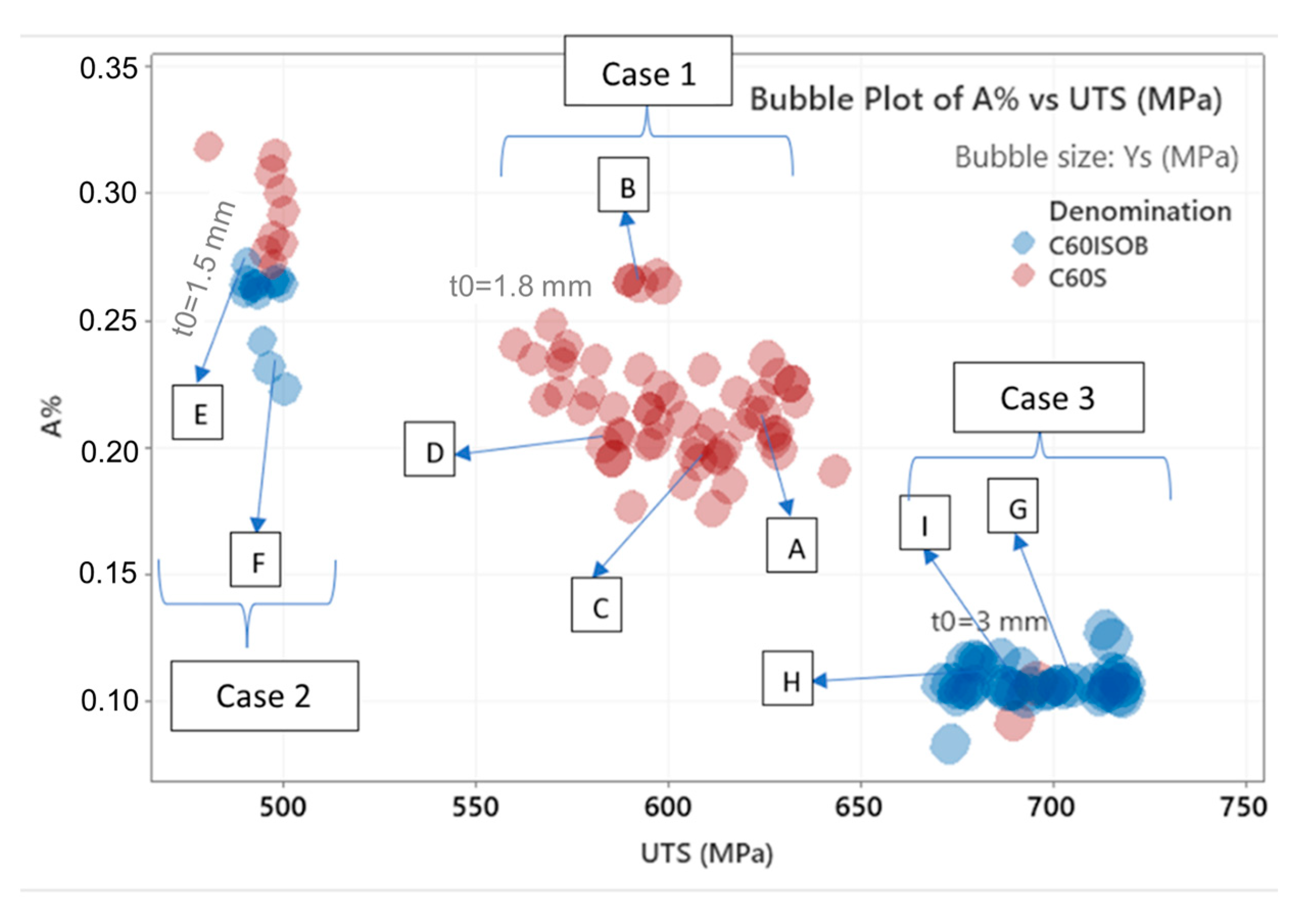

Figure 3. UTS vs. A% and YS for tested coils over a period of 20 months. A, B, C and D represent materials that were used in the FEM analysis of case 1; E and F are the materials for the analysis of case 2. Case 3 was included in the study but not reported in the paper for brevity.
Figure 3. UTS vs. A% and YS for tested coils over a period of 20 months. A, B, C and D represent materials that were used in the FEM analysis of case 1; E and F are the materials for the analysis of case 2. Case 3 was included in the study but not reported in the paper for brevity.
Jmmp 07 00092 g003
Figure 4. Initial mesh used in the first station of case 2.
Figure 4. Initial mesh used in the first station of case 2.
Jmmp 07 00092 g004
Figure 5. Reconstructed FEA total force signal for washer case 1; only half a tool is considered in the simulation, hence the real Fz value must be divided by 2 to consider symmetry and by 4 to consider that 4 washers are produced simultaneously. The experimental Fz/8 lies between 12.2 and 14.4 tons.
Figure 5. Reconstructed FEA total force signal for washer case 1; only half a tool is considered in the simulation, hence the real Fz value must be divided by 2 to consider symmetry and by 4 to consider that 4 washers are produced simultaneously. The experimental Fz/8 lies between 12.2 and 14.4 tons.
Jmmp 07 00092 g005
Figure 6. FEAdamage indicator compared to the number of maintenance interventions due to catastrophic damage over nearly 4 years for the embossed square washer (case 2).
Figure 6. FEAdamage indicator compared to the number of maintenance interventions due to catastrophic damage over nearly 4 years for the embossed square washer (case 2).
Jmmp 07 00092 g006
Figure 7. Material sensitivity analysis for case 1 for the maximum vertical force Fz. The experimental minimum and maximum values are 75 and 135 tons, which is the range of the horizontal axis in the figure. The case with isotropic material “A” and initial thickness 1.85 mm is taken as the baseline.
Figure 7. Material sensitivity analysis for case 1 for the maximum vertical force Fz. The experimental minimum and maximum values are 75 and 135 tons, which is the range of the horizontal axis in the figure. The case with isotropic material “A” and initial thickness 1.85 mm is taken as the baseline.
Jmmp 07 00092 g007
Figure 8. Explanation of how the sabering defect was simulated; each station after the initial punching was misaligned by the quantities reported above.
Figure 8. Explanation of how the sabering defect was simulated; each station after the initial punching was misaligned by the quantities reported above.
Jmmp 07 00092 g008
Figure 9. Dimensional die abrasion wear indicator FEAwear (mm*MPa) for the piloting region of the coining punch in case 1.
Figure 9. Dimensional die abrasion wear indicator FEAwear (mm*MPa) for the piloting region of the coining punch in case 1.
Jmmp 07 00092 g009
Figure 10. Real damaged coining die (on the left) and implemented damage on the coining die CAD file (on the right).
Figure 10. Real damaged coining die (on the left) and implemented damage on the coining die CAD file (on the right).
Jmmp 07 00092 g010
Figure 11. Simulated vertical force profile in the last degrees of the crack rotation close to the bottom dead centre in case of a new tool with standard geometry (std), in case of severely worn coining tools and in case of new coining tools with many broken teeth.
Figure 11. Simulated vertical force profile in the last degrees of the crack rotation close to the bottom dead centre in case of a new tool with standard geometry (std), in case of severely worn coining tools and in case of new coining tools with many broken teeth.
Jmmp 07 00092 g011
Figure 12. List of in-process sensors shown on the press (a); position of the 4 local load sensors that yield Nc(θ) and Lc(θ), with reference to the tooling of case 1 (b); the two blue dots represent the position of the noise sensors, while the two blue rectangles are the thin load cells below the tooling.
Figure 12. List of in-process sensors shown on the press (a); position of the 4 local load sensors that yield Nc(θ) and Lc(θ), with reference to the tooling of case 1 (b); the two blue dots represent the position of the noise sensors, while the two blue rectangles are the thin load cells below the tooling.
Jmmp 07 00092 g012
Figure 13. Lr(θ) and Ll(θ) acquired during 3 days of production of the dented washer. Some of the profiles are shifted to the right: they belong to stamping cycles with reduced SPM, which are typically run when the press is re-started after a stop; they are wrongly plotted in terms of rotation angle and must be ignored. The two left and right plots do not refer to the same acquisition, as they were taken on different days. The BDC is at 180°. Lines are plotted in different colours to improve visibility, every different line represents a new pressing cycle.
Figure 13. Lr(θ) and Ll(θ) acquired during 3 days of production of the dented washer. Some of the profiles are shifted to the right: they belong to stamping cycles with reduced SPM, which are typically run when the press is re-started after a stop; they are wrongly plotted in terms of rotation angle and must be ignored. The two left and right plots do not refer to the same acquisition, as they were taken on different days. The BDC is at 180°. Lines are plotted in different colours to improve visibility, every different line represents a new pressing cycle.
Jmmp 07 00092 g013
Figure 14. Noise Nl(θ) acquired during 3 production days of the dented washer; BDC at 180°.
Figure 14. Noise Nl(θ) acquired during 3 production days of the dented washer; BDC at 180°.
Jmmp 07 00092 g014
Figure 15. Sequence of Fz and Lrmax values during a few hours for case 1.
Figure 15. Sequence of Fz and Lrmax values during a few hours for case 1.
Jmmp 07 00092 g015
Figure 16. Maximum loads Fz (left axis) and Lrmax/10 (right axis) vs. time and event log number (right axis) for washer case no. 2 during 1 day of production. The red cross indicates event no. 13, grinding operation; the green cross indicates event no. 4, tooling setup; the yellow star indicates event no. 15, tool failure.
Figure 16. Maximum loads Fz (left axis) and Lrmax/10 (right axis) vs. time and event log number (right axis) for washer case no. 2 during 1 day of production. The red cross indicates event no. 13, grinding operation; the green cross indicates event no. 4, tooling setup; the yellow star indicates event no. 15, tool failure.
Jmmp 07 00092 g016
Table 1. Main features of the three productions under study.
Table 1. Main features of the three productions under study.
CaseType of WasherNumber of Type of Stations stationsParts Per StrokeToolsSPMParts Per Min
1Dented5PunchingPilotingChamferingCoiningBlanking4406002400
2Square indented5CoiningPunchingTop chamferingBottom chamferingBlanking5505002500
Table 2. Comparison between real and FEA dimensions (mm) for embossed square washer (case 2).
Table 2. Comparison between real and FEA dimensions (mm) for embossed square washer (case 2).
Hole-to-Embossing DistanceWidth 1Width 2Internal Hole DiameterEmbossing DistanceWasher HeightFinal Thickness
FEA dimension 1.219.088.33.82.83.541.52
Real washer dimension0.99.05–9.158.5–8.63.55–3.62.4–2.63.4–3.61.45–1.55
Table 3. Percentage of failures of the coining die of case 1 in different conditions of maximum values of Fz and Lrmax during the production run preceding the event.
Table 3. Percentage of failures of the coining die of case 1 in different conditions of maximum values of Fz and Lrmax during the production run preceding the event.
Fz < 1160 kNFz > 1160 kN
Lrmax < 5700%38%
Lrmax > 57013%50%
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Farioli, D.; Kaya, E.; Fumagalli, A.; Cattaneo, P.; Strano, M. A Data-Based Tool Failure Prevention Approach in Progressive Die Stamping. J. Manuf. Mater. Process. 2023, 7, 92. https://doi.org/10.3390/jmmp7030092

AMA Style

Farioli D, Kaya E, Fumagalli A, Cattaneo P, Strano M. A Data-Based Tool Failure Prevention Approach in Progressive Die Stamping. Journal of Manufacturing and Materials Processing. 2023; 7(3):92. https://doi.org/10.3390/jmmp7030092

Chicago/Turabian Style

Farioli, Daniele, Ertuğrul Kaya, Andrea Fumagalli, Paolo Cattaneo, and Matteo Strano. 2023. "A Data-Based Tool Failure Prevention Approach in Progressive Die Stamping" Journal of Manufacturing and Materials Processing 7, no. 3: 92. https://doi.org/10.3390/jmmp7030092

Article Metrics

Back to TopTop
