Article

Virtual Quality Gates in Manufacturing Systems: Framework, Implementation and Potential

1
Institute of Machine Tools and Production Technology, Chair of Sustainable Manufacturing and Life Cycle Engineering, Technische Universität Braunschweig, Langer Kamp 19 b, 38106 Braunschweig, Germany
2
Department of Design, Production & Management, Faculty of Engineering Technology, University of Twente, De Horst 2, 7522LW Enschede, The Netherlands
*
Author to whom correspondence should be addressed.
J. Manuf. Mater. Process. 2020, 4(4), 106; https://doi.org/10.3390/jmmp4040106
Received: 31 July 2020 / Revised: 27 October 2020 / Accepted: 5 November 2020 / Published: 9 November 2020
(This article belongs to the Special Issue Cyber Physical Production Systems)

Abstract

:
Manufacturing companies are exposed to increased complexity and competition. To stay competitive, companies need to minimize the total cost of quality while ensuring high transparency about process–product relationships within the manufacturing system. In this context, the development of technologies such as advanced analytics and cyber physical production systems offer a promising approach. This paper discusses and defines essential elements of virtual quality gates in the context of manufacturing systems. To support the planning and implementation of virtual quality gates, a morphological box is developed which can be used to identify and derive an individual approach for a virtual quality gate based on the specific characteristics and requirements of the respective manufacturing system. Moreover, the framework is exemplified by three case studies from various industries and resulting potential are discussed.

1. Introduction

Manufacturing companies need to increase their productivity by ensuring high-quality standards, low-cost and short lead times to stay competitive. In this environment, companies have to ensure a high product quality to meet customers’ demands [1,2]. In this context, quality can be defined as a set of characteristics of a unit (e.g., product or process) regarding their suitability, to meet specified and presupposed requirements [3]. Therefore, both product and process quality need to be addressed to achieve the required product quality. For quality inspection, a distinction can be made between measurement technology on the product and measurement technology on the process to meet the quality requirements [4].
In general, manufacturing companies try to improve or maintain a high quality while maximizing the efficiency of the overall system. Figure 1 shows the challenges of finding an optimal trade-off between effort for error prevention and resulting costs in case of occurring errors. Manufacturing with a minimum amount of quality errors, even toward “zero-defect” production, is of course a promising vision to achieve. However, it requires high efforts—e.g., for physical inspection of product properties with high (temporal and spatial) resolutions and establishment of adaptive control regimes based on defined quality gates. Furthermore, high product variants lead to an increased complexity of quality inspection planning and operation. Consequently, with increasing error prevention, the cost of prevention and appraisal increase significantly [5]. Therefore, strategies that allow a high transparency of product and process quality along the process chain while still keeping a reasonable effort are very promising.
To decrease the total cost related to quality measurements and reduce rework and scrap, it is necessary to consider the complete process chain instead of single and isolated processes. Therefore, it is important to understand dynamics and interdependencies within the process chain. Here, especially in the context of product quality, transparency und understanding of process–product relationships, which describe interactions and the impact of the manufacturing processes on the resulting intermediate product features and vice versa, are of great importance. Moreover, to derive proper quality management strategies, knowledge about the propagation and the detection of intermediate product feature changes along manufacturing processes is essential. Therefore, the design of inspection processes is an important task in the planning and operation of manufacturing systems with regard to product and process quality.
Digitalization is a major trend in manufacturing which creates new opportunities for advanced quality management (QM). There are already numerous QM methods, tools and technologies that have already been implemented or are in the process of implementation.
To overcome the limitations of physical measurements within the quality inspection such as non-value adding process times for inspection, accuracy, flexibility and related efforts, virtual quality gates can be developed based on digital methods, tools and technologies [6]. Therefore, existing or easy-to-obtain data from the physical production (e.g., shop floor) are used for a valid virtual model to predict the current product and process properties and thus are the basis for advanced QM and the improvement of the quality while maintaining a high transparency with low cost at the same time.
Against this background, central elements and characteristics of virtual quality gates are discussed and defined. The paper is structured as follows: Section 2 gives insights on the theoretical background of cyber physical systems and quality gates. Section 3 discusses applications of virtual quality gates in manufacturing and concludes with derived research demands for virtual quality gates. Section 4 presents the theoretical framework for the design and implementation of virtual quality gates. Section 5 presents three case studies with an exemplary application of the aforementioned framework in lithium-ion battery cell manufacturing, aluminum die casting and printed circuit board production. Section 6 discusses the potential and challenges of virtual quality gates (VQGs) while Section 7 gives an outlook on further research demand.

2. Theoretical Background

2.1. Cyber Physical Production Systems

The broad term cyber physical system (CPS) refers to a feedback loop interaction of the physical world with the cyber world of embedded computers and networks that monitor and control a physical process [7]. It further incorporates the possibility of human and machine interactions [8]. A cyber physical production system (CPPS) is a special application of the CPS in the area of manufacturing and is strongly interrelated with the term of industry 4.0 [9,10]. It enables the use of various virtual applications (e.g., simulation, data analysis, etc.) on different levels of manufacturing (e.g., product, process, process chain, etc.) for different purposes (e.g., predictive maintenance, quality control, energy efficiency, etc.) [11]. A CPPS generally consists of four major elements, as presented in Figure 2: I. physical world, II. data acquisition, III. cyber world and IV. decision support/control [9,11]. Even though, other definitions and architectures of a CPPS exist, such as the five-level CPS, CPPS for quality prediction and operation control, digital twin-based CPPS, etc., the main elements remain the same in a certain abstraction and with a different differentiation focus [12,13,14]. Although decision making in manufacturing has become more automated through the application of CPPSs, the human still stays in the loop to derive recommendations for the adaption of operation and planning to improve processes. Besides the efficient operation of a manufacturing system through a CPPS, the human plays a vital role in creating and managing the CPPS. Ultimately, the human non-value adding and time-consuming work such as manual sensing and analysis could be substituted step-by-step by valuable creative work [15,16].
In recent years, several successful use cases for CPPSs have been developed and demonstrated for various production purposes, often resulting in active decision support for the human. In the field of production planning and control, contributions focus on the prediction of machine faults [17,18] and throughput bottlenecks [19] for an active scheduling of processes to increase the production output of the manufacturing system. Closely related to this, predictive maintenance applications support in wear monitoring—e.g., health state of tool [20]. Furthermore, several contributions address the potential of CPPS in sustainable manufacturing. In [21], an online and offline approach for energy-oriented decision support in the energy-intensive production of battery cells is presented. The contribution benchmarks a collection of machine learning methods (e.g., Lasso-Lars Regression and Random Forest) for electrical power prediction across the whole value chain covering different levels of production—i.e., machines, process chain and technical building services. An approach at the machine level for remote laser welding of a car back door is proposed in [22]. The neural network-based approach considers machine specifications as well as variations of process parameters to estimate the process steps’ energy consumption. Another promising field of CPPSs are virtual quality gates that enable a prediction and control of product and process quality, which offers significant potential for increased economic and environmental performances of manufacturing systems. Virtual quality gates and previous work in this field are introduced hereafter.

2.2. Quality Gates

2.2.1. Quality Management

Quality is a determining factor in the manufacturing environment today. It can directly affect the productivity and economy of a production, especially in the case of mass production. The term quality is defined as, “… the degree to which a set of inherent characteristics or features of an object fulfils requirements” [3]. The inherent characteristics or features are set within a quality management system (QMS). In general, a QMS, as depicted in Figure 3, consists of four main components or phases: (1) quality planning, (2) quality assurance, (3) quality control and (4) quality improvements [3].
Within the phase of quality planning, certain quality objectives to be achieved are set and operational processes, to prove these quality objectives, are put into place. This is followed by the phase of quality assurance, which focuses on providing confidence that certain quality requirements, such as a quality attributes, are fulfilled. The proof that those set quality requirements are met is given throughout the process of quality control and improvements [3].

2.2.2. Quality Inspection and Virtual Quality Gates

Traditionally, quality control in the manufacturing environment is often performed offline, after the completion of an intermediate product. This can be achieved by measuring certain quality attributes defined within the quality requirements of this intermediate product or process requirements (e.g., process capability) [23]. Here, the concept of quality gates (QGs) has been introduced in the past. The idea of this concept is to systematically divide a defined manufacturing chain into different quality-relevant decision points. Along these QGs, the perceived quality of the object is inspected, securing that defined quality attributes are met before allowing any further progress [24]. Figure 4 gives an overview of the QG concept within manufacturing systems.
The aim of manufacturing processes is to transform raw material into final products by value adding to meet the customers’ requirements. This value adding consists of the physical transformation of the products (e.g., transforming geometry, aggregate state, and chemical composition). Consequently, product states with their respective features change with every process step [24,25]. At each QG, the current product states are measured with specific technologies such as vision inspection at certain observation points within the process chain. An intermediate product state (IPS) characterizes an intermediate product at a certain observation point along the manufacturing process chain by a combination of intermediate product features (IPFs) [24]. An IPF is defined as a quantitative (e.g., temperature) or qualitative (e.g., material composition) description of the product itself as well as definable and deterministic measurements [26,27]. At a QG, the IPS with its measured IPF is checked against previously defined target values and classifies them—for example, as good or bad products. Moreover, the process quality of a production process can be measured by analyzing certain process parameters (PPs). Here, the process capability can be assessed or a certain PP can be evaluated regarding its position within a predefined process window.
Within a manufacturing system, different relationships or dependencies between PPs and IPFs can occur. Regarding the IPF and PP, bi-directional relations between IPF and PP may exist. However, a forward relation can appear between a PP and successor IPF at certain observations. Forward relations can also occur between two following IPFs or between random IPFs. Due to the direct influence of PPs on IPFs and vice versa, the consideration of the process quality besides the consideration of the product quality is of great importance for the overall quality.
Basically, QG can be characterized and designed based on the inspection tasks performed. These tasks are provided by an inspection plan. Based on [28,29], inspection plans include the following specifications:
  • relevant inspection characteristics (what)
  • inspection point (when)
  • inspection type (how)
  • inspection extend (how much)
  • inspection place (where)
  • inspection personnel (who)
  • inspection equipment (whereby)
The identification of inspection characteristic is based on, e.g., design drawings, working plan or technical terms of delivery. These inspection characteristics can, for example, be displayed by geometry (length) or physical (material composition) properties of the respective product. The process to identify characteristics is defined by an assessment of inspection necessity [29]. The inspection point can typically be divided into “incoming inspection”, “intermediate inspection” and “end-of-line inspection” [28,29,30]. The inspection type is differentiated into two forms. Qualitative inspection results refer to attributive values such as “good/bad” or “yes/no”. However, quantitative inspection is based on measured IPF such as length or height. Therefore, these results are more detailed and can be used for further analysis and modeling. The inspection extend defines the share or amount of parts that are inspected. With full inspection, 100% of all parts are subject to inspection and it is usually used for security sensitive products with high costs [30]. A sample inspection is performed according to predefined external or internal standards. The sample sizes need to be sufficient to assess the respective quality of the products. No inspection is used when no further inspection is needed—for example, if the product confirmation is already evident (e.g., product requirements are fulfilled) [28]. The inspection place is, e.g., dependent on the specific inspection characteristics, the inspection equipment and the manufacturing system characteristics. A manual inspection can be either performed directly during the process (inline inspection) or at special inspection locations (offline inspection). Otherwise, the product just passes through a QG where inspectors perform further tests. Alternatively, automated inspection stations such as a QG process the measured data. This can then be used for, e.g., the adjustment of manufacturing processes [28]. The inspection personnel are determined by the respective inspection place and equipment. For example, complex inspection stations and equipment can only be operated by qualified employees [30]. The main selection criteria for inspection equipment are the capability of inspection devices in terms of measurement accuracy and the necessary tolerances of the inspection characteristics. Furthermore, additional factors such as necessary investments, inspection times or required training for the inspector must be taken into account [4,28].
Advancements towards digitalization over the past decade have made it possible to indirectly measure or infer the quality of a product during manufacturing processes by simulations, soft sensors or data-driven models. These developments allow the design and implementation of virtual quality gates (VQGs). In this context, VQG can be understood as an addition or substitution of traditional QG. Moreover, VQG can improve inspection processes by reducing testing times and increasing the accuracy and flexibility of the inspection technology through the almost real-time processing. According to [31], four different quality-related tasks can be identified:
Quality description
Quality prediction
Quality classification
Parameter optimization

3. State of Art and Research

3.1. Applications of Virtual Quality Gates in Manufacturing

A review of the literature shows that several approaches contribute to the concept of VQGs (see Table 1). The identified approaches are classified by two criteria: (i) the considered scope of inspection (i.e., single process vs. process chain VQGs) and (ii) the deployed data source—i.e., the independent variables, as inputs for the cyber world. Manufacturing process data from a single process (e.g., melting temperature in degrees Celsius at a discrete time in an extrusion process) is used by [32,33,34]. Several authors show approaches on a single process that rely on continuous value series from the process, such as temperature sensor data within a metal casting mold. These approaches require data preprocessing to be suitable for data-driven methods; however, they facilitate the extraction of large quantities of representative features [13,35,36]. VQG approaches that capture the effects of process chains on the IPF or final product properties (FPPs) are proposed by [37,38] (i.e., discrete process data) and [39] (i.e., value series). In contrast to process data (and external factors), several VQG approaches rely on product data—i.e., design parameters and/or IPF. A single process level [40] uses histogram- and shape-based features of pictures gathered from an optical sensor for defect detection via a random forest classifier in composite parts manufacturing. A deep neural network approach for the prediction of shear angles for a composite draping process based on finite element simulations is shown in [41]. Likewise, [42] proposes a combination of finite element simulation with machine learning for creating a VQG with detailed spatial quality characteristics exemplified by an overmolded thermoplastic composite. Finally, at the process chain level, the use of product data to predict the product quality in downstream processes is shown by [25,43,44,45].
The results of the literature analysis show that no unified framework for the design and implementation of VQG exists. To fill the gap, a morphological box was developed which can be used to identify and derive an individual approach for a virtual quality gate based on the specific characteristics and requirements.

3.2. Objectives and Fields of Action

As indicated before, VQGs bear significant potential to improve the QM and can strongly contribute towards zero-defect strategies in manufacturing. With higher quality-related transparency and potential inline use, VQGs can significantly reduce occurring errors in manufacturing systems while—through utilizing existing or relatively easy-to-obtain data—keeping additional efforts at a reasonable level. There are different fields of action that can be addressed through VQGs [25,34,42,43,44]:
  • Fast and comprehensive quality estimation of parts: as a primary function, VQGs allow a part-specific estimation of one or multiple (intermediate or final) properties of a product and, thus, a well-based decision can be made if it is within the required technical specifications. Due to the nature of quality control, a broad coverage of products (100% inspection) without additional process time can be achieved. VQGs could also be applied where physical measurements are hardly possible due to technical or spatial restrictions in the manufacturing systems.
  • Inline process control: based on the individual part quality estimations and the fast processing models, an inline control of processes is possible while potentially also taking into account effects from previous steps of the process chain.
  • Process chain control: related to the previous point, reliable information regarding the status of individual parts also allows an extended usage in later process steps. One obvious point is to avoid further processing of potentially bad parts. However, the dynamic derivation of corrective actions to bring them back into the specifications is also possible—e.g., the adaption of later processes or selective assembly of matching parts.
  • Process parameter adaption: the underlying models bring together different influencing factors and give clear indication regarding their individual relevance/criticality for a successful production process. Therewith, the identification and adaption of critical parameters or other influencing factors allow the derivation of further quality and general production improvement strategies from a more strategic perspective as well.
  • Advanced tracking and tracing: the gathered information and estimated properties create an individual fingerprint of products. Together with an appropriate IT infrastructure (e.g., for part identification), advanced opportunities are given for tracing potential root causes of failures over the later value chain or even in later states of the product life cycle.

4. Framework of Virtual Quality Gate Design and Implementation

4.1. Technical Framework of Virtual Quality Gates

In the following, the developed technical framework for a virtual quality gate is presented in Figure 5, based on the CPPS framework, as explained in Section 2.1. The framework covers four major levels: I. physical world, II. data acquisition, III. cyber world and IV. decision support/control. Each level can be divided into different characteristics that need to be defined for implementing a VQG. Therefore, the physical world explains which information is required in order to assess and understand the current situation (understanding of production type and inspection). Data acquisition gives insights into the characteristics that need to be defined regarding data gathering in order to obtain needed data for the VQG from available data sources. In the cyber world, modeling approaches are explained that can be utilized to obtain desired product characteristics from acquired data. Decision support gives insights into how derived product characteristics are used to enable decision support or even direct production control.

4.2. Physical World

The physical world reflects the actual design and characteristics of the respective “real” manufacturing system. With a focus on QM, performance criteria such as the error rate or pseudo-error rate as well as mean rework time arise. These indicators are the basis for analysis and improvement purposes. Moreover, state variables such as normal force or power demand describe the system behavior. In addition, the system behavior is also affected by internal influences such as special room conditions (e.g., temperature or humidity) or external influences such as properties of incoming material (e.g., tolerances). However, design and control parameters such as feed, cutting speed or specific machine characteristics actively influence the manufacturing system behavior. These variables and parameters serve as the basis for quality control by creating a link between the requirements from product design and actual production as they provide, e.g. inspection characteristics. Furthermore, within the physical world the amount of machines and processes, the age of machines, cycle times and mean lead times are defined. Moreover, the product variants to be produced are specified.
Next to the mentioned quantitative characteristics, the physical world also defines the production type of the designed system (e.g., discrete or continuous processes). Moreover, through its design, inspection equipment and places are derived.

4.3. Data Acquisition

In order to obtain and to store the needed or desired data for a VQG, its source and type need to be specified, its accessibility needs to be determined—i.e., how this data can be obtained—and a data storage solution needs to be derived. The first two attributes (data source and data format) are mostly defined by the information from the previous phase—physical world. Data accessibility is usually dependent on the data source and the data storage needs to be derived based on the intended usage (cyber world).
Various data sources exist in production; some of them are spreadsheets, lab protocols or data files in general (e.g., excel files, word files, image files, etc.), control software (Supervisory Control and Data Acquisition (SCADA)), planning and design software (e.g., Enterprise and Resource Planning (ERP), Computer Aided Design (CAD), etc.), process automation (e.g., Computerized Numerical Control (CNC), Programmable Logic Control (PLC), etc.), sensors, etc. In the specified source, the data are usually available in a certain format—e.g., single value, time series, spatial data, image data, etc.
Based on the information of the data source and the data format, data accessibility is reviewed and evaluated with regard to intended usage in the cyber world. In the context of VQGs, quality-related data are of the highest importance. These data are either acquired inline of the production chain or through offline inspection of an intermediate product. The data can be stored in files which can be acquired either manually, by uploading through graphical user interfaces (GUIs) or by using an extraction transformation and loading process (ETL) if their directory is defined and accessible. Data stored in software applications can be, e.g., accessed through the application’s database via queries. Continuously running applications (SCADA, ERP, PLC, etc.) could have standardized communication protocols (e.g., open platform communication unified architecture (OPC-UA), ModBus, PROFINET, PROFIBUS, etc.) that can be accessed and used to acquire data. Sensors might also have communication protocols, or can be read out via analogue or digital signals. More often, sensors are read out by small Internet of things (IoT) devices and can make-up a whole IoT device network.
The choice of data management, if entirely needed, is also made with regard to the cyber world and the intended application. Since the IoT devices become more and more durable and performant, they also can be used for data management, allowing to store small amounts of data either decentralized or on the edge. Furthermore, the data can be stored centralized, either on premise, if the IT support is guaranteed, or on the cloud. For data management, various technologies exist for on premise or cloud data storage (e.g., Hadoop distributed file system (HDFS), MySQL, MongoDB, Amazon web services (AWSs), etc.).

4.4. Cyber World

Within a VQG, the main target of the cyber world is to analyze or predict the properties of the physical product. The modeled properties can be, on the one hand, IPFs for intermediate products or, on the other hand, FPPs for the final product. Another central task of the cyber world is to transform the quality prediction into knowledge that is used for automated process control or, most commonly, transmitted to the operator as decision support—e.g., in terms of an assistance system. Possible options to deliver appropriate decision support are, for example, user-friendly, interactive and easy-to-interpret model-based visualizations (e.g., localized failures and failure information within a three-dimensional product plot) or the simulation of effects of downstream processes on the product quality to derive action plans on product routing or process control. For modeling the cyber world of a VQG, four approaches can be distinguished:
  • Data Mining
  • Simulation
  • Hybrid Modeling
  • Visual Analytics
As shown within the literature review (see Section 3.1), several approaches draw on data mining for virtual quality inspection. Through data-driven modeling, i.e., machine and deep learning, transparency towards process–product relationships can be achieved and trained models can be applied for quality prediction. According to their purpose, data-driven modeling can be divided into two general categories: (1) supervised learning and (2) unsupervised learning [46]. The first one, most commonly used in quality prediction, requires labeled samples that are, for instance, acquired by product inspection—e.g., non-destructive X-ray inspection or destructive tensile testing. The second category, unsupervised learning, does not require labeled quality data. This type of learning tries to find patterns or trends within process data or product data (i.e., IPF or FPP). The patterns can be used as a starting point for further data analysis [39]. Secondly, simulation approaches can be used to model the cyber world of a VQG—e.g., physics-based and numerical modeling as well as discrete event and agent-based simulations [47]. For example, through the finite element method several IPFs can be modeled based on process and material parameters [40]. However, these approaches come with the drawback of a time-consuming computation for complex parts. First, approaches address this drawback by hybrid modeling through building data-driven surrogate models of finite element simulations that appropriately capture the simulated characteristics and are additionally real-time capable [41,42,48]. These approaches for building an online VQG through combining data-driven modeling and simulation illustrate the key idea of hybrid modeling which to entails the combination of more than one modeling paradigm. Lastly, visual analytics can be applied to a VQG, as a single modeling approach or as a hybrid modeling approach in conjunction with machine learning or simulation. In this context, an example could be the visualization and analysis of clustering-based IPF propagation along a process chain through a Sankey diagram (see case study III, Section 5.3). Furthermore, an approach with a specified loop for knowledge discovery, covering the four elements of data, visualization, models and knowledge and defining visual analytics as a combination of automated analysis techniques with interactive visualizations for effective understanding, reasoning and decision making on the basis of very large and complex data sets is presented in [49]. A survey on the state-of-the-art methods with regard to available commercial visual analytics software was performed by [50]. By the emphasis on interactivity within visual analytics, the analyst stays in charge of the uncovering process and product quality issues that can be directly found within the raw process and product data or constructed by model-based process–product relationships.

4.5. Decision Support

The decision support ensures the feedback loop from the cyber world back into the physical world while involving the human. This feedback loop contains information derived from the VQG regarding the product and process quality. Here, the focus is on decision support in the sense of more precise feedback and not on the control of machines or individual components. This evaluation and processing of derived information and knowledge can be subdivided into the following characteristics: product scale, application scale, level of insight, and level of decision support.
The product scale and application scale evaluate the information defining the characteristic of the product addressed and the quantification of product information. The product scale characterizes the information derived by the VQG regarding the product in terms of the IPFs and FPPs. These values can represent the suitability of the previous process and the resulting intermediate product.
The application scale characterizes the applicability of the information derived by the VQG on the quantified amount of products/intermediate products. It provides information regarding the question on whether the tracked information concerns a single product, several products, the whole product batch or refers to a product in continuous production.
The level of insight characterizes the maturity of the derived information from the quality gate based on the data analytics’ maturity [51]. It can therefore be either diagnostic, descriptive, predictive or prescriptive. In the context of VQGs, diagnostic relates to the obtained information that only characterizes the product. Descriptive defines information additional to product characteristics and also describes why the product characteristics are the way they are. The feature predictive defines the derived information provided by the VQG and allows a prediction of future events—e.g., describing the performance of the final product based on its IPFs. Prescriptive means that the provided information already directly addresses the improvement of the current situation or the product. The level of decision support defines the level of abstraction on which the obtained information is used to improve the current situation—e.g., the physical world. These levels of abstraction range from sole information output, visualization of the obtained information, indirect control or the direct control to improve the quality (e.g., process adaption).

4.6. Morphological Analysis

To better understand what different functions are required when developing a quality and especially a VQG, a morphological analysis is performed. By this analysis, the complexity of how to design a suitable quality inspection is decomposed based on a morphological box. Within this context, a morphological box is a tool to generate possible solutions for complex problems by breaking the problem down into its essential parameters or dimensions (here, functions and principles of a VQG), as defined in Section 2 [52]. The morphological box for the design of VQG is shown in Figure 6.
To further decompose the possible solution as well as the existing design space, characteristics (A–T) were identified and assigned to the different elements (I–IV). Within this scope, important characteristics of the inspection planning and CPPS were taken into account based on the findings of Section 2 and Section 3. In addition to the basic characteristics of inspection planning, an additional focus was put on the design of the virtual elements such as data mining or data management in the context of CPPSs.
To depict the characteristics in more detail, different possible functions are assigned to each characteristic. These functions can, e.g., be possible methods, tools and technologies of the characteristic. By combining functions of different characteristics and levels, a path identifying a VQG is given. Therefore, with the help of a morphological box, a high variety of different possible solutions solving a comparable issue can be identified.

5. Case Studies

5.1. Case Study I: VQG in the Manufacturing Chain of Lithium-Ion Battery Cells

Future mobility concepts highly rely on electrically powered vehicles, with the current state-of-the-art energy storage technology being the Lithium-ion battery (LIB) [53]. Its complex manufacturing chain can be subdivided into batch or semi-continuous processes—e.g., electrode production, single unit processes, such as cell production and cell conditioning, formation and aging, covering converging and diverging material flows. This process chain is depicted in Figure 7.
The costs of LIB cells are dominated by the costs of the raw material. This dominance leads to the overall costs being highly sensitivity to possible production errors [53]. Scrap rates reported in research and industry are still as high as 40% [51]. Different QM approaches have been pursued to ensure a “higher quality” as well as lowering economic and environmental impacts [54]. Some concepts strive towards analyzing the perceived quality of different intermediate products, predicting the future quality of the later produced battery cell and deriving counteractions, if the perceived quality does not match the targeted quality range [55]. The abovementioned approach has been pursued at the Battery LabFactory Braunschweig (BLB) to develop a VQG approach. The BLB is a research center of the Technische Universität Braunschweig dedicated to facilitate interdisciplinary research for the development of production processes as well as diagnosis and simulation for current lithium-ion batteries and future battery technologies.

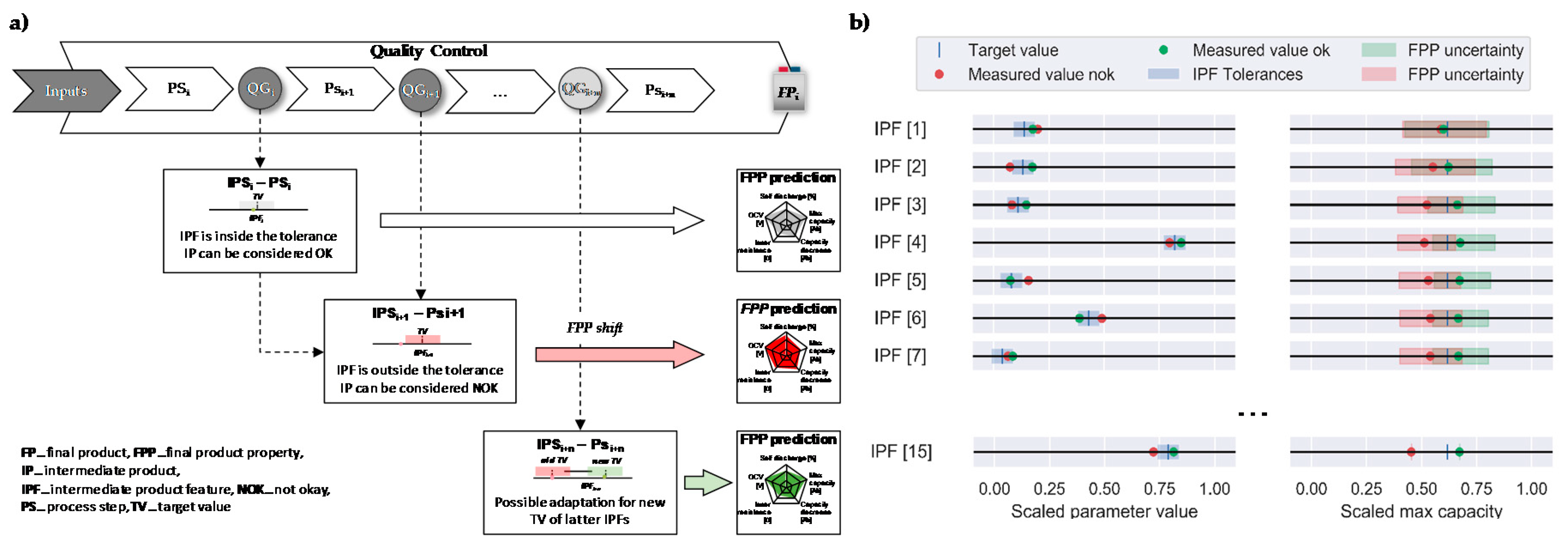

In the following, the VQG concept, as depicted in Figure 8a, for the manufacturing of LIB cells is put into the context of the framework described in Section 3.2. The overarching goal is to evaluate the quality of the intermediate products based on their influence of the obtained IPF on the final product properties (FPPs) of the LIB cell. Each VQG is defined by a target value (TV) as a desired IPF and a tolerance range, which are used to predict a value as well as a potential range for the latter FPP. With each new obtained IPF, the calculated range for the FPPs is decreased and the potential FPP value is estimated. With this, an insight into the quality of the produced intermediate product (IP) is given and the decision making in terms of QM is supported.
The physical world of the presented VQG approach focuses on the entire manufacturing chain, as depicted in Figure 8, and represents a gate-to-gate approach. Offline and inline inspection are performed along the entire chain to evaluate the perceived quality of each IP and tracked through a traceability system to enable the seamless tracing of all allocated data to a specific product identification. The data acquisition is enabled by a combination of manual and automatic data acquisition techniques. With the manual data acquisition, the data are acquired from offline sources, such as test beds, which generate files that can be uploaded into a database on premise through a designed front-end. The automated data acquisition acquires sensor and production machines’ data via standardized communication protocols (e.g., OPC-UA, PROFINET) and transmit it to an industrial acquisition system (SCADA) or directly to a database—e.g., via Node.js. The data format represents process parameters, state variables and ambiance conditions (e.g., temperature, humidity) as time series as well as presenting intermediate product features and final product properties as single values. Through a tracking and tracing system, the operational data of each production or single product are acquired. These data cover the five dimensions—when, where, who, what and why—to enable a unique traceability of all intermediate and final products along the manufacturing chain. The first two dimensions are acquired automatically by defining thresholds in the power load of each process to detect the processing state. The missing three dimensions are acquired through a web interface at each process step. To cover a possible information loss during the cutting of an electrode coil into single sheet, a data matrix code (DMC) is imprinted onto the current collector and scanned during the cell assembly process, allowing to track a single electrode inside a LIB cell.
Within the cyber world, a data mining-based approach for the VQG is pursued. Here, feature selection and modeling phases are deployed. First, the IPF and FPP data are preprocessed and cleansed. Data sets with a high amount of missing values are removed. The data are then min-max-scaled between 0 and 1 and the data sets with constant values and a low variance are removed. Next, co-correlated IPFs are removed. Then, the recursive feature elimination algorithm is used to choose 15 IPFs with the highest influence on selected FPPs. This data set is then put into relation by computing a quantitative relation based on Lasso-Lars regression, Random Forest and ANN models. To predict the future FPP values based on the quality gate with target values and tolerances the ANN model is used.
The model for the VQG is deployed in Python by accessing the relevant database of the IPF and FPP and can automatically be executed or on demand by implementing the script into a docker. Whenever an IPF is measured and the acquired data set is uploaded, the VQG model calculates the target FPP and its uncertainty. This process is depicted in Figure 8b [45].
The data-driven VQG approach provides decision support for the process expert and the production manager. Possible derived suggestions can be a readjustment of the next processing steps (new TV and tolerances for IPFs) in order to meet the requirement for the FPPs or not to continue the processing of the current IP in order to save energy and costs. Hereby, an early detection of possible faults is enabled to improve future process control. The decision support can be visualized on a mobile device at each processing step as well as in a production control dashboard.

5.2. Case Study II: VQG in Aluminum Die Casting

Casting processes are very complex in nature and are characterized by a high variability and non-linearity, phase conversions and interactions between process parameters and their environment. Due to these characteristics as well as missing direct feedback for the worker on the current casting performance, i.e., time delay of several minutes between casting and quality inspection, a data-driven VQG for active decision-support can serve as a viable approach. Several improvements and insights can be obtained throughout the VQG concept, such as need-based work instructions, less non-value adding activities, reduced manual inspection efforts (e.g., confident likelihood of no failure) and transparency towards stable process settings, critical state variables as well as cause–effect relationships.
In the following, a VQG concept for the aluminum die casting of automotive components is depicted. The VQG targets data-driven decision support for stable process settings. Aluminum die casting can be divided into hot and cold areas. Cold areas encompass the machining of the casted parts, quality inspections (e.g., X-ray inspection and crack test) as well as part assembly. The casting part quality is to the greatest extent determined within the hot areas, such as melting, casting and heat treatment. Hence, the physical world of the presented VQG focuses on single process step casting, which encompasses the following substeps: A crucible with molten aluminum is positioned at the casting line. Using a robot-guided ladle, the molten aluminum is poured from the crucible, transferred to one of the casting pitches and poured in the mold. Inside the actively cooled mold, the aluminum solidifies until the raw component can be removed automatically by a robot. The part is passed into a cooling basin, followed by the separation of a sprue and riser system and, finally, a non-destructive visual and X-ray quality inspection is conducted. Due to the components safety requirements, a full inspection of each part is pursued, delivering an extensively labeled training data set.
As data types within data acquisition process parameters (e.g., hardening time), state variables (e.g., mold temperature) as well as the final product properties, binary classification in good parts (OK) and defects (NOK) is considered. The measurement of process parameters and state variables is part-specific and carried out at discrete times (e.g., mold temperature at casting start). In total, the modeling comprises 23 independent features and a binary target variable. For tracking and tracing, a part-specific unique identifier is created and its data protocol is updated at the master PLC throughout the process chain from crucible placement until cooling. Before cooling, a DMC is printed on the casted part containing the unique identifier. The code can be read at all downstream processes (e.g., X-ray inspection), which enables the fusion of process data with quality data. The two data sources, PLC and X-ray inspection station, are accessed via OPC-UA and data management is carried out on-premise within an industrial cloud solution.
Within the cyber world, a hybrid approach in terms of data mining (i.e., class association rules mining) and visual analytics is pursued. The acquired raw data require some preprocessing steps. Most importantly, discretization and balancing—e.g., random under-sampling, are performed. For class association rule mining, the a-priori algorithm of the R package is used in conjunction with a fixed right-hand side (i.e., binary product quality). Depending on the defined model parameters, e.g., minimum threshold for confidence and support, shallow or more complex rules are extracted. These rules are further analyzed through a graph-based visual analytics approach—see Figure 9a. The plot reveals 800 rules that can be allocated to three clusters: the top left cluster represents stable process parameters; the bottom right encompasses process parameters with a higher error induction, and lastly one cluster covers parameters with ambiguous allocations to the distinct ones. Additionally, the plot characteristics, such as the hue—i.e., the darker the color, the higher the lift value of a rule—and positioning—e.g., close position to a class highlights strong dependency—support the analyst in interpretation.
The VQG delivers operational and tactical decision support on measures for stable process parameters and state variables on a continuous range, e.g., hardening time, less than the specific value of the threshold. These measures deviate from the identified set of most influential rules and can be interactively analyzed within a business intelligence tool (e.g., Qlik), as shown in Figure 9b, for the feature hardening time. These tools allow the analyst to examine the influence and sensitivity of parameters on the NOK ratio as well as cumulative effects through overlaying filters. Figure 9c shows the effect on the NOK ratio (orange line) caused by cumulative measures. Within this use case based on the ten most influential measures, a significant reduction in the NOK ratio is indicated. However, only a small share of the whole data set is manufactured under the identified conditions yet (blue bars). The identified measures need to be validated and can serve as key variables for an online process monitoring and control.

5.3. Case Study III: VQG in Printed Circuit Board Production

This case study covers the printed circuit board (PCB) assembly in electronic production. Observed defects are often a combination of effects from several processes. To improve the overall quality and reduce scrap and rework, it is necessary to consider the complete process chain instead of single and isolated processes. Therefore, it is important to understand dynamics and interdependencies within the manufacturing system. To derive proper QM strategies, knowledge about the propagation and the detection of IPF changes along the process chain is essential [26,27].
Within this case study, different intermediate product states based on IPF are defined. Moreover, by using machine learning algorithms, intermediate product states with similar IPF are assigned to product classes. By visualizing the propagation of these classes through the complete manufacturing system, the process and product quality transparency can be improved. In addition, the concept is supposed to allow the analysis of interactions and the product state propagation within the manufacturing system.
The physical world of the following case study focusses on the printed circuit board (PCB) assembly in electronic production. The PCB production line adopted for this case study focusses on surface-mounted technology (SMT). Here, the individual components are placed on the surface of the PCB and soldered conductively. During the printing process, soldering paste is dispersed onto the surface of the PCB. This is followed by the solder paste inspection (SPI). To ensure a reliable connection of the components, a defined amount of solder paste is needed and variations in the solder paste volume have to be minimized. The products are then inserted into the pick and place (P&P) machine. The P&P machine places the individual components on the liquid solder in several sequential steps. After placing all components on the board, the PCB pass through a reflow oven in which the solder is melted and the connection pins are firmly soldered to the PCB. The automated optical inspection (AOI) checks the PCB after the reflow oven as a final examination at the end of line. All PCBs are checked 100% (full inspection and non-destructive) at the two considered physical inspection stations, SPI and AOI, and deliver the underlying data basis.
Within data acquisition, data types such as integer and float are measured. These are, in particular, values from the inspection process such as solder height or angle of a component on the PCB. Moreover, intermediate product properties results are considered at each inspection station in terms of binary classification in good parts (OK) and defects (NOK). The inspection data are accessed by a MES that is connected to the machines via different protocols such as UPC-UA or MQTT. The data are managed in a structured database within a cloud solution. The tracking and tracing is based on a unique barcode that is assigned to each PCB. Moreover, a DMC is lasered into the PCB surface for identification purposes. All data are directly assigned to the barcode, which enables a clear assignment of data to the respective product.
Within the cyber world, a data-driven visual analytics approach is chosen using unsupervised machine learning, which is proposed in Figure 10.
To analyze the propagation of different products along the manufacturing process chain, IPFs are clustered to define intermediate product classes (IPCs). The approach draws on clustering methods that need less parameterization effort and supports the resulting models’ interplay with visualizations for model analysis and knowledge building. Here, in particular, one promising approach is density-based clustering. This type of clustering separates areas with a high density of data points from areas low in density. In the next step, areas with high density are assigned to a cluster, whereas areas with low density are excluded as so-called noise. In order to be able to make a clear distinction between the two categories, a threshold for the minimum density within a cluster has to be defined [56,57]. The most common density-based algorithm is Density-Based Spatial Clustering of Applications with Noise (DBSCAN) which is also the underlying algorithm applied in this case study. The inspection results of SPI and AOI are treated as two different observations. Hence, the observation specific data are clustered separately. To build an appropriate clustering model, an iterative parameter refinement is performed.
This approach delivers operational and tactical decision support by describing the propagation and analyzing interdependencies of the IPC within the manufacturing process chain of PCB assembly. Therefore, it is important to visualize existing IPC flows within the system. To gain even more insight into the characteristics of IPCs within electronic manufacturing process chains, the propagation from the inspection stations SPI to AOI is exemplarily shown by a Sankey diagram in Figure 11.
The developed framework offers a structured approach to analyze the propagation of IPCs along the manufacturing process chain. Based on this, the behavior of different products within a manufacturing system can be tracked and specific control strategies can be derived. The approach is iterative with multiple visualizations in order to achieve valid model parameters.

6. Conclusions

The results of this paper show a guided framework for the design and implementation of VQGs to improve the quality in the manufacturing system while maintaining high transparency regarding the product and process quality with a low cost at the same time. Within the framework, the individual characteristics of the VQG are assigned to the four levels of the CPPS. Moreover, different possible functions are linked to each characteristic. To ensure accessibility and applicability and to support the design and implementation of VQGs, the framework is based on a morphological box.
In order to illustrate the design and implementation options, three different case studies were introduced in this paper to discuss the implementation and use of VQGs. Figure 12 gives an overview of different VQG specifications based on case studies I to III, discussed in Section 5. The different case studies are characterized by their specification for the different levels of the CPPS.
The case studies discussed in this paper clearly show that the developed framework can be used to implement VQGs in numerous ways. Moreover, all three examples show applications in different industrial sectors with different hardware and software components (e.g., data format and data sources). Furthermore, with the help of the presented framework, physical inspection equipment can be substituted resulting in reduced quality costs and the transparency of product quality in the manufacturing system can be increased by acquiring and modeling respective data within a CPPS. With focus on the implementation of VQGs, the logical structure of the morphological box provides a structured decision support to select from different possible functions and combines those to an individual VQG solution. Moreover, an extension of the morphological box, e.g., by new technologies, is supported and thus a high flexibility is given.

7. Outlook

Further research directions will result in a detailed assessment of VQGs within manufacturing systems by an economic and ecological quantification of their potential to minimize the total cost of quality by optimizing the trade-off between error cost and cost of error prevention. Moreover, further research is needed to define product-specific inspection strategies that are performed flexibly within the manufacturing system based on VQGs. An increased amount of data in the manufacturing environment leverage the application fields of VQG. Therefore, new data-based prediction models and pipelines need to be developed to increase the accuracy and applicability of those technologies in the manufacturing context to foster the transformation towards future production systems. Especially in this context, further research needs to focus on generalizing (e.g., quality prediction) models to deploy developed solutions across different industries. Especially in this context, the potential and challenges of, e.g., transfer learning in the manufacturing context, must be evaluated. Since VQGs are based on diverse data sources, the trustworthiness of these data is of high importance, especially in the field of quality control. Here, further research to ensure the trustworthiness of manufacturing data and to leverage the field of data security especially within the manufacturing environment can be addressed.

Author Contributions

Conceptualization, M.-A.F., S.G., A.T., J.W. and S.T.; methodology, M.-A.F., S.G., A.T., J.W. and S.T.; formal analysis, M.-A.F., S.G., A.T., J.W., C.H. and S.T.; investigation, M.-A.F., S.G., A.T., J.W. and S.T.; resources, M.-A.F., S.G., A.T., J.W. and S.T.; data curation, M.-A.F., S.G., A.T., J.W.; writing—original draft preparation, M.-A.F., S.G., A.T., J.W. and S.T.; writing—review and editing, M.-A.F., S.T.; visualization, M.-A.F., S.G., A.T., J.W. and S.T.; supervision, C.H.; project administration, C.H.; funding acquisition, S.T. and C.H. All authors have read and agreed to the published version of the manuscript.

Funding

This work is part of the Project “QU4LITY”. The project has received funding from the European Union’s Horizon 2020 research and innovation program with the grant agreement NO 825030. Moreover, the authors thank the BMWI-Federal Ministry of Economic Affairs and Energy for supporting the project DALION 4.0-Data Mining as basis for cyber-physical Systems in Production of Lithium-ion Battery Cells (03ETE017A).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kiani, B.; Shirouyehzad, H.; Khoshsaligheh Bafti, F.; Fouladgar, H. System dynamics approach to analysing the cost factors effects on cost of quality. Int. J. Qual. Reliab. Manag. 2009, 26, 685–698. [Google Scholar] [CrossRef]
  2. Gebauer, H.; Gustafsson, A.; Witell, L. Competitive advantage through service differentiation by manufacturing companies. J. Bus. Res. 2011, 64, 1270–1280. [Google Scholar] [CrossRef][Green Version]
  3. International Standards Organisation. DIN EN ISO 9001:2015-11: Quality Management Systems—Requirements; International Standards Organisation: Geneva, Switzerland, 2015. [Google Scholar]
  4. Pfeifer, T.; Schmitt, R. Fertigungsmesstechnik, 3rd ed.; Oldenbourg Wissenschaftsverlag: München, Germany, 2010. [Google Scholar]
  5. Omachonu, V.K.; Suthummanon, S.; Einspruch, N.G. The relationship between quality and quality cost for a manufacturing company. Int. J. Qual. Reliab. Manag. 2004, 21, 277–290. [Google Scholar] [CrossRef]
  6. Majstorovic, V.D.; Durakbasa, N.; Takaya, Y.; Stojadinovic, S. Advanced Manufacturing Metrology in Context of Industry 4.0 Model. In Proceedings of the 12th International Conference on Measurement and Quality Control—Cyber Physical Issue. IMEKOTC14 2019; Majstorovic, V., Durakbasa, N., Eds.; Lecture Notes in Mechanical Engineering; Springer: Cham, Switzerland, 2019. [Google Scholar] [CrossRef]
  7. Lee, E.A.; Seshia, S.A. Introduction to Embedded Systems. A Cyber-Physical Systems Approach, 2nd ed.; MIT Press: Cambridge, MA, USA, 2017; Volume 195. [Google Scholar]
  8. Baheti, R.; Gill, H. Cyber-physical Systems. Impact Control Technol. 2011, 12, 161–166. [Google Scholar] [CrossRef]
  9. Thiede, S. Environmental Sustainability of Cyber Physical Production Systems. Procedia CIRP 2018, 69, 644–649. [Google Scholar] [CrossRef]
  10. Monostori, L. Cyber-physical production systems: Roots, expectations and R&D challenges. Procedia CIRP 2014, 17, 9–13. [Google Scholar] [CrossRef]
  11. Thiede, S.; Juraschek, M.; Herrmann, C. Implementing Cyber-physical Production Systems in Learning Factories. Procedia CIRP 2016, 54, 7–12. [Google Scholar] [CrossRef][Green Version]
  12. Lee, J.; Bagheri, B.; Kao, H.A. A Cyber-Physical Systems architecture for Industry 4.0-based manufacturing systems. Manuf. Lett. 2015, 3, 18–23. [Google Scholar] [CrossRef]
  13. Lee, J.H.; Do Noh, S.; Kim, H.J.; Kang, Y.S. Implementation of cyber-physical production systems for quality prediction and operation control in metal casting. Sensors 2018, 18, 1428. [Google Scholar] [CrossRef] [PubMed][Green Version]
  14. Ding, K.; Chan, F.T.S.; Zhang, X.; Zhou, G.; Zhang, F.; Ding, K.; Chan, F.T.S.; Zhang, X.; Zhou, G. Defining a Digital Twin-based Cyber- Physical Production System for autonomous manufacturing in smart shop floors. Int. J. Prod. Res. 2019, 57, 1–20. [Google Scholar] [CrossRef][Green Version]
  15. Zhou, J.; Zhou, Y.; Wang, B.; Zang, J. Human–Cyber–Physical Systems (HCPSs) in the Context of New-Generation Intelligent Manufacturing. Engineering 2019, 5, 624–636. [Google Scholar] [CrossRef]
  16. Zhou, J.; Li, P.; Zhou, Y.; Wang, B.; Zang, J.; Meng, L. Toward New-Generation Intelligent Manufacturing. Engineering 2018, 4, 11–20. [Google Scholar] [CrossRef]
  17. Liang, Y.C.; Li, W.D.; Lu, X.; Wang, S. Fog computing and convolutional neural network enabled prognosis for machining process optimization. J. Manuf. Syst. 2019, 52, 32–42. [Google Scholar] [CrossRef]
  18. Ji, W.; Wang, L. Big data analytics based fault prediction for shop floor scheduling. J. Manuf. Syst. 2017, 43, 187–194. [Google Scholar] [CrossRef]
  19. Subramaniyan, M.; Skoogh, A.; Salomonsson, H.; Bangalore, P.; Bokrantz, J. A data-driven algorithm to predict throughput bottlenecks in a production system based on active periods of the machines. Comput. Ind. Eng. 2018, 125, 533–544. [Google Scholar] [CrossRef]
  20. Neef, B.; Bartels, J.; Thiede, S. Tool Wear and Surface Quality Monitoring Using High Frequency CNC Machine Tool Current Signature. In Proceedings of the IEEE 16th International Conference on Industrial Informatics, INDIN 2018, Porto, Portugal, 18–20 July 2018; IEEE: Porto, Portugal, 2018; pp. 1045–1050. [Google Scholar]
  21. Thiede, S.; Turetskyy, A.; Loellhoeffel, T.; Kwade, A.; Kara, S.; Herrmann, C. Machine learning approach for systematic analysis of energy efficiency potentials in manufacturing processes: A case of battery production. CIRP Ann. 2020. [Google Scholar] [CrossRef]
  22. Um, J.; Stroud, I.A.; Park, Y. Deep Learning Approach of Energy Estimation Model of Remote Laser Welding. Energies 2019, 12, 1799. [Google Scholar] [CrossRef][Green Version]
  23. Wirtz, A.; Gächter, C.; Wipf, D. From Unambiguously Defined Geometry to the Perfect Quality Control Loop. CIRP Ann. 1993, 42, 615–618. [Google Scholar] [CrossRef]
  24. Wuest, T.; Liu, A.; Lu, S.C.-Y.; Thoben, K.-D. Application of the Stage Gate Model in Production Supporting Quality Management. Procedia CIRP 2014, 17, 32–37. [Google Scholar] [CrossRef][Green Version]
  25. Filz, M.-A.; Gellrich, S.; Herrmann, C.; Thiede, S. Data-driven Analysis of Product State Propagation in Manufacturing Systems Using Visual Analytics and Machine Learning. Procedia CIRP 2020, 93, 449–454. [Google Scholar] [CrossRef]
  26. Wuest, T.; Irgens, C.; Thoben, K.-D. An approach to monitoring quality in manufacturing using supervised machine learning on product state data. J. Intell. Manuf. 2014, 25, 1167–1180. [Google Scholar] [CrossRef]
  27. Wuest, T.; Irgens, C.; Thoben, K.-D. Analysis of Manufacturing Process Sequences, Using Machine Learning on Intermediate Product States (as Process Proxy Data). In Advances in Production Management Systems. Competitive Manufacturing for Innovative Products and Services, APMS 2012; Emmanouilidis, C., Taisch, M., Kiritsis, D., Eds.; IFIP Advances in Information and Communication Technology; Springer: Berlin/Heidelberg, Germany, 2013; Volume 398. [Google Scholar] [CrossRef][Green Version]
  28. Liangsiri, J. Assembly Process Improvement by Means of Inspection Planning and Corresponding Tolerance Planning—A Modelling and Simulation Approach. Ph.D. Thesis, TU Dortmund, Dortmund, Germany, 2007. [Google Scholar]
  29. VDI/VDE/DGQ 2619, Richtlinie zur Prüfplanung; Beuth Verlag: Berlin, Germany, 1985.
  30. Basse, I.; Jansen, C.; Schmitt, S.; Schmitt, R. A decision model for cost-optimized inspection planning. In Proceedings of the 2013 International Conference on Engineering, Technology and Innovation (ICE) & IEEE International Technology Management Conference, The Hague, The Netherlands, 24–26 June 2013; pp. 1–15. [Google Scholar]
  31. Rostami, H.; Dantan, J.-Y.; Homri, L. Review of data mining applications for quality assessment in manufacturing industry: Support vector machines. Int. J. Metrol. Qual. Eng. 2015, 6, 401. [Google Scholar] [CrossRef][Green Version]
  32. García, V.; Sánchez, J.S.; Rodríguez-Picón, L.A.; Méndez-González, L.C.; de Jesús Ochoa-Domínguez, H. Using regression models for predicting the product quality in a tubing extrusion process. J. Intell. Manuf. 2019, 30, 2535–2544. [Google Scholar] [CrossRef]
  33. Tercan, H.; Guajardo, A.; Meisen, T. Industrial Transfer Learning: Boosting Machine Learning in Production. In Proceedings of the 2019 IEEE 17th International Conference on Industrial Informatics (INDIN), Helsinki, Finland, 22–25 July 2019; pp. 274–279. [Google Scholar]
  34. Gellrich, S.; Beganovic, T.; Mattheus, A.; Herrmann, C.; Thiede, S. Feature Selection Based on Visual Analytics for Quality Prediction in Aluminium Die Casting. In Proceedings of the 2019 IEEE 17th International Conference on Industrial Informatics (INDIN), Helsinki, Finland, 22–25 July 2019; pp. 66–72. [Google Scholar]
  35. Gao, R.X.; Tang, X.; Gordon, G.; Kazmer, D.O. Online product quality monitoring through in-process measurement. CIRP Ann. Manuf. Technol. 2014, 63, 493–496. [Google Scholar] [CrossRef]
  36. Wang, P.; Gao, R.X.; Yan, R. A deep learning-based approach to material removal rate prediction in polishing. CIRP Ann. 2017, 66, 429–432. [Google Scholar] [CrossRef]
  37. Kao, H.-A.; Hsieh, Y.-S.; Chen, C.-H.; Lee, J. Quality prediction modeling for multistage manufacturing based on classification and association rule mining. MATEC Web Conf. 2017, 123, 00029. [Google Scholar] [CrossRef]
  38. Arif, F.; Suryana, N.; Hussin, B. A Data Mining Approach for Developing Quality Prediction Model in Multi-Stage Manufacturing. Int. J. Comput. Appl. 2013, 69, 35–40. [Google Scholar] [CrossRef]
  39. Lieber, D.; Stolpe, M.; Konrad, B.; Deuse, J.; Morik, K. Quality Prediction in Interlinked Manufacturing Processes based on Supervised & Unsupervised Machine Learning. Procedia CIRP 2013, 7, 193–198. [Google Scholar] [CrossRef][Green Version]
  40. Zambal, S.; Eitzinger, C.; Clarke, M.; Klintworth, J.; Mechin, P. A digital twin for composite parts manufacturing: Effects of defects analysis based on manufacturing data. In Proceedings of the 2018 IEEE 16th International Conference on Industrial Informatics (INDIN), Porto, Portugal, 18–20 July 2018; pp. 803–808. [Google Scholar]
  41. Pfrommer, J.; Zimmerling, C.; Liu, J.; Kärger, L.; Henning, F.; Beyerer, J. Optimisation of manufacturing process parameters using deep neural networks as surrogate models. Procedia CIRP 2018, 72, 426–431. [Google Scholar] [CrossRef]
  42. Hürkamp, A.; Gellrich, S.; Ossowski, T.; Beuscher, J.; Thiede, S.; Herrmann, C.; Dröder, K. Combining Simulation and Machine Learning as Digital Twin for the Manufacturing of Overmolded Thermoplastic Composites. J. Manuf. Mater. Process. 2020, 4, 92. [Google Scholar] [CrossRef]
  43. Schmitt, J.; Bönig, J.; Borggräfe, T.; Beitinger, G.; Deuse, J. Predictive model-based quality inspection using Machine Learning and Edge Cloud Computing. Adv. Eng. Inform. 2020, 45, 101101. [Google Scholar] [CrossRef]
  44. Thiede, S.; Turetskyy, A.; Kwade, A.; Kara, S.; Herrmann, C. Data mining in battery production chains towards multi-criterial quality prediction. CIRP Ann. 2019, 68, 463–466. [Google Scholar] [CrossRef]
  45. Turetskyy, A.; Wessel, J.; Herrmann, C.; Thiede, S. Data-driven cyber-physical System for Quality Gates in Lithium-ion Battery Cell Manufacturing. Procedia CIRP 2020, 93, 168–173. [Google Scholar] [CrossRef]
  46. Joshi, A.V. Machine Learning and Artificial Intelligence; Springer International Publishing: Cham, Switzerland, 2020. [Google Scholar]
  47. Sokolowski, J.A.; Banks, C.M. Modeling and Simulation Fundamentals: Theoretical Underpinnings and Practical Domains; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2010. [Google Scholar]
  48. Hürkamp, A.; Dér, A.; Gellrich, S.; Ossowski, T.; Lorenz, R.; Behrens, B.-A.; Herrmann, C.; Dröder, K.; Thiede, S. Integrated computational product and production engineering for multi-material lightweight structures. Int. J. Adv. Manuf. Technol. 2020. [Google Scholar] [CrossRef]
  49. Keim, D.; Andrienko, G.; Fekete, J.-D.; Görg, C.; Kohlhammer, J.; Melancon, G. Visual Analytics: Definition, Process and Challenges. In Information Visualization—Human-Centered Issues and Perspectives; Kerren, A., Stasko, J.T., Fekete, J.-D., North, C., Eds.; Springer: Berlin/Heidelberg, Germany, 2008; pp. 154–175. [Google Scholar]
  50. Behrisch, M.; Streeb, D.; Stoffel, F.; Seebacher, D.; Matejek, B.; Weber, S.H.; Mittelstadt, S.; Pfister, H.; Keim, D. Commercial Visual Analytics Systems–Advances in the Big Data Analytics Field. IEEE Trans. Vis. Comput. Graph. 2019, 25, 3011–3031. [Google Scholar] [CrossRef][Green Version]
  51. Laney, D.; Bitterer, A.; Sallam, R.L.; Kart, L. Predicts 2013: Information Innovation. Gart. Res. 2012. [Google Scholar]
  52. Zwicky, F.; Wilson, A.G. (Eds.) New Methods of Thought and Procedure; Springer: Berlin/Heidelberg, Germany, 1967. [Google Scholar]
  53. Kwade, A.; Haselrieder, W.; Leithoff, R.; Modlinger, A.; Dietrich, F.; Droeder, K. Current status and challenges for automotive battery production technologies. Nat. Energy 2018, 3, 290–300. [Google Scholar] [CrossRef]
  54. Schnell, J.; Reinhart, G. Quality Management for Battery Production: A Quality Gate Concept. Procedia CIRP 2016, 57, 568–573. [Google Scholar] [CrossRef]
  55. Turetskyy, A.; Thiede, S.; Thomitzek, M.; von Drachenfels, N.; Pape, T.; Herrmann, C. Toward Data-Driven Applications in Lithium-Ion Battery Cell Manufacturing. Energy Technol. 2020, 8. [Google Scholar] [CrossRef][Green Version]
  56. Cleve, J.; Lämmel, U. Data Mining, 1st ed.; De Gruyter Oldenbourg: Berlin, Germany; Boston, MA, USA, 2014. [Google Scholar]
  57. Kotu, V.; Deshpande, B. Predictive Analytics and Data Mining, 1st ed.; Morgan Kaufmann: Burlington, MA, USA, 2014. [Google Scholar]
Figure 1. Trade-off between error prevention and cost (adapted from [1]).
Figure 1. Trade-off between error prevention and cost (adapted from [1]).
Jmmp 04 00106 g001

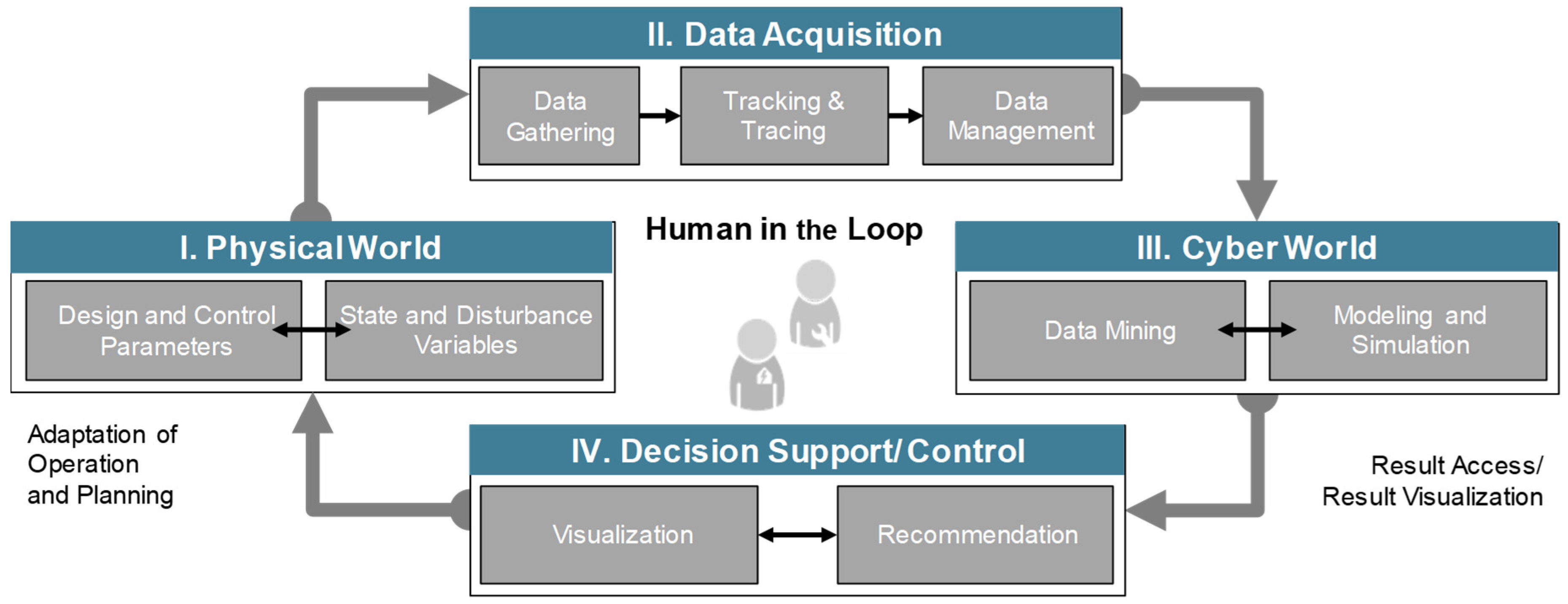

Figure 2. Exemplary cyber physical production system (CPPS) framework.
Figure 2. Exemplary cyber physical production system (CPPS) framework.
Jmmp 04 00106 g002
Figure 3. Overview of the main components of a Quality Management System.
Figure 3. Overview of the main components of a Quality Management System.
Jmmp 04 00106 g003
Figure 4. Overview of Quality Gate Concept within the Manufacturing System (adapted from [25]).
Figure 4. Overview of Quality Gate Concept within the Manufacturing System (adapted from [25]).
Jmmp 04 00106 g004
Figure 5. Technical framework of virtual quality gates.
Figure 5. Technical framework of virtual quality gates.
Jmmp 04 00106 g005
Figure 6. Morphological box for the design of VQGs.
Figure 6. Morphological box for the design of VQGs.
Jmmp 04 00106 g006
Figure 7. Generalized battery cell production chain (adapted from [53]).
Figure 7. Generalized battery cell production chain (adapted from [53]).
Jmmp 04 00106 g007
Figure 8. (a) Quality gate concept for Lithium-Ion Battery (LIB) cell production; (b) exemplarily depicted VQG in LIB Production (adapted from [45]).
Figure 8. (a) Quality gate concept for Lithium-Ion Battery (LIB) cell production; (b) exemplarily depicted VQG in LIB Production (adapted from [45]).
Jmmp 04 00106 g008
Figure 9. VQG build through a hybrid data mining and visual analytics approach for casting of aluminum components: (a) graph-based visualization of class association rules plotted with the R-extension arulesViz; (b) interactive sensitivity analysis of features on the expected defects (NOK) ratio within Qlik Sense Desktop; (c) expected cumulative effect on NOK ratio reduction through several identified overlaying measures.
Figure 9. VQG build through a hybrid data mining and visual analytics approach for casting of aluminum components: (a) graph-based visualization of class association rules plotted with the R-extension arulesViz; (b) interactive sensitivity analysis of features on the expected defects (NOK) ratio within Qlik Sense Desktop; (c) expected cumulative effect on NOK ratio reduction through several identified overlaying measures.
Jmmp 04 00106 g009
Figure 10. Framework for data-based analysis of product state propagation through the eyes of visual analytics (adopted from [49]).
Figure 10. Framework for data-based analysis of product state propagation through the eyes of visual analytics (adopted from [49]).
Jmmp 04 00106 g010
Figure 11. Resulting Sankey diagram exemplarily showing the propagation of product state classes from solder paste inspection (SPI) to automated optical inspection (AOI).
Figure 11. Resulting Sankey diagram exemplarily showing the propagation of product state classes from solder paste inspection (SPI) to automated optical inspection (AOI).
Jmmp 04 00106 g011
Figure 12. Overview of different VQG specifications presented in case studies I–III.
Figure 12. Overview of different VQG specifications presented in case studies I–III.
Jmmp 04 00106 g012
Table 1. Exemplary applications in the field of virtual quality gates (VQGs).
Table 1. Exemplary applications in the field of virtual quality gates (VQGs).
Data Source Single Process VQGProcess Chain VQG
Process data (and external factors)—
i.e., process parameters; state variables; ambient conditions; superior system data
DiscreteGarcia et al. 2019 [32]
Tercan et al. 2019 [33]
Gellrich et al. 2019 [34]
Kao et al. 2017 [37]
Arif et al. 2013 [38]
Value seriesGao et al. 2014 [35]
Lee et al. 2018 [13]
Wang et al. 2017 [36]
Lieber et al. 2013 [39]
Product data
i.e., design parameters; intermediate product features
Zambal et al. 2018 [40]
Pfrommer et al. 2018 [41]
Hürkamp et al. 2020 [42]
Schmitt et al. 2020 [43]
Filz et al. 2020 [25]
Thiede et al. 2019 [44]
Turetskyy et al. 2020 [45]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Filz, M.-A.; Gellrich, S.; Turetskyy, A.; Wessel, J.; Herrmann, C.; Thiede, S. Virtual Quality Gates in Manufacturing Systems: Framework, Implementation and Potential. J. Manuf. Mater. Process. 2020, 4, 106. https://doi.org/10.3390/jmmp4040106

AMA Style

Filz M-A, Gellrich S, Turetskyy A, Wessel J, Herrmann C, Thiede S. Virtual Quality Gates in Manufacturing Systems: Framework, Implementation and Potential. Journal of Manufacturing and Materials Processing. 2020; 4(4):106. https://doi.org/10.3390/jmmp4040106

Chicago/Turabian Style

Filz, Marc-André, Sebastian Gellrich, Artem Turetskyy, Jacob Wessel, Christoph Herrmann, and Sebastian Thiede. 2020. "Virtual Quality Gates in Manufacturing Systems: Framework, Implementation and Potential" Journal of Manufacturing and Materials Processing 4, no. 4: 106. https://doi.org/10.3390/jmmp4040106

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
