Precision Permittivity Measurement for Low-Loss Thin Planar Materials Using Large Coaxial Probe from 1 to 400 MHz

Abstract

This paper focuses on the non-destructive dielectric measurement for low-loss planar materials with a thickness of less than 3 mm using a large coaxial probe with an outer diameter of 48 mm. The aperture probe calibration procedure required only to make a measurement of the half-space air and three offset shorts. The reflection coefficient for the thin material is measured using a Keysight E5071C network analyzer from 0.3 MHz to 650 MHz and then converted to a relative dielectric constant, ε_r and tangent loss, tan δ via closed form capacitance model and lift-off calibration process. Average measurement error of dielectric constant, Δε_r is less than 6% from 1 MHz to 400 MHz and the resolution of loss tangent, tan δ measurement is capable of achieving 10⁻³.

1. Introduction

Sensitivity, sustainability, and simplicity in operations are important requirements for sensing devices in large-scale material processing industries. To reduce the uncertainty of the measurements, the sensors should have a large sensing area, a high concentration of sensing field, and high sensitivity to the slight changes in material under test (MUT). The operating frequency of the permittivity, ε_r measurements in most of the material processing industries are up to a few hundred MHz [1,2,3].

The open-ended coaxial probe technique is a simple, broadband, and non-destructive way to measure the relative permittivity, ε_r of a material. Coaxial probes have been commercialized and used commonly since 1990 [4]. Recently, several probes have produced by manufacturers such as SPEAG Inc. [5], KEYCOM [6], and APREL Inc. [7]. However, coaxial probes (N-type’s or SMA’s diameter size) are less sensitive to small changes in the MUT especially for thin and low-loss materials in permittivity, ε_r measurement at MHz frequency. This causes the measurement results for low-loss materials at low frequencies to be highly scattered and less precise [8]. In fact, most coaxial probes are only suitable for half-space infinite lossy material with ε_r′ > 5 and tan δ > 0.05 [4,5,6,7,8,9,10,11].

In this study, a large open-ended coaxial probe was designed to overcome those issues, which is capable of measuring the ε_r of low-loss materials having thickness of 1 mm precisely from 1 to 400 MHz. The designed large probe is heavy whereby it is capable of supplying stable reflection measurements. Additionally, it is sensitive to measurements at low frequencies due to its large size. Furthermore, large probe aperture (sensing area) can reduce the uncertainty of measurement, which mostly caused by the inequality of composite distribution in MUT, especially for inhomogeneous MUTs. The probe design of the probe and its performance were analyzed in detail. An explicit formulation for the prediction of ε_r, which does not involve numerical inversion routines (iterative method) as in Refs. [8,9,10,11] is used. Since this study is focused on low frequencies measurement (up to 400 MHz), thus, a simple closed-form capacitance model [12,13,14,15,16,17,18] is implemented to predict the dielectric properties of MUT based on the measured reflection coefficient at probe aperture. The differences in this study compared with previous works are summarized in

Table 1. Comparative study of large probe.

Ref.	Probe Size (cm)	f (MHz)	Transition Section	Sample Contact	Sample Size/Shape	Calibration Standards	Measured εr′ Range	Inverse Method
[8]	2a = 1.00 2b = 3.25 L = 5.00	100–900	without	Aperture probe	Half-space infinite	Air, short, NaCl solution.	~5–80	Iterative
[9]	2a = 1.00 2b = 3.25 L = 5.00	1–10 or 10–3000	without	Aperture probe	Half-space infinite	Short cavity orAir, short, short cavity	~30–80 (Lossy)	Iterative
[10]	2a = 1.18 2b = 4.00 L ≈ 13.0	200–1500	with	Aperture probe	Half-space infinite	Air, copper plate, Teflon plate.	~2–35 (Lossy)	Iterative
[11]	2a = 4.50 2b = 10.3 L ≈ 41.0	50–1000	with	Filled in coaxial line	Toroid-shaped	3 positions short-circuit along the coaxial line	~7–80 (Lossy)	Iterative
[12]	2a = 2.35 2b = 5.4 L ≈ 4.4	100–250	with	Filled in coaxial line	Toroid-shaped	Based on specified specimen under test	1–50 (Low lossy)	Non-iterative
This study	2a = 1.50 2b = 4.80 L = 15.0	1–400	with	Aperture Probe	Thin planar backed by metal plate	Air, 3 offset shorts	1–20 (Lossless)	Non-iterative

* L is the coaxial length of the probe.

. In Refs. [8,9,10,11], the iterative methods (inverse methods) used to estimate the permittivity, ε_r of lossy MUT in which the predicted values of ε_r are obtained by minimizing the difference between the measured aperture reflection coefficient and the theoretical calculations. Those iterative methods are complicated solutions and less suitable for real-time ε_r estimation.

Although the probe designs in Refs. [8,9] did not use the transitions section on the boundary between the connector and the coaxial line, the mismatch reflection errors that exist on the boundary can be eliminated after the rigorous aperture calibration is performed. In fact, a high sensitivity measurement can be achieved by a method in which the MUT is filled in a coaxial line as in Refs. [11,12]. However, this measurement method encounters difficulties in the sample preparation stage in which the sample (MUT) must be identified to fully fill in without any air gap between the inner conductor and the outer conductor. Furthermore, it is only suitable for semi-liquid or powder form MUTs.

2. Large Coaxial Probe Design

2.1. Coaxial Probe Formulations

The earliest coaxial probe formula derivation (during early 1950) [19] concerned the homogeneous case, which an air-filled coaxial line with an infinite conducting flange is radiated into the free space. The aperture normalized admittance, $\tilde{Y}$ of the probe was expressed in variational integral equations. During that time, the main implementation of open-ended coaxial line is used as an antenna. The open-ended coaxial probe began to be applied as a dielectric probe sensor during early 1980s. The rigorous integral formulation was investigated back by Refs. [20,21]. However, those integrations are difficult to use to solve the inverse problem analytically. Thus, a lot of literature [13,14,15,16,17] formulated the aperture admittance in closed-form capacitance, C_o terms in which it is easily used to estimate the relative complex permittivity, ε_r of MUT at low operating frequencies as follows:

$$\tilde{Y}=j\omega \left({\epsilon }_r{C}_o+C_f\right)/Y_o$$

(1)

where Y_o is the characteristic admittance of coaxial line. In 1986, the modeling of open-ended coaxial probe that is terminated by layered media was studied by Ref. [22]. Subsequently, probe modeling studies which considered multi-layer MUT were rapidly developed during 1990 [23,24,25,26,27,28,29,30,31,32,33].

2.2. Dimensions and Structure

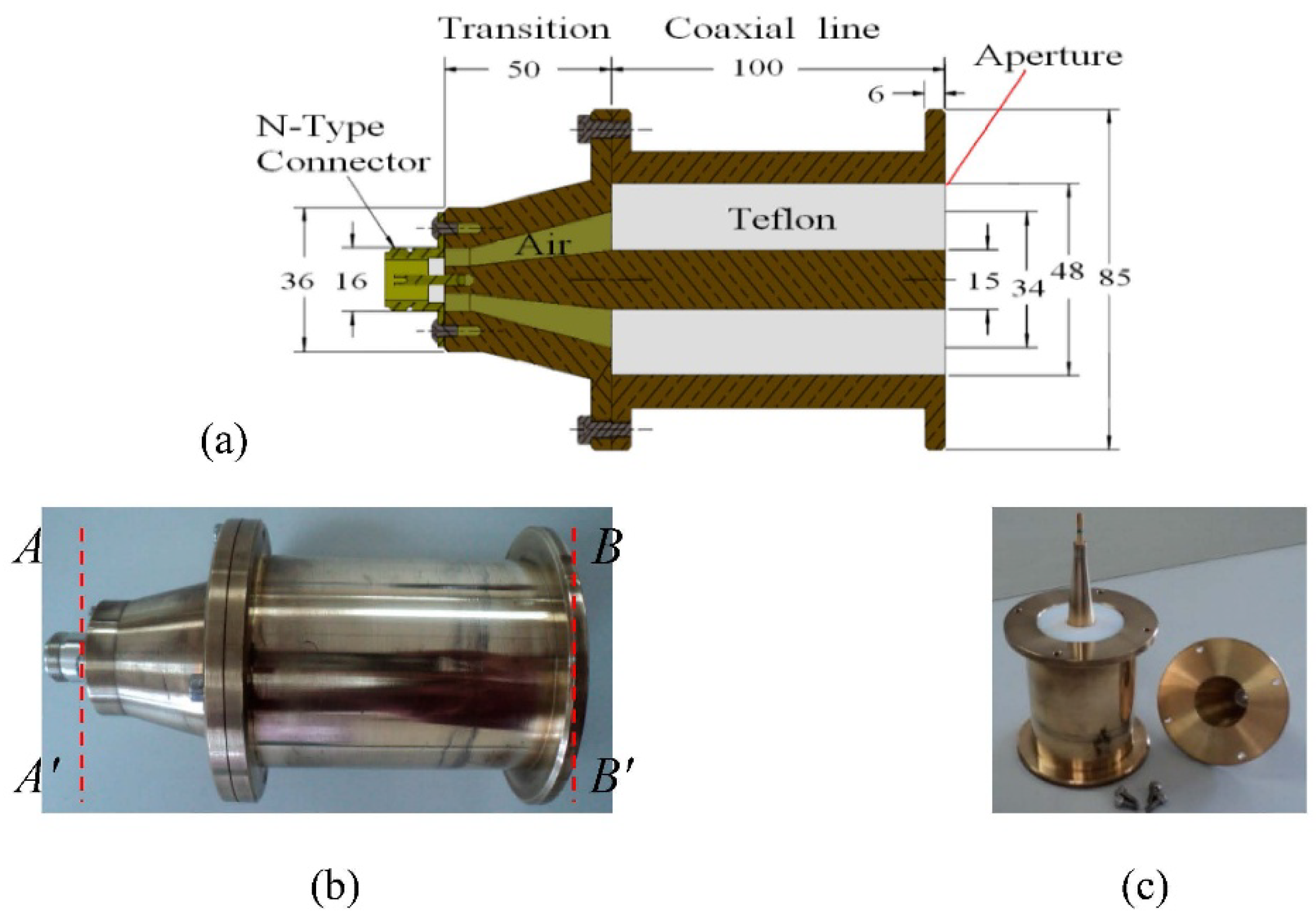

The designed coaxial probe as shown in Figure 1a is made of brass, since the material is relatively low cost and has slower surface oxidation process when it is exposed to the moisture in the air. The dimensions of the coaxial probe with outer radius of inner conductor, a = 7.5 mm and inner radius of outer conductor, b = 24.0 mm, were designed based on the characteristic impedance, Z_o = [60 × ln(b/a)/√ε_c] = 50 Ω. The maximum limit of the operating frequency, f_max propagating in the coaxial line of the probe is determined using TE₁₁ cut-off as: f_max = (3 × 10⁸)/[π(b + a)√ε_c] ≈ 2.1 GHz. In fact, the limit of operation frequency of the practice coaxial line is always much lower than the TE₁₁ cutoff frequency based on the quality and precision of machining. The symbol ε_c (Air: ε_c = 1, Teflon: ε_c = 2.06) represents the relative permittivity of material filling in the coaxial line in between the inner and outer conductor. The total weight of the coaxial probe is 2.6 kg. It has been divided into three sections: (I) N-type connector, which is used to connect the coaxial probe with the network analyzer via cable. (II) Transition section, which is a 50 mm of air-filled conical taper. The radius a and b of the conductors are increased along the transition length with a constant ratio, b/a = 2.3. Ratio, b/a = 2.3 is required to maintain Z_o = 50 Ω along the transition length to achieve low return loss and the lowest standing wave ratio (SWR) during the transformation from small to large coaxial line. (III) Large coaxial line section, which is a 100 mm length of 50 Ω Teflon-filled coaxial line with b/a = 3.3. The Teflon isolation block is used to prevent the MUT from getting into the coaxial line. In addition, Teflon has high flexural strength, excellent chemical resistance, and high stability over a wide temperature range.

2.3. Probe Characterization Test

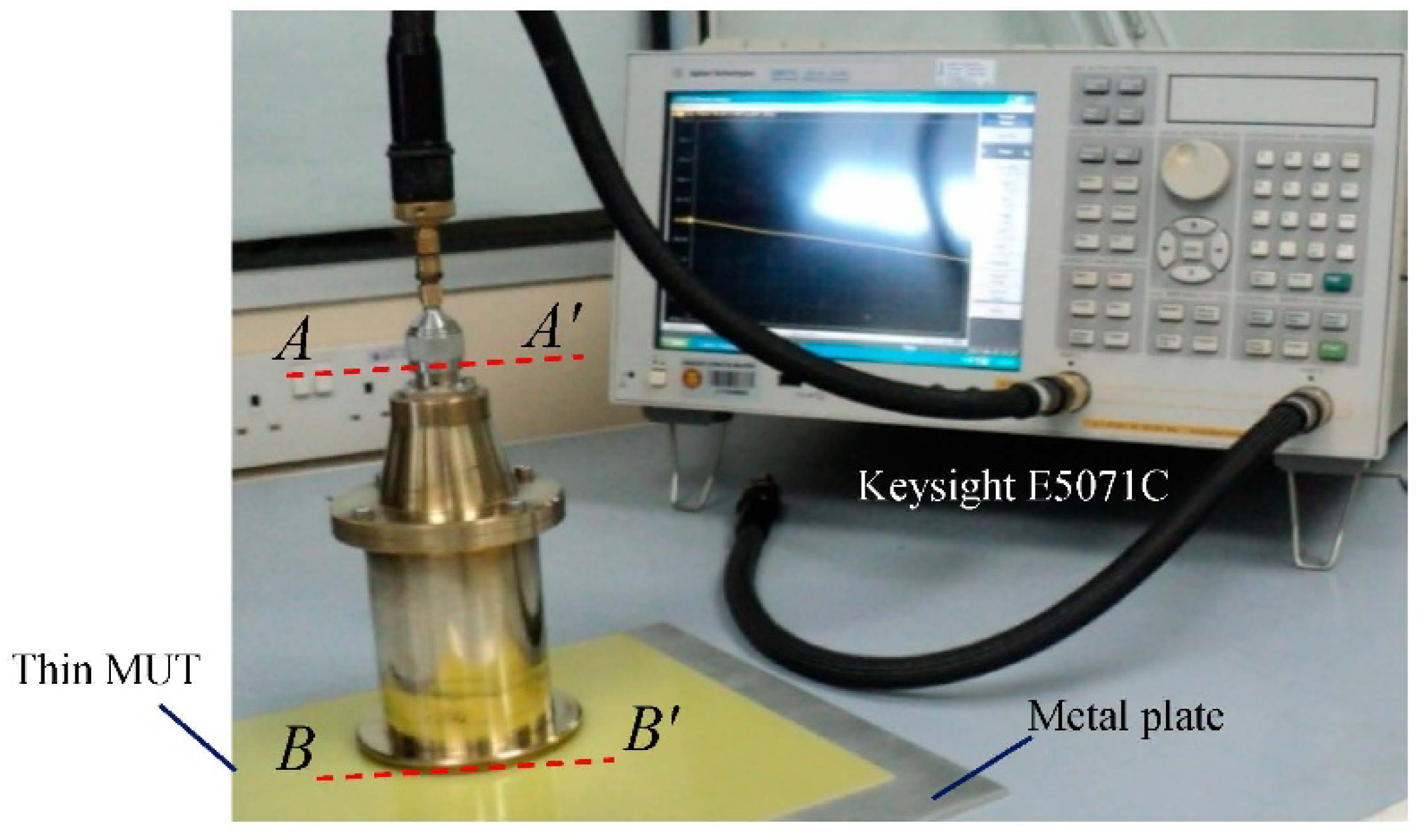

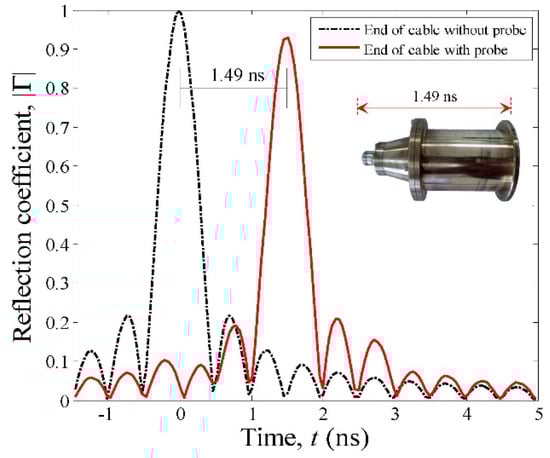

The complex reflection coefficient, Γ_AA′ = |Γ_AA′|exp(jφ_AA′) at plane AA′ for four MUTs were measured using Keysight E5071C network analyzer (Keysight Technologies, Santa Rosa, CA, USA) in the frequency ranging from 0.3 MHz to 650 MHz at 25 °C. Calibration was done at the AA′ plane, as shown in Figure 2, using Keysight 85032F kit (Keysight Technologies, Santa Rosa, CA, USA).

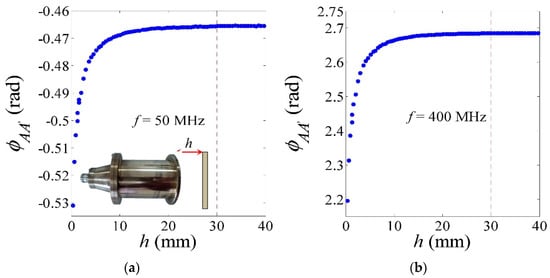

The sensing distance, h of the probe is 30 mm, which was estimated based on the distance at which the measured phase shift, φ_AA′ (rad) as shown in Figure 3a,b starts to become constant when the metallic plate is moved away from the probe aperture in air. Figure 4 shows the time-domain measurements of the coaxial probe, which is operated with minimum windowing and bandpass mode. Clearly, coaxial probe of 15 cm length is sufficient to avoid the interference between plane-AA′ and -BB′ for the frequency-domain Γ_AA′ measurement.

3. Calibrations

3.1. Calibration Formulations

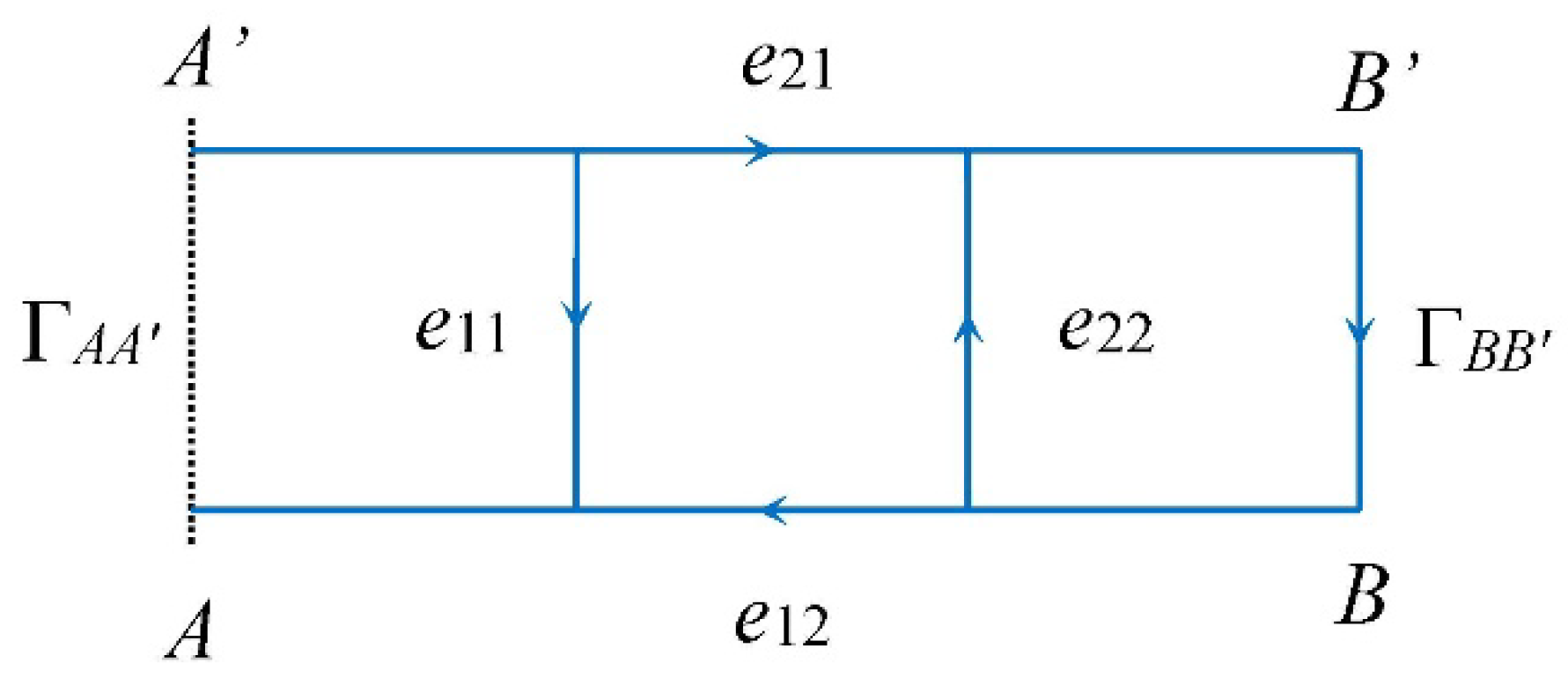

Before the one-port reflection measurement is conducted, the open-ended coaxial probe is regularly calibrated at the end of the coaxial line (probe aperture) in order to remove the effects of the coaxial line between AA′ plane and BB′ plane. The relationship between the actual reflection coefficient, Γ_BB′ at the probe aperture (BB′ plane) and measured Γ_AA′ can be represented by an error network as shown in Figure 5, and its formulation is given as [34]:

$${\mathsf{\Gamma }}_{B{B}^{\prime }}=\frac{{\mathsf{\Gamma }}_{A{A}^{\prime }}-e_{11}}{e_{22}{\mathsf{\Gamma }}_{A{A}^{\prime }}+\left(e_{12}{e}_{21}-e_{11}{e}_{22}\right)}$$

(2)

where the e₁₂e₂₁ terms in Equation (2) represents the values of tracking error, as well as the e₁₁ and e₂₂ are the values of the directivity error and the source match error, respectively. These errors are contributed by shifted phase, attenuate loss in the coaxial line (e₁₂e₂₁), and the radiate fringing effects at the probe aperture (e₁₁ and e₂₂), which are mainly caused by the occurrence of standing waves in the coaxial line.

For simplicity of calibration process, only air independent calibration standard is considered in the de-embedded process. Thus, the errors of a standing wave and mismatch between connectors are not taken into account in the calibration, and the values of e₁₁ and e₂₂ are assumed to be zero. Finally, Equation (2) can be reduced as:

$$\left(e_{12}{e}_{21}-e_{11}{e}_{22}\right)=\frac{{\mathsf{\Gamma }}_{A{A}^{\prime }\_Air}}{{\mathsf{\Gamma }}_{B{B}^{\prime }\_Air}}$$

(3)

where Γ_{AA′_Air} is the reflection coefficient measurement, for air at plane AA′, and Γ_{BB′_Air} is the standard value of the air reflection coefficient at plane BB′, obtained using the COMSOL simulator. Similarly, for MUT measurement, the Equation (2) can be expressed as:

$$\left(e_{12}{e}_{21}-e_{11}{e}_{22}\right)=\frac{{\mathsf{\Gamma }}_{A{A}^{\prime }\_MUT}}{{\mathsf{\Gamma }}_{B{B}^{\prime }\_MUT}}$$

(4)

By combining Equations (3) and (4), the desired actual reflection coefficient, Γ_{BB′_MUT} of the MUT can be obtained as:

$${\mathsf{\Gamma }}_{B{B}^{\prime }\_MUT}={\mathsf{\Gamma }}_{A{A}^{\prime }\_MUT}\left(\frac{{\mathsf{\Gamma }}_{B{B}^{\prime }\_Air}}{{\mathsf{\Gamma }}_{A{A}^{\prime }\_Air}}\right)$$

(5)

where Γ_{AA′_MUT} is the reflection coefficient measurement, for MUT at plane AA′. Equation (5) can be converted in terms of normalized admittance parameter as given in Equation (12). It should be noted that the errors of e₁₁ and e₂₂ are implicitly removed by effective permittivity calibration process as described in Section 3.3.

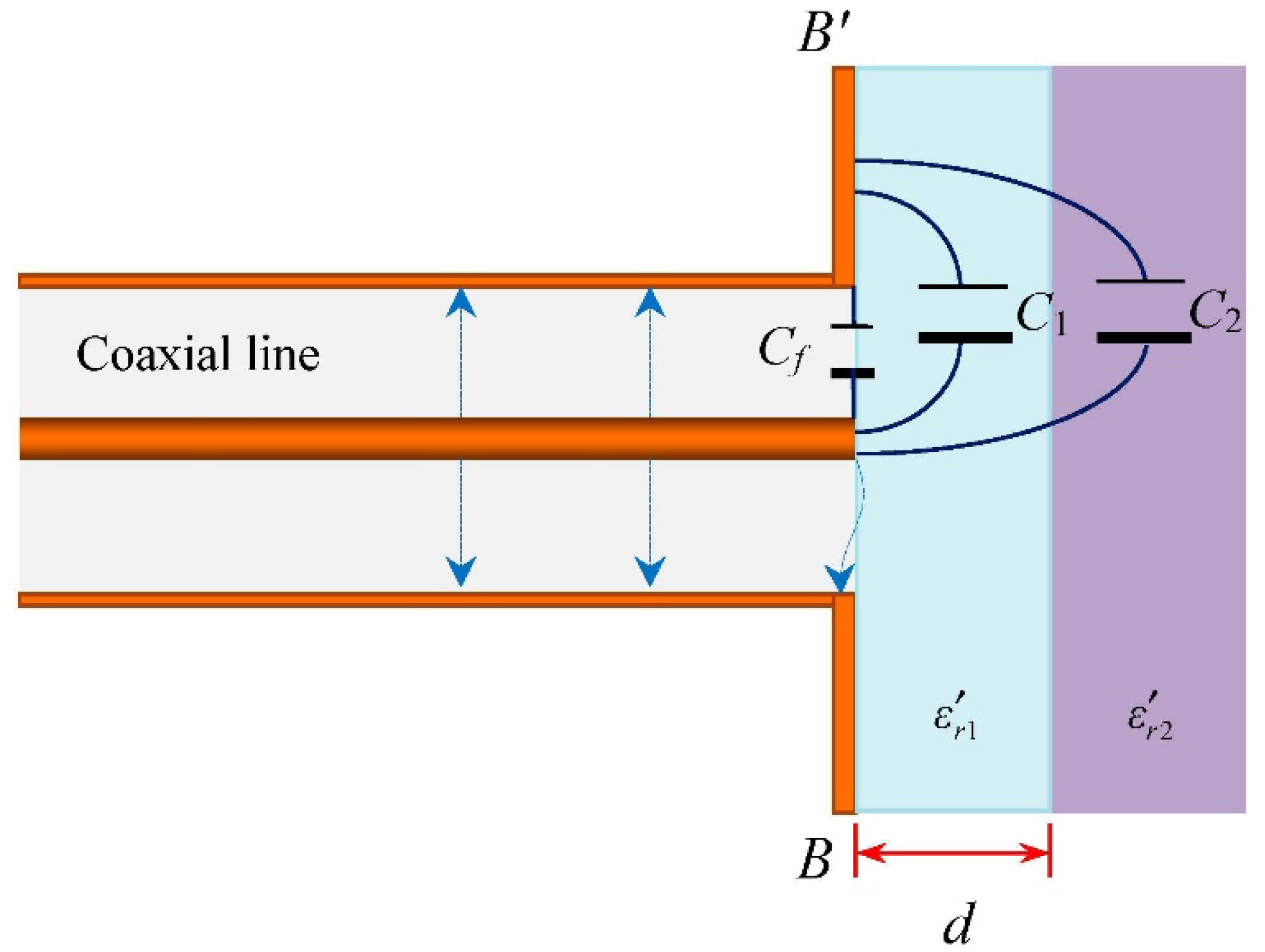

In Ref. [32], the dependence of each capacitance on the MUT thickness, d at probe apperture as shown in Figure 6, is empirically assumed to be exponential as:

$$C_1={\epsilon }_{r1}^{\prime }{C}_o\left[1-\exp \left(-d/M\right)\right]$$

(6)

$$C_2={\epsilon }_{r2}^{\prime }{C}_o\exp \left(-d/M\right)$$

(7)

where M is an empirical parameter with the dimensions of length.

Thus, the total terminal capacitance, C_T at BB′ plane can be written as:

$$\begin{array}{cc}\hfill C_T& =C_f+C_1+C_2\hfill \\ & =C_f+{\epsilon }_{r1}^{\prime }{C}_o+\left({\epsilon }_{r2}^{\prime }-{\epsilon }_{r1}^{\prime }\right)C_o\exp \left(-d/M\right)\hfill \\ & =C_f+{\epsilon }_{eff}^{\prime }{C}_o\hfill \end{array}$$

(8)

where ε_eff′ is the effective dielectric constant of finite layer MUT as:

$${\epsilon }_{eff}^{\prime }={\epsilon }_{r1}^{\prime }+\left({\epsilon }_{r2}^{\prime }-{\epsilon }_{r1}^{\prime }\right)\exp \left(-d/M\right)$$

(9)

However, Equation (9) is only valid for ε_r1′ > ε_r2′. For finite MUT with one layer thickness, d is backed by a conducting metallic plate (ε_r1′ < ε_r2′), the effective dielectric constant, ε_eff′ can be expressed as:

$$\frac{1}{{\epsilon }_{eff}^{\prime }}=\frac{1}{{\epsilon }_{r1}^{\prime }}+\left(\frac{1}{{\epsilon }_{r2}^{\prime }}-\frac{1}{{\epsilon }_{r1}^{\prime }}\right)\exp \left(-d/M\right)$$

(10)

Since the dielectric constant of the metallic plate is assumed to be infinite (ε_r2′ ≈ ∞), therefore, the 1/ε_r2′ term in Equation (10) is neglected and subsequently yields

$${\epsilon }_{r1}={\epsilon }_{eff}\left[1-\exp \left(-d/M\right)\right]$$

(11)

In Ref. [35], Equation (11) was modified and expanded into Equation (15) by adding three unknown constants, a₁, a₂, and a₃ (to be determined) in which the values of the constants are implicitly represented the e₁₁ and e₂₂ errors.

3.2. Probe Aperture Calibration

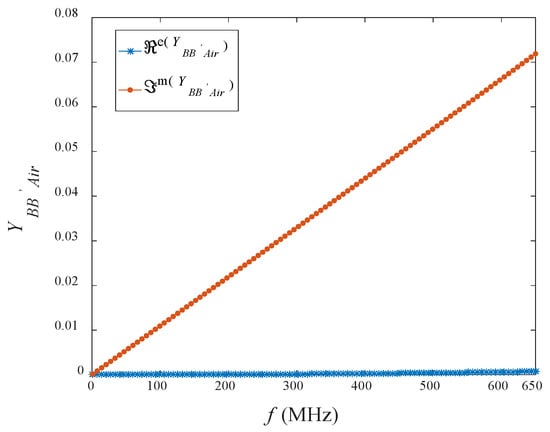

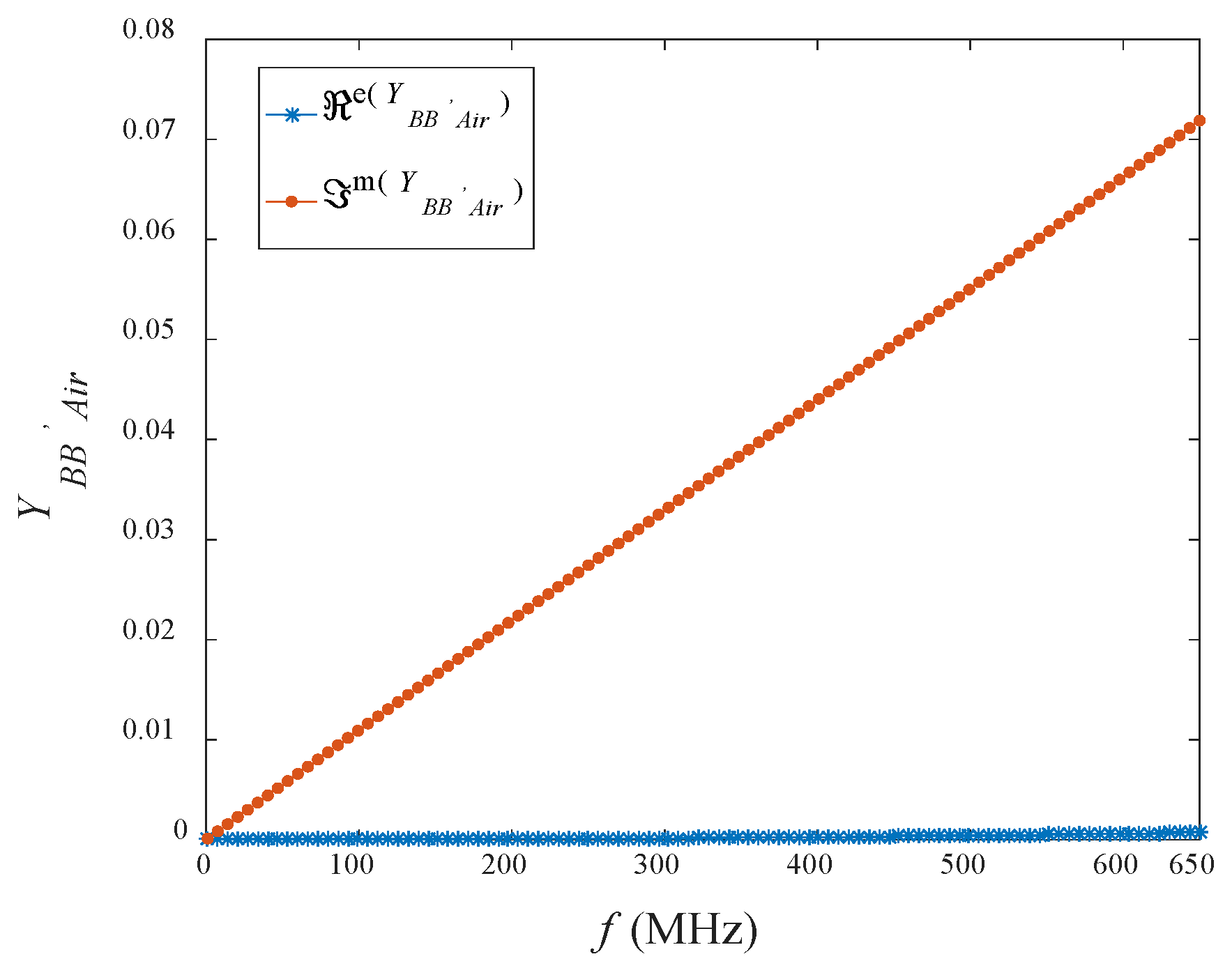

The actual normalized admittance, ${\tilde{Y}}_{B{B}^{\prime }\_MUT}$, was measured with the aperture of the probe placed on a two-layer media [26], in which the first layered medium was a thin sample to be tested with thickness, h and the second layered medium was the conducting plate. The value of the ${\tilde{Y}}_{B{B}^{\prime }\_MUT}$ of the thin MUT is obtained after de-embedding using (13). The effective relative permittivity, ε_eff of the MUT can be estimated as [15]:

$${\epsilon }_{eff}=\left(\frac{Y_o}{j\omega C}\right){\tilde{Y}}_{B{B}^{\prime }\_MUT}-\frac{C_f}{C}$$

(12)

where

$${\tilde{Y}}_{B{B}^{\prime }\_MUT}={\tilde{Y}}_{A{A}^{\prime }\_MUT}\left(\frac{{\tilde{Y}}_{B{B}^{\prime }\_Air}}{{\tilde{Y}}_{A{A}^{\prime }\_Air}}\right)$$

(13)

where ${\tilde{Y}}_{A{A}^{\prime }\_Air}$ is the measured normalized admittance for air at plane AA′, and ${\tilde{Y}}_{B{B}^{\prime }\_Air}$ is the simulated standard value of admittance for air at aperture probe (plane BB′) using the COMSOL simulator as shown in Figure 7. In the simulation, the conductor of the coaxial probe is assumed to be a perfect conductor. The relationship between Γ_AA′ and ${\tilde{Y}}_{A{A}^{\prime }}$ is given as:

$${\tilde{Y}}_{A{A}^{\prime }\_MUT}=\frac{1-{\mathsf{\Gamma }}_{A{A}^{\prime }\_MUT}}{1+{\mathsf{\Gamma }}_{A{A}^{\prime }\_MUT}}$$

(14)

Symbol Y_o = 0.02 S, C = 2.38ε_o(b − a) [36], C_f = 0.0107 pF and ω are the characteristic admittance, aperture probe capacitance, fringing field capacitance, and the angular frequency, respectively.

3.3. Effective Permittivity Calibration

For thin solid planar material measurements, the scattering of the wave from probe’s aperture would penetrate the thin planar material and impinge on the other layer-interface media. In this situation, the effective permittivity, ε_eff of the thin specimen will be measured, but not the actual permittivity, ε_r of the material [10]. In this study, the relationship between the actual relative permittivity, ε_r and effective relative permittivity, ε_eff for a finite thickness planar specimen was empirically expressed as Ref. [35]:

$${\epsilon }_r={\epsilon }_{eff}\left(a_1+a_2{e}^{-h/M}+a_3{e}^{-2h/M}\right)$$

(15)

where h is the thickness of the MUT. The empirical coefficient, M was found to suite the large probe as described in Ref. [35], which can be roughly represented by single value as 0.006. The unknown complex coefficients (a₁, a₂, and a₃) values in Equation (15) were found by using three offset-short terminators (ε_r = 1), yielding the following:

$$1={\epsilon }_{eff1}\left(a_1+a_2{e}^{-h_1/M}+a_3{e}^{-2h_1/M}\right)$$

(16)

$$1={\epsilon }_{eff2}\left(a_1+a_2{e}^{-h_2/M}+a_3{e}^{-2h_2/M}\right)$$

(17)

$$1={\epsilon }_{eff3}\left(a_1+a_2{e}^{-h_3/M}+a_3{e}^{-2h_3/M}\right)$$

(18)

where h₁, h₂, and h₃ are the known lift-off distances between the aperture probe from the shorted plate. On the other hand, ε_eff1, ε_eff2, and ε_eff3 are the corresponding effective permittivity of the three offset shorts, in which the values are obtained from (12). The unknown values of a₁, a₂, and a₃ in Equations (16)–(18) were explicitly determined using Cramer’s rule as:

$$a_1=\frac{\left\{\begin{array}{l}\left(1/{\epsilon }_{eff1}\right)\left(e^{-\left(h_2+2h_3\right)/M}-e^{-\left(2h_2+h_3\right)/M}\right)-\left(1/{\epsilon }_{eff2}\right)\left(e^{-\left(h_1+2h_3\right)/M}-e^{-\left(h_3+2h_1\right)/M}\right)\\ +\left(1/{\epsilon }_{eff3}\right)\left(e^{-\left(h_1+2h_2\right)/M}-e^{-\left(h_2+2h_1\right)/M}\right)\end{array}\right\}}{D}$$

(19)

$$a_2=\frac{\left\{\begin{array}{l}\left(1/{\epsilon }_{eff2}\right)e^{-2h_3/M}-\left(1/{\epsilon }_{eff3}\right)e^{-2h_2/M}-\left(1/{\epsilon }_{eff1}\right)e^{-2h_3/M}+\left(1/{\epsilon }_{eff3}\right)e^{-2h_1/M}\\ +\left(1/{\epsilon }_{eff1}\right)e^{-2h_2/M}-\left(1/{\epsilon }_{eff2}\right)e^{-2h_1/M}\end{array}\right\}}{D}$$

(20)

$$a_3=\frac{\left\{\begin{array}{l}\left(1/{\epsilon }_{eff3}\right)e^{-h_2/M}-\left(1/{\epsilon }_{eff2}\right)e^{-h_3/M}-\left(1/{\epsilon }_{eff3}\right)e^{-h_1/M}+\left(1/{\epsilon }_{eff1}\right)e^{-h_3/M}\\ +\left(1/{\epsilon }_{eff2}\right)e^{-h_1/M}-\left(1/{\epsilon }_{eff1}\right)e^{-h_2/M}\end{array}\right\}}{D}$$

(21)

The determinant, D of the Equations (19)–(21) are given as:

$$D=\left\{e^{-\left(h_2+2h_3\right)/M}-e^{-\left(2h_2+h_3\right)/M}-e^{-\left(h_1+2h_3\right)/M}+e^{-\left(h_3+2h_1\right)/M}+e^{-\left(h_1+2h_2\right)/M}-e^{-\left(h_2+2h_1\right)/M}\right\}$$

(22)

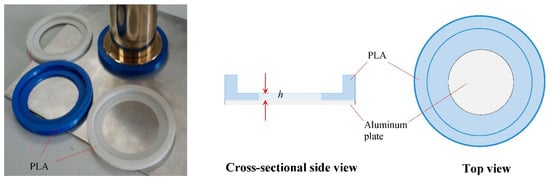

To perform offset-short measurements (Lift-off distances: h₁, h₂, and h₃), three cylindrical rings have been printed using 3D-printer with polylactic acid (PLA) material in which the ring centers are concave rounded with depth, h₁ = (1.0 ± 0.1) mm, h₂ = (2.0 ± 0.1) mm, and h₃ = (3.0 ± 0.1) mm, respectively. It should be noted that the effective lift-off distance may be slightly shorter than the actual physical distance due to the strong coupling fringing field near to the probe aperture. The cylindrical rings backed by aluminum plate as shown in Figure 8, are used as calibration kits for this thin planar material measurements. As mentioned earlier, a large aperture probe has a strong and wide fringing field distribution compared to a small probe, thus non-metallic material such as polylactic acid (PLA) has been chosen to construct the cylindrical ring in order to reduce the field coupling effect from side wall in the area between aperture probe and aluminum plate.

4. Results and Discussion

4.1. Reflection Coefficient, Γ_AA′

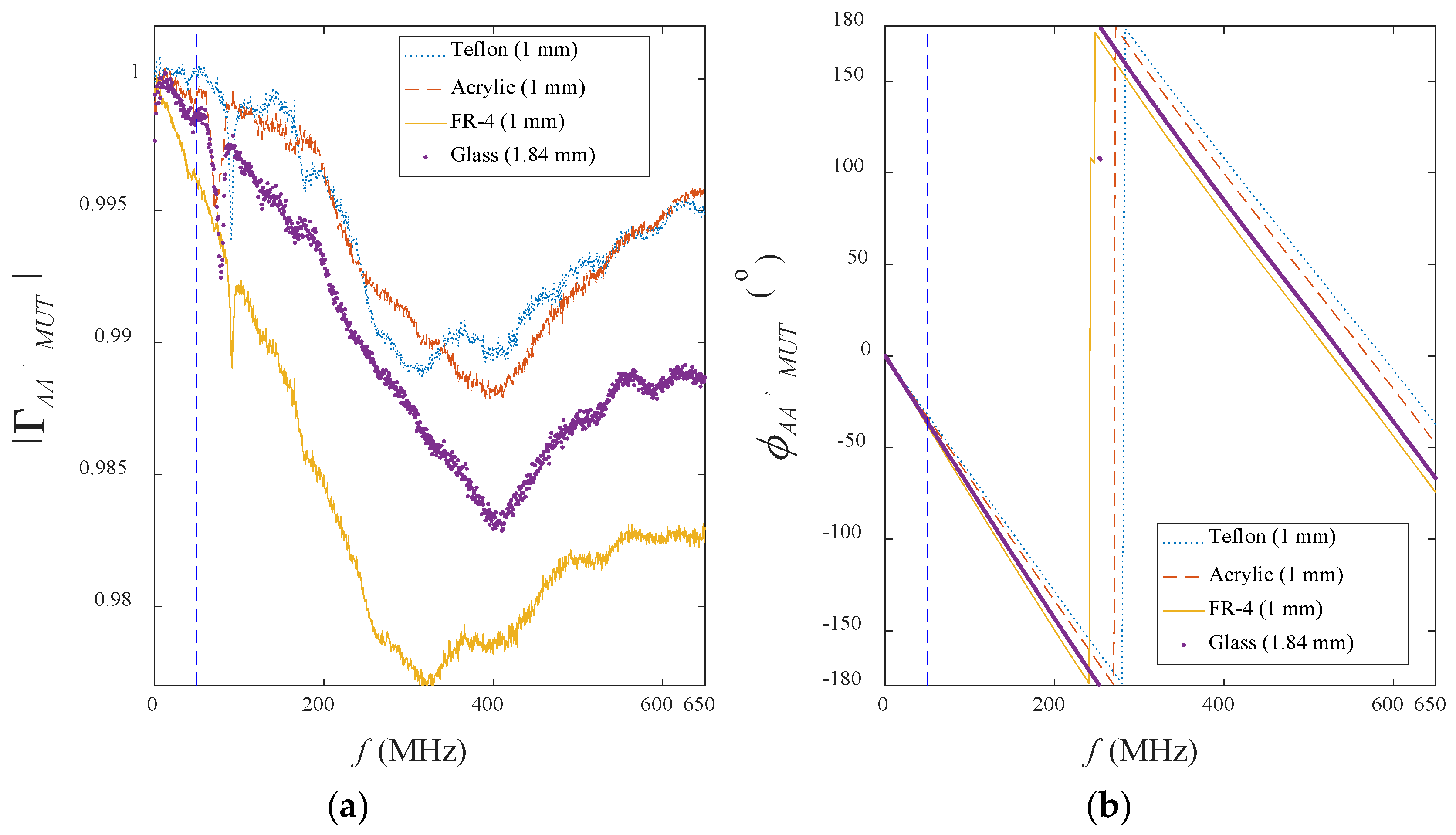

Figure 9a,b shows the raw measured |Γ_{AA′_MUT}| and φ_{AA′_MUT} data of four thin low-loss MUTs obtained from network analyzer. The |Γ_{AA′_MUT}| and φ_{AA′_MUT} distinction between four MUTs are less significant when it is below 50 MHz, in which mainly caused by the size limitation of the coaxial probe. For instance, various coaxial probes (in Figure 10) are tested in order to observe and compare the measurement sensitivity towards the size of coaxial probe as listed in

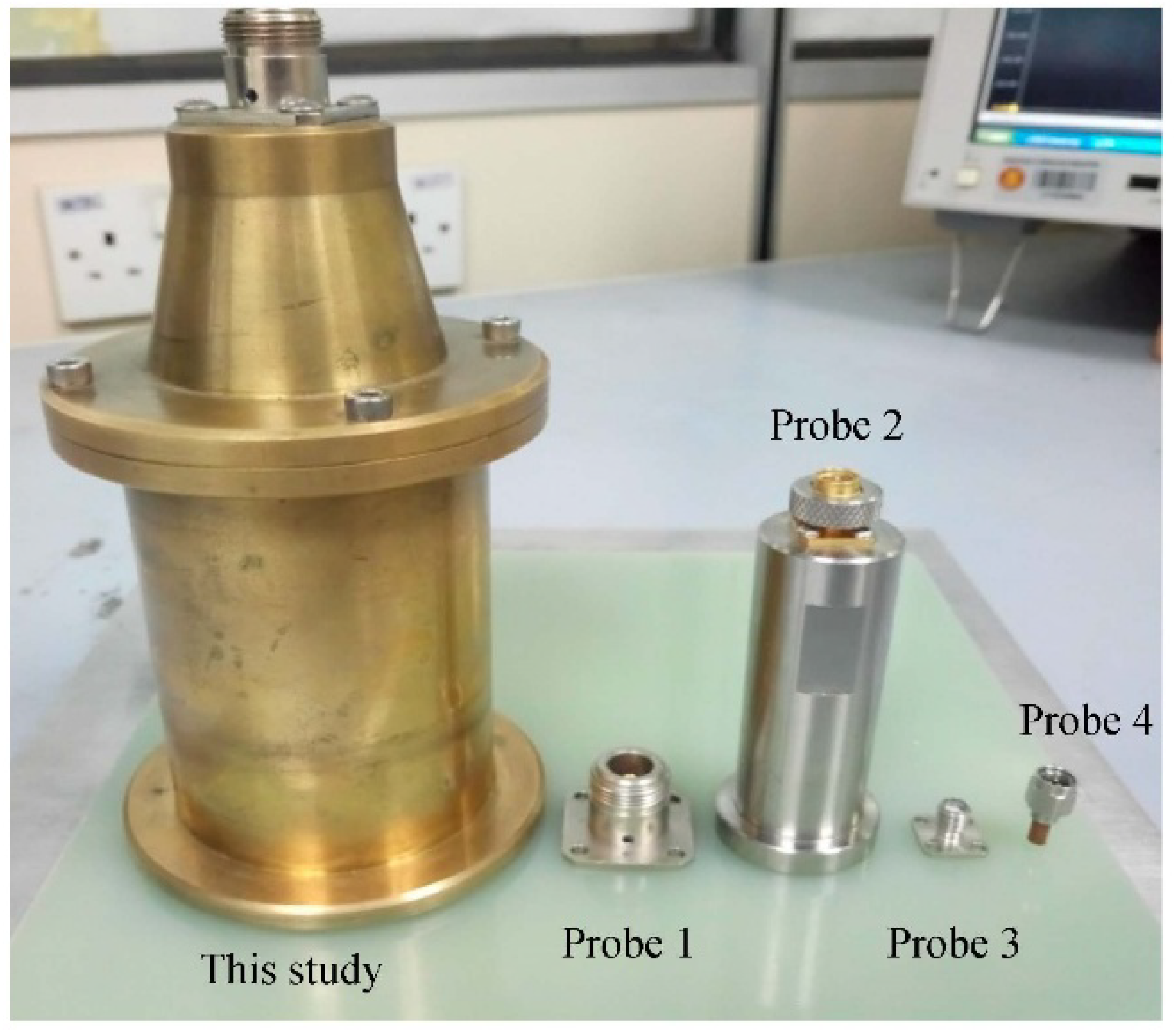

Table 2. Measured |Γ_AA′| for Teflon and FR-4 sheets with thickness of 1 mm backed by metal plate at 50 MHz.

Probe Size	|ΓAA′_MUT|				Differentiation of ∆|ΓAA′_MUT| between Teflon and FR-4
	Teflon		FR-4
This study 2a = 1.5 cm 2b = 4.8 cm	1.000213	Average: 1.0001019 Standard deviation: 0.0001784	0.9954108	Average: 0.9959747 Standard deviation: 0.0004091	0.0041272
	1.000345		0.9961075
	0.9999458		0.9957603
	0.9999258		0.9964970
	1.00008		0.9960977
Probe 1 2a = 0.3 cm 2b = 1.0 cm	1.001418	Average: 1.001394 Standard deviation: 0.000155902	1.000593	Average: 1.0005194 Standard deviation: 0.00010485	0.0008746
	1.001521		1.000355
	1.001302		1.000626
	1.001177		1.000507
	1.001552		1.000516
Probe 2 2a = 0.24 cm 2b = 0.8 cm	0.9998745	Average: 0.9998884 Standard deviation: 0.000131850	0.9995621	Average: 0.99951490 Standard deviation: 0.000038824	0.0003735
	1.000060		0.9994846
	0.9998878		0.9995518
	0.9999274		0.9994819
	0.9996925		0.9994941
Probe 3 2a = 0.13 cm 2b = 0.42 cm	0.9996894	Average: 0.99972804 Standard deviation: 0.000077999	0.9995004	Average: 0.99967564 Standard deviation: 0.00014613	0.0000524
	0.9996297		0.9995625
	0.9998415		0.9998173
	0.9997365		0.9998234
	0.9997431		0.9996746
Probe 4 2a = 0.09 cm 2b = 0.3 cm	1.000269	Average: 1.000275 Standard deviation: 0.000159385	1.000199	Average: 1.0002248 Standard deviation: 0.000084138	0.0000502
	1.000183		1.000161
	1.000358		1.000366
	1.000075		1.000233
	1.000490		1.000165

and

Table 3. Measured φ_{AA′_MUT} for Teflon and FR-4 sheets with h = 1 mm backed by metal plate at 50 MHz.

Probe Size	φAA′_MUT (°)				Differentiation of ∆φAA′_MUT between Teflon and FR-4
	Teflon		FR-4
This study 2a = 1.5 cm 2b = 4.8 cm	−32.3000	Average: −32.21717 Standard deviation: 0.134307	−38.56207	Average: −38.34329 Standard deviation: 0.495519	6.12612°
	−32.13884		−38.64224
	−32.25762		−38.43801
	−32.02661		−37.46768
	−32.3628		−38.60646
Probe 1 2a = 0.3 cm 2b = 1.0 cm	−1.943045	Average: −1.93933 Standard deviation: 0.00692831	−2.522396	Average: −2.542644 Standard deviation: 0.0144045	0.603314°
	−1.930690		−2.554037
	−1.934963		−2.535734
	−1.939431		−2.542843
	−1.948521		−2.558213
Probe 2 2a = 0.24 cm 2b = 0.8 cm	−13.88491	Average: −13.884262 Standard deviation: 0.0098386975	−14.31968	Average: −14.315222 Standard deviation: 0.00953097686	0.43096°
	−13.89140		−14.31454
	−13.86970		−14.32456
	−13.89475		−14.31788
	−13.88055		−14.29945
Probe 3 2a = 0.13 cm 2b = 0.42 cm	−1.426506	Average: −1.4218634 Standard deviation: 0.00444004	−1.589263	Average: −1.585402 Standard deviation: 0.00375146	0.163539°
	−1.417838		−1.579990
	−1.419884		−1.588442
	−1.418287		−1.583723
	−1.426802		−1.585592
Probe 4 2a = 0.09 cm 2b = 0.3 cm	−2.60528	Average: −2.6106474 Standard deviation: 0.00985552	−2.71289	Average: −2.688339 Standard deviation: 0.01568456	0.077692°
	−2.60139		−2.679226
	−2.618748		−2.694912
	−2.623582		−2.674806
	−2.604237		−2.679861

.

Up to five repeated reflection measurements (at different surface areas of the MUT) have been done for each MUT in which the average values and standard deviations for the measurement have been calculated. For this study probe, the linear magnitude differential, ∆|Γ_{AA′_MUT}| between the RF-4 (h = 1.0 mm) and the Teflon (h = 1.0 mm) is close to 0.004 in which is ten time greater to the existing resolution error (standard deviation: 10⁻⁴) as shown in Table 2. On the other hand, the phase differential, ∆φ_{AA′_MUT} between FR-4 and Teflon at 50 MHz is capable of achieving 6° as illustrated in Table 3. Clearly, the larger the probe, the more stable and sensitive it can be achieved for reflection measurements at very low frequencies.

4.2. Normalized Admittance, Ỹ_BB′

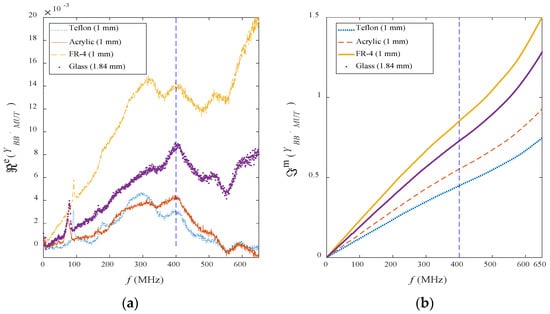

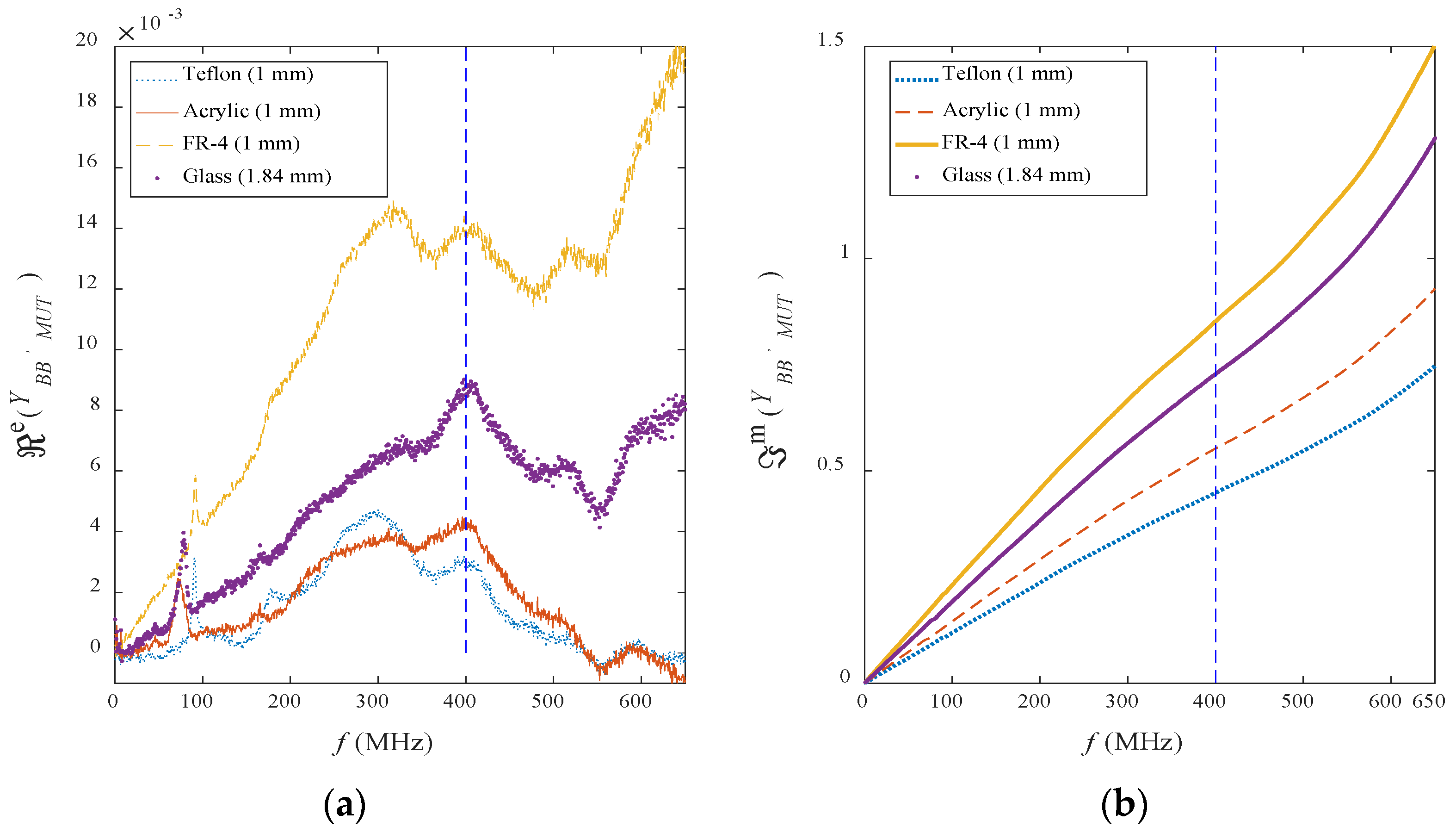

Figure 11a,b shows the normalized admittance ${\tilde{Y}}_{B{B}^{\prime }\_MUT}$ = ℜe$\left({\tilde{Y}}_{B{B}^{\prime }\_MUT}\right)$ + $j\mathfrak{J}m\left({\tilde{Y}}_{B{B}^{\prime }\_MUT}\right)$ of the four MUTs converted based on the raw Γ_{AA′_MUT} data using Equations (13) and (14). Typically, the lower the loss for the MUT, the lower the value for real part, ℜe$\left({\tilde{Y}}_{B{B}^{\prime }\_MUT}\right)$ (normalized conductance) as shown in Figure 11a. The case for the imaginary part, $\mathfrak{J}m\left({\tilde{Y}}_{B{B}^{\prime }\_MUT}\right)$ (normalized susceptance) indicates that the $\mathfrak{J}m\left({\tilde{Y}}_{B{B}^{\prime }\_MUT}\right)$ property is no longer linearly proportional to the operating frequency, f over than 400 MHz as shown in Figure 11b. Hence, the prediction of ε_r value will be less accurate because the model (11) used in the conversion assumed the value of $\mathfrak{J}m\left({\tilde{Y}}_{B{B}^{\prime }\_MUT}\right)$ is proportional to the frequency.

4.3. Effective Permittivity, ε_eff

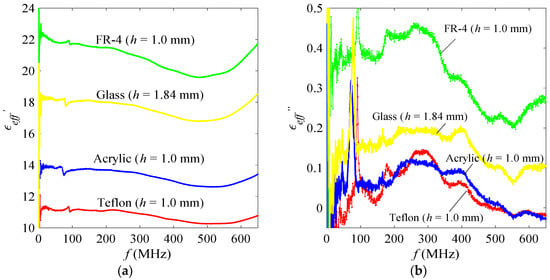

Figure 12a,b shows the effective relative permittivity, ε_eff = ε_eff′ − jε_eff″ versus operating frequency, f.

The value of ε_eff has been determined using Equation (12) and it is higher than the actual ε_r value of the MUT in which the ε_eff value is depended on the thickness, h of the MUT backed by metal plate. This is caused by the thinness of MUT at coaxial probe aperture, whereby the scattering of the wave from probe aperture will penetrate the MUT and coupling with the metal plate, as well as reflected by the metal plate on other side of the MUT [37].

4.4. Actual Relative Permittivity, ε_r

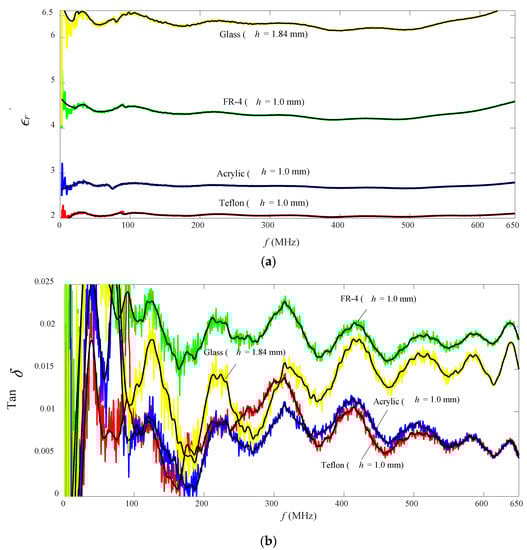

Figure 13a,b shows the predicted ε_r′ and tan δ = ε_r″/ε_r′ of four thin low-loss MUTs which are in good agreement with expected values as tabulated in Table 2. The scattered ε_r′ and tan δ data in Figure 13a,b have been smoothed by Local Polynomial Regression (Loess) algorithm, which is available in built-in MATLAB “smooth” command. The smoothed data are represented by the black solid lines in Figure 13a,b. As expected, the coaxial probe is very difficult to provide high stability reflection measurement for the low-loss MUT at very low operating frequencies (refer to Figure 9). Hence, indirectly, the uncertainty of the predicted ε_r′ and tan δ (especially for small values of tan δ) are increased when the operating frequency decreases to below 50 MHz.

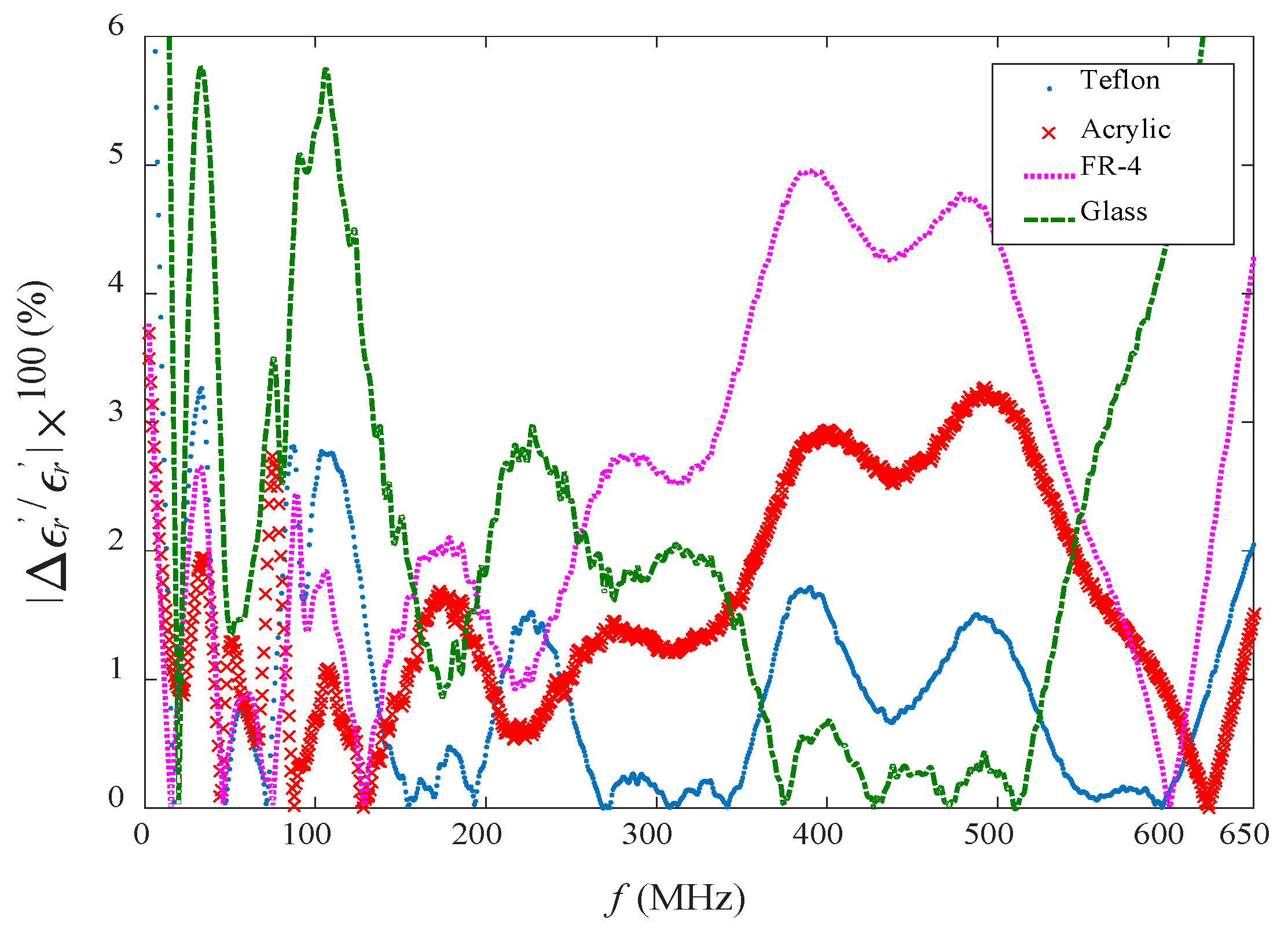

Figure 14 shows the percentage of the relative error between the smoothed values of ε_r′ in Figure 13a and the expected values of ε_r′ in

Table 4. Expected values for ε_r′ and tan δ.

MUT	εr′ (Typ)	tan δ (Max)
Teflon	2.06	0.0004
Acrylic	2.75	0.019
FR-4	4.4	0.022
Glass	6.1	0.0036

. The percentage of the average relative errors, |∆ε_r′/ε_r′| are less than 6% for overall measurements from 1 MHz to 400 MHz.

5. Conclusions

One-port measurement using a large coaxial probe is an easy, durable, and cost-effective measurement method in large-scale material processing industries. In this study, the dielectric properties for thin low-loss materials (a few millimeter thickness) at very low frequencies (below 400 MHz) have been precisely measured using the open-ended coaxial probe techniques. This accuracy level of the measurement is rarely achieved by previous studies, which used the same technique for low-loss material at very low frequencies. In future, larger and longer sizes of coaxial probe may be re-designed in order to achieve good stability and higher sensitivity measurement below 50 MHz.
