Communication Manager for Hyper-Connected RPAS Environments

Department of Telematic Engineering, University Carlos III of Madrid, 28911 Leganes, Spain
Author to whom correspondence should be addressed.
Drones 2023, 7(2), 137;
Submission received: 17 January 2023 / Revised: 9 February 2023 / Accepted: 12 February 2023 / Published: 15 February 2023
(This article belongs to the Special Issue UAVs in 5G and beyond Networks)


The revolution of Remotely Piloted Aircraft Systems (RPASs), both in the commercial and the research field, has accelerated the arrival of innovative and complex services to the civilian environment within non-segregated airspace. The extensive deployment of these services will still require solving relevant challenges in several topics, such as regulation, security, or diverse technical defiance. In particular, the services to be provided increasingly demand network resources and performance improvements. This scenario will be strongly exacerbated by the upcoming resources provided by the 5G/6G architectures, where Remotely Piloted Aircrafts (RPAs) will likely support multiple communication interfaces and will be able to establish multi-hop network connectivity with numerous devices leading to an unprecedented hyper-connected RPA environment. In addition, future RPASs will have to enhance the management of their connectivity capabilities to comply with the latest regulations, which demand an uninterrupted link for the Control and Non-Payload Communications (CNPC). This article presents a flexible Communication Infrastructure Manager (CIM) based on Software-Defined Networking (SDN) and virtualization technologies capable of handling the complexity inherent to this ecosystem and being adapted to different operation requirements to cope with all these communication challenges. Finally, the article shows several validation experiences to demonstrate the potential of the CIM versus the standard approach.
RPA; RPAS; RPS; SDN; communications

1. Introduction

Nowadays, Remotely Piloted Aircraft (RPA) operations in the civilian sphere mainly include a single vehicle that performs reconnaissance missions by sending telemetry parameters that different onboarded sensors have acquired (e.g., video, temperature, air quality) to a Remote Pilot Station (RPS). Despite their apparent simplicity, single-RPA applications are employed in many different and significant fields (e.g., surveillance of livestock [1], monitoring of power lines [2], traffic monitoring [3], or search and rescue [4], among many others).
Over the past few years, implementing more complex services integrated into the urban environment based on multiple RPAs operating collaboratively (the so-called RPA swarms) has been profusely investigated. It has led to new scenarios that have not yet been adequately deployed, such as package delivery [5], monitoring of crowds such as concerts or demonstrations [6], communications coverage extension [7], or support to emergency services in cities such as firefighters, police, and hospitals [8]. However, there are still several critical challenges before we can see these applications integrated into our daily lives.
On the one hand, these challenges have to do with the regulation field. For example, the European Union has recently released a new single European regulation (EASA: (accessed on 14 January 2023)) (which is applicable as of 31 December 2020), which affects all Remotely Piloted Aircraft Systems (RPASs) regardless of the weight and size of the RPA and whether they are used for professional or recreational purposes. Some significant rules to comply with the new European regulation are (i) registering as an RPAS operator, (ii) accrediting RPA pilot training, or (iii) meeting the different restrictions/regulations imposed by local airspace authorities for each possible flight area. On the other hand, solving the challenges involves the technological field itself (described below).
This article will address the latter perspective, although its relationship with air traffic management will also be discussed. In particular, we handle one of the challenges RPAs will face in the hyper-connected environment already present in the current 5G communications ecosystem and even more so in the upcoming 6G scene, looking towards all-to-all connectivity scenarios.
In the first place, near-future-RPAs will need to transmit many more information streams. In addition to the traditional video stream, RPAs may need to transmit, for instance, (i) data related to aeronautical telemetry (e.g., pressure, temperature, speed, GPS position), (ii) telemetry from different onboarded sensors (e.g., air quality, smoke detection), (iii) control information for U-Space Unmanned Aircraft System Traffic Management (UTM) [9], (iv) control information for their RPS, (v) control information between RPAs for swarm management, (vi) information from new applications they may support (e.g., VoIP provisioning for remote users, loudspeaker service for emergencies) or traffic related to the many service-provisioning technologies that are being included more and more within the software payload of the RPAs ranging from virtual machines to containers or light containers that can be remotely handled.
In the second place, RPAs will have many alternatives for data transmission. These alternatives include traditional radio frequency links for Control and Non-Payload Communications (CNPC) (also known as Command and Control (C2)) and payload (usually in separate bands), to which will be added different backup links that may eventually be considered as primary links based on cellular technology (either 3G, 4G/LTE, 5G), satellite technology, proprietary line-of-sight links, millimeter wave, visible light communications, Wi-Fi links, or Bluetooth links. These technologies generally are not interchangeable, and each has its own field of application (e.g., long-distance point-to-point communications, networking, low energy consumption). However, given that they are increasingly being developed in lighter and smaller devices, it is possible to assume that an RPA could use several simultaneously, thus multiplying its versatility and complexity simultaneously.
Finally, a highly volatile and dynamic environment, such as RPA operations, is also disruptive, not only from the intermittent availability of the transmissions themselves (e.g., coverage, obstacles, interference) but also from the intermittent availability of the transmission devices (e.g., transmission failures, RPA batteries running out, new devices, whether RPAs or RPSs that dynamically join or leave the communications network) which continuously forces network topology reconfigurations. This heterogeneity of such a broad spectrum of events, but also so focused on the discontinuity of the service, raises multiple challenges in the provision of these services, which in many cases are expected to reach extensive levels of robustness, reliability, and resilience (3R services), insofar as they are services that are very useful in all kinds of emergency operations or operations in challenging locations or even expensive operations that are difficult to be repeated.

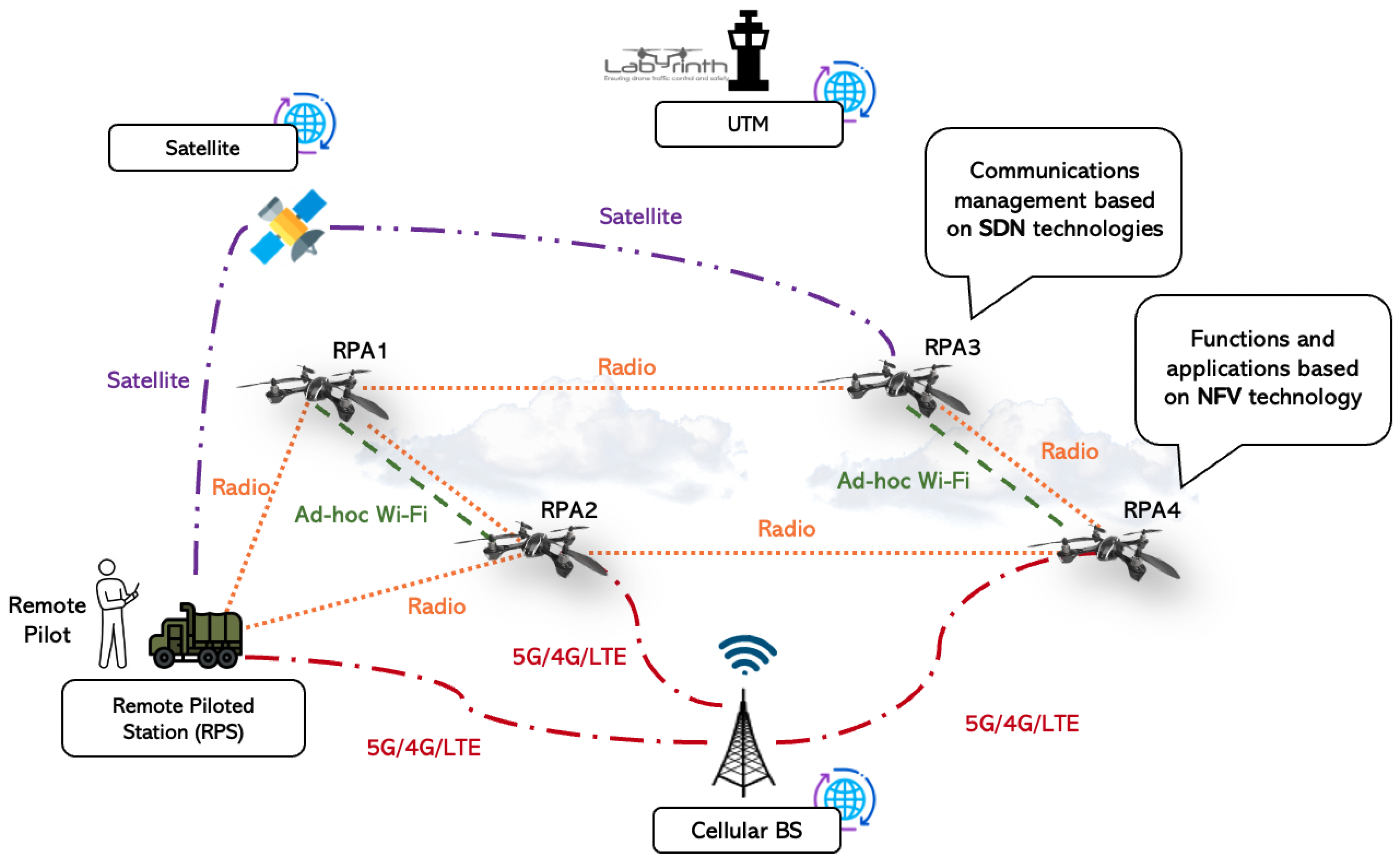

Figure 1 presents the reference scenario for this article, showing a network with multiple RPAs that may use different communication alternatives (not all vehicles are required to have or use the same communication links). However, to complete a successful mission, the RPA may have to cooperate for specific assignments (e.g., RPA1 uses RPA2 or RPS to report parameters to the air traffic control entity).
This is the communication research framework that has been considered within the European project Labyrinth (Labyrinth, Ensuring drone traffic control and safety: (accessed on 14 January 2023)) where different partners, including academia (Universidad Carlos III de Madrid), industry (such as Telefónica I + D, or ARQUIMEA), aeronautical research centres (such as the German Aerospace Center (DLR), or the Spanish National Institute of Aerospace Technologies (INTA)) will develop solutions that will be tested along the year 2023 by different relevant end users (the Municipal Emergency Assistance and Rescue Service—Civil Protection in Madrid, Spain (SAMUR); the Spanish General Directorate of Traffic (DGT); or the Italian Port Authority of the Eastern Ligurian Sea).
This article presents the solution that has been developed to support communications in the context of the Labyrinth project that represents quite well all these frequent scenarios that we will be finding more and more in the RPAS field shortly. The solution involves the dynamic establishment of a network infrastructure that allows all those implicated in the communication to interconnect, extending the number of paths available to a given destination as far as possible. The proposed solution is also valid in use cases beyond traffic management, including road, air, and waterborne transport or supporting emergency services in natural disasters.
A Communication Infrastructure Manager (CIM) will be responsible for this task. It will also manage all the complexity related to the assignment of flows to the multiple interfaces that may be present both in the RPA and the RPS. In a 3R (robustness, reliability, and resilience) environment, this task will imply the constant monitoring of the links in order to dynamically establish the proper metrics to be applied in each circumstance (e.g., path definition and flow assignments can be either based on delay metrics, or in allocated bandwidth, power consumption). For the CIM development, we started from a prior simple version [10], which has been upgraded to operate with Software-Defined Networking (SDN) technology.
The rest of the article is organized as follows: Section 2 reviews the state of the art and background. Section 3 presents the system design. Section 4 present three proof-of-concept experiments that showcase the potential of the CIM in multi-RPA scenarios. Finally, Section 5 concludes the article and depicts our future research lines.

2. Related Work

The availability of robust communication links is one of the most crucial factors in enabling the possibility of reliable RPA operations (pursuing the 3R approach). In many works, the communication between devices (RPA-RPA or RPA-RPS) is just taken for granted, and it is assumed that it will always support the whole system. However, depending on the operation scenario, this supposition may only sometimes be true. It can be hard to obtain a good (i.e., robust, redundant) communication channel between RPAs to the RPS or between the RPAs themselves. This challenge is amplified in environments where RPAs may encounter unplanned/unexpected conditions (i.e., urban environments full of obstacles or interference, or the military domain). This point is quite a common problem in traditional communication networks that is even more intensified by the volatile/dynamic nature of these flying network nodes. The different solutions are commonly found in one of the following two domains: One alternative is strengthening the communication channel using a more robust technology or redundant communication channels. The other not necessarily exclusive alternative is strengthening the network, providing redundant paths to the destination (multi-path) or more reliable intermediate nodes.
Using alternative or multiple communication channels has only sometimes been an option for RPAs because it implies onboarding more transmission/reception devices, and the payload, in some cases, may be pretty limited. However, nowadays, RPAs can carry payloads of much more than simple communication gadgets thanks to the rapid evolution in the miniaturization of devices. This fact allows RPAs to become powerful IoT components, offering not only sensing but also communication services and onboard data analysis. For example, authors in [11] employ LoRa, Wi-Fi, and LTE networks to provide the RPA systems with broadband and cellular wireless network support. This multi-interface concept is increasingly present in the multi-RPA environment and will be treated in this paper. Authors in [12] propose a solution for RPAs in which 4G and 5G cellular technologies are combined to maximize the operating range in areas where commercial 5G is not yet deployed. Therefore, their system uses the best available alternative based on radio parameters such as the Reference Signal Received Power (RSRP) and Reference Signal Received Quality (RSRQ). The utilization of cellular technologies in RPAs is becoming increasingly relevant, turning the RPAs into flying base stations or mobile end users.
Regarding the second possibility and the usage of redundant paths to a particular destination, there are plenty of initiatives using RPAs as communication relays. For instance, the authors in [13] present a tactical data link that guarantees control reliability in emergencies and introduces tactical data to link RPAs as communication relays. The authors in [14] propose using other RPAs that are part of the system as communication relays to enable two-hop connectivity and enhance extensive reliability.
However, nowadays, there is a notorious trend towards the idea of being able to configure flying communication networks based on RPAs acting as network nodes and bringing to aerial communications the same advantages that we may have with a meshed ground network [15,16].
Figure 1 shows multiple paths and technologies. This figure also serves as a reference scenario for the Labyrinth project where various network nodes (either RPAs in the air, ground RPS, or a UTM provider) enable the multi-path network configuration possibility through multiple channel alternatives.
One of the most relevant challenges in these flexible and, at the same time, complex scenarios is the management of the communication networks from their initial configuration and establishment through the maintenance of the communications service up to the response to network failures.
The adoption of softwarization technologies has been recently raised in the RPAS research area to provide solutions to this particular issue. The recent arrival of the 5G ecosystem has not only brought new radio technology as commonly thought but has also incorporated key software technologies such as Network Function Virtualization (NFV) and SDN. Our previous work has explored the use of NFV [7,17], analyzing its strengths and weakness, but SDN-based solutions had not yet been explored by authors. Additionally, SDN has opened up new opportunities to automate the management of telecommunication services and verticals and facilitate achievement of the performance requirements imposed on 5G and beyond. For this reason, this article includes some SDN contributions to the RPAS research area.
SDN brings significant advantages to multi-RPA environments, such as a centralized global network view or maintaining the status of the whole network, allowing for a flexible network reconfiguration based on different metrics. Therefore, forwarding decisions in each device may be based not on local conclusions, but rather on what happens in the rest of the network. SDN can help to address several inherent challenges of multi-RPA networks (e.g., architectural design, fluid topology, routing protocols, energy consumption) [18]. SDN can reconfigure the whole network (due to the global view of the SDN controller) under topological changes, which are quite frequent due to the intrinsic mobility of RPAs. For example, to reach RPS from RP4, there are several alternatives (e.g., RPA2 using radio, RPA3 using Wi-Fi or radio, 5G/4G/LTE). At some point, SDN could choose to go through RPA3, but if that link is lost, it may go to RPA2. SDN can also use different strategies for packet forwarding beyond the destination IP/MAC address, taking into account various parameters such as payload or packet types. SDN networks can also avoid network interference since it enables path/channel selection at any moment. Furthermore, SDN may select which channels are more reliable, based not only on instant parameters (e.g., signal level) but also on other representative information that cannot be considered in traditional routers (e.g., RPA mission planning input, historical data).
The above-mentioned advantages slightly represent what the SDN paradigm can bring to multi-RPA networks. However, the design of legacy SDN technology was not done to fit into such specific environments like multi-RPA networks. Consequently, several challenges/issues must still be solved in order to involve SDN in this framework; in this regard, both academia [19,20] and industry have increased their interest in this topic during the last years: authors in [21] propose an SDN and MQTT hybrid system for battlefield multi-RPA environments. Their proposal adapts to the periodic swarm topological changes, supports flexible data transmission among payloads, and improves swarm security. Authors in [22] design an SDN framework for the RPA backbone network. This framework monitors the RPA network to manage and analyze available information effectively. Authors in [23] investigate the deployment of an SDN RPA network providing a communication service. This article considers the placement of the SDN controller and its implications in terms of communication overhead and end-to-end delay. As the envisioned development of this article, the last references employ the SDN ecosystem as a key enabler technology for the correct operation of their systems.
In order to maintain control over all the interfaces available in the devices (both the RPA and RPS) as well as the establishment and configuration of the communication networks, we developed the CIM (the evolution of the Interface Manager (IM) developed in [10]). The CIM employs SDN with the primary objective of keeping a global vision of the network that allows it to select the most suitable communication alternatives enabled by the multiple interfaces and paths at any given moment based on different metrics (e.g., delay, available bandwidth, energy consumption).

3. Communication Infrastructure Manager: Design and Deployment

The CIM is a comprehensive communications operator/manager designed for RPAS environments. The CIM allows the creation and establishment of networks between the different RPAS actors (RPA and RPS) and the selection among the accessible communication channels.
Traditional RPAS communication systems used to be static designs that used a single RF interface to communicate between the RPA and the RPS. The evolution and miniaturization of electronics, in combination with the emergence of new requirements and needs, have resulted in fully connected systems with several communication interfaces available.
The CIM is a software entity deployed in each RPAS element (RPA and RPS). The deployment of an entity such as the CIM allows one to take advantage of all current resources automatically and efficiently by addressing the problem from two different approaches: (i) taking advantage of transmission interfaces; (ii) establishment of networks, not only point-to-point but multi-hop networks and also multi-technology paths (e.g., first hop using Wi-Fi, second hop using RF).
The architecture of the CIM can be summarized in Figure 2. As the picture shows, the CIM relies on different technologies for its correct operation. On the first hand, the CIM employs SDN. Taking advantage of SDN, we acquire a centralized and global management plane that makes it possible to decide and program the behavior of the RPAS network, bringing with it many of the advantages inherent to SDN networks, such as better control and management of data, efficiency in the optimal management of available resources, or unifying data and infrastructure. On the other hand, it uses virtual networks. Virtual networks are created to complete dynamic tunnels over the existing RPA infrastructure. In this way, the selected virtual network changes thanks to the decisions made by the SDN controller, and these changes are made transparently for both RPA and RPS applications.
Finally, the CIM uses a network monitoring application that collects information and metrics from the network (e.g., RTT, packet loss, available bandwidth, jitter, power consumption) and reports this information to the SDN controller as input for making decisions affecting the network. This system, therefore, incorporates significant flexibility and offers many deployment possibilities. This article presents the reference scenario used for the use cases of the Labyrinth project.
The following subsections describe the steps to bring the system up, covering all the implementation details and explaining the scenario components in depth.

3.1. Reference Scenario

To study the feasibility and functionality of the CIM in multi-RPA environments, we propose a reference scenario (depicted in Figure 3). The reference scenario includes the three domains present in the Labyrinth project (RPA, RPS, and UTM) for a correct operation. Additionally, it includes the external services domain required for enabling communications using the public Internet.

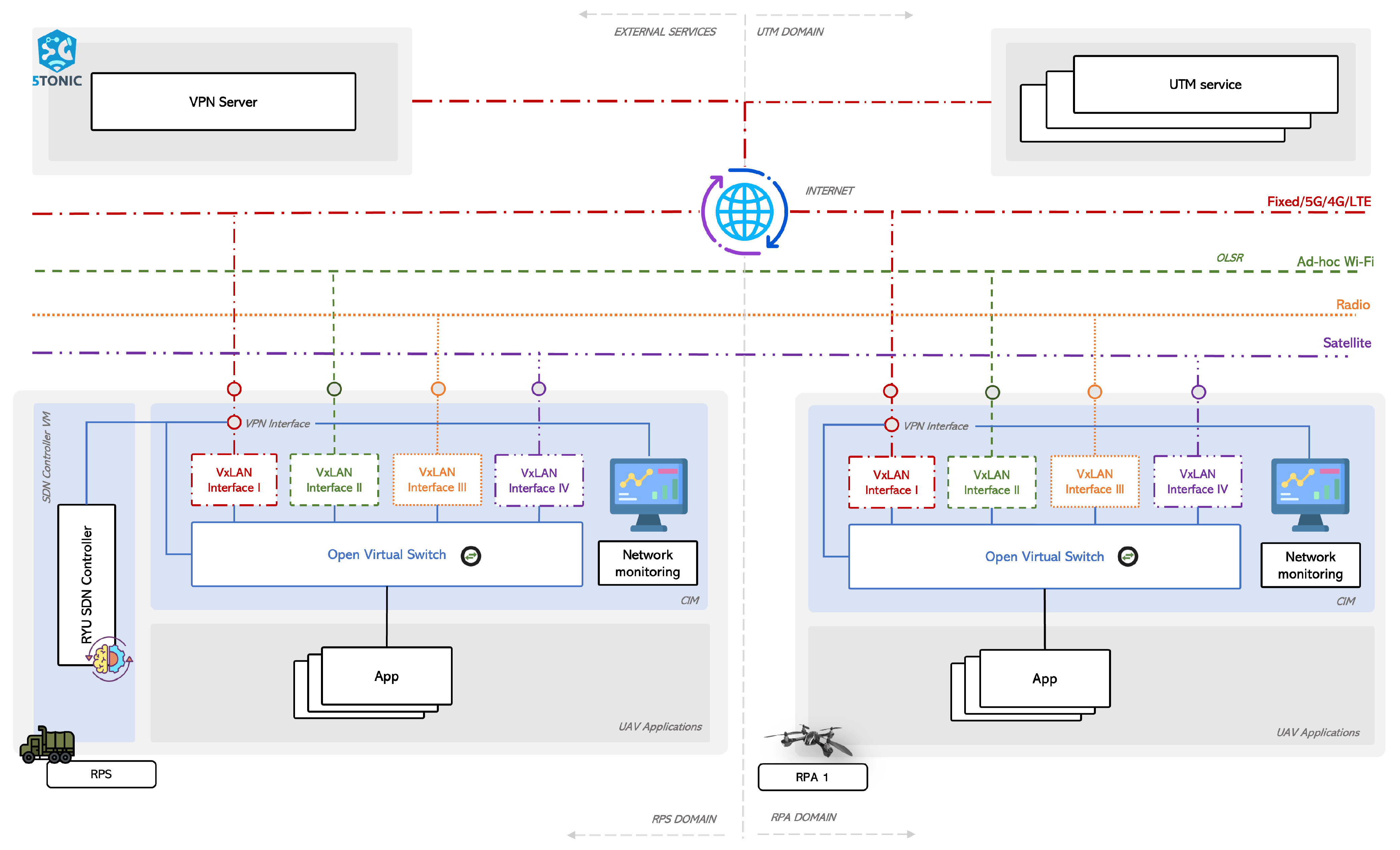

As it can be appreciated, the CIM entity (shadowed in blue) is located within the RPA and RPS domains since both domains may include several communication alternatives. The figure indicates that each domain includes four communication alternatives in this particular case. However, the number of interfaces may vary depending on each case. The figure also shows the SDN controller (located in the RPS) that acts as the network’s brain.
The following subsections detail the required steps to properly configure the reference scenario for further experimentation.

3.2. Network Layer Connectivity

The first step is to enable connectivity at the network level (IP level) between the RPA and RPS domains. This procedure may be straightforward in some cases; however, it may require additional configuration in others that may be too technology dependant. Each device may have different interfaces (e.g., 5G, proprietary radio, Wi-Fi, satellite) and must be appropriately configured.
For example, to enable multi-hop communication in Wi-Fi (ad hoc), the use of a routing protocol is required. This way, when two devices are not in the Wi-Fi range, but have a path using other intermediate nodes as a relay, communication at the network level will be automatically enabled.Optimized Link State Routing (OLSR) [24] protocol has been used in our case. OLSR is a well-known legacy MANET protocol that enables multi-hop connectivity, exemplified in our previous work [25], performing acceptably for the proposed scenarios.
Another representative example is cellular communication, the end-to-end communication between two devices using the public Internet. Typically, devices connect to the Internet using a private IP address (configured by the Internet provider) and a Network Address Translation (NAT). Therefore, these devices can browse the Internet but are not accessible from external machines. In order to solve this mentioned problem, a Virtual Private Network (VPN) server has been configured. Therefore, all devices connect to the VPN server, which acts as a relay to enable device-to-device connectivity. The performance does not significantly drop when using the VPN server as a relay (this effect has previously been studied in [7]). The VPN server has been deployed at the 5G Telefonica Open Network Innovation Centre (5TONIC) (5TONIC: (accessed on 14 January 2023)) laboratory. This server (seen in Figure 3) is considered an external service. This fact means that they are services that are not in the RPS, the RPA, or the UTM domain but are required for everything to work as expected. Another example of these external services in Labyrinth is the one dedicated to the path calculation algorithm responsible for enabling a feasible 3D path for the RPA based on UTM constraints. It has not been included in the picture since this algorithm is out of the scope of this article, but more details can be obtained in this reference [26].

3.3. Data Layer Connectivity (On Top of Network Layer)

Once the device-to-device connectivity has been appropriately configured for all the available interfaces (Section 3.2), the goal is now to transmit data link layer traffic over the network layer (i.e., Ethernet traffic over an IP network). Overlay networks are used for this purpose.
An overlay network is a virtual network of logically linked nodes built on top of one or more underlying networks. The overlay network nodes are connected by virtual links to implement network services that are not available in the underlying network(s). The reason for using overlay networks in this scenario is because they provide isolated domains, i.e., the traffic transmitted over the overlay is isolated from any other traffic going over the network, allowing for control and data traffic differentiation (e.g., VPN, OLSR, network monitoring app). Furthermore, creating an overlay requires no additional configuration of the intermediate nodes.
In our case, we use Virtual Extensible LAN (VxLAN) [27], an encapsulation protocol designed for this purpose. In this way, traffic entering a VxLAN tunnel exits at the tunnel’s other end(s) as if both devices were on the same Local Area Network (LAN). The establishment of virtual point-to-point links (VxLANs) through a layer-3 VPN has been validated in the context of the H2020 European project 5G-ZORRO, where authors of the paper are involved.

3.4. Software-Defined Networks

3.4.1. SDN Switches

At this point, to enable inter-domain communications (from RPS and RPA apps in Figure 3), it is necessary to deploy a programmable switch to forward traffic from the domains (RPS/RPA apps in Figure 3) over the overlay networks (VXLANs in Figure 3). This programmable switch has different ports to which the applications and VXLANs are connected. Therefore, specific rules should be installed on this switch to forward incoming traffic toward the desired output port.
Open virtual Switch (OvS) (Open vSwitch. Available: (accessed on 9 February 2023)) has been selected for this purpose. OvS is one of the most popular implementations of virtual programmable switches agreeing with OpenFlow. The basic functionality can also be realized with Linux Bridges, as seen in the previous version of this work [10]. However, the operation of OvS, which can be through an SDN controller (explained in the following Section 3.4.2) or standalone, provides definite advantages. Firstly, by using OvS and an SDN controller, it is feasible to react dynamically to the high rate of changes in the network (very common in multi-RPA environments) by modifying the network configuration. On the other hand, OvS offers great granularity by adding different rules that operate simultaneously and are the ones that allow the instantiation of the selected metric to be honored by the CIM in a particular scenario.

3.4.2. SDN Controller

An SDN controller in an SDN network takes the role of the brain of the SDN network. As we have advanced in Section 3.4.1, the rules installed in the SDN switches for traffic to be forwarded between the different ports can be standalone (directly installed in the switch) or through an SDN controller. The main advantage of using an SDN controller is that these forwarding rules can be modified when significant changes in the network that invalidate previous configurations occur (e.g., topological changes, intermittent links, channel overload).
The controller and the virtual switches communicate via the OpenFlow protocol (control plane). We have decided to deploy the SDN controller in a virtual machine in the RPS. This controller is in the RPS because there is no space limitation in the equipment used. It is then possible to have equipment with better resources that allow more developments to be deployed. The SDN controller selected is RYU (RYU. Available: (accessed on 9 February 2023)). RYU is an open-source SDN controller that provides software components and an Application Programming Interface (API) that facilitate the development of SDN management and control.
We decided to use the cellular interface to communicate the SDN controller and switches. This selection is because cellular connectivity will always be available during the missions in the Labyrinth project (where the correct functioning of this scenario will be tested).
It is important to remark that although for the control traffic the connectivity availability is one of the most relevant requirements (and that is why the cellular option is chosen), it may not be the case for other traffic data flows where, for instance, the low delay provided by Wi-Fi networks may be more interesting, or battery consumption may be more relevant (and may be higher in cellular interfaces), or the usage of public networks may be restricted (since some data/video traffic may be private/sensitive in some circumstances).

3.4.3. Network Monitoring Application

As explained in Section 2, SDN technologies such as OpenFlow have not been designed with the special considerations/characteristics of multi-RPA environments in mind. For example, SDN switches (Section 3.4.1) react to different events in a wired network. When one of these events occurs, the corresponding switch reports the SDN controller (using the OpenFlow protocol) which, with this information and those of the other switches in the network, can make the appropriate decisions. However, these events do not operate correctly in decentralized wireless networks, such as the ad hoc Wi-Fi networks we often find in multi-RPA environments. For example, due to the nature of ad hoc wireless networks, it is impossible to determine when a network participant is reachable or not [28], except with an external application such as the one we need to implement.
To solve this problem, we have implemented a network monitoring application that collects different metrics not only about the network status but also from the status of the device that hosts the switch. This information is periodically sent to the controller, whether there are changes or not. With this information, the SDN controller acquires real-time knowledge about what is ensuing in the network. In this case, each network participant (RPAs and RPS) has a built-in Python script that collects the different metrics. Since the network monitoring application is custom-built in Python, it can collect many metrics (as many as programmed). Some examples are the available bandwidth, the jitter, or the resilience. For this study, we consider the following metrics:
  • Connectivity [Boolean]: the connectivity metric indicates whether connectivity exists between two network participants (for all the available interfaces).
  • Round Trip Time [ms]: this metric indicates the current Round Trip Time (RTT) value between two hosts (for all the available interfaces). This measurement is performed using the Linux ping tool.
  • RX/TX Traffic [bit/s]: this metric indicates the number of received and transmitted bits on each available network interface (e.g., Wi-Fi, 5G, 4G/LTE).
  • Power consumption [W]: this metric indicates the current power consumption of each host. This measurement is performed using the UM34C USB multimeter.
It should be noted that the connectivity metric not only refers to neighbouring nodes, i.e., single-hop communication, but also considers multi-hop communication.
This information from the network monitoring application applies not only to the SDN controller (to make the appropriate forwarding decisions at any given moment), it is also of particular interest to other actors, such as RPS operators, who can observe in real-time what is happening in the network. On the other hand, this information is stored in a database for two primary purposes: (i) to perform an exhaustive ex-post analysis if something has not worked as expected, and (ii) as a communication flight recorder system (also known as black box) in the case of an accident or emergency.
The network monitoring application has been released as open-source [29]. The scripts have been developed for Ubuntu 18.04 LTS but can be easily adapted to any operating system. The data are transmitted in JSON format to incorporate custom metrics efficiently.

4. Validation: From the Lab to the Air

4.1. Laboratory Ground Truth

This section presents the results of two PoC experiments deployed to validate the CIM and showcase its potential to handle communication facilities in multi-RPA environments.
A testbed was set up at the 5TONIC laboratory to support both PoCs. The main objective of this testbed is to experience new developments and potential improvements (e.g., CIM progress, new communication alternatives) during the project period before trialing them on prototypes onboarded into real RPAs and on real-use cases. To this end, mini ITX computers (each with 8 CPUs, 8 GB of RAM, and 128 GB for storage) were used, providing an ideal platform for development. The network configurations and developments performed over these devices are relatively smoothly transferred to smaller devices that can be embedded, such as Raspberry Pi single-board computers, as demonstrated in our previous work [30].
This testbed (following the system explained in Section 3) includes an RPS and two RPAs. All of them have the CIM installed and have two available interfaces. At the 5TONIC laboratory, there is cellular communication (4G/LTE commercial deployment and 5G New Radio) and Wi-Fi. Because the flight tests to be conducted in the Labyrinth project (June 2023) will take place in locations where commercial 5G has not yet been deployed, it was decided to use commercial 4G/LTE connectivity to give verisimilitude to the experiments. On the other hand, the Wi-Fi channel and the movement of the RPAs (flight trajectories) were emulated using the Virtualized Environment for multi-UAV network emulation (VENUE) [25] software platform. The Wi-Fi channel could have been configured with the built-in Wi-Fi interface of the devices (and will be like that in real scenarios, quickly reaching up to 100 m with the proper antenna, according to our tests). However, we would not be able to emulate the RPAs’ movements in that case in the laboratory tests. Accordingly, with the native Wi-Fi, we would not have been able to test the changes between one-hop and two-hop connectivity or the Wi-Fi connectivity unavailability use case in the laboratory.

4.1.1. Choosing the Minimum RTT Path

This first experiment proves the performance of the CIM following an SDN strategy to select the lowest latency (taking into account the RTT) communication alternative (among the available ones) in a scenario where the network topology frequently changes, which is quite common in small RPA operations.

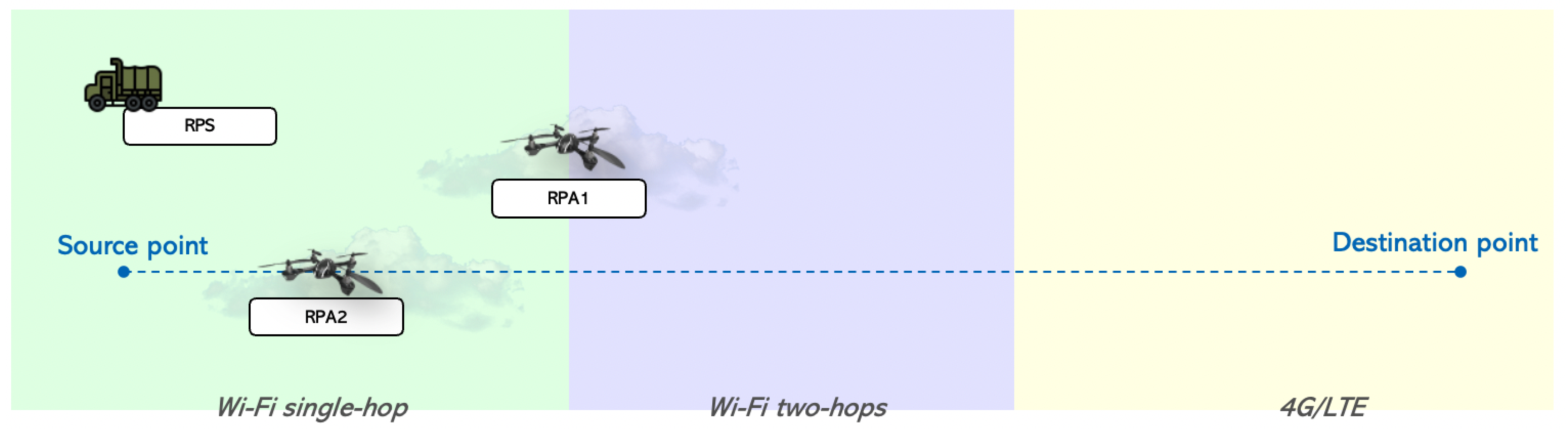

The experiment includes an RPS and two RPAs (RPA1 and RPA2). The RPS and RPA1 remain static, while RPA2 follows the predefined trajectory (dashed blue line) depicted in Figure 4 from Source point to Destination point and vice versa. Thus, at some point, (i) the RPA2 can directly communicate either using Wi-Fi with the RPS (green background), or (ii) using Wi-Fi with the RPS via the RPA1 (blue background), or (iii) it has to employ the 4G/LTE (yellow background) when the Wi-Fi is out of range. The RPA2 sends a continuous 1.2 Mb/s stream to the RPS to test the operation (1 Mb/s serves to depict a representative RPA video stream, while the remaining 200 Kb/s corresponds to telemetry information sent by the UAVs to the station). This value (200 Kb/s) has been estimated by analyzing the telemetry generated by the different RPAs used in the Labyrinth project in its use cases.
In this experiment, one of the objectives of the CIM (it can be any other depending on the mission needs) is to manage the forwarding plane of the programmable virtual switches (i.e., the OvS switches in the RPA and the RPS in Figure 2 and Figure 3) in order to select the shortest path based on the minimum measured latency. For this reason, whenever a Wi-Fi path becomes available (even if it has to go through RPA1), it will be the preferred one (it will always be faster than using the public 4G/LTE network). Thanks to the report received by the network monitoring application installed in each RPA and RPS, this information is available at the SDN controller.

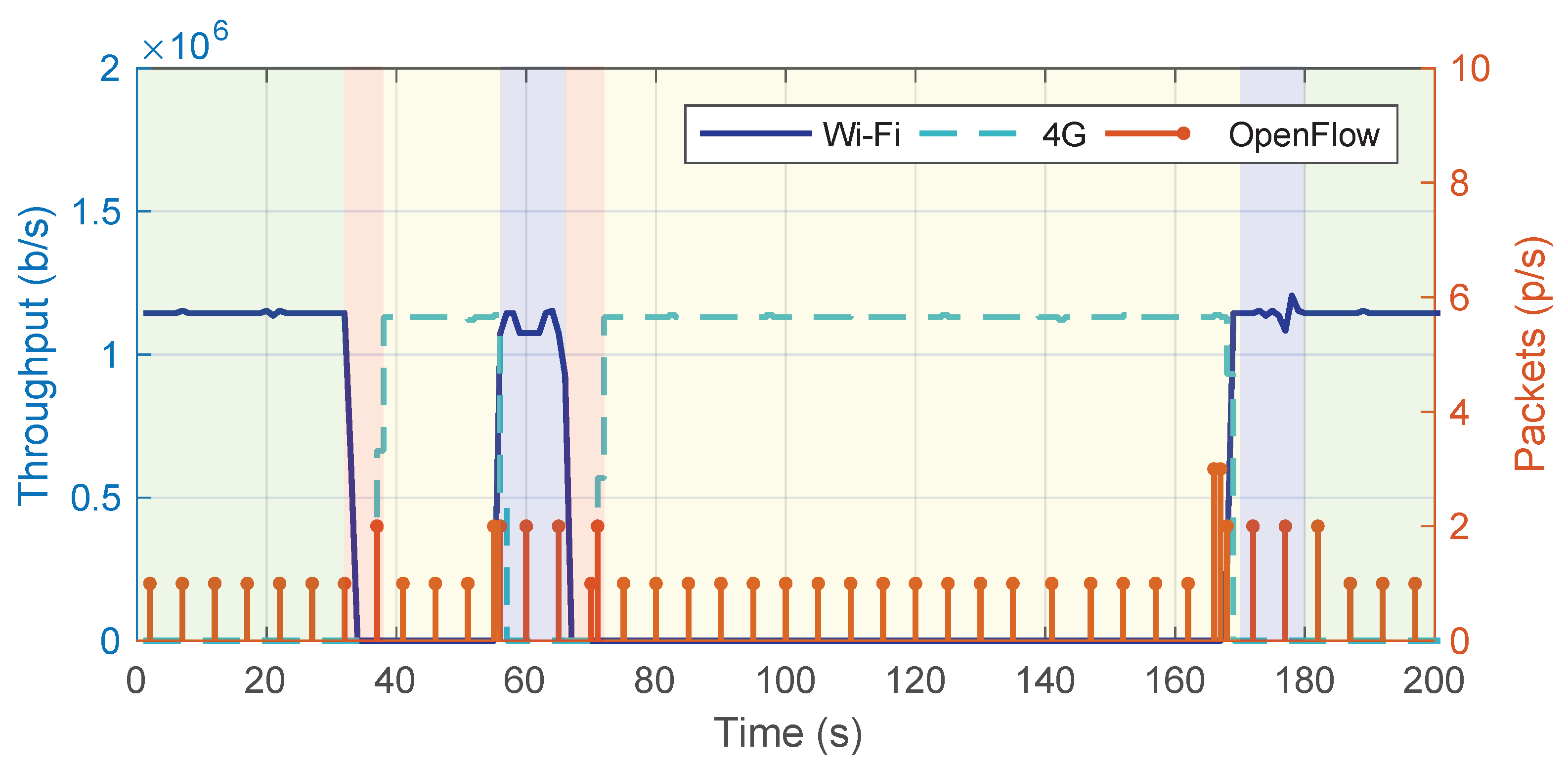

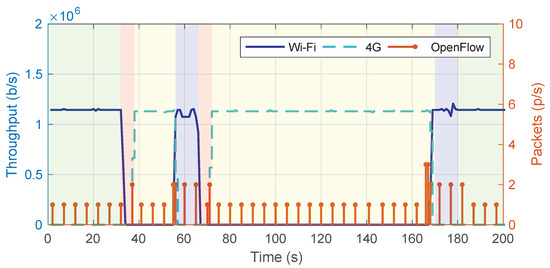

As shown in Figure 5, during the first period of the experiment, the stream is received over the Wi-Fi interface as the RPA2 and the RPS are in range. From 38 s onwards, this information is no longer received over the Wi-Fi interface because the RPA2 goes out of range, and the one-hop communication is no longer available. However, two-hop Wi-Fi communication is available, although it will not be possible until the routing protocol (OLSR as explained in Section 3.2) discovers the path. While this process is in progress, the SDN controller installs a rule in RPA2 to force the transmission through the 4G/LTE interface.
From 52 s onwards, the protocol enables the multi-hop path, and the Wi-Fi interface becomes available again (indicated by the SDN controller). From 65 s, the RPA2 is no longer in the Wi-Fi coverage range of the RPA1, so the only possible way to communicate RPA2 and RPS is through the 4G/LTE interface.
From the 160th second, RPA2 is back in RPA1’s Wi-Fi coverage range. However, the change does not occur until 170 s, corresponding to when the OLSR protocol converges and enables the path. From the 180th second, RPA2 is back in range of the RPS and communicates using the Wi-Fi interface with one hop. Unlike the previous case (when the RPA2 is moving away), there are no communication breaks in this case. This behavior is because, in this case (when approaching), alternatives do not disappear, but the process is to move toward the optimal option according to the RTT. As mentioned above, the interface changes are managed by the SDN controller.
RTT measurements have been taken from the RPA2 to the RPS using the ping tool to verify this behavior. This value is reflected in the background of Figure 5. When the figure is shaded with green, the average RTT value is 10 ms. This period corresponds to one-hop Wi-Fi connectivity. When the figure is shaded with blue, the average RTT value is 21 ms. This period corresponds to two-hop Wi-Fi connectivity. When the figure is shaded with yellow, the average RTT value is 98 ms. This period corresponds to 4G connectivity. Finally, connectivity is impossible when the figure is shaded with a red background.
Figure 5 also displays the OpenFlow messages exchanged (in packets per second) between the RPS, the RPA2, and the SDN controller (axis on the right). As can be noticed, a periodic OpenFlow message is sent every 5 s (2 Kb/s). In the same way, when a rule is installed in a switch, there is an increase in OpenFlow packets.
Let us compare the performance of this system, which includes the CIM combined with the SDN approach, and uses all the available interfaces to communicate with the RPA and RPS domains, with a typical system that only uses a single channel (either Wi-Fi or cellular). With the presented solution, the average availability time is around 94% for this test (combining Wi-Fi and 4G) with an average RTT of around 65 ms. However, when a single network interface is used, one or more metrics are usually sacrificed depending on the choice. In our example scenario, there are 12 s of communication losses using the CIM, compared to 118 s for Wi-Fi-based (41% availability). Alternatively, when 4G is chosen as the unique interface to increase availability, our trial’s average RTT is increased to 100 ms. These numbers are too dependent on the selected scenario (e.g., number of RPAs, flight distance, etc.), but in any case, the results and main conclusions can be naturally extrapolated to more complex use cases.

4.1.2. Load Balancing

The main goal of this second experiment is to use the CIM to distribute the traffic coming from each one of the RPAs (applications related to flight control and telemetry reporting as well as local applications on the RPA) over different interfaces to perform a load-balancing strategy that preserves the required throughput and minimizes packet losses (complementing the previous experiment based on traffic delay with this one based on traffic load).
In an earlier analysis, we identified that the maximum bandwidth available on the Wi-Fi ad hoc interface (emulated channel using VENUE) is roughly 7 Mb/s. The number itself is nonessential and depends on local computer conditions in the measurement moment. What is important is that it stays reasonably stable during the tests because it is used as a reference. Therefore, if the sum of the traffic received from RPA1 and RPA2 over the RPS Wi-Fi interface is higher than 7 Mb/s, it is reasonable to expect data loss.
For this second experiment, the RPAs remain static (hovering), so the topology/grid of the system remains stable (initial position in Figure 3). We performed two different tests to evaluate the potential of the CIM. The first one uses the logic of a traditional system, only communicating over Wi-Fi. In contrast, the second one uses the CIM in combination with the proposed system and uses the other available interfaces (Wi-Fi and 4G/LTE).
The experiment runs as follows: the RPA1 sends a constant stream of 6 Mb/s to the RPS; starting at the 20 s mark, the RPA2 sends 1 Mb/s flow that will be increased by 1 Mb/s every 10 s, i.e., at 30 s, RPA2 will send 2 Mb/s, and so on, until reaching the 6 Mb/s sent by the RPA1 by the 70th second.

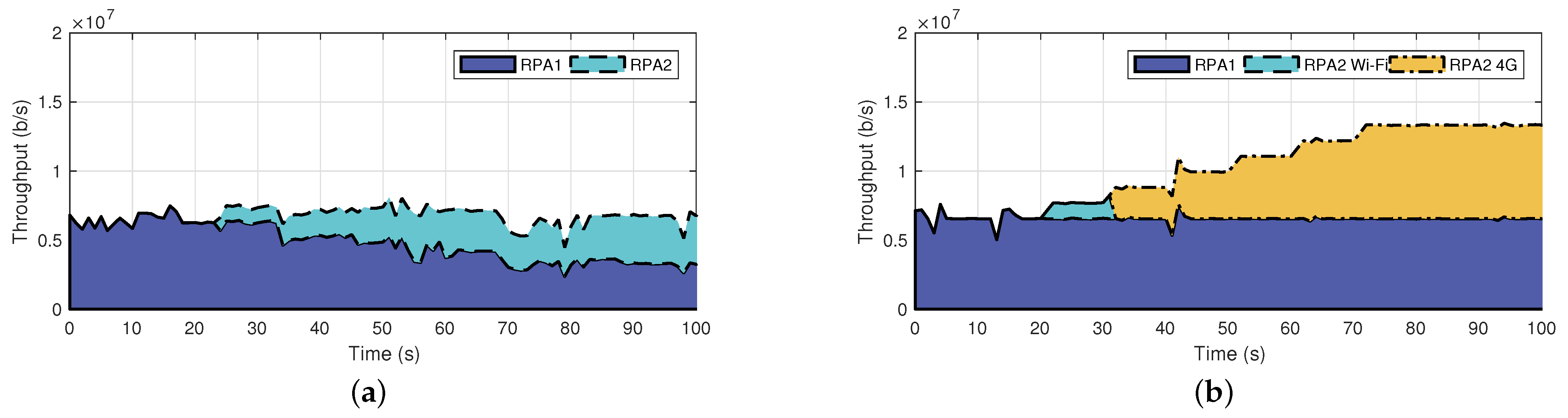

As shown in Figure 6a (traffic captured at the RPS), with a traditional system, losses start to appear from 30 s onwards because the aggregation of incoming traffic at the RPS exceeds 7 Mb/s at its Wi-Fi interface. Therefore, even though RPA2 periodically increases the data flow rate, the total traffic received at the RPS remains stable and always close to the maximum available bandwidth (and below the real traffic sent).
However, as shown in Figure 6b with CIM, from 30 s, the SDN controller using the information available from the network monitoring application installed in the RPS discovers that the traffic received at the RPS Wi-Fi interface is close to the maximum available. At that moment, the SDN controller installs a rule in the RPA2 switch so that traffic with the RPS destination is forwarded through the 4G/LTE interface. That way, throughput automatically increases, and no packet loss is appreciated.
It should be noted that the maximum bandwidth capabilities of both the Wi-Fi interface and the 4G/LTE interface may vary due to different environmental factors. However, although performed under controlled conditions (laboratory experience), this experiment serves as a Proof of Concept (PoC) to demonstrate that some QoS (both in RTT and packet loss) can be guaranteed by configuring the CIM and the SDN controller to honour the selected metrics.

4.2. Final Integration and Flights

Once the development of the CIM was tested and validated, the next stage was the installation on top of the real RPAS that will be used for the Labyrinth project use cases.
This subsection describes the CIM integration and configuration procedure in one of the members of the consortium RPA, the Instituto Nacional de Técnica Aeroespacial (INTA), a research institute from the Spanish Ministry of Defense. It presents the results from the first experiments developed at their premises, intending to validate the correct functionality of the CIM and the ease of transferring the implemented software to different aerial platforms.

Real RPS

First, the CIM was installed on one of INTA’s RPAs, the DJI M600 (DJI M600: (accessed on 14 January 2023)), and in the INTA’s RPS. This RPA carries a DJI Manifold (DJI Manifold: (accessed on 14 January 2023)) Single-Board Computer (SBC) as a payload, allowing further developments associated with the project, such as adding different communication alternatives, loading the different flying routes, or making periodical reports to UTM. The DJI Manifold is an ideal platform to introduce the CIM software in charge of selecting the best communication alternative at any given moment.
The CIM, located in the INTA’s RPA and RPS, is first in charge of enabling connectivity through each interface, as explained in Section 3. In this particular RPA, there are three enabled alternatives to communicate between the RPA and the RPS: Wi-Fi, proprietary RF (Silvus Technologies: (accessed on 14 January 2023)), and 4G/LTE.

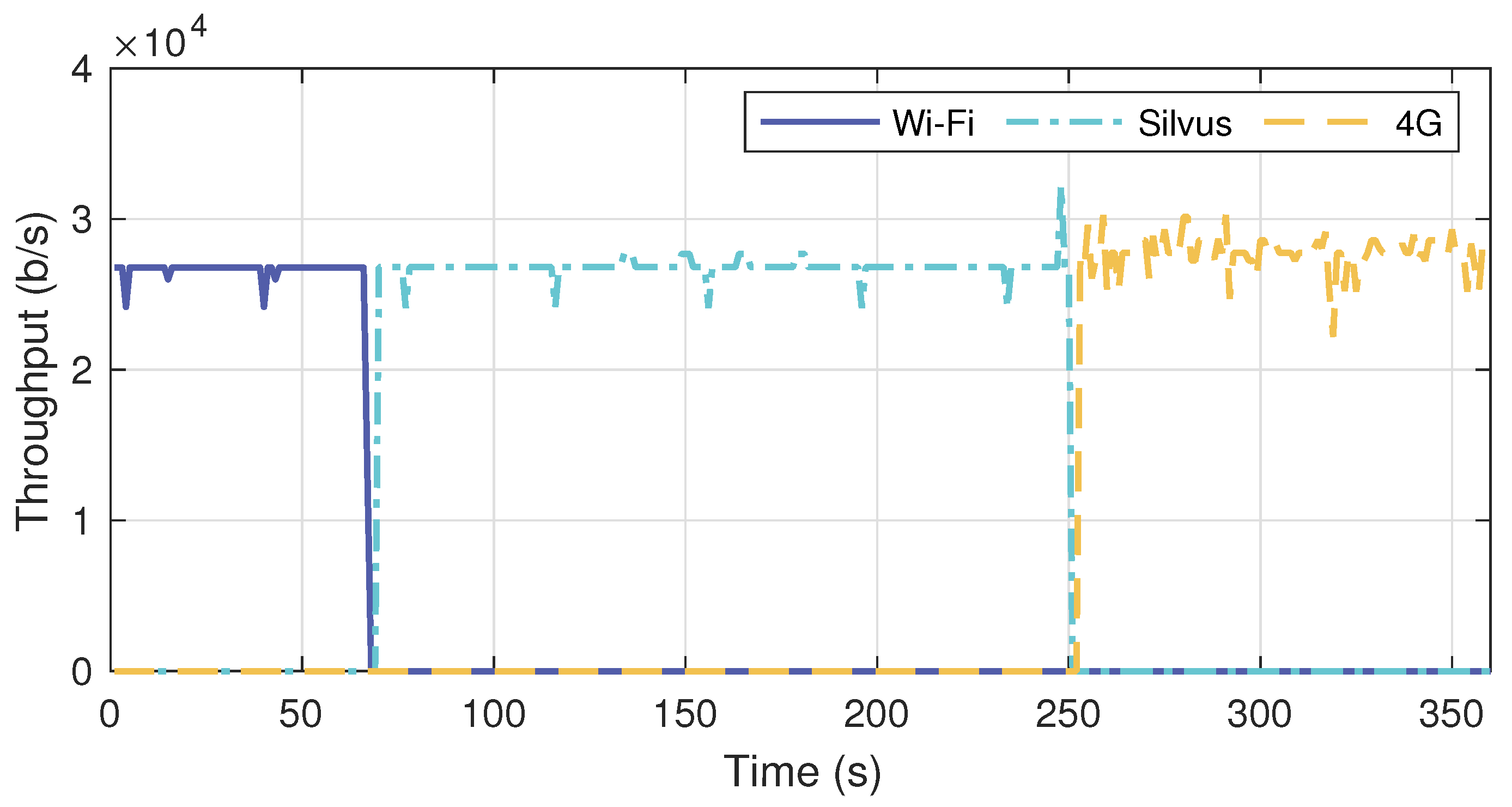

Once the connectivity is enabled, the CIM selects the alternative to use at any moment. For this experiment (ground trials at INTA premises), it has been decided that the CIM strategy will choose the communication channel according to a fixed priority determined by experienced INTA operators: first Wi-Fi, secondly RF, and finally 4G/LTE, as long as they are available.
The RPA telemetry has been sent to the RPS to verify the correct operation while manually forcing a switching-off of the communication interfaces to produce a CIM reaction. As shown in Figure 7, around 60 s, we switched off the Wi-Fi, so the CIM changes the communication interface to the Silvus RF. Around 250 s, we switched off the RF, so the CIM changed the communication interface to 4G/LTE. In conclusion, the telemetry flow changes as soon as an interface is unavailable. With this test, we have demonstrated the ability to transfer the developments to real INTA equipment, and on the other hand, we have demonstrated its correct operation.

4.3. Flight Trials

In order to test the communications CIM in real experiments, initial flight tests were conducted at Club Las Aguilas, Madrid, on 25 August 2022.
The flights were performed with the DJI M300 and DJI M600 UAVs. INTA has selected both UAVs to carry out the Labyrinth project’s use cases. In addition, both UAVs incorporated a DJI Manifold SBC as the UAV payload where the CIM software is installed and configured.
Currently, they have three different communication systems built in: (i) 4G communication between UAV and GCS, (ii) Wi-Fi communication between UAV and GCS, and finally, (iii) DJI’s proprietary RF communication that communicates the UAV with the external pilot. The last link (iii) is not included in the CIM and is only used to control the aircraft with a manual DJI remote controller in an emergency. An additional RF link is expected to be available shortly (as introduced in Section 3), which will be used as a priority channel for telemetry and video transmission.

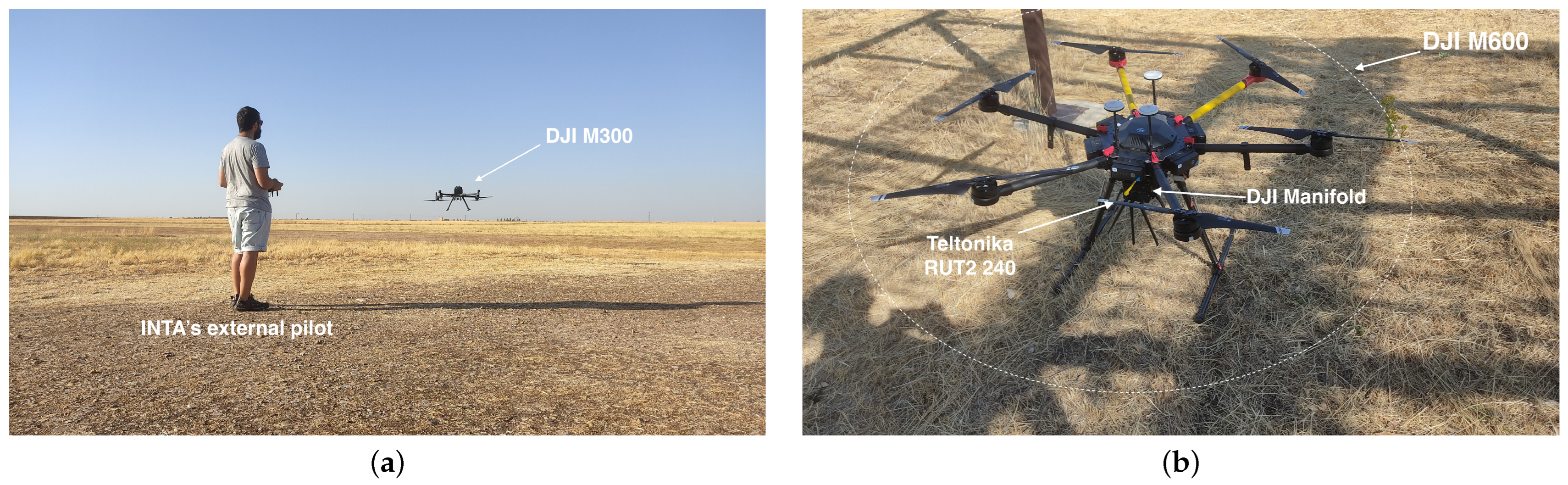

Figure 8a,b show different pre-flight operations. Figure 8a shows the INTA’s external pilot performing manual flight tests with the DJI’s proprietary RF link. These flight trials aim to test that the UAV flies correctly with the payload incorporated for the project operations. On the other side, Figure 8b shows the payload included in the DJI M600 for hosting the CIM and enabling communications with the INTA RPS.
Since these experiments were the first flight tests performed with the CIM software installed, it was decided only to use the CIM functionality to create and establish connectivity between links but not the channel selection functionality. Still, the same flying tests were repeated using Wi-Fi and 4G/LTE to check the correct operation of both communication alternatives. Both flights (Wi-Fi and 4G/LTE) lasted approximately 15 min. During this time, the telemetry information was received in the RPS with no incidence, and the flight proceeded normally.

5. Conclusions and Future Work

This article introduces the CIM for multi-interface RPA environments following an SDN approach. It demonstrates that the CIM improves communications management in multi-RPA environments for creating and establishing networks using different technologies and for selecting the most appropriate communications depending on different strategies/policies. These strategies include the automatic selection of the best channel based on any network parameter/metric, load balancing, or static/predefined policies. It also presents a reference scenario, where all the stages to properly achieve communication between the domains through all the available interfaces are detailed.
Moreover, once the system is introduced, two laboratory experiences have been reported to showcase the CIM prospect compared to traditional RPA systems, where the communication between RPA and RPS domains only involves the radio interface. These experiments have produced a testbed available in the 5TONIC laboratory, where all the Labyrinth project advances will be tested. In addition, initial flight tests have demonstrated the transferability between laboratory developments and their application in real equipment.
In the same way, this testbed will be used to work on the different research lines listed hereafter.
Shortly, we will work on further flight experiments, taking into account not only the creation of the infrastructure and the enabling of the different communication channels but also testing the possibility of making changes to the communication interfaces based on the different parameters collected by the network monitoring application.
Secondly, the initial version of the CIM sends, by default, all the control traffic (from the OvS to the controller and vice versa) through the 4G/LTE interface, as it is considered that it will always be active. However, in specific scenarios, this assumption will only sometimes be valid. It is, therefore, necessary to work on different mechanisms that allow us to send control information through the different interfaces to ensure that it reaches its destination.
Lastly, we will consider integrating into the CIM software innovative solutions such as intent-based networking [31] for defining communication requirements that the RPA network is assumed to deliver.

Author Contributions

Conceptualization, V.S.-A., F.V. and I.V.; methodology, V.S.-A., F.V. and I.V.; software, V.S.-A. and B.N.; validation, V.S.-A. and F.V.; formal analysis, V.S.-A. and F.V.; investigation, V.S.-A., F.V. and I.V.; resources, F.V.; data curation, V.S.-A.; writing—original draft preparation, V.S.-A. and F.V.; writing—review and editing, V.S.-A., F.V., I.V. and B.N.; visualization, V.S.-A. and F.V.; supervision, F.V. and I.V.; project administration, F.V.; funding acquisition, F.V. and I.V. All authors have read and agreed to the published version of the manuscript.


This article has been partially supported by the H2020 Labyrinth project (grant agreement 861696), the H2020 5GZORRO project (grant agreement 871533), and by the TRUE5G project (PID2019-108713RB681) funded by the Spanish National Research Agency.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.


The authors wish to thank Alejandro Paniagua-Tineo, Jorge Alonso Romero, and Daniel Gonzalez del Río for their support during the experiments.

Conflicts of Interest

The authors declare no conflict of interest.


The following abbreviations are used in this manuscript:
5TONIC5G Telefonica Open Network Innovation Centre
APIApplication Programming Interface
C2Command and Control
CIMCommunication Infrastructure Manager
CNPCControl and Non-Payload Communications
IMInterface Manager
IoTInternet of Things
NATNetwork Address Translator
NFVNetwork Function Virtualization
OLSROptimized Link State Routing
OvSOpen virtual Switch
PoCProof of Concept
QoSQuality of Service
RPARemotely Piloted Aircraft
RPASRemotely Piloted Aircraft System
RPSRemote Pilot Station
RTTRound Trip Time
SDNSoftware Defined Networking
UTMUnmanned Aircraft System Traffic Management
VENUEVirtualized Environment for multi-UAV network Emulation
VPNVirtual Private Network
VXLANVirtual Extensible Local Area Network


  1. Li, X.; Xing, L. Use of unmanned aerial vehicles for livestock monitoring based on streaming K-means clustering. IFAC-Papersonline 2019, 52, 324–329. [Google Scholar] [CrossRef]
  2. Li, Z.; Liu, Y.; Hayward, R.; Zhang, J.; Cai, J. Knowledge-based power line detection for UAV surveillance and inspection systems. In Proceedings of the 2008 23rd International Conference Image and Vision Computing New Zealand, Christchurch, New Zealand, 26–28 November 2008; pp. 1–6. [Google Scholar]
  3. Elloumi, M.; Dhaou, R.; Escrig, B.; Idoudi, H.; Saidane, L.A. Monitoring road traffic with a UAV-based system. In Proceedings of the 2018 IEEE Wireless Communications and Networking Conference (WCNC), Barcelona, Spain, 15–18 April 2018; pp. 1–6. [Google Scholar]
  4. Albanese, A.; Sciancalepore, V.; Costa-Pérez, X. First Responders Got Wings: UAVs to the Rescue of Localization Operations in Beyond 5G Systems. IEEE Commun. Mag. 2021, 59, 28–34. [Google Scholar] [CrossRef]
  5. Song, B.D.; Park, K.; Kim, J. Persistent UAV delivery logistics: MILP formulation and efficient heuristic. Comput. Ind. Eng. 2018, 120, 418–428. [Google Scholar] [CrossRef]
  6. De Moraes, R.S.; De Freitas, E.P. Multi-UAV based crowd monitoring system. IEEE Trans. Aerosp. Electron. Syst. 2019, 56, 1332–1345. [Google Scholar] [CrossRef]
  7. Sanchez-Aguero, V.; Vidal, I.; Valera, F.; Nogales, B.; Mendes, L.L.; Damascena Dias, W.; Carvalho Ferreira, A. Deploying an NFV-based experimentation scenario for 5G solutions in underserved areas. Sensors 2021, 21, 1897. [Google Scholar] [CrossRef] [PubMed]
  8. Jin, W.; Yang, J.; Fang, Y.; Feng, W. Research on application and deployment of UAV in emergency response. In Proceedings of the 2020 IEEE 10th International Conference on Electronics Information and Emergency Communication (ICEIEC), Beijing, China, 17–19 July 2020; pp. 277–280. [Google Scholar]
  9. Johnson, R.D. Unmanned Aircraft System Traffic Management (UTM) Project. In Proceedings of the Airspace Operations and Safety Program (AOSP) Research and Development Partnership Workshop, Virtual, 10–12 April 2018. Number ARC-E-DAA-TN55386. [Google Scholar]
  10. Sanchez-Aguero, V.; Fas-Millan, M.A.; Valera, F.; Vidal, I.; Paniagua-Tineo, A.; Lopez da Silva, R.A.; Manjon, J.M. Multi-interface network framework for UAV management and data communication. In Proceedings of the 2021 IEEE Globecom Workshops (GC Wkshps), Madrid, Spain, 7–11 December 2021. [Google Scholar]
  11. Yuan, Z.; Jin, J.; Sun, L.; Chin, K.W.; Muntean, G.M. Ultra-reliable IoT communications with UAVs: A swarm use case. IEEE Commun. Mag. 2018, 56, 90–96. [Google Scholar] [CrossRef]
  12. de Resende, H.C.; Pinheiro, J.F.N.; Reiter, P.; Both, C.B.; Marquez-Barja, J.M. 4G/5G performance of a multi-RAT UAV for medical parcel delivery. In Proceedings of the 2022 IEEE 19th Annual Consumer Communications & Networking Conference (CCNC), Las Vegas, NV, USA, 8–11 January 2022; pp. 268–271. [Google Scholar]
  13. Baek, H.; Lim, J. Design of future UAV-relay tactical data link for reliable UAV control and situational awareness. IEEE Commun. Mag. 2018, 56, 144–150. [Google Scholar] [CrossRef]
  14. Kuo, Y.T.; Wei, H.Y.; Shen, W.D. Reliable two-hop device-to-device communications for UAVs. In Proceedings of the 2019 IEEE VTS Asia Pacific Wireless Communications Symposium (APWCS), Singapore, 28–30 August 2019; pp. 1–5. [Google Scholar]
  15. Oubbati, O.S.; Chaib, N.; Lakas, A.; Lorenz, P.; Rachedi, A. UAV-assisted supporting services connectivity in urban VANETs. IEEE Trans. Veh. Technol. 2019, 68, 3944–3951. [Google Scholar] [CrossRef] [Green Version]
  16. Sundaresan, K.; Chai, E.; Chakraborty, A.; Rangarajan, S. SkyLiTE: End-to-end design of low-altitude UAV networks for providing LTE connectivity. arXiv 2018, arXiv:1802.06042. [Google Scholar]
  17. Vidal, I.; Nogales, B.; Valera, F.; Gonzalez, L.F.; Sanchez-Aguero, V.; Jacob, E.; Cervelló-Pastor, C. A multi-site NFV testbed for experimentation with SUAV-based 5G vertical services. IEEE Access 2020, 8, 111522–111535. [Google Scholar] [CrossRef]
  18. Gupta, L.; Jain, R.; Vaszkun, G. Survey of important issues in UAV communication networks. IEEE Commun. Surv. Tutor. 2015, 18, 1123–1152. [Google Scholar] [CrossRef]
  19. Oubbati, O.S.; Atiquzzaman, M.; Ahanger, T.A.; Ibrahim, A. Softwarization of UAV networks: A survey of applications and future trends. IEEE Access 2020, 8, 98073–98125. [Google Scholar] [CrossRef]
  20. McCoy, J.; Rawat, D.B. Software-defined networking for unmanned aerial vehicular networking and security: A survey. Electronics 2019, 8, 1468. [Google Scholar] [CrossRef] [Green Version]
  21. Xiong, F.; Li, A.; Wang, H.; Tang, L. An SDN-MQTT based communication system for battlefield UAV swarms. IEEE Commun. Mag. 2019, 57, 41–47. [Google Scholar] [CrossRef]
  22. Zhang, X.; Wang, H.; Zhao, H. An SDN framework for UAV backbone network towards knowledge centric networking. In Proceedings of the IEEE INFOCOM 2018-IEEE Conference on Computer Communications Workshops (INFOCOM WKSHPS), Honolulu, HI, USA, 15–19 April 2018; pp. 456–461. [Google Scholar]
  23. ur Rahman, S.; Kim, G.H.; Cho, Y.Z.; Khan, A. Deployment of an SDN-based UAV network: Controller placement and tradeoff between control overhead and delay. In Proceedings of the 2017 International Conference on Information and Communication Technology Convergence (ICTC), Jeju, Republic of Korea, 18–20 October 2017; pp. 1290–1292. [Google Scholar]
  24. Clausen, T.; Jacquet, P.; Adjih, C.; Laouiti, A.; Minet, P.; Muhlethaler, P.; Qayyum, A.; Viennot, L. Optimized Link State Routing Protocol (OLSR). 2003. Available online: (accessed on 14 January 2023).
  25. Sanchez-Aguero, V.; Valera, F.; Nogales, B.; Gonzalez, L.F.; Vidal, I. VENUE: Virtualized environment for multi-UAV network emulation. IEEE Access 2019, 7, 154659–154671. [Google Scholar] [CrossRef]
  26. Garrido, S.; Muñoz, J.; López, B.; Quevedo, F.; Monje, C.A.; Moreno, L. FM 2 Path Planner for UAV Applications with Curvature Constraints: A Comparative Analysis with Other Planning Approaches. Sensors 2022, 22, 3174. [Google Scholar] [CrossRef] [PubMed]
  27. Mahalingam, M.; Dutt, D.G.; Duda, K.; Agarwal, P.; Kreeger, L.; Sridhar, T.; Bursell, M.; Wright, C. Virtual eXtensible Local Area Network (VXLAN): A Framework for Overlaying Virtualized Layer 2 Networks over Layer 3 Networks. Internet Eng. Task Force 2014, rfc7348. [Google Scholar]
  28. Hans, C.Y.; Quer, G.; Rao, R.R. Wireless SDN mobile ad hoc network: From theory to practice. In Proceedings of the 2017 IEEE International Conference on Communications (ICC), Paris, France, 21–25 May 2017; pp. 1–7. [Google Scholar]
  29. Labyrinth, 2022. Available online: (accessed on 14 January 2023).
  30. Sanchez-Aguero, V.; Gonzalez, L.F.; Valera, F.; Vidal, I.; López da Silva, R.A. Cellular and virtualization technologies for uavs: An experimental perspective. Sensors 2021, 21, 3093. [Google Scholar] [CrossRef] [PubMed]
  31. Mehmood, K.; Kralevska, K.; Palma, D. Intent-driven autonomous network and service management in future networks: A structured literature review. arXiv 2021, arXiv:2108.04560. [Google Scholar] [CrossRef]

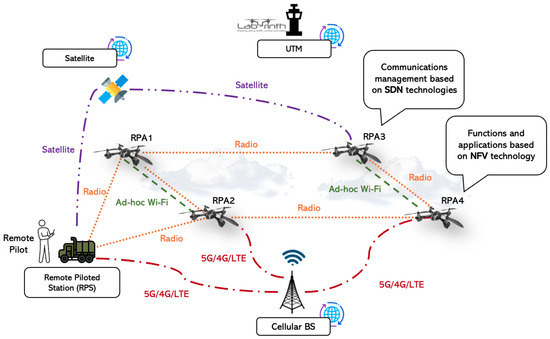

Figure 1. Motivating scenario.
Figure 1. Motivating scenario.
Drones 07 00137 g001

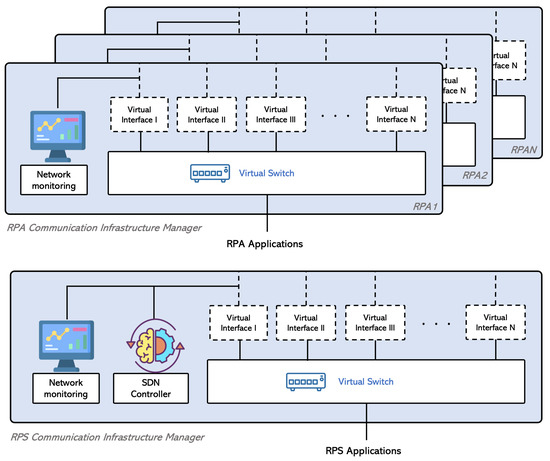

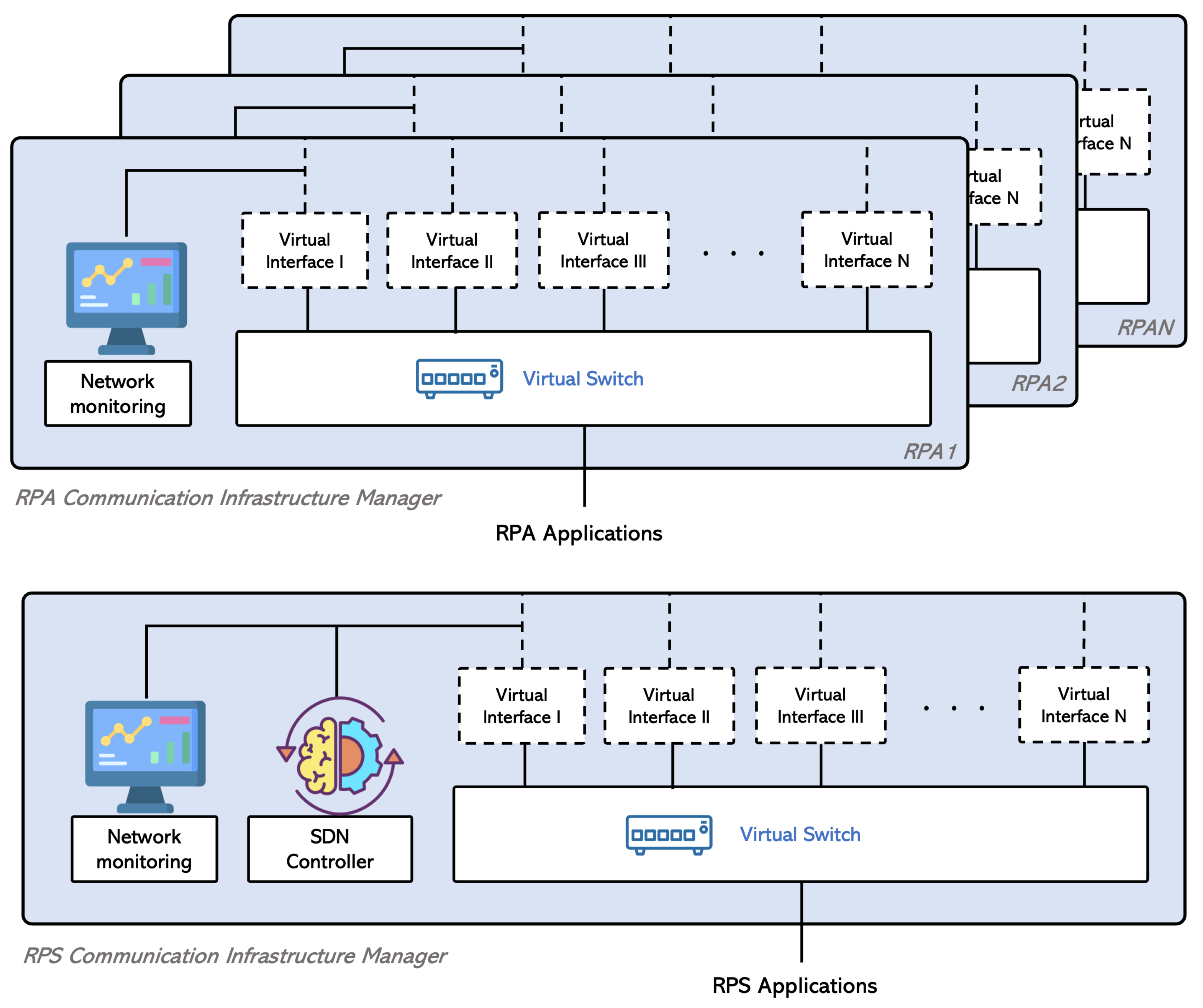

Figure 2. Communication Infrastructure Manager (CIM) architecture.
Figure 2. Communication Infrastructure Manager (CIM) architecture.
Drones 07 00137 g002
Figure 3. Reference scenario.
Figure 3. Reference scenario.
Drones 07 00137 g003
Figure 4. Choosing the minimum RTT path scenario.
Figure 4. Choosing the minimum RTT path scenario.
Drones 07 00137 g004
Figure 5. Choosing the minimum RTT path traffic.
Figure 5. Choosing the minimum RTT path traffic.
Drones 07 00137 g005
Figure 6. Load balancing experiment. (a) No load balancing (traffic received at the RPS); (b) load balancing (traffic received at the RPS).
Figure 6. Load balancing experiment. (a) No load balancing (traffic received at the RPS); (b) load balancing (traffic received at the RPS).
Drones 07 00137 g006
Figure 7. Traffic captured at INTA’s RPS in the laboratory experiments.
Figure 7. Traffic captured at INTA’s RPS in the laboratory experiments.
Drones 07 00137 g007
Figure 8. Flight campaign experiment. (a) INTA’s external pilot performing pre-flight operations; (b) INTA’s operators setting up the mobile GCS.
Figure 8. Flight campaign experiment. (a) INTA’s external pilot performing pre-flight operations; (b) INTA’s operators setting up the mobile GCS.
Drones 07 00137 g008
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Sanchez-Aguero, V.; Valera, F.; Vidal, I.; Nogales, B. Communication Manager for Hyper-Connected RPAS Environments. Drones 2023, 7, 137.

AMA Style

Sanchez-Aguero V, Valera F, Vidal I, Nogales B. Communication Manager for Hyper-Connected RPAS Environments. Drones. 2023; 7(2):137.

Chicago/Turabian Style

Sanchez-Aguero, Victor, Francisco Valera, Ivan Vidal, and Borja Nogales. 2023. "Communication Manager for Hyper-Connected RPAS Environments" Drones 7, no. 2: 137.

Article Metrics

Back to TopTop
