SunMap: Towards Unattended Maintenance of Photovoltaic Plants Using Drone Photogrammetry

Abstract

Global awareness of environmental issues has boosted interest in renewable energy resources, among which solar energy is one of the most attractive renewable sources. The massive growth of PV plants, both in number and size, has motivated the development of new approaches for their inspection and monitoring. In this paper, a rigorous drone photogrammetry approach using optical Red, Green and Blue (RGB) and Infrared Thermography (IRT) images is applied to detect one of the most common faults (hot spots) in photovoltaic (PV) plants. The latest advances in photogrammetry and computer vision (i.e., Structure from Motion (SfM) and multiview stereo (MVS)), together with advanced and robust analysis of IRT images, are the main elements of the proposed methodology. We developed an in-house software application, SunMap, that allows automatic, accurate, and reliable detection of hot spots on PV panels. Along with the identification and geolocation of malfunctioning PV panels, SunMap provides high-quality cartographic products by means of 3D models and true orthophotos that provide additional support for maintenance operations. Validation of SunMap was performed in two different PV plants located in Spain, generating positive results in the detection and geolocation of anomalies with an error incidence lower than 15% as validated by the manufacturer’s standard electrical tests.

1. Introduction

1.1. Motivation

Conventional electricity grids are based on management principles and technologies developed for a centralized generation system. This involves the large-scale generation of electricity at centralized facilities using a distribution network optimized for supply reliability. These classical network solutions, however, fail to meet growing demand, end users’ expectations, and the need for data security and reliability, among other requirements. Due to the requirements of the Kyoto Protocol and subsequent international agreements (Paris COP21, Glasgow COP26), which focused on reducing greenhouse gas emissions, the transition to renewable energies based on decentralized energy systems and the implementation of energy efficiency are mandatory [1]. To this end, management tools at all levels must change towards more intelligent systems that incorporate automatic exploitation of increasingly abundant information and new operation and maintenance models based on renewable energies and are adapted to new technological elements that are available at lower cost.

With the proliferation of drones [2] and artificial intelligence [3], as well as with the development of sensors combined with image processing capabilities [4], the range of possibilities for driving this transformation towards the intelligent inspection and management of renewable energy generation plants (e.g., solar, wind, hydroelectric, etc.) is broad. These critical infrastructures require periodic inspection to ensure their effective and efficient operation, but these facilities are sometimes difficult to access, and thus inspection can be dangerous for the operator. Therefore, unattended maintenance through the use of robotic techniques (i.e., drones) and non-invasive sensors (e.g., cameras, LiDAR, etc.) is most cost-effective [5]. To this end, recent years have seen the development of an official standard (IEC TS 62446-3) for the testing, documentation, and maintenance of PV modules and plants using drones and infrared thermography [6]. In the case of photovoltaic (PV) plants, adequate inspection of PV installations requires the acquisition of different types of data, from geometric data that allow a dimensional analysis of the facility and its assets (e.g., the distance between PV panels and vegetation, the height of vegetation, etc.), to radiometric data (i.e., multispectral imagery) that allow advanced analysis of the images for the automatic identification of faults in PV panels. This inspection is enhanced by the use of multiple spectral bands, mainly near, medium and thermal infrared, since they allow the identification of faults that are not perceived visually, such as defects in non-operative cells, discoloration, oxidation/corrosion, etc. [7]. Nevertheless, integrated interpretation of all the data acquired during the inspection requires the precise detection of each fault, as well as the identification and quantification of the type and severity of the fault. Therefore, it is clear that the development of tools that allow monitoring, diagnosing, and even forecasting these faults in PV plants is necessary in order to improve efficiency during their complete lifecycle, and these tools will provide important economic and ecological benefits [8].

Advancing the automation of faults in PV plants entails a series of difficulties [9]: (i) the automatic extraction and semantic recognition of the PV panels and their elements based on imagery (i.e., arrays, panels, modules and cells); (ii) the incidence of false positives due to detection of the same fault in different images; (iii) the incidence of false positives outside the PV panels; (iv) problems associated with reflections at the edges of PV panels; and (v) the precise geolocation of faults in the PV panels.

1.2. Literature Review

Although there are several approaches in the scientific community to dealing with PV faults based on imagery [10,11], most of them are semi-automatic or time-consuming, so their monitoring and management still require manual user interaction. According to [10,11] and their reviews, although there are many algorithms and hardware tools available, the remote and online monitoring of PV plants is still at a low technology-readiness level (i.e., prototyping stage). This suggests the need for development of cutting-edge intelligent systems that can overcome the current challenges. The key seems to be related to the exploitation of multi-modal imagery (e.g., optical RGB, IRT, ultraviolet fluorescence (UVF) imaging, etc.) and aerial drones that can enhance the detection and classification of faults in PV panels. Of course, intelligent and automatic approaches for interpreting these images remain crucial. In [12], the authors test and use different types of aerial platforms combined with visible and IRT cameras for detecting faults in PV panels, but they do not provide any automatic approach for its detection. In [13], the authors perform an exhaustive thermographic analysis of three different types of faults in PV panels, but all the tests are carried out in the laboratory. In [14], the authors advance an automatic solution for detecting some faults in PV panels, but the thermographic analysis of images is not rigorous, and they do not provide automatic extraction of geometries. In an attempt to advance the vectorization of PV faults, [15] presents advances in an automatic solution for detecting some faults in PV panels through image processing and Canny edge detection. However, the thermographic analysis of images is performed in the laboratory. More recently, [16] develops a method to recognize hot spots in photovoltaic modules using IRT images and an image processing technique based on the Otsu thresholding method. The average accuracy in hot spot detection is very high, but they provide only the initial experiments of an ongoing research project. Although other authors [17] deal with image analysis for detection PV panels and their structure, they do not generate cartographic products to provide a 3D analysis of the PV plants. In [18], the authors analyse IRT images using the Laplace operator, but again all the analyses are performed in an experimental setup. More recent approaches have been centered around the structure and management of the information of PV plants using Geographical Information Systems (GIS). In [19], the authors provide structured and rigorous information for a PV plant, and in particular, define a conceptual model based on a relational database for the intelligent management of PV plants; however, automatic routines for the extraction of elements and the detection of faults are not included in this approach. Using the same GIS background applied to the management and computation of PV potential, [20] develops a WebGIS tool for the automatic computation of PV potential on rooftops. While these are important advances in the field, automated analysis of images for tasks such as the extraction of roof intersections is still to be developed.

Other recent approaches deal with artificial intelligence [21,22], but require data preparation and augmentation together with model training. In [22], the authors propose a new intelligent PV panel monitoring and fault diagnosis technique using a neural network and a classifier in combination. Unfortunately, they do not adapt a method for use with drones. It is clear that the use of aerial drones based on optical RGB and IRT images constitutes the most efficient way to detect faults, and thus minimize operation and maintenance costs in PV plants [8]. These approaches require rigorous photogrammetric image analysis and thermographic procedures in order to guarantee accurate and timely responses during the detection of faults in PV plants.

To this end, SunMap is presented in this paper based on a series of developments with a similar thread, “from imagery to smart 3D models”, that have been applied successfully in other fields (e.g., industry 4.0 and remote sensing) [23,24]. SunMap provides rigorous photogrammetric and thermographic treatment of images acquired from aerial drones based on the generation of high-quality cartographic products and expert reports containing the precise geolocation of hot spots. The automatic and reliable detection of hot spots in PV panels is based on two conditions: (i) the presence of a hot spot in at least three thermographic images; and (ii) the existence of a thermographic gradient above 10 °C with respect to the hot spot’s neighbours.

SunMap presents the following advantages compared to the similar approaches described above: (i) a rigorous and automatic photogrammetric processing exploiting multiview geometry; (ii) the generation of high-quality cartographic products that integrate visible and thermographic information; (iii) the automatic detection of PV arrays and PV panels based on advanced imagery analysis; (iv) rigorous correction and analysis of thermographic images; (v) robust statistical detection of hot spots integrated with the generation of expert reports based on the official standard IEC TS 62446-3 [6].

This manuscript is structured as follows: Section 2 describes the methodology developed and encoded within the SunMap software; Section 3 validates the software using two different PV plants as pilot cases; and a final section is devoted to outlining conclusions and future research.

2. Methodology

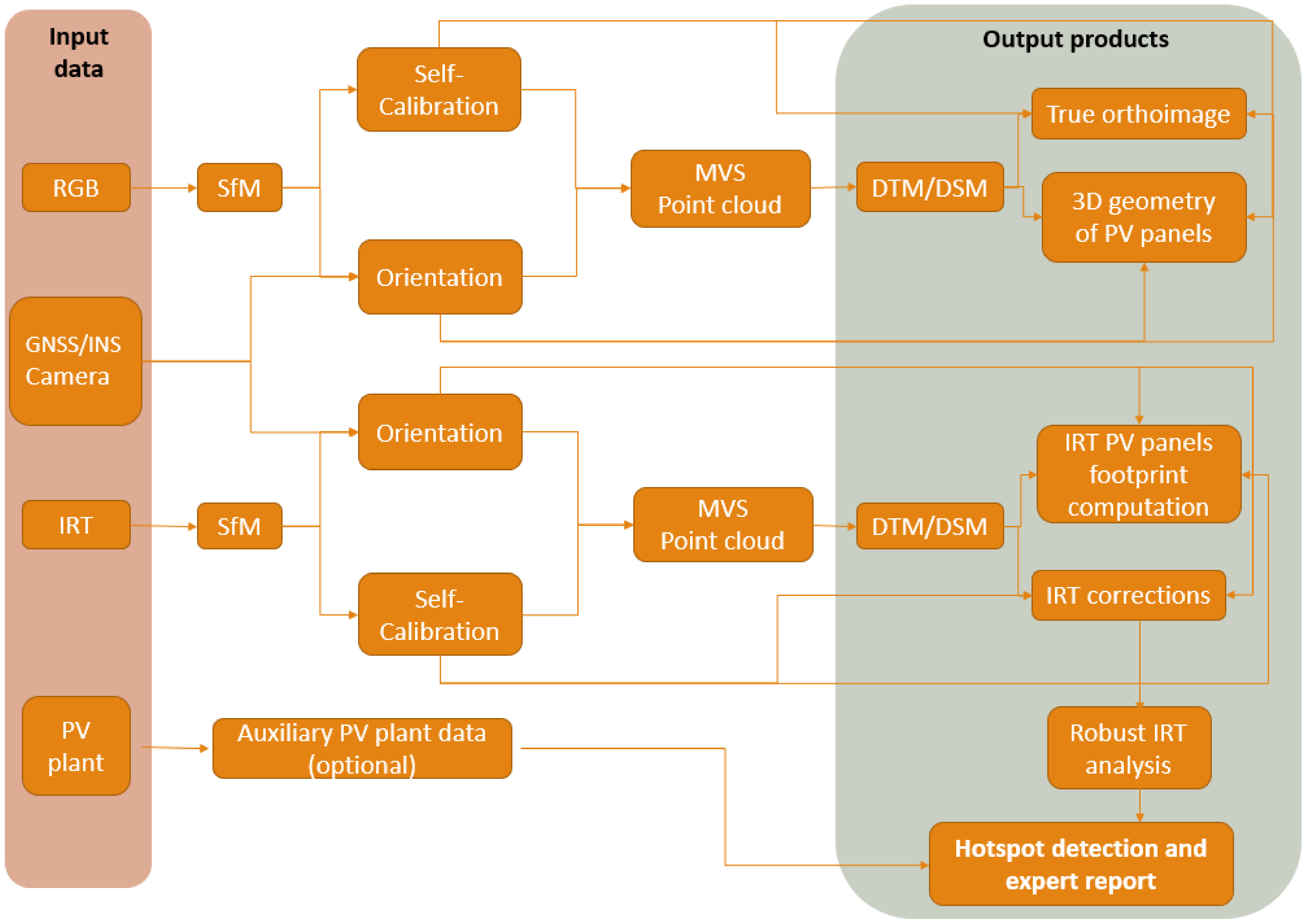

Figure 1 outlines the process codified in the SunMap tool for the detection of hot spots in PV plants using drone photogrammetry. A hot spot fault is a heating effect that exists when at least one PV cell presents a short-circuited current that is much lower than the rest of the cells in the module. This pathology happens when the PV cell is totally or partially fractured or electrically mismatched, resulting in power loss of 2–20% [25]. In Figure 1, the pipeline starts with data acquisition from aerial drones using RGB and IRT images. A photogrammetric and computer vision approach is then applied to perform self-calibration and orientation of the images with the Structure from Motion (SfM) technique and to generate a dense point cloud based on the multiview stereo (MVS) technique. Different cartographic products in 2D (true orthophoto) and 3D (digital terrain and surface models, DTM/DSM) are then obtained to support the detection of hot spots. In particular, a robust analysis of the IRT images is performed to detect hot spots. As a result, the end user can assess the current state of the PV plant regarding hot spots and obtain an expert report with the geolocation of these pathologies on the true orthoimage. Auxiliary PV plant data (e.g., plans, technical specifications of PV panels, etc.) can be added to complete the expert report.

2.1. Photogrammetric Processing of Visible and Thermographic Images

An automatic photogrammetric pipeline was implemented considering the following input data: (i) images acquired from an aerial drone with an optical Red, Green and Blue (RGB) camera and an infrared thermographic (IRT) camera, capable of acquiring RGB and IRT images simultaneously or acquiring RGB and IRT images in separate flights; and (ii) the positions and orientations of images coming from the global navigation satellite system (GNSS) and the inertial navigation unit (IMU), in a CVS or TXT file. Note that GNSS positions should be provided with real-time kinematic (RTK) or Post Processed Kinematics (PPK) methods [26] so that direct orientation of the RGB and IRT images can be obtained. In this case, the fieldwork of measuring ground control points with GNSS or other topographic methods is not needed, greatly reducing data acquisition and processing costs.

The photogrammetric pipeline is integrated with a routine developed by the authors [4] based on the Structure from Motion (SfM) technique, providing a means of determining the orientation and relative positions of the cameras, and in turn performing self-calibration of the cameras (RGB and IRT). The photogrammetric approach allows for the generation of a dense point cloud using the multiview stereo (MVS) technique [27].

The first photogrammetric step comprises extraction and matching of points of interest. For the extraction, the SIFT (Scale-Invariant Feature Transform) [28] detector/descriptor algorithm is used, more specifically the SiftGPU library, which is an implementation of the SIFT algorithm for CUDA-compatible systems [29]. For matching, the FLANN technique (Fast Library for Approximate Nearest Neighbors) is used with a robust matching strategy [30]. This robust correspondence strategy consists of performing a series of tests to filter out erroneous correspondences. Specifically, the ratio test, the crossed matching, and the geometric tests are used together with determination of the fundamental, homography, and essential matrices by means of an adjustment with a Random Sample Consensus (RANSAC) algorithm [31].

Image-based 3D reconstruction is then performed incrementally through an iterative process consisting of relative image orientation, triangulation, and bundle adjustment [32].

Finally, the relative photogrammetric exterior orientations are transformed into an official coordinate reference system (CRS). In this study we use the official CRS in Spain, integrating the following CRSs: EPSG: 25830, datum ETRS89 and coordinate system UTM zone 30; and EPSG:5782, datum Alicante and orthometric heights.

2.2. Cartographic Products Generation

Once the photogrammetry corresponding to the two cameras (RGB and IRT) is solved, the generation of cartographic products is performed in the form of digital terrain models (DTM), digital surface models (DSM), and true orthoimages, which are processed using a DSM instead of a DTM, which yields a vertical view of the PV plant, eliminating panel tilting and allowing a view of nearly any point on the ground. The DSM is used to remove relief displacement of the PV panels from the acquired images. These true orthoimages are used as input for assessing the presence of possible faults (i.e., hot spots) in the PV panels.

The first step is to separate the terrain from the panels to ensure better quality in DSM generation. For this, a terrain-extraction algorithm based on the Cloud Simulation Filter (CSF) is applied [33]. By applying this algorithm, a point cloud with the terrain and another point cloud with the panels are obtained. Using the inverse distance interpolation method based on nearest-neighbour search [34], DTMs are generated for both the terrain and the panels and later merged to generate the DSM. The reason for separating the DTMs and then merging in a DSM is that the different classes corresponding with PV panels and terrain can have different Z coordinates for the same X,Y coordinates, allowing orthorectification of the terrain and the PV panels and generation of the true orthoimage.

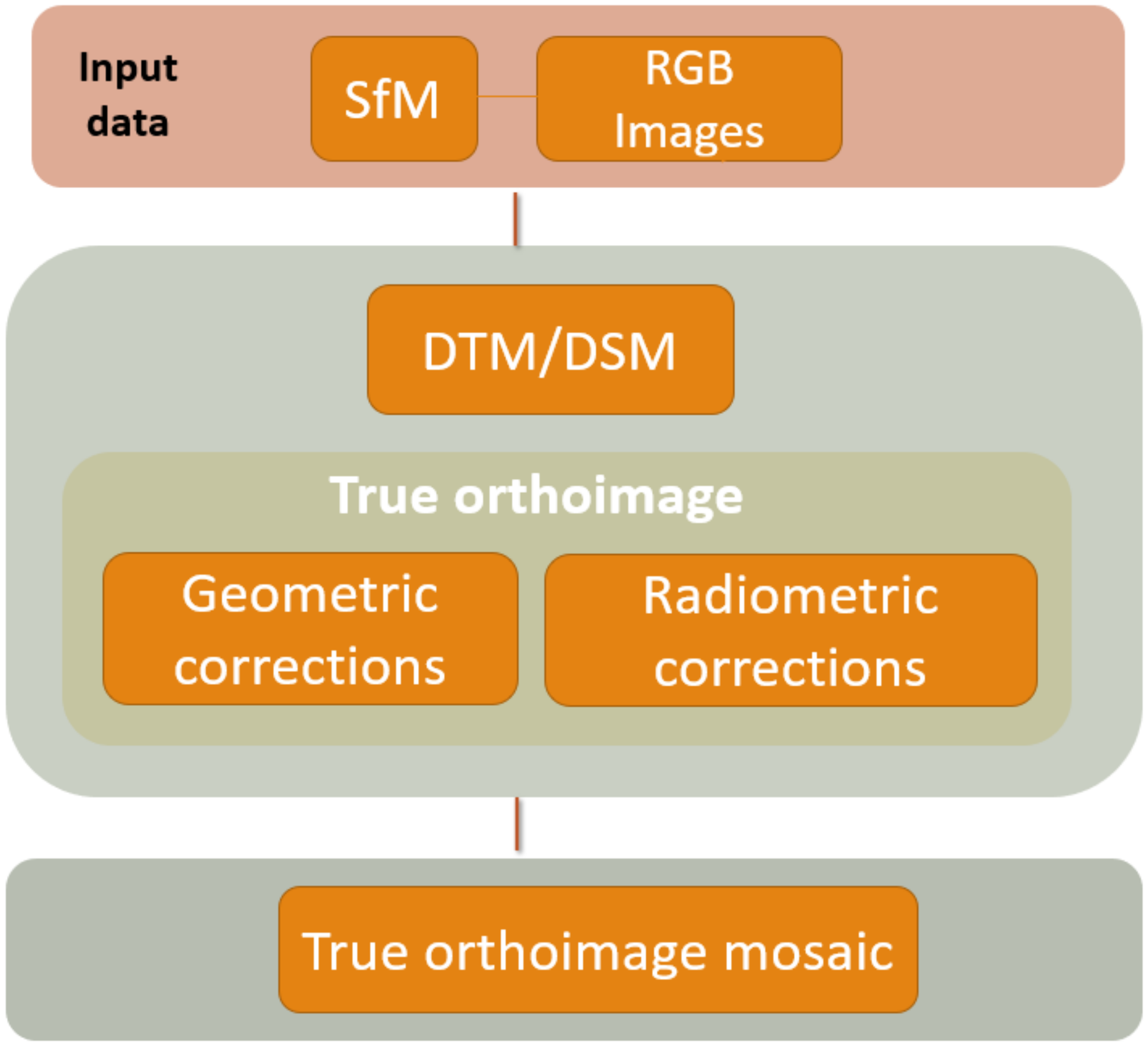

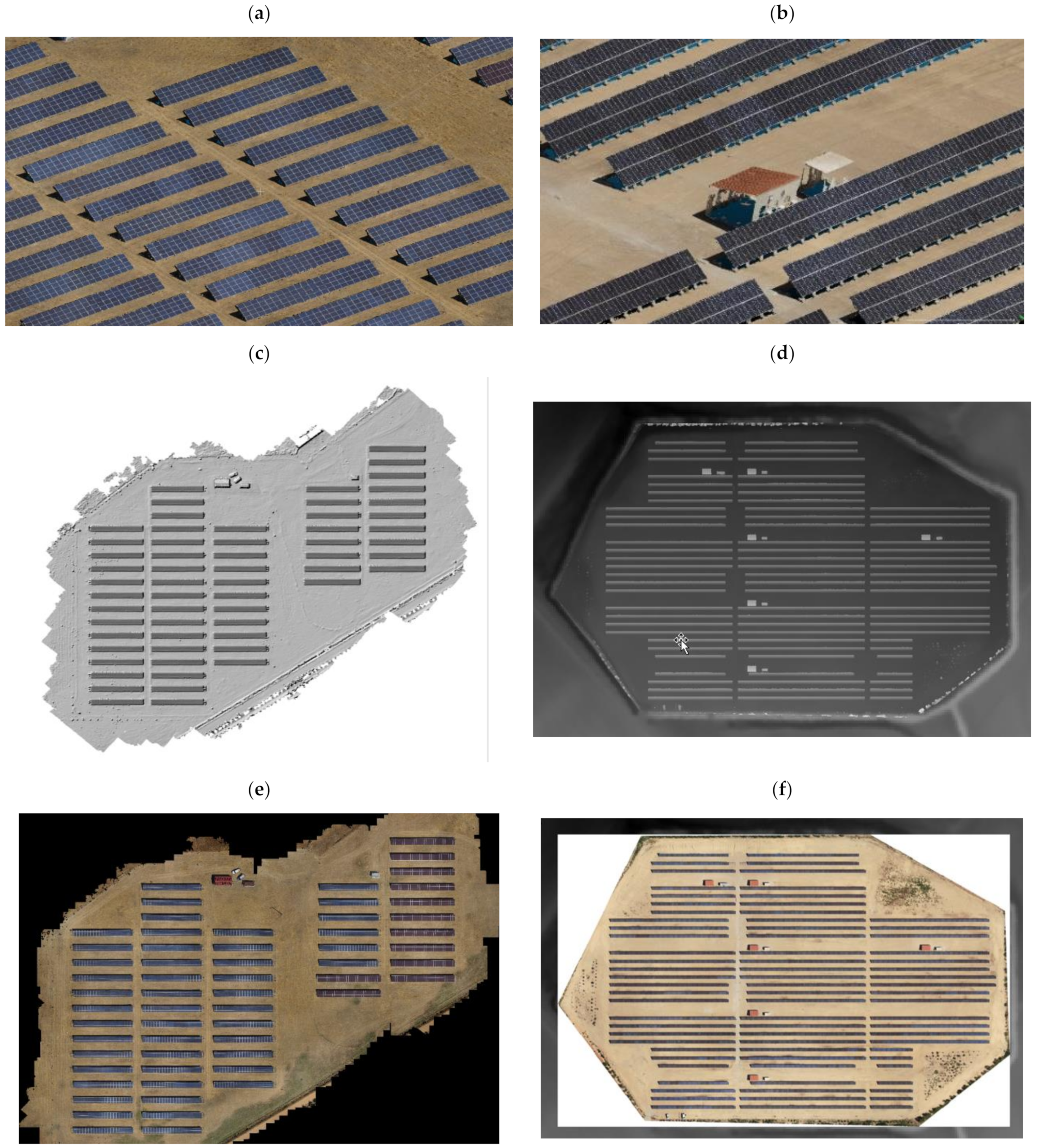

The second step is the generation of the true orthoimage (Figure 2) based on the previous DSM, which contains the height of the PV panels and thus allows precise geolocation of the hot spots. More specifically, the process of generating true orthoimages consists of the following steps: (i) definition of the flight path; (ii) determination of hidden areas in the images through the Z-buffer algorithm using the DSM [35]; (iii) correction of image distortion using the inner camera parameters from the self-calibration; (iv) orthoimage generation; and (v) completion of the hidden areas.

The final step is to generate a final true orthoimage mosaic corresponding to the whole PV plant. The photogrammetric process of ortho-projection basically consists of generating an orthogonal projection, thus representing three-dimensional objects (terrain and PV panels) in two dimensions without the perspective of the original image, which is a central projection. This process is achieved by a two-dimensional transformation between the original image and the corrected image (orthoimage), which is already georeferenced in the projection plane. To carry out the processing of the orthoimage, the inverse method [36] is used. In this case, an image with known internal and external orientation is needed, as well as the DSM of the PV plant. Subsequently, the size of the orthoimage (resolution) is defined according to the size of the pixel in ground units.

2.3. Extraction and Detection of the 3D Geometry of PV Panels

It should be noted that the inputs of this image analysis approach are the DSM and the true orthoimage generated from the photogrammetric process, since they enclose the metric properties and the adequate geometric resolution to apply the process with quality, and thus provide a better geolocation of the hot spots.

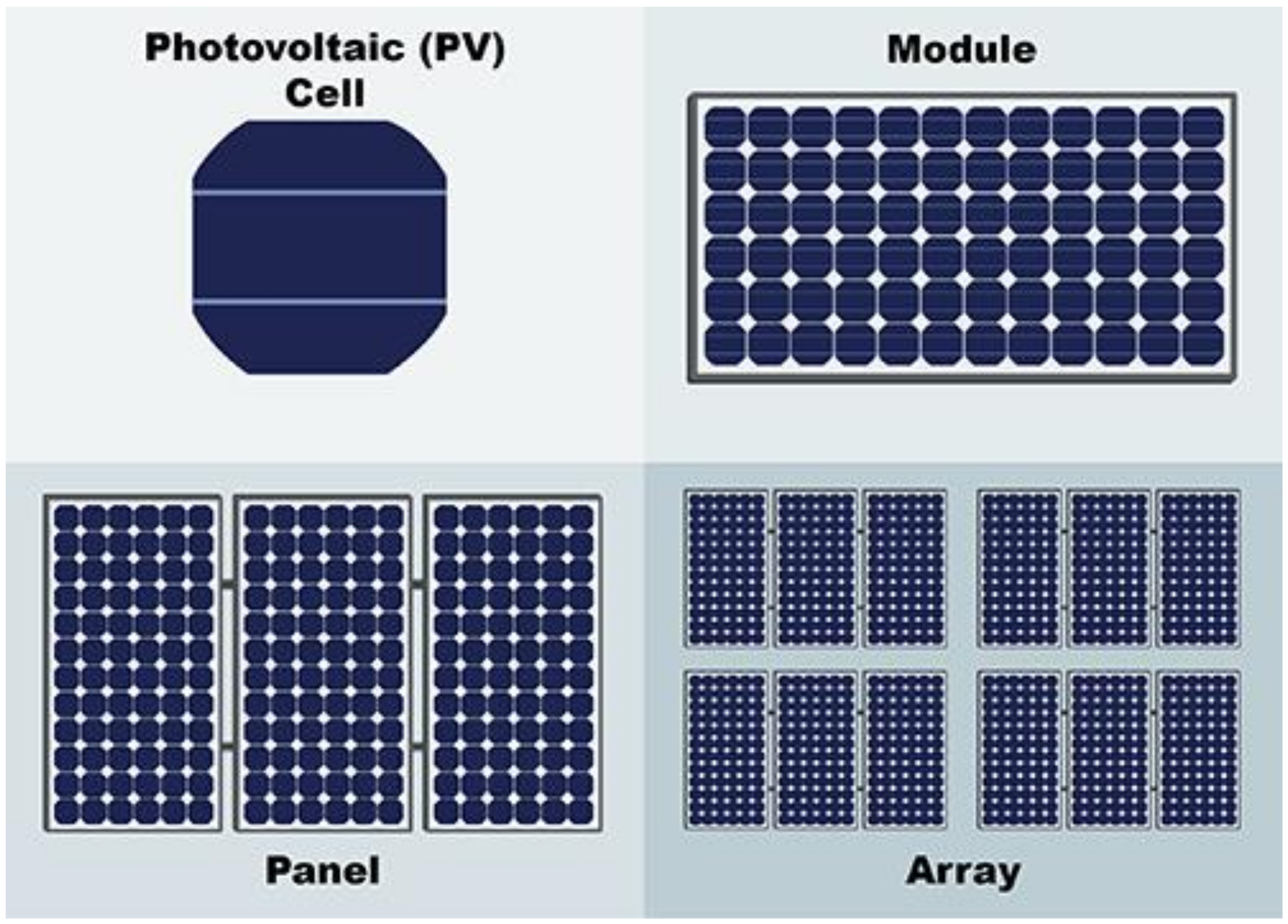

Prior to extraction and detection of the 3D geometry of the PV panels, a conceptual model based on the geometry and semantics of the PV plant needs to be defined (Figure 3). To this end, a coarse-to-fine approach is used for the extraction and detection of the 3D geometry of PV panels, so that starting from the extraction of PV arrays, the detection of PV panels, PV modules, and even PV cells can be obtained. The term “array” is used to refer to a set of PV panels arranged in rows and columns. In turn, each of these PV panels is made up of modules, which are each made up of an array of PV cells, also distributed in rows and columns.

The definition of the geometry and semantics of the PV plant, as well as the area of interest, is specified in a set of files in shapefile format that are created automatically through the development of algorithms supported by image analysis techniques (i.e., filtering) and feature extraction (i.e., contours and lines). This procedure is performed as follows: (i) first, filtering of the orthoimage is performed to remove noise, followed by a search for contours applying different thresholding of the images [37]; (ii) second, the contours obtained are simplified using the Douglas–Peucker line simplification algorithm [38]; and (iii) very small contours are eliminated, and contours with four vertices and whose angles are close to 90° are retained. For all contours, the median of their area is calculated and the panels that are not within the tolerance sought are eliminated. Finally, to determine the contours of the rows of panels, (iv) the modules are clustered using a density-based spatial clustering algorithm (DBSCAN) [39].

2.4. Correction of Thermographic Images

Good analysis of IRT images entails understanding the physics behind the IRT images and correcting the IRT images obtained. Information about the weather, the atmosphere, the object analysed (i.e., PV panels) and its environment is essential.

Before proceeding to calculate temperature statistics and to detect hot spots, it is necessary to apply a series of corrections to the thermographic images. This process is fully automatic and is based on the application of the following corrections: (i) distance correction, which contains the distance for each visible pixel from the center of projection of the camera to the point over the panel; (ii) incidence angle correction for obtaining emissivity, computed using the angle formed by the line of observation with the normal to the 3D surface of the PV panel for each visible pixel; (iii) reflection correction, which is based on isolating the areas of the PV arrays that may have problems caused by reflections from other panel arrays (Figure 4); and (iv) atmospheric correction, which includes correction for temperature and relative humidity of the study area.

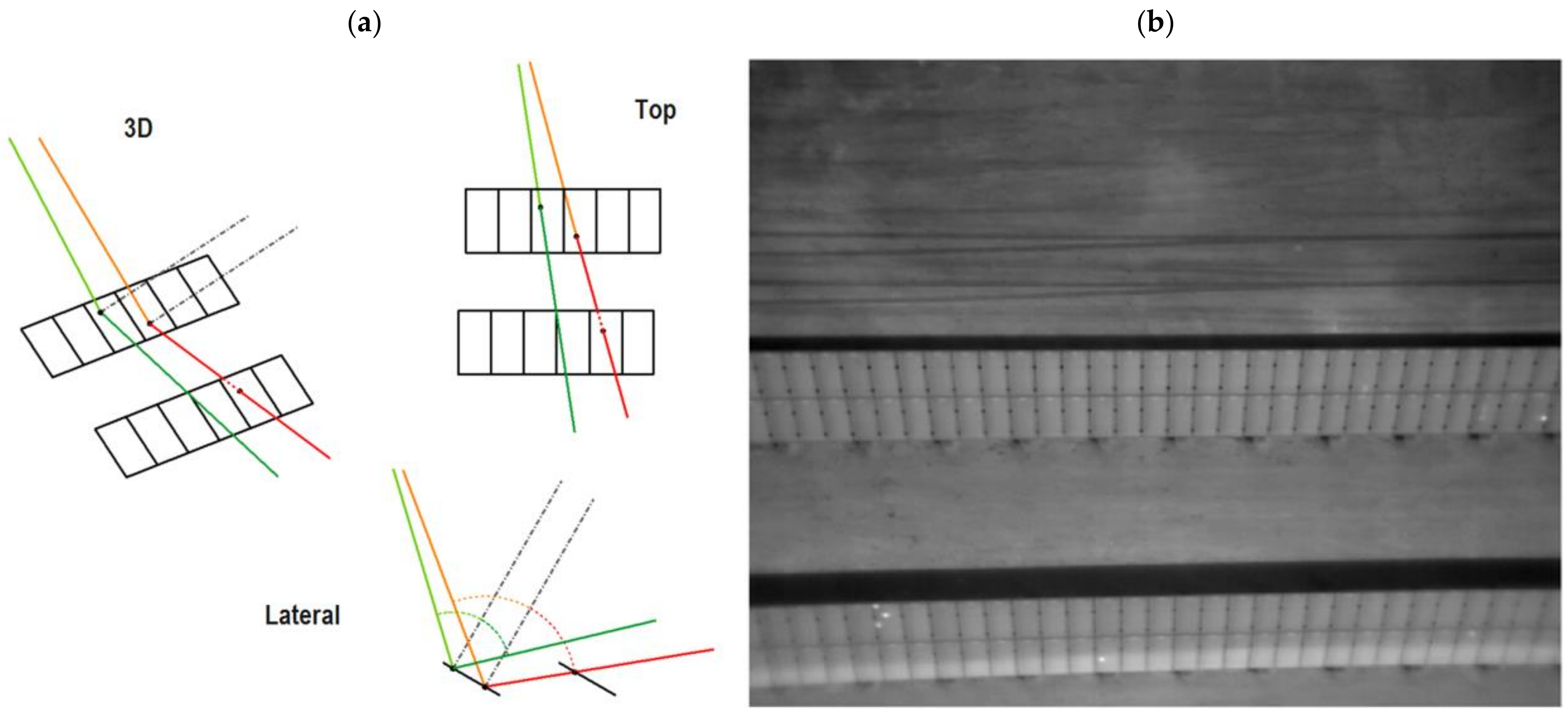

A reflected 3D ray without intersection with a PV panel is shown in green. A reflected 3D ray with intersection with a PV panel is shown in red.

To carry out the atmospheric correction, it is necessary to know the values of temperature (°C) and relative humidity (%) at the time of acquisition [40]. Two options are contemplated in SunMap: (i) only an estimation of an average value is available for the entire drone flight, or (ii) these values can be provided from a meteorological station close to the facilities of the PV plant.

The final atmospheric correction of the thermographic images is synthesized using the following equation (Equation (1)) [6]:

$$T_{obj}=\sqrt[4]{\frac{W_{tot}-\left(1-\epsilon \right)·\tau ·\sigma ·T_{refl}^4-\left(1-\tau \right)·\sigma ·T_{atm}^4}{\epsilon ·\tau ·\sigma }}$$

(1)

where the total radiation (W_tot) received by the IRT camera comprises the emission of the object, ε·τ·W_obj, the emission of the surroundings reflected by the object, (1 − ε)·τ·W_refl, and the emission of the atmosphere, (1 − τ)·W_atm.

Although there are accurate methodologies for calculating the operating temperature of photovoltaic modules [41], the proper expression depends on the specific mounting geometry. Equation (2) allows for the estimation of the temperature of the PV module from basic data such as ambient temperature, irradiance, and specific parameters of the module such as the Nominal Operating Cell Temperature (NOCT) [6]:

$$T_c=T_a+\left(\frac{G_T}{G_{NOCT}}\right)\left(T_{NOCT}-T_{a-NOCT}\right)$$

(2)

where Tc is the operating temperature of PV module, G_T is the irradiance, G_NOCT is the irradiance at NOCT conditions (800 W/m²), T_NOCT is the operating temperature of the PV module at NOCT conditions (45 °C for the analysed module), and T_a−NOCT is the ambient temperature at NOCT conditions (20 °C).

2.5. Statistical Analysis of Temperatures

Reliable hot spot detection requires an exhaustive statistical analysis. Therefore, despite applying calibrations to the acquired images and taking into account the corresponding corrections in the previous section, the detection of hot spots is applied based on the estimation of temperature gradients, not their absolute values. To do this, robust statistics (i.e., median and biweight midvariance (BWMV)) [42] are applied (Equations (3)–(5)), supported by statistical samples at two different levels: (i) the array level, assessing all the thermographic images that correspond to the PV array; and (ii) the panel level, analysing all the thermographic images that correspond to a given PV panel. Note that the photogrammetric process has been fully solved with both visible and thermographic images, making it possible to unambiguously identify the PV panels and PV arrays in the thermographic images. Again, this process is completely automatic, and the results are outlined in the expert report.

$$BWMV=\frac{n{{\displaystyle \sum }}_{i=1}^n{a}_i{\left(x_i-m\right)}^2{\left(1-U_i^2\right)}^4}{{\left({{\displaystyle \sum }}_{i=1}^n{a}_i\left(1-U_i^2\right)\left(1-5U_i^2\right)\right)}^2}$$

(3)

$$U_i=\frac{{\mu }_i-m}{9MAD}$$

(4)

where m is the median, n is the number of points, U is a parameter from Equation (4), µ is the mean and MAD is the median absolute deviation, being

$$MAD=median\left(\left|Di{f}_i-m_{Dif}\right|\right)$$

(5)

where Dif denotes the temperature gradients and m_Dif is the median of the gradients in temperatures. Finally, the value of the parameter a (Equation (3)) can be 0 or 1 depending on the U value. If −1 ≤ U ≤ 1, a = 1, otherwise a = 0.

2.6. Hot Spot Detection and Expert Report Generation

Finally, hot spot detection requires an automatic iterative process based on the analysis of panels extracted as described in Section 2.3 and the footprint of the IRT flight (Figure 5). Starting with the PV panel contour coordinates, a search is performed for those thermographic images with less perspective or that are more vertical in relation to the PV panel. As a result, more than one thermographic image can be used for hot spot detection, and thus robust detection can be provided through the calculation of the different temperature gradients (Section 2.5). A hot spot is considered valid if it fulfils at least two conditions: (i) it appears in three thermographic images; and (ii) it exists at a gradient with respect to its neighbours above a threshold, for example, 10 °C [43].

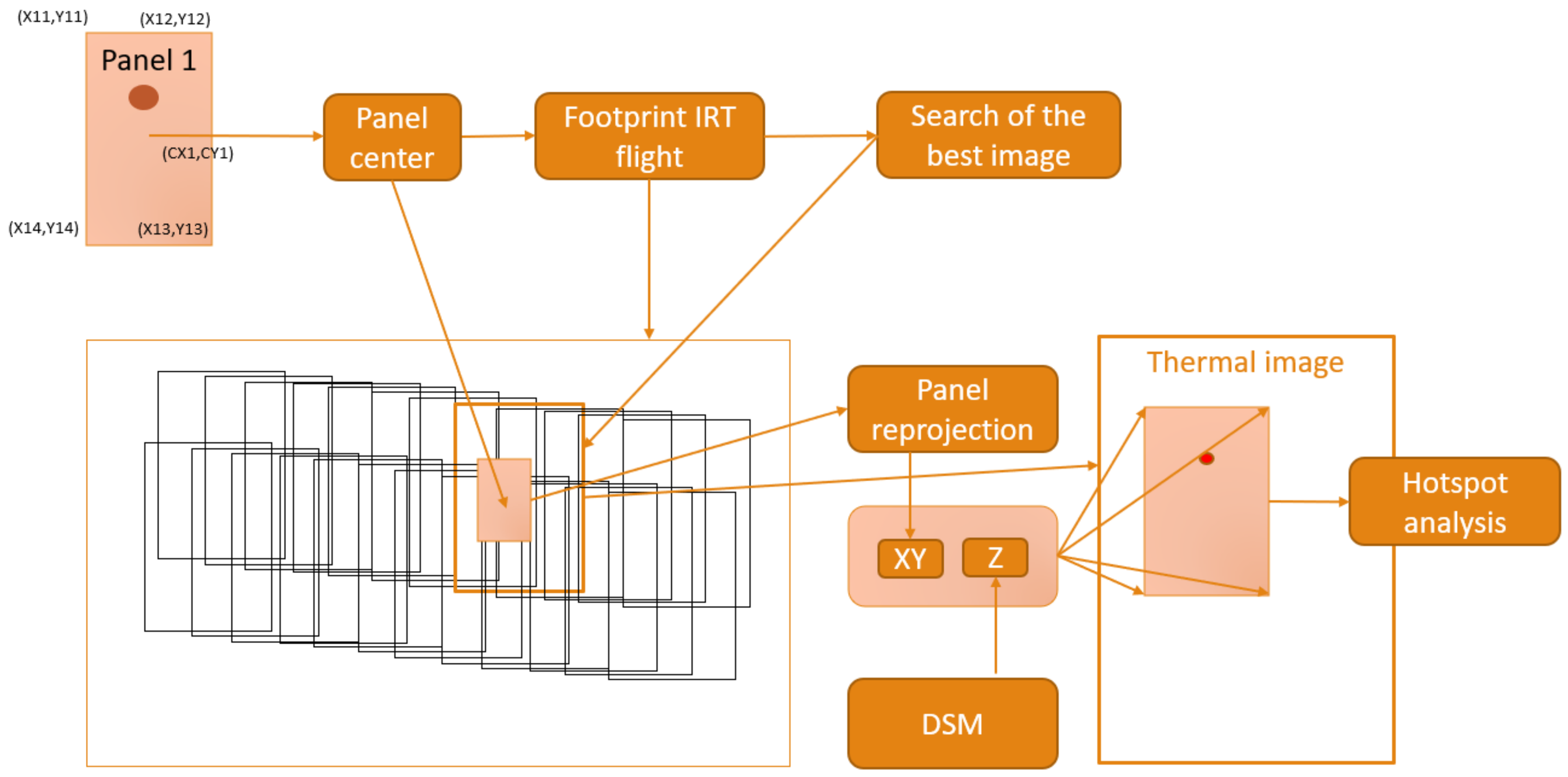

The geolocation of the hot spot in an official CRS is obtained through the photogrammetric resolution of the process detailed in Section 2.1, together with the generation of the expert report.

3. Case Studies

Validation of the SunMap tool was carried out in two PV plants located in the west and east of Spain, in Caceres and Albacete, respectively (Figure 6). Both locations have many hours of sunshine per year (>3000 h), making them ideal locations for this type of renewable energy infrastructure. The PV plant in Caceres (Figure 7a) has a surface of 12.5 ha and contains 156 PV arrays, with power generation of 2.9 MW. The PV plant located in Albacete (Figure 7c) has a surface of 9 ha and contains 77 PV arrays, with power generation of 3 MW. These two cases were selected based on the interest of two different companies in checking and validating the possibilities of the tool for the automatic inspection of PV plants.

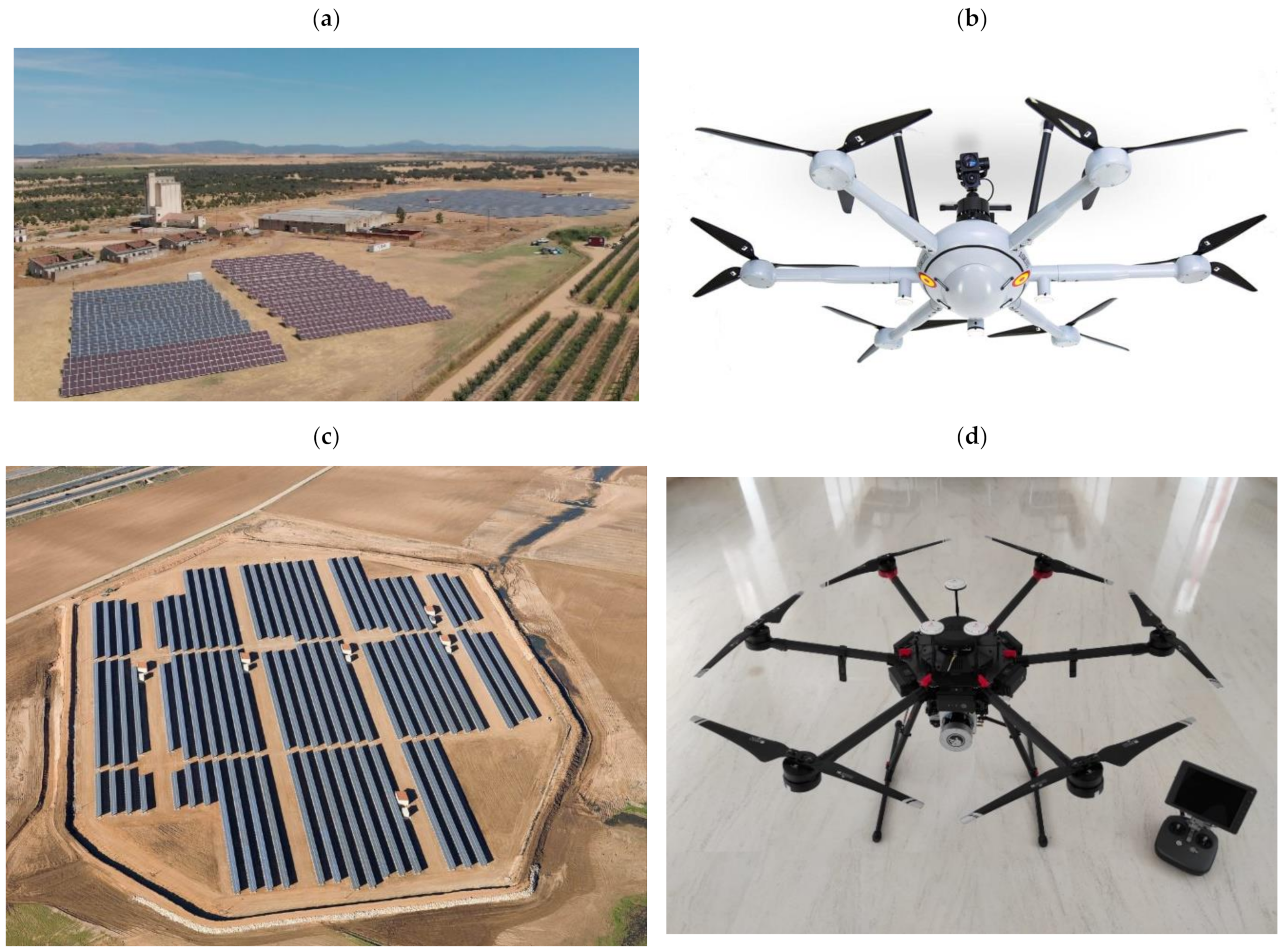

Another important aspect for the validation of the SunMap tool is the use of different types of drones and sensors in each case study (Figure 7b,d). The following table (

Table 1. Technical features of the drones and sensors used in the pilot cases.

Drone Platform	Camera Sensors		GNSS/INS Sensors
	RGB	IRT	GNSS/RTK	INS
RGB–Phantom 4 Thermal–DJI Matrice 600	FC6310R, Resolution: 5472 × 3648 pixels Focal length: 8.8 mm	Flir Duo Pro R Resolution: 640 × 512 pixels Focal length: 13 mm	GPS: L1/L2; GLONASS: L1/L2; Vertical 2.5 cm Horizontal 2 cm	APX-15 RMS ERROR INS: Roll: 0.02 Deg Pitch: 0.02 Deg Heading: 0.15 Deg
Condor	Sony ILCE-6000 Resolution: 6000 × 4000 pixels Focal length: 16 mm	Workswell Wiris Resolution: 640 × 512 pixels Focal length: 13 mm	GPS: L1/L2; GLONASS: L1/L2; BeiDou: B1/B2; Galileo E1/E5a Vertical 1.5 cm Horizontal 1 cm	RMS ERROR INS: Roll: 0.02 Deg Pitch: 0.02 Deg Heading: 0.15 Deg

) outlines the technical details of the different drone platforms and sensors used.

For the imagery acquisition, different photogrammetric flights were planned and executed using a tool, Mflip, developed by the authors [44]. Special attention was focused on the different characteristics of the RGB and IRT cameras (i.e., resolution, field of view, etc.) so that the PV plants could be recorded with a single flight using both sensors simultaneously.

Regarding navigation, both flights were executed using GNSS/INS hardware and integrated navigation technology, so that the exterior orientation parameters of aerial imagery could be used as initial approximations in the photogrammetric process. This georeferencing method, which is called direct georeferencing, has gained increasing attention in the photogrammetry community because it does not require measuring ground control points, allowing unattended maintenance of PV plants.

4. Results

In this section, the different results obtained at two different PV plants are described and analysed in order to validate the in-house software.

4.1. Photogrammetric Processing of Visible and Thermographic Images

At the PV plant at Caceres, a single flight was executed with a flight height of 30 m. A total of 25 strips were made in the W-E direction and a total of 1524 visible images and 1149 thermographic images were acquired. The ground sample distance (GSD) was 1 cm for the visible images and 5.7 cm for the thermographic images.

At the PV plant at Albacete, two separate flights were executed with a flight height of 70 m and 25 m for RGB and IRT, respectively. As a result, a total of 236 visible images and 5313 thermographic images were acquired. The GSD was 2 cm for the visible images and 3 cm for the thermographic images. These GSDs were considered valid for the detection of hot spots according to the specifications provided by the manufacturer and the size of the PV cells.

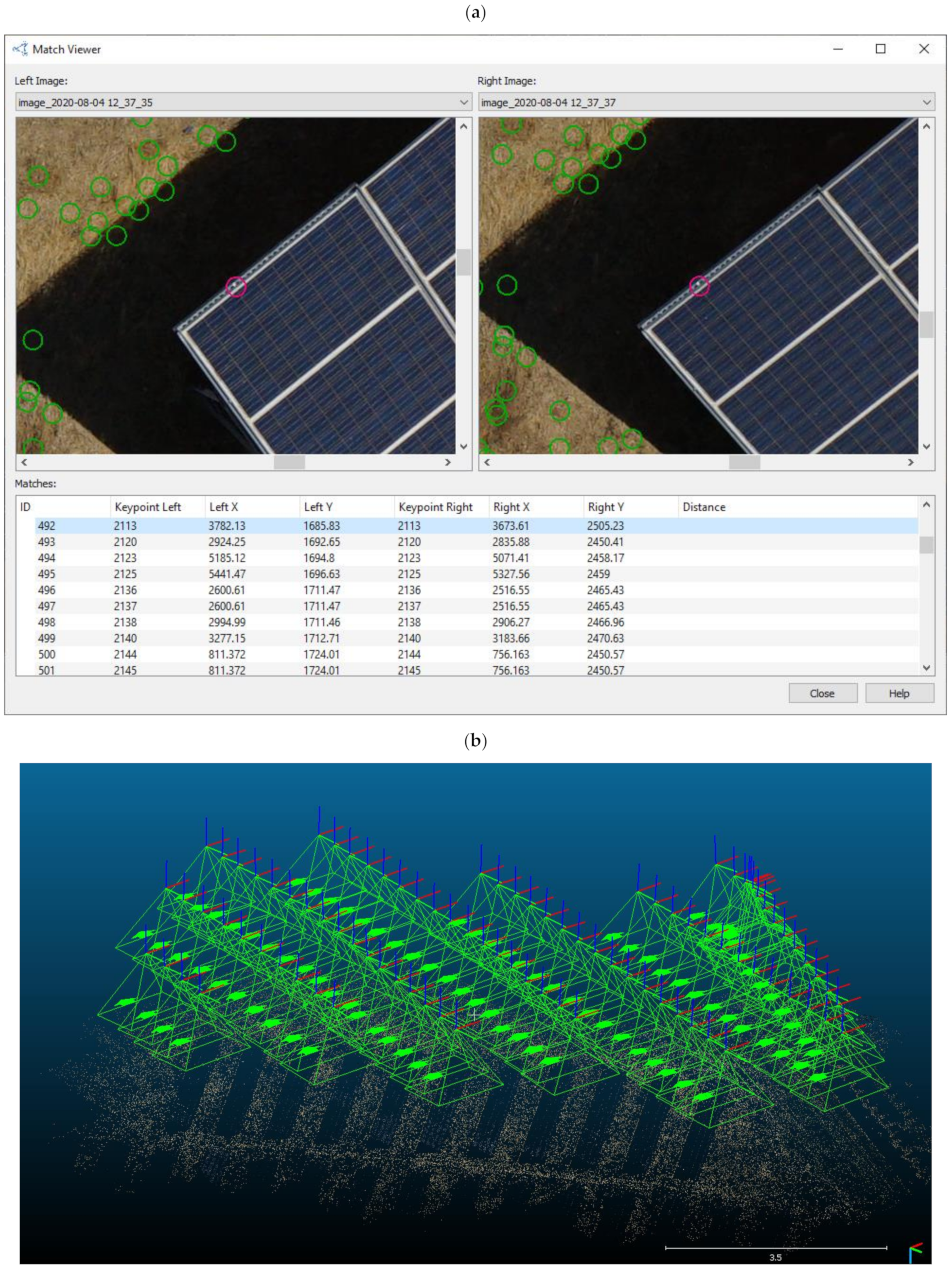

All the images, together with the navigation data, constituted the input data for the photogrammetric process in SunMap following the pipeline outlined in Figure 1. As a result, the extraction and matching of features (Figure 8a) was applied successfully in both visible and thermographic images using SIFTGPU [29], and image-based 3D reconstruction was performed incrementally through an iterative process consisting of relative image orientation, triangulation, and bundle adjustment [32] (Figure 8b).

Regarding the self-calibration of cameras, the Fraser model [45] was applied to estimate two-radial-lens distortion (k1, k2) and two-decentering-lens distortion (p1, p2) parameters together with the focal length (f) and the principal point displacement (cx, cy). The following table (

Table 2. Self-calibration of RGB and IRT cameras in the different case studies.

Location of PV Plants	RGB	IRT
PV plant, Albacete	f: 3549.6891	f: 792.1776
	cx: −13.4458	cx: 10.1731
	cy: 12.6957	cy: 4.4445
	k1: −0.25872317	k1: 0.31691682
	k2: 0.11303087	k2: −0.03630885
	p1: −0.00101272	p1: −0.00292202
	p2: −0.00031058	p2: −0.00170231
PV plant, Caceres	f: 3952.0199	f: 496.8117
	cx: 2944.9719	cx: 326.6674
	cy: 1915.3403	cy: 261.1664
	k1: 0.05358915	k1: −0.30101814
	k2: 0.03855508	k2: 0.137739510
	p1: 0.00617445	p1: −0.00177455
	p2: 0.00389557	p2: −0.00001426

) outlines the inner calibration parameters for the different cameras used.

4.2. Generation of Cartographic Products

The generation of cartographic products was focused on the generation of three-dimensional dense point clouds using the multiple view stereo strategy, followed by the generation of digital terrain and surface models (DTM/DSM) in raster format. Finally, the true orthoimages were generated with an average GSD of 1 cm as a final cartographic product for the geolocation of the hot spots.

For the Albacete PV plant, the dense point cloud obtained contained a total of 410 million points, which were later optimized to a point cloud of 5.2 million points in order to generate both the DTM and the DSM with a GSD of 3.5 cm.

For the Caceres PV plant, the dense point cloud obtained yielded a total of 45 million points, which were later optimized in a point cloud of 18.8 million in order to generate the DTM and the DSM with a GSD of 10 cm. Figure 9 outlines the different cartographic products obtained. These GSDs for the DSMs can be considered valid considering the size of a PV cell.

4.3. Extraction and Detection of PV Panels

The extraction and detection of PV panels was performed following a coarse-to-fine approach applying different advanced linear feature extraction operators and using the true orthoimages as input data, since they have good resolution and are georeferenced in metric coordinates. The results of the discretization process for the PV panels were carried out at three levels (Figure 10): (i) array level (in green), including the entire linear structure composed of a series of rows and columns of panels; (ii) panel level (in red), where the different panels were grouped by rows or columns; and (iii) module level (in yellow), where the different modules that compose the PV panels were discretized.

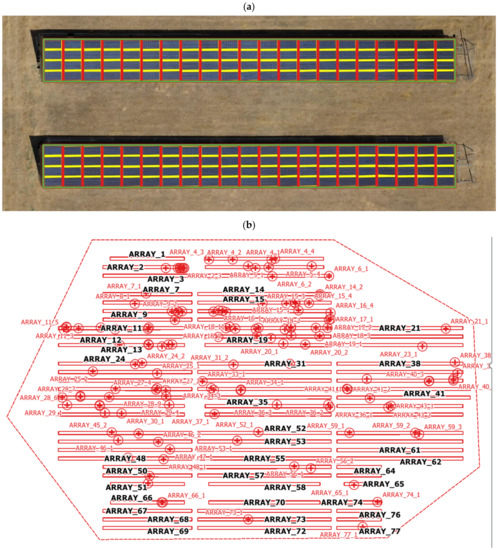

As a result of this process, a geospatial database was generated in shapefile format that contains the hierarchical structure of the arrays, panels, and modules extracted and which is also used to precisely geolocate the hot spots in the expert report.

4.4. Hot Spot Detection and Report Generation

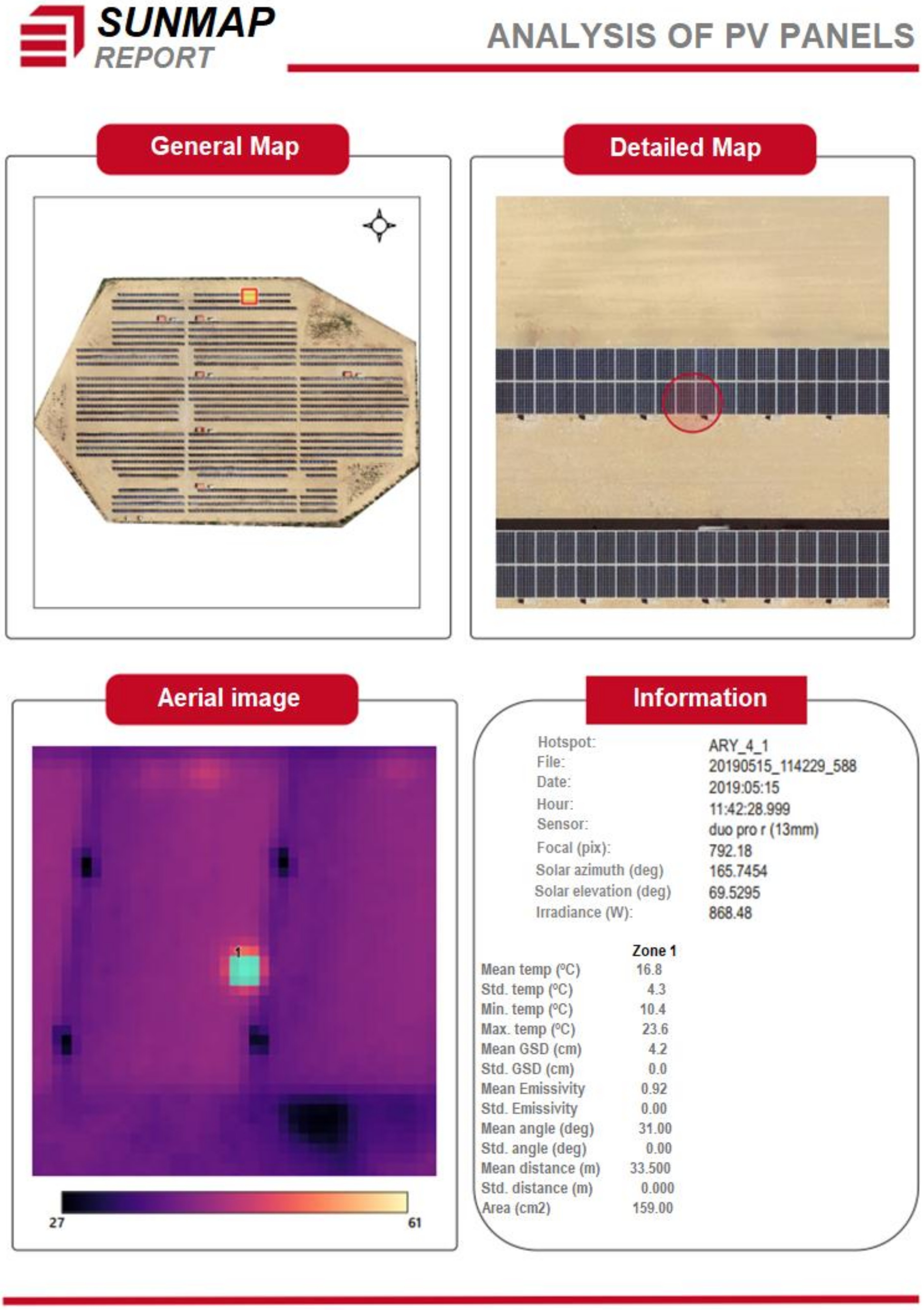

Finally, the hot spot detection was computed for both PV plants in UTM coordinates, including semantic information regarding array-panel identification and robust statistical information related to the temperature increment (10 °C) and affected area (m²). One of the main advantages of the SunMap tool is the capability to apply different corrections to the thermographic images (i.e., distance, angle, reflection and atmospheric), together with providing a robust statistical analysis of hot spots. As a result, a new table (

Table 3. Geolocation of hot spots in UTM coordinates and identification of the array and panel affected.

Location of PV Plants	Hot Spot Coordinates	Semantic Information	ΔΤμεδιαν	ΔΤΒΩΜς	ΔΤμιν	ΔΤμαξ	Area
	(X, Y, UTM)	(Array/Panel)	(°C)	(°C)	(°C)	(°C)	(m2)
PV plant, Albacete	H1: (608693.292, 4298641.314)	Array_2_Panel_6	14.8	0.2	14.6	15.2	0.0006
	H2: (608686.307, 4298603.146)	Array_9_ Panel_1	15.7	2.4	10.1	30.3	0.1514
	H3: (608593.379, 4298588.754)	Array_11_ Panel_4	12.1	1.5	10	16.3	0.0343
	H4: (608722.99, 4298602.731)	Array_16_ Panel_6	12.9	2	10	15.4	0.0184
	H5: (608816.908, 4298616.944)	Array_14_ Panel_1	14	2.6	10.1	20.7	0.0963
	H6: (608804.4, 4298573.71)	Array_20_ Panel_2	15.2	0.6	14.2	15.9	0.0099
	H7: (608762.854, 4298588.594)	Array_18_ Panel_5	14.7	3.3	10.4	23.2	0.0596
	H8: (608684.113, 4298520.685)	Array_29_ Panel_4	14.1	2.2	10.1	20.9	0.0426
	H9: (608636.663, 4298534.604)	Array_27_ Panel_1	13	2	10.1	17.5	0.02
	H10: (608681.254, 4298528.101)	Array_28_ Panel_9	12.5	2.1	10.5	15.4	0.0092
	H11: (608913.738, 4298541.88)	Array_42_ Panel_1	13.4	2.6	10.1	20.9	0.0879
	H12: (608665.377, 4298451.152)	Array_51_ Panel_1	12.5	0.2	11.8	13.5	0.0022
	H13: (608677.44, 4298434.384)	Array_66_ Panel_2	11.6	0.9	10	14	0.0343
PV plant, Caceres	H1: (271960.445, 4338451.632)	Array_2_ Panel_2	14.6	0.1	14.4	15	0.0986
	H2: (271961.776, 4338450.219)	Array_2_ Panel_6	14.8	3.3	10.8	18.3	0.011
	H3: (271987.440, 4338413.552)	Array_11_ Panel_3	14.1	2.7	10	22	0.8326
	H4: (271967.000, 4338424.524)	Array_11_ Panel_5	14	2.2	10.3	23.1	0.0983
	H5: (271965.387, 4338422.592)	Array_12_ Panel_6	14.5	2.5	10.4	20.3	0.0381
	H6: (271919.947, 4338350.703)	Array_16_ Panel_3	12.7	0.2	12.1	13.9	0.0185
	H7: (271923.550, 4338333.465)	Array_18_ Panel_3	13.3	1.6	10	19.4	0.1876
	H8: (272004.211, 4338386.299)	Array_26_ Panel_5	13.9	2.2	10	22.3	0.0946
	H9: (271956.918, 4338359.317)	Array_28_ Panel_9	14.3	2.4	10.3	21.7	0.0116
	H10: (271988.745, 4338342.373)	Array_30_ Panel_6	14.2	3	10.1	21	0.1218
	H11: (271941.599, 4338307.870)	Array_31_ Panel_5	10.6	0.1	10.4	10.7	0.0016
	H12: (271933.203, 4338305.567)	Array_31_ Panel_6	13.9	2.2	10	20.9	0.0518
	H13: (271922.018, 4338306.404)	Array_31_ Panel_7	11.8	1.9	10	15.8	0.0216
	H14: (271975.008 4338333.946)	Array_34_ Panel_7	14.5	3.6	10.6	20.8	0.048
	H15: (272079.122, 4338433.789)	Array_38_ Panel_7	12.7	0.3	12.4	13	0.2917
	H16: (271961.229, 4338315.750)	Array_51_ Panel_10	12.9	0	12.8	12.9	0.002

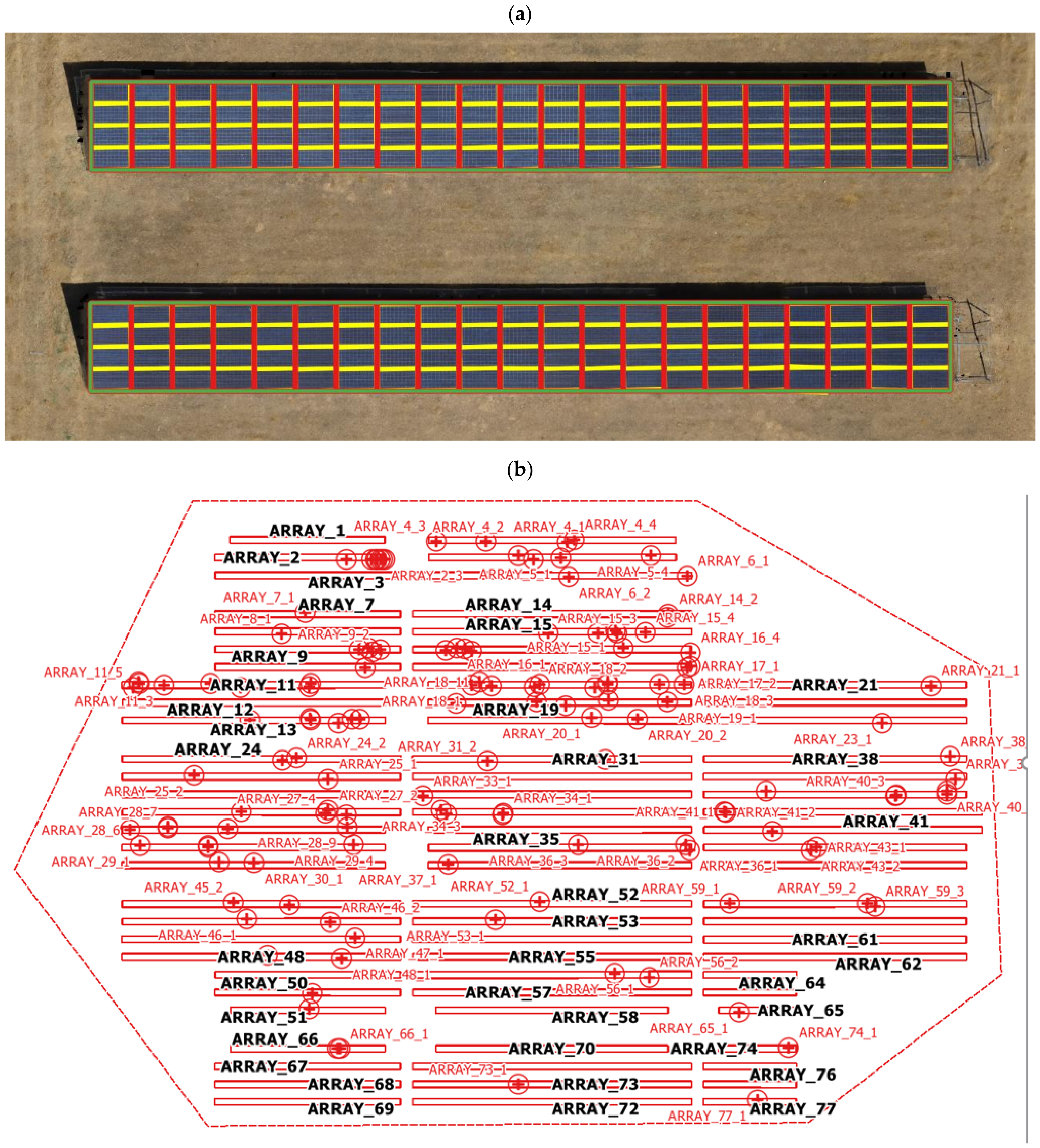

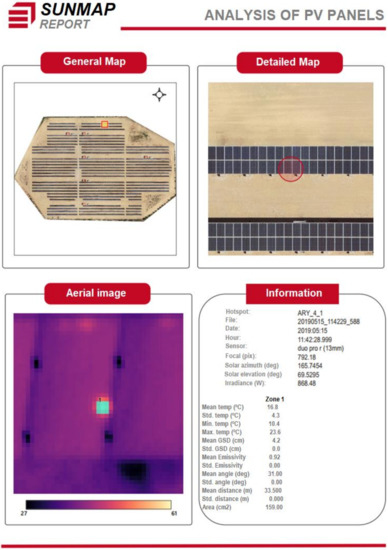

) has been created including statistical information alongside the geometry of the set of pixels corresponding to a hot spot. All this information is included in the final expert report following the structure outlined in Figure 11.

5. Discussion

In this section, we discuss the core aspects of this article: (1) drone acquisition; (2) photogrammetric processing; and (3) hot spot detection.

Regarding drone acquisition, multirotor and multimodal imagery (i.e., RGB and IRT) are key starting points to which particular attention should be paid. In particular, a flight planning mission is essential for guaranteeing automation of inspection, especially considering the different technical features of RGB and IRT cameras in terms of resolution, field of view, etc. In those cases where a simultaneous acquisition flight is not possible, two different flights will be required. Our flight-planning software [44] allows dealing with all these specifications, providing successful integration of RGB and IRT cameras.

Drone photogrammetry has successfully proven its efficiency and reliability in PV plant inspection. Drone photogrammetry supported by SfM and MVS is autonomous and saves time and cost; however, real-time processing is not possible, requiring postprocessing of the multimodal dataset acquired. Although different projects have implemented aerial drones for image acquisition, the majority did not take advantage of the full benefits of modern photogrammetry and computer vision workflow. In particular, the images acquired in other approaches were not orthorectified based on true orthoprojection. This prevents making accurate measurements, which simplify quantitative assessment of defective regions. These true orthoimages can be also integrated into a GIS, enabling spatial analysis operations and establishing a regular database for the inspected PV plant.

Regarding hot spot detection, although different works have tested artificial intelligence approaches, they require creating a complete benchmark, which is always a significant drawback. To this end, a hybrid and a coarse-to-fine method seems to be an efficient method for accurately and reliably detecting hot spot faults. RGB and IRT images complement each other, so a robust analysis can be performed to extract the different elements and detect false hot spots. Different projects have addressed the automatic extraction of modules, cells and defects through image processing pipelines, but noise reduction in IRT images is often a problem for applying further processing operations such as segmentation, edge extraction, and hot spot detection. In this regard, we considered a rigorous correction of IRT images based on distance, reflection, atmosphere and incident angle. Last but not least, a robust statistical analysis was used for the detection of hot spots in IRT images. Thresholds were selected based on statistical assumptions regarding the temperature distribution, as well as additional assumptions related to the correction of reflection from other PV modules.

6. Conclusions

This study presents a rigorous method for detecting hot spots in PV plants using an in-house software application, SunMap, which been proposed and validated. SunMap is a novel tool based on drone photogrammetry that is able to automatically detect and geolocate hot spot faults in PV plants. Moreover, the tool enables the generation of high-detailed cartographic products by means of 3D models and true orthoimages, which complement the maintenance and inspection operations required for this type of critical infrastructure. The tool was successfully validated in two different PV plants to provide accurate and reliable checking of hot spot faults.

In summary, the principal conclusions based on the results obtained with the SunMap tool are:

• A rigorous photogrammetric approach able to deal with RGB and IRT images is provided.
• 3D dense models and true orthoimages are generated automatically with high quality and metric properties.
• Automatic extraction and database coding of the structural information regarding the PV panels is integrated into the software, guaranteeing subpixel precision.
• Important thermographic corrections and robust statistical analysis are encoded within the software, providing rigorous thermographic treatment of images.
• The hot spot detection is reliable and accurate, and is reinforced with an expert report which integrates all the information required for maintenance operations.

In terms of future perspectives, the classification of pathologies according to IEC TS 62446-3, including Deep Learning techniques using geometric and radiometric information as input data, will be considered as next steps.
