# Biologically-Inspired Intelligent Flocking Control for Networked Multi-UAS with Uncertain Network Imperfections

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

#### 1.1. Motivation

#### 1.2. Related Works

#### 1.3. Main Contributions

- The knowledge of system dynamics is not fully or partially required.
- It has the capabilities of overcoming the network-induced delay, handling the uncertainties, and noise/disturbance rejection.
- It is appropriate for real-time implementation due to its low computational complexity (i.e., the developed algorithm is a real-time applicable learning technique).
- It ensures the stability of the system.

## 2. Problem Formulation and Preliminaries

#### 2.1. Flock Modelling

- (i).
- ${u}_{i}^{\alpha}$ is the interaction component between two $\alpha $-agents and is defined as follows:$$\begin{array}{cc}\hfill {u}_{i}^{\alpha}& ={c}_{1}^{\alpha}{\displaystyle \sum _{j\in {N}_{i}^{\alpha}}}{\varphi}_{\alpha}\left({\parallel {q}_{j}\left(t\right)-{q}_{i}\left(t\right)\parallel}_{\sigma}\right){\mathbf{n}}_{i,j}\hfill \\ & +{c}_{2}^{\alpha}{\displaystyle \sum _{j\in {N}_{i}^{\alpha}}}{a}_{ij}\left(q\right)({p}_{j}\left(t\right)-{p}_{i}\left(t\right)),\hfill \end{array}$$$$\begin{array}{cc}\hfill {\mathbf{n}}_{i,j}& =\frac{{q}_{j}\left(t\right)-{q}_{i}\left(t\right)}{\sqrt{1+\u03f5{\parallel {q}_{j}\left(t\right)-{q}_{i}\left(t\right)\parallel}^{2}}},\hfill \\ \hfill {a}_{ij}\left(q\right)& ={\rho}_{h}({\parallel {q}_{j}\left(t\right)-{q}_{i}\left(t\right)\parallel}_{\sigma}/{r}_{\alpha})\in [0,1],j\ne i,\hfill \end{array}$$
- (ii).
- ${u}_{i}^{\beta}$ is the interaction component between the $\alpha $-agent and an obstacle (named the $\beta $-agent) and is defined as follows:$$\begin{array}{cc}\hfill {u}_{i}^{\beta}& ={c}_{1}^{\beta}{\displaystyle \sum _{k\in {N}_{i}^{\beta}}}{\varphi}_{\beta}\left({\parallel {\widehat{q}}_{i,k}-{q}_{i}\parallel}_{\sigma}\right){\widehat{\mathbf{n}}}_{i,k}\hfill \\ & +{c}_{2}^{\beta}{\displaystyle \sum _{k\in {N}_{i}^{\beta}}}{b}_{i,k}\left(q\right)({\widehat{p}}_{i,k}-{p}_{i}),\hfill \end{array}$$$$\begin{array}{cc}\hfill {\widehat{\mathbf{n}}}_{i,k}& =\frac{{\widehat{q}}_{i,k}-{q}_{i}}{\sqrt{1+\u03f5{\parallel {\widehat{q}}_{i,k}-{q}_{i}\parallel}^{2}}},\hfill \\ \hfill {b}_{i,k}\left(q\right)& ={\rho}_{h}({\parallel {\widehat{q}}_{i,k}-{q}_{i}\parallel}_{\sigma}/{d}_{\beta}).\hfill \end{array}$$
- (iii).
- ${u}_{i}^{\gamma}$ is a goal component that consists of a distributed navigational feedback term and is defined as follows:$$\begin{array}{c}\hfill {u}_{i}^{\gamma}=-{c}_{1}^{\gamma}{\sigma}_{1}({q}_{i}-{q}_{r})-{c}_{2}^{\gamma}({p}_{i}-{p}_{r}),\end{array}$$

**Remark**

**1.**

#### 2.2. Network-Induced Delays

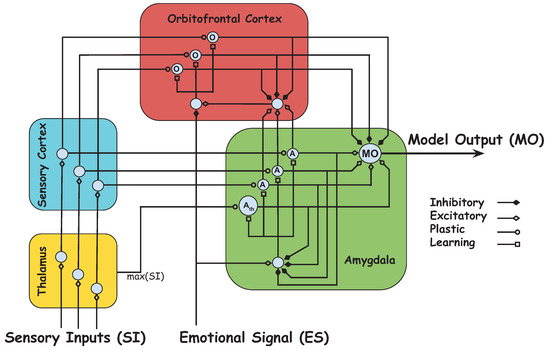

#### 2.3. Brain Emotional Learning-Based Intelligent Controller

#### 2.4. Objectives

## 3. Distributed Intelligent Flocking Control of Networked Multi-UAS Using Emotional Learning

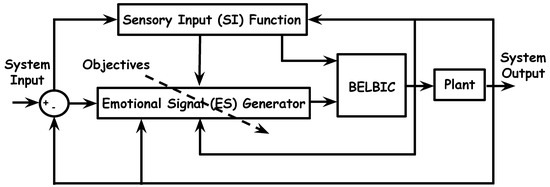

#### 3.1. System Design

#### 3.2. Emotional Signal and Sensory Input Development

#### 3.3. Learning-Based Intelligent Flocking Control

Algorithm 1 : The BELBIC-inspired methodology for distributed intelligent flocking control of networked multi-UAS. |

Initialization: |

Set ${W}_{i}=0$, ${V}_{th}=0$, and ${V}_{i}=0$, for $i=1,\dots ,n$. |

Define $\tau =$ network-induced delay. |

Define $E{S}_{i}=$ Objective function, for $i=1,\dots ,n$. |

for each iteration $t={t}_{s}$ do |

for each agent i do |

Compute $S{I}_{i}={K}_{SI}^{\alpha}{u}_{i}^{\alpha}+{K}_{SI}^{\beta}{u}_{i}^{\beta}+{K}_{SI}^{\gamma}{u}_{i}^{\gamma}$ |

Compute $E{S}_{i}={K}_{ES}^{\alpha}{u}_{i}^{\alpha}+{K}_{ES}^{\beta}{u}_{i}^{\beta}+{K}_{ES}^{\gamma}{u}_{i}^{\gamma}$ |

Compute ${A}_{i}={V}_{i}S{I}_{i}$ |

Compute ${A}_{th}={V}_{th}max\left(S{I}_{i}\right)$ |

Compute $O{C}_{i}={W}_{i}S{I}_{i}$ |

Compute $BE{L}_{i}={\sum}_{i}{A}_{i}-{\sum}_{i}O{C}_{i}$ |

Update ${V}_{i}$ |

Update ${V}_{th}$ |

Update ${W}_{i}$ |

end for |

end for |

#### 3.4. Stability Analysis

**Theorem**

**1.**

- I.
- $\left|\left[1-{K}_{v}{\left(S{I}_{l}\right)}^{2}\right]\right|<1,$
- II.
- $\left|\left[1-{K}_{w}{\left(S{I}_{l}\right)}^{2}\right]\right|<1,$

**Proof.**

**Theorem**

**2.**

**Proof.**

**Remark**

**2.**

## 4. Simulation Results

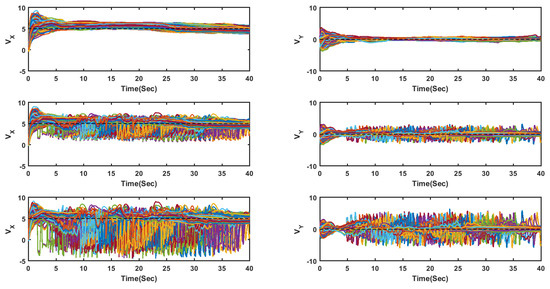

#### 4.1. Flocking of UGVs in an Obstacle-Free Environment

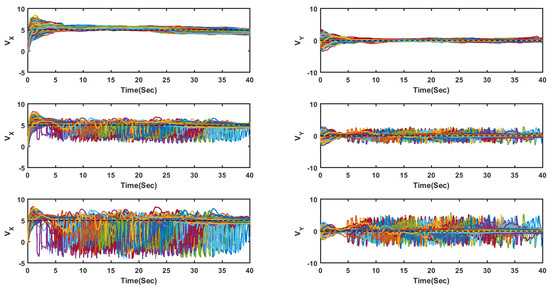

#### 4.2. Flocking of UASs in an Obstacle-Free Environment

## 5. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## Appendix A.

#### Appendix A.1. Non-Adapting Phase

#### Appendix A.2. Main Proof

- I.
- $E{S}_{l}-\widehat{E{S}_{l}}\ge 0,$
- II.
- $E{S}_{l}-\widehat{E{S}_{l}}<0.$

## Appendix B.

## References

- Reynolds, C.W. Flocks, herds and schools: A distributed behavioral model. ACM SIGGRAPH Comput. Graph.
**1987**, 21, 25–34. [Google Scholar] [CrossRef] [Green Version] - Olfati-Saber, R.; Murray, R.M. Consensus problems in networks of agents with switching topology and time-delays. IEEE Trans. Autom. Control
**2004**, 49, 1520–1533. [Google Scholar] [CrossRef] - Olfati-Saber, R. Flocking for multi-agent dynamic systems: Algorithms and theory. IEEE Trans. Autom. Control
**2006**, 51, 401–420. [Google Scholar] [CrossRef] - Liu, B.; Yu, H. Flocking in multi-agent systems with a bounded control input. In Proceedings of the 2009 IWCFTA’09. International Workshop on IEEE Chaos-Fractals Theories and Applications, Los Alamitos, CA, USA, 6–8 November 2009; pp. 130–134. [Google Scholar]
- Jafari, M. On the Cooperative Control and Obstacle Avoidance of Multi-Vehicle Systems. Master’s Thesis, University of Nevada, Reno, NV, USA, 2015. [Google Scholar]
- Xu, H.; Carrillo, L.R.G. Distributed near optimal flocking control for multiple Unmanned Aircraft Systems. In Proceedings of the IEEE 2015 International Conference on Unmanned Aircraft Systems (ICUAS), Denver, CO, USA, 9–12 June 2015; pp. 879–885. [Google Scholar]
- Jafari, M.; Sengupta, S.; La, H.M. Adaptive flocking control of multiple unmanned ground vehicles by using a uav. In Proceedings of the International Symposium on Visual Computing, Las Vegas, NV, USA, 14–16 December 2015; pp. 628–637. [Google Scholar]
- O’Loan, O.; Evans, M. Alternating steady state in one-dimensional flocking. J. Phys. A Math. Gen.
**1999**, 32, L99. [Google Scholar] [CrossRef] - Li, S.; Liu, X.; Tang, W.; Zhang, J. Flocking of Multi-Agents Following a Leader with Adaptive Protocol in a Noisy Environment. Asian J. Control
**2014**, 16, 1771–1778. [Google Scholar] [CrossRef] - Zhang, Q.; Li, P.; Yang, Z.; Chen, Z. Adaptive flocking of non-linear multi-agents systems with uncertain parameters. IET Control Theory Appl.
**2014**, 9, 351–357. [Google Scholar] [CrossRef] - Dong, Y.; Huang, J. Flocking with connectivity preservation of multiple double integrator systems subject to external disturbances by a distributed control law. Automatica
**2015**, 55, 197–203. [Google Scholar] [CrossRef] - Jafari, M.; Xu, H.; Carrillo, L.R.G. Brain Emotional Learning-Based Intelligent Controller for flocking of Multi-Agent Systems. In Proceedings of the 2017 IEEE American Control Conference (ACC), Seattle, WA, USA, 24–26 May 2017; pp. 1996–2001. [Google Scholar]
- Chopra, N.; Spong, M.W. Output synchronization of nonlinear systems with time delay in communication. In Proceedings of the 2006 45th IEEE Conference on IEEE, Decision and Control, Sydney, Australia, 13–15 December 2006; pp. 4986–4992. [Google Scholar]
- Nourmohammadi, A.; Jafari, M.; Zander, T.O. A Survey on Unmanned Aerial Vehicle Remote Control Using Brain–Computer Interface. IEEE Trans. Hum. Mach. Syst.
**2018**, 48, 337–348. [Google Scholar] [CrossRef] - Wan, Z. Flocking for Multi-Agent Dynamical Systems. Master’s Thesis, University of Waterloo, Waterloo, ON, Canada, 2012. [Google Scholar]
- Yang, Z.; Zhang, Q.; Jiang, Z.; Chen, Z. Flocking of multi-agents with time delay. Int. J. Syst. Sci.
**2012**, 43, 2125–2134. [Google Scholar] [CrossRef] - Liu, Y.; Ho, D.W.; Wang, Z. A new framework for consensus for discrete-time directed networks of multi-agents with distributed delays. Int. J. Control
**2012**, 85, 1755–1765. [Google Scholar] [CrossRef] [Green Version] - Kar, S.; Moura, J.M. Distributed consensus algorithms in sensor networks with imperfect communication: Link failures and channel noise. IEEE Trans. Signal Process.
**2009**, 57, 355–369. [Google Scholar] [CrossRef] - Mehrabian, A.R.; Khorasani, K. Distributed formation recovery control of heterogeneous multiagent euler–lagrange systems subject to network switching and diagnostic imperfections. IEEE Trans. Control Syst. Technol.
**2016**, 24, 2158–2166. [Google Scholar] [CrossRef] - Zhang, Q.; Li, P.; Yang, Z.; Chen, Z. Distance constrained based adaptive flocking control for multiagent networks with time delay. Math. Probl. Eng.
**2015**, 2015. [Google Scholar] [CrossRef] - Cao, Y.; Oguchi, T. Coordinated Control of Mobile Robots with Delay Compensation Based on Synchronization. In Sensing and Control for Autonomous Vehicles; Springer: Berlin, Germany, 2017; pp. 495–514. [Google Scholar]
- Dashti, Z.A.S.; Gholami, M.; Jafari, M.; Shoorehdeli, M.A.; Teshnehlab, M. Speed control of a Digital Servo System using parallel distributed compensation controller and Neural Adaptive controller. In Proceedings of the 2013 13th Iranian Conference on IEEE, Fuzzy Systems (IFSC), Qazvin, Iran, 27–29 August 2013; pp. 1–6. [Google Scholar]
- Jafari, M.; Xu, H.; Garcia Carrillo, L.R. A neurobiologically-inspired intelligent trajectory tracking control for unmanned aircraft systems with uncertain system dynamics and disturbance. Trans. Inst. Meas. Control
**2018**. [Google Scholar] [CrossRef] - Jafari, M.; Sarfi, V.; Ghasemkhani, A.; Livani, H.; Yang, L.; Xu, H.; Koosha, R. Adaptive neural network based intelligent secondary control for microgrids. In Proceedings of the 2018 IEEE Texas Power and Energy Conference (TPEC), College Station, TX, USA, 8–9 February 2018; pp. 1–6. [Google Scholar]
- Moren, J.; Balkenius, C. A computational model of emotional learning in the amygdala. Anim. Anim.
**2000**, 6, 115–124. [Google Scholar] - Lucas, C.; Shahmirzadi, D.; Sheikholeslami, N. Introducing BELBIC: brain emotional learning based intelligent controller. Intell. Autom. Soft Comput.
**2004**, 10, 11–21. [Google Scholar] [CrossRef] - Kim, J.W.; Oh, C.Y.; Chung, J.W.; Kim, K.H. Brain emotional limbic-based intelligent controller design for control of a haptic device. Int. J. Autom. Control
**2017**, 11, 358–371. [Google Scholar] [CrossRef] - Rizzi, C.; Johnson, C.G.; Fabris, F.; Vargas, P.A. A situation-aware fear learning (SAFEL) model for robots. Neurocomputing
**2017**, 221, 32–47. [Google Scholar] [CrossRef] - Jafari, M.; Xu, H. A Biologically-Inspired Distributed Intelligent Flocking Control for Networked Multi-UAS with Uncertain Network Imperfections. In Proceedings of the 2018 International Conference on Unmanned Aircraft Systems (ICUAS), Dallas, TX, USA, 12–15 June 2018; pp. 12–21. [Google Scholar]
- Jafari, M.; Xu, H. Intelligent Control for Unmanned Aerial Systems with System Uncertainties and Disturbances Using Artificial Neural Network. Drones
**2018**, 2, 30. [Google Scholar] [CrossRef] - Jafari, M.; Shahri, A.M.; Shouraki, S.B. Attitude control of a quadrotor using brain emotional learning based intelligent controller. In Proceedings of the 2013 13th Iranian Conference on IEEE, Fuzzy Systems (IFSC), Qazvin, Iran, 27–29 August 2013; pp. 1–5. [Google Scholar]
- Jafari, M.; Shahri, A.M.; Elyas, S.H. Optimal Tuning of Brain Emotional Learning Based Intelligent Controller Using Clonal Selection Algorithm. In Proceedings of the 2013 3th International eConference on IEEE, Computer and Knowledge Engineering (ICCKE), Mashhad, Iran, 31 October–1 November 2013; pp. 30–34. [Google Scholar]
- Lin, C.M.; Chung, C.C. Fuzzy Brain Emotional Learning Control System Design for Nonlinear Systems. Int. J. Fuzzy Syst.
**2015**, 17, 117–128. [Google Scholar] [CrossRef] - Mei, Y.; Tan, G.; Liu, Z. An improved brain-inspired emotional learning algorithm for fast classification. Algorithms
**2017**, 10, 70. [Google Scholar] [CrossRef] - El-Garhy, M.A.A.A.; Mubarak, R.; El-Bably, M. Improving maximum power point tracking of partially shaded photovoltaic system by using IPSO-BELBIC. J. Instrum.
**2017**, 12, P08012. [Google Scholar] [CrossRef] - La, H.M.; Lim, R.; Sheng, W. Multirobot cooperative learning for predator avoidance. IEEE Trans. Control Syst. Technol.
**2015**, 23, 52–63. [Google Scholar] [CrossRef]

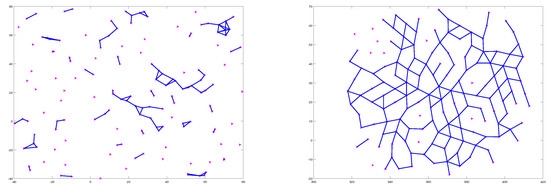

**Figure 3.**Simulation in an obstacle-free environment. (

**Left**) 150 UGVs randomly distributed in a squared area at $t=0$ s. (

**Right**) at $t=40$ s, the 150 UGVs are flocking and have successfully formed a connected network.

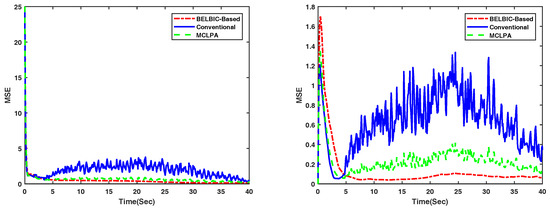

**Figure 5.**Mean Square value of the velocities of all UGVs on the x-axis–(

**Left**) and y-axis–(

**Right**) generated by the overall group of agents when flocking in an obstacle-free environment. The BELBIC-based flocking is presented in dot-dashed red, the MCLPA flocking strategy in [36] in dashed green, and the flocking in [3] in solid blue. Notice that the MSE of the BELBIC-based flocking are smaller, and therefore more appropriate to implement in real-robots.

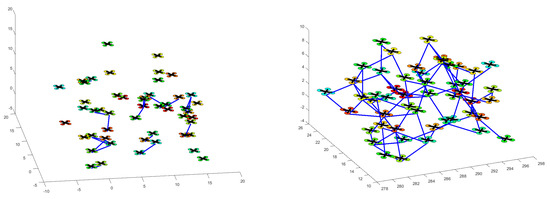

**Figure 6.**Simulation in an obstacle-free environment. (

**Left**) 50 UASs randomly distributed in a squared area at $t=0$ s; (

**Right**) At $t=40$ s, the 50 UASs are flocking and have successfully formed a connected network.

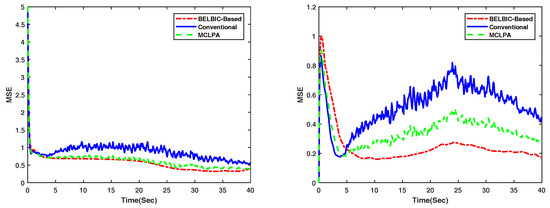

**Figure 8.**Mean Square value of the velocities of all UAVs on the x-axis–(

**Left**) and y-axis–(

**Right**) generated by the overall group of agents when flocking in an obstacle-free environment. The BELBIC-based flocking is presented in dot-dashed red, the MCLPA flocking strategy in [36] in dashed green, and the flocking in [3] in solid blue. Notice that the MSE of the BELBIC-based flocking are smaller, and therefore more appropriate to implement in real-robots.

**Table 1.**Characteristics of the MSE of all flocking strategies for UGVs in the obstacle-free environment.

Flocking in [3] | MCLPA [36] | BELBIC-Based | |
---|---|---|---|

Mean Value on the x-axis | 0.802 | 0.641 | 0.602 |

Standard Deviation on the x-axis | 6.025 × 10^{−5} | 5.566 × 10^{−5} | 0.814 × 10^{−5} |

Mean Value on the y-axis | 0.371 | 0.245 | 0.176 |

Standard Deviation on the y-axis | 6.869 × 10^{−4} | 3.068 × 10^{−4} | 1.324 × 10^{−4} |

**Table 2.**Characteristics of the MSE of all flocking strategies for UAVs in the obstacle-free environment.
