Abstract

Organic synthetic research laboratories generate a large amount of waste. Some of the waste is the silica gel used as the stationary phase in column chromatographic separations. Here, the authors discuss the possibility of recycling silica gel wastes thermally at 600 °C, at which temperature the remnant adsorbed organic material combusts. It could be shown that the recycled silica gel maintains its adsorption characteristics. The process could be repeated 10 times with any discernable deterioration of the separation properties of the silica gel for the product mixture of the reactions used in this research. In those cases where triphenyl oxide remained on the silica gel after the separation of the reaction mixture, such as after Wittig olefination and Appel-type reactions, an increase of phosphorus content was noted in the silica gel after thermal treatment. The original and recycled silica gel was partly analyzed by Brunauer-Emmett-Teller (BET) surface measurements, scanning electron microscopy (SEM), energy-dispersive X-ray spectroscopy (EDS) and in inductively coupled plasma optical emission spectroscopy (ICP-OES). The process significantly reduced waste production in our laboratory and also led to a reduction in costs associated with acquiring new silica gel and with the management and the disposal of spent silica gel. A simple environmental impact assessment has been carried out.

1. Introduction

In organic synthetic chemistry, silica gel is used extensively as the stationary phase in column chromatographic separations of reaction mixtures. Oftentimes, the used silica gel is declared as waste and not re-used. When chemicals remain adsorbed on the silica gel, it needs to be treated as hazardous chemical waste in most countries. Both the waste disposal of spent silica gel and the acquisition of new silica gel is costly, looking at the financial as well as the environmental aspect. There has been an ongoing discussion [1,2,3,4] on the usefulness of recycling silica gel as stationary phase material, where oftentimes the recycling suggested consists of eluting and thereby removing adsorbed substances with polar solvents such as with ethyl acetate and methanol, followed by water and drying the silica gel in an oven at 800 °C [1] or oxidative treatment, e.g., with an aqueous solution of KMnO₄ and H₂SO₄, with subsequent washings with oxalic acid and deionized water, followed by heat treatment at 120 °C [1] or with a treatment of an aqueous solution of H₂O₂ and subsequently deionized water, followed by heat treatment at 120 °C [1]or by H₂O₂—solar light [2]. It has been noted that silica gel will lose adsorbed water at its surface already below 150 °C and that silanol groups will convert to siloxanes at above 300 °C [5,6,7] and that this may lead to structural instability [4] and thus to lower separation properties of the heat-treated silica. In addition, it has been warned against using such recycled silica gel for the work-up of untested reactions in research. Nevertheless, in view of the costs incurred by discarding used silica gel as wastes, the recycling of silica gel in educational and small research laboratories may have to re-addressed. Here, we have studied the possibility of recycling silica gel by simple heating to 600 °C in an oven, thereby combusting the organic residues that remain adsorbed to the silica gel at the end of the column chromatographic separation. The current work also looks at the use of multiple recycled silica gels.

2. Experimental

2.1. General

Silica gel of Merck grade 9385 (fine, pore size 60 Å, 230–400 mesh, bp. 2230 °C, mp. > 1600 °C) was used in the experiments. The thermal treatment of the silica gel during the recycling process was carried out in a Carbolite electrical oven ELF 11-6. For the sieving process of the silica gel after the combustion process, Retsch 180 μm and 425 μm sieves were used. Brunauer-Emmett-Teller (BET) surface area and porosity studies were carried out on a Micromeritics TriStar II Plus 2.03 instrument. P-content was measured by ICP-OES with a Varian 720-ES spectrometer. For the organic products separated on the recycled silica gel, melting points were measured on a Stuart SMP 10 melting point apparatus and are uncorrected. Infrared spectra were measured with a Thermo/Nicolet Nexus 470 FT-IR ESP Spectrometer. ¹H and ¹³C NMR spectra were recorded with a Varian 400 NMR spectrometer (¹H at 395.7 MHz, ¹³C at 100.5 MHz). The assignments of the carbon signals were aided by DEPT 90 and DEPT 135 experiments (DEPT = Distortionless Enhancement by Polarization Transfer). The chemical shifts are relative to TMS (solvent CDCl₃, unless otherwise noted). Mass spectra were measured with a JMS-01-SG-2 spectrometer and with an Agilent QTOF 6540 UHD.

2.2. Thermal Recycling of the Silica Gel

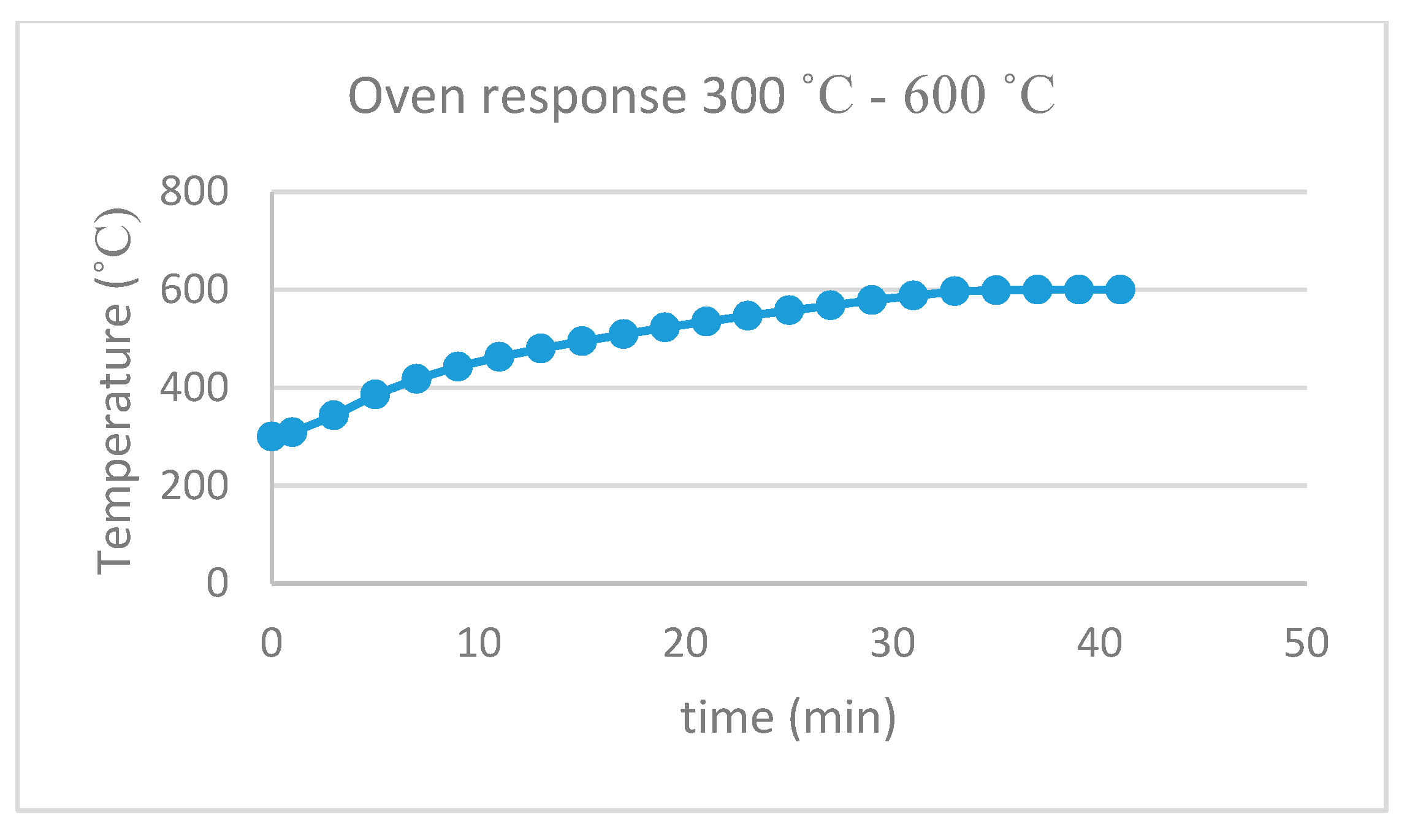

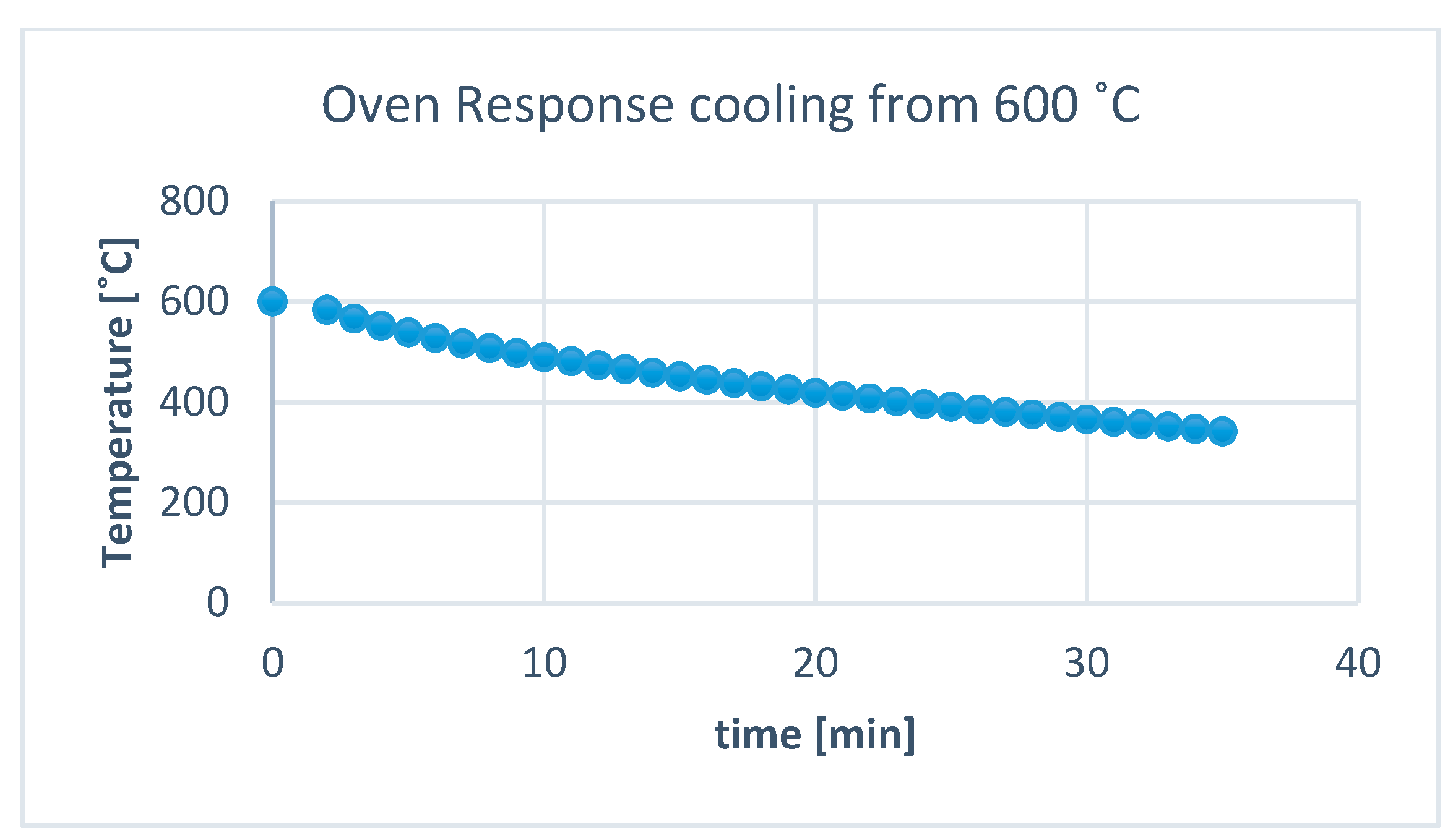

Typically, after the column chromatography of a reaction mixture over silica gel Merck grade 9385, the solvent loaded silica gel was versed onto a glass fritte and air dried with suction, where remaining solvent was collected in a vacuum flask. The dried silica gel was entered into a crucible and pre-heated in a Carbolite electrical oven at 300 °C for 30 min.; thereafter, it was heated at 600 °C for 2 h, which includes a time interval of approximately 35 min. to reach the temperature plateau at 600 °C (see heating response curve, Figure 1). After 2 h, the oven is set back to room temperature, where it takes approximately 35 min. to reach 300 °C (see the cooling curve, Figure 2). After cooling to room temperature, the silica gel is sieved through a 180 μm steel mesh. Experiments have also been carried out at lower (500 °C and 550 °C) temperature and higher temperatures (700 °C). Temperatures lower than 600 °C did not lead to complete combustion of the carbonaceous material. On the other hand, thermal gravimetric analyses (TGAs) of most of our carbon-containing materials have shown that at 600 °C samples combusted completely. Therefore, in order to avoid structural changes to the silica gel and to contain energy use, the authors opted for thermolysis at 600 °C instead of at 800 °C, a temperature that is often used for the complete ashing of carbon-containing materials.

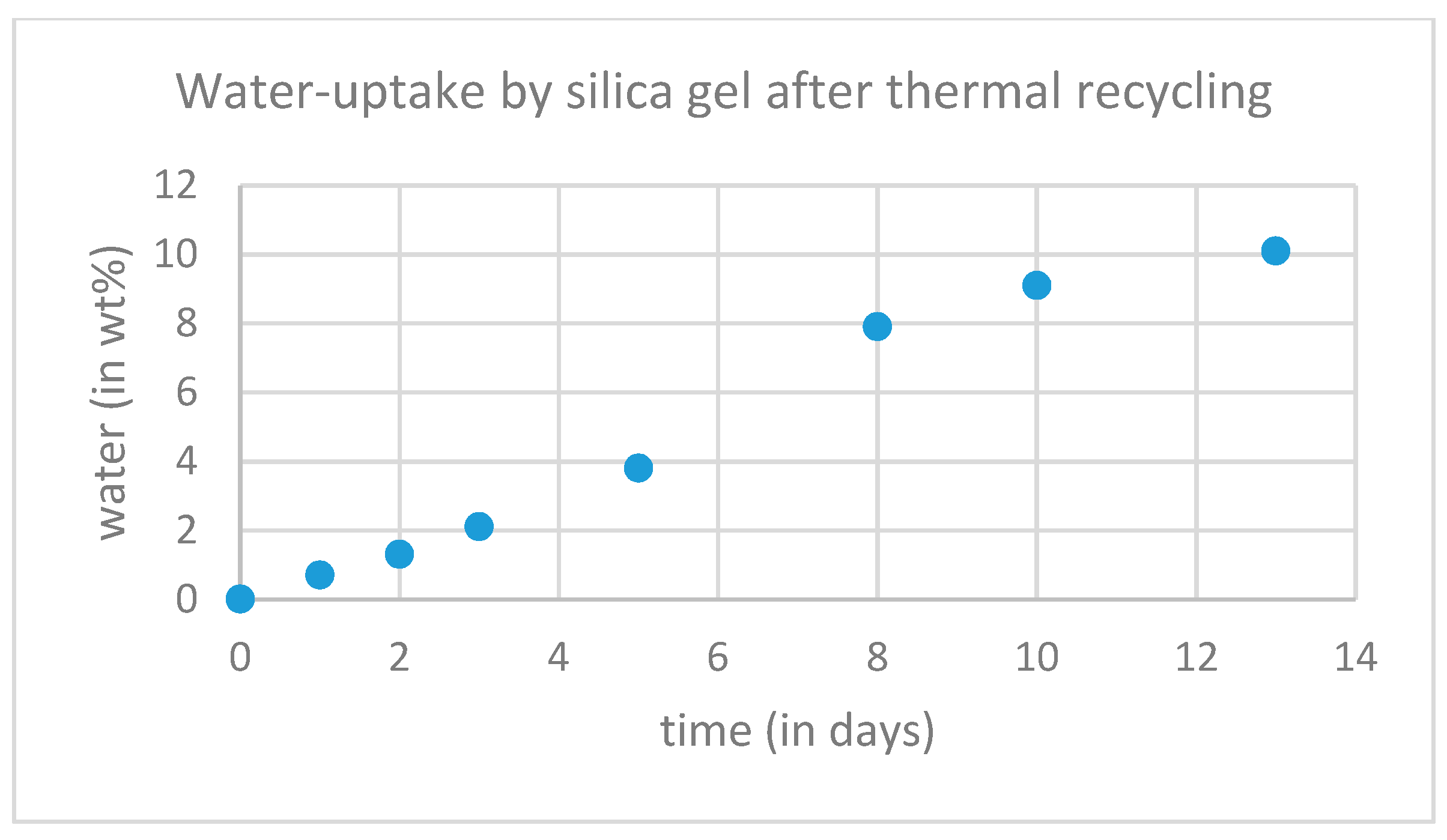

The sieved silica gel is stored in a container and reused only after 3–4 weeks of resting in order to ensure rehydration of the surface of the silica gel. The particles that remain in the sieve and contain sea-sand, if used as a protective layer during the column chromatography, or salts, if the organic reaction mixture has not been extracted with water prior to the chromatography, are collected, sieved through a 425 μm steel mesh, washed with water and dried. The material that remains in the sieve is sea-sand (if used) that is pure enough to re-use in subsequent column chromatography.

2.3. Preparation of Isopropyl 4-Hydroxybenzoate (16) Using Recycled Silica Gel in the Purification Step

To triphenylphosphine (PPh₃, 3.78 g, 14.4 mmol) in CH₂Cl₂ (20 mL) was added dropwise bromotrichloromethane (BrCCl₃, 3.12 g, 15.7 mmol), and the resulting solution was stirred for 35 min. at room temperature, during which time it turned dark-yellow. To the solution was added 4-hydroxybenzoic acid (14) (1.71 g, 12.4 mmol), and the mixture was stirred at reflux for 10 h. Thereafter, the cooled reaction mixture was concentrated and subjected directly to column chromatography on 5 X recycled silica gel (CH₂Cl₂). Thereafter, the fraction comprising the product was extracted with 5w % aqueous NaHCO₃ (50 mL). The organic phase was dried and concentrated in vacuo to give 16 (1.81 g, 81%) as a slowly crystallizing colorless (white) solid, mp. 85 °C (Lit. 88 °C [8]); IR (KBr/cm⁻¹) ν 3400, 1685, 1610, 1590; ¹H NMR (400 MHz, CDCl₃) 1.36 (6H, d, ³J = 6.0 Hz), 5.23 (1H, sept., ³J = 6.0 Hz), 6.89 (2H, d, ³J = 7.6 Hz), 6.98 (1H, bs, OH), 7.95 (2H, d, ³J = 7.6 Hz); ¹³C NMR (100.5 MHz, CDCl₃) 21.2 (2 CH₃), 68.6 (CH), 115.2 (2C, CH), 122.7 (C_quat), 131.9 (2C, CH), 160.4 (C_quat), 166.8 (C_quat, CO).

3. Results and Discussion

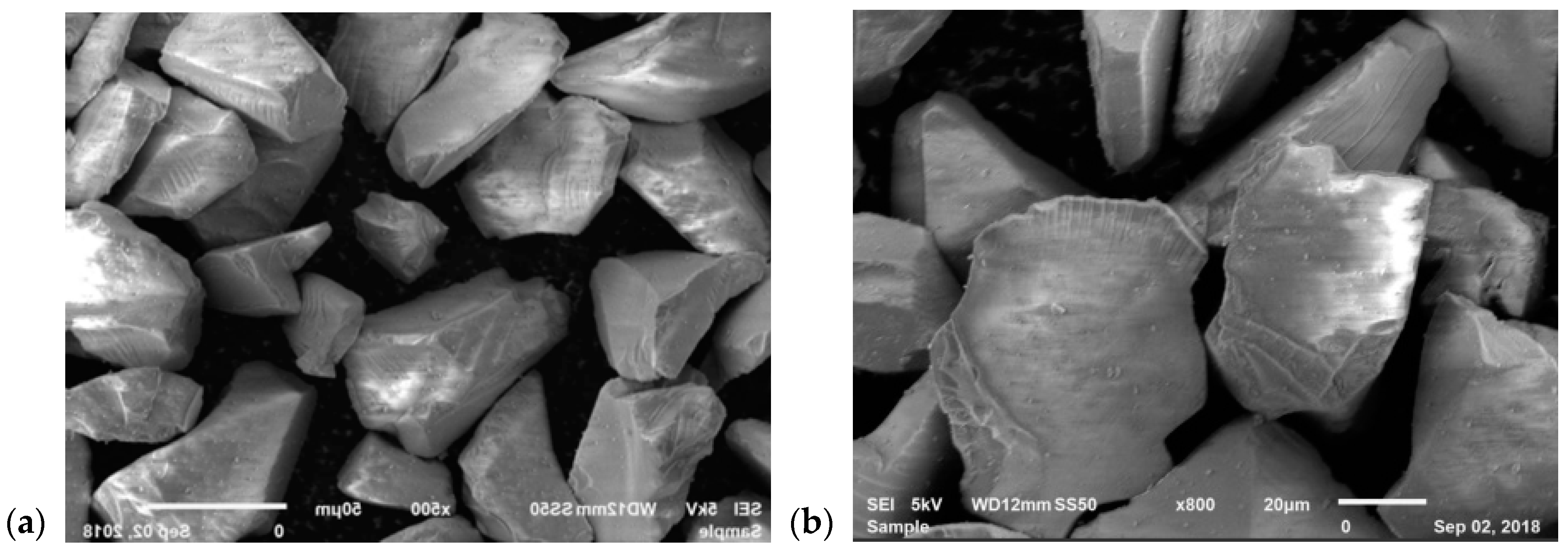

SEM studies (Figure 3) of the original silica gel Merck grade 9385 and for the recycled silica gel (e.g., 5 X recycled) show no noticeable difference in size, in shape or morphology. This is supported by Brunauer-Emmett-Teller (BET) surface measurements with a BET surface area of 394.5 m²/g for the original silica gel, 387.8 m²/g for 1 X recycled silica gel and 422.3 m²/g for 2 X recycled silica gel, showing a slight decrease in BET surface area, but then even a slight increase after the second recycling. The average (adsorption) pore diameter (4 V/A) decreases, however, from 78.5 Å of the original silica gel over 72.7 Å (for 1 x recycled silica gel) to 65.9 Å (for 2 X recycled silica gel). For the original silica gel Merck grade 9385, only Si and O could be found in the EDS measurement. In those instances, where product mixtures were separated which included and left triphenylphosphine oxide on the silica gel after separation, phosphorus content was found on the silica gel in both ICP (P content 960 ppm for 10 X recycled silica gel) and EDS (P content 1.04 w% for 10 X recycled silica gel) measurements. In comparison, the P-content of the commercially bought silica gel Merck grade 9385 was found to be 1.3 ppm. Recently, investigations have appeared on the thermolysis behavior of triarylphosphine oxide, especially when used as building blocks in co-polymers. It is generally thought that the triarylphosphine oxide is converted to phosphoric acid upon combustion and after cooling and hydration [9,10], where it is likely that amounts of polyphosphoric acids remain, where in our case phosphoric acids can also be esterified with silanol groups.

In those cases where sea-sand was used as a protective covering layer in the column chromatography, both the sodium and sulfur contents in the recycled silica gel rose (to 1.4 w% Na and to 775 ppm S for 10 X recycled silica gel).

Clearly, water will be lost when the silica gel is heated. When used as a desiccant, silica gel is recycled at 120 °C. At higher temperatures, it is known that silanols form siloxanes by an ether linkage. Surface siloxane functions in the calcined silica gel are expected to convert back to silanols. This can be expected to happen at room temperature. Using IR- and Raman spectroscopy [11,12,13,14], much work has been performed in the literature on the mechanism of the hydroxylation of silica gel surface, where the ring opening of the strained surface siloxanes is thought to be exothermic. We found that after the thermolysis, the recycled silica gel gradually took up water so that by day 8 (at rt) about 7.9 w%, by day 10 (at rt) 9.1 w% of the mass of the silica gel is water, either bound to the surface of the silica gel, inserted into the silica gel by siloxane cleavage or as interstitial water. By day 13, the water content reached 10.1 w%, after which it did not change (Figure 4). This reflects the result of thermogravimetric measurements of commercially acquired silica gel and 5X recycled silica gel, where weight losses of 11.1 w% and 8.1 w%, respectively, were noted upon heating the samples to 600 °C.

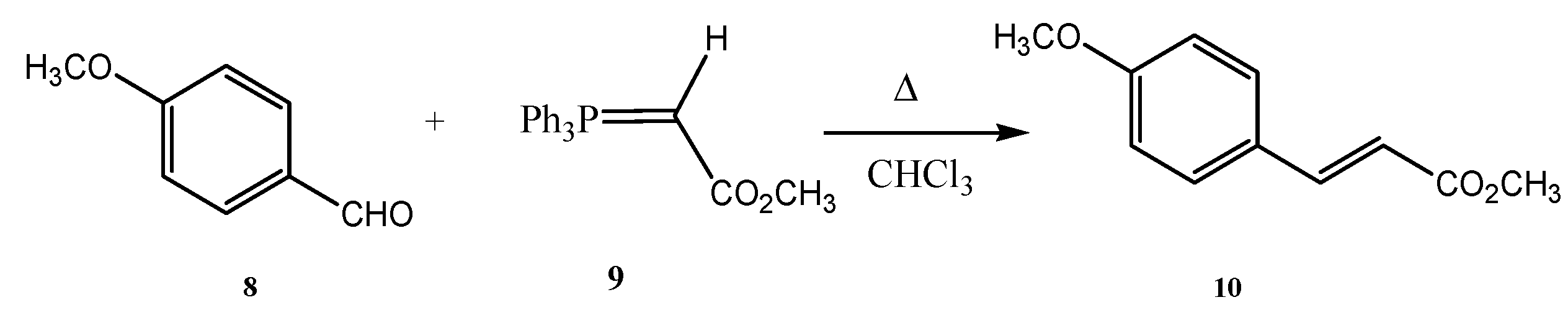

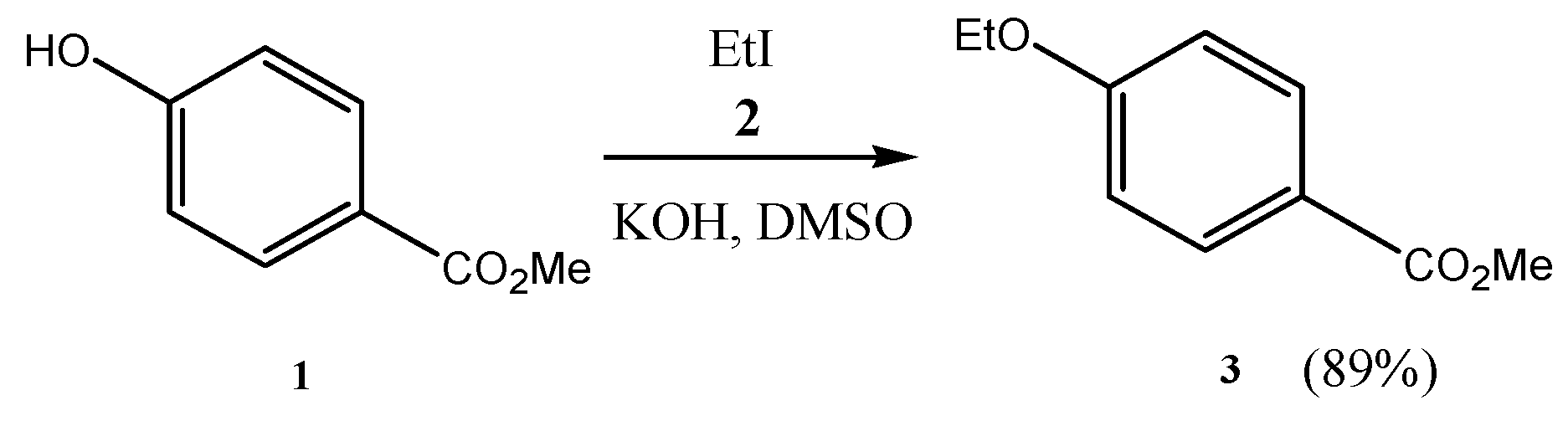

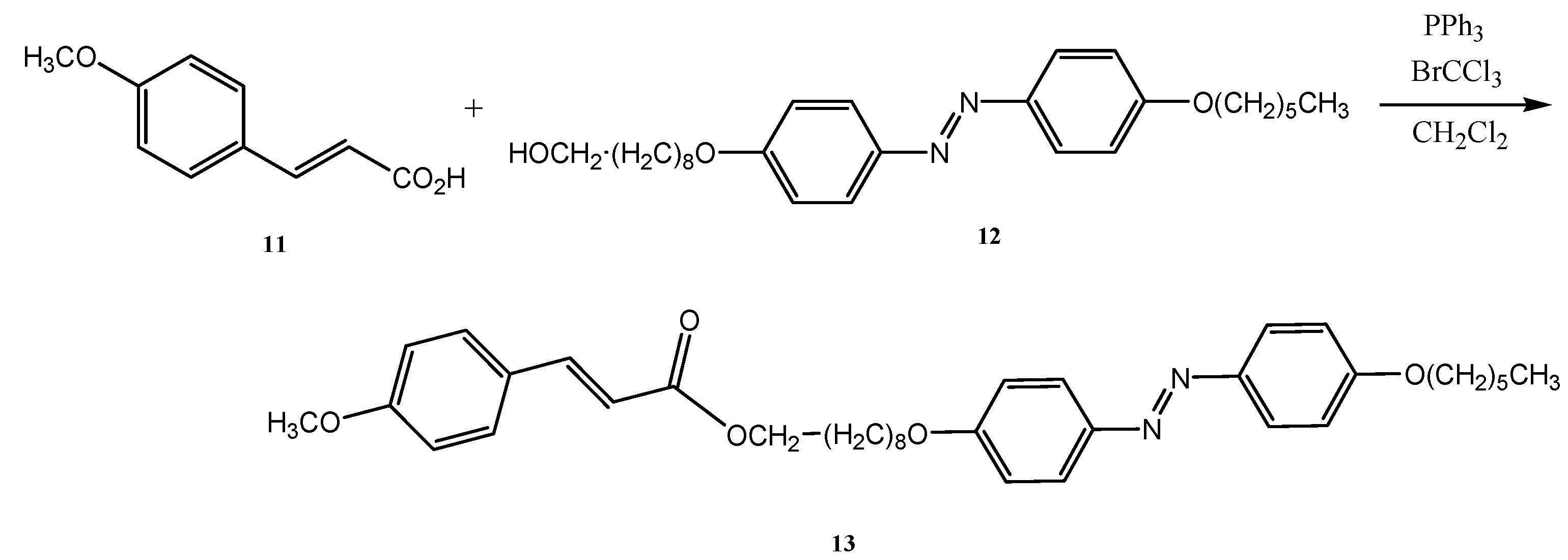

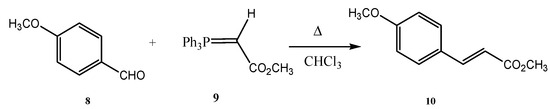

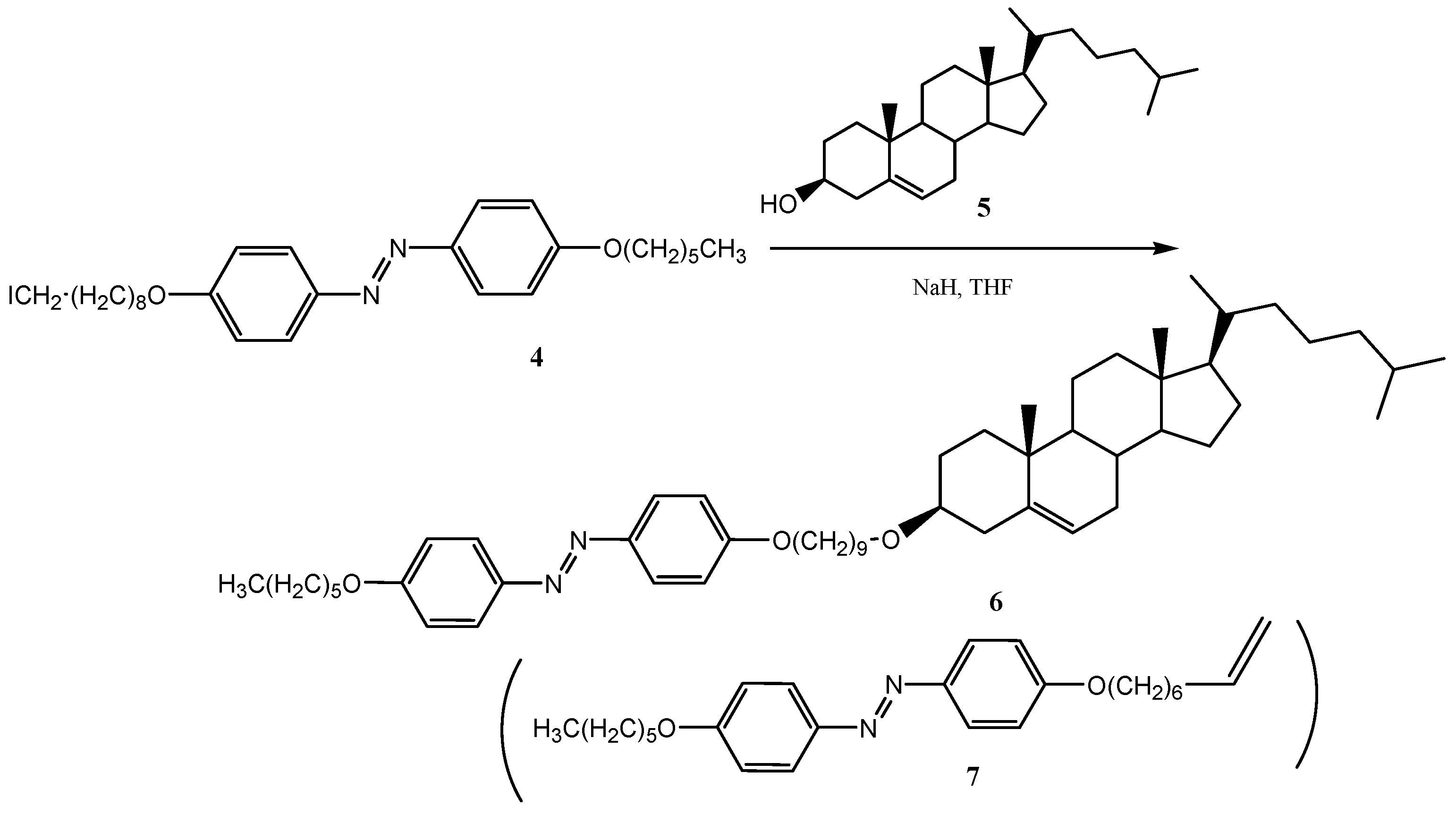

Typical reactions that have been performed and where the reaction mixtures were separated on recycled silica gel are shown in Figure 5, Figure 6, Figure 7 and Figure 8. They include two Williamson ether syntheses to methyl 4-ethoxybenzoate (3) (Figure 5) and to the steroidal azobenzene 6 with alkenylazobenzene 7 as side product (Figure 6) and two reactions that generate triphenylphosphine oxide as a by-product, namely a Wittig reaction to cinnamate 10 (Figure 7) and a Appel-type reaction utilizing BrCCl₃-PPh₃ as a reagent [15] to azo cinnamate 13 (Figure 8). For these reactions, the reaction products could be separated by column chromatography on recycled silica gel to give products in yield and purity equal to the products gained from chromatographic separations with commercial (i.e., non-recycled) silica gel.

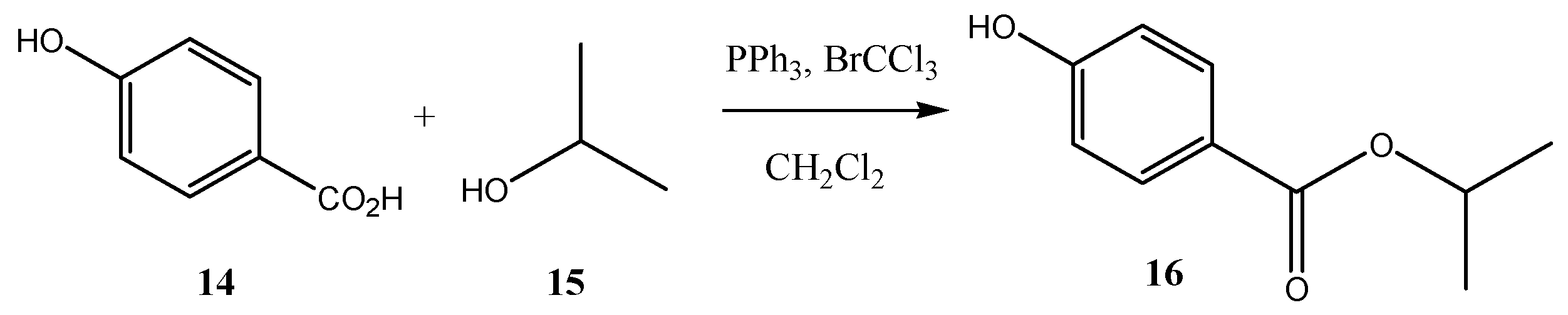

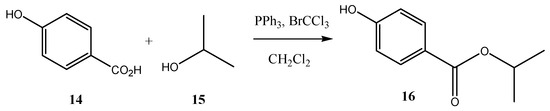

An exception was found to be the purification of isopropyl 4-hydroxybenzoate (16) (Figure 9), prepared by Appel-type esterification from 4-hydroxybenzoic acid (14), using PPh₃/BrCCl₃ as a reagent, where the product partially hydrolyzed on the silica gel during the chromatography. While some hydrolysis was found to occur under identical conditions with commercial silica gel, the yield of the product was by 4% lower using recycled silica gel. The final product could be purified by extraction of the fraction obtained from the column chromatographic separation with an aq. NaHCO₃ solution.

4. Environmental Impact Assessment

The industrial cycle of manufacturing silica gels consists mainly of five steps [16]. These steps are raw material acquisition, the synthesis, washing (acid/liquid filtration), drying and finally the storage [16]. For the production of silica gel, the raw materials used are alkali metal silicate solutions and acids (usually sulphuric acid [H₂SO₄]). The manufacturing starts with the addition of H₂SO₄ to an aqueous solution of sodium silicate to form a silica gel. The silica is then washed to increase its concentration and to get rid of by-products like sodium sulfate (Na₂SO₄). After washing, the silica gel is dried.

For the convenience of study, we can separate these stages into two main stages; the wet stage, and the dry stage. The wet stage represents every step associated with silica gel making, from the use of sodium silicate to washing the silica gel. The dry stage, on the other hand, includes the drying of the filter cake [16] and the packaging and storage of the final product. In the wet stage, a lot of water is used, especially in the washing step to ensure the purity of silica. The wastewater generated from this stage contains suspended solids and has to be pH treated and purified from Na₂SO₄ before it is released into the sea. In the dry stage (the most energy-intensive step), often a lot of water has to be evaporated; it can reach up to 6 tonnes of water for each one tonne of silica gel [16]. For this big amount of water, the dryer used must be very powerful and efficient. Though dependent on the type of silica gel desired by the manufacturers, the dryers used for silica gels need a high-temperature inlet and produce a significant amount of CO₂ emissions and dust. Finally, machines do the packaging where the final product is then put in plastic/paper bags (size: 5–25 kg). Needless to say, these machines also produce waste of dust and emissions to the air.

The following statistics were adapted from a European Commission Report, 2007 [16]. One tonne of silica requires 0.66 tonnes of H₂SO₄, 3.90 tonnes of water glass (as a source aqueous alkali metal solution) and 40 m³ of water. About 15–24 GJ is consumed for the same amount of silica [16]. The NREU (non-renewable energy use) for silica gel is 66.0–77.3 (MJ/kg), and the GWP100 (global warming potential in 100 years) is estimated to be between 3.48–4.12 (kg CO₂-eq/kg) [17]. Other than the energy required for production, treating the waste that comes out at various stages of production can be energy-demanding as well. The solid waste generated is about 29 kg for each tonne of silica on average, which is significantly lower than the waste generated for fumed silica. The treated wastewater generated for one tonne of silica is about 35 m³ on average. As for the emissions, and according to the European Commission Report 2007 [16], they can be classified into air and water emissions. The drying stage generates a large amount of dust; this is, of course, dependent on the drying technique used. On average, for one tonne of silica 1.3 kg of particles are emitted. In addition, if the drying process is generated by natural gas, the emissions of CO and NO_x are estimated to be 0.825 and 0.723 kg respectively on average for each tonne of silica. As for water soluble emissions, they consist mainly of Na₂SO₄ (588 kg/t silica), but also of other particles. These particles are disposed of in the seas/rivers (6.6 kg particles/t silica excluding Na₂SO₄).

To recycle used silica gel in 120 g batches, we used a Carbolite electrical oven ELF 11-6 that consumes 1kW per hour, making for the overall consumption of energy about 60 MJ/kg of silica gel. Comparing with buying new silica gel, we were able to cut down on energy by 10% and although this is not much, recycling larger amounts of silica gel can be of apparent value cutting down on energy, further. Then again, the process we use for recycling silica gel eliminates solid wastes and the use of water almost completely. In addition, during the recycling process, the silica is not physically moved from the laboratory where it is used. This facilitates logistics and circumvents the energy needs and pollution associated with the transport of the material.

5. Conclusions

Silica gel is used in our laboratories for the separation by adsorption chromatography of organic mixtures obtained from the synthesis of organic materials. We use about 22 kg of silica gel every year for our processes. In previous times, we have not treated silica gel wastes but asked that they are taken away as solid chemical waste. In the last 2 years, we have started to recycle silica gel waste by the simple process described above. As often we are separating organic compounds from triphenylphosphine oxide, it is expected that some amounts of phosphoric and polyphosphoric acids remain on the silica gel, and this has been supported by ICP-OES and EDS measurements of the recycled silica gel. Thus far, this has not decreased the quality of the silica gel as chromatographic material. However, that some structural changes of the silica gel do occur can be seen in the decreasing pore diameter (4 V/A) and potentially in a decrease of water uptake with the number of recycling cycles, so that most likely the silica gel cannot be recycled indefinitely. Up until now, 37.5 kg silica gel from 50.7 kg silica wastes has been recycled from our laboratory that would otherwise have been declared as solid chemical waste. This saved the group 1265 Euro [(list price in Europe) = 5350 AED] in not buying new product (37.5 kg of pure silica gel). The waste disposal (51.3 kg of pure silica gel) would have cost 9400 AED. Therefore, apart from minimizing waste streams, 14,750 AED were saved by the procedure. As a final conclusion, it may be said that starting materials for research purposes that are relatively easily separated from their side products can be purified using recycled silica gel. In addition, recycled silica gel can be used in educational laboratories to contain wastes and costs.
