In Silico Study of 5,7-Dimethoxycoumarin and p-Coumaric Acid in Carica papaya Leaves as Dengue Virus Type 2 Protease Inhibitors ^†

Abstract

Dengue virus is a serious public health issue in tropical and subtropical regions. The global incidence of dengue necessitates the potent antiviral medication for the prevention of proliferation of the virus inside the human body. The DEN2 NS2B/NS3 protease, present in the dengue virus, is an attractive drug target due to its essential role in viral replication, survival, and other cellular activities. In traditional medicine, Carica papaya leaves have been used for the treatment of dengue fever in Sri Lanka, Pakistan, and Malaysia. Therefore, phytochemicals present in Carica papaya leaves have a potential anti-viral activity, and could be used as strong drug candidates against the dengue virus. In this investigation, two phytochemical compounds in Carica papaya leaves, 5,7-dimethoxycoumarin and p-coumaric acid, were selected from the literature and then docked against the DEN2 NS2B/NS3 protease. The compounds showed strong interactions with favorable binding energies in the active site of DEN2 NS2B/NS3 protease. To validate the molecular docking results, the docked ligand–protein complexes were subjected to molecular dynamic simulation along with the apo form of the protein for 30 ns. The molecular dynamic simulation analysis comprising root mean square deviation and fluctuation, the radius of gyration, hydrogen bonding, the Dictionary of Secondary Structure of Proteins (DSSP), and MM/PBSA, revealed the stability of the apo and complex systems. Interactions formed by these compounds with residues Leu149 and Asn152 were found to be essential for the stability of the ligand–protein complex. The findings revealed that these phytochemical compounds depict the promising results against the DEN2 serotype of the dengue virus and the potential for therapeutic drugs. Further experimentation on the proposed compounds is necessary to validate the results and could lead to the development of strong inhibitors with improved activity.

1. Introduction

Dengue virus (DENV) is a mosquito-borne flavivirus that causes mild dengue fever to life-threatening complications, dengue hemorrhagic fever, and dengue shock syndrome, resulting in serious public health problems in tropical and subtropical regions [1,2,3]. The rapid spread of this virus, affecting over one million people, has necessitated to search for potent antiviral medication. The Dengue virus genome consists of a single-stranded, positive-sense, RNA molecule that encodes three (3) structural and seven (7) non-structural proteins. The three structural proteins are capsid (C), pre-membrane/membrane (prM/M), and envelope (E), and the non-structural (NS) proteins are: NS1, NS2A, NS2B, NS3, NS4A, NS4B, and NS5 [4]. These non-structural proteins are responsible for viral replication and other cellular functions [5]. There are four types of Dengue virus (DENV-1 to DENV-4). DENV-2 is the cosmopolitan genotype of the four serotypes [6]. NS3 is a multifunctional protein with chymotrypsin-like serine protease, which binds to an NS2B cofactor and involved in cleaving the DENV polyprotein [7,8,9]. This NS2B–NS3 protease complex plays a vital role in the processes of the viral polyprotein and for virus replication [10]. Thus, it is an attractive target for antiviral drug development [11].

Medicinal plants have been known and used for millennia as a rich source of therapeutic agents all over the world. It has been reported that phytochemical compounds are important treatments against DENV [12,13]. The Carica papaya is a flowering plant, which is native to Mexico and South America and is now cultivated in other tropical countries around the globe. Contemporary reports have claimed that Carica papaya extracts exhibit several medicinal properties [14,15,16]. Presently, the use of Carica papaya plant extract has become popular as an unlicensed, (although traditional) herbal remedy for dengue infection in South East Asian countries such as India, Malaysia, Pakistan, and Sri Lanka [17]. The leaves of the Carica papaya contain various types of phytochemicals, specifically, phenolic compound [18]. Furthermore, there have been studies suggesting that Carica papaya leaves have potential anti-viral activity against DENV.

In this study, two phytochemical compounds, 5,7-dimethoxycoumarin and p-coumaric acid from Carica papaya leaves, have been evaluated for their potential inhibitory activity against DENV NS2BNS3 serine protease, using molecular docking and molecular dynamics methods. Therefore, the knowledge and experience gathered from this study could contribute to the efforts in discovering novel and potent anti-viral agonists against DENV.

2. Materials and Methods

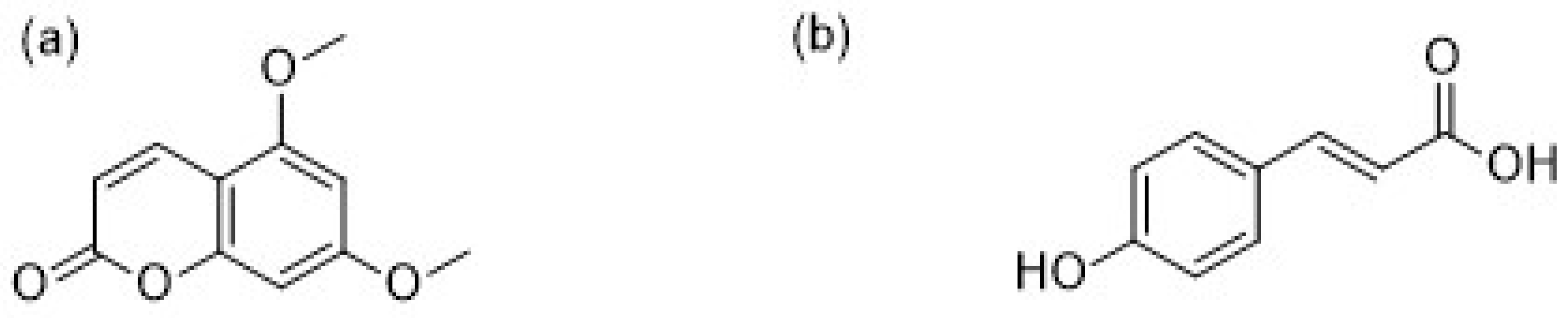

The three-dimensional crystallographic structure of DEN2 NS2B/NS3 serine protease was downloaded from the protein data bank (PDB ID 2FOM, 1.5 Å resolution). Three-dimensional structures of the 5,7-dimethoxycoumarin, p-coumaric acid compounds (Figure 1), and glycerol as a reference molecule, retrieved from the crystallographic structures, were constructed and geometrically optimized using ab initio B3LYP/6-31G(d) density functional theory methodology with the GAMESS software [19]. Molecular docking was performed using DOCK6 software [20,21]. The docking protocol was validated by re-docking the native ligand to the active site of the 2FOM receptor. This was performed using glycerol from the crystallographic structure as a reference. The best conformation was selected regarding the better-superimposed conformation, and the root mean square fluctuation value was recorded. Then, the optimized structure was docked onto a 2FOM receptor by DOCK6 software, and a flexible docking process was performed using a “grid score” scoring function for all ligands which were then ranked. Molecular dynamics (MD) simulations were performed with the best poses obtained from the docking studies. All the MD simulations were performed by using the GROMACS 4.6.5 molecular dynamics software package, and the protein topology was generated using the GROMOS54a7 force field [22,23,24]. The force field parameters for the two (2) ligand compounds were generated using the PRODRG server [25]. The docked complexes were placed in the center in a box of 9 × 9 × 9 nm³ and solvated with simple point-charge (SPC) water model [26]. Cl⁻ ions were added to the system to uphold the electro-neutrality of the systems. The Berendsen’s weak coupling algorithm was used to maintain temperature and pressure at 300 K and 1 bar. Electrostatic interactions were modeled by particle mesh Ewald (PME) with a short-range cut-off of 1.2 nm while systems were simulated for 50 ns run with 2 fs time steps [27]. The same MD protocol was applied for the apo-protein alone to investigate its stability.

The stability of the above systems was studied in terms of root mean square deviations (RMSD) of the backbone of the protein, root mean square fluctuation (RMSF), and radius of gyration of the protein. Furthermore, secondary structure profile analyses of trajectories of the protein–ligand complexes and apo-protein were conducted using Dictionary of Secondary Structure of Proteins (DSSP) analysis [28]. At the end of the simulations of complexes, the non-covalent interactions between ligand and the protein were analyzed by the LigPlot+v.14.5 software. The binding free energies of protein–ligand complexes were calculated based on the Molecular Mechanics–Poisson Boltzmann Surface Area (MM-PBSA) method using the g_mmpbsa GROMACS utility [29,30]. The binding free energy comprises three energetic terms: potential energy in a vacuum, non-polar solvation energy, and polar solvation energy.

3. Results

3.1. Molecular Docking

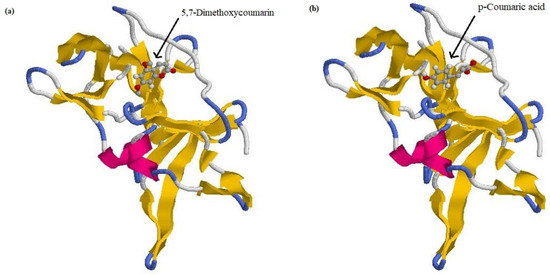

The validation results of the re-docking of the reference molecule revealed the RMSD value to be 1.02 Å. If an RMSD value is <2.0 Å for the best-scored conformation, it is a successful prediction [31]. A view of the 5,7-dimethoxycoumarin docked into protein is given in Figure 2a. The docked structure of the p-coumaric acid–protein is given in Figure 2b. The recorded best grid score for the 5,7-dimethoxycoumarin–protein complex was −26.35 kcal mol⁻¹. For p-coumaric acid–protein it was −27.08 kcal mol⁻¹, and it was bound to the same binding site as 5,7-dimethoxycoumarin in protein.

3.2. Molecular Dynamics Analysis

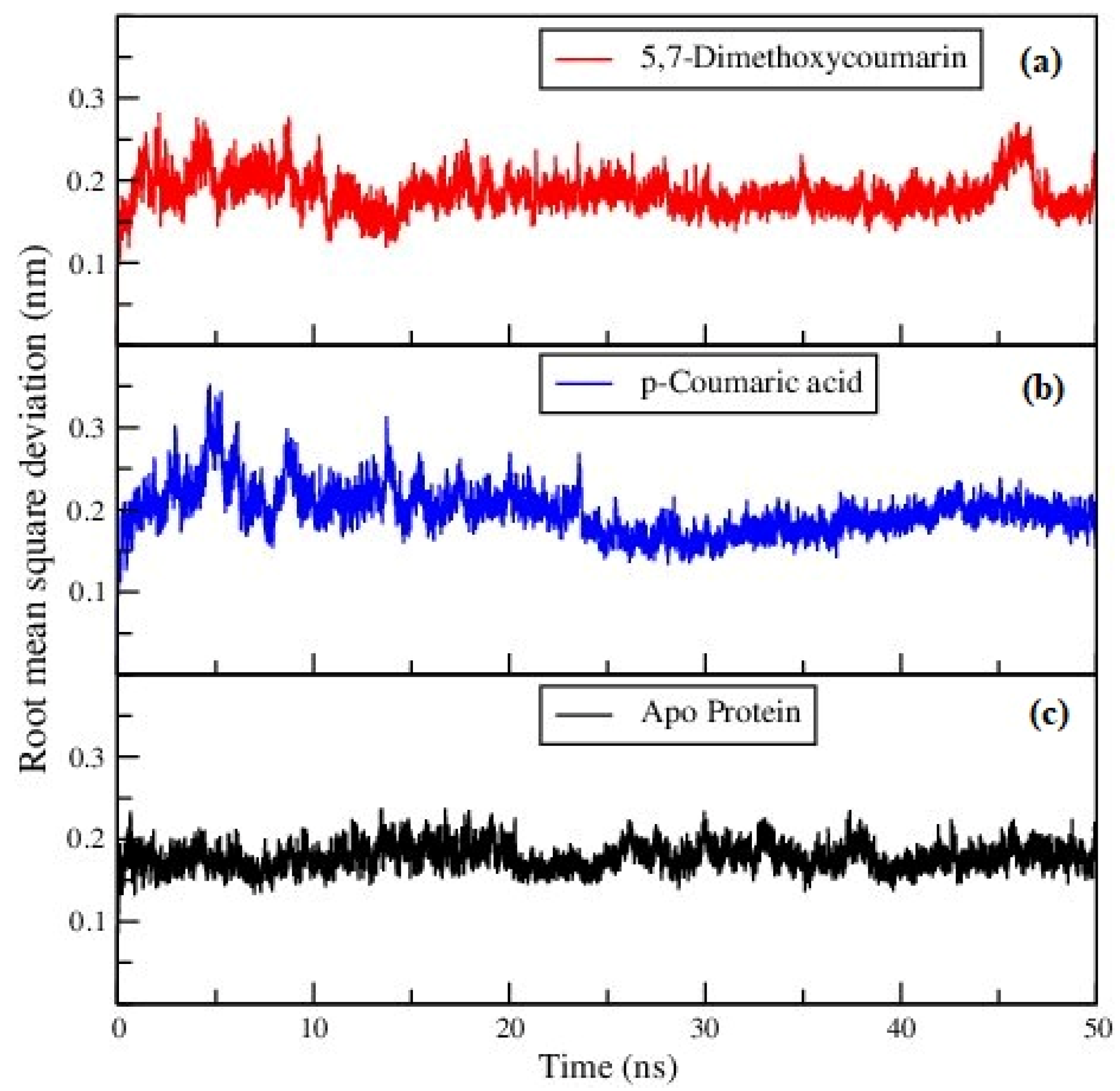

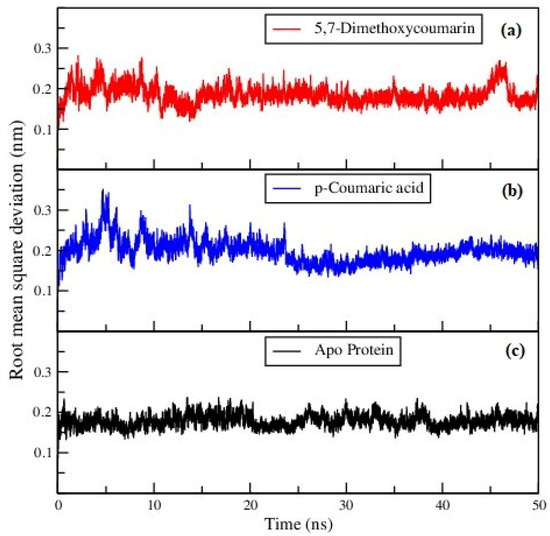

Figure 3 represents the RMSD of the backbone of the ligand–protein complexes and apo-protein. The RMSD parameter indicates reasonable stability of proteins after binding with the ligands, and also in the apo-protein.

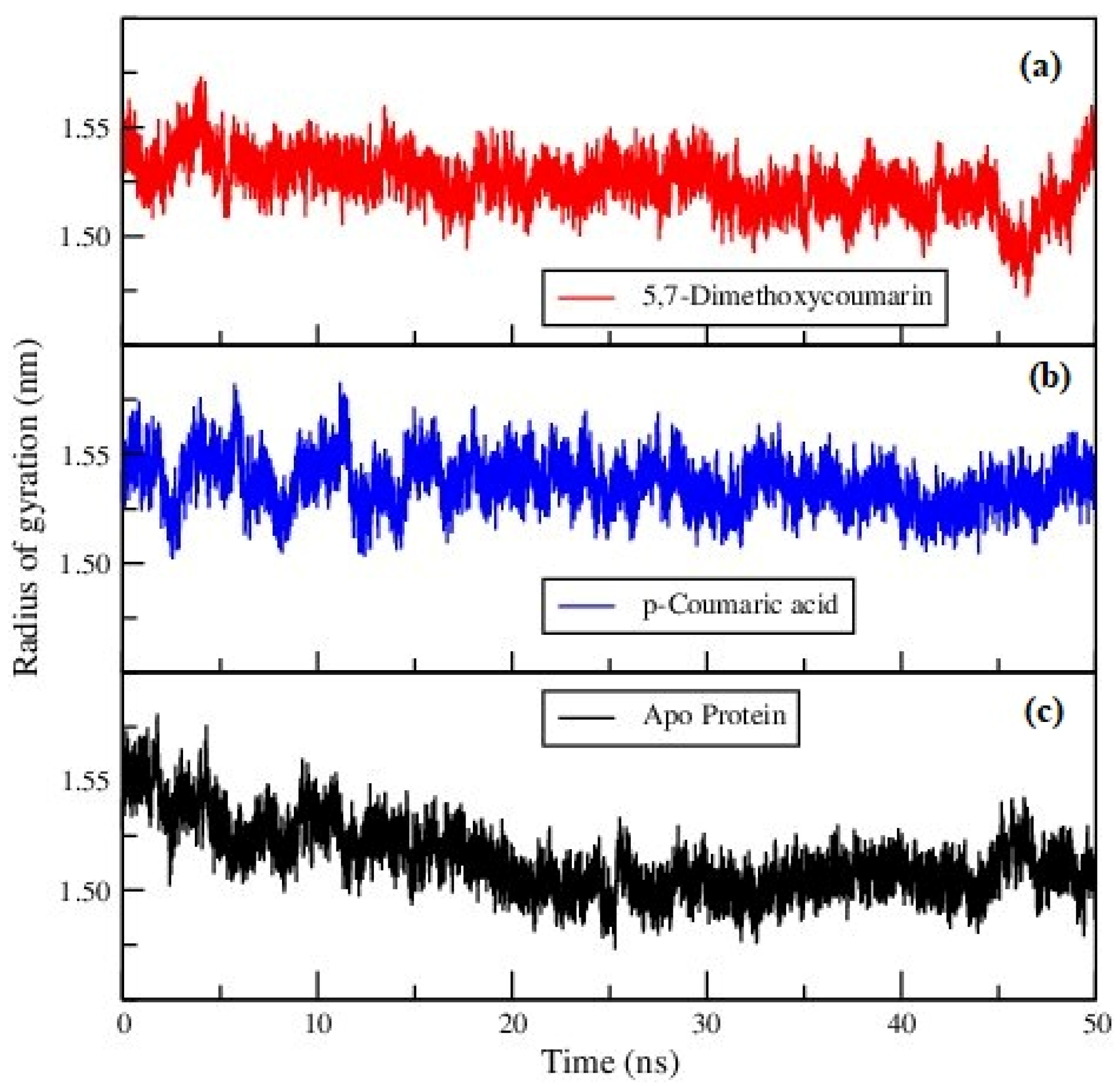

The compactness of the ligand–protein systems presented in Figure 4 was calculated using the radius of gyration (Rg) of the protein. The same parameter was calculated for apo-protein and is presented in Figure 4c. All the Rg values appear to be spread between 1.45 nm to 1.60 nm, as can be seen in the figures. All the proteins exhibited reasonable stability by having a plateau variation of Rg in the last 10–20 ns of the MD trajectories. Therefore, it can be emphasized that the binding of ligands would not affect the structural stability of the protein.

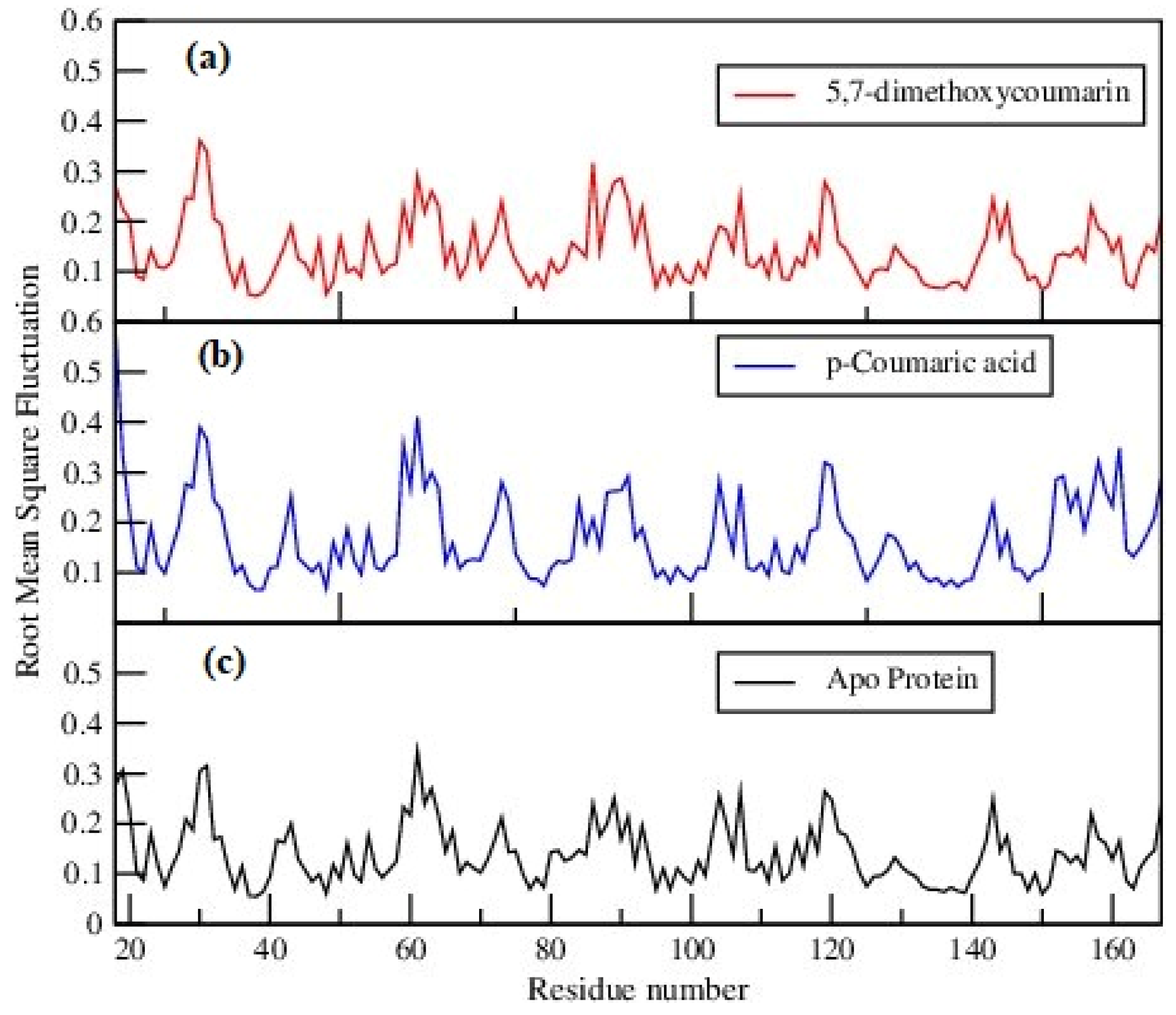

Conformational differences of individual amino acids in protein were compared by calculating the root mean square fluctuations (RMSFs) of amino acids, which are given in Figure 5. Close examination reveals some minor differences in the fluctuations of the amino acids of proteins in ligand–protein complexes and of that in apo-protein. However, it can be seen that the overall structural integrity of proteins was preserved, strengthening the conclusions drawn from the previous calculations.

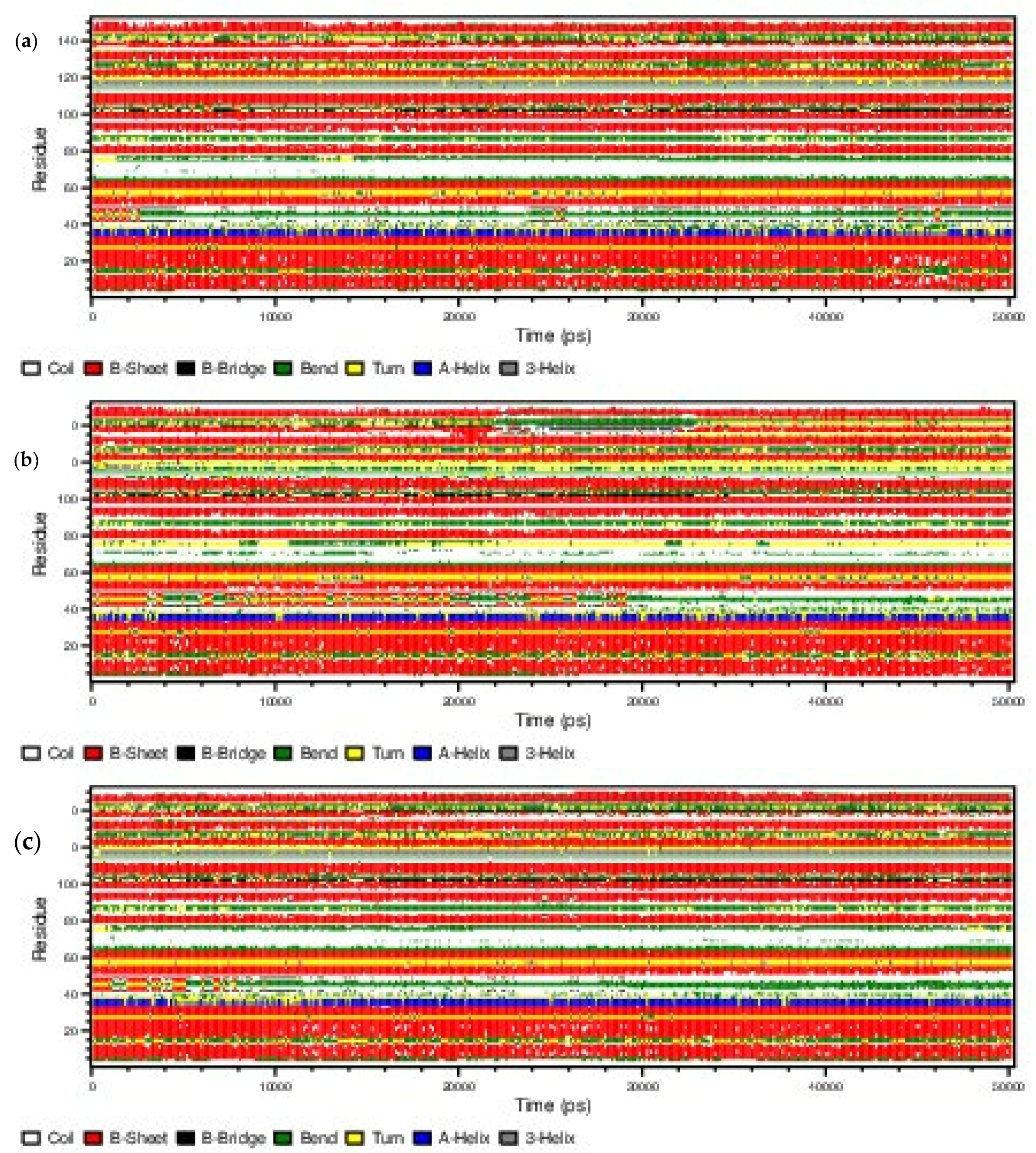

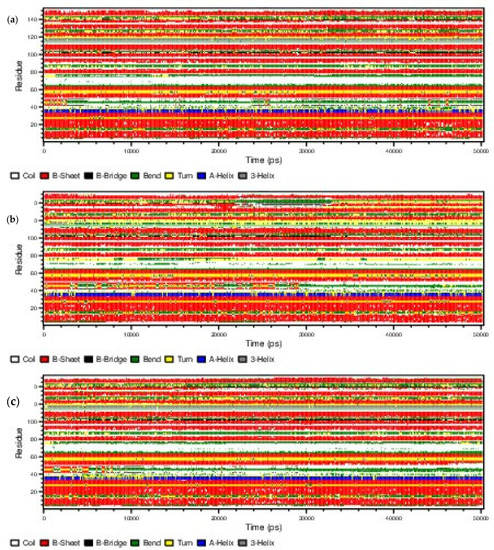

The DSSP analyses were carried out for the configurations taken at every 100 ps of the 50 ns MD trajectories using the do_dssp utility of GROMACS software package. The time evaluations of the secondary structure of the ligand–protein complexes and apo-protein are presented in Figure 6. The results revealed that the secondary structure of all the systems including the apoprotein remained almost the same throughout simulations, indicating no significant secondary structure changes.

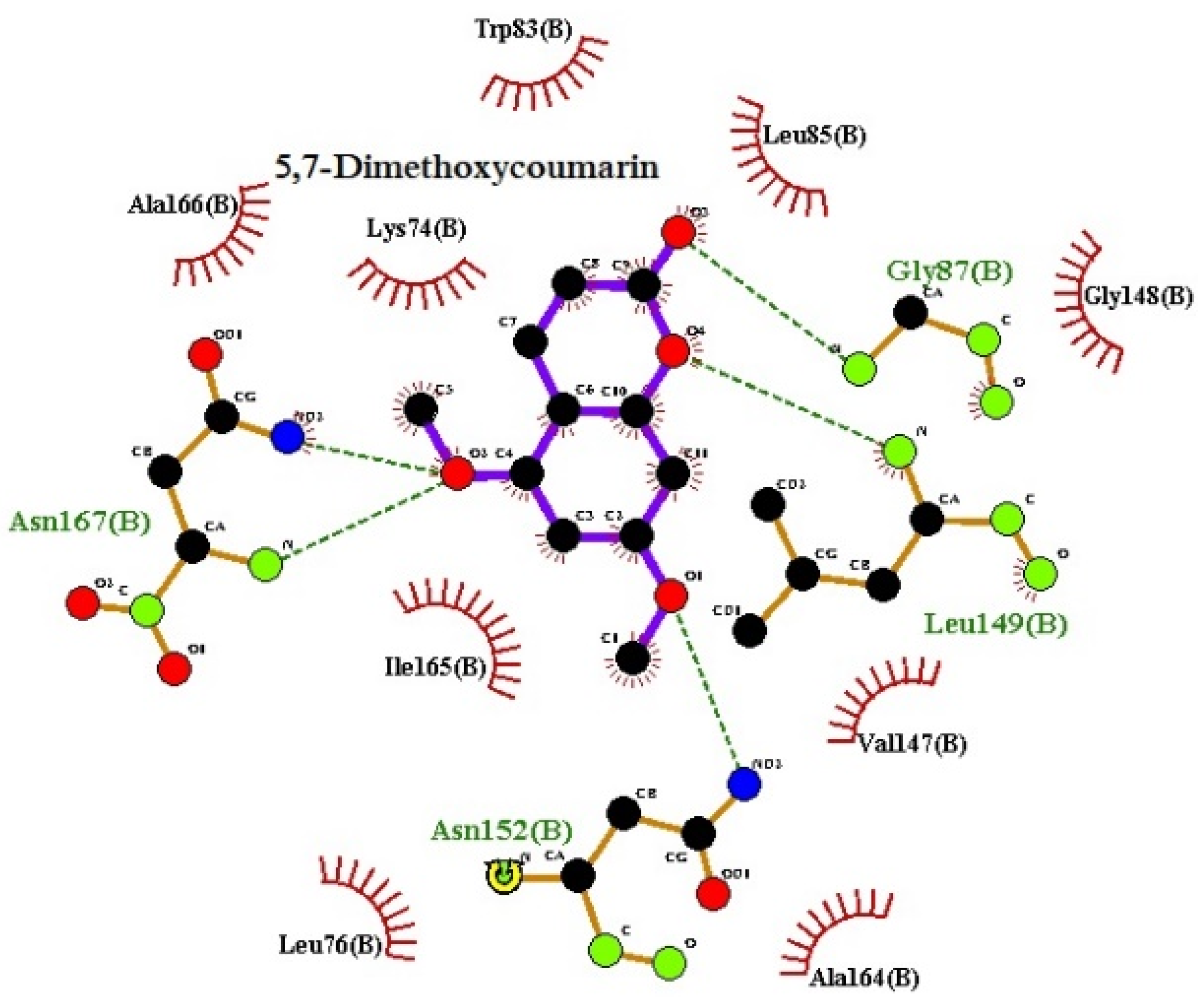

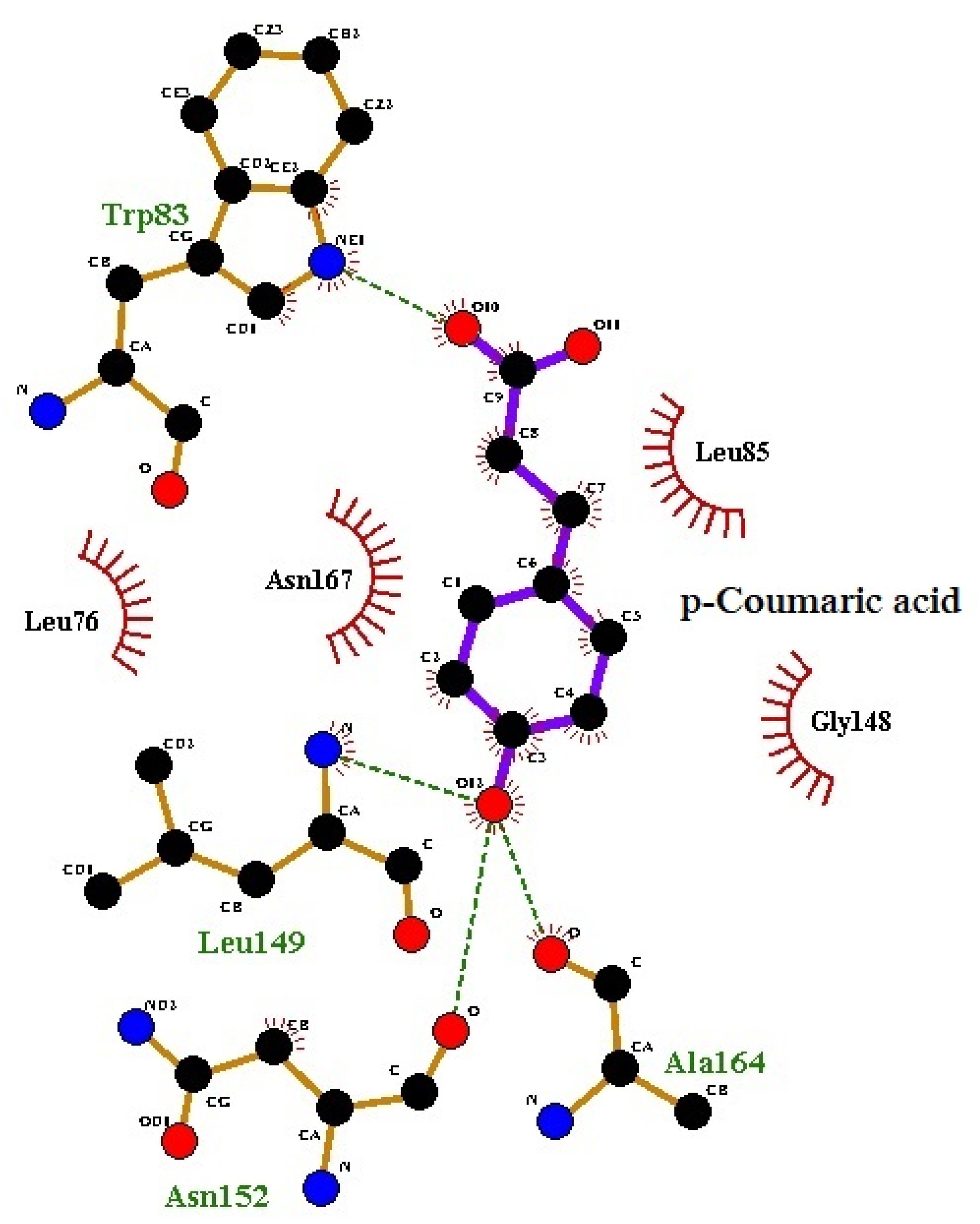

The LigPlot analysis of the protein structures indicates that the ligands form strong hydrogen bonds with DEN2 NS2B/NS3 serine protease; specifically, residues Leu149 and Asn152 (Figure 7 and Figure 8, respectively). The number of hydrogen bonds was studied using the g_dist tool in the GROMACS program. Throughout the simulation time, the distance between the centers of mass of the two groups of atoms which were involved in hydrogen bond formation was maintained nearly at a constant value, confirming the continuance, stability, and effectiveness of the hydrogen bonding.

3.3. MM-PBSA Calculations

The MM-PBSA analyses were conducted for the two (2) complexes to investigate their protein–ligand interactions. The potential energy in the vacuum (van der Waals and electrostatic energy), polar solvation energy, nonpolar solvation energy (under the solvent-accessible surface area model), and the MM-PBSA binding free energy obtained from the g_mmpbsa module in GROMACS molecular dynamics software package are listed in

Table 1. Binding energy components and binding free energy for ligands from MM-PBSA (all energy terms are in kJ/mol).

System	Van der Waals Energy	Electrostatic Energy	Polar Solvent Energy	Non-Polar Solvent Energy	Binding Free Energy
5,7-Dimethoxycoumarin	−85 ± 11	−10 ± 1	54 ± 7	−7.7 ± 0.8	−47 ± 3
p-Coumaric acid	−74 ± 14	−208 ± 58	155 ± 62	−10 ± 1	−138 ± 31

below. The resultant binding free energies were large negative values, indicating that two ligands are spontaneously binding to the protein.

4. Conclusions

The molecular docking and molecular dynamics results indicate that the binding affinity of 5,7-dimethoxycoumarin, is less than that of p-coumaric. However, overall results indicated that the ligands bind to the binding site of DEN2 NS2B/NS3 receptor via hydrophobic and hydrogen bonding interactions. Specifically, the MD study provides an important contribution to understand the stability of the DEN2 ligand–NS2B/NS3 serine protease complex system in aqueous solution. Thus, it could be suggested that the binding of 5,7-dimethoxycoumarin and p-coumaric acid molecules have a potential inhibitory activity against NS2B–NS3 serine protease. Moreover, it is an indication that Carica papaya might employ its antiviral activity by blocking the viral assembly mechanism of the DENV2 virus. Therefore, this study provides a good platform for further investigations in terms of the pharmaceutical potential and biological functions of 5,7-dimethoxycoumarin and p-coumaric acid when it binds to DEN2 NS2B/NS3 serine protease at the molecular level and in vivo as well.
