Powering E-Textiles Using a Single Thread Radio Frequency Energy Harvesting Rectenna ^†

Abstract

Radio frequency energy harvesting (RFEH) and wireless power transfer (WPT) are increasingly seen as a method of enabling sustainable computing, as opposed to mechanical or solar EH WPT does not require special materials or resonators and can be implemented using low-cost conductors and standard semiconductor devices. This work revisits the simplest antenna design, the wire monopole to demonstrate the lowest-footprint, lowest-cost rectifying antenna (rectenna) based on a single Schottky diode. The antenna is fabricated using a single Litz-wire silk-coated thread, embroidered into a standard textile substrate. The rectifier is fabricated on a compact low-cost flexible printed circuit board (PCB) using ultra-thin polyimide copper laminates to accommodate low-footprint surface mount components. The antenna maintains its bandwidth across the 868/915 MHz license-free band on- and off-body with only −4.7 dB degradation in total efficiency in human proximity. The rectenna achieves up to 55% RF to DC efficiency with 1.8 V DC output, at 1 mW of RF power, demonstrating its suitability as a power-supply unit for ultra-low power e-textile nodes.

1. Introduction

Radio frequency (RF) energy harvesting (EH) is a potential method of powering electronic-textiles sustainably, enabling battery-free operation. RF energy can either be scavenged from ambient wireless networks such as cellular or Wi-Fi, or directly transmitted to the e-textile device using a dedicated transmitter such as a RF-ID interrogator [1]. A rectifying antenna (rectenna), formed of a radiating element whose impedance is matched to a rectifier is required to convert the available RF power to DC power for storage and regulation by a power management circuit. The rectifier is commonly based on Schottky diodes of different topologies depending on the application and target power levels, with the most popular topologies being the single-series, aimed at maximizing the RF-DC efficiency for µW-RFEH, or a voltage multiplier and charge-pump, aimed at improving the voltage sensitivity of the harvester at mW and sub-mW RFEH and WPT applications; a review of the performance of different rectifier is available in [1].

The sub-1 GHz Industrial Scientific and Medical (ISM)-band (Europe-868/US-915 MHz) represent an attractive channel for RFEH and WPT for autonomous body area networks, due to the lower free space propagation losses and the potential to achieve higher rectification efficiency than higher frequency microwave and mmWave bands. Thus, Multiple low-power transceivers and energy harvesters have been presented for the 915 MHz band [1]. The only trade-off associated with RFEH at sub-1 GHz bands is the antenna size due to the wavelength. However, in e-textiles the area of the device is not limited and multiple rectennas could co-exist on the same garment.

Although harvesting on textiles has been considered at different frequencies form 2.4 GHz to mmWave bands [2,3], the main focus of the work has been on achieving high-efficiency harvesting on the expense of ease of integration in any textile without requiring low-loss materials or thick fabrics. For example, reported microstrip patch antennas have been limited to thick felt fabric to ensure high radiation efficiency. Moreover, the rectifier has been integrated on a rigid low-loss RF substrate (RT/Duroid) which increase the design complexity and cost [2].

This work presents a fully-flexible textile rectenna based on a single-thread microstrip monopole antenna with a miniaturised ground plane. The rectifier, designed on an ultra-thin flexible polyimide PCB, achieves a high RF-DC efficiency of up to 60% at 1 mW of RF power level with 1.8 V when connected to a 6.8 kOhm load. This paper discusses the thread-monopole antenna design and fabrication, the performance of the antenna on and off-body, as well as the textile rectifier’s performance for EH applications.

2. Embroidered Textile Monopole Antenna

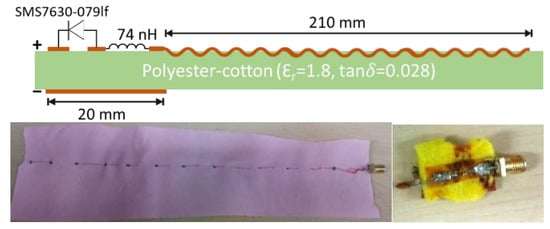

The simplest antenna design is a quarter-wavelength wire perpendicular to an infinite ground plane. However, on a planar textile surface it is impossible to realise a free-standing antenna. Moreover, a large ground plane will affect the user’s comfort due to the added weight and reduced flexibility of the fabric. A planar microstrip monopole antenna has been designed and simulated in CST Microwave Studio, a full-wave 3D electromagnetic simulation package. The ground plane size has been minimised with the length of the monopole tuned empirically based on the simulation results to achieve resonance at 915 MHz. Figure 1 shows the layout of the designed thread monopole antenna. The 20-mm wide has been designed of 50-mm length to improve and stabilise the 50-Ohm matching of the antenna.

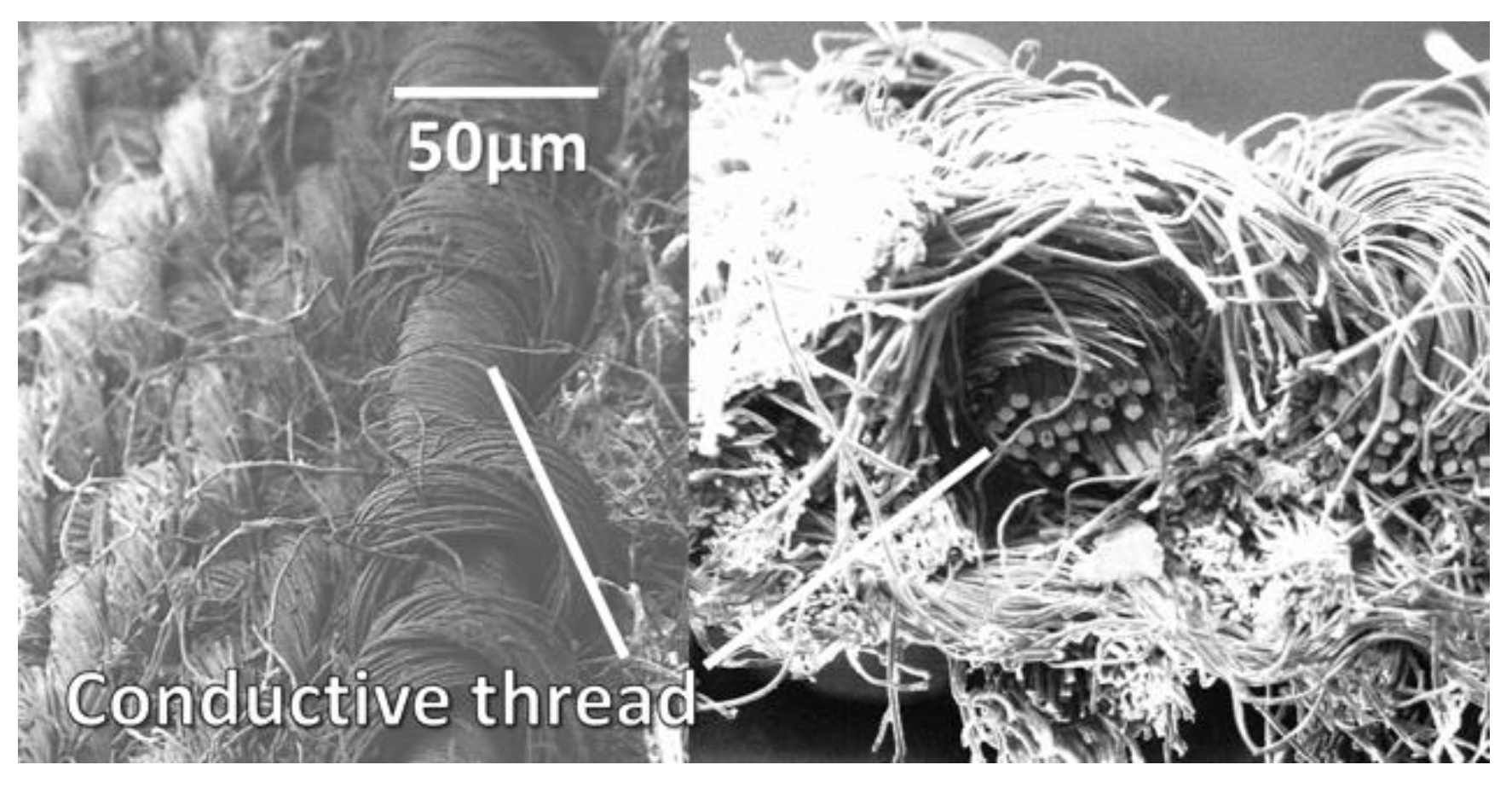

The proposed antenna has been fabricated on a polyester-cotton substrate (Ԑ_r = 1.8, tan𝛿 = 0.028 [2]). Conductive silk-coated Litz copper wires, of 40 µm thickness, have been stitched to the polyester-cotton fabric to form the antenna’s radiator. Stitched or embroidered Litz wires have been chosen due to their higher conductivity compared to printed silver-paste conductive inks. Figure 2 shows an SEM cross-section of the conductive threads. The Litz wire has been soldered to the 50 Ohm microstrip line connected to the rectifier. The microstrip rectifier and matching network have been fabricated on a 25 µm substrate.

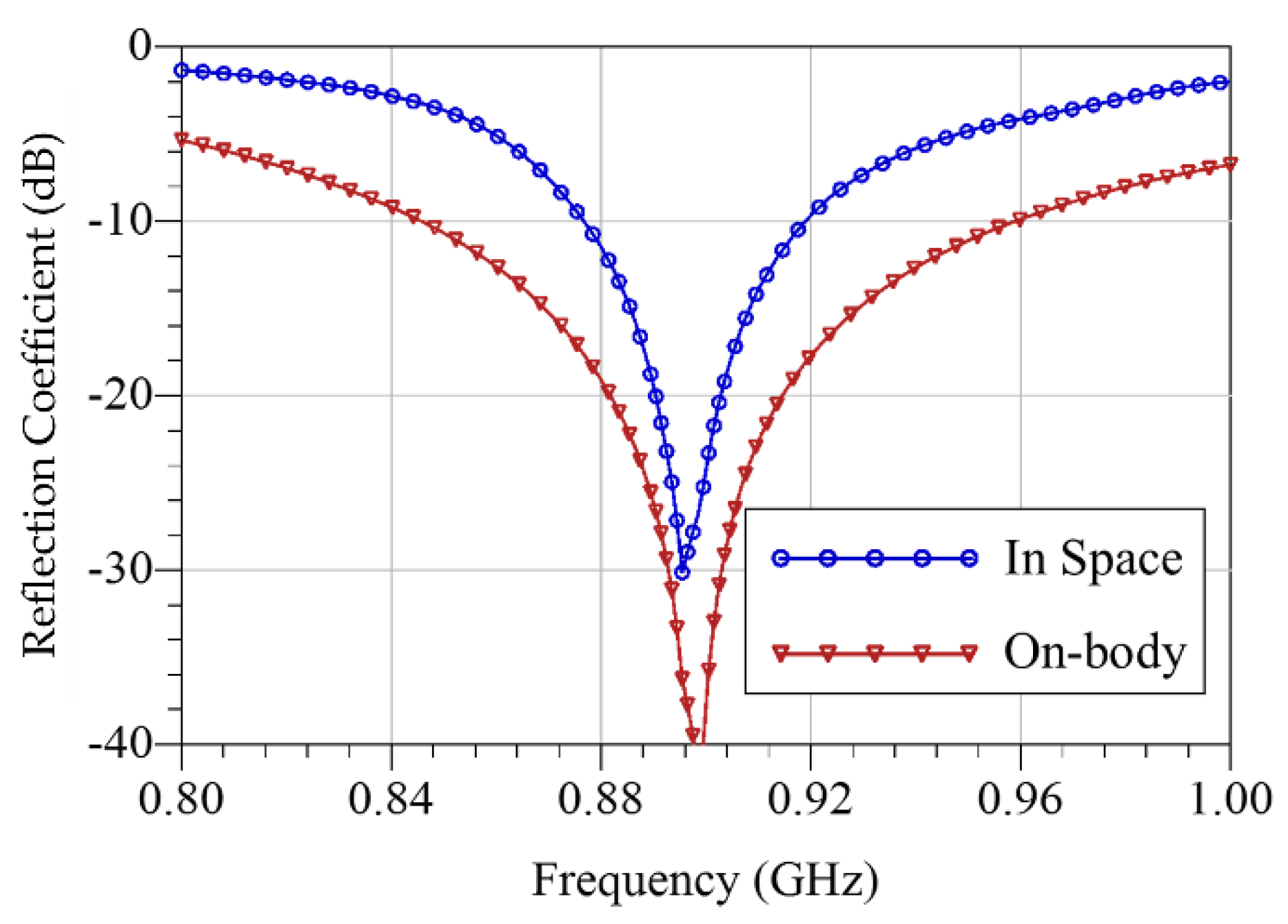

The fabricated antenna’s bandwidth has been measured using a Rohde & Schwarz ZVB4 (Germany) vector network analyzer (VNA). Figure 3 shows the measured return loss of the antenna, showing its bandwidth covering the 915 MHz ISM-band. The antenna’s radiation characteristics have been obtained from CST 3D field monitors in simulation as well as measured experimentally. The forward transmission between two identical textile antennas has been measured with the path losses estimated using the Friis free space propagation model.

Table 1. Single-thread monopole antenna characteristics.

	In Space	On-Body
Bandwidth (MHz)	42.2	114.6
Fractional Bandwidth	4.6%	12.7%
Simulated Gain (dBi)	2.1	-
Measured Realised Gain (dBi)	1.9	−2.8
Simulated Radiation Efficiency	35%	0.58%
Radiation Efficiency	89%	-

shows the simulated and measured antenna characteristics, demonstrating higher radiation efficiency than textile antennas, such as [2], due to the lower dielectric losses associated with a monopole antenna compared to a microstrip patch, with minimal impact of the substrate’s thickness and dissipation factor.

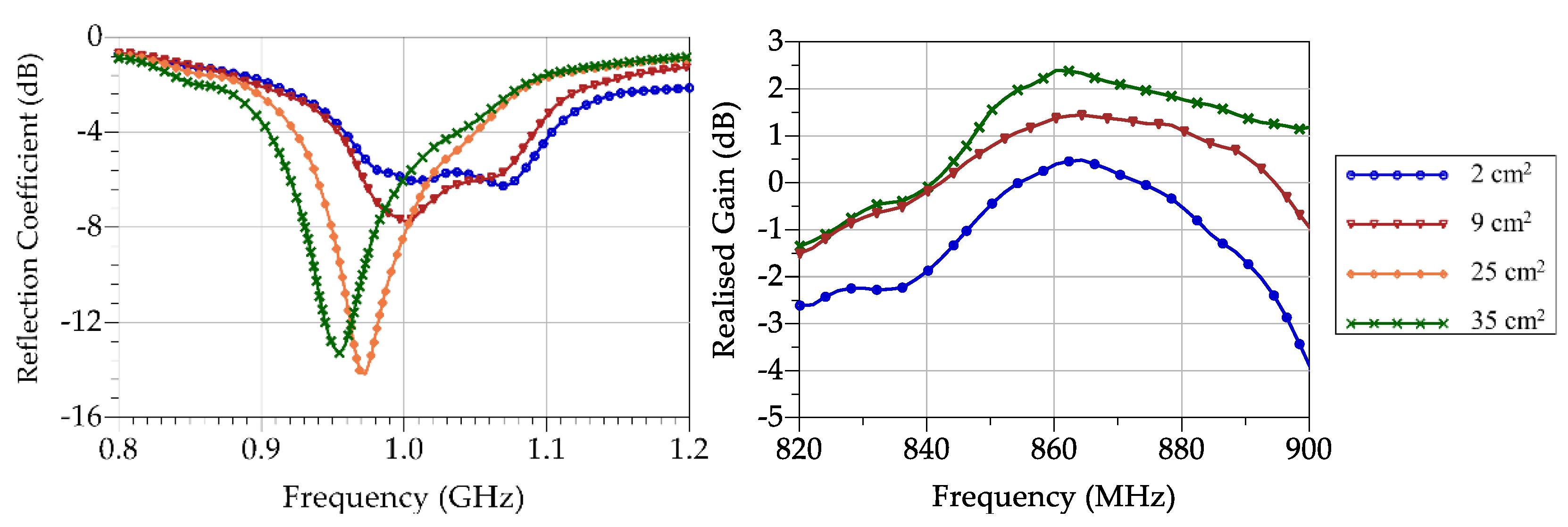

To seamlessly integrate the antenna in textiles, the ground plane needs to be minimized to the minimum area which fits the rectifier’s components. However, the 50 Ohm matching of the monopole is expected to be affected by the size reduction. Figure 4 shows the measured return loss and gain of the stitched monopole with different ground-plane sizes. While it is observed that the impedance matching quality reduces with ground planes smaller than 25 cm², the impact on the realized gain has been less than −2 dB demonstrating the suitability of a textile monopole of 2 cm² ground plane.

3. Textile Rectifier

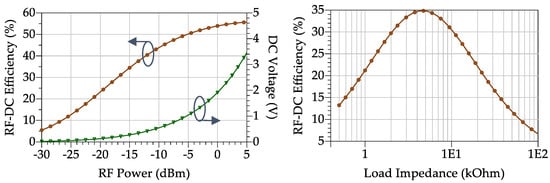

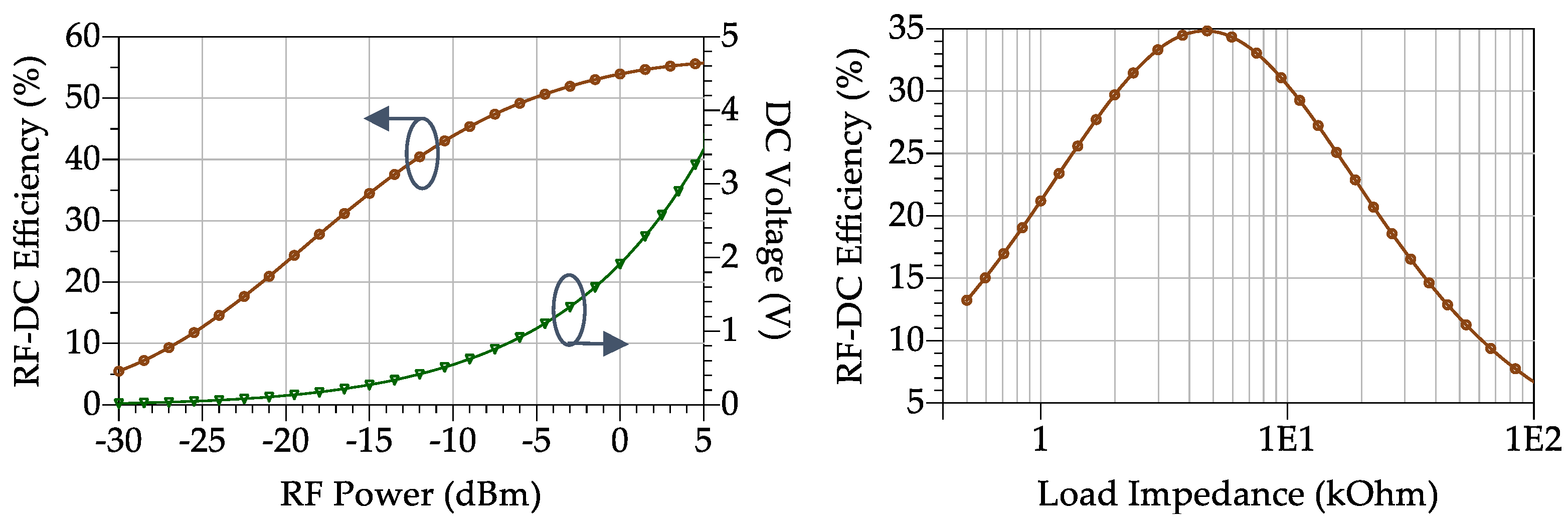

The proposed single series rectifier, shown in Figure 1, has been designed on a 50 Ohm microstrip line soldered to the antenna’s output. A 1st order L-matching network has been designed to match the antenna’s 50 Ohm impedance to the diode’s complex impedance at 915 MHz, obtained using harmonic balance simulation. 50 Ohm matching networks simplify the rectifier characterization process using standard lab instruments, and enable the use of standard antenna designs, as opposed to antenna-rectifier co-design [4]. The diode is a Skyworks SMS7630-079 Schottky. The power conversion efficiency (PCE) of the rectifier has been tested for different RF power levels and load impedances, Figure 5 shows the rectifier’s PCE for varying RF power levels and load impedances.

While the observed PCE is lower than the ideal PCE achievable by a matched SMS7630-079 diode as in [1,2], the losses are attributed to the inductor having a series resistance of approximately 10 Ohms, calculated using the circuits model in ADS using harmonic balance. This could be overcome by utilising a high-Q inductor, or a distributed matching network on a less-lossy substrate.

4. Conclusions

This paper presented a low-cost fully-textile rectenna demonstrating the potential of RF wireless power acting as a seamlessly-integrated power supply for e-textiles. A simple antenna design and a fabric-independent rectifier have been presented demonstrating high RF-DC efficiency and low optimal output load impedance for ease of integration with power management circuitry. Future work includes investigation of a large rectenna array with DC-combining for high-RF-power reception, in addition to methods of reducing mutual-coupling between multiple on-body rectennas, as well as utilizing RF power to power a wearable all-textile wireless sensor node.
