Urban Heat Island Analysis Using the Landsat 8 Satellite Data: A Case Study in Skopje, Macedonia ^†

Abstract

An urban heat island (UHI) is an urban area that is significantly warmer than its surrounding rural areas due to antropogenic activities. The urban area of the city of Skopje has been rising rapidly in the past decade. In this study, the effect of UHI is analyzed using Landsat 8 data in the summer period of 2013–2017 as a case study in Skopje, Macedonia. An algorithm was applied to retrieve the land surface temperature (LST) distribution from the Landsat 8 data. In addition, the correlation between land surface temperature and the normalized difference vegetation index (NDVI) and the normalized difference build-up index (NDBI) were analyzed to explore the impacts of the green areas and the build-up land on the urban heat island. The results indicate that the effect of the urban heat island in Skopje is located in many sub-urban areas. The negative correlation between LST and NDVI indicates that the green area can weaken the effect on the urban heat island, while the positive correlation between LST and NDBI means that the built-up land can strengthen the effect of the urban heat island in the study area.

1. Introduction

Due to the fact that the global mean surface temperature has risen since the 20th century, global climate change has acquired more attention. Urbanization is one of the most significant contributors to global warming, as more than 50% of the human population lives in cities. The growth of population and urbanization has caused the phenomenon of Urban Heat Islands (UHI), which can be described as the alteration of temperatures in urban areas compared to their rural surroundings [1]. In order to observe UHI and their behavior, UHI studies are generally conducted in two ways: through the air temperature measuring, or through measuring the surface temperature [2]. With the ability of remote sensing sensors to measure the surface temperature, remote sensing has been successfully used in UHI studies all over the world. Different instruments have been used in UHI studies as The Moderate Resolution Imaging Spectroradiometer—MODIS [1,3,4], Landsat TM, ETM+ and OLI/TIRS [5,6], and ASTER [7], as well as their combined use. As MODIS is a low-resolution sensor; it has been used for big areas, while Landsat and ASTER with their medium resolution are more suitable for observing single cities or smaller areas. Research on LST and UHI showed that surface temperature response is a function of different land cover [8], which prompted research on the relationship between LST and land cover, and especially vegetation abundance [5,9,10,11].

Using remote sensing techniques, various vegetation indices can be obtained and used in the assessment of vegetation cover. The Normalized Difference Vegetation Index (NDVI) has been widely used for vegetation extraction. Higher NDVI values indicate a higher vegetation area in a pixel. For extraction of urban areas, the Normalized Difference Built-up Index has been widely used. Building a connection between the land cover and LST can be valuable for urban climate studies.

In this study, the effects of UHIs, as well as the relationship between LST, NDVI, and NDBI, have been studied for the city of Skopje. For this purpose, two Landsat 8 satellite images from 2013 and 2017 summer period have been downloaded from the USGS webpage.

2. Study Area and Methods

Skopje is the capital of the Republic of Macedonia, and is located in the center of the Balkan Peninsula. Republic of Macedonia is a landlocked country with a population of approximately 2 million citizents. The population of Skopje is estimated to be more than 700,000 [12]. In the last few decades, the urban area of Skopje has been significantly expanding. Skopje has been built in the Skopje Valley along the riverbed of Vardar. Skopje covers an area of 1818 km², 23 km in longitude and 9 km in latitude, and is situated on a height of 245 m above the sea level. Skopje has an average temperature of 13.5 °C, and its average rainfall per year is 940 mm [13].

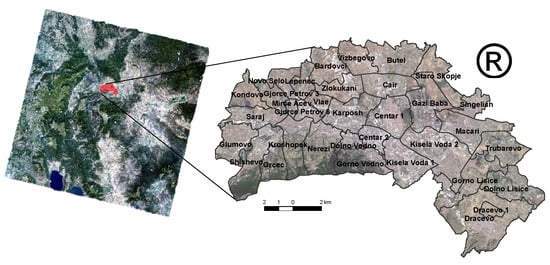

In this study, Landsat 8 satellite data have been used in order to investigate the UHI in 35 municipalities in the city of Skopje (Figure 1) and its behavior in the period of 2013 and 2017. For this purpose, two satellite images (Path 185 and Row 31) from July 2013 and July 2017 have been downloaded from the USGS webpage. Also, air temperature data from the meteorological station have been obtained for the same day and time with the overpass of the satellite over the city of Skopje (

Table 1. Air temperature data.

Date	Time	Air Temperature	Humidity
1 July 2013	10:20	22 °C	35%
12 July 2017	10:20	30 °C	43%

).

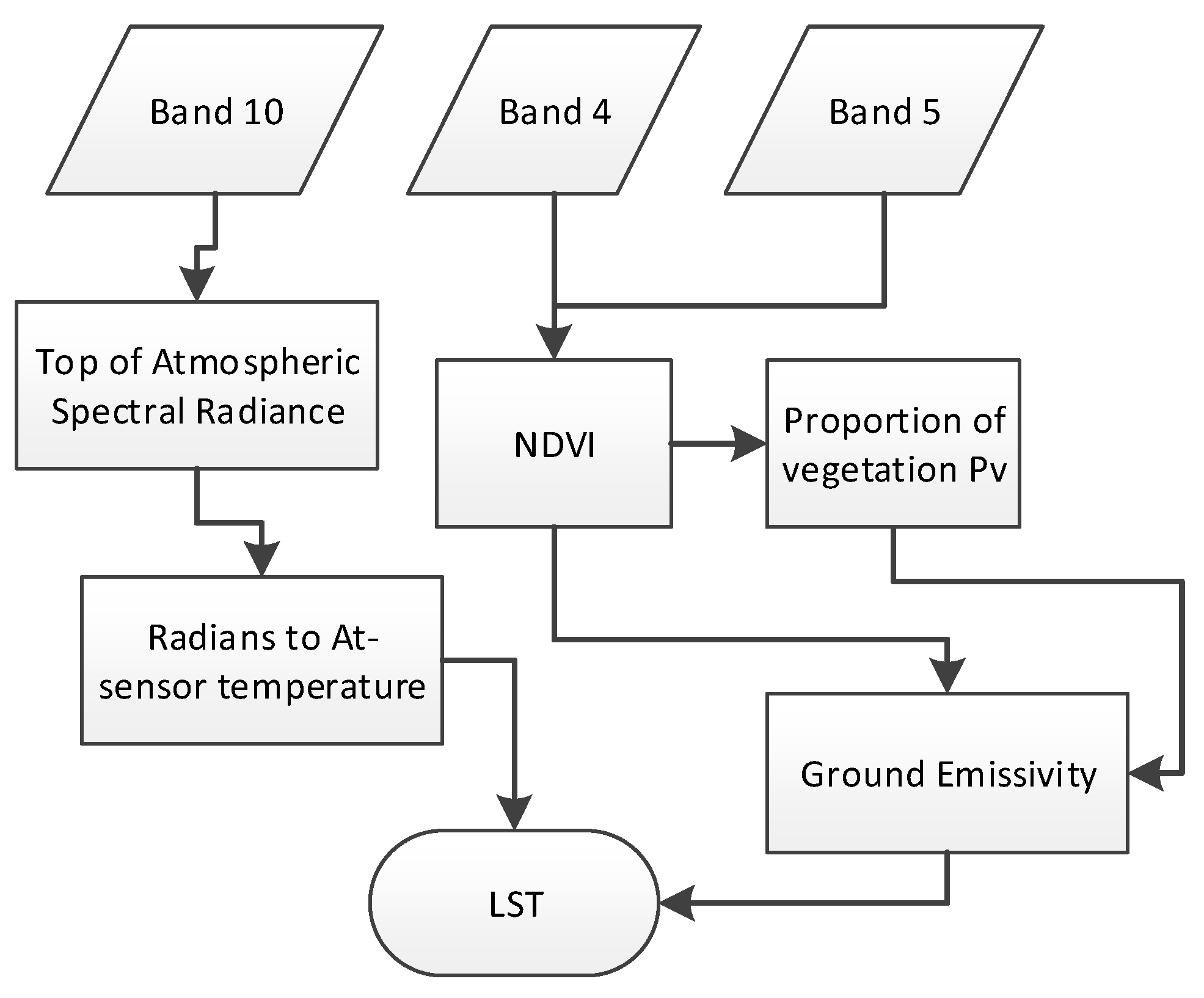

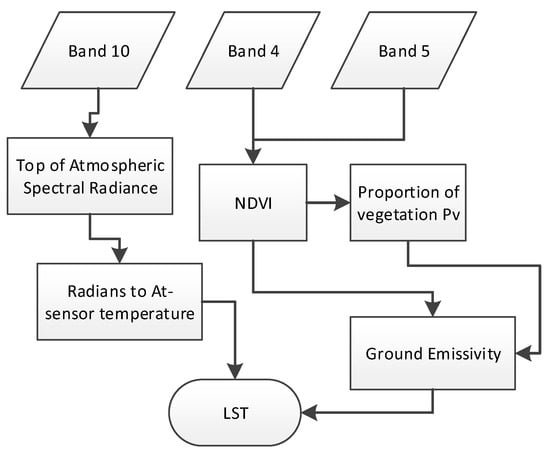

For extracting the UHIs, LST tool developed using ERDAS IMAGINE Model Maker was used [14]. The tool is used for retrieving LST of a given LANDSAT 8 image with the input of the fourth (red wavelength/micrometres, 0.64–0.67), fifth (near infrared (NIR) wavelength/micrometres, 085–0.88), and tenth (thermal infrared sensor (TIRS) wavelength/micrometres, 10.60–11.19) bands. A flowchart of the used algorithm is shown in Figure 2.

The UHI has been extracted using the following method [15]:

$$UHI=\mathsf{\mu }+\frac{\sigma }{2}$$

(1)

in which µ is the mean LST value of the study area, and σ is the standard deviation of the LST. NDVI and NDBI were calculated in order to determinate the correlation between the land cover and the LST results. NDVI is calculated using the 5th and 4th or Near Infra Red and Red Landsat 8 bands (Equation (2)).

$$\mathrm{NDVI}=\frac{\mathrm{NIR}-\mathrm{Red}}{\mathrm{NIR}+\mathrm{Red}}$$

(2)

The NDBI index [6] is calculated using the 6th and 5th or the Middle Infra Red and Near Infra-Red Landsat 8 bands, respectively.

$$\mathrm{NDBI}=\frac{\mathrm{MIR}-\mathrm{NIR}}{\mathrm{MIR}+\mathrm{NIR}}$$

(3)

3. Results

A correlation coefficient between LST and NDVI, and LST and NDBI, has been calculated in order to explore the impact of the green land and the build-up land on the UHI. The results from the performed statistical analysis are shown in

Table 2. Results of the correlation coefficient between LST, NDVI, and NDWI.

Year	LST-NDVI	LST-NDBI
2013	−0.63	0.67
2017	−0.59	0.64

.

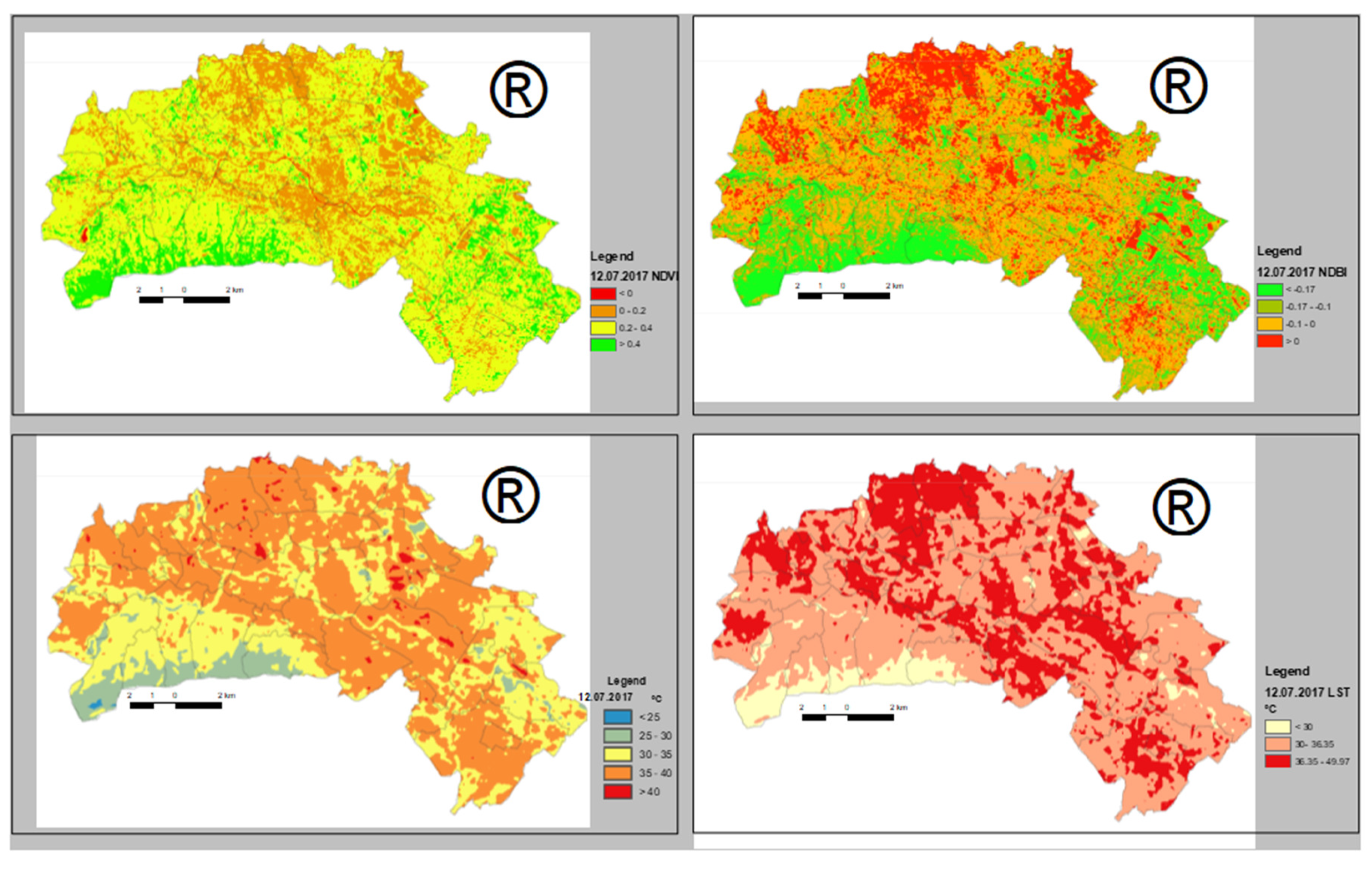

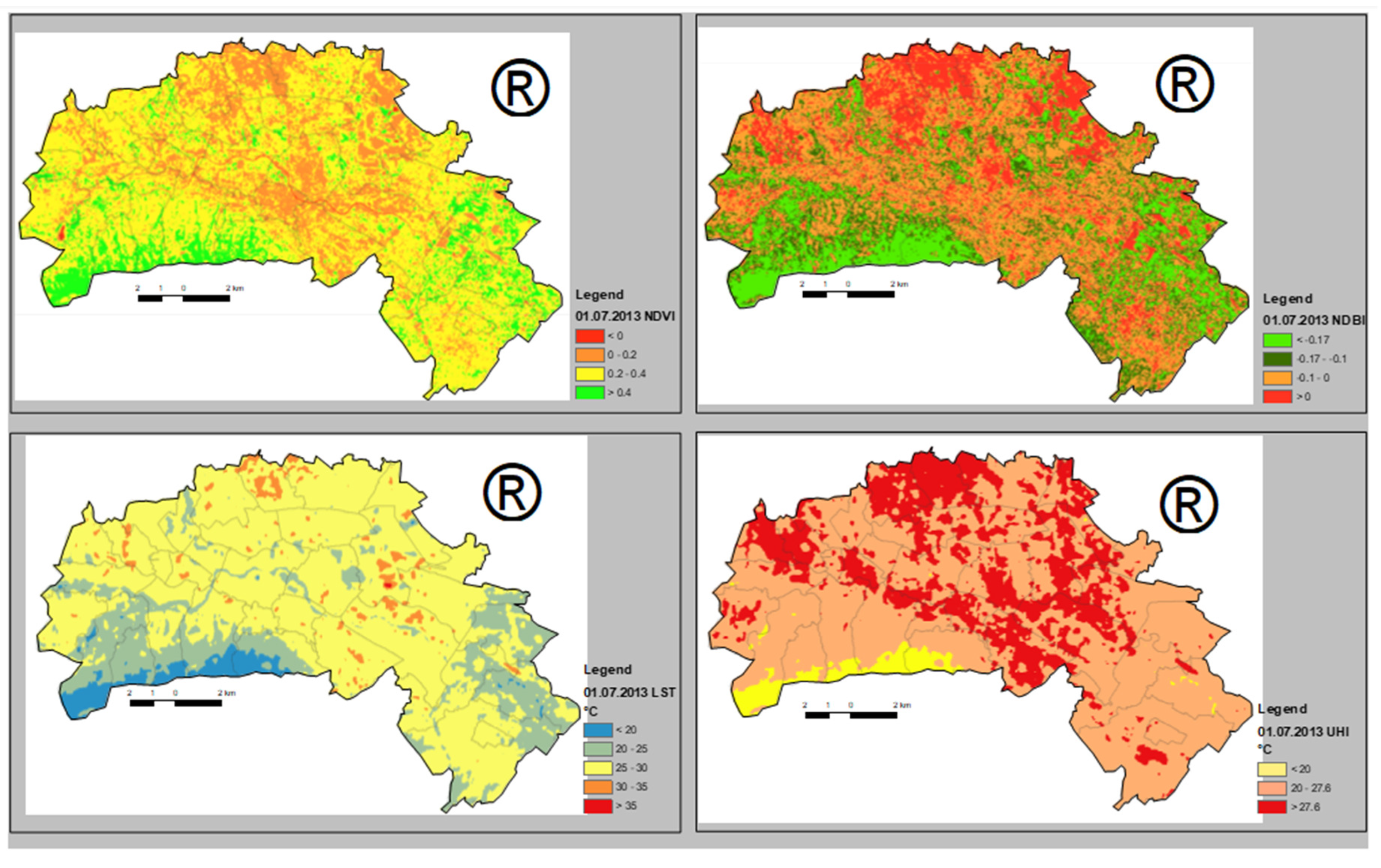

The results from the land cover analysis showed that the vegetation area has slightly decreased from 2013 to 2017 and expansion of some urban areas has been noticed. The surface temperature analysis showed that the minimum and maximum temperatures in the study area were 15 °C and 37 °C for 2013, and 24 °C and 49 °C for 2017, which matches the air temperature differences from the meteorological data. The results from the LST, NDVI, and NDVI analyses are shown in Figure 3 and Figure 4.

The comparison between the UHI from 2013 and 2017 indicates an increase of the UHI area for approximately 4 km² (

Table 3. 2013–2017 UHI comparison.

Year	Study Area (km2)	UHI Area (km2)
2013	130	51
2017	130	55

).

4. Discussion

In this paper, the relationship between land cover and UHI of the city of Skopje has been studied. Correlation of LST with both NDVI and NDBI indices was calculated, and the results showed that the effect of UHI in Skopje is located in many sub-urban areas. The negative correlation between LST and NDVI indicates that the green areas can weaken the effect on urban heat island, while the positive correlation between LST and NDBI means that the built-up land can strengthen the effect of urban heat island in the study area.

5. Conclusions

Global climate change is expected to raise the occurrence of urban heat island effects. Air temperatures in cities increase disproportionately to urban areas and have a locally acute, adverse human health, economic, social, and environmental impact. Land use/cover has a relationship with LST that can help in land use planning, has contributed to global climate change, and has changed UHI intensity, mainly through the process of the study area. Using the latent heat flux from the surface to atmosphere via evapotranspiration, the amount of green areas determines LST. Lower LSTs usually are found in areas with high NDVI. This negative correlation between NDVI and LST and the positive correlation between NDBI and LST is valuable for urban climate studies. As an outcome of this study, it can be concluded that in order to reduce UHI effects, local governments should increase the number of green areas in the intensive populated urban areas.
